Product Type	Food Steamer
Brand	Duronic
Model	FS95
Dimensions	47 x 28 x 21 cm (18.5 x 11 x 8.3 in)
Water Tank Capacity	Min: 500 ml, Max: 1500 ml
Power Cord Length	86 cm (33.9 in)
Power	800 - 950 W
Voltage	220 - 240 V, 50 - 60 Hz
Timer Range	0 - 60 minutes
Number of Steamer Baskets	3
Included Accessories	Lid, Steamer Baskets (x3), Drip Tray, Rice Steaming Bowl, Water Tank, Timer Dial, Water Level Gauge, Base Unit
Material	Plastic (BPA-free not specified)
Safety Features	Auto shut-off when water runs low; cool-down period required before refilling; do not immerse base in water
Cleaning	Removable parts dishwasher safe; descale with white vinegar periodically
Warranty	Not specified in manual

Frequently Asked Questions - FS95 Duronic

How do I use the Duronic FS95 food steamer for the first time?

Before first use, remove all packaging and wash the Rice Steaming Bowl, Lid, Steamer Baskets, and Drip Tray in warm soapy water or dishwasher. Wipe the base unit with a damp cloth. Place the steamer on a flat, dry surface near a power outlet. Fill the water tank up to the MAX line, assemble the drip tray and baskets, add food, place the lid, turn the timer dial, and steam.

What is the maximum water level in the tank?

The water tank has a maximum capacity of 1500 ml indicated by a MAX line. Do not exceed this line to avoid overflow. The minimum is 500 ml.

Can I steam rice in the FS95?

Yes, the steamer includes a Rice Steaming Bowl. For best results, use 400g of rice and steam for 45-50 minutes with cold water.

How do I clean the Duronic FS95?

Unplug and let cool completely. Wash removable parts (Baskets, Lid, Drip Tray, Rice Bowl) in warm soapy water or dishwasher. Do not immerse the base unit; wipe with a damp cloth. Descaling: fill tank with white vinegar, steam for 20-25 minutes, let cool, empty, and rinse.

Why is my steamer not producing enough steam?

Check water level: ensure it's above the minimum line. If low, refill. Clean any blockages in baskets or water tank; limescale buildup may require descaling. Also avoid overcrowding the baskets.

Can I put the steamer parts in the dishwasher?

Yes, the Steamer Baskets, Lid, Drip Tray, and Rice Steaming Bowl are dishwasher safe. However, the base unit must never be immersed or placed in the dishwasher.

What are the cooking times for common foods?

Refer to the recipe guide in the manual. Examples: Rice (400g) 45-50 min, Potato (900g) 40 min, Carrot (550g) 25 min, Eggs (8) 15-20 min, Chicken (550g) 40 min. Times vary based on size and preference.

Is the Duronic FS95 safe to leave unattended?

No, never leave the steamer unattended during operation. It has an auto shut-off when water runs low, but you should stay nearby to monitor and prevent dry burning.

What should I do if the steamer leaks water?

Ensure all parts are assembled correctly: Baskets, Lid, and Water Tank must be aligned. Check that steam vents at the bottom of baskets are not blocked. Avoid overfilling the water tank.

How often should I descale the steamer?

Descaling frequency depends on water hardness. Use distilled or filtered water to reduce scale. When you notice limescale buildup or reduced steam, fill the tank with white vinegar, steam for 20-25 minutes, cool, empty, and rinse.

USER MANUAL FS95 Duronic

Creative Consumer Products

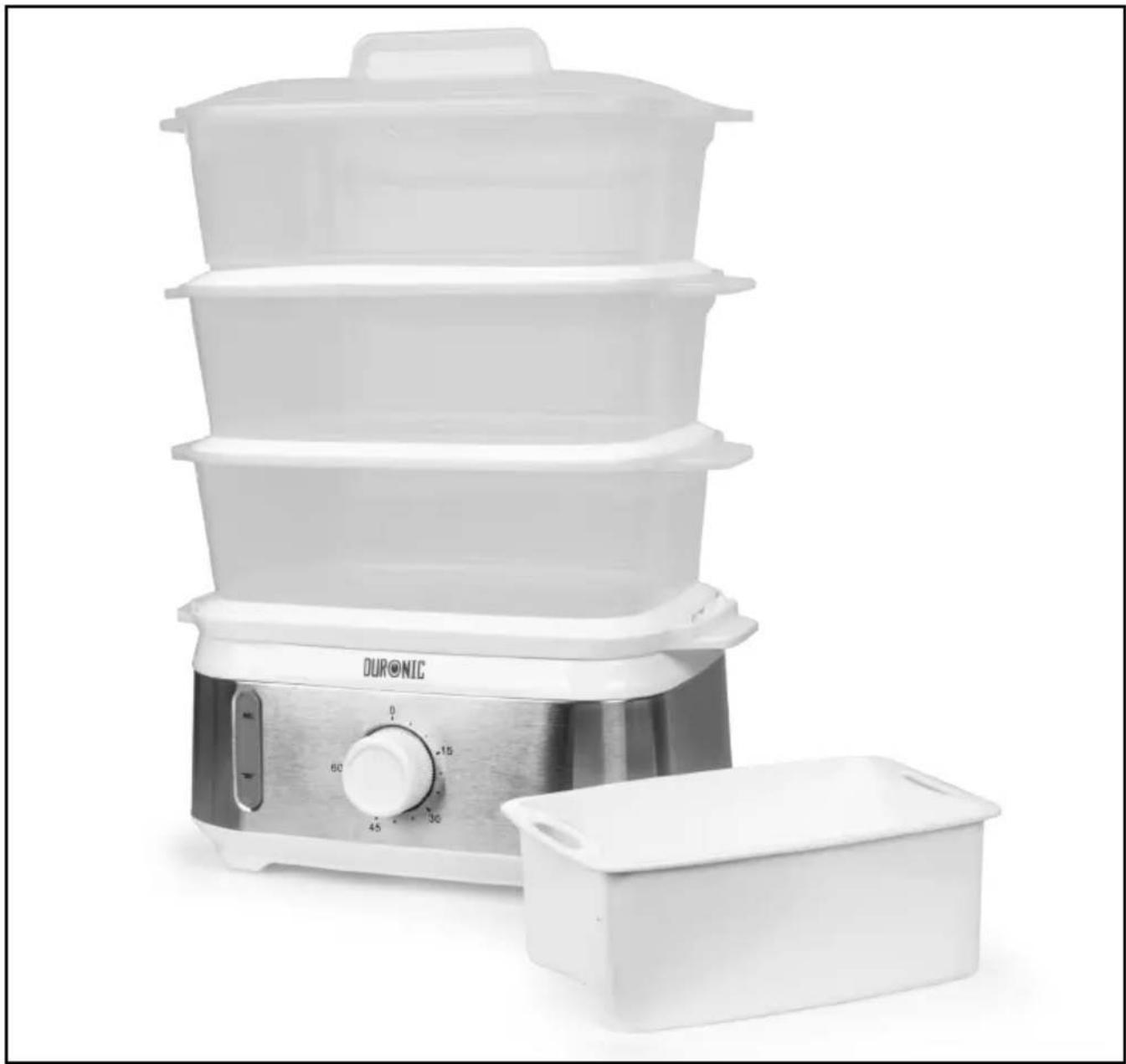

Exterior view of a modern DURONIC cooking appliance with three-tiered storage units (no text or symbols visible on the device body)

FS95

Food Steamer

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

Features and Specifications

Size Capacity Cable Power Voltage
47x28x21cm18.5x11x8.3in	Min: 500mlMax: 1500ml	86cm33.9in	800-950W	220-240V50-60Hz

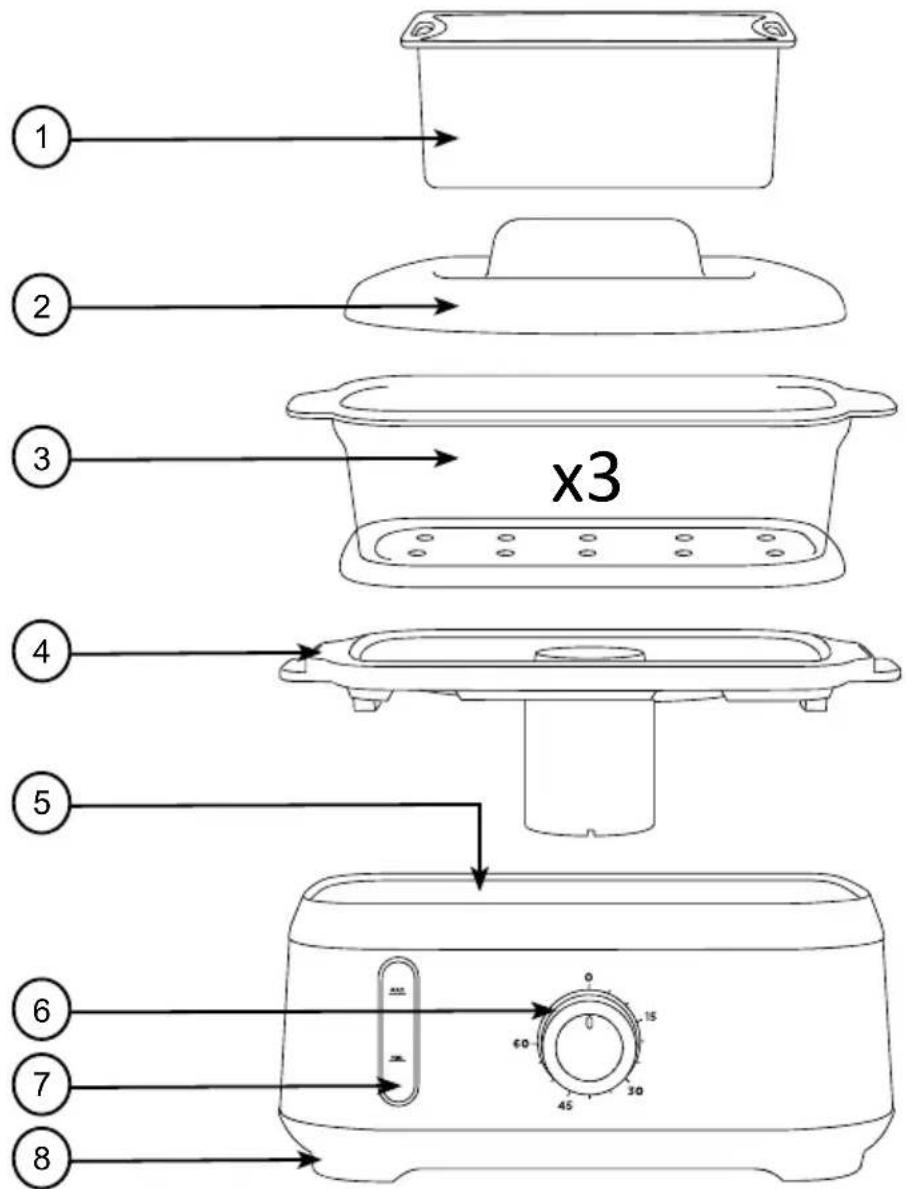

Components

1. Rice Steaming Bowl
2. Lid
3. Steamer Baskets x3

4. Drip Tray

5. Water Tank

6. Timer Dial
7. Water level gauge
8. Base Unit

DURONIC

Safety Information

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

- Use the appliance solely for its intended purpose and adhere to all procedures outlined within this manual.

- Read all the instructions carefully before using this product.

- Avoid contact with water during use and never immerse appliances, mains cable, or plug in water or any liquid to prevent electric shock.

- Don't touch the appliance with wet hands.

• Intended for indoor use only.

- Ensure appliances are used on a flat and level surface.

- Avoid hanging the power cord over table edges or touching high-temperature surfaces to prevent cord damage.

- Check if the voltage marked on the product matches your home's voltage before turning on the power.

- Avoid dry burning without water, as it can damage the heating tube. Unplug if there's low water or dry burning. Let cool for 15 minutes before adding cold water.

- Be cautious of steam when the steamer is working or when opening the cover.

- Wear gloves when handling parts; open the lid carefully after steaming food.

• Always unplug the appliance before moving, filling, cleaning, or when not in use and never pull the mains cable; always pull directly on the plug itself.

- Avoid kinking or crushing the mains cable.

- Do not use the appliance if the appliance itself, the mains cable, or the plug is damaged. Replace damaged cords through the manufacturer or professional.

DURONIC

Safety Information (Continued)

• Keep the appliance and its components away from open flames and hot surfaces. Do not use this product near high-temperature gas or electric stoves.
• Never leave the appliance unattended during operation.
• Never open the casing; there are no user-serviceable parts inside.
• Ensure the appliance and accessories have cooled completely before cleaning or storing.
• Do not use abrasive or caustic cleaning agents on the appliance's outer surfaces.
• Keep children away from the steamer and power cord to prevent accidents.
• Do not let individuals with physical, sensory, or mental limitations use the product unsupervised.
• Children should be supervised around the appliance and not involved in cleaning.

CAUTION:

• Turn off power before moving the appliance. Do not move when water within the steamer is hot.
  • Overflow may occur if water and ingredients exceed the specified limit.

DURONIC

Before First Use

1. Before first use, remove all packaging and set aside.
2. Clean the Rice Steaming Bowl, Lid, Steamer Baskets and Drip Tray for the first time as per the instructions in 'Cleaning and Maintenance'.
3. Wipe clean the motor unit and dry.
4. Place the Steamer Base Unit on a flat, dry, stable surface located close to an electrical mains socket.

How to Use

1. Place the steamer on a flat, dry and even surface.
2. Fill the Water Tank with water. Do not go over the MAX line.
3. Place the Drip Tray on top of the water tank followed by the first steaming basket.
4. Plug the steamer in and switch it on.
5. Fill the Steaming Baskets with the food items you wish to steam. At this stage, you can place the second and third baskets too and then place the Lid on.
6. Turn the Timer Dial to select the time between 0-60 minutes for the cooking time required.
7. Once the steaming has been completed, the bell will ring to notify that the steaming time has finished.
8. Carefully remove the Lid and take out the steamed food with caution.
9. Allow the food steamer to cool down before carefully emptying out the remaining water and cleaning.

Do not fill up the tank directly from a tap. When refilling the water tank, use a bottle or jug to pour water into it.

DURONIC

Recipe Guide

Note: The information provided is intended as a guide; individual preferences and conditions may affect results. Use cold water for the times below.

Ingredient Quantity Time
Rice 400g 45 - 50 min
Potato 900g 40 min
Carrot 550g 25 min
Egg 8 Eggs 15 - 20 min
Chicken 550g 40 min

Usage Tips:

• Cooking times are for reference; actual cooking time varies based on food size, freshness, and preference. Experienced users can set their own times.
- For optimised cooking, a single-layer of spaced out food cooks faster. Cooking food in similar-sized chunks can help with even cooking.
- Leave space in the steaming bowl for maximum steam.
• Stir large quantities of food during cooking.
• Defrost meat before steaming.
- The steam cooks food faster directly above the base unit in the bottom Steamer Basket. Place long-cooking foods in the lower basket. This can help you to manage steam times for different foods.
- Assemble the bracket securely to ensure excess steam does not escape.

DURONIC

Cleaning and Maintenance

You will need to both clean and descale your Food Steamer frequently. You should clean the parts of the machine (Rice Steaming Bowl, Lid, Steamer Baskets and Drip Tray) after each use. Times between descaling will differ depending on the hardness of your water.

Note: You can reduce the amount you need to descale the steamer by using distilled or filtered water

• Before cleaning, unplug the steamer and leave to cool completely.
• Do not immerse the main base unit in water or any other liquids, nor rinse under the tap. Use a damp, well rung, soft cloth to clean these parts.
• Never use scouring pads, abrasive cleaning agents, or aggressive liquids such as alcohol, gasoline, or acetone to clean the appliance.
• Cleaning of the appliance, its parts, and accessories is easiest immediately after use.
  • After each use, disassemble the steamer and clean the removable components thoroughly.
• Wash the Rice Steaming Bowl, Lid, Steamer Baskets and Drip Tray in warm, soapy water and dry them well. Alternatively you can wash these parts in the dishwasher.
• Do not forget to clean the water storage tank as food residue and juices collect at the bottom.

Descaling:

1. Fill the Water Tank with white vinegar to full scale.
2. Connect power then steam for 20-25 minutes.
3. Unplug the steamer and leave to cool. Once cool, pour out the vinegar.
4. Wash the steamer base and parts with cold water.

Do not get the outside base of the Steamer wet at any time as this may damage the unit or create an electrical safety hazard.

Troubleshooting

Problem Solution
Steamer is not turning on	Check power source	Ensure that the food steamer is properly plugged into a functioning power outlet and that the outlet is switched on.
	Inspect the cord	Examine the power cord for any signs of damage or wear. If the cord is damaged, do not attempt to use the steamer and contact customer support for assistance.
Insufficient steam or uneven cooking	Water level	Verify that there is enough water in the steamer's Water Tank. Add more water if necessary.
	Clogged	Check for any blockages in the baskets or Water Tank. Clean the parts thoroughly to ensure proper steam circulation. You may need to descale the machine if there is limescale buildup.
	Overcrowding	Avoid overcrowding the steaming baskets with food. Overcrowding can obstruct the flow of steam and lead to uneven cooking. Steam food in smaller batches if needed.

Troubleshooting (Continued)

Problem Solution
Excessive condensation or water leakage	Proper assembly	Ensure that all components of the food steamer are assembled correctly, including the Steaming Baskets, Lid, and Water Tank. Any gaps or misalignments can result in water leakage.
	Steam release	Check that the vents at the bottom of the baskets are not blocked and are allowing steam to escape properly. Excessive condensation may occur if steam is trapped inside the steamer.
	Water level	Verify that there is enough water in the steamer's Water Tank. Add more water if necessary.
Food tastes bland or undercooked	Seasoning	Ensure that you season your food adequately before steaming to enhance its flavour. Add herbs, spices, or sauces to the food for extra taste.
	Cooking time	Adjust the steaming time according to the type and quantity of food being cooked.
	Check for doneness	Use a food thermometer to check the internal temperature of meats and other protein-rich foods to ensure they are cooked thoroughly.

If you have any further issues, please contact Duronic.

DURONIC

WEEE

Information for consumers on the disposal of Waste Electrical & Electronic Equipment (WEEE).

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
