Product Type	Gigabit Stackable Smart Switch with PoE+
Brand	NETGEAR
Model	GS728TPSB
Ports	24 Gigabit Ethernet ports with PoE+, 4 SFP uplinks
Dimensions (approx)	440 x 260 x 44 mm (17.3 x 10.2 x 1.7 in)
Weight (approx)	4.8 kg (10.6 lbs)
Power Supply	Internal, 100–240 VAC, 50–60 Hz
Power Consumption (max)	190 W (with PoE)
Management Interfaces	Web GUI, SNMP, Smart Control Center (Windows)
Layer 2 Features	VLAN, IGMP/MLD snooping, STP/RSTP/MSTP, Link Aggregation, Flow Control
Layer 3 Features	Static routing, VLAN routing, DHCP snooping
PoE/PoE+	PoE+ (802.3at) on all 24 ports, total power budget 190W
Stacking	Up to 6 units via dedicated stacking ports (ports 27-28)
Security Features	802.1X, ACLs, port security, storm control, DoS prevention
QoS	802.1p, DSCP, DiffServ, CoS
Green Ethernet	Power saving modes: EEE, short reach, auto power down
Cooling	Two internal fans (monitored)
Care and Cleaning	Wipe with a dry, soft cloth. Do not use liquids or abrasive cleaners.
Safety	FCC Part 15 Class B, CE, ICES-003, UL/EN 60950-1
Spare Parts and Repairability	No user-serviceable parts inside. Contact NETGEAR support for service.

Frequently Asked Questions - GS728TPSB NETGEAR

How do I discover the switch on my network for the first time?

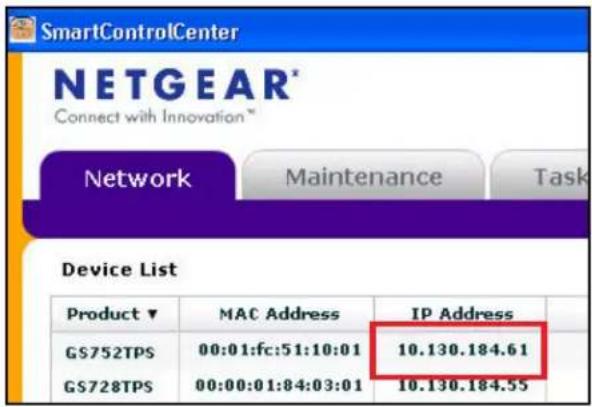

Use the Smart Control Center utility (Windows) to discover the switch. Connect the switch to your network and power it on. Run the Smart Control Center, click Discover, and the switch will appear in the device list. Note its IP address (DHCP-assigned) for web access.

What is the default IP address and password of the switch?

The default IP address is 192.168.0.239 with subnet mask 255.255.255.0. The default password is password (case-sensitive). Use these if no DHCP server is present.

How can I assign a static IP address to the switch?

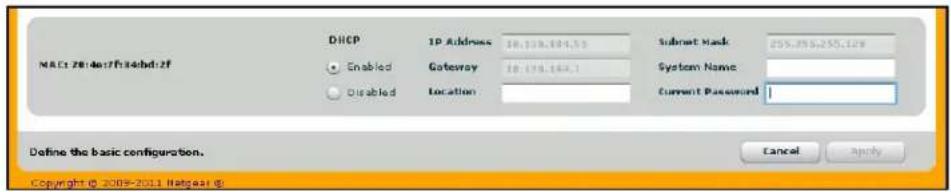

You can assign a static IP via the Smart Control Center or the web interface. In Smart Control Center, select the switch, click Configure Device, disable DHCP, and enter the IP, subnet mask, and gateway. Via web, go to System > Management > IP Configuration and choose Static IP Address.

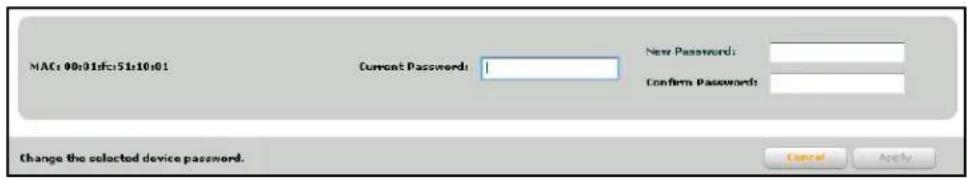

How do I change the switch password?

Use the Change Password option in Smart Control Center or navigate to Security > Management Security > Change Password in the web interface. Enter the current password (default: password), then enter a new password (up to 20 ASCII characters) and confirm.

Can I stack multiple GS728TPSB switches?

Yes, the GS728TPSB supports stacking of up to 6 units using the dedicated stacking ports (ports 27 and 28). Stacking allows management as a single unit with redundant links. Note: When ports 27-28 are used for stacking, they are not available for regular network traffic.

How do I configure PoE on the switch?

Go to System > PoE in the web interface. You can set the PoE mode (802.3af/at) per port, view power consumption, and configure priority. The switch supports PoE+ on all 24 ports with a total budget of 190W.

How do I enable SNMP and configure community strings?

Navigate to System > SNMP > SNMPv1/v2. You can add community strings (read-only or read-write) and specify access rights. SNMP is enabled by default. For SNMPv3, go to SNMPv3 > User Configuration.

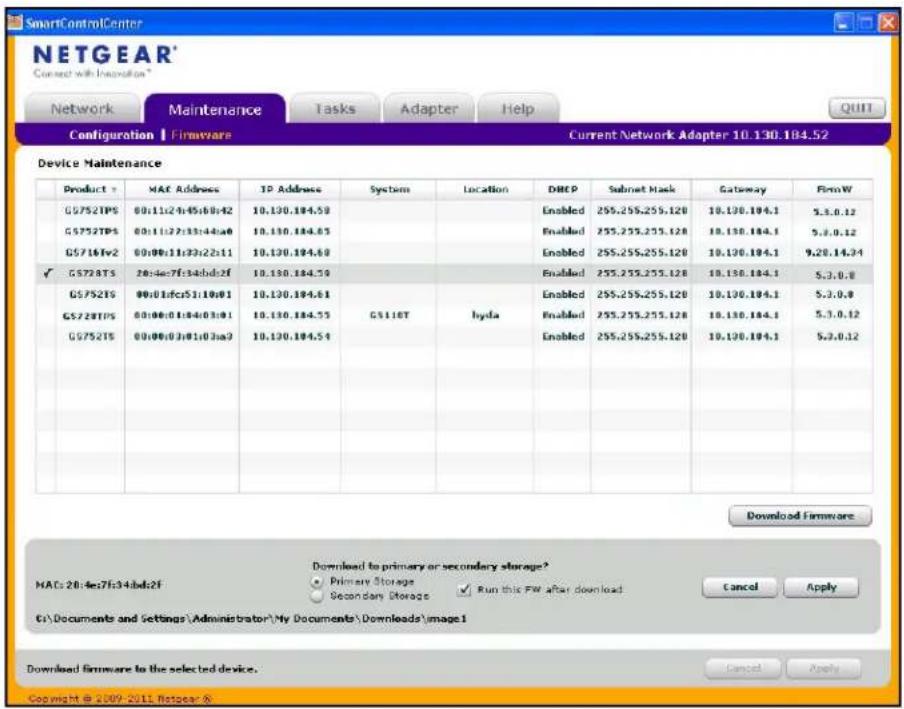

How do I upgrade the firmware?

Use the Smart Control Center (Maintenance > Firmware) or the web interface (Maintenance > Download File to Switch > HTTP File Download). Download the firmware image from NETGEAR support, then apply it. The switch will reboot after upgrade.

How do I reset the switch to factory defaults?

Press the Factory Defaults button on the front panel for about 10 seconds, or use the web interface: Maintenance > Reset > Factory Default. This clears all configuration including IP settings.

My switch is not responding to ping. What should I check?

First, verify the switch is powered on and connected to the same network segment. Check the IP address on the switch via Smart Control Center or console. Ensure the management VLAN ID matches the VLAN of the connected port. Also, check if access control profiles (ACLs) might be blocking ICMP.

USER MANUAL GS728TPSB NETGEAR

GS728TS, GS728TPS, GS752TS, and GS752TPS Gigabit Smart Switches

Software Administration Manual

350 East Plumeria Drive San Jose, CA 95134 USA

February 2012 202-10995-01 v1.0

©2012 NETGEAR, Inc. All rights reserved

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of NETGEAR, Inc.

Technical Support

Thank you for choosing NETGEAR. To register your product, get the latest product updates, get support online, or for more information about the topics covered in this manual, visit the Support website at

http://support.netgear.com

Phone (US & Canada only): 1-888-NETGEAR

Phone (Other Countries): Check the list of phone numbers at

http://support.netgear.com/app/answers/detail/a_id/984

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. Other brand and product names are registered trademarks or trademarks of their respective holders. © 2012 NETGEAR, Inc. All rights reserved.

Statement of Conditions

To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use, or application of, the product(s) or circuit layout(s) described herein.

Revision History

Publication Part Number Version Publish Date Comments

202-10995-01 v1.0 February 2012 First publication

Contents

Chapter 1 Getting Started

Getting Started with the Smart Switches .....10

Switch Management Interface ....10

Connecting the Switch to the Network .....11

Switch Discovery in a Network with a DHCP Server .....12

Switch Discovery in a Network without a DHCP Server....14

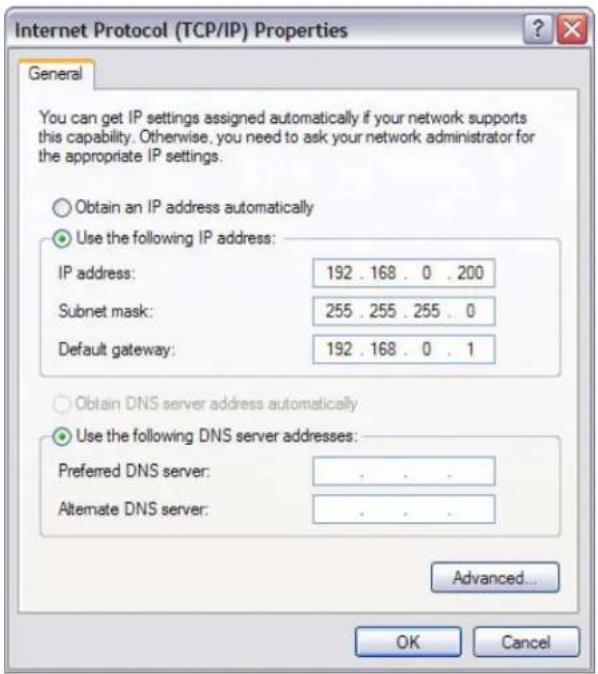

Configuring the Network Settings on the Administrative System .....15

Web Access 16

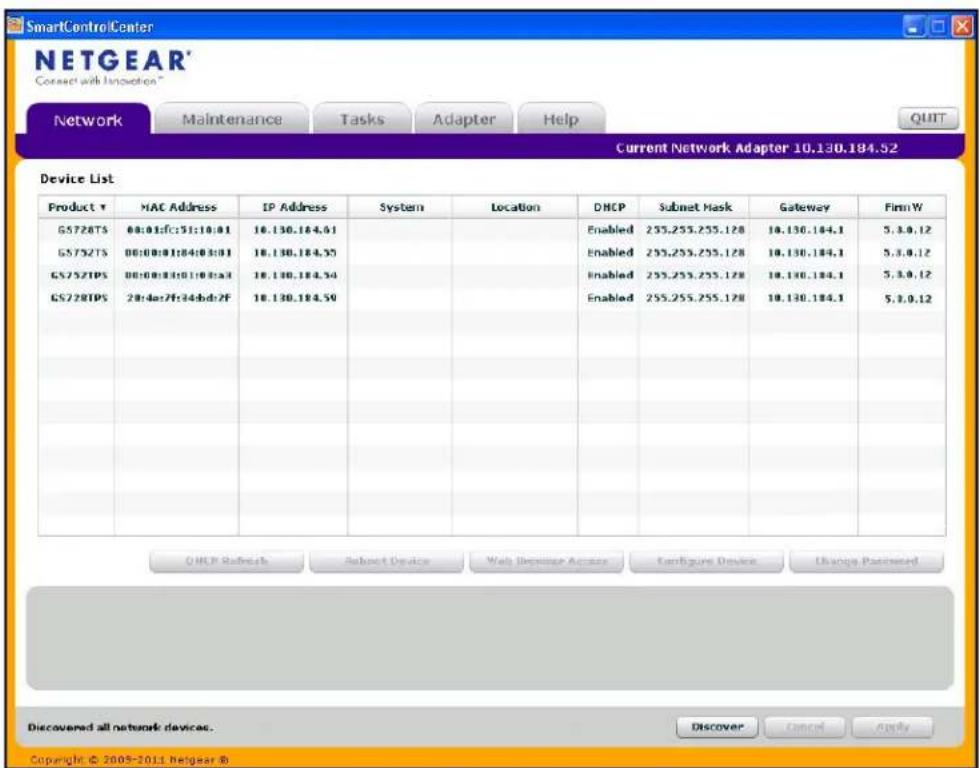

Smart Control Center Utilities....17

Network Utilities 17

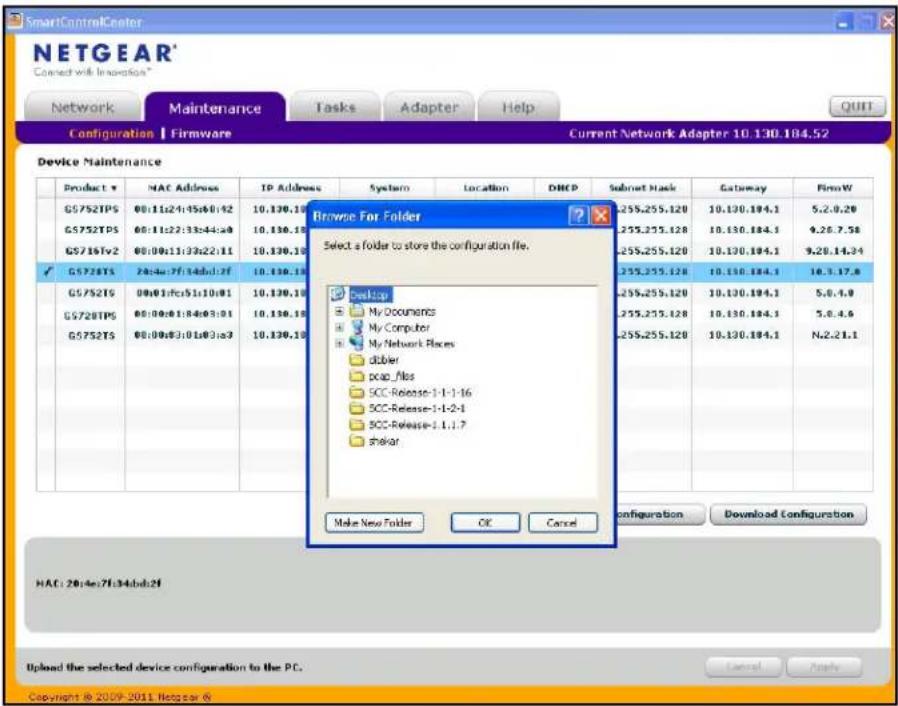

Configuration Upload and Download .....19

Firmware Upgrade ....20

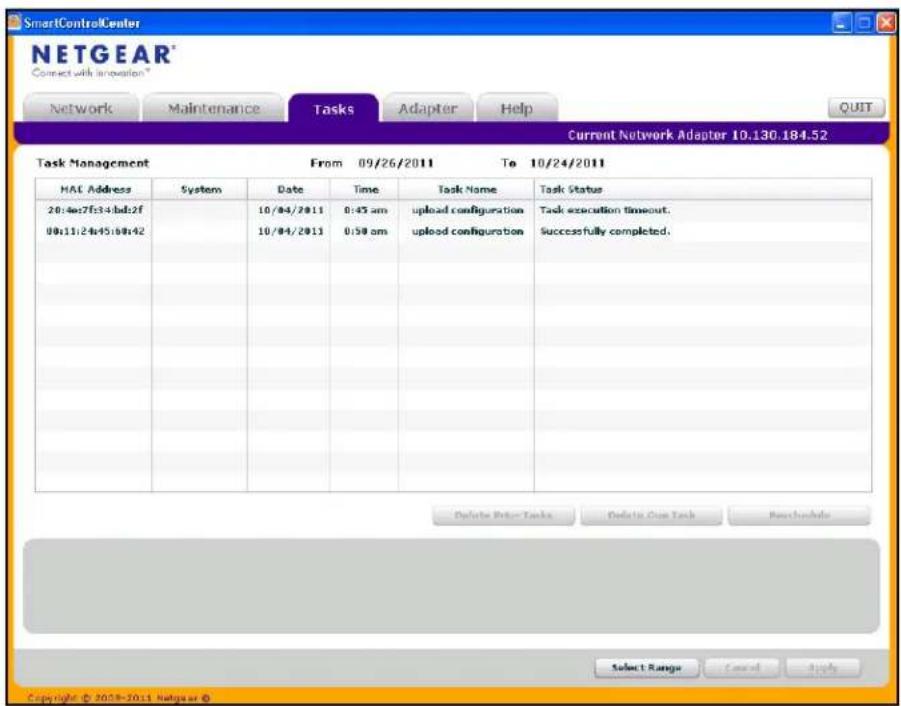

Viewing and Managing Tasks....22

Understanding the User Interfaces....23

Using the Web Interface....23

Using SNMP....29

Interface Naming Convention....30

Chapter 2 Configuring System Information

Management....31

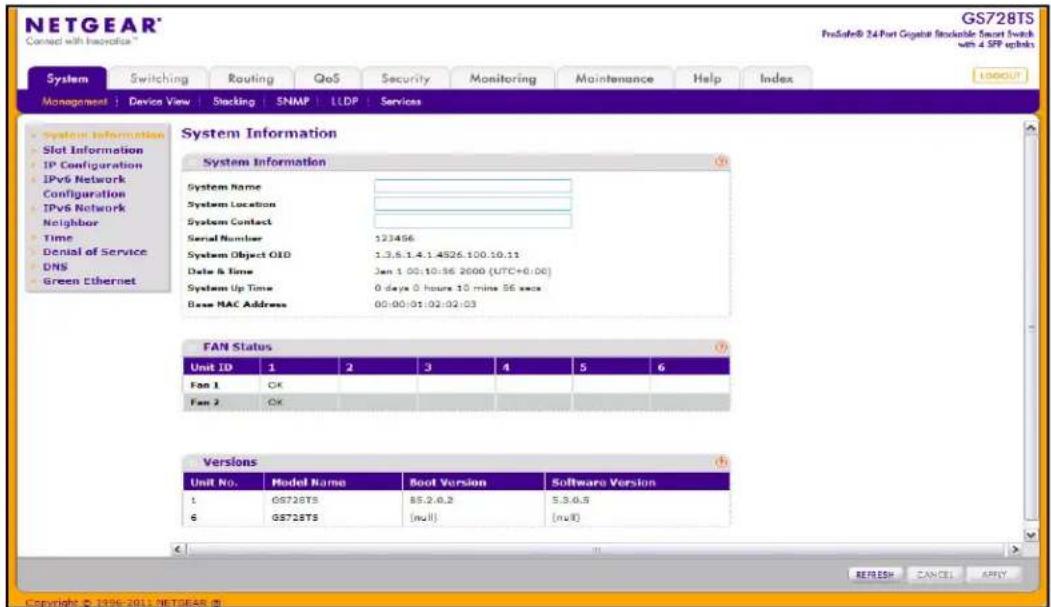

System Information....32

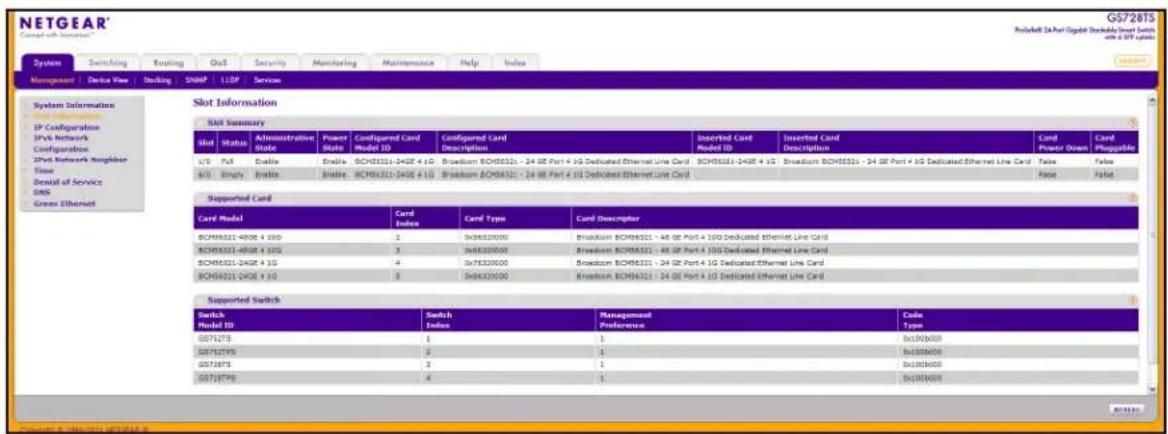

Slot Information 33

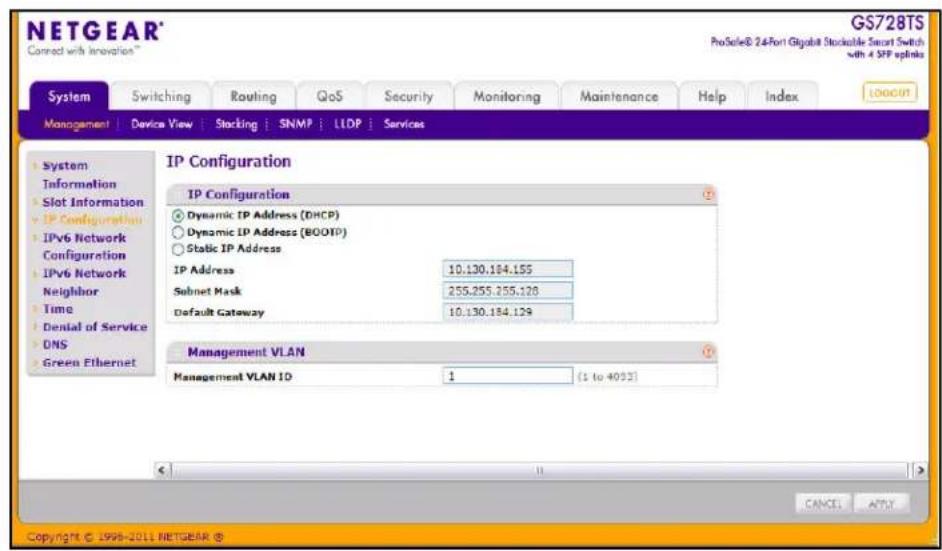

IP Configuration ....35

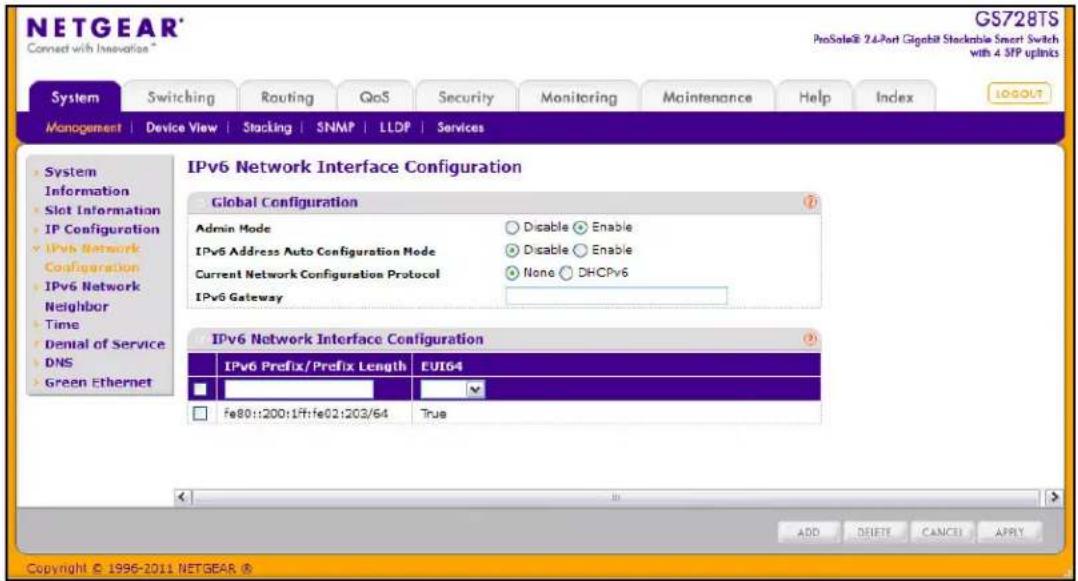

IPv6 Network Configuration .....37

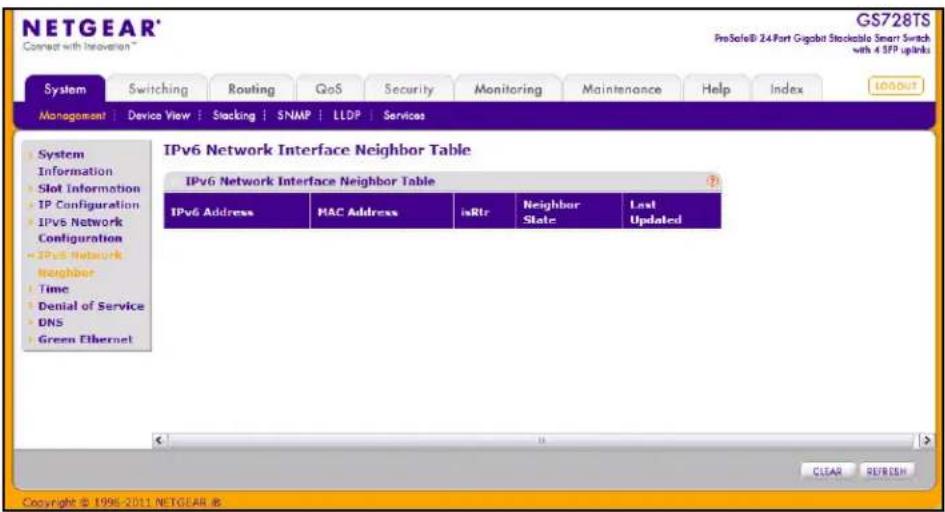

IPv6 Network Neighbor....38

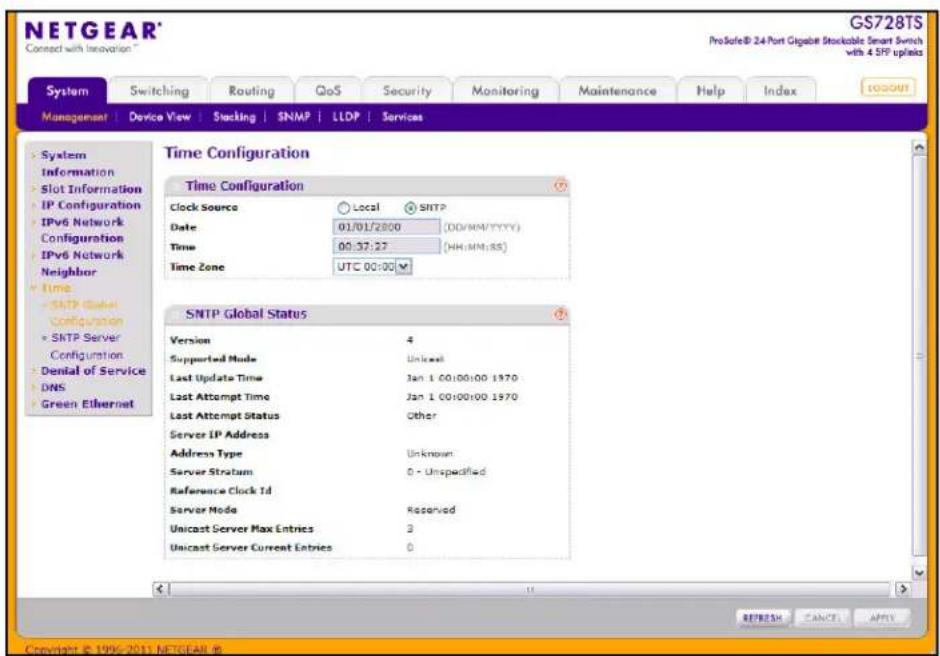

Time 40

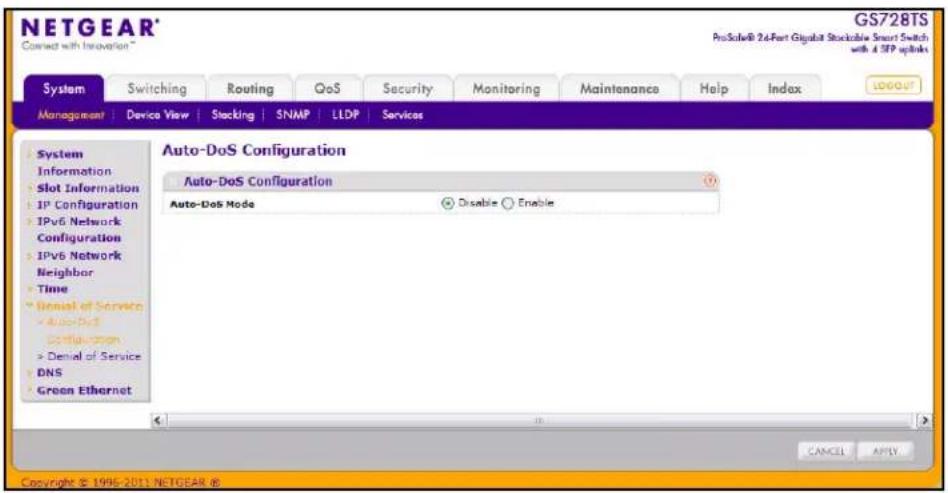

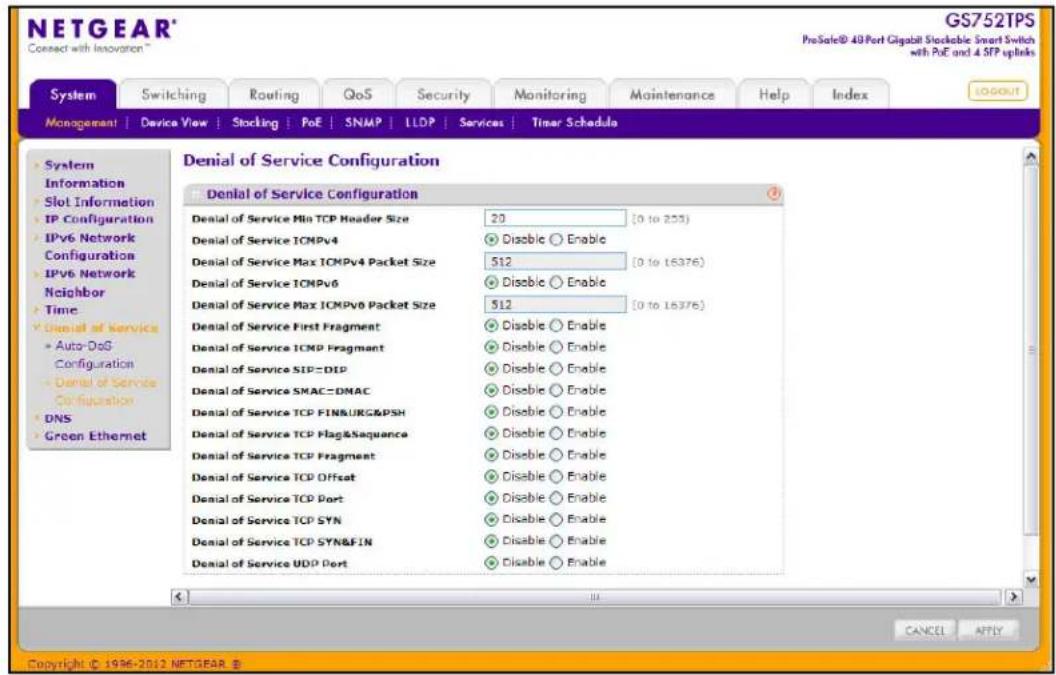

Denial of Service 45

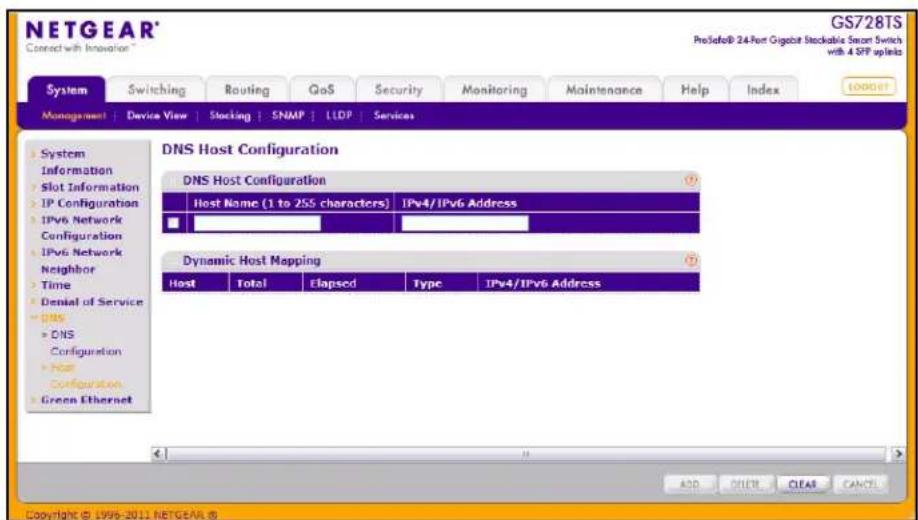

DNS 49

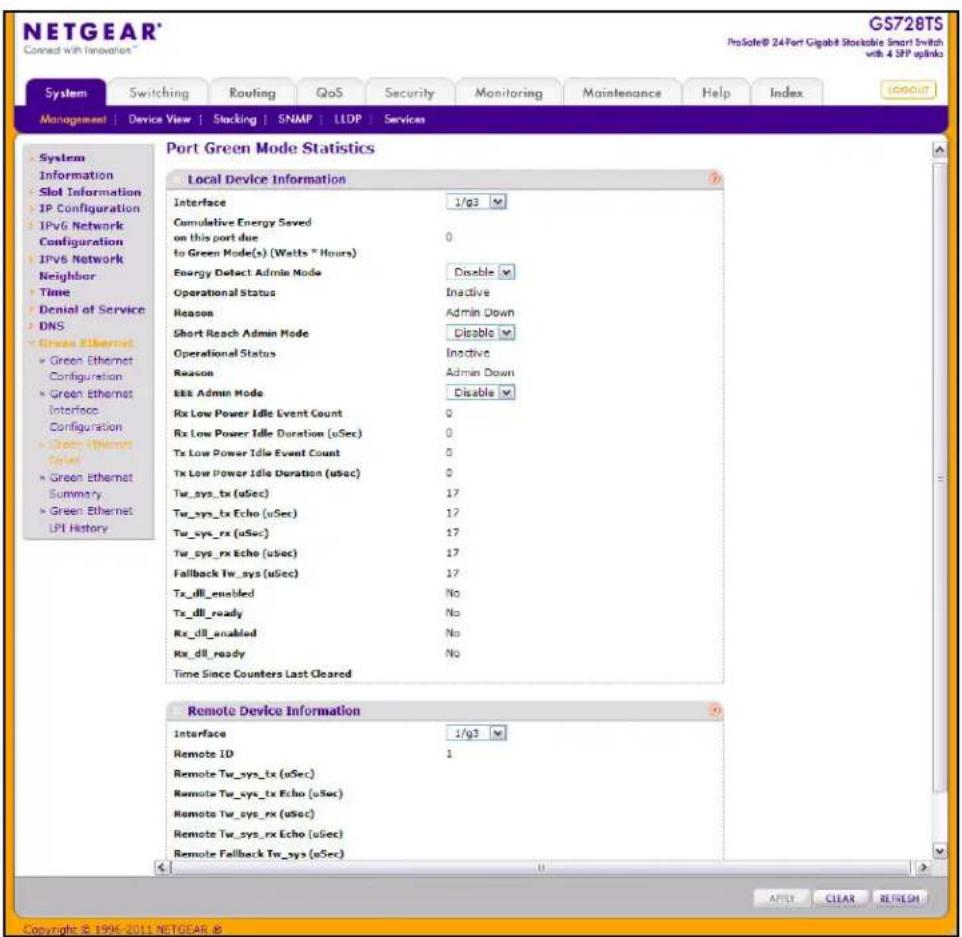

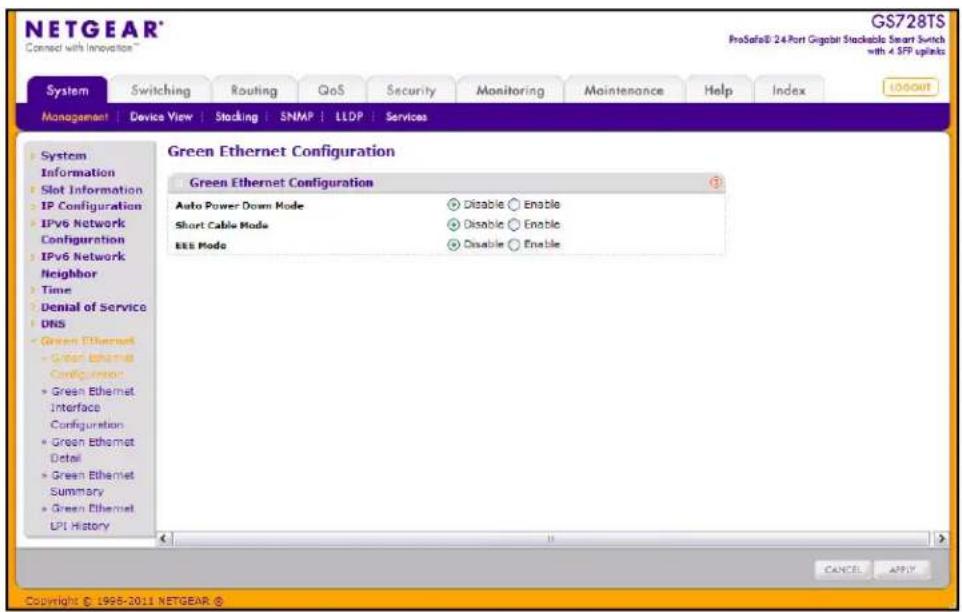

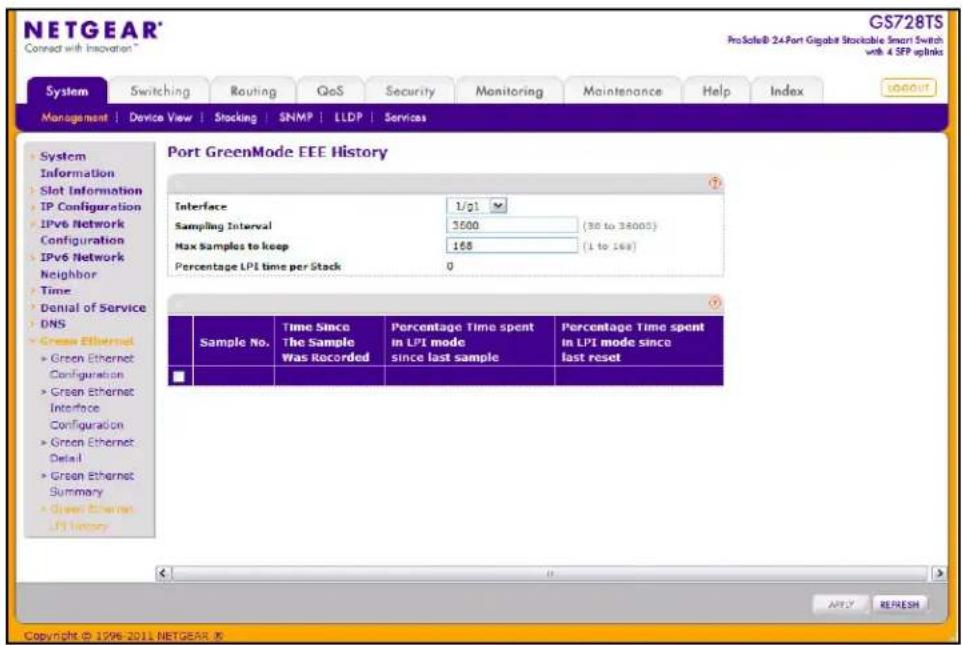

Green Ethernet....51

Stacking 61

Stack Features ....61

Firmware Synchronization and Upgrade .62

Configuration Maintenance....62

Stack Master Election....62

Factory Defaults Reset Behavior....63

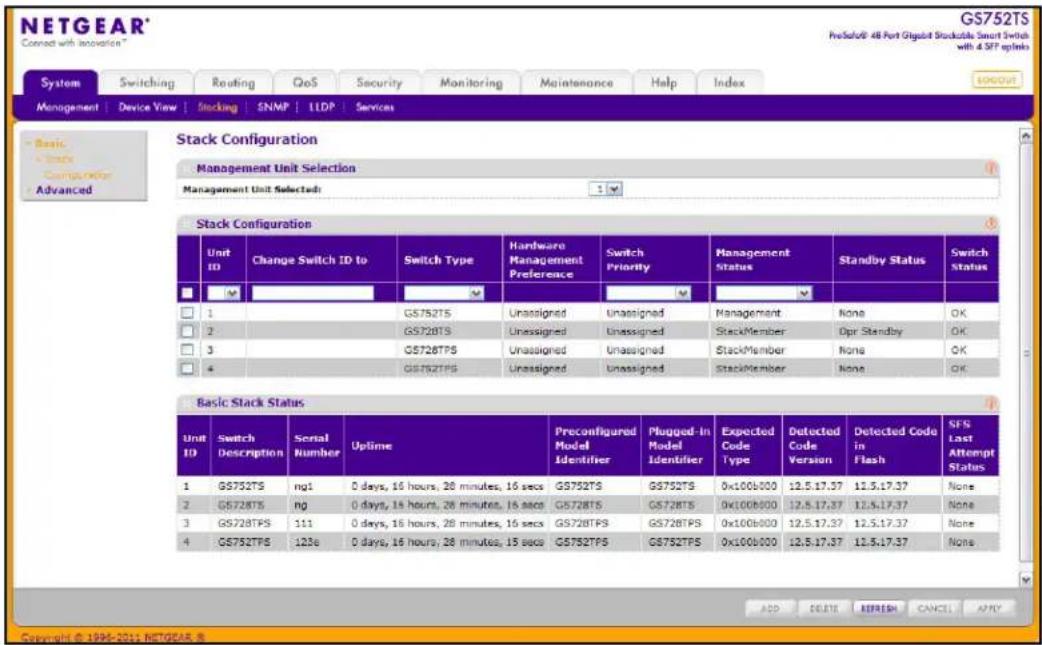

Stack Configuration 63

Stack Port Configuration....66

Stack Port Diagnostics 68

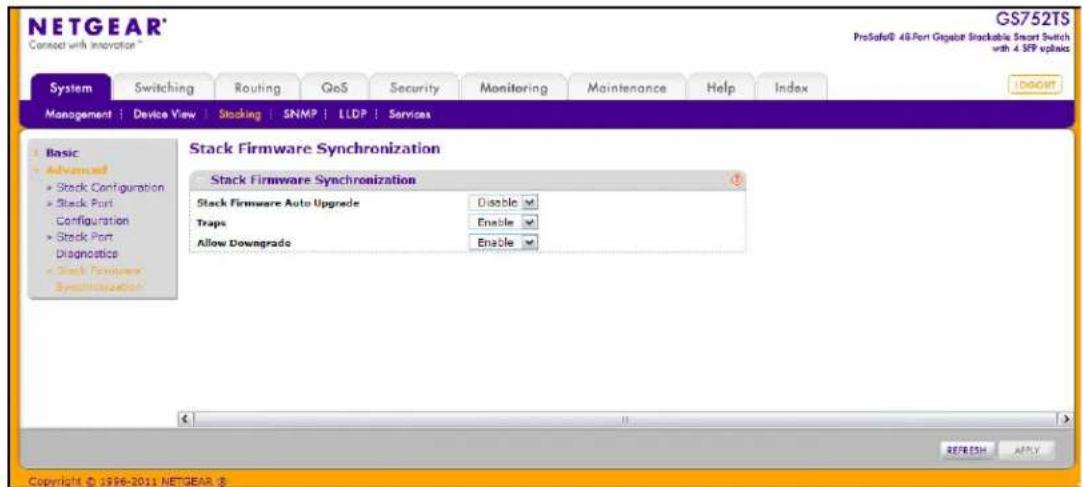

Stack Firmware Synchronization....69

PoE/PoE+ (GS728TPS and GS752TPS Only)....70

PoE Configuration 70

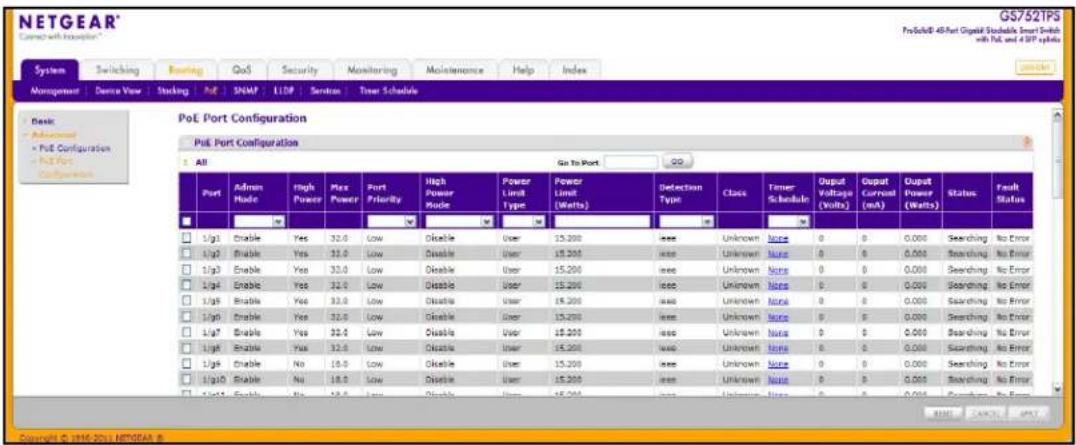

PoE Port Configuration....72

SNMP....75

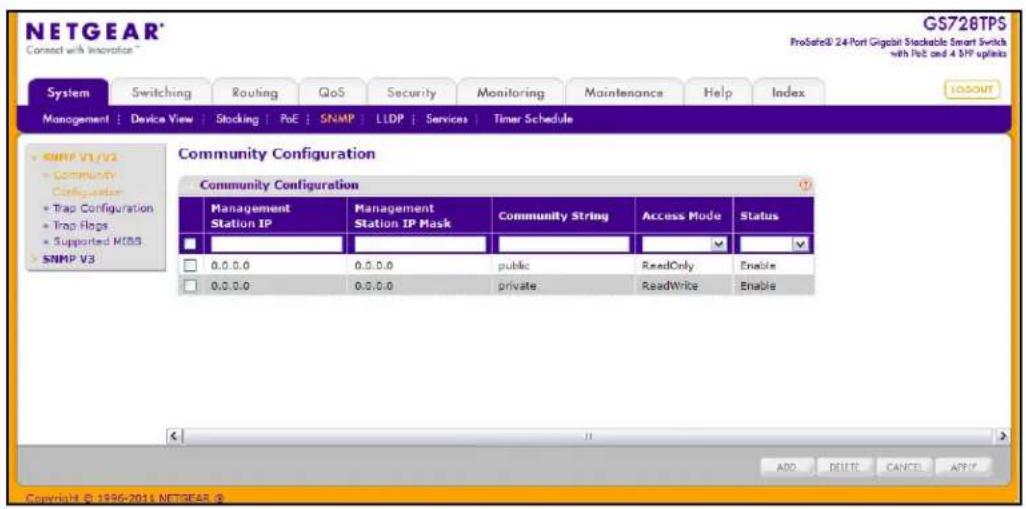

SNMPv1/v2. 75

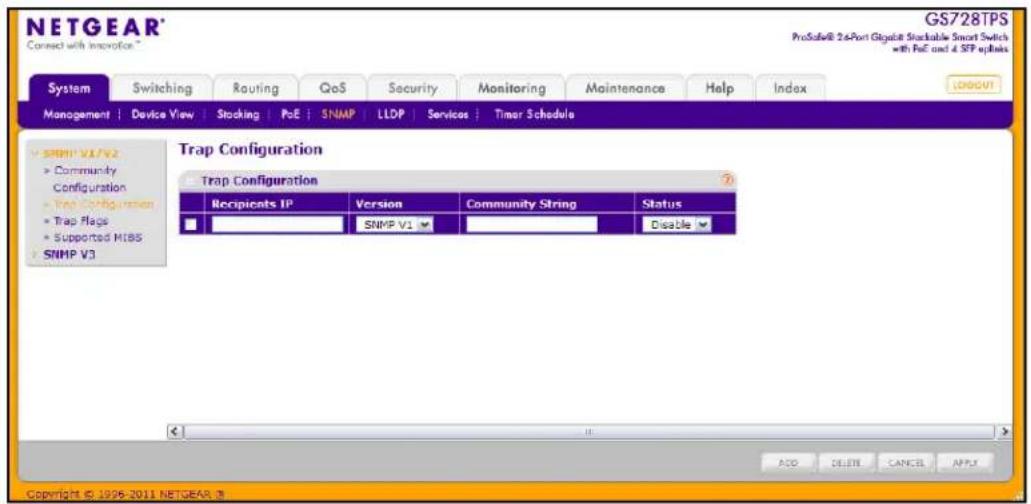

Trap Configuration .....77

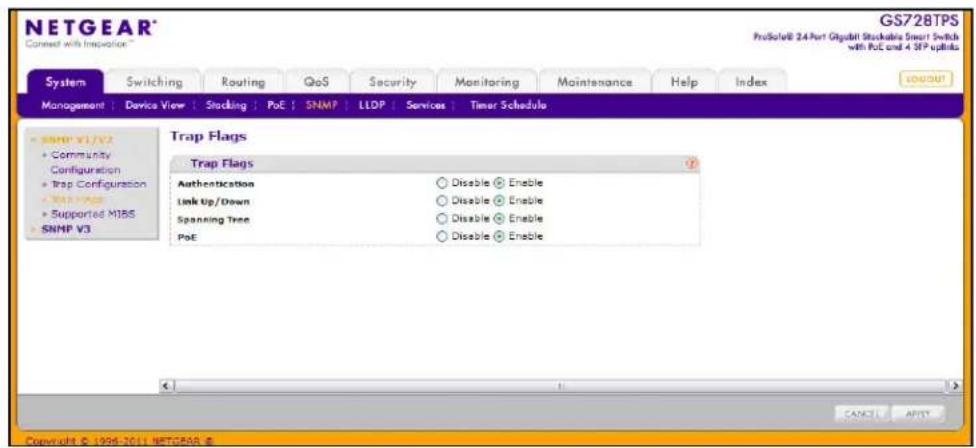

Trap Flags 78

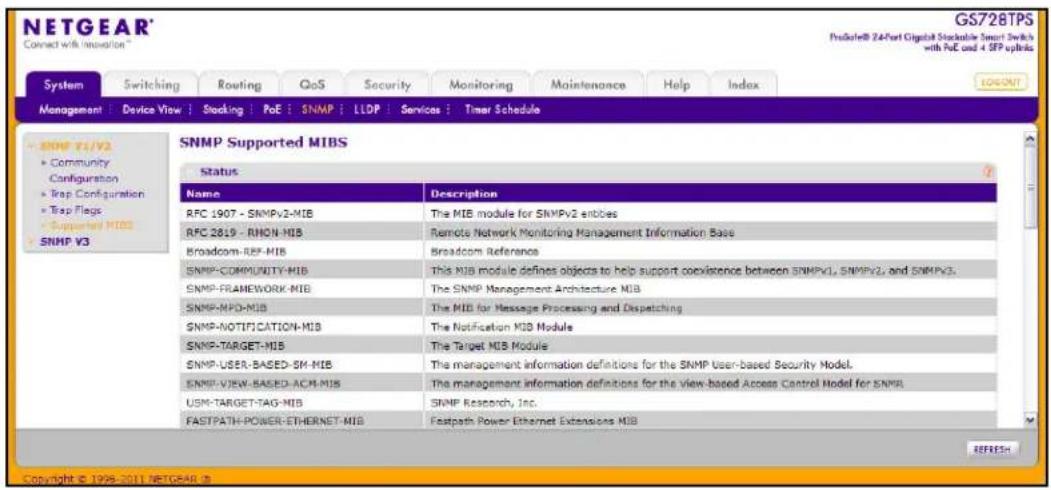

SNMP Supported MIBs 79

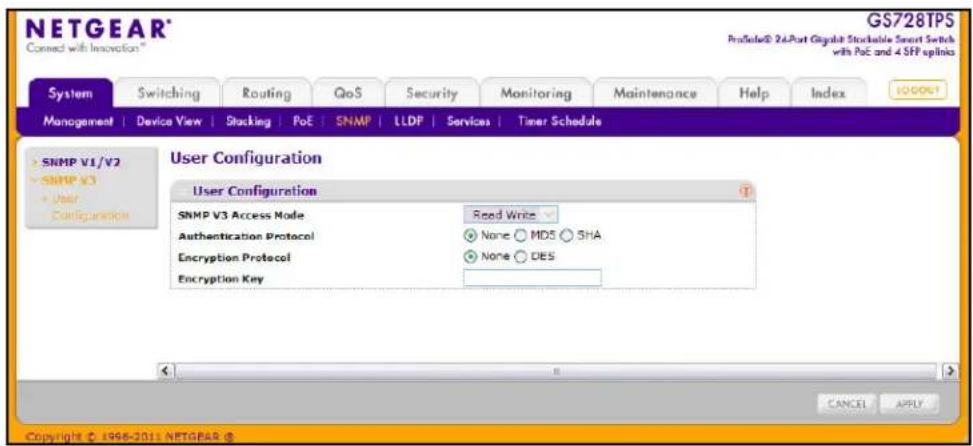

SNMP v3 User Configuration .....79

LLDP 80

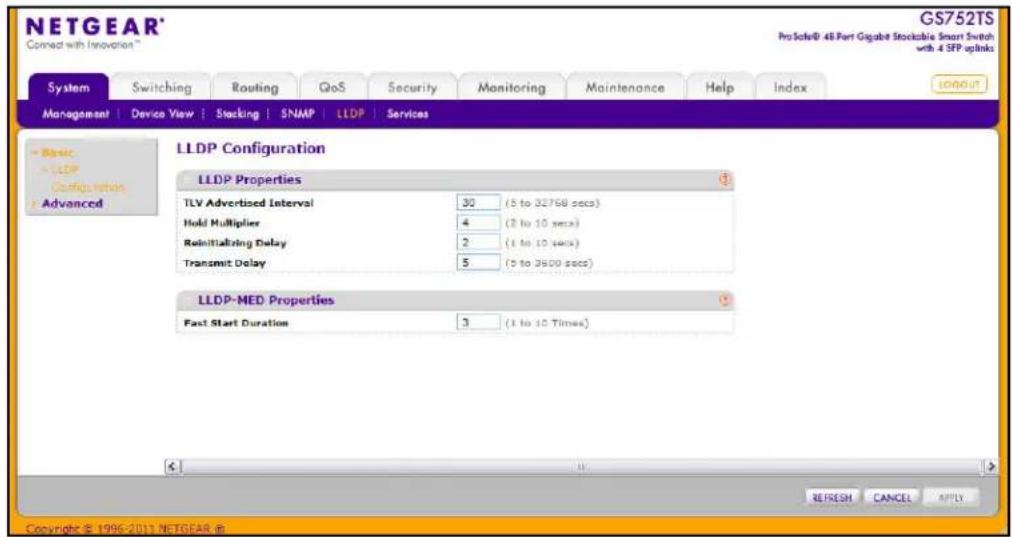

LLDP Configuration 81

LLDP Port Settings....82

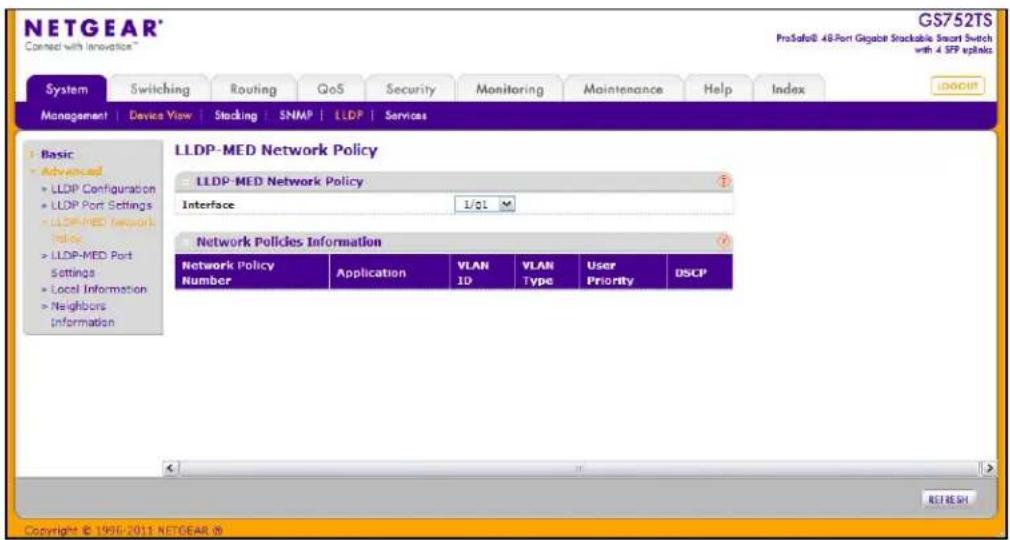

LLDP-MED Network Policy....83

LLDP-MED Port Settings .85

Local Information....86

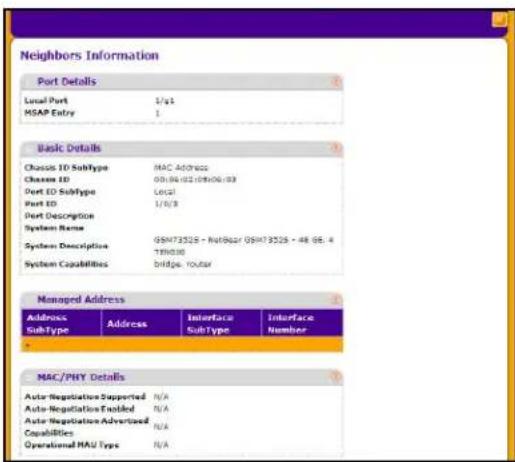

Neighbors Information 88

Services — DHCP Snooping .....92

DHCP Snooping Global Configuration .....93

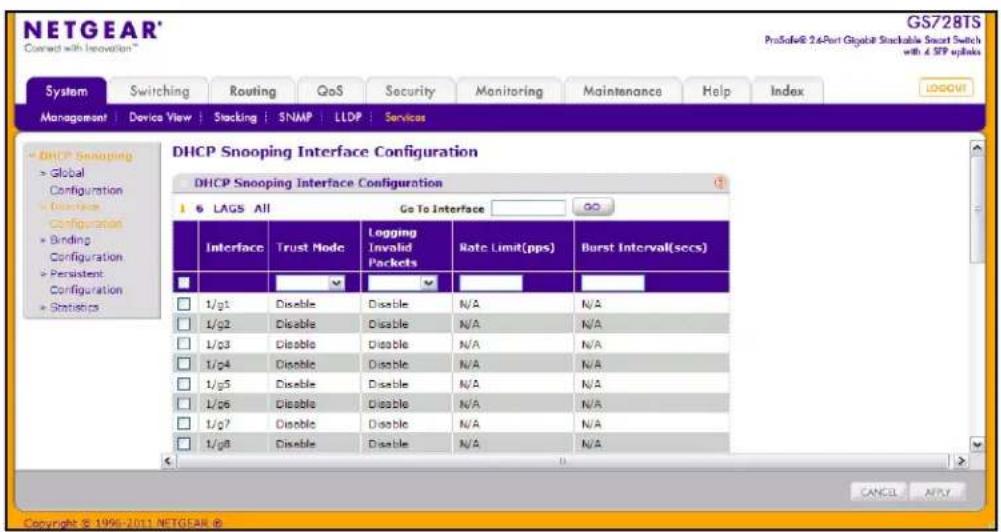

Interface Configuration 94

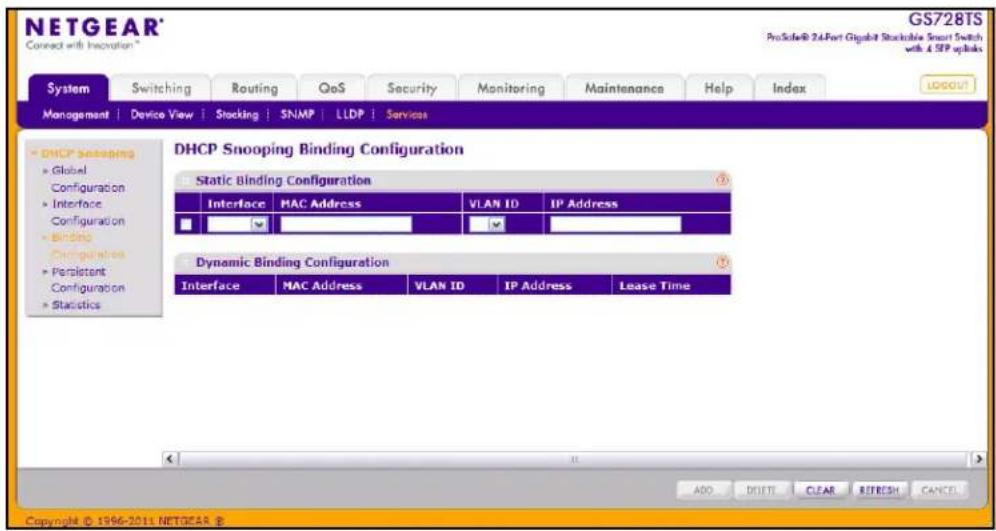

Binding Configuration 95

Persistent Configuration 97

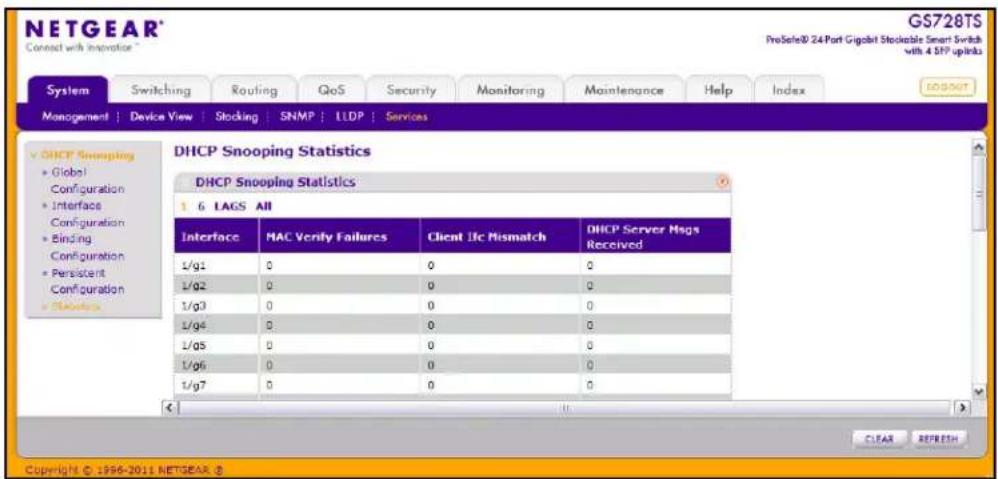

Statistics 98

Timer Schedule (GS728TPS and GS752TPS Only) .....99

Timer Global Configuration....99

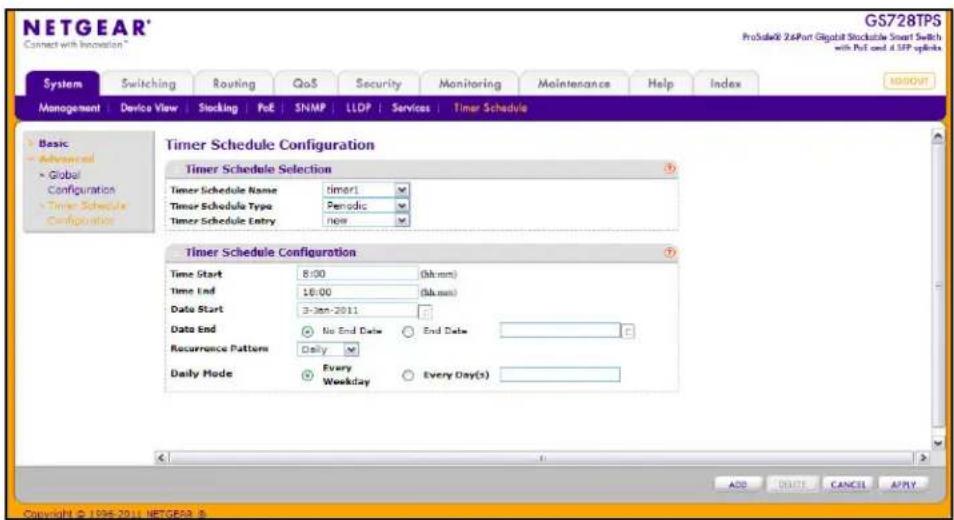

Timer Schedule Configuration ....100

Chapter 3 Configuring Switching Information

Ports....102

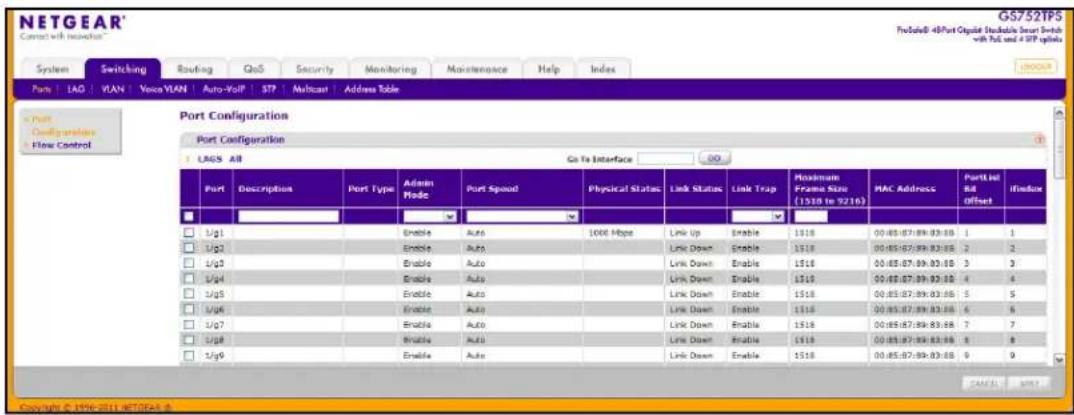

Port Configuration....102

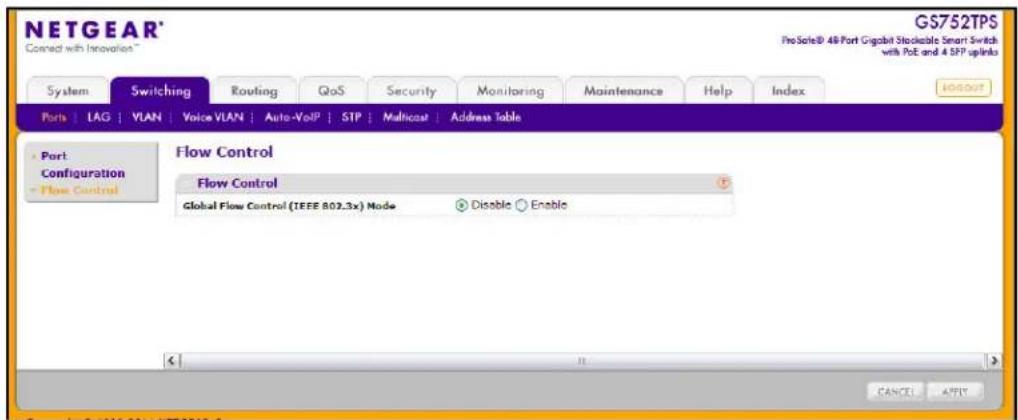

Flow Control 104

Link Aggregation Groups .....105

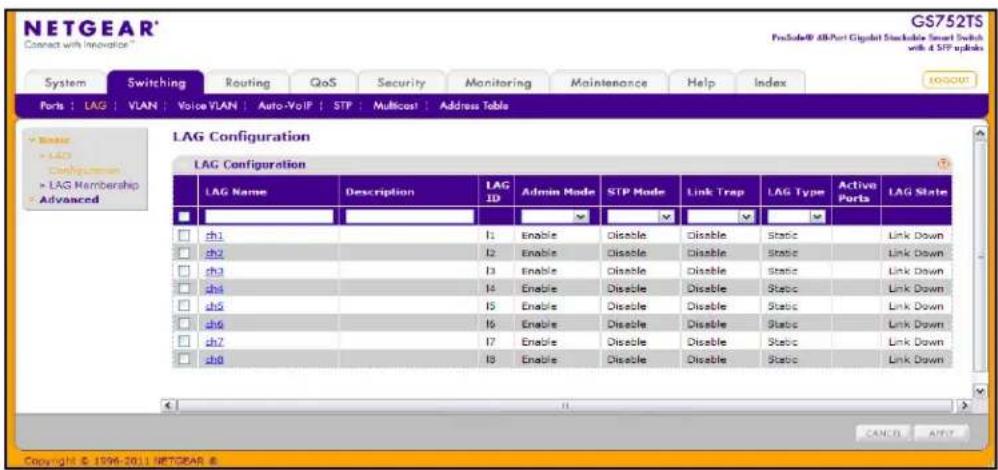

LAG Configuration 105

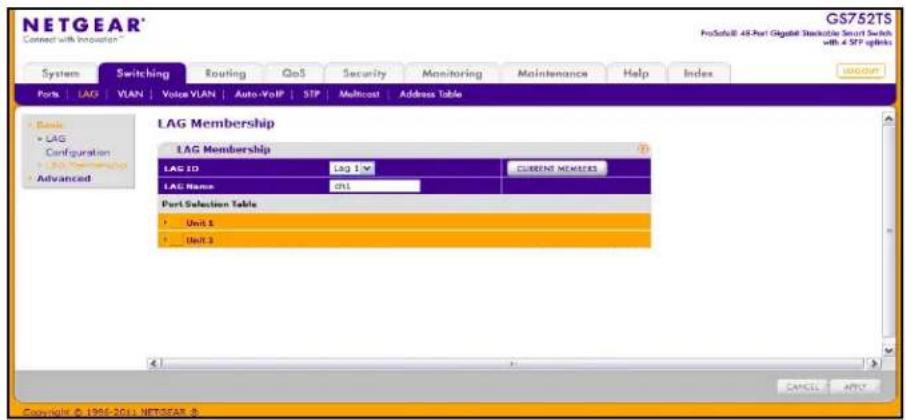

LAG Membership .....107

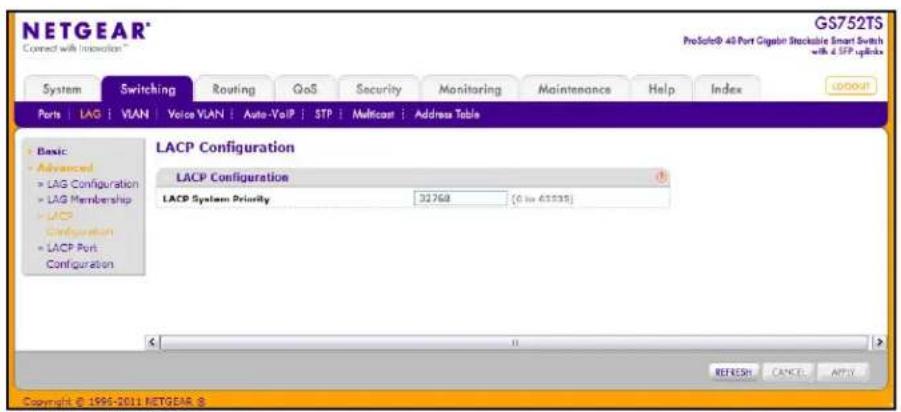

LACP Configuration....108

LACP Port Configuration 109

VLANs 110

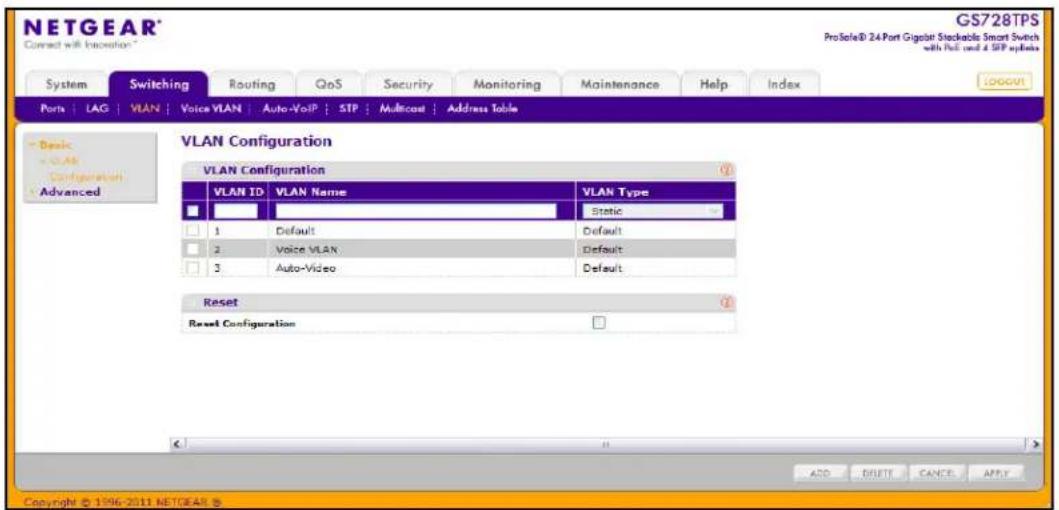

VLAN Configuration....110

VLAN Membership Configuration....112

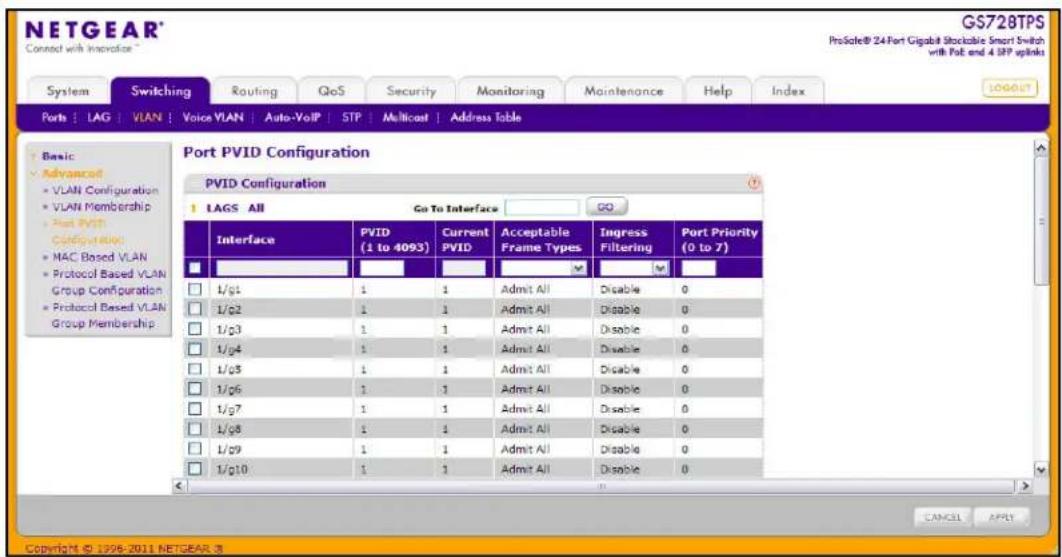

Port VLAN ID Configuration 113

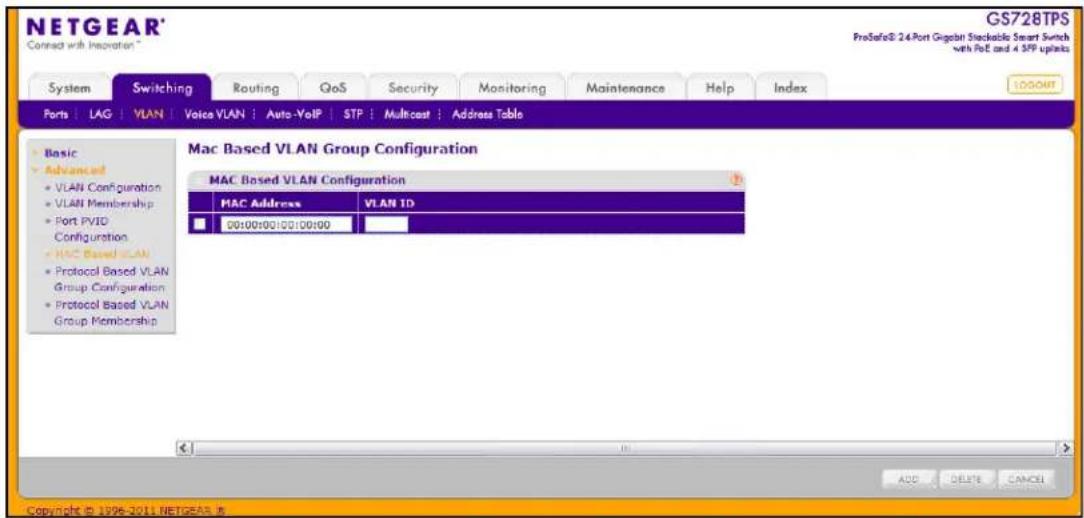

MAC Based VLAN 114

Protocol Based VLAN Group Configuration .....115

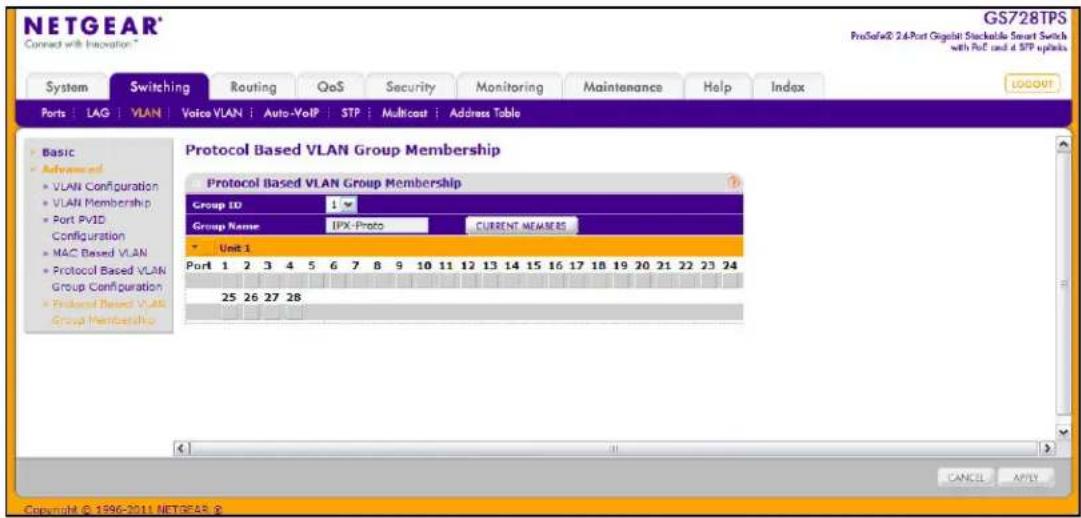

Protocol Based VLAN Group Membership.....116

Voice VLAN 118

Voice VLAN Properties....118

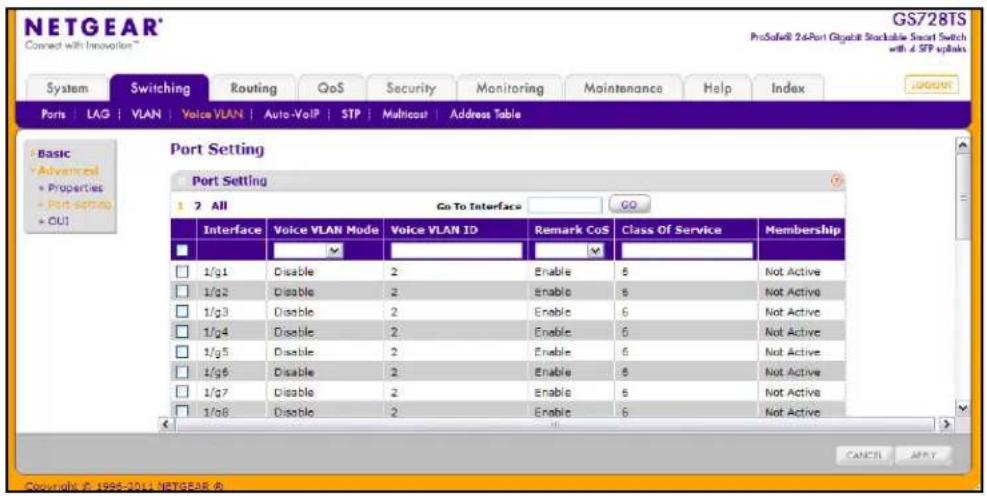

Voice VLAN Port Setting 119

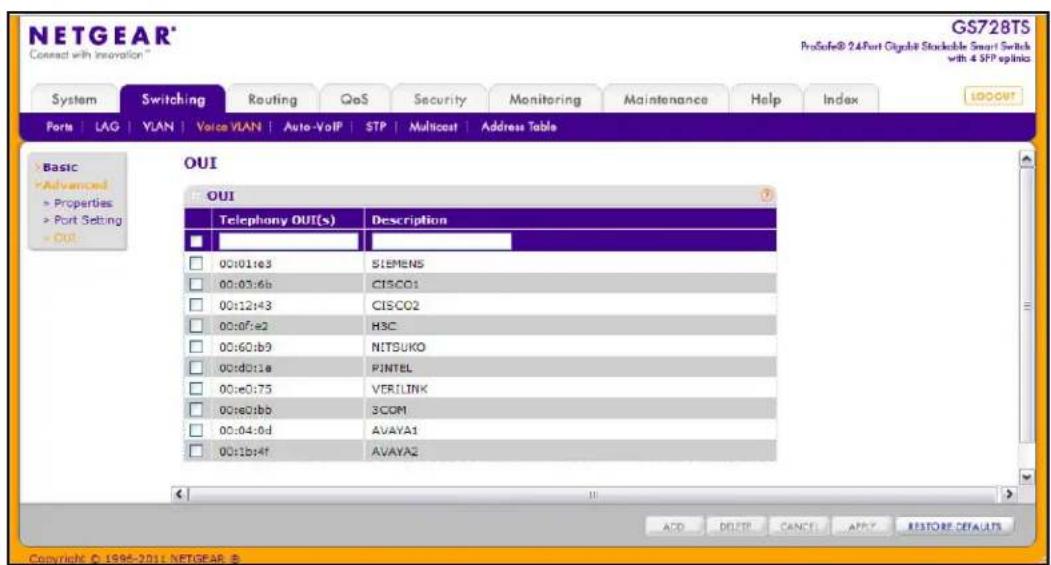

Voice VLAN OUI....120

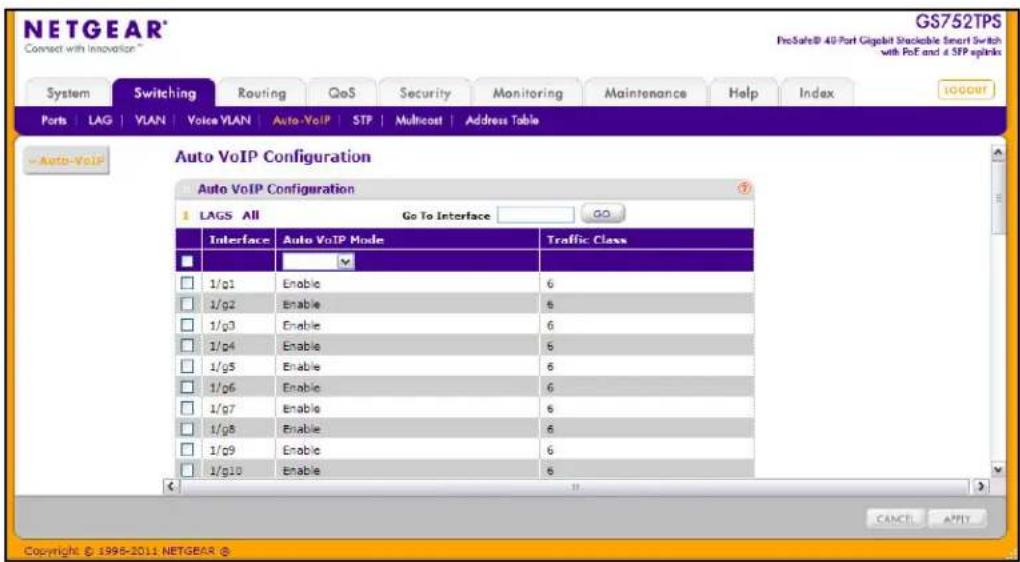

Auto-VoIP....121

Spanning Tree Protocol 122

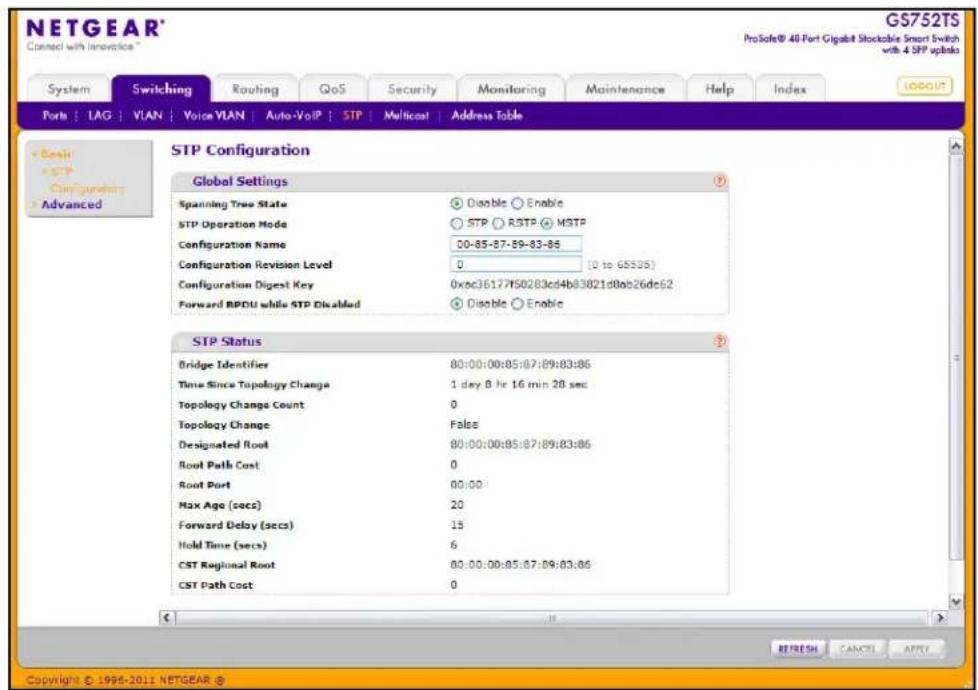

STP Switch Configuration....123

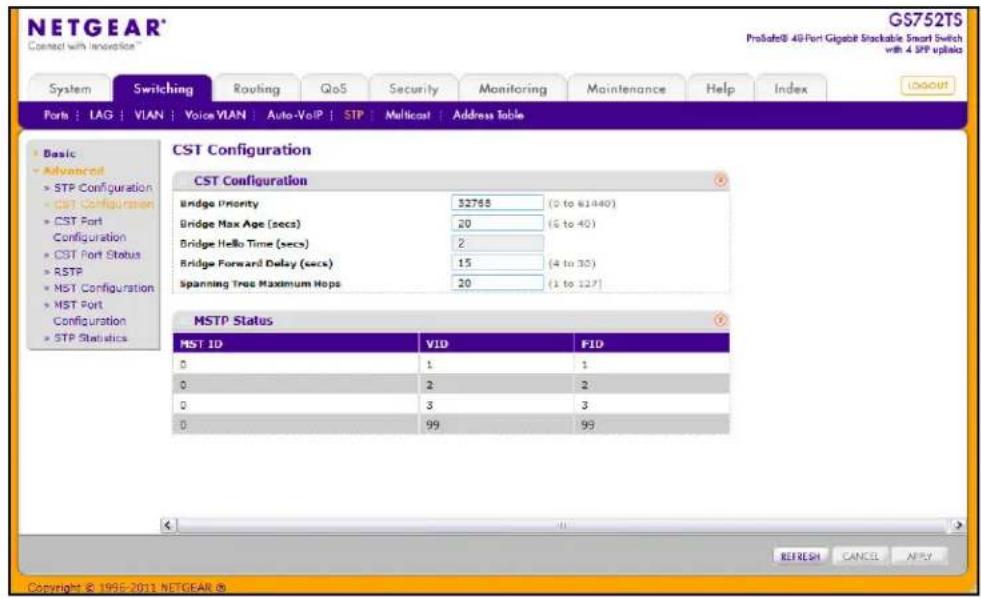

CST Configuration 125

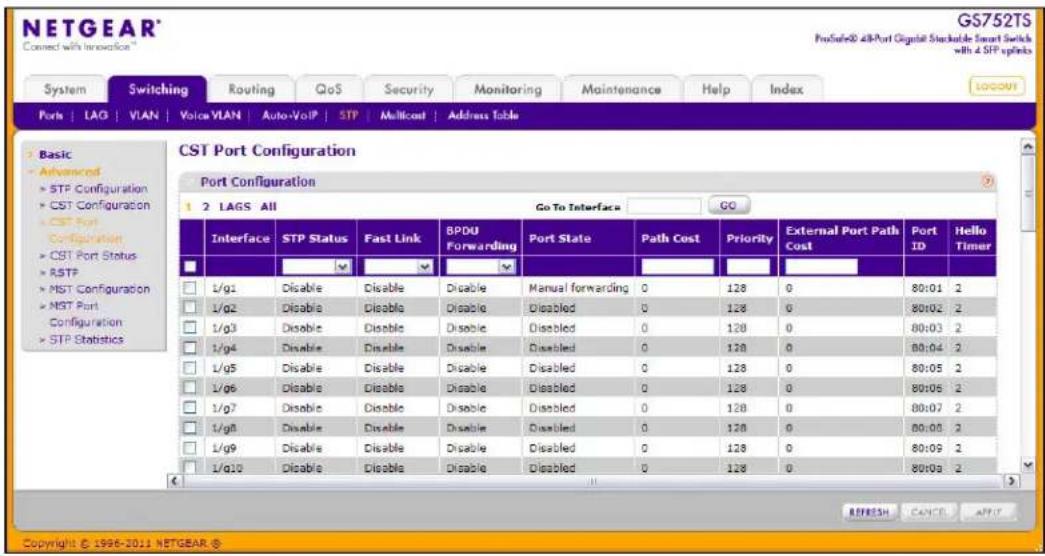

CST Port Configuration....126

CST Port Status 128

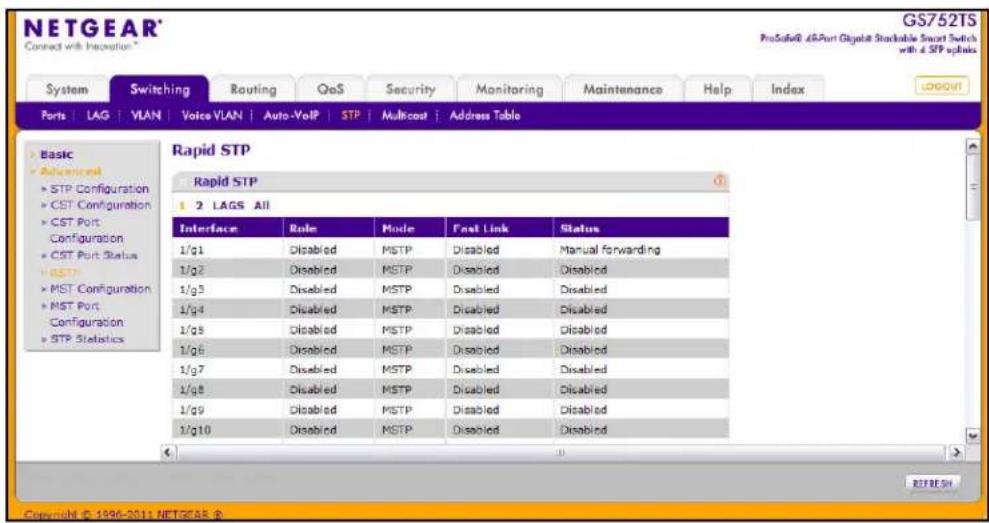

Rapid STP 129

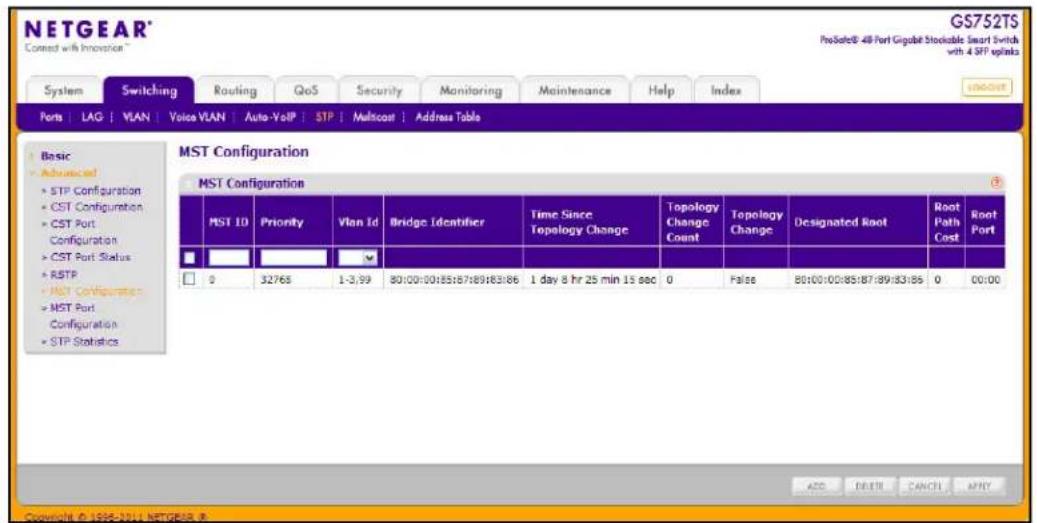

MST Configuration 130

MST Port Configuration .....131

STP Statistics 134

Multicast 135

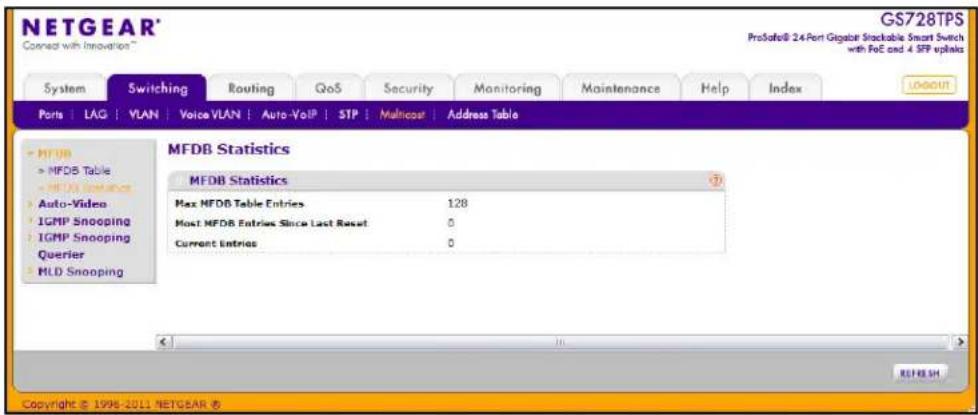

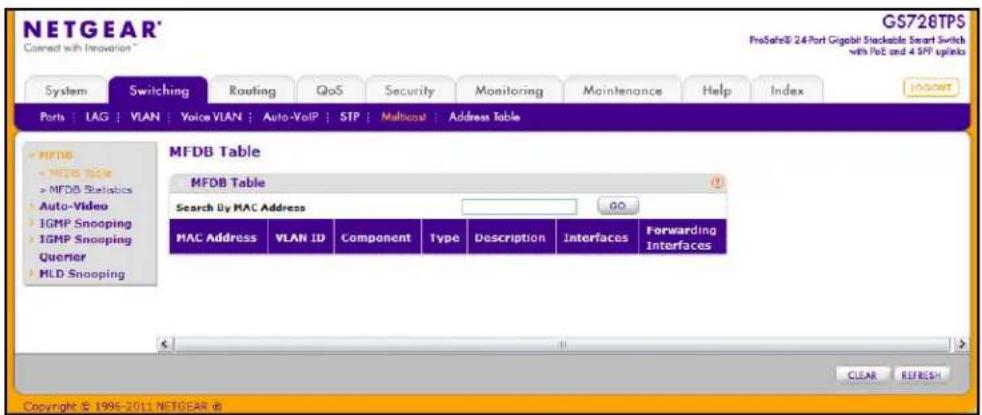

MFDB 135

Auto-Video Configuration 137

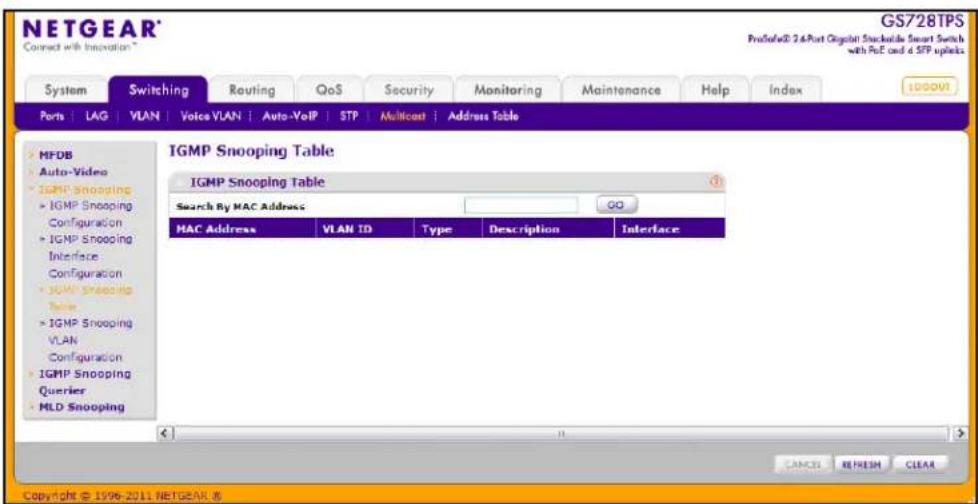

IGMP Snooping 138

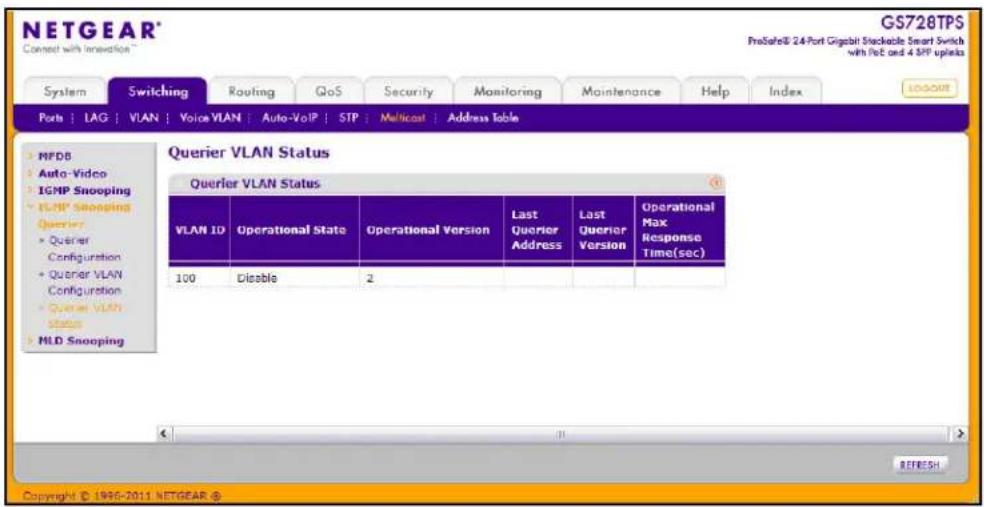

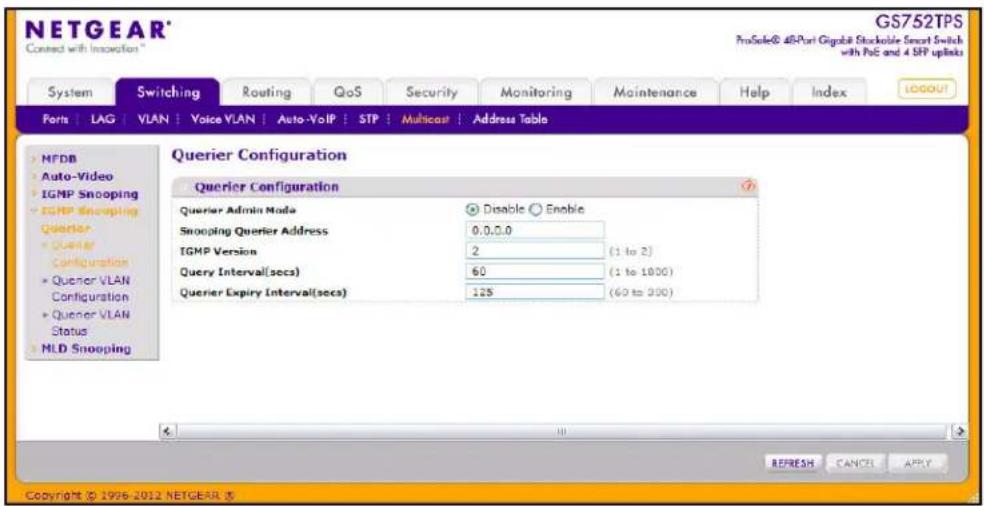

IGMP Snooping Querier 144

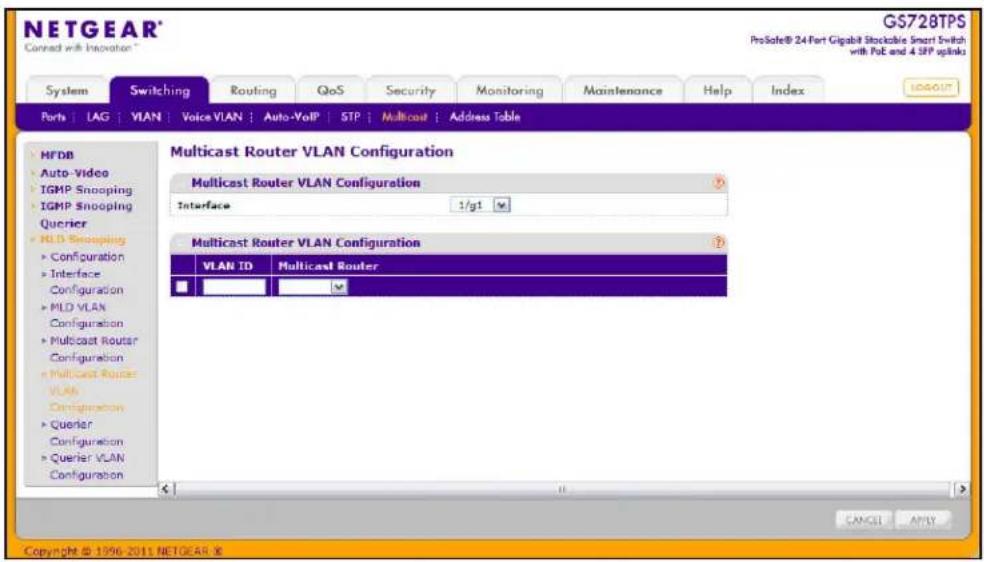

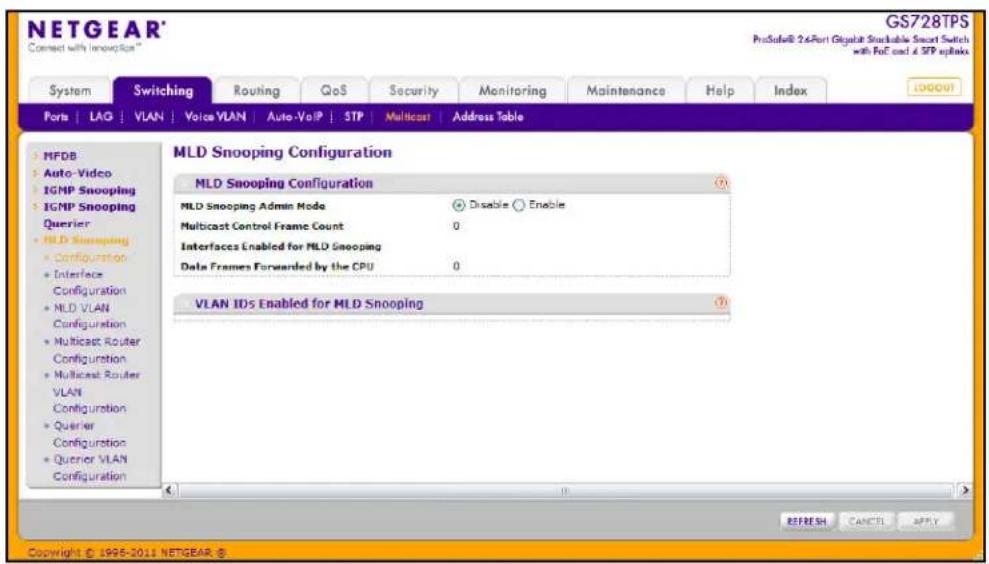

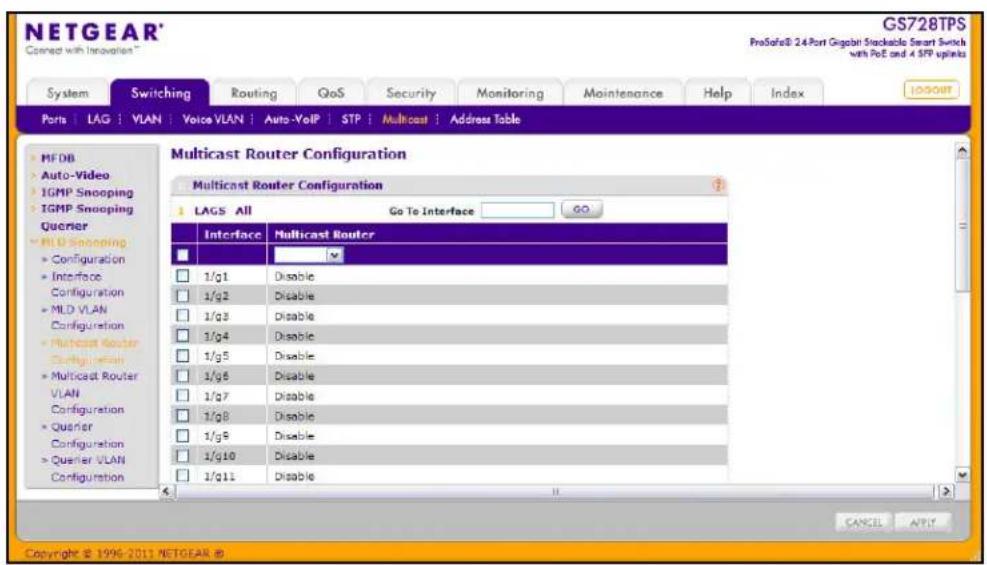

MLD Snooping 147

Forwarding Database ....156

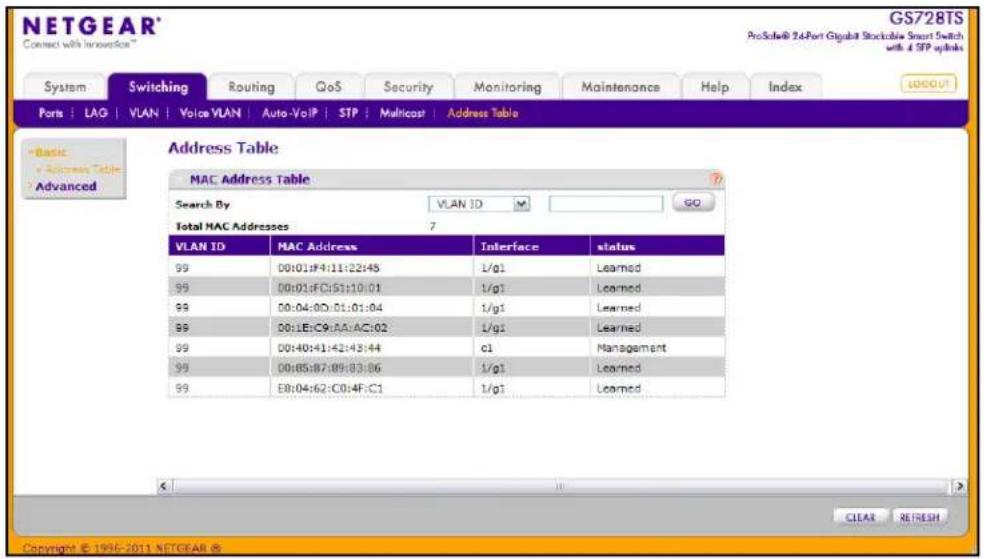

MAC Address Table 156

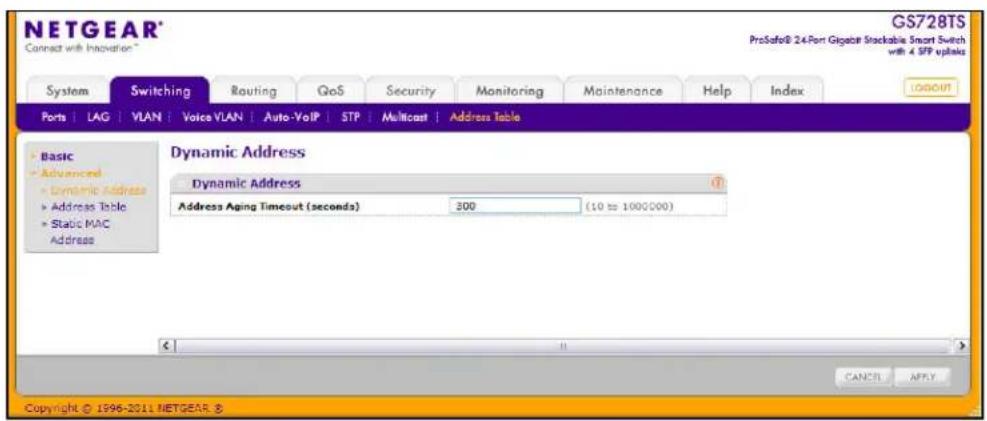

Dynamic Address Configuration 158

Static MAC Address 159

Chapter 4 Configuring Routing

Configuring IP Settings....160

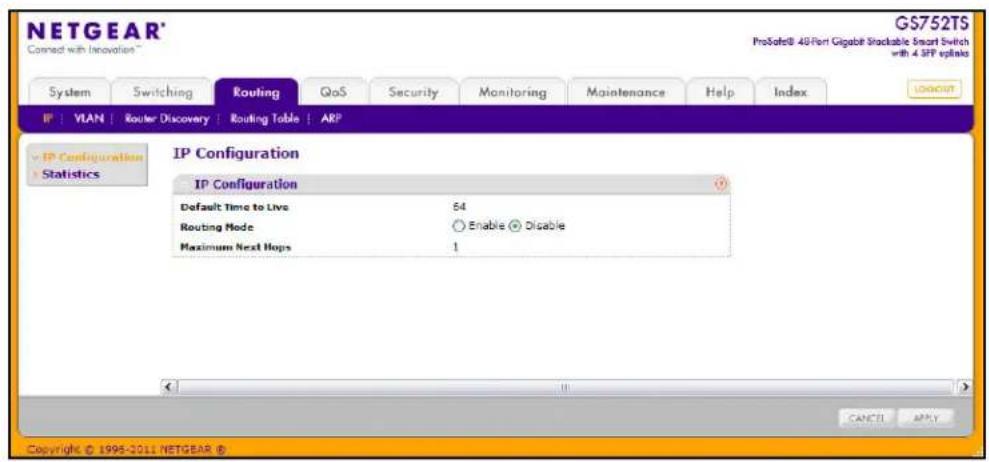

IP Configuration ....161

IP Statistics....162

Configuring VLAN Routing 165

VLAN Routing Wizard....165

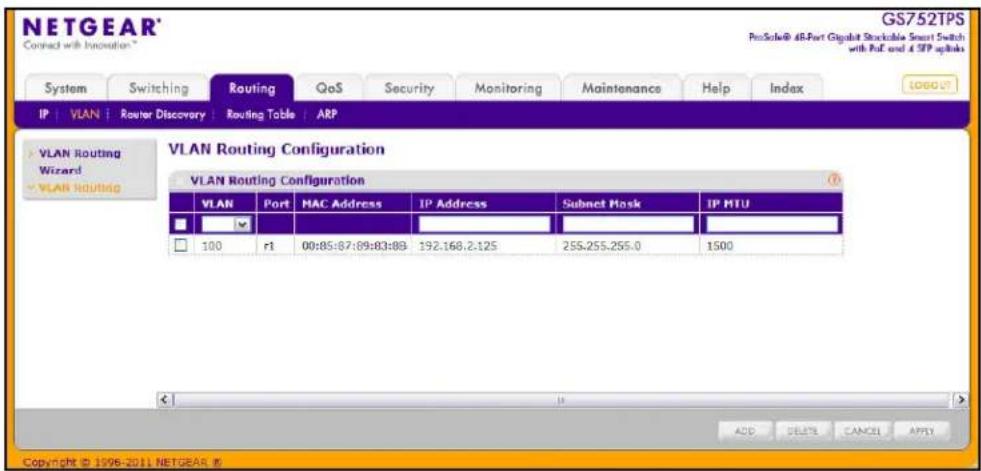

VLAN Routing Configuration....167

Configuring Router Discovery....168

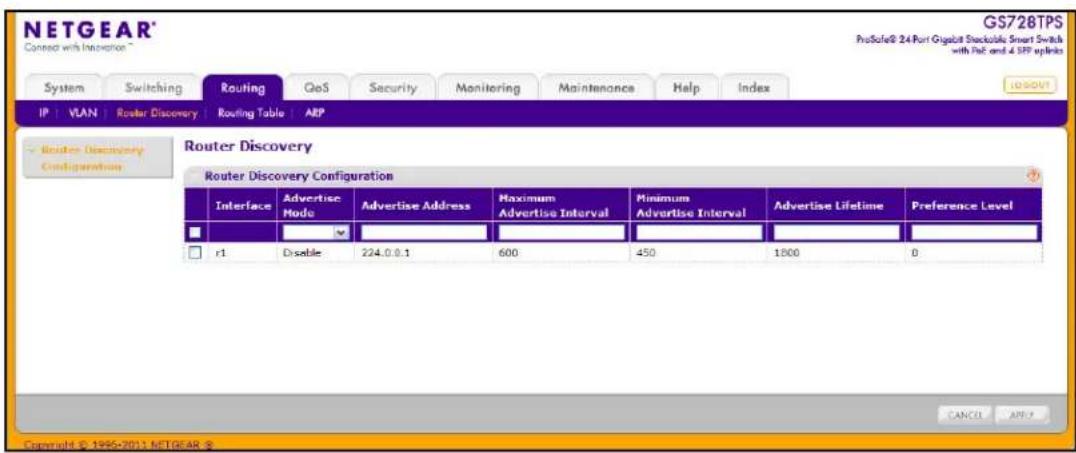

Router Discovery Configuration 168

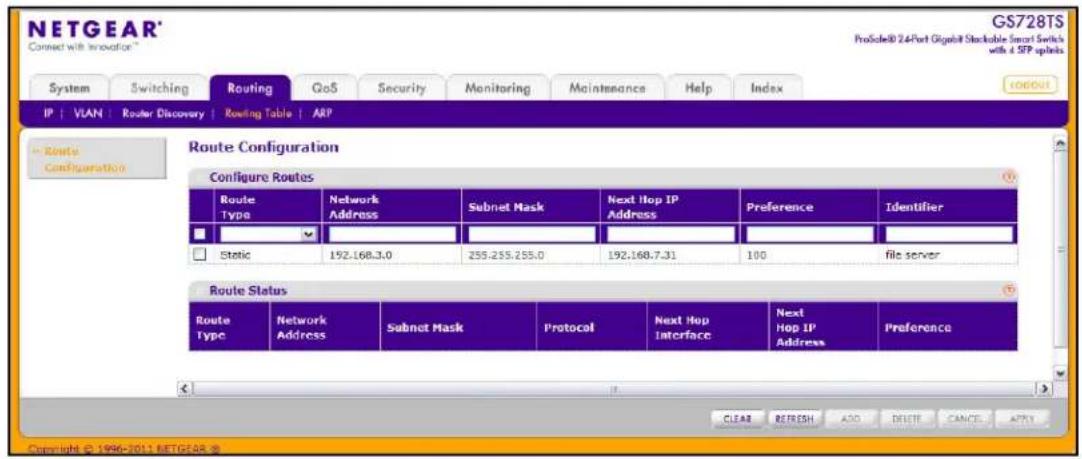

Configuring and Viewing Routes 169

Configuring ARP....171

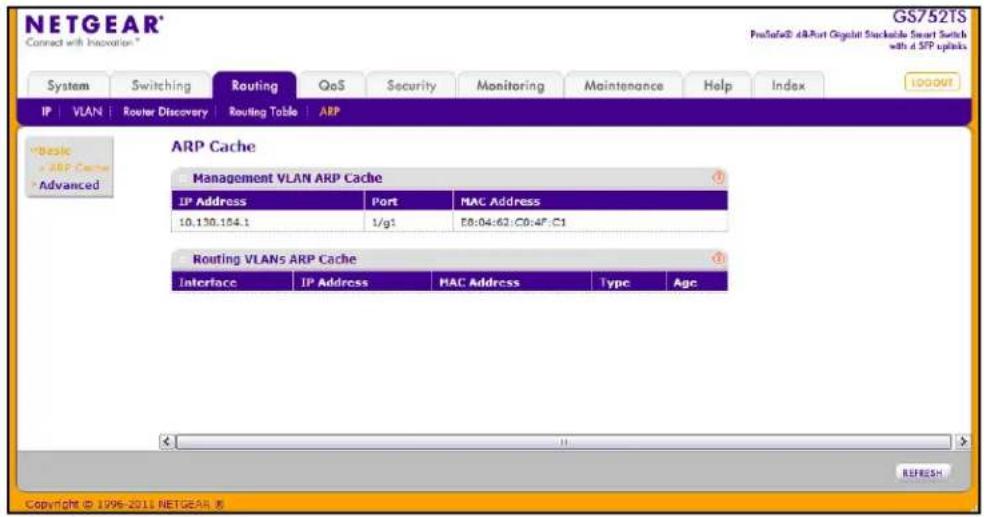

ARP Cache....172

ARP Create....173

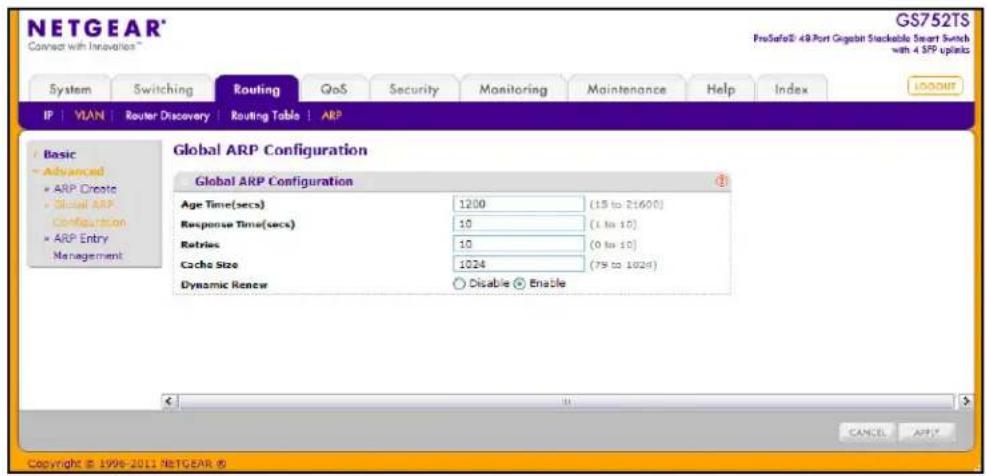

Global ARP Configuration....174

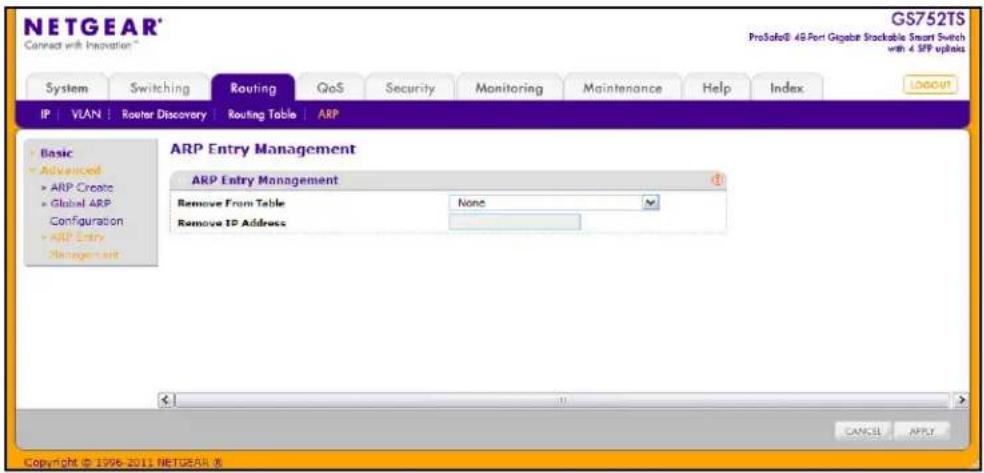

ARP Entry Management....175

Chapter 5 Configuring Quality of Service

Class of Service 177

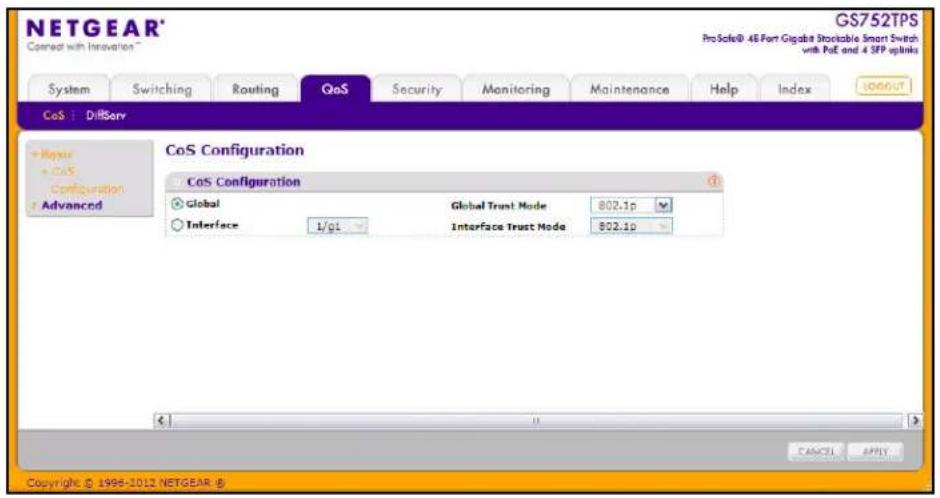

Basic CoS Configuration....178

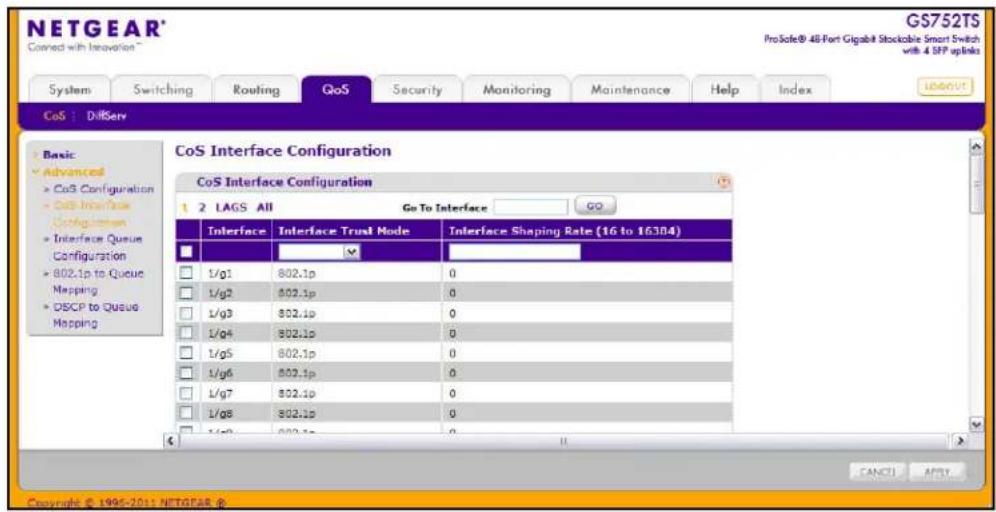

CoS Interface Configuration 179

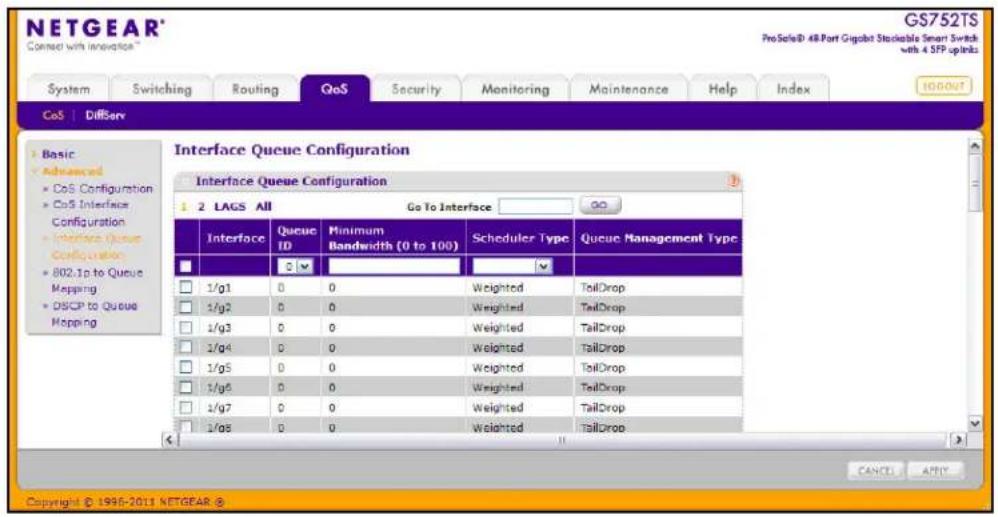

Interface Queue Configuration .....180

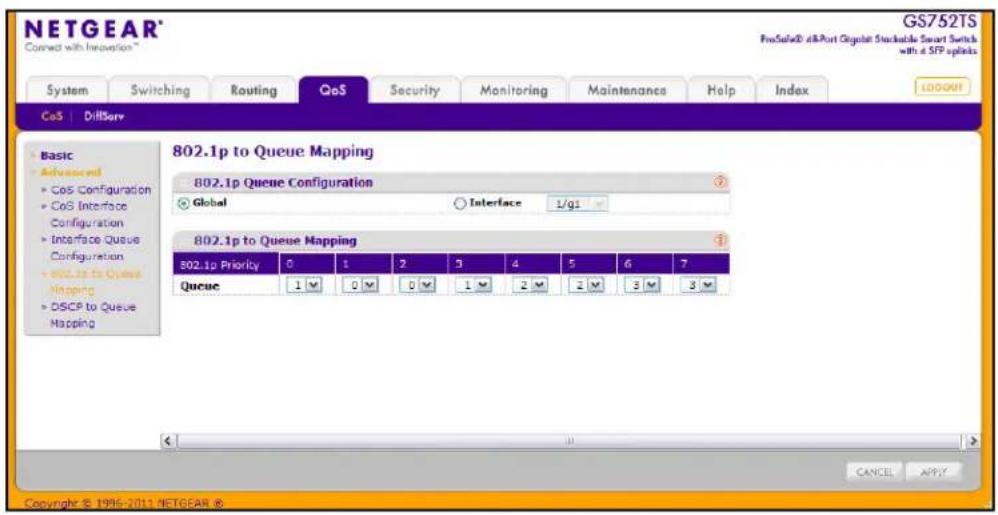

802.1p to Queue Mapping 182

DSCP to Queue Mapping 183

Differentiated Services 184

Defining DiffServ....184

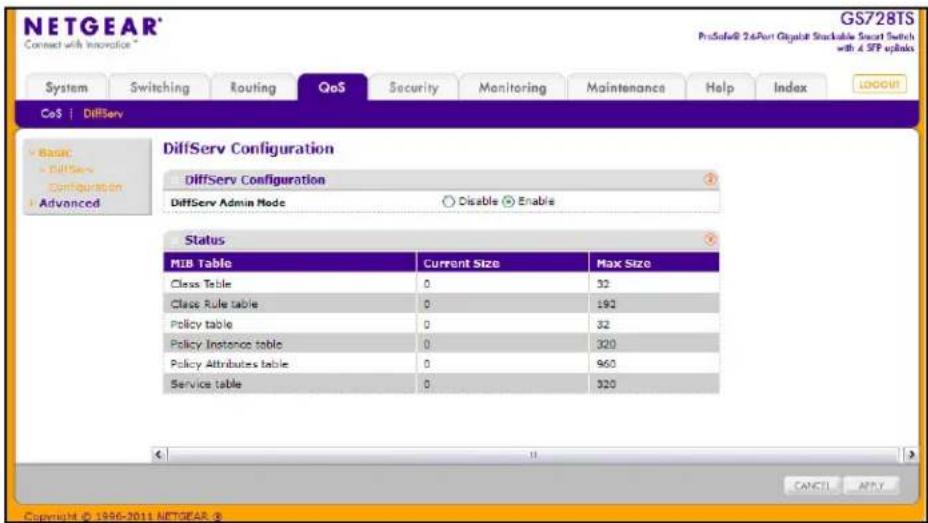

Diffserv Configuration 185

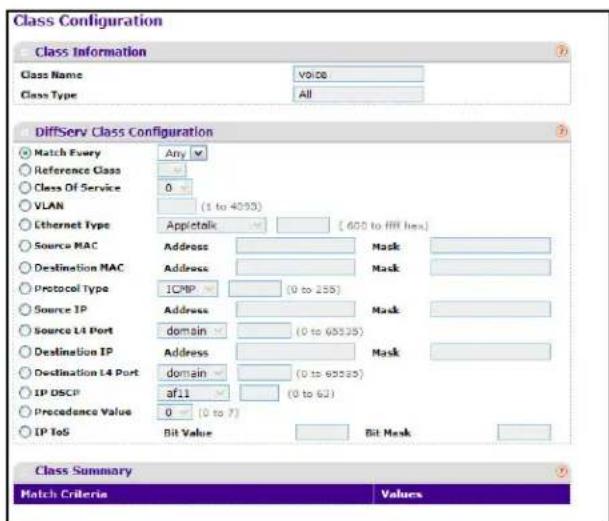

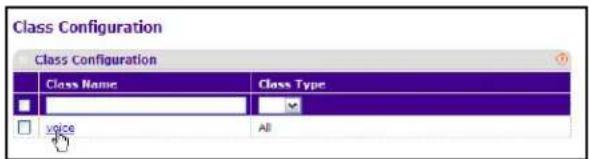

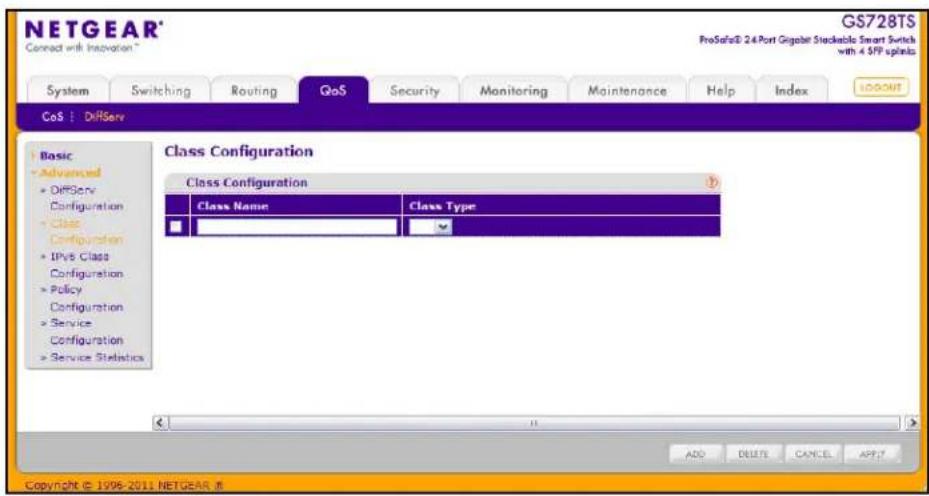

Class Configuration 186

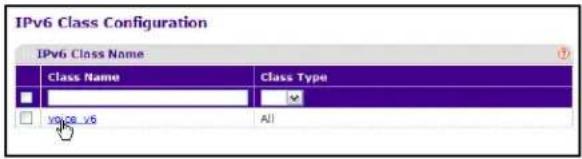

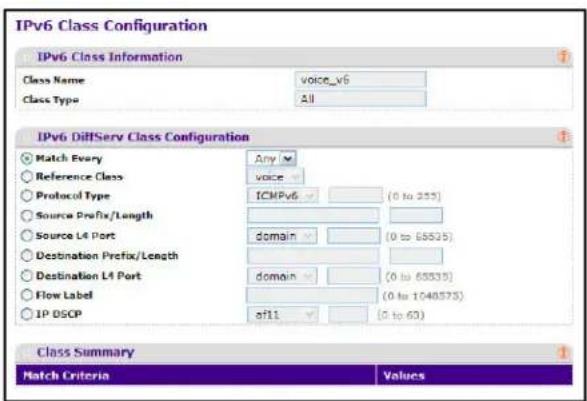

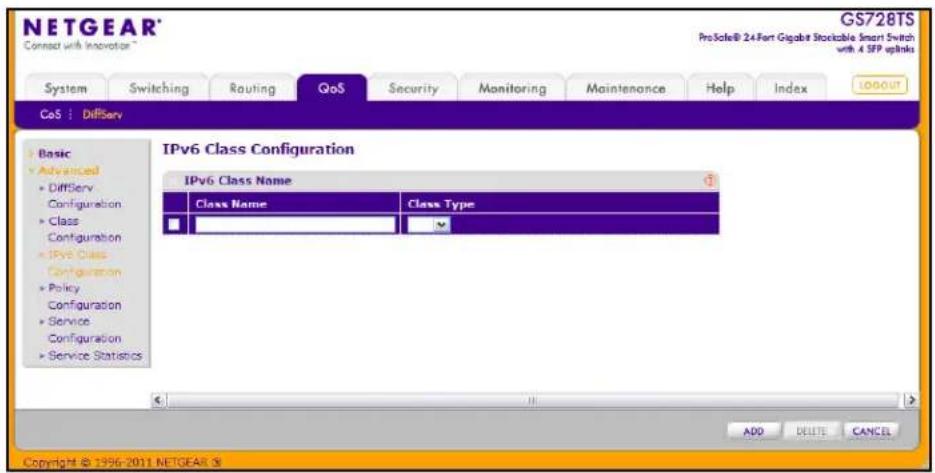

IPv6 Class Configuration .....189

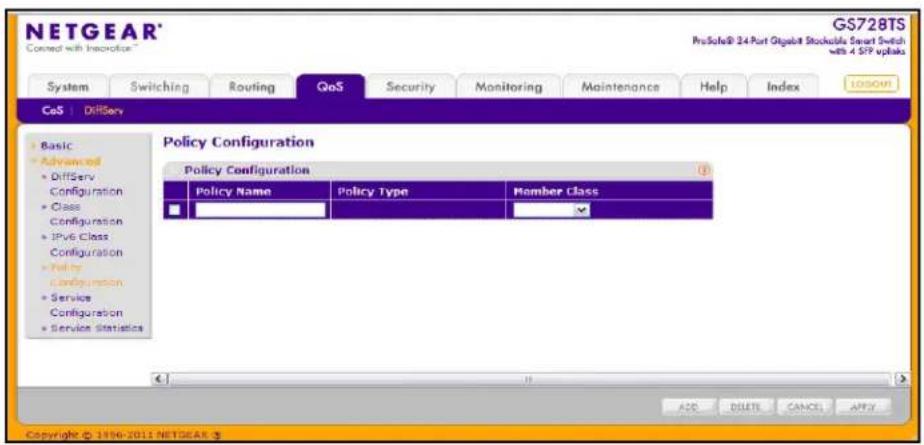

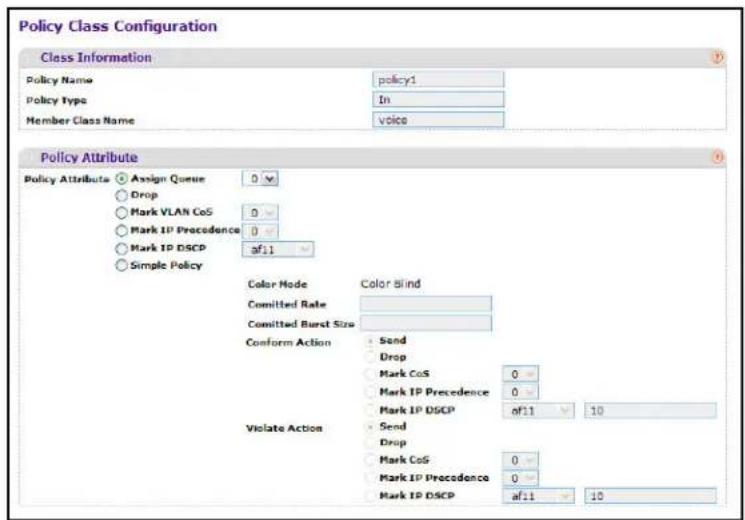

Policy Configuration....191

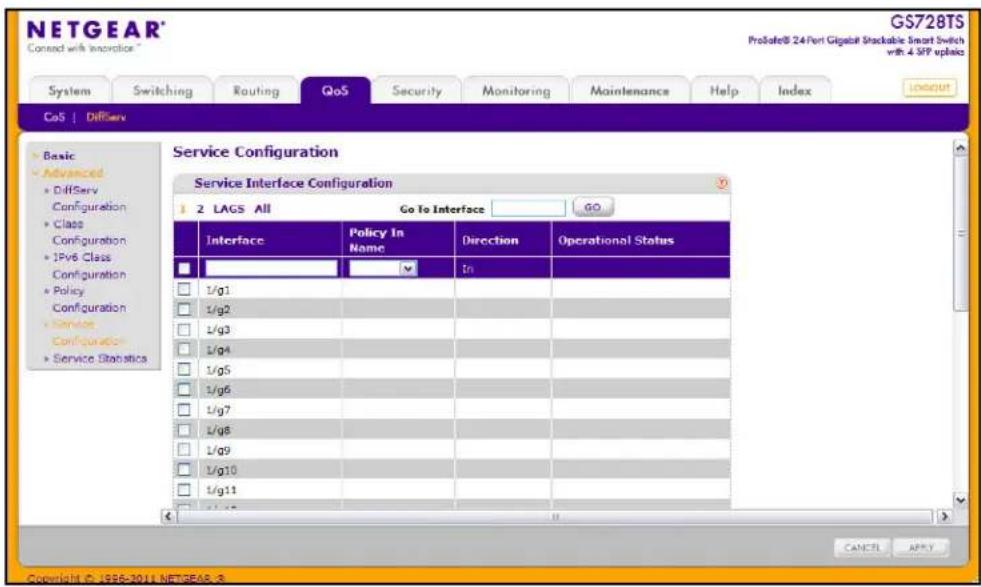

Service Configuration 195

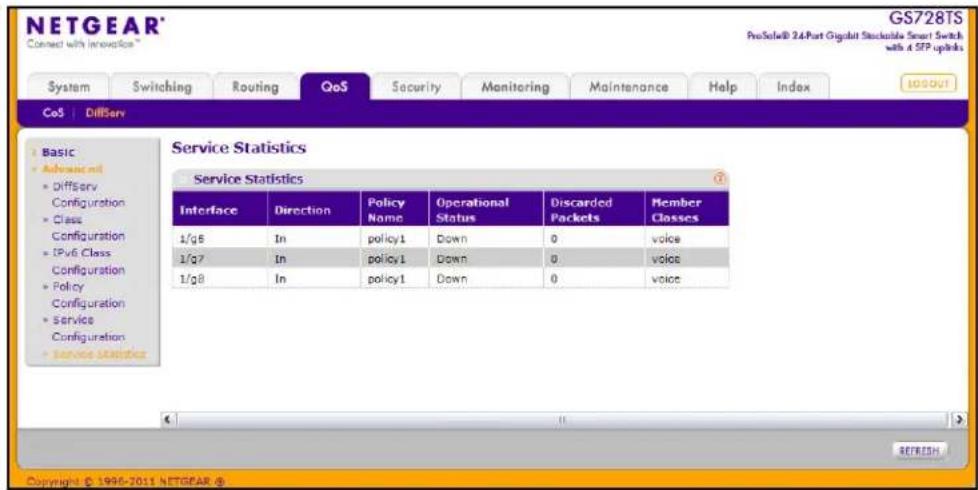

Service Statistics 196

Chapter 6 Managing Device Security

Management Security Settings ....197

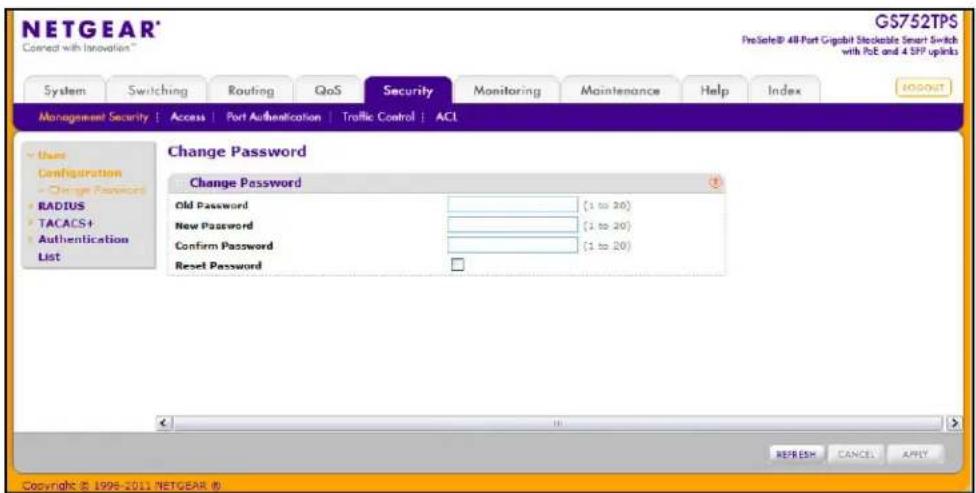

Change Password 198

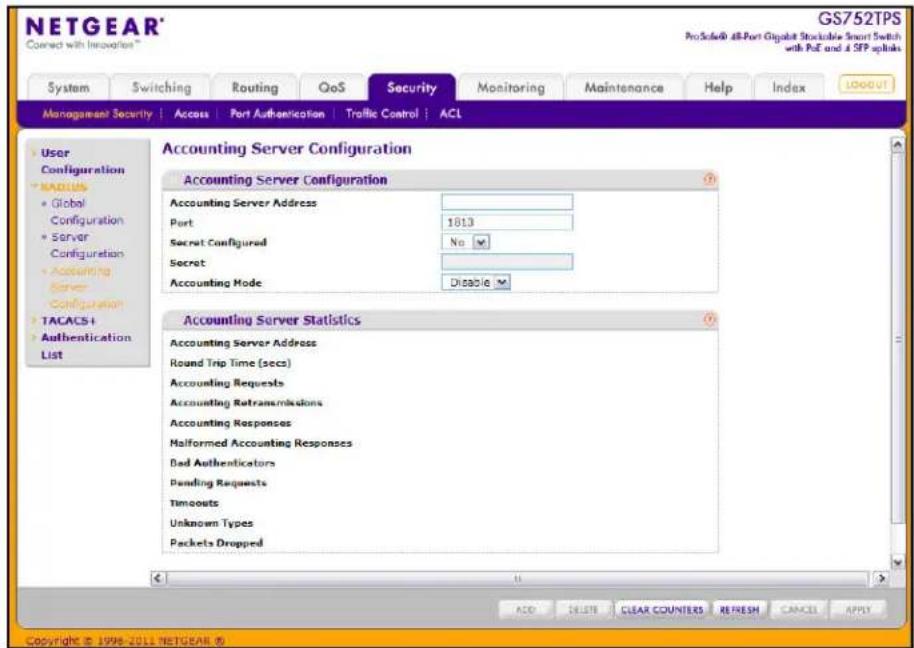

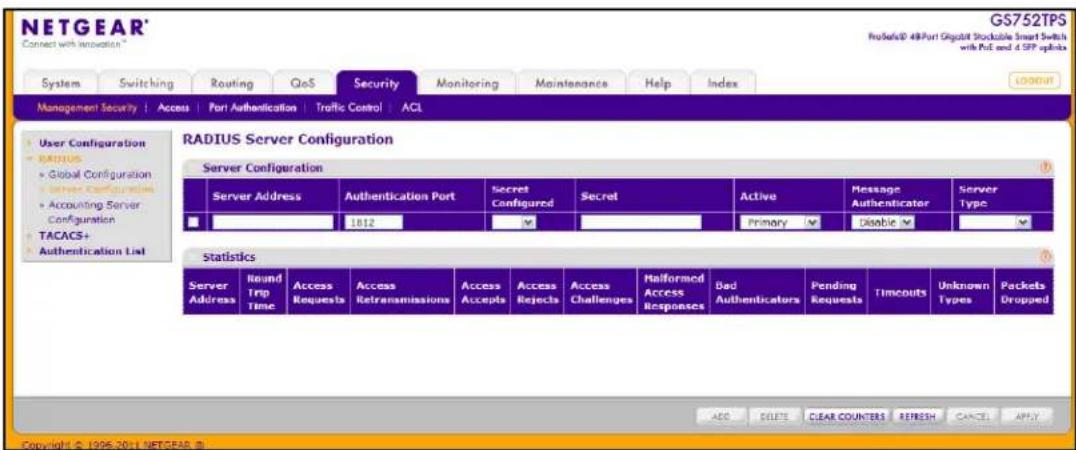

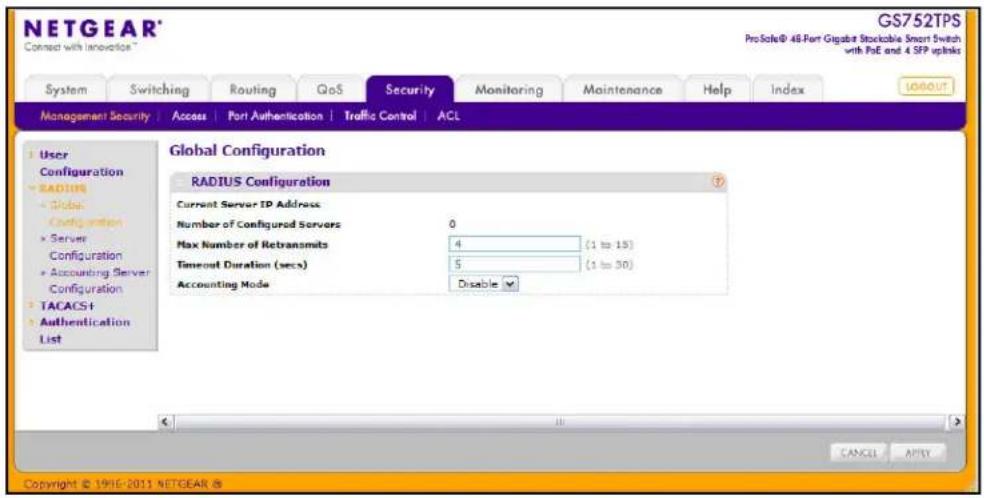

RADIUS Configuration 199

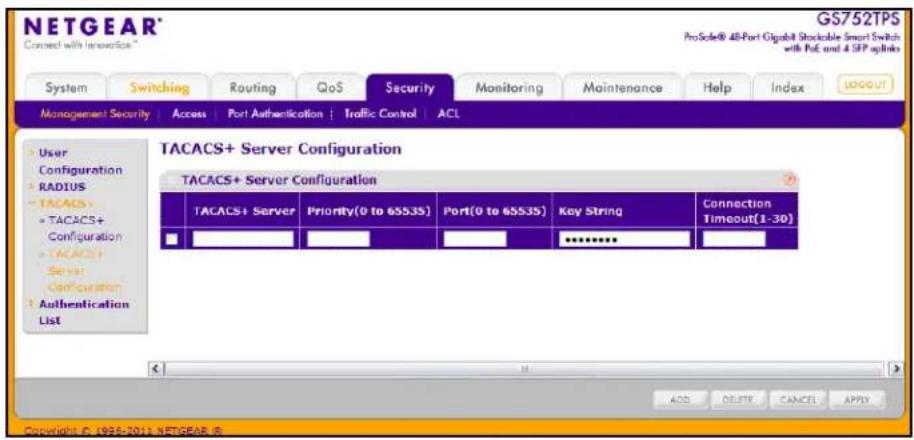

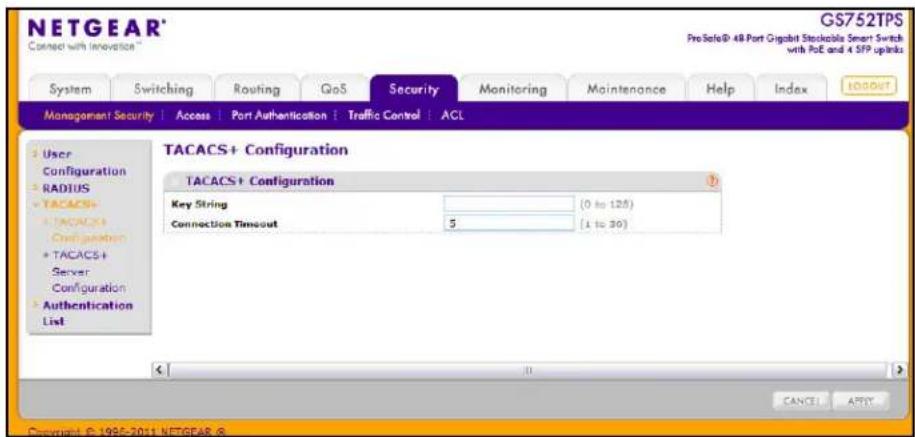

Configuring TACACS+....204

Authentication List Configuration .....207

Configuring Management Access 210

HTTP Configuration .....211

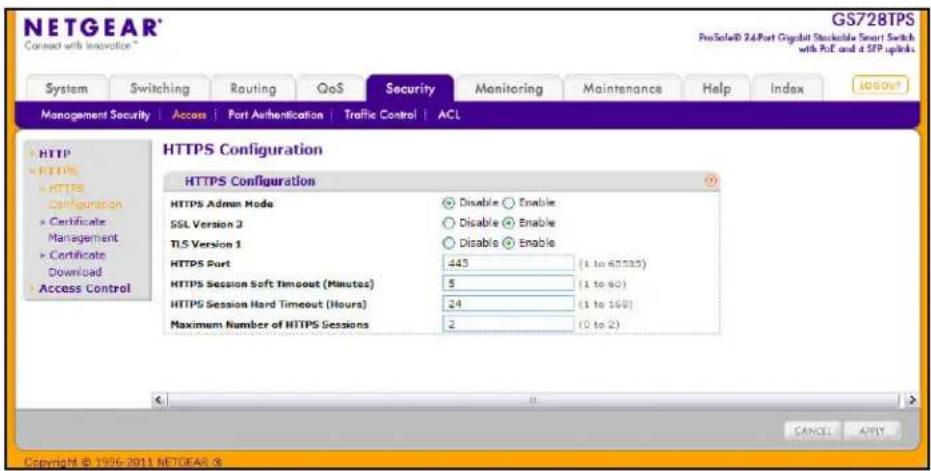

Secure HTTP Configuration 212

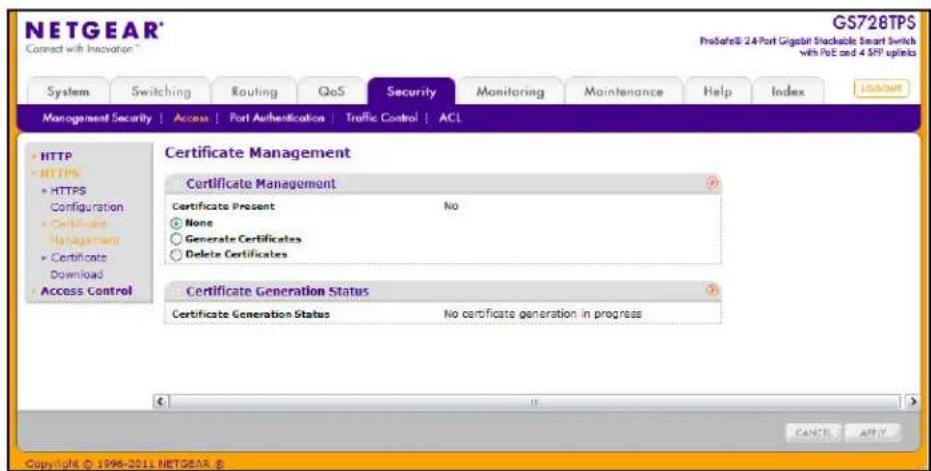

Certificate Management 213

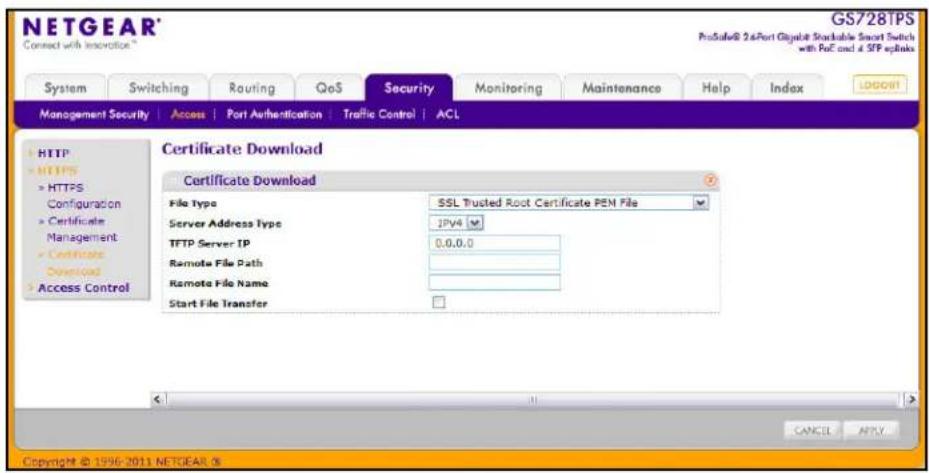

Certificate Download 214

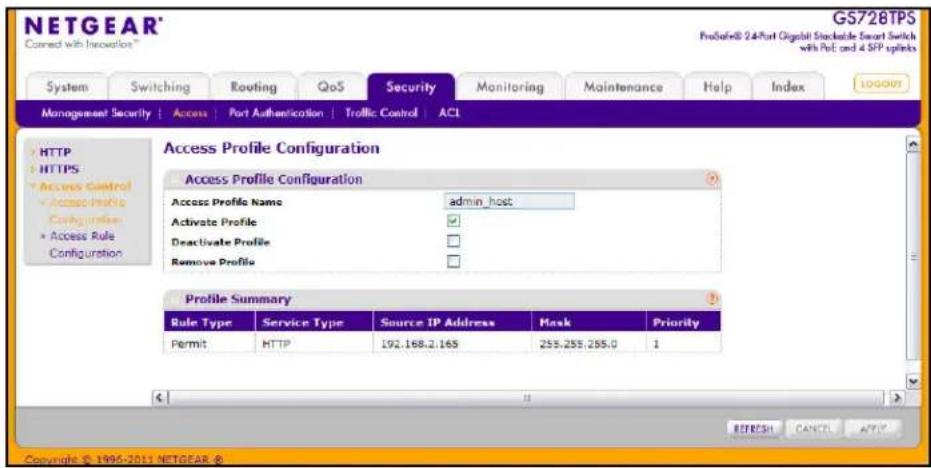

Access Profile Configuration 215

Access Rule Configuration .....217

Port Authentication. 218

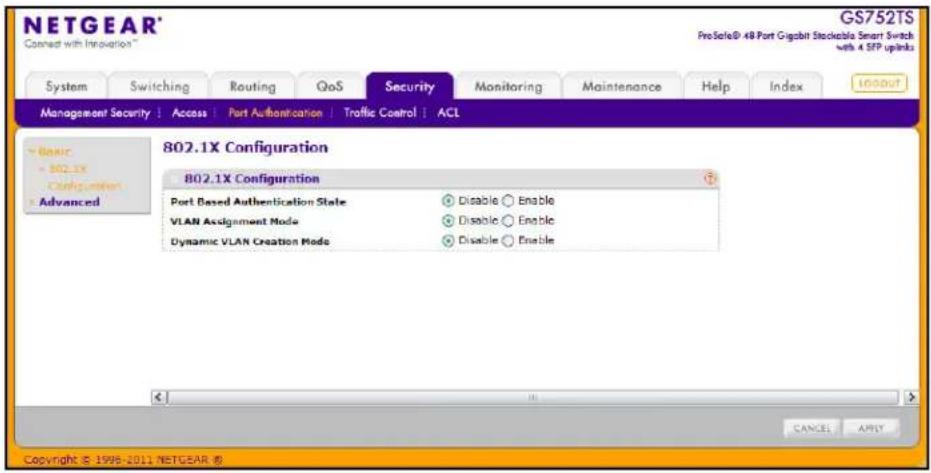

802.1X Configuration .....219

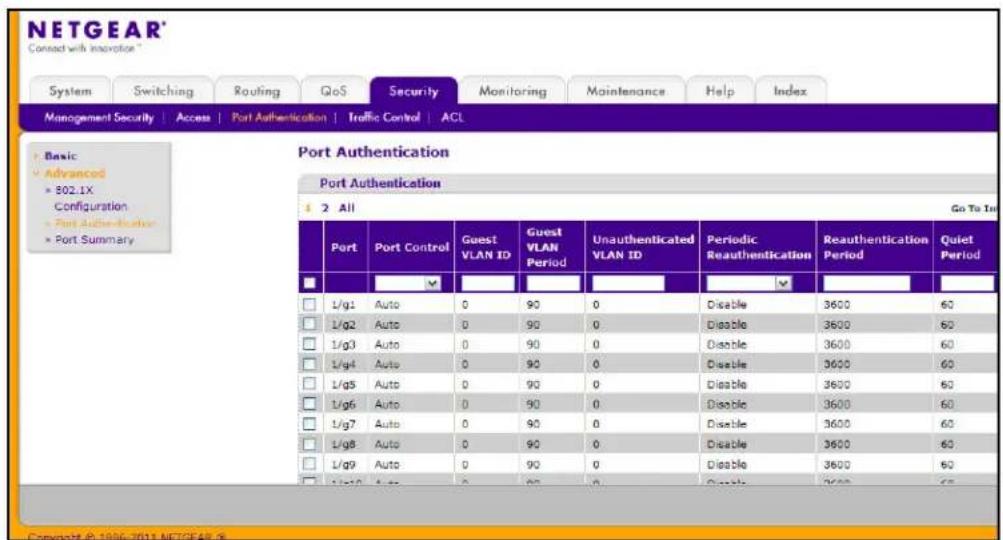

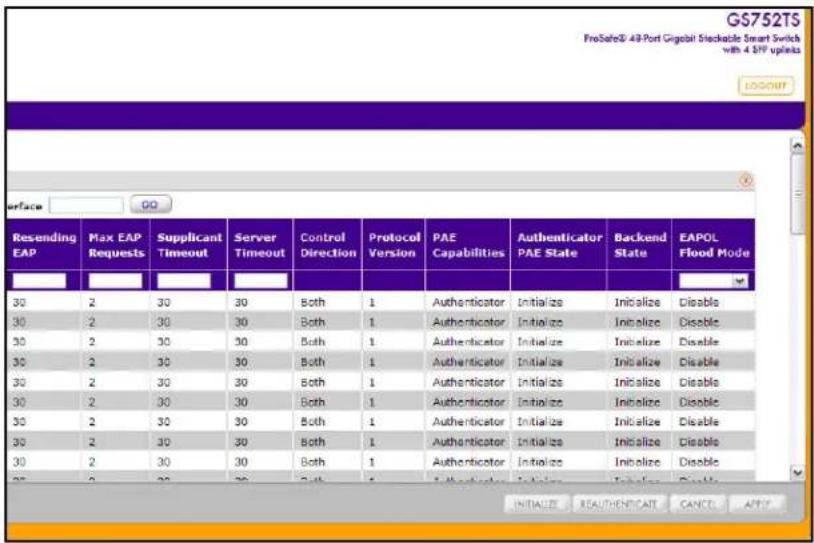

Port Authentication 220

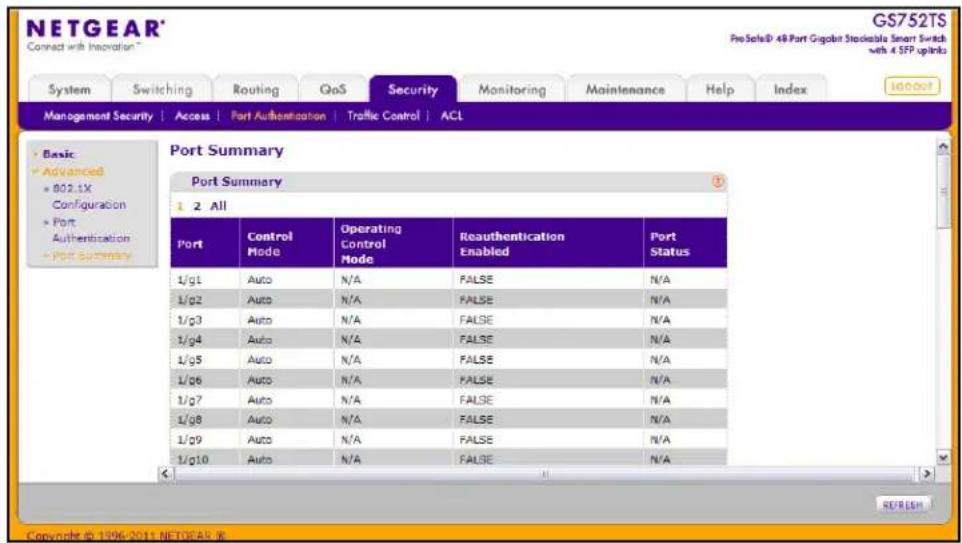

Port Summary....224

Traffic Control. 225

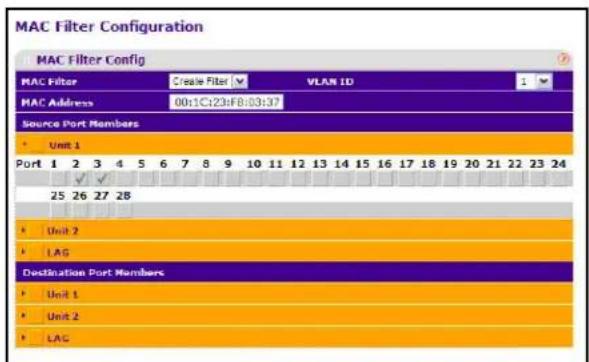

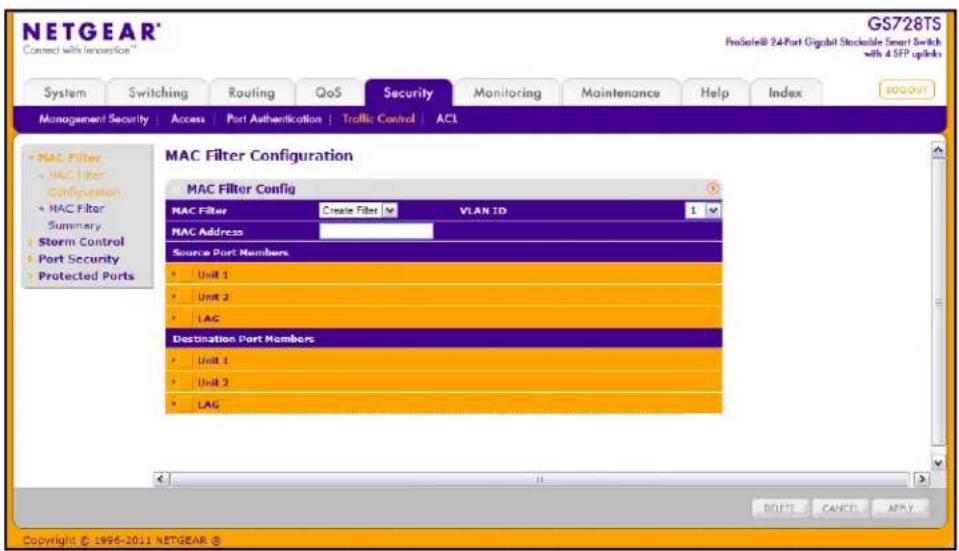

MAC Filter Configuration 225

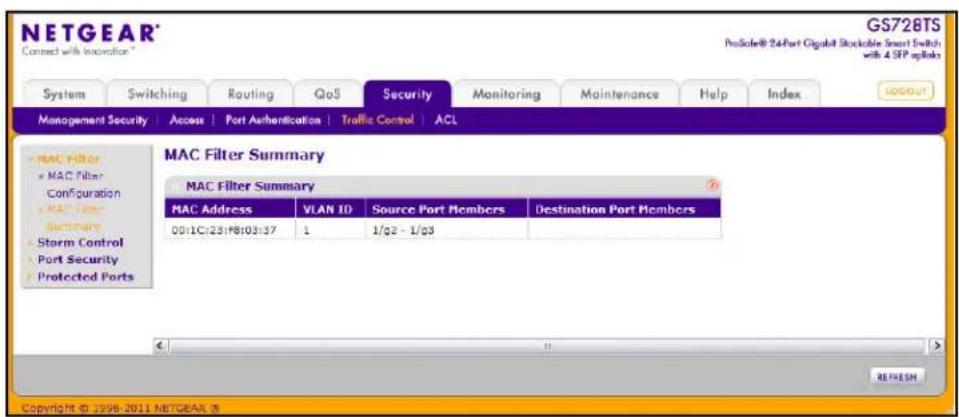

MAC Filter Summary 227

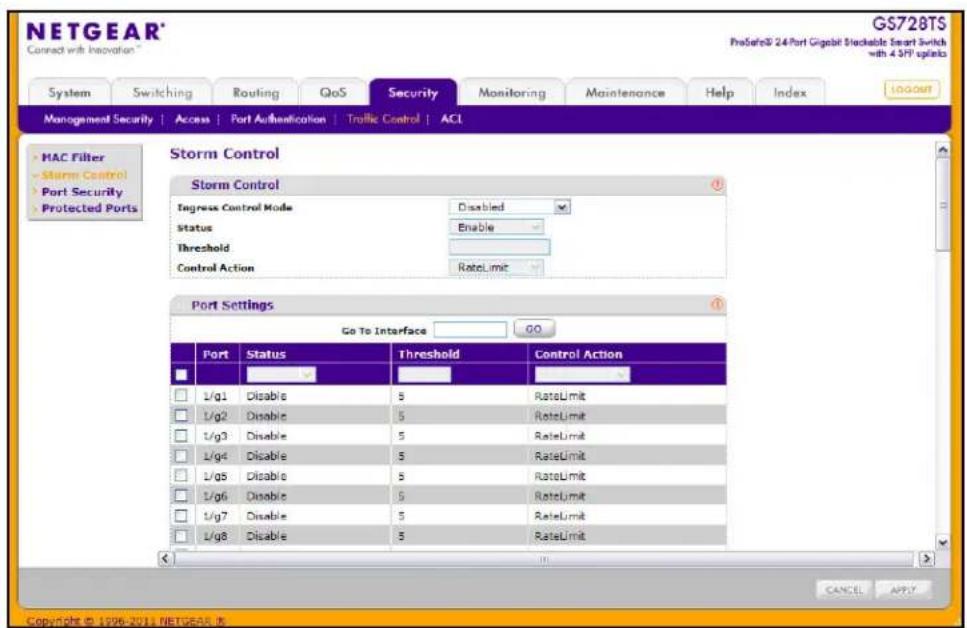

Storm Control 228

Port Security Configuration....230

Port Security Interface Configuration .....231

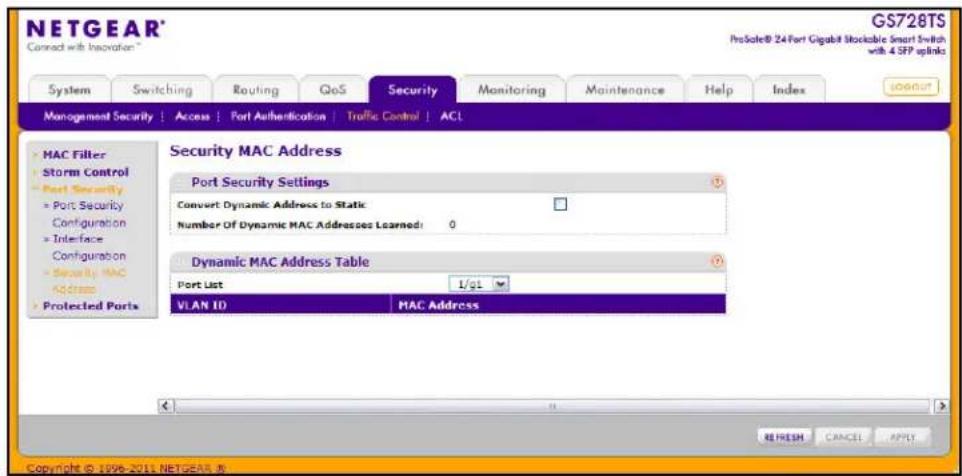

Security MAC Address 232

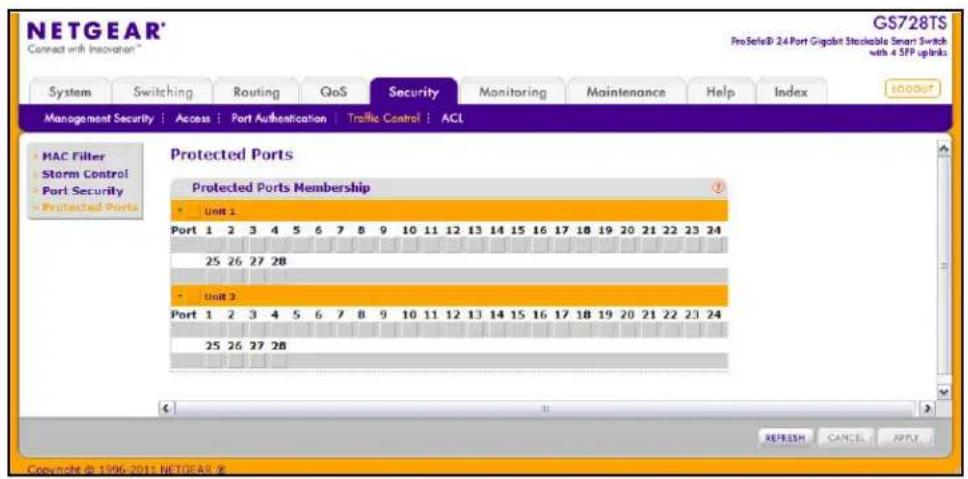

Protected Ports Membership 233

Configuring Access Control Lists 234

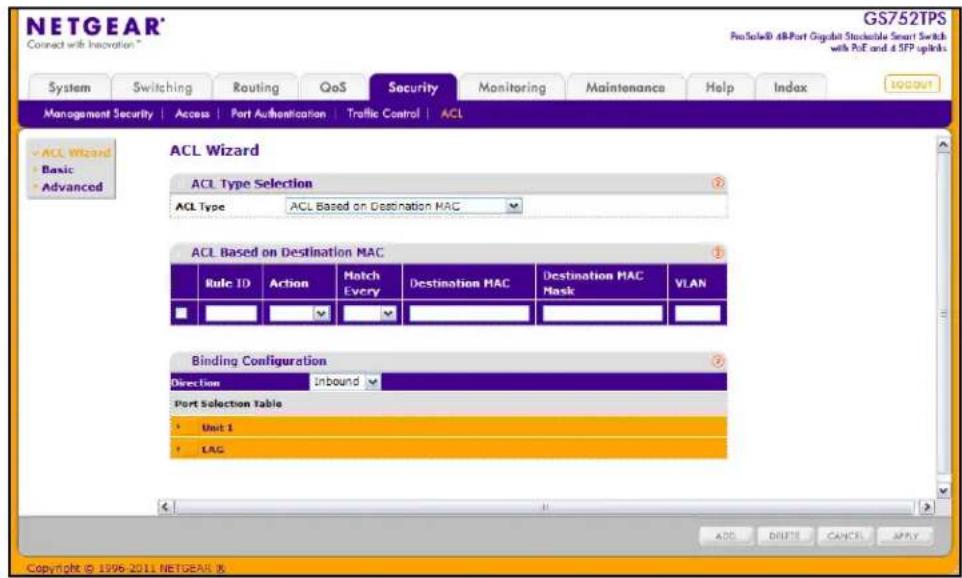

ACL Wizard 235

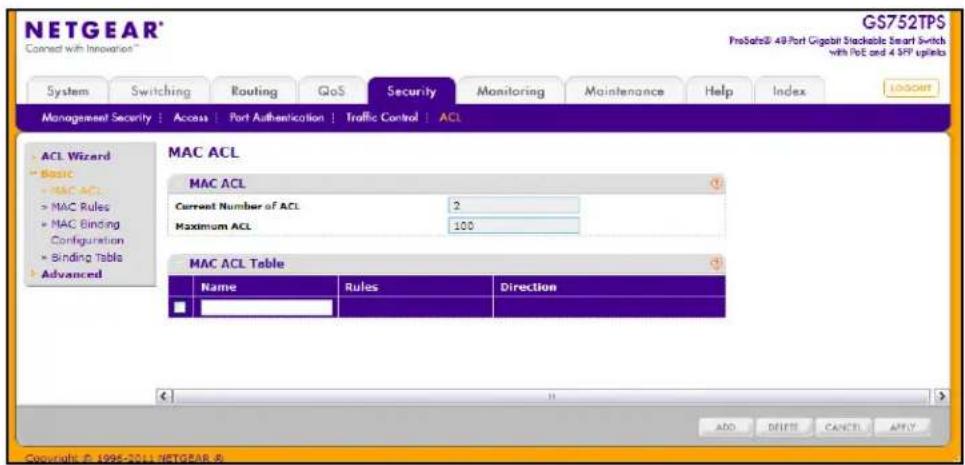

MAC ACL 237

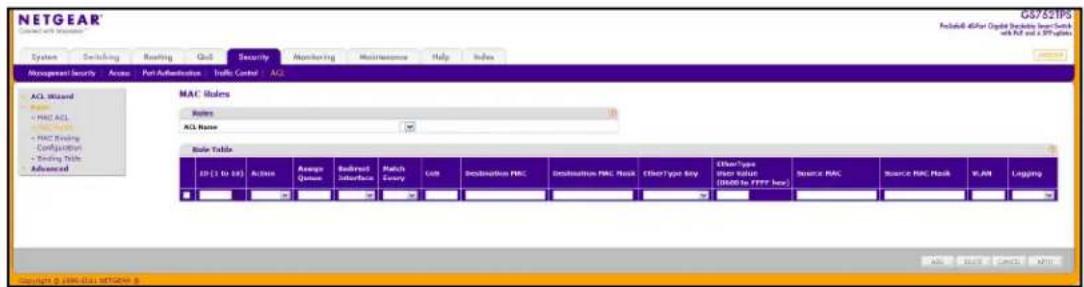

MAC Rules 238

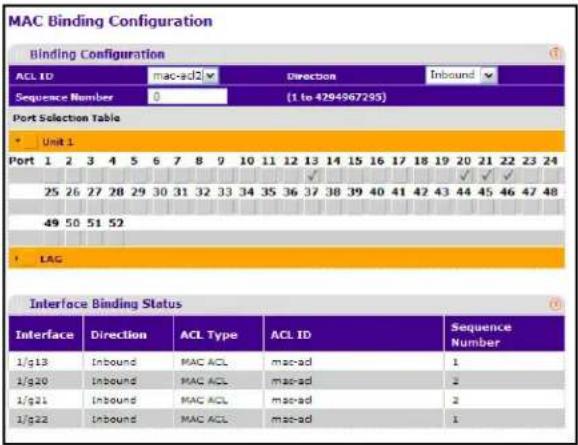

MAC Binding Configuration 240

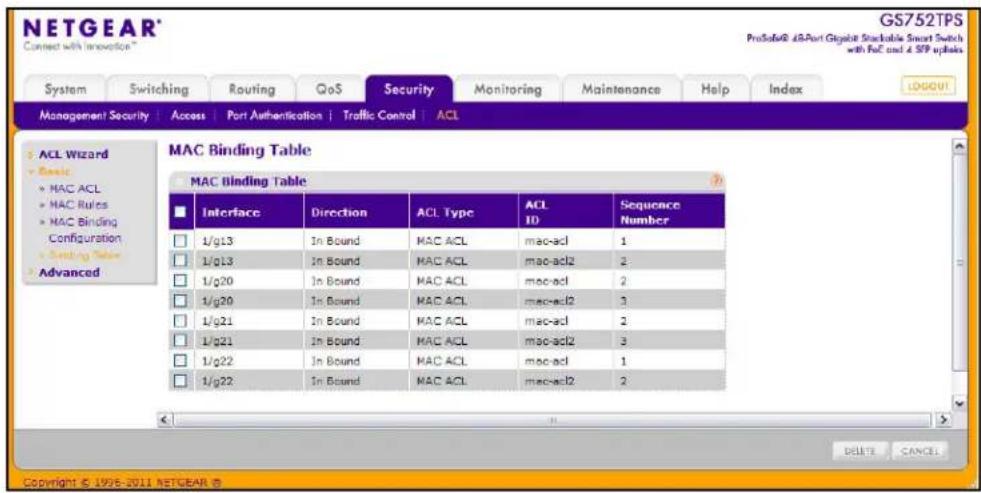

MAC Binding Table....241

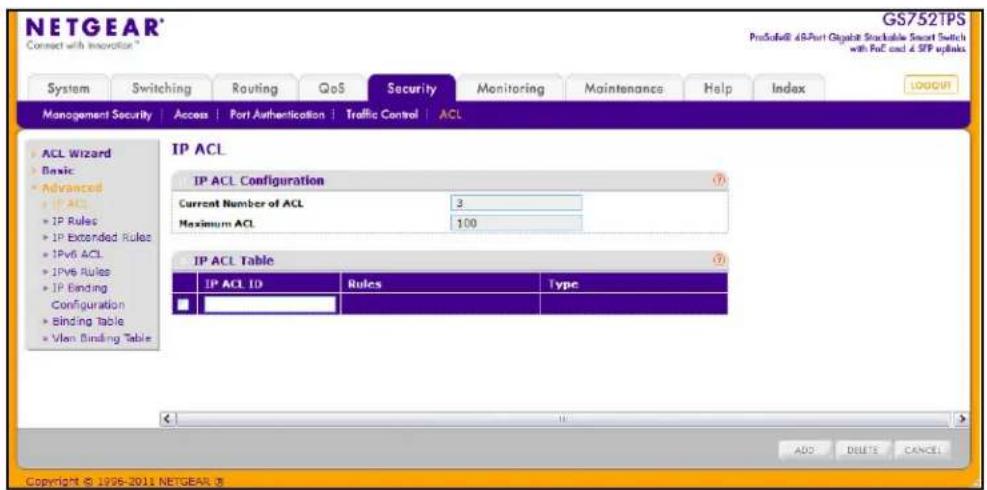

IP ACL 242

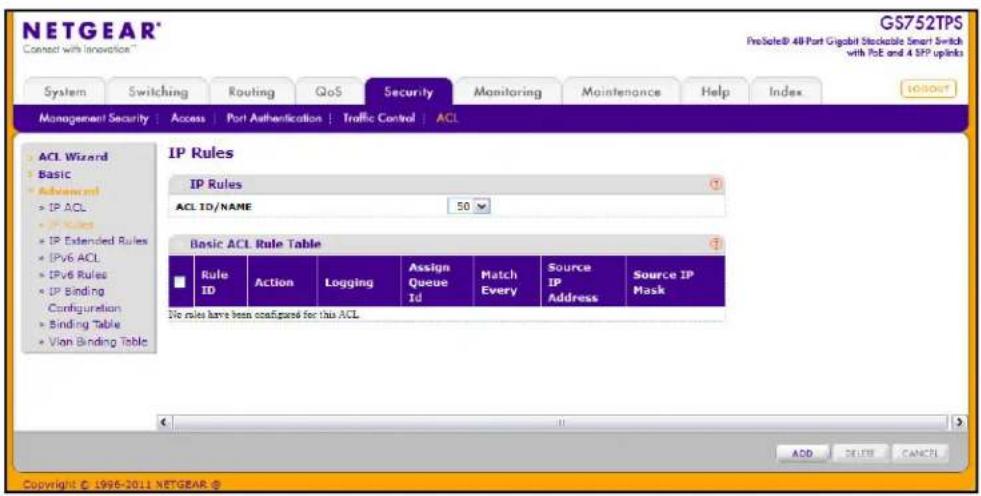

IP Rules 243

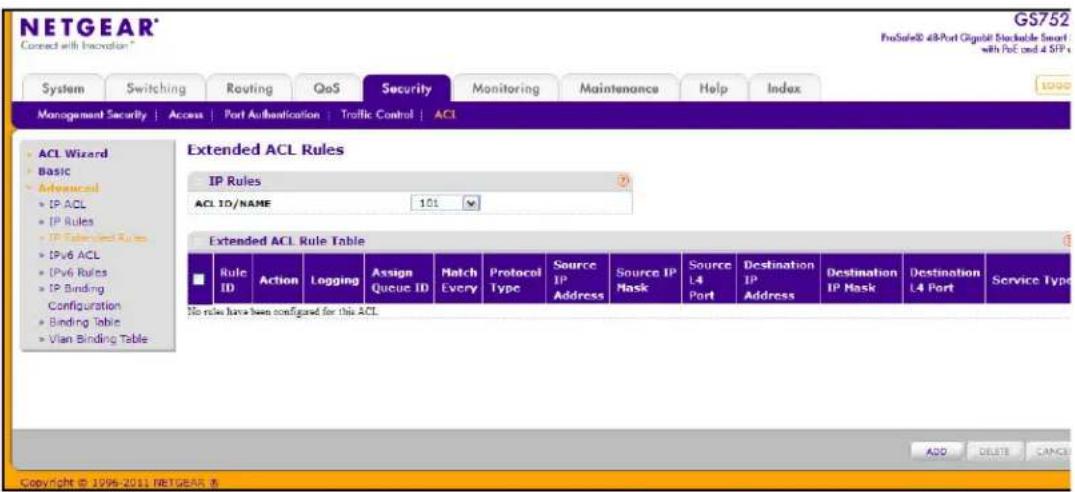

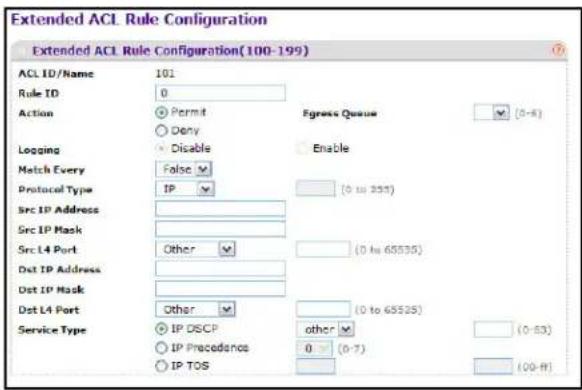

IP Extended Rule 245

IPv6 ACL 248

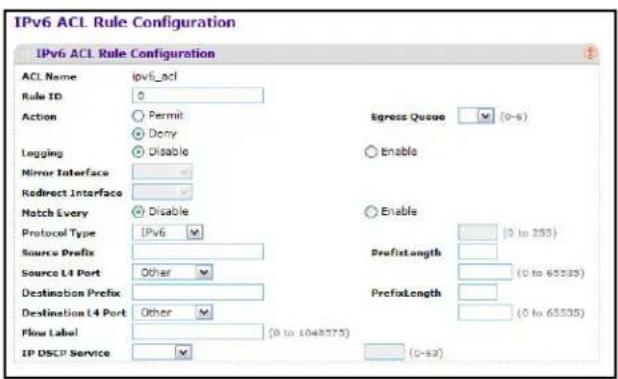

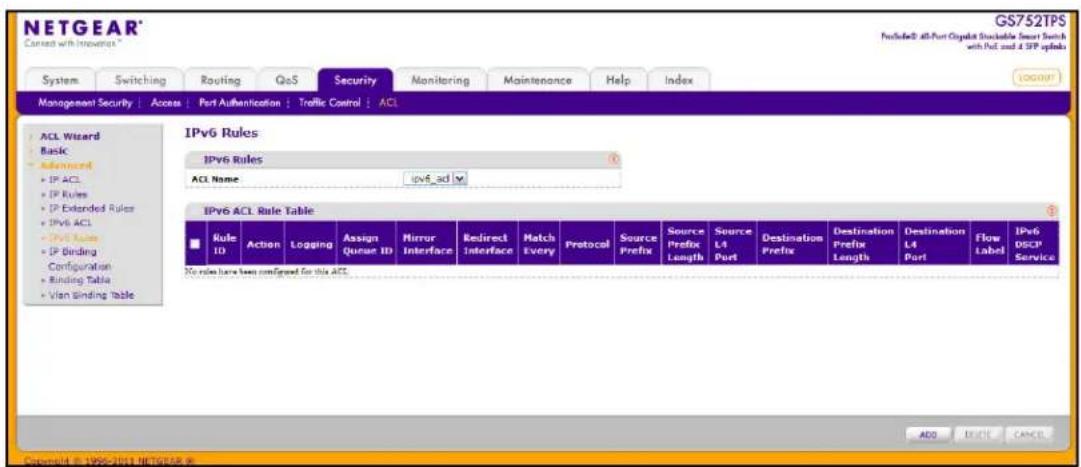

IPv6 Rules 249

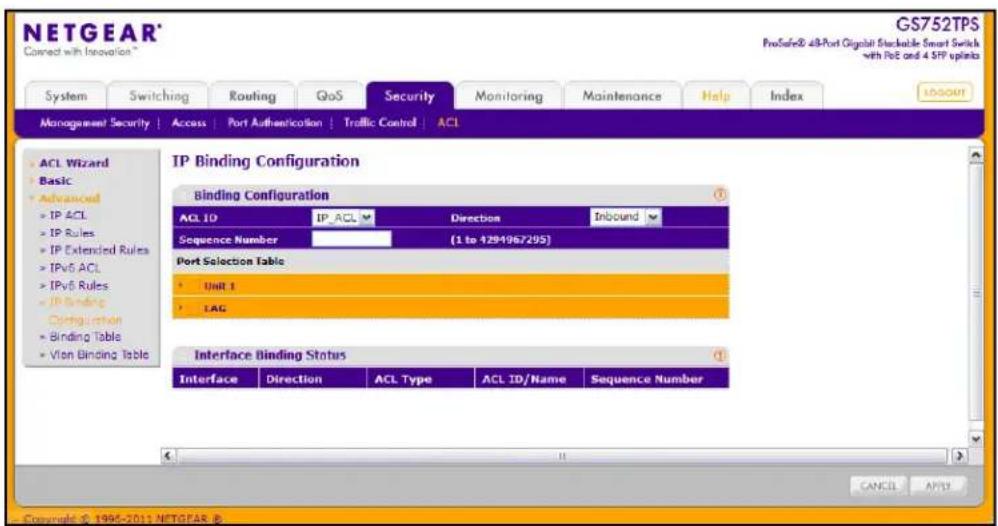

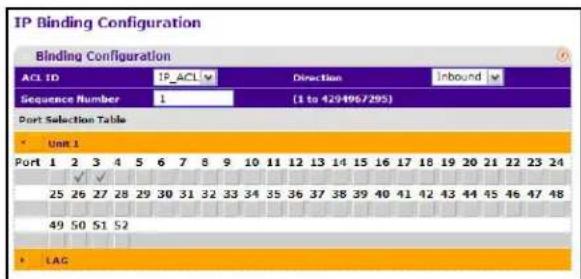

IP Binding Configuration....252

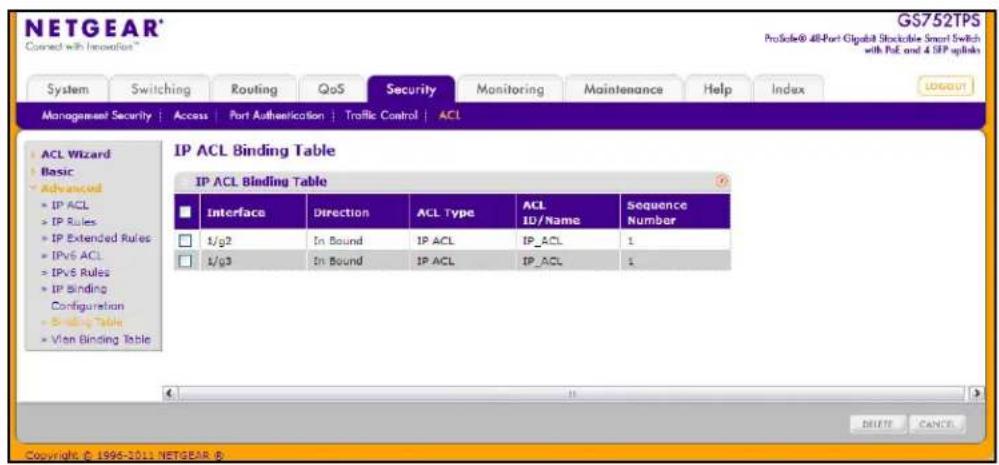

IP Binding Table 254

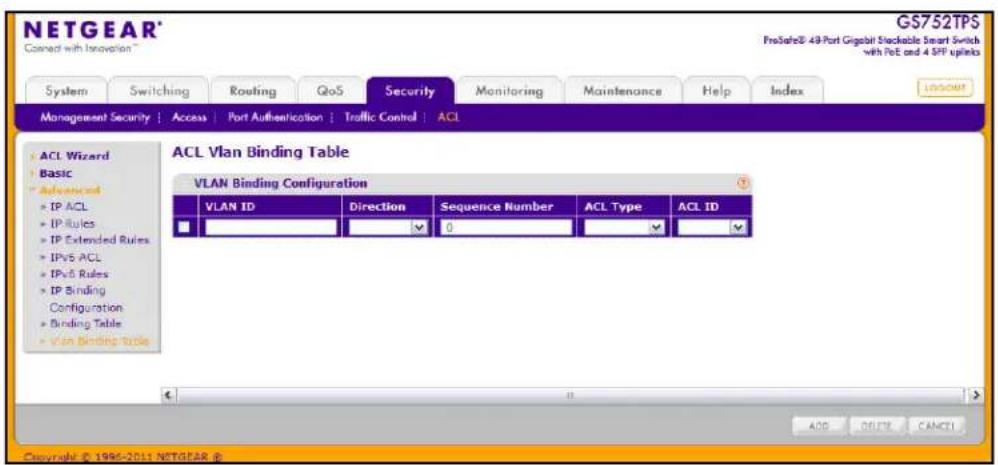

VLAN Binding Table 255

Chapter 7 Monitoring the System

Ports. 256

Switch Statistics 256

Port Statistics 259

Port Detailed Statistics 260

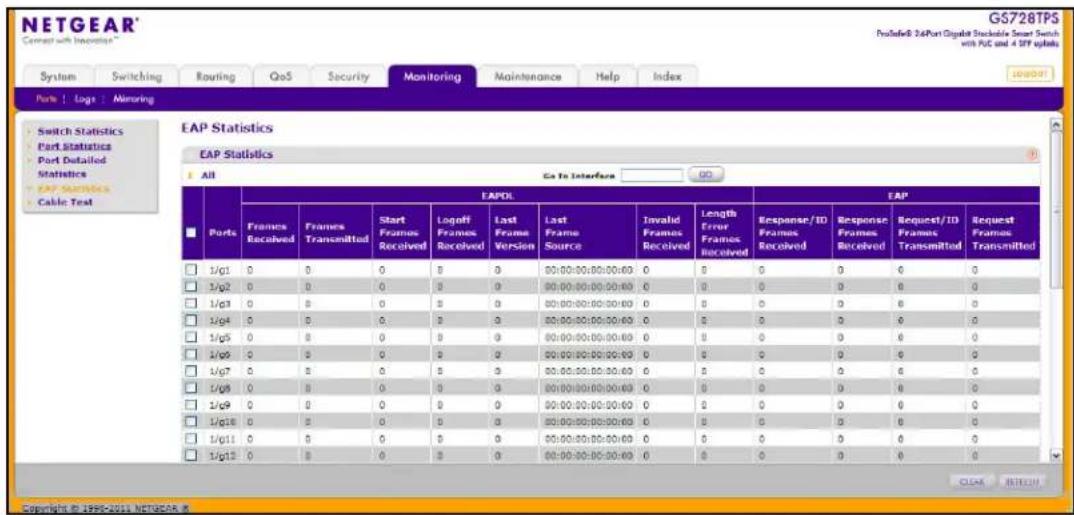

EAP Statistics 266

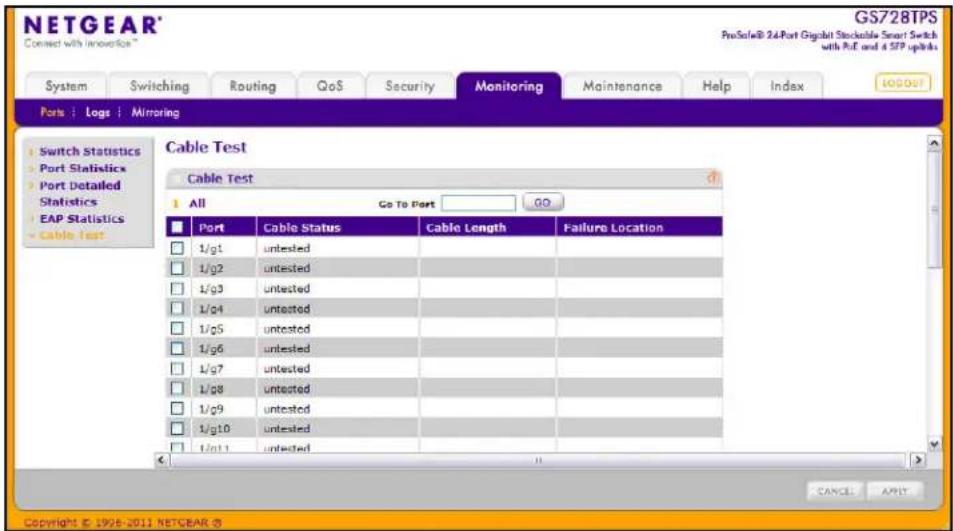

Cable Test 268

System Logs. 270

Memory Logs 270

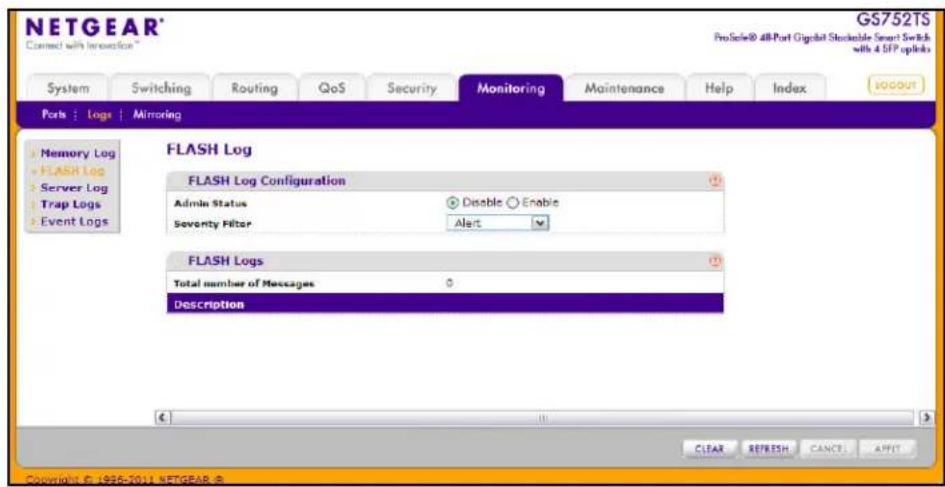

FLASH Log Configuration. 272

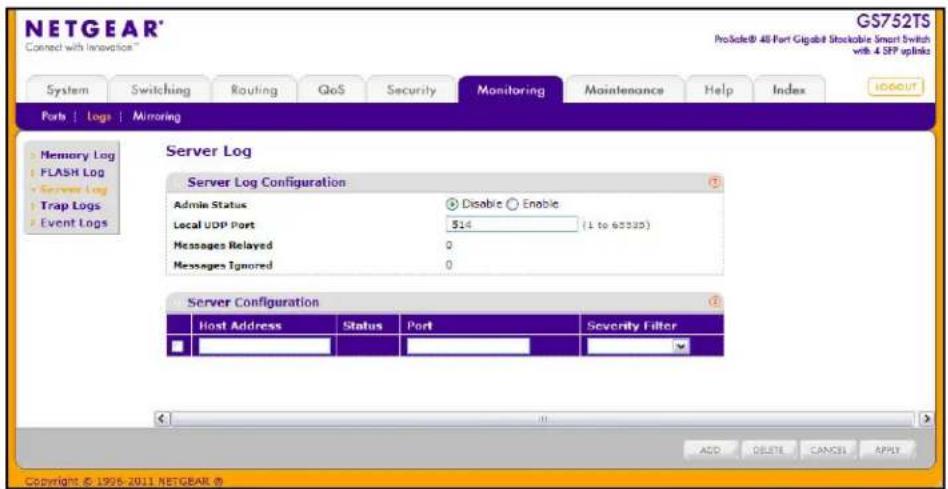

Server Log Configuration 274

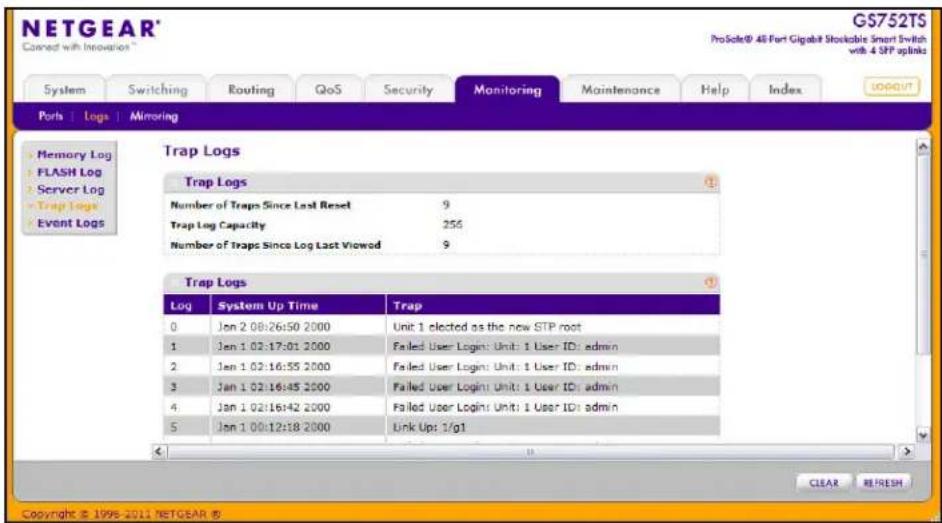

Trap Logs 276

Event Logs 277

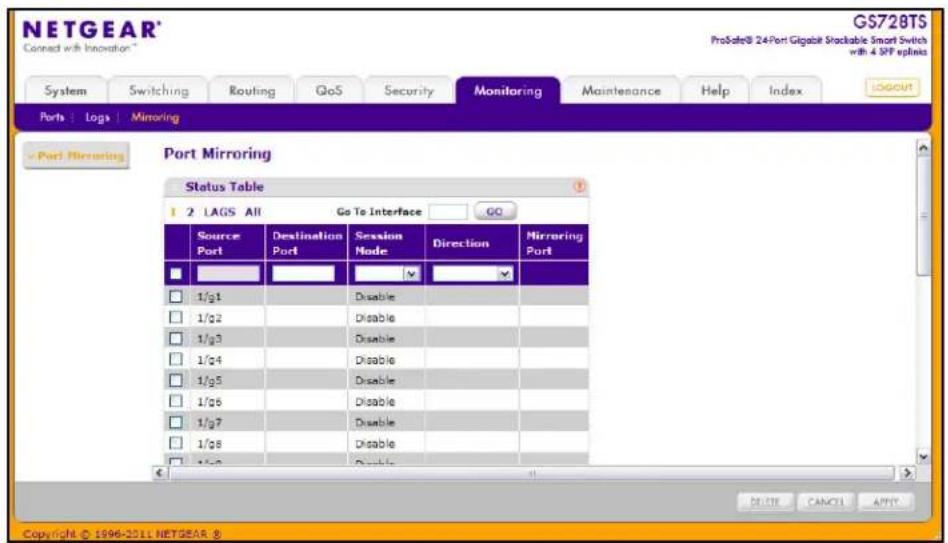

Port Mirroring 278

Multiple Port Mirroring. 278

Chapter 8 Maintaining the System

Reset 280

Device Reboot 280

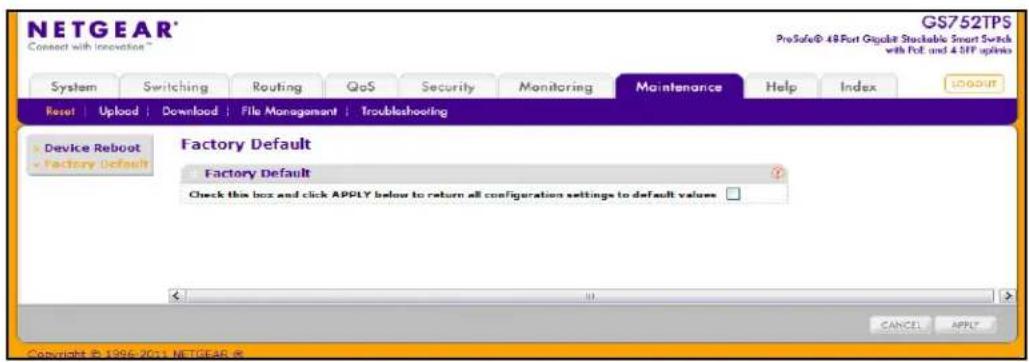

Factory Default .281

Upload File From Switch 282

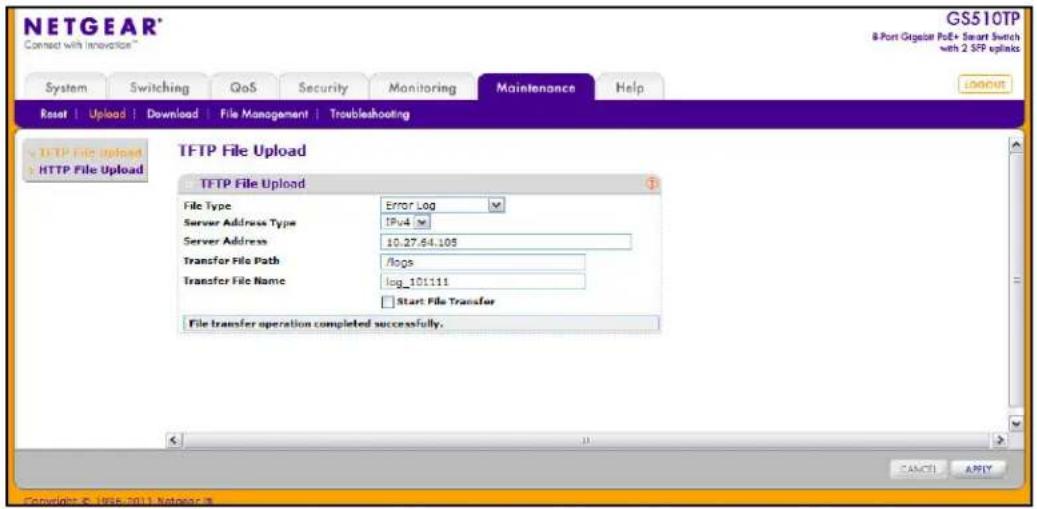

TFTP File Upload 282

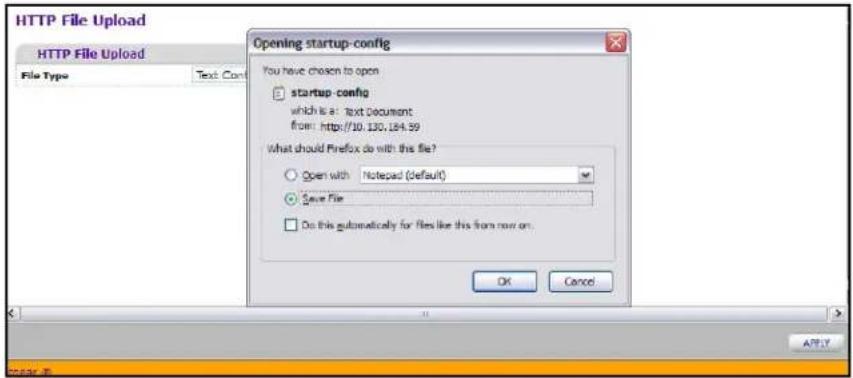

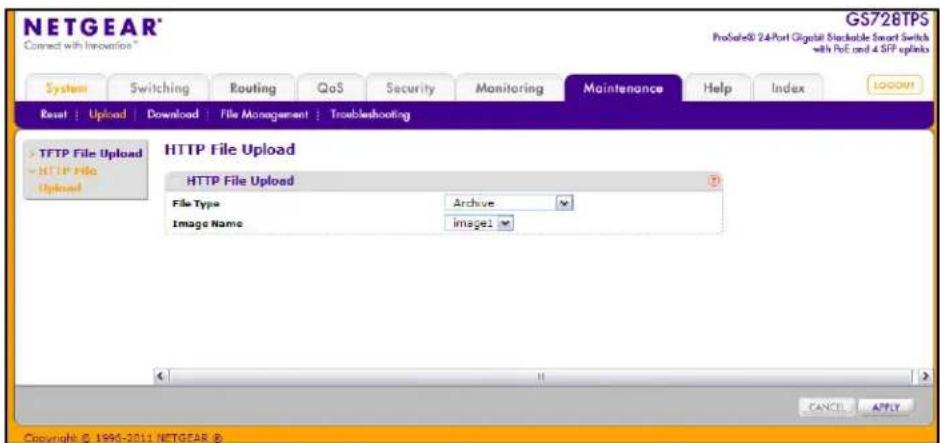

HTTP File Upload .283

Download File To Switch .....284

TFTP File Download. 285

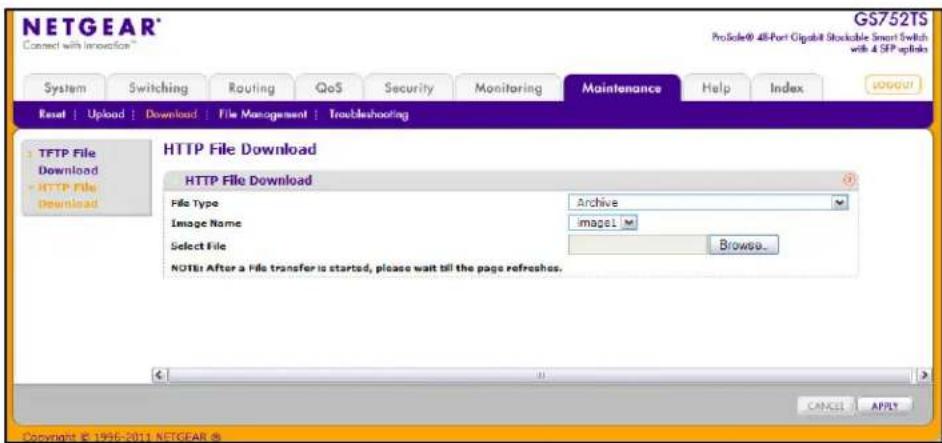

HTTP File Download. 287

File Management....288

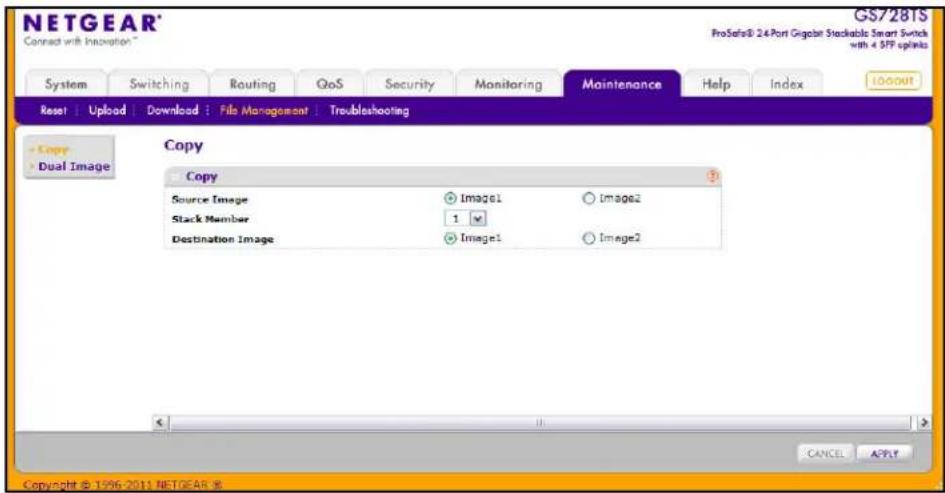

Copy 288

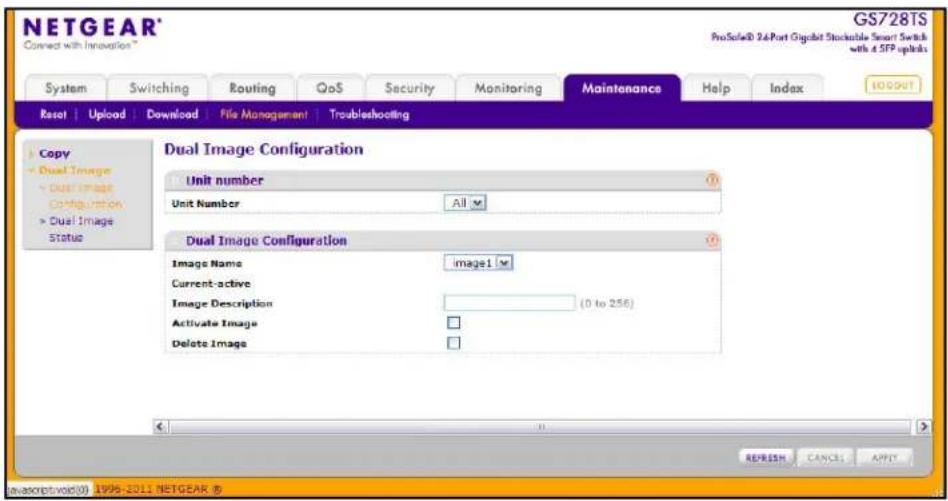

Dual Image Configuration....289

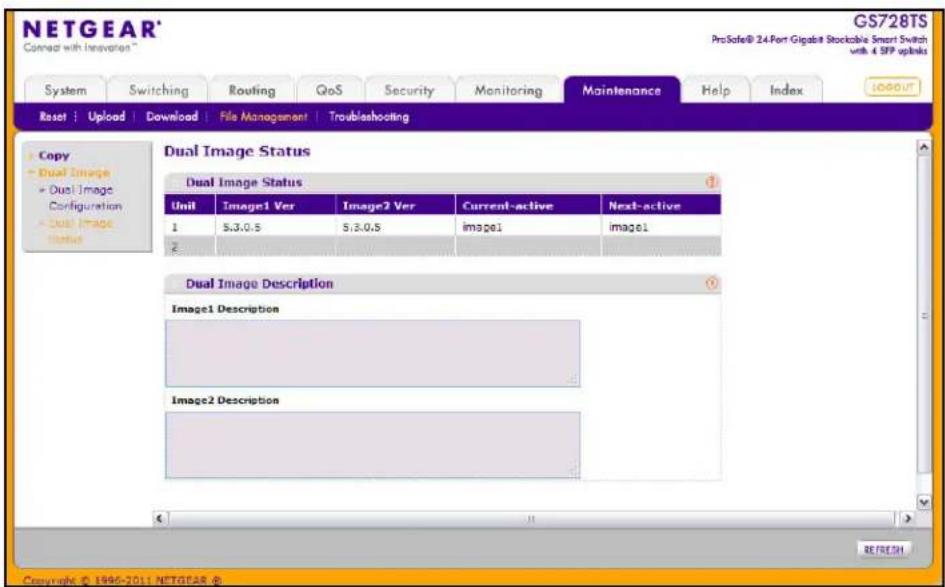

Dual Image Status .....291

Troubleshooting 292

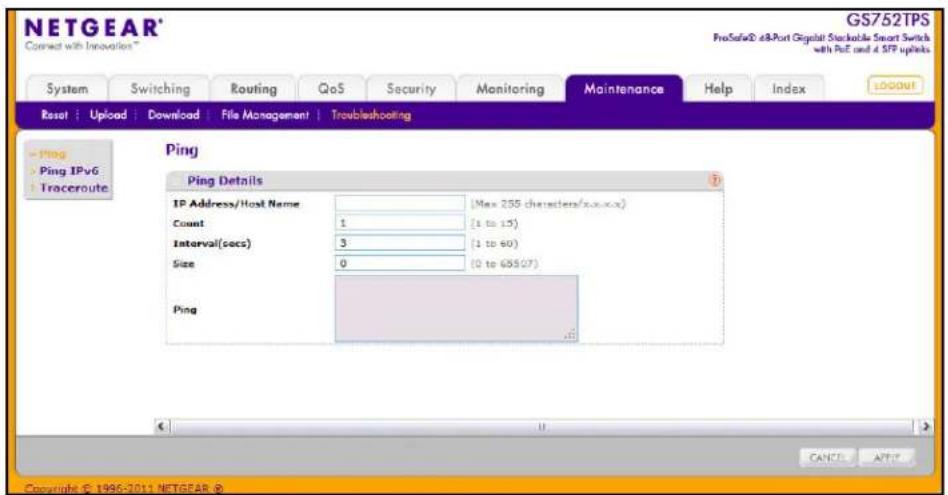

Ping. 292

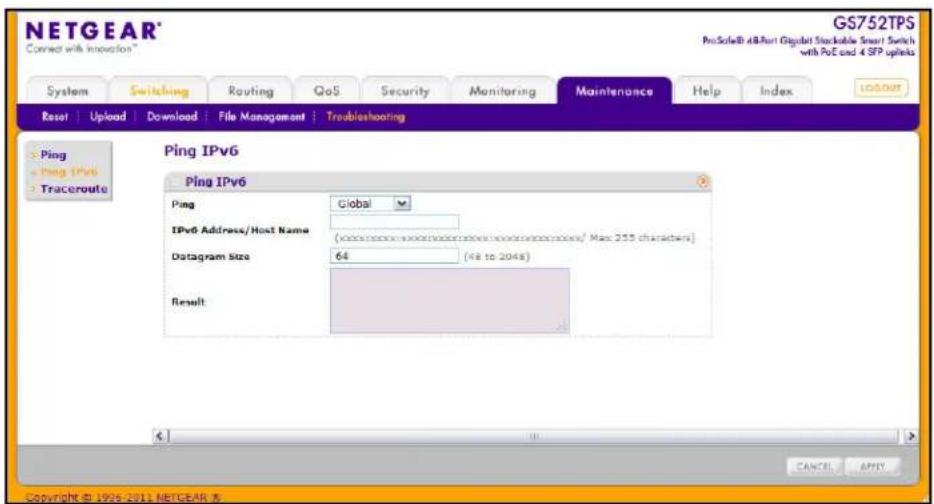

Ping IPv6 293

Traceroute 294

Chapter 9 Accessing Help

Online Help. 296

Support 296

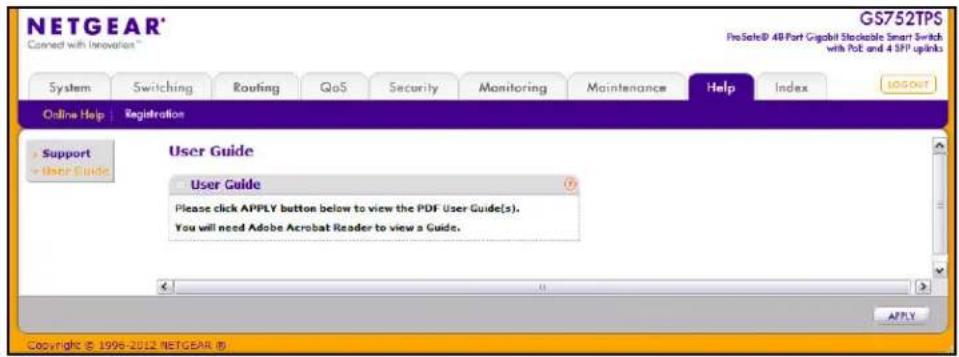

User Guide 297

Registration 298

Appendix A Hardware Specifications and Default Values

Switch Specifications ....300

GS728TS Specifications. 300

GS728TPS Specifications 300

GS752TS Specifications. 301

GS752TPS Specifications 301

Switch Performance 301

Switch Features and Defaults 302

Traffic Control....302

Quality of Service ....303

Security. 303

System Setup and Maintenance....304

System Management 304

Other Features ....305

Appendix B Configuration Examples

Virtual Local Area Networks (VLANs) .....306

VLAN Example Configuration....307

Access Control Lists (ACLs)....308

MAC ACL Example Configuration 309

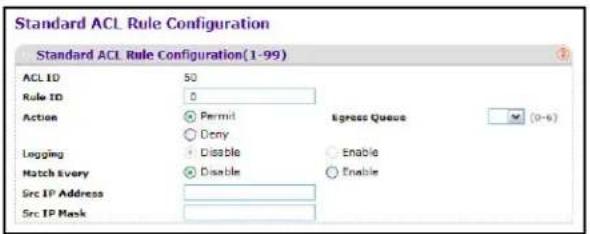

Standard IP ACL Example Configuration .....310

Differentiated Services (DiffServ)....311

Class. 312

DiffServ Traffic Classes ....312

Creating Policies....313

DiffServ Example Configuration .....314

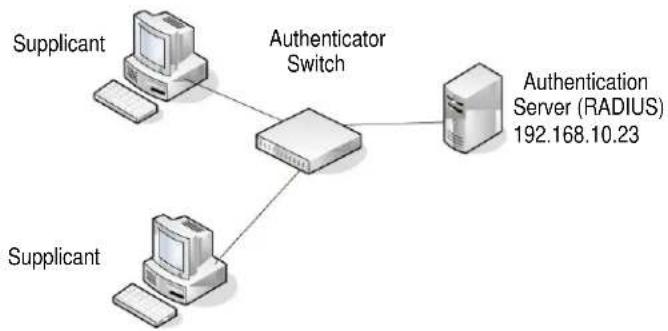

802.1X....315

802.1X Example Configuration....317

MSTP 318

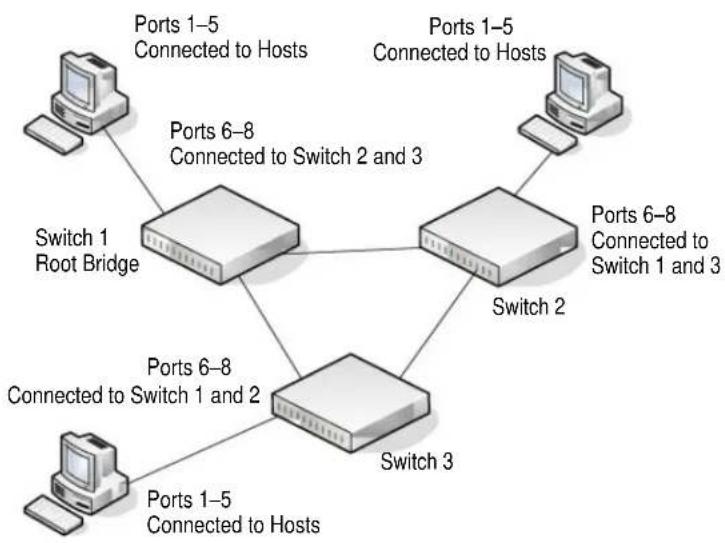

MSTP Example Configuration .....320

Configuring VLAN Routing .322

Creating VLAN Routing Interfaces ....322

Appendix C Notification of Compliance

Index

The NETGEAR®GS728TS, GS728TPS, GS752TS, and GS752TPS Smart Switch Software Administration Manual describes how to configure and operate the GS728TS, GS728TPS, GS752TS, and GS752TPS Gigabit Smart Switches by using the Web-based graphical user interface (GUI). This manual describes the software configuration procedures and explains the options available within those procedures.

Document Organization

The GS728TS, GS728TPS, GS752TS, and GS752TPSSmartSwitchSoftware Administration Manual contains the following chapters:

• Chapter 1, Getting Started, contains information about performing the initial system configuration and accessing the user interface.
• Chapter 2, Configuring System Information, describes how to configure administrative features such as SNMP, DHCP, PoE, and Green Ethernet. It also describes how to configure stacking on the switches.
• Chapter 3, Configuring Switching Information, describes how to manage and monitor the layer 2 switching features.
  • Chapter 4, Configuring Routing, describes how to manage and monitor IP routing.
  • Chapter 5, Configuring Quality of Service, describes how to manage the Access Control Lists (ACLs), and how to configure Differentiated Services and Class of Service features.
  • Chapter 6, Managing Device Security, contains information about configuring switch security information such as port access control and RADIUS server settings.
  • Chapter 7, Monitoring the System, describes how to view a variety of information about the switch and its ports, and to configure how the switch monitors events.
  • Chapter 8, Maintaining the System, describes features to help you manage the switch.
• Chapter 9, Accessing Help, describes how to access Online Help resources for the switch.

• Appendix A, Hardware Specifications and Default Values, contains hardware specifications and default values on the GS728TS, GS728TPS, GS752TS, and GS752TPS Smart Switches.

• Appendix B, Configuration Examples, contains examples of how to configure various features on the GS728TS, GS728TPS, GS752TS, and GS752TPS Smart Switches, such as VLANs and ACLs.

• Appendix C, Notification of Compliance, contains regulatory information about the GS728TS, GS728TPS, GS752TS, and GS752TPS Smart Switches.

Note: Refer to the release notes for the GS728TS, GS728TPS, GS752TS, and GS752TPS Gigabit Smart Switches for information about issues and workarounds.

Getting Started with the Smart Switches

This chapter provides an overview of starting your GS728TS, GS728TPS, GS752TS, or GS752TPS Smart Switch and accessing the user interface. It also leads you through the steps to use the Smart Control Center utility. This chapter contains the following sections:

• SwitchManagementInterfaceon page 10
• ConnectingtheSwitchtotheNetworkon page 11
- Switch Discovery in a Network with a DHCP Server on page 12
- Switch Discovery in a Network without a DHCP Server on page 14
- Configuring the Network Settings on the Administrative System on page 15
• WebAccesson page 16
• SmartControlCenterUtilitieson page 17
• UnderstandingtheUserInterfaceson page 23
• InterfaceNamingConvention on page 30

Switch Management Interface

The NETGEAR GS728TS, GS728TPS, GS752TS, and GS752TPS Gigabit Smart Switches contain an embedded Web server and management software for managing and monitoring switch functions. Each switch can function as a simple switch without the management software. However, you can use the management software to configure more advanced features that can improve switch efficiency and overall network performance.

Web-based management lets you monitor, configure, and control your switch remotely using a standard Web browser instead of using expensive and complicated SNMP software products. From your Web browser, you can monitor the performance of your switch and optimize its configuration for your network. You can configure all switch features, such as VLANs, QoS, and ACLs by using the Web-based management interface.

NETGEAR provides the Smart Control Center utility with this product. This program runs under Microsoft® Windows® XP, Windows 2000, or Windows Vista® and provides a front end

that discovers the switches on your network segment (L2 broadcast domain). When you power up your switch for the first time, use the Smart Control Center to discover the switch and view the network information that has been automatically assigned to the switch by a DHCP server; or, if no DHCP server is present on the network, use the Smart Control Center to discover the switch and assign static network information.

In addition to enabling NETGEAR switch discovery, the Smart Control Center provides several utilities to help you maintain the NETGEAR switches on your network, such as password management, firmware upgrade, and configuration file backup. For more information, see SmartControlCenterUtilitieson page 17.

Connecting the Switch to the Network

To enable remote management of the switch through a Web browser or SNMP, you must connect the switch to the network and configure it with network information (an IP address, subnet mask, and default gateway). The switch has a default IP address of 192.168.0.239 and a default subnet mask of 255.255.255.0.

Use one of the following three methods to change the default network information on the switch:

• Dynamic assignment through DHCP—DHCP is enabled by default on the switch. If you connect the switch to a network with a DHCP server, the switch obtains its network information automatically. You can use the Smart Control Center to discover the automatically-assigned network information. For more information, see SwitchDiscovery inaNetworkwithaDHCPServeron page 12
• Static assignment through the Smart Control Center—If you connect the switch to a network that does not have a DHCP server, you can use the Smart Control Center to assign a static IP address, subnet mask, and default gateway. For more information, see SwitchDiscoveryinaNetworkwithoutaDHCPServeron page 14
• Static assignment by connecting from a local host—If you do not want to use the Smart Control Center to assign a static address, you can connect to the switch from a host (administrative system) in the 192.168.0.0/24 network and change the settings by using the Web-based management interface on the switch. For information about how to set the IP address on the administrative system so it is in the same subnet as the default IP address of the switch, see ConfiguringtheNetworkSettingsontheAdministrative Systemon page 15.

Switch Discovery in a Network with a DHCP Server

This section describes how to set up your switch in a network that has a DHCP server. The DHCP client on the switch is enabled by default. When you connect it to your network, the DHCP server will automatically assign an IP address to your switch. Use the Smart Control Center to discover the IP address automatically assigned to the switch.

To install the switch in a network with a DHCP server, use the following steps:

1. Connect the switch to a network with a DHCP server.
2. Power on the switch by connecting its AC-DC power adapter.
3. Install the Smart Control Center on your computer.

4. Start the Smart Control Center.

5. Click Discover for the Smart Control Center to find your switch. You should see a screen similar to the one shown in Figure 1, Smart Switch Discovery.

Figure 1. Smart Switch Discovery

1. Make a note of the displayed IP address assigned by the DHCP server. You will need this value to access the switch directly from a Web browser (without using the Smart Control Center).

1. Select your switch by clicking the line that displays the switch, then click the Web Browser Access button. The Smart Control Center displays a login window similar to the following figure.

Use your Web browser to manage your switch. The default password is password. Then use this page to proceed to management of the switch covered in UsingtheWeb Interfaceon page 23.

Switch Discovery in a Network without a DHCP Server

This section describes how to use the Smart Control Center to set up your switch in a network without a DHCP server. If your network has no DHCP service, you must assign a static IP address to your switch. If you choose, you can assign it a static IP address, even if your network has DHCP service.

To assign a static IP address:

1. Connect the switch to your existing network.
2. Power on the switch by plugging in the AC-DC power adapter.
3. Install the Smart Control Center on your computer.
4. Start the Smart Control Center.
5. Click Discover for the Smart Control Center to find your GS728TS, GS728TPS, GS752TS, or GS752TPS switch. The utility broadcasts Layer 2 discovery packets within the broadcast domain to discover the switch. You should see a screen similar to Figure 1 on page 12.
6. Select the switch, then click Configure Device. The page expands to display additional fields at the bottom of the page, as the following figure shows.

1. Choose the Disabled radio box to disable DHCP.
2. Enter the static switch IP address, gateway IP address and subnet mask, and then type your password and click Apply.

Tip: You must enter the current password every time you use the Smart Control Center to update the switch setting. The default password is password.

Please ensure that your PC and the switch are in the same subnet. Make a note of these settings for later use.

Configuring the Network Settings on the Administrative System

If you choose not to use the Smart Control Center to configure the network information on the switch, you can connect directly to the switch from an administrative system, such as a PC or laptop computer. The IP address of the administrative system must be in the same subnet as the default IP address on the switch. For most networks, this means you must change the IP address of the administrative system to be on the same subnet as the default IP address of the switch (192.168.0.239).

To change the IP address on an administrative system running a Microsoft® Windows® operating system, open the Internet Protocol (TCP/IP) properties screen that you access from the Local Area Connection properties, as shown in the following figure. You need Windows Administrator privileges to change these settings.

WARNING:

When you change the IP address of your administrative system, you will loose your connection to the rest of the network. Be sure to write down your current network address settings before you change them.

To modify the network settings on your administrative system:

1. On your PC, access the MS Windows operating system TCP/IP Properties.
2. Set the IP address of the administrative system to an address in the 192.168.0.0 network, such as 192.168.0.200. The IP address must be different from that of the switch but within the same subnet.
3. Click OK.

To configure a static address on the switch:

1. Use a straight-through cable to connect the Ethernet port on the administrative system directly to any port on the GS728TS, GS728TPS, GS752TS, or GS752TPS.
2. Open a Web browser on your PC and connect to the management interface as described in WebAccession page 16.
3. Change the network settings on the switch to match those of your network (this procedure is described in IPCfigurationonpage35).

After you change the network settings on the switch, return the network configuration on your administrative system to the original settings.

Web Access

To access the GS728TS, GS728TPS, GS752TS, or GS752TPS management interface, use one of the following methods:

• From the Smart Control Center, select the switch and click Web Browser Access.
- Open a Web browser and enter the IP address of the switch in the address field.

You must be able to ping the IP address of the GS728TS, GS728TPS, GS752TS, or GS752TPS management interface from your administrative system for Web access to be available. If you used the Smart Control Center to set up the IP address and subnet mask, either with or without a DHCP server, use that IP address in the address field of your Web browser. If you did not change the IP address of the switch from the default value, enter 192.168.0.239 into the address field.

Clicking Web Browser Access on the Smart Control Center or accessing the switch directly from your Web browser displays the login screen shown in the following figure.

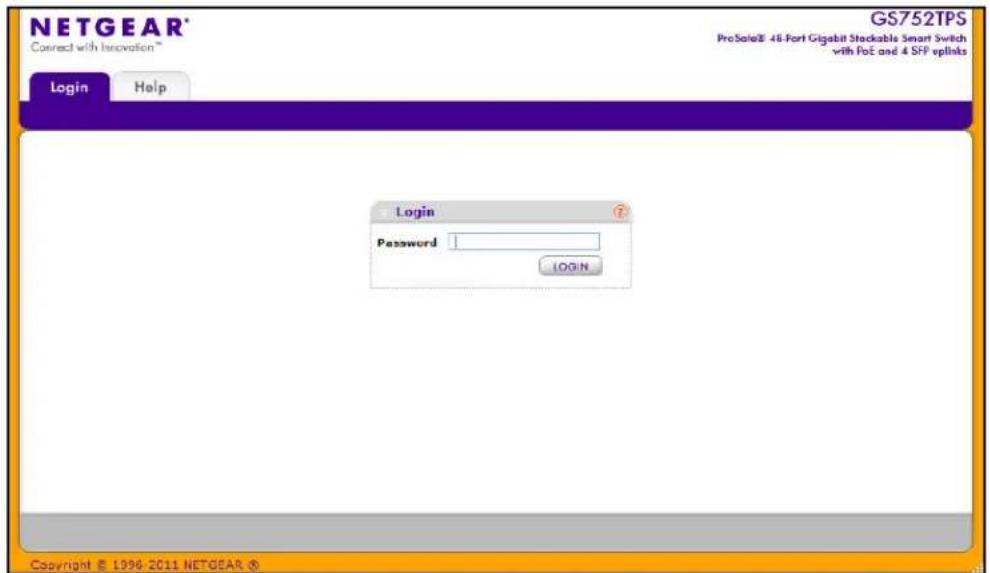

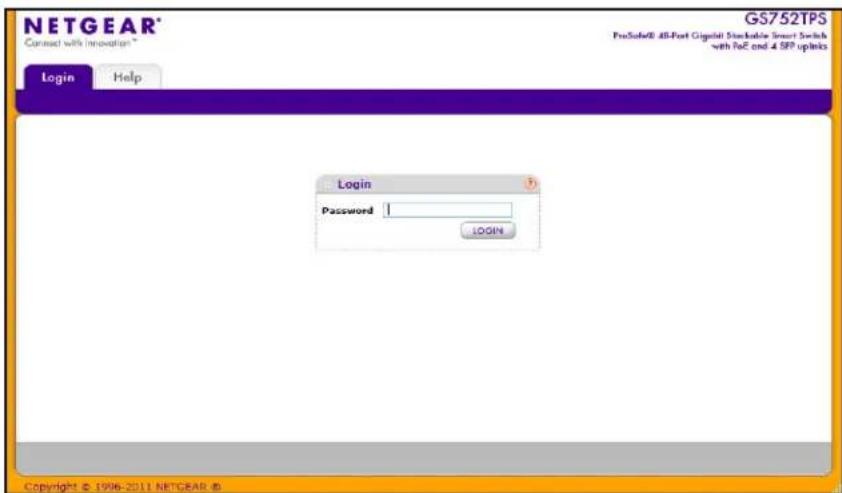

Figure 2. Login Screen

Smart Control Center Utilities

In addition to device discovery and network address assignment, the Smart Control Center includes several maintenance features. This section describes the following Smart Control Center utilities:

• NetworkUtilitieson page 17
- ConfigurationUploadandDownloadon page 19
• FirmwareUpgradeon page 20
• ViewingandManagingTaskson page 22

Network Utilities

From the Network tab, you can perform the following functions:

• DHCP Refresh—Forces the switch to release the current bindings and request new address information from the DHCP server.
  • Reboot Device—Reboots the selected device.
• Web Browser Access—Launches a Web browser and connects to the management interface for the selected device.
• Configure Device—Allows you to modify network information for the switch, including the IP address, DHCP client mode, system name, and location. For more information about this feature, see ConfiguringtheDevice.
• Change Password—Allows you to set a new password for the device. For more information about this feature, see ChangingtheSwitchPassword.

Configuring the Device

To modify switch information:

1. Select the switch.
2. Click Configure Device. Additional fields appear on the screen.
3. Click Configure Device. Additional fields appear on the screen.

1. To assign or update a static IP address, default gateway, or subnet mask, disable the DHCP client and enter the new information. You can also specify a system name and location for the switch.
2. Type the password in the Current Password field. You cannot apply the changes without a valid switch password. The default password for the switch is password.
3. Click Apply to update the switch with the changes to the network information.

Changing the Switch Password

1. Select the switch.
2. Click Change Password. Additional fields appear on the screen.

1. Type the switch password in the Current Password field. The default password for the switch is password.
2. Type the new password in the New Password and Confirm Password fields. The password can contain up to 20 ASCII characters.
3. Click Apply to update the switch with the new password.

Configuration Upload and Download

When you make changes to the switch, the configuration information is stored in a file on the switch. You can backup the configuration by uploading the configuration file from the switch to an administrative system. You can download a saved configuration file from the administrative system to the switch. The configuration file you download to the switch overwrites the running configuration on the switch.

Configuration upload and download is useful if you want to save a copy of the current switch configuration (Upload Configuration) before you make changes. If you do not like the changes, you can use the Download Configuration option to restore the switch to the settings in the saved configuration file.

To save a copy of the current switch configuration on your administrative system:

1. Click the Maintenance tab and select the device with the configuration to save.
2. Click Upload Configuration.
3. From the Browse for Folder window that appears, navigate to and select the folder where you want to store the configuration file.

1. Click OK.
2. Enter the switch password and click Apply.

The file is uploaded to the administrative computer as a *.cfg file. You can open it and view the contents with a text editor.

To restore the configuration to a previously saved version:

1. Click the Maintenance tab and select the device with the configuration to restore.
2. Click Download Configuration.
3. From the Select a Configuration window that appears, navigate to and select the configuration file to download to the switch.
4. Click Open.
5. Enter the switch password and click Apply to begin the download process.

Optionally, you can schedule a different date and time to download the configuration file. To delay the download process, clear the Run Now? check box and enter a date and time to complete the download.

Note: Click the Tasks tab to view status information about the configuration download.

Firmware Upgrade

The application software for the GS728TS, GS728TPS, GS752TS, and GS752TPS Smart Switches is upgradeable, enabling your switch to take advantage of improvements and additional features as they become available. The upgrade procedure and the required equipment are described in this section. This procedure assumes that you have downloaded or otherwise obtained the firmware upgrade and that you have it available as a binary file on your computer. This procedure uses the TFTP protocol to implement the transfer from computer to switch.

Note: You can also upgrade the firmware using the TFTP Download and HTTP Download features mentioned in this book. See Download FileToSwitchon page 284.

To upgrade your firmware:

1. Click the Maintenance tab, and then click the Firmware link directly below the tabs (see Figure 1 on page 12).
2. Select the switch to upgrade and click Download Firmware.
3. From the Select new firmware window that appears, navigate to and select the firmware image to download to the switch.
4. Click Open.

By default, the firmware is downloaded to primary storage and will be become the active image after the download completes and the switch reboots. To download firmware to use as a backup image, select the Secondary Storage option. To prevent the switch from using the downloaded firmware as the active image, make sure the Run this FW after download option is clear.

Note: NETGEAR recommends that you download the same image as the primary and secondary image for redundancy.

1. Click Apply.
2. Enter the switch password to continue downloading the firmware.

Optionally, you can schedule a different date and time to download and install the firmware image. To delay the upgrade process, clear the Run Now? check box and enter a date and time to complete the upgrade.

1. Click Apply to download the firmware and upgrade the switch with the new image.
2. When the process is complete, the switch automatically reboots.

Note: Click the Tasks tab to view status information about the firmware upgrade.

WARNING:

It is important that you do not power-off the administrative system or the switch while the firmware upgrade is in progress.

Viewing and Managing Tasks

From the Tasks tab, you can view information about configuration downloads and firmware upgrades that have already occurred, are in progress, or are scheduled to take place at a later time. You can also delete or reschedule selected tasks. The following figure shows the Tasks page.

The following list describes the command buttons that are specific to the Tasks page:

• Delete Task—Remove a completed or schedule task from the list.
• Reschedule—Change the scheduled date and time for a pending firmware upgrade or configuration download.
• Select Range—Select all tasks that occurred or are scheduled to occur within a certain period of time.

Understanding the User Interfaces

The GS728TS, GS728TPS, GS752TS, and GS752TPS switches software includes a set of comprehensive management functions for configuring and monitoring the system by using one of the following methods:

• Web user interface
• Simple Network Management Protocol (SNMP)

Each of the standards-based management methods allows you to configure and monitor the components of the GS728TS, GS728TPS, GS752TS, and GS752TPS switches software. The method you use to manage the system depends on your network size and requirements, and on your preference.

The GS728TS, GS728TPS, GS752TS, and GS752TPSSmartSwitchSoftware AdministrationManual describes how to use the Web-based interface to manage and monitor the system.

Using the Web Interface

To access the switch by using a Web browser, the browser must meet the following software requirements:

• HTML version 4.0, or later
- HTTP version 1.1, or later
• Java Runtime Environment 1.6 or later

Use the following procedures to log on to the Web interface:

1. Open a Web browser and enter the IP address of the switch in the Web browser address field.
2. The factory default password is password. Type the password into the field on the login screen, as shown in Figure 2 on page 17, and then click Login. Passwords are case sensitive.
3. After the system authenticates you, the System Information page displays.

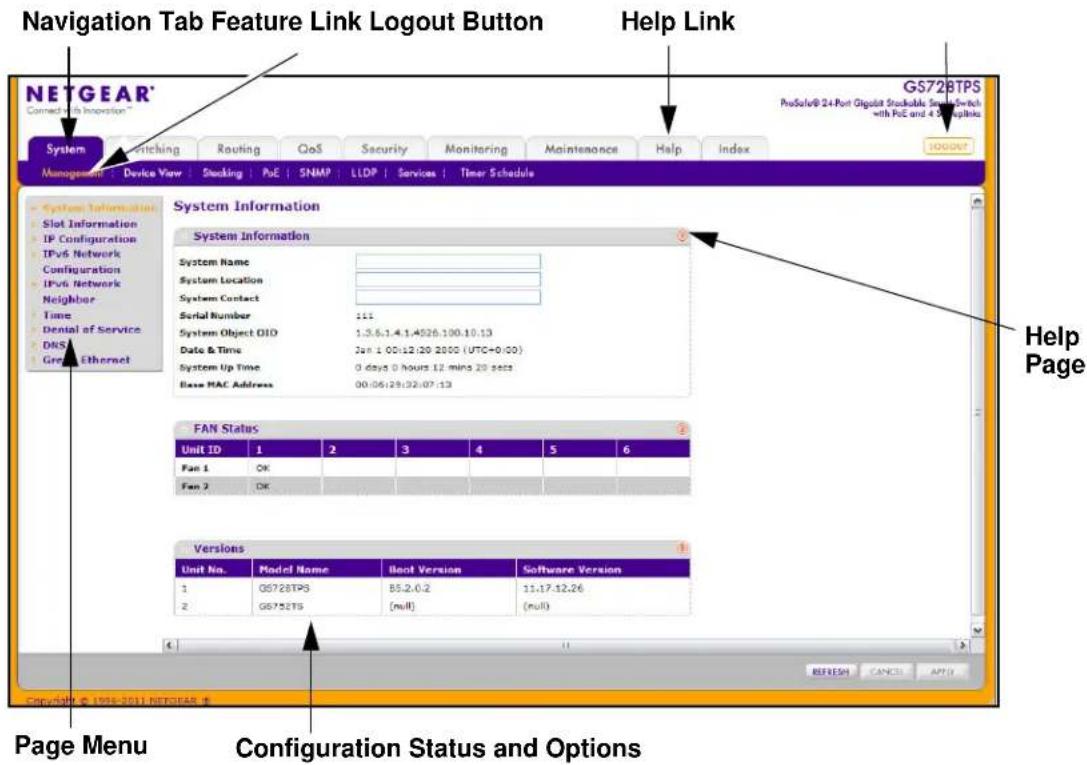

Figure3 on page 24 shows the layout of the Smart Switch Web interface.

Figure 3. Administrative Page Layout

Navigation Tabs, Feature Links, and Page Menu

The navigation tabs along the top of the Web interface give you quick access to the various switch functions. The tabs are always available and remain constant, regardless of which feature you configure.

When you select a tab, the features for that tab appear as links directly under the tabs. The feature links in the blue bar change according to the navigation tab that is selected.

The configuration pages for each feature are available as links in the page menu on the left side of the page. Some items in the menu expand to reveal multiple configuration pages, as Figure 4 on page 25. shows. When you click a menu item that includes multiple configuration pages, the item becomes preceded by a down arrow symbol and expands to display the additional pages.

Figure 4. Menu Hierarchy

Configuration and Monitoring Options

The area directly under the feature links and to the right of the page menu displays the configuration information or status for the page you select. On pages that contain configuration options, you can input information into fields or select options from drop-down menus.

Each page contains access to the HTML-based help that explains the fields and configuration options for the page. Each page also contains command buttons.

The following table shows the command buttons that are used throughout the pages in the Web interface:

Table 1. Common Command Buttons

Button Function
Add Clicking Add	adds the new item configured in the heading row of a table.
Apply Clicking the	Apply button sends the updated configuration to the switch. Configuration changes take effect immediately.
Cancel	Clicking Cancel cancels the configuration on the screen and resets the data on the screen to the latest value of the switch.
Delete Clicking	Delete removes the selected item.
Refresh	Clicking the Refresh button refreshes the page with the latest information from the device.
Logout Clicking	the Logout button ends the session.

Device View

The Device View is a Java® applet that displays the ports on the switch. This graphic provides an alternate way to navigate to configuration and monitoring options. The graphic also provides information about device ports, current configuration and status, table information, and feature components.

The Device View is available from the System> Device View page.

Depending upon the status of the port, the LED of the port status illuminates in Device View either red, green, or gray. Green indicates that the port is enabled. Red indicates that an error has occurred on the port, or red indicates that the link is disabled. Gray is applicable for ports 27 and 28 on the GS728TS/GS728TPS and ports 51 and 52 on the GS752TS/GS752TPS and indicates that the port is working in stack mode. The LED of the port speed illuminates either green or yellow.

• A green LED indicates operational ports at 1 Gbps or 2.5 Gbps (if used for stacking) link speed.
  • A yellow LED indicates operational ports at 10/100 Mbps link speed.

The System LEDs are located on the left side of the front panel.

Power/Status LED

The power LED is a bicolor LED that serves as an indicator of power and diagnostic status. The following indications are given by the following LED states:

• A solid Green LED indicates that the power is supplied to the switch and operating normally.
  • A solid Yellow LED indicates that system is in the boot-up stage.
  • No lit LED indicates that power is disconnected.

FAN Status LED

FAN status is indicated as follows:

• A solid yellow LED indicates that the fan is faulty.
• No lit LED indicates that the fan is operating normally.

Stack Master LED

The Stack Master LED is lit if there is an active stack link and the unit is in stack mode.

• A solid Green LED indicates that the switch acts as a master unit in a stack of switches.
- No lit LED indicates that the switch acts as a slave member in a stack of switches.

Seven-Segment LED for the Stacking ID

A solid Green LED displays the stack ID (1–6).

The following figure shows the Device View of the GS728TS.

The following figure shows the Device View of the GS728TPS.

The following figure shows the Device View of the GS752TS.

The following figure shows the Device View of the GS752TPS.

Click the port you want to view or configure to see a menu that displays statistics and configuration options. Click the menu option to access the page that contains the configuration or monitoring options.

If you click the graphic, but do not click a specific port, the main menu appears, as the following figure shows. This menu contains the same option as the navigation tabs at the top of the page.

Help Page Access

Every page contains a link to the online help, which contains information to assist in configuring and managing the switch. The online help pages are context sensitive. For example, if the IP Addressing page is open, the help topic for that page displays if you click Help. Figure 3 on page 24 shows the location of the link to the Help Page on the Web interface.

User-Defined Fields

User-defined fields can contain 1 to 159 characters, unless otherwise noted on the configuration Web page. All characters may be used except for the following (unless specifically noted in for that feature):

< / >| * | ?

Using SNMP

The GS728TS, GS728TPS, GS752TS, and GS752TPS switches software supports the configuration of SNMP groups and users that can manage traps that the SNMP agent generates. GS728TS, GS728TPS, GS752TS, and GS752TPS switches use both standard public MIBs for standard functionality and private MIBs that support additional switch functionality. All private MIBs begin with a “-” prefix. The main object for interface configuration is in -SWITCHING-MIB, which is a private MIB. Some interface configurations also involve objects in the public MIB, IF-MIB.

SNMP is enabled by default. The System > Management > System Information Web page, which is the page that displays after a successful login, displays the information you need to configure an SNMP manager to access the switch.

Any user can connect to the switch using the SNMPv3 protocol, but for authentication and encryption, the switch supports only one user which is admin; therefore there is only one profile that can be created or modified.

To configure authentication and encryption settings for the SNMPv3 admin profile by using the Web interface:

1. Navigate to the System > SNMP > SNMPv3 > User Configuration page.
2. To enable authentication, select an Authentication Protocol option, which is either MD5 or SHA.
3. To enable encryption, select the DES option in the Encryption Protocol field. Then, enter an encryption code of eight or more alphanumeric characters in the Encryption Key field.
4. Click Apply.

To access configuration information for SNMPv1 or SNMPv2, click System > SNMP > SNMPv1/v2 and click the page that contains the information to configure.

Interface Naming Convention

The GS728TS, GS728TPS, GS752TS, and GS752TPS switches software supports physical and logical interfaces. Interfaces are identified by their type and the interface number. The physical ports are gigabit interfaces and are numbered on the front panel. You can configure the logical interfaces by using the software. The following table describes the naming convention for all interfaces available on the switch.

Table 2. Interface Naming Conventions

Interface Description Example
Physical The physical ports are gigabit Ethernetinterfaces and are numbered sequentially starting from one. The number before the slash indicates the unit number of the stack member.		1/g1, 1/g2, 1/g33/g21, 3/g22
Link Aggregation Group (LAG) LAG interfaces are logical interfaces that are only used for bridging functions.		I1, I2, I3
CPU Management Interface This is the internal switch interface responsible for the switch base MAC address. This interface is not configurable and is always listed in the MAC Address Table.		c1

Configuring System Information

2

Use the features in the System tab to define the switch's relationship to its environment. The System tab contains links to the following features:

• Management page 31
• Stackingon page 61
• PoE/PoE+(GS728TPSandGS752TPSOnly)on page 70
• SNMPon page 75
- LLDPon page 80
• Services—DHCPSnoopingon page 92
• TimerSchedule(GS728TPSandGS752TPSOnly) on page 99

Management

This section describes how to display the switch status and specify some basic switch information, such as the management interface IP address, system clock settings, and DNS information. From the Management link, you can access the following pages:

• SystemInformationon page 32
• SlotInformationon page 33
• IPConfiguration on page 35
• IPv6NetworkConfigurationon page 37
• IPv6NetworkNeighboron page 38
- Timeon page 40
• DenialofServiceon page 45
- DNSon page 49
• GreenEtherneton page 51

System Information

After a successful login, the System Information page displays. Use this page to configure and view general device information.

To display the System Information page, click System > Management > System Information. A screen similar to the following is displayed.

To define system information:

1. Open the System Information page.

2. Define the following fields:

3. System Name. Enter the name you want to use to identify this switch. You may use up to 255 alphanumeric characters. The factory default is blank.

4. System Location. Enter the location of this switch. You may use up to 255 alphanumeric characters. The factory default is blank.

5. System Contact. Enter the contact person for this switch. You may use up to 255 alphanumeric characters. The factory default is blank.

6. Click Apply.

The system parameters are applied, and the device is updated.

The following table describes the status information the System Page displays.

Field Description
Serial Number The serial number of the switch.
System Object OID The base object ID for the switch's enterprise MIB.
Date & Time The current	date and time.
System Up Time Displays	the number of days, hours, and minutes since the last system restart.
Base MAC Address The	universally assigned network address.
Fan Status Table
Unit ID Identifies the unit	number assigned to the stack member. Up to six units are supported in a stack, and the table contains separate columns for each possible unit in the stack, whether the units are present or not.
Fan 1 and Fan 2 These fans	remove the heat generated by the power, CPU and other chipsets, and allow the chipsets to work normally. Fan status has three possible values: OK, Failure, Not Present.If the Fan 1 and Fan 2 entries for a Unit ID are blank, then no switch with that unit number is present in the stack.
Versions Table
Unit No. Identifies the unit	number assigned to the stack member.
Model Name The model	name of the switch.
Boot Version The boot code	deversion of the switch.
Software Version	The software version of the switch.

Slot Information

Use this page to display details of the different slots in the different units in the stack. The page also displays information about the card types and switch models supported in the stack.

To display the Slot Information page, click System > Management > Slot Information. A screen similar to the following is displayed.

Click Refresh to refresh the screen with most recent data.

The following table describes the status information the Slot Information displays.

Field Description
Slot Summary
Slot Identifies the slot using the format unit/slot.
Status Displays whether the slot is empty or full.
Administrative State Displays whether the slot is administratively enabled or disabled.
Power State Displays whether the slot is powered on or not.
Configured Card Model ID Displays the model ID of the card configured for the slot.
Configured Card Description Displays the description of the card configured for the slot.
Inserted Card Model ID Displays the model ID of the card physically present in the slot.
Inserted Card Description Displays the description of the card physically present in the slot.
Card Power Down Displays whether the card in the slot is powered down.
Card Pluggable Displays whether the inserted card is pluggable or not.
Supported Card
Card Model Lists summary information about the card models supported for the stackable units.
Card Index Displays the index assigned to the selected card type.
Card Type Displays the hardware type of this supported card. This is a 32-bit data field.
Card Descriptor Displays the additional information about each supported card.
Supported Switch
Switch Model ID Displays the list of models of all supported switches.
Switch Index	Displays the index assigned to the selected switch.
Management Preference	Identifies whether the unit prefers to be a stack master or stack member.
Code Type Displays the Code Target ID on the supported switch

IP Configuration

Use the IP Configuration page to configure network information for the management interface, which is the logical interface used for in-band connectivity with the switch through any of the switch's front panel ports. The configuration parameters associated with the switch's network interface do not affect the configuration of the front panel ports through which traffic is switched or routed.

To access the page, click System > Management > IP Configuration. A screen similar to the following is displayed.

To configure the network information for the management interface:

1. Select the appropriate radio button to determine how to configure the network information for the switch management interface:

2. Dynamic IP Address (DHCP). Specifies that the switch must obtain the IP address through a DHCP server.
   • Dynamic IP Address (BOOTP). Specifies that the switch must obtain the IP address through a BootP server.

3. Static IP Address. Specifies that the IP address, subnet mask, and default gateway must be manually configured. Enter this information in the fields below this radio button.

4. If you selected the Static IP Address option, configure the following network information:

5. IP Address. The IP address of the network interface. The factory default value is 192.168.0.239. Each part of the IP address must start with a number other than zero. For example, IP addresses 001.100.192.6 and 192.001.10.3 are not valid.

6. Subnet Mask. The IP subnet mask for the interface. The factory default value is 255 255 255 0

7. Default Gateway. The default gateway for the IP interface. The factory default value is 192.168.0.254.

8. Specify the VLAN ID for the management VLAN.

The management VLAN is used to establish an IP connection to the switch from a workstation that is connected to a port in the same VLAN. If not specified, the active management VLAN ID is 1 (default), which allows an IP connection to be established through any port.

When the management VLAN is set to a different value, an IP connection can be made only through a port that is part of the management VLAN. It is also mandatory that the port VLAN ID (PVID) of the port to be connected in that management VLAN be the same as the management VLAN ID.

The management VLAN has the following requirements:

• Only one management VLAN can be active at a time.
- When a new management VLAN is configured, connectivity through the existing management VLAN is lost.
- The management station should be reconnected to the port in the new management VLAN.

Note: Make sure that the VLAN to be configured as the management VLAN exists. And make sure that the PVID of at least one port that is a port of the VLAN is the same as the management VLAN ID. For information about creating VLANs and configuring the PVID for a port, see VLANson page 110.

1. If you change any of the network connection parameters, click Apply to apply the changes to the system.
2. Click Cancel to abandon the changes.

IPv6 Network Configuration

Use the IPv6 Network Configuration page to configure the IPv6 network interface, which is the logical interface used for in-band connectivity with the switch via all of the switch's front-panel ports. The configuration parameters associated with the switch's network interface do not affect the configuration of the front-panel ports through which traffic is switched or routed.

To access the page, click System > Management > IPv6 Network Configuration. A screen similar to the following is displayed.

To access the switch over a IPv6 network, you must initially configure the switch with IPv6 information (IPv6 prefix, prefix length, and default gateway). IPv6 can be configured using any of the following options:

• IPv6 Auto Configuration
DHCPv6

When in-band connectivity is established, IPv6 information can be changed using any of the following:

• SNMP-based management
• Web-based management

To configure the network information for an IPv6 network:

1. Admin Mode. Enable or disable the IPv6 network interface on the switch. The default value is Enable.
2. IPv6 Address Auto Configuration Mode. The IPv6 address for the IPv6 network interface is set in auto configuration mode if this option is enabled. The default value is Disable. Auto configuration can be enabled only when DHCPv6 is not enabled on any of the management interfaces.
3. Current Network Configuration Protocol. The IPv6 address for the IPv6 network interface is configured by DHCPv6 protocol if this option is enabled. The default value is None. DHCPv6 can be enabled only when IPv6 Auto configuration or DHCPv6 are not enabled on any of the management interfaces.
4. DHCPv6 Client DUID. Identifier used to identify the client's unique DUID value. This option only displays when DHCPv6 is enabled.
5. IPv6 Gateway. Specify the gateway for the IPv6 network interface. The gateway address is in IPv6 global or link-local address format.
6. IPv6 Prefix/Prefix Length. Add the IPv6 prefix and prefix length to the IPv6 network interface. The address is in the global address format.
7. EUI64. Specify whether format IPv6 address in EUI-64 format. The default value is False.
8. Click Add to add a new IPv6 address in global format.
9. Click Delete to delete a selected IPv6 address.
10. Click Apply to apply the changes to the system.
11. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

IPv6 Network Neighbor

Use the IPv6 Network Neighbor page to view the IPv6 Network Interface IPv6 Neighbor Table. If no IPv6 neighbors are detected on the network, the table is empty.

To access the page, click System > Management > IPv6 Network Neighbor. A screen similar to the following is displayed.

Click Clear to delete all entries from the table. The table is repopulated as the IPv6 neighbors are discovered on the network. Click Refresh to refresh the screen with most recent data.

The following table describes the information the IPv6 Network Interface Neighbor Table displays

Field Description
IPv6 Address Specifies the IPv6 address of neighbor or interface.
MAC Address Specifies MAC address associated with an interface.
IsRtr Indicates whether the neighbor is a router. If the neighbor is a router, the value is True. If the neighbor is not a router, the value is False.
Neighbor State Specifies the state of the neighbor cache entry. The following are the states for dynamic entries in the IPv6 neighbor discovery cache: ·Reachable. Positive confirmation was received within the last Reachable Time milliseconds that the forward path to the neighbor was functioning properly. While in REACH state, the device takes no special action as packets are sent. ·Stale. More than ReachableTime milliseconds have elapsed since the last positive confirmation was received that the forward path was functioning properly. While in STALE state, the device takes no action until a packet is sent. ·Delay. More than ReachableTime milliseconds have elapsed since the last positive confirmation was received that the forward path was functioning properly. A packet was sent within the last DELAY_FIRST_PROBE_TIME seconds. If no reachability confirmation is received within DELAY_FIRST_PROBE_TIME seconds of entering the DELAY state, send a neighbor solicitation message and change the state to PROBE. ·Probe. A reachability confirmation is actively sought by resending neighbor solicitation messages every RetransTimer milliseconds until a reachability confirmation is received. ·Unknown. The switch cannot determine the state of the cache entry.
Last Updated. Time since the address was confirmed to be reachable.

Time

The GS728TS, GS728TPS, GS752TS, and GS752TPS switch software supports the Simple Network Time Protocol (SNTP). You can also set the system time manually.

SNTP assures accurate network device clock time synchronization up to the millisecond. Time synchronization is performed by a network SNTP server. The GS728TS, GS728TPS, GS752TS, and GS752TPS switches operate only as SNTP clients and cannot provide time services to other systems.

Time sources are established by Stratums. Stratums define the accuracy of the reference clock. The higher the stratum (where zero is the highest), the more accurate the clock. The device receives time from stratum 1 and above since it is itself a stratum 2 device.

The following is an example of stratums:

• Stratum 0: A real-time clock is used as the time source, for example, a GPS system.
• Stratum 1: A server that is directly linked to a Stratum 0 time source is used. Stratum 1 time servers provide primary network time standards.
• Stratum 2: The time source is distanced from the Stratum 1 server over a network path. For example, a Stratum 2 server receives the time over a network link, via NTP, from a Stratum 1 server.

Information received from SNTP servers is evaluated based on the time level and server type.

SNTP time definitions are assessed and determined by the following time levels:

• T1: Time at which the original request was sent by the client.
• T2: Time at which the original request was received by the server.
• T3: Time at which the server sent a reply.
• T4: Time at which the client received the server's reply.

The device can poll Unicast server types for the server time.

Polling for Unicast information is used for polling a server for which the IP address is known. SNTP servers that have been configured on the device are the only ones that are polled for synchronization information. T1 through T4 are used to determine server time. This is the preferred method for synchronizing device time because it is the most secure method. If this method is selected, SNTP information is accepted only from SNTP servers defined on the device using the SNTP Server Configuration page.

The device retrieves synchronization information, either by actively requesting information or at every poll interval.

Time Configuration

Use the Time Configuration page to view and adjust date and time settings.

To display the Time Configuration page, click System > Management > Time > SNTP Global Configuration.

To configure the time by using the CPU clock cycle as the source:

1. From the Clock Source field, select Local.
2. In the Date field, enter the date in the DD/MM/YYYY format.
3. In the Time field, enter the time in HH:MM:SS format.

Note: If you do not enter a date and time, the switch will calculate the date and time using the CPU's clock cycle.

When the Clock Source is set to Local, the Time Zone field is grayed out (disabled).

1. Click Apply to send the updated configuration to the switch. Configuration changes occur immediately.

To configure the time through SNTP:

1. From the Clock Source field, select SNTP.

When the Clock Source is set to SNTP, the Date and Time fields are grayed out (disabled). The switch gets the date and time from the network.

1. Use the menu to select the Coordinated Universal Time (UTC) time zone in which the switch is located, expressed as the number of hours. The options in the Time Zone menu specify the time difference from UTC time zone.
2. Click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.
3. Use the SNTP Server Configuration page to configure the SNTP server settings, as described in SNTPServerConfigurationon page 43.
4. Click Refresh to refresh the page with the most current data from the switch.
5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

The SNTP Global Status table on the Time Configuration page displays information about the system's SNTP client. The following table describes the SNTP Global Status fields.

Field Description
Version Specifies the SNTP Version the client supports.
Supported Mode Specifies the SNTP modes the client supports. Multiple modes may be supported by a client.
Last Update Time	Specifies the local date and time (UTC) the SNTP client last updated the system clock.
Last Attempt Time	Specifies the local date and time (UTC) of the last SNTP request or receipt of an unsolicited message.
Last Attempt Status	Specifies the status of the last SNTP request or unsolicited message for both unicast mode. If no message has been received from a server, a status of Other is displayed. These values are appropriate for all operational modes:Other: None of the following enumeration values.Success: The SNTP operation was successful and the system time was updated.Request Timed Out: A directed SNTP request timed out without receiving a response from the SNTP server.Bad Date Encoded: The time provided by the SNTP server is not valid.Version Not Supported: The SNTP version supported by the server is not compatible with the version supported by the client.Server Unsynchronized: The SNTP server is not synchronized with its peers. This is indicated via the 'leap indicator' field on the SNTP message.Server Kiss Of Death: The SNTP server indicated that no further queries were to be sent to this server. This is indicated by a stratum field equal to 0 in a message received from a server.
Server IP Address	Specifies the IP address of the server for the last received valid packet. If no message has been received from any server, an empty string is shown.
Address Type Specifies	the address type of the SNTP Server address for the last received valid packet.
Server Stratum Specifies	the claimed stratum of the server for the last received valid packet.
Reference Clock Id Spec	ifies the reference clock identifier of the server for the last received valid packet.
Server Mode Specifies	the mode of the server for the last received valid packet.
Unicast Server Max Entries	Specifies the maximum number of unicast server entries that can be configured on this client.
Unicast Server Current Entries	Specifies the number of current valid unicast server entries configured for this client.

Click Refresh to refresh the page with the most current data from the switch.

SNTP Server Configuration

Use the SNTP Server Configuration page to view and modify information for adding and modifying Simple Network Time Protocol SNTP servers.

To display the SNTP Server Configuration page, click System > Management > Time > SNTP Server Configuration.

To configure a new SNTP Server:

1. Enter the appropriate SNTP server information in the available fields:

2. Server Type. Specifies whether the address for the SNTP server is an IP address (IPv4) or hostname (DNS).

3. Address. Enter the IP address or the hostname of the SNTP server.
4. Port. Enter a port number on the SNTP server to which SNTP requests are sent. The valid range is 1–65535. The default is 123.
5. Priority. Specifies the priority of this server entry in determining the sequence of servers to which SNTP requests are sent. Enter a priority from 1–3, with 1 being the default and the highest priority. Servers with lowest numbers have priority.

6. Version. Enter the protocol version number that corresponds to the NTP version running on the SNTP server. The range is 1–4, and the default version is SNTPv4.

7. Click Add.

8. Repeat the previous steps to add additional SNTP servers. You can configure up to three SNTP servers.

9. To removing an SNTP server, select the check box next to the configured server to remove, and then click Delete. The entry is removed, and the device is updated.
10. To change the settings for an existing SNTP server, select the check box next to the configured server and enter new values in the available fields, and then click Apply. Configuration changes take effect immediately.
11. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

The SNTP Server Status table displays status information about the SNTP servers configured on your switch. The following table describes the SNTP Global Status fields.

Field Description
Address Specifies all the existing Server Addresses. If no Server configuration exists, a message saying “No SNTP server exists” flashes on the screen.
Last Update Time	Specifies the local date and time (UTC) that the response from this server was used to update the system clock.
Last Attempt Time Specifies the local date and time (UTC) that this SNTP server was last queried.
Last Attempt Status Specifies	the status of the last SNTP request to this server. If no packet has been received from this server, a status of Other is displayed:Other: None of the following enumeration values.Success: The SNTP operation was successful and the system time was updated.Request Timed Out: A directed SNTP request timed out without receiving a response from the SNTP server.Bad Date Encoded: The time provided by the SNTP server is not valid.Version Not Supported: The SNTP version supported by the server is not compatible with the version supported by the client.Server Unsynchronized: The SNTP server is not synchronized with its peers. This is indicated via the 'leap indicator' field on the SNTP message.Server Kiss Of Death: The SNTP server indicated that no further queries were to be sent to this server. This is indicated by a stratum field equal to 0 in a message received from a server.
Requests Specifies the number	of SNTP requests made to this server since last agent reboot.
Failed Requests Specifies the	number of failed SNTP requests made to this server since last reboot.

Click Refresh to refresh the page with the most current data from the switch.

Denial of Service

Use the Denial of Service (DoS) page to configure DoS control. The GS728TS, GS728TPS, GS752TS, and GS752TPS switches provide support for classifying and blocking specific types of DoS attacks. The type of DoS attacks the switch can detect and prevent are described on page 47.

Auto-DoS Configuration

The Auto-DoS Configuration page lets you automatically enable all the DoS features available on the switch, except for TCP and UDP port attacks. See DoSConfigurationon page 47 for information about the types of DoS attacks the switch can monitor and block.

Note: When Auto-DoS is enabled, a port that is under attack is automatically shut down and does not forward traffic. The port can be enabled only manually by the admin user. A warning message is logged to the buffered log and is sent to the Syslog server.

To access the Auto-DoS Configuration page, click System > Management > Denial of Service > Auto-DoS Configuration.

To configure the Auto-DoS feature:

1. Select a radio button to enable or disable Auto-DoS:

• Disable. Auto-DoS is disabled (default).
- Enable. Auto-DoS is enabled.

1. Click Apply to send the updated configuration to the switch. Configuration changes occur immediately.

2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

DoS Configuration

The DoS Configuration page lets you to select which types of DoS attacks for the switch to monitor and block.

To access the DoS Configuration page, click System > Management > Denial of Service > Denial of Service Configuration.

To configure individual DoS settings:

1. Select the types of DoS attacks for the switch to monitor and block and configure any associated values, as the following list describes.

2. Denial of Service Min TCP Hdr Size. Specify the minimum TCP header size allowed. If First Fragment DoS prevention is enabled, the switch will drop packets that have a TCP header smaller than this configured value. The factory default is 20 bytes.

3. Denial of Service ICMPv4. Enable or disable this option by selecting the appropriate radio button. Enabling ICMPv4 DoS prevention causes the switch to drop ICMPv4 packets that have a type set to ECHO_REQ (ping) and a size greater than the configured ICMPv4 packet size. The factory default is Disable.
4. Denial of Service Max ICMPv4 Size. Specify the maximum allowed ICMPv4 packet size. If ICMPv4 DoS prevention is enabled, the switch will drop ICMPv4 ping packets that have a size greater than this configured maximum ICMPv4 packet size. The range is 0 to 16376, and the default value (when enabled) is 512.

5. Denial of Service ICMPv6. Enabling ICMPv6 DoS prevention causes the switch to drop ICMPv6 packets that have a type set to ECHO_REQ (ping) and a size greater than the configured ICMPv6 maximum packet size. The factory default is disabled.

6. Denial of Service Max ICMPv6 Packet Size. Specify the maximum allowed IPv6 ICMP packet size. If ICMPv6 DoS prevention is enabled, the switch will drop IPv6 ICMP ping packets that have a size greater than this configured maximum ICMPv6 packet size. The range is 0 to 16376, and the default value (when enabled) is 512.

7. Denial of Service First Fragment. Enable or disable this option by selecting the appropriate radio button. Enabling First Fragment DoS prevention causes the switch to drop packets that have a TCP header smaller than the configured Min TCP Hdr Size. The factory default is Disable.
8. Denial of Service ICMP Fragment. Enable or disable this option by selecting the appropriate radio button. Enabling ICMP Fragment DoS prevention causes the switch to drop fragmented ICMP packets. The factory default is disabled.
9. Denial of Service SIP=DIP. Enable or disable this option by selecting the appropriate radio button. Enabling SIP=DIP DoS prevention causes the switch to drop packets that have a source IP address equal to the destination IP address. The factory default is Disable.
10. Denial of Service SMAC=DMAC. Enable or disable this option by selecting the appropriate radio button. Enabling SMAC=DMAC DoS prevention causes the switch to drop packets that have a source MAC address equal to the destination MAC address. The factory default is disabled.
11. Denial of Service TCP FIN&URG&PSH. Enable or disable this option by selecting the appropriate radio button. Enabling TCP FIN & URG & PSH DoS prevention causes the switch to drop packets that have TCP Flags FIN, URG, and PSH set and a TCP Sequence Number equal to 0. The factory default is disabled.
12. Denial of Service TCP Flag &Sequence. Enable or disable this option by selecting the appropriate radio button. Enabling TCP Flag DoS prevention causes the switch to drop packets that have TCP control flags set to 0 and TCP sequence number set to 0. The factory default is disabled.
13. Denial of Service TCP Fragment. Enable or disable this option by selecting the appropriate radio button. Enabling TCP Fragment DoS prevention causes the switch to drop packets that have a TCP payload where the IP payload length minus the IP header size is less than the minimum allowed TCP header size. The factory default is Disable.
14. Denial of Service TCP Offset. Enable or disable this option by selecting the appropriate radio button. Enabling TCP Offset DoS prevention causes the switch to drop packets that have a TCP header Offset=1. The factory default is disabled.
15. Denial of Service TCP Port. Enable or disable this option by selecting the appropriate radio button. Enabling TCP Port DoS prevention causes the switch to drop packets that have TCP source port equal to TCP destination port. The factory default is disabled.
16. Denial of Service TCP SYN. Enable or disable this option by selecting the appropriate radio button. Enabling TCP SYN DoS prevention causes the switch to drop packets that have TCP Flags SYN set and L4 source = 0–1023. The factory default is disabled.

- Denial of Service TCP SYN&FIN. Enable or disable this option by selecting the appropriate radio button. Enabling TCP SYN & FIN DoS prevention causes the switch to drop packets that have TCP Flags SYN and FIN set. The factory default is disabled. - Denial of Service UDP Port. Enable or disable this option by selecting the appropriate radio button. Enabling UDP Port DoS prevention causes the switch to drop packets that have UDP source port equal to UDP destination port. The factory default is disabled.

1. If you change any of the DoS settings, click Apply to apply the changes to the switch.

2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

DNS

You can use these pages to configure information about DNS servers the network uses and how the switch operates as a DNS client.

DNS Configuration

Use this page to configure global DNS settings and DNS server information.

To access this page, click System > Management > DNS > DNS Configuration.

To configure the global DNS settings

1. Specify whether to enable or disable the administrative status of the DNS Client.

2. Enable. Allow the switch to send DNS queries to a DNS server to resolve a DNS domain name. DNS is enabled by default.

3. Disable. Prevent the switch from sending DNS queries.

4. Enter the DNS default domain name to include in DNS queries. When the system is performing a lookup on an unqualified hostname, this field is provided as the domain name (for example, if default domain name is netgear.com and the user enters test, then test is changed to test.netgear.com to resolve the name). The name can contain 1–255 characters.

5. To specify the DNS server to which the switch sends DNS queries, enter an IP address in standard IPv4 dot notation in the DNS Server Address and click Add. The server appears in the list below. You can specify up to eight DNS servers. The preference is set in the order created.
6. To remove a DNS server from the list, select the check box next to the server you want to remove and click Delete. If no DNS server is specified, the check box is global and will delete all the DNS servers listed.
7. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
8. Click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.

Host Configuration

Use this page to manually map host names to IP addresses or to view dynamic DNS mappings.

To access this page, click System > Management > DNS > Host Configuration.

To add a static entry to the local DNS table:

1. Specify the static host name to add. Each substring must be less than 64 characters in length separated by a dot, and the length of the whole string must not exceed 255 characters.
2. Specify the IPv4 or IPv6 address in standard notation to associate with the hostname.

3. Click Add. The entry appears in the list below.

4. To remove an entry from the static DNS table, select the check box next to the entry and click Delete.

5. To change the hostname or IP address in an entry, select the check box next to the entry and enter the new information in the appropriate field, and then click Apply.
6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

The Dynamic Host Configuration table shows host name-to-IP address entries that the switch has learned. The following table describes the dynamic host fields:

Field Description
Host Lists the host name you	assign to the specified IP address.
Total Amount of time since the	dynamic entry was first added to the table.
Elapsed Amount of time since	the dynamic entry was last updated.
Type The type of the dynamic entry.
IPv4/IPv6 Addresses Lists the	IPv4 or IPv6 addresses associated with the host name.

Click Clear to delete Dynamic Host Entries. The table will be repopulated with entries as they are learned.

Green Ethernet

The Green Ethernet features allow the switch to reduce power consumption on a per-port basis. Each switch can support one or more of the following features:

• Energy-detect Mode - When the Energy Detect mode is enabled and the port link is down, the PHY automatically goes down for short period of time and then wakes up to check link pulses. This mode reduces power consumption on the port when no link partner is present.
• Short Cable Mode: With Short Cable mode enabled, the PHY goes into low power mode when the cable length is less than a certain limit.
• Energy Efficient Ethernet (EEE): EEE enables ports to enter a low-power mode to reduce power consumption during periods of low link utilization. EEE is defined by IEEE 802.3az. EEE enables both the send and receive sides of the link to disable some functionality for power savings when the link is lightly loaded.

Green Ethernet Configuration

Use this page to configure the administrative mode for the Green Ethernet features available on the switch. These features must also be enabled on each port to take advantage of the possible power savings.

To access this page, click System > Management > Green Ethernet Configuration.

To configure the Green Ethernet feature:

1. Enable or disable the Auto Power-Down Mode.

2. Enable. When the port link is down, the PHY automatically goes down for a short period of time and then wakes up to check link pulses. This behavior saves power consumption when there is no link partner while still allowing the port to perform auto-negotiation if a link partner does become present.

3. Disable. The PHY remains up even if no link partner is present.

4. Enable or disable the Short Cable Mode.

5. Enable. The switch performs a cable test on each cable connect to its ports. If the cable is less than 10m in length, the port is placed in low power mode (nominal power).

6. Disable. Full transmit power is provided to all ports, regardless of cable length.

7. Enable or disable the EEE Mode:

8. Enable. The switch allows ports to transition to low-power mode during link idle conditions.

9. Disable. Full transmit power is provided to all ports, regardless of port activity.

10. Click Apply to send the updated configuration to the switch, or click Cancel to abandon the changes. Applied configuration changes take effect immediately.

Green Ethernet Interface Configuration

Use this page to configure Green Ethernet features on a per-port basis. The Green Ethernet modes must be administratively enabled on the switch for the mode enabled on the port to take effect.

To access this page, click System > Management > Green Ethernet > Green Ethernet Interface Configuration.

To configure the Green Ethernet Interface feature:

1. Select the check box next to the port to configure. You can select multiple ports to apply the same setting to all selected ports. To configure all ports, select the check box in the heading row.

2. Enable or disable the Auto Power-Down Mode.

3. Enable. When the port link is down, the PHY automatically goes down for a short period of time and then wake up to check link pulses. This behavior saves power consumption when there is no link partner while still allowing the port to perform auto-negotiation if a link partner does become present.

4. Disable. The PHY remains up even if no link partner is present.

5. Enable or disable the Short Cable Mode.

6. Enable. The switch performs a cable test on each cable connect to its ports. If the cable is less than 10m in length, the port is placed in low power mode (nominal power). Short cable mode and EEE mode cannot be enabled on the same port simultaneously.
   • Disable. Full transmit power is provided to all ports, regardless of cable length.

7. Enable or disable the EEE Mode:

8. Enable. The switch allows ports to transition to low-power mode during link idle conditions. Short cable mode and EEE mode cannot be enabled on the same port simultaneously.

9. Disable. Full transmit power is provided to all ports, regardless of port activity.

10. Click Apply to apply the change to the system. Configuration changes take effect immediately.

11. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Green Ethernet Detail

Use this page to configure Green Ethernet monitor and manage Green Ethernet features on a specific port.

To access this page, click System > Management > Green Ethernet > Green Ethernet Detail.

To configure or view details about the Green Ethernet feature on a port:

1. Within the Local Device Information, select the port to view or configure from the Interface menu.
2. Enable or disable the Energy Detect, Short Reach, or EEE administrative modes on the interface.
3. If you make any changes to the Green Ethernet modes for the port, click Apply.
4. View the additional Green Ethernet information that displays for the port:

Field Description
Cumulative Energy Saved on this port due to Green Mode(s) (Watts * Hours)	Shows the energy savings per port, per hour.
Operational Status (Energy Detect)	Shows the Green Mode operational status, either Inactive or Active.
Reason Shows the Admin status, either Admin Down or Admin Up.
Operational Status (Short Reach)	Shows the operational status of the port, either Active or Inactive.
Reason Shows the reason why the port is either Active or Inactive.
Rx Low Power Idle Event Count	This field is incremented each time MAC RX enters LP IDLE state. Shows the total number of Rx LPI Events since EEE counters are last cleared.
Rx Low Power Idle Duration (uSec)	This field indicates duration of Rx LPI state in 10us increments. Shows the total duration of Rx LPI since the EEE counters are last cleared.
Tx Low Power Idle Event Count	This field is incremented each time MAC TX enters LP IDLE state. Shows the total number of Tx LPI Events since EEE counters are last cleared.
Tx Low Power Idle Duration (uSec)	This field indicates duration of Tx LPI state in 10us increments. Shows the total duration of Tx LPI since the EEE counters are last cleared.
Tw_sys_tx (uSec) Integer that indicates the value of Tw_sys that the local system can support.
Tw_sys_tx Echo (uSec) Integer that indicates the remote system's Transmit Tw_sys that was used by the local system to compute the Tw_sys that it wants to request from the remote system.
Tw_sys_rx (uSec) Integer that indicates the value of Tw_sys that the local system requests from the remote system.
Tw_sys_rx Echo (uSec) Integer that indicates the remote systems Receive Tw_sys that was used by the local system to compute the Tw_sys that it can support.
Fallback Tw_sys (uSec)	Integer that indicates the value of fallback Tw_sys that the local system requests from the remote system.
Tx_dll_enabled Data Link Layer Enabled: Initialization status of the EEE transmit Data Link Layer management function on the local system.
Tx_dll_ready Data Link Layer	ready: This variable indicates that the tx systeminitialization is complete and is ready to update/receive LLDP PDUs containing EEE TLV.
Rx_dll_enabled Status of the	EEE capability negotiation on the local system.
Rx_dll_ready Data Link Layer	ready: This variable indicates that the rx systeminitialization is complete and is ready to update/receive LLDP PDUs containing EEE TLV.
Time Since Counters Last Cleared	Time Since Counters Last Cleared (since the time of power up, or after EEE counters are cleared).

1. To view information received from a partner link, select the port connected to the remote device from the Interface menu in the Remote Device Information area.

The page refreshes and shows the information in the following table if LLDP data has been received on the interface

Field Description
Remote ID Specifies the remote client identifier assigned to the remote system.
Remote Tw_sys_tx (uSec)	Integer that indicates the value of Tw_sys that the remote system can support.
Remote Tw_sys_tx Echo (uSec)	Integer that indicates the value Transmit Tw_sys echoed back by the remote system.
Remote Tw_sys_rx (uSec)	Integer that indicates the value of Tw_sys that the remote system requests from the local system.
Remote Tw_sys_rx Echo (uSec)	Integer that indicates the value of Receive Tw_sys echoed back by the remote system.
Remote Fallback Tw_sys (uSec)	Integer that indicates the value of fallback Tw_sys that the remote system is advertising.

1. Click Clear to reset the counters on the page to their default values.
2. Click Refresh to update the page with the current information.

Green Ethernet Summary

This page summarizes the Green Ethernet Summary settings currently in use.

To access this page, click System > Management > Green Ethernet > Green Ethernet Summary.

The following table describes the information available on the Green Mode Statistics Summary page.

Field Description
Current Power Consumption by all ports in Stack (mWatts)	Estimated Power Consumption by all ports in the stack in mWatts.
Estimated Percentage Power Saving per stack (%)	Estimated Percentage Power saved on all ports in the stack due to Green mode(s) enabled.
Cumulative Energy Saving per Stack (Watts*Hours)	Estimated Cumulative Energy saved per stack in (Watts × Hours) due to all green modes enabled.
Unit Identifies the stack member number.
Green Features supported on this unit	List of Green Features supported on the given unit which could be one or more of the following:Energy-Detect (Energy Detect)Short-Reach (Short Reach)EEE (Energy Efficient Ethernet)LPI-History (EEE Low Power Idle History)LLDP-Cap-Exchg (EEE LLDP Capability Exchange)Pwr-Usg-Est (Power Usage Estimates).
Interface Identifies the interface associated with the rest of the data in the row.
Energy Detect Admin Mode	Shows whether Energy Detect Mode is administratively enabled on the port.
Energy Detect Operational Status	Shows the current operational status of the Green Mode for the selected port.
Short Reach Admin Mode	Shows the administrative status of Short Reach Mode on the port. With short reach mode enabled, PHY goes into low power mode when cable length is less than a given limit.
Short Reach Operational Status	Indicates whether the port is in low-power mode due to the cable length.
EEE Admin Mode Shows the	administrative status of Energy Efficient Ethernet Mode on the port. With EEE mode enabled, the port transitions to low power mode during link idle condition.

Click Refresh to update the page with the most current data from the switch

Green Ethernet LPI History

Use this page to set the sampling interval for EEE LPI data and to specify the number of samples to keep. From this page, you can also view per-port EEE LPI data.

To access this page, click System > Management > Green Ethernet > Green Ethernet LPI History.

You do not need to select a port to configure the LPI sampling interval and maximum number of samples to keep. These settings are global, and the values you specify are applied to all ports. To configure the LPI settings for the switch:

1. Specify the LPI sampling interval, which determines the interval at which EEE LPI data needs to be collected. the default value is 3600, and the range is 30 to 36000.
2. Specify the maximum number of LPI samples to store on the switch. The default is 168, and the range is 1 to 168.
3. Click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.
4. Click Refresh to refresh the page with the most current data from the switch.

The page also provides the information shown in the following table:

Field Description
Percentage LPI time per Stack	Time spent in LPI mode since EEE counters are last cleared.
Sample No Sample index.
Time Since The Sample Was Recorded	Each time the page is refreshed it shows a different time as it reflects the difference in current time and time at which the sample was recorded.
Percentage Time spent in LPI mode since last sample	Percentage of time spent in LPI mode during the current measurement interval.
Percentage Time spent in LPI mode since last reset	Percentage of time spent in LPI mode since EEE LPI statistics were last reset.

Stacking

A stackable switch is a switch that is fully functional operating as a stand-alone unit but can also be set-up to operate together with up to five other switches. This group of switches shows the characteristics of a single switch while having the port capacity of the sum of the combined switches.

From the Stacking link under the System tab, you can access the following pages:

• StackConfigurationon page 63
• StackPortConfiguration on page 66
• StackPortDiagnosticson page 68
• StackFirmwareSynchronizationon page 69

One of the switches in the stack controls the operation of the stack. This switch is called the stack master. The remaining switches in the stack are stack members. The stack members use stacking technology to behave and work together as a unified system. Layer 2 and higher protocols present the entire switch stack as a single entity to the network.

The stack master is the single point of stack-wide management. From the stack master, you configure the following:

• System-level (global) features that apply to all stack members
• Interface-level features for all interfaces on any stack member

A switch stack is identified in the network by its network IP address. The network IP address is assigned according to the MAC address of the stack master. Every stack member is uniquely identified by its own stack member number, which is from 1–6. The stack master can be any number within that range.

Stack Features

Stacking on the GS728TS, GS728TPS, GS752TS, and GS752TPS switches supports the following:

• Up to six switches per stack, which can be any combination of GS728TS, GS728TPS, GS752TS, or GS752TPS switches.
• Single IP address management through a web browser or the SCC.
  • Master-slave configuration.
  • The master retains configuration for entire stack.
  • Automatic detection of new members, with synchronization of firmware (upgrade or downgrade as needed).
• Configuration updates across the stack through a single operation.
  • Automatic master fail-over. Fully resilient stack with chain and ring topology.
  • Hot swapping (insertion and removal) of stack members.

Firmware Synchronization and Upgrade

All stack members must run the same software version to ensure compatibility within the stack. By default, if a unit is added to the stack and its software version is not the same as the stack master, that unit is not allowed to join the stack. You can enable the Stack Firmware Auto Upgrade feature, which will automatically synchronize the firmware version on the new unit with the version running on the stack master. The synchronization operation may result in either upgrade or downgrade of firmware on the mismatched stack member.

Upgrading the firmware on a stack of switches is the same as upgrading the firmware on a single switch. After you download a new image by using the File Download page or SCC, the downloaded image is distributed to all the connected units of the stack.

Note: It is recommended to set the active image for all stack members the same as the active image of the stack master. In other words, if image1 is the active image on the stack master, all units should have image1 as the active image. For information about configuring the active image, see DualImageConfigurationon page 289.

Configuration Maintenance

The stack master stores and maintains the saved and running configuration files for the switch stack. The configuration files include the system-level settings for the switch stack and the interface-level settings for all stack members. Each stack member retains a copy of the saved file for backup purposes. If the master is removed from the stack or becomes unavailable, another member will be elected master, and will then run from that saved configuration.

The switch master copies its running configuration to the stack member configured as the standby unit whenever it changes (subject to some restrictions to reduce overhead). This enables the standby unit to take over the stack operation with minimal interruption if the stack master becomes unavailable. The running-config synchronization also occurs when the running configuration is auto-saved on the stack master or when the standby unit changes.

Stack Master Election

All stack members are eligible stack masters. If the stack master becomes unavailable, the remaining stack members participate in electing a new stack master from among themselves. The following factors determine which switch is elected the stack master:

• The switch that is master always has priority to retain the role of master
- Assigned priority
- MAC address

When the stack is powered up and completes the boot process or the original stack master becomes unavailable, the stack master is determined through an election process.

The rules for stack master Election are as follows:

• If a unit had previously been elected stack master, then it will remain the stack master and other units will simply be stack members.
• If no units were stack masters, or more than one unit was a stack master, then the unit with the highest management preference is elected stack master. The management preference can be assigned by the administrator. However, if all units have the same management preference, then the unit with the highest MAC address is assigned as the stack master.

Factory Defaults Reset Behavior

If the stack master is reset to the factory default settings (see Factory Default on page 281), the stack master applies the default settings to all the stack members and resets the stack, including all participating stack members. When the stack boots, the stack master election process begins.

Stack Configuration

From this page, you can preconfigure stack members before adding them to the stack, change the unit number assigned to a stack member, and to select a new stack master or give management preference to one or more units.

If you change the unit ID on a stack member, the member reloads. A stack move causes all routes and layer 2 addresses to be lost. The administrator is prompted to confirm the management move.

To display the Stack Configuration page, click System > Stacking > Basic > Stack Configuration. A screen similar to the following is displayed.

To select a new stack master:

1. In the Management Unit Selected menu, select the unit ID of the stack member to become the stack master.
2. A message indicating that moving stack management will unconfigure entire stack including all interfaces.
3. Click OK to confirm the selection and reload the stack. The stack will be unavailable until the boot process completes.

To configure a stack member before adding it to the stack:

1. Select the Unit ID of the stack member to add.
2. Select the switch model number of the new unit from the Switch Type field.
3. Optionally, specify the Switch Priority to select whether you want this unit to become a management unit in preference to another unit. The default value for this setting is undefined. If the preference level is set to zero, then the device cannot become a management unit. A higher value indicates a higher priority, the maximum value is 15.
4. Use the Management Status field to indicate whether the selected switch is the stack master, a normal stacking member, or the standby unit. A standby unit takes over the stack master responsibilities if the stack master becomes unavailable.
5. Click Add to add the preconfigured unit to the stack.

To change the settings for an existing stack member:

1. Select the check box next to the stack member to configure.
2. If desired, specify a new unit ID for the stack member in the Change to Switch ID field. The renumbering process causes the unit to reload.
3. Specify the switch type, priority, or management status from the available fields.
4. Click Apply to save the changes to the stack member.

Note: If you configured an new unit number for an existing stack member, you are asked to confirm the change. Click OK to continue or Cancel to retain the original settings.

1. Click Delete to remove the selected unit from the stack.
2. Click Refresh to update the page with the latest information from the switch.
3. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

The following table describes the Stack Configuration fields.

Field Description
Hardware Management Preference	The hardware management preference of the switch. The hardware management preference can be disabled or unassigned.
Standby Status Identifies the switch that is configured as the Standby Unit. The possible values are:• Cfg Standby - Indicates that the unit is configured as the Standby Unit. The unit configured as the Standby switch becomes the stack manager if the current manager fails.• Opr Standby - Indicates that this unit is operating as the Standby Unit and the configured Standby Unit is not part of the stack.• None - The switch is not configured as the Standby Unit.
Switch Status Displays the status of the selected unit. The possible values are:• OK• Unsupported• Code Mismatch• Config Mismatch• Not Present

The following table describes the Basic Stack Status fields.

Field Description
Unit ID The unit ID of the specific switch.
Switch Description The description for the unit can be configured by the user.
Serial Number The unique box serial number for this switch.
Uptime The displays the relative time since the last reboot of the switch.
Preconfigured Model Identifier This field displays the model type assigned by the device manufacturer to identify the device.
Plugged-in Model Identifier This field displays the model type assigned by the device manufacturer to identify the plugged-in device.
Expected Code Type This field indicates the expected code type on this unit.
Detected Code Version This field indicates the detected version of code on this unit.
Detected Code Version in Flash The displays the Release number and version number of the code stored in flash.
SFS Last Attempt Status This displays the status of last tried stack firmware synchronisation. “None” is the default value if SFS has not been tried.

Stack Port Configuration

By default, the stack ports on each switch are configured for stacking. However, you can use these ports as standard Ethernet ports. Use the Stack Port configuration page to configure the mode of the stack ports and to view information about the ports.

To display the Stack Port Configuration page, click System >Stacking >Advanced >Stack Port Configuration. A screen similar to the following is displayed.

To configure the mode of the stack ports:

1. Select the check box associated with the unit and port to configure:

2. From the Configured Stack Mode field, select the operating mode:

3. Stack. The port connects to the stack port on another stack member. This is the default value.

4. Ethernet. The port operates as a standard switch port that receives and transmits network traffic

5. Click Apply to apply the new settings to the system.

6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
7. Click Refresh to update the screen with the current information.

The following table describes Stack Port Configuration fields.

Field Description
Unit ID Displays the unit.
Port Displays the stackable interfaces on the given unit.
Running Stack Mode Displays the run-time mode of the stackable interface.
Link Status Displays the link status (UP/DOWN) of the port.
Link Speed (Gbps) Displays the maximum speed of the stacking port.
Transmit Data Rate (Mbps) Displays the approximate transmit rate on the stacking port.
Transmit Error Rate Displays the number of errors in transmit packets per second.
Total Transmit Errors Displays the total number of errors in transmit packets since boot. The counter may wrap.
Data Rate (Mbps) Displays the approximate receive rate on the stacking port.
Receive Error Rate Displays the number of errors in receive packets per second.
Total Receive Errors Displays the total number of errors in receive packets since boot. The counter may wrap.

Stack Port Diagnostics

This page displays the diagnostics for all the stackable interfaces in the given stack.

To display the Stack Port Diagnostics page, click System > Stacking > Advanced > Stack Port Diagnostics. A screen similar to the following is displayed.

The following table describes the Stack Port Diagnostics fields.

Field Definition
Unit ID Displays the unit.
Port Displays the stackable interface on	the given unit.
Port Diagnostics Info Displays three text	fields (80 character strings) populated by the driver containing debug and status information.

Stack Firmware Synchronization

To display the stack firmware synchronization configurations from the Stack Firmware Synchronization page, click System >Stacking >Advanced >Stack Firmware Synchronization. A screen similar to the following is displayed.

To configure the Stack Firmware Synchronization features:

1. Specify whether Stack Firmware Auto Upgrade is enabled or disabled. This feature determines what to do when a new member attempts to join the stack, and its firmware does not match the version running on the master.

2. Enable. The stack master upgrades the version on the new member to match the version running on the rest of the stack.
   • Disable. The new member is not allowed to join.

3. Use the Traps field to enable or disable sending of traps during Stack Firmware Synchronization Start, Failure, or Finish.

4. Use the Allow Downgrade field to determine whether the stack master should downgrade the firmware version on a new member that attempts to join the stack if the new member has a firmware version that is more recent that the stack.
5. Click Refresh to update the page with the latest information from the switch.
6. Click Apply to apply the new settings to the switch. Configuration changes take effect immediately.

PoE/PoE+ (GS728TPS and GS752TPS Only)

Ports g1–g8 on the GS728TPS and GS752TPS are PoE+ (IEEE 802.3at) compliant ports. Each port is capable of delivering up to 30W of reliable, uninterrupted power to connected PoE-powered devices (PD). Ports g9–g24 on the GS728TPS and ports g9–g48 on the GS752TPS are PoE (IEEE 802.3af) ports that are capable of delivering up to 15W of power to connected PDs.

The GS728TPS can provide a total of 192W of power to all connected devices. The GS752TPS can provide a total of 384W of power to all connected devices. You can configure per-port priority settings, timers, and power limits to manage the power supplied to the connected PDs and to ensure that the power budget for each switch is used effectively.

From the PoE link under the System tab, you can view and configure PoE settings for the switch and for ports.

From the PoE link, you can access the following pages:

• PoEConfigurationon page 70
• PoEPortConfigurationon page 72

PoE Configuration

Use the PoE Configuration page to view global PoE power information and to configure PoE settings.

To display the PoE Configuration page, click System > PoE > Basic > PoE Configuration.

Note: You can also access the PoE Configuration page by clicking System > PoE > Advanced > PoE Configuration.

To configure PoE trap settings:

1. If you are managing a stack of switches, select the ID of the stack member to configure from the Unit menu.
2. Specify the percentage of the threshold power that must be consumed before a trap is sent.

3. Select the power management algorithm the switch uses to deliver power to the requesting PDs.

4. Static. The Power allocated for each port depends on the type of power threshold configured on the port.

5. Dynamic. The power consumption of each port is measured and calculated in real-time.

6. Select the appropriate radio button to enable or disable SNMP traps for PoE.

7. Click Apply to apply the new settings to the system.

8. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
9. Click Refresh to update the screen with the current information.

The PoE Configuration page also provides the following information:

Field Description
Firmware Version Version of	the PoE controller's FW image.
Power Status Indicates whether	ther the PoE capability is on or off.
Nominal Power Indicates the	nominal amount of power the switch can provide to all ports.
Threshold Power Shows the	amount of power the system can consume before the system will not provide power to an additional port.
Consumed Power Shows the	total amount of power currently being delivered to all ports.

PoE Port Configuration

Use the PoE Port Configuration page to configure per-port PoE settings.

To display the PoE Port Configuration page, click System > PoE > Advanced > PoE Port Configuration.

To configure PoE Port settings:

1. Select the check box next to the port to configure. Select multiple check boxes to apply the same settings to each selected port. Select the check box in the heading row to apply the same settings to all ports.

2. Configure or view the settings:

3. Admin Mode. Enable or disable the ability of the port to deliver power.
   • High Power. Indicates whether the port supports High Power Mode.
   • Max Power. Shows the maximum power, in Watts, the port can provide.

4. Port Priority. Determine which ports can deliver power if the total power delivered by the switch crosses a certain threshold. The switch may not be able to supply power to all connected devices. Priority is used to determine which ports can supply power. When ports have the same priority, the lower numbered port is given a higher priority. The possible priority levels are Critical (highest priority), High, and Low.

• High Power Mode. Select the power-up mode for the port

• Disable: A port is powered in the IEEE 802.3af mode. (Default)
• Legacy: A port is powered using high-inrush current, which is used by legacy powered devices (PDs) with a power requirement greater than 15W from power up.
• Pre-802.3at. A port is powered in the IEEE 802.3af mode initially and switched to the high-power IEEE 802.3at mode before 75 msec. Use this mode if the PD is not performing Layer 2 classification, or if the switch is performing two-event Layer 1 classification.
• 802.3at. A port is powered in IEEE 802.3at mode. If the PD class detected by the switch is not Class 4 (type 2), the port will power up the PD, but only Class 4 PDs can be powered up in the IEEE 802.3at mode.

- Power Limit Type. Select the type of power limit to use on the port, which is one of the following:

• Class: Select this option to base the power limit on the detected class value. When this value is selected, the user-configured value configured in the Power Limit field is ignored.

• User: Select this option to base the power limit on the value configured in the Power Limit field.
  • None. Select this option to indicate that no power limit type is used on the port.

• Power Limit. Set the maximum amount of power that can be delivered by a port when the Power Limit Type is User.

• Detection Mode. Select the PD detection mode the PSE port uses to detect an attached device. The detection mode can be one of the following modes:

- Auto. The port performs four-point resistive detection (802.3af4point) followed by legacy detection.

• Pre-ieee. The port performs legacy detection.

- ieee. The port performs four-point resistive detection (802.3af4point).

- Class. View the class of the PD connected to the port. The class defines the range of power a PD is drawing from the system. The class is defined as:

• 0: 0.44–12.95W
1:0.44–3.83W
2:3.84–6.48W
3:6.49–12.95W
• 4: 12.95–25.50W (802.3at Type 2 devices only)

- Timer Schedule. Select the timer schedule to use for the port. By default, no timer schedules are configured. To create a timer schedule, use the Timer Schedule Global Configuration page.

• Output Voltage. Shows the current voltage being delivered to device in Volts.
• Output Current. Shows the current being delivered to device in mA.
• Output Power. Shows the current power being delivered to device in Watts.

• Status. View the operational status of the port PD detection.

• Disabled. Indicates no power is being delivered.
• DeliveringPower. Indicates power is being drawn by a connected device.
• Fault. Indicates a problem with the port.
• Test. Indicates the port is in test mode.
- OtherFault. Indicates the port is idle due to an error condition.
• Searching. Indicates the port is not in one of the above states.
- Requesting Power. Indicates that a valid PD has been detected, but the device is not able to deliver power to the PD due to a power management decision.

- Fault Status. Describes the error description when the PSE port is in fault status, which can be one of the following:

• No Error. Specifies that the PSE port is not in any error state.
• MPS Absent. Specifies that the PSE port has detected an absence of main power supply.
• Short. Specifies that the PSE port has detected a short circuit condition.
  • Overload. Specifies that the PD connected to the PSE port had tried to provide more power than it is permissible by the hardware.

• Power Denied. Specifies that the PSE port has been denied power because of shortage of power or due to administrative action.

• Click Apply to apply the new settings to the system.

• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

• Click Reset to forcibly reset the selected port(s).

SNMP

From SNMP link under the System tab, you can configure SNMP settings for SNMPv1/v2 and SNMPv3.

From the SNMP link, you can access the following pages:

• SNMPv1/v2on page 75
- TrapFlagson page 78
• SNMPv3UserConfigurationon page 79

SNMPv1/v2

The pages under the SNMPv1/v2 menu allow you to configure SNMP community information, traps, and trap flags.

Community Configuration

To display this page, click System > SNMP > SNMP V1/V2 > Community Configuration.

By default, two SNMP Communities exist:

• Private, with Read/Write privileges and status set to Enable.
  • Public, with Read Only privileges and status set to Enable.

These are well-known communities. Use this page to change the defaults or to add other communities. Only the communities that you define using this page will have access to the switch using the SNMPv1 and SNMPv2c protocols. Only those communities with read/write level access can be used to change the configuration using SNMP.

Use this page when you are using the SNMPv1 and SNMPv2c protocol.

To configure SNMP communities:

1. To add a new SNMP community, enter community information in the available fields described below, and then click Add.

- Management Station IP. Specify the IP address of the management station. Together, the Management Station IP and the Management Station IP Mask denote a range of IP addresses from which SNMP clients may use that community to access this device. If either (Management Station IP or Management Station IP Mask) value is 0.0.0.0, access is allowed from any IP address. Otherwise, every client's address is ANDed with the mask, as is the Management Station IP Address; and, if the values are equal, access is allowed. For example, if the Management Station IP and Management Station IP Mask parameters are 192.168.1.0/255.255.255.0, then any client whose address is 192.168.1.0 through 192.168.1.255 (inclusive) will be allowed access. To allow access from only one station, use a Management Station IP Mask value of 255.255.255.255, and use that machine's IP address for Client Address.

- Management Station IP Mask. Specify the subnet mask to associate with the management station IP address.

- Community String. Specify a community name. A valid entry is a case-sensitive string of up to 16 characters.

- Access Mode. Specify the access level for this community by selecting Read/Write or Read Only from the menu.

- Status. Specify the status of this community by selecting Enable or Disable from the pull down menu. If you select Enable, the Community Name must be unique among all valid Community Names or the set request will be rejected. If you select Disable, the Community Name will become invalid.

1. To modify an existing community, select the check box next to the community, change the desired fields, and then click Apply. Configuration changes take effect immediately.

2. To delete a community, select the check box next to the community and click Delete.

3. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Trap Configuration

This page displays an entry for every active Trap Receiver. To access this page, click System > SNMP > SNMP V1/V2 > Trap Configuration.

To configure SNMP trap settings:

1. To add a host that will receive SNMP traps, enter trap configuration information in the available fields described below, and then click Add.

• Recipients IP. The address in x.x.x.x format to receive SNMP traps from this device.
• Version. The trap version to be used by the receiver from the menu.

• SNMP v1: Uses SNMP v1 to send traps to the receiver.
• SNMP v2: Uses SNMP v2 to send traps to the receiver.

• Community String. The community string for the SNMP trap packet to be sent to the trap manager. This may be up to 16 characters and is case sensitive.

• Status. Select the receiver's status from the menu:

• Enable: Send traps to the receiver.

• Disable: Do not send traps to the receiver.

• To modify information about an existing SNMP recipient, select the check box next to the recipient, change the desired fields, and then click Apply. Configuration changes take effect immediately.

• To delete a recipient, select the check box next to the recipient and click Delete.
• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Trap Flags

The pages in the Trap Manager folder allow you to view and configure information about SNMP traps the system generates.

Use the Trap Flags page to enable or disable traps the switch can send to an SNMP manager. When the condition identified by an active trap is encountered by the switch, a trap message is sent to any enabled SNMP Trap Receivers, and a message is written to the trap log.

To access the Trap Flags page, click System > SNMP > SNMP V1/V2 > Trap Flags.

To configure the trap flags:

1. From the Authentication field, enable or disable activation of authentication failure traps by selecting the corresponding button. The factory default is Enable.
2. From the Link Up/Down field, enable or disable activation of link status traps by selecting the corresponding button. The factory default is Enable.
3. From the Spanning Tree field, enable or disable activation of spanning tree traps by selecting the corresponding button. The factory default is Enable.
4. For the GS728TPS and GS752TPS switches, use the PoE field to enable or disable activation of PoE traps. The factory default is Enable.
5. If you make any changes to this page, click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.
6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

SNMP Supported MIBs

The SNMP Supported MIBs page lists the MIBs available for management by using a SNMP-based network management system.

To access the page, click System > SNMP > SNMP V1/V2 > Supported MIBs.

The page displays the name of each supported MIB file and provides a description of the module.

SNMP v3 User Configuration

This is the configuration for SNMP v3.

To access this page, click System > SNMP > SNMP V3 > User Configuration.

The SNMPv3 Access Mode is a read-only field that shows the access privileges for the user account. The admin account always has Read/Write access, and all other accounts have Read Only access.

To configure SNMPv3 settings for the user account:

1. In the Authentication Protocol field, specify the SNMPv3 Authentication Protocol setting for the selected user account. The valid Authentication Protocols are None, MD5, or SHA. If you select:

• None: The user will be unable to access the SNMP data from an SNMP browser.
- MD5 or SHA: The user login password will be used as SNMPv3 authentication password, and you must therefore specify a password. The password must be eight characters in length.

1. In the Encryption Protocol field, choose whether to encrypt SNMPv3 packets transmitted by the switch.

• None. Do not encrypt the contents of SNMPv3 packets transmitted from the switch.
• DES. Encrypt SNMPv3 packets using the DES encryption protocol.

1. If you selected DES in the Encryption Protocol field, enter the SNMPv3 Encryption Key here. Otherwise, this field is ignored. Valid keys are 0 to 15 characters long.
2. Click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.
3. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

LLDP

The IEEE 802.1AB-defined standard, Link Layer Discovery Protocol (LLDP), allows stations on an 802 LAN to advertise major capabilities and physical descriptions. This information is viewed by a network manager to identify system topology and detect bad configurations on the LAN.

From the LLDP link, you can access the following pages:

• LLDPConfiguration on page 81
• LLDPPortSettings page 82
• LLDP-MEDNetworkPolicyon page 83
• LLDP-MEDPortSettings page 85
• LocalInformationon page 86
• NeighborsInformationon page 88

LLDP is a one-way protocol; there are no request/response sequences. Information is advertised by stations implementing the transmit function, and is received and processed by stations implementing the receive function. The transmit and receive functions can be enabled/disabled separately per port. By default, both transmit and receive are enabled on all

ports. The application is responsible for starting each transmit and receive state machine appropriately, based on the configured status and operational state of the port.

The Link Layer Discovery Protocol-Media Endpoint Discovery (LLDP-MED) is an enhancement to LLDP with the following features:

• Auto-discovery of LAN policies (such as VLAN, Layer 2 Priority, and DiffServ settings), enabling plug and play networking.
  • Device location discovery for creation of location databases.
  • Extended and automated power management of Power over Ethernet endpoints.
• Inventory management, enabling network administrators to track their network devices and determine their characteristics (manufacturer, software and hardware versions, serial/asset number).

LLDP Configuration

Use the LLDP Configuration page to specify LLDP and LLDP-MED parameters that are applied to the switch.

To display the LLDP Configuration page, click System > LLDP > Basic > LLDP Configuration.

Note: You can also access the LLDP Configuration page by clicking System > LLDP > Advanced > LLDP Configuration.

To configure global LLDP settings:

1. Configure the following LLDP properties.

2. TLV Advertised Interval. Specify the interval at which frames are transmitted. The default is 30 seconds, and the valid range is 5–32768 seconds.

3. Hold Multiplier. Specify multiplier on the transmit interval to assign to Time-to-Live (TTL). The default is 4 seconds, and the range is 2–10.
4. Reinitializing Delay. Specify the delay before a reinitialization. The default is 2 seconds, and the range is 1–10 seconds.

5. Transmit Delay. Specify the interval for the transmission of notifications. The default is 5 seconds, and the range is 5–3600 seconds.

6. To change the LLDP-MED properties in the Fast Start Duration field, specify the number of LLDP packets sent when the LLDP-MED Fast Start mechanism is initialized, which occurs when a new endpoint device links with the LLDP-MED network connectivity device. The default value is 3 times, and the range is from 1–10.

7. Click Apply to apply the new settings to the system.

8. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

9. Click Refresh to update the screen with the current information.

LLDP Port Settings

Use the LLDP Port Settings page to specify LLDP parameters that are applied to a specific interface.

To display the LLDP Port Settings page, click System > LLDP > Advanced > LLDP Port Settings.

To configure LLDP port settings:

1. Change the LLDP port settings described below:

• Interface. Specifies the port to be affected by these parameters.
- Admin Status. Select the status for transmitting and receiving LLDP packets:
- Tx Only: Enable only transmitting LLDP PDUs on the selected ports.
- Rx Only: Enable only receiving LLDP PDUs on the selected ports.
- Tx and Rx: Enable both transmitting and receiving LLDP PDUs on the selected ports. This is the default value.
- Disabled: Do not transmit or receive LLDP PDUs on the selected ports.

- Management IP Address. Choose whether to advertise the management IP address from the interface. The possible field values are:

- Stop Advertise: Do not advertise the management IP address from the interface.

- Auto Advertise: Advertise the current IP address of the device as the management IP address.

- Notification. When notifications are enabled, LLDP interacts with the Trap Manager to notify subscribers of remote data change statistics. The default is Disabled.

- Optional TLV(s). Enable or disable the transmission of optional type-length value (TLV) information from the interface. The TLV information includes the system name, system description, system capabilities, and port description. The default is Enabled. To configure the System Name, see Management page 31. To configure the Port Description, see Portson page 102.

1. If you make any changes to the page, click Apply to apply the new settings to the system.

2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

LLDP-MED Network Policy

This page displays information about the LLPD-MED network policy TLV transmitted in the LLDP frames on the selected local interface.

To display this page, click System > LLDP > Advanced > LLDP-MED Network Policy.

From the Interface menu, select the interface with the information to view. The following table describes the LLDP-MED network policy information that displays on the screen.

Field Description
Device Information
Chassis ID Subtype	Identifies the type of data the local switch displays in the Chassis ID field.
Chassis ID Identifies the local system Name Identifies the system Description Provides a	802 LAN switch.
System Name Identifies the system Description Provides a	system name associated with the switch.
System Description Provides a	description of the switch, which is its model number.
System Capabilities Specifies	the system capabilities of the switch.
Port Information
Network Policy Number Specifies	the policy number.
Application Specifies the media	application type associated with the policy. Only the Voice application type is supported. The application type that is received on the interface has the VLAN ID, priority, DSCP, tagged bit status and unknown bit status. This information is displayed only if a network policy TLV has been transmitted.
VLAN ID Specifies the VLAN ID	associated with the policy.
VLAN Type Specifies whether	the VLAN associated with the policy is tagged or untagged.
User Priority Specifies the priority	property associated with the policy.
DSCP Specifies the DSCP associated with a particular policy type.

Click Refresh to update the page with the most current data from the switch.

LLDP-MED Port Settings

Use this page to enable LLDP-MED mode on an interface and configure its properties. To display this page, click System > LLDP > Advanced > LLDP-MED Port Settings.

To configure LLDP-MED settings for a port:

1. From the Port field, select the port to configure.
2. From the LLDP-MED Status field, enable or disable the LLDP-MED mode for the selected interface.
3. From the Notification field, specify whether the port should send a topology change notification if a device is connected or removed.
4. From the Transmit Optional TLVs field, specify whether the port should transmit optional type length values (TLVs) in the LLDP PDU frames. If enabled, the following LLDP-MED TLVs are transmitted:

• MED Capabilities
• Network Policy
• Location Identification
• Extended Power via MDI: PSE
• Extended Power via MDI: PD
- Inventory

1. Click Apply to send the updated configuration to the switch. These changes occur immediately and the configuration will be saved.
2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
3. Click Refresh to update the screen with the current information.

Local Information

Use the LLDP Local Information page to view the data that each port advertises through LLDP.

To display the LLDP Local Device Information page, click System > Advanced > LLDP > Local Information.

The following table describes the LLDP local information that displays for each port.

Field Description
Interface Select the interface	with the information to display.
Port ID Subtype Identifies the	type of data displayed in the Port ID field.
Port ID Identifies the physical	address of the port.
Port Description Identifies the	user-defined description of the port. To configure the Port Description, see Portson page 102.
Advertisement Displays the ad	advertisement status of the port.

Click Refresh to refresh the page with the most current data from the switch.

To view additional details about a port, click the name of the port in the Interface column of the Port Information table.

A popup window displays information for the selected port.

The following table describes the detailed local information that displays for the selected port.

Field Description
Managed Address
Address SubType	Displays the type of address the management interface uses, such as an IPv4 address.
Address Displays the address	used to manage the device.
Interface SubType Displays the port subtype.
Interface Number Displays the number that identifies the port.
MAC/PHY Details
Auto-Negotiation Supported	Specifies whether the interface supports port-speed auto-negotiation. The possible values are True or False.
Auto-Negotiation Enabled	Displays the port speed auto-negotiation support status. The possible values are True (enabled) or False (disabled).
Auto Negotiation Advertised Capabilities	Displays the port speed auto-negotiation capabilities such as 1000BASE-T half-duplex mode or 100BASE-TX full-duplex mode.
Operational MAU Type Displays the Medium Attachment Unit (MAU) type. The MAU performs physical layer functions, including digital data conversion from the Ethernet interface collision detection and bit injection into the network.
MED Details
Capabilities Supported Displays the MED capabilities enabled on the port.
Current Capabilities Displays the TLVs advertised by the port.
Device Class Network Connectivity indicates the device is a network connectivity device.
Network Policies
Application Type Specifies the media application type associated with the policy.
VLAN ID Specifies the VLAN ID associated with the policy.
VLAN Type Specifies whether the VLAN associated with the policy is tagged or untagged.
User Priority Specifies the priority associated with the policy.
DSCP	Specifies the DSCP associated with a particular policy type.

Neighbors Information

Use the LLDP Neighbors Information page to view the data that a specified interface has received from other LLDP-enabled systems.

To display the LLDP Neighbors Information page, click System > LLDP > Advanced > Neighbors Information.

The following table describes the information that displays for all LLDP neighbors that have been discovered.

Field Description
MSAP Entry Displays the Media Service Access Point (MSAP) entry number for the remote device.
Local Port Displays the interface on the local system that received LLDP information from a remote system.
Chassis ID Subtype Identifies the type of data displayed in the Chassis ID field on the remote system.
Chassis ID Identifies the remote 802 LAN device's chassis.
Port ID Subtype Identifies the type of data displayed in the remote system's Port ID field.
Port ID Identifies the physical address of the port on the remote system from which the data was sent.
System Name Identifies the system name associated with the remote device. If the field is blank, the name might not be configured on the remote system.

Click Refresh to update the information on the screen with the most current data.

To view additional information about the remote device, click the link in the MSAP Entry field.

A popup window displays information for the selected port. The following table describes the fields in the popup window.

Field Description
Port Details
Local Port Displays the interface on the local system that received LLDP information from a remote system.
MSAP Entry Displays the Media Service Access Point (MSAP) entry number for the remote device.
Basic Details
Chassis ID Subtype Identifies the type of data displayed in the Chassis ID field on the remote system.
Chassis ID Identifies the remote 802 LAN device's chassis.
Port ID Subtype Identifies the type of data displayed in the remote system's Port ID field.
Port ID Identifies the physical address of the port on the remote system from which the data was sent.
Port Description Identifies the user-defined description of the port.
System Name Identifies the system name associated with the remote device.
System Description Specifies the description of the selected port associated with the remote system.
System Capabilities Specifies the system capabilities of the remote system.
Managed Addresses
Address SubType Specifies the type of the management address.
Address Specifies the advertised management address of the remote system.
Interface SubType Specifies the port subtype.
Interface Number Identifies the port on the remote device that sent the information.
MAC/PHY Details
Auto-Negotiation Supported Specifies whether the remote device supports port-speed auto-negotiation. The possible values are True or False
Auto-Negotiation Enabled Displays the port speed auto-negotiation support status. The possible values are True or False
Auto Negotiation Advertised Capabilities Displays the port speed auto-negotiation capabilities.
Operational MAU Type Displays the Medium Attachment Unit (MAU) type. The MAU performs physical layer functions, including digital data conversion from the Ethernet interface collision detection and bit injection into the network.
Field	Description
MED Details
Capabilities Supported	Specifies the supported capabilities that were received in MED TLV from the device.
Current Capabilities	Specifies the advertised capabilities that were received in MED TLV from the device.
Device Class Displays the LLDP-MED endpoint device class. The possible device classes are:Endpoint Class 1 Indicates a generic endpoint class, offering basic LLDP services.Endpoint Class 2 Indicates a media endpoint class, offering media streaming capabilities as well as all Class 1 features.Endpoint Class 3 Indicates a communications device class, offering all Class 1 and Class 2 features plus location, 911, Layer 2 switch support and device information management capabilities.
PoE Device Type Displays the port PoE type. For example, PSE or PD.
PoE Power Source Displays the port's power source.
PoE Power Priority Displays the port's power priority.
PoE Power Value Displays the port's power value.
Hardware Revision Displays the hardware version advertised by the remote device.
Firmware Revision Displays the firmware version advertised by the remote device.
Software Revision Displays the software version advertised by the remote device.
Serial Number Displays the serial number advertised by the remote device.
Model Name Displays the model name advertised by the remote device.
Asset ID Displays the asset ID advertised by the remote device.
Location Information
Civic Displays the physical location, such as the street address, the remote device has advertised in the location TLV. For example, 123 45th St. E. The field value length range is 6–160 characters.
Coordinates Displays the location map coordinates the remote device has advertised in the location TLV, including latitude, longitude and altitude.
ECS ELIN Displays the Emergency Call Service (ECS) Emergency LocationIdentification Number (ELIN) the remote device has advertised in the location TLV. The field range is 10–25.
Unknown Displays unknown location information for the remote device.
Field Description
Network Policies
Application Type	Specifies the media application type associated with the policy advertised by the remote device.
VLAN ID Specifies the VLAN	ID associated with the policy.
VLAN Type Specifies whether	the VLAN associated with the policy is tagged or untagged.
User Priority Specifies the priority associated with the policy.
DSCP Specifies the DSCP associated with a particular policy type.
LLDP Unknown TLVs
Type Displays the unknown TLV type field.
Value Displays the unknown TLV value field.

Services — DHCP Snooping

DHCP Snooping is a useful feature that provides security by filtering untrusted DHCP messages and by building and maintaining a DHCP snooping binding table. An untrusted message is a message that is received from outside the network or firewall and that can cause traffic attacks within your network. A known attack is when an unauthorized DHCP server responds to a client that is requesting an IP address. The server configures the gateway for the client to be equal to the IP address of the server. At that point, the client sends all of its IP traffic destined to other networks to the unauthorized machine. This gives the attacker the possibility of snooping traffic for passwords or employing a man-in-the-middle attack.

The DHCP snooping binding table contains the MAC address, IP address, lease time, binding type, VLAN number, and interface information that corresponds to the local untrusted interfaces of a switch. An untrusted interface is an interface that is configured to receive messages from outside the network or firewall. A trusted interface is an interface that is configured to receive only messages from within the network.

DHCP snooping acts like a firewall between untrusted hosts and DHCP servers. It also provides way to differentiate between untrusted interfaces connected to the end-user and trusted interfaces connected to the DHCP server or another switch.

From the Services link, you can access the following pages:

• DHCP Snooping Global Configuration on page 93
• InterfaceConfiguration on page 94
• BindingConfiguration on page 95
• PersistentConfigurationon page 97
• Statisticson page 98

DHCP Snooping Global Configuration

Use the DHCP Snooping Global Configuration page to enable or disable the DHCP Snooping feature on the switch.

To access the DHCP Snooping Configuration page, click System > Services > DHCP Snooping > Global Configuration.

To configure global DHCP Snooping settings:

1. In the Admin Mode field, select Enable or Disable to turn the DHCP Snooping feature on or off. DHCP snooping is globally disabled by default.

2. In the MAC Address Validation field, select Enable to allow the switch to validate the sender MAC address for DHCP snooping. If Disable is selected, the switch will not check the source MAC address. MAC address validation is enabled by default.

3. Configure the DHCP snooping mode for VLANs. Enter the VLAN ID and specify whether to enable or disable DHCP snooping:

- Enable. When a DHCP packet is received on a routing VLAN, the DHCP snooping application applies its filtering rules and updates the bindings database. If a client message passes filtering rules, the message is placed into the software forwarding path, where it may be processed by the DHCP relay agent, the local DHCP server, or forwarded as an IP packet.

- Disable. Traffic in the VLAN is not snooped for DHCP massages.

1. Click Apply to apply the change to the system. The changes take effect immediately.

2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Interface Configuration

Use the DHCP Snooping Interface Configuration page to view and configure each port or LAG as trusted or untrusted. Any DHCP responses received on a trusted port are forwarded. If a port is configured as untrusted, any DHCP (or BootP) responses received on that port are discarded.

To access the DHCP Snooping Interface Configuration page, click System > Services > DHCP Snooping > Interface Configuration.

To configure DHCP snooping settings for an interface:

1. To configure DHCP snooping settings for a physical port, click the unit ID of the stack member with the ports to configure.
2. To configure DHCP snooping settings for a Link Aggregation Group (LAG), click LAGS.
3. To configure DHCP snooping settings for both physical ports and LAGs, click ALL.
4. Select the check box next to the port or LAG to configure. You can select multiple ports and LAGs to apply the same setting to the selected interfaces. Select the check box in the heading row to apply the same settings to all interfaces.
5. Choose the Trust Mode for the selected port(s) or LAG(s).

- Enable: Any DHCP responses received on this port are forwarded. The port connected downstream from the authorized DHCP server should be configured as a trusted port. Any DHCP responses received on a trusted port are forwarded. All other ports should be configured as untrusted. Any DHCP (or BootP) responses received are discarded.

- Disable: Any DHCP (or BootP) responses received on this port are discarded. Ports connected to hosts should be configured as untrusted. This is the default value.

1. Use the Logging Invalid Packets menu to choose whether to log invalid packets. When enabled, the DHCP snooping application sends a log message to the buffered log to record invalid packets received on this interface. The factory default is disabled.

2. Use the Rate Limit (pps) field to specify the rate limit value for DHCP Snooping purpose. If the incoming rate of DHCP packets exceeds the value of this object for consecutively burst interval seconds, the port will be shutdown. If this value is N/A, then burst interval has no meaning, hence it is disabled. The default value is N/A. The range of Rate Limit is (0 to 300).

3. Use the Burst Interval (secs) field to specify the burst interval value for rate limiting purpose on this interface. If the rate limit is N/A, then the burst interval has no meaning and it is not applicable. The default value is N/A. The range of Burst Interval is (1 to 15).
4. Click Apply to apply the change to the system. Configuration changes take effect immediately.
5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Binding Configuration

The DHCP snooping application uses DHCP messages to build and maintain the binding's database. The binding's database only includes data for clients on untrusted ports. You can create static binding by manually configuring information in the bindings database. The DHCP snooping feature dynamically creates a tentative binding from DHCP DISCOVER and REQUEST messages. Tentative bindings tie a client to a port (the port where the DHCP client message was received). Tentative bindings are completed when DHCP snooping learns the client's IP address from a DHCP ACK message on a trusted port. DHCP snooping removes bindings in response to DECLINE, RELEASE, and NACK messages. The DHCP snooping application ignores the ACK messages as a reply to the DHCP Inform messages received on trusted ports. You can also enter static bindings into the binding database.

When a switch learns of new bindings or when it loses bindings, the switch immediately updates the entries in the database.

To access the DHCP Snooping Binding Configuration page, click System > Services > DHCP Snooping > Binding Configuration.

To configure static DHCP bindings in the database:

1. Select the interface to add a static binding to into the DHCP snooping database.
2. S specify the MAC address for the binding to be added. This is the key to the binding database.
3. In the VLAN ID field, select the from the VLANs that exist on the switch for the binding rule. The range of the VLAN ID is (1 to 4093).
4. In the IP Address field, specify a valid IP Address for the binding rule.
5. Click Add to add the DHCP snooping binding entry into the database.
6. Click Delete to delete the selected static entries from the database.
7. Click Clear to delete all DHCP Snooping binding entries.
8. Click Refresh to refresh the data on the screen with the latest DHCP Snooping Dynamic Binding information.
9. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

For DHCP Snooping Dynamic Binding Configuration table shows the bindings that have been learned on the switch through DHCP snooping. The following table describes the available fields.

Field Description
Interface Displays the	interface on which the binding was learned.
MAC Address Displays	the MAC address for the binding in the binding database.
VLAN ID Displays the	VLAN for the binding entry in the binding database. The range of the VLAN ID is 1 to 4093.
IP Address Displays the	IP Address for the binding entry in the binding database.
Lease Time Displays	the remaining Lease time for the Dynamic entries.

Persistent Configuration

Use the DHCP Snooping Persistent Configuration page to configure the persistent location of the DHCP snooping database. Bindings that are not written to the persistent file are lost when the system reboots.

To access the DHCP Snooping Persistent Configuration page, click System > Services > DHCP Snooping > Persistent Configuration.

To configure DHCP snooping persistent settings:

1. Specify where to store the persistent binding file:

2. Local. The binding table will be stored locally in a file on the switch. Selecting this option disables the Remote File Name and Remote IP Address fields.
   • Remote. The binding table will be stored on the remote TFTP server.

3. If the database is stored in a remote location, specify the IP address of the TFTP server on which the snooping database will be stored.

4. If the database is stored in a remote location, specify the name of the file on the TFTP server that will store the bindings database entries. The name can contain up to 32 alphanumeric characters.
5. In the Write Delay field, specify how often to write entries from the local database into the local or remote file. The default value is 300 seconds, and the range is 15 to 86400 seconds.
6. Click Apply to apply the change to the system. Configuration changes take effect immediately.
7. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Statistics

Use this page to view per-interface DHCP snooping statistics.

To access the DHCP Snooping Statistics page, click System > Services > DHCP Snooping > Statistics.

Use the DHCP Snooping Statistics page to view the DHCP Snooping statistics.

1. To view settings for a physical port, click the unit ID of the stack member with the ports to view.
2. To view settings for a Link Aggregation Group (LAG), click LAGS.
3. To view settings for both physical ports and LAGs, click ALL.

4. View the following DHCP snooping statistics:

5. The Interface field shows the untrusted and snooping enabled interface for which statistics to be displayed.

6. The MAC Verify Failures field shows the number of packets that were dropped by DHCP Snooping as there is no matching DHCP Snooping binding entry found.
7. The Client Ifc Mismatch field shows the number of DHCP messages that are dropped based on source MAC address and client HW address verification.

8. The DHCP Server Msgs Received field shows the number of Server messages that are dropped on an un trusted port.

9. Click Clear to clear all interfaces statistics.

10. Click Refresh to refresh the data on the screen with the latest statistics.

Timer Schedule (GS728TPS and GS752TPS Only)

Timers control when power can and cannot be delivered to the port. Use the following general steps to add a timer to a port:

1. Create the timer on the Timer Global Configuration page.
2. Configure the timer settings on the Timer Schedule Configuration page.
3. Assign the timer to the port on the PoE Port Configuration page.

Note: The Timer Schedule feature must be enabled for the settings to be applied to the ports.

From the Timer Schedule link under the System tab, you can view and configure Timer Schedule settings for the switch and for the PoE ports.

From the Timer Schedule link, you can access the following pages:

• TimerGlobalConfigurationon page 99
  • TimerScheduleConfigurationon page 100

Timer Global Configuration

Use the Timer Global Configuration page to create or remove timers and to control the administrative status of the timer feature.

To display the Timer Global Configuration page, click System > Timer Global Configuration.

To configure global timer settings:

1. To add a timer, enter a name in the Timer Schedule Name field, and click Add.
2. To remove a timer, select the check box associated with the timer and click Delete.
3. To enable or disable the timer feature, select the appropriate radio button and click Apply.
4. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Timer Schedule Configuration

Use the Timer Schedule Configuration page to configure when the power to a port is turned off. For example, you can specify that the power is turned off every night, during the weekend, or during the same one-week period every year.

To display the Timer Schedule Configuration page, click System > Timer Schedule > Advanced > Timer Schedule Configuration.

To configure timer schedules:

1. Select the name of the schedule created on the Timer Global Configuration page.
2. Specify the type of timer to configure:

• Absolute. The timer occurs once.
• Periodic. The timer occurs periodically at regular intervals.

The fields available for the timer schedule configuration depend on the selected timer type.

1. In the Timer Schedule Entry menu, select new to configure a new schedule, or select an existing entry to change its settings.
2. Specify the start and end times for the timer in the appropriate fields. The time range is from 00:00 to 23:59.

3. Specify the start and end dates for the timer by clicking the calendar icon and selecting the date. If the timer schedule is periodic, you can specify that there is no end date.

4. If required, use the Recurrence Pattern and Daily Mode fields to customize the power shutdown schedule. These fields are available only if the scheduler type is periodic.

5. Click Add to add the new entry to the selected timer schedule.
6. Click Delete to remove the selected entry from the timer schedule.
7. Click Apply to update the settings for an entry.
8. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Note: Each timer can contain a maximum of one Absolute schedule entry and ten Periodic schedule entries.

Configuring Switching Information

3

Use the features in the Switching tab to define Layer 2 features. The Switching tab contains links to the following features:

• Portson page 102
  • LinkAggregationGroupson page 105
  • VLANson page 110
  • VoiceVLANon page 118
  • Auto-VolPon page 121
  • SpanningTreeProtocolon page 122
  • Multicaston page 135
  • ForwardingDatabaseon page 156

Ports

The pages on the Ports tab allow you to view and monitor the physical port information for the ports available on the switch. From the Ports link, you can access the following pages:

• PortConfiguration on page 102
• FlowControl on page 104

Port Configuration

Use the Port Configuration page to configure the physical interfaces on the switch.

To access the Port Configuration page, click Switching >Ports >Port Configuration.

To configure port settings:

1. To configure settings for a physical port, click the unit ID of the stack member with the ports to configure.
2. To configure settings for a Link Aggregation Group (LAG), click LAGS.
3. To configure settings for both physical ports and LAGs, click ALL.
4. Alternatively, to configure settings for a specific interface, enter the interface ID in the Go To Interface and click Go.
5. Select the check box next to the port or LAG to configure. You can select multiple ports and LAGs to apply the same setting to the selected interfaces. Select the check box in the heading row to apply the same settings to all interfaces.

6. Configure or view the settings:

7. Description. Enter the description string to be attached to a port. The string can be up to 64 characters in length.
   • Port Type. For most ports this field is blank. Otherwise, the possible values are:

8. Probe: Indicates that the port is a monitoring (destination) port. For additional information about port monitoring see PortMirroringon page 278.

9. Mirrored: The port is a source port and mirrors traffic to the probe port. For additional information about port monitoring see PortMirroringon page 278.
10. LAG: Indicates that the port is a member of a Link Aggregation trunk. For more information see LinkAggregationGroupson page 105.

- Admin Mode. Use the menu to select the port control administration state, which can be one of the following:

• Enable: The port can participate in the network (default).
• Disable: The port is administratively down and does not participate in the network.

- Port Speed. Use the menu to select the port's speed and duplex mode. If you select Auto, the duplex mode and speed will be set by the auto-negotiation process. The port's maximum capability (full duplex and 1000 Mbps) will be advertised. Otherwise, your selection will determine the port's duplex mode and transmission rate. The factory default is Auto.

• Physical Status. Indicates the physical port's speed and duplex mode

• Link Status. Indicates whether the Link is up or down.
- Link Trap. This object determines whether or not to send a trap when link status changes. The factory default is Enable.
- Enable: Specifies that the system sends a trap when the link status changes.
- Disable: Specifies that the system does not send a trap when the link status changes.
- Maximum Frame Size. Specify the maximum Ethernet frame size the interface supports or is configured to support. The frame size includes the Ethernet header, CRC, and payload. (1518–9216). The default maximum frame size is 1518.
• MAC Address. Displays the physical address of the specified interface.
- PortList Bit Offset. Displays the bit offset value which corresponds to the port when the MIB object type PortList is used to manage in SNMP.
- ifIndex. The ifIndex of the interface table entry associated with this port. If the interface field is set to All, this field is blank.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
2. If you make any changes to the page, click Apply to apply the changes to the system.

Flow Control

IEEE 802.3x flow control works by pausing a port when the port becomes oversubscribed and dropping all traffic for small bursts of time during the congestion condition. This can lead to high-priority and/or network control traffic loss. When IEEE 802.3x flow control is enabled, lower speed switches can communicate with higher speed switches by requesting that the higher speed switch refrains from sending packets. Transmissions are temporarily halted to prevent buffer overflows.

To display the Flow Control page, click Switching > Ports, and then click the Flow Control link.

To configure global flow control settings:

1. From the Global Flow Control (IEEE 802.3x) Mode field, enable or disable IEEE 802.3x flow control on the system. The factory default is Disable.

2. Enable. The switch sends pause packets if the port buffers become full.

3. Disable. The switch does not send pause packets if the port buffers become full.

4. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

5. If you change the mode, click Apply to apply the changes to the system.

Link Aggregation Groups

Link aggregation groups (LAGs), which are also known as port-channels, allow you to combine multiple full-duplex Ethernet links into a single logical link. Network devices treat the aggregation as if it were a single link, which increases fault tolerance and provides load sharing. You assign the LAG VLAN membership after you create a LAG. By default, the LAG becomes a member of the management VLAN.

A LAG interface can be either static or dynamic, but not both. Dynamic LAGs use Link Aggregation Control Protocol (LACP) Protocol Data Units (PDUs) to exchange information with their link partners to help maintain the link state. A static port-channel interface does not require a partner system to be able to aggregate its member ports. When a port is added to a LAG as a static member, it neither transmits nor receives LACP PDUs.

The GS728TS, GS728TPS, GS752TS, and GS752TPS Smart Switches each support four LAGs.

From the LAGs link, you can access the following pages:

• LAGConfiguration on page 105
• LAGMembership page 107
• LACPConfiguration on page 108
• LACPPortConfigurationon page 109

LAG Configuration

Use the LAG (Port Channel) Configuration page to group one or more full-duplex Ethernet links to be aggregated together to form a link aggregation group, which is also known as a port-channel. The switch treats the LAG as if it were a single link.

To access the LAG Configuration page, click Switching > LAG > Basic > LAG Configuration.

To configure LAG settings:

1. Select the check box next to the LAG to configure. You can select multiple LAGs to apply the same setting to the selected interfaces. Select the check box in the heading row to apply the same settings to all interfaces.

2. Configure or view the following settings:

- LAG Name. Specify the name to assign to the LAG. You may enter any string of up to 15 alphanumeric characters.

- Description. Specify the Description string to be attached to a LAG. It can be up to 64 characters in length.

• LAG ID. Displays the number assigned to the LAG. This field is read-only.

- Admin Mode. Select Enable or Disable from the menu. When the LAG (port channel) is disabled, no traffic will flow and LACP PDUs will be dropped, but the links that form the LAG (port channel) will not be released. The factory default is Enable.

- STP Mode. Select the Spanning Tree Protocol Administrative Mode associated with the LAG.

- Link Trap. Specify whether you want to have a trap sent when link status changes. The factory default is Disable, which will cause the trap to be sent.

- LAG Type. Select Static or LACP. When the LAG is static, it does not transmit or process received LACP PDUs. The member ports do not transmit LACP PDUs, and all the LACP PDUs it may receive are dropped. The default is Static.

• Active Ports. A listing of the ports that are actively participating members of this Port Channel. A maximum of 8 ports can be assigned to a port channel.

• LAG State. Indicates whether the link is Up or Down.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

2. If you make any changes to this page, click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.

LAG Membership

Use the LAG Membership page to select two or more full-duplex Ethernet links to be aggregated together to form a link aggregation group (LAG), which is also known as a port-channel. The switch can treat the port-channel as if it were a single link.

To access the LAG Membership page, click Switching > LAG > Basic > LAG Membership.

To create a LAG:

1. From the LAG ID field, select the LAG to configure.
2. In the LAG Name field, enter the name to assign the LAG. You may enter any string of up to 15 alphanumeric characters.
3. Click the orange bar to display the ports.
4. Click the box below each port to include in the LAG. The following figure shows an example of how to configure LAG1 with ports 6, 7 and 8 on Unit 1 as members.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
2. If you make any changes to this page, click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.
3. To view the ports that are members of the selected LAG, click Current Members.

LACP Configuration

To display the LACP Configuration page, click Switching > LAG > Advanced > LACP Configuration.

To configure LACP:

1. From the LACP System Priority field, specify the device's link aggregation priority relative to the devices at the other ends of the links on which link aggregation is enabled. A higher value indicates a lower priority. You can change the value of the parameter globally by specifying a priority from 0–65535. The default value is 32768.
2. Click Refresh to reload the page and display the most current information.
3. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
4. If you make any changes to this page, click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.

LACP Port Configuration

To display the LACP Port Configuration page, click Switching > LAG > Advanced > LACP Port Configuration.

To configure LACP port priority settings:

1. Select the check box next to the port to configure. You can select multiple ports to apply the same setting to all selected ports.

Note: You cannot select ports that are not participating in a LAG.

1. Configure the LACP Priority value for the selected port. The field range is 0–255. The default value is 128.
2. Configure the administrative LACP Timeout value.

• Long. Specifies a long timeout value.

• Short. Specifies a short timeout value.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
2. If you make any changes to this page, click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.

VLANs

Adding Virtual LAN (VLAN) support to a Layer 2 switch offers some of the benefits of both bridging and routing. Like a bridge, a VLAN switch forwards traffic based on the Layer 2 header, which is fast, and like a router, it partitions the network into logical segments, which provides better administration, security and management of multicast traffic.

By default, all ports on the switch are in the same broadcast domain. VLANs electronically separate ports on the same switch into separate broadcast domains so that broadcast packets are not sent to all the ports on a single switch. When you use a VLAN, users can be grouped by logical function instead of physical location.

Each VLAN in a network has an associated VLAN ID, which appears in the IEEE 802.1Q tag in the Layer 2 header of packets transmitted on a VLAN. An end station may omit the tag, or the VLAN portion of the tag, in which case the first switch port to receive the packet may either reject it or insert a tag using its default VLAN ID. A given port may handle traffic for more than one VLAN, but it can only support one default VLAN ID.

From the VLAN link, you can access the following pages:

• VLANConfigurationon page 110
• VLANMembershipConfigurationon page 112
• PortVLANIDConfiguration on page 113
• MACBasedVLANon page 114
• ProtocolBasedVLANGroupConfigurationon page 115
• ProtocolBasedVLANGroupMembershipon page 116

VLAN Configuration

Use the VLAN Configuration page to define VLAN groups stored in the VLAN membership table. The GS728TS, GS728TPS, GS752TS, and GS752TPS each support up to 256 VLANs. Three VLANs are created by default:

• VLAN 1 is the default VLAN of which all ports are members.
• VLAN 2 is for voice traffic.
• VLAN 3 is for Auto-Video traffic.

To display the VLAN Configuration page, lick Switching > VLAN > Basic > VLAN Configuration.

To configure VLANs:

1. To add a VLAN, configure the VLAN ID, name, and type, and then click Add.

2. VLAN ID. Specify the VLAN Identifier for the new VLAN. (You can only enter data in this field when you are creating a new VLAN.) The range of the VLAN ID is 1–4093.

3. VLAN Name. Use this optional field to specify a name for the VLAN. It can be up to 32 alphanumeric characters long, including blanks. The default is blank. VLAN ID 1 is always named Default.

4. VLAN Type. This field identifies the type of the VLAN you are configuring. You cannot change the type of the default VLAN (VLAN ID = 1) because the type is always Default. When you create a VLAN on this page, its type will always be Static.

5. To delete a VLAN, select the check box next to the VLAN ID and click Delete. You cannot delete the default VLAN.

6. To modify settings for a VLAN, select the check box next to the VLAN ID, change the desired information, and then click Apply. Configuration changes occur immediately.
7. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
8. To reset the VLAN settings on the switch to the factory defaults, select the Reset Configuration check box, and click OK in the popup message to confirm. If the Management VLAN is set to a non-default VLAN (VLAN 1), it is automatically set to 1 after a Reset Configuration.

VLAN Membership Configuration

Use this page to configure VLAN Port Membership for a particular VLAN. You can select the Group operation through this page.

To display the VLAN Membership Configuration page, click Switching > VLAN > Advanced > VLAN Membership.

To configure VLAN membership:

1. From the VLAN ID field, select the VLAN to which you want to add ports.
2. Click the orange bar below the VLAN Type field to display the physical ports on the switch.
3. Click the lower orange bar to display the LAGs on the switch.

4. To select the port(s) or LAG(s) to add to the VLAN, click the square below each port or LAG. You can add each interface as a tagged (T) or untagged (U) VLAN member.

5. Tagged: Frames transmitted from this port are tagged with the port VLAN ID.

6. Untagged: Frames transmitted from this port are untagged. Each port can be an untagged member of only one VLAN. By default, all ports are an untagged member of VLAN 1.

In the following figure, ports g6, g7, and g8 are being added as tagged members to VLAN 2.

1. Use the Group Operations field to select all the ports and configure them. Possible values are:

2. Untag All: Select all the ports on which all frames transmitted from this VLAN will be untagged. All the ports will be included in the VLAN.

3. Tag All: Select the ports on which all frames transmitted for this VLAN will be tagged. All the ports will be included in the VLAN.

4. Remove All: This selection has the effect of excluding all ports from the selected VLAN.

5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

6. If you make any changes to this page, click Apply to send the updated configuration to the switch. Configuration changes take place immediately.

Port VLAN ID Configuration

The Port PVID Configuration screen lets you assign a port VLAN ID (PVID) to an interface. PVIDs have the following requirements:

• All ports must have a defined PVID.
• If no other value is specified, the default VLAN PVID is used.

To access the Port PVID Configuration page, click Switching > VLAN > Advanced > Port PVID Configuration.

To configure PVID information:

1. To configure PVID settings for a physical port, click the unit ID of the stack member with the ports to configure.

2. To configure PVID settings for a Link Aggregation Group (LAG), click LAGS.

3. To configure PVID settings for both physical ports and LAGs, click ALL.

4. Select the check box next to the interfaces to configure. You can select multiple interfaces to apply the same setting to the selected interfaces. Select the check box in the heading row to apply the same settings to all interfaces.
5. Configure the PVID to assign to untagged or priority tagged frames received on this port. The Current PVID field displays the PVID currently configured for the interface.
6. In the Acceptable Frame Type field, specify how you want the port to handle untagged and priority tagged frames. Whichever you select, VLAN tagged frames will be forwarded in accordance with the IEEE 802.1Q VLAN standard. The factory default is Admit All.

- VLAN Only: The port will accept only VLAN-tagged frames and will discard any untagged or priority tagged frames it receives.

- Admit All: Untagged and priority tagged frames received on the port will be accepted and assigned the value of the Port VLAN ID for this port.

1. In the Ingress Filtering field, specify how you want the port to handle tagged frames:

2. Enable: A tagged frame will be discarded if this port is not a member of the VLAN identified by the VLAN ID in the tag. In an untagged frame, the VLAN is the Port VLAN ID specified for the port that received this frame.

3. Disable: All frames are forwarded in accordance with the IEEE 802.1Q VLAN standard. The factory default is Disable.

4. Specify the default 802.1p priority assigned to untagged packets arriving at the port. Possible values are 0–7.

5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
6. If you make any changes to this page, click Apply to send the updated configuration to the switch. Configuration changes take place immediately.

MAC Based VLAN

The MAC Based VLAN feature allows incoming untagged frames to be assigned to a VLAN and to classify traffic based on the source MAC address of the frame.

A MAC-to-VLAN mapping is defined by configuring an entry in the MAC to VLAN table. An entry is specified via a source MAC address and the desired VLAN ID. The MAC to VLAN configurations are shared across all ports of the device (i.e. there is a system wide table that has MAC address to VLAN ID mappings).

When untagged or priority tagged packets arrive at the switch and entries exist in the MAC to VLAN table, the source MAC address of the packet is looked up. If an entry is found, the corresponding VLAN ID is assigned to the packet. If the packet is already priority tagged it will maintain this value; otherwise the priority will be set to zero. The assigned VLAN ID is verified against the VLAN table. If the VLAN is valid, ingress processing on the packet continues; otherwise, the packet is dropped. You can configure a MAC address mapping to a VLAN that has not been created on the system.

To access the MAC Based VLAN page, click Switching > VLAN > Advanced > MAC Based VLAN.

To configure a MAC-based VLAN:

1. In the MAC Address field, specify the valid MAC Address to be bound to a VLAN ID. This field is configurable only when a MAC Based VLAN is created. Select this entry.
2. The VLAN ID field shows the VLAN ID. A valid ID can be any number in the range of (1–4093).
3. To add the entry to the MAC address-to-VLAN mapping table, click Add.
4. To remove an entry from the table, select the check box associated with the entry to remove and click Delete.
5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Protocol Based VLAN Group Configuration

Use the protocol-based VLAN feature to define filtering criteria for untagged packets of a specific protocol type. By default, if you do not configure any port- (IEEE 802.1Q) or protocol based VLANs, untagged packets will be assigned to VLAN 1. You can override this behavior by defining either port-based VLANs or protocol based VLANs, or both. Tagged packets are always handled according to the IEEE 802.1Q standard, and are not included in protocol based VLANs.

If you assign a port to a protocol based VLAN for a specific protocol, untagged frames received on that port for that protocol will be assigned the protocol-based VLAN ID you configure. Untagged frames received on the port for other protocols will be assigned the Port VLAN ID which is either the default PVID (1) or a PVID you have specifically assigned to the port using the Port VLAN Configuration screen.

You define a protocol-based VLAN by creating a group. Each group has a one-to-one relationship with a VLAN ID, can include one to 16 protocol definitions, and can include multiple ports.

To access the Protocol Based VLAN page, click Switching > VLAN > Advanced > Protocol Based VLAN Group Configuration.

To configure a Protocol Based VLAN Group:

1. Enter a number used to identify the group created by the user. Group IDs should be assigned when a group is created by the user. The Group IDs range is 1–128.
2. Assign a name to a new group in the Group Name field. You may enter up to 16 characters.
3. Populate the Protocol(s) field - Protocol-list can be any valid comma(,) separated string with standard "arp", "ip", "ipx" keywords, hexadecimal, or decimal values in the range of 0x0600(1536) to 0xFFFF(65535).

4. Enter any number in the range of (1 to 4093) VLAN ID field. All the ports in the group will assign this VLAN ID to untagged packets received for the protocols you included in this group.
   The Ports field displays all the member ports which belong to the group.

5. To add an entry of MAC Address to VLAN mapping, click Add.

6. To remove the Protocol Based VLAN group identified by the value in the Group ID field, click Delete.
7. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

If you make any changes to this page, click Apply to send the updated configuration to the switch. Configuration changes take place immediately.

Protocol Based VLAN Group Membership

To access the MAC Based VLAN page, click Switching > VLAN > Advanced > Protocol Based VLAN Group Membership. In the following image, the port list has been expanded to display the available ports on the system.

To set up Protocol Based VLAN Group Membership:

1. Select the protocol-based VLAN Group ID for which you want to display or configure data in the Group ID drop-down menu.

The Group Name field identifies the name for the protocol-based VLAN you selected.

1. Click the orange bar to display the ports for a specific switch unit and click the box below a port number to add it to the protocol-based VLAN group.

Note that each interface can belong to only one group for a given protocol. For example, if you have already added a port to a group for IP, you cannot add it to another group that also includes IP, although you could add it to a new group for IPX.

1. Click the Current Members button view the current numbers in the selected protocol based VLAN Group.

2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

If you make any changes to this page, click Apply to send the updated configuration to the switch. Configuration changes take place immediately.

Voice VLAN

Configure the Voice VLAN settings for ports that carry traffic from IP phones. The Voice VLAN feature can help ensure that the sound quality of an IP phone is safeguarded from deteriorating when the data traffic on the port is high.

From the VLAN link, you can access the following pages:

• VoiceVLANPropertieson page 118
• VoiceVLANPortSettingon page 119
• VoiceVLANOUIon page 120

Voice VLAN Properties

To display the Voice VLAN Properties page, click Switching > Voice VLAN > Basic > Properties.

To configure Voice VLAN:

1. From the Voice VLAN Status field, enable or disable Voice VLAN on the switch. If the switch does not handle traffic from IP phones, the status should be disabled.
2. From the Voice VLAN Aging Time field, specify the amount of time after the last IP phone's OUI is aged out for a specific port. The port will age out after the bridge and voice aging time.
3. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
4. If you make any changes to this page, click Apply to send the updated configuration to the switch.

Voice VLAN Port Setting

To display the Voice VLAN Port Setting page, click Switching > Voice VLAN > Advanced > Port Setting.

To configure Voice VLAN port settings:

1. Select the check box next to the port to configure. You can select multiple check boxes to apply the same setting to all selected ports.
2. From the Voice VLAN Mode menu, specify whether to enable or disable Voice VLAN on the selected port.
3. From the Voice VLAN ID menu, set the Voice VLAN ID to be used for voice traffic. The default value is 2.
4. From the Remark CoS menu, specify whether to enable or disable class of service remarks on the selected port.
5. From the Class of Service column, the CoS tag value to be reassigned for packets received on the voice VLAN when Remark CoS is displayed when this feature is enabled.
6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
7. If you make any changes to this page, click Apply to send the updated configuration to the switch.

Note: The Membership field displays whether a registered voice device (OUI or LLDP-MED) is currently active or not active on the interface.

Voice VLAN OUI

The Organizational Unique Identifier (OUI) identifies the IP phone manufacturer. The switch comes preconfigured with the following OUIs:

00:01:E3:SIEMENS
00:03:6B: CISCO1
00:12:43: CISCO2
00:0F:E2:H3C
00:60:B9: NITSUKO
00:D0:1E: PINTEL
00:E0:75:VERILINK
00:E0:BB:3COM
00:04:0D: AVAYA1
00:1B:4F: AVAYA2

You can select an existing OUI or add a new OUI and description to identify the IP phones on the network.

To display the Voice VLAN OUI page, click Switching > Voice VLAN > Advanced > OUI.

To configure OUI settings:

1. To add a new OUI prefix, type the VOIP OUI prefix in the Telephony OUI(s) field, provide a description of the prefix, and click Add. The OUI prefix must be in the format AA:BB:CC.

2. To delete an OUI prefix from the list, select the check box next to the OUI prefix and click Delete.

3. To modify information for an entry in the OUI list, select the check box next to the OUI prefix, update the OUI prefix or description, and then click Apply.

4. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
5. Click Restore Defaults to restore the list to the preconfigured OUIs.

Auto-VoIP

The Auto-VoIP automatically makes sure that time-sensitive voice traffic is given priority over data traffic on ports that have this feature enabled. Auto-VoIP checks for packets carrying the following VoIP protocols:

• Session Initiation Protocol (SIP)
H.323
• Skinny Client Control Protocol (SCCP)
• Media Gateway Control Protocol (MGCP)

VoIP frames that are received on ports that have the Auto-VoIP feature enabled are marked with CoS traffic class 6.

To display the Auto-VoIP page, click Switching > Auto-VoIP.

To configure Auto-VoIP settings:

1. To configure Auto-VoIP settings for a physical port, click the unit ID of the stack member with the ports to configure.
2. To configure Auto-VoIP settings for a Link Aggregation Group (LAG), click LAGS.

3. To configure Auto-VoIP settings for both physical ports and LAGs, click ALL.

4. Select the check box next to the port or LAG to configure. You can select multiple ports and LAGs to apply the same setting to the selected interfaces. Select the check box in the heading row to apply the same settings to all interfaces.

5. From the Auto-VoIP Mode menu, specify whether to enable or disable Auto-VoIP on the selected port(s) or LAG(s).
6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
7. If you make any changes to this page, click Apply to send the updated configuration to the switch.

Spanning Tree Protocol

The Spanning Tree Protocol (STP) provides a tree topology for any arrangement of bridges. STP also provides one path between end stations on a network, eliminating loops. Spanning tree versions supported include Common STP, Multiple STP, and Rapid STP.

Classic STP provides a single path between end stations, avoiding and eliminating loops. For information on configuring Common STP, see CSTPortConfigurationon page 126.

Multiple Spanning Tree Protocol (MSTP) supports multiple instances of Spanning Tree to efficiently channel VLAN traffic over different interfaces. Each instance of the Spanning Tree behaves in the manner specified in IEEE 802.1w, Rapid Spanning Tree (RSTP), with slight modifications in the working but not the end effect (chief among the effects, is the rapid transitioning of the port to 'Forwarding'). The difference between the RSTP and the traditional STP (IEEE 802.1D) is the ability to configure and recognize full-duplex connectivity and ports which are connected to end stations, resulting in rapid transitioning of the port to 'Forwarding' state and the suppression of Topology Change Notification. These features are represented by the parameters 'pointtopoint' and 'edgeport'. MSTP is compatible to both RSTP and STP. It behaves appropriately to STP and RSTP bridges. A MSTP bridge can be configured to behave entirely as a RSTP bridge or a STP bridge.

Note: For two bridges to be in the same region, the force version should be 802.1s and their configuration name, digest key, and revision level should match. For additional information about regions and their effect on network topology, refer to the IEEE 802.1Q standard.

From the STP link, you can access the following pages:

• STPSwitchConfigurationon page 123
• CSTConfiguration on page 125
• CSTPortConfiguration on page 126
• CSTPortStatuson page 128
• RapidSTPon page 129

• MSTConfigurationon page 130
• MSTPortConfigurationon page 131
• STPStatisticson page 134

STP Switch Configuration

The Spanning Tree Switch Configuration/Status page contains fields for enabling STP on the switch.

To display the Spanning Tree Switch Configuration/Status page, click Switching > STP > Basic > STP Configuration.

To configure STP settings on the switch:

1. From the Spanning Tree State field, specify whether to enable or disable Spanning Tree operation on the switch.
2. From the STP Operation Mode field, Specifies the Force Protocol Version parameter for the switch. Options are:

• STP (Spanning Tree Protocol): IEEE 802.1D
• RSTP (Rapid Spanning Tree Protocol): IEEE 802.1w
• MSTP (Multiple Spanning Tree Protocol): IEEE 802.1s

1. Specify the configuration name and revision level.

2. Configuration Name. Name used to identify the configuration currently being used. It may be up to 32 alphanumeric characters.

3. Configuration Revision Level. Number used to identify the configuration currently being used. The values allowed are between 0 and 65535. The default value is 0.

4. Specify the BPDU Flooding status for all ports or for individual ports. When this feature is enabled, BPDU packets arriving at this port are flooded to other ports if STP is disabled.

5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch
6. If you make any configuration changes, click Apply to send the updated configuration to the switch. Configuration changes occur immediately.

The following table describes the STP Status information displayed on the screen.

Field Description
Bridge Identifier The bridge identifier for the CST. It is made up using the bridge priority and the base MAC address of the bridge.
Time Since Topology Change	The time in seconds since the topology of the CST last changed.
Topology Change Count The number of times the topology has changed for the CST.
Topology Change The value of the topology change parameter for the switch indicating if a topology change is in progress on any port assigned to the CST. The value is either True or False.
Designated Root The bridge identifier of the root bridge. It is made up from the bridge priority and the base MAC address of the bridge.
Root Path Cost Path cost to the Designated Root for the CST.
Root Port Port to access the Designated Root for the CST.
Max Age (secs) Specifies the bridge maximum age for CST. The value must be less than or equal to (2 X Bridge Forward Delay) - 1 and greater than or equal to 2 X (Bridge Hello Time +1).
Forward Delay (secs) Derived value of the Root Port Bridge Forward Delay parameter.
Hold Time (secs) Minimum time between transmission of Configuration BPDUs.
CST Regional Root Priority and base MAC address of the CST Regional Root.
CST Path Cost Path Cost to the CST tree Regional Root.

Click Refresh to update the information on the screen with the most current data.

CST Configuration

Use the Spanning Tree CST Configuration page to configure Common Spanning Tree (CST) and Internal Spanning Tree on the switch.

To display the Spanning Tree CST Configuration page, click Switching > STP > Advanced > CST Configuration.

To configure CST settings:

1. Specify values for CST in the appropriate fields:

2. Bridge Priority. When switches or bridges are running STP, each is assigned a priority. After exchanging BPDUs, the switch with the lowest priority value becomes the root bridge. Specifies the bridge priority value for the Common and Internal Spanning Tree (CST). The valid range is 0–61440. The bridge priority is a multiple of 4096. If you specify a priority that is not a multiple of 4096, the priority is automatically set to the next lowest priority that is a multiple of 4096. For example, if the priority is attempted to be set to any value between 0 and 4095, it will be set to 0. The default priority is 32768.

3. Bridge Max Age (secs). Specifies the bridge maximum age time for the Common and Internal Spanning Tree (CST), which indicates the amount of time in seconds a bridge waits before implementing a topological change. The valid range is 6–40, and the value must be less than or equal to (2 * Bridge Forward Delay) – 1 and greater than or equal to 2 * (Bridge Hello Time +1). The default value is 20.
4. Bridge Hello Time (secs). Specifies the switch Hello time for the Common and Internal Spanning Tree (CST), which indicates the amount of time in seconds a root bridge waits between configuration messages. The value is fixed at 2 seconds.
5. Bridge Forward Delay (secs). Specifies the switch forward delay time, which indicates the amount of time in seconds a bridge remains in a listening and learning

state before forwarding packets. The value must be greater or equal to (Bridge Max Age / 2) + 1. The time range is from 4 seconds to 30 seconds. The default value is 15.

- Spanning Tree Maximum Hops. Specifies the maximum number of bridge hops the information for a particular CST instance can travel before being discarded. The valid range is 1–127.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch
2. If you make any configuration changes, click Apply to send the updated configuration to the switch. Configuration changes take place immediately.

The following table describes the MSTP status information displayed on the Spanning Tree CST Configuration page.

Field Description
MST ID	Table consisting of the MST instances (including the CST) and the corresponding VLAN IDs associated with each of them.
VID	Table consisting of the VLAN IDs and the corresponding FID associated with each of them.
FID	Table consisting of the FIDs and the corresponding VLAN IDs associated with each of them.

Click Refresh to update the information on the screen with the most current data.

CST Port Configuration

Use the Spanning Tree CST Port Configuration page to configure Common Spanning Tree (CST) and Internal Spanning Tree on a specific port on the switch.

To display the Spanning Tree CST Port Configuration page, click Switching > STP > Advanced > CST Port Configuration.

To configure CST port settings:

1. To configure CST settings for a physical port, click the unit ID of the stack member with the ports to configure.
2. To configure CST settings for a Link Aggregation Group (LAG), click LAGS.
3. To configure CST settings for both physical ports and LAGs, click ALL.
4. Select the check box next to the port or LAG to configure. You can select multiple ports and LAGs to apply the same setting to the selected interfaces. Select the check box in the heading row to apply the same settings to all interfaces.

5. Configure the CST values for the selected port(s) or LAG(s):

6. STP Status. Enable or disable the Spanning Tree Protocol Administrative Mode associated with the port or port channel.

7. Fast Link. Specifies if the specified port is an Edge Port with the CST. Possible values are Enable or Disable. The default is Disable.
8. BPDU Forwarding. When enabled, BPDU forwarding forward the BPDU traffic arriving on this port when STP is disabled on the port.
   • Port State. The Forwarding state of this port. This field is read-only.
9. Path Cost. Set the Path Cost to a new value for the specified port in the common and internal spanning tree. It takes a value in the range of 1–200000000.
10. Priority. The priority for a particular port within the CST. The port priority is set in multiples of 16. If you specify a value that is not a multiple of 16, the priority is set to the priority is automatically set to the next lowest priority that is a multiple of 16. For example, if you set a value between 0 and 15, the priority is set to 0. If you specify a number between 16 and 31, the priority is set to 16.
11. External Port Path Cost. Set the External Path Cost to a new value for the specified port in the spanning tree. It takes a value in the range of 1–200000000.
12. Port ID. The port identifier for the specified port within the CST. It is made up from the port priority and the interface number of the port.

13. Hello Timer. Specifies the switch Hello time, which indicates the amount of time in seconds a port waits between configuration messages. The value is fixed at 2 seconds.

14. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

15. If you make any configuration changes, click Apply to send the updated configuration to the switch. Configuration changes take place immediately.
16. Click Refresh to update the information on the screen with the most current data.

CST Port Status

Use the Spanning Tree CST Port Status page to display Common Spanning Tree (CST) and Internal Spanning Tree on a specific port on the switch.

To display the Spanning Tree CST Port Status page, click Switching > STP > Advanced > CST Port Status.

The following table describes the CST Status information displayed on the screen.

Field Description
Interface Select a physical or port channel interface to configure. The port is associated with the VLAN(s) associated with the CST.
Port Role Each MST Bridge Port that is enabled is assigned a Port Role for each spanning tree. The port role will be one of the following values: Root Port, Designated Port, Alternate Port, Backup Port, Master Port, or Disabled Port.
Designated Root Root Bridge for the CST. It is made up using the bridge priority and the base MAC address of the bridge.
Designated Cost	Displays cost of the port participating in the STP topology. Ports with a lower cost are less likely to be blocked if STP detects loops.
Designated Bridge Bridge Identifier of the bridge with the Designated Port. It is made up using the bridge priority and the base MAC address of the bridge.
Designated Port Port Identifier on the Designated Bridge that offers the lowest cost to the LAN. It is made up from the port priority and the interface number of the port.
Topology Change Acknowledge	Identifies whether the next BPDU to be transmitted for this port would have the topology change acknowledgement flag set. It is either True or False.
Edge Port Indicates whether the port is enabled as an edge port. Possible values are Enabled or Disabled.
Point-to-point MAC Derived value indicating whether the port is part of a point-to-point link.
CST Regional Root Displays the bridge priority and base MAC address of the CST Regional Root.
CST Path Cost Displays the path Cost to the CST tree Regional Root.
Port Forwarding State Displays the Forwarding State of this port.

Click Refresh to update the information on the screen with the most current data.

Rapid STP

Use the Rapid STP page to view information about Rapid Spanning Tree (RSTP) port status. To display the Rapid STP page, click Switching > STP > Advanced > RSTP.

The following table describes the Rapid STP Status information displayed on the screen.

Field Description
Interface The physical or port channel interfaces associated with VLANs associated with the CST.
Role Each MST Bridge Port that is enabled is assigned a Port Role for each spanning tree.The port role will be one of the following values: Root Port, Designated Port, Alternate Port, Backup Port, Master Port, or Disabled Port.
Mode	Specifies the spanning tree operation mode. Different modes are STP, RSTP, and MSTP.
Fast Link Indicates whether the port is enabled as an edge port.
Status The Forwarding State of this port.

Click Refresh to update the information on the screen with the most current data.

MST Configuration

Use the Spanning Tree MST Configuration page to configure Multiple Spanning Tree (MST) on the switch.

To display the Spanning Tree MST Configuration page, click Switching > STP > Advanced > MST Configuration.

To configure an MST instance:

1. To add an MST instance, configure the MST values and click Add:

2. MST ID. Specify the ID of the MST to create. Valid values for this are between 1 and 4094.

3. Priority. Specifies the bridge priority value for the MST. When switches or bridges are running STP, each is assigned a priority. After exchanging BPDUs, the switch with the lowest priority value becomes the root bridge. The bridge priority is a multiple of 4096. If you specify a priority that is not a multiple of 4096, the priority is automatically set to the next lowest priority that is a multiple of 4096. For example, if the priority is attempted to be set to any value between 0 and 4095, it will be set to 0. The default priority is 32768. The valid range is 0–61440.

4. VLAN ID. The menu contains all VLANs configured on the switch. Select a VLAN to associate with the MST instance.

5. To delete an MST instance, select the check box next to the instance and click Delete.

6. To modify an MST instance, select the check box next to the instance to configure, update the values, and click Apply. You can select multiple check boxes to apply the same setting to all selected ports.
7. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

For each configured instance, the information described in the following table displays on the page.

Field Description
Bridge Identifier	The bridge identifier for the selected MST instance. It is made up using the bridge priority and the base MAC address of the bridge.
Time Since Topology Change	Displays the total amount of time since the topology of the selected MST instance last changed. The time is displayed in hour/minute/second format, for example, 5 hours, 10 minutes, and 4 seconds.
Topology Change Count	Displays the total number of times topology has changed for the selected MST instance.
Topology Change	Indicates whether a topology change is in progress on any port assigned to the selected MST instance. The possible values are True or False.
Designated Root	Displays the bridge identifier of the root bridge, which is made up from the bridge priority and the base MAC address of the bridge.
Root Path Cost Dis	Displays the path cost to the Designated Root for this MST instance.
Root Port Indicates	the port to access the Designated Root for this MST instance.

MST Port Configuration

Use the Spanning Tree MST Port Configuration page to configure and display Multiple Spanning Tree (MST) settings on a specific port on the switch.

To display the Spanning Tree MST Port Status page, click Switching > STP > Advanced > MST Port Configuration. The following figures show the left and right portions of the Web page.

Note: If no MST instances have been configured on the switch, the page displays a "No MSTs Available" message and does not display any fields.

To configure MST port settings:

1. To configure MST settings for a physical port, click the unit ID of the stack member with the ports to configure.

2. To configure MST settings for a Link Aggregation Group (LAG), click LAGS.

3. To configure MST settings for both physical ports and LAGs, click ALL.

4. Select the check box next to the port or LAG to configure. You can select multiple ports and LAGs to apply the same setting to the selected interfaces. Select the check box in the heading row to apply the same settings to all interfaces.

5. Configure the MST values for the selected port(s) or LAG(s):

- Port Priority. The priority for a particular port within the selected MST instance. The port priority is set in multiples of 16. If you specify a value that is not a multiple of 16, the priority is set to the priority is automatically set to the next lowest priority that is a multiple of 16. For example, if you set a value between 0 and 15, the priority is set to

1. If you specify a number between 16 and 31, the priority is set to 16. It takes a value in the range of 0–240.

- Port Path Cost. Set the Path Cost to a new value for the specified port in the selected MST instance. It takes a value in the range of 1–200000000.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch
2. If you make any configuration changes, click Apply to send the updated configuration to the switch. Configuration changes take place immediately.

The following table describes the read-only MST port configuration information displayed on the Spanning Tree CST Configuration page.

Field Description
Auto-calculated Port Path Cost	Displays whether the path cost is automatically calculated (Enabled) or not (Disabled). Path cost is calculated based on the link speed of the port if the configured value for Port Path Cost is zero.
Port ID The port identifier	for the specified port within the selected MST instance. It is made up from the port priority and the interface number of the port.
Port Up Time Since Counters Last Cleared	Time since the counters were last cleared, displayed in Days, Hours, Minutes, and Seconds.
Port Mode Spanning Tree	Protocol Administrative Mode associated with the port or port channel. Possible values are Enable or Disable.
Port Forwarding State	Indicates the current STP state of a port. If enabled, the port state determines what forwarding action is taken on traffic. Possible port states are:Disabled: STP is currently disabled on the port. The port forwards traffic while learning MAC addresses.Blocking: The port is currently blocked and cannot be used to forward traffic or learn MAC addresses.Listening: The port is currently in the listening mode. The port cannot forward traffic nor can it learn MAC addresses.Learning: The port is currently in the learning mode. The port cannot forward traffic, however, it can learn new MAC addresses.Forwarding: The port is currently in the forwarding mode. The port can forward traffic and learn new MAC addresses
Port Role Each MST Bridge	Port that is enabled is assigned a Port Role for each spanning tree. The port role will be one of the following values: Root Port, Designated Port, Alternate Port, Backup Port, Master Port, or Disabled Port.
Designated Root Root Bridge	Bridge for the selected MST instance. It is made up using the bridge priority and the base MAC address of the bridge.
Designated Cost Displays	cost of the port participating in the STP topology. Ports with a lower cost are less likely to be blocked if STP detects loops.
Designated Bridge Bridge	Identifier of the bridge with the Designated Port. It is made up using the bridge priority and the base MAC address of the bridge.
Designated Port	Port Identifier on the Designated Bridge that offers the lowest cost to the LAN. It is made up from the port priority and the interface number of the port.

Click Refresh to update the screen with the latest MST information.

STP Statistics

Use the Spanning Tree Statistics page to view information about the number and type of bridge protocol data units (BPDUs) transmitted and received on each port.

To display the Spanning Tree Statistics page, click Switching > STP > Advanced > STP Statistics.

The following table describes the information available on the STP Statistics page.

Field Description
Interface Select a physical or port channel interface to view its statistics.
STP BPDUs Received Number of STP BPDUs received at the selected port.
STP BPDUs Transmitted Number of STP BPDUs transmitted from the selected port.
RSTP BPDUs Received Number of RSTP BPDUs received at the selected port.
RSTP BPDUs Transmitted Number of RSTP BPDUs transmitted from the selected port.
MSTP BPDUs Received Number of MSTP BPDUs received at the selected port.
MSTP BPDUs Transmitted Number of MSTP BPDUs transmitted from the selected port.

Click Refresh to update the screen with the latest STP statistics information.

Multicast

Multicast IP traffic is traffic that is destined to a host group. Host groups are identified by class D IP addresses, which range from 224.0.0.0 to 239.255.255.255.

From the Multicast link, you can access the following pages:

• MFDBon page 135
• Auto-VideoConfigurationon page 137
• IGMPSnopingon page 138
• IGMPSnooopingQuerieron page 144
• MLDSnoopingon page 147

MFDB

The Layer 2 Multicast Forwarding Database (MFDB) is used by the switch to make forwarding decisions for packets that arrive with a multicast destination MAC address. By limiting multicasts to only certain ports in the switch, traffic is prevented from going to parts of the network where that traffic is unnecessary.

When a packet enters the switch, the destination MAC address is combined with the VLAN ID and a search is performed in the Layer 2 Multicast Forwarding Database. If no match is found, then the packet is either flooded to all ports in the VLAN or discarded, depending on the switch configuration. If a match is found, then the packet is forwarded only to the ports that are members of that multicast group.

MFDB Table

The MFDB table holds the port membership information for all active multicast address entries. Use the MFDB Table page to view the port membership information for all active multicast address entries. The key for an entry consists of a MAC address. Entries may contain data for more than one protocol.

To access the MFDB Table page, click Switching > Multicast > MFDB > MFDB Table.

The following table describes the fields in the MFDB Table.

Field Description
MAC Address The MAC Address to which the multicast MAC address is related.To search by MAC address, enter the address with the MFDB table entry you want displayed. Enter six two-digit hexadecimal numbers separated by colons, for example 00:0f:43:67:89:AB, and then click Go. If the address exists, that entry will be displayed.An exact match is required.
VLAN ID The VLAN ID to which the multicast MAC address is related.
Component This is the component that is responsible for this entry in the Multicast Forwarding Database. Possible values are IGMP Snooping, GMRP, MLD Snooping, and Static Filtering.
Type	This displays the type of the entry. Static entries are those that are configured by the end user. Dynamic entries are added to the table as a result of a learning process or protocol.
Description The text description of this multicast table entry. Possible values are Management Configured, Network Configured, and Network Assisted.
Interface The list of interfaces that are designated for forwarding (Fwd) and filtering (Flt) for the selected address.
Forwarding Interfaces	The resultant forwarding list is derived from combining all the forwarding interfaces and removing the interfaces that are listed as the static filtering interfaces.

Click Refresh to update the information on the screen with the most current data.

Click Clear to clear all of the MFDB entries.

MFDB Statistics

Use the multicast forwarding database Statistics page to view statistical information about the MFDB table.

To access the MFDB Statistics page, click Switching > Multicast > MFDB > MFDB Statistics.

The following table describes the information available on the MFDB Statistics page:

Field Description
Max MFDB Table Entries Displays the maximum number of entries that the Multicast Forwarding Database table can hold.
Most MFDB Entries Since Last Reset	The largest number of entries that have been present in the Multicast Forwarding Database table since the system was last reset. This value is also known as the MFDB high-water mark.
Current Entries Displays the current number of entries in the Multicast Forwarding Database table.

Click Refresh to update the information on the screen with the most current data.

Auto-Video Configuration

The Auto-Video feature simplifies IGMP Snooping Querier configuration if the switch supports devices or applications running multicast traffic, such as video surveillance cameras.

To access the Auto-Video Configuration page, click Switching > Multicast > Auto-Video.

To configure the Auto-Video feature:

1. Enable or disable the Auto-Video feature.

2. Enable. The IGMP Snooping Querier is automatically configured with the default VLAN ID for the Auto-Video VLAN

3. Disable. IGMP Snooping settings must be manually configured.

4. Click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.

5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch

IGMP Snooping

Internet Group Management Protocol (IGMP) Snooping is a feature that allows a switch to forward multicast traffic intelligently on the switch. Multicast IP traffic is traffic that is destined to Del Road, greases, host group or are identified by class

224.0.0.0 to 239.255.255.255. Based on the IGMP query and report messages, the switch forwards traffic only to the ports that request the multicast traffic. This prevents the switch from broadcasting the traffic to all ports and possibly affecting network performance.

A traditional Ethernet network may be separated into different network segments to prevent placing too many devices onto the same shared media. Bridges and switches connect these segments. When a packet with a broadcast or multicast destination address is received, the switch will forward a copy into each of the remaining network segments in accordance with the IEEE MAC Bridge standard. Eventually, the packet is made accessible to all nodes connected to the network.

This approach works well for broadcast packets that are intended to be seen or processed by all connected nodes. In the case of multicast packets, however, this approach could lead to less efficient use of network bandwidth, particularly when the packet is intended for only a small number of nodes. Packets will be flooded into network segments where no node has any interest in receiving the packet. While nodes will rarely incur any processing overhead to filter packets addressed to unrequested group addresses, they are unable to transmit new packets onto the shared media for the period of time that the multicast packet is flooded. The problem of wasting bandwidth is even worse when the LAN segment is not shared, for example in full-duplex links.

Allowing switches to snoop IGMP packets is a creative effort to solve this problem. The switch uses the information in the IGMP packets as they are being forwarded throughout the network to determine which segments should receive packets directed to the group address.

IGMP Snooping Configuration

Use the IGMP Snooping Configuration page to configure the parameters for IGMP snooping, which is used to build forwarding lists for multicast traffic.

To access the IGMP Snooping Configuration page, click Switching > Multicast > IGMP Snooping > IGMP Snooping Configuration.

To configure IGMP Snooping:

1. Enable or disable IGMP Snooping on the switch.

2. Enable. The switch snoops all IGMP packets it receives to determine which segments should receive packets directed to the group address.

3. Disable. The switch does not snoop IGMP packets.

4. Enable or disable the validation of IGMP IP headers.

5. Enable. The switch checks the IGMP IP header for valid Router Alert option, ToS, and TTL information.

6. Disable. The switch does not check the IGMP IP header for Router Alert option, ToS, and TTL information.

7. Specify whether to block unknown multicast addresses

8. Enable. The switch drops all packets with an unknown multicast MAC address in the destination field.

9. Disable. The switch forwards multicast packets with an unknown multicast MAC address in the destination field.

10. Click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.

11. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch

The following table displays information about the global IGMP snooping status and statistics on the page.

Field Description
Multicast Control Frame Count	Displays the number of multicast control frames that have been processed by the CPU.
Interfaces Enabled for IGMP Snooping	Lists the interfaces currently enabled for IGMP Snooping. To enable interfaces for IGMP snooping, seeIGMPSnoopingInterfaceConfigurationon page 140.
Data Frames Forwarded by the CPU	Displays the number of data frames forwarded by the CPU.
VLAN Ids Enabled For IGMP Snooping	Displays VLAN IDs enabled for IGMP snooping. To enable VLANs for IGMP snooping, seeIGMPSnoopingVLANConfigurationon page 142.
VLAN Ids Enabled For IGMP Snooping Querier	Displays VLAN IDs enabled for IGMP snooping querier.

IGMP Snooping Interface Configuration

Use the IGMP Snooping Interface Configuration page to configure IGMP snooping settings on specific interfaces.

To access the IGMP Snooping Interface Configuration page, click Switching > Multicast > IGMP Snooping > IGMP Snooping Interface Configuration.

To configure IGMP Snooping interface settings:

1. To configure IGMP Snooping settings for a physical port, click the unit ID of the stack member with the ports to configure.

2. To configure IGMP Snooping settings for a Link Aggregation Group (LAG), click LAGS.

3. To configure IGMP Snooping settings for both physical ports and LAGs, click ALL.

4. Select the check box next to the port or LAG to configure. You can select multiple ports and LAGs to apply the same setting to the selected interfaces. Select the check box in the heading row to apply the same settings to all interfaces.

5. Configure the IGMP Snooping values for the selected port(s) or LAG(s):

6. Admin Mode. Use the menu to enable or disable the administrative mode of IGMP snooping on the selected interface(s). The default is Disable.

7. Host Timeout. Specify the amount of time you want the switch to wait for a report for a particular group on a particular interface before it deletes that interface from the group. Enter a value between 2 and 3600 seconds. The default is 260 seconds.
8. Max Response Time. Specify the amount of time you want the switch to wait after sending a query on an interface because it did not receive a report for a particular group on that interface. Enter a value greater or equal to 1 and less than the Host Timeout, in seconds. The default is 10 seconds.
9. MRouter Timeout. Specify the amount of time you want the switch to wait to receive a query on an interface before removing it from the list of interfaces with multicast routers attached. Enter a value between 0 and 3600 seconds. The default is 0 seconds. A value of zero indicates an infinite timeout; no expiration.

10. Fast Leave Admin Mode. Select the Fast Leave mode for a particular interface from the menu. The default is Disable.

11. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

12. If you make any configuration changes, click Apply to apply the new settings to the switch. Configuration changes take effect immediately.

IGMP Snooping Table

Use the IGMP Snooping Table page to view all of the entries in the Multicast Forwarding Database that were created for IGMP snooping.

To access the IGMP Snooping Table page, click Switching > Multicast > IGMP Snooping > IGMP Snooping Table.

The following table describes the fields in the IGMP Snooping Table.

Field Description
MAC Address A multicast MAC	address for which the switch has forwarding and/or filtering information. The format is 6 two-digit hexadecimal numbers that are separated by colons, for example, 01:00:5e:45:67:89.
VLAN ID A VLAN ID for which	the switch has forwarding and filtering information.
Type This displays the type of	the entry. Static entries are those that are configured by the end user. Dynamic entries are added to the table as a result of a learning process or protocol.
Description The text description	of this multicast table entry. Possible values are Management Configured, Network Configured, and Network Assisted.
Interface The list of interfaces	that are designated for forwarding (Fwd) and filtering (Flt) for the associated address.

Use the buttons at the bottom of the page to perform the following actions:

• Click Clear to clear one or all of the IGMP Snooping entries.
• Click Refresh to reload the page and display the most current information.
• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

IGMP Snooping VLAN Configuration

Use the IGMP Snooping VLAN Configuration page to configure IGMP snooping settings for VLANs on the system.

To access the IGMP Snooping VLAN Configuration page, click Switching > Multicast > IGMP Snooping > IGMP Snooping VLAN Configuration.

To configure IGMP snooping settings for VLANs:

1. To enable IGMP snooping on a VLAN, enter the VLAN ID in the appropriate field and configure the IGMP Snooping values:

2. Fast Leave Admin Mode. Enable or disable the IGMP Snooping Fast Leave Mode for the specified VLAN ID. Enabling fast-leave allows the switch to immediately remove the layer 2 LAN interface from its forwarding table entry upon receiving an IGMP leave message for that multicast group without first sending out MAC-based general queries to the interface. You should enable fast-leave admin mode only on VLANs where only one host is connected to each layer 2 LAN port. This prevents the inadvertent dropping of the other hosts that were connected to the same layer 2 LAN port but were still interested in receiving multicast traffic directed to that group. Also, fast-leave processing is supported only with IGMP version 2 hosts.

3. Host Timeout. Sets the value for group membership interval of IGMP snooping for the specified VLAN ID. The valid range is (Maximum Response Time + 1) to 3600 seconds.
   • Maximum Response Time. Enter the amount of time in seconds that a switch will wait after sending a query on the VLAN because it did not receive a report for a particular group in that interface. The valid range is 1 to 25 seconds. The Maximum Response Time value must be less than the Host Timeout value.
4. MRouter Timeout. Enter the amount of time that a switch will wait to receive a query on the VLAN before removing it from the list of VLANs with multicast routers attached. Enter a value between 0 and 3600 seconds. The default is 0 seconds, which means there is no expiration.
5. Query Mode. Enable or disable the IGMP Querier Mode for the specified VLAN ID.

6. Query Interval. Enter the value for IGMP Query Interval for the specified VLAN ID. The valid range is 1–1800 seconds. The default is 60 seconds.

7. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

8. To disable IGMP snooping on a VLAN and remove it from the list, select the check box next to the VLAN ID and click Delete.

9. To modify IGMP snooping settings for a VLAN, select the check box next to the VLAN ID, update the desired values, and click Apply.

IGMP Snooping Querier

IGMP snooping requires that one central switch or router periodically query all end-devices on the network to announce their multicast memberships. This central device is the IGMP querier. The IGMP query responses, known as IGMP reports, keep the switch updated with the current multicast group membership on a port-by-port basis. If the switch does not receive updated membership information in a timely fashion, it will stop forwarding multicasts to the port where the end device is located.

These pages enable you to configure and display information on IGMP snooping queriers on the network and, separately, on VLANs.

The IGMP Snooping Querier feature contains links to the following pages:

• IGMPSnooopingQuerierConfigurationon page 144
• IGMPSnoopingQuerierVLANConfigurationon page 145
• IGMPSnoopingQuerierVLANStatuson page 146

IGMP Snooping Querier Configuration

Use this page to enable or disable the IGMP Snooping Querier feature, specify the IP address of the router to perform the querying, and configure the related parameters.

To access this page, click Switching > Multicast > IGMP Snooping Querier > IGMP Snooping > Querier Configuration.

To configure IGMP Snooping Querier settings:

1. From the Querier Admin Mode field, enable or disable the administrative mode for IGMP Snooping Querier.
2. In the Snooping Querier Address field, specify the IP address to be used as source address in periodic IGMP queries. This address is used when no address is configured on the VLAN on which the query is being sent.
3. In the IGMP Version field, specify the IGMP protocol version used in periodic IGMP queries. The supported IGMP versions are 1 and 2. The default value is 2.
4. In the Query Interval field, specify the time interval in seconds between periodic queries sent by the snooping querier. The Query Interval must be a value in the range of 1–1800 seconds. The default value is 60.
5. In the Querier Expiry Interval field, specify the time interval in seconds after which the last querier information is removed. The Querier Expiry Interval must be a value in the range of 60–300 seconds. The default value is 125.
6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
7. Click Apply to apply the new settings to the switch. Configuration changes take effect immediately
8. Click Refresh to update the page with the latest information from the switch.

IGMP Snooping Querier VLAN Configuration

Use this page to configure IGMP queriers for use with VLANs on the network.

To access this page, click Switching > Multicast > IGMP Snooping Querier > Querier VLAN Configuration.

To configure Querier VLAN settings:

1. To create a new VLAN ID for IGMP Snooping, select New Entry from the VLAN ID field and complete the following fields:

2. VLAN ID. Specifies the VLAN ID for which the IGMP Snooping Querier is to be enabled.
   • Querier Election Participate Mode. Enable or disable Querier Participate Mode.

- Disabled. Upon seeing another querier of the same version in the VLAN, the snooping querier moves to the non-querier state.

- Enabled. The snooping querier participates in querier election, in which the least IP address operates as the querier in that VLAN. The other querier moves to non-querier state.

- Snooping Querier VLAN Address. Specify the Snooping Querier IP Address to be used as the source address in periodic IGMP queries sent on the specified VLAN.

1. Click Apply to apply the new settings to the switch. Configuration changes take effect immediately
2. To disable Snooping Querier on a VLAN, select the VLAN ID and click Delete.
3. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
4. Click Refresh to update the page with the latest information from the switch.

IGMP Snooping Querier VLAN Status

Use this page to view the operational state and other information for IGMP snooping queriers for VLANs on the network.

To access this page, click Switching > Multicast > IGMP Snooping Querier > Querier VLAN Status.

The following table describes the information available on the Querier VLAN Status page.

Field Description
VLAN ID Specifies the VLAN ID	on which the IGMP Snooping Querier is administratively enabled and for which VLAN exists in the VLAN database.
Operational State Specifies the	operational state of the IGMP Snooping Querier on a VLAN:Querier:The snooping switch is the querier in the VLAN. The snooping switch will send out periodic queries with a time interval equal to the configured querier query interval. If the snooping switch sees a better querier (numerically lower) in the VLAN, it moves to non-querier mode.Non-Querier:The snooping switch is in non-querier mode in the VLAN. If the querier expiry interval timer expires, the snooping switch moves into querier mode.Disabled:The snooping querier is not operational on the VLAN. The snooping querier moves to disabled mode when IGMP snooping is not operational on the VLAN, when the querier address is not configured, or the network management address is not configured.
Operational Version Displays the IGMP protocol version of the operational querier.
Last Querier Address	Displays the IP address of the last querier from which a query was snooped on the VLAN.
Last Querier Version Displays the IGMP protocol version of the last querier from which a query was snooped on the VLAN.
Operational Max Response Time	Displays the maximum response time to be used in the queries that are sent by the snooping querier.

Click Refresh to redisplay the page with the latest information from the switch.

MLD Snooping

MLD is a protocol used by IPv6 multicast routers to discover the presence of multicast listeners (nodes wishing to receive IPv6 multicast packets) on its directly attached links and to discover which multicast packets are of interest to neighboring nodes. MLD is derived from IGMP; MLD version 1 (MLDv1) is equivalent to IGMPv2 and MLD version 2 (MLDv2) is equivalent to IGMPv3. MLD is a subprotocol of Internet Control Message Protocol version 6 (ICMPv6), and MLD messages are a subset of ICMPv6 messages, identified in IPv6 packets by a preceding Next Header value of 58.

The switch can snoop on both MLDv1 and MLDv2 protocol packets and bridge IPv6 multicast data based on destination IPv6 Multicast MAC Addresses. The switch can be configured to perform MLD Snooping and IGMP Snooping simultaneously.

MLD Snooping Configuration

In IPv4, Layer 2 switches can use IGMP Snooping to limit the flooding of multicast traffic by dynamically configuring Layer 2 interfaces so that multicast traffic is forwarded to only those interfaces associated with IP multicast address. In IPv6, MLD snooping performs a similar function. With MLD snooping, IPv6 multicast data is selectively forwarded to a list of ports

that want to receive the data, instead of being flooded to all ports in a VLAN. This list is constructed by snooping IPv6 multicast control packets.

To access the MLD Snooping Configuration page, click Switching > Multicast > MLD Snooping > MLD Snooping Configuration.

To configure MLD Snooping:

1. Enable or disable the MLD Snooping Admin Mode, the administrative mode for MLD Snooping for the switch. The default is disable.

2. Multicast Control Frame Count - This displays the number of multicast control frames that are processed by the CPU.

3. Interfaces Enabled for MLD Snooping - This displays a list of all the interfaces currently enabled for MLD Snooping.

4. Data Frames Forwarded by the CPU - This displays the number of data frames forwarded by the CPU.

5. VLAN IDs Enabled For MLD Snooping - This displays VLAN IDs enabled for MLD snooping.

6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
7. If you make any changes to the page, click Apply to apply the changes to the system.
8. Click Refresh to update the page with the latest information from the switch.

MLD Interface Configuration

MLD snooping can be enabled on the interfaces (physical and lag).

To access the MLD Snooping Configuration page, click Switching > Multicast > MLD Snooping > Interface Configuration.

To configure the MLD interface:

1. To configure MLD Snooping settings for a physical port, click the unit ID of the stack member with the ports to configure.
2. To configure MLD Snooping settings for a Link Aggregation Group (LAG), click LAGS.
3. To configure MLD Snooping settings for both physical ports and LAGs, click ALL.
4. Select the check box next to the port or LAG to configure. You can select multiple ports and LAGs to apply the same setting to the selected interfaces. Select the check box in the heading row to apply the same settings to all interfaces.
5. Use the Admin Mode menu to specify whether to enable or disable MLD snooping on the selected interface(s). The default is disable.
6. Use the Group Membership Interval (secs) field to specify the amount of time you want the switch to wait for a report for a particular group on a particular interface before it deletes that interface from the group. The valid range is from (2 to 3600) seconds. The configured value must be greater than Max Response Time. The default is 260 seconds.
7. Use the Max Response Time (secs) field to specify the amount of time you want the switch to wait after sending a query on an interface because it did not receive a report for a particular group on that interface. Enter a value greater or equal to 1 and less than the Group Membership Interval in seconds. The default is 10 seconds. The configured value must be less than the Group Membership Interval.

8. Use the Present Expiration Time (secs) field to specify the amount of time you want the switch to wait to receive a query on an interface before removing it from the list of interfaces with multicast routers attached. Enter a value between 0 and 3600 seconds. The default is 0 seconds. A value of zero indicates an infinite timeout, that is, no expiration.

9. Use the Fast Leave Admin Mode field to select the Fast Leave mode for a particular interface from the menu. The default is Disable.

10. Click Apply to apply the new settings to the switch. Configuration changes take effect immediately
11. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

MLD VLAN Configuration

MLD Snooping can be enabled on a per VLAN basis. It is necessary to keep track of the interfaces that are participating in a VLAN in order to apply or remove configurations.

To access the MLD VLAN Configuration page, click Switching > Multicast > MLD Snooping > MLD VLAN Configuration.

To configure the MLD VLAN:

1. Set the VLAN IDs for which MLD Snooping is enabled in the VLAN ID field.
2. Enable MLD Snooping for the specified VLAN ID in the Admin Mode field.
3. Enable or disable the MLD Snooping Fast Leave Mode for the specified VLAN ID in the Fast Leave Admin Mode field.
4. Use the Group Membership Interval field to set the value for group membership interval of MLD Snooping for the specified VLAN ID. Valid range is (Maximum Response Time + 1) to 3600.

5. Use the Maximum Response Time field to set the amount of time, in seconds, that a switch will wait after sending a query on the VLAN because it did not receive a report for a particular group in that interface. The minimum response time value is 1, and the maximum value must be at least one second less than the value configured for the Group Membership Interval.

6. Use the Multicast Router Expiry Time field to set the value for multicast router expiry time of MLD Snooping for the specified VLAN ID. Valid range is 0 to 3600.

7. Click Add to enable MLD Snooping on the specified VLAN.
8. Click Delete to disable MLD Snooping on the specified VLAN.
9. Click Apply to apply the new settings to the switch. Configuration changes take effect immediately
10. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
11. Click Refresh to update the page with the latest information from the switch.

Multicast Router Configuration

In addition to building and maintaining lists of multicast group memberships, the Snooping switch also maintains a list of multicast routers. When forwarding multicast packets, they should be forwarded on ports that have joined using MLD/IGMP and also on ports on which multicast routers are attached. In MLD/IGMP, there is only one active querier. This means that all other routers on the network are suppressed and are not detectable by the switch. If a query is not received on an interface within a specified length of time (multicast router present expiration time), then that interface is removed from the list of interfaces with multicast routers attached. The multicast router present expiration time is configurable via management. The default value for the multicast router expiration time is zero, which indicates an infinite timeout, that is, no expiration.

To access the Multicast Router Configuration page, click Switching > Multicast > MLD Snooping > Multicast Router Configuration.

To configure the Multicast Router:

1. To configure multicast router settings for a physical port, click the unit ID of the stack member with the ports to configure.
2. To configure multicast router settings for a Link Aggregation Group (LAG), click LAGS.
3. To configure multicast router settings for both physical ports and LAGs, click ALL.
4. Select the check box next to the port or LAG to configure. You can select multiple ports and LAGs to apply the same setting to the selected interfaces. Select the check box in the heading row to apply the same settings to all interfaces.
5. Use the Multicast Router field to enable or disable Multicast Router on the selected interface.
6. Click Apply to apply the new settings to the switch. Configuration changes take effect immediately
7. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Multicast Router VLAN Configuration

The statically configured router attached (VLAN, Interface) is added to the learned multicast router attached interface list if the interface is active and is a member of the VLAN. Snooping dynamic learning mode (snooping interface mode or snooping VLAN mode) does not need to be enabled on the interface. The dynamic learning mode is applicable only for dynamically learned multicast router information (Queries from an attached true Querier).

To access the Multicast Router VLAN Configuration page, click Switching > Multicast > MLD Snooping > Multicast Router Configuration VLAN Configuration.

To configure the Multicast Router VLAN:

1. Use the Interface menu to select the interface to configure.
2. Enter the VLAN ID in the VLAN ID field for which the Multicast Router Mode is to be Enabled or Disabled.
3. Use the Multicast Router field to enable or disable Multicast Router on the selected interface.
4. Click Apply to apply the new settings to the switch. Configuration changes take effect immediately
5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Querier Configuration

Use this page to enable or disable the MLD Querier Configuration feature, specify the IP address of the router to perform the querying, and configure the related parameters.

To access this page, click Switching > Multicast > MLD Snooping > Querier Configuration.

To configure the Querier settings:

1. From the Querier Admin Mode field, enable or disable the administrative mode for MLD Snooping Querier.
2. In the Querier Address field, specify the Snooping Querier Address to be used as source address in periodic MLD queries. This address is used when no address is configured on the VLAN on which query is being sent. The supported IPv6 formats are x::x::x::x::x::x and x::x.

3. In the MLD Version field, the MLD protocol version used in periodic MLD queries is displayed. The supported MLD Version is 1.

4. In the Query Interval field, specify the time interval in seconds between periodic queries sent by the snooping querier. The Query Interval must be a value in the range of 1–1800 seconds. The default value is 60.

5. In the Querier Expiry Interval field, specify the time interval in seconds after which the last querier information is removed. The Querier Expiry Interval must be a value in the range of 60–300 seconds. The default value is 60.
6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
7. Click Apply to apply the new settings to the switch. Configuration changes take effect immediately

Querier VLAN Configuration

Use this page to configure MLD queriers for use with VLANs on the network.

To access this page, click Switching > Multicast > MLD Snooping Querier > Querier VLAN Configuration.

The following table describes the information available on the Querier VLAN Status page.

Field Description
VLAN ID Specifies the VLAN ID	on which MLD Snooping Querier is administratively enabled and VLAN exists in the VLAN database.
Querier Election Participate Mode	Enable or Disable the MLD Snooping Querier participate in election mode. When this mode is disabled, up on seeing other querier of same version in the VLAN, the snooping querier move to non querier state. Only when this mode is enabled, the snooping querier will participate in querier election where in the least IP address will win the querier election and operates as the querier in that VLAN. The other querier moves to non-querier state.
Querier VLAN Address Specify	the Snooping Querier Address to be used as source address in periodic MLD queries sent on the specified VLAN.
Operational State Specifies the	operational state of the IGMP Snooping Querier on a VLAN:Querier:The snooping switch is the querier in the VLAN. The snooping switch will send out periodic queries with a time interval equal to the configured querier query interval. If the snooping switch sees a better querier (numerically lower) in the VLAN, it moves to non-querier mode.Non-Querier:The snooping switch is in non-querier mode in the VLAN. If the querier expiry interval timer expires, the snooping switch moves into querier mode.Disabled:The snooping Querier is not operational on the VLAN. The Snooping Querier moves to disabled mode when MLD Snooping is not operational on the VLAN or when the querier address is not configured or the network management address is also not configured.
Operational Version Displays the	MLD protocol version of the operational querier.
Last Querier Address	Displays the IP address of the last querier from which a query was snooped on the VLAN.
Last Querier Version	Displays the MLD protocol version of the last querier from which a query was snooped on the VLAN.
Operational Max Response Time	Displays the maximum response time to be used in the queries that are sent by the snooping querier.

1. Click Add to add a Querier on the specified VLAN.
2. Click Delete to delete a Querier on the specified VLAN.
3. Click Apply to apply the new settings to the switch. Configuration changes take effect immediately
4. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Forwarding Database

The forwarding database maintains a list of MAC addresses after having received a packet from this MAC address. The transparent bridging function uses the forwarding database entries to determine how to forward a received frame.

The Address Table folder contains links to the following features:

• MACAddressTableon page 156
• DynamicAddressConfigurationon page 158
• StaticMACAddresson page 159

MAC Address Table

The MAC Address Table contains information about unicast entries for which the switch has forwarding and/or filtering information. This information is used by the transparent bridging function in determining how to propagate a received frame. Use the search function of the MAC Address Table page to display information about the entries in the table.

To access this page, click Switching > Address Table > Basic > Address Table.

To search for an entry in the MAC Address Table:

1. Use the Search By field to search for MAC Addresses by MAC Address, VLAN ID, or Interface.

2. MAC Address: Select MAC Address from the menu and enter a six-byte hexadecimal MAC address in two-digit groups separated by colons, then click Go. If the address exists, that entry will be displayed. An exact match is required.

3. VLAN ID: Select VLAN ID from the menu, enter the VLAN ID, for example, 100. Then click Go. If any entries with that VLAN ID exist they are displayed.

4. Interface: Select Interface from the menu, enter the interface ID and click Go. The interface format is /g. If any entries learned on that interface exist, they are displayed.

5. Click Clear to clear Dynamic MAC Addresses in the table.

6. Click Refresh to redisplay the page to show the latest MAC Addresses.

The following table describes the information available for each entry in the address table.

Field Description
VLAN ID The VLAN ID associated with the MAC address.
MAC Address A unicast MAC	address for which the switch has forwarding and/or filtering information. The format is a six-byte MAC address with each byte separated by colons. For example, 00:0F:89:AB:CD:EF.
Interface The port where this address was learned: that is, this field displays the port through which the MAC address can be reached.
Status The status of this entry.	The possible values are:Static: The entry was added when a static MAC filter was defined.Learned: The entry was learned by observing the source MAC addresses of incoming traffic, and is currently in use.Management: The system MAC address, which is identified with interface c1.

Dynamic Address Configuration

Use the Dynamic Addresses page to set the amount of time to keep a learned MAC address entry in the forwarding database. The forwarding database contains static entries, which are never aged out, and dynamically learned entries, which are removed if they are not updated within a given time.

To access the Configuration page, click Switching > Address Table > Advanced > Dynamic Addresses.

To configure the Dynamic Address setting:

1. Specify the number of seconds the forwarding database should wait before deleting a learned entry that has not been updated. IEEE 802.1D-1990 recommends a default of 300 seconds. You may enter any number of seconds between 10 and 1000000. The factory default is 300.

Note: IEEE 802.1D recommends a default of 300 seconds, which is the factory default.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
2. Click Apply to apply to send the updated configuration to the switch. Configuration changes take effect immediately.

Static MAC Address

Use the Static MAC Address Configuration page to configure and view static MAC addresses on an interface.

To access the Static MAC Address Configuration page, click Switching > Address Table > Advanced > Static MAC Address.

To configure a static MAC address:

1. To add a static MAC address entry:

a. From the Interface menu, select the port or LAG on which to configure the static MAC address.
b. Specify the MAC address to add.
c. Select the VLAN ID corresponding to the MAC address to add.
d. Click Add.

1. To delete a static MAC address, select the check box next to the entry and click Delete.

2. To modify the settings for a static MAC address, select the check box next to the entry, update the desired values, and click Apply.

3. Click Refresh to reload the page and display the latest MAC address learned on a specific port.

4. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

The GS728TS, GS728TPS, GS752TS, and GS752TPS switches support IP routing. Use the links in the Routing menu to manage and monitor routing on the system. This section contains the following information:

• ConfiguringIPSettings page 160
• ConfiguringVLANRoutingon page 165
• ConfiguringRouterDiscoveryon page 168
• ConfiguringandViewingRouteson page 169
• ConfiguringARPon page 171

When a packet enters the switch, the destination MAC address is checked to see if it matches any of the configured routing interfaces. If it does, then the silicon searches the host table for a matching destination IP address. If an entry is found, then the packet is routed to the host. If there is not a matching entry, then the switch performs a longest prefix match on the destination IP address. If an entry is found, then the packet is routed to the next hop. If there is no match, then the packet is routed to the next hop specified in the default route. If there is no default route configured, then the packet is passed to the software to be handled appropriately.

The routing table can have entries added either statically by the administrator or dynamically via a routing protocol. The host table can have entries added either statically by the administrator or dynamically via ARP.

Configuring IP Settings

The pages available from the IP tab allow you to globally enable routing and view information about the packets received and transmitted by the switch. From the IP link, you can access the following pages:

• IPConfiguration on page 161
• IPStatisticson page 162

IP Configuration

Use the IP Configuration page to enable routing on the switch and to view global routing settings.

To access the IP Configuration page click Routing > IP, then click the IP Configuration link.

To configure or view the global routing settings on the switch:

1. View the default time to live, which is the value inserted into the Time-To-Live field of the IP header of datagrams originated by the switch if a TTL value is not supplied by the transport layer protocol.
2. From the Routing Mode field, select either the Enable or the Disable radio button. You must enable routing for the switch before you can route through any of the interfaces. Routing is also enabled or disabled per VLAN interface. The default value is Disable.
3. View the maximum next hops, which is the maximum number of hops supported by the switch. This is a read-only value.
4. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
5. If you make any changes to the page, click Apply to apply the changes to the system.

IP Statistics

The statistics reported on the IP Statistics page are as specified in RFC 1213.

To access the page click Routing > IP, then click the Statistics link. The following image shows some, but not all, of the fields the page displays.

The following table describes the information available on the IP Statistics page

Field Description
IpInReceives The total number	of input datagrams received from interfaces, including those received in error.
IpInHdrErrors The number of in	input datagrams discarded due to errors in their IP headers, including bad checksums, version number mismatch, other format errors, time-to-live exceeded, errors discovered in processing their IP options, etc.
IpInAddrErrors The number of	input datagrams discarded because the IP address in their IP header's destination field was not a valid address to be received at this entity. This count includes invalid addresses (e.g., 0.0.0.0) and addresses of unsupported Classes (e.g., Class E). For entities which are not IP Gateways and therefore do not forward datagrams, this counter includes datagrams discarded because the destination address was not a local address.
IpForwDatagrams The number	of input datagrams for which this entity was not their final IP destination, as a result of which an attempt was made to find a route to forward them to that final destination. In entities which do not act as IP Gateways, this counter includes only those packets which were Source-Routed via this entity, and the Source-Route option processing was successful.
IpInUnknownProtos The number	er of locally-addressed datagrams received successfully but discarded because of an unknown or unsupported protocol.
IpInDiscards The number of input	IP datagrams for which no problems were encountered to prevent their continued processing, but which were discarded (e.g., for lack of buffer space). Note that this counter does not include any datagrams discarded while awaiting re-assembly.
IpInDelivers The total number	of input datagrams successfully delivered to IP user-protocols (including ICMP).
IpOutRequests The total number	er of IP datagrams which local IP user-protocols (including ICMP) supplied to IP in requests for transmission. Note that this counter does not include any datagrams counted in ipForwDatagrams.
IpOutDiscards The number of	output IP datagrams for which no problem was encountered to prevent their transmission to their destination, but which were discarded (e.g., for lack of buffer space). Note that this counter would include datagrams counted in ipForwDatagrams if any such packets met this (discretionary) discard criterion.
IpOutNoRoutes The number of	IP datagrams discarded because no route could be found to transmit them to their destination. Note that this counter includes any packets counted in ipForwDatagrams which meet this `no-route' criterion. Note that this includes any datagrams which a host cannot route because all of its default gateways are down.
IpReasmTimeout The maximum	m number of seconds which received fragments are held while they are awaiting reassembly at this entity.
IpReasmReqds The number of	IP fragments received which needed to be reassembled at this entity.
IpReasmOKs The number of IP	datagrams successfully re-assembled.
IpReasmFails The number of failures detected by the IP re-assembly algorithm (for whatever reason: timed out, errors, etc.). Note that this is not necessarily a count of discarded IP fragments since some algorithms can lose track of the number of fragments by combining them as they are received.
IpFragOKs The number of IP datagrams that have been successfully fragmented at this entity.
IpFragFails The number of IP datagrams that have been discarded because they needed to be fragmented at this entity but could not be, e.g., because their Don't Fragment flag was set.
IpFragCreates The number of IP datagram fragments that have been generated as a result of fragmentation at this entity.
IpRoutingDiscards The number of routing entries which were chosen to be discarded even though they are valid. One possible reason for discarding such an entry could be to free-up buffer space for other routing entries.
Field	Description
IcmpInMsgs The total number	of ICMP messages which the entity received. Note that this counter includes all those counted by icmpInErrors.
IcmpInErrors The number of ICMP messages which the entity received but determined as having ICMP-specific errors (bad ICMP checksums, bad length, etc.).
IcmpInDestUnreaches The number of ICMP Destination Unreachable messages received.
IcmpInTimeExcds The number of ICMP Time Exceeded messages received.
IcmpInParmProbs The number of ICMP Parameter Problem messages received.
IcmpInSrcQuenchs The number of ICMP Source Quench messages received.
IcmpInRedirects The number of ICMP Redirect messages received.
IcmpInEchos The number of ICMP Echo (request) messages received.
IcmpInEchoReps The number of ICMP Echo Reply messages received.
IcmpInTimestamps The number of ICMP Timestamp (request) messages received.
IcmpInTimestampReps The number of ICMP Timestamp Reply messages received.
IcmpInAddrMasks The number of ICMP Address Mask Request messages received.
IcmpInAddrMaskReps The number of ICMP Address Mask Reply messages received.
IcmpOutMsgs The total number of ICMP messages which this entity attempted to send. Note that this counter includes all those counted by icmpOutErrors.
IcmpOutErrors The number of ICMP messages which this entity did not send due to problems discovered within ICMP such as a lack of buffers. This value should not include errors discovered outside the ICMP layer such as the inability of IP to route the resultant datagram. In some implementations there may be no types of error which contribute to this counter's value.
IcmpOutDestUnreaches The number of ICMP Destination Unreachable messages sent.
IcmpOutTimeExcds The number of ICMP Time Exceeded messages sent.
IcmpOutParmProbs The number of ICMP Parameter Problem messages sent.
IcmpOutSrcQuenchs The number of ICMP Source Quench messages sent.
IcmpOutRedirects The number of ICMP Redirect messages sent. For a host, this object is always zero, since hosts do not send redirects.
IcmpOutEchos The number of ICMP Echo (request) messages sent.
IcmpOutEchoReps The number of ICMP Echo Reply messages sent.
IcmpOutTimestamps The number of ICMP Timestamp (request) messages.
IcmpOutTimestampReps The number of ICMP Timestamp Reply messages sent.
Field Description
IcmpOutAddrMasks The number of ICMP Address Mask Request messages sent.
IcmpOutAddrMaskReps The number of ICMP Address Mask Reply messages sent.

Click Refresh to update the page with the most current data.

Configuring VLAN Routing

You can configure GS728TS, GS728TPS, GS752TS, and GS752TPS switches software with some ports supporting VLANs and some supporting routing. You can also configure the software to allow traffic on a VLAN to be treated as if the VLAN were a router port.

When a port is enabled for bridging (default) rather than routing, all normal bridge processing is performed for an inbound packet, which is then associated with a VLAN. Its MAC Destination Address (MAC DA) and VLAN ID are used to search the MAC address table. If routing is enabled for the VLAN, and the MAC DA of an inbound unicast packet is that of the internal bridge-router interface, the packet is routed. An inbound multicast packet is forwarded to all ports in the VLAN, plus the internal bridge-router interface, if it was received on a routed VLAN.

Since a port can be configured to belong to more than one VLAN, VLAN routing might be enabled for all of the VLANs on the port, or for a subset. VLAN Routing can be used to allow more than one physical port to reside on the same subnet. It could also be used when a VLAN spans multiple physical networks, or when additional segmentation or security is required. This section shows how to configure GS728TS, GS728TPS, GS752TS, and GS752TPS switches software to support VLAN routing. A port can be either a VLAN port or a router port, but not both. However, a VLAN port may be part of a VLAN that is itself a router port.

From the VLAN link, you can access the following pages:

• VLANRoutingWizardon page 165
• VLANRoutingConfiguration on page 167

VLAN Routing Wizard

The VLAN Routing Wizard allows you to create a VLAN routing interface, configure the IP address and subnet mask for the interface, and add selected ports or LAGs to the VLAN.

With this wizard, you can:

• Create a VLAN.
• Add selected ports to the newly created VLAN and remove selected ports from the default VLAN.
• Add selected LAGs to the newly created VLAN.
• Enable tagging on selected ports if the port is in another VLAN. Disable tagging if a selected port does not exist in another VLAN.

• Exclude ports not selected from the VLAN.
- Enable routing on the VLAN using the IP address and subnet mask entered.

To display the page, click Routing > VLAN, and then click the VLAN Routing Wizard link.

To use the wizard to configure VLAN routing:

1. Specify the VLAN ID in the appropriate field. The VLAN Identifier (VID) associated with this VLAN. The range of the VLAN ID is (1 to 4093).
2. Specify the IP address of the VLAN routing interface.
3. In the Network Mask field, specify the subnet mask to associate with the IP address.
4. Select the physical ports or LAGs to add as members to the VLAN interface.

To display the ports, click the unit number of the stack member with the ports to add to the VLAN interface. Click LAG to display the LAGs to add to the VLAN interface. Click the box below each port or LAG to add or remove it as a member. You can add each port or LAG as one of the following member types:

• T (Tagged) - All frames transmitted for this VLAN will be tagged.
• U (Untagged) - All frames transmitted for this VLAN will be untagged.
- BLANK (Autodetect) - Ports or LAGs may be dynamically registered in this VLAN via GVRP. This selection has the effect of excluding a port from the selected VLAN.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
2. If you change any of the settings on the page, click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.

VLAN Routing Configuration

Use the VLAN Routing Configuration page to view information about the VLAN routing interfaces configured on the system or to assign an IP address and subnet mask to VLANs on the system.

To display the page, click Routing > VLAN, and then click the VLAN Routing link.

To configure VLANs for routing:

1. Select the VLAN you want to configure for VLAN Routing. The VLAN field displays the IDs of all VLANs configured on this switch. To change the settings for a VLAN routing interface that has already been configured, select the appropriate check box.
2. Enter an IP address for the VLAN Routing Interface.
3. Enter a subnet mask for the VLAN Routing Interface.
4. Specify the maximum size of IP packets sent on an interface. A valid range is from 68 bytes to the link MTU. The default value is 1500. A value of 0 indicates that the IP MTU is unconfigured. When the IP MTU is unconfigured, the router uses the link MTU as the IP MTU. The link MTU is the maximum frame size minus the length of the layer 2 header.
5. View additional information about configured VLAN routing interfaces:

• Port. The logical interface number assigned to the VLAN routing interface.
• MAC Address. The MAC Address assigned to the VLAN routing interface.

1. Click Add to add the VLAN routing interface.
2. Click Delete to remove the selected VLAN routing interface.
3. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
4. If you change any of the settings on the page, click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.

Configuring Router Discovery

The Router Discovery protocol is used by hosts to identify operational routers on the subnet. Router Discovery messages are of two types: Router Advertisements and Router Solicitations. The protocol mandates that every router periodically advertise the IP Addresses it is associated with. Hosts listen for these advertisements and discover the IP Addresses of neighboring routers.

Router Discovery Configuration

Use the Router Discovery Configuration page to enter or change Router Discovery parameters.

To display the page click Routing, and then click the Router Discovery link.

To configure the router discovery settings:

1. Select the router interface for which data is to be configured. To perform the same configuration on all interfaces, select the check box in the heading row. To configure a single interface, select the check box associated with the interface. The interface number appears in the Interface field in the table heading row.
2. From the Advertise Mode field, select Enable or Disable from the drop-down menu. If you select Enable, Router Advertisements are transmitted from the selected interface.
3. In the Advertise Address field, enter the IP Address to be used to advertise the router.
4. In the Maximum Advertise Interval field, enter the maximum time (in seconds) allowed between router advertisements sent from the interface. The allowed range for this field is 4 to 1800.

5. In the Minimum Advertise Interval field, enter the minimum time (in seconds) allowed between router advertisements sent from the interface. The allowed range for this field is 3 to 1800.

6. In the Advertise Lifetime field, enter the value (in seconds) to be used as the lifetime field in router advertisements sent from the interface. This is the maximum length of time that the advertised addresses are to be considered as valid router addresses by hosts. The allowed range for this field is 4 to 9000, i.e., the configured "Maximum Advertise Interval" to 9000.

7. In the Preference Level field, specify the preference level of the router as a default router relative to other routers on the same subnet. Higher numbered addresses are preferred. You must enter an integer.
8. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
9. If you change any of the settings on the page, click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.

Configuring and Viewing Routes

From the Routing Table page, you can configure static and default routes and view the routes that the GS728TS, GS728TPS, GS752TS, and GS752TPS has already learned.

To display the page click the Routing >Routing Table link.

To configure a route:

1. In the Route Type field, specify whether the route is to be a Default route or a Static route. If creating a default route, you need to specify only the next hop IP address; otherwise, you need to specify each field.
2. In the Network Address field, specify the IP route prefix for the destination. To create a route, a valid routing interface must exist and the next hop IP Address must be on the same network as the routing interface.
3. In the Subnet Mask field, specify the network mask to indicate the portion of the IP address that identifies the attached network.
4. In the Next Hop IP Address field, specify the outgoing router IP address to use when forwarding traffic to the next router (if any) in the path towards the destination. The next router is always one of the adjacent neighbors or the IP address of the local interface for a

directly attached network. When creating a route, the next hop IP must be on the same network as the routing interface. Valid next hop IP Addresses can be seen on the 'Route Table' page.

1. In the Preference field, specify a preference value for the configured next hop.

The preference is an integer value from 1 to 255. You can specify the preference value (sometimes called “administrative distance”) of an individual static route. Among routes to the same destination, the route with the lowest preference value is the route entered into the forwarding database. By specifying the preference of a static route, the user controls whether a static route is more or less preferred. The preference also controls whether a static route is more or less preferred than other static routes to the same destination.

1. In the Identifier field, optionally specify a description to identify the route.
2. To add a route, enter the route information into the appropriate fields and click Add.
3. To delete a route, select the check box next to the route and click Delete.

The Route Status table provides information about the routes the GS728TS, GS728TPS, GS752TS, and GS752TPS already has in its routing table.

Field Description
Route Type Indicates whether	the learned route is a static or default route.
Network Address The IP route	prefix for the destination.
Subnet Mask Also referred to as	as the subnet/network mask, this indicates the portion of the IP interface address that identifies the attached network.
Protocol This field tells which protocol created the specified route. The possibilities are one of the following:LocalStatic
Next Hop Interface The outgoing router interface to use when forwarding traffic to the destination.
Next Hop IP Address The outgoing router IP address to use when forwarding traffic to the next router (if any) in the path towards the destination. The next router is always one of the adjacent neighbors or the IP address of the local interface for a directly attached network.
Preference Shows the preference value for the configured next hop.

Configuring ARP

The address resolution protocol (ARP) associates a layer 2 MAC address with a layer 3 IPv4 address. GS728TS, GS728TPS, GS752TS, and GS752TPS switches software features both dynamic and manual ARP configuration. With manual ARP configuration, you can statically add entries into the ARP table.

ARP is a necessary part of the internet protocol (IP) and is used to translate an IP address to a media (MAC) address, defined by a local area network (LAN) such as Ethernet. A station needing to send an IP packet must learn the MAC address of the IP destination, or of the next hop router, if the destination is not on the same subnet. This is achieved by broadcasting an ARP request packet, to which the intended recipient responds by unicasting an ARP reply containing its MAC address. Once learned, the MAC address is used in the destination address field of the layer 2 header prepended to the IP packet.

The ARP cache is a table maintained locally in each station on a network. ARP cache entries are learned by examining the source information in the ARP packet payload fields, regardless of whether it is an ARP request or response. Thus, when an ARP request is broadcast to all stations on a LAN segment or virtual LAN (VLAN), every recipient has the opportunity to store the sender's IP and MAC address in their respective ARP cache. The ARP response, being unicast, is normally seen only by the requestor, who stores the sender information in its ARP cache. Newer information always replaces existing content in the ARP cache.

The GS728TS, GS728TPS, GS752TS, and GS752TPS switches support 1024 ARP entries, which includes dynamic and static ARP entries.

Devices can be moved in a network, which means the IP address that was at one time associated with a certain MAC address is now found using a different MAC, or may have disappeared from the network altogether (i.e., it has been reconfigured, disconnected, or powered off). This leads to stale information in the ARP cache unless entries are updated in reaction to new information seen on the network, periodically refreshed to determine if an address still exists, or removed from the cache if the entry has not been identified as a sender of an ARP packet during the course of an ageout interval, usually specified via configuration.

Use the following web pages to configure and display ARP detail:

• ARPCacheon page 172
• ARPCreateon page 173
• GlobalARPConfiguration on page 174
• ARPEntryManagementon page 175

ARP Cache

Use the ARP Cache page to view entries in the ARP table, a table of the remote connections most recently seen by this switch.

To display the page, click the Routing > ARP, then click the Basic > ARP Cache link.

The Management VLAN ARP Cache table displays the following information:

Field Description
MAC Address Displays the MAC address of the device.
Port Shows the associated interface of the connection.
IP Address Displays the associated IP address of a device on a subnet attached to one of the switch's existing routing interfaces.

The Routing VLANs ARP Cache table displays the following information:

Field Description
Interface The routing interface	associated with the ARP entry.
IP Address Displays the associated IP address of a device on a subnet attached to one of the switch's existing routing interfaces.
MAC Address Displays the unicast MAC address of the device.
Type The type of the ARP entry. Possible values are:Local. An ARP entry associated with one of the switch's routing interface's MAC addresses.Gateway. A dynamic ARP entry whose IP address is that of a router.Static. An ARP entry configured by the user.Dynamic. An ARP entry which has been learned by the router.
Age	Age since the entry was last refreshed in the ARP Table. The format is hh:mm:ss.

Click Refresh to refresh the page with the most current data from the switch.

ARP Create

Use this page to add a static entry to the ARP table.

To display the page, click Routing > ARP, then click the Advanced > ARP Create link.

To configure a static ARP entry:

1. In the IP Address field, enter the IP address that you want to add. It must be the IP address of a device on a subnet attached to one of the switch's existing routing interfaces.
2. In the MAC Address field, enter the unicast MAC address of the device. The format is six two-digit hexadecimal numbers separated by colons, for example 00:06:29:32:81:40.
3. Click Add to add an ARP Entry.
4. If you made any changes to existing entries, click Apply to update the settings.
5. To delete an entry, select the box associated with the entry and click Delete.
6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

The Routing VLANs ARP Cache table displays the following information:

Field Description
Interface The routing interface associated with the ARP entry.
IP Address The IP	address of a device on a subnet attached to one of the switch's routing interfaces.
MAC Address The	unicast MAC address for the device. The format is six two-digit hexadecimal numbers separated by colons, for example 00:06:29:32:81:40.
Type The type of the ARP entry, which can be one of the following:Local - An ARP entry associated with one of the switch's routing interface's MAC addressesGateway - A dynamic ARP entry whose IP address is that of a routerStatic - An ARP entry configured by the userDynamic - An ARP entry which has been learned by the router
Age Age since the	entry was last refreshed in the ARP Table. The format is hh:mm:ss

Global ARP Configuration

Use the Global ARP Configuration page to display and change the configuration parameters of the ARP table.

To display the page, click Routing > ARP, and then click the Advanced > Global ARP Configuration link.

To configure the global ARP settings:

1. In the Age Time field, enter the value you want the switch to use for the ARP entry ageout time. You must enter a valid integer, which represents the number of seconds it will take for an ARP entry to age out. The range is 15 to 21600 seconds. The default value is 1200 seconds.
2. In the Response Time field, enter the value you want the switch to use for the ARP response timeout. You must enter a valid integer, which represents the number of seconds the switch will wait for a response to an ARP request. The range is 1 to 10 seconds. The default value is 1 second.
3. In the Retries field, enter an integer which specifies the maximum number of times an ARP request will be retried. The range for this field is 0 to 10. The default value is 4.
4. In the Cache Size field, enter an integer which specifies the maximum number of entries for the ARP cache. The range is 79 to 1024. The default value is 1024.
5. In the Dynamic Renew field, select whether the ARP component automatically attempts to renew ARP entries of type Dynamic when they age out. The default setting is Enable.
6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
7. If you change any of the settings on the page, click Apply to send the updated configuration to the switch. Configuration changes take effect immediately

ARP Entry Management

Use this page to remove certain entries from the ARP Table.

To display the page, click Routing > ARP, then click the Advanced > ARP Entry Management link.

To manage the ARP entries:

1. To move certain type of entries, select the type of entries to remove from the Remove From Table menu. The choices listed specify the type of ARP Entry to be deleted:

• All Dynamic Entries
• All Dynamic and Gateway Entries
- Specific Dynamic / Gateway Entry. Selecting this allows you to specify the required IP address.
• Specific Static Entry.
• None. Select if you do not want to delete any entry from the ARP Table.

1. If you select Specific Dynamic/Gateway Entry or Specific Static Entry in the Remove from Table list, you can enter the IP address of an entry to remove from the ARP table.

2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

3. If you change any of the settings on the page, click Apply to send the updated configuration to the switch.

Use the features in the QoS tab to configure Quality of Service (QoS) settings on the switch. The QoS tab contains links to the following features:

• ClassofServiceon page 177
• DifferentiatedServiceson page 184

In a typical switch, each physical port consists of one or more queues for transmitting packets on the attached network. Multiple queues per port are often provided to give preference to certain packets over others based on user-defined criteria. When a packet is queued for transmission in a port, the rate at which it is serviced depends on how the queue is configured and possibly the amount of traffic present in the other queues of the port. If a delay is necessary, packets get held in the queue until the scheduler authorizes the queue for transmission. As queues become full, packets have no place to be held for transmission and get dropped by the switch.

QoS is a means of providing consistent, predictable data delivery by distinguishing between packets that have strict timing requirements from those that are more tolerant of delay. Packets with strict timing requirements are given “special treatment” in a QoS-capable network. With this in mind, all elements of the network must be QoS-capable. The presence of at least one node which is not QoS-capable creates a deficiency in the network path and the performance of the entire packet flow is compromised.

Class of Service

The Class of Service (CoS) queueing feature lets you directly configure certain aspects of switch queueing. This provides the desired QoS behavior for different types of network traffic when the complexities of DiffServ are not required. The priority of a packet arriving at an interface can be used to steer the packet to the appropriate outbound CoS queue through a mapping table. CoS queue characteristics that affect queue mapping, such as minimum guaranteed bandwidth, or transmission rate shaping are user-configurable at the queue (or port) level.

Four queues per port are supported.

From the Class of Service link under the QoS tab, you can access the following pages:

• BasicCoSConfigurationon page 178
• CoSInterfaceConfigurationon page 179
• InterfaceQueueConfigurationon page 180
• 802.1ptoQueueMappingon page 182
• DSCPtoQueueMappingon page 183

Basic CoS Configuration

Use the Trust Mode Configuration page to set the class of service trust mode of an interface. Each port in the switch can be configured to trust one of the packet fields (802.1p or IP DSCP), or to not trust any packet's priority designation (untrusted mode). If the port is set to a trusted mode, it uses a mapping table appropriate for the trusted field being used. This mapping table indicates the CoS queue to which the packet should be forwarded on the appropriate egress port(s). Of course, the trusted field must exist in the packet for the mapping table to be of any use, so there are default actions performed when this is not the case. These actions involve directing the packet to a specific CoS level configured for the ingress port as a whole, based on the existing port default priority as mapped to a traffic class by the current 802.1p mapping table.

Alternatively, when a port is configured as untrusted, it does not trust any incoming packet priority designation and uses the port default priority value instead. All packets arriving at the ingress of an untrusted port are directed to a specific CoS queue on the appropriate egress port(s), in accordance with the configured default priority of the ingress port. This process is also used for cases where a trusted port mapping is unable to be honored, such as when a non-IP packet arrives at a port configured to trust the IP DSCP value.

To display the Basic CoS Configuration page, click QoS > Basic > CoS Configuration.

To configure global CoS settings:

1. Select the Global radio button to configure the trust mode settings that apply to all interfaces.

Alternatively, you can select the Interface radio button to apply trust mode settings to individual interfaces. The per-interface setting overrides the global settings.

1. Select the trust mode for all interfaces (Global Trust Mode) or the selected interface (Interface Trust Mode). This setting determines the type of CoS marking to trust when the frame enters the port.

• Untrusted. Do not trust any CoS packet marking at ingress.
- 802.1p. The eight priority tags that are specified in IEEE 802.1p are p0 to p7. The QoS setting lets you map each of the eight priority levels to one of four internal hardware priority queues: High, Normal, Low, and Lowest.
- DSCP. The six most significant bits of the DiffServ field are called the Differentiated Services Code Point (DSCP) bits.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

2. If you change any of the settings on the page, click Apply to send the updated configuration to the switch.

CoS Interface Configuration

Use the CoS Interface Configuration page to apply an interface shaping rate to all interfaces or to a specific interface.

To display the CoS Interface Configuration page, click the QoS > CoS tab, and then click the Advanced > CoS Interface Configuration link.

To configure CoS settings for an interface:

1. To configure CoS settings for a physical port, click the unit ID of the stack member with the ports to configure.

2. To configure CoS settings for a Link Aggregation Group (LAG), click LAGS.

3. To configure CoS settings for both physical ports and LAGs, click ALL.

4. Select the check box next to the port or LAG to configure. You can select multiple ports and LAGs to apply the same setting to the selected interfaces.

5. From the Interface Trust Mode field, specify whether or not the selected interface(s) trust a particular packet marking when the packet enters the port.

• Untrusted. Do not trust any CoS packet marking at ingress.
- 802.1p. The eight priority tags that are specified in IEEE 802.1p are p0 to p7. The QoS setting lets you map each of the eight priority levels to one of four internal hardware priority queues: High, Normal, Low, and Lowest.
- DSCP. The six most significant bits of the DiffServ field are called the Differentiated Services Code Point (DSCP) bits.

1. From the Interface Shaping Rate field, specify the maximum bandwidth allowed on the selected interface(s). This setting is typically used to shape the outbound transmission rate in increments of 64 kbps. This value is controlled independently of any per-queue maximum bandwidth configuration. It is effectively a second-level shaping mechanism. The default value is 0, in increments of 16. A value of 0 means the maximum is unlimited.

The expected shaping at egress interface is calculated as:

(frameSize × shaping × 64) ÷ (frameSize+IFG), where IFG (Inter frame gap) is 20 bytes, frameSize is the configured frame size of the traffic, and shaping is the configured traffic shaping in the Interface Shaping Rate field.

For example, when a 64 byte frame size and 64 kbps interface shaping rate are configured, the expected shaping will be approximately 3121 kbps.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

2. If you make changes to the page, click Apply to apply the changes to the system.

Interface Queue Configuration

Use the Interface Queue Configuration page to define what a particular queue does by configuring switch egress queues. User-configurable parameters control the amount of bandwidth used by the queue, the queue depth during times of congestion, and the scheduling of packet transmission from the set of all queues on a port. Each port has its own CoS queue-related configuration.

The configuration process is simplified by allowing each CoS queue parameter to be configured globally or per-port. A global configuration change is automatically applied to all ports in the system.

To display the Interface Queue Configuration page, click the QoS > CoS tab, and then click the Advanced > Interface Queue Configuration link.

To configure CoS queue settings for an interface:

1. To configure CoS queue settings for a physical port, click the unit ID of the stack member with the ports to configure.
2. To configure CoS queue settings for a Link Aggregation Group (LAG), click LAGS.
3. To configure CoS queue settings for both physical ports and LAGs, click ALL.
4. Select the check box next to the port or LAG to configure. You can select multiple ports and LAGs to apply the same setting to the selected interfaces. Select the check box in the heading row to apply a trust mode or rate to all interfaces.

5. Configure any of the following settings:

6. Queue ID. Use the menu to select the queue to be configured.

7. Minimum Bandwidth. Enter a percentage of the maximum negotiated bandwidth for the selected queue on the interface. Specify a percentage from 0–100, in increments of 1.
8. Scheduler Type. Selects the type of queue processing from the drop down menu. Options are Weighted and Strict. Defining on a per-queue basis allows the user to create the desired service characteristics for different types of traffic.

- Weighted: Weighted round robin associates a weight to each queue. This is the default.

- Strict: Services traffic with the highest priority on a queue first.

- Queue Management Type. Displays the type of packet management used for all packets, which is Taildrop. All packets on a queue are safe until congestion occurs. At this point, any additional packets queued are dropped.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
2. If you make changes to the page, click Apply to apply the changes to the system.

802.1p to Queue Mapping

The 802.1p to Queue Mapping page also displays the Current 802.1p Priority Mapping table. To display the 801.p to Queue Mapping page, click QoS > CoS > Advanced > 802.1p to Queue Mapping.

To map 802.1p priorities to queues:

1. Select the Global radio button to apply the same 802.1p priority mapping to all CoS configurable interfaces or select the Interface radio button to apply 802.1p priority mapping to on a per-interface basis.

If you map 802.1p priorities to individual interfaces, select the Interface radio button and then select the interface from the drop-down menu. The interface settings override the global settings for 802.1p priority mapping.

1. Select the queue to map to the predefined 802.1p priority values.

The 802.1p Priority row contains traffic class selectors for each of the eight 802.1p priorities to be mapped. The priority goes from low (0) to high (7). For example, traffic with a priority of 0 is for most data traffic and is sent using “best effort.” Traffic with a higher priority, such as 7, might be time-sensitive traffic, such as voice or video.

The values in each drop down menu represent the traffic class. The traffic class is the hardware queue for a port. Higher traffic class values indicate a higher queue position. Before traffic in a lower queue is sent, it must wait for traffic in higher queues to be sent.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

2. If you make changes to the page, click Apply to apply the changes to the system.

DSCP to Queue Mapping

Use the DSCP to Queue Mapping page to specify which internal traffic class to map the corresponding DSCP value.

To display the IP DSCP Mapping page, click QoS > CoS > Advanced > DSCP to Queue Mapping.

To map DSCP values to queues:

1. For each DSCP value, select a hardware queue to associate with the value.
   The traffic class is the hardware queue for a port. Higher traffic class values indicate a higher queue position. Before traffic in a lower queue is sent, it must wait for traffic in higher queues to be sent. The valid range is 0–6.
2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
3. If you make changes to the page, click Apply to apply the changes to the system.

Differentiated Services

The QoS feature contains Differentiated Services (DiffServ) support that allows traffic to be classified into streams and given certain QoS treatment in accordance with defined per-hop behaviors.

Standard IP-based networks are designed to provide “best effort” data delivery service. “Best effort” service implies that the network delivers the data in a timely fashion, although there is no guarantee that it will. During times of congestion, packets may be delayed, sent sporadically, or dropped. For typical Internet applications, such as e-mail and file transfer, a slight degradation in service is acceptable and in many cases unnoticeable. Conversely, any degradation of service has undesirable effects on applications with strict timing requirements, such as voice or multimedia.

Defining DiffServ

To use DiffServ for QoS, the Web pages accessible from the Differentiated Services menu page must first be used to define the following categories and their criteria:

1. Class: Create classes and define class criteria.
2. Policy: Create policies, associate classes with policies, and define policy statements.
3. Service: Add a policy to an inbound interface

Packets are classified and processed based on defined criteria. The classification criteria is defined by a class. The processing is defined by a policy's attributes. Policy attributes may be defined on a per-class instance basis, and it is these attributes that are applied when a match occurs. A policy can contain multiples classes. When the policy is active, the actions taken depend on which class matches the packet.

Packet processing begins by testing the class match criteria for a packet. A policy is applied to a packet when a class match within that policy is found.

The Differentiated Services menu page contains links to the various Diffserv configuration and display features.

To display the page, click QoS > DiffServ. The Differentiated Services menu page contains links to the following features:

• DiffservConfigurationon page 185
• ClassConfigurationon page 186
• IPv6ClassConfigurationon page 189
• PolicyConfigurationon page 191
• ServiceConfigurationon page 195
• ServiceStatisticson page 196

Diffserv Configuration

Use the Diffserv Configuration page to display DiffServ General Status Group information, which includes the current administrative mode setting as well as the current and maximum number of rows in each of the main DiffServ private MIB tables.

To display the page, click QoS > DiffServ > Advanced > Diffserv Configuration.

To configure the global DiffServ mode:

1. Select the administrative mode for DiffServ:

2. Enable. Differentiated Services are active.

3. Disable. The DiffServ configuration is retained and can be changed, but it is not active.

4. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

5. If you make changes to the page, click Apply to apply the changes to the system.

The following table describes the information displayed in the Status table on the DiffServ Configuration page:

Field Description
Class Table Displays the current and maximum number of rows of the class table.
Class Rule Table Displays the current and maximum number of rows of the class rule table.
Policy Table Displays the current and maximum number of rows of the policy table.
Policy Instance Table	Displays the current and maximum number of rows of the policy instance table.
Policy Attributes Table	Displays the current and maximum number of rows of the policy attributes table.
Service Table Displays the current and maximum number of rows of the service table.

Click Refresh to update the page with the current settings.

Class Configuration

Use the Class Configuration page to add a new DiffServ class name, or to rename or delete an existing class. The page also allows you to define the criteria to associate with a DiffServ class. As packets are received, these DiffServ classes are used to prioritize packets. You can have multiple match criteria in a class. The logic is a Boolean logical-and for this criteria. After creating a Class, click the class link to the Class page.

To display the page, click QoS > DiffServ > Advanced > Class Configuration.

To configure a DiffServ class:

1. To create a new class, enter a class name, select the class type, and click Add.
   The switch supports only the Class Type value All, which means all the various match criteria defined for the class should be satisfied for a packet match. All signifies the logical AND of all the match criteria.
2. To rename an existing class, select the check box next to the configured class, update the name, and click Apply.
3. To remove a class, click the check box beside the Class Name, then click Delete.
4. Click Refresh to refresh the page with the most current data from the switch.
5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch. After creating a Class, click the class link to the Class page.

To configure the class match criteria:

1. Click the class name for an existing class.

The class name is a hyperlink. The following figure shows the configuration fields for the class.

1. Define the criteria to associate with a DiffServ class:

2. Match Every. This adds to the specified class definition a match condition whereby all packets are considered to belong to the class. If you select this field, no other fields are configurable.

3. Reference Class. Selects a class to start referencing for criteria. A specified class can reference at most one other class of the same type.

4. Class of Service. Select the field and enter a class of service 802.1p user priority value to be matched for the packets. The valid range is 0–7.

5. VLAN. Select the field and enter a VLAN ID to be matched for packets. The VLAN ID range is 1–4093.
6. Ethernet Type. Select the EtherType field to compare the match criteria against the value in the header of an Ethernet frame. Select an EtherType keyword or enter an EtherType value to specify the match criteria. If you specify the EtherType value, select User Value from the menu and enter a custom protocol identifier to which packets are matched. The value is a four-digit hexadecimal number in the range of 0600-FFFF.
7. Source MAC. Select this field and enter the source MAC address to compare against an Ethernet frame.
8. Source MAC Mask. Enter the source MAC address mask specifying which bits in the destination MAC to compare against an Ethernet frame. An f indicates that the address bit is significant, and a 0 indicates that the address bit is to be ignored. A MAC mask of ff:ff:ff:ff:ff matches a single MAC address.
9. Destination MAC. Select this field and enter the destination MAC address to compare against an Ethernet frame.
10. Destination MAC Mask. Enter the destination MAC address mask specifying which bits in the destination MAC to compare against an Ethernet frame. An f indicates that the address bit is significant, and a 0 indicates that the address bit is to be ignored. A MAC mask of ff:ff:ff:ff:ff matches a single MAC address.
11. Protocol Type. Requires a packet's layer 4 protocol to match the protocol you select. If you select Other, enter a protocol number in the field that appears. The valid range is 0–255.
12. Source IP Address. Requires a packet's source port IP address to match the address listed here. In the IP Address field, enter a valid source IP address in dotted decimal format.
13. Source Mask. Enter a valid subnet mask to determine which bits in the IP address are significant. Note that this is not a wildcard mask.
14. Source L4 Port. Requires a packet's TCP/UDP source port to match the port you select. Select the desired L4 keyword from the list on which the rule can be based. If you select Other, the screen refreshes and a Port ID field appears. Enter a user-defined Port ID by which packets are matched to the rule.
15. Destination IP Address. Requires a packet's destination port IP address to match the address listed here. In the IP Address field, enter a valid destination IP address in dotted decimal format.
16. Destination Mask. Enter a valid subnet mask to determine which bits in the IP address are significant. This is not a wildcard mask.

17. Destination L4 Port. Requires a packet's TCP/UDP destination port to match the port you select. Select the desired L4 keyword from the list on which the rule can be based. If you select Other, the screen refreshes and a Port ID field appears. Enter a user-defined Port ID by which packets are matched to the rule.

18. IP DSCP. Matches the packet's DSCP to the class criteria's when selected. Select the DSCP type from the menu or enter a DSCP value to match. If you select Other, enter a custom value in the DSCP Value field that appears.

19. IP Precedence. Matches the packet's IP Precedence value to the class criteria's when Enter a value in the range of 0–7.

20. IP ToS. Matches the packet's Type of Service bits in the IP header to the class criteria's when selected and a value is entered. In the ToS Bits field, enter a two-digit hexadecimal number to match the bits in a packet's ToS field. In the ToS Mask field, specify the bit positions that are used for comparison against the IP ToS field in a packet.

21. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

22. If you change any of the settings on the page, click Apply to send the updated configuration to the switch. Configuration changes occur immediately.

23. Click Refresh to refresh the page with the most current data from the switch.

IPv6 Class Configuration

The IPv6 Class Configuration feature extends the existing DiffServ functionality by providing support for IPv6 packet classification. An Ethernet IPv6 packet is distinguished from an IPv4 packet by its unique EtherType value, so all IPv6 classifiers include the EtherType field.

Packets that match an IPv6 classifier are only allowed to be marked using the 802.1p (COS) field or the IP DSCP field in the Traffic Class octet. IP Precedence is not defined for IPv6: this is not an appropriate type of packet marking.

To display the page, click QoS > DiffServ > Advanced > IPv6 Class Configuration.

To configure an IPv6 DiffServ class:

1. To create a new class, enter a class name, select the class type, and click Add.
   The switch supports only the Class Type value All, which means all the various match criteria defined for the class should be satisfied for a packet match. All signifies the logical AND of all the match criteria.
2. To rename an existing class, select the check box next to the configured class, update the name, and click Apply.
3. To remove a class, click the check box beside the Class Name, then click Delete.
4. Click Refresh to refresh the page with the most current data from the switch.
5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch. After creating a Class, click the class link to the Class page.

To configure the class match criteria:

1. Click the class name for an existing class.

The class name is a hyperlink. The following figure shows the configuration fields for the class.

1. Define the criteria to associate with a DiffServ class:

2. Match Every. This adds to the specified class definition a match condition whereby all packets are considered to belong to the class. If you select this field, no other fields are configurable.

3. Reference Class. Selects a class to start referencing for criteria. A specified class can reference at most one other class of the same type.

4. Protocol Type. Requires a packet's layer 4 protocol to match the protocol you select. If you select Other, enter a protocol number in the field that appears. The valid range is 0–255.

5. Source IP Address. Requires a packet's source port IP address to match the address listed here. In the IP Address field, enter a valid source IP address in dotted decimal format.

6. Source Prefix/Length. Enter a valid source IPv6 prefix to compare against an IPv6 packet. The prefix is always specified with the prefix length. The prefix can be in the range of ::0 to FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF. The prefix length range is 0–128.
7. Source L4 Port. Requires a packet's TCP/UDP source port to match the port you select. Select the desired L4 keyword from the list on which the rule can be based. If you select Other, the screen refreshes and a Port ID field appears. Enter a user-defined Port ID by which packets are matched to the rule.
8. Destination Prefix/Length. Requires a packet's destination IPv6 prefix and length matches the address listed here. The prefix can be in the range of ::0 to FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF. The prefix length range is 0–128.
9. Destination L4 Port. Requires a packet's TCP/UDP destination port to match the port you select. Select the desired L4 keyword from the list on which the rule can be based. If you select Other, the screen refreshes and a Port ID field appears. Enter a user-defined Port ID by which packets are matched to the rule.
10. Flow Label. This is a 20-bit number that is unique to an IPv6 packet. It is used by end stations to signify QoS handling in routers. The range is 0 to 1048575.
11. IP DSCP. Matches the packet's DSCP to the class criteria's when selected. Select the DSCP type from the menu or enter a DSCP value to match. If you select Other, enter a custom value in the DSCP Value field that appears.
12. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
13. If you change any of the settings on the page, click Apply to send the updated configuration to the switch. Configuration changes occur immediately.
14. Click Refresh to refresh the page with the most current data from the switch.

Policy Configuration

Use the Policy Configuration page to associate a collection of classes with one or more policy statements. After creating a Policy, click the policy link to the Policy page.

To display the page, click QoS > DiffServ > Advanced > Policy Configuration.

To configure a DiffServ policy:

1. To create a new policy, enter a policy name in the Policy Selector field, select the existing DiffServ class to associate with the policy, and click Add.
   The available policy type is In, which indicates the type is specific to inbound traffic. This field is not configurable.
2. To rename an existing policy or add a new member class to the policy, select the check box next to the configured class, update the fields, and click Apply.
3. To remove a policy, click the check box beside the policy, then click Delete.
4. Click Refresh to refresh the page with the most current data from the switch.
5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch. After creating a Class, click the class link to the Class page.

To configure the policy attributes:

1. Click the name of the policy.

The policy name is a hyperlink. The following figure shows the configuration fields for the policy.

1. Select the queue to which packets of this policy-class will be assigned.

2. Configure the policy attributes:.

3. Drop. Select this option to drop packets for this policy-class.

4. Mark CoS. Enter the specified Class of Service queue number to mark all packets for the associated traffic stream with the specified class of service value in the priority field of the 802.1p header. If the packet does not already contain this header, one is inserted. The CoS value is an integer from 0–7.
5. Mark IP Precedence. Use this attribute to mark all packets for the associated traffic stream with the IP Precedence value you enter in the IP Precedence Value field.
6. Mark IP DSCP. Use this attribute to mark all packets for the associated traffic stream with IP DSCP value you choose from the menu. If you select Other, enter a custom value in the DSCP Value field that appears.

7. Simple Policy. Use this attribute to establish the traffic policing style for the specified class. The simple form of the policy command uses a single data rate and burst size, resulting in two outcomes: confirm and violate.

8. If you select the Simple Policy attribute, you can configure the following fields:

9. Color Mode. Color Aware mode requires the existence of one or more color classes that are valid for use with this policy instance; otherwise, the color mode is color blind, which is the default.

10. Color Conform Class. A valid color class contains a single, non-excluded match criterion for one of the following fields (provided the field does not conflict with the classifier of the policy instance itself).
    • Color Conform Mode. The match-criteria of the color Conform class.
11. Committed Rate. The committed rate is specified in kilobits-per-second (Kbps) and is an integer from 1–4294967295.
12. Committed Burst Size. The committed burst size is specified in kilobytes (KB) and is an integer from 1–128.

- Conform Action. Determines what happens to packets that are considered conforming (below the police rate). Select one of the following actions:

• Send. (default) These packets are presented unmodified by DiffServ to the system forwarding element.
• Drop. These packets are immediately dropped.
• Mark CoS. These packets are marked by DiffServ with the specified CoS value before being presented to the system forwarding element. This selection requires that the Mark CoS value field be set.
• Mark IP Precedence. These packets are marked by DiffServ with the specified IP Precedence value before being presented to the system forwarding element. This selection requires that the Mark IP Precedence value field be set.
• Mark IP DSCP. These packets are marked by DiffServ with the specified DSCP value before being presented to the system forwarding element. This selection requires that the DSCP value field be set.

- Violate Action. Determines what happens to packets that are considered non-conforming (above the police rate). Select one of the following actions:

• Send. (default) These packets are presented unmodified by DiffServ to the system forwarding element.
• Drop. (default) These packets are immediately dropped.
• Mark CoS. These packets are marked by DiffServ with the specified CoS value before being presented to the system forwarding element. This selection requires that the Mark CoS value field be set.
• Mark IP Precedence. These packets are marked by DiffServ with the specified IP Precedence value before being presented to the system forwarding element. This selection requires that the Mark IP Precedence value field be set.

• Mark IP DSCP. These packets are marked by DiffServ with the specified DSCP value before being presented to the system forwarding element. This selection requires that the DSCP value field be set.

• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

• If you change any of the settings on the page, click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.

• Click Refresh to refresh the page with the most current data from the switch.

Service Configuration

Use the Service Configuration page to activate a policy on an interface.

To display the page, click QoS > DiffServ > Advanced > Service Configuration.

To configure DiffServ policy settings on an interface:

1. To configure DiffServ policy settings for a physical port, click the unit ID of the stack member with the ports to configure.
2. To configure DiffServ policy settings for a Link Aggregation Group (LAG), click LAGS.
3. To configure DiffServ policy settings for both physical ports and LAGs, click ALL.
4. Select the check box next to the port or LAG to configure. You can select multiple ports and LAGs to apply the same setting to the selected interfaces. Select the check box in the heading row to apply the same settings to all interfaces.
5. To activate a policy for the selected interface(s) select the policy from the Policy In menu, and then click Apply.
6. To remove a policy from the selected interface(s) select None from the Policy In menu, and then click Apply.
7. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Service Statistics

Use the Service Statistics page to display service-level statistical information about all interfaces that have DiffServ policies attached.

To display the page, click the QoS > DiffServ tab and then click the Advanced > Service Statistics link.

The following table describes the information available on the Service Statistics page.

Field Description
Interface Displays the	interface for which service statistics are to display.
Direction Displays the	direction of packets for which service statistics display, which is always In.
Policy Name Displays	the policy associated with the selected interface.
Operational Status Displays the operational status of this service interface, which is either Up or Down.
Discarded Packets Displays the total number of packets discarded for all class instances in this service policy for any reason due to DiffServ treatment. This is the overall count per-interface, per-direction.
Member Classes Selects the member class for which octet statistics are to display.

Click Refresh to update the page with the most current information.

Use the features available from the Security tab to configure management security settings for port, user, and server security. The Security tab contains links to the following features:

• ManagementSecuritySettings page 197
- ConfiguringManagementAccesson page 210
• PortAuthentication on page 218
• TrafficControl on page 225
- ConfiguringAccessControlListson page 234

Management Security Settings

From the Management Security Settings page, you can configure the login password, Remote Authorization Dial-In User Service (RADIUS) settings, Terminal Access Controller Access Control System (TACACS+) settings, and authentication lists.

To display the page, click the Security > Management Security tab. The Management Security folder contains links to the following features:

• ChangePasswordon page 198
• RADIUSConfigurationon page 199
- ConfiguringTACACS+on page 204
• AuthenticationListConfigurationon page 207

Change Password

Use the page to change the login password. To display the page, click Security > Management Security > User Configuration > Change Password.

To change the login password for the management interface:

1. Specify the current password in the Old Password. The entered password will be displayed in asterisks (*). Passwords are 1–20 alphanumeric characters in length and are case sensitive.
2. Enter the new password. It will not display as it is typed, and only asterisks (*) will show on the screen. Passwords are 1–20 alphanumeric characters in length and are case sensitive.
3. To confirm the password, enter it again to make sure you entered it correctly. This field will not display, but will show asterisks (*).
4. Use the Reset Password field to reset the password to the default value.
5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
6. If you make changes to the page, click Apply to apply the changes to the system.
7. Click Refresh to update the screen with the current information.

Note: In the case of a lost password, press the Factory Default Reset button on the front panel for more than one second to restore the factory default. The reset button will only reboot the device.

RADIUS Configuration

RADIUS servers provide additional security for networks. The RADIUS server maintains a user database, which contains per-user authentication information. The switch passes information to the configured RADIUS server, which can authenticate a user name and password before authorizing use of the network. RADIUS servers provide a centralized authentication method for:

Web Access
• Access Control Port (802.1X)

The RADIUS folder contains links to the following features:

• GlobalConfigurationon page 199
• RADIUSServerConfigurationon page 201
• AccountingServerConfigurationon page 203

Global Configuration

Use the RADIUS Configuration page to add information about one or more RADIUS servers on the network.

To access the RADIUS Configuration page, click Security > Management Security > RADIUS > Global Configuration.

The Current Server IP Address field is blank if no servers are configured (see RADIUS ServerConfigurationon page 201). The switch supports up to three configured RADIUS servers. If more than one RADIUS servers are configured, the current server is the server configured as the primary server. If no servers are configured as the primary server, the current server is the most recently added RADIUS server.

To configure global RADIUS server settings:

1. In the Max Number of Retransmits field, specify the value of the maximum number of times a request packet is retransmitted to the RADIUS server.

Consideration to maximum delay time should be given when configuring RADIUS max retransmit and RADIUS timeout. If multiple RADIUS servers are configured, the max retransmit value on each will be exhausted before the next server is attempted. A retransmit will not occur until the configured timeout value on that server has passed without a response from the RADIUS server. Therefore, the maximum delay in receiving a response from the RADIUS application equals the sum of (retransmit times timeout) for all configured servers. If the RADIUS request was generated by a user login attempt, all user interfaces will be blocked until the RADIUS application returns a response.

1. In the Timeout Duration field, specify the timeout value, in seconds, for request retransmissions.

Consideration to maximum delay time should be given when configuring RADIUS max retransmit and RADIUS timeout. If multiple RADIUS servers are configured, the max retransmit value on each will be exhausted before the next server is attempted. A retransmit will not occur until the configured timeout value on that server has passed without a response from the RADIUS server. Therefore, the maximum delay in receiving a response from the RADIUS application equals the sum of (retransmit times timeout) for all configured servers. If the RADIUS request was generated by a user login attempt, all user interfaces will be blocked until the RADIUS application returns a response.

1. From the Accounting Mode menu, select whether the RADIUS accounting mode is enabled or disabled on the current server.

2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

3. If you make changes to the page, click Apply to apply the changes to the system.

RADIUS Server Configuration

Use the RADIUS Server Configuration page to view and configure various settings for the current RADIUS server configured on the system.

To access the RADIUS Server Configuration page, click Security > Management Security, and then click the RADIUS > Server Configuration link.

To configure a RADIUS server:

1. To add a RADIUS server, specify the settings the following list describes, and click Add.

• In the Server Address field, specify the IP address of the RADIUS server to add.
- In the Authentication Port field, specify the UDP port number the server uses to verify the RADIUS server authentication. The valid range is 0–65535.
- From the Secret Configured menu, select Yes to add a RADIUS secret in the next field. You must select Yes before you can configure the RADIUS secret. After you add the RADIUS server, this field indicates whether the shared secret for this server has been configured.
- In the Secret field, type the shared secret text string used for authenticating and encrypting all RADIUS communications between the switch and the RADIUS server. This secret must match the RADIUS encryption.
• From the Active menu, specify whether the server is a Primary or Secondary server.
- From the Message Authenticator menu, enable or disable the message authenticator attribute for the selected server.
- From the Server Type menu, specify whether the authentication server is a NETGEAR product or Standard authentication server.

1. To modify settings for a RADIUS server that is already configured on the switch, select the check box next to the server address, update the desired fields, and click Apply.
2. Click Refresh to update the page with the most current information.
3. To delete a configured RADIUS server, select the check box next to the server address, and then click Delete.

5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

The following table describes the RADIUS server statistics available on the page.

Field Description
Server Address This displays all configured RADIUS servers.
Round Trip Time The time interval, in hundredths of a second, between the most recent Access-Reply/Access-Challenge and the Access-Request that matched it from this RADIUS authentication server.
Access Requests The number of RADIUS Access-Request packets sent to this server. This number does not include retransmissions.
Access Retransmissions The number of RADIUS Access-Request packets retransmitted to this server.
Access Accepts The number of RADIUS Access-Accept packets, including both valid and invalid packets, that were received from this server.
Access Rejects The number of RADIUS Access-Reject packets, including both valid and invalid packets, that were received from this server.
Access Challenges The number of RADIUS Access-Challenge packets, including both valid and invalid packets, that were received from this server.
Malformed Access Responses	The number of malformed RADIUS Access-Response packets received from this server. Malformed packets include packets with an invalid length. Bad authenticators or signature attributes or unknown types are not included as malformed access-responses.
Bad Authenticators The number of RADIUS Access-Response packets containing invalid authenticators or signature attributes received from this server.
Pending Requests The number of RADIUS Access-Request packets destined for this server that have not yet timed out or received a response.
Timeouts The number of authentication timeouts to this server.
Unknown Types The number of RADIUS packets of unknown type which were received from this server on the authentication port.
Packets Dropped The number of RADIUS packets received from this server on the authentication port and dropped for some other reason.

Use the buttons at the bottom of the page to perform the following actions:

• Click Clear Counters to clear the authentication server and RADIUS statistics to their default values.
• Click Refresh to refresh the page with the most current data from the switch.

Accounting Server Configuration

Use the RADIUS Accounting Server Configuration page to view and configure various settings for one or more RADIUS accounting servers on the network.

To access the RADIUS Accounting Server Configuration page, click Security > Management Security > RADIUS > Accounting Server Configuration.

To configure the RADIUS accounting server:

1. In the Accounting Server Address field, specify the IP address of the RADIUS accounting server to add.
2. In the Port field, specify the UDP port number the server uses to verify the RADIUS accounting server authentication. The valid range is 0–65535.
3. From the Secret Configured menu, select Yes to add a RADIUS secret in the next field. You must select Yes before you can configure the RADIUS secret. After you add the RADIUS accounting server, this field indicates whether the shared secret for this server has been configured.
4. In the Secret field, type the shared secret to use with the specified accounting server.
5. From the Accounting Mode menu, enable or disable the RADIUS accounting mode.
6. Click Apply to update the switch with the RADIUS Accounting server settings.
7. To delete a configured RADIUS Accounting server, click Delete.
8. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

The following table describes RADIUS accounting server statistics available on the page.

Field Description
Accounting Server Address Displays the IP address of the supported RADIUS accounting server.
Round Trip Time (secs) Displays the time interval, in hundredths of a second, between the most recent Accounting-Response and the Accounting-Request that matched it from this RADIUS accounting server.
Accounting Requests The number of RADIUS Accounting-Request packets sent to this server. This number does not include retransmissions.
Accounting Retransmissions The number of RADIUS Accounting-Request packets retransmitted to this server.
Accounting Responses Displays the number of RADIUS packets received on the accounting port from this server.
Malformed Accounting Responses	Displays the number of malformed RADIUS Accounting-Response packets received from this server. Malformed packets include packets with an invalid length. Bad authenticators and unknown types are not included as malformed accounting responses.
Bad Authenticators Displays the number of RADIUS Accounting-Response packets that contained invalid authenticators received from this accounting server.
Pending Requests The number of RADIUS Accounting-Request packets destined for this server that have not yet timed out or received a response.
Timeouts The number of accounting timeouts to this server.
Unknown Types The number of RADIUS packets of unknown type which were received from this server on the accounting port.
Packets Dropped The number of RADIUS packets received from this server on the accounting port and dropped for some other reason.

Use the buttons at the bottom of the page to perform the following actions:

• Click Clear Counters to reset all statistics to their default value.
• Click Refresh to update the page with the most current information.

Configuring TACACS+

TACACS+ provides a centralized user management system, while still retaining consistency with RADIUS and other authentication processes. TACACS+ provides the following services:

• Authentication: Provides authentication during login and via user names and user-defined passwords.
• Authorization: Performed at login. When the authentication session is completed, an authorization session starts using the authenticated user name. The TACACS+ server checks the user privileges.

The TACACS+ protocol ensures network security through encrypted protocol exchanges between the device and TACACS+ server.

The TACACS+ folder contains links to the following features:

• ConfiguringTACACS+on page 204
  • TACACS+ServerConfigurationon page 206

TACACS+ Configuration

The TACACS+ Configuration page contains the TACACS+ settings for communication between the switch and the TACACS+ server you configure via the inband management port.

To display the TACACS+ Configuration page, click Security > Management Security, and then click the TACACS+ > TACACS+ Configuration link.

To configure global TACACS+ settings:

1. In the Key String field, specify the authentication and encryption key for TACACS+ communications between the GS728TS, GS728TPS, GS752TS, or GS752TPS and the TACACS+ server. The valid range is 0–128 characters. The key must match the key configured on the TACACS+ server.
2. In the Connection Timeout field, specify the maximum number of seconds allowed to establish a TCP connection between the GS728TS, GS728TPS, GS752TS, or GS752TPS and the TACACS+ server. The valid range is 1–30 seconds.
3. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
4. If you make any changes to the page, click Apply to apply the new settings to the system.

TACACS+ Server Configuration

Use the TACACS+ Server Configuration page to configure up to five TACACS+ servers with which the switch can communicate.

To display the TACACS+ Server Configuration page, click Security > Management Security, and then click the TACACS+ > Server Configuration link.

To configure TACACS+ server settings:

1. To add a new TACACS+ server, enter its IP address or hostname in the TACACS+ Server field.
2. In the Priority field, specify the order in which the TACACS+ servers are used. A value of 0 is the highest priority.
3. In the Port field, specify the authentication port number through which the TACACS+ session occurs. The default is port 49, and the range is 0–65535.
4. In the Key String field, specify the authentication and encryption key for TACACS+ communications between the switch and the TACACS+ server. This key must match the encryption used on the TACACS+ server. The valid range is 0–128 characters.
5. In the Connection Timeout field, specify the amount of time that passes before the connection between the device and the TACACS+ server times out. The field range is from 1 to 30 seconds.
6. If you make changes to the page, or add a new entry, click Apply to apply the changes to the system.
7. To delete a configured TACACS+ server, select the check box associated with the server you want to remove, and then click Delete.
8. Click Cancel to abandon the changes.

Authentication List Configuration

From the Authentication List pages, you can configure the login lists for HTTP, HTTPS, or IEEE 802.1X authentication. A login list specifies one or more authentication methods to validate switch or port access.

HTTP Authentication List

Use the HTTP Authentication List page to configure the authentication method(s) the admin user must use when accessing the management interface through HTTP.

To access the HTTP Authentication List page, click Security > Management Security > Authentication List, and then click the HTTP Authentication List link.

To change the authentication method for the-END:

1. Select the check box next to the-ENDList name

2. Use the drop down menu in the 1 column to select the authentication method that should appear first in the selected authentication login list. If you select a method that does not time out as the first method, such as 'local', no other method will be tried, even if you have specified more than one method. This parameter will not appear when you first create a new login list. User authentication occurs in the order the methods are selected. Possible methods are as follows:

- Local: The user's locally stored ID and password will be used for authentication. Since the local method does not time out, if you select this option as the first method, no other method will be tried, even if you have specified more than one method.

- RADIUS: The user's ID and password will be authenticated using the RADIUS server. If you select RADIUS or TACACS+ as the first method and an error occurs during the authentication, the switch uses Method 2 to authenticate the user.

- TACACS+: The user's ID and password will be authenticated using the TACACS+ server. If you select RADIUS or TACACS+ as the first method and an error occurs during the authentication, the switch attempts user authentication Method 2.

• None: The authentication method is unspecified.

1. Use the menu in the 2 column to select the authentication method, if any, that should appear second in the selected authentication login list. This is the method that will be used if the first method times out. If you select a method that does not time out as the second method, the third method will not be tried. This parameter will not appear when you first create a new login list.
2. Use the menu in the 3 column to select the authentication method, if any, that should appear third in the selected authentication login list. This parameter will not appear when you first create a new login list.
3. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
4. If you make changes to the page, click Apply to apply the changes to the system.

HTTPS Authentication List

Use the HTTPS Authentication List page to configure the authentication method(s) the admin user must use when accessing the management interface through secure HTTP (HTTPS).

To access the HTTPS Authentication List page, click Security > Management Security > Authentication List, and then click the HTTPS Authentication List link.

To change the authentication method for the httpsList:

1. Select the check box next to the httpsList name
2. Use the drop down menu in the 1 column to select the authentication method that should appear first in the selected authentication login list. If you select a method that does not time out as the first method, such as 'local', no other method will be tried, even if you have specified more than one method. This parameter will not appear when you first create a new login list. User authentication occurs in the order the methods are selected. Possible methods are as follows:

- Local: The user's locally stored ID and password will be used for authentication. Since the local method does not time out, if you select this option as the first method, no other method will be tried, even if you have specified more than one method.

• RADIUS: The user's ID and password will be authenticated using the RADIUS server. If you select RADIUS or TACACS+ as the first method and an error occurs during the authentication, the switch uses Method 2 to authenticate the user.
• TACACS+: The user's ID and password will be authenticated using the TACACS+ server. If you select RADIUS or TACACS+ as the first method and an error occurs during the authentication, the switch attempts user authentication Method 2.

• None: The authentication method is unspecified. This option is only available for Method 2 and Method 3.

• Use the menu in the 2 column to select the authentication method, if any, that should appear second in the selected authentication login list. This is the method that will be used if the first method times out. If you select a method that does not time out as the second method, the third method will not be tried. This parameter will not appear when you first create a new login list.

• Use the menu in the 3 column to select the authentication method, if any, that should appear third in the selected authentication login list. This parameter will not appear when you first create a new login list.
• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
• If you make changes to the page, click Apply to apply the changes to the system.

Dot1x Authentication List

Use the Dot1x Authentication List page to configure the authentication method(s) a host connected to a switch port must use when attempting to access the network.

To access the Dot1x Authentication List page, click Security > Management Security > Authentication List, and then click the Dot1x Authentication List link.

To change the authentication method for the dot1xList:

1. Select the check box next to the dot1xList name

2. Use the drop down menu in the 1 column to select the authentication method that should appear first in the selected authentication login list. If you select a method that does not time out as the first method, such as 'local', no other method will be tried. The possible methods are as follows:

3. Local: The user's locally stored ID and password will be used for authentication. Since the local method does not time out, if you select this option as the first method, no other method will be tried, even if you have specified more than one method.

4. RADIUS: The user's ID and password will be authenticated using the RADIUS server. If you select RADIUS or TACACS+ as the first method and an error occurs during the authentication, the switch uses Method 2 to authenticate the user.

5. None: The authentication method is unspecified. This option is only available for Method 2 and Method 3.

6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

7. If you make changes to the page, click Apply to apply the changes to the system.

Configuring Management Access

From the Access page, you can configure HTTP and Secure HTTP access to the GS728TS, GS728TPS, GS752TS, or GS752TPS management interface. You can also configure Access Control Profiles and Access Rules.

The Security > Access tab contains the following folders:

• HTTPConfigurationon page 211
• SecureHTTPConfigurationon page 212
  • CertificateDownloadon page 214
• AccessProfileConfigurationon page 215
  • AccessRuleConfigurationon page 217

HTTP Configuration

Use the HTTP Configuration page to configure the HTTP server settings on the system.

To access the HTTP Configuration page, click Security > Access, and then click the HTTP > HTTP Configuration link.

To configure the HTTP server settings:

1. Enable or disable the Web Java Mode. This applies to both secure and un-secure HTTP connections. The currently configured value is shown when the Web page is displayed. The default value is Enable.

2. In the HTTP Session Soft Timeout field, specify the number of minutes an HTTP session can be idle before a timeout occurs.

After the session is inactive for the configured amount of time, the administrator is automatically logged out and must re-enter the password to access the management interface. A value of zero corresponds to an infinite timeout. The default value is 5 minutes. The currently configured value is shown when the Web page is displayed.

1. In the HTTP Session Hard Timeout field, specify the hard timeout for HTTP sessions.

This timeout is unaffected by the activity level of the session. The value must be in the range of (0–168) hours. A value of zero corresponds to an infinite timeout. The default value is 24 hours. The currently configured value is shown when the Web page is displayed.

1. In the Maximum Number of HTTP Sessions field, specify the maximum number of HTTP sessions that can exist at the same time. The value must be in the range of (0–16). The default value is 16. The currently configured value is shown when the Web page is displayed.

2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

3. If you make changes to the page, click Apply to apply the changes to the system.

Secure HTTP Configuration

Secure HTTP enables the transmission of HTTP over an encrypted Secure Sockets Layer (SSL) or Transport Layer Security (TLS) connection. When you manage the switch by using a Web interface, secure HTTP can help ensure that communication between the management system and the switch is protected from eavesdroppers and man-in-the-middle attacks.

Use the Secure HTTP Configuration page to configure the settings for HTTPS communication between the management station and the switch.

To display the Secure HTTP Configuration page, click Security > Access, and then click the HTTPS > HTTPS Configuration link.

To configure HTTPS settings:

1. Use the radio buttons in the HTTPS Admin Mode field to enable or disable the Administrative Mode of Secure HTTP.

The currently configured value is shown when the Web page is displayed. The default value is Disable. You can only download SSL certificates when the HTTPS Admin mode is disabled.

1. Use the radio buttons in the SSL Version 3 field to enable or disable Secure Sockets Layer Version 3.0. The currently configured value is shown when the Web page is displayed. The default value is Enable.

2. Use the radio buttons in the TLS Version 1 field to enable or disable Transport Layer Security Version 1.0. The currently configured value is shown when the Web page is displayed. The default value is Enable.

3. In the HTTPS Port field, specify the TCP port to use for HTTPS data. The value must be in the range of 1–65535. Port 443 is the default value. The currently configured value is shown when the Web page is displayed.

4. In the HTTPS Session Soft Timeout field, specify the number of minutes an HTTPS session can be idle before a timeout occurs.

After the session is inactive for the configured amount of time, the administrator is automatically logged out and must re-enter the password to access the management interface. A value of zero corresponds to an infinite timeout. The default value is 5 minutes. The currently configured value is shown when the Web page is displayed.

1. In the HTTPS Session Hard Timeout field, specify the number of hours an HTTPS session can remain active, regardless of session activity. The value must be in the range of (1–168) hours. The default value is 24 hours. The currently configured value is shown when the Web page is displayed.
2. In the Maximum Number of HTTPS Sessions field, specify the maximum number of HTTPS sessions that can be open at the same time. The value must be in the range of (0–2). The default value is 2. The currently configured value is shown when the Web page is displayed.
3. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
4. If you make changes to the page, click Apply to apply the changes to the system.

Certificate Management

Use this menu to generate or delete certificates.

To display the Certificate Management page, click Security > Access, and then click the HTTPS > Certificate Management link.

1. The Certificate Present field indicates whether an SSL certificate exists on the switch. A status of Yes means that a certificate is present, while No means that no certificate exists.
2. To generate a certificate file, select Generate Certificates and click Apply.
   The Certificate Generation Status field displays whether SSL certificate generation is in progress.

3. To delete the certificate file from the system, select Delete Certificates and click Apply.

4. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Certificate Download

For the Web server on the switch to accept HTTPS connections from a management station, the Web server needs a public key certificate. You can generate a certificate externally (for example, off-line) and download it to the switch.

To display the Certificate Download page, click Security > Access, and then click the HTTPS > Certificate Download link.

Downloading SSL Certificates

Before you download a file to the switch, the following conditions must be true:

• The file to download from the TFTP server is on the server in the appropriate directory.
  • The file is in the correct format.
  • The switch has a path to the TFTP server.

To configure the certificate download settings for HTTPS sessions:

1. From the File Type menu, select the type of SSL certificate to download, which can be one of the following:

2. SSL Trusted Root Certificate PEM File. SSL Trusted Root Certificate File (PEM Encoded).

3. SSL Server Certificate PEM File. SSL Server Certificate File (PEM Encoded).
4. SSL DH Weak Encryption Parameter PEM File. SSL Diffie-Hellman Weak Encryption Parameter File (PEM Encoded).

5. SSL DH Strong Encryption Parameter PEM File. SSL Diffie-Hellman Strong Encryption Parameter File (PEM Encoded).

6. In the Server Address Type filed, specify whether the address of the TFTP server is an IPv4 address or a DNS hostname.

7. In the TFTP Server IP field, specify the address of the TFTP server. The address can be an IP address in standard x.x.x.x format or a hostname. The hostname must start with a letter of the alphabet. Make sure that the software image or other file to be downloaded is available on the TFTP server.

8. In the Remote File Path field, specify the path on the TFTP server where the file is located. You may enter up to 96 characters.
9. In the Remote File Name field, specify the name of the file to download. You may enter up to 32 characters.
10. Select the Start File Transfer check box.
11. Click Apply to start the transfer. A status message displays during the transfer and upon successful completion of the transfer.
12. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Access Profile Configuration

Use the Access Profile Configuration page to configure settings that control management access to the switch. Access profile configuration requires three steps:

1. Use the Access Profile Configuration page to create an access profile. To add rules to the profile, the access profile must be deactivated, which is the default setting.
2. Use the Access Rule Configuration page to add one or more access rules to the profile.
3. Return to the Access Profile Configuration page to activate the profile.

To access the Access Profile Configuration page, click Security > Access, and then click the Access Control > Access Profile Configuration link.

To configure an Access Profile:

1. In the Access Profile Name field, specify the name of the access profile to be added. The maximum length is 32 characters.
2. To activate an access profile, select the Activate Profile check box. You cannot add rules to an active profile.
3. To deactivate an access profile, select the Deactivate Profile check box.
4. To remove an access profile, select the Remove Profile check box. The access profile should be deactivated before removing the access profile.
5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
6. If you make changes to the page, click Apply to apply the changes to the system.

The Profile Summary table shows the rules that are configured for the profile, as the following table describes.

Field Description
Rule Type Identifies the action	the rule takes, which is either Permit or Deny.
Service Type Displays the type	of service to allow or prohibit from accessing the switch management interface:• SNMP• HTTP• HTTPS
Source IP Address Displays the	IP Address of the client that may or may not originate management traffic.
Mask Displays the subnet mask	associated with the IP address.
Priority Displays the priority of	the rule. The rules are validated against the incoming management request in the ascending order of their priorities. If a rule matches, action is performed and subsequent rules below are ignored.

Click Refresh to update the page with the most current information.

Access Rule Configuration

Use the Access Rule Configuration page to configure the rules about what systems can access the GS728TS, GS728TPS, GS752TS, or GS752TPS Web interface and what protocols are allowed.

To access the Access Rule Configuration page, click Security > Access, and then click the Access Control > Access Rule Configuration link.

Before you create access rules, make sure:

• An access profile exists.
• The access profile is deactivated.

To configure access profile rules:

1. To add an access profile rule, configure the following settings and click Add.

- Rule Type: Specify whether the rule permits or denies access to the GS728TS, GS728TPS, GS752TS, or GS752TPS management interface.

• Select Permit to allow access to the management interface for traffic that meets the criteria you configure for the rule. Any traffic that does not meet the rules is denied.
• Select Deny to prohibit access to the management interface for traffic that meets the criteria you configure for the rule. Any traffic that does not meet the rules is allowed access to the switch. Unlike MAC ACLs and IP ACLs, there is no implied deny all rule at the end of the rule list.

- Service Type. Select the type of service to allow or prohibit from accessing the switch management interface:

SNMP
- HTTP
- HTTPS

• Source IP Address. Specify the IP Address of the client originating the management traffic.
• Mask. Specify the subnet mask associated with the IP address. The subnet mask is a standard subnet mask, and not an inverse (wildcard) mask that you use with IP ACLs.
• Priority. Configure priority to the rule. The rules are validated against the incoming management request in the ascending order of their priorities. If a rule matches, action is performed and subsequent rules below are ignored. For example, if a Source IP 10.10.10.10 is configured with priority 1 to permit, and Source IP 10.10.10.10 is configured with priority 2 to Deny, then access is permitted if the profile is active, and the second rule is ignored.
• To modify an access rule, select the check box next to the Rule Type, update the desired settings, and click Apply
• To delete an access rule, select the check box next to the Rule Type, and click Delete.
• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Port Authentication

In port-based authentication mode, when 802.1X is enabled globally and on the port, successful authentication of any one supplicant attached to the port results in all users being able to use the port without restrictions. At any given time, only one supplicant is allowed to attempt authentication on a port in this mode. Ports in this mode are under bidirectional control. This is the default authentication mode.

The 802.1X network has three components:

• Authenticators: Specifies the port that is authenticated before permitting system access.
- Supplicants: Specifies the host connected to the authenticated port requesting access to the system services.
- Authentication Server: Specifies the external server, for example, the RADIUS server that performs the authentication on behalf of the authenticator, and indicates whether the user is authorized to access system services.

From the Port Authentication link, you can access the following pages:

Basic:
• 802.1XConfigurationon page 219
- Advanced:
• PortAuthentication on page 220
• PortSummaryon page 224

802.1X Configuration

Use the 802.1X Configuration page to enable or disable port access control on the system. To display the 802.1X Configuration page, click Security > Port Authentication > Basic > 802.1X Configuration.

To configure global 802.1X settings:

1. Select the appropriate radio button in the Port Based Authentication State field to enable or disable 802.1X administrative mode on the switch.

- Enable. Port-based authentication is permitted on the switch.

Note: If 802.1X is enabled, authentication is performed by a RADIUS server. This means the primary authentication method must be RADIUS. To set the method, go to Security > Management Security > Dot1x Authentication List and select RADIUS as method 1 for dot1xList. For more information, see Authentication ListConfigurationon page 207.

- Disable. The switch does not check for 802.1X authentication before allowing traffic on any ports, even if the ports are configured to allow only authenticated users.

1. Enable or disable the VLAN Assignment mode:

2. Enable. Allow a RADIUS server to assign the VLAN ID to authenticated supplicants.

3. Disable. The RADIUS server can not assign authenticated clients to VLANs.

4. Enable or disable Dynamic VLAN Creation Mode:

5. Enable. If the RADIUS assigned VLAN does not exist on the switch, allow the switch to dynamically create the assigned VLAN.

6. Disable. The switch will not create a RADIUS-assigned VLAN for a client if it does not already exist.

7. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

8. If you change the settings, click Apply to apply the new settings to the system.

Port Authentication

Use the Port Authentication page to enable and configure port access control on one or more ports.

To access the Port Authentication page, click Security > Port Authentication, and then click the Advanced > Port Authentication link.

Note: Use the horizontal scroll bar at the bottom of the browser to view all the fields on the Port Authentication page. The following screen shots show the left and right halves of the Port Authentication page.

To configure 802.1X settings for the port:

1. Select the check box next to the port to configure. You can also select multiple check boxes to apply the same settings to the select ports, or select the check box in the heading row to apply the same settings to all ports.

2. For the selected port(s), specify the following settings:

- Port Control. Defines the port authorization state. The control mode is set only if the link status of the port is link up. The possible field values are:

• Auto: Automatically detects the mode of the interface.
- Authorized: Places the interface into an authorized state without being authenticated. The interface sends and receives normal traffic without client port-based authentication.
- Unauthorized: Denies the selected interface system access by moving the interface into unauthorized state. The switch cannot provide authentication services to the client through the interface.
- MAC Based: MAC-based authentication allows multiple supplicants connected to the same port to each authenticate individually.

- Guest VLAN ID. Specify the VLAN ID for the Guest VLAN on the interface. Users who connect to the switch through this interface and do not attempt to authenticate might be placed on the guest VLAN. The valid range is 0–4093. The default value is 0. Enter 0 to reset the Guest VLAN ID on the interface.

- Guest VLAN Period. This input field allows the user to enter the Guest VLAN period for the selected port. The Guest VLAN period is the value, in seconds, of the timer used by the Guest VLAN Authentication. The Guest VLAN timeout must be a value in the range of 1–300. The default value is 90.

- Unauthenticated VLAN ID. Specify the VLAN ID for the Unauthenticated VLAN. Users who fail the 802.1X authentication might be placed on a VLAN for unauthenticated clients that has limited network access.

• Periodic Reauthentication. Use this field to enable or disable reauthentication of the supplicant for the specified port. Select Enable and Disable. If the value is Enable, reauthentication will occur. Otherwise, reauthentication will not be allowed. The default value is Disable. Changing the selection will not change the configuration until the Apply button is pressed.
• Reauthentication Period. Indicates the time span in which the selected port is reauthenticated. The field value is in seconds. The range is 1–65535, and the field default is 3600 seconds.
• Quiet Period. Defines the amount of time that the switch remains in the quiet state following a failed authentication exchange. The possible field range is 0–65535. The field value is in seconds. The field default is 60 seconds.
• Resending EAP. This input field allows you to configure the transmit period for the selected port. The transmit period is the value, in seconds, of the timer used by the authenticator state machine on the specified port to determine when to send an EAPOL EAP Request/Identify frame to the supplicant. The transmit period must be a number in the range of 1–65535. The default value is 30. Changing the value will not change the configuration until you click the Apply button.
• Max EAP Requests. This input field allows you to enter the maximum requests for the selected port. The maximum requests value is the maximum number of times the authenticator state machine on this port will retransmit an EAPOL EAP Request/Identity before timing out the supplicant. The maximum requests value must be in the range of 1–10. The default value is 2. Changing the value will not change the configuration until you click the Apply button.
• Supplicant Timeout. Defines the amount of time that lapses before EAP requests are resent to the user. The field value is in seconds. The field default is 30 seconds.
• Server Timeout. Defines the amount of time that lapses before the switch resends a request to the authentication server. The field value is in seconds. The range is 1–65535, and the field default is 30 seconds.
• Control Direction. This displays the control direction for the specified port, which is always Both. The control direction dictates the degree to which protocol exchanges take place between Supplicant and Authenticator. The unauthorized controlled port exerts control over communication in both directions (disabling both incoming and outgoing frames). This field is not configurable.
• Protocol Version. This field displays the protocol version associated with the selected port. The only possible value is 1, corresponding to the first version of the 802.1X specification. This field is not configurable.
• PAE Capabilities. This field displays the port access entity (PAE) functionality of the selected port. Possible values are Authenticator or Supplicant. This field is not configurable.

- Authenticator PAE State. This field displays the current state of the authenticator PAE state machine. Possible values are as follows:

• Initialize
• Disconnected
• Connecting
• Authenticating
• Authenticated
• Aborting
  • Held
• ForceAuthorized
  • ForceUnauthorized

- Backend State. This field displays the current state of the backend authentication state machine. Possible values are as follows:

• Request
• Response
• Success
• Fail
• Timeout
• Initialize
• Idle

- EAPOL Flood Mode. This field is used to enable or disable the EAPOL Flood mode per Interface. The default value is Disable.

1. Click Apply to send the updated screen to the switch and cause the changes to occur on the switch and the changes will be saved.

2. Click Initialize to begin the initialization sequence on the selected port(s). This button is only selectable if the control mode is auto. If the button is not selectable, it will be grayed out. When this button is clicked, the action is immediate. It is not required to click Apply for the action to occur.

3. Click Reauthenticate to begin the reauthentication sequence on the selected port. This button is only selectable if the control mode is auto. If the button is not selectable, it will be grayed out. When this button is pressed, the action is immediate. It is not required to click Apply for the action to occur.

4. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Port Summary

Use the Port Summary page to view information about the port access control settings on a specific port.

To access the Port Summary page, click Security > Port Authentication > Advanced > Port Summary.

The following table describes the fields on the Port Summary page.

Field Description
Port The port whose settings are displayed in the current table row.
Control Mode	Defines the port authorization state. The control mode is only set if the link status of the port is link up. The possible field values are:Auto: Automatically detects the mode of the interface.Force Authorized:Places the interface into an authorized state without being authenticated. The interface sends and receives normal traffic without client port-based authentication.Force Unauthorized:Denies the selected interface system access by moving the interface into unauthorized state. The switch cannot provide authentication services to the client through the interface.
Operating Control Mode	This field indicates the control mode under which the port is actually operating.Possible values are:ForceUnauthorizedForceAuthorizedAutoN/A: If the port is in detached state it cannot participate in port access control.
Reauthentication Enabled	Displays if reauthentication is enabled on the selected port. This is a configurable field. The possible values are true and false. If the value is true, reauthentication will occur. Otherwise, reauthentication will not be allowed.
Port Status This field displays the authorization status of the specified port. The possible values are Authorized, Unauthorized, and N/A. If the port is in detached state, the value will be N/A since the port cannot participate in port access control.

Click Refresh to update the information on the screen.

Traffic Control

From the Traffic Control link, you can configure MAC Filters, Storm Control, Port Security, and Protected Port settings. To display the page, click the Security > Traffic Control tab.

The Traffic Control folder contains links to the following features:

• MAC Filter:
  • MACFilterConfiguration on page 225
  • MACFilterSummaryon page 227
  • StormControl on page 228
• Port Security:
  • PortSecurityConfiguration on page 230
  • PortSecurityInterfaceConfiguration on page 231
  • SecurityMACAddresson page 232
  • ProtectedPortsMembership page 233

MAC Filter Configuration

Use the MAC Filter Configuration page to create MAC filters that limit the traffic allowed into and out of specified ports on the system.

To display the MAC Filter Configuration page, click Security > Traffic Control > MAC Filter > MAC Filter Configuration.

To configure MAC filter settings:

1. To configure a new MAC filter:

a. Select Create Filter from the MAC Filter menu. If no filters have been configured, this is the only option available.
b. From the VLAN ID menu, select the VLAN to use with the MAC address to fully identify packets you want filtered. You can change this field only when the Create Filter option is selected from the MAC Filter menu.
c. In the MAC Address field, specify the MAC address of the filter in the format 00:01:1A:B2:53:4D. You can change this field when you have selected the Create Filter option.

You cannot define filters for the following MAC addresses:

00:00:00:00:00:00
• 01:80:C2:00:00:00 to 01:80:C2:00:00:0F
01:80:C2:00:00:20 to 01:80:C2:00:00:21
• FF:FF:FF:FF:FF:FF

d. Click the orange bar to display the available ports and select the port(s) to include in the inbound filter. If a packet with the MAC address and VLAN ID you specify is received on a port that is not in the list, it will be dropped. In the following image shows the configuration of a MAC filter on the MAC address 00:1C:23:F8:03:37 with ports g2 and g3 as source port members.

e. Click the orange bar to display the available ports and select the port(s) you to include in the outbound filter. Packets with the MAC address and VLAN ID you selected will be transmitted only out of ports that are in the list. Destination ports can be included only in the Multicast filter.

1. To delete a configured MAC Filter, select it from the menu, and then click Delete.
2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
3. If you make changes to the page, click Apply to apply the changes to the system.

MAC Filter Summary

Use the MAC Filter Summary page to view the MAC filters that are configured on the system. To display the MAC Filter Summary page, click Security > Traffic Control, and then click the MAC Filter > MAC Filter Summary link.

The following table describes the information displayed on the page:

Field Description
MAC Address Identifies the MAC address that is filtered.
VLAN ID The VLAN ID	used with the MAC address to fully identify packets you want filtered.You can only change this field when you have selected theCreate Filteroption.
Source Port Members	Displays the ports included in the inbound filter.
Destination Port Members	Displays the ports included in the outbound filter.

Click Refresh to update the page with the most current information.

Storm Control

A broadcast storm is the result of an excessive number of broadcast messages simultaneously transmitted across a network by a single port. Forwarded message responses can overload network resources and/or cause the network to time out.

The switch measures the incoming broadcast/multicast/unknown unicast packet rate per port and discards packets when the rate exceeds the defined value. Storm control is enabled per interface, by defining the packet type and the rate at which the packets are transmitted.

To display the Storm Control page, click Security > Traffic Control, and then click the Storm Control link.

To configure storm control settings:

1. Select the check box next to the port to configure. Select multiple check boxes to apply the same setting to all selected ports. Select the check box in the heading row to apply the same settings to all ports.

2. From the Ingress Control Mode menu, select the mode of broadcast affected by storm control.

3. Disable. Do not use storm control.

4. Unknown Unicast. If the rate of unknown L2 unicast (destination lookup failure) traffic ingressing on an interface increases beyond the configured threshold, the traffic will be dropped.
5. Multicast. If the rate of L2 multicast traffic increasing on an interface increases beyond the configured threshold, the traffic will be dropped.

6. Broadcast. If the rate of L2 broadcast traffic ingressing on an interface increases beyond the configured threshold, the traffic will be dropped.

7. In the Threshold field, specify the maximum rate at which unknown packets are forwarded. The range is a percent of the total threshold between 0–100%. The default is 5%.

8. In the Control Action field, determine the action to be taken when a broadcast storm is detected:

• RateLimit. Limits the rate at which incoming traffic is forwarded.
- Shutdown. Administratively disables the port when the ingress/incoming broadcast traffic reaches the configured threshold. If the port is shut down because the broadcast traffic exceeds the configured limit, you must manually reenable it by using the Switching >Ports >Port Configuration page (see PortConfigurationpage 102).

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
2. If you make changes to the page, click Apply to apply the changes to the system.

Port Security Configuration

Use the Port Security feature to lock one or more ports on the system. When a port is locked, only packets with an allowable source MAC addresses can be forwarded. All other packets are discarded.

To display the Port Security Configuration page, click Security > Traffic Control, and then click the Port Security > Port Security Configuration link.

To configure the global port security mode:

1. In the Port Security Mode field, select the appropriate radio button to enable or disable port security on the switch.
2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
3. If you change the mode, click Apply to apply the change to the system.

The Port Security Violation table shows information about violations that occurred on ports that are enabled for port security. The following table describes the fields in the Port Security Violation table.

Field Description
Port Identifies the port	where a violation occurred.
Last Violation MAC Displays the source MAC address of the last packet that was discarded at a locked port.
VLAN ID Displays the VLAN ID corresponding to the Last Violation MAC address.

Click Refresh to refresh the page with the most current data from the switch.

Port Security Interface Configuration

A MAC address can be defined as allowable by one of two methods: dynamically or statically. Both methods are used concurrently when a port is locked.

Dynamic locking implements a first arrival mechanism for Port Security. You specify how many addresses can be learned on the locked port. If the limit has not been reached, then a packet with an unknown source MAC address is learned and forwarded normally. When the limit is reached, no more addresses are learned on the port. Any packets with source MAC addresses that were not already learned are discarded. You can effectively disable dynamic locking by setting the number of allowable dynamic entries to zero.

Static locking allows you to specify a list of MAC addresses that are allowed on a port. The behavior of packets is the same as for dynamic locking: only packets with an allowable source MAC address can be forwarded.

To display the Port Security Interface Configuration page, click Security > Traffic Control, and then click the Port Security > Interface Configuration link.

To configure port security settings:

1. To configure port security settings for a physical port, click the unit ID number of the stack member with the ports to configure.
2. To configure port security settings for a Link Aggregation Group (LAG), click LAGS.
3. To configure port security settings for both physical ports and LAGs, click ALL.

4. Select the check box next to the port or LAG to configure. Select multiple check boxes to apply the same setting to all selected interfaces. Select the check box in the heading row to apply the same settings to all interfaces.

5. Specify the following settings:

• Port Security. Enable or Disable the port security feature for the selected port.
- Max Allowed Dynamically Learned MAC. Sets the maximum number of dynamically learned MAC addresses on the selected interface. Valid range is 0–600.
- Max Allowed Statically Locked MAC. Sets the maximum number of statically locked MAC addresses on the selected interface. Valid range is 0–20.
- Enable Violation Traps. Enables or disables the sending of new violation traps designating when a packet with a disallowed MAC address is received on a locked port.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
2. If you make changes to the page, click Apply to apply the changes to the system.

Security MAC Address

Use the Security MAC Address page to convert a dynamically learned MAC address to a statically locked address.

To display the Security MAC Address page, click Security > Traffic Control, and then click the Port Security > Security MAC Address link.

To convert learned MAC addresses:

1. Select the Convert Dynamic Address to Static check box.
2. Click Apply. The Dynamic MAC Address entries are converted to Static MAC address entries in a numerically ascending order until the Static limit is reached.

The Dynamic MAC Address Table shows the MAC addresses and their associated VLANs learned on the selected port. Use the Port List menu to select the interface for which you want to display data.

Field Description
VLAN ID Displays the VLAN ID corresponding to the Last Violation MAC address.
MAC Address Displays	the MAC addresses learned on a specific port.

Click Refresh to refresh the page with the most current data from the switch.

Protected Ports Membership

If a port is configured as protected, it does not forward traffic to any other protected port on the switch, but it will forward traffic to unprotected ports. Use the Protected Ports Membership page to configure the ports as protected or unprotected.

To display the Protected Ports Membership page, click the Security > Traffic Control > Protected Ports link. In the following image, the Unit fields have been expanded to display the ports.

To configure protected ports:

1. Click the orange bar to display the available ports.
2. Click the box below each port to configure as a protected port. Protected ports are marked with an check. No traffic forwarding is possible between two protected ports.
3. Click Refresh to refresh the page with the most current data from the switch.
4. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
5. If you make changes to the page, click Apply to apply the changes to the system. Configuration changes take effect immediately.

Configuring Access Control Lists

Access Control Lists (ACLs) ensure that only authorized users have access to specific resources while blocking off any unwarranted attempts to reach network resources. ACLs are used to provide traffic flow control, restrict contents of routing updates, decide which types of traffic are forwarded or blocked, and above all provide security for the network. The GS728TS, GS728TPS, GS752TS, and GS752TPS switches software supports IPv4, IPv6, and MAC ACLs.

You first create an IPv4-based or MAC-based ACL ID. Then, you create a rule and assign it to a unique ACL ID. Next, you define the rules, which can identify protocols, source, and destination IP and MAC addresses, and other packet-matching criteria. Finally, use the ID number to assign the ACL to a port or to a LAG.

The Security > ACL folder contains links to the following features:

• ACLWizard
  Basic:

• MACACLon page 237
• MACRuleson page 238
• MACBindingConfiguration on page 240
• MACBindingTableon page 241

- Advanced:

• IPACLon page 242
• IPRuleson page 243
• IPExtendedRuleon page 245
• IPv6ACLon page 248
• IPv6Ruleson page 249
• IPBindingConfiguration on page 252
• IPBindingTableon page 254
• VLANBindingTableon page 255

ACL Wizard

The ACL Wizard helps you to create a simple ACL and apply to the selected ports easily and quickly. You can select an ACL type from a list of common ACLs. The ACL rule fields available on the page change based on the type of ACL you select. You can add an ACL rule to this ACL and then apply the ACL to the selected ports.

Note: The ACL Wizard allows you only to create the ACL, add rules, and bind the ACL to interfaces. The Wizard does not allow you to configure the name, modify the ACL, or delete it. To rename an ACL, modify it, or delete it, go to the MAC ACL, IP ACL, or IPv6 ACL pages.

To display the ACL Wizard page, click Security > ACL.

To use the ACL Wizard:

1. Select the type of ACL to configure from the ACL Type field. The possible choices include:

2. ACL Based on Destination MAC - Use this to create a ACL based on the destination MAC address, destination MAC mask and VLAN.

3. ACL Based on Source MAC - Use this to create a ACL based on the source MAC address, source MAC mask and VLAN.

4. ACL Based on Destination IPv4 - Use this to create a ACL based on the destination IPv4 address and IPv4 address mask.

5. ACL Based on Source IPv4 - Use this to create a ACL based on the source IPv4 address and IPv4 address mask.

6. ACL Based on Destination IPv6 - Use this to create a ACL based on the destination IPv6 prefix and IPv6 prefix length.
7. ACL Based on Source IPv6 - Use this to create a ACL based on the source IPv6 prefix and IPv6 prefix length.
8. ACL Based on Destination IPv4 L4 Port - Use this to create a ACL based on the destination IPv4 layer4 port number.
9. ACL Based on Source IPv4 L4 Port - Use this to create a ACL based on the source IPv4 layer4 port number.
10. ACL Based on Destination IPv6 L4 Port - Use this to create a ACL based on the destination IPv6 layer4 port number.

11. ACL Based on Source IPv6 L4 Port - Use this to create a ACL based on the source IPv6 layer4 port number.

12. In the Rule ID field, enter a whole number in the range of (1 to 10) that will be used to identify the rule.

13. In the Action field, specify what action should be taken if a packet matches the rule's criteria. The choices are permit or deny.

14. In the Match Every field, specify True or False. If you select True, all packets are considered to match the rule criteria, and no other fields are configurable.

15. Specify the match criteria for the rule. The fields available for match criteria input depend on the selected ACL type.

16. To add a new rule to the ACL, select the check box next to the Rule ID, then click Add. You can add multiple rules to the same ACL type.

17. In the Binding Configuration area, specify the packet filtering direction for an ACL in the Direction field. The only valid direction is Inbound.

18. In the Port Selection Table area, select the interfaces for ACL mapping. All non-routing physical ports and LAGs are listed.

19. To cancel the configuration on the screen. Reset the data on the screen to the latest value of the switch, then click Cancel.

20. To send the updated configuration to the switch, click Apply. Configuration changes take effect immediately.

MAC ACL

A MAC ACL consists of a set of rules which are matched sequentially against a packet. When a packet meets the match criteria of a rule, the specified rule action (Permit/Deny) is taken and the additional rules are not checked for a match.

There are multiple steps involved in defining a MAC ACL and applying it to the switch:

1. Use the MAC ACL page to create the ACL ID.
2. Use the MAC Rules page to create rules for the ACL.
3. Use the MAC Binding Configuration page to assign the ACL by its ID number to a port.
4. Optionally, use the MAC Binding Table page to view the configurations.

To display the MAC ACL page, click Security > ACL > Basic > MAC ACL.

The MAC ACL table displays the number of ACLs currently configured in the switch and the maximum number of ACLs that can be configured. The current size is equal to the number of configured IPv4 ACLs plus the number of configured MAC ACLs.

To configure a MAC ACL:

1. To add a MAC ACL, specify a name for the MAC ACL in the Name field, and click Add. The name string may include alphabetic, numeric, dash, underscore, or space characters only. The name must start with an alphabetic character.

Each configured ACL displays the following information:

• Rules. Displays the number of rules currently configured for the MAC ACL.

• Direction. Displays the direction of packet traffic affected by the MAC ACL, which can be Inbound or blank.

• To delete a MAC ACL, select the check box next to the Name field, then click Delete.

• To change the name of a MAC ACL, select the check box next to the Name field, update the name, then click Apply.

• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

MAC Rules

Use the MAC Rules page to define rules for MAC-based ACLs. The access list definition includes rules that specify whether traffic matching the criteria is forwarded normally or discarded. A default 'deny all' rule is the last rule of every list.

To display the MAC Rules page, click Security > ACL > Basic > MAC Rules.

To configure MAC ACL rules:

1. From the ACL Name field, specify the existing MAC ACL to which the rule will apply. To set up a new MAC ACL use the MACACL page.

2. To add a new rule, enter an ID for the rule, configure the following settings, and click Add.

• Action. Specify what action should be taken if a packet matches the rule's criteria:

• Permit: Forwards packets that meet the ACL criteria.

• Deny: Drops packets that meet the ACL criteria.

- Assign Queue. Specifies the hardware egress queue identifier used to handle all packets matching this ACL rule. Enter an identifying number from 0–6 in this field.

- Redirect Interface. Specifies the specific egress interface where the matching traffic stream is forced, bypassing any forwarding decision normally performed by the device. This field cannot be set if a Mirror Interface is already configured for the ACL rule.

- Match Every. Requires a packet to match the criteria of this ACL. Select True or False from the drop down menu. Match Every is exclusive to the other filtering rules, so if Match Every is True, the other rules on the screen are not available.

- CoS. Requires a packet's class of service (CoS) to match the CoS value listed here. Enter a CoS value between 0–7 to apply this criteria.

- Destination MAC. Requires an Ethernet frame's destination port MAC address to match the address listed here. Enter a MAC address in this field. The valid format is xx:xx:xx:xx:xx:xx.

- Destination MAC Mask. If desired, enter the MAC Mask associated with the Destination MAC to match. The MAC address mask specifies which bits in the destination MAC to compare against an Ethernet frame. Use Fs and zeros in the MAC mask, which is in a wildcard format. An F means that the bit is not checked, and a zero in a bit position means that the data must equal the value given for that bit. For example, if the MAC address is aa:bb:cc:dd:ee:ff, and the mask is 00:00:ff:ff:ff:ff, all

MAC addresses with aa:bb:xx:xx:xx:xx result in a match (where x is any hexadecimal number). A MAC mask of 00:00:00:00:00:00 matches a single MAC address.

- EtherType Key. Requires a packet's EtherType to match the EtherType you select. Select the EtherType value from the drop down menu. If you select User Value, you can enter a custom EtherType value.

- EtherType User Value. This field is configurable if you select User Value from the EtherType drop down menu. The value you enter specifies a customized Ethertype to compare against an Ethernet frame. The valid range of values is 0x0600–0xFFFF.

- Source MAC. Requires a packet's source port MAC address to match the address listed here. Enter a MAC address in the this field. The valid format is xx:xx:xx:xx:xx:xx.

- Source MAC Mask. If desired, enter the MAC mask for the source MAC address to match. Use Fs and zeros in the MAC mask, which is in a wildcard format. An F means that the bit is not checked, and a zero in a bit position means that the data must equal the value given for that bit. The valid format is xx:xx:xx:xx:xx:xx. A MAC mask of 00:00:00:00:00:00 matches a single MAC address.

- VLAN. Requires a packet's VLAN ID to match the ID listed here. Enter the VLAN ID to apply this criteria. The valid range is 1–4093.

- Logging. When logging is enabled for a rule, the switch periodically sends a message to the log file indicating the number of times a packet matched the rule during that time period. If the Access List Trap Flag is also enabled, this will cause periodic traps to be generated indicating the number of times this rule was hit during the current report interval. A fixed five-minute report interval is used for the entire system. A trap is not issued if the ACL rule hit count is zero for the current interval. This field is only supported for a Deny action.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

2. To delete a rule, select the check box associated with the rule and click Delete.

3. To change a rule, select the check box associated with the rule, change the desired fields and click Apply.

MAC Binding Configuration

When an ACL is bound to an interface, all the rules that have been defined are applied to the selected interface. Use the MAC Binding Configuration page to assign MAC ACL lists to ACL Priorities and Interfaces.

To display the MAC Binding Configuration page, click Security > ACL > Basic > MAC Binding Configuration.

To configure MAC ACL interface bindings:

1. Select an existing MAC ACL from the ACL ID menu.

The packet filtering direction for ACL is Inbound, which means the MAC ACL rules are applied to traffic entering the port.

1. Specify an optional sequence number to indicate the order of this access list relative to other access lists already assigned to this interface and direction.

A low number indicates high precedence order. If a sequence number is already in use for this interface and direction, the specified access list replaces the currently attached access list using that sequence number. If the sequence number is not specified by the user, a sequence number that is one greater than the highest sequence number currently in use for this interface and direction will be used. The valid range is 1–4294967295.

1. Click the appropriate orange bar to expose the available ports or LAGs.

- To add the selected ACL to a port or LAG, click the box directly below the port or LAG number so that a check appears in the box.

- To remove the selected ACL from a port or LAG, click the box directly below the port or LAG number to clear the selection. A check in the box indicates that the ACL is applied to the interface.\

In the following figure, the MAC ACL named mac-acl2 is being applied to ports g13 and g20-g22. As the Interface Binding Status table indicates, these ports also have a MAC ACL named mac-acl applied in the inbound direction.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
2. Click Apply to save any changes to the running configuration.

MAC Binding Table

Use the MAC Binding Table page to view or delete the MAC ACL bindings.

To display the MAC Binding Table, click Security > ACL > Basic > Binding Table.

The following table describes the information displayed in the MAC Binding Table.

Field Description
Interface Displays the interface to which the MAC ACL is bound.
Direction Specifies the packet filtering direction for ACL. The only valid direction is Inbound, which means the MAC ACL rules are applied to traffic entering the port.
ACL Type Displays the type of ACL assigned to selected interface and direction.
ACL ID Displays the ACL Name identifying the ACL assigned to selected interface and direction.
Sequence No Displays the Sequence Number signifying the order of specified ACL relative to other ACLs assigned to selected interface and direction.

To delete a MAC ACL-to-interface binding, select the check box next to the interface and click Delete.

IP ACL

IP ACLs allow network managers to define classification actions and rules for specific ingress ports. Packets can be filtered on ingress (inbound) ports only. If the filter rules match, then some actions can be taken, including dropping the packet or disabling the port. For example, a network administrator defines an ACL rule that says port number 20 can receive TCP packets. However, if a UDP packet is received the packet is dropped.

ACLs are composed of access control entries (ACE), or rules, that consist of the filters that determine traffic classifications.

Use the IP ACL Configuration page to add or remove IP-based ACLs.

To display the IP ACL page, click Security > ACL > Advanced > IP ACL.

The IP ACL area shows the current size of the ACL table versus the maximum size of the ACL table. The current size is equal to the number of configured IPv4 plus the number of configured MAC ACLs. The maximum size is 100.

To configure an IP ACL:

1. In the IP ACL ID field, specify the ACL ID. The ID is in the following range:

2. 1–99: Creates an IP Standard ACL, which allows you to permit or deny traffic from a source IP address.

3. 100–199: Creates an IP Extended ACL, which allows you to permit or deny specific types of layer 3 or layer 4 traffic from a source IP address to a destination IP address. This type of ACL provides more granularity and filtering capabilities than the standard IP ACL.
4. Text: Creates a named ACL, which allows the same configuration as an extended ACL.

Each configured ACL displays the following information:

• Rules. Displays the number of rules currently configured for the IP ACL.
  • Type. Identifies the ACL as either a standard, extended, or named IP ACL.

• To delete an IP ACL, select the check box next to the IP ACL ID field, then click Delete.

• To change the name of an IP ACL, select the check box next to the IP ACL ID field, update the name, then click Apply.

• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

IP Rules

Use the IP Rules page to define rules for IP-based standard ACLs. The access list definition includes rules that specify whether traffic matching the criteria is forwarded normally or discarded.

Note: There is an implicit “deny all” rule at the end of an ACL list. This means that if an ACL is applied to a packet and if none of the explicit rules match, then the final implicit “deny all” rule applies and the packet is dropped.

To display the IP Rules page, click Security > ACL > Advanced > IP Rules.

To configure rules for an IP ACL:

1. To add an IP ACL rule, select the ACL ID to add the rule to and click Add. The page refreshes and shows the available rules to configure.

1. Complete the fields described in the following list.

2. Rule ID. Specify a number from 1–10 to identify the IP ACL rule. You can create up to 10 rules for each ACL.
   • Action. Selects the ACL forwarding action, which is one of the following:
   • Permit. Forwards packets which meet the ACL criteria.

3. Deny. Drops packets which meet the ACL criteria.

- Egress Queue. Specifies the hardware egress queue identifier used to handle all packets matching this ACL rule. Enter an identifying number from 0–6 in the appropriate field.

- Logging. When logging is enabled for a rule, the switch periodically sends a message to the log file indicating the number of times a packet matched the rule during that time period. If the Access List Trap Flag is also enabled, this will cause periodic traps to be generated indicating the number of times this rule was hit during the current report interval. A fixed five-minute report interval is used for the entire system. A trap is not issued if the ACL rule hit count is zero for the current interval. This field is only supported for a Deny action.

• Match Every. Requires a packet to match the criteria of this ACL. Select True or False from the drop down menu. Match Every is exclusive to the other filtering rules, so if Match Every is True, the other rules on the screen are not available.
• Source IP Address. Requires a packet's source IP address to match the address listed here. Type an IP Address in the appropriate field using dotted-decimal notation. The address you enter is compared to a packet's source IP Address.

• Source IP Mask. Specifies the source IP address wildcard mask. Wild card masks determines which bits are used and which bits are ignored. A wild card mask of 255.255.255.255 indicates that no bit is important. A wildcard of 0.0.0.0 indicates that all of the bits are important. Wildcard masking for ACLs operates differently from a subnet mask. A wildcard mask is in essence the inverse of a subnet mask. For example, to apply the rule to all hosts in the 192.168.1.0/24 subnet, you type 0.0.0.255 in the Source IP Mask field. This field is required when you configure a source IP address.

• To delete an IP ACL rule, select the check box associated with the rule, and then click Delete.

• To update an IP ACL rule, select the check box associated with the rule, update the desired fields, and then click Apply. You cannot modify the Rule ID of an existing IP rule.
• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
• If you change any of the settings on the page, click Apply to send the updated configuration to the switch. Configuration changes take effect immediately.

IP Extended Rule

Use the IP Extended Rules page to define rules for IP-based extended ACLs. The access list definition includes rules that specify whether traffic matching the criteria is forwarded normally or discarded.

Note: There is an implicit “deny all” rule at the end of an ACL list. This means that if an ACL is applied to a packet and if none of the explicit rules match, then the final implicit “deny all” rule applies and the packet is dropped.

To display the IP extended Rules page, click Security > ACL > Advanced > IP Extended Rules.

To configure rules for an IP ACL:

1. To add an IP ACL rule, select the ACL ID to add the rule to and click Add.

The page displays the extended ACL Rule Configuration fields, as the following figure shows.

1. Configure the new rule.

2. Rule ID. Specify a number from 1–10 to identify the IP ACL rule. You can create up to 10 rules for each ACL.
   • Action. Selects the ACL forwarding action, which is one of the following:

• Permit. Forwards packets which meet the ACL criteria.

- Deny. Drops packets which meet the ACL criteria.

• Egress Queue. Specifies the hardware egress queue identifier used to handle all packets matching this ACL rule. Enter an identifying number from 0–6 in the appropriate field.
• Logging. When logging is enabled for a rule, the switch periodically sends a message to the log file indicating the number of times a packet matched the rule during that

time period. If the Access List Trap Flag is also enabled, this will cause periodic traps to be generated indicating the number of times this rule was hit during the current report interval. A fixed five-minute report interval is used for the entire system. A trap is not issued if the ACL rule hit count is zero for the current interval. This field is only supported for a Deny action.

• Match Every. Requires a packet to match the criteria of this ACL. Select True or False from the drop down menu. Match Every is exclusive to the other filtering rules, so if Match Every is True, the other rules on the screen are not available.
• Protocol Type. Requires a packet's protocol to match the protocol listed here. Select a type from the drop down menu or enter the protocol number in the available field.
• Src IP Address. Requires a packet's source IP address to match the address listed here. Type an IP Address in the appropriate field using dotted-decimal notation. The address you enter is compared to a packet's source IP Address.
• Src IP Mask. Specifies the source IP address wildcard mask. Wild card masks determines which bits are used and which bits are ignored. A wild card mask of 255.255.255.255 indicates that no bit is important. A wildcard of 0.0.0.0 indicates that all of the bits are important. Wildcard masking for ACLs operates differently from a subnet mask. A wildcard mask is in essence the inverse of a subnet mask. For example, to apply the rule to all hosts in the 192.168.1.0/24 subnet, you type 0.0.0.255 in the Source IP Mask field. This field is required when you configure a source IP address.
• Src L4 Port. Requires a packet's TCP/UDP source port to match the port listed here. Click Complete one of the following fields:

- Source L4 Keyword: Select the desired L4 keyword from a list of source ports on which the rule can be based.

- Source L4 Port Number: If the source L4 keyword is Other, enter a user-defined Port ID by which packets are matched to the rule.

• Dst IP Address. Requires a packet's destination port IP address to match the address listed here. Enter an IP Address in the appropriate field using dotted-decimal notation. The address you enter is compared to a packet's destination IP Address.
• Dst IP Mask. Specifies the destination IP address wildcard mask. Wild card masks determines which bits are used and which bits are ignored. A wild card mask of 255.255.255.255 indicates that no bit is important. A wildcard of 0.0.0.0 indicates that all of the bits are important. Wildcard masking for ACLs operates differently from a subnet mask. A wildcard mask is in essence the inverse of a subnet mask. For example, to apply the rule to all hosts in the 192.168.1.0/24 subnet, you type 0.0.0.255 in the Source IP Mask field. This field is required when you configure a source IP address.
• Dst L4 Port. Requires a packet's TCP/UDP destination port to match the port listed here. Complete one of the following fields:

- Destination L4 Keyword: Select the desired L4 keyword from a list of destination ports on which the rule can be based.

- Destination L4 Port Number: If the destination L4 keyword is Other, enter a user-defined Port ID by which packets are matched to the rule.

- Service Type. Choose one of the Service Type match conditions for the extended IP ACL rule. The possible values are IP DSCP, IP precedence, and IP TOS, which are alternative ways of specifying a match criterion for the same Service Type field in the IP header, however each uses a different user notation. After you select the service type, specify the value associated with the type.

• IP DSCP: Specify the IP DiffServ Code Point (DSCP) value. The DSCP is defined as the high-order six bits of the Service Type octet in the IP header. Select an IP DSCP value from the menu. To specify a numeric value in the available field, select Other from the menu and type an integer from 0 to 63 in the field.
• IP Precedence: The IP Precedence field in a packet is defined as the high-order three bits of the Service Type octet in the IP header. This is an optional configuration. Enter an integer from 0 to 7.

• IP TOS Bits: Matches on the Type of Service bits in the IP header when checked. In the first TOS field, specify the two-digit hexadecimal TOS number. The second field is for the TOS Mask, which specifies the bit positions that are used for comparison against the IP TOS field in a packet. The TOS Mask value is a two-digit hexadecimal number from 00 to ff, representing an inverted (i.e. wildcard) mask. The zero-valued bits in the TOS Mask denote the bit positions in the TOS Bits value that are used for comparison against the IP TOS field of a packet. For example, to check for an IP TOS value having bits 7 and 5 set and bit 1 clear, where bit 7 is most significant, use a TOS Bits value of a0 and a TOS Mask of 00.

• To add the new rule to the ACL, click Apply.

• To delete a rule from an ACL, select the check box associated with the rule and click Delete.
• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
• To modify an existing IP Extended ACL rule, click the Rule ID. The number is a hyperlink to the Extended ACL Rule Configuration page.

IPv6 ACL

An IPv6 ACL consists of a set of rules which are matched sequentially against a packet. When a packet meets the match criteria of a rule, the specified rule action (Permit/Deny) is taken and the additional rules are not checked for a match. On this menu, the interfaces to which an IP ACL applies must be specified, as well as whether it applies to inbound or outbound traffic. Rules for the IP ACL are specified/created using the IP ACL Rule Configuration menu.

To display the IPv6 ACL page, click Security > ACL > Advanced > IPv6 ACL.

The current number of the IP ACLs configured on the switch is displayed in the Current Number of ACL area. The maximum number of IP ACL that can be configured on the switch is displayed in the Maximum ACL field, depending on the hardware. The name of IPv6 ACL can be configured in IPv6 ACL field. The number of the rules associated with the IP ACL is displayed in the Rules field. The ACL type is IPv6 ACL and displayed in the Type field.

1. To add an ACL, type a name in the IPv6 ACL field, and then click Add.
2. To delete an ACL, select the check box associated with the ACL, and then click Delete.
3. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
4. If you modify the IPv6 ACL name, click Apply to submit the changes to the switch.

IPv6 Rules

Use the IPv6 Rules page to configure the rules for the IPv6 Access Control Lists. The IPv6 Access Control Lists are created using the IPv6 Access Control List Configuration page. By default, no specific value is in effect for any of the IPv6 ACL rules.

To display the IPv6 Rules page, click Security > ACL > Advanced > IPv6 Rules. In the following figure, an IPv6 rule exists, and one rule has been configured.

To configure the IPv6 rules, select the following:

1. To add an IPv6 rule, use the pull-down list in the ACL Name field to select the IP ACL for which to create or update a rule. Complete the fields described in the following list, and click Add.

1. Configure the new rule.

2. Rule ID: Enter a whole number in the range of 1 to 10 that will be used to identify the rule. An IPv6 ACL may have up to 10 rules.

3. Action: Specify what action should be taken if a packet matches the rule's criteria. The choices are Permit or Deny.
4. Egress Queue: Specifies the hardware egress queue identifier used to handle all packets matching this IPv6 ACL rule. The valid range of Queue IDs is from 0 to 6. This field is visible for a Permit Action.
5. Logging. When logging is enabled for a rule, the switch periodically sends a message to the log file indicating the number of times a packet matched the rule during that time period. If the Access List Trap Flag is also enabled, this will cause periodic traps to be generated indicating the number of times this rule was hit during the current report interval. A fixed five-minute report interval is used for the entire system. A trap

is not issued if the ACL rule hit count is zero for the current interval. This field is only supported for a Deny action.

• Mirror Interface: Specifies the specific egress interface where the matching traffic stream is copied in addition to being forwarded normally by the device. This field cannot be set if a Redirect Interface is already configured for the ACL rule. This field is visible for a Permit action. Mirrored interfaces do not need to be part of the traffic VLAN.
• Redirect Interface: Specifies the specific egress interface where the matching traffic stream is forced, bypassing any forwarding decision normally performed by the device. This field cannot be set if a Mirror Interface is already configured for the ACL rule. This field is visible for a Permit action. Redirected interfaces should be part of the traffic VLAN.
• Match Every: Select true or false from the pull down menu. True signifies that all packets will match the selected IPv6 ACL and Rule and will be either permitted or denied. In this case, since all packets match the rule, the option of configuring other match criteria will not be offered. To configure specific match criteria for the rule, remove the rule and recreate it, or reconfigure Match Every to False for the other match criteria to be visible.

• Protocol: There are two ways to configure IPv6 protocol:

• Specify an integer ranging from 0 to 255 after selecting protocol keyword "other". This number represents the IPv6 protocol.

• Select name of a protocol from the existing list of IPv6, ICMPv6, TCP, and UDP.

• Source Prefix/Prefix Length: Specify IPv6 Prefix combined with IPv6 Prefix length of the network or host from which the packet is being sent. Prefix length can be in the range (0 to 128).

• Source L4 Port: Specify a packet's source layer 4 port as a match condition for the selected IPv6 ACL rule. Source port information is optional. Source port information can be specified in two ways:

• Select keyword "other" from the drop-down menu and specify the number of the port in the range from 0 to 65535.

• Select one of the keyword from the list: DOMAIN, ECHO, FTP, FTPDATA, HTTP, SMTP, SNMP, TELNET, TFTP, and WWW. Each of these values translates into its equivalent port number, which is used as both the start and end of the port range.

• Destination Prefix/Prefix Length: Enter up to 128-bit prefix combined with prefix length to be compared to a packet's destination IP Address as a match criteria for the selected IPv6 ACL rule. Prefix length can be in the range (0 to 128).

• Destination L4 Port: Specify a packet's destination layer 4 port as a match condition for the selected IPv6 ACL rule. Destination port information is optional. Destination port information can be specified in two ways:

• Select keyword "other" from the drop-down menu and specify the number of the port in the range from 0 to 65535.

• Select one of the keyword from the list: DOMAIN, ECHO, FTP, FTPDATA, HTTP, SMTP, SNMP, TELNET, TFTP, and WWW. Each of these values translates into its equivalent port number, which is used as both the start and end of the port range.

• Flow Label: Flow label is 20-bit number that is unique to an IPv6 packet, used by end stations to signify quality-of-service handling in routers. Flow label can be specified within the range (0 to 1048575).

• IPv6 DSCP Service: Specify the IP DiffServ Code Point (DSCP) field. The DSCP is defined as the high-order six bits of the Service Type octet in the IPv6 header. This is an optional configuration. Enter an integer from 0 to 63. The IPv6 DSCP is selected by possibly selection one of the DSCP keyword from a drop-down menu. If a value is to be selected by specifying its numeric value, then select the Other option in the drop-down menu and a text box will appear where the numeric value of the DSCP can be entered.

• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

• To add the new rule to the ACL, click Apply.
• To delete a rule from an ACL, select the check box associated with the rule and click Delete.

IP Binding Configuration

When an ACL is bound to an interface, all the rules that have been defined are applied to the selected interface. Use the IP Binding Configuration page to assign ACL lists to ACL Priorities and Interfaces.

To display the IP Binding Configuration page, click Security > ACL > Advanced > IP Binding Configuration.

To configure IP ACL interface bindings:

1. Select an existing IP ACL from the ACL ID menu.

The packet filtering direction for ACL is Inbound, which means the IP ACL rules are applied to traffic entering the port.

1. Specify an optional sequence number to indicate the order of this access list relative to other access lists already assigned to this interface and direction.

A low number indicates high precedence order. If a sequence number is already in use for this interface and direction, the specified access list replaces the currently attached access list using that sequence number. If the sequence number is not specified by the user, a sequence number that is one greater than the highest sequence number currently in use for this interface and direction will be used. The valid range is 1–4294967295.

1. Click the appropriate orange bar to expose the available ports or LAGs.

2. To add the selected ACL to a port or LAG, click the box directly below the port or LAG number so that a check appears in the box.

3. To remove the selected ACL from a port or LAG, click the box directly below the port or LAG number to clear the selection. A check in the box indicates that the ACL is applied to the interface.

In the following figure, an extended ACL with the ACL ID IP_ACL is being applied to ports g2 and g3.

1. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.
2. Click Apply to save any changes to the running configuration.

IP Binding Table

Use the IP Binding Table page to view or delete the IP ACL bindings.

To display the IP Binding Table, click Security > ACL > Advanced > Binding Table.

The following table describes the information displayed in the IP ACL Binding Table.

Field Description
Interface Displays the interface to which the IP ACL is bound.
Direction Specifies the packet filtering direction for ACL. The only valid direction is Inbound, which means the IP ACL rules are applied to traffic entering the port.
ACL Type Displays the type of ACL assigned to selected interface and direction.
ACL ID/Name Displays the ACL number or name that identifies the ACL assigned to selected interface and direction.
Sequence Number Displays the Sequence Number signifying the order of specified ACL relative to other ACLs assigned to selected interface and direction.

To delete an IP ACL-to-interface binding, select the check box next to the interface and click Delete. Click Cancel to abandon any changes.

VLAN Binding Table

Use the VLAN Binding Table page to associate configured ACLs with VLANs.

To display the VLAN Binding Table page, click Security > ACL > Advanced > Vlan Binding Table.

In the ACL Binding area, enter the values in the following fields:

1. In the VLAN ID field, specify a VLAN ID for ACL mapping.
2. In the Direction field, specify the direction of packet traffic affected by the MAC ACL, which can be Inbound or blank.
3. In The Sequence Number field, specify the sequence number of the access lists.

This field displays an optional sequence number may be specified to indicate the order of this access list relative to other access lists already assigned to this VLAN and direction. A lower number indicates higher precedence order. If a sequence number is already in use for this VLAN and direction, the specified access list replaces the currently attached access list using that sequence number. If the sequence number is not specified by the user (i.e., the value is 0), a sequence number that is one greater than the highest sequence number currently in use for this VLAN and direction will be used. Valid range is (1 to 4294967295).

1. In the ACL Type field, specify the type of ACL. Valid ACL types are:

IP ACL
- MAC ACL
- IPv6 ACL

1. The ACL ID field displays all the ACLs configured, depending on the ACL Type selected.

2. To add a VLAN ID to the selected ACL ID, click Add.

3. To remove the VLAN ID to the selected ACL ID, click Delete.

4. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Use the features available from the Monitoring tab to view a variety of information about the switch and its ports and to configure how the switch monitors events. The Monitoring tab contains links to the following features:

• Portson page 256
  • SystemLogson page 270
  • PortMirroringon page 278

Ports

The pages available from the Ports link contain a variety of information about the number and type of traffic transmitted from and received on the switch. From the Ports link, you can access the following pages:

• SwitchStatisticson page 256
• PortStatisticson page 259
• PortDetailedStatisticson page 260
• EAPStatisticson page 266
• CableTeston page 268

Switch Statistics

The Switch Statistics page displays detailed statistical information about the traffic the switch handles.

To access the Switch Statistics page, click Monitoring >Ports >Switch Statistics.

The following table describes the Switch Statistics displayed on the screen.

Field Description
ifIndex This object indicates the	ifIndex of the interface table entry associated with the processor of this switch.
Octets Received The total num	ber of octets of data received by the processor (excluding framing bits, but including FCS octets).
Packets Received Without Errors	The total number of packets (including broadcast packets and multicast packets) received by the processor.
Unicast Packets Received The	number of subnetwork-unicast packets delivered to a higher layer protocol.
Multicast Packets Received The	the total number of packets received that were directed to a multicast address. This number does not include packets directed to the broadcast address.
Broadcast Packets Received The	the total number of packets received that were directed to the broadcast address. This does not include multicast packets.
Receive Packets Discarded The	the number of inbound packets which were chosen to be discarded, even though no errors had been detected, in order to prevent their being delivered to a higher layer protocol. A possible reason for discarding a packet could be to free up buffer space.
Octets Transmitted	The total number of octets transmitted out of the interface, including framing characters.
Packets Transmitted Without Errors	The total number of packets transmitted out of the interface.
Unicast Packets Transmitted	The total number of packets that higher level protocols requested be transmitted to a subnetwork-unicast address, including those that were discarded or not sent.
Multicast Packets Transmitted	The total number of packets that higher level protocols requested be transmitted to a Multicast address, including those that were discarded or not sent.
Broadcast Packets Transmitted	The total number of packets that higher-level protocols requested be transmitted to the Broadcast address, including those that were discarded or not sent.
Transmit Packets Discarded	The number of outbound packets which were chosen to be discarded, even though no errors had been detected, in order to prevent their being delivered to a higher layer protocol. A possible reason for discarding a packet could be to free up buffer space.
Most Address Entries Ever Used	The highest number of Forwarding Database Address Table entries that have been learned by this switch since the most recent reboot.
Address Entries in Use The number of Learned and static entries in the Forwarding Database Address Table for this switch.
Maximum VLAN Entries The maximum number of Virtual LANs (VLANs) allowed on this switch.
Most VLAN Entries Ever Used	The largest number of VLANs that have been active on this switch since the last reboot.
Static VLAN Entries The number of presently active VLAN entries on this switch that have been created statically.
VLAN Deletes The number of VLANs on this switch that have been created and then deleted since the last reboot.
Time Since Counters Last Cleared	The elapsed time, in days, hours, minutes, and seconds, since the statistics for this switch were last cleared.

Use the buttons at the bottom of the page to perform the following actions:

• Click Clear to clear all the statistics counters, resetting all switch summary and detailed statistics to default values. The discarded packets count cannot be cleared.
• Click Refresh to refresh the page with the most current data from the switch.

Port Statistics

The Port Statistics page displays a summary of per-port traffic statistics on the switch.

To access the Port Summary page, click Monitoring >Ports, and then click the Port Statistics link.

To view port statistics:

1. To view statistics for a physical port, click the unit ID of the stack member with the ports to view.
2. To view statistics for a Link Aggregation Group (LAG), click LAGS.
3. To view statistics for both physical ports and LAGs, click ALL.
4. To view statistics for a specific interface, enter the interface ID in the Go To Interface and click Go.

The following table describes the per-port statistics displayed on the screen.

Field Description
Interface Lists the ports on the	system.
Total Packets Received Without Errors	The total number of packets received that were without errors.
Packets Received With Error	The number of inbound packets that contained errors preventing them from being deliverable to a higher layer protocol.
Broadcast Packets Received	The total number of good packets received that were directed to the broadcast address. This does not include multicast packets.
Packets Transmitted Without Errors	The number of frames that have been transmitted by this port to its segment.
Transmit Packet Errors The number of outbound packets that could not be transmitted because of errors.
Collision Frames The best estimate of the total number of collisions on this Ethernet segment.
Time Since Counters Last Cleared	The elapsed time, in days, hours, minutes, and seconds since the statistics for this port were last cleared.

Use the buttons at the bottom of the page to perform the following actions:

• To clear all the counters for all ports on the switch, select the check box in the row heading and click Clear. The button resets all statistics for all ports to default values.
• To clear the counters for a specific port, select the check box associated with the port and click Clear.
• Click Refresh to refresh the data on the screen and display the most current statistics.

Port Detailed Statistics

The Port Detailed Statistics page displays a variety of per-port traffic statistics.

To access the Port Detailed page, click the Monitoring > Ports tab, and then click Port Detailed Statistics. (The following figure shows some, but not all, of the fields on the Port Detailed Statistics page.)

The following table describes the detailed port information displayed on the screen. To view information about a different port, select the port number from the Interface menu.

Field Description
Interface Use the drop down	menu to select the interface for which data is to be displayed or configured.
MST ID Displays the created	or existing MSTs.
ifIndex This field indicates the	ifIndex of the interface table entry associated with this port on an adapter.
Port Type For most ports this	field is blank. Otherwise the possible values are:Mirrored: Indicates that the port has been configured as a monitoring port and is the source port in a port mirroring session. For additional information about port monitoring and probe ports, seeMultiplePortMirroringonpage 278.Probe: Indicates that the port has been configured as a monitoring port and is the destination port in a port mirroring session. For additional information about port monitoring and probe ports, seeMultiplePortMirroringonpage 278.Port Channel: Indicates that the port has been configured as a member of a port-channel, which is also known as a link Aggregation Group (LAG).
Port Channel ID If the port is	a member of a port channel, the port channel's interface ID and name are shown. Otherwise, Disable is shown.
Port Role Each MST Bridge	Port that is enabled is assigned a Port Role for each spanning tree. The port role will be one of the following values: Root Port, Designated Port, Alternate Port, Backup Port, Master Port, or Disabled Port.
STP Mode Displays the Spanning Tree Protocol (STP) Administrative Mode for the port or LAG. The possible values for this field are:Enable: Enables the Spanning Tree Protocol for this port.Disable: Disables the Spanning Tree Protocol for this port.
STP State	Displays the port's current state Spanning Tree state. This state controls what action a port takes on receipt of a frame. If the bridge detects a malfunctioning port it will place that port into the broken state. The other five states are defined in IEEE 802.1D:DisabledBlockingListeningLearningForwardingBroken
Admin Mode Displays the port control administration state:Enable: The port can participate in the network (default).Disable: The port is administratively down and does not participate in the network.
LACP Mode Selects the Link	Aggregation Control Protocol administration state:Enable: Specifies that the port is allowed to participate in a port channel (LAG), which is the default mode.Disable: Specifies that the port cannot participate in a port channel (LAG).
Physical Mode Indicates the	port speed and duplex mode. In auto-negotiation mode, the duplex mode and speed are set from the auto-negotiation process.
Physical Status Indicates the	port speed and duplex mode status.
Link Status Indicates whether	the link is up or down.
Link Trap This object determines whether or not to send a trap when link status changes. The factory default is Enable.Enable: Specifies that the system sends a trap when the link status changes.Disable: Specifies that the system does not send a trap when the link status changes.
Packets RX and TX 64 Octets	The total number of packets (including bad packets) received or transmitted that were 64 octets in length (excluding framing bits but including FCS octets).
Packets RX and TX 65-127 Octets	The total number of packets (including bad packets) received or transmitted that were between 65 and 127 octets in length inclusive (excluding framing bits but including FCS octets).
Packets RX and TX 128-255 Octets	The total number of packets (including bad packets) received or transmitted that were between 128 and 255 octets in length inclusive (excluding framing bits but including FCS octets).
Packets RX and TX 256-511 Octets	The total number of packets (including bad packets) received or transmitted that were between 256 and 511 octets in length inclusive (excluding framing bits but including FCS octets).
Packets RX and TX 512-1023 Octets	The total number of packets (including bad packets) received or transmitted that were between 512 and 1023 octets in length inclusive (excluding framing bits but including FCS octets).
Packets RX and TX 1024-1518 Octets	The total number of packets (including bad packets) received or transmitted that were between 1024 and 1518 octets in length inclusive (excluding framing bits but including FCS octets).
Packets RX and TX >1522 Octets	The total number of packets (including bad packets) received or transmitted that are in excess of 1522 octets in length inclusive (excluding framing bits but including FCS octets).
Octets Received	The total number of octets of data (including those in bad packets) received on the network (excluding framing bits but including FCS octets). This object can be used as a reasonable estimate of ethernet utilization. If greater precision is desired, the etherStatsPkts and etherStatsOctets objects should be sampled before and after a common interval.
Packets Received 64 Octets	The total number of packets (including bad packets) received that were 64 octets in length (excluding framing bits but including FCS octets).
Packets Received 65-127 Octets	The total number of packets (including bad packets) received that were between 65 and 127 octets in length inclusive (excluding framing bits but including FCS octets).
Packets Received 128-255 Octets	The total number of packets (including bad packets) received that were between 128 and 255 octets in length inclusive (excluding framing bits but including FCS octets).
Packets Received 256-511 Octets	The total number of packets (including bad packets) received that were between 256 and 511 octets in length inclusive (excluding framing bits but including FCS octets).
Packets Received 512-1023 Octets	The total number of packets (including bad packets) received that were between 512 and 1023 octets in length inclusive (excluding framing bits but including FCS octets).
Packets Received 1024-1518 Octets	The total number of packets (including bad packets) received that were between 1024 and 1518 octets in length inclusive (excluding framing bits but including FCS octets).
Packets Received > 1522 Octets	The total number of packets received that were in excess of 1522 octets (excluding framing bits, but including FCS octets) and were otherwise well formed.
Total Packets Received Without Errors	The total number of packets received that were without errors.
Unicast Packets Received The number of subnetwork-unicast packets delivered to a higher-layer protocol.
Multicast Packets Received The total number of good packets received that were directed to a multicast address. This number does not include packets directed to the broadcast address.
Broadcast Packets Received The total number of good packets received that were directed to the broadcast address. This does not include multicast packets.
Total Packets Received with MAC Errors	The total number of inbound packets that contained errors preventing them from being deliverable to a higher-layer protocol.
Jabbers Received The total number of packets received that were longer than 1518 octets (excluding framing bits, but including FCS octets), and had either a bad Frame Check Sequence (FCS) with an integral number of octets (FCS Error) or a bad FCS with a non-integral number of octets (Alignment Error). This definition of jabber is different than the definition in IEEE-802.3 section 8.2.1.5 (10BASE5) and section 10.3.1.4 (10BASE2). These documents define jabber as the condition where any packet exceeds 20 ms. The allowed range to detect jabber is between 20 ms and 150 ms.
Fragments Received The total number of packets received that were less than 64 octets in length with ERROR CRC (excluding framing bits but including FCS octets).
Undersize Received The total number of packets received that were less than 64 octets in length with GOOD CRC (excluding framing bits but including FCS octets).
Alignment Errors	The total number of packets received that had a length (excluding framing bits, but including FCS octets) of between 64 and 1518 octets, inclusive, but had a bad Frame Check Sequence (FCS) with a non-integral number of octets.
Rx FCS Errors The total number	ber of packets received that had a length (excluding framing bits, but including FCS octets) of between 64 and 1518 octets, inclusive, but had a bad Frame Check Sequence (FCS) with an integral number of octets
Overruns The total number of	frames discarded as this port was overloaded with incoming packets, and could not keep up with the inflow.
Total Received Packets Not Forwarded	A count of valid frames received which were discarded (i.e., filtered) by the forwarding process.
Local Traffic Frames	The total number of frames dropped in the forwarding process because the destination address was located off of this port.
802.3x Pause Frames Received	A count of MAC Control frames received on this interface with an opcode indicating the PAUSE operation. This counter does not increment when the interface is operating in half-duplex mode.
Unacceptable Frame Type	The number of frames discarded from this port due to being an unacceptable frame type.
Multicast Tree Viable Discards	The number of frames discarded when a lookup in the multicast tree for a VLAN occurs while that tree is being modified.
Reserved Address Discards	The number of frames discarded that are destined to an IEEE 802.1 reserved address and are not supported by the system.
Broadcast Storm Recovery T	The number of frames discarded that are destined for FF:FF:FF:FF:FF:FF when Broadcast Storm Recovery is enabled.
CFI Discards The number of	frames discarded that have CFI bit set and the addresses in RIF are in non-canonical format.
Upstream Threshold	The number of frames discarded due to lack of cell descriptors available for that packet's priority level.
Total Packets Transmitted (Octets)	The total number of octets of data (including those in bad packets) transmitted on the network (excluding framing bits but including FCS octets). This object can be used as a reasonable estimate of ethernet utilization. If greater precision is desired, the etherStatsPkts and etherStatsOctets objects should be sampled before and after a common interval.
Packets Transmitted 64 Octets	The total number of packets (including bad packets) transmitted that were 64 octets in length (excluding framing bits but including FCS octets).
Packets Transmitted 65-127 Octets	The total number of packets (including bad packets) transmitted that were between 65 and 127 octets in length inclusive (excluding framing bits but including FCS octets).
Packets Transmitted 128-255 Octets	The total number of packets (including bad packets) transmitted that were between 128 and 255 octets in length inclusive (excluding framing bits but including FCS octets).
Packets Transmitted 256-511 Octets	The total number of packets (including bad packets) transmitted that were between 256 and 511 octets in length inclusive (excluding framing bits but including FCS octets).
Packets Transmitted 512-1023 Octets	The total number of packets (including bad packets) transmitted that were between 512 and 1023 octets in length inclusive (excluding framing bits but including FCS octets).
Packets Transmitted 1024-1518 Octets	The total number of packets (including bad packets) transmitted that were between 1024 and 1518 octets in length inclusive (excluding framing bits but including FCS octets).
Packets Transmitted > 1522 Octets	The total number of packets (including bad packets) transmitted that were between over 1522 octets in length inclusive (excluding framing bits but including FCS octets).
Maximum Frame Size The m	maximum Ethernet frame size the interface supports or is configured to support. The maximum size includes the Ethernet header, CRC, and payload. (1518 to 9216). The default maximum frame size is 1518.
Total Packets Transmitted Successfully	The number of frames that have been transmitted by this port to its segment.
Unicast Packets Transmitted	The total number of packets that higher-level protocols requested be transmitted to a subnetwork-unicast address, including those that were discarded or not sent.
Multicast Packets Transmitted	The total number of packets that higher-level protocols requested be transmitted to a Multicast address, including those that were discarded or not sent.
Broadcast Packets Transmitted	The total number of packets that higher-level protocols requested be transmitted to the Broadcast address, including those that were discarded or not sent.
Total Transmit Errors The sum	of Single, Multiple, and Excessive Collisions.
Tx FCS Errors The total num	ber of packets transmitted that had a length (excluding framing bits, but including FCS octets) of between 64 and 1518 octets, inclusive, but had a bad Frame Check Sequence (FCS) with an integral number of octets
Tx Oversized The total num	er of frames that exceeded the max permitted frame size. This counter has a max increment rate of 815 counts per second at 10 Mb/s.
Underrun Errors The total num	number of frames discarded because the transmit FIFO buffer became empty during frame transmission.
Total Transmit Packets Discarded	The sum of single collision frames discarded, multiple collision frames discarded, and excessive frames discarded.
Single Collision Frames A count	of the number of successfully transmitted frames on a particular interface for which transmission is inhibited by exactly one collision.
Multiple Collision Frames A count	of the number of successfully transmitted frames on a particular interface for which transmission is inhibited by more than one collision.
Excessive Collision Frames	A count of frames for which transmission on a particular interface fails due to excessive collisions.
Port Membership Discards	The number of frames discarded on egress for this port due to egress filtering being enabled.
STP BPDUs Received Number	of STP BPDUs received at the selected port.
STP BPDUs Transmitted Number	of STP BPDUs transmitted from the selected port.
RSTP BPDUs Received Number	of RSTP BPDUs received at the selected port.
RSTP BPDUs Transmitted Number	of RSTP BPDUs transmitted from the selected port.
MSTP BPDUs Received Number	of MSTP BPDUs received at the selected port.
MSTP BPDUs Transmitted Number	of MSTP BPDUs transmitted from the selected port.
802.3x Pause Frames Transmitted	A count of MAC Control frames transmitted on this interface with an opcode indicating the PAUSE operation. This counter does not increment when the interface is operating in half-duplex mode.
EAPOL Frames Received The number of valid EAPOL frames of any type that have been received by this authenticator.
EAPOL Frames Transmitted	The number of EAPOL frames of any type that have been transmitted by this authenticator.
Time Since Counters Last Cleared	The elapsed time, in days, hours, minutes, and seconds since the statistics for this port were last cleared.

Use the buttons at the bottom of the page to perform the following actions:

• Click Clear to clear all the counters. This resets all statistics for this port to the default values.
• Click Refresh to refresh the data on the screen and display the most current statistics.

EAP Statistics

Use the EAP Statistics page to display information about EAP packets received on a specific port.

To display the EAP Statistics page, click the Monitoring >Ports tab, and then click the EAP Statistics link.

To view EAP statistics:

1. To view statistics for a physical port, click the unit ID of the stack member with the ports to view.
2. To view statistics for a Link Aggregation Group (LAG), click LAGS.
3. To view statistics for both physical ports and LAGs, click ALL.
4. To view statistics for a specific interface, enter the interface ID in the Go To Interface and click Go.

The following table describes the EAP statistics displayed on the screen.

Field Description
Ports Specifies the interface which is polled for statistics.
Frames Received Displays the number of valid EAPOL frames received on the port.
Frames Transmitted Displays the number of EAPOL frames transmitted through the port.
Start Frames Received Displays the number of EAPOL Start frames received on the port.
Log off Frames Received Displays the number of EAPOL Log off frames that have been received on the port.
Last Frame Version Displays the protocol version number attached to the most recently received EAPOL frame.
Last Frame Source Displays the source MAC Address attached to the most recently received EAPOL frame.
Invalid Frames Received Displays the number of unrecognized EAPOL frames received on this port.
Length Error Frames Received Displays the number of EAPOL frames with an invalid Packet Body Length received on this port.
Response/ID Frames Received	Displays the number of EAP Respond ID frames that have been received on the port.
Response Frames Received Displays the number of valid EAP Response frames received on the port.
Request/ID Frames Transmitted	Displays the number of EAP Requested ID frames transmitted through the port.
Request Frames Transmitted	Displays the number of EAP Request frames transmitted through the port.

Use the buttons at the bottom of the page to perform the following actions:

• To clear all the EAP counters for all ports on the switch, select the check box in the row heading and click Clear. The button resets all statistics for all ports to default values.
• To clear the counters for a specific port, select the check box associated with the port and click Clear.
• Click Refresh to refresh the data on the screen and display the most current statistics.

Cable Test

Use the Cable Test page to display information about the cables connected to switch ports.

To display the Cable Test page, click the Monitoring >Ports tab, and then click the Cable Test link.

To perform the cable test:

1. Select one or more ports to test for cable information.
2. Click Apply to run the test.

The following table shows the information the Cable Test page shows:

Field Description
Cable Status Displays the cable status.· Normal: the cable is working correctly.· Open: the cable is disconnected or there is a faulty connector.· Short: there is an electrical short in the cable.· Cable Test Failed: The cable status could not be determined. The cable may in fact be working.· Unknown: The test has not been performed.
Cable Length The estimated length of the cable in meters. The length is displayed as a range between the shortest estimated length and the longest estimated length. Unknown is displayed if the cable length could not be determined. The Cable Length is displayed only if the cable status is Normal.
Failure Location The estimated distance in meters from the end of the cable to the failure location. The failure location is displayed only if the cable status is Open or Short.

Click Refresh to refresh the data on the screen and display the most current statistics.

System Logs

The switch may generate messages in response to events, faults, or errors occurring on the platform as well as changes in configuration or other occurrences. These messages are stored locally and can be forwarded to one or more centralized points of collection for monitoring purposes or long term archival storage. Local and remote configuration of the logging capability includes filtering of messages logged or forwarded based on severity and generating component.

The Monitoring > Logs tab contains links to the following folders:

• MemoryLogson page 270
• FLASHLogConfigurationon page 272
• ServerLogConfigurationon page 274
- TrapLogson page 276
• EventLogson page 277

Memory Logs

The in-memory log stores messages in memory based upon the settings for message component and severity. Use the Memory Logs page to set the administrative status and behavior of logs in the system buffer. These log messages are cleared when the switch reboots.

To access the Memory Log page, click the Monitoring > Logs tab, and then click the Memory Log link.

To configure the Memory Log settings:

1. Use the radio buttons in the Admin Status field to determine whether to log messages.

2. Enable: Enables system logging.

3. Disable: Prevents the system from logging messages.

4. From the Behavior menu, specify the behavior of the log when it is full.

5. Wrap: When the buffer is full, the oldest log messages are deleted as the system logs new messages.

6. Stop on Full: When the buffer is full, the system stops logging new messages and preserves all existing log messages.

7. If you change the buffered log settings, click Apply to apply the changes to the system and the changes will be saved.

The Memory Log table also appears on the Memory Log page.

Field Description
Total Number of Messages Displays the number of messages the system has logged in memory. Only the 65 most recent entries are displayed on the page.
Description The log message text, which includes the time the log was recorded.

The rest of the page displays the Memory Log messages. The format of the log message is the same for messages that are displayed for the message log, persistent log, or console log. Messages logged to a collector or relay via syslog have the same format as well.

The following example shows the standard format for a log message:

<14> Mar 24 05:34:05 10.131.12.183-1 UNKN[2176789276]:
main_login.c(179) 3855 %% HTTP Session 19 initiated for user admin connected from 10.27.64.122

The number contained in the angle brackets represents the message priority, which is derived from the following values:

Priority = (facility value × 8) + severity level.

The facility value is usually one, which means it is a user-level message. Therefore, to determine the severity level of the message, subtract eight from the number in the angle brackets. The example log message has a severity level of 6 (informational). For more information about the severity of a log message, see the Severity Filter description on 275.

The message was generated on March 24 at 5:34:05 a.m by the switch with an IP address of 10.131.12.183. The component that generated the message is unknown, but it came from line 179 of the main_login.c file. This is the 3,855^th message logged since the switch was last booted. The message indicates that the administrator logged onto the HTTP management interface from a host with an IP address of 10.27.64.122.

Use the buttons at the bottom of the page to perform the following actions:

• Click Clear to clear the messages out of the buffered log in the memory.
• Click Refresh to update the page with the latest messages in the log.

- Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

FLASH Log Configuration

The FLASH log is a log that is stored in persistent storage, which means that the log messages are retained across a switch reboot.

• The first log type is the system startup log. The system startup log stores the first N messages received after system reboot. This log always has the log full operation attribute set to stop on full and can store up to 32 messages.
• The second log type is the system operation log. The system operation log stores the last N messages received during system operation. This log always has the log full operation attribute set to overwrite. This log can store up to 1000 messages.

Either the system startup log or the system operation log stores a message received by the log subsystem that meets the storage criteria, but not both. On system startup, if the startup log is configured, it stores messages up to its limit. The operation log, if configured, then begins to store the messages.

Use the FLASH Log Configuration page to enable or disable persistent logging and to set the severity filter.

To access the FLASH Log Configuration page, click the Monitoring > Logs tab, and then click the FLASH Log link.

To configure the FLASH Log settings:

1. Use the radio buttons in the Admin Status field to determine whether to log messages to persistent storage.

2. Enable: Enables persistent logging.

3. Disable: Prevents the system from logging messages in persistent storage.

4. From the Severity Filter field, specify the type of log messages to record. A log records messages equal to or above a configured severity threshold. For example, if you select Error, the logged messages include Error, Critical, Alert, and Emergency. The default severity level is Alert(1). The severity can be one of the following levels:

5. Emergency (0): The highest level warning level. If the device is down or not functioning properly, an emergency log is saved to the device.

6. Alert (1): The second highest warning level. An alert log is saved if there is a serious device malfunction, such as all device features being down. Action must be taken immediately.
7. Critical (2): The third highest warning level. A critical log is saved if a critical device malfunction occurs, for example, two device ports are not functioning, while the rest of the device ports remain functional.
8. Error (3): A device error has occurred, such as if a port is offline.
   • Warning (4): The lowest level of a device warning.
9. Notice (5): Normal but significant conditions. Provides the network administrators with device information.
   • Information (6): Provides device information.

10. Debug (7): Provides detailed information about the log. Debugging should only be entered by qualified support personnel.

11. If you make any changes to the page, click Apply to apply the change to the system.

The rest of the page displays the number of persistent messages the system has logged and the persistent log messages.

Use the buttons at the bottom of the page to perform the following actions:

• Click Clear to clear the messages out of the buffered log.
• Click Refresh to refresh the page with the most current data from the switch.
• Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Server Log Configuration

Use the Server Log Configuration page to allow the switch to send log messages to the remote logging hosts configured on the system.

To access the Server Log Configuration page, click the Monitoring > Logs tab, and then click the Server Log link.

To configure local log server settings:

1. Use the radio buttons in the Admin Status field to determine whether to send log messages to the remote syslog hosts configured on the switch.

2. Enable: Messages will be sent to all configured hosts (syslog collectors or relays) using the values configured for each host.

3. Disable: Stops logging to all syslog hosts. Disable means no messages will be sent to any collector/relay.

4. In the Local UDP Port field, specify the port on the switch from which syslog messages are sent.

5. Click Apply to save the settings.

The Server Log Configuration area also displays the following information:

• The Messages Relayed field shows the number of messages forwarded by the syslog function to a syslog host. Messages forwarded to multiple hosts are counted once for each host.
  • The Messages Ignored field shows the number of messages that were ignored.

To configure a remote log server

1. To add a remote syslog host (log server), specify the settings in the following list and click Add.

2. Host Address. Specify the IP address or hostname of the host configured for syslog.

3. Port. Specify the port on the host to which syslog messages are sent. The default port is 514.

4. Severity Filter. Use the menu to select the severity of the logs to send to the logging host. Logs with the selected severity level and all logs of greater severity are sent to the host. For example, if you select Error, the logged messages include Error, Critical, Alert, and Emergency. The default severity level is Alert(1). The severity can be one of the following levels:

5. Emergency (0): The highest level warning level. If the device is down or not functioning properly, an emergency log is saved to the device.

6. Alert (1): The second highest warning level. An alert log is saved if there is a serious device malfunction, such as all device features being down.
7. Critical (2): The third highest warning level. A critical log is saved if a critical device malfunction occurs, for example, two device ports are not functioning, while the rest of the device ports remain functional.
8. Error (3): A device error has occurred, such as if a port is offline.
   • Warning (4): The lowest level of a device warning.
9. Notice (5): Provides the network administrators with device information.
   • Informational (6): Provides device information.

10. Debug (7): Provides detailed information about the log. Debugging should only be entered by qualified support personnel.

11. To delete an existing host, select the check box next to the host and click Delete.

12. To modify the settings for an existing host, select the check box next to the host, change the desired information, and click Apply.
13. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

The Status field in the Server Configuration table shows whether the remote logging host is currently active.

Trap Logs

Use the Trap Logs page to view information about the SNMP traps generated on the switch.

To access the Trap Logs page, click the Monitoring > Logs tab, and then click the Trap Logs link.

The following table describes the Trap Log information displayed on the screen.

Field Description
Number of Traps Since Last Reset	The number of traps that have occurred since the switch last reboot.
Trap Log Capacity	The maximum number of traps stored in the log. If the number of traps exceeds the capacity, the entries will overwrite the oldest entries.
Number of Traps Since Log Last Viewed	The number of traps that have occurred since the traps were last displayed. Displaying the traps by any method (such as terminal interface display, Web display, or upload file from switch) will cause this counter to be cleared to 0.

The page also displays information about the traps that were sent.

Field Description
Log The sequence number of this trap.
System Up Time The time at which this trap occurred, expressed in days, hours, minutes, and seconds since the last reboot of the switch.
Trap Information identifying the trap.

Click Clear Counters to clear all the counters. This resets all statistics for the trap logs to the default values.

Event Logs

Use the Event Log page to display the event log, which is used to hold error messages for catastrophic events. After the event is logged and the updated log is saved in flash memory, the switch will be reset. The log can hold at least 2,000 entries and is erased when an attempt is made to add an entry after it is full. The event log is preserved across system resets.

To access the Event Log page, click the Monitoring > Logs tab, and then click the Event Logs link.

The following table describes the Event Log information displayed on the screen.

Field Description
Entry The number of the entry	within the event log. The most recent entry is first.
Type Specifies the type of entry.
Filename The GS728TS, GS728TPS, GS752TS, or GS752TPS source code filename identifying the code that detected the event.
Line The line number within the source file of the code that detected the event.
Task ID The OS-assigned ID of the task reporting the event.
Code The event code passed to the event log handler by the code reporting the event.
Time The time the event occurred, measured from the previous reset.

Use the buttons at the bottom of the page to perform the following actions:

• Click Clear to clear the messages out of the Event Log.
• Click Refresh to refresh the data on the screen and display the most current information.

Port Mirroring

The page under the Mirroring link allows you to view and configure port mirroring on the system.

Multiple Port Mirroring

Port mirroring selects the network traffic for analysis by a network analyzer. This is done for specific ports of the switch. As such, many switch ports are configured as source ports and one switch port is configured as a destination port. You have the ability to configure how traffic is mirrored on a source port. Packets that are received on the source port, that are transmitted on a port, or are both received and transmitted, can be mirrored to the destination port.

The packet that is copied to the destination port is in the same format as the original packet on the wire. This means that if the mirror is copying a received packet, the copied packet is VLAN tagged or untagged as it was received on the source port. If the mirror is copying a transmitted packet, the copied packet is VLAN tagged or untagged as it is being transmitted on the source port.

Use the Multiple Port Mirroring page to define port mirroring sessions.

To access the Multiple Port Mirroring page, click Monitoring > Port Mirroring.

To configure Port Mirroring:

1. To configure port mirroring settings for a physical port, click the unit ID of the stack member with the ports to configure.

2. To configure port mirroring settings for a Link Aggregation Group (LAG), click LAGS.

3. To configure port mirroring settings for both physical ports and LAGs, click ALL.Select the check box next to a port to configure it as a source port.

4. Alternatively, to configure settings for a specific interface, enter the interface ID in the Go To Interface and click Go.

5. Select the check box next to a port or LAG to configure it as a source port.
6. In the Destination Port field, specify the port to which port traffic is be copied. Use the /g format to specify the port, for example 1/g1. You can configure only one destination port on the system.

7. From the Session Mode menu, select the mode for port mirroring on the selected port:

8. Enable. Multiple Port Mirroring is active on the selected port.

9. Disable. Port mirroring is not active on the selected port, but the mirroring information is retained. This is the default value.

10. Specify the traffic on the source port to monitor:

• Tx and Rx: Both ingress and egress traffic.
• Tx only: Egress traffic (traffic leaving the port) only.
- Rx only: Ingress traffic (traffic entering the port) only.

1. Click Apply to apply the settings to the system.

Note: If the port is configured as a source port, the Mirroring Port field value is Mirrored.

1. To delete a mirrored port, select the check box next to the mirrored port, and then click Delete.
2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch.

Use the features available from the Maintenance tab to help you manage the switch. The Maintenance tab contains links to the following features:

• Reseton page 280
• UploadFileFromSwitchon page 282
  • DownloadFileToSwitchon page 284
  • FileManagementon page 288
  • Troubleshootingon page 292

Reset

The Reset menu contains links to the following options:

• DeviceRebooton page 280
• FactoryDefaulton page 281

Device Reboot

Use the Device Reboot page to reboot a switch. If you are managing a stack of switches, you can use this page to reboot any stack member.

To access the Device Reboot page, click Maintenance > Reset > Device Reboot.

To reboot the switch:

1. Select the Unit ID of the stack member to reboot, or select All to reboot all units in the stack.
2. Select the check box on the page.
3. Click Apply to reset the switch immediately, or click Cancel to abandon the reset request. After the switch reset begins, the management interface is not available until the switch completes the boot cycle. After the switch resets, the login screen appears.

Factory Default

Use the Factory Default page to reset the system configuration to the factory default values.

Note: If you reset the switch to the default configuration, the IP address is reset to 192.168.0.239, and the DHCP client is enabled. If you loose network connectivity after you reset the switch to the factory defaults, see ConnectingtheSwitchtotheNetworkon page 11.

To access the Factory Defaults page, click Maintenance > Reset > Factory Default.

To reset the switch to the factory default settings:

1. Select the check box on the page.
2. Click Apply to reset the switch immediately, or click Cancel to abandon the changes.

Upload File From Switch

The switch supports system file uploads from the switch to a remote system by using either TFTP or HTTP.

The Upload menu contains links to the following options:

• TFTPFileUploadon page 282
- HTTPFileUploadon page 283

TFTP File Upload

Use the TFTP File Upload page to upload configuration (ASCII), log (ASCII), and image (binary) files from the switch to the TFTP server.

To display the File Upload page, click Maintenance > Upload > TFTP File Upload.

To upload a file from the switch to the TFTP server:

1. Use the File Type menu to specify the type of file you want to upload:

• Archive: Uploads a stored code image.
• Text Configuration: Uploads the text configuration file.
- Error Log: Uploads the system error (persistent) log, sometimes referred to as the event log.
• Buffered Log: Uploads the system buffered (in-memory) log.
- Trap Log: Uploads the system trap records.

1. If the file type is Archive, use the Image Name menu to specify whether to upload image1 or image2. This field is visible only when Archive is selected as the File Type.

2. From the Server Address Type filed, specify the format to use for the address you type in the TFTP Server Address field:

• IPv4. Indicates the TFTP server address is an IP address in dotted-decimal format.
• DNS. Indicates the TFTP server address is a hostname.

1. In the Server Address field, specify the IP address or hostname of the TFTP server. The address you type must be in the format indicated by the TFTP Server Address Type.
2. In the Transfer File Path field, specify the path on the TFTP server where you want to put the file. You may enter up to 96 characters. Include the backslash at the end of the path closest to the root. A path name with a space is not accepted. Leave this field blank to save the file to the root TFTP directory.
3. In the Transfer File Name field, specify a destination file name for the file to upload. You may enter up to 32 characters. The transfer fails if you do not specify a file name. For a code transfer, use an .stk file extension.
4. Select the Start File Transfer check box to initiate the file upload.
5. Click Apply to begin the file transfer, or click Cancel to abandon the changes.

After the file transfer begins, the last row of the table displays information about the progress of the file transfer. The page refreshes automatically until the file transfer completes or fails.

HTTP File Upload

Use the HTTP File Upload page to upload files of various types from the switch to an administrative system using an HTTP session (for example, via your Web browser).

To display this page, click Maintenance > Upload > HTTP File Upload.

To upload a file from the switch to an administrative system by using HTTP:

1. From the File Type menu, Specify what type of file you want to download to the switch:

- Archive: The code is the system software image, which is saved in one of two flash sectors called images (image1 and image2). The active image stores the active copy; while the other image stores a second copy. The device boots and runs from the active image. If the active image is corrupt, the system automatically boots from the non-active image. This is a safety feature for faults occurring during the boot upgrade process.

- Text Configuration: A text-based configuration file enables you to edit a configured text file (startup-config) offline as needed without having to translate the contents for the switch to understand. The most common usage of text-based configuration is to upload a working configuration from a device, edit it offline to personalize it for another similar device (for example, change the device name, serial number, IP address), and download it to that device.

1. If you are uploading an image (Archive), use the Image Name field to select the image to upload (image1 or image2). This field is only visible when Archive is selected as the File Type.

2. Click Apply to open a window that allows you to either open the file or browse to a location on an administrative system and save the file.

1. Click OK to open or save the file to the selected location.

Download File To Switch

The switch supports system file downloads from a remote system to the switch by using either TFTP or HTTP.

The Download menu contains links to the following options:

• TFTPFileDownloadon page 285

- HTTPFileDownloadon page 287

TFTP File Download

Use the Download File to Switch page to download device software, the image file, the configuration files and SSL files from a TFTP server to the switch.

You can also download files via HTTP. See HTTP File Download on page 287 for additional information.

To access the TFTP File Download page, click Maintenance > Download > TFTP File Download.

Before you download a file to the switch, the following conditions must be true:

• The file to download from the TFTP server is on the server in the appropriate directory.
  • The file is in the correct format.
  • The switch has a path to the TFTP server.

To download a file to the switch from a TFTP server:

1. From the File Type menu, Specify what type of file you want to download to the switch:

2. Archive: The code is the system software image, which is saved in one of two flash sectors called images (image1 and image2). The active image stores the active copy; while the other image stores a second copy. The device boots and runs from the active image. If the active image is corrupt, the system automatically boots from the non-active image. This is a safety feature for faults occurring during the boot upgrade process.

3. Text Configuration: A text-based configuration file enables you to edit a configured text file (startup-config) offline as needed without having to translate the contents for the switch to understand. The most common usage of text-based configuration is to upload a working configuration from a device, edit it offline to personalize it for another similar device (for example, change the device name, serial number, IP address), and download it to that device.
4. SSL Trusted Root Certificate PEM File: SSL Trusted Root Certificate File (PEM Encoded).

5. SSL Server Certificate PEM File: SSL Server Certificate File (PEM Encoded).

6. SSL DH Weak Encryption Parameter PEM File: SSL Diffie-Hellman Weak Encryption Parameter File (PEM Encoded).

7. SSL DH Strong Encryption Parameter PEM File: SSL Diffie-Hellman Strong Encryption Parameter File (PEM Encoded).

8. If you are downloading an image (Archive) file, select the image on the switch to overwrite from the Image Name field. This field is only visible when Archive is selected as the File Type.

Note: It is recommended that you not overwrite the active image. The system will display a warning that you are trying to overwrite the active image.

1. From the Server Address Type filed, specify the format for the address you type in the TFTP Server Address field

2. IPv4. Indicates the TFTP server address is an IP address in dotted-decimal format.
   • DNS. Indicates the TFTP server address is a hostname.

3. In the Server Address field, specify the IP address or hostname of the TFTP server. The address you type must be in the format indicated by the TFTP Server Address Type.

4. In the Transfer File Path field, specify the path on the TFTP server where the file is located. You may enter up to 96 characters. Include the backslash at the end of the path. A path name with a space is not accepted. Leave this field blank to save the file to the root TFTP directory.

5. In the Remote File Name field, specify the name of the file to download from the TFTP server. You may enter up to 32 characters. A file name with a space is not accepted.
6. Select the Start File Transfer check box to initiate the file upload.
7. Click Apply to begin the file transfer, or click Cancel to abandon the transfer.

After the transfer starts, the last row of the table displays information about the progress of the file transfer. The page refreshes automatically until the file transfer completes or fails.

To activate a software image that you download to the switch, see FileManagement page 288.

HTTP File Download

Use the HTTP File Download page to download files of various types to the switch using an HTTP session (for example, via your Web browser).

To display this page, click Maintenance > Download > HTTP File Download.

To download a file to the switch from by using HTTP:

1. From the File Type menu, Specify what type of file you want to download to the switch:

2. Archive: The code is the system software image, which is saved in one of two flash sectors called images (image1 and image2). The active image stores the active copy; while the other image stores a second copy. The device boots and runs from the active image. If the active image is corrupt, the system automatically boots from the non-active image. This is a safety feature for faults occurring during the boot upgrade process.

3. Text Configuration: A text-based configuration file enables you to edit a configured text file (startup-config) offline as needed without having to translate the contents for the switch to understand. The most common usage of text-based configuration is to upload a working configuration from a device, edit it offline to personalize it for another similar device (for example, change the device name, serial number, IP address), and download it to that device.
4. SSL Trusted Root Certificate PEM File: SSL Trusted Root Certificate File (PEM Encoded).
5. SSL Server Certificate PEM File: SSL Server Certificate File (PEM Encoded).
6. SSL DH Weak Encryption Parameter PEM File: SSL Diffie-Hellman Weak Encryption Parameter File (PEM Encoded).

7. SSL DH Strong Encryption Parameter PEM File: SSL Diffie-Hellman Strong Encryption Parameter File (PEM Encoded).

8. If you are downloading an image (Archive), use the Image Name field to select the image to download (image1 or image2). This field is only visible when Archive is selected as the File Type.

Note: It is recommended that you not overwrite the active image. The system will display a warning that you are trying to overwrite the active image.

1. Click Browse to open a window that allows you to locate the file you want to download.
2. Click Cancel to cancel the operation on the screen and reset the data on the screen to the latest value of the switch.
3. Click the Apply button to initiate the file download.

Note: After a file transfer is started, please wait until the page refreshes. When the page refreshes, the SelectFile option will be blanked out. This indicates that the file transfer is done.

File Management

The system maintains two versions of the GS728TS, GS728TPS, GS752TS, or GS752TPS software in permanent storage. One image is the active image, and the second image is the backup image. The active image is loaded during subsequent switch restarts. This feature reduces switch down time when upgrading or downgrading the GS728TS, GS728TPS, GS752TS, or GS752TPS software.

The File Management menu contains links to the following options:

• Copyon page 288
• DualImageConfiguration on page 289
• DuallmageStatuson page 291

Copy

Use the Copy page to copy an image from the stack master to another stack member or all stack members. You can also copy one image to the other on the stack master (e.g. copy image1 to image2).

To display the Copy page, click Maintenance > File Management > Copy.

To copy an image:

1. Use the Source Image field to select the image on the stack master to use as the source. The source image overwrites the destination image, if it exists.
2. Use the Stack Member menu to select the destination unit to which you are going to copy the image. To copy the selected image from the stack master to all stack members, select All.
3. Use the Destination Image field to determine which image on the stack member(s) to overwrite (if an image currently exists in the selected destination). The image on the stack master is copied to the destination you select.
4. Click Cancel to cancel the configuration on the screen. Reset the data on the screen to the latest value of the switch.
5. Click Apply to initiate the file transfer from the stack master to the selected stack member.

Dual Image Configuration

The system running a legacy software version will ignore (not load) a configuration file created by the newer software version. When a configuration file created by the newer software version is discovered by the system running an older version of the software, the system will display an appropriate warning to the user.

Use the Dual Image Configuration page to set the boot image, configure an image description, or delete an image.

To display the Dual Image Configuration page, click Maintenance > File Management > Dual Image > Dual Image Configuration.

To configure Dual Image settings:

1. Select the ID of the stack member to configure, or select All to configure all units in the stack with the same dual image settings.
2. Select the image to configure.

The Current-active field displays the name of the active image.

1. To configure a descriptive name for the selected software image, type the name in the Image Description field.
2. To set the selected image as the active image, select the Active Image check box.

Note: After activating an image, you must perform a system reset of the stack in order to run the new code.

1. To remove the selected image from permanent storage on the switch, select the Delete Image check box. You cannot delete the active image.
2. Click Cancel to cancel the operation on the screen and reset the data on the screen to the latest value of the switch.
3. Click Apply to apply the settings to the switch.

Dual Image Status

You can use the Dual Image Status page to view information about the system images on the device.

To display the Dual Image Status page, click Maintenance > File Management > Dual Image > Dual Image Status.

The following table describes the information on the Dual Image Status page.

Field Description
Unit The unit ID of the switch is always 1.
Image1 Ver Displays the version of the image1 code file.
Image2 Ver Displays the version of the image2 code file.
Current-active Displays the currently active image on this switch.
Next-active Displays the image to be used on the next restart of this switch.
Image1 Description Displays the description associated with the image1 code file.
Image2 Description Displays the description associated with the image2 code file.

Click Refresh to display the latest information from the switch.

For information about how to update or change the system images, see File Management on page 288.

Troubleshooting

The Troubleshooting menu contains links to the following options:

• Pingon page 292
  • PingIPv6on page 293
  • Tracerouteon page 294

Ping

Use the Ping page to tell the switch to send a Ping request to a specified IP address. You can use this feature to check whether the switch can communicate with a particular network host.

To access the Ping page, click Maintenance > Troubleshooting > Ping.

To configure the settings and ping a host on the network:

1. In the Hostname/IP Address field, specify the IP address or the hostname of the station you want the switch to ping. The initial value is blank. This information is not retained across a power cycle.
2. Optionally, configure the following settings:

• Count. Specify the number of pings to send. The valid range is 1–15.
- Interval. Specify the number of seconds between pings sent. The valid range is 1–60.
- Size. Specify the size of the ping (ICMP) packet to send. The valid range is 0–65507.

1. Click Cancel to cancel the operation on the screen and reset the data on the screen to the latest value of the switch.

2. Click Apply to send the ping. The switch sends the number of pings specified in the Count field, and the results are displayed below the configurable data in the Ping area.

3. If successful, you will see "Reply From IP/Host: icmp_seq = 0. time = xx usec. Tx = x, Rx = x Min/Max/Avg RTT = x/x/msec."

4. If a reply to the ping is not received, you will see "Reply From IP/Host: Destination Unreachable. Tx = x, Rx = 0 Min/Max/Avg RTT = 0/0/0 msec".

Ping IPv6

Use the Ping IPv6 page to send a Ping request to a specified Hostname or IPv6 address. You can use this to check whether the switch can communicate with a particular IPv6 station. When you click the Apply button, the switch will send three pings and the results will be displayed below the configurable data.

To access the Ping IPv6 page, click Maintenance > Troubleshooting > Ping IPv6.

To configure the settings and ping a host on the network:

1. In the Ping field, select either Global or Link Global to select either the global IPv6 Address/Hostname or Link Local Address to ping.

2. Optionally, configure the following settings:

3. In the IPv6 Address/Host Name field, enter the IPv6 address or Hostname of the station you want the switch to ping. The initial value is blank. The IPv6 Address or Hostname you enter is not retained across a power cycle.

4. In the Datagram Size field, specify the size of the datagram to send. The valid range is 48–2048.

5. The Result field displays the result after the switch send a Ping IPv6 request to the specified IPv6 address.

6. Click Cancel to cancel the operation on the screen and reset the data on the screen to the latest value of the switch.

7. Click Apply to send the ping. The switch sends the number of pings specified in the Count field, and the results are displayed below the configurable data in the Result area.

- If successful, the output will be Send count=3, Receive count = n from (IPv6 Address). Average round trip time = n ms.

- If a reply to the ping is not received, the following displays: "Reply From IP/Host: Destination Unreachable. Tx = x. Rx = 0 Min/Max/Avg RTT = 0/0/0 msec".

Traceroute

Use the Traceroute utility to discover the paths that a packet takes to a remote destination. To display this page, click Maintenance > Troubleshooting > Traceroute.

To configure the Traceroute settings and send probe packets to discover the route to a host on the network:

1. In the Hostname/IP Address field, specify the IP address or the hostname of the station you want the switch to ping. The initial value is blank. This information is not retained across a power cycle.

2. Optionally, configure the following settings:

3. Probes Per Hop. Specify the number of times each hop should be probed. The valid range is 1–10.

4. MaxTTL. Specify the maximum time-to-live for a packet in number of hops. The valid range is 1–255.
5. InitTTL. Specify the initial time-to-live for a packet in number of hops. The valid range is 1–255.
6. MaxFail. Specify the maximum number of failures allowed in the session. The valid range is 0–255.
7. Interval. Specify the time between probes in seconds. The valid range is 1–60.
8. Port. Specify the UDP destination port in probe packets. The valid range is 1–65535.

9. Size. Specify the size of probe packets. The valid range is 0–9192.

10. Click Cancel to cancel the operation on the screen and reset the data on the screen to the latest value of the switch.

11. Click Apply to initiate the traceroute. The results display in the TraceRoute area.

Use the features available from the Help tab to connect to online resources for assistance. The Help tab contains links to the following features:

• OnlineHelpon page 296
• Registration on page 298.

Online Help

The Online Help includes the following pages:

• Supporton page 296
• UserGuideon page 297

Support

Use the Support page to connect to the Online Support site at netgear.com.

To access the Support page, click Help > Online Help > Support.

To connect to the NETGEAR support site for the GS728TS, GS728TPS, GS752TS, or GS752TPS, click Apply.

User Guide

Use the User Guide page to access the GS728TS, GS728TPS, GS752TS, and GS752TPS SmartSwitchSoftwareAdministrationManual (the guide you are now reading) that is available on the NETGEAR Website.

To access the User Guide page, click Help > Online Help > User Guide.

To access to the User Guide that is available online, click Apply.

Registration

Use the Registration page to register your GS728TS, GS728TPS, GS752TS, or GS752TPS switch. Completing the registration confirms your email address, lowers technical support resolution time, and ensures your shipping address accuracy. NETGEAR, Inc. would also like to incorporate your feedback into future product development.

Note: NETGEAR will never sell or rent your email address, and you may opt out of communications at any time.

To access the Registration page, click Help > Registration.

To register the switch, click Register. The switch attempts to contact the NETGEAR Registration Server.

For the product registration process to proceed, the administrative system running the browser must meet the following requirements:

• The administrative system must have Internet access.
• The browser must allow pop up windows.
- If the browser is Microsoft® Internet Explorer, ActiveX must be enabled.

If the switch successfully contacts the Registration Server, the NETGEAR Product Registration page opens in a new browser window. The product serial number and model number fields are pre populated. After you provide some basic information and click Register, the registration process is complete.

If you have not registered the product or have not disabled the registration reminders, the following pop-up window appears each time a user successfully logs on to the switch:

The registration pop-up window includes the following buttons:

• TURN OFF. Use this button to turn off the Product Registration feature and to prevent the registration reminder pop-up window from appearing on subsequent successful login sessions.
• REMIND ME LATER. The pop-up window is closed without taking any action, and the registration reminder pop-up appears on next successful login.
• REGISTER NOW. The NETGEAR Registration Server is contacted to initiate the registration process.

Hardware Specifications and Default Values

Switch Specifications

The GS728TS, GS728TPS, GS752TS, and GS752TPS Gigabit Smart Switches conform to the TCP/IP, UDP, HTTP, ICMP, TFTP, DHCP, IEEE 802.1D, IEEE 802.1p, and IEEE 802.1Q standards.

GS728TS Specifications

Feature Value
Interfaces 24 copper 10/100/10	00M Ethernet ports2 combo ports: 10/100/1000M copper or 1G/100M optical2 SFP 1G optical ports (port 25 and 26)2 SFP ports (port 27 and 28) for 1G optical uplink or 2.5G optical stacking
Flash memory size 32 MB
SRAM size and type 128MB DDR2 SDRAM

GS728TPS Specifications

Feature Value
Interfaces 24 copper 10/100/10	00M PoE Ethernet ports (8 PoE+)2 combo ports: 10/100/1000M copper or 1G/100M optical2 SFP 1G optical ports (port 25 and 26)2 SFP ports (port 27 and 28) for 1G optical uplink or 2.5G optical stacking
Flash memory size 32 MB
SRAM size and type 128MB DDR2 SDRAM

GS752TS Specifications

Feature Value
Interfaces 48 copper 10/100/1000M Ethernet ports2 combo ports: 10/100/1000M copper or 1G/100M optical2 SFP 1G optical ports (port 49 and 50)2 SFP ports (port 51 and 52) for 1G optical uplink or 2.5G optical stacking
Flash memory size 32 MB
SRAM size and type 128MB DDR2 SDRAM

GS752TPS Specifications

Feature Value
Interfaces 48 copper 10/100/1000M PoE Ethernet ports (8 PoE+)2 combo ports: 10/100/1000M copper or 1G/100M optical2 SFP 1G optical ports (port 49 and 50)2 SFP ports (port 51 and 52) for 1G optical uplink or 2.5G optical stacking
Flash memory size 32 MB
SRAM size and type 128MB DDR2 SDRAM

Switch Performance

Feature Value
Switching capacity Non-Blocking Full WireSpeed on all packet sizes
Forwarding method Store and Forward
Packet forwarding rate 10M:14,880	pps/100M:148,800 pps/1G:1,488,000 pps
MAC addresses 16K
Green Ethernet Automatic power down on port when link is down, short cable mode and EEE mode

Switch Features and Defaults

Port Characteristics

Feature Sets Supported Default
Auto negotiation/static speed/duplex	All ports Auto negotiation
Auto MDI/MDIX N/A Enabled
802.3x flow control/back pressure 1	(per system) Disabled
Port mirroring 1 Disabled
Port trunking (aggregation) 8 Pre-configured
802.1D spanning tree 1 Disabled
802.1w RSTP 1 Disabled
802.1s spanning tree 5 instances D	Disabled
Static 802.1Q tagging 256 VID = 1		Max member ports are:28/52 for standalone switch300 for 6-unit stacking switch
Learning process Supports static and dynamic MAC entries		Dynamic learning is enabled by default

Traffic Control

Feature Sets Supported Default
Storm control All ports Disabled
Jumbo frame	All ports Disabled	Max = 9216 bytes

Quality of Service

Feature Sets Supported Default
Number of queues 7 N/A
Port based N/A N/A
802.1p 1 Enabled
DSCP 1 Disabled
Rate limiting All ports Disabled
Auto-QoS All ports Disabled

Security

Feature Sets Supported Default
802.1X All ports Disabled
MAC ACL 100 (shared with IP and	Pv6 ACLs)	All MAC addresses allowed
IP ACL 100 (shared with MAC and	Pv6 ACLs)	All IP addresses allowed
IPv6 ACL 100 (shared with IP ACL and MAC ACL)	and MAC ACL)	All IP addresses allowed
Password control access 1 Idle timeout = 5 mins.		Password = “password”
Management security 1 profile with	20 rules for HTTP/HTTPS/SNMP access to allow/deny an IP address/subnet	All IP addresses allowed
Port MAC lock down All ports Disabled

System Setup and Maintenance

Feature Sets Supported Default
Boot code update 1 N/A
DHCP/manual IP 1 DHCP enabled/	192.168.0.239
Default gateway 1 192.168.0.254
System name configuration 1 NULL
Configuration save/restore 1 N/A
Firmware upgrade 1 N/A
Restore defaults 1 (Web and front-panel button) N/A
Dual image support 1 Enabled
Factory reset 1 N/A

System Management

Feature Sets Supported Default
Multi-session Web connections 16	Enabled
SNMPv1/V2cSNMP v3	Max 5 community entries Enabled (read, read-write communities)
Time control	1 (Local or SNTP)	Local Time enabled
LLDP/LLDP-MED All ports Disabled
Logging	3 (Memory/Flash/Server)	Memory Log enabled
MIB support	1 Disabled
Smart Control Center	N/A	Enabled
Statistics	N/A	N/A

Other Features

Feature Sets Supported Default
IGMP snooping v1/v2/v3 All ports Disabled
Configurations upload/download 1 N/A
EAPoL flooding All ports Disabled
BPDU flooding All ports Disabled
Static multicast groups 8 Disabled
Filter multicast control 1 Disabled
Number of static routes 32 N/A
Number of routed VLANs 15 N/A
Number of ARP Cache entries 1024 N/A
Number of DHCP snooping bindings	8K N/A
Number of DHCP static entries 1024 N/A
MLD Snooping	N/A	Disabled
Protocol and MAC-based VLAN	N/A	N/A
Timer Schedule entries	100 (max of 10 periodic and 1 absolute entry per timer schedule entry)	N/A

This chapter contains information about how to configure the following features:

• VirtualLocalAreaNetworks(VLANs) on page 306
• AccessControlLists(ACLs) on page 308
• DifferentiatedServices(DiffServ)on page 311
• 802.1Xon page 315
- MSTPon page 318
- ConfiguringVLANRoutingon page 322

Virtual Local Area Networks (VLANs)

A local area network (LAN) can generally be defined as a broadcast domain. Hubs, bridges, or switches in the same physical segment or segments connect all end node devices. End nodes can communicate with each other without the need for a router. Routers connect LANs together, routing the traffic to the appropriate port.

A virtual LAN (VLAN) is a local area network with a definition that maps workstations on some basis other than geographic location (for example, by department, type of user, or primary application). To enable traffic to flow between VLANs, traffic must go through a router, just as if the VLANs were on two separate LANs.

A VLAN is a group of PCs, servers, and other network resources that behave as if they were connected to a single network segment, even though they might not be. For example, all marketing personnel might be spread throughout a building. Yet if they are all assigned to a single VLAN, they can share resources and bandwidth as if they were connected to the same segment. The resources of other departments can be invisible to the marketing VLAN members, accessible to all, or accessible only to specified individuals, depending on how the IT manager has set up the VLANs.

VLANs have a number of advantages:

• It is easy to do network segmentation. Users that communicate most frequently with each other can be grouped into common VLANs, regardless of physical location. Each group's traffic is contained largely within the VLAN, reducing extraneous traffic and improving the efficiency of the whole network.
• They are easy to manage. The addition of nodes, as well as moves and other changes, can be dealt with quickly and conveniently from a management interface rather than from the wiring closet.
• They provide increased performance. VLANs free up bandwidth by limiting node-to-node and broadcast traffic throughout the network.
• They ensure enhanced network security. VLANs create virtual boundaries that can be crossed only through a router. So standard, router-based security measures can be used to restrict access to each VLAN.

Packets received by the switch are treated in the following way:

• When an untagged packet enters a port, it is automatically tagged with the port's default VLAN ID tag number. Each port has a default VLAN ID setting that is user configurable (the default setting is 1). The default VLAN ID setting for each port can be changed in the Port PVID Configuration screen. See PortVLANIDConfigurationon page 113.
• When a tagged packet enters a port, the tag for that packet is unaffected by the default VLAN ID setting. The packet proceeds to the VLAN specified by its VLAN ID tag number.
• If the port through which the packet entered does not have membership with the VLAN specified by the VLAN ID tag, the packet is dropped.
• If the port is a member of the VLAN specified by the packet's VLAN ID, the packet can be sent to other ports with the same VLAN ID.
• Packets leaving the switch are either tagged or untagged, depending on the setting for that port's VLAN membership properties. A U for a given port means that packets leaving the switch from that port are untagged. Inversely, a T for a given port means that packets leaving the switch from that port are tagged with the VLAN ID that is associated with the port.

The example given in this section comprises numerous steps to illustrate a wide range of configurations to help provide an understanding of tagged VLANs.

VLAN Example Configuration

This example demonstrates several scenarios of VLAN use and describes how the switch handles tagged and untagged traffic.

In this example, you create two new VLANs, change the port membership for default VLAN and assign port members to the two new VLANs:

1. In the Basic VLAN Configuration screen (see VLAN Configuration on page 110), create the following VLANs:

• A VLAN with VLAN ID 10.
• A VLAN with VLAN ID 20.

1. In the VLAN Membership screen (see VLAN Membership Configuration on page 112) specify the VLAN membership as follows:

2. For the default VLAN with VLAN ID 1, specify the following members: port 7 (U) and port 8 (U).

3. For the VLAN with VLAN ID 10, specify the following members: port 1 (U), port 2 (U), and port 3 (T).

4. For the VLAN with VLAN ID 20, specify the following members: port 4 (U), port 5 (T), and port 6 (U).

5. In the Port PVID Configuration screen (see Port VLAN ID Configuration on page 113), specify the PVID for ports 1 and 4 so that packets entering these ports are tagged with the port VLAN ID:

6. Port 1: PVID 10
   • Port 4: PVID 20

7. With the VLAN configuration that you set up, the following situations produce results as described:

8. If an untagged packet enters port 1, the switch tags it with VLAN ID 10. The packet has access to port 2 and port 3. The outgoing packet is stripped of its tag to leave port 2 as an untagged packet. For port 3, the outgoing packet leaves as a tagged packet with VLAN ID 10.

9. If a tagged packet with VLAN ID 10 enters port 3, the packet has access to port 1 and port 2. If the packet leaves port 1 or port 2, it is stripped of its tag to leave the switch as an untagged packet.
10. If an untagged packet enters port 4, the switch tags it with VLAN ID 20. The packet has access to port 5 and port 6. The outgoing packet is stripped of its tag to become an untagged packet as it leaves port 6. For port 5, the outgoing packet leaves as a tagged packet with VLAN ID 20.

Access Control Lists (ACLs)

ACLs ensure that only authorized users have access to specific resources while blocking off any unwarranted attempts to reach network resources.

ACLs are used to provide traffic flow control, restrict contents of routing updates, decide which types of traffic are forwarded or blocked, and provide security for the network. ACLs are normally used in firewall routers that are positioned between the internal network and an external network, such as the Internet. They can also be used on a router positioned between two parts of the network to control the traffic entering or exiting a specific part of the internal network. The added packet processing required by the ACL feature does not affect switch performance. That is, ACL processing occurs at wire speed.

Access lists are a sequential collection of permit and deny conditions. This collection of conditions, known as the filtering criteria, is applied to each packet that is processed by the switch or the router. The forwarding or dropping of a packet is based on whether or not the packet matches the specified criteria.

Traffic filtering requires the following two basic steps:

1. Create an access list definition.

The access list definition includes rules that specify whether traffic matching the criteria is forwarded normally or discarded. Additionally, you can assign traffic that matches the criteria to a particular queue or redirect the traffic to a particular port. A default deny all rule is the last rule of every list.

1. Apply the access list to an interface in the inbound direction.

GS728TS, GS728TPS, GS752TS, and GS752TPS Smart Switches allow ACLs to be bound to physical ports and LAGs. The switch software supports MAC ACLs and IP ACLs.

MAC ACL Example Configuration

The following example shows how to create a MAC-based ACL that permits Ethernet traffic from the Sales department on specified ports and denies all other traffic on those ports.

1. From the MAC ACL screen, create an ACL with the name Sales_ACL for the Sales department of your network (See MACACL on page 237).

By default, this ACL will be bound on the inbound direction, which means the switch will examine traffic as it enters the port.

1. From the MAC Rules screen, create a rule for the Sales_ACL with the following settings:

ID: 1
• Action: Permit
- Assign Queue: 0
- Match Every: False
CoS: 0
• Destination MAC: 01:02:1A:BC:DE:EF
• Destination MAC Mask: 00:00:00:00:FF:FF
• Source MAC: 02:02:1A:BC:DE:EF
• Source MAC Mask: 00:00:00:00:FF:FF
• VLAN ID: 2

For more information about MAC ACL rules, see MAC Rules on page 238.

1. From the MAC Binding Configuration screen, assign the Sales_ACL to the interface gigabit ports 6, 7, and 8, and then click Apply (See MAC Binding Configuration on page 240).

You can assign an optional sequence number to indicate the order of this access list relative to other access lists if any are already assigned to this interface and direction.

1. The MAC Binding Table displays the interface and MAC ACL binding information (See MAC BindingTableon page 241).

The ACL named Sales_ACL looks for Ethernet frames with destination and source MAC addresses and MAC masks defined in the rule. Also, the frame must be tagged with VLAN ID

2, which is the Sales department VLAN. The CoS value of the frame must be 0, which is the default value for Ethernet frames. Frames that match this criteria are permitted on interfaces 6, 7, and 8 and are assigned to the hardware egress queue 0, which is the default queue. All other traffic is explicitly denied on these interfaces. To allow additional traffic to enter these ports, you must add a new permit rule with the desired match criteria and bind the rule to interfaces 6, 7, and 8.

Standard IP ACL Example Configuration

The following example shows how to create an IP-based ACL that prevents any IP traffic from the Finance department from being allowed on the ports that are associated with other departments. Traffic from the Finance department is identified by each packet's network IP address.

1. From the IP ACL screen, create a new IP ACL with an IP ACL ID of 1 (See IP ACL on page 242).

2. From the IP Rules screen, create a rule for IP ACL 1 with the following settings:

3. Rule ID: 1
   Action: Deny

4. Assign Queue ID: 0 (optional: 0 is the default value)
5. Match Every: False
   • Source IP Address: 192.168.187.0
   • Source IP Mask: 255.255.255.0

For additional information about IP ACL rules, see IP Rules on page 243.

1. Click Add.

2. From the IP Rules screen, create a second rule for IP ACL 1 with the following settings:

3. Rule ID: 2
   • Action: Permit

4. Match Every: True

5. Click Add.

6. From the IP Binding Configuration page, assign ACL ID 1 to the interface gigabit ports 2, 3, and 4, and assign a sequence number of 1 (See IP Binding Configuration on page 252).

By default, this IP ACL is bound on the inbound direction, so it examines traffic as it enters the switch.

1. Click Apply.
2. Use the IP Binding Table screen to view the interfaces and IP ACL binding information (See IP Binding Table on page 254).

The IP ACL in this example matches all packets with the source IP address and subnet mask of the Finance department's network and deny it on the Ethernet interfaces 2, 3, and 4 of the switch. The second rule permits all non-Finance traffic on the ports. The second rule is required because there is an explicit denyall rule as the lowest priority rule.

Differentiated Services (DiffServ)

Standard IP-based networks are designed to provide best effort data delivery service. Best effort service implies that the network deliver the data in a timely fashion, although there is no guarantee that it will. During times of congestion, packets may be delayed, sent sporadically, or dropped. For typical Internet applications, such as e-mail and file transfer, a slight degradation in service is acceptable and in many cases unnoticeable. However, any degradation of service has undesirable effects on applications with strict timing requirements, such as voice or multimedia.

Quality of Service (QoS) can provide consistent, predictable data delivery by distinguishing between packets that have strict timing requirements from those that are more tolerant of delay. Packets with strict timing requirements are given special treatment in a QoS-capable network. With this in mind, all elements of the network must be QoS-capable. If one node is unable to meet the necessary timing requirements, this creates a deficiency in the network path and the performance of the entire packet flow is compromised.

There are two basic types of QoS:

• Integrated Services: network resources are apportioned based on request and are reserved (resource reservation) according to network management policy (RSVP, for example).
• Differentiated Services: network resources are apportioned based on traffic classification and priority, giving preferential treatment to data with strict timing requirements.

The GS728TS, GS728TPS, GS752TS, and GS752TPS switches support DiffServ.

The DiffServ feature contains a number of conceptual QoS building blocks you can use to construct a differentiated service network. Use these same blocks in different ways to build other types of QoS architectures.

There are 3 key QoS building blocks needed to configure DiffServ:

Class
Policy
• Service (i.e., the assignment of a policy to a directional interface)

Class

You can classify incoming packets at layers 2, 3 and 4 by inspecting the following information for a packet:

• Source/destination MAC address
- EtherType
• Class of Service (802.1p priority) value (first/only VLAN tag)
• VLAN ID range (first/only VLAN tag)
• Secondary 802.1p priority value (second/inner VLAN tag)
• Secondary VLAN ID range (second/inner VLAN tag)
• IP Service Type octet (also known as: ToS bits, Precedence value, DSCP value)
• Layer 4 protocol (TCP, UDP etc.)
• Layer 4 source/destination ports
• Source/destination IP address

From a DiffServ point of view, there are two types of classes:

• DiffServ traffic classes
• DiffServ service levels/forwarding classes

DiffServ Traffic Classes

With DiffServ, you define which traffic classes to track on an ingress interface. You can define simple BA classifiers (DSCP) and a wide variety of multi-field (MF) classifiers:

• Layer 2; Layers 3, 4 (IP only)
- Protocol-based
- Address-based

You can combine these classifiers with logical AND or OR operations to build complex MF-classifiers (by specifying a class type of all or any, respectively). That is, within a single class, multiple match criteria are grouped together as an AND expression or a sequential OR expression, depending on the defined class type. Only classes of the same type can be nested; class nesting does not allow for the negation (i.e., exclude option) of the referenced class.

To configure DiffServ, you must define service levels, namely the forwarding classes/PHBs identified by a given DSCP value, on the egress interface. These service levels are defined by configuring BA classes for each.

Creating Policies

Use DiffServ policies to associate a collection of classes that you configure with one or more QoS policy statements. The result of this association is referred to as a policy.

From a DiffServ perspective, there are two types of policies:

• Traffic Conditioning Policy: a policy applied to a DiffServ traffic class
• Service Provisioning Policy: a policy applied to a DiffServ service level

You must manually configure the various statements and rules used in the traffic conditioning and service provisioning policies to achieve the desired Traffic Conditioning Specification (TCS) and the Service Level Specification (SLS) operation, respectively.

Traffic Conditioning Policy

Traffic conditioning pertains to actions performed on incoming traffic. There are several distinct QoS actions associated with traffic conditioning:

• Dropping: drop a packet upon arrival. This is useful for emulating access control list operation using DiffServ, especially when DiffServ and ACL cannot co-exist on the same interface.
• Marking IP DSCP or IP Precedence: marking/re-marking the DiffServ code point in a packet with the DSCP value representing the service level associated with a particular DiffServ traffic class. Alternatively, the IP Precedence value of the packet can be marked/re-marked.
• Marking CoS (802.1p): sets the three-bit priority field in the first/only 802.1p header to a specified value when packets are transmitted for the traffic class. An 802.1p header is inserted if it does not already exist. This is useful for assigning a layer 2 priority level based on a DiffServ forwarding class (i.e., DSCP or IP Precedence value) definition to convey some QoS characteristics to downstream switches which do not routinely look at the DSCP value in the IP header.
• Policing: a method of constraining incoming traffic associated with a particular class so that it conforms to the terms of the TCS. Special treatment can be applied to out-of-profile packets that are either in excess of the conformance specification or are non-conformant. The DiffServ feature supports the following types of traffic policing treatments (actions):

• drop: the packet is dropped
• mark cos: the 802.1p user priority bits are (re)marked and forwarded
• mark dscp: the packet DSCP is (re)marked and forwarded
• mark prec: the packet IP Precedence is (re)marked and forwarded
- send: the packet is forwarded without DiffServ modification

Color Mode Awareness: Policing in the DiffServ feature uses either color blind or color aware mode. Color blind mode ignores the coloration (marking) of the incoming packet. Color aware mode takes into consideration the current packet marking when determining the policing outcome. An auxiliary traffic class is used in conjunction with the policing definition to specify a value for one of the 802.1p, Secondary 802.1p, IP DSCP, or IP

Precedence fields designating the incoming color value to be used as the conforming color. The color of exceeding traffic may be optionally specified as well.

• Counting: updating octet and packet statistics to keep track of data handling along traffic paths within DiffServ. In this DiffServ feature, counters are not explicitly configured by the user, but are designed into the system based on the DiffServ policy being created. See the Statistics section of this document for more details.
• Assigning QoS Queue: directs traffic stream to the specified QoS queue. This allows a traffic classifier to specify which one of the supported hardware queues are used for handling packets belonging to the class.
• Redirecting: forces classified traffic stream to a specified egress port (physical or LAG). This can occur in addition to any marking or policing action. It may also be specified along with a QoS queue assignment.

DiffServ Example Configuration

To create a DiffServ Class/Policy and attach it to a switch interface, follow these steps:

1. From the QoS Class Configuration screen, create a new class with the following settings:

• Class Name: Class1
• Class Type: All

For more information about this screen, see ClassConfigurationon page 186.

1. Click the Class1 hyperlink to view the DiffServ Class Configuration screen for this class.

2. Configure the following settings for Class1:

3. Protocol Type: UDP
   • Source IP Address: 192.12.1.0
   • Source Mask: 255.255.255.0
   • Source L4 Port: Other, and enter 4567 as the source port value
   • Destination IP Address: 192.12.2.0
   • Destination Mask: 255.255.255.0
   • Destination L4 Port: Other, and enter 4568 as the destination port value

For more information about this screen, see ClassConfigurationon page 186.

1. Click Apply.
2. From the Policy Configuration screen, create a new policy with the following settings:

• Policy Selector: Policy1

• Member Class: Class1

For more information about this screen, see PolicyConfigurationon page 191.

1. Click Add to add the new policy.

2. Click the Policy1 hyperlink to view the Policy Class Configuration screen for this policy.

3. Configure the Policy attributes as follows:

4. Assign Queue: 3
   • Policy Attribute: Simple Policy
   • Color Mode: Color Blind
   • Committed Rate: 1000000 Kbps
   • Committed Burst Size: 128 KB
   • Confirm Action: Send
   • Violate Action: Drop

For more information about this screen, see PolicyConfigurationon page 191.

1. From the Service Configuration screen, select the check box next to interfaces g7 and g8 to attach the policy to these interfaces, and then click Apply (See ServiceConfiguration on page 195).

All UDP packet flows destined to the 192.12.2.0 network with an IP source address from the 192.12.1.0 network that have a Layer 4 Source port of 4567 and Destination port of 4568 from this switch on ports 7 and 8 are assigned to hardware queue 3.

On this network, traffic from streaming applications uses UDP port 4567 as the source and 4568 as the destination. This real-time traffic is time sensitive, so it is assigned to a high-priority hardware queue. By default, data traffic uses hardware queue 0, which is designated as a best-effort queue.

Also the confirmed action on this flow is to send the packets with a committed rate of 180000 and burst size of 128 KB. Packets that violate the committed rate and burst size are dropped.

802.1X

Local Area Networks (LANs) are often deployed in environments that permit unauthorized devices to be physically attached to the LAN infrastructure, or permit unauthorized users to attempt to access the LAN through equipment already attached. In such environments, it may be desirable to restrict access to the services offered by the LAN to those users and devices that are permitted to use those services.

Port-based network access control makes use of the physical characteristics of LAN infrastructures in order to provide a means of authenticating and authorizing devices attached to a LAN port that has point-to-point connection characteristics and of preventing access to that port in cases in which the authentication and authorization process fails. In this context, a port is a single point of attachment to the LAN, such as ports of MAC bridges and associations between stations or access points in IEEE 802.11 Wireless LANs.

The IEEE 802.11 standard describes an architectural framework within which authentication and consequent actions take place. It also establishes the requirements for a protocol between the authenticator (the system that passes an authentication request to the authentication server) and the supplicant (the system that requests authentication), as well as between the authenticator and the authentication server.

The GS728TS, GS728TPS, GS752TS, and GS752TPS switches support a guest VLAN, which allows unauthenticated users to have limited access to the network resources.

Note: You can use QoS features to provide rate limiting on the guest VLAN to limit the network resources the guest VLAN provides.

Another 802.1X feature is the ability to configure a port to Enable/Disable EAPoL packet forwarding support. You can disable or enable the forwarding of EAPoL when 802.1X is disabled on the device.

The ports of an 802.1X authenticator switch provide the means in which it can offer services to other systems reachable via the LAN. Port-based network access control allows the operation of a switch's ports to be controlled in order to ensure that access to its services is only permitted by systems that are authorized to do so.

Port access control provides a means of preventing unauthorized access by supplicants to the services offered by a system. Control over the access to a switch and the LAN to which it is connected can be desirable in order to restrict access to publicly accessible bridge ports or to restrict access to departmental LANs.

Access control is achieved by enforcing authentication of supplicants that are attached to an authenticator's controlled ports. The result of the authentication process determines whether the supplicant is authorized to access services on that controlled port.

A Port Access Entity (PAE) is able to adopt one of two distinct roles within an access control interaction:

1. Authenticator: A Port that enforces authentication before allowing access to services available via that Port.

2. Supplicant: A Port that attempts to access services offered by the Authenticator.

Additionally, there exists a third role:

1. Authentication server: Performs the authentication function necessary to check the credentials of the Supplicant on behalf of the Authenticator.

All three roles are required in order to complete an authentication exchange.

The GS728TS, GS728TPS, GS752TS, and GS752TPS switches support the Authenticator role only, in which the PAE is responsible for communicating with the Supplicant. The Authenticator PAE is also responsible for submitting the information received from the Supplicant to the Authentication Server in order for the credentials to be checked, which will determine the authorization state of the Port. The Authenticator PAE controls the authorized/ unauthorized state of the controlled Port depending on the outcome of the RADIUS-based authentication process.

802.1X Example Configuration

This example shows how to configure the switch so that 802.1X-based authentication is required on the ports in a corporate conference room (5–8). These ports are available to visitors and need to be authenticated before granting access to the network. The authentication is handled by an external RADIUS server. When the visitor is successfully authenticated, traffic is automatically assigned to the guest VLAN. This example assumes that a VLAN has been configured with a VLAN ID of 150 and VLAN Name of Guest.

1. From the Port Authentication screen, select ports 5, 6, 7, and 8.
2. From the Port Control menu, select Unauthorized.

The Port Control setting for all other ports where authentication is not needed should be Authorized. When the Port Control setting is Authorized, the port is unconditionally put in a force-Authorized state and does not require any authentication. When the Port Control setting is Auto, the authenticator PAE sets the controlled port mode.

1. In the Guest VLAN field for ports 5–8, enter 150 to assign these ports to the guest VLAN.

You can configure additional settings to control access to the network through the ports. See PortSecurityInterfaceConfigurationon page 231 for information about the settings.

1. Click Apply.
2. From the 802.1X Configuration screen, set the Port Based Authentication State and Guest VLAN Mode to Enable, and then click Apply (See Port Security Configuration on page 230).

This example uses the default values for the port authentication settings, but there are several additional settings that you can configure. For example, the EAPOL Flood Mode field allows you to enable the forwarding of EAPoL frames when 802.1X is disabled on the device.

1. From the RADIUS Server Configuration screen, configure a RADIUS server with the following settings:

• Server Address: 192.168.10.23
• Secret Configured: Yes
- Secret: secret123
Active: Primary

For more information, see RADIUSConfigurationon page 199.

1. Click Add.
2. From the Authentication List screen, configure the default List to use RADIUS as the first authentication method (See Authentication List Configuration on page 207).

This example enables 802.1X-based port security on the GS728TS, GS728TPS, GS752TS, or GS752TPS switch and prompts the hosts connected on ports 5–8 for an 802.1X-based authentication. The switch passes the authentication information to the configured RADIUS server.

MSTP

Spanning Tree Protocol (STP) runs on bridged networks to help eliminate loops. If a bridge loop occurs, the network can become flooded with traffic. IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) supports multiple instances of Spanning Tree to efficiently channel VLAN traffic over different interfaces. Each instance of the Spanning Tree behaves in the manner specified in IEEE 802.1w, Rapid Spanning Tree, with slight modifications in the working but not the end effect (chief among the effects is the rapid transitioning of the port to the Forwarding state).

The difference between the RSTP and the traditional STP (IEEE 802.1D) is the ability to configure and recognize full duplex connectivity and ports that are connected to end stations, resulting in rapid transitioning of the port to the Forwarding state and the suppression of Topology Change Notification. These features are represented by the parameters pointtopoint and edgeport. MSTP is compatible to both RSTP and STP. It behaves appropriately to STP and RSTP bridges.

A MSTP bridge can be configured to behave entirely as a RSTP bridge or a STP bridge. So, an IEEE 802.1s bridge inherently also supports IEEE 802.1w and IEEE 802.1D.

The MSTP algorithm and protocol provides simple and full connectivity for frames assigned to any given VLAN throughout a Bridged LAN comprising arbitrarily interconnected networking devices, each operating MSTP, STP or RSTP. MSTP allows frames assigned to different VLANs to follow separate paths, each based on an independent Multiple Spanning Tree Instance (MSTI), within Multiple Spanning Tree (MST) Regions composed of LANs and or MSTP Bridges. These Regions and the other Bridges and LANs are connected into a single Common Spanning Tree (CST). [IEEE DRAFT P802.1s/D13]

MSTP connects all Bridges and LANs with a single Common and Internal Spanning Tree (CIST). The CIST supports the automatic determination of each MST region, choosing its maximum possible extent. The connectivity calculated for the CIST provides the CST for interconnecting these Regions, and an Internal Spanning Tree (IST) within each Region. MSTP ensures that frames with a given VLAN ID are assigned to one and only one of the MSTIs or the IST within the Region, that the assignment is consistent among all the networking devices in the Region and that the stable connectivity of each MSTI and IST at the boundary of the Region matches that of the CST. The stable active topology of the Bridged LAN with respect to frames consistently classified as belonging to any given VLAN thus simply and fully connects all LANs and networking devices throughout the network,

though frames belonging to different VLANs can take different paths within any Region, per IEEE DRAFT P802.1s/D13.

All bridges, whether they use STP, RSTP or MSTP, send information in configuration messages via Bridge Protocol Data Units (BPDUs) to assign port roles that determine each port's participation in a fully and simply connected active topology based on one or more spanning trees. The information communicated is known as the spanning tree priority vector. The BPDU structure for each of these different protocols is different. A MSTP bridge will transmit the appropriate BPDU depending on the received type of BPDU from a particular port.

An MST Region comprises of one or more MSTP Bridges with the same MST Configuration Identifier, using the same MSTIs, and which have no Bridges attached that cannot receive and transmit MSTP BPDUs. The MST Configuration Identifier has the following components:

1. Configuration Identifier Format Selector
2. Configuration Name
3. Configuration Revision Level
4. Configuration Digest: 16-byte signature of type HMAC-MD5 created from the MST Configuration Table (a VLAN ID to MSTID mapping)

As there are Multiple Instances of Spanning Tree, there is a MSTP state maintained on a per-port, per-instance basis (or on a per port per VLAN basis: as any VLAN can be in one and only one MSTI or CIST). For example, port A can be forwarding for instance 1 while discarding for instance 2. The port states have changed since IEEE 802.1D specification.

To support multiple spanning trees, a MSTP bridge has to be configured with an unambiguous assignment of VLAN IDs (VIDs) to spanning trees. This is achieved by:

1. Ensuring that the allocation of VIDs to FIDs is unambiguous.
2. Ensuring that each FID supported by the Bridge is allocated to exactly one Spanning Tree Instance.

The combination of VID to FID and then FID to MSTI allocation defines a mapping of VIDs to spanning tree instances, represented by the MST Configuration Table.

With this allocation we ensure that every VLAN is assigned to one and only one MSTI. The CIST is also an instance of spanning tree with a MSTID of 0.

An instance may occur that has no VIDs allocated to it, but every VLAN must be allocated to one of the other instances of spanning tree.

The portion of the active topology of the network that connects any two bridges in the same MST Region traverses only MST bridges and LANs in that region, and never Bridges of any kind outside the Region, in other words connectivity within the region is independent of external connectivity.

MSTP Example Configuration

This example shows how to create an MSTP instance from the GS728TS, GS728TPS, GS752TS, or GS752TPS switch. The example network has three different GS728TS, GS728TPS, GS752TS, or GS752TPS switches that serve different locations in the network. In this example, ports 1–5 are connected to host stations, so those links are not subject to network loops. Ports 6-8 are connected across switches 1, 2 and 3.

Perform the following procedures on each switch to configure MSTP:

1. Use the VLAN Configuration screen to create VLANs 300 and 500 (see VLAN Configuration on page 110).
2. Use the VLAN Membership screen to include ports 1–8 as tagged (T) or untagged (U) members of VLAN 300 and VLAN 500 (see VLAN Membership Configuration on page 112).
3. From the STP Configuration page, enable the Spanning Tree State option (see STP Switch Configuration on page 123).

4. In the Configuration Name field on the STP Configuration page, configure the name so that it is the same on each switch, for example netgear-stp. By default, the Configuration Name is the switch MAC address which means that it is unique for each switch.
   Use the default values for the rest of the STP configuration settings. By default, the STP Operation Mode is MSTP.

5. From the CST Configuration screen, set the Bridge Priority value for each of the three switches to force Switch 1 to be the root bridge:

6. Switch 1: 4096

7. Switch 2: 12288
8. Switch 3: 20480

Note: Bridge priority values are multiples of 4096.

If you do not specify a root bridge and all switches have the same Bridge Priority value, the switch with the lowest MAC address is elected as the root bridge (see CST Configuration on page 125).

1. From the CST Port Configuration screen, select ports 1–8 and select Enable from the STP Status menu (see CST Port Configuration on page 126).
2. Click Apply.
3. Select ports 1–5 (edge ports), and select Enable from the Fast Link menu.

Since the edge ports are not at risk for network loops, ports with Fast Link enabled transition directly to the Forwarding state.

1. Click Apply.

You can use the CST Port Status screen to view spanning tree information about each port.

1. From the MST Configuration screen, create a MST instances with the following settings:

2. MST ID: 1
   • Priority: Use the default (32768)
   • VLAN ID: 300

For more information, see MSTConfigurationon page 130.

1. Click Add.

2. Create a second MST instance with the following settings

3. MST ID: 2
   • Priority: 49152
   • VLAN ID: 500

4. Click Add.

In this example, assume that Switch 1 has become the Root bridge for the MST instance 1, and Switch 2 has become the Root bridge for MST instance 2. Switch 3 has hosts in the Sales department (ports 1, 2, and 3) and in the HR department (ports 4 and 5). Switches 1 and 2 also have hosts in the Sales and Human Resources departments. The hosts can be connected to VLAN 508 by MST instance 2 to communicate with the hosts on Switch 3 directly. Likewise, hosts of Switch 1 use VLAN 300, MST instance 1 to communicate with the hosts on Switch 3 directly.

The hosts use different instances of MSTP to effectively use the links across the switch. The same concept can be extended to other switches and more instances of MSTP.

Configuring VLAN Routing

VLANs divide broadcast domains in a LAN environment. Whenever hosts in one VLAN need to communicate with hosts in another VLAN, the traffic must be routed between them. This is known as inter-VLAN routing. On NETGEAR GS728TS, GS728TPS, GS752TS, and GS752TPS switches, it is accomplished by creating Layer 3 interfaces (Switch virtual interfaces (SVI)).

When a port is enabled for bridging (default) rather than routing, all normal bridge processing is performed for an inbound packet, which is then associated with a VLAN. Its MAC Destination Address (MAC DA) and VLAN ID are used to search the MAC address table. If routing is enabled for the VLAN, and the MAC DA of an inbound unicast packet is that of the internal bridge-router interface, the packet is routed. An inbound multicast packet is forwarded to all ports in the VLAN, plus the internal bridge-router interface, if it was received on a routed VLAN.

Since a port can be configured to belong to more than one VLAN, VLAN routing might be enabled for all of the VLANs on the port, or for a subset. VLAN Routing can be used to allow more than one physical port to reside on the same subnet. It could also be used when a VLAN spans multiple physical networks, or when additional segmentation or security is required. A port can be either a VLAN port or a router port, but not both. However, a VLAN port may be part of a VLAN that is itself a router port.

Creating VLAN Routing Interfaces

1. Use the IP Configuration screen to enable routing on the switch (see IP Configuration on page 161).
2. Determine the IP addresses you want to assign to the VLAN interface on the switch. For the switch to be able to route between the VLANs, the VLAN interfaces must be configured with an IP address. When the switch receives a packet destined for another subnet/VLAN, the switch looks at the routing table to determine where to forward the packet. The packet is then passed to the VLAN interface of the destination. It is then sent to the port where the end device is attached.
3. If the VLAN has not been created, use the VLAN Routing Wizard screen to create and configure the VLAN interfaces (see VLANRoutingWizardon page 165)

a. Specify the VLAN ID to configure for routing.
b. Enter the IP address and associated subnet mask in the available fields.
c. Select the ports or LAGs to include as VLAN members.
d. Apply the configuration changes to the switch.

1. If the VLAN has already been configured by using the VLAN pages under the Switching tab, you can use the VLAN Routing Configuration page to enable routing on the VLAN and assign an IP address and subnet mask (see VLAN Routing Configuration on page 167).

2. Repeat this process for all VLANs identified to be configured as the routing interfaces.

Regulatory Compliance Information

This section includes user requirements for operating this product in accordance with National laws for usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable National regulatory authority.

This product's firmware limits operation to only the channels allowed in a particular Region or Country. Therefore, all options described in this user's guide may not be available in your version of the product.

FCC Requirements for Operation in the United States

FCC Information to User

This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Guidelines for Human Exposure

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC Declaration Of Conformity

We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that the GS728TS, GS728TPS, GS752TS, and GS752TPS Gigabit Smart Switches complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.

FCC Radio Frequency Interference Warnings & Instructions

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following methods:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Modifications made to the product, unless expressly approved by NETGEAR, Inc., could void the user's right to operate the equipment.

Canadian Department of Communications Radio Interference Regulations

The digital apparatus, GS728TS, GS728TPS, GS752TS, and GS752TPS Gigabit Smart Switches, do not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

This Class [B] digital apparatus complies with Canadian ICES-003.

The GS728TS, GS728TPS, GS752TS, and GS752TPS Gigabit Smart Switches complies with essential requirements of EU EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC as supported by applying the following test methods and standards:

• EN55022: 2006 / A1: 2007
• EN55024: 1998 / A1: 2001 / A2: 2003
• EN60950-1: 2005 2nd Edition
EN 61000-3-2:2006
• EN 61000-3-3:1995 w/A1:2001+A2:2005

GPL License Agreement

GPL may be included in this product; to view the GPL license agreement go to ftp://downloads.netgear.com/files/GPLnotice.pdf

For GNU General Public License (GPL) related information, please visit http://support.netgear.com/app/answers/detail/a_id/2649

Index

Numerics

802.1X 199,219

example configuration 315

A

access control

ACL example configuration 308

ACLs 234

management interface 210

ARP

Cache 172

configuring 171

Entry configuration 173

Entry Management 175

Global ARP configuration 174

authentication

802.1X 218,315

enable 29

list 207

port-based 218

RADIUS 199,201

SNMP 29, 78, 80

TACACS+ 204

Auto-Video 110,137

B

Binding Configuration 95

C

certificate 214

changing the password 17,198

compliance 323

Configuration

802.1X 219

Access Control Lists 234

Access Profile 215

Access Rule 217

Authentication List 207

Class 186,189

Community 75

CoS 178

DHCP Filtering 93

DHCP Snooping 95,97

Differentiated Services 184

DiffServ 185

DNS 49

Dual Image 289

Dynamic Address 158

Dynamic Host 51

Global 138

Green Ethernet 51, 53, 54, 59

HTTP 211

IGMP Snooping 138

LACP 108

LACP Port 109

LAG 105

LLDP 81

MAC Filter 225

Management Access 210

MST Port 131

Network Settings on the Administrative System 15

password 198

Policy 191

Port Security 230

Port VLAN ID 113

RADIUS 199

Global 199

Secure HTTP 212

SNMP v3 User 79

SNTP Server43

Standard IP ACL Example 310

STP 122

TACACS+ 204

Time 41

Trap 77

VLAN 110

VLAN example 307

VLAN Port Membership 112

CoS 178

D

defaults 300

CoS 310

factory 198

DES 29

Device View 26

DHCP

client 11

Filtering 92

Filtering Interface Configuration 94

refreshing the client 17

DiffServ 184

DNS 49

DoS 45

download

a file 285

files via HTTP 285

from a remote system 282,284

software 285

Dual Image Status 288,291

E

EAP 266,268

EAPOL 267

F

file management 288

firmware 20

firmware download 282,284

G

Green Ethernet 51, 53, 54

guest VLAN configuration 317

H

help, HTML-based 25

HTTP 211

management interface access 16

secure 210

using to download files 283,287

HTTPS 212

|

IEEE 802.11x 315

IEEE 802.1AB 80

IEEE 802.1D 122

IEEE 802.1Q 110,122

IEEE 802.1s 122

IEEE 802.1w 122

IEEE 802.1X 199

IEEE 802.3 flow control 104

IGMP 138

snooping 138

snooping querier 144

interface

LAG 105

logical 30

naming convention 30

physical 30

queue configuration 181

IP address

administrative system 15

switch 11,35

IP DSCP 178
