Product Type	Professional Moving Head Profile
Brand	Claypaky
Model	Arolla Profile MP
Light Source	LED Engine, 600W (typical)
Color Temperature	6500K (adjustable)
Beam Angle	5° - 50° (motorized zoom)
Pan Range	540°
Tilt Range	270°
DMX Channels	24 / 32 (selectable)
Control Protocols	DMX512, RDM
Power Consumption	750 VA (max)
Power Supply	100-240V AC, 50/60 Hz
Dimensions (L x W x H)	400 x 300 x 600 mm (approx.)
Weight	18 kg (approx.)
Housing Material	High-impact flame-retardant plastic
Cooling	Variable speed fan, noise optimized
IP Rating	IP20 (indoor use)
Mounting	Omega brackets for truss or clamp
Maintenance	Clean air filters monthly; check fan operation
Safety	Use safety cable; disconnect power before servicing
Spare Parts	LED module, power supply, mainboard available
Repairability	Modular design; qualified technician required
General Information	Professional lighting fixture for stage, events

Frequently Asked Questions - Arolla Profile MP Claypaky

How do I reset the lamp timer on the Arolla Profile MP?

Access the menu via the control panel, navigate to 'Fixture Information' and select 'Lamp Hours'. Press 'Reset' after replacing the LED module. Refer to the manual for detailed steps.

What DMX channels does the fixture use?

The Arolla Profile MP supports 24 or 32 DMX channels, selectable via the menu. Channel mapping includes pan, tilt, color, gobo, zoom, and effects.

How do I clean the lens and filters?

Use a soft lint-free cloth with mild glass cleaner for lenses. Clean air filters with a vacuum. Do not use abrasive materials. Perform cleaning every 30 days of operation.

Can I use the fixture outdoors?

No, the Arolla Profile MP is rated IP20 and intended for indoor use only. Exposure to rain or moisture may cause damage.

How do I update the firmware?

Connect the fixture to a computer via DMX or USB (if available). Use the Claypaky firmware updater tool. Ensure stable power during update.

What is the recommended safety cable rating?

Use a safety cable with a minimum breaking strength of 50 kg (110 lbs). Attach it to the designated anchor point on the fixture base.

Why is the fan noisy?

The fan speed varies based on temperature. If noise is excessive, check for dust buildup on filters. The fan may also run faster in high ambient temperatures.

How do I replace the LED engine?

Disconnect power. Remove the cover screws, unplug the LED module cables, and replace it with a genuine Claypaky part. Reassemble in reverse order. Calibration may be needed.

What is the zoom range?

The motorized zoom provides a beam angle from 5° (narrow) to 50° (wide), adjustable via DMX or on-board controls.

Does the fixture support RDM?

Yes, the Arolla Profile MP is RDM-compatible, allowing remote addressing and monitoring from a console.

USER MANUAL Arolla Profile MP Claypaky

Line drawing of a mechanical device with no visible text or symbols

INDEX
Page	Contents
2	1. Safety information
3	2. Unpacking and preparation
4	3. Installation and start-up
4	3.1 Installing the fixture
5	3.2 Connecting to manis supply
5	3.3 Connecting the control signal line: DMX / Art-Net
6	3.4 Switching on the fixture and basic SetUp
8	4. Maintenance
8	4.1 Opening the covers
9	4.2 Periodical cleaning
10	4.3 Effects module removal
14	4.4 Rotating gobos
15	4.5 Battery removal
16	5. Dimensions
16	6. Cause and solution of problems

Congratulations on choosing a Claypaky product! We thank you for your custom.

Please note that this product, as all the others in the rich Claypaky range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements.

1. SAFETY INFORMATION

EN

SAFETY INFORMATION

IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link:

www.claypaky.com

Ref: FIS025 - Safety Information Arolla Spot/Profile MP

IT

Rif: FIS025 - Safety Information Arolla Spot/Profile MP

DE

Ref: FIS025 - Safety Information Arolla Spot/Profile MP

ES

Ref: FIS025 - Safety Information Arolla Spot/Profile MP

FR

CONSIGNES DE SÉCURITÉ

Technical illustration of two mechanical clamping components with mounting holes (no text or symbols)

2 x 183102/805

Packing contents - Fig. 1
2

3

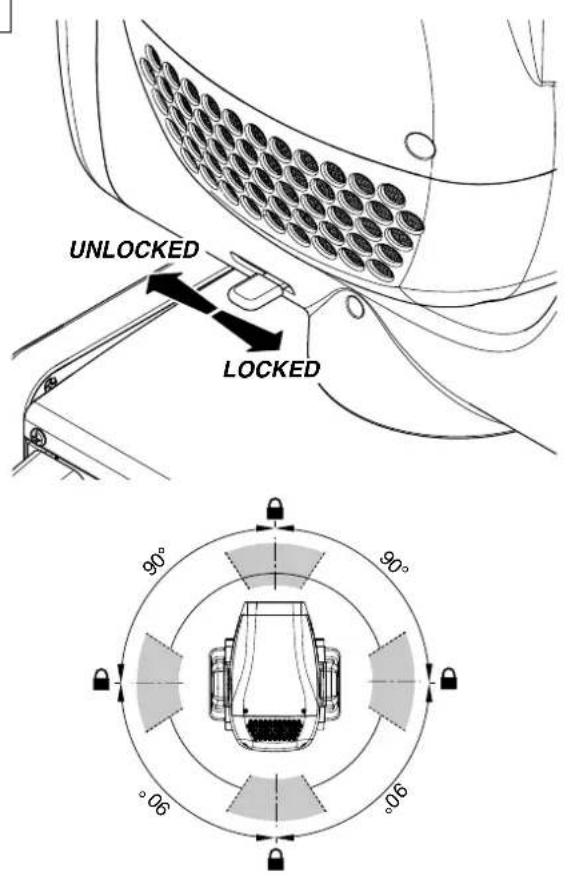

PAN Mechanism Lock and Release (every 90°) - Fig. 2

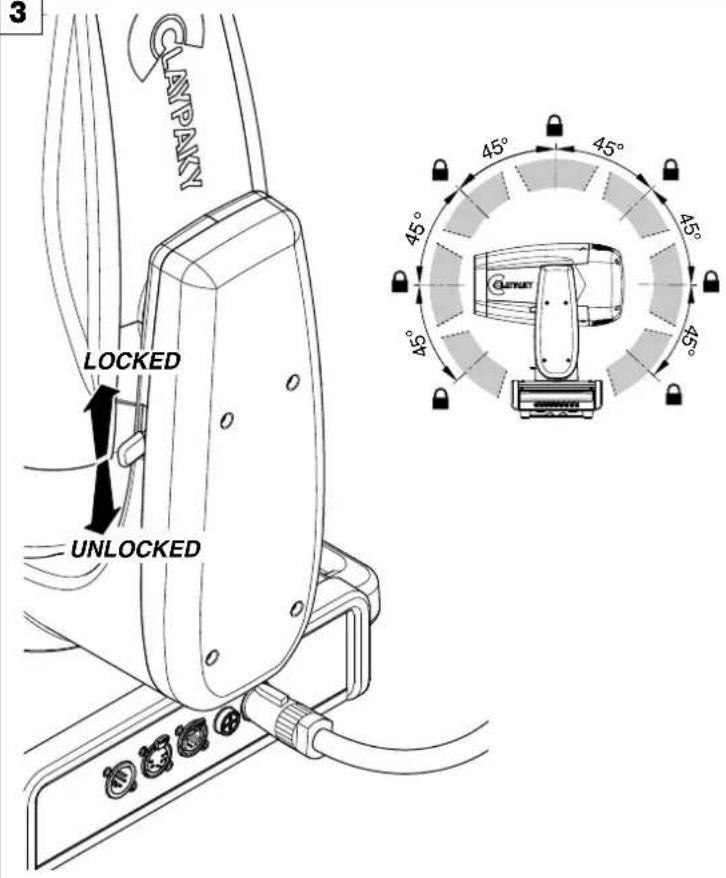

TILT Mechanism Lock and Release (every 45°) - Fig. 3

3. INSTALLATION AND START-UP

3.1 Installing the fixture

4

Line drawing of a GEARXT telescope mounted on a base with cables (no text or symbols)

Technical line drawing of a mechanical device with wires and components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

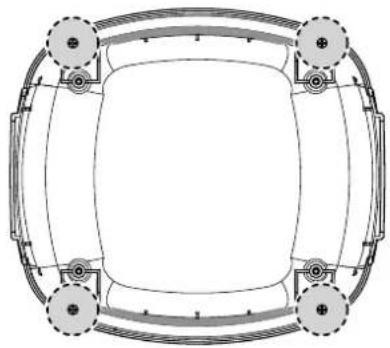

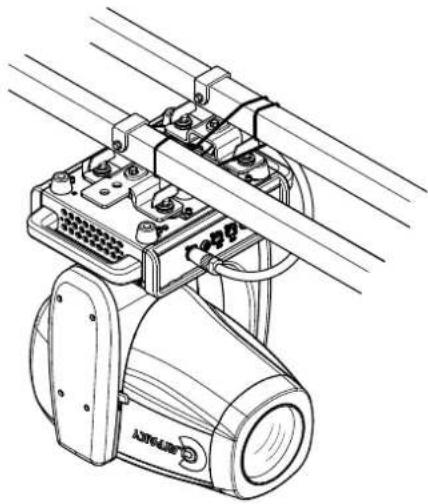

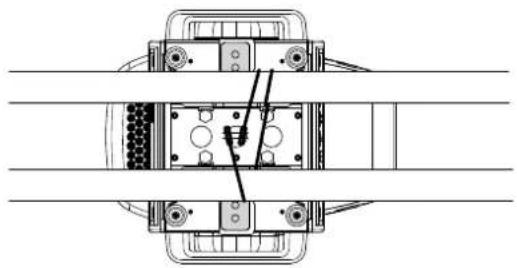

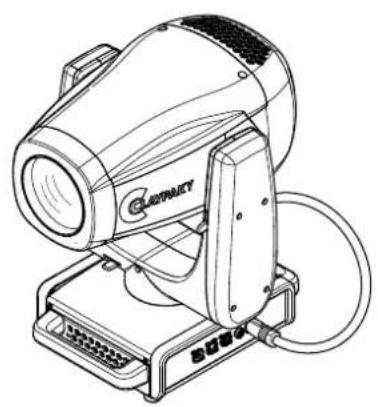

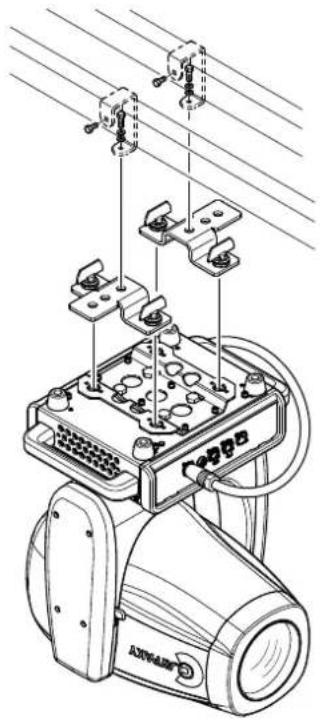

Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request).
This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.

5

Technical line drawing of a mechanical component with flanges and a central circular feature (no text or symbols)

Display User buttons

Technical line drawing of a mechanical component with multiple circular features and mounting holes (no text or symbols)

(5 pin)
DMX THRU
(5 pin)
Fuse Power INEthernetDMX IN

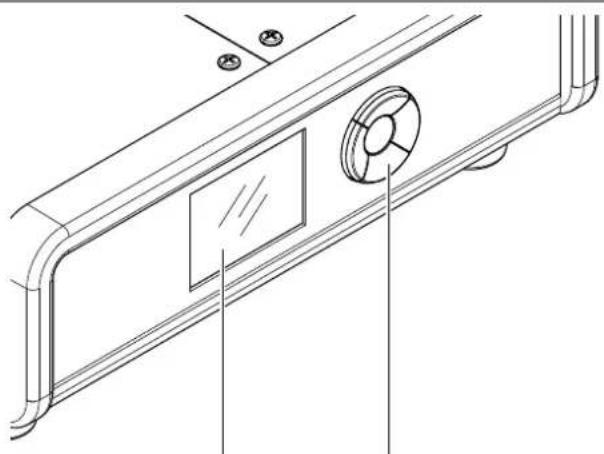

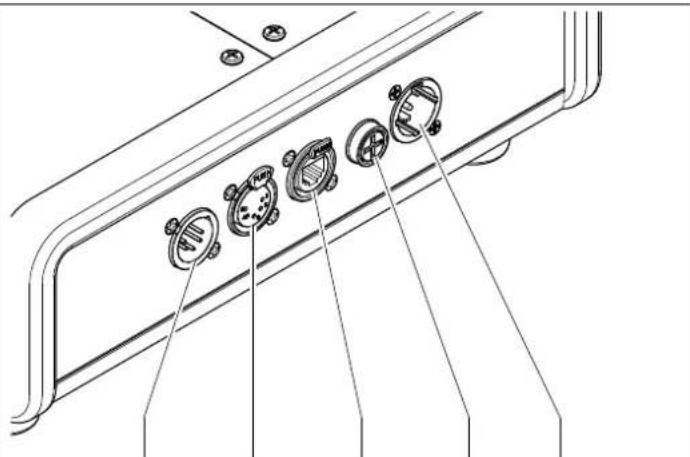

Control panel - Fig. 5

3.2 Connecting to manis supply

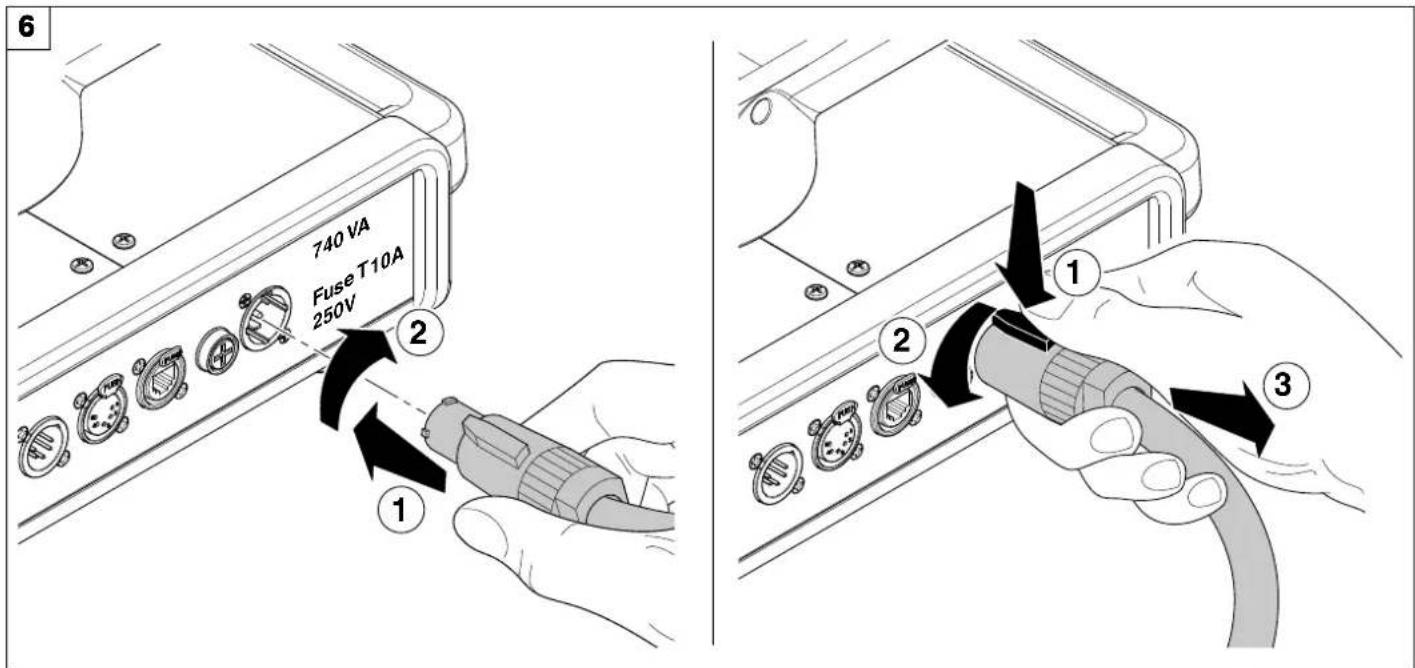

Connecting and disconnecting power cable - Fig. 6

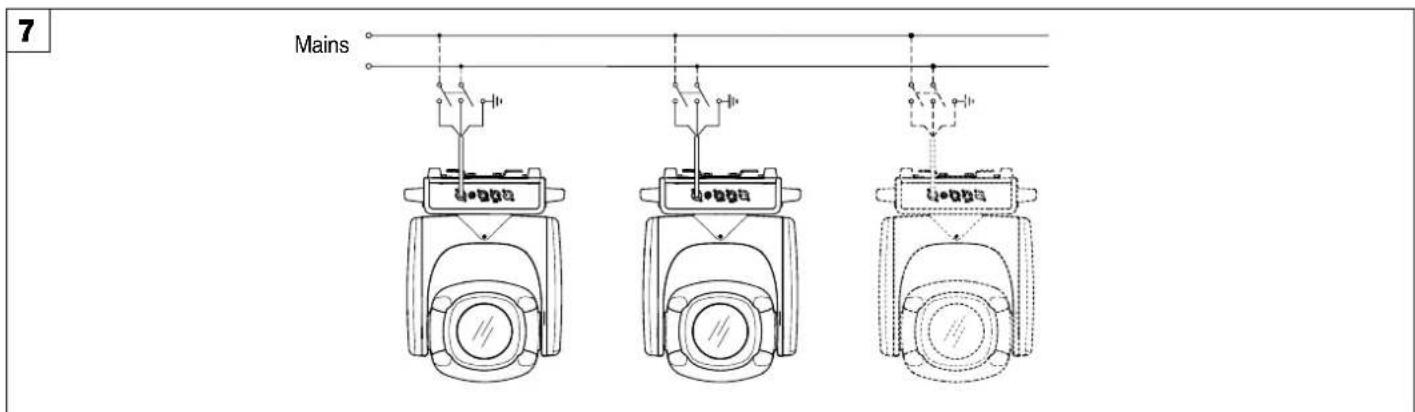

Connecting to the mains supply - Fig. 7

3.3 Connecting the control signal line: DMX / Art-Net

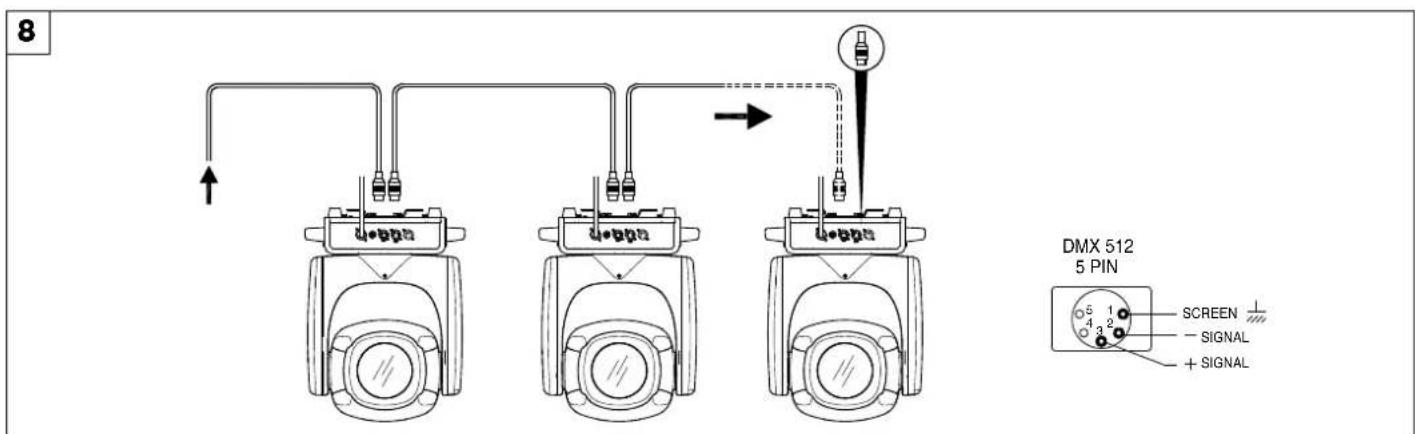

Connecting to the control signal line (DMX) - Fig. 8

Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5 pin male/female connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.

IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the shield braid and to pin 1 of the connectors.

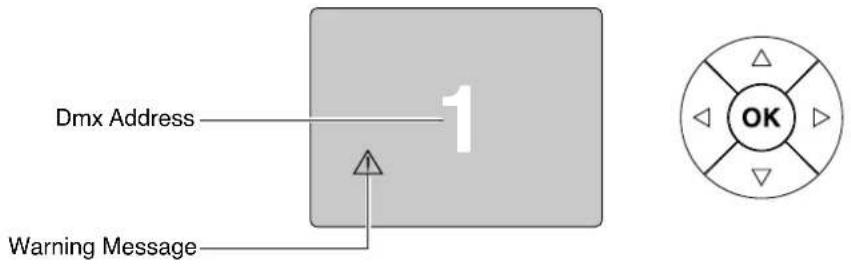

3.4 Switching on the fixture and basic SetUp

9

Switching on the projector - Fig. 9

Switch-on the fixture. The projector starts resetting the effects. At the same time, the following information scrolls on the display:

Model Arolla Profile MP
Firmware Version X.X.X Date - Hour
Dmx Address xxx

On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the "Home" position (Pan 128 bit - Tilt 128 bit). The control panel (Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions: rest status and setting status. When it is in the rest status, the display shows the projector's DMX address.

During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status. It should be noted that when this condition occurs, any possible value that has been modified but not yet confirmed with the OK key will be cancelled.

10

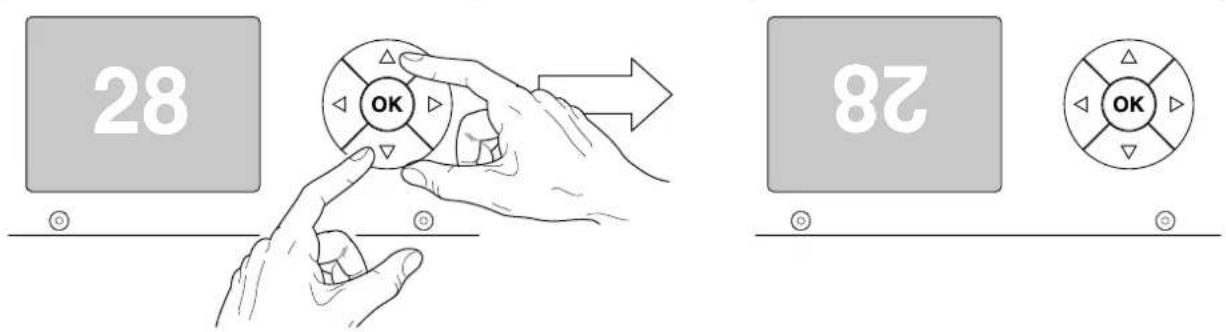

Reversal of the display - Fig. 10

To activate this function, press UP ⬆ and DOWN ⬇ keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.

Setting the projector starting address

On each projector, the starting address must be set for the control signal (addresses from 1 to 512).

The address can also be set with the projector switched off.

Functions of the buttons - Using the menu

Confirms the displayed value, or activates the displayed function, or enters the successive menu.

Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.

Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.

Return to the top level

Enters the successive menu.

RIGHT

USING THE MENU:

1) Press LEFT ◆ once – “Main Menu” appears on the display.
2) Use the UP ⬆ and DOWN ⬇ keys to select the menu to be used:

• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functioning of effects

- Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.

3) Press Ⓞ to display the first item in the selected menu.
4) Use the UP ▲ and DOWN ◼ keys to select the MENU items.

Setting addresses and options with the projector disconnected

The projector's DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply. All that is needed is to press RIGHT ☑ to momentarily activate the display and thus access the settings. Once the required operations have been carried out, the display will switch off again after a wait time of 30 seconds.

4. MAINTENANCE

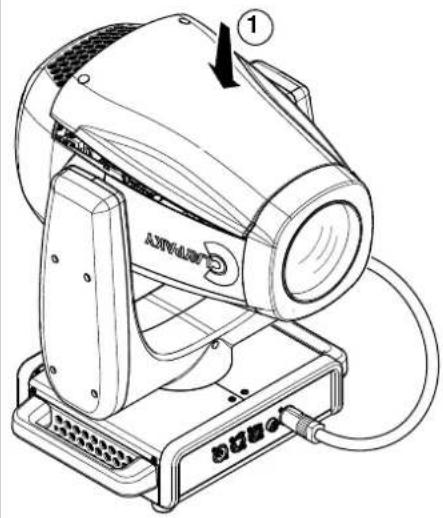

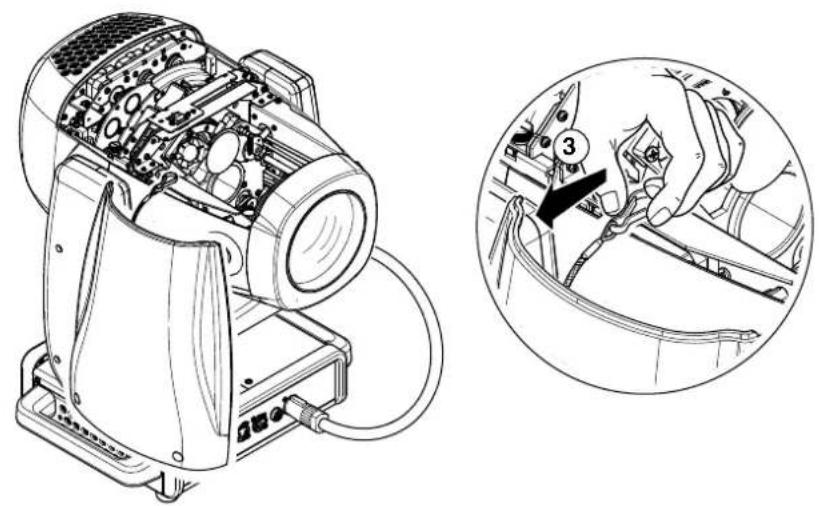

4.1 Opening the covers

1112

Technical line drawing of a mechanical device with labeled component (no readable text or symbols)

Technical line drawing of a mechanical device with an inset showing a hand operating a tool (no text or symbols present)

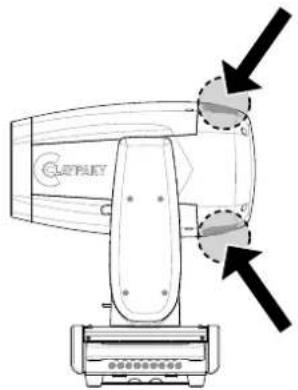

Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section.

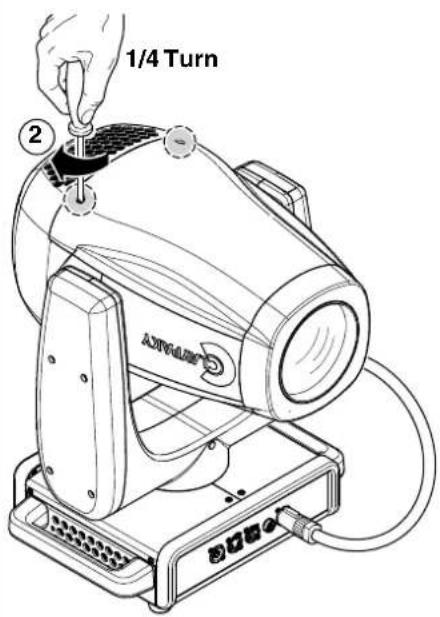

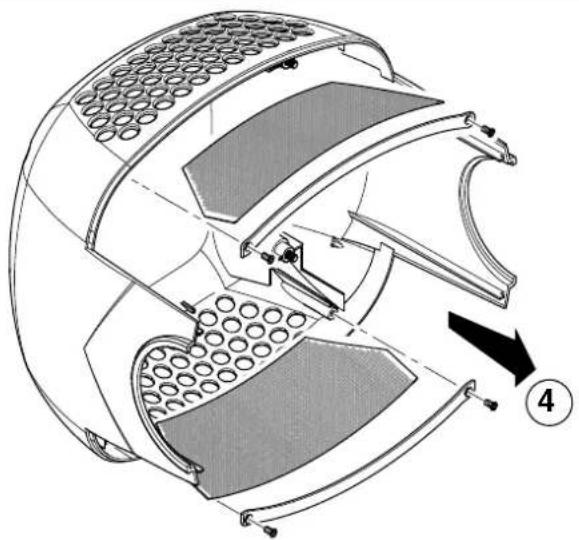

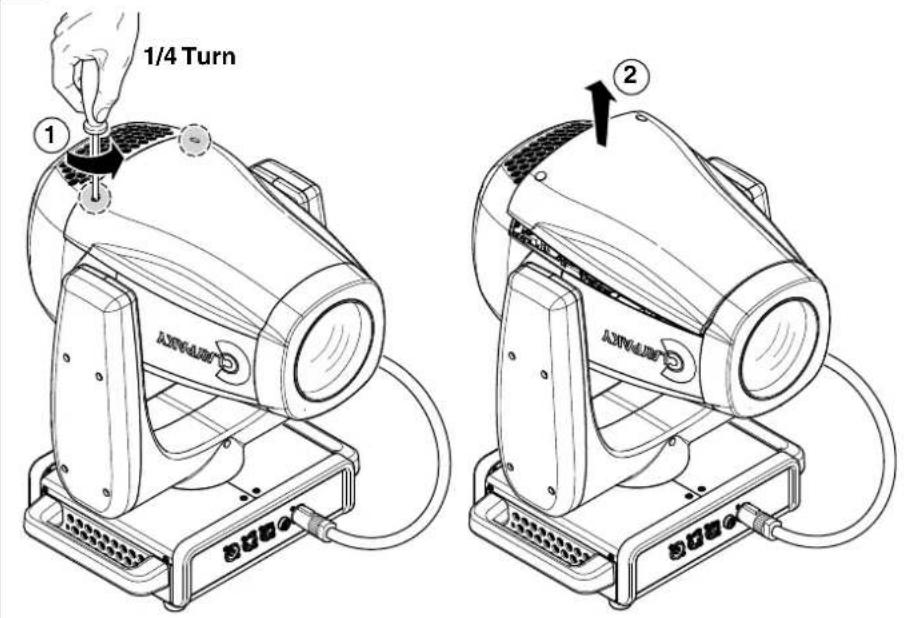

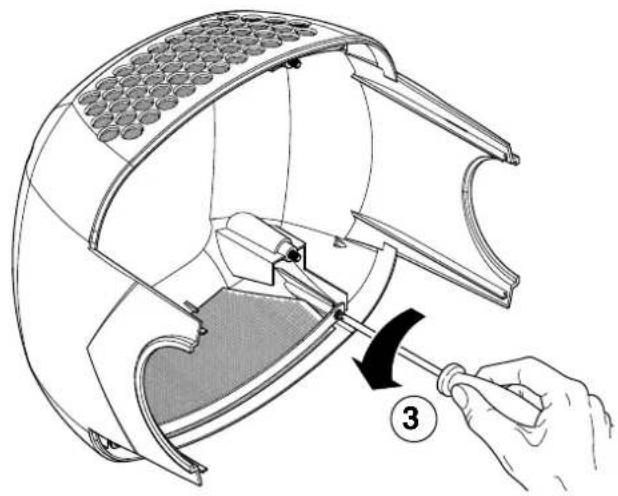

Opening the head covers - Fig. 11.
Closing the head covers - Fig. 12.

4.2 Periodical cleaning

13

NOTE: keep a careful cleaning of the "CMY/colour filters assembly" to prevent rapid deterioration.

Light collimation system

This product contains internal light collimation system. Avoid intense light from any angle.

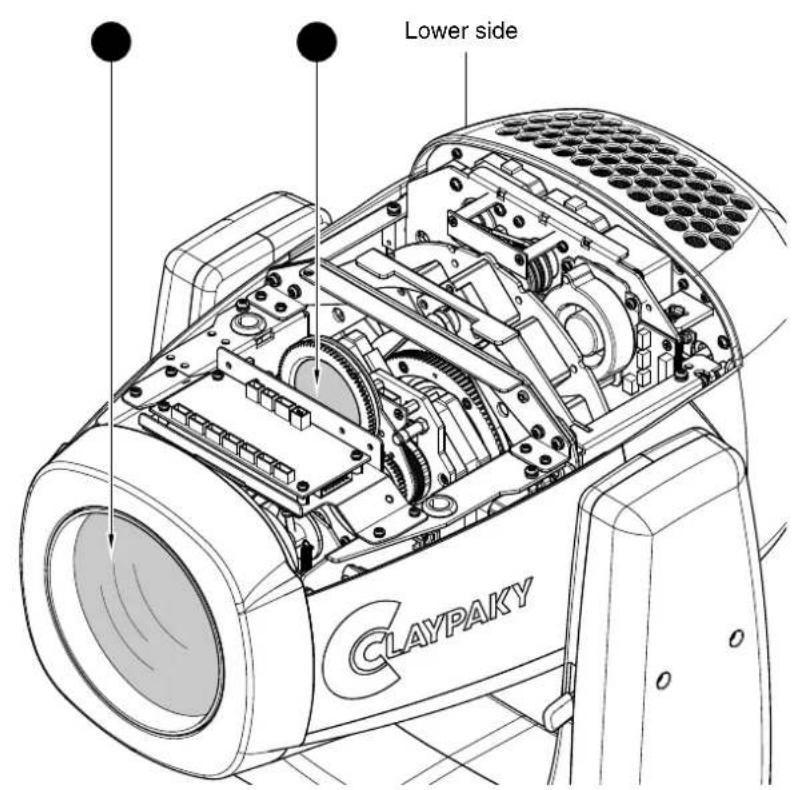

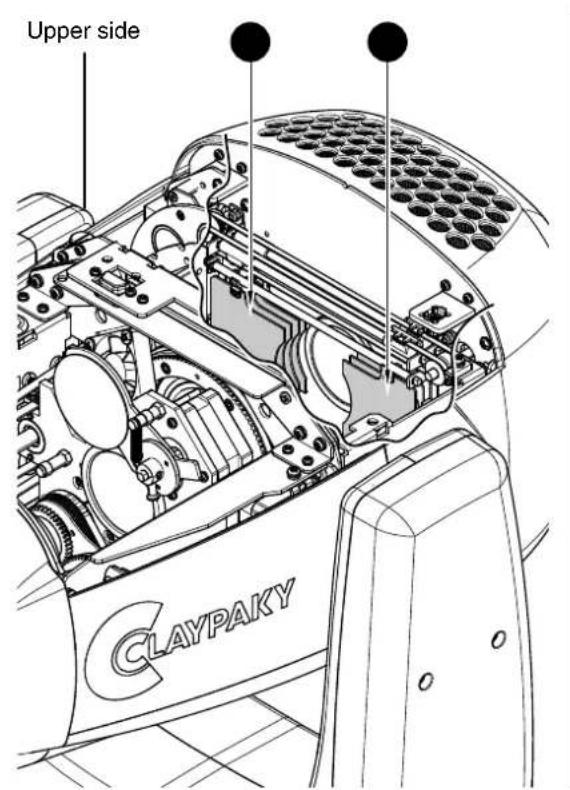

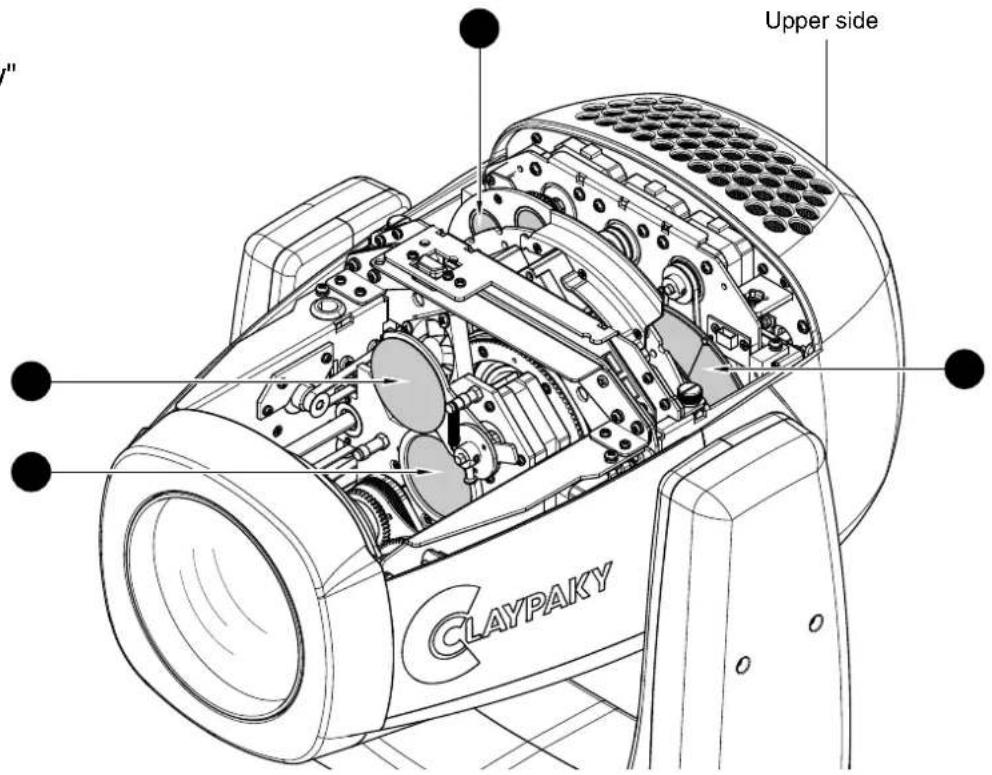

Periodical cleaning - Fig. 13

To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the working environment (air humidity, presence of dust, salinity, etc.).

Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is recommended that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:

• General cleaning of internal parts.
• Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.
• General visual check of the internal components, cabling, mechanical parts, etc.
• Electrical, photometric and functional checks; eventual repairs.

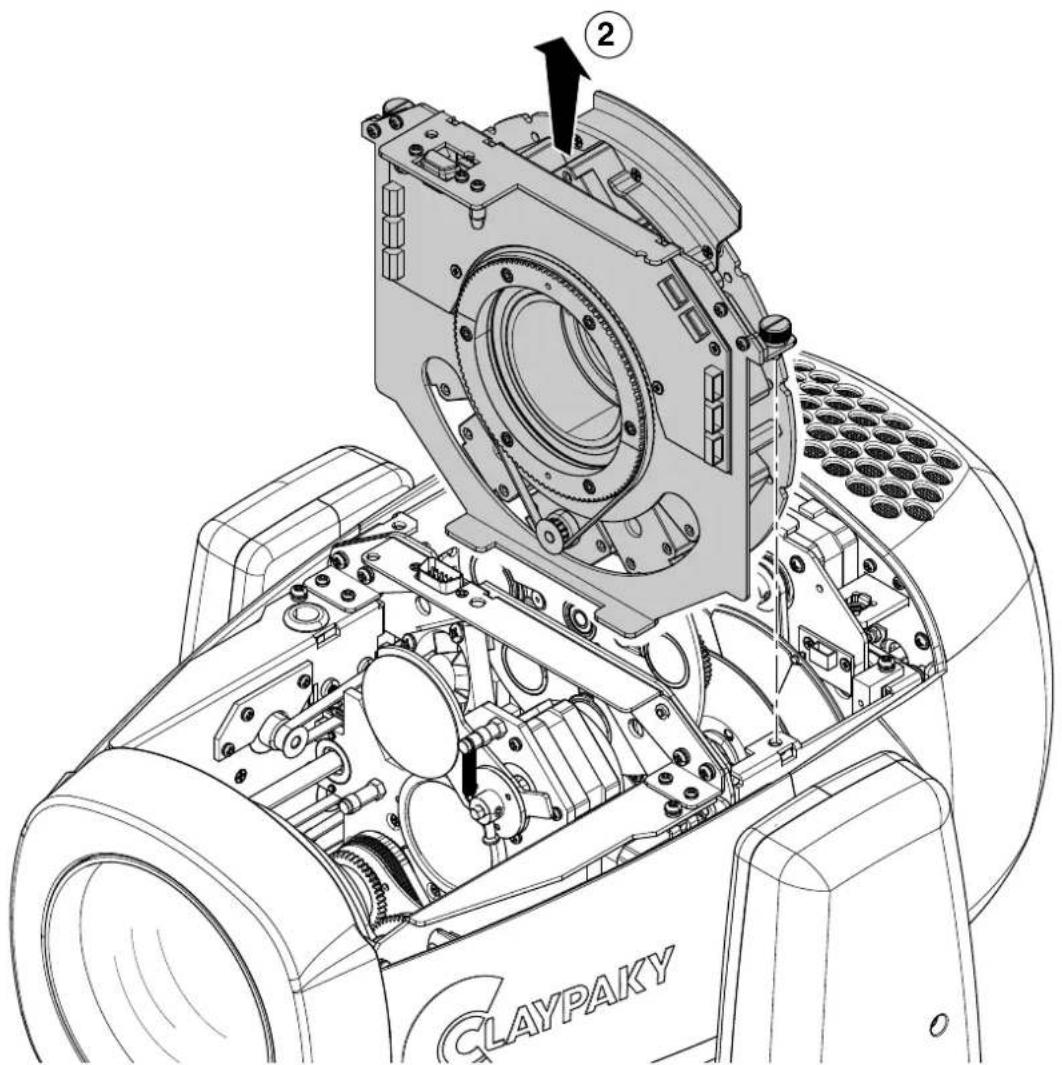

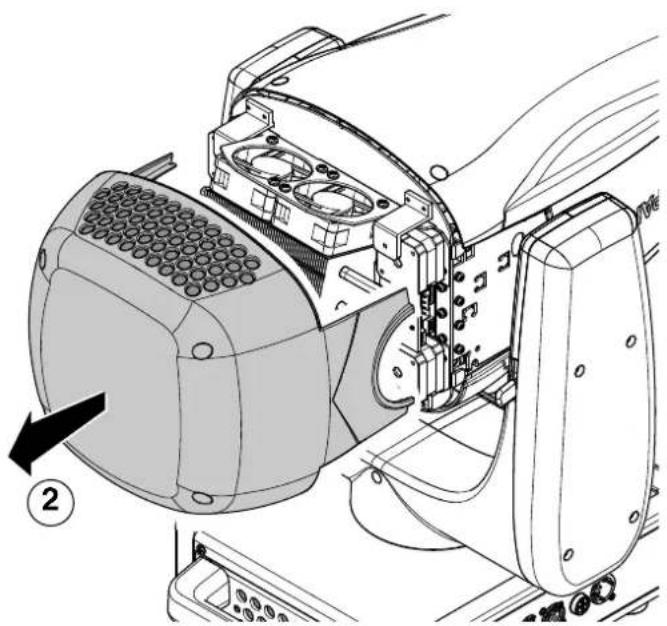

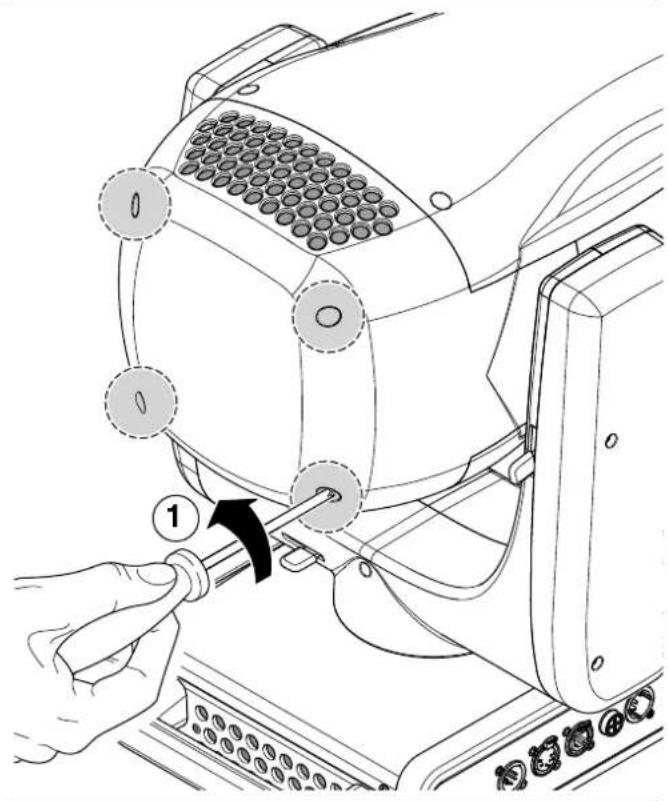

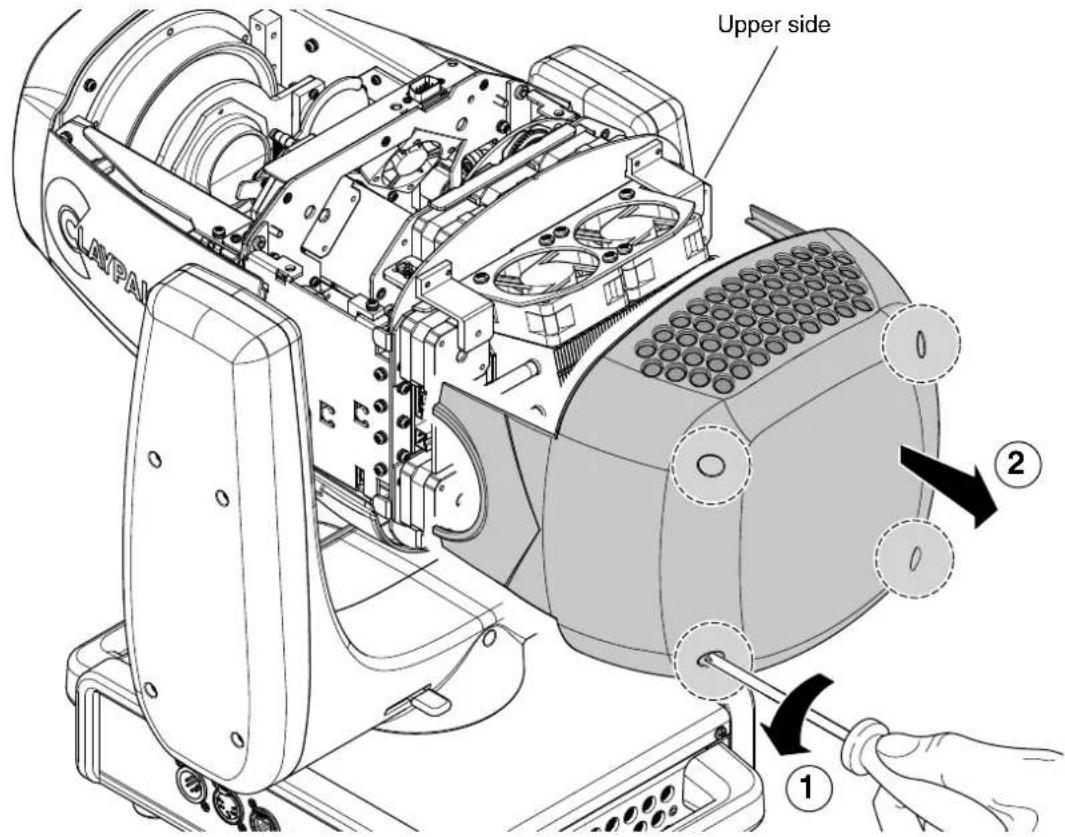

4.3 Effects module removal

14

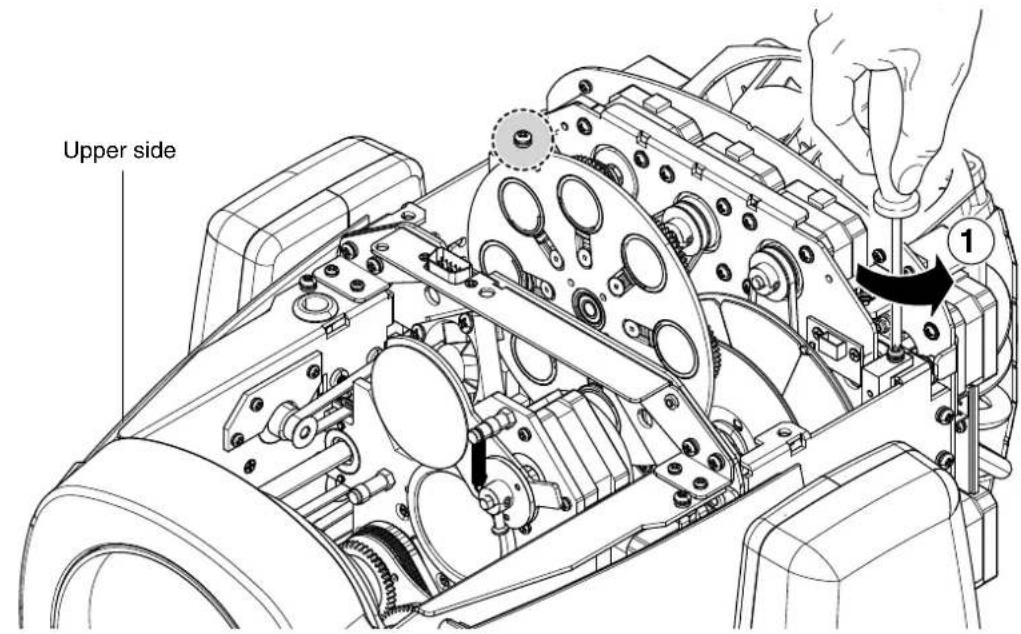

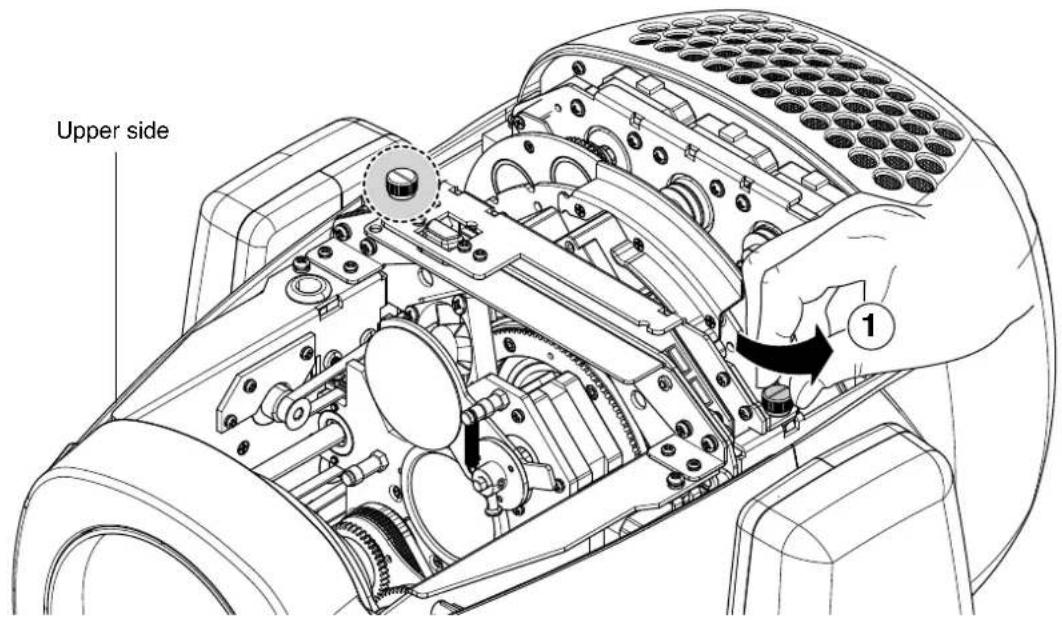

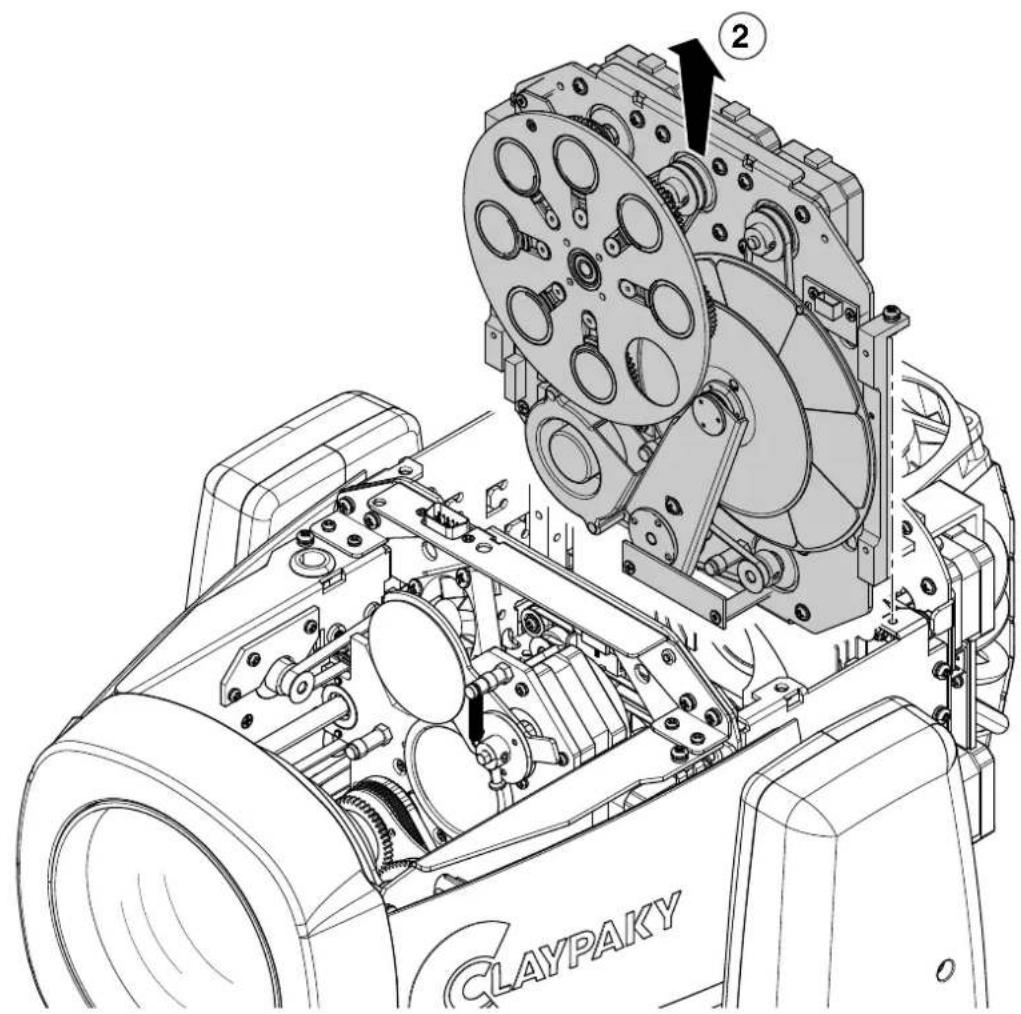

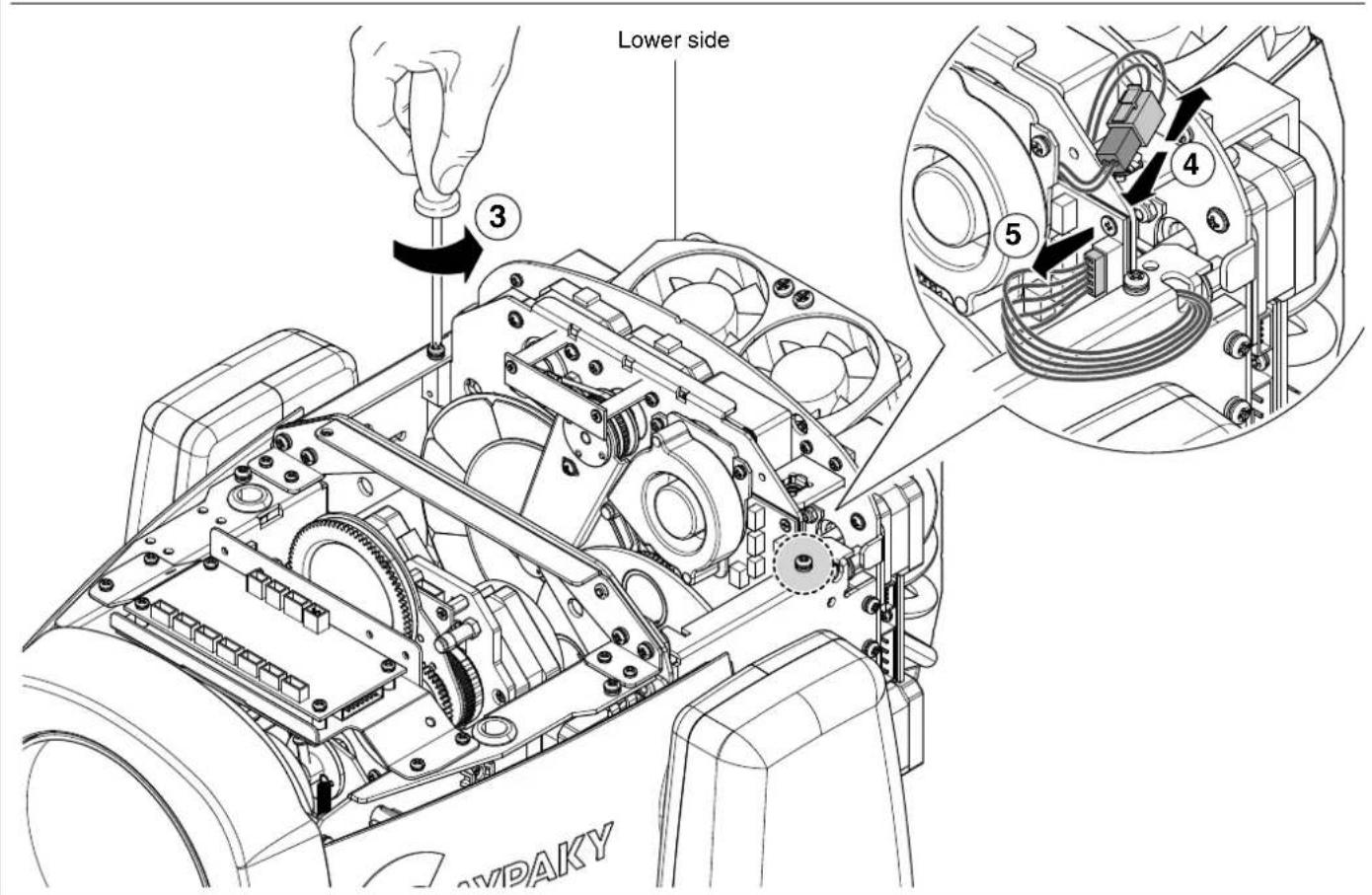

Extraction of the effect modules - Fig. 14.
IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15 and 16 in reverse order.

15

Extraction of the effect modules - Fig. 15. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15 and 16 in reverse order.

16

Extraction of the effect modules - Fig. 16. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15 and 16 in reverse order.

17

Line drawing of a computer monitor with a hand inserting a cable to a button labeled '1' (no text or symbols beyond the label)

Technical diagram of a mechanical assembly with labeled component (2), showing internal components and alignment (no text or symbols beyond labels)

3

Pure technical line drawing of a symmetrical mechanical or architectural component with four circular features and central square (no text or symbols)

Diagram of a mechanical device with a hand holding a tool, showing internal components and a numbered label (3) indicating part 3.

Cross-sectional diagram of a mechanical device with internal components and labeled parts (no text or symbols)

Illustration of two hands using a tool to apply material or spray onto a curved surface (no text or symbols present)

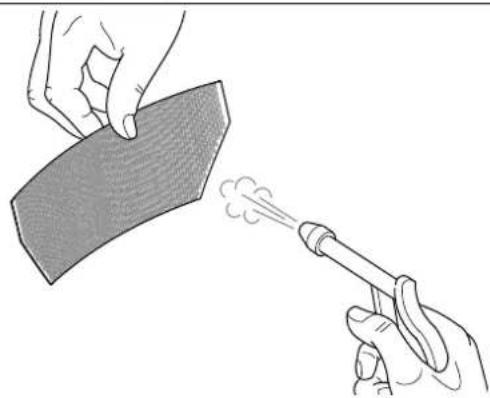

Cleaning of the grids - Fig. 17.

4.4 - Rotating gobos

18

Bearing group replacement - Fig. 18

19

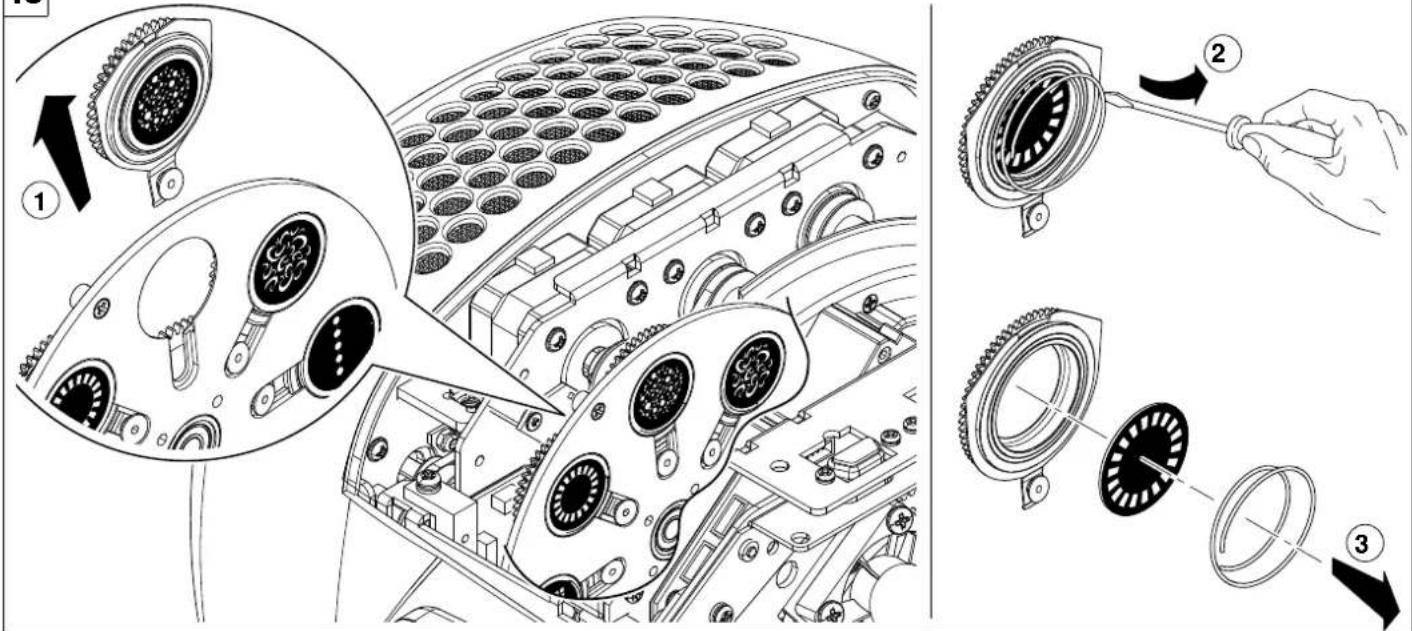

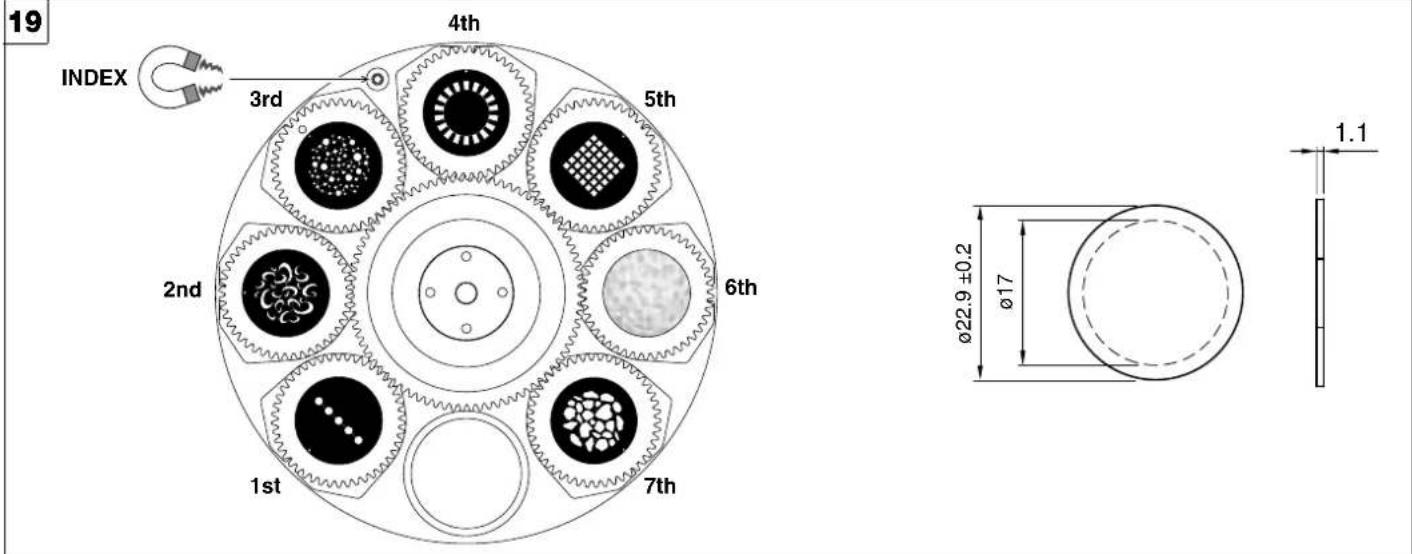

Replacing rotating gobos (ø 22.9 mm – max 17 mm image – thickness 1.1 mm) - Fig. 19
- The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);
- For more information contact Claypaky;

20
COATED GLASS GOBOS TYPE 1 COATED GLASS GOBOS TYPE 2

Reflective/Grey side towards light source

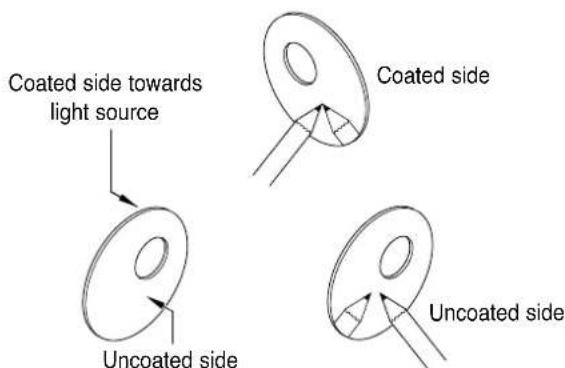

To determine which side of a godo is coated, hold an odject up to it. On the uncoated side, there is a space between the object and its reflection.

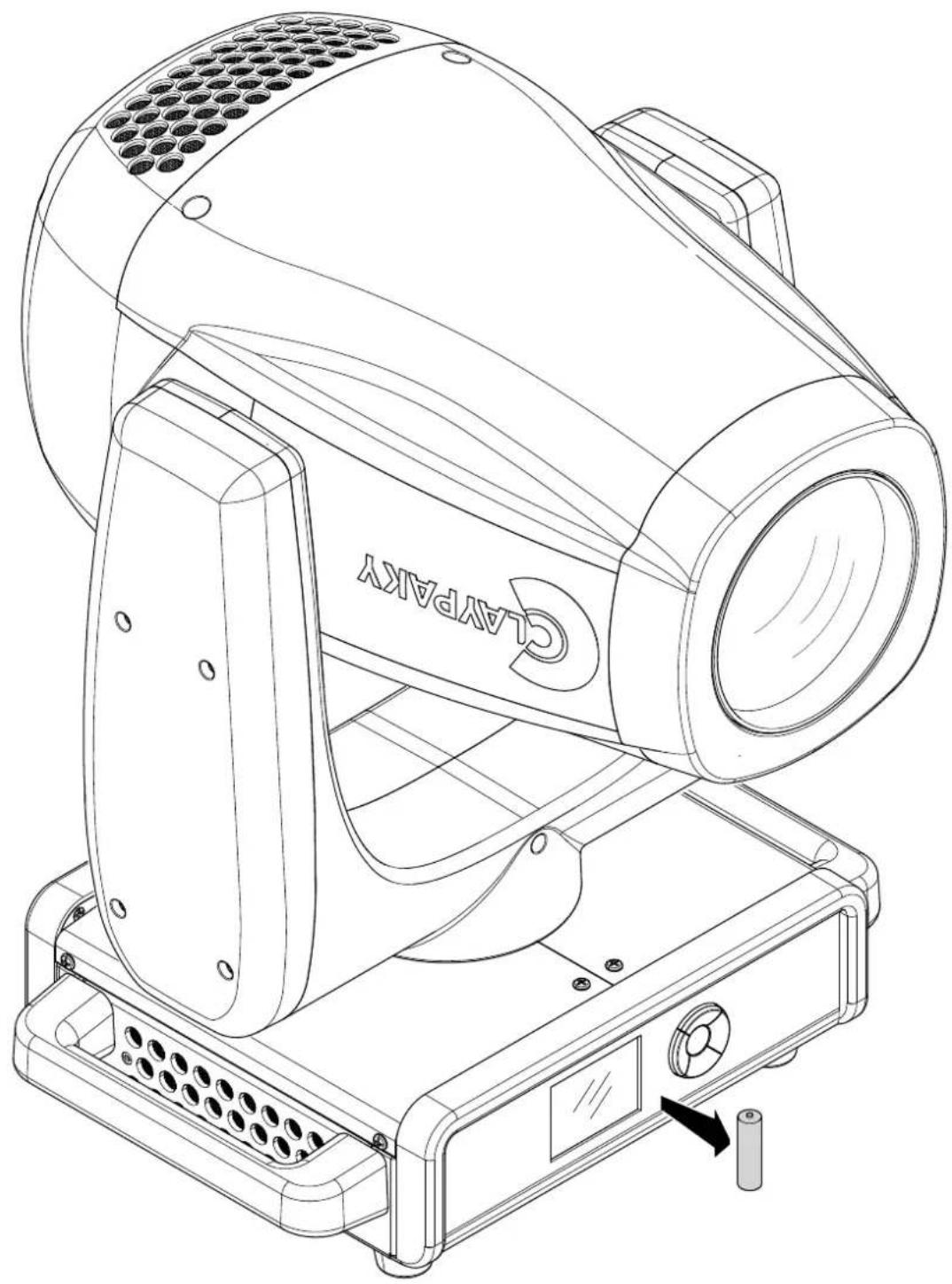

4.5 - Battery removal

21

Line drawing of a Galaxy PAXY radar or optical instrument with mounting base and control panel (no text or symbols on the device itself)

This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force.

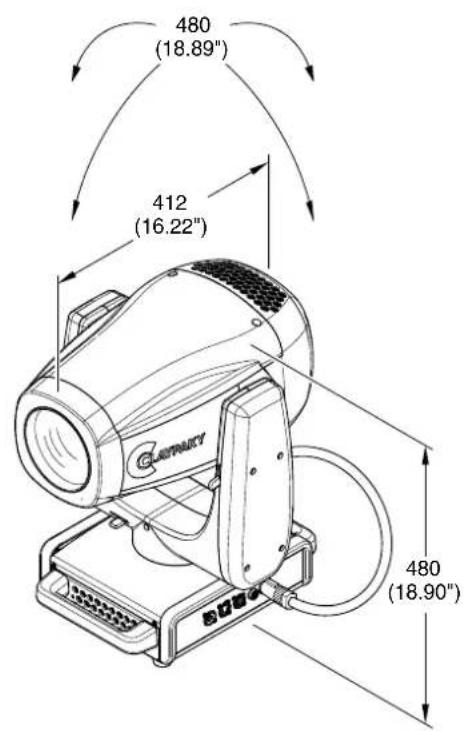

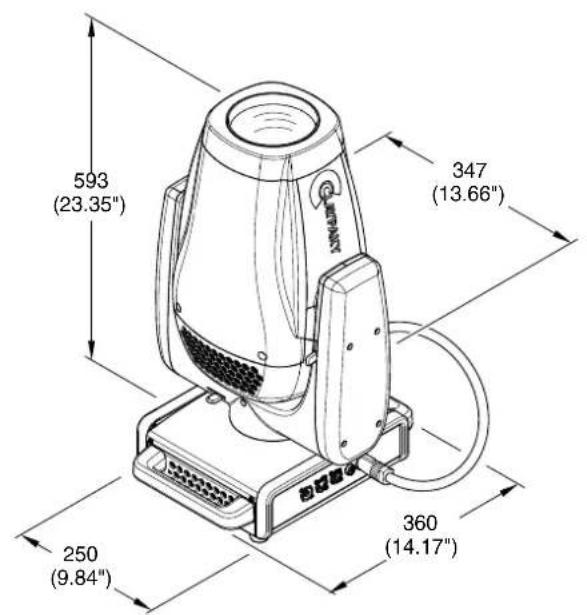

5. DIMENSIONS

6. CAUSE AND SOLUTION OF PROBLEMS

THE PROJECTOR WILL NOT SWITCH ON					PROBLEMS
	ELECTRONICS NON-OPERATIONAL
		DEFECTIVE PROJECTION
			REDUCED LUMINOSITY
			POSSIBLE CAUSES CHECKS AND REMEDIES
●			No mains supply.	Check the power supply voltage.
●			● Light source exhausted or defective.	Call an authorised technician.
	●		Signal transmission cable faulty or disconnected.	Replace the cables.
	●		Incorrect addressing.	Check addresses (see instructions).
	●		Fault in the electronic circuits.	Call an authorised technician.
		●	Lenses broken	Call an authorised technician.
		●	Dust or grease deposited.	Clean (see instructions).
