Product Type	Fiber Optic Adapter Panel
Model	FHS9N-12-3AR
Brand	Panduit
Fiber Count	12 Fibers
Connector Type	LC Duplex
Rack Height	1U
Dimensions (HxWxD)	1.75 x 19 x 10 in (4.4 x 48.3 x 25.4 cm)
Weight	2.5 lb (1.13 kg)
Material	Steel with black powder coat finish
Operating Temperature	-40°C to 85°C
Main Functions	Fiber optic splicing, termination, and cable management
Maintenance	Clean connectors with lint-free wipes and isopropyl alcohol
Safety Precautions	Do not stare into fiber ports; laser radiation may be present
Spare Parts	Replacement dust caps, splice holders, and labels
Repairability	Field-repairable; splice cassette and adapters are replaceable
Standards Compliance	RoHS, TIA/EIA-604 compliant

Frequently Asked Questions - FHS9N-12-3AR Panduit

What is the FHS9N-12-3AR used for?

The Panduit FHS9N-12-3AR is a fiber optic adapter panel designed for splicing, termination, and cable management in data centers and telecom rooms.

What is the fiber count of this panel?

It supports 12 fibers in a compact 1U form factor.

What type of connectors does it use?

The panel is pre-loaded with LC duplex adapters, but other connector types can be installed using compatible adapter plates.

Is the panel rack-mountable?

Yes, it fits standard 19-inch racks and occupies 1U of space.

Can I clean the fiber connectors?

Use lint-free wipes and isopropyl alcohol. Avoid touching the ferrule end-face.

What safety precautions should I take?

Never look directly into fiber ports as invisible laser radiation may be present. Use protective caps when not in use.

Are spare parts available?

Yes, replacement dust caps, splice holders, and labels are available from Panduit.

What is the operating temperature range?

The panel can operate from -40°C to 85°C.

Is the panel field-repairable?

Yes, the splice cassette and adapters are field-replaceable.

What standards does it comply with?

It is RoHS compliant and meets TIA/EIA-604 requirements.

USER MANUAL FHS9N-12-3AR Panduit

ForcompleteHDFlexFiberCassetteEnclosureinstallationinstructions,visitwww.panduit.comandsearchFS111.

Table 1:

ProductFamilyCassettepart	number	CassetteDescription
24-FiberLCSpliceCassette(pre-loadedwithdiscretepigtails)	FHSZA-24-10P24-FiberOM4LC,DiscretePigtails,UltralL
	FHS9N-24-10P24-FiberOSCLC,DiscretePibtails,StandardIL
	FHS9N-24-LAP24-FiberOSCLP/APC,DiscretePigtails,StandardIL
24FiberLCSpliceCassette(pre-loadedwithribbonpigtails)	FHSZA-24-10R24-FiberOMM4LC,RibbonPigtails,UltralL
	FHS9N-24-10R24-FiberOSCLC,RibbonPigtails,StandardIL
	FHS9N-24-LAR24-FiberOS2LC/APC,RibbonPigtails,Standard,IL
12FiberSCSpliceCassette(pre-loadedwithdiscretepigtails)	FHSZA-12-03P12-FiberOM4SC,DiscretePigtails,UltralL
	FHS9N-12-03P12-FiberOS2SC,DiscretePigtails,StandardIL
	FHS9N-12-3AP12-FiberOM2SC/APC,DiscretePigtails,Standard,IL
12-FiberSCSpliceCassette(pre-loadedwithribbonpigtails)	FHSZA-12-03R12-FiberOM4SC,RibbonPigtails,UltralL
	FHS9N-12-03R12-FiberOS2SC,RibbonPigtails,StandardIL
	FHS9N-12-3AR12-FiberOS2SP/APC,RibbonPigtails,StandardIL
SpliceOnlyCassetteFHSN-24Splice	OnlyCassette,NoFrontConnectivity

WARNING: UNMATED CONNECTORS MAY EMIT INVISIBLE LASER RADIATION. MAINTAIN DUST CAPS ON UNMATED CONNECTORS. CAUTION: Fiberopticableissensitiveto excesspulling,bending,andcrushingforces.Consultthemanufacturer'scablespecifications sheetforspecificcabletouse.

Contents

24SpliceLCSpliceCassettepre-loadedwithdiscretepigtails

•(24)40mmDiscreteSplitSleeves
•(4)Pan-Ty ™CableTies

24FiberLCSpliceCassettepre-loadedwithribbonpigtails

•(24)40mmRibbonSpliceSleeves
•(4)Pan-Ty ^TM CableTies

12FiberSCSpliceCassettepre-loadedwithdiscretepigtails

•(12)40mmDiscreteSpliceSleeves
•(4)Pan-Ty ™ CableTies

12FiberSCSpliceCassettepre-loadedwithribbonpigtails

•(1)40mmRibbonSpliceSleeve
•(4)Pan-Ty ^TM CableTies

SpliceOnlyCassette

•(24)40mmDiscreteSpiceSleeves
•(4)40mmDiscreteSpliceSleeves
•(8)Pan-Ty ™ CableTles

AdditionalspliceprotectorsavailablefromP ANDUIT:

•FOSP40-C:SingleFiberSpliceProtectors(100pcs)
•FOWPR40-L:RribbonFiberSpliceProtectors(50pcs)

Remove the cover, by pressing down on the cover removal latch, then sliding the cover back, in the direction of the arrow.

Note the location of the internal components. The splice only cassettes are not supplied with pre-loaded pigtails nor connector adapters.

Technical line drawing of a mechanical assembly with no visible text or symbols

Stripincomingfieldoutercablejacket20inches, SecurewithPan-Ty Maxcablediameter:7.4mm
^TM CableTies, and Aramid Yarnwithscrew (optional).
Expose all fiber ends for splicing. Slide a splice sleeve onto either the (pigtail or field) fiber. Splice all fibers and heat splice sleeve(s).Refertosplicermanufacturerbestpracticeinstructions.

Refer to the following figures to route spliced fibers into cassettes ensuring fibers are located under the routing tabs. Secure splicesleevesinsplicesleeveholders.Uptotwosplicesleevescanbestackedundereachsplicesleeveholder.

Figure 4: 24 Fiber LC Splice Cassette with discrete pigtails

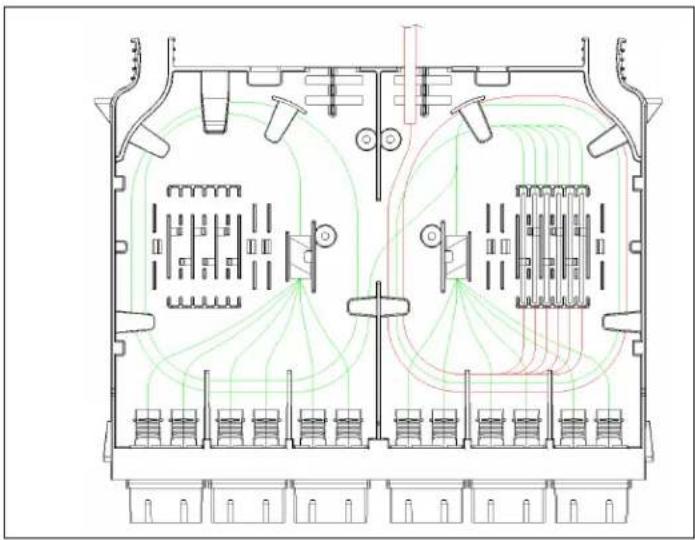

Figure 5: 24 Fiber LC Splice Cassette with ribbon pigtails

Architectural floor plan showing room layouts and ventilation systems (no text or labels)

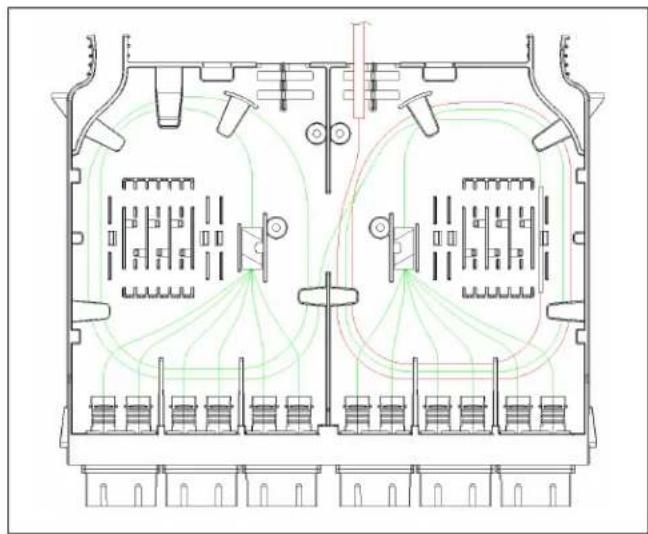

Figure 6: 12 Fiber SC Splice Cassette with discrete pigtails

Architectural floor plan showing room layouts and ventilation systems (no text or labels)

Figure 7: 12 Fiber SC Splice Cassette with ribbon pigtails

Technical schematic of a mechanical or electrical component with internal channels and mounting brackets (no text or labels)

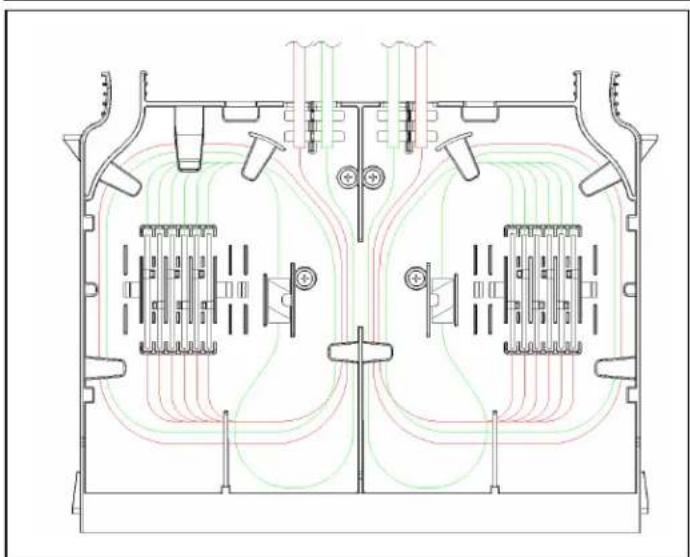

Figure 8: Discrete fiber in splice only cassette

Technical schematic of a dual-chamber HVAC or electrical enclosure with internal circuitry and mounting brackets (no text or labels)

Figure 9: Ribbon Fiber in splice only cassette

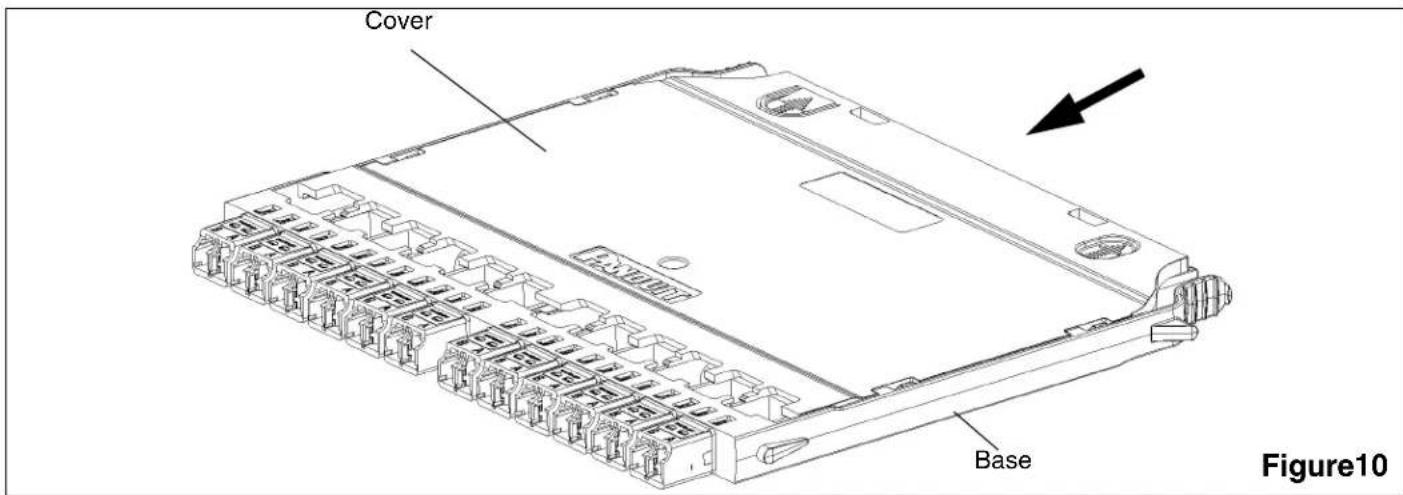

Re-installcoverbyslidingitforwardontothebase.

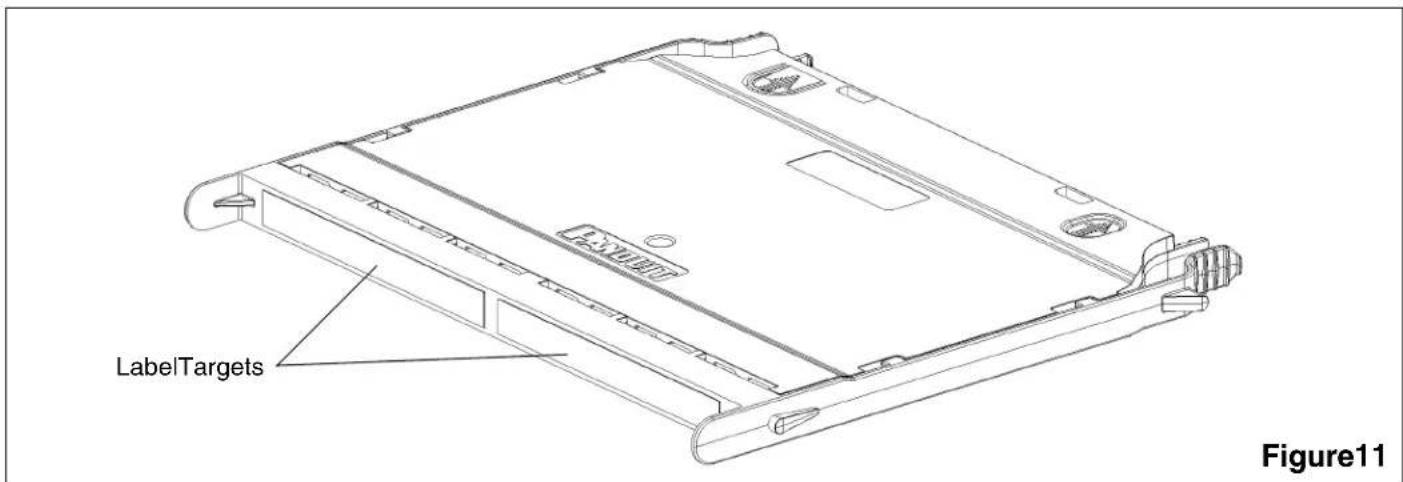

Splice only cassettes provide label targets. Each label can accommodate labels up to 3.25" long and 0.35" tall.

ForInstructionsinLocalLanguagesandTechnicalSupport:www.panduit.com/resources/install_maintain.asp
