Product Type	Split Air Conditioner (Wall Mounted)
Model Number (Indoor)	TRN-2335ZR
Model Number (Outdoor)	TRG-2335ZR
Cooling Capacity	Approx. 2.5 kW (22,000 BTU/h)
Heating Capacity	Approx. 2.8 kW (Heat Pump)
Power Supply	220-240 V ~ 50 Hz
Energy Efficiency Ratio (EER)	3.2 (Cooling)
Indoor Unit Dimensions (WxHxD)	900 x 300 x 220 mm
Outdoor Unit Dimensions (WxHxD)	800 x 550 x 300 mm
Indoor Unit Weight	12 kg
Outdoor Unit Weight	35 kg
Refrigerant Type	R32
Airflow Rate (Low/Med/High)	350/450/550 m³/h
Noise Level (Indoor - Low/High)	25/45 dB(A)
Noise Level (Outdoor)	55 dB(A)
Main Functions	Cooling, Heating, Dehumidification, Fan, Eco Mode, Turbo Mode, Sleep Mode, Timer, Swing Auto Louver, Self-Cleaning, Wi-Fi Ready (Optional)
Control Method	Remote Control + Manual Buttons
Filter Type	Washable Pre-Filter + Optional HEPA/Plasma Filter
Maintenance & Cleaning	Clean filter every 2-4 weeks; annual professional check-up recommended
Safety Features	Auto Restart, Overload Protection, Anti-Freeze, Child Lock (Remote)
Spare Parts & Repairability	Genuine parts available from authorized dealers; user replaceable filters, remote control

Frequently Asked Questions - TRN/TRG-2335ZR Toyotomi

How often should I clean the air conditioner filter?

For optimal performance, clean the washable pre-filter every 2 to 4 weeks. If you have an optional HEPA or plasma filter, follow the manufacturer's instructions, usually every 3 months.

Can the air conditioner be used in cooling mode only?

Yes, the TRN/TRG-2335ZR offers multiple modes: cooling, heating (heat pump), dehumidification, and fan only. Simply select the desired mode on the remote control.

What is the recommended room size for this unit?

This air conditioner is suitable for rooms up to 25-30 m² (approximately 270-320 ft²) under standard ceiling height and insulation.

How do I set the timer on the remote?

Press the TIMER button on the remote. Use + or - to set the desired hours (0-24). Press TIMER again to confirm. The unit will turn on/off based on your setting.

What does the 'Self-Cleaning' function do?

Self-Cleaning mode helps dry the interior coils after use to prevent mold and bacteria growth. It runs the fan for a short period after the compressor stops. Enable it via the remote or control panel.

Is professional installation required?

Yes, due to the need for refrigerant handling, electrical connections, and proper drainage, installation should be performed by a qualified technician to ensure safety and warranty.

What should I do if the unit displays an error code?

Common error codes: E1 (sensor failure), E2 (defrost sensor), E3 (fan motor). Turn off the unit, wait 10 minutes, and restart. If the code persists, contact an authorized service center. Refer to the manual for detailed code list.

Can I use a power strip or extension cord?

No. The air conditioner should be plugged directly into a dedicated wall outlet capable of handling the current. Using an extension cord or power strip may cause overheating or fire.

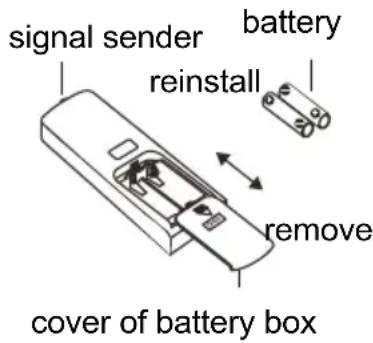

How do I replace the remote control batteries?

Remove the battery cover on the back of the remote. Insert two AAA batteries (not included), matching the polarity (+/-). Replace the cover. Dispose of old batteries properly.

What is the recommended temperature setting for energy saving?

For cooling, set the thermostat to 24-26°C (75-78°F). For heating, set to 20-22°C (68-72°F). Using these settings combined with Eco mode can reduce energy consumption significantly.

USER MANUAL TRN/TRG-2335ZR Toyotomi

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

This marking indicates that this product should not be disposed with other house hold wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

R32: 675

Appliance filled with flammable gas R32.

Before use the appliance, read the owner's manual first.

Before install the appliance, read the installation manual first.

Before repair the appliance, read the service manual first.

The Refrigerant

• To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The used refrigerant is the fluoride R32, which is specially cleaned. The refrigerant is flammable and inodorous. Furthermore, it can lead to explosion under certain conditions. But the flammability of the refrigerant is very low. It can be ignited only by fire.
• Compared to common refrigerants, R32 is a nonpolluting refrigerant with no harm to the ozonosphere. The influence upon the reenhouse effect is also lower. R32 has got very good thermodynamic features which lead to high energy efficiency. The units therefore need a less filling.

WARNING:

DO NOT use means to accelerate the defrosting process or to clean, other than those recommended by the manufacture. Should repair be necessary, contact your nearest authorized Service Center. Any repairs carried out by unqualified personnel may be dangerous. The appliance shall be stored in a room without continuously operating ignition sources. (for example: open flames, an operating gas appliance or an operating electric heater.) DO NOT pierce or burn.

Appliance shall be installed, operated and stored in a room with a floor area larger than 4m^2 .

Appliance filled with flammable gas R32. For repairs, strictly follow manufacturer's instructions only. Be aware that refrigerants not contain odor. Read specialist's manual.

Precautions

WARNING

Operation and Maintenance

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not connect air conditioner to multi-purpose socket. Otherwise, it may cause fire hazard.
• Do disconnect power supply when cleaning air conditioner. Otherwise, it may cause electric shock.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not wash the air conditioner with water to avoid electric shock.
• Do not spray water on indoor unit. It may cause electric shock or malfunction.
  • After removing the filter, do not touch fins to avoid injury.
• Do not use fire or hair dryer to dry the filter to avoid deformation or fire hazard.
• Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury or damage.
• Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner.
• Do not extend fingers or objects into air inlet or air outlet. It may cause personal injury or damage
• Do not block air outlet or air inlet. It may cause malfunction.
• Do not spill water on the remote controller, otherwise the remo-

te controller may be broken.

• When below phenomenon occurs, please turn off air conditioner and disconnect power immediately, and then contact the dealer or qualified professionals for service.
  • Power cord is overheating or damaged.

• There's abnormal sound during operation.

• Circuit break trips off frequently.
  • Air conditioner gives off burning smell.

• Indoor unit is leaking.

• If the air conditioner operates under abnormal conditions, it may cause malfunction, electric shock or fire hazard.

• When turning on or turning off the unit by emergency operation switch, please press this switch with an insulating object other than metal
• Do not step on top panel of outdoor unit, or put heavy objects. It may cause damage or personal injury.

Attachment

• Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage.
- Must follow the electric safety regulations when installing the unit.
- According to the local safety regulations, use qualified power supply circuit and circuit break.
- Do install the circuit break. If not, it may cause malfunction.
- An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.
- Including an circuit break with suitable capacity, please note the following table. Air switch should be included magnet buckle and heating buckle function, it can protect the circuit-short and overload.
- Air Conditioner should be properly grounded. Incorrect grounding may cause electric shock.
- Don't use unqualified power cord.

- Make sure the power supply matches with the requirement of air conditioner. Unstable power supply or incorrect wiring or malfunction. Please install proper power supply cables before using the air conditioner.

- Properly connect the live wire, neutral wire and grounding wire of power socket.

- Be sure to cut off the power supply before proceeding any work related to electricity and safety.

- Do not put through the power before finishing installation.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.

- The appliance shall be installed in accordance with national wiring regulations.

- Installation must be performed in accordance with the requirement of NEC and CEC by authorized personnel only.

- The air conditioner is the first class electric appliance. It must be properly grounding with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock.

- The yellow-green wire in air conditioner is grounding wire, which can't be used for other purposes.

- The grounding resistance should comply with national electric safety regulations.

- The appliance must be positioned so that the plug is accessible.

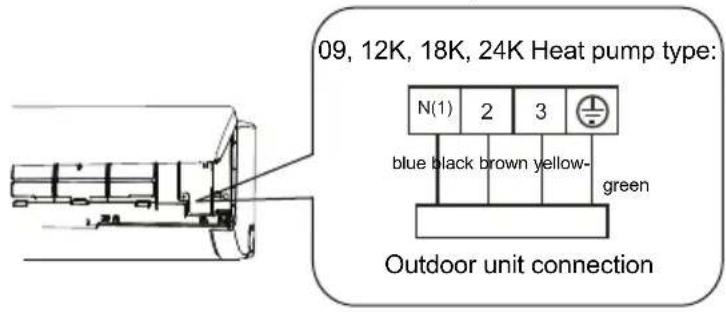

- All wires of indoor unit and outdoor unit should be connected by a professional.

- If the length of power connection wire is insufficient, please contact the supplier for a new one. Avoid extending the wire by yourself.

- For the air conditioner with plug, the plug should be reachable

after finishing installation.

• For the air conditioner without plug, an circuit break must be installed in the line.
• If you need to relocate the air conditioner to another place, only the qualified person can perform the work. Otherwise, it may cause personal injury or damage.

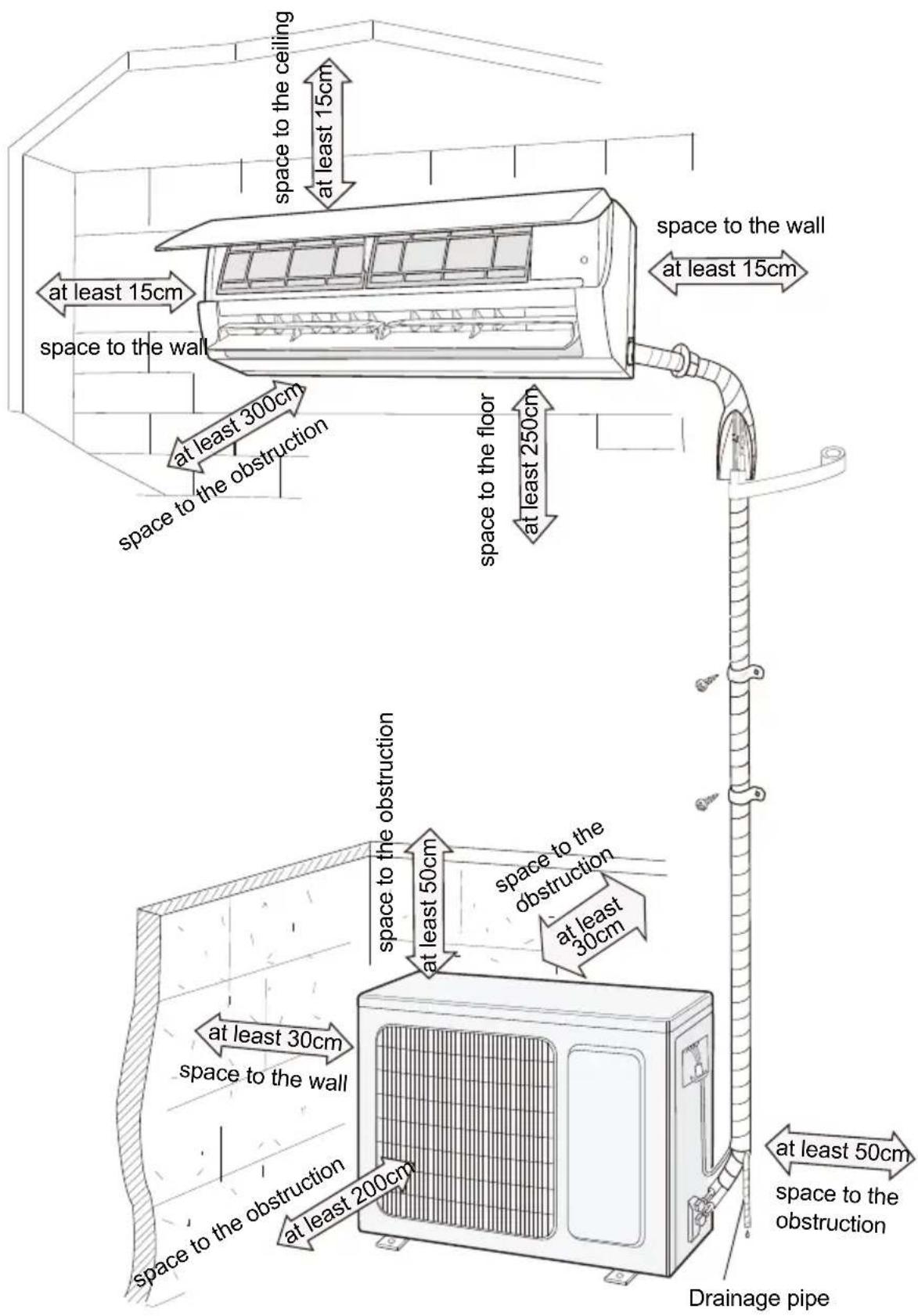

• Select a location which is out of reach for children and far away from animals or plants. If it is unavoidable, please add the fence for safety purpose.
• The indoor unit should be installed close to the wall.
• Instructions for installation and use of this product are provided by the manufacturer.
• The air conditioner is not allowed to use in a room that has running fire (such as fire source, working coal gas ware, operating heater).
• It is not allowed to drill hole or burn the connection pipe.
• The air conditioner must be installed in a room that is larger than the minimum room area. The minimum room area is shown on the nameplate or table a in page 43.
• Leak test is a must after installation.
• Instructions for installation and use of this product are provided by the manufacturer.

Working temperature range

	Indoor Side DB/WB (°C) Outdoor Side DB/WB (°C)
Maximum Cooling 32/23 50/26
Maximum Heating 27/- 30/18

NOTICE:

- The operating temperature range (outdoor temperature) for heat pump unit is -15^ 50^ ; for heat pump unit is -25^ 50^ .

	Indoor Side DB/WB (°C) Outdoor Side DB/WB (°C)
Maximum Cooling 32/23 43/26
Maximum Heating 27/- 24/18

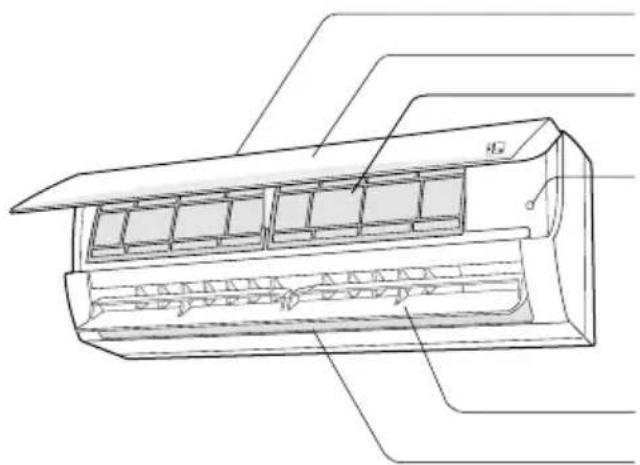

Parts Name

INDOOR UNIT

Technical line drawing of a car air conditioner unit with internal compartments and ventilation slots (no text or labels)

air inlet

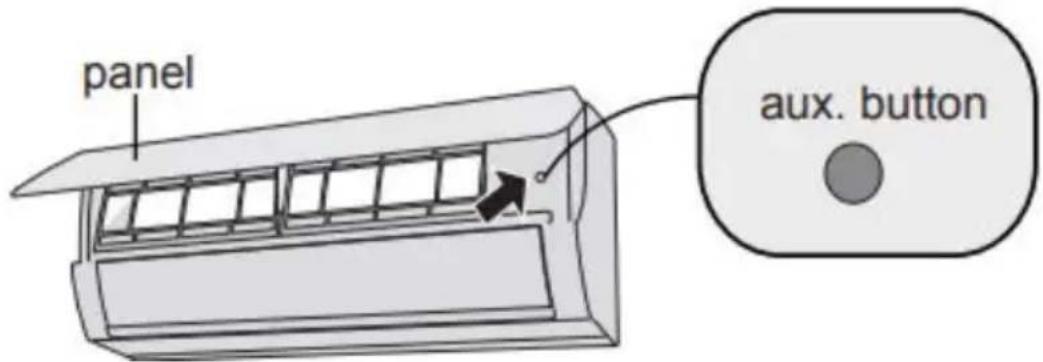

panel

filter

aux. button

horizontal louver air outlet

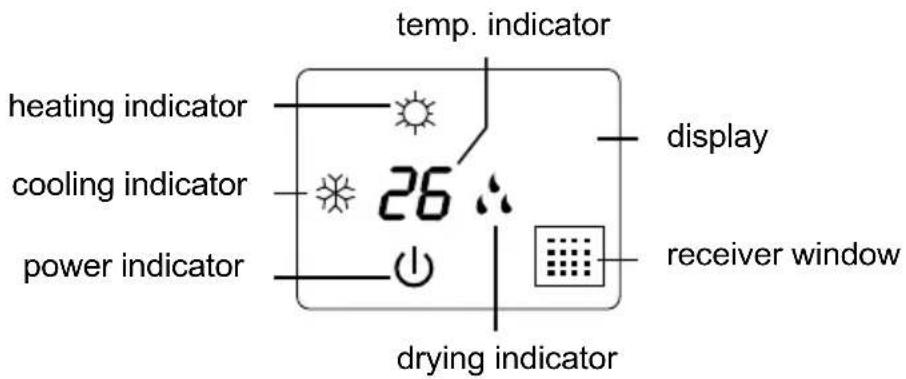

(Display content or position may be different from above graphics, please refer to actual products)

remote control

NOTICE:

Actual product may be different from above graphics, please refer to actual products.

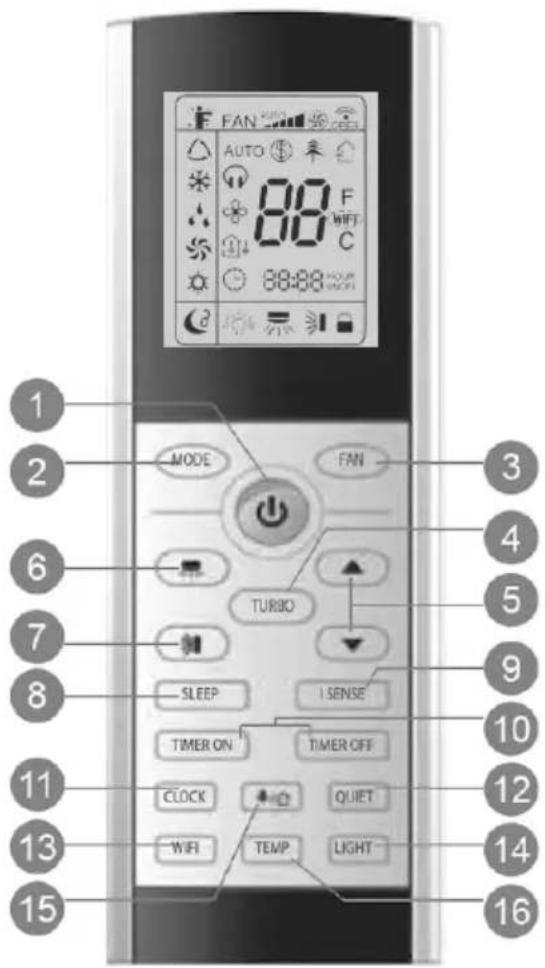

BUTTONS ON REMOTE CONTROLLER

1 ON/OFF button
2 MODE button
3 FAN button
4 TURBO button
5 ▲ / ▼ buttons
6 button
7 ➕ button
8 SLEEP button
9 | SENSE button
10 TIMER ON / TIMER OFF buttons
11 CLOCK button
12 QUIET button
13 WIFI button
14 LIGHT button
15 条 / � button
16 TEMP button

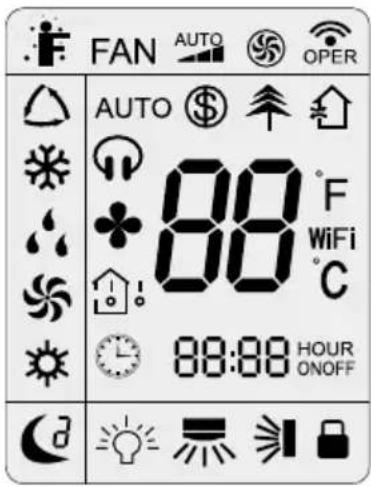

Introduction for icons on display screen

Temperature display type

Set temperature

Indoor ambient temperature

Outdoor ambient temperature (not available)

FI SENSE

FAN Fan Function

AUTO Set fan speed

TURBO Function

Send signal

AUTO mode

COOL mode

FAN mode

HEAT mode

Sleep Function

LIGHT Function

Left and right swing

Up and down swing

Lock

Clock

Temperature display type

Self-Clean Function

Quiet Function

AUTO Auto Function

\$ 8°C Function

lonizer

Scavenging – Fresh Air (not available)

F Temperature in Fahrenheit

WiFi WiFi Function

C Temperature in Celsius

88:88 Set Time

Note:

• This is a general use remote controller, it could be used for the airconditioners with multifunction; For some function, which the model does not have, if press the corresponding button on the remote controller that the unit will keep the original running status.
• After putting through the power, the air conditioner will give out a sound. Operation indicator ⏻ is ON. After that, you can operate the air conditioner by using remote controller.
• Under on status, pressing the button on the remote controller, the signal icon 📋 on the display of remote controller will blink once and the airconditioner will give out a “de” sound, which means the signal has been sent to the air conditioner.

1. ON/OFF button

Press this button to turn on the unit. Press this button again to turn off the unit.

2. MODE button

Press this button to select your required operation mode.

• When selecting auto mode, air conditioner will operate automatically according to the sensed temperature. Set temperature cannot be adjusted and will not be displayed as well. Press «FAN» button can adjust fan speed. Press / button can adjust fan blowing angle.
• After selecting cool mode, air conditioner will operate under cool mode. Cool indicator * on indoor unit is ON (This indicator is not available for some models). Press ▲ or ▼ button to adjust set temperature. Press «FAN» button to adjust fan speed. Press / ➕ button to adjust fan blowing angle.
• When selecting dry mode, the air conditioner operates at low speed under dry mode. Dry indicator on indoor unit is ON (This indicator is not available for some models). Under dry mode, fan speed can't be adjusted. Press / button to adjust fan blowing angle.
• When selecting fan mode, the air conditioner will only blow fan, no cooling and no heating. All indicators are OFF, Operation indicator is ON. Press «FAN» button to adjust fan speed. Press / button to adjust fan blowing angle.
• When selecting heating mode, the air conditioner operates under heat mode. Heat indicator ⚙️ on indoor unit is ON (This indicator is not available for some models). Press ▲ or ▼ button to adjust set temperature. Press «FAN» button to adjust fan speed. Press 🏠 / 🔊 button to adjust fan blowing angle. (Cooling only unit won’t receive heating mode signal. If setting heat mode with remote controller, press ON/OFF button can’t start up the unit).

Note:

• For preventing cold air, after starting up heating mode, indoor unit will delay 1\~5 minutes to blow air (actual delay time is depending on indoor ambient temperature).
• Set temperature range from remote controller: 16\~30 (61-86°F); Fan speed: auto, low speed, low-medium speed, medium speed, medium-high speed, high speed.

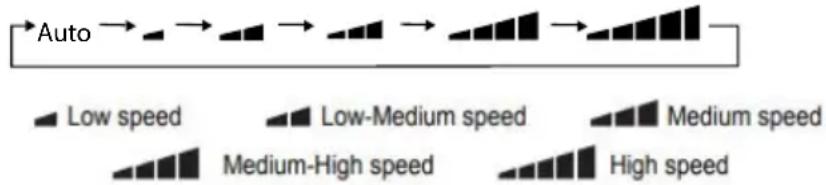

3. FAN button

This button is used for setting Fan Speed in the sequence that goes from AUTO, ▲, △,

, to, then backed Auto.

Note:

• It is Low fan speed under Dry mode.
• X-FAN function: Hold fan speed button for 2 seconds in COOL or DRY mode, the icon ✿ is displayed and the indoor fan will continue operation for a few minutes in order to dry the indoor unit even though you have turned off the unit. After energization, X-FAN OFF is defaulted. X-FAN is not available in AUTO, FAN or HEAT mode. This function indicates that moisture on evaporator of indoor unit will be blown after the unit is stopped to avoid mould.
• Having set X-FAN function on: After turning off the unit by pressing ON/OFF button indoor fan will continue running for a few minutes. at low speed. In this period, hold fan speed button for 2s to stop indoor fan directly.
• Having set X-FAN function off: After turning off the unit by pressing ON/OFF button, the complete unit will be off directly.

4. TURBO button

Under COOL or HEAT mode, press this button to turn to quick COOL or quick HEAT mode.

icon is displayed on remote controller. Press this button again to exit turbo function and icon will disappear. If start this function, the unit will run at super-high fan speed to cool or heat quickly so that the ambient temp. approaches the preset temp. as soon as possible.

5. ▲/▼ button

• Press ▲ or ▼ button once increase or decrease set temperature 1°C (°F). Holding ▲ or ▼ button, 2s later, set temperature on remote controller will change quickly. On releasing button after setting is finished, temperature indicator on indoor unit will change accordingly.
• When setting TIMER ON, TIMER OFF or CLOCK, press ▲ or ▼ button to adjust time. (Refer to CLOCK, TIMER ON, TIMER OFF buttons.) When setting TIMER ON, TIMER OFF or CLOCK, press ▲ or ▼ button to adjust time. (Refer to CLOCK, TIMER ON, TIMER OFF buttons).

6. button

Press this button can select left & right swing angle. Fan blow angle can be selected circularly as below:

no display

(stops at current position)

Note:

• Press this button continuously more than 2s, the main unit will swing back and forth from left to right, and then loosen the button, the unit will stop swinging and present position of guide louver will be kept immediately.
• Under swing left and right mode, when the status is switched from off to ☐, if press this button again 2s later ☐ status will switch to off tatus directly; if press this button again within 2s, the change of swing status will also depend on the circulation sequence stated above.

7. ➕ button

Press this button can select up & down swing angle. Fan blow angle can be selected

circularly as below:

(horizontal louvers stops at current position)

• When selecting ➤, air conditioner is blowing fan automatically. Horizontal louver will automatically swing up & down at maximum angle.
• When selecting 1 air conditioner is blowing fan at fixed position. Horizontal louver will stop at the fixed position.
• When selecting air conditioner is blowing fan at fixed angle. Horizontal louver will send air at the fixed angle.
• Hold ➕ button above 2s to set your required swing angle. When reaching your required angle, release the button.

Note:

• may not be available. When air conditioner receives this signal, the air conditioner will blow fan automatically.
• Press this button continuously more than 2s, the main unit will swing back and forth from up to down, and then loosen the button. The unit will stop swinging and present position of guide lover will be kept immediately.
• Under swing up and down mode, when the status is switched from off to ☑, if press this button again 2s later, ➕ status will switch to off status directly. If press this button again within 2s, the change of swing status will also depend on the circulation sequence stated above.

8. SLEEP button

In the Cooling or Heating mode, press this button to start Sleep mode. Once you set it up, this symbol “!” appears on the screen remote control. Sleep Mode has three places to choose from, Sleep Mode 1, Sleep Mode 2, Sleep Mode 3. To navigate through the options, press the sleep button. By pressing it once Sleep Mode 1 “!” will be activated, by pressing it twice Sleep Mode 2 “?” activates, three times Sleep Mode 3 “?” activates. Pressing the button for the fourth time will disable this function and ““” will disappear. If you deactivate the air conditioner, sleep mode will be deactivated. During DRY, FAN, AUTO, Energy Saving & “8°C Heating” functions, Sleep mode is not available.

Sleep Mode 1

Sleep Mode 1 “C” is available in Cooling or Heating mode. By activating this function, the air conditioner’s temperature increases by one degree per hour in “Cooling” mode and decreases by one degree per hour in “Heating” mode.

Sleep Mode 2

Sleep mode 2 "C" will only be activated during Cooling or Heating mode.

During Cooling:

- If the air conditioner temperature is set between 16-23 °C, the temperature will increase by one degree per hour for the next 3 hours after the power is turned on and then remains stable. At the 8th hour after the operation is switched on, the temperature will be reduced by one degree automatically.

- If the air conditioner temperature is set between 24-27 °C, the temperature will increase by one degree per hour for the next 2 hours from the start of the operation and then remain stable. At the 8th hour after the operation is switched on, the temperature will be reduced by one degree automatically.

- If the air conditioner temperature is set between 28-29 °C, the temperature will increase to a certain degree within the next hour of activation and then remain stable. At the 8th hour after the operation is switched on, the temperature will be reduced by one degree automatically.

- If the air conditioner temperature is set from 30^ C to above, it will remain constant for 7 hours after the operation is switched on and at 8 o'clock the temperature will be reduced by one degree automatically.

During Heating mode:

- If the air conditioner selection is 16^ C, the air conditioner will continue to operate at this temperature.

-If the air conditioner temperature is between 17^ and 20^ , the air conditioner's temperature will drop to a certain extent after the first hour of the operation and then remain constant.

- If the air conditioner's temperature is between 21-27 ^ C, the air conditioner's temperature will drop by one degree per hour within the first 2 hours of activation and then remain constant.

- If the air conditioner's temperature is between 28-30 ^ C, the air conditioner's temperature will be reduced by one degree per hour in the first 3 hours after activation and then will remain constant.

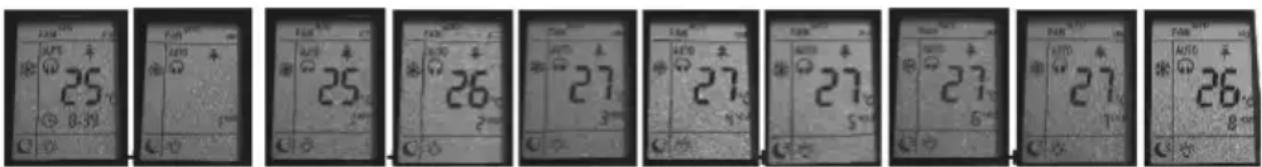

Sleep Mode 3

Sleep Mode 3 “3” is available in Cooling or Heating modes. By activating this function, you can create your own personalized program based on time and temperature. To set the time and temperature, press the “TURBO” button for 3 seconds, and the temperature icon will flash on the remote control screen.

You can set the temperature by hour, up to 8 hours continuously. With the ▲ and ▼ buttons you can adjust and change the temperature. To confirm the desired temperature, press the “TURBO” button. To set the temperature for the second hour repeat the same procedure.

The personalized program is stored in the memory despite the deactivation of the air conditioner.

9. I SENSE button

Press this button to start I SENSE function and will be displayed on the remote controller. After this function is set, the remote controller will send the detected ambient temperature according to the controller and the unit will automatically adjust the indoor temperature according to the detected temperature. Press this button again to cancel I SENSE function and will disappear.

USEFUL TIP

Please put the remote controller near user when this function is set. Do not put the remote controller near the object of high temperature or low temperature in order to avoid detecting inaccurate ambient temperature. When I SENSE function is turned on, the remote controller should be put within the area where indoor unit can receive the signal sent by the remote controller.

10. TIMER ON / TIMER OFF button

TIMER ON button

"TIMER ON" button can set the time for timer on. After pressing this button, ⏻ icon disappears and the word "ON" on remote controller blinks. Press ▲ or ▼ button to adjust TIMER ON setting. After each pressing ▲ or ▼ button, TIMER ON setting will increase or decrease 1 minute. Hold ▲ or ▼ button, 2s later, the time will change quickly until reaching your required time. Press "TIMER ON" to confirm it. The word "ON" will stop blinking. ⏻icon resumes displaying. Cancel TIMER ON: Under the condition that TIMER ON is started up, press "TIMER ON" button to cancel it.

TIMER OFF button

"TIMER OFF" button can set the time for timer on. After pressing this button, icon disappears and the word "OFF" on remote controller blinks. Press ▲ or ▼ button to adjust TIMER OFF setting. After each pressing ▲ or ▼ button, TIMER OFF setting will increase or decrease 1 minute. Hold ▲ or ▼ button, 2s later, the time will change quickly until reaching your required time. Press "TIMER OFF" to confirm it. The word "OFF" will stop blinking. Icon resumes displaying. Cancel TIMER OFF: Under the condition that TIMER OFF is started up, press "TIMER OFF" button to cancel it.

Note:

• Under on and off status, you set TIMER OFF or TIMER ON simultaneously.
• Before setting TIMER ON or TIMER OFF, please adjust the clock time properly.
• After starting up TIMER ON or TIMER OFF, set the constant circulating valid. After that, air conditioner will be turned on or turned off according to setting time. ON/OFF button has no effect on setting. If you don't need this function, please use remote controller to cancel it.

11 CLOCK button

Press this button to set clock time. 📁con on remote controller will blink. Press ▲ or ▼ button within 5 seconds to set clock time. Each pressing of ▲ or ▼ button, 2 seconds later, time will change quickly. Release this button when reaching your required time. Press "CLOCK" button to confirm the time. 📁con stops blinking.

Note:

• Clock time adopts 24-hour mode.
• The interval between two operation cannot exceed 5 seconds. Otherwise, remote controller will quite setting status. Operation for TIMER ON/ TIMER OFF is the same.

12 QUITE button

Press this button, the Quiet status is under the Auto Quiet mode and displays 📋 and "AUTO" signal. Quiet mode displays 🔒 signal and during Quiet OFF there is no " 🔊 signal displayed. After powered on, the Quiet OFF is defaulted.

Note:

• The Quiet function can be set up in all modes; Under the Quiet mode, the fan speed is not available.
• When quiet function is selected: Under cooling mode: indoor fan operates at notch 4 speed. 10 minutes later or when indoor ambient temperature ≤ 28^ , indoor fan will

operate at notch 2 speed or quiet mode according to the comparison between indoor ambinet temperature and set temperature. Under heating mode: indoor fan operates at notch 3 speed or quiet mode according to the comparison between indoor ambient temperature and set temperature. Under dry, fan mode: indoor fan operates at quiet mode. Under auto mode: the indoor fan operates at the auto quiet mode according to actual cooling, heating or fan mode.

- The Quiet function is only available for some models.

13 WIFI button

Press “WiFi” button to turn on or off WiFi function. When WiFi function is turned on, “WiFi” icon will be displayed on remote controller. Under status of unit off, press “MODE” and “WiFi” buttons simultaneously for 1 second. WiFi module will restore to factory default setting.

14 LIGHT button

Press this button to turn off display light on indoor unit. 🙏️ icon on remote controller disappears. Press this button again to turn on display light. 🙏️ icon is displayed.

15 ↗/ \* button

Press this button to achieve the on and off lonizer and scavenging (fresh air – not available) functions in operation status. Press this button for the first time to start scavenging function. LCD displays ⏻ Press the button for the second time to start lonizer and scavenging functions simultaneously. LCD displays ⏻ and ⏻ press this button for the third time to quit lonizer and Scavenging functions simultaneously. Press the button for the fourth time to start lonizer function. LCD displays ⏻ Press this button again to repeat the operation above.

16 TEMP button

By pressing this button, you can see indoor set temperature, indoor ambient temperature or outdoor ambient temperature (not available) on indoor unit's display. The setting on remote controller is selected circularly as below:

• When selecting ▲ or no display with remote controller, temperature indicator on indoor unit displays set temperature.
• When selecting with remote controller, temperature indicator on indoor unit displays indoor ambient temperature.
• When selecting ⬤ with remote controller, temperature indicator on indoor unit displays outdoor ambient temperature. (not available).

Note:

• Outdoor temperature display is not available. At that time, indoor unit receives signal, while it displays indoor set temperature.
• It is defaulted to display set temperature when turning on the unit. There is no display in the remote controller.

- When selecting displaying of indoor or outdoor ambient temperature, indoor temperature indicator displays corresponding temperature and automatically turn to display set temperature after three of five seconds.

FUNCTION INTRODUCTION FOR COMBINANTION BUTTONS

ENERGY-SAVING FUNCTION

Under cooling mode, press “TEMP” and “CLOCK” buttons simultaneously to start up or turn off energy-saving function. When energy-saving function is started up, “SE” will be shown on remote controller and air conditioner will adjust the set temperature automatically according to ex-factory setting to reach to the best energy-saving effect. Press “TEMP” and “CLOCK” buttons simultaneously again to exit energy-saving function.

Note:

• Under energy-saving function, fan speed is defaulted at auto speed and it cannot be adjusted.
• Under energy-saving function, set temperature cannot be adjusted. Press "TURBO" button and remote controller will not send signal.
• Sleep function and energy-saving function cannot operate at the same time. If energy-saving function has been set under cooling mode, press sleep button to cancel energy-saving function. If sleep function has been set under cooling mode, start up the energy-saving function to cancel sleep function.

8 °C HEATING FUNCTION

Under heating mode, press “TEMP” and “CLOCK” buttons simultaneously to start up or turn off 8 °C heating function. When this function is started up, and “8 °C” will be shown on remote controller. The air conditioner keeps the heating status at 8 °C. Press again “TEMP” and “CLOCK” buttons simultaneously, to cancel this function.

Note:

• Under 8 °C heating function, fan speed is defaulted at auto speed and it cannot be adjusted.
• Under 8 °C heating function, set temperature cannot be adjusted. Press “TURBO” button and the remote controller will not send signal.
• Sleep function and 8 °C heating function cannot operate at the same time. If 8 °C heating function has been set under heating mode, press sleep button to cancel 8 °C heating function. If sleep function has been set under heating mode, start up the 8 °C heating function to cancel sleep function.
• Under °F temperature display, the remote controller will display 46°F heating.

CHILD LOCK FUNCTION

Press ▲ and ▼ simultaneously to turn on or turn off child lock function. When child lock function is on, icon is displayed on remote controller. If you operate the remote controller, icon will blink three times without sending signal to the unit.

TEMPERATURE DISPLAY SWITCHOVER FUNCTION

Under OFF status, press “▼ and “MODE” buttons simultaneously to switch temperature display between °C and °F.

1 After putting through the power, press "ON/OFF" button or remote controller to turn on the air conditioner. Press it again to turn it off.
2 Press "MODE" button to select your required mode: AUTO, COOL, DRY, FAN, HEAT.
3 Press “▲” or “▼” button to set your required temperature. Temperature cannot be adjusted under auto mode.
4 Press "FAN" button to set your required fan speed: auto, low speed, low-medium speed, medium speed, medium-high speed, high speed.
5 Press button to select fan blowing angle.

SELF CLEAN FUNCTION

Under unit off status, hold “MODE” and “FAN” buttons simultaneously for 5 seconds to turn on or off the SELF CLEAN function. When the SELF CLEAN function is turned on, indoor displays “CL”. During the SELF CLEAN process of evaporator, the unit will perform fast cooling or fast heating. There may be some noise, which is the sound of flowing liquid or thermal expansion or cold shrinkage. The air conditioner may blow cold or warm air, which is a normal phenomenon. During cleaning process, please make sure the room is well ventilated to avoid affecting the comfort.

Note:

- The SELF CLEAN function can only work under normal ambient temperature. If the room is dusty, clean it once a month. If not, clean it once every three months. After the SELF CLEAN function is turned on, you can leave the room. When SELF CLEAN is finished, the air conditioner will enter standby status.

Replacement of Batteries in Remote Controller.

1. Press the back side of remote controller marked with "OPEN" and then push out the cover of battery box along the arrow direction.
2. Replace two 7# (AAA 1.5V) dry batteries, and make sure the position of "+" and "-" polar are correct.
3. Reinstall the cover of battery box.

Note:

• During operation, point the remote control signal sender at the receiving window on indoor unit.
• The distance between signal sender and receiving window should be no more than 8 m, and there should be no obstacles between them.
• Signal may be interfered easily in the room where there is fluorescent lamp or wireless telephone; remote controller should be close to indoor unit during operation.
• Replace new batteries of the same model when replacement is required.
• When you do not use remote controller for a long time, please take out the batteries.
• If the display on remote controller is fuzzy or there is no display, please replace batteries.

Emergency operation

If remote controller is lost or damaged, please use auxiliary button to turn on or turn off the air conditioner. The operation in details are as below. Open panel, press aux button to turn on or turn off the air conditioner. When the air conditioner is turned on, it will operate under Auto mode.

WARNING

Use insulated object to press the auto button.

Clean and Maintenance

WARNING

• Turn off the air conditioner and disconnect the power before cleaning the air conditioner to avoid electric shock.
• DO NOT wash the air conditioner with water to avoid electric shock.
• DO NOT use volatile liquid to clean the air conditioner.

Clean surface of indoor unit

When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth or wet cloth to wipe it.

NOTICE:

- Do not remove the panel when cleaning it.

Clean filter.

Open panel

Pull out the panel to a certain angle as shown in the fig.

Illustration of hands holding a rectangular device with arrows indicating motion or force (no text or symbols)

3

Clean filter

• Use dust catcher or water to clean the filter.
• When the filter is very dirty, use the water (below 45^ C) to clean it, and then put it in a shady and cool place to dry.

Illustration of hands holding a grid-patterned fabric or material sample with a tool (no text or symbols)

2

Remove filter

Remove the filter as indicated in the fig.

Hand inserting a grid into an air conditioner cover (no text or symbols visible)

4

Install filter

Install the filter and then close the panel cover tightly.

Diagram of a car air conditioner unit with cooling fins and airflow arrows (no text or labels)

WARNING

• The filter should be cleaned every three months. If there is much dust in the operation environment, clean frequency can be increased.
  • After removing the filter, do not touch fins to avoid injury.
• DO NOT use fire or hair dryer to dry the filter to avoid deformation or fire hazard.

Checking before use-season

1. Check whether air inlets and air outlets are blocked.
2. Check whether air switch, plug and socket are in good condition.
3. Check whether filter is clean.
4. Check whether mounting bracket for outdoor unit is damaged or corroded. If yes, please contact dealer.
5. Check whether drainage pipe is damaged.

Checking after use-season

1. Disconnect power supply.
2. Clean filter and indoor unit's panel.
3. Check whether mounting bracket for outdoor unit is damaged or corroded. If yes, please contact dealer.

Notice for recovery

1. Many packing materials are recyclable materials. Please dispose them in appropriate recycling unit.
2. If you want to dispose the air conditioner, please contact local dealer or consultant service center for the correct disposal method.

Malfunction Analysis

General phenomenon analysis

Please check below items before asking for maintenance. If the malfunction still cannot be eliminated, please contact local dealer or qualified professionals.

Phenomenon Check	items Solution
Indoor unit can’t receive remote controller’s signal or remote controller has no action	Whether it’s interfered severely (such as static electricity,stable voltage)?	Pull out the plug. Reinsert the plug after about 3min, and then turn on the unit again.
	Whether remote controller is within the signal receiving range?	Signal receiving range is 8m.
	Whether there are obstacles?	Remove obstacles
	Whether remote controller is pointing at the receiving window?	Select proper angle and point the remote controller at the receiving window on indoor unit.
	Is sensitivity of remote controller low; fuzzy display and no display?	Check the batteries. If the power of batteries is too low, please replace them.
	No display when operating remote controller?	Check whether remote controller appears to be damaged. If yes, replace it.
	Fluorescent lamp in room?	Take the remote controller close to indoor unit.Turn off the fluorescent lamp and then try it again
No air emitted from indoor unit	Air inlet or air outlet of indoor unit is blocked?	Eliminate obstacles.
	Under heating mode, indoor temperature is reached to set temperature?	After reaching to set temperature, indoor unit will stop blowing out air.
No air emitted from indoor unit	Heating mode is turned on just now?	In order to prevent blowing out cold air, indoor unit will be started after delaying for several minutes, which is a normal phenomenon.
Air conditioner can't operate	Power failure? Wait until power recovery.
	Is plug loose? Reinsert the plug.
	Air switch trips off or fuse is burnt out?	Ask professional to replace air switch or fuse.
	Wiring has malfunction?	Ask professional to replace it.
	Unit has restarted immediately after stopping operation?	Wait for 3min, and then turn on the unit again.
	Whether the function setting for remote controller is correct?	Reset the function.
Mist is emitted from indoor unit's air outlet	Indoor temperature and humidity is high?	Because indoor air is cooled rapidly. After a while, indoor temperature and humidity will be decrease and mist will disappear.
Set temperature can't be adjusted	Unit is operating under auto mode?	Temperature can't be adjusted under auto mode. Please switch the operation mode if you need to adjust temperature.
	Your required temperature exceeds the set temperature range?	Set temperature range: 16°C ~30°C .
Cooling (heating) effect is not good	Voltage is too low?	Wait until the voltage resumes normal.
	Filter is dirty? Clean the filter
	Set temperature is in proper range?	Adjust temperature to proper range.
	Door and window are open?	Close door and window.
Odours are emitted	Whether there's odour source, such as furniture and cigarette, etc.	Eliminate the odour source. Clean the filter.
Air conditioner operates abnormally	Whether there's interference, such as thunder, wireless devices, etc.	Disconnect power, put back power, and then turn on the unit again
Outdoor unit has vapor Heating mode is turned on?		During defrosting under heating mode, it may generate vapor, which is a normal phenomenon.
“Water flowing” noise	Air conditioner is turned on or turned off just now?	The noise is the sound of refrigerant flowing inside the unit, which is a normal phenomenon.
Cracking noise	Air conditioner is turned on or turned off just now?	This is the sound of friction caused by expansion and/or contraction of panel or other parts due to the change of temperature

Error Code

- When air conditioner status is abnormal, temperature indicator on indoor unit will blink to display corresponding error code. Please refer to below list for identification of error code.

Error code Troubleshooting
E5, E8, U8, H6, H3, E1, E6	It can be eliminated after restarting the unit. If not, please contact qualified professional for service.
C5, F1, F2, F0	Please contact qualified professional for service.

Note:

If there are other error codes, please contact qualified professionals for service.

WARNING:

- When below phenomenon occurs, please turn off air conditioner and disconnect power immediately and then contact the dealer or qualified professional for service.

• Power cord is overheating or damaged.
- There is abnormal sound during operation.
• Air switch trips off frequently.
• Air conditioner gives off burning smell.
- Indoor unit is leaking.

• DO NOT repair or refit the air conditioner by yourself.
• If the air conditioner operates under abnormal conditions, it may cause malfunction, electric shock or fire hazard.

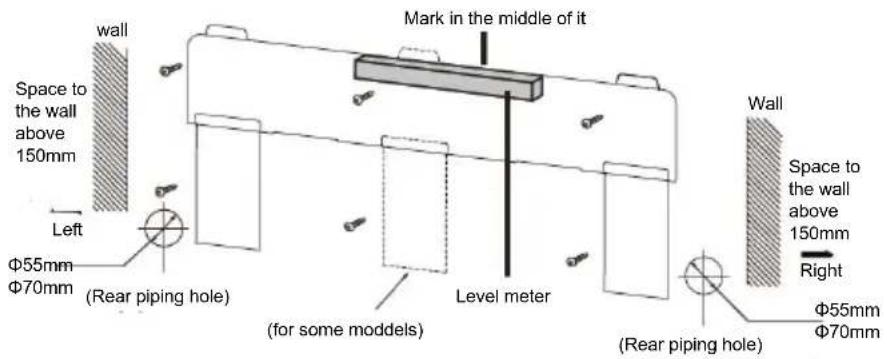

Installation Dimension Diagram

Tools for installation

1 Level meter 2 Screw driver	3 Impact drill

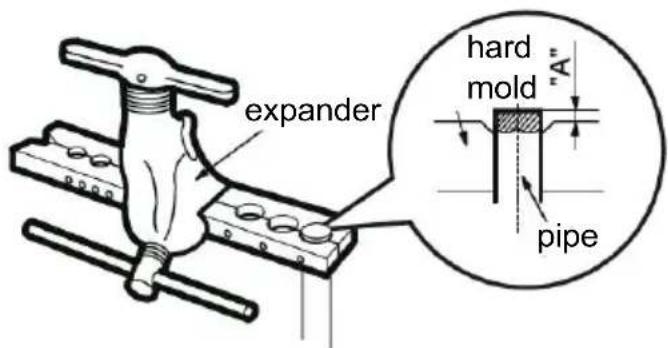

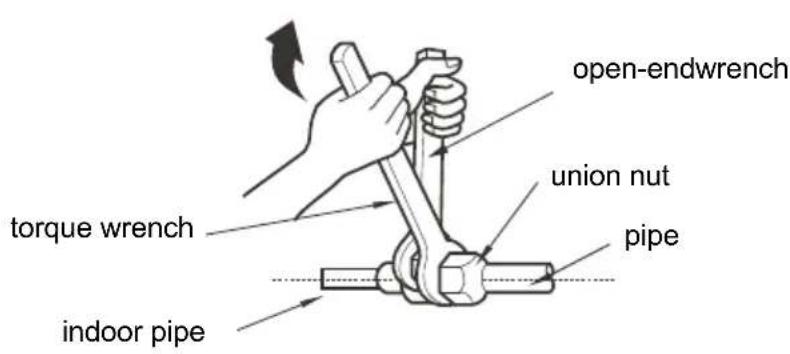

4 Drill head 5 Pipe expander	6 Torque wrench
7 Open-end wrench 8 Pipe cutter	9 Leakage detector
10 Vacuum pump 11 Pressure	meter 12 Universal meter
13 Inner hexagon spanner		14 Measuring tape

Note:

• Please contact the local agent for installation.
• DO NOT use unqualified power cord.

Selection of installation location

Basic requirement

Installing the unit in the following places may cause malfunction. If it is unavoidable, please consult the local dealer.

1. The place with strong heat sources, vapors, flammable or explosive gas, or volatile objects spread in the air.
2. The place with high-frequency devices (such as welding machine, medical equipment).
3. The place near coast area.
4. The place with oil or fumes in the air.
   5, The place with sulfureted gas.
5. Other places with special circumstances.
6. The appliance shall not be installed in the laundry

Indoor unit

1. There should be no obstruction near air inlet and air outlet.
2. Select a location where the condensation water can be dispersed easily and will not affect other people.
3. Select a location which is convenient to connect the outdoor unit and near the power socket.
4. Select a location which is out of reach for children.
5. The location should be able to with stand the weight of indoor unit and won't increase noise and vibration.
6. The appliance must be installed 2.5 m above floor.
7. DO NOT install the indoor unit right above the electric appliance.
8. Please try your best to keep way from-fluorescent lamp

Outdoor unit

1. Select a location where the noise and outflow air emitted by the outdoor unit will not affect neighborhood.
2. The location should be well ventilated and dry, in which the outdoor unit will not be exposed directly to sunlight or strong wind.
3. The location should be able to withstand the weight of outdoor unit.
4. Make sure that the installation follows the requirement of installation dimension diagram.
5. Select a location which is out of reach for children and far away from animals or plants. If it is unavoidable, please add the fence for safety purpose.

Requirements for electric connection

Safety Precaution

1. Must follow the electric safety regulations when installing the unit.
2. According to the local safety regulations, use qualified power supply circuit and air switch.
3. Make sure the power supply matches with the requirement of air conditioner. Unstable power supply or incorrect wiring or malfunction. Please install proper power supply cables before using the air conditioner.

4. Properly connect the live wire, neutral wire and grounding wire of power socket.

5. Be sure to cut off the power supply before proceeding any work related to electricity and safety.

6. Do not put through the power before finishing installation.

7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

8. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.

9. The appliance shall be installed in accordance with national wiring regulations.

10. Appliance shall be installed, operated and stored in a room with a floor area larger than 4m^2

Please notice that the unit is filled with flammable gas R32. Inappropriate treatment of the unit involves the risk of severe damages of people and material. Details to this refrigerant are found in chapter “refrigerant”.

Grounding Requirement

1. The air conditioner is the first class electric appliance. It must be properly grounding with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock.
2. The yellow-green wire in air conditioner is grounding wire, which cannot be used for other purposes.
3. The grounding resistance should comply with national electric safety regulations.
4. The appliance must be positioned so that the plug is accessible.
5. An all-pole disconnection switch having a contact separation of at least 3 mm in all poles should be connected in fixed wiring.
   6 Including an air switch with suitable capacity, please note the following table. Air switch should be included magnet buckle and heating buckle function, it can protect the circuit-short and overload. (Caution: please do not use the fuse only for protecting the circuit).

Air-conditioner Air switch capacity
9K & 12K 10A
18K 16A
24K 25A

Installation of indoor unit

Step one: Choosing installation location

Recommend the installation location to the client and confirm it with client.

Step two: Install wall-mounting frame

1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the level meter and then point out the screw fixing holes on the wall.
2. Drill the screw fixing holes on the wall with impact drill (the specifications of drill head should be same as the plastic expansion particle) and then fill the plastic expansion particles in the holes.
3. Fix the wall-mounting frame on the wall with tapping screws (ST4.2X25TA) and then check if the frame is firmly installed by pulling the frame. If the plastic expansion particle is loose, please drill another fixing hole nearby.

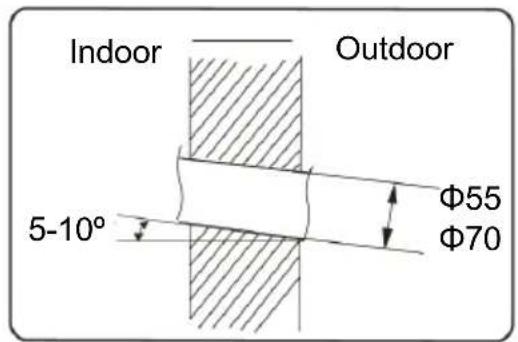

Step three: Open piping hole

1. Choose the position of piping hole according to the direction of outlet pipe. The position of piping hole should be a little lower than the wall-mounted frame, shown as below.

1. Open a piping hole with the diameter of 55 or 70 on the selected outlet pipe position. In order to drain smoothly, slant the piping hole on the wall slightly downward to the outdoor side with the gradient of 5 - 10^ .

Note:

• Pay attention to dust prevention and take relevant safety measures when opening the hole.
• The plastic expansion particles are not provided and should be bought locally.

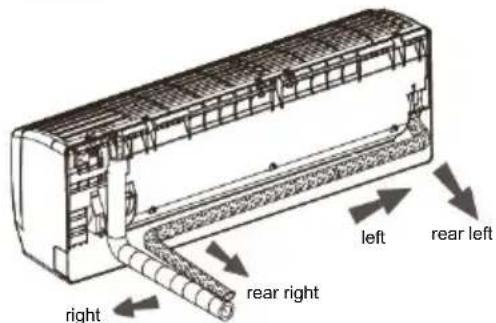

Step four: Outlet pipe

1. The pipe can be led out in the direction of right, rear right, left or rear left.

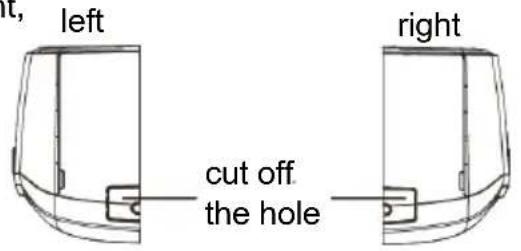

1. When select leading out the pipe from left or right, please cut off the corresponding hole on the bottom case.

Step five: Connect the pipe of indoor unit

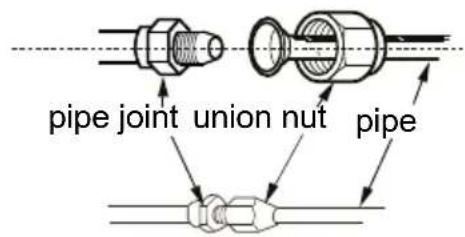

1. Aim the pipe joint at the corresponding Bell mouth.
2. Pretightening the union nut with hand.
3. Adjust the torque force by referring to the following sheet. Place the open-end wrench on the pipe joint and place the torque wrench on the union nut. Tighten the union nut with torque wrench.

Hex nut diameter	tightening torque (N-m)
1/4” 15~20
3/8” 30~40
1/2” 45~55
5/8” 60~65
3/4” 70~75

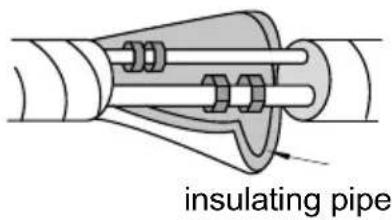

1. Wrap the indoor pipe and joint of connection pipe with insulating pipe, and then wrap it with tape.

Step six: Install drain hose

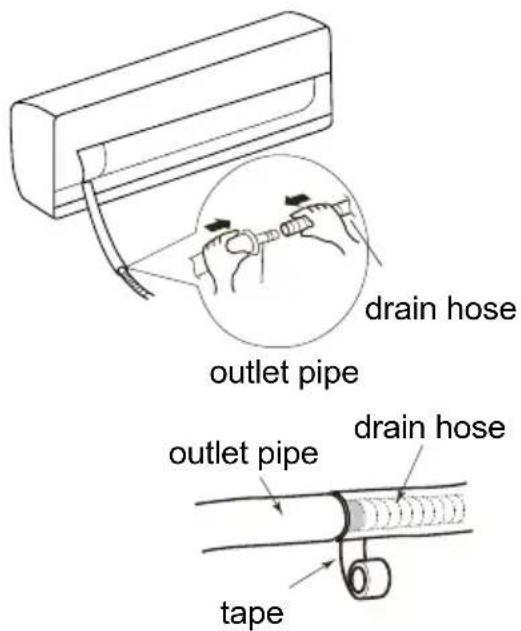

1. Connect the drain hose to the outlet pipe of indoor unit.

1. Bind the joint with tape

Note:

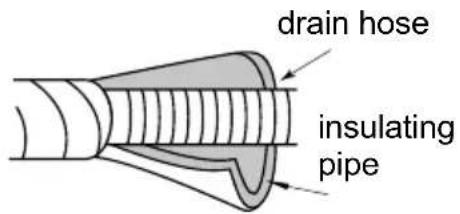

• Add insulating pipe in the indoor drain hose in order to prevent condensation.
• The plastic expansion particles are not provided.

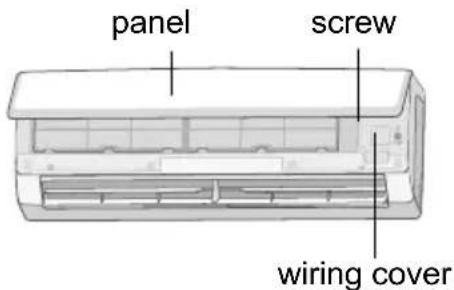

Step seven: Connect wire of indoor unit

1. Open the panel, remove the screw on the wiring cover and then take down the cover.

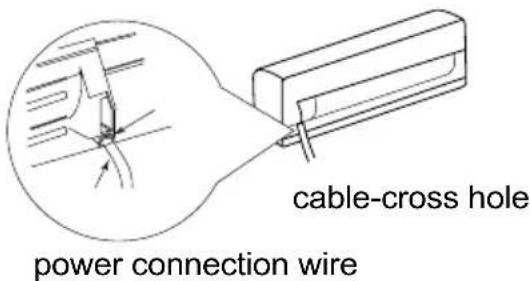

1. Make the power connection wire go through the cable-cross hole at the back of indoor unit and then pull it out from the front side.
2. Remove the wire clip; connect the power connection wire to the wiring terminal according to the color; tighten the screw and then fix the power connection wire with wire clip.

Note:

The wiring board is for reference only, please refer to the actual one.

1. Put wiring cover back and then tighten the screw.
2. Close the panel.

Note:

• All wires of indoor unit and outdoor unit should be connected by a professional.
• If the length of power connection wire is insufficient, please contact the supplier for a new one. Avoid extending the wire by yourself.
• For the air conditioner with plug, the plug should be reachable after finishing installation.
• For the air conditioner without plug, an air switch must be installed in the line. The air switch should be all-pole parting and the contact parting distance should be more than 3mm.

Step eight: Bind up pipe

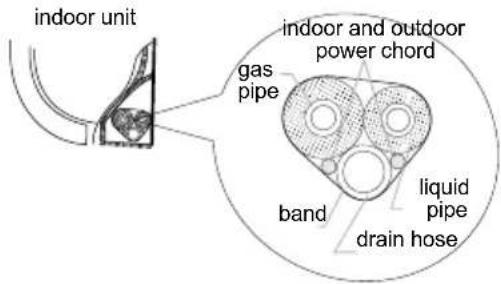

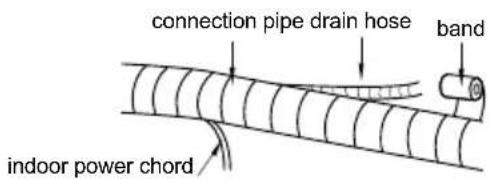

1. Bind up the connection pipe, power cord and drain hose with the band.
2. Reserve a certain length of drain hose and power cord for installation when binding them. When binding to a certain degree, separate the indoor power and then separate the drain hose.
3. Bind them evenly.
4. The liquid pipe and gas pipe should be bound separately at the end.

Note:

• The power cord and control wire cannot be crossed or winding.
  • The drain hose should be bound at the bottom.

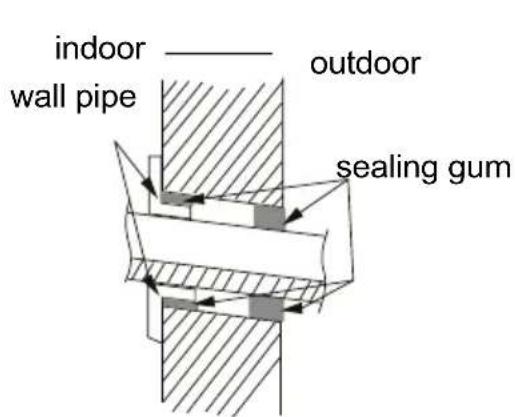

Step nine: Hang the indoor unit

1. Put the bound pipes in the wall pipe and then make them pass through the wall hole.

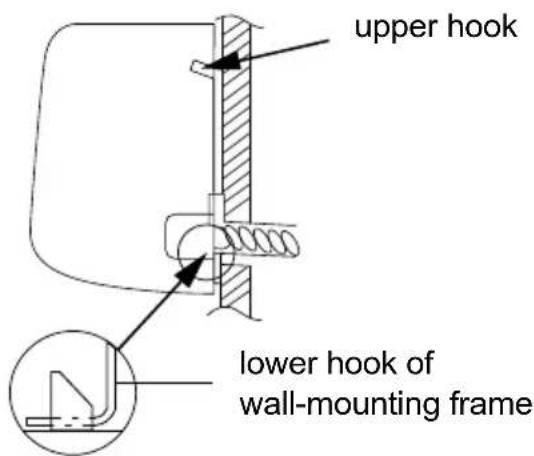

2. Hang the indoor unit on the wall-mounting frame.
3. Stuff the gap between pipes and wall hole with sealing gum.
4. Fix the wall pipe.
5. Check if the indoor unit is installed firmly and closed to the wall.

Note:

- Do not bend the drain hose too excessively in order to prevent blocking.

Configuration of Connection Pipe

1. Standard length of connection pipe
2. 5 m, 7.5 m, 8 m.
3. Minimum length of connection pipe 3 m.
4. Maximum length of connection pipe.

Cooling Capacity	Max length of connection pipe
5000 (BTU/h) (1465W)7000 (BTU/h) (2051W)9000 (BTU/h) (2637W)	15
12000 (BTU/h) (3516W) 20
18000 (BTU/h) (5274W)24000 (BTU/h) (7032W)	25
28000 (BTU/h) (5274W)36000 (BTU/h) (10548W)42000 (BTU/h) (12306W)48000 (BTU/h) (14064W)	30

1. The additional refrigerant oil and refrigerant charging required after prolonging connection pipe.

2. After the length of connection pipe is prolonged for 10 m at the basis of standard length, you should add 5 ml of refrigerant oil for each additional 5 m of connection pipe. The calculation method of additional refrigerant charging amount (on the basis of liquid pipe).

3. Additional refrigerant charging amount = prolonged length of liquid pipe x additional refrigerant charging amount per meter.
4. Basing on the length of standard pipe, add refrigerant according to the requirement as shown in the table. The additional refrigerant charging amount per meter is different according to the diameter of liquid pipe. See the following sheet.

Sheet 2. Additional refrigerant charging amount for R32

Diameter of connection pipe mm		Indoor unit throttle	Outdoor unit throttle
Liquid pipe Gas pipe		Cooling only, cooling and heating (g / m)	Cooling only (g / m)	Cooling and heating (g / m)
1/4" 3/8" or 1/2"	16 12 16
1/4" or 3/8" 5/8" or 3/4" 40 12 40
1/2" 3/4" or 7/8' 80 24 96
5/8" 1" or 1 1/4" 136 48 96
3/4" - 200 200 200
7/8" - 280 280 280

Note:

The additional refrigerant charging amount in Sheet 2 is recommended value, not compulsory.

Safety operation of flammable refrigerant

Qualification requirement for installation and maintenance man

• All the work men who are engaging in the refrigeration system should bear the valid certification awarded by the authoritative organization and the qualification for dealing with the refrigeration system recognized by this industry. If it needs other technician to maintain and repair the appliance, they should be supervised by the person who bears the qualification for using the flammable refrigerant.
• It can only be repaired by the method suggested by the equipment's manufacturer.

Installation Notes

• The air conditioner is not allowed to use in a room that has running fire (such as fire source, working coal gas ware, operating heater).
• It is not allowed to drill hole or burn the connection pipe.
• The air conditioner must be installed in a room that is larger than the minimum room area. The minimum room area is shown on the nameplate or following table a.
• Leak test is a must after installation.

Table a - Minimum room area (m²)

Minimum room area (m2)	Charge amount (kg)	1.2 1.3	1.4 1.5	1.6 1.7	1.8
	Floor location /	14.5 16.8	19.3 22	24.8 27.8
	Window mounted	/ 5.2	6.1 7 7.9	8.9 10
	Wall mounted /	1.6 1.9 2	.1 2.4 2.8	3.1
	Ceiling mounted	/ 1.1	1.3 1.4	1.6 1.8 2.1

Minimum room area (m2)	Charge amount (kg)	1.9	2	2.1	2.2	2.3	2.4	2.5
	Floor location	31	34.3	37.8	41.5	45.4	49.4	53.6
	Window mounted	11.2 1	2.4 13.6	15 16.3	17.8 19.3
	Wall mounted	3.4	3.8	4.2	4.6	5	5.5	6
	Ceiling mounted	2.3 2.6	2.8 3.1	3.4 3.7	4

Maintenance Notes

• Check whether the maintenance area or the room area meet the requirement of the nameplate.
  -It is only allowed to be operated in the rooms that meet the requirement of the nameplate.
• Check whether the maintenance area is well-ventilated.
  -The continuous ventilation status should be kept during the operation process.
• Check whether there is fire source or potential fire source in the maintenance area.

-The naked flame is prohibited in the maintenance area; and the “no smo king” warning board should be hanged.

• Check whether the appliance mark is in good condition.
  -Replace the vague or damaged warning mark.

Welding

- If you should cut or weld the refrigerant system pipes in the process of maintaining, please follow the steps as below:

a. Shut down the unit and cut power supply.
b. Eliminate the refrigerant.
c. Vacuuming
d. Clean it with N2 gas
e. Cutting or welding
f. Carry back to the service spot for welding

• The refrigerant should be recycled into the specialized storage tank.
• Make sure that there is not any naked flame near the outlet of the vacuum pump and it is well-ventilated.

Filling the Refrigerant

• Use the refrigerant filling appliances specialized for R32. Make sure that different kinds of refrigerant will not contaminate with each other.
• The refrigerant tank should be kept upright at the time of filling refrigerant.
• Stick the label on the system after filling is finished (or have not finished).
  • DO NOT overfilling.
• After filling is finished, please do the leakage detection before test running; Another time of leak detection should be done when it is removed.

Safety Instructions for Transportation and Storage

• Please use the flammable gas detector to check before unload and open the container.
  • No fire source and smoking.
• According to the local rules and laws.

Installation of Outdoor Unit

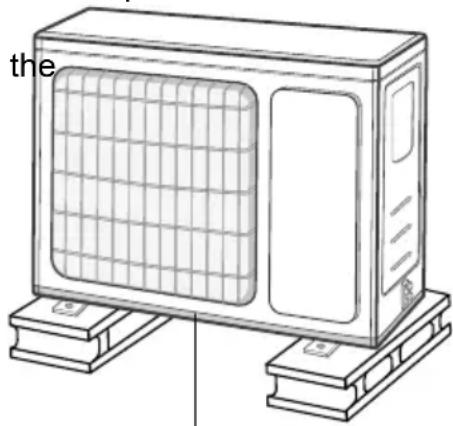

step one: Fix the support of outdoor unit (select it according to the actual installation situation)

1. Select installation location according to the house structure.

2. Fix the support of outdoor unit on the selected location with expansion screws.

3. Take sufficient protective measures when installing outdoor unit.

4. Make sure the support can withstand at least four times of the unit weight.
5. The outdoor unit should be installed at least 3 cm above the floor in order to install drain joint.
6. For the unit with cooling capacity of 2300W\~5000W, 6 expansion screws are needed; for the unit with cooling capacity of 6000W \~8000W, 8 expansion screws are needed; for the unit with cooling capacity of 10000W \~16000W, 10 expansion screws are needed.

Line drawing of a server rack unit with grid panel and base mount (no text or symbols)

at least 3 cm above the floor

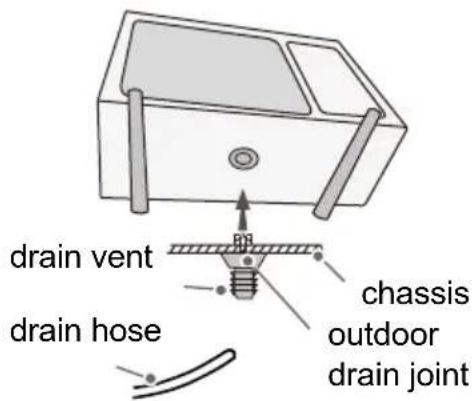

Step two: Install drain joint (Only for cooling and heating unit)

1. Connect the outdoor drain joint into the hole on the chassis, as shown in the picture below.

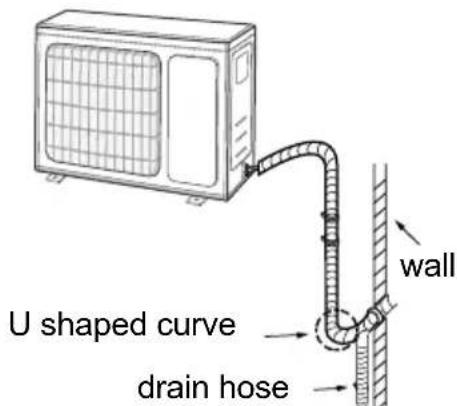

2. Connect the drain hose into the drain vent.

Step three: Fix outdoor unit

1. Place the outdoor unit on the support.
2. Fix the foot holes of outdoor unit with bolts.

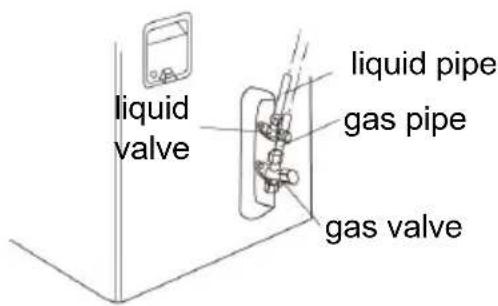

Step four: Connect indoor and outdoor pipes

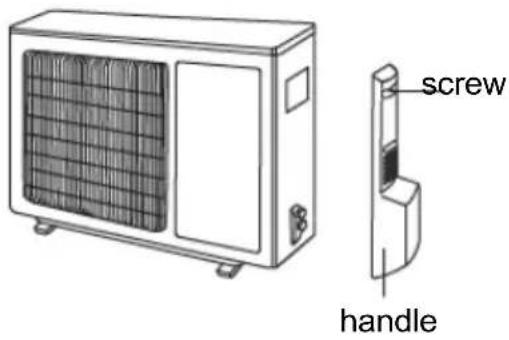

1. Remove the screw on the right handle of outdoor unit and then remove the handle.

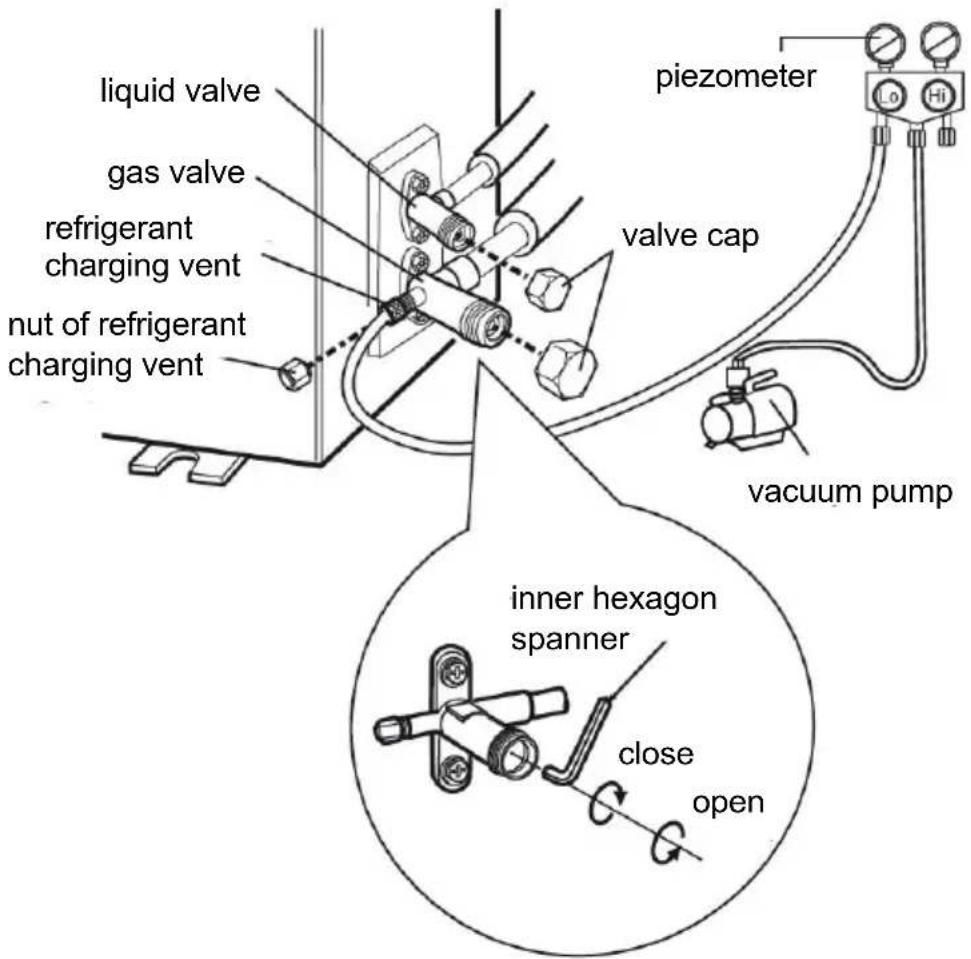

1. Remove the screw cap of valve and aim the pipe joint at the bellmouth of pipe.

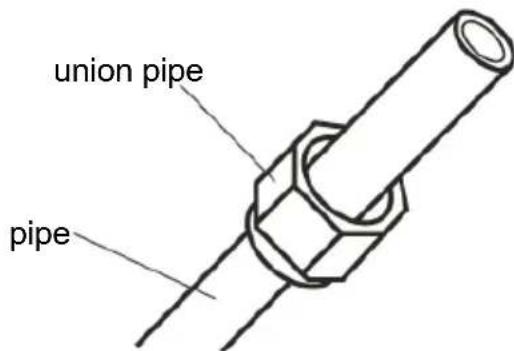

1. Pretightening the union nut with hand.

1. Tighten the union nut with torque wrench by referring to the sheet below.

Hex nut diameter	Tightening torque (N-m)
1/4” 15~20
3/8” 30~40
1/2” 45~55
5/8” 60~65
3/4” 70~75

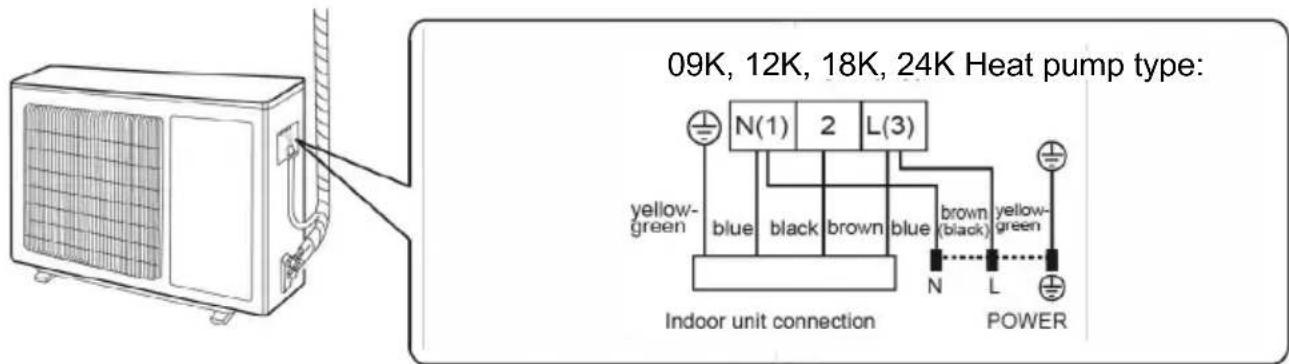

Step five: Connect outdoor electric wire

1. Remove the wire clip; connect the power connection wire and signal controlwire (only for cooling and heating unit) to the wiring terminal according to the color; fix them with screws.

Note:

The wiring board is for reference only. Please refer to the actual one.

1. Fix the power connection wire and signal control wire with wire clip (only for cooling and heating unit).

Note:

• After tightening the screw, pull the power cord slightly to check if it is firm.
- Never cut the power connection wire to prolong or shorten the distance.

Step six: Neaten the pipes

1. The pipes should be placed along the wall, bent reasonably and hidden possibly. Min. semidiameter of bending the pipe is 10 cm.
2. If the outdoor unit is higher than the wall hole, you must set a U-shaped curve in the pipe before pipe goes into the room, in order to prevent rain from getting into the room.

Note:

• The trough-wall height of drain hose shouldn't be higher than the outlet pipe hole of indoor unit
• The water outlet cannot be placed in water in order to drain smoothly.
• Slant the drain hose slightly downwards. The drain hose cannot be curved, raised and fluctuant etc.

the drain hose can't raise upwards.

Simple line drawing of a washing machine with a checkmark above it (no text or symbols)

The drain hose can't be fluctuant

Simple line drawing of a rectangular device with a coiled cable extending from its side (no text or symbols)

The drain hose can't be fluctuant

Vacuum Pumping

Use vacuum pump

1. Remove the valve caps on the liquid valve and gas valve and the nut of refrigerant charging vent.
2. Connect the charging hose of piezometer to therefrigerant charging vent of gas valve and then connect the other charging hose to the vacuum pump.
3. Open the piezometer completely and operate for 10-15 minutes to check if the pressure of piezometer remains in -0.1MPa.
4. Close the vacuum pump and maintain this status for 1-2 minutes to check if the pressure of piezometer remains in -0.1MPa. If the pressure decreases, there may be leakage.
5. Remove the piezometer, open the valve core of liquid valve and gas valve completely with inner hexagon spanner.
6. Tighten the screw caps of valves and refrigerant charging vent.
7. Reinstall the handle.

Leakage Detection

1. With leakage detector: Check if there is leakage with leakage detector.
2. With soap water: If leakage detector is not available, please use soap water for leakagede tection. Apply soap water at the suspected position and keep the soapwater for more than 3min. If there are air bubbles coming out of thisposition, there is a leakage.

Check After Installation

- Check according to the following requirement after finishing installation.

Items to be checked Possible malfunction
Has the unit been installed rirmly? The unit may drop, shake or emit noise.
Have you done the refrigerant leakage test?	It may cause insuf cient cooling (heating) capacity
Is heat insulation of pipeline sufficient? It may cause condensation and water dripping.
Is water drained well? It may cause condensation and water dripping.
Is the voltage of power supply according to the voltage marked on the nameplate?	It may cause malfunction or damaging the parts.
Is electric wiring and pipeline installed correctly?	It may cause malfunction or damaging the parts
Is the unit grounded securely? It may cause electric leakage.
Does the power cord follow the specicatification?	It may cause malfunction or damaging the parts.

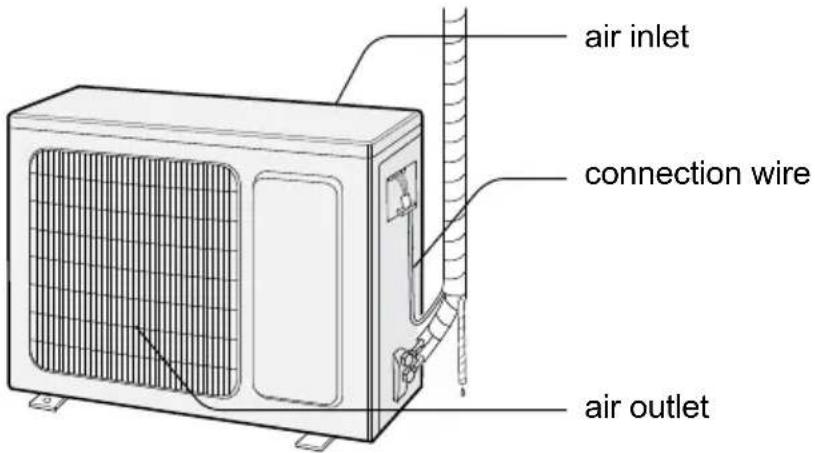

Is there any obstruction in the air inlet and outlet?	It may cause insufficient cooling (heating) capacity.
The dust and sundries caused during installation are removed?	It may cause malfunction or damaging the parts
The gas valve and liquid valve of connection pipe are open completely?	It may cause insufficient cooling (heating) capacity.
Is the inlet and outlet of piping hole been covered?	It may cause insufficient cooling (heating) capacity or waster electricity

Test Operation

1. Preparation of test operation

- Specify the important notes for air conditioner to the client.

2. Method of test operation

• Put through the power, press ON/OFF button on the remote controller to start operation.
• Press MODE button to select AUTO, COOL, DRY, FAN and HEAT to check whether the operation is normal or not.
• If the ambient temperature is lower than 16^ , the air conditioner cannot start cooling.

Pipe expanding method

Note:

Improper pipe expanding is the main cause of refrigerant leakage. Please expand the pipe according to the following steps:

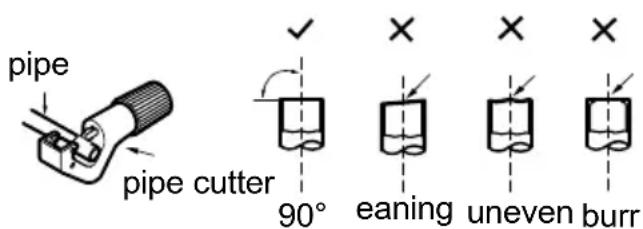

A: Cut the pipe

• Confirm the pipe length according to the distance of indoor unit and outdoor unit.
• Cut the required pipe with pipecutter.

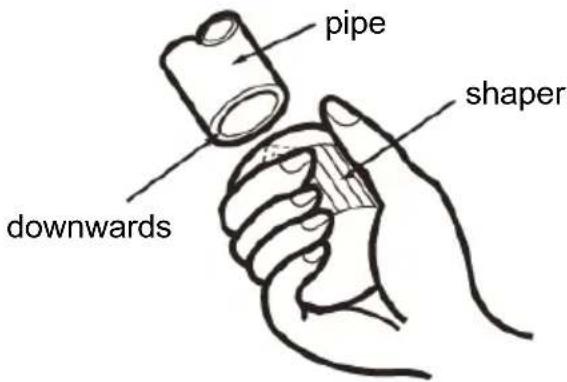

B. Remove the burrs

- Remove the burrs with shaper and prevent the burrs from getting into the pipe.

C. Put on suitable insulating pipe.
D. Put on the unit nut.

- Remove the union nut on the indoor connection pipe and outdoor valve; install the union nut on the pipe.

E: Expand the port
- Expand the port with expander.

Note:

- «A» is different according to the diameter, please refer to the sheet below:

Outer diameter (mm) A (mm)	Maximum A (mm) Minimum
Φ 6 - 6.35 (1/4") 1.3 0.7
Φ 9 - 9.52 (3/8") 1.6 1.0
Φ 12 - 12.7 (1/2") 1.8 1.0
Φ 15.8 - 16 (5/8") 2.4 2.2

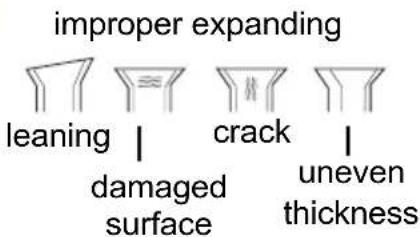

F: Inspection

- Check the quality of expanding port. If there is any blemish, expand the port again according to the steps above.

SPECIALIST'S MANUAL

- The following checks shall be applied to installations using flammable refrigerants:

• the charge size is in accordance with the room size within which the refrigerant containing parts are installed;
  – the ventilation machinery and outlets are operating adequately and are not obstructed;
• if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;
  – marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;
• refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

- Initial safety checks shall include:

– that capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
- that no live electrical components and wiring are exposed while charging, recovering or purging the system;
– that there is continuity of earth bonding.

- Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially toxic or flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with all applicable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

• Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to

hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

- Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

- Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall

be followed. If in doubt, consult the manufacturer's technical department for assistance.

- Checks to electrical devices

- that capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;

- that no live electrical components and wiring are exposed while charging, recovering or purging the system.

• Repairs to sealed components

During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation. Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc.

– Ensure that the apparatus is mounted securely.

- Ensure that seals or sealing materials have not degraded to the point that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE: The use of silicon sealant can inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

• Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

- Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

• Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

- Leak detection methods

Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.

- Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure, ensure that:

• mechanical handling equipment is available, if required, for handling
  • refrigerant cylinders;
• all personal protective equipment is available and being used correctly;
• the recovery process is supervised at all times by a competent person;
• recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80% volume liquid charge).

i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

- Labelling

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. For appliances containing flammable refrigerants, ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

- Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge are available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure-relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of all appropriate refrigerants including, when applicable, flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine,

check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant waste transfer note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

This product is made in China
