Product Type	Bi-Color LED Fresnel Studio Light
Model	HF150 (Helia 150W)
Light Source	1 x 150W Bi-Color LED
Color Temperature Range	3200K – 5600K (continuously adjustable)
Beam Angle	20° – 70° (adjustable via focusing knob)
Dimming Range	10% – 100% (flicker-free)
Control Methods	Onboard knobs (color & brightness) + DMX512 In/Out
Lens	4-inch (10.16 cm) Acrylic Fresnel
Cooling System	Active cooling fan with separate ducts
Construction Material	Aluminum alloy housing
Yoke	Cast aluminum with 1 1/8" pin
Mounting	5/8" receiver for stands or grid mounts
Power Input	AC 110-220V, 50-60Hz (power consumption 40W)
Fixture Dimensions	19 x 6 x 12 inches (48.3 x 15.2 x 30.5 cm)
Fixture Weight	10 lbs (4.54 kg)
Shipping Weight	14 lbs (6.35 kg)
Included Accessories	Barn doors, gel frame, yoke, AC power cord
Warranty	1 year free service for manufacturing defects
Safety Features	Overheat auto shut-off, flame-retardant materials
Certifications	CE, RoHS (implied)

Frequently Asked Questions - HF150 Ikan

How do I set up the HF150 light for the first time?

Attach the yoke and barn doors, mount on a light stand using the 5/8" receiver, tighten the tension knob, connect the AC power cord to the fixture then to a power outlet, and turn on the power switch.

How do I adjust the brightness?

Rotate the Brightness Knob on the rear panel to adjust from 10% to 100%. Press the knob to toggle the LED off and on.

How do I change the color temperature?

Rotate the Color Knob to adjust continuously from 3200K (tungsten) to 5600K (daylight). Press the knob to enter DMX channel setting mode.

Can I control the HF150 with DMX?

Yes. Connect a DMX controller to the DMX IN port. Use the + and - buttons to set the DMX channel. Channel 1 controls brightness, channel 2 controls color temperature.

What is the beam angle and how do I adjust it?

The beam angle ranges from 20° (spot) to 70° (flood). Rotate the Focusing Knob on the rear panel to adjust.

What is included in the box?

The box includes the HF150 Fresnel light, barn doors, gel frame, yoke, and an AC power cord.

How do I clean and maintain the HF150?

Keep the fan vent uncovered. Wipe the exterior with a dry cloth. Do not use liquids or cleaners. Store in a cool, dry place when not in use.

What safety precautions should I take?

Connect the AC cable to the fixture before plugging into power. Do not overload voltage. Avoid high humidity or explosive gas environments. Do not disassemble; contact Ikan support for repairs.

What is the warranty period?

Ikan provides one year free service from the date of purchase for manufacturing defects. Damage from misuse, unauthorized disassembly, or natural disasters is not covered.

Where can I find the user manual or get support?

The manual is available for download at notice-facile.com or ikan's official website. Support can be reached at [e-mail].

USER MANUAL HF150 Ikan

Helia 150 Watt 4 in. Fresnel Bi-Color LED Studio Light w/ DMX

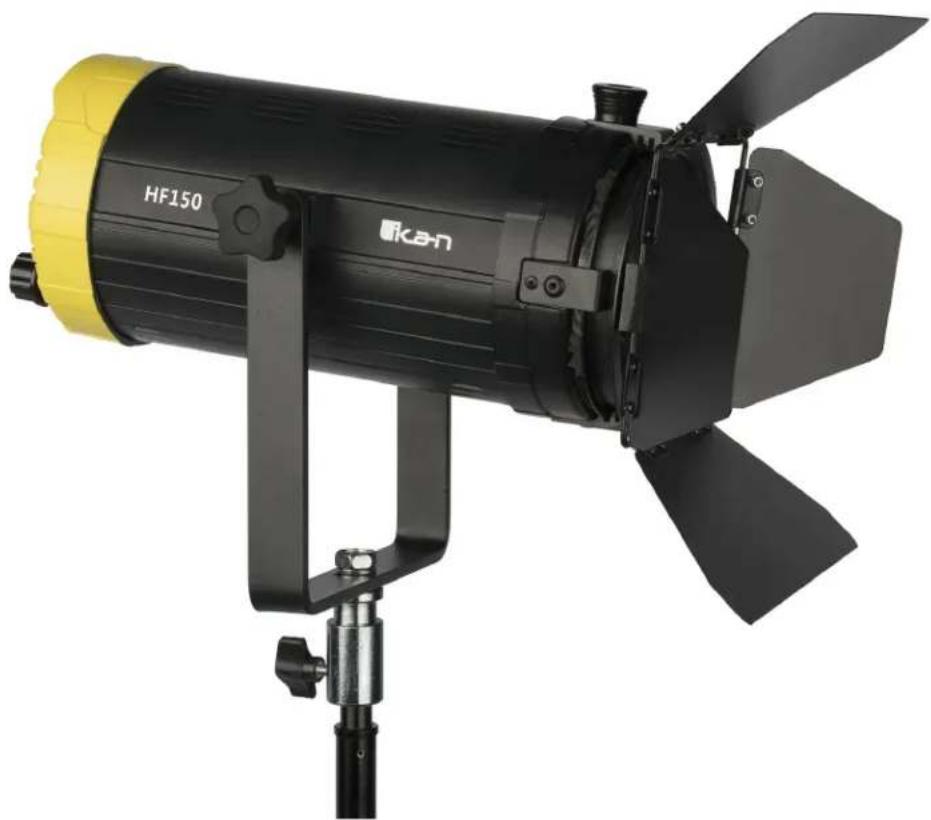

Exterior view of a black HF150 projector with yellow and black blades mounted on a stand (no text or symbols visible)

What's Included

□ 1x Helia 150 Watt Fresnel
□ 1x Barn Doors
□ 1x Gel Frame
□ 1x Yoke
□ 1x AC Power Cord

Getting Started

Thank you for buying the HF150 Fresnel Light from ikan. Please carefully read the instructions and guide before operating the products. The guide includes product usage and maintenance. When you operate the product, please make sure that you have read the instructions carefully.

All the content of the manual is based on up-to-date information; technical data subject to change without notice.

Safety Instructions

1. Connect the AC power cable to the HF150 light before plugging into the power source. You risk electrocution by not following this instruction.
2. Don't drag cables with excessive force. Any repairs on the products should be performed by ikan technicians. Users should not remove the power supply, or else the damage will not be covered under warranty.
3. Be sure that the power is off before connecting and changing the fixture head or disconnecting your cable from the power source. We recommend using Ikan connecting cables and connectors to avoid electrical shock.
4. The voltage shouldn't exceed the value in the technical specifications. If the voltage is greater than, or less than the regulated values, it could damage the product.

Overview

Benchmark color temperatures for today's film and TV production are 5600K (daylight) and 3200K (tungsten). Ikan developed the HF150 Fresnel Light to handle both these temperatures. With patented technologies, the HF150 offers a professional and customizable LED light source. In addition, the light features separately-cooling ducts for optimizing heat dissipation. Specifically, the HF150 Fresnel Light offers the following features:

1. The 10-100% brightness incremental adjustment of the 3200K-5600K temperature enable fine-tuning your color range.
2. A four-inch diameter Fresnel lens provides even, well-distributed light
3. Ultra-low noise and active cooling technology contribute to excellent thermal stability.
4. The power supply will automatically cut off when the fixture overheats.
5. The bright LCD readout is easy to view, enabling smooth adjustment of functions.
6. Digitally adjustable knob allows you to adjust menu settings quickly and accurately.
7. DMX Channel assignments can be adjusted as needed.
8. AC/DC power supply, AC110VAC-270VAC

Instructions

LED Fresnel housing is made aluminum alloy, which is heavy-duty, lightweight, and easy to transport. The HF150 structure is illustrated on the following page.

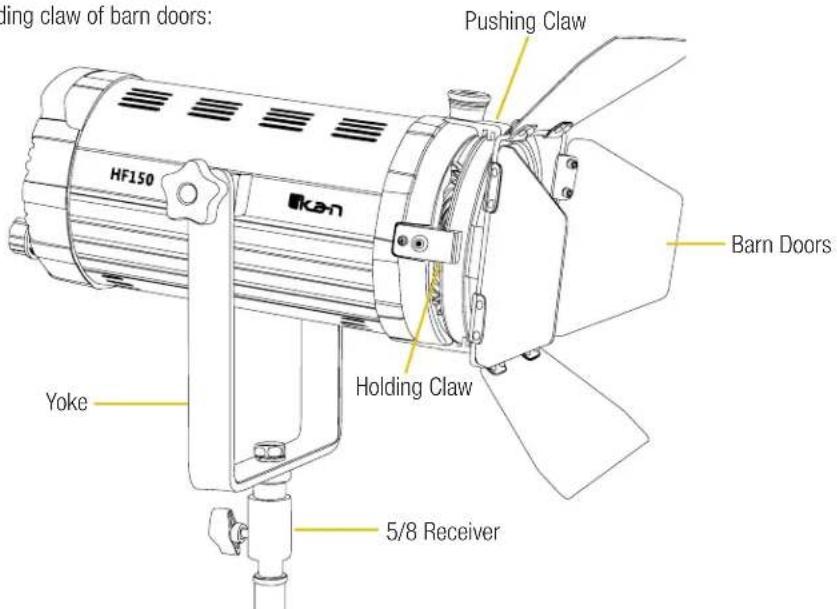

Appearance & Structure - Front

5/8 Receiver: Connecting the lamp with stands or grid mounts

Yoke: Adjustable lighting direction

The pushing claw of barn doors; the holding claw of barn doors:

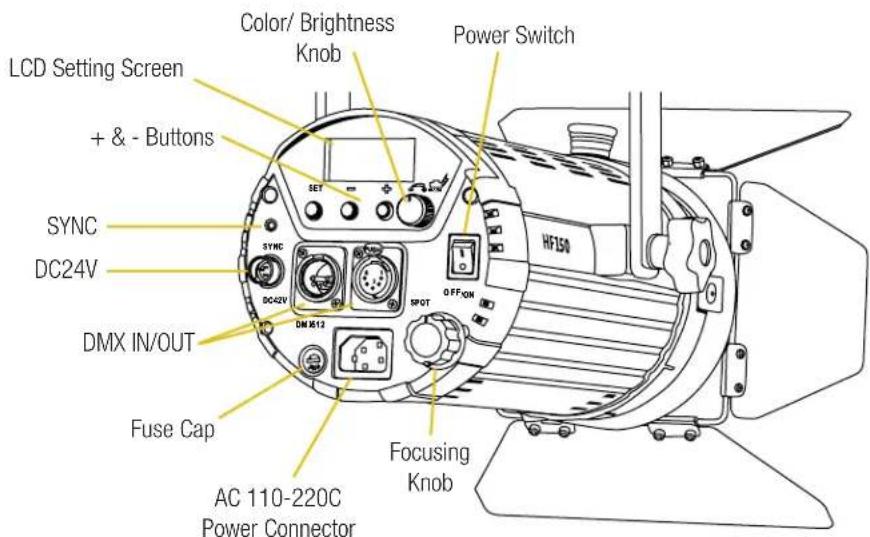

Appearance & Structure - Back

Power switch: Turn on/turn off power

Color Knob: Adjust the color from 3200K-5600K (Press in to set DMX channel)

Brightness Knob: Adjusts brightness from 10%-100% (Press in to Toggle off the LED)

LCD Setting Screen: Displays brightness and color temperature

+&- Buttons: Adjusts the DMX channels

SYNC: Not in use.

DC24V: Not in use.

Fuse Cap: Fuse Holder with T6.3A 250V fuse

AC 110-220V Power Connector: Connecting with 110-220V power cable

Focusing Knob: Changing the Beam angle of the light from flood to spot

Installation & Power Supply

1. Ensure power is off before installation.
2. Place the light on the Ikan customized stands, release the tension knob on the 5/8" receiver, adjust the light in the desired direction, and then tighten the tension knob on the 5/8" receiver.
3. When connecting the power cords, plug the AC power cords into the AC120 socket on the rear panel (as shown in the drawing).

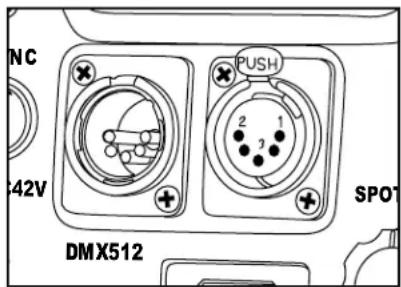

DMX 512 Controls

The DMX IN/OUT on the HF150 allows for remote fixture control over the color and brightness.

The 8Bit DMX allows for use with controllers that use just dimmer controls.

Depending on channel assigned the brightness is controlled on the first fader.

The next fader controls the color temperature from 3200K at 0% to 5600K at 100%.

What's in the box?

Please carry and place the packing box carefully. Check the lighting equipment and accessories upon opening the box. Please contact us if anything is damaged or missing. Please save the packing materials for replacing and repairing the products in the future.

Notice & Maintenance

1. The HF150 Spotlight working temperature range must be regulated. Overheating and Under-cooling will reduce the LED working life.
2. Products must be placed on a stable, dry, flat surface. Avoid exposure to sunlight and operating in an environment with high humidity or explosive gas.
3. Don't cover the fan vent. It will shorten the working life of the fixture.
4. Don't beat, knock or shake the lighting equipment during the operation.
5. If the HF150 isn't working normally, please contact the Ikan repair department. Please don't disassemble/re-assemble by yourself.
6. Please place the HF150 in a cool and dry place when you don't use it for an extended period of time.

Specifications

Beam Angle 20 - 70 degrees
Build Material Aluminum
Control Local Knob Control and DMX In/Out
Cooling System Active Cooling Fan
Diagonal 17"
Dimming Flicker Free Dimming, Onboard dimming Knob 100%-10% (minimal color shift)
Fixture Size 19 x 6 x 12 in.
Fixture Weight 10 lbs
Focusing Rotating Rear Knob
Head Type 3200K - 5600K
Lens 4" Acrylic Fresnel
Light Source 1 x 150 watt LED Bi-Color
Power Supply 6 ft power cable

Rating AC volts 120volts AC,50-60Hz, 40 watts
Shipping Dimensions	20 x 10 x 10 in.
Shipping Dimensions (Metric)	50.8 x 25.4 x 25.4 cm
Shipping Weight	14 lb
Shipping Weight (Metric)	6.35 kg
Yoke:	Cast Aluminum with 1 1/8" pin

Optional Accessories

Some other products that work well with the Helia HF150 available from Ikan include:

HD-STND-V2 Heavy Duty Light Stand

KCP-703 Stage Clamp w/ 16mm Stud

SW-04 Safety Wire

Learn More

More dynamic information at official website: www.ikancorp.com

Support

Contact email: [e-mail]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
