LB2410 - Thermal Bottle N'oveen - Free user manual and instructions

Product Type	Thermos Flask
Brand	N'oveen
Model	LB2410
Capacity	1 Liter
Insulation Material	Double-Wall Vacuum Stainless Steel
Exterior Material	Brushed Stainless Steel
Lid Material	BPA-Free Plastic
Temperature Retention (Hot)	Up to 12 hours
Temperature Retention (Cold)	Up to 24 hours
Dimensions (Height)	25 cm
Dimensions (Diameter)	7.5 cm
Weight	350 g
Color	Stainless Steel / Black
Mouth Diameter	4.5 cm (wide mouth for ice cubes)
Leak-Proof Design	Yes, push-button lid with lock
Cleaning	Hand wash recommended; do not immerse
Dishwasher Safe	No
Warranty	1 year limited warranty
Country of Origin	China

Frequently Asked Questions - LB2410 N'oveen

How do I clean my N'oveen LB2410 thermos flask?

Hand wash with warm soapy water using a soft sponge. Do not use abrasive cleaners or put it in the dishwasher. Rinse thoroughly and dry with the lid open.

Can I put carbonated beverages in the flask?

It is not recommended as pressure can build up and cause leakage or damage. For safety, avoid carbonated drinks.

How long does it keep drinks hot?

The double-wall vacuum insulation keeps beverages hot for up to 12 hours when preheated properly.

Is the lid leak-proof?

Yes, the push-button lid with a lock ensures a leak-proof seal when closed. Always lock before carrying.

Can I put the flask in the refrigerator?

Yes, you can refrigerate it, but avoid freezing as liquid expansion may damage the vacuum seal.

What is the warranty period?

N'oveen offers a 1-year limited warranty against manufacturing defects. Keep your receipt.

How do I remove odors from the flask?

Fill with a mixture of warm water and baking soda (2 tablespoons) and let it sit overnight. Rinse thoroughly.

Can I use it for both hot and cold drinks?

Absolutely. It is designed for both: keeps hot drinks hot and cold drinks cold for extended periods.

What is the mouth diameter?

The wide mouth has a diameter of 4.5 cm, large enough to fit ice cubes and makes cleaning easier.

Is the flask BPA-free?

Yes, all plastic components including the lid are made from BPA-free materials.

USER MANUAL LB2410 N'oveen

Three identical electric food containers with green and pink handles, displayed side by side (no visible text or symbols)

• LUNCH BOX NOVEEN 12/230 Volt LB410 GREY, LB420 MINT, LB430 DARK BLUE

Three types of electric food containers with green, gray, and blue coloring (no visible text or symbols)

LUNCH BOX NOVEEN 12/230 Volt LB510 GREY, LB520 BLUE

Two white and blue electric food containers (no visible text or symbols)

POLSKI....s.7

ENGLISH....p. 12

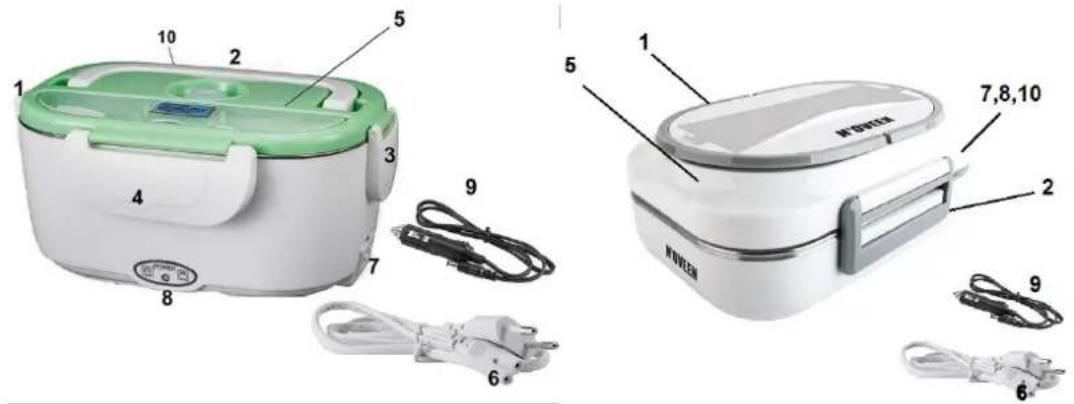

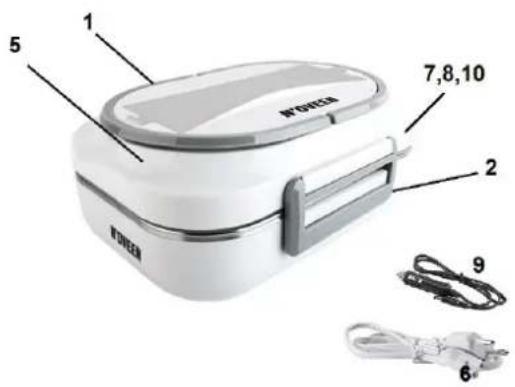

ENGLISH: 1. Spoon cover, 2. Handle, 3. Lunch Box Cover, 4. Silicone sealing ring, 5. Fastener, 6. Stainless steel food plate, 7. Power indicator

Thank you for purchasing our product.

Thank you for purchasing our product. Before use, read the instruction manual provided with it. Keep this manual in case you need to use it again. We believe that the Lunch Box will bring comfort and convenience to you and your family thanks to its excellent functionality. If necessary, we encourage you to contact us or our service outlets, we will be happy to help you!

You can find more Noveen brand products at www.noveen.pl

Read all safety information before use and keep this user manual for later reference

1. Never disassemble the device housing without consulting qualified personnel.
2. If the power cord or other component is damaged, it must be replaced by the manufacturer, service representative or qualified person to avoid any danger. A self-repair attempt will result in warranty loss.
3. Check if the rated voltage is the same as the voltage you are using.
4. Do not use near flammable materials.
5. Do not touch the power plug with wet hands - risk of electric shock.
6. Only professional service personnel can repair the device.
7. Do not heat the food for longer than the period indicated by the producer.
8. Do not place the device in a microwave oven or refrigerator, only the containers can be heated or cooled separately.
9. In the event of an unusual odor during normal operation, turn off the device, disconnect the power supply and contact the service center.
10. Never turn the device on when there is no food in the container
11. Unplug the appliance before cleaning and maintaining it.
12. This device is meant to be operated by adults, or under their supervision.
13. In case of any doubts as to the full efficiency of the device, contact the service center.

Note: The ventilation opening must be open when connected to electricity.

Note: During the operation of the device, and after heating, the food in the container may be hot - be careful, avoid burns.

FIRST USE

Remove the lunch box from the packaging, clean the containers, covers and gasket. Dry and wipe the device before use. Never immerse device body in water.

DEVICE DESCRIPTION - detailed description

COVER

HANDLE - used in transport of the Lunch Box, handle can be hidden in the lid's body, making the container easier to store.

LATCH - the device has 4 latches (LB5 2 latches) by which the container can be closed and moved safely, without worrying that the content of the Lunch Box will get out.

SPOON CONTAINER AND SPOON (LB3, LB4 series) CUTLERY STORE (LB5 series) - there is a lockable place for a spoon and a spoon in the lid's body. You do not have to worry about cutlery wherever you are.

VENTILATION OPEN (LB3, LB4 series) - the excess of warm air escapes during operation.

VENTING VALVE (LB3, LB4 series) - opened (during heating) and closed (during transport).

WARNING (LB3, LB4 series) - Indicates that the vent must be open and the user should add some water to the box before heating the food so that the device can run smoothly.

SILICONE GASKET - prevents liquid food from leaking outside

BODY AND EQUIPMENT

REMOVABLE CONTAINER - Plastic container (LB3 series), inox (LB4 series) with a capacity of 1.1l, 3 chamber 1l INOX container (LB5 series) can be removed from the body so you can wash it in the dishwasher, or consume food from it, without having a plate or bowl. The container (LB3 series) has two chambers, so you can carry two different food types, without the possibility of mixing.

REMOVABLE CONTAINER 0.5l and COVER (LB3, LB4 series) - A plastic, removable container with a capacity of 0.5l with lid, perfectly matching one of the parts of a large container. The container does not move around the Lunch Box and its closing guarantees no penetration of odors from the large chamber. Intended for sauces, salads etc.

CONTAINER - It is an integral part of the device, you can not carry food in it. It is used to heat the remaining containers by a flat heating element on its bottom for equal heat distribution.

POWER SOCKET, CABLE - The cable in the device is detachable for easier transport, the cable itself can be transported in another convenient way, or stored in the bag (included).

POWER SOCKET 12V, CABLE (LB4, LB5 series)- The cable in the device is detachable for easier transport, the cable itself can be transported in another convenient way, or

stored in the bag (included).

The set includes a personalized thermal bag, which helps in easy device transport.

POWER SUPPLY COVER - When transporting or storing the device, you can close the socket with a lid to protect the socket.

POWER INDICATOR - After connecting the device to mains socket, the indicator on the device will turn on.

DESCRIPTION:

• 230 volt mains power supply
• 12 volt power supply (LB4, LB5 series) - adapter included
• High power of 40 watts
• Comfortable meals heating in short time: 60 degrees in 20-30 minutes!

- Removable containers, easy to wash in the dishwasher: - main container plastic (LB3 series), inox (LB4, LB5 series) - an additional 0.5 liter container with a cap; e.g. for soup, sauce (LB3, LB4 series)

- Additional storage for a spoon (spoon provided LB3, LB4 series), cutlery (metal spoon and fork included LB5 series)

- Foldable handle for easy carrying

- Lid with clips for easy closing

- Power indicator

- Unique heating structure, homogeneous distribution of temperature.

- Thermostat with PTC element, better safety

- Container made of a special BPA-free material

- Unbreakable and resistant to high temperatures material

Note: The heating time depends on the amount of food, food temperature and ambient temperature.

- Food can be consumed 20-30 minutes after turning the power on at an ambient temperature of 25^ . (depends on the type of heated meal)

- The heating time should be increased if the ambient temperature is low or the food has been removed from the refrigerator.

- Separate the containers before eating food.

OPERATING THE DEVICE:

Remember to use the device in accordance with the manufacturer's recommendations. Make sure that the device is properly cleaned before use and has no signs of damage. If you have any doubts about the technical condition - contact the service.

1. Place the device on a flat surface,
2. To remove the cover (5), release the four latches (1,2,3,4 - LB3, LB4 series) / (1,2 - LB5 series).
3. Fill the containers with food, place the containers in the body of the device.
4. Close the lid (5) with latches (1,2,3,4 - LB3, LB4 series) / (1,2 - LB5 series), make sure that the food does not come out.
5. Device should be transported so that the lid is always on top.
6. To start the device and heat the contents, press the rubber venting element on the cover so that its edges rise (LB3, LB4 series).
7. Connect the power cable 220-240 V (6) to power socket (7) and the plug to electric socket. In case of 12V power supply (LB4 series) - insert 12V power cable (9) into socket (10) and the adapter to the cigarette lighter socket in the car.
8. After connecting to the power supply, the indicator (8) will light up.
9. After obtaining the desired temperature and pulling out the heated content, disconnect the power cord from the power supply.

Cleaning and maintenance

1. Wash the device immediately after use to avoid unpleasant odors.
2. Do not use scouring powders, hard or wire cleaning brushes
3. Put some warm water after use in a container or use a soft cleaning cloth.
4. Clean the Lunch Box and put it in the packaging if won't use it for a long time; place in a cool and dry place to avoid problems caused by moisture.
5. If there is any problem with the device, please contact our technical service department - do not try to repair the device by yourself.

TROUBLESHOOTING

Symptom	Cause	Remedy
Heater does not heat Heating lights is off	1. Power supply is not connected2. Power cord is damaged	Check the plug and socket, power cord is fine and connected
Heater does not heat Heating light is on	1. The heater is damaged	Maintenance department to repair
The food is still cold after heating	1. Heating time too short2. Low ambient temperature and low temperature of food	Extend the heating time
