GCS52 - Switch IOGEAR - Free user manual and instructions

Product Type	2-Port USB KVM Switch
Brand	IOGEAR
Model	GCS52
Dimensions (W x D x H)	4.5 x 2.5 x 1.0 inches
Weight	0.3 lbs
Power Supply	USB bus-powered
Video Resolution Support	Up to 1920 x 1440
Ports	2 x USB Type B (upstream), 1 x USB Type A (keyboard/mouse), 1 x VGA (video)
Switching Method	Front panel push button or hotkey
LED Indicators	Yes, for selected port
Operating Systems Supported	Windows, Mac, Linux
Cable Length	Integrated cables: 18 inches (USB) and 18 inches (VGA)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	0% to 80% RH (non-condensing)
Compliance	CE, FCC
Warranty	3 years
Package Contents	GCS52 switch, user manual
Maintenance	Wipe with a dry cloth; avoid liquids
Safety	Use only with compatible devices; do not disassemble

Frequently Asked Questions - GCS52 IOGEAR

How do I switch between computers?

Press the front panel button on the GCS52 to toggle between the two connected computers. You can also use the hotkey sequence: press the Scroll Lock key twice and then the number key (1 or 2) corresponding to the desired port.

Does the GCS52 support USB 2.0 or 3.0?

The GCS52 supports USB 2.0 for keyboard and mouse connectivity. USB 3.0 devices may work at reduced speeds.

What video cables are included?

The switch comes with integrated VGA cables (18 inches each) for connecting to the computers. No additional VGA cables are required.

Can I use a wireless keyboard and mouse?

Yes, as long as the wireless receiver connects via USB Type A and is compatible with the operating system. Plug the receiver into the switch's keyboard/mouse port.

How do I reset the GCS52?

Unplug the USB cable from the switch for 10 seconds, then reconnect. This will reset the switch to default settings.

What is the maximum video resolution?

The GCS52 supports resolutions up to 1920 x 1440 at 60 Hz. For best performance, ensure your monitors and cables support this resolution.

Does the switch require external power?

No, the GCS52 is USB bus-powered and draws power from the connected computers. No separate power adapter is needed.

Can I connect the switch to a laptop?

Yes, as long as the laptop has USB and VGA ports. If your laptop lacks VGA, you may need an adapter.

How do I know which port is active?

The LED indicators on the front panel light up for the currently selected port. Port 1 is typically the left LED, Port 2 the right.

Is the GCS52 compatible with Linux?

Yes, the switch is platform independent and works with Linux, Windows, and macOS. No drivers are required for basic KVM functionality.

USER MANUAL GCS52 IOGEAR

2-Port USB DisplayPort Cable KVM Switch

GCS52DP

PART NO. Q1485

Package Contents

1 x GCS52DP

1 x Quick Start Guide

1 x Warranty Card

System Requirements

Console:

• DisplayPort monitor
• Standard wired USB keyboard
• Standard 3-button wired USB mouse
• Speakers and Microphones (optional)

Computer:

• DisplayPort port
• USB Type-A port
  • Audio ports (optional)

Operating Systems:

• Windows® 2000, Vista, 7, 8.1, 10
• Mac OS X 9.0+
• Oracle® Solaris
• Linux®, UNIX, and other USB supported systems

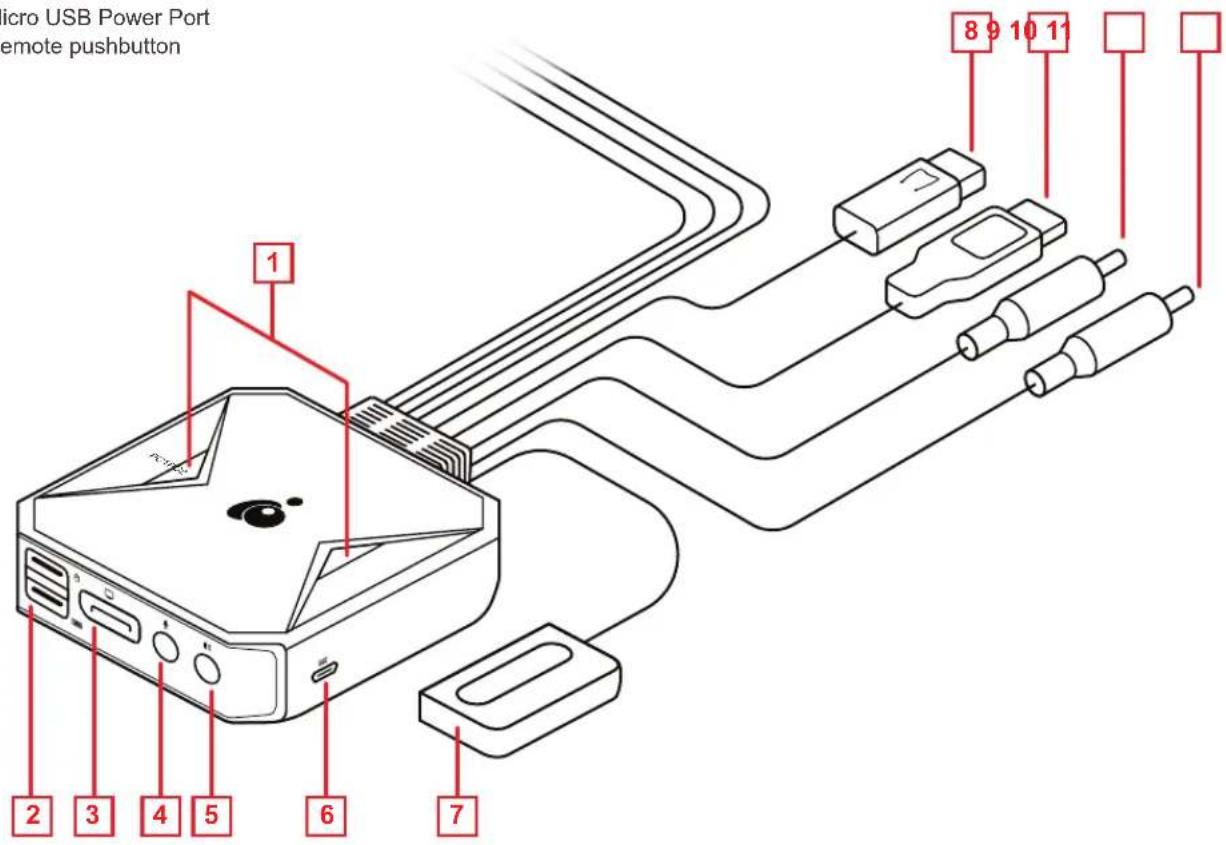

Overview

1. Port LEDs
2. USB port for keyboard and mouse
3. DisplayPort for monitor
4. 3.5 mm audio input
5. 3.5mm audio output
6. Micro USB Power Port

7. Remote pushbutton

8. KVM Cables - DisplayPort

9. KVM Cables - USB
10. KVM Cables - Speakers
11. KVM Cables - Microphone

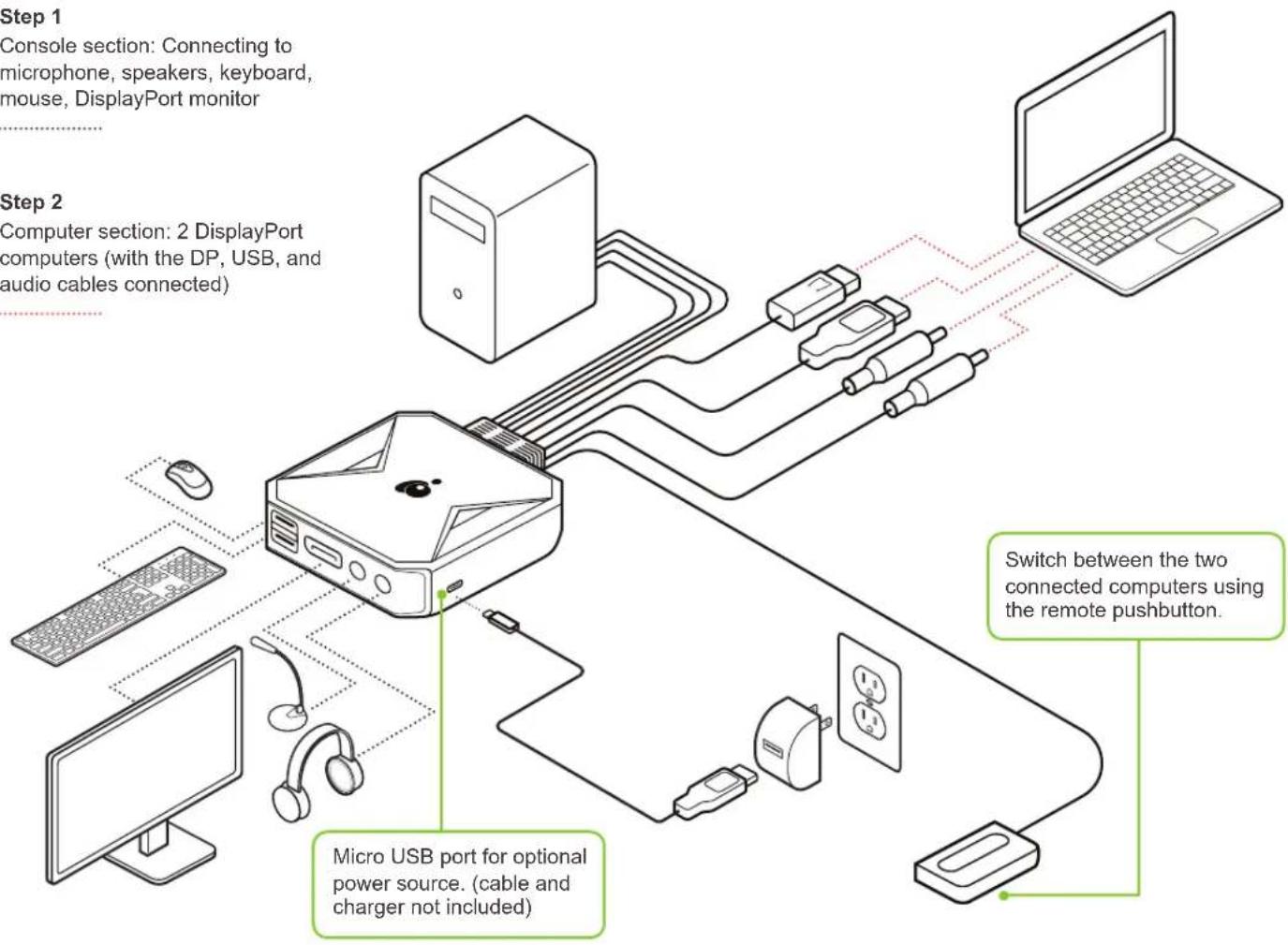

Hardware Installation

Step 1

Console section: Connecting to microphone, speakers, keyboard, mouse, DisplayPort monitor

Step 2

Computer section: 2 DisplayPort computers (with the DP, USB, and audio cables connected)

EMC Information

Federal Communications Commission Statement (FCC) Statement:

This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Limited Warranty

This product carries a 3 Year Limited or Lifetime Warranty. For the terms and conditions of this warranty, please go to http://www.iogear.com/support/warranty

Register online at http://www.iogear.com/register

Important Product Information

Product Model ____ Serial Number ____

Contact

WE'RE HERE TO HELP YOU!

NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support

IOGEAR

iogear.custhelp.com

[e-mail]

www.iogear.com
