Product Type	Outdoor gas barbecue
Brand	Electrolux
Model	Fuego EQMF100AS
Dimensions (W x D x H)	920 mm x 690 mm x 835 mm
Weight	Approximately 55 kg
Fuel Type	LPG (propane) with 9 kg cylinder
Maximum Gas Consumption	43 MJ/h
Number of Burners	2
Injector Orifice Diameter	1.30 mm
Regulator Outlet Pressure	2.75 kPa
Ignition	Electronic (battery-powered AA) with manual backup
Main Materials	Stainless steel, cast iron (cooking plates), teak (countertops)
Number of Cooking Zones	2 (grill and reversible cooking plate)
Retractable Lid	Yes (must be stowed during cooking)
Storage Drawers	LPG cylinder drawer, storage drawer, removable rear storage wing
Safety Features	Safety cut-off valve, burner drawer locks, leak test procedure
Cleaning	Oil residue tray (dishwasher safe); cast iron plates (hand wash); stainless steel (mild detergent); teak (soapy water)
Warranty (Domestic)	24 months (Australia and New Zealand)
Warranty (Commercial)	3 months
Included Accessories	Match holder, oil residue trays, heat baffle

Frequently Asked Questions - Fuego EQMF100AS ELECTROLUX

How do I light the Fuego EQMF100AS barbecue?

To light, ensure the lid is stowed, turn the control knob to the high flame symbol while pressing it in. If using the electronic ignition, a clicking sound indicates sparking. If it doesn't light within 5 seconds, turn off, wait for gas to clear, and try again. For manual lighting, use the match holder provided.

What type of gas does the barbecue use?

The barbecue uses LPG (propane) with a 9 kg (20 lb) cylinder. Always use a cylinder in good condition and connect it to the regulator.

Can I use the barbecue indoors?

No, the Fuego barbecue must only be used outdoors in a well-ventilated area. Using it indoors can lead to gas accumulation and carbon monoxide poisoning.

Why won't my barbecue light?

Common causes: no gas (check cylinder valve is on), flat battery (replace AA battery), or dirty igniter. If ignition fails, try manual lighting. Also ensure the burner drawers are locked properly as the safety cut-off valve prevents gas flow if unlocked.

How do I clean the cast iron cooking plates?

After use, remove solid debris with a brass brush, wipe off grease with paper towel, wash with mild detergent and hot water, dry immediately, and coat with a light layer of cooking oil. Do not put them in the dishwasher.

What should I do if I smell gas?

Do not try to light the barbecue. Turn off the gas at the cylinder immediately, extinguish any open flames, open the lid, and remove the battery. Check for leaks using soapy water. If the leak persists, turn off gas and contact the Electrolux Service Centre.

How do I adjust the low flame setting?

Light the burner, turn the control knob to the lowest setting (fully counter-clockwise), remove the knob, hold the valve stem with pliers, and insert a thin flat-tipped screwdriver into the shaft to adjust the flame to a minimum stable flame.

How do I remove the burner drawer for cleaning?

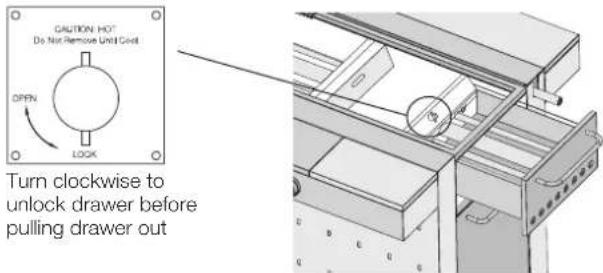

Remove the cooking plate, cast plate surround, and heat baffle. At the rear of the burner compartment, turn the safety lock clockwise to the open position, then slide the burner compartment forward. After cleaning, push it back and lock.

What does the 2-year warranty cover?

The warranty covers defects in materials and workmanship for 24 months for domestic use in Australia/New Zealand. It includes repair or replacement of defective parts at no charge. It does not cover misuse, normal wear, light bulbs, batteries, or filters.

Can I use the retractable lid while cooking?

No, the lid must be stowed in its recess during cooking. It is only used to cover the cooking surface after it has cooled down.

USER MANUAL Fuego EQMF100AS ELECTROLUX

Exterior view of a stainless steel industrial machine with perforated panels and control buttons (no text or symbols visible)

Black-and-white photo of a man standing at a modern outdoor kitchen counter with wine glasses and food items, overlooking a coastal landscape (no visible text or symbols)

Congratulations

Congratulations and thank you for choosing the Electrolux Fuego barbecue. We are sure you will find your new barbecue a pleasure to use. Before you use the barbecue, we recommend that you read through the entire user manual, which provides the description of the barbecue and its functions.

To avoid the risks that are always present when you use a gas appliance, it is important that it is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

After unpacking the barbecue please check it is not damaged. If in doubt, do not use the appliance but contact your local Electrolux Customer Care Centre.

Contents

• Product description ii
- Dimensions iii
- Important safety instructions 1
• Gas specifications 1
• Preparing for use 2
• Securing your barbecue 2
- Locating your barbecue for use 2
- Connecting the LPG cylinder to the barbecue 2
- Leak testing 3
• Fitting and replacing the battery 3
• Assembling the grates 3
- Oil residue tray 4
- Checklist 4
- Operating your barbecue 4
• Care and maintenance 5
- Cleaning and care 6
- Troubleshooting 7
- Warranty 8

environmental tip

Information on disposal for users

• Most of the packing materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers.
• If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

Fuego compact (EQMF70AS)

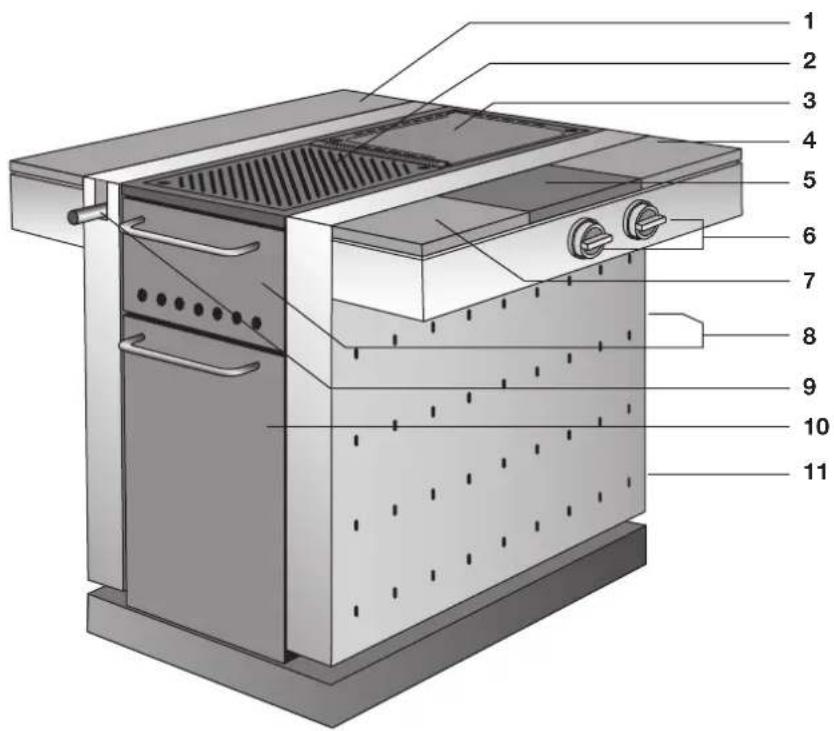

1 Removable rear storage wing / benchtop
2 Grill plate
3 Reversible cooking plate
4 Benchtop / counter storage
5 Slate benchtop
6 Gas / ignition controls
7 Benchtop / counter storage
8 Burner drawers (only one visible)
9 Retractable lid (handle shown)
10 LPG cylinder drawer
11 Storage drawer (not visible)

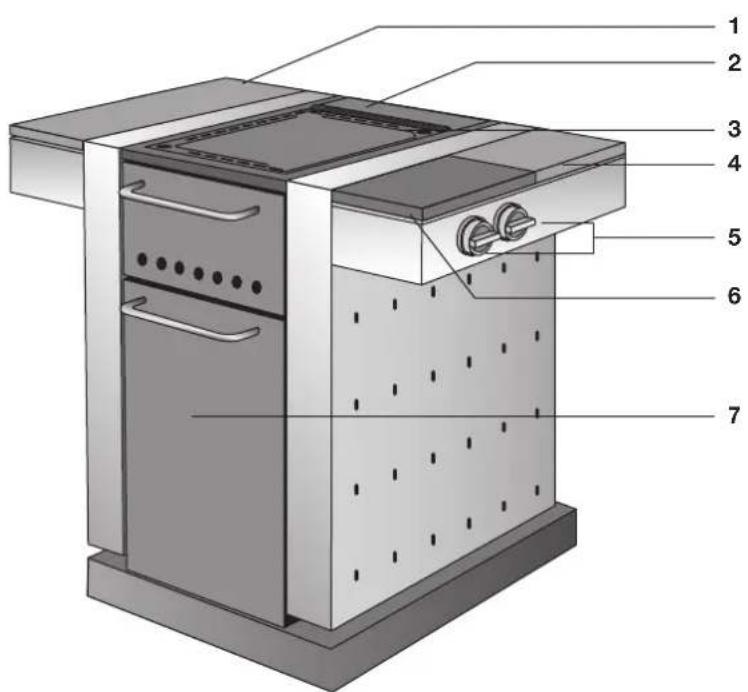

1 Removable rear storage wing / benchtop
2 Retractable lid (under cover)
3 Reversible cooking plate
4 Front storage wing / benchtop
5 Gas and ignition controls
6 Slate benchtop
7 LPG cylinder drawer

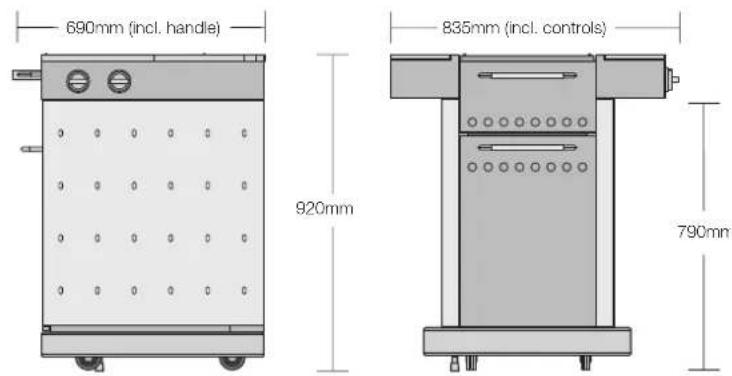

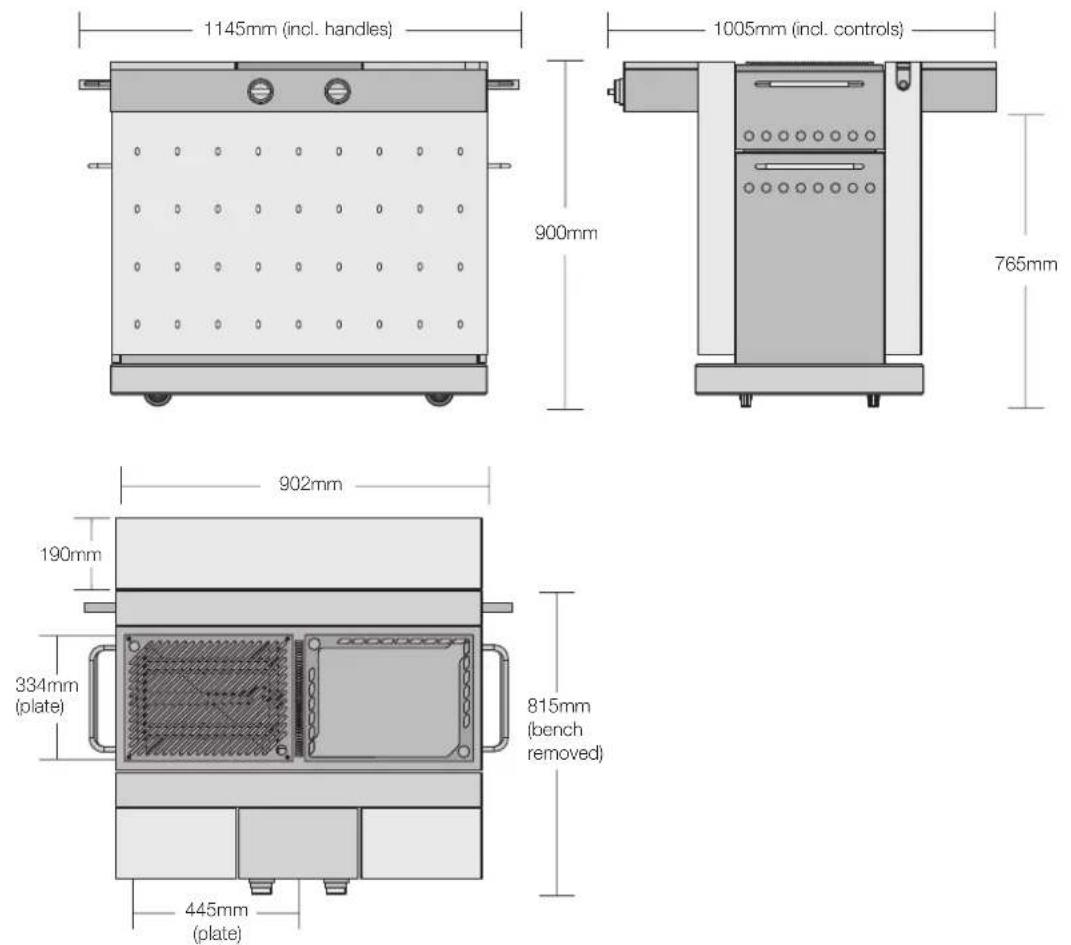

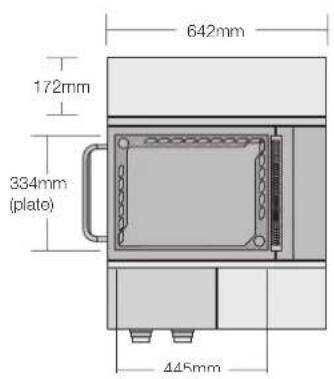

Dimensions

Fuego (EQMF100AS)

Fuego compact (EQMF70AS)

Important safety instructions

For your safety please read this user manual carefully before operating your barbecue, and store the manual in a safe place for later reference. Pass the manual on to new owners of the barbecue.

Meanings of the symbols used in this manual are shown below:

warning

This symbol indicates information concerning your personal safety

caution

This symbol indicates information on how to avoid damaging the appliance

tips and information

This symbol indicates tips and information about use of the appliance

environmental tip

This symbol indicates tips and information about economical and ecological use of the appliance

warning

- Improper installation, adjustment, alteration or maintenance can cause injury or property damage. Please contact your nearest Electrolux Service Centre for information or assistance.

• IF YOU SMELL GAS...

• Do not attempt to light the barbecue,
  – Turn off the gas at the LPG cylinder immediately,
• Extinguish any open flame and cigarettes, and open the lid.

- Disable the ignition by removing the battery. When the gas has cleared away, move the appliance to a well ventilated position away from any naked flames. DO NOT TEST FOR LEAKS WITH A NAKED FLAME.

- Turn on the gas and locate the leak using a solution of soapy water (see page 3 for a full description). If the connection between the cylinder and regulator is leaking then tighten this joint and re-check. Check all connections on the hose and regulator assembly with soapy water and check the hose for wear or damage. Replace if needed.

– If leaking or smell of gas persists turn off the gas and call your Electrolux Service Centre.

- Do not store flammable liquids, vapours, aerosols or combustible materials in the vicinity of this barbecue, in any compartment or drawer of this barbecue, or leave any of these flammable items standing on the top surfaces of the barbecue. Keep the area surrounding your barbecue free of trash.

- The LPG cylinder that is connected to this barbecue must be located in the drawer designed for housing of this cylinder. Any LPG cylinder not connected to this barbecue must not be left in or near this barbecue.

• LPG Cylinders must not be overfilled, as this can lead to build up of excess pressure in the cylinder followed by venting of gas from the pressure relief safety valve on the cylinder. Gas vapour venting from the relief valve is flammable. Confirm with your LPG dealer that your cylinder has not been overfilled.
• Never use a dented or rusty LPG cylinder. Never use a cylinder with a damaged valve.
• Remove all packaging and protective films prior to use.
• Keep electrical cables away from heated zones of this barbecue. When moving the barbecue do not traverse over any electrical cables.
• Foreign objects, foreign materials, insects or spiders can enter into the burner system causing gas to spill from the burner system. This can be a hazard in itself and can also lead to damage of the barbecue making it unsafe to operate. The burner and injector should be regularly inspected and any foreign material removed.
• Operate the barbecue only in a well ventilated outdoor area. Keep the surrounding area free of obstructions which may prevent the flow of ventilation air.
• Do not obstruct any of the ventilation openings on this barbecue. They are necessary to ensure safe operation and proper function of your barbecue.
• Do not allow children to sit, stand or play on or near this barbecue. Do not store items of interest to children in the barbecue. Do not allow children to enter the lower storage drawers. Children should not be left unattended in an area where this barbecue is in use.
• Clean grease regularly as accumulated grease is a fire hazard. Allow the barbecue and grease deposits to cool down before attempting to handle them.
• Do not leave the grill cover standing upright as it may be accidentally knocked or blown over, causing an injury. The cover must be stowed in its recess when igniting or operating the appliance.
• Do not attempt to ignite the burners without first reading the Lighting Instructions (see page 5). Never lean over the grill or hotplate when igniting this barbecue.
• Do not heat unopened food containers as build up of pressure may cause the container to burst.
• When in use and for some time after use the grill and hotplate and areas adjacent get hot enough to cause severe burns.
• Do not cover the grill or line the drip pan with aluminium foil, as this may obstruct proper air flow and lead to a hazard or damage to the barbecue.
• Do not use the barbecue in windy conditions such as commonly occur on oceanfronts or on a hilltops. Erect a windbreak where required, taking care to maintain ventilation and safe clearances.
• Position the barbecue on a stable and level surface and engage the brake before use.

Gas specifications

Fuego Fuego

Compact

Maximum Gas Consumption 43 MJ/h 21.5 MJ/h

Injector Orifice Diameter 1.30 mm 1.30 mm

Number of burners/injectors 21

Regulator Outlet Pressure 2.75 kPa 2.75 kPa

2 preparing for use/securing your barbecue/locating your barbecue/connecting the lpg cylinder electrolux fuego barbecue

Preparing for use

Remove all packaging and protective films from the barbecue before use. Check that the drawers, compartments and burner boxes are cleared of packaging material.

Securing your barbecue

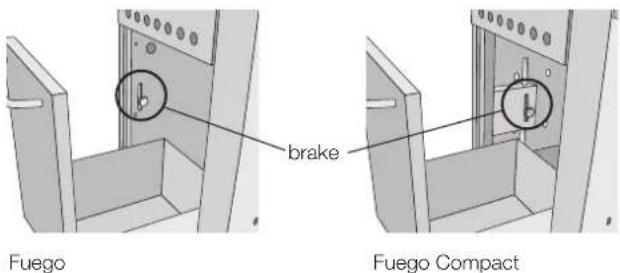

Position the barbecue on a stable and level surface. Engage the brake mechanism to prevent movement of the barbecue.

Locating your barbecue for use

Keep the sides of the barbecue at least 300mm away from any combustible material. Ensure a clearance of at least 600mm from the top surface of the barbecue to any combustible material above the barbecue.

warning

This barbecue must not be used indoors.

This barbecue shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection.

Any enclosure in which this barbecue is used shall comply with one of the following (see diagrams on right):

- An enclosure on all sides, but at least one permanent opening at ground level and no overhead cover (Outdoor area example 1).

- Within a partial enclosure that includes an overhead cover and no more than two walls (Outdoor area example 2 and 3).

- Within a partial enclosure (Outdoor area example 4 and 5) that includes an overhead cover and more than two walls where

1. at least 25% of the total wall area is completely open, and

2. at least 30% of the remaining wall area is open and unrestricted.

- In the case of balconies, at least 20% of the total of the side, back and front wall areas shall be and remain open and unrestricted.

Outdoor area example 1 Outdoor area example 2

Simple line drawing of a 3D rectangular box with a side cutout and a separate empty rectangle (no text or symbols)

Outdoor area example 3

Outdoor area example 4

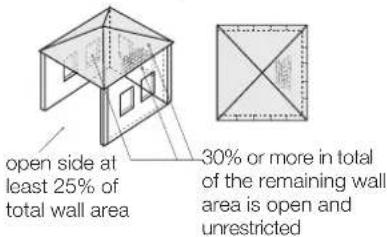

open side at least 25% of total wall area

30% or more in total of the remaining wall area is open and unrestricted

Outdoor area example 5

If the performance of the barbecue is affected by wind then move the barbecue to a less windy position or erect a wind break in accordance with the stated guidelines for ensuring ventilation of the barbecue and maintaining clearance to combustible materials.

Connecting the LPG cylinder to the barbecue

Use only a 9kg (20lb) LPG cylinder. Do not use a rusty or damaged tank. To connect the LPG cylinder to the barbecue proceed as follows:

• Check the condition of the hose for signs of abrasion, cracks or other damage. If damaged do not connect to gas.

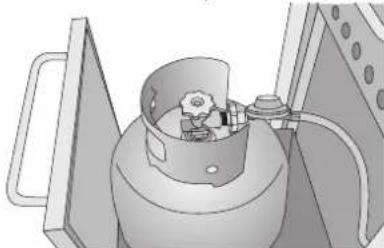

• Open the left hand drawer and position the cylinder in the drawer, placing the cylinder foot ring in the large hole. Check the cylinder is properly located and stable. Turn the cylinder so the valve outlet points into the drawer space.

3D rendering of a mechanical device with internal components and mounting brackets (no visible text or symbols)

- Attach the fitting on the regulator inlet to the cylinder valve. Turn anticlockwise to tighten (left-hand thread).

Check for gas leakage at the connection between the cylinder and regulator and at all connection points on the hose assembly according to the following procedure, "Leak testing".

Leak testing

Assembling the grates

warning

Do not smoke while leak testing. Do not leak test with a naked flame. Ensure all naked flames are extinguished. Disable the ignition system by removing the battery.

1. Prepare a solution of water and soap or detergent that will readily form foam, and a brush or spray bottle.
2. Turn off the burner control valves.
3. Turn on the gas at the main cylinder valve. Apply soap solution to the connection between the cylinder valve and the regulator inlet and check for bubbling. If bubbling is apparent then tighten the connection and re-check until no further bubbling occurs.
4. Check for leakage at each connection point on the hose and regulator assembly with soapy water, including the point where the hose connects to the barbecue. If leakage is apparent at these points then turn off the gas and contact your Electrolux Service Centre for assistance.

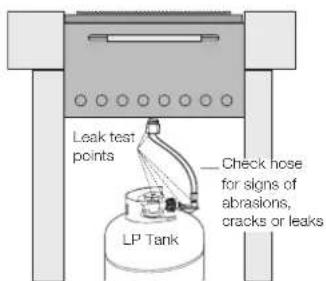

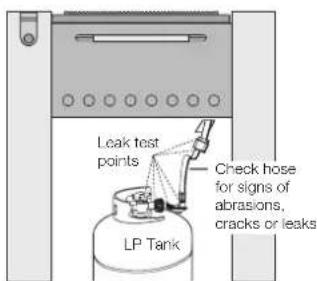

FUEGO LPG leak test points

FUEGO Compact LPG leak test points

Fitting and replacing the battery

Ignition will not function without a battery installed or if the battery is flat. A single AA size battery is required. Install the battery only after the leak test has been performed.

Pure mechanical assembly diagram showing gears and rollers without any text or symbols

Insert negative end of battery securely in holder. The holder is found in the top storage compartment on right hand side of control knobs.

Fuego

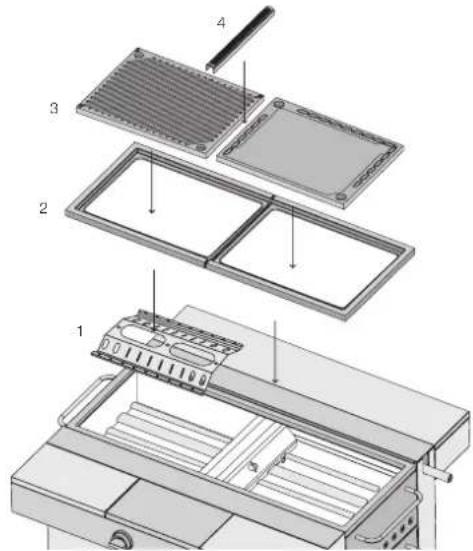

Each cooking section consists of a drawer with stainless steel burner and enamelled heat baffle (1) under grill plate. Above each drawer is a cast iron plate support (2), cooking plate (3) and centre vent (4) that sits between each cooking surface. The enamelled heat baffle reflects heat upward into the cooking area increasing grilling performance and diverts dripping oil and fats away from the flame to reduce flare-ups. Note: The heat baffle is not used under the solid cooking plate.

1. Insert heat baffle (grill side only).
2. Insert cast iron plate support.
3. Insert cast iron grill plate or solid plate.
4. Insert centre vent between the two cooking zones.

Fuego Compact

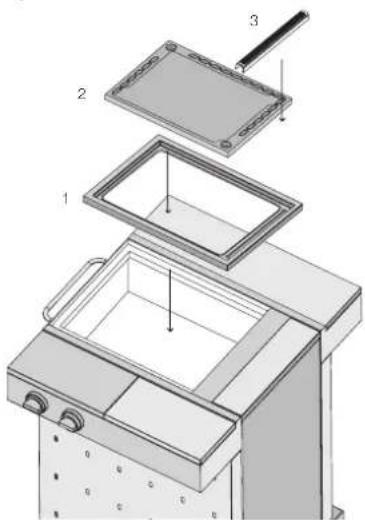

The cooking section consists of a fixed burner compartment with stainless steel burner. Above the burner compartment is a cast iron plate support, cooking plate and rear cast iron vent. Note: An enamelled heat baffle has been included with the unit for use if a grill plate is purchased.

1. Insert cast iron plate support.
2. Insert cast iron cooking plates on top of plate support.
3. Insert vent to the right of cooking plate.

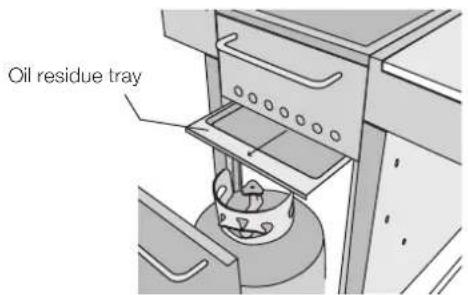

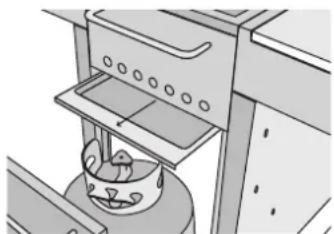

Oil residue tray

Ensure the oil residue tray/s are in position under each burner compartment.

The barbecue is now ready for use. Follow the checklist below for a quick reminder of the main items for preparing your barbecue.

Checklist

To prepare the barbecue for use check the following:

☐ There is adequate clearance to combustible materials (300mm each side and 600mm above).
□ All packaging and film has been removed.
☐ The barbecue is outdoors in a ventilated area as shown on page 2.
☐ The barbecue is on a stable and level surface with the brake engaged.
☐ The LPG cylinder is connected. The hose is undamaged. The connection and the hose and regulator assembly has been checked for leaks.
□ You know where to find the cylinder valve.
□ A charged battery is fitted.
☐ The oil residue trays are in position.
☐ The cooking plates have been assembled onto the barbecue.

Operating your barbecue

Lighting Instructions

Confirm that the barbecue has been properly prepared for use according to the instructions in the section "Preparing for use".

When lighting the barbecue do not lean over the cooking surfaces – keep well clear.

When attempting to ignite the burner, if the burner does not ignite within 5 seconds then turn the control to off and allow several minutes for any unburnt gas to clear away before executing another ignition attempt.

Lift and stow the cover in its recess prior to attempting ignition.

To ignite a burner on the Fuego Turn the control to the high flame mark (♂) while simultaneously pressing the control in.

To ignite the burner on the Fuego Compact Turn the control to the high flame mark ( ⚙ while simultaneously pressing the separate ignition knob.

This will allow gas to flow to the burner while sparks are discharged from the spark electrode. When the burner ignites release the knob and sparking will cease. The control can now be adjusted to obtain the desired level of heating.

Manual lighting

If in the event of the electronic ignition system not working, (it is advisable to first check the battery), the barbecue has provision for manual lighting. Located in the top storage compartment is a match holder designed to assist safe manual lighting of the barbecue burner.

To light manually, ensure that the lid is in the recessed position, turn gas on at the LPG cylinder, fit a standard 40mm match in the end of match holder and light match. Pass lit match through the top of the cooking surface or corner holes in the solid plate down towards the burner then turn on the gas valve to high flame position to ignite. Adjust burner after ignition.

If ignition fails, turn control valve off and allow several minutes for the gas to dissipate before attempting to light again.

Using the grill and hotplate

Allow 5 – 10 minutes for the cooking surfaces to preheat, then place food on the grill or hotplate and cook to your liking. When cooking is completed turn the controls to the off position and turn the gas off at the cylinder valve. Grilling requires high heat for searing and proper browning. Most foods are cooked at the medium heat setting for the entire cooking time. However, when grilling large pieces of meat or poultry, it may be necessary to turn the heat to a lower setting after the initial browning. This cooks the food through without burning the outside. Foods cooked for a long time or basted with a sugary marinade may need a lower heat setting near the end of the cooking time.

Note: The retractable lid included with the barbecue MUST NOT be used while cooking. The lid can be used to cover the cooking surface once it is cool.

Care and maintenance

Cooking hints

How well your meat is cooked, whether rare, medium, or well done, is affected to a large degree by the thickness of the cut. The cooking time is affected by the kind of meat, the size and shape of the cut, the temperature of the meat when cooking begins, and how well done you like your meat. When defrosting meat it is recommended that it be done overnight in the refrigerator as opposed to a microwave. This in general yields a juicier cut of meat. Use a spatula instead of tongs or a fork to turn the meat, as a spatula will not puncture the meat and let the juices run out. To get the juiciest meats, add seasoning or salt after the cooking is finished and turn the meat only once (juices are lost when the meat is turned several times). Turn the meat just after the juices begin to bubble to the surface. Trim any excess fat from the meat before cooking. To prevent steaks or chops from curling during cooking, slit the fat around the edges at 5cm intervals.

Burner low setting adjustments

The valves on the barbecue feature an adjustable low setting. Due to fluctuations in gas pressure, you may feel it necessary to increase or decrease gas flow in the low position.

To adjust:

1. Light the burner.
2. Turn the control knob to the lowest setting (all the way counter-clockwise).
3. Remove the knob.

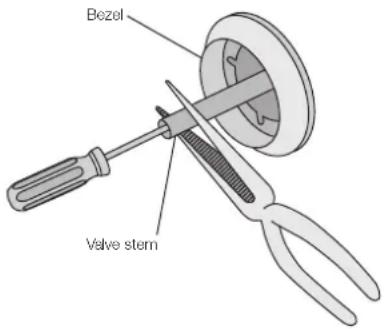

4. While holding the valve stem with pliers, insert a thin, flat tipped screwdriver into the shaft and while viewing the burner adjust to a minimum stable flame.

warning

Before lighting, inspect the gas supply piping or hose prior to turning the gas "on". If there is evidence of cuts, wear, or abrasion, it must be replaced prior to use. Contact Customer Care for a replacement hose.

Grill burner flame height

The factory burners have been set for the correct air and gas mixture. The correct flame pattern is shown below.

1: Burner tube
2: Tips occasionally flicker yellow
3: Light blue
4: Dark blue
If flames do not appear to be uniform throughout the burner tube, check if the ventilation openings of the burner tube are blocked by dirt, debris, spider webs, etc. In order for burner to work properly there must be no obstructing the flow of combustion and ventilation air. Proceed with cleaning instructions in the next section.

Cleaning and care

The Electrolux Fuego barbecue has been constructed from select grade materials which need general care to ensure optimum performance and appearance. To keep your barbecue looking its best we recommend that the cooking surface and the oil trays are cleaned after every use. We recommend that the barbeque is covered when not in use, particularly in coastal areas.

warning

Please ensure that your barbecue is switched off and has cooled down before following the instructions below.

Oil residue tray cleaning

Open the lower drawer/s. Slide out oil tray which is located underneath the burner compartment.

Illustration of a kitchen appliance with a bowl of food being lifted by an oven (no text or symbols visible)

Be careful when removing the oil residue tray to ensure that the oil and residue does not spill. Empty the tray and place in dishwasher or wash by hand using mild detergent. Dry and replace after cleaning. Clean oil residue tray after every use to prevent grease and debris from hardening making it more difficult to clean. An absorbent material (dry sand or other non combustible absorbent material) can be used in the oil trays to absorb grease. Ensure the absorbent material is evenly spread in the tray and not higher than the inside edge.

For a thorough clean for the Fuego remove the burner drawers as described in “Removing the burner drawers”. For the Fuego Compact refer to “Burner compartment care” further in this section.

Cast iron plates and plate surround cleaning

The cooking plates and plate surround have a porcelain enamelled coating.

Note: Many food acids, juices, marinades and sauces contain highly acidic elements that will slowly attack the surface of the cast iron if not removed immediately after cooking.

After use remove all solid material from the cooking surface using a brass bristled barbecue brush or plastic bristled sourer. Wipe off the remaining grease with paper towelling. Gently wash the surfaces with a cloth or sponge and a mild detergent and hot water. Dry components immediately and coat the cooking surface with a light layer of cooking oil. This protects the surface when not in use. Do not clean the cooking surface in a dishwasher.

Igniter tip cleaning

If lighting the burners is difficult you may need to clean and adjust the igniter tip located near the burner orifice. To ensure that the igniter lights properly, clean off any cooking residue from igniter tip and burner. Use a very fine grain sand paper to clean igniter tip and edge of burner. Igniter tip should be 2–3mm away from burner edge. This is the ideal distance for most effective ignition.

caution

Do not use abrasive or caustic cleaners, scourers or metal scrapers on stainless steel surfaces as they may scratch and damage your barbecue. On brushed stainless steel surfaces always clean the surface in the direction of the grain.

Stainless steel surfaces

The barbecue should be covered when not in use. A protective weather cover like EQAF100C and EQAF70C designed specifically for your Fuego unit is recommended to protect your barbecue from outdoor elements. Wash all stainless steel components with a clean cotton or microfiber cloth using hot soapy water. Ensure that all surfaces are dried with a clean dry cloth. Non abrasive stainless steel cleaners can be used to keep your Fuego barbecue looking its best.

tips and information

Special note on "tea staining"

Sometimes stainless steel surfaces are affected by a brown discolouration called tea staining. This usually occurs in areas which use high heat and can be easily removed using specialised stainless steel cleaners. For best results, we recommend that specialised cleaners be used regularly on all stainless steel components. You will find these cleaners at the Electrolux spare parts outlets.

Teak surface

The teak used on the counter tops has been treated with light coating of protection oil.

Clean surface using a soft sponge and a solution of mild soapy water. Wash down afterwards with clean water. Do not use high pressure hoses, steel wool or wire brushes as all and any residue left in the grain will rust and discolour the wood.

Stubborn and heavily ingrained stains can be removed by sanding with a fine grade of sandpaper, being sure to work only with the direction of the timber grain. After sanding away stains like this you may need to re-oil the surface.

Burner compartment care

At regular intervals, general cleaning of the burner compartment should be undertaken using a sponge or cloth with a mild detergent and hot water. To gain access to the burner area remove the cast cooking plate, cast plate support and heat baffle. Note that the burner compartment is coated in vitreous enamel. For care instruction refer to "Cast iron plates and plate surround cleaning". For a more thorough clean of the burner refer to "Cleaning the burner".

When cleaning the burner compartment be careful not to use excessive water and avoid any water around the ignition point. Be careful not to bend the ignition wire. Remove the oil residue tray from under the burner compartment and place a container in the lower drawer to capture any of the cleaning residue. On the two burner compartment Fuego, the burner drawers can be unlocked and removed for easier cleaning. Refer below on instructions on how to remove the drawer.

Removing burner drawer – two burner Fuego only Remove the cooking plate, cast plate surround and heat baffle. Located at the rear of each burner compartment is a safety lock. Turn the lock to the open position (turn clockwise) and slide the burner compartment forward. After cleaning, replace burner compartment ensuring the drawer is fully pushed in and turn the lock to the locked position. Note: the burner compartments are fitted with a safety cut-off valve. The barbecue will not operate unless the burner drawers are locked into position.

caution

The following instructions showing how to remove the burner should only be followed if there is a real need to clean the burner, it is not recommended to do too frequently. Extreme care should be observed, as incorrect re-assembly of the burner or disturbance of the ignition electrode could cause explosion risk or ignition problems, ensure that the instructions are followed very carefully.

Cleaning the burner

Remove cooking plates and cast plate support and heat baffle. Remove burner drawer. Remove screw holding burner to drawer by unscrewing counter-clockwise. Remove burner by lifting up on the end, angle the burner downwards and remove from drawer.

Technical line drawing of a mechanical device with rollers and a handle (no text or symbols)

Burner exterior cleaning

Clean the exterior of the burner with a wire brush. Clean stubborn scale with a metal scraper. Clear any clogged ports with a straightened paper clip. Never use a wooden toothpick as it may break off and clog the port. Shake out any debris. Use a flashlight to inspect the burner inlet to ensure it is not blocked. If obstructions can be seen, use a metal wire coat hanger that has been straightened out.

Burner internal cleaning

With the burner removed, shine a flashlight through the opening to ensure there is no blockage. Use a needle to clear any debris. Be extremely careful not to enlarge the hole or break off the needle.

Illustration of two hand-drawn diagrams showing a device being dispensed into a frame (no text or symbols present)

warning

It is extremely important to centre the burner on the orifice properly to prevent a fire hazard or explosion.

Reassembly of the burner

It is critical to the safety of this appliance that the burner is reassembled correctly following these instructions: Carefully put the burner tube back into position in the same way it was removed (lower the inlet end and insert centrally without forcing into the inlet housing). Then lower the opposite end and line up the tab with the screw hole and fasten the screw. Check that the burner is not loose and has correctly engaged in the inlet area. Check that the ignition tip is approximately 5mm away from the gas burner tube. Follow the “Assembling the grates” section to correctly reassemble the barbecue ready for use.

Troubleshooting

problem possible cause remedy
Barbecue won't light	No gas Check isolation valve is ON
	Ignition system not working	Check battery – should hear a clicking noise when the knob is depressed
		Check spark electrode/ spark gap
		Replace battery
		Manually light the barbecue
Excess smoke being emitted from the cooking area	Gas valve set too high	Turn gas valves down or turn off selected burners
	Grease build-up burning off	Turn off barbecue, allow to cool and clean excess grease
Smell of gasDO NOT ATTEMPT TO LIGHT THE APPLIANCE	Gas leak Turn off	gas at the isolation valves
		Check for leaks, tighten joints
		If problem persists call your Electrolux Service Centre

Electrolux Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE: ELECTROLUX FUEGO BARBECUE

This document sets out the terms and conditions of product warranties for Electrolux branded appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Electrolux appliance.

General Terms and Conditions

1. In this warranty

(a) ‘Electrolux’ means Electrolux Home Products Pty Ltd ABN 51004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited in respect of Appliances purchased in New Zealand;

(b) ‘Appliance’ means any Electrolux product purchased by you accompanied by this document;

(c) 'Warranty Period' means

(i) where you use the Appliance for personal, domestic or household purposes in Australia the period of '24' months and in New Zealand the period of '24' months;

(ii) where you use the Appliance for commercial purposes, in Australia the period of '3' months and in New Zealand the period of '3' months, (if the period stated is 0 months you are not covered by this product warranty) following the date of original purchase of the Appliance;

(d) 'you' means the purchaser of the Appliance not having purchased the appliance for re-sale, and 'your' has a corresponding meaning.

1. This warranty only applies to Appliances purchased and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand.

2. Electrolux warrants that, when dispatched from an Electrolux warehouse, the Appliance is free from defects in materials and workmanship for the Warranty Period.

3. During the Warranty Period Electrolux or its Authorised Service Centre will, at no extra charge if your appliance is readily accessible without special equipment, and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux or its ASC may use reconditioned parts to repair your appliance. You agree that any replaced Appliances or parts become the property of Electrolux. This warranty does not apply to light globes, batteries, filters or similar perishable parts.

4. Parts and Appliances not supplied by Electrolux are not covered by this warranty.

5. Where you are within an Electrolux service area, this warranty covers the cost of transport of the Appliance to and from Authorised Service Centres of Electrolux and travelling costs for representatives of the Authorised Service Centre to and from your home or business. If you are outside an Electrolux service area, you will bear these costs. For information about whether you are within an Electrolux service area, please phone 13 13 49 in Australia, or 0800 10 66 10 in New Zealand.

6. Proof of purchase is required before you can make a claim under this warranty.

7. You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Electrolux is not liable in the following situations (which are not exhaustive):

(a) The Appliance is damaged by:

(i) accident

(ii) misuse or abuse, including failure to properly maintain or service

(iii) normal wear and tear

(iv) power surges, electrical storm damage or incorrect power supply

(v) incomplete or improper installation

(vi) incorrect, improper or inappropriate operation

(vii) insect or vermin infestation.

(b) The Appliance is modified without authority from Electrolux in writing.

(c) The Appliance's serial number or warranty seal has been removed or defaced.

(d) The Appliance was serviced or repaired by anyone other than Electrolux or its Authorised Service Centres.

1. This warranty, the contract to which it relates and the relationship between you and Electrolux are governed by the law applicable in the Australian State where the Appliance was purchased or the law applicable in New Zealand if the Appliance was purchased in New Zealand. Where the Appliance was purchased in New Zealand for business purposes the Consumer Guarantee Act does not apply.

Limitation of Liability

1. To the extent permitted by law:

(a) Electrolux excludes all warranties other than as contained in this document;

(b) Electrolux shall not be liable for any loss or damage whether direct or indirect or consequential arising from your purchase, use or non-use of the Appliance.

1. Provisions of the Trade Practices Act and State consumer legislation in Australia, and the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act in New Zealand, imply warranties or conditions, or impose obligations, upon Electrolux which cannot be excluded, restricted or modified. To the extent permitted by law, the liability of Electrolux (if any) arising out of or in relation to the Appliance or any services supplied by Electrolux shall be limited (where it is fair and reasonable to do so):

(a) in the case of Appliances, at its option, to the replacement or repair of the Appliances or the supply of equivalent products or the payment of the cost of replacing the Appliances or having the Appliances repaired or of acquiring equivalent Appliances. Upon being replaced, parts and Appliances become the property of Electrolux; or

(b) in the case of services, at its option, to the supply of the services again or the payment of the cost of having the services re-supplied; and in the case of Appliances or services supplied in New Zealand, loss or damage whether direct or indirect or consequential that is reasonably foreseeable.

Privacy

You acknowledge that in the event that you make a warranty claim it will be necessary for Electrolux and its Authorised Service Centres to exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice
Before Calling a Service Technician please check carefully the operating instructions, service booklet and the warranty terms and conditions.

FOR SERVICEor to find the address of your nearest state service centre in AustraliaPLEASE CALL 13 13 49For the cost of a local call (Australia only)

SERVICE AUSTRALIAElectroluxELECTROLUX HOME PRODUCTSwww.electrolux.com.au

FOR SPARE PARTSor to find the address of your nearest state spare parts centre in AustraliaPLEASE CALL 13 13 50For the cost of a local call (Australia only)

FOR SERVICEor to find the address of your nearestauthorised service centre in New ZealandFREE CALL 0800 10 66 10(New Zealand only)

SERVICE NEW ZEALANDElectroluxELECTROLUX HOME PRODUCTSwww.electrolux.co.nz

FOR SPARE PARTSor to find the address of your neareststate spare parts centre in New ZealandFREE CALL 0800 10 66 20(New Zealand only)

Black-and-white photo of a grating setup with grilled fish, shrimp, and oysters on a metal grater (no text or symbols visible)

Electrolux Home Products Australia

telephone: [phone]

fax: [phone]

email: [e-mail]

web: www.electrolux.com.au

The Thoughtful Design Innovator.

Do you remember the last time you opened a gift that made you say "Oh! How did you know? That's exactly what I wanted!" That's the kind of feeling that the designers at Electrolux seek to evoke in everyone who chooses or uses one of our products. We devote time, knowledge, and a great deal of thought to anticipating and creating the kind of appliances that our customers really need and want.

This kind of thoughtful care means innovating with insight. Not design for design's sake, but design for the user's sake. For us, thoughtful design means making appliances easier to use and tasks more enjoyable to perform, freeing our customers to experience that ultimate 21st century luxury, ease of mind. Our aim is to make this ease of mind more available to more people in more parts of their everyday lives, all over the world. So when we say we're thinking of you, you know we mean just that.

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com.au
