Product Type	Integrated Built-in BBQ
Model	EQBL60AS

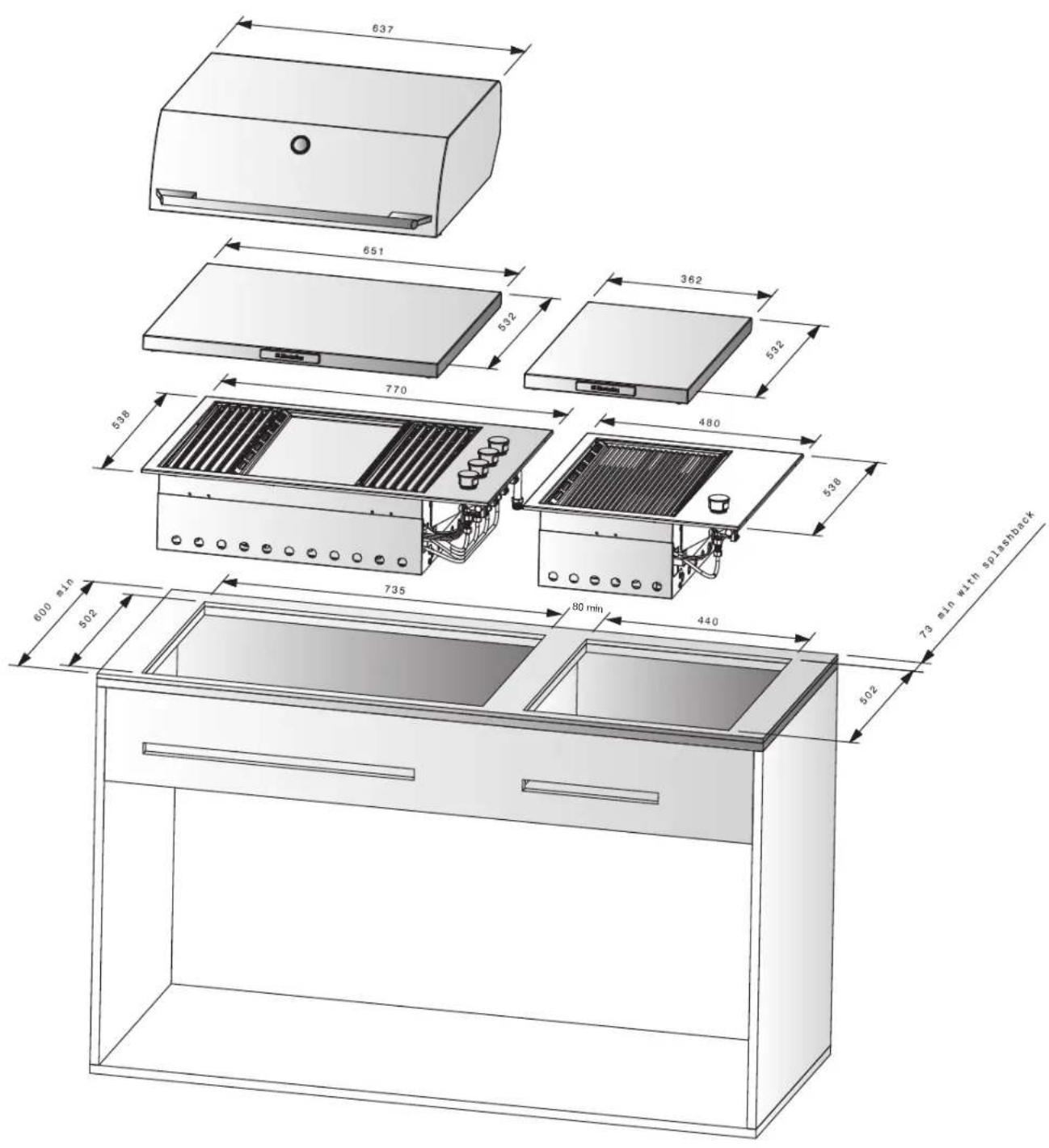

Dimensions (cut-out)	735 mm x 502 mm
Gas Type	Natural Gas (convertible to Universal LPG)
Number of Burners	4
Maximum Gas Consumption	46 MJ/h (Natural Gas or LPG)
Injector Orifice Diameter	1.50 mm (Natural Gas), 0.90 mm (LPG)
Regulator Pressure	1.00 kPa (Natural Gas), 2.75 kPa (LPG)
Cooking Surface	Grills and hotplate (porcelain enamel cast iron)
Lid Type	Slimline lid (weather protection cover)
Ignition	Automatic spark (with manual match lighting backup)
Safety Features	Lid safety leg, leak test procedure, anti-tilt pivoting leg
Cleaning	Removable oil reservoirs, mild detergent and water
Materials	Stainless steel body, porcelain enamel cooking plates
Warranty	24 months (Australia and New Zealand)
Usage	Outdoor use only

Frequently Asked Questions - EQBL60 ELECTROLUX

How do I light the barbecue?

Depress and rotate a control knob to HIGH HEAT. A spark will ignite the flame thrower. If automatic ignition fails, use the match holder provided to manually light through the viewing slots.

Can I convert the barbecue from Natural Gas to LPG?

Yes, a Universal LPG conversion kit is available. Conversion must be carried out by a qualified licensed person. The kit includes different injectors (0.90mm) and a hose/regulator assembly.

How do I clean the cooking plates?

Allow plates to cool, remove solid debris with a brass brush, wipe grease with paper towel, wash with mild detergent and hot water, dry immediately, and apply a light coat of cooking oil. Do not use abrasive cleaners or dishwasher.

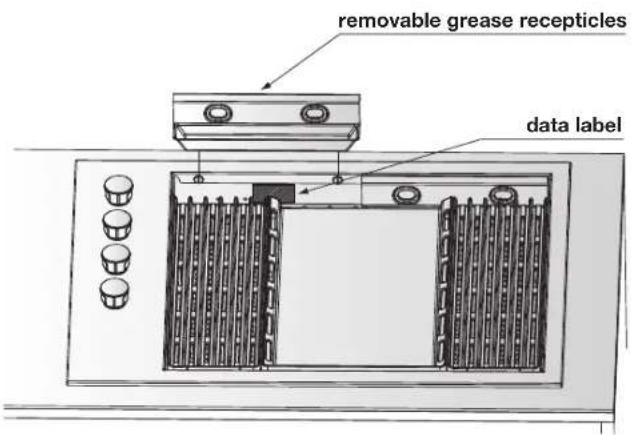

Where is the data label located?

The data label is located behind the removable grease receptacles at the front of the barbecue.

What should I do if I smell gas?

DO NOT attempt to light the barbecue. Turn off the gas supply at the isolation valve. Check all connections for leaks using a soapy water solution. If the leak persists, contact a licensed gas fitter.

What are the installation clearance requirements?

Minimum clearance from combustible materials: 450mm sides, 600mm above cooking surface. The barbecue must be installed in an outdoor, well-ventilated area. For enclosure requirements, refer to the manual.

How do I perform a leak test?

Ensure all valves are OFF. Mix water and detergent, apply to gas connection points, turn on the gas supply, and look for bubbles. If bubbles appear, tighten the joint and retest. If the leak persists, turn off gas and call a professional.

Can I use the barbecue indoors?

No. This barbecue is designed for OUTDOOR use only. Never use it inside a building, garage, shed, boat, or recreational vehicle due to risk of fire and carbon monoxide poisoning.

What is the warranty period?

For personal household use: 24 months from date of purchase in Australia and New Zealand. For commercial use: 3 months.

Why is there excessive smoke during cooking?

Excess smoke usually means the burner setting is too high. Turn down the gas valve or turn off selected burners. Ensure the roasting hood is not closed when using more than 2 burners.

USER MANUAL EQBL60 ELECTROLUX

Black-and-white photo of two people laughing and interacting outdoors, no visible text or symbols

Congratulations

Congratulations and thank you for choosing our barbecue. We are sure you will find your new appliance a pleasure to use. Before you use the appliance, we recommend that you read through the entire user manual, which provides the description of the appliance and its functions.

To avoid the risks that are always present when you use a gas appliance, it is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

After unpacking the appliance please check it is not damaged. If in doubt, do not use the appliance but contact your local Electrolux Customer Care Centre.

CONDITIONS OF USE

This appliance is intended to be used in household and similar applications such as:

• Farm houses
• By clients in holiday apartments and other residential type environments.

Contents

• Important safety instructions 3
• Product Description 4
- Contents of Integrated BBQ 600/300mm 7
• Assembling the barbecue 8
• Gas specifications 9
• Gas connection detail 9
• Natural gas installation 10
• Universal LPG installation 11
• Gas bottle safety information 12

- Leak test procedure 12

• Installation warnings 13

• Installation instructions 13

• Gas requirements 17

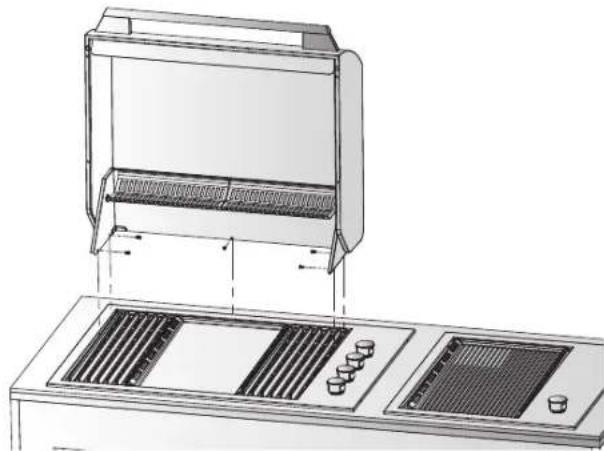

• Fitting the slimline lid or roasting hood 17

- Options for configuration of hotplates and grills 18

- Operating instructions 18

• Using the roasting hood 19

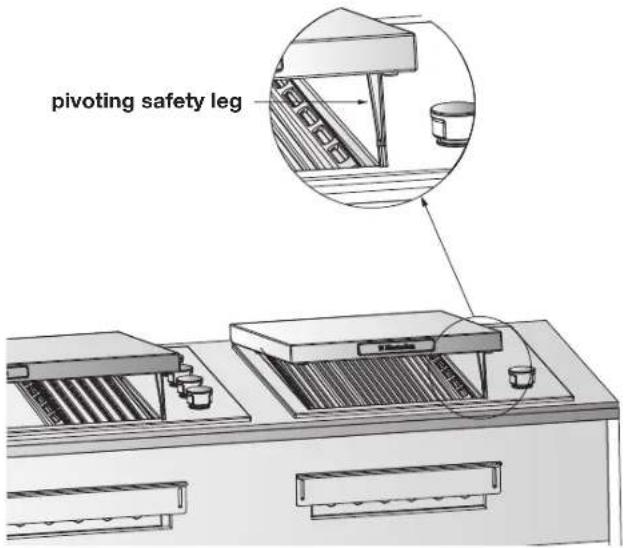

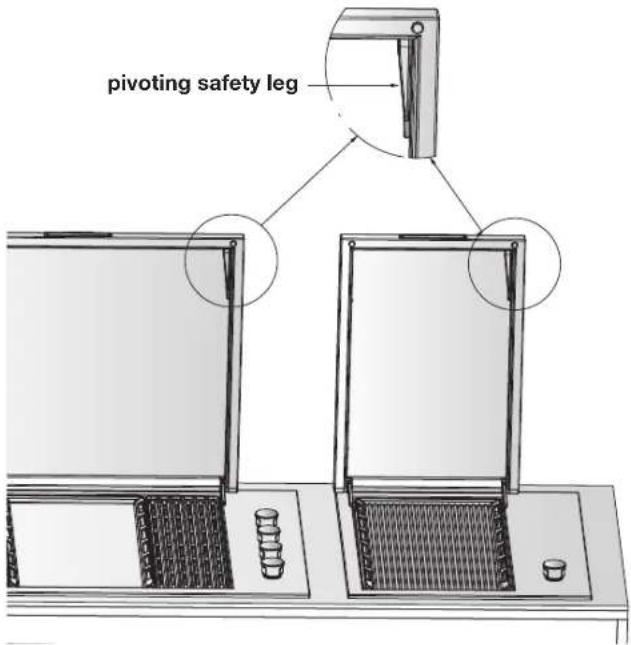

- Lid safety leg – slimline lid only 19

- Cleaning and care 20

- Maintenance 21

- Troubleshooting 21

- Notes 22

- Warranty 23

Important safety instructions

For your safety please read this user manual carefully before operating your barbecue and store in a handy place for later reference. Pass the user manual on to possible new owners of the barbecue.

The symbols you will see in this booklet have these meanings:

warning

This symbol indicates information concerning your personal safety

caution

This symbol indicates information on how to avoid damaging the barbecue

tips and information

This symbol indicates tips and information about use of the barbecue

environmental tip

This symbol indicates tips and information about economical and ecological use of the barbecue

This symbol indicates never to do this

This symbol indicates always do this

environmental tip

Information on disposal for users

• Most of the packing materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers.
• If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

warning

This appliance MUST be installed and serviced by a qualified licensed person only.

Improper installation, adjustment, alteration or maintenance can cause injury or property damage. Please contact your nearest Electrolux Service Department for additional information or assistance for an approved installer.

NOTE TO THE INSTALLER

THIS MANUAL MUST REMAIN WITH THE OWNER FOR FUTURE REFERENCE

warning

IF YOU SMELL GAS, do not attempt to light the barbecue. Locate the leak and re-tighten the leaking joint. Carry out the Leak Test procedure as described in this manual. If the leak persists, turn off the gas supply and call Electrolux Service or a Licensed Gas Fitter.

warning

Do not lean over barbecue when lighting.
Do not leave the barbecue unattended when alight.
Do not delay lighting once the gas has been turned on.
Do not store or use aerosol cans in the vicinity of the barbecue.
Do not store flammable liquids in the vicinity of the barbecue.
Do not use caustic or abrasive based cleaners on the barbecue.
Do not operate the barbecue with the cover on.
Do not attempt to dismantle or adjust the control valves.
Do not attempt to dismantle or adjust the regulator.
Do not test for leaks with a naked flame.
Do not modify the construction of this appliance or modify the injector orifice size.
Do not obstruct any ventilation of the barbecue.
Do not allow children to operate or play near the barbecue.

caution

This barbecue is supplied set up for Natural Gas and is labelled accordingly. A Universal LPG conversion kit is available for purchase from Electrolux Service or Spare Parts. Conversion of this unit to Universal LPG must be carried out by a qualified licensed person and a Certificate of Compliance must be issued to the owner on completion of the installation and conversion.

before you call

Please ensure you read the instruction manual fully before you call for service, or a full service fee could be applicable.

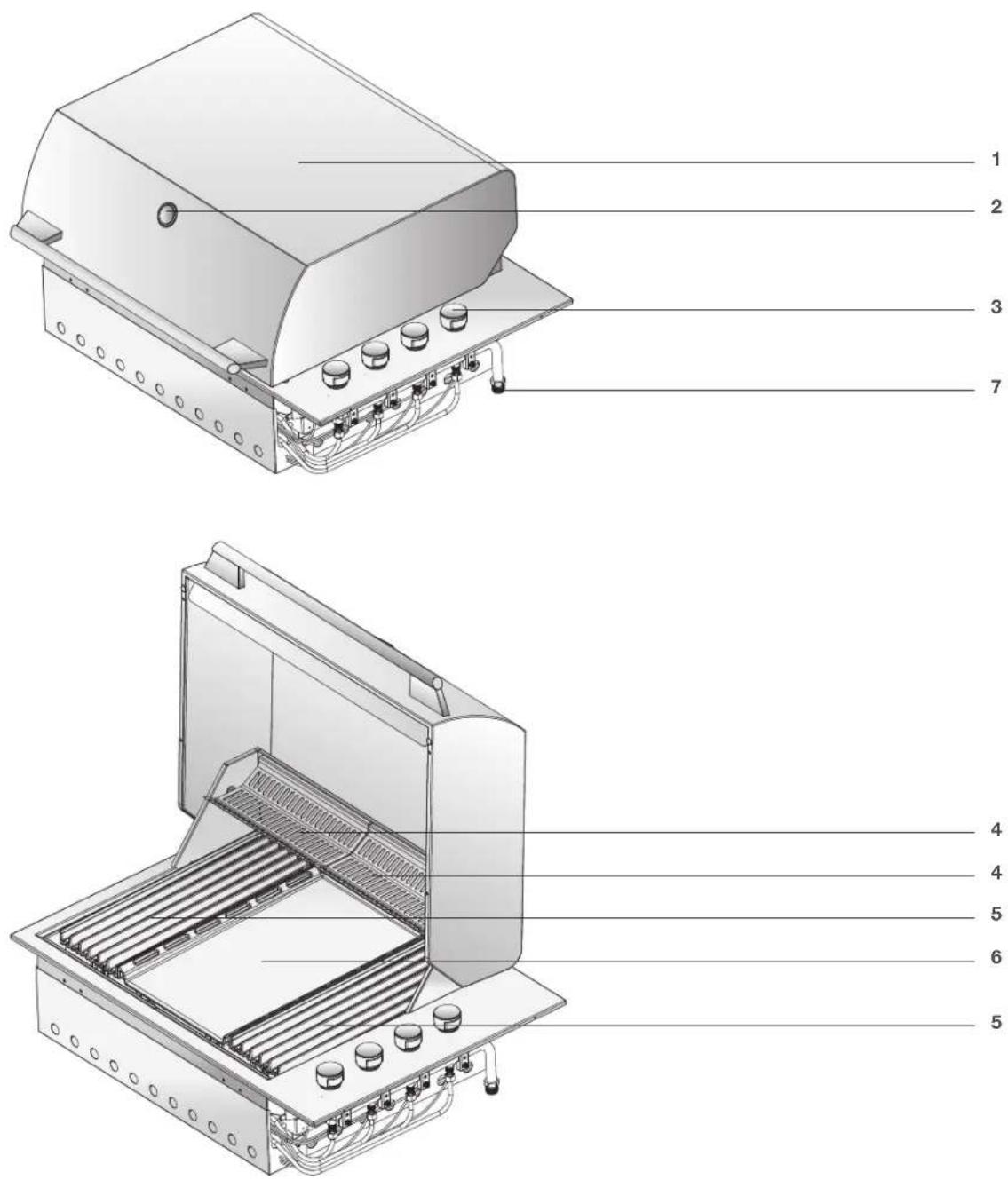

Product description EQBH60AS

1 Roasting hood
2 Temperature indicator
3 Burner controls
4 Warming racks
5 Grill
6 Hotplate
7 Gas connection point

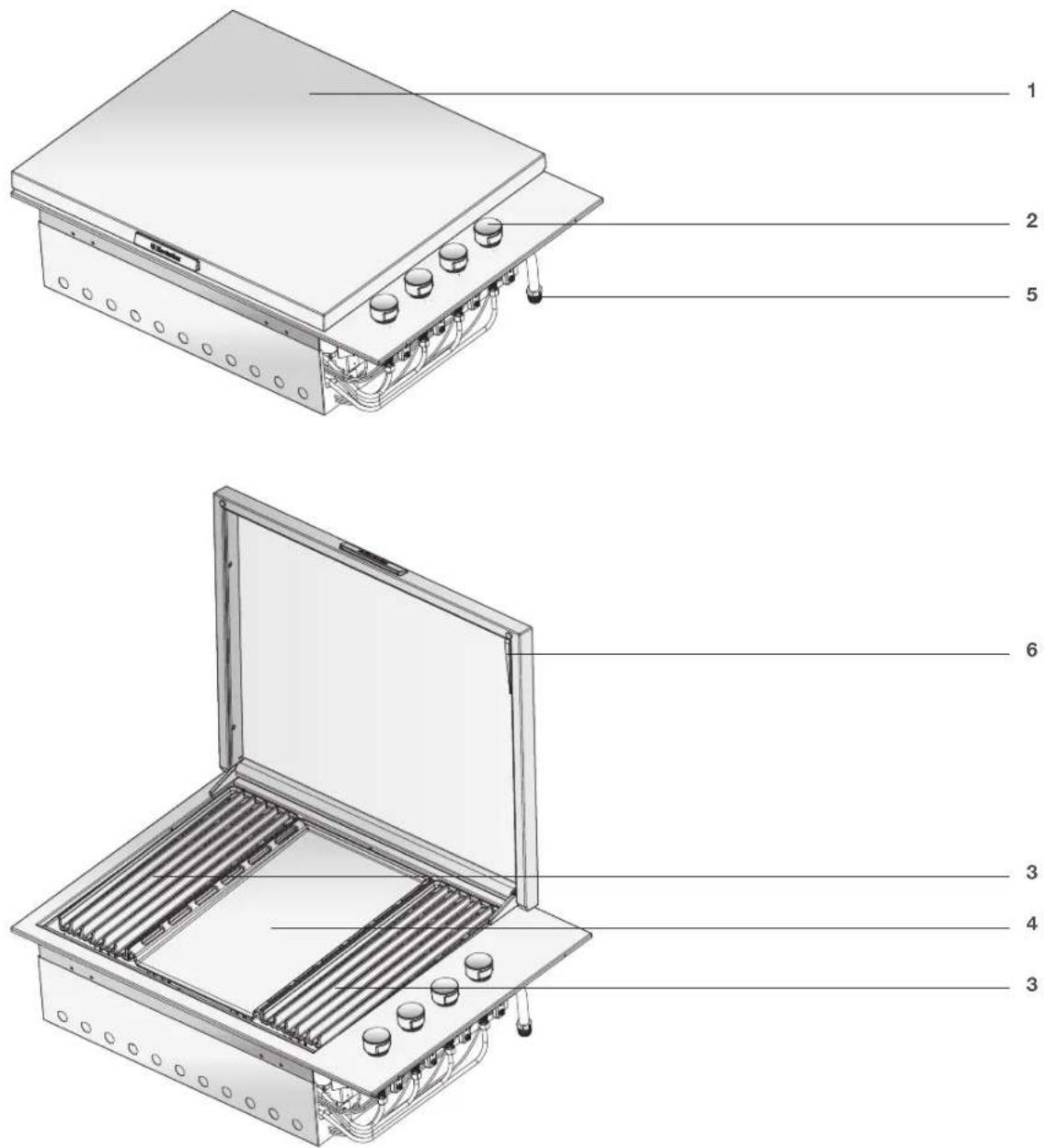

Product description EQBL60AS

1 Slimline lid cover
2 Burner controls
3 Grill
4 Hotplate
5 Gas connection point
6 Pivoting leg

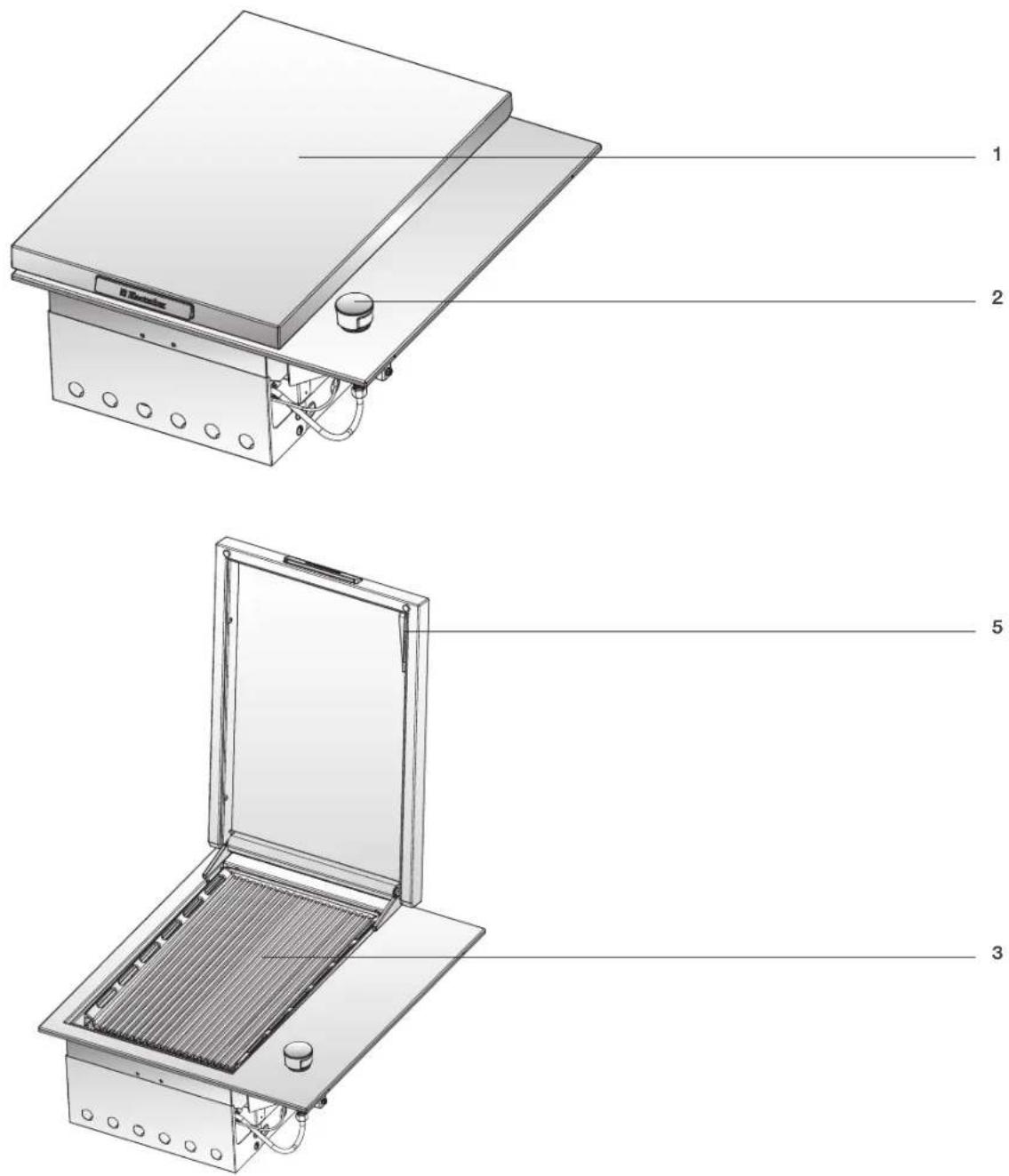

Product description EQBL30AS

1 Slimline lid cover
2 Burner control
3 Ribbed hotplate
4 Gas connection point (not illustrated)
5 Pivoting leg

Contents of 600mm Integrated Barbecue Contents of 300mm Integrated Barbecue

item description qty
	• EQB6BAS – 60cm built in base	1
	• EQB6HAS – Roasting hood and warming racks OR • EQB6LAS – Flat lid with mounting brackets	1
	• Grills 2
	• Hotplate 1
	• Rear heat shield 1
	• Flame tamers 2
	• Oil reservoirs 2
	• Natural Gas installation pipe	1
	• Natural Gas regulator	1
	• Natural Gas hose 1
	Plastic bag containing this instruction book, match holder and chain, trim panel screws and 2 blue fibre washers	1

item description qty
	• EQB3BAS – 30cm mobile base	1
	• EQB3LAS – Small flat lid with mounting brackets	1
	• Ribbed hotplate 1
	• Rear heat shield 1
	• Oil reservoir 1
	• Hose 1
	• Natural Gas regulator	1
	• Natural Gas hose 1
	• Regulator mounting bracket
	Plastic bag containing this instruction book, match holder and chain, trim panel screws, regulator mounting screws, and a blue fibre washer	1

8 assembling the bbq electrolux integrated bbq 600/300mm

Assembling the Barbecue

1. Remove packaging & remove all components from packaging.

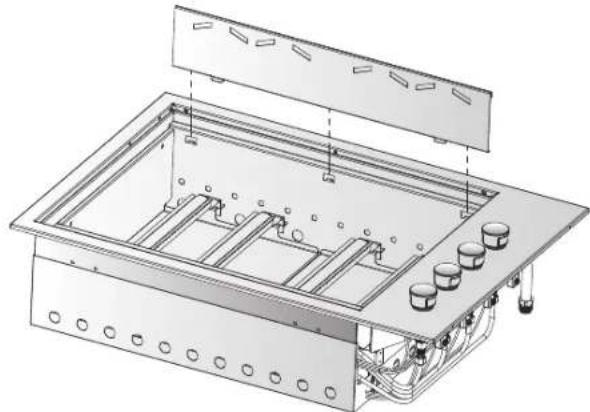

2. Attach rear heat shield to rear of unit by inserting the top tabs into the rear holes and sliding the shield down.

Technical line drawing of an electrical enclosure with internal components and mounting brackets (no text or symbols)

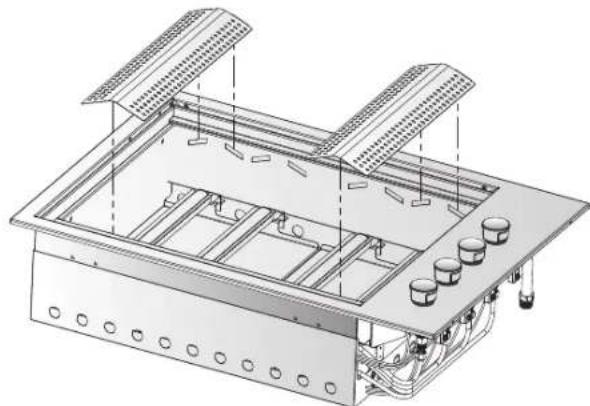

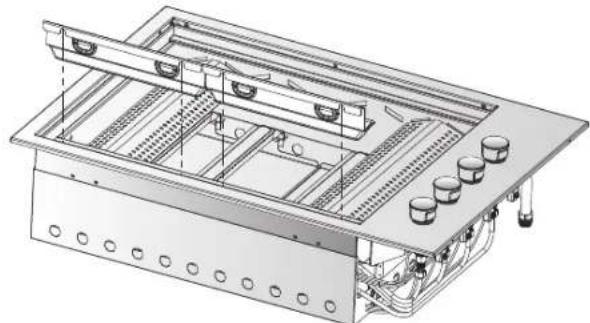

1. Position flame tamers (60cm model only) into desired locations (under where grill sections will be fitted) and fix back edge of the flame tamer into rear of barbecue body

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

1. Ensure left and right hand oil reservoirs are fitted correctly at front of barbecue.

Technical line drawing of a mechanical or electrical enclosure with internal compartments and mounting holes (no text or symbols)

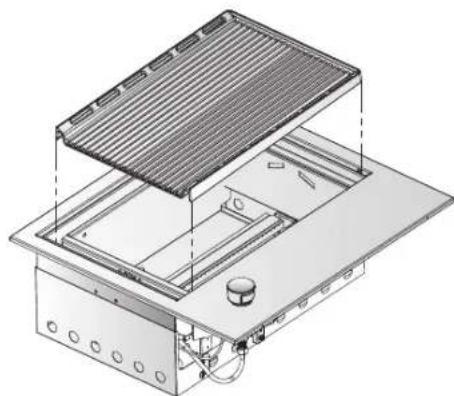

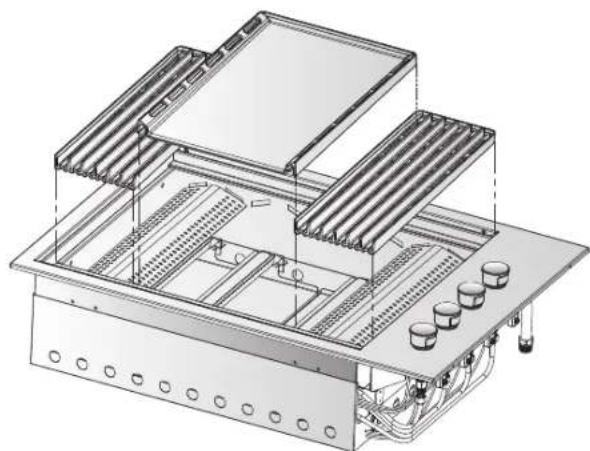

1. Place cooking plates into desired positions ensuring that the flame tamers are under the grill sections.

NOTE:

Ensure that all cooking plates are orientated correctly so that the surface is sloping forward to allow oil to drain into oil reservoirs.

Technical line drawing of an industrial or laboratory equipment assembly with cooling fans and control panels (no text or symbols)

Exploded view diagram of a microwave oven or oven system (no text or labels)

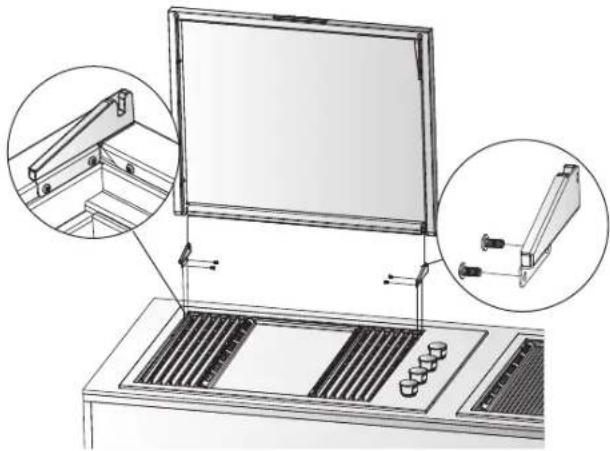

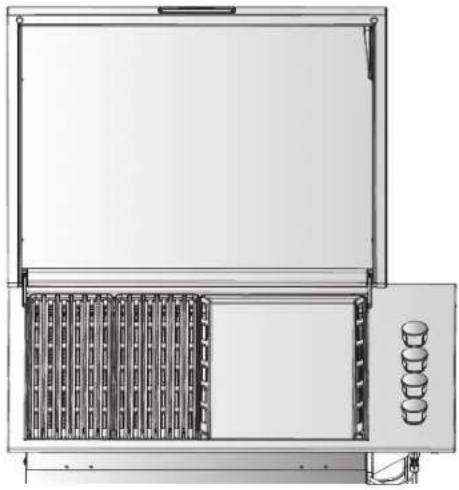

1. After installation in a bench, attach a slimline lid or roasting hood as described in "Fitting the slimline lid or roasting hood" section of this manual.

Gas Specifications

model EQBH60AS & EQBL60AS			EQBL30AS
Gas type Natural gas	Universal LPG	Natural gas	Universal LPG
Maximum gas consumption	46 MJ/h 46 MJ/h 11.5 MJ/h 11.5 MJ/h
Injector orifice diameter (mm)	1.50 0.90 1.50 0.90
Number of injectors	4 4 1 1
Regulator pressure	1.00kPa* 2.75kPa 1.00kPa* 2.75kPa

NOTE:

- This appliance MUST be installed and serviced by a qualified licensed person only.

• This product is intended for outdoor use only.

- This product must be installed as per instructions which requires the installation of venting to enable the barbecue to operate correctly. Failure to provide adequate ventilation for supply of air to the appliance may result in poor burner performance or excessive heat build-up within the mounting enclosure.

- Ventilation holes in the unit must not be obscured by installation.

* The outlet pressure at the natural gas regulator will be lower with all burners operating. Burner pressure should read 1.0kPa with one burner operating and approximately 0.90kPa with four burners operating.

For conversion to Universal LPG a conversion kit will need to be purchased from Electrolux Spare Parts.

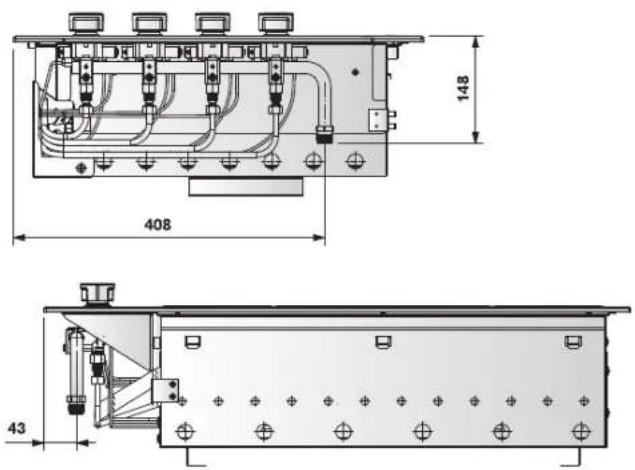

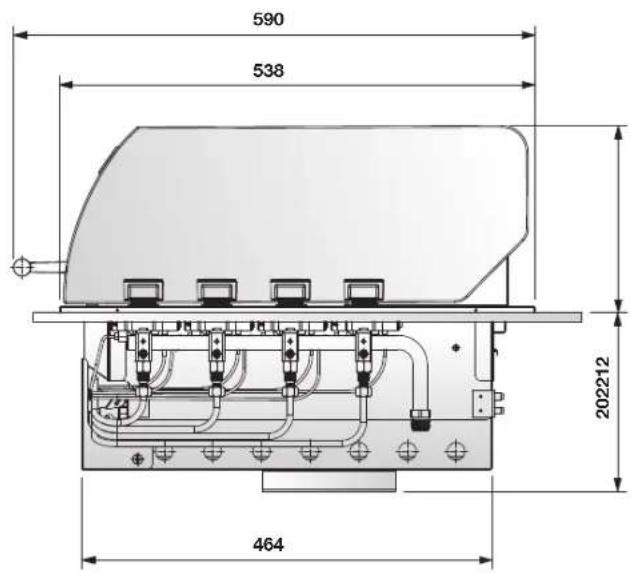

Gas connection detail

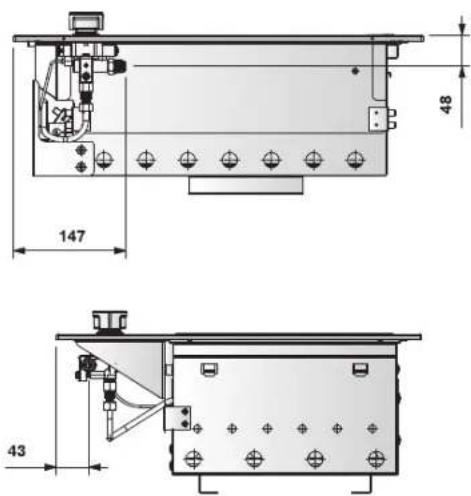

EQBH60AS & EQBL60AS

EQBL30AS

10 natural gas installation electrolux integrated bbq 600/300mm

Natural Gas installation

Preparing the unit for Natural Gas installation

This barbecue is supplied set up for Natural Gas and is labelled accordingly. A Universal LPG conversion kit is available from Electrolux Spare Parts if required. Conversion of this unit to Universal LPG must be carried out by a qualified licensed person.

A Certificate of Compliance must be issued to the owner on completion of the installation and conversion.

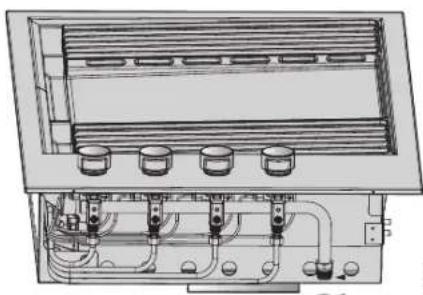

EQBH60AS & EQBL60AS

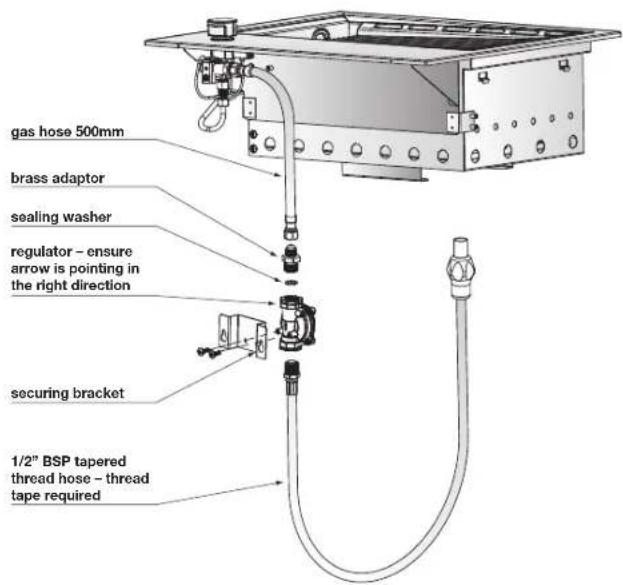

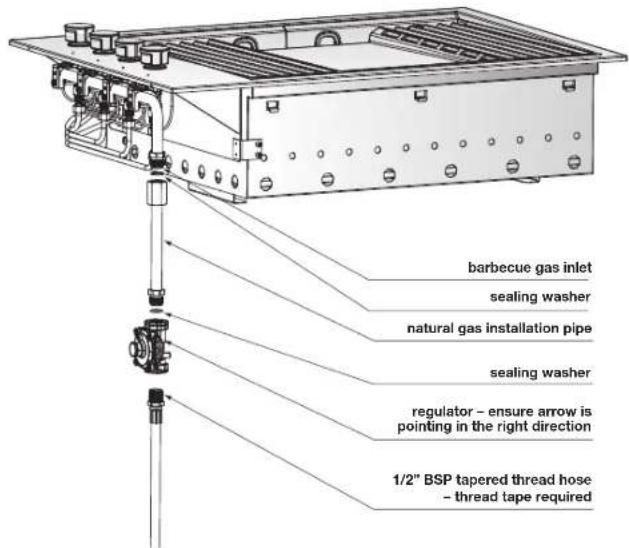

1. Fitting the Natural Gas installation pipe
2. Fit the pipe ensuring the blue sealing washer is in place. Do not over-tighten.
3. Fitting the regulator
4. Fit the regulator ensuring the blue sealing washer is in place and the arrow indicating gas flow direction is correct. Do not over-tighten.
5. Fit the hose
6. Apply thread tape or sealant to the male thread on the hose and screw into the regulator. Do not over-tighten.

1. Fit to mains

- Connect the bayonet end to mains.

EQBL30AS

1. Fit flexible black hose to the gas inlet. Do not over-tighten.
2. Fit the brass adaptor to the black flexible hose. Do not over-tighten.
3. Fit the regulator to the adaptor with fibre washer ensuring that fibre washer seated correctly into adaptor. Do not over-tighten.
4. Fit the hose to the regulator

- Apply thread tape or sealant to the male thread on the hose and screw into the regulator. Do not over-tighten.

1. Secure regulator using bracket supplied
2. Fit to mains
3. Connect the bayonet end to mains.

1. Ensure routing of gas supply hose prevents the hose from contacting hot surfaces of burner base or burner box.
2. Complete leak test of final assembly. (refer to page 12)

Universal LPG installation

Preparing the unit for Universal LPG installation

This barbecue is supplied set up for Natural Gas and is labelled accordingly. A Universal LPG conversion kit is available from Electrolux Spare Parts to enable conversion to Universal LPG and connection to a 9kg bottle.

Remote ULPG supply

The barbecue can be plumbed into a remote or household ULPG supply. Never connect the barbecue to an unregulated supply, ensure supply pressure at the barbecue is 2.75kPa. Electrolux strongly recommends that a manual shut off valve be installed in the gas supply line in an accessible position so that gas can be turned off in the event of an emergency, or during servicing.

NOTE:

Conversion of this unit to Universal LPG must be carried out by a qualified licensed person and a Certificate of Compliance must be issued to the owner on completion of the installation and conversion. The components are:

For models EQBH60AS & EQBL60AS

• Hose and regulator assembly
• Small plastic bag containing 4 brass injectors (0.90mm)
  • 1 Universal LPG sticker
• 1 brass adaptor
• 1 sealing washer

For models EQBL30AS

• Hose and regulator assembly

• Small plastic bag containing 1 brass injector (0.90mm)
  • 1 Universal LPG sticker

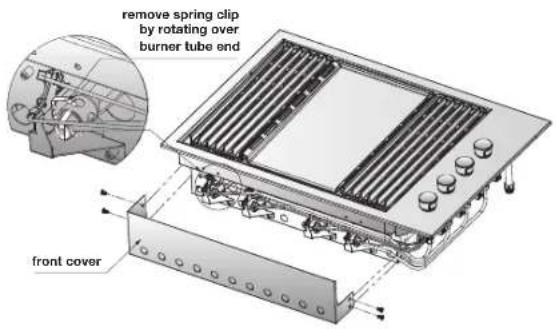

• Change the injectors

- Remove the front cover.

- Remove the burner retaining clips as shown.

- Unscrew and replace the injector nipples located in the end of each tube feeding the burners. The Universal LPG injectors have a 0.90mm diameter orifice in them. They appear substantially smaller than the Natural Gas injectors.

• Re-fasten the clip to retain the tube in the burner. Do not over tighten or distort supply tube.
  • Fit the front cover back on and fasten screws.

• Adjust the turndown setting on the valve

- Remove the knobs from the valves.

- Remove rubber grommets from control panel holes.

- For each valve rotate the valve rotation limiting screw anti-clockwise using a Philips head screw driver until valve shaft is able to be rotated more than 180° (approx 3 turns).

Valve rotation limiting screw

• Re-fit grommets and knobs

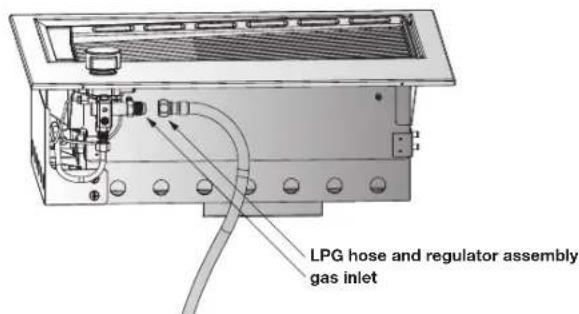

3. For EQBH60AS & EQBL60AS only, connect the adaptor to the barbecue gas inlet. Ensure the blue sealing washer is in place. Do not over tighten.
4. Connect the hose. Do not over tighten.

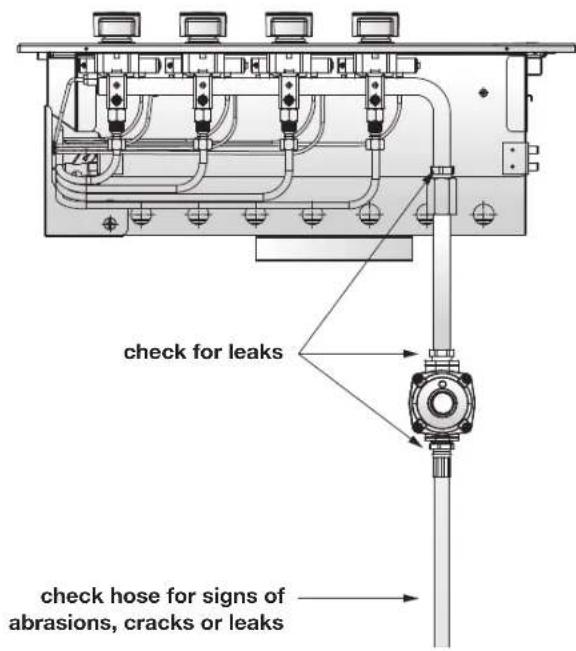

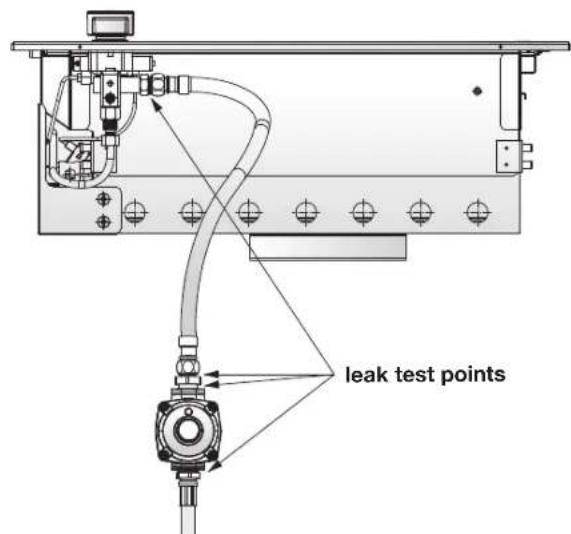

5. Following connection to gas bottle, conduct a leak test for all joints made (refer leak test procedure page 12).
6. Light all burners and one at a time set the burner to the lowest setting and check a small steady flame is achieved.

EQBH60AS & EQBL60AS

Technical diagram of an electrical enclosure with internal components and wiring (no text or labels)

barbecue gas inlet sealing washer

brass adaptor

LPG hose and regulator assembly

EQBL30AS

1. Replace the 'gas type' sticker

- Locate the 'Natural Gas' sticker located on or near the gas inlet and remove it. Put the Universal LPG sticker in its place.

12 gas bottle safety & leak test electrolux integrated bbq 600/300mm

Gas bottle safety information Leak test procedure

• This appliance is designed to use a Universal LPG 9kg (20 lbs) gas cylinder.
• The gas cylinder must be made and marked in accordance with specifications for LPG cylinders.
• It is recommended to turn off the cylinder valve when the appliance is not in use.
  • Gas cylinders must be stored in an approved housing out of reach of children.
• When disconnecting the gas bottle ensure that all the control valves are in the 'OFF' position.
• Remove the bottle from any housing in which it may be stored before disconnection.
• When reconnecting the hose to the bottle, ensure that all connections are tight before replacing in the storage compartment.

• Carry out a leakage check as detailed on this page after each re-connection.

• Ensure all gas valves are in the 'OFF' position.

• In a small container, mix a solution of water and detergent or soap.
  • After connection of the hose, turn on the valve at the gas bottle or mains as appropriate.
  • Using a brush apply the solution to the gas connection points and look for bubbles forming.
  • Bubbling will indicate a leak.
• Turn off the valve and re-tighten the joint. Repeat the leak test.
• If the leak persists, turn off the gas at the isolation valve and contact a licensed gas fitter to correct.

EQBH60AS & EQBL60AS

EQBL30AS

Installation warnings Installation instructions

warning

• This appliance shall only be used in an above ground, open air situation with natural ventilation without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind or natural convection. This barbecue has been designed for outdoor use only. Refer to diagrams below.
• Never install this barbecue inside any building, garage, shed or breezeway or inside a boat, caravan or recreational vehicle. This is to prevent the possibility of fire, carbon monoxide poisoning or asphyxiation.
• Any enclosure in which this appliance is installed shall comply with one of the following:
• An enclosure with walls on all sides, but at least one permanent opening at the ground level and no overhead covering.
• Within a partial enclosure that includes an overhead cover and no more than 2 walls.
  – Within a partial enclosure that includes an overhead cover and more than 2 walls, the following shall apply:
• at least 25% of the total wall area is completely open and at least 30% of the remaining wall area is open and unrestricted.
• In the case of balconies, at least 20% of the total of the side, back and front wall areas shall be and remain open and unrestricted.

Outdoor area example 1

Outdoor area example 2

Outdoor area example 3

both ends open

Outdoor area example 4

open side at least 25% of total wall area

30% or more in total of the remaining wall area is open and unrestricted

Outdoor area example 5

open side at least 25% of total wall area

30% or more in total of the remaining wall area is open and unrestricted

Choosing a location

• This appliance must not be installed on any combustible material. A minimum clearance from any combustible material is 450mm.
• The vertical clearance above the cooking surface to any combustible materials must be at least 600mm.
• This appliance must be installed in accordance with Australian Standards AS4557 and AS5601 and in accordance with the local authority.
• When using LPG in an enclosure ventilation must be provided. Gas is highly explosive and can cause serious injury and damage to property if allowed to accumulate and then be ignited.
• This barbecue is intended to be built into a benchtop with a minimum depth of 600mm.
• Avoid windy positions as this will affect cooking performance and burner efficiency. If this situation cannot be avoided some shielding may be necessary.
• If the chosen location is exposed to rain consideration will need to be given for water drainage. Some of the rain can drain through the benchtop hole and through the product.

The mounting enclosure

• The barbecue requires a non-combustible barrier under the barbecue to prevent excessive temperatures being accessed. The barrier panel is to be placed 30mm under the base of the unit. There are spacers added to the bottom of the unit to prevent barrier panel being too close to barbecue base. Refer to diagram next page.
• The mounting enclosure must be constructed from non-combustible materials. Suitable materials for construction include masonry, granite, marble, Hardiplank ^® , Villaboard ^® , over a metal frame or tiles.
• This appliance requires venting in the enclosure, see diagrams for details.
• This appliance can be mounted either in an island type bench or a bench with a splashback. Please read the specific requirements for each mounting situation.
• For ULPG use, cabinetry below the barbecue must have low level ventilation to prevent the possibility of ULPG accumulating.

Island style installation

• If the appliance is installed in an island mount, it can be centrally positioned. Special attention should be given to the overall size of the island top to consider the hood open and overhang.

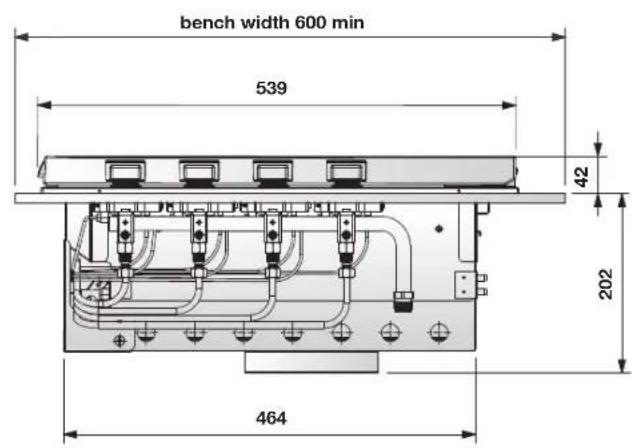

• The cut-out size required for models EQBH60AS & EQBL60AS is 735mm x 502mm.
• The cut-out size required for model EQBL30AS is 440mm x 502mm (as shown on page 15).

warning

- This appliance requires venting. An open area as indicated below must be allowed for. A suitable grille can be fitted if desired. This vent area is to allow air into the enclosure for the correct combustion of gases and for the correct exhausting of the products of combustion. This vent must be 600mm x 25mm for models EQBH60AS & EQBL60AS, and 300mm x 25mm for model EQBL30AS. See location options on pg16.

Installing in a bench with a splashback

• The splashback must be made from a non-combustible material.
• In the case of mounting this appliance against a wall or fence it is imperative that care is taken to ensure the isolation of combustible materials. All combustible materials must be kept 450mm away from the barbecue.

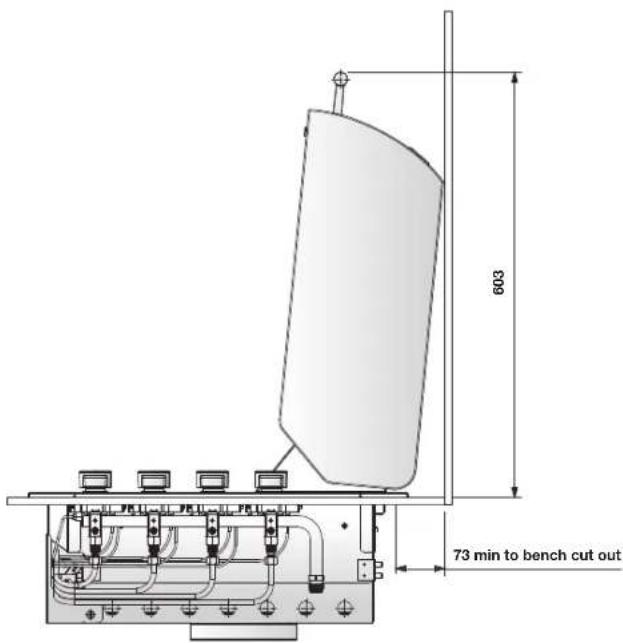

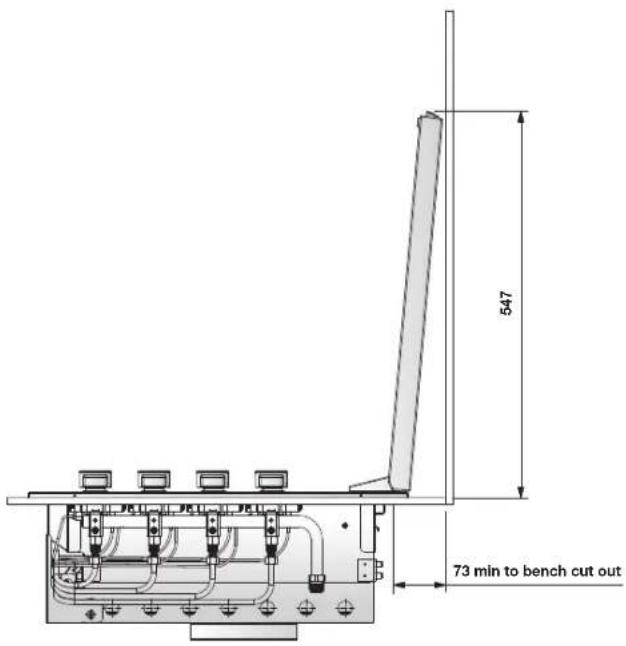

• For roasting hood model there is a specific minimum clearance required at the back of the barbecue between the splashback and the bench cut-out of 73mm. This is to allow clearance to open.

Venting options

There are two venting options that can be used. The first is in the front of enclosure (see diagram below for requirements). The second is in the barrier panel below the barbecue. If an LPG bottle is to be stored under the barbecue, it must be isolated from the vent in the barrier panel.

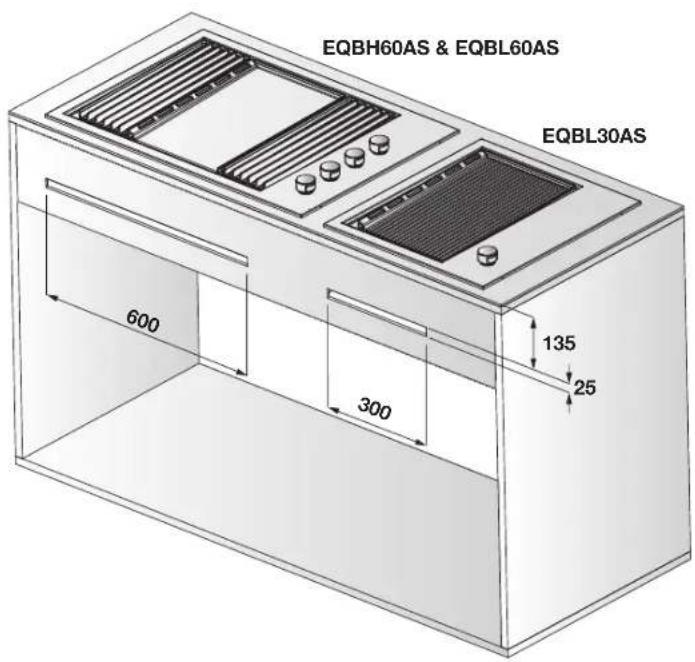

Front vent option - to be located centrally to burner box

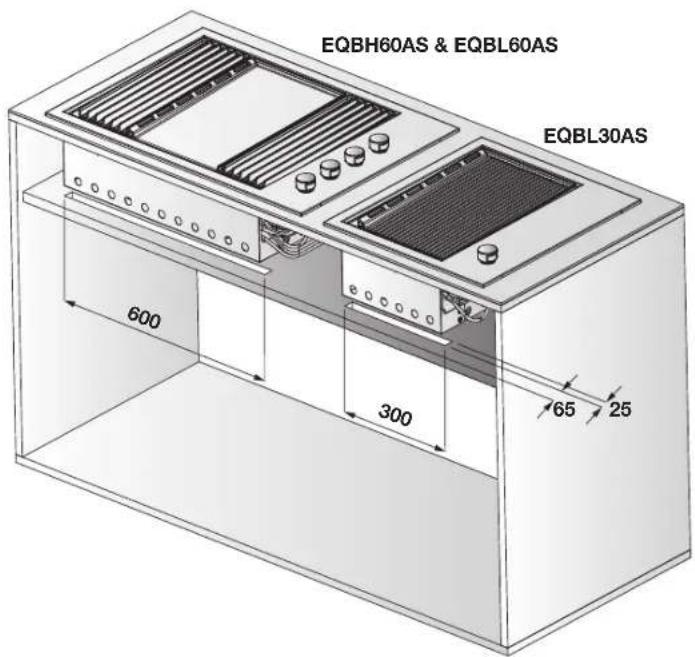

Base vent option (enclosure front removed for clarity) – to be located centrally to burner box

Gas requirements

Natural Gas requirements

• The enclosure must be constructed so that access can be gained to the Natural Gas regulator at all times.
• For Natural Gas the gas supply is required to be connected to 1.2m flexible hose supplied and therefore must be located within this distance.
• The flexible hose has a quick connect gas coupling. The corresponding mating fitting will be required at the gas supply end.
• For pipe sizing requirements for supply pipe refer to AS5601.

Universal LPG Requirements

warning

• If an LPG bottle is to be stored in the enclosure under the barbecue unit, it must be isolated from the barbecue unit with a non-combustible panel.
  The enclosure must comply with the requirements of AS5601.
• AS5601 ventilation requirements for cylinder storage are: Where of sheet metal or similar impervious construction there shall be ventilation openings at the top and bottom of the enclosure or recess, each opening providing a free area of at least 200cm2 for every cylinder enclosed.
• For ULPG installations having enclosed cabinetry below the separation panel that does not contain a gas bottle, low level venting must be installed. This is to allow the gas which is heavier than air escape from the enclosure in the situation where there may be a leak. A minimum opening of 200cm^2 is required.

Setting up the barbecue

Setting up the barbecue in mounting enclosure

• A match holder with attached chain has been included with the instruction manual. This is provided for manual ignition in the event the automatic ignition does not work. The free end of chain is required to be permanently fixed to the installation in a location that enables the match holder to reach each burner (refer to page 18 for manual lighting instructions).
• After the enclosure has been constructed as described on page 13, position the assembled barbecue into the cut-out hole.
• Check that the barbecue is level and is firmly supported.
• Connect to gas supply (Universal LPG or Natural Gas) and leak test.
  • For fitment of the slimline lid or roasting hood (see right).

Fitting the slimline lid or roasting hood

Fitting of slimline lid

• Unpack the slimline lid.
- Remove side screws from barbecue trim surround using a philips head screw driver.
- Cooking plates should be removed in order to attach hinge bracket.
• Fit brackets to trim surround with the same screws.
• Fit lid to brackets.

Technical line drawing of a mechanical device with two views of a screen and a bracket (no text or symbols)

Fitting of roasting hood

• Unpack the roasting hood.
• Remove side and rear screws from barbecue trim surround using a philips head screw driver.
• Cooking plates should be removed in order to attach hinge bracket.

warning

Due to the size of the roasting hood, it is recommended that two people place the roasting hood into position.

• When fitting roasting hood assembly, take particular care to avoid scratching of the external trim.
• Once in position, fix hood assembly to trim surround with same screws.

Technical line drawing of a portable air conditioner unit with cooling fins and control panel (no text or symbols)

and grills

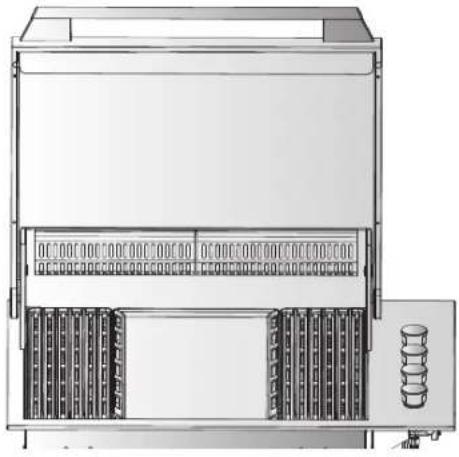

For EQBH60AS & EQBL60AS the grills and hot plate can be positioned as desired.

For roasting (EQBH60AS only) it is recommended to place the hotplate in the middle and a grill plate each side.

warning

Ensure flame tamers are positioned under grill panels.

Technical line drawing of a laboratory or industrial machine with cooling unit and storage tanks (no text or symbols)

Alternative arrangement when not roasting

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Operating instructionsOptions for configuration of ho

Before lighting the barbecue:

• Check that all hoses and gas fittings are tight.
• Open the roasting hood or slimline lid.

NOTE:

The slimline lid is designed as a cover for weather protection. The lid is not designed to be used as a cooking hood.

• Check all control knobs are in the 'OFF' position.
• Ensure that the cooking surfaces are clean.
• Turn the gas isolation valve 'ON'.

Lighting instructions

• Do not attempt to light burners with cooking surfaces covered.
• Read instructions before lighting.
• To light a burner, depress the knob and rotate to 'HIGH HEAT'. A spark is generated to light the flame thrower alongside the burner. The flame thrower makes an audible noise and only operates when the knob is depressed to light burner. Release the knob and check if the burner is alight, note that the audible noise from the flame thrower will stop when the knob is released.
• If the burner did not light, turn the knob to the 'OFF' position. Allow gas to disperse, then repeat lighting procedure.

Manual lighting

• If, in the event of the automatic ignition system not working, the barbecue can be lit manually.
• To light manually, fit a 40mm match to match holder provided. Pass lit match through viewing slots below the front of cooking plates down towards the burner, then rotate the knob to HIGH HEAT to ignite. If ignition fails, turn the control valve off and allow several minutes for the gas to disperse before attempting to light again.
  • Once alight, repeat for other burners as required.

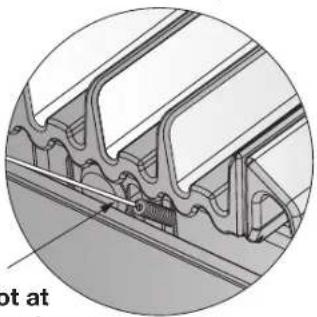

Cross-sectional diagram of a structural assembly with wavy and straight lines (no text or symbols)

pass match holder through viewing slot at front under cooking plates

Preheating

• This barbecue is fitted with high power burners. In most conditions it will only be necessary to preheat the barbecue for 5 minutes before cooking can commence.
• As with most things, experience will familiarise you with the effectiveness of and the time required to achieve the desired preheating time to obtain the desired cooking temperature.
• Testing has shown that the burners can be turned to low position for satisfactory cooking.
• If the unit does not operate correctly refer to the troubleshooting section on page 21.

Lid safety leg – slimline lid only

• If the burners are left to run too hot there will be excessive smoking during the cooking process and subsequent burning of the food being prepared. This may also result in excessive flaring of the fat being emitted from the food.
• Roasting with the hood closed only requires the 2 outermost burners on low setting for satisfactory cooking. Refer below for further information on roasting.

To turn the burner off

• When cooking is complete, rotate the knob fully clockwise so the pointer on the knob is positioned at the 'OFF' position.
• Turn gas bottle isolation valve off after turning all knobs to 'OFF' position when appliance not in use.

Using the roasting hood

Cooking with the hood closed only requires 2 burners to be on low setting. The setting is to be adjusted depending on conditions and using the temperature indicator as a guide.

• It is recommended when roasting to place the solid hot plate in the centre with one grill on each side of the plate. Use the two outer burners under the grills.
• To achieve even cooking of the food, place the food onto a wire rack above the hot plate to allow air to circulate under the food.
• Food can also be placed on the warming racks for cooking with hood closed

warning

• Do not use more than 2 burners when the hood is closed and do not allow the temperature to exceed the 'Ready' zone of the temperature indicator. These conditions create excessive heat and may cause damage to the barbecue and roasting hood.
• When cooking with the hood closed the hot flue gases flow out the rear of the appliance between the splashguard and the hood. Ensure the barbecue is suitably located to avoid damage or injury.

To ensure that the user remembers to turn off the gas before closing the lid, a pivoting safety leg has been fitted (both small and large lids).

When closing the lid the safety leg will pivot forward and rest against the trim surface to prevent the lid closing. After ensuring the gas has been turned off, the lid can be fully closed by rotating the leg backwards.

warning

THE SLIMLINE LID MUST NOT BE CLOSED WHEN THE BURNERS ARE OPERATING.

Closing the lid during burner operation can cause discolouration and damage to the lid and barbecue unit.

Cleaning and care

This Electrolux barbecue has been constructed from select grade stainless steel which, if not cared for, may discolour over time. To keep your barbecue looking its best we recommend that the cooking surfaces are cleaned after every use.

warning

Please ensure that your barbecue is switched off and has cooled down before following the instructions below.

Cast iron plates and plate surround cleaning

The cooking plates and grills have a porcelain enamelled coating and must be at ambient temperature before cleaning.

NOTE:

Many food acids, juices, marinades and sauces contain highly acidic elements that will slowly attack the surface of the cast iron if not removed immediately after cooking.

After use remove all solid material from the cooking surface using a brass bristled barbecue brush or plastic bristled scourer. Wipe off the remaining grease with paper towelling. Gently wash the surfaces with a cloth or sponge and a mild detergent and hot water. Dry components immediately and coat the cooking surface with a light layer of cooking oil. This protects the surface when not in use. Do not clean the cooking surface in a dishwasher

Cleaning stainless steel surfaces

caution

Do not use abrasive or caustic cleaners, scourers or metal scrapers on stainless steel surfaces as they may permanently scratch and damage your barbecue.

• Wash all stainless steel components, including the slimline lid, the roasting hood, tubular frame and control knobs with a soft dishcloth using hot soapy water
• The barbecue interior can be wiped down with a soft cloth in hot soapy water. The rear panel of the interior is removable for easy cleaning
• Ensure that all surfaces are dried with a clean dry cloth

tips and information

Sometimes stainless steel surfaces are affected by a brown discolouration called tea staining. This usually occurs in areas which use high heat and can be removed using specialised stainless steel cleaners. For best results, we recommend that specialised cleaners be used regularly on all stainless steel components. You will find these cleaners at Electrolux spare parts outlets.

caution

Take extra care (particularly when cleaning on and around the control knobs) to ensure that water and soapy residue do not enter the control panel.

Care should also be taken not to disturb the spark electrode.

Cleaning the oil reservoirs

The electrolux integrated bbq 600/300mm has a unique oil management system which uses overlapping channels to drain all oil to the front into easily removed reservoirs and should be cleaned after each use.

• To remove reservoirs, pull upwards from the front of the barbecue and dispose of the contents of the catchment responsibly. Rinse oil reservoirs in warm soapy water. The reservoirs can be placed in the dishwasher if desired.

tips and information

The stainless steel panels may distort while in use but will return to normal when cold.

Maintenance

Stainless steel burners

Burners should be checked at least once per year and cleaned as necessary. Inspect burners to ensure no residues have been deposited and gas ports are clear.

Troubleshooting

problem possible causes solution
Barbecue won’t light • No gas	• Check isolation valve is ON
		• Gas bottle empty – refill or change gas bottle
	• Ignition system not working • Check spark being generated when knob rotated
		• Ignition electrode wet or dirty, gently clean and dry electrode, ensuring position unchanged
		• Manually light the barbecue
Excess smoke being emitted from the cooking area	• Too much heat • Turn down gas valve or turn off selected burners
Smell of gasDO NOT ATTEMPT TO LIGHTTHE APPLIANCE	• Gas leak • Turn off gas at the isolation valve
		• Check for leaks, tighten joints
		• If problem persists, call Electrolux service

If you still require service

If you have a problem, and the problem persists after you have made the checks mentioned above, contact your nearest Electrolux approved Service Centre or dealer from whom you bought the barbecue. Be ready to quote the model number and 8 digit serial number, which is stated on the label located behind the removable grease recepticles.

22 notes electrolux integrated bbq 600/300mm

Notes

Electrolux Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: ELECTROLUX BARBECUE

This document sets out the terms and conditions of the product warranties for Electrolux Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance.

1. In this warranty

(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL;
(b) 'ACL' means Trade Practices Amendment (Australian Consumer Law) Act (No.2) 2010;
(c) 'Appliance' means any Electrolux product purchased by you accompanied by this document;
(d) 'ASC' means Electrolux' authorised serviced centres;
(e) 'Electrolux' means Electrolux Home Products Pty Ltd of 163 O'Riordan Street, Mascot, NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;
(f) 'major failure' as referred to in clause 10 of this warranty has the same meaning referred to in the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for Electrolux, at its discretion, to repair an Appliance during the Warranty Period;
(g) 'Warranty Period' means:

(i) where the Appliance is used for personal, domestic or household use (i.e. normal single family use) as set out in the instruction manual, the Appliance is warranted against manufacturing defects in Australia for 24 months and in New Zealand for 24 months, following the date of original purchase of the Appliance;

(ii) where the Appliance is used for commercial purposes (including being used to directly assist a business or where the Appliance is used in a multi-family communal or share type environment), the Appliance will then be warranted against manufacturing defects in Australia for 3 months and in New Zealand for 3 months, following the date of original purchase of the Appliance.

(h) 'you' means the purchaser of the Appliance not having purchased the Appliance for re-sale, and 'your' has a corresponding meaning.

1. This warranty only applies to Appliances purchased and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand
2. During the Warranty Period Electrolux or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux or its ASC may use remanufactured parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux. This warranty does not apply to light globes, batteries, filters or similar perishable parts.
3. Parts and Appliances not supplied by Electrolux are not covered by this warranty.
4. You will bear the cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. If you reside outside of the service area, you will bear the cost of:

(a) travel of an authorised representative;

(b) transportation and delivery of the Appliance to and from Electrolux or its ASC,

In all instances, unless the Appliance is transported by Electrolux or an Electrolux authorised representative, the Appliance is transported at the

owner's cost and risk while in transit to and from Electrolux or its ASC.

1. Proof of purchase is required before you can make a claim under this warranty.
2. You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Electrolux is not liable in the following situations (which are not exhaustive):

(a) the Appliance is damaged by:

(i) accident

(ii) misuse or abuse, including failure to properly maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation

(viii) failure to comply with any additional instructions supplied with the Appliance;

(b) the Appliance is modified without authority from Electrolux in writing;
(c) the Appliance's serial number or warranty seal has been removed or defaced;
(d) the Appliance was serviced or repaired by anyone other than Electrolux, an authorised repairer or ASC.

1. This warranty, the contract to which it relates and the relationship between you and Electrolux are governed by the law applicable where the Appliance was purchased. Where the Appliance was purchased in New Zealand for business purposes the Consumer Guarantee Act does not apply.

2. To the extent permitted by law, Electrolux excludes all warranties and liabilities (other than as contained in this document) including liability for any loss or damage whether direct or indirect arising from your purchase, use or non use of the Appliance.

3. For Appliances and services provided by Electrolux in Australia, the Appliances come with a guarantee by Electrolux that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. The benefits to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which warranty relates.

4. At all times during the Warranty Period, Electrolux shall, at its discretion, determine whether repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.

5. For Appliances and services provided by Electrolux in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act.

6. To enquire about claiming under this warranty, please follow these steps: (a) carefully check the operating instructions, user manual and the terms of this warranty;

(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (eg an invoice) available;
(d) telephone the numbers shown below.

1. You accept that if you make a warranty claim, Electrolux and its ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice

Before calling for service, please ensure that the steps listed in point 13 above have been followed.

FOR SERVICEor to find the address of your nearest state service centre in AustraliaPLEASE CALL 13 13 49For the cost of a local call (Australia only)	SERVICE AUSTRALIAElectroluxELECTROLUX HOME PRODUCTSwww.electrolux.com.au	FOR SPARE PARTSor to find the address of your nearest state spare parts centre in AustraliaPLEASE CALL 13 13 50For the cost of a local call (Australia only)
FOR SERVICEor to find the address of your nearest authorised service centre in New ZealandFREE CALL 0800 10 66 10(New Zealand only)	SERVICE NEW ZEALANDElectroluxELECTROLUX HOME PRODUCTSwww.electrolux.co.nz	FOR SPARE PARTSor to find the address of your nearest state spare parts centre in New ZealandFREE CALL 0800 10 66 20(New Zealand only)

EBBQ_Warr_Apr11

Electrolux Home Products Australia

telephone: [phone]

fax: [phone]

email: [e-mail]

web: www.electrolux.com.au

Electrolux Home Products New Zealand

telephone: [phone]

fax: [phone]

email: [e-mail]

web: www.electrolux.co.nz

The Thoughtful Design Innovator.

Do you remember the last time you opened a gift that made you say "Oh! How did you know? That's exactly what I wanted!" That's the kind of feeling that the designers at Electrolux seek to evoke in everyone who chooses or uses one of our products. We devote time, knowledge, and a great deal of thought to anticipating and creating the kind of appliances that our customers really need and want.

This kind of thoughtful care means innovating with insight. Not design for design's sake, but design for the user's sake. For us, thoughtful design means making appliances easier to use and tasks more enjoyable to perform; freeing our customers to experience that ultimate 21st century luxury, ease of mind. Our aim is to make this ease of mind more available to more people in more parts of their everyday lives, all over the world. So when we say we're thinking of you, you know we mean just that.

The "Thinking of you" promise from Electrolux goes beyond meeting the needs of today's consumers. It also means we're committed to making appliances in safe for the environment—now and for future generations.

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com.au or www.electrolux.co.nz
