SM-800 - Exercise bike LifeSpan - Free user manual and instructions

Product Type	Exercise Bike
Brand	LifeSpan
Model	SM-800
Dimensions (L x W x H)	120 x 50 x 130 cm
Weight	45 kg
Max User Weight	150 kg
Resistance Type	Magnetic (Manual Adjustment)
Resistance Levels	16
Display Type	LCD with Backlight
Display Metrics	Time, Distance, Speed, Calories, Pulse, RPM
Heart Rate Monitoring	Pulse Grips on Handlebars
Pedals	Adjustable Straps, Steel Cage
Seat Adjustment	Vertical and Horizontal
Handlebar Adjustment	Multi-position (Fore/Aft and Tilt)
Transport Wheels	Yes, Front Wheels
Power Requirement	2 AA Batteries (For Console)
Frame Material	Steel with Powder Coating
Warranty	5 Years Frame, 3 Years Parts, 1 Year Labor
Assembly Required	Yes (Tools Included)
Recommended Use	Home or Light Commercial
Special Features	Water Bottle Holder, Reading Rack, Quiet Operation
Maintenance	Periodic Lubrication of Moving Parts, Clean Frame with Damp Cloth
Safety Certification	EN957 Class H

Frequently Asked Questions - SM-800 LifeSpan

How do I adjust the resistance on the LifeSpan SM-800?

Turn the knob located below the console clockwise to increase resistance, counterclockwise to decrease. The display shows the current resistance level from 1 to 16.

What is the maximum user weight for the SM-800?

The maximum user weight is 150 kg (330 lbs). Exceeding this can cause damage or injury.

Does the bike require electricity?

No, the bike is self-powered for the drive system. The console requires 2 AA batteries (not included) for the display and heart rate monitor.

How do I move the exercise bike?

Tilt the bike forward using the handlebars until the transport wheels touch the ground, then roll it carefully. Always lower it gently.

What tools are needed for assembly?

All necessary tools are included in the package: a hex key, a wrench, and an Allen key. No additional tools required.

How do I calibrate the heart rate monitor?

Heart rate is measured via pulse grips on the handlebars. Ensure your palms are dry and in full contact. There is no calibration; reading is real-time.

Can I use the bike without the console?

Yes, you can pedal without batteries. However, the display metrics (time, distance, etc.) will not be recorded, and heart rate function will not work.

How do I clean and maintain the SM-800?

Wipe the frame with a damp cloth and mild detergent. Avoid water on the console. Periodically lubricate the pedal crank and seat post with silicone spray.

What should I do if the display shows an error code?

Refer to the manual's troubleshooting section. Common codes: E1 - battery low, replace batteries; E2 - sensor malfunction, check wire connections.

Is the bike suitable for tall users?

Yes, the seat adjusts vertically and horizontally, and the handlebars also adjust. It accommodates users from about 5'2'' to 6'5''.

USER MANUAL SM-800 LifeSpan

Line drawing of a stationary exercise bike with visible legs, arms, and control panel (no text or labels)

Read all instructions carefully before using this product. Retain this owner's manual for future reference.

IMPORTANT

All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts. Failure to do so may cause damage to your threads and void your warranty.

NOTE:

Product may vary slightly from the item pictured due to model upgrades. This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

TABLE OF CONTENTS

I. Important Safety Instructions 05
II. Care Instructions 06
III. Exploded Diagram 07
IV. Parts List 08
V. Assembly Instructions .....11
VI. Seat and Handlebar Adjustment ..... 15
VII. Computer Operation 16
VIII. Exercise Guide .... 19
IX. Warranty 21
X. Hand Pulse Technology 22

I. IMPORTANT SAFETY INSTRUCTIONS

WARNING: Read all instructions before using this machine.

It is important your machine receives regular maintenance to prolong its useful life. Failing to regularly maintain your machine may void your warranty.

Please always keep this manual with you.

- It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. PLEASE NOTE: It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions

- Before starting any exercise program, you should consult your doctor to determine if you have any medical or physical conditions that could put your health and safety at risk, or prevent you from using the equipment properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.

- Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, and extreme shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do experience any of these symptoms, you should consult your doctor before continuing with your exercise program.

- Keep children and pets away from the equipment. This equipment is designed for adult use only.

- Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 2 meters of free space around it.

- Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any unusual noises coming from the equipment during use and assembly, stop immediately. Do not use the equipment until the problem has been rectified.

- Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught vin the equipment or that may restrict or prevent movement.

- This equipment is designed for indoor and family use only.

- Care must be taken when lifting or moving the equipment so as not to injure your back.

• Always keep this instruction manual and assembly tools at hand for reference.

• The equipment is not suitable for therapeutic use.
• The pulse or heart rate sensors are not medical devices. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general.

II. CARE INSTRUCTIONS

IMPORTANT

a. All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts. Failure to do so may cause damage to your thread and void your warranty.
b. Lubricate moving joints with grease after periods of usage.
c. Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.
d. The machine can be kept clean by wiping it down using dry cloth.
e. Flywheels must be lubricated after certain periods of use to keep the bike running smooth and reduce vibration noise.

BATTERY USAGE

• Batteries are to be installed or replaced by adult only.
• Do not use rechargeable batteries. Do not mix different battery types. Do not mix old and new batteries. Do not mix alkaline, standard (Carbon-Zinc), or rechargeable (Nickel-Cadmium) batteries.
• Remove batteries when product is not in use.
• Remove exhausted batteries from product and dispose of in accordance with the manufacturer's recommendation.
• Do not attempt to recharge non-rechargeable batteries.
• Batteries are to be inserted with correct polarity.
• The supply terminals are not to be short-circuited.
• Do not dispose of batteries in fire, batteries may explode or leak.

Simple line drawing of two batteries with positive and negative charges, no text or symbols present

III. EXPLODED DIAGRAM

IV. PARTS LIST

No.	Name	Spec.	Quantity	Unit
1	Tube Plug	100*50*2	4	pcs
2	Stopper	52*43, M8X25	4	pcs
3	Carriage Bolt	GB/T 12-1988 M8X62	4	pcs
4	Rear Stabilizer	Weldment	1	pcs
5	Flat Washer 1	GB/T 95-2002 8	13	pcs
6	Domed Nut 1	GB/T 802-1988 M8	4	pcs
7	Hex Head Bolt 1	GB/T 5780-2000 M8*40	2	pcs
8	Bearing 1	608ZZ	4	pcs
9	Wheel	69X26	2	pcs
10	Bolt 1	GB/T 70.2-2000 M8*15	6	pcs
11	Front Stabilizer	Weldment	1	pcs
12	Adjustment Knob 1	M10*20	1	pcs
13	Flat Washer 2	GB/T96-1985 10	1	pcs
14	Adjustment Knob 2	60*80 (M16*1.5)	1	pcs
15	Magnet Holder Post	Weldment	1	pcs
16	Vertical Seat Post	Weldment	1	pcs
17	Seat Post	Weldment	1	pcs
18	Seat	C-3604T/NT-189	1	pcs
19	Handlebar Post	Weldment	1	pcs
20	Handlebar	Weldment	1	pcs
21	Main Frame	Weldment	1	pcs
22	Plastic Sleeve	80*40/100*50*2	1	pcs
23	Hex Flange Surface Nut 1	M12X1.25	2	pcs
24	Magnet Holder	Weldment	1	pcs
25	Brake Pole	Weldment	1	pcs
26	Shaft Sleeve	18* 10*10	2	pcs
27	Hexagonal Nut 2	M12X1.25 t7	1	pcs
28	Belt Wheel Holder	Weldment	1	pcs
29	Matel Plate	δ2.5	2	pcs
30	Bearing 2	6001ZZ, NBK	4	pcs
31	Flywheel Shaft 1	16* 12*156	1	pcs
32	Flywheel	463*65, 20KG	1	pcs
33	Brake Knob	M10*100	1	pcs
34	Casing Pipe	20.6*20.6*16	2	pcs
35	Spring 1	15.5* 1.5X15	1	pcs
36	Nut	20*20*t8(M10)	2	pcs
37	Spring 2	2.0*52	1	pcs
38	Magnet	30*15*10	7	pcs
39	Baket Tube Plug	25*25*27	1	pcs
40	Crank Plug	28*6.5	2	pcs
40	Crank Plug	28*6.5	2	pcs
41	Hex Flange Surface Nut 2	M12X1.25	2	pcs
42	Pedal	JD-304V M20*1.5	1	pcs
43	Left Crank	170*42.5	1	pcs
44	Right Crank	170*42.5	1	pcs
45	Outer Chain Cover	756*283*71	1	pcs
46	Screw 1	GB/845-85 ST4.2X9.5	7	pcs
47	Screw 2	GB/T 15856.1-2002 ST4.2X16	8	pcs
48	Belt	5PK	1	pcs
49	Bolt 2	GB/T 70.3-2000 M8*18	4	pcs
50	Alex	25*182	1	pcs
51	Belt Pulley	200*24	1	pcs
52	Elastic Washer 1	GB/T 859-1987 8	10	pcs
53	Lock Nut 1	GB/T 889.1-2000 M8	8	pcs
54	Metal Tube 2	30* 25.05*9	1	pcs
55	Bearing 3	6005ZZ,NBK	2	pcs
56	Inner Chain Cover	743*277*17	1	pcs
57	Crank Cover	59*35	1	pcs
58	Fixing Nut	M25*1	1	pcs
59	Metal Tube 3	30* 25.05*56.1	1	pcs
60	Screw 5	GB/T 845-1985 ST4.2*25	5	pcs
61	Screw 6	GB/T 6561-1986 M5*12	12	pcs
62	Screw 3	ST2.9*9.5	4	pcs
63	Screw 4	GB/T 845-1985 ST4.2*19	2	pcs
64	Pulley	43*28	1	pcs
65	Bottle Holder	6	1	pcs
66	Flat Washer 6	GB/T 95-2002 5	2	pcs
67	Lfft Decorative Cover	235*155*235	1	pcs
68	Plastic Sheet	30*79*4	1	pcs
69	Bolt 3	GB/T 70.1-2000 M4*8	6	pcs
70	Decorative Cover 3	19*59*25	2	pcs
71	Decorative Cover 4	19*59.5*23	2	pcs
72	Nut Block	25*10.5	1	pcs
73	Spring 3	1X11.5	1	pcs
74	Hex Nut	GB/T 41-2000 M8	1	pcs
75	Plastic Plug	14*14	2	pcs
76	Computer	ST-7604	1	pcs
77	Bolt 4	M5*10	4	pcs
78	Lock Nut M10	GB/T 889.1-2000 M10	1	pcs
79	Bolt M6*10	GB/T 70.1-2000 M6*10	2	pcs
80	Bolt M8*10	GB/T 70.2-2000 M8*10	2	pcs
81	Bolt M8*45	GB/T 70.1-2000 M8*45	1	pcs
82	Flat Washer 6	GB/T 95-2002 6	2	pcs
83	Washer	GB894.1 10	1	pcs
84	Nylon Nut	GB/T 889.1-2000 M5	1	pcs
85	Aluminum Handle	80*16*10	2	pcs
86	Spanner	6# (86X35)	1	pcs
87	Crosshead Spanner	S=13,14,15	1	pcs
88	Long Shaft	5*56	1	pcs
89	Step Shaft	8*50.5	1	pcs
90	Spacer	8* 5.2*20	1	pcs
91	Fixed Shaft	8*16	1	pcs
92	Short Shaft	5*23	1	pcs
93	Aluminum Buckle	32*26*15	1	pcs
94	Fixing Frame	65*27.5*23.5	1	pcs
95	Upper Cover	115*56*12.5	1	pcs
96	Front Bushing	257*48*46	1	pcs
97	Rear Bushing	332*65*46	1	pcs
98	U Handle	70*58*20	1	pcs

V. ASSEMBLY INSTRUCTIONS

Line drawing of a stationary exercise bike with labeled component (18), no text or symbols present

STEP 1

Assemble Front and Rear Stabilizers

1. Attached the Front Stabilizer (pt.11) to the Main Frame (pt.21), Lock the Front Stabilizer on the Main frame with 2pcs of Carriage Bolts (pt.3) and 2pcs of Flat Washers (pt.5) and 2pcs of Domed Nut (pt.6).

2. Use the same way to lock the Rear (pt.4) on the Main frame.

STEP 2

Assemble Seat

1. Fix the Seat on the Seat Post, then lock the 2pcs of nut under the Seat firmly.

! ATTENTION:

Connected with the computer line, to Gap(A1) corresponding to the Convex Point (A2) to insert link.

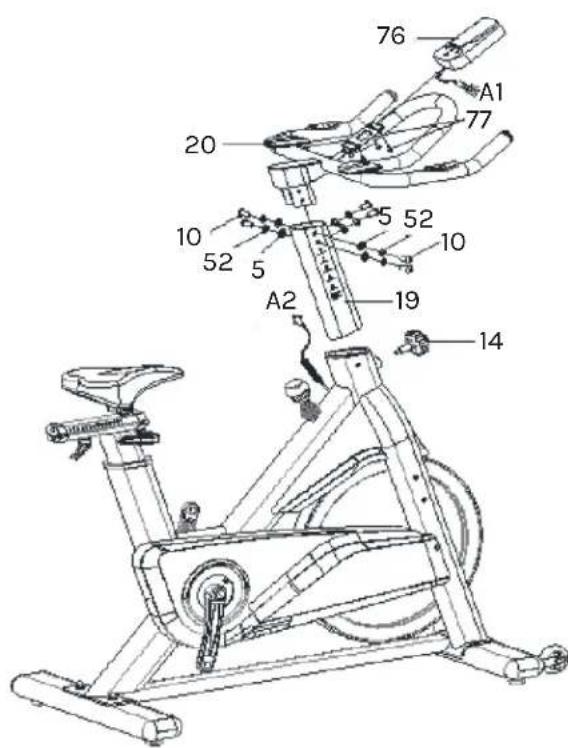

STEP 3

Assemble Handlebar/Computer

1. Fix the Handlebar (pt.20) on the Handlebar Post (pt.19) with 6pcs of Bolt (pt.10) and 6pcs of Washer (pt.52) and 6pcs of Flat Washer (pt.5).
2. Insert the Handlebar Post (pt.19) into the Main Frame, adjust it at a expect height, then lock the adjustment knob (pt.14) into the nut on the Main Frame. Please make sure that the knob pin inserts into the Handlebar Post hole.
3. Lock the Computer (pt.76) on the Handlebar (pt.20) with 4pcs of Bolt (pt.77), then connect A1 and A2 together.

STEP 4

Assemble Pedals/Bottle Holder

1. Take the Left Pedal (pt.42L) the one with a L Sticker, screw its axle Counter-clockwise into the Left Crank.
2. Take the Right Pedal (pt.42R) the one with a R sticker, screw its axle Clockwise into the Right Crank.

IMPORTANT: Ensure both pedals are fully tighten as using pedals while loose can damage your thread and affect your warranty.

1. Lock the Bottle Holder (pt.65) onto the Main Frame with 2pcs of Flat Washer (pt.66) and Screw (pt.47).

A

B

FIG A

A. Adjusting the Tension:

Increasing or decreasing the tension allows you to add variety to your workout sessions by adjusting the resistance level of the bike.

To increase tension and increase resistance (requiring more strength to pedal), turn the Emergency Brake & Tension Control Knob (pt.33) to the right.

To decrease tension and increase resistance (requiring less strength to pedal), turn the Emergency Brake & Tension Control Knob (pt.33) to the left.

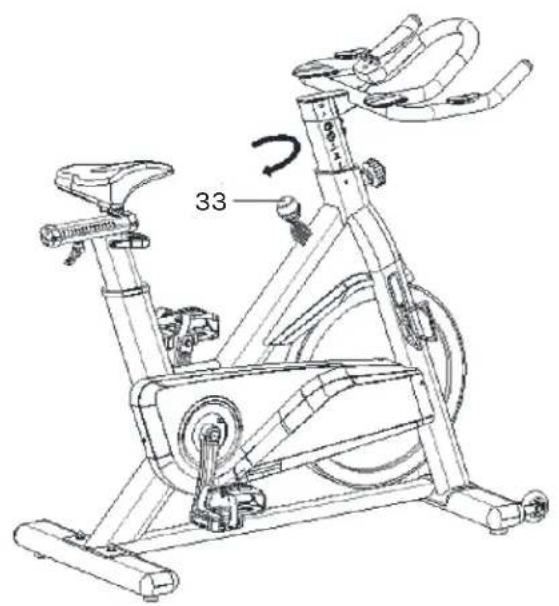

FIG B

B. Using the Emergency Brake Function: The same knob that allows you to adjust the tension of the bike also doubles as the Emergency Brake. Use this safety feature in any situation where you would need to get off the bike or stop the bike's flywheel.

To use the Emergency Brake function in any situation you would need it in, firmly press down on the Emergency Brake & Tension Control Knob (pt.33).

VI. SEAT AND HANDLEBAR ADJUSTMENT

SEAT ADJUSTMENT

To adjust the seat height, slacken the spring knob on the vertical post stem on the main frame and pull back the knob. Position the vertical seat post for the desired height so that holes are aligned, then release the knob and retighten it.

To move the seat forward in the direction of the handlebar or backwards away from it, loosen the adjusting knob and washer and pull the knob back. Slide horizontal seat post into desired position. Align holes and then retighten the adjusting knob.

HANDLEBAR ADJUSTMENT

To adjust the handlebar height, slacken the spring knob and secondary knob and pull both knobs back. Slide the handlebar post along the housing on the main frame to the desired height and, with the holes aligned correctly, tighten the spring adjusting knob and then the secondary knob.

VII. COMPUTER OPERATION

BUTTONS

MODE	To confirm all settings.
SET	To set up the value of TIME, DISTANCE, CALORIES and PULSE. You can hold the button to increase the value fast. (The computer must be in stop condition.)
RESET	To clear the set-up value. Press RESET key and hold for 2 seconds to reset all function figures.
RECOVERY	To test heart rate recovery status.

FUNCTIONS

SCAN	Displays all function TIME→DISTANCE→CALORIES→PULSE→RPM/SPEED in sequence.
RPM	Displays the pedalling Rotation Per Minute. The RPM and SPEED will switch to another display in every 6 seconds after exercise starts.
SPEED	Displays the user's exercise speed.
TIME	1. You can press "SET" button to set target time between 0:00 to 99:00 for count down function.2. It can be set up by the user or accumulated automatically for count up function.
DISTANCE	1. You can press "SET" button to set target distance between 0:00 to 99:50 for count down function.2. It can be set up by the user or accumulated automatically for count up function.
CALORIES	1. You can press "SET" button to set target calories between 0 to 99:90 for count down.2. It can be set up by the user or accumulated automatically for count up function.
PULSE	Displays the user's pulse. User may set the target pulse. When pulse value reaches to the target, the computer will alarm with "Bi" sound.

OPERATION PROCEDURE

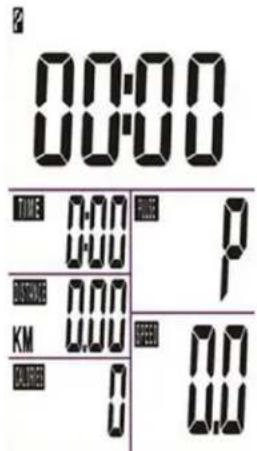

1. Installs 2 pieces of 1.5V #4 batteries, then the screen will display as following "Drawing A" and have "Bi" sound at the same time.

After that, it goes to the next step to the main menu as "Drawing B".

Drawing A

Drawing B

1. Get access to the set-up mode of TIME/DISTANCE/CALORIES/PULSE.

When you are in each set-up mode, for example in the time set-up mode, time value is blinking, you can press "SET" button to adjust the value and press "MODE" for confirmation. The set-up of DISTANCE, CALORIES & PULSE is the same as TIME.

1. With any signal been transmitted into the monitor, the value of TIME, DISTANCE, CALORIES start to count up as Drawing C. When there is any function has been pre-set the target (TIME or DISTANCE or CALORIES), the function will be counting down from the pre-set to zero while the training starts. Once the target is achieved to zero, the monitor start to beep for 8 seconds, and the function will be counting up from zero directly if the training is going. Press "MODE" button for confirmation and skip to next set-up.

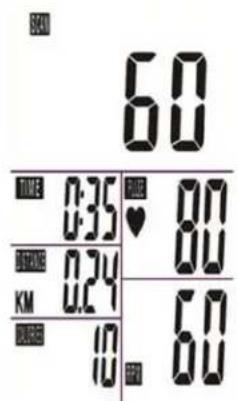

2. In SCAN mode shown as "Drawing C". RPM/SPEED TM/DIST/CAL/PULSE will skip to display in every 6 seconds. The order is as follows.

3. You can also press "MODE" button to select single function display except RPM & SPEED function. The RPM & SPEED function will switch display.

6. RECOVERY:

a. When the user presses "RECOVERY" button, the RECOVERY function is active. At this time only PULSE and TIME is working, other
Drawing C

functions will not be displayed, and the Sensor Input is not available. TIME starts to count down from "0:60", Pulse signal will be blinking according user's heart rate BPM. When Time counts down to "0", it will show F1\~F6. (F1 is the best, F6 is the worst).

F1	Outstanding
F2	Excellent
F3	Good

F4	Fair
F5	Below	Average
F6	Poor

b. LCD display as follows: (RECOVERY start condition & end condition).

c. If the countdown action to 0:00 is not completed and there is no pulse signal, the countdown action must be done and shown F6.

d. If you press the RECOVERY button prior to count down to 0:00, it will be end and return to the main menu.

NOTE:

1. Stop training for 4 minutes, the computer will enter to Sleep mode. You may press any button to have the computer restart working, the original value will retain. (If re-install batteries, the original value will remove.)

2. If the computer displays abnormally, please re-install batteries and try again.

3. Battery Spec: 1.5V UM-4 or AAA (2PCS).

VIII. EXERCISE GUIDE

! PLEASE NOTE:

Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems.

The pulse sensors are not medical devices. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in determining heart rate trends in general.

Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.

The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for daily activity. This is called aerobic activity. When you are fit, your heart will not have to work so hard. It will pump a lot fewer times per minute, reducing the wear and tear of your heart.

So as you can see, the fitter you are, the healthier and greater you will feel.

Four sequential illustrations of a person performing a stretching or martial arts pose, showing forward bend, forward bend, back bend, and kneeling forward (no text or symbols)

WARM UP

Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise.

After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity for maximum performance. Breathe regularly and deeply as you exercise.

COOL DOWN

Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-exercise problems.

WORKOUT GUIDELINES

This is how your pulse should behave during general fitness exercise. Remember to warm up and cool down for a few minutes.

IX. WARRANTY

AUSTRALIAN CONSUMER LAW

Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Full details of your consumer rights may be found at www.consumerlaw.gov.au.

Please visit our website to view our full warranty terms and conditions: http://www.lifespanfitness.com.au/warranty-repairs

WARRANTY AND SUPPORT

Any claim against this warranty must be made through your original place of purchase. Proof of purchase is required before a warranty claim may be processed.

If you have purchased this product from the Official Lifespan Fitness website, please visit https://lifespanfitness.com.au/warranty-form

For support outside of warranty, if you wish to purchase replacement parts or request a repair or service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service Request Form or Parts Purchase Form.

Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form

X. HAND PULSE TECHNOLOGY

This product comes equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals that run through the body when your heart beats. These electrical EKG/ECG signals are very small and must be amplified 1000 times to make the signal viable for the computer to display your pulse.

To ensure proper operation:

• The user must maintain good, consistent contact on all four sensors.
• The users skin cannot be too dry or too wet.

Other factors that could affect the reading:

• Change of grip on the sensors (during slow pace walking and up to running).
• Tightening of hand muscles will produce small electrical signal.
• Static electricity charges from the air or from walking on the treadmill.

EKG/ECG Sensors may filter through actual EKG/ECG signals and "Noise" factors that may affect the reading. This will cause the pulse reading to be delayed and will take longer to update the display as the heart rate changes. Too much noise will create an incorrect reading. Medical conditions or having no electrical signal in the hands are other factors that may also affect pulse readings.

These are limitations of hand pulse technology and even the most expensive systems (which can cost upwards of \$3,000) used in hospitals have the same problems. The difference is that a patient in a hospital is not running on a treadmill. Hand pulse technologies work well on stationary exercise machines like bikes and even elliptical cross trainers but are not perfect on a treadmill. We offer treadmills with a wireless heart rate receiver which may be the more accurate option.

To test if your hand pulse sensors are working up to specification, hold them while standing on the sidestep rails, not walking, and see if the reading is more in line with what you would expect. This will eliminate the movement and static electricity factors. If your hands are dry, then wet them slightly (saliva works as a great conductor if this doesn't bother you).
