Product Type	Mailbox System
Model Number	61767
Brand	WilTec
Overall Dimensions (mm)	270 × 385 × 354
Foot Dimensions (mm)	1195 × 49
Number of Individual Boxes	3
Material	Metal (frame), Plastic (boxes)
Color	Black
Weight (approx.)	12 kg
Lock Type	Key lock (included)
Assembly Required	Yes
Included Components	Frame, cross bars, mailboxes, spacers, ring covers, screws, keys, name plates
Recommended Installation	On a level surface, anchored with floor screws
Safety Precautions	Read manual before use; ensure stability when mounting
Maintenance	Periodically check and tighten screws; clean with damp cloth
Spare Parts Availability	Contact WilTec service for replacement parts
Warranty	Standard manufacturer warranty (details on request)
Intended Use	Outdoor or indoor mail collection for residential or office

Frequently Asked Questions - 61767 WilTec

What are the overall dimensions of the WilTec 61767 mailbox system?

The overall dimensions are 270 mm × 385 mm × 354 mm (height × width × depth). The foot dimensions are 1195 mm × 49 mm.

How many individual mailboxes does the 61767 include?

It includes three individual mailboxes for separate mail delivery.

Is assembly required for this mailbox system?

Yes, assembly is required. The package includes a frame, cross bars, mailboxes, spacers, ring covers, screws, and keys. Follow the step-by-step instructions in the manual.

What tools are needed for assembly?

Basic tools such as a drill (for floor mounting), screwdriver, and possibly a wrench are needed. All screws are included.

Can the mailbox system be used outdoors?

Yes, it is suitable for outdoor use. Ensure it is anchored securely to a level surface using the provided floor screws to withstand weather conditions.

Does the 61767 come with locks?

Yes, each mailbox has a key lock. The package includes keys and locks. Refer to the parts list for the lock item number.

How do I maintain the mailbox system?

Periodically check all screws and tighten if necessary. Clean the surface with a damp cloth and mild detergent. Avoid abrasive cleaners.

What is the weight capacity per mailbox?

The manual does not specify a weight capacity, but they are designed for standard mail and small packages. Avoid overloading.

Can I order spare parts for the WilTec 61767?

Yes, contact WilTec customer service via [e-mail] or visit their contact page for spare parts availability.

Where can I download the user manual?

The manual can be downloaded for free from notice-facile.com or the WilTec online shop at https://www.wiltec.de/docsearch in various languages.

USER MANUAL 61767 WilTec

Black office chair with two drawers mounted on a metal post (no text or symbols visible)

Illustration similar, may vary depending on model

Please read and follow the operating instructions and safety information prior to initial operation.

Technical changes reserved!

Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further developments.

The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating manual, nor in the diagrams and illustrations shown.

Although WilTec Wildanger Technik GmbH has made every possible effort to ensure that this operating manual is complete, accurate, and up-to-date, errors cannot be ruled out entirely.

If you have found an error or wish to suggest an improvement, we look forward to hearing from you.

Send us an e-mail to:

[e-mail]

or use our contact form:

https://www.wiltec.de/contacts/

The most recent version of this manual in several languages can be found in our online shop:

https://www.wiltec.de/docsearch

Our postal address is:

To return your goods for exchange, repair, or other purposes, please use the following address. Attention! To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods.

Retourenabteilung

Thank you for choosing to purchase this quality product. To minimise the risk of injury, we ask you to always take some basic safety precautions when using this product. Please read this operating manual carefully and make sure that you understand it. Keep these operation instructions in a safe place.

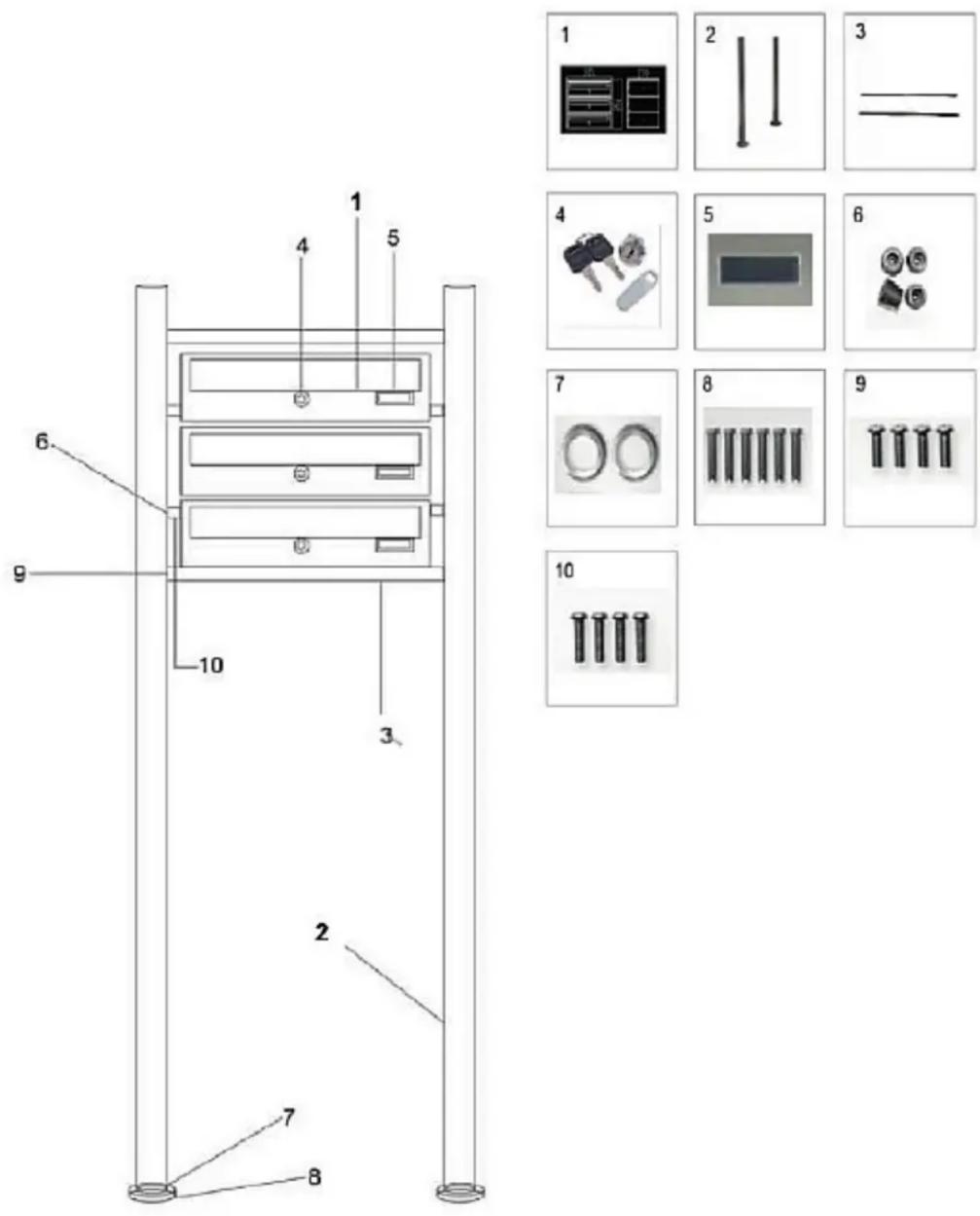

Technical drawing and parts list

No	Name	No	Name
1	Mailbox	6	Spacer
2	Frame	7	Ring covers
3	Cross bar	8	Floor screw
4	Key and lock	9	Cross bar screw
5	Name plate	10	Spacer screw

Assembly instructions

Choose a suitable location to place your mailbox system. Make sure that the surface is level and that you can anchor the frame firmly with the floor screws. We recommend that you assemble the mailbox close to where it is to be installed.

• Push the ring covers (7) onto the frame rods (2). Check that the ring is pointing in the correct direction (see fig. 1).
• Connect the frame (2) and the cross bars (3) using the screws (9). Leave the assembly loose and do not fully tighten the screws yet.
• Place the frame in the location that you have chosen and mark the mounting holes for the intended location (lift the ring covers to do this).
• Set the bracket aside and drill holes at the marked locations. Then you can attach the frame (2) with the floor screws (8).
• Now attach the mailboxes (1) with the spacers (6) between the bars of the frame (2). Use the spacer screws (10) for this.
• Now tighten all the screws and finally attach the name tags (5) to the desired locations.

Close-up of a black cylindrical object with a flange, no visible text or symbols

Figure 1

Technical specifications

Total dimen-sions (mm)	60000	60001	60002	61750	61758	61767
	270 × 385 × 354
Dimensions of foot (mm)	1200 × 50	1200 × 50	1200 × 50	1195 × 49	1195 × 49	1195 × 49
Number of in-dividual boxes	3
