AFD-965SD - Food Dehydrator Aroma - Free user manual and instructions

Product Type	Food Dehydrator
Brand	Aroma
Model	AFD-965SD
Number of Trays	6
Tray Material	Stainless Steel
Mesh Inserts	6 included
Drip Tray	Yes, included
Digital Display	Yes
Timer Range	30 minutes to 24 hours
Temperature Range	95°F – 167°F (35°C – 75°C)
Temperature Increments	±9°F or ±5°C
Number of Temperature Settings	9
Power Source	120V AC
Cord Type	Short, 3-prong grounding plug
Fan Only Mode	Yes
Maximum Continuous Operation	20 hours
Cooling Period Required	At least 2 hours after 20 hours
Front Door	Yes, with vent
Intended Use	Household only
Warranty	2 years limited

Frequently Asked Questions - AFD-965SD Aroma

How do I set the temperature and time?

Press the Time/Temp button to toggle between temperature and time adjustment, then use (+) or (-) to set the desired value. Temperature increments are ±9°F or ±5°C; time increments are ±30 minutes.

Can I use an extension cord with the dehydrator?

Yes, but only if the extension cord is a grounding-type 3-wire cord with a rating at least equal to the appliance’s. Do not let the cord drape over the counter or within reach of children.

What should I do before first use?

Remove all packaging, wash the trays and drip tray in warm soapy water, then run the unit empty at 158°F (70°C) for 30 minutes. Allow to cool, rinse and dry parts. This breaks in the unit.

How do I clean the dehydrator?

Wash the drying trays, mesh inserts, and drip tray in warm soapy water. Use a soft brush for stuck food. Wipe the body with a wet cloth. Never immerse the unit or wash the fan/heating element. Do not use a dishwasher or abrasive cleaners.

Can I dehydrate meat or make jerky?

Yes. Preheat the dehydrator to 158°F (70°C). For safety, cook meat/poultry to 160-165°F prior to dehydrating. Place meat strips on trays and dry until desired consistency.

Why does the unit produce smoke or odor during first use?

It is normal during the initial break-in period. Ensure good ventilation and keep at least 1 inch clearance around the unit. The smoke should dissipate after the first run.

How do I use the fan-only function?

Press On/Off to turn on, then press Time/Temp and press (-) until the display shows FAN. Press Time/Temp again to set the fan timer.

What is the maximum operating time?

Do not operate for more than 20 hours continuously. After 20 hours, unplug and allow the unit to cool for at least 2 hours before using again.

Can I rehydrate dehydrated food?

Yes. Soak in cold water for 2–6 hours in the refrigerator, or in hot/boiling water for 5–10 minutes. Avoid adding salt or sugar during rehydration. Consume opened containers quickly.

What does the limited warranty cover?

Aroma warrants the dehydrator for two years from date of purchase against defects in material and workmanship. For service, call 1-800-276-6286 with proof of purchase. A $35 shipping/handling fee applies.

USER MANUAL AFD-965SD Aroma

Exterior view of a modern Aroma Professional kitchen appliance with glass doors and mesh grilles (no visible text or symbols)

instruction manual

AFD-965SD

6-Tray Digital Food Dehydrator

Questions or concerns about your Aroma product?

www.AromaCo.com/Support

1-800-276-6286

AROMA®

To Enhance and Enrich Lives.

A modern rice cooker with control panel and display screen (no visible text or symbols)

Multicookers/Rice Cookers

Here at Aroma we strive to make a difference —to design and distribute products that enhance and enrich people's lives.

Black and white photo of a rice cooker with control panel (no visible text or symbols)

Pressure Cookers
Aroma offers an array of exceptional products to make cooking simple and satisfying. Discover other countertop appliances and cookware from our current product lineup to complement your kitchen.

Exterior view of a modern stainless steel watermelon-shaped kettle (no text or symbols visible)

Water Kettles

Stay connected for more recipe ideas and monthly giveaways!

AROMA®

TEST KITCHEN

www.AromaTestKitchen.com

Exterior view of a modern kitchen appliance with a lid and handle (no text or symbols visible)

Indoor Grills

/AromaHousewares

Black electrical heating appliance with circular top and side legs (no visible text or symbols)

Induction Cooktops

Basic safety precautions should always be followed when using electrical appliances, including the following:

1. Important: Read all instructions carefully before first use.
2. Do not touch hot surfaces. Use the handles.
3. To protect against fire, electric shock and injury to persons, do not immerse cord, plug or the appliance in water or any other liquid. See instructions for cleaning.
4. Close supervision is necessary when the appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow unit to cool before putting on or taking off parts and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Contact Aroma® customer service for examination, repair or adjustment.
7. The use of accessory attachments not recommended by Aroma® Housewares may result in fire, electrical shock or injury.
8. Do not use outdoors.
9. Do not let cord touch hot surfaces or hang over the edge of a counter or table.
10. Do not place on or near a hot gas or electric burner or in a heated oven.

11. Do not use the appliance for other than its intended use.

12. Use only with a 120V power outlet.

13. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock. Metal scouring pads may also damage the finish.
14. Always unplug from the plug gripping area. Never pull on the cord.
15. To disconnect, turn any control to OFF, then remove the plug from the wall outlet.
16. Store in a cool, dry place.
17. Extreme caution should be exercised when using or moving an appliance containing food.
18. Intended for countertop use only.
19. Place the food dehydrator on a flat, dry and heat-resistant surface, and use in a well-ventilated area.
20. Do not place too close to the edge of the table or countertop as it may be knocked off.
21. The food dehydrator should be operated on a separate electrical circuit from other operating appliances. If the electrical circuit is overloaded with other appliances, the appliance may not operate properly.

SAVE THESE INSTRUCTIONS

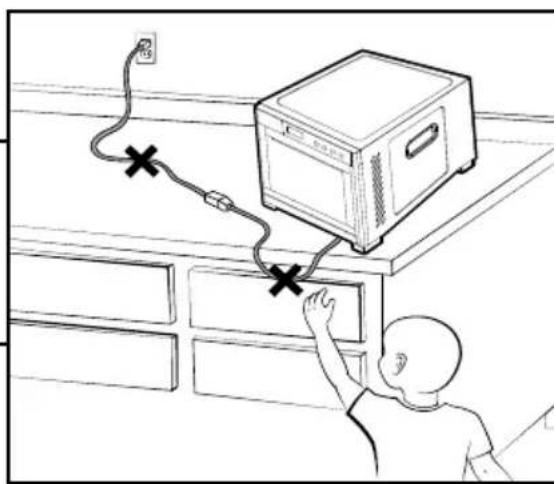

Short Cord Instructions

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. Longer extension cords are available and may be used if care is exercised in their use.
3. If a longer extension cord is used:
   a.) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.
   b.) The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled by children or tripped over unintentionally.
   c.) The extension cord should be a grounding-type 3-wire cord.

DO NOT DRAPE CORD!

KEEP AWAY FROM CHILDREN!

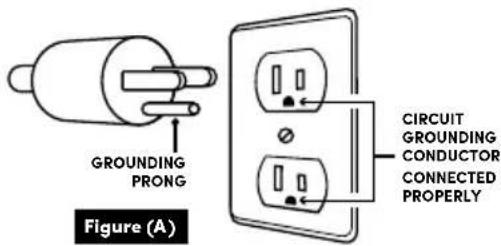

Grounding Instructions

This appliance must be grounded while in use to protect the operator from electrical shock. The appliance is equipped with a 3-conductor cord and a 3-prong grounding-type plug to fit the proper grounding-type receptacle. The appliance has a plug that looks like figure (A).

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY.

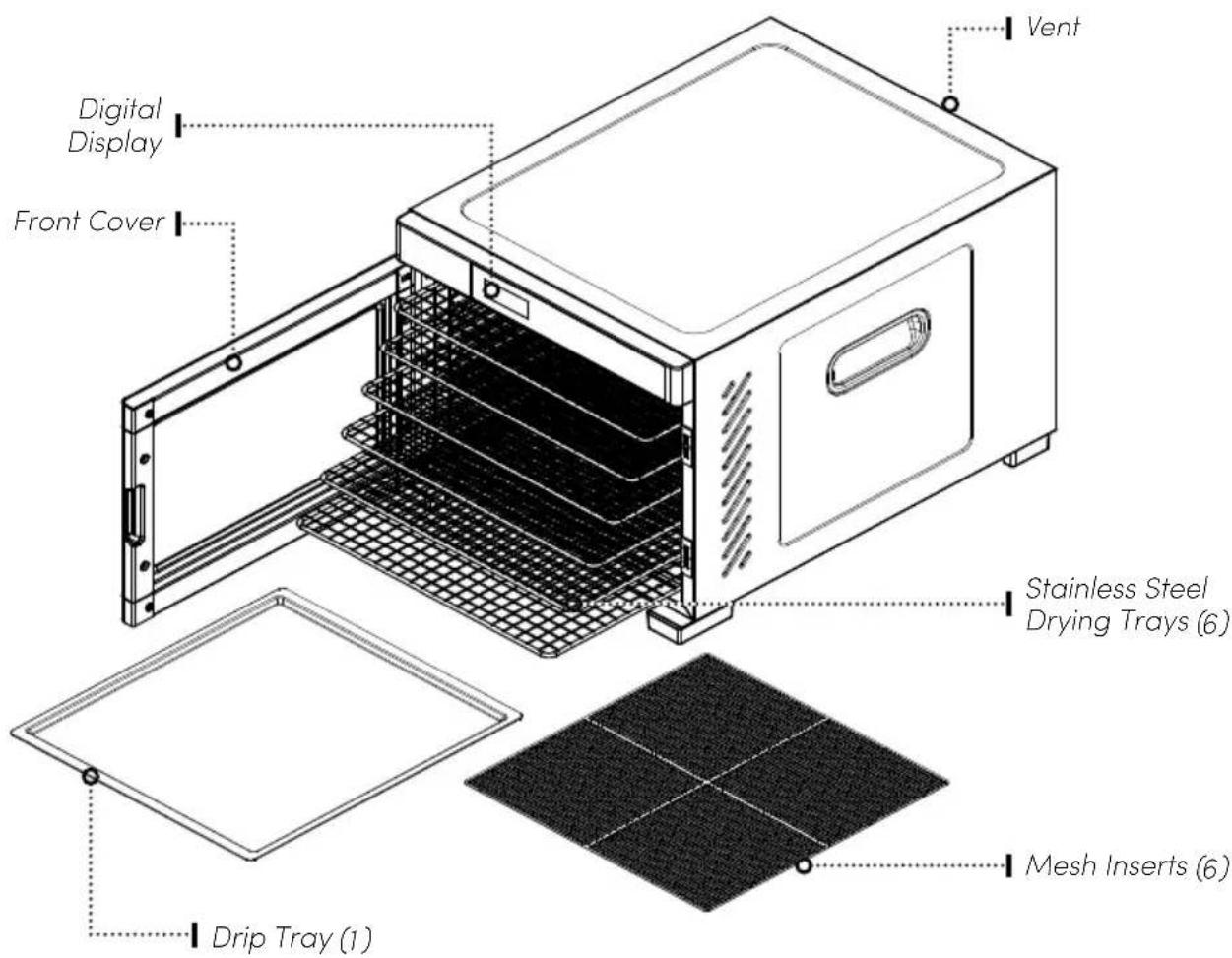

Parts Identification

Controls/Functions

On/Off

Turns ON and OFF the dehydrator.

Time/Temp

When pressed, it activates the (+) or (-) to adjust the desired temperature or time for dehydrating your foods.

Time/Temperature Adjust (+) or (-)

Toggles the timer in ±30 minute increments or adjusts temperature in ±9°F or ±5°C increments. Available temperatures: °F Temperatures: 95°, 104°, 113°, 122°, 131°, 140°, 149°, 158°, 167°F. °C Temperatures: 35°, 40°, 45°, 50°, 55°, 60°, 65°, 70°, 75°C. Available time is between 30 minutes and 24 hours.

BEFORE FIRST USE

1. Read all instructions and important safeguards.
2. Remove all packaging materials and check that all items have been received in good condition.
3. Tear up all plastic bags and dispose of them properly as they can pose a risk to children.
4. Wash Drying Trays, Mesh Inserts, and Drip Tray in warm, soapy water. Rinse and dry thoroughly. Wipe the surface of the body with a wet cloth. Do not wash the fan or heating element at the back of the unit.
5. After cleaning, the unit must be broken in by running for 30 minutes without any food inside at 158°F or 70°C. Any smoke or smells produced during this time frame are normal. Please ensure sufficient ventilation of the room and at least an inch of clearance on all sides of the food dehydrator is available. After the breaking in period, rinse and dry all removable parts. This action is only necessary once before using for the first time.
6. Do not operate the dehydrator for more than 20 hours in one single use. After 20 hours, power off and unplug the unit, and let it cool down for at least 2 hours before operating again.

TO CLEAN

1. Wash Drying Trays, Mesh Inserts, and Drip Tray in warm, soapy water.
2. Use a soft brush to remove food sticking to the trays.
3. Wipe the surface of the body with a wet cloth.
4. Do not wash the fan or heating element at the back of the unit.
5. Dry all parts thoroughly. Reassemble for next use.

FAN ONLY FUNCTION

1. Press On/Off to turn on the dehydrator.
2. Press Time/Temp to activate temp adjustment mode.
3. Press (−) until the digital display reads FAN.
4. Press Time/Temp again, and use (+) or (-) to adjust the amount of time.

Caution:

Do not immerse the food dehydrator housing, cord or plug in water at any time.

Note:

• Do not wash parts in a dishwasher, as heat may cause the parts to warp or deform.
• Do not use abrasive cleaners or scouring pads.
• Drying Trays should slide in easily. If the tray has resistance, try inserting by rotating 1/4 turn

DEHYDRATING FOODS

1. Place pre-treated ingredients onto the drying trays. Do not overload the trays and/or have ingredients overlap.
2. Slide the loaded trays into the food dehydrator. Ensure that the Drip Tray is loaded at the bottom of the unit.
3. Close the Front Door.
4. Ensure at least an inch of clearance on all sides of the food dehydrator for ventilation.
5. Plug the power cord into an available 120V AC wall outlet.
6. Press On/Off. The digital display will show "10:00". This turns on and starts the dehydrator at its default settings.
7. Press Temp and then adjust with (+) or (-) to get the desired temperature.
8. Press Time and then adjust with (+) or (-) to get the desired cooking time.
9. Your dehydrator is now in operation. Check the status of the food periodically.
10. When the timer has reached "End", the dehydrator will beep several times and shut off. Unplug the power cord.
11. Allow finished food items to cool, and then enjoy!

Temperature Settings (Recommendations)

FOOD TEMPERATURE
Jerky* 158°F or 70°C
Fruits	149°F or 65°C
Vegetables	140°F or 60°C
Granola	122°F or 50°C
Yogurt	113°F or 45°C
Herbs 104°F or 40°C
Potpourri	95°F or 35°C

Note:

*For meat/poultry cook to 160-165 °F or 71-74 °C respectively, prior to dehydrating.

- For smaller ingredients, fit the mesh insert onto a drying tray to prevent pieces from falling through the holes.

- For best results, set a lower temperature for thinner/smaller pieces of food or for smaller loads, and a higher temperature for thicker/larger pieces and larger loads.

REHYDRATING

Dehydrated food can be rehydrated by soaking in water or by pouring hot water over it. Do not add seasonings, especially salt or sugar during this process because they may change the flavor of the food. Usually one cup of water is appropriate for one cup of dehydrated food. For stewed fruits, add 2 cups of water and simmer until tender. Rehydrated foods can be cooked normally.

Dehydrated fruits and vegetables can be soaked in cold water for 2 to 6 hours in the refrigerator (room temperature may create an environment for harmful bacteria to grow). They can be soaked in hot water or immersed in boiling water for 5 to 10 minutes or until desired consistency. Remember to always use enough water to rehydrate the food.

Consume the food as soon as possible once the container is opened. Always keep the remaining portion in the refrigerator to avoid contamination.

USEFUL TIPS

Apples:

Wash and peel (if desired), core and slice into 14 inch slices or rounds. You may wish to soak the fruits in lemon juice for 2–3 minutes prior to dehydrating. This will keep them from darkening. Dry approximately 7–15 hours. Apples should be slightly crisp. If you wish to rehydrate, soak in hot water for 10 to 15 minutes.

Apricots:

Wash, halve and remove the pits. Pretreatment is not necessary. Dry approximately 10–18 Hours. Apricots should be pliable with no pockets of moisture. To rehydrate, soak in hot water for 15 minutes.

Bananas:

Avoid using overripe bananas. Peel and slice. You may wish to pretreat by soaking in lemon juice for 1-2 minutes to prevent darkening. Dehydrate approximately 6-10 hours or until crisp. If you would like to rehydrate, soak in hot water for about 10 minutes.

Berries:

Remove stems, wash and shake dry. Pretreatment is not necessary. Drying time is approximately 10-15 hours. Rehydrate by soaking in hot water for about 15 minutes. Drain well before using.

Helpful Hints:

To keep foods from sticking, brush a light coat of vegetable oil on your Mesh Inserts or Drying Trays. It will make removing food and cleaning easier.

USEFUL TIPS (CONT.)

Food Labeling

Labeling each container helps to remind you of the contents, date of drying and original weight. Keeping records of all of this information will be of great help towards improving your drying techniques and obtaining better results.

Storage

Proper storage is essential to maintaining the quality of foods. Wait until the food is cool before storing (note: fruit leather must be stored in plastic bags while still warm). Foods can be kept longer if stored in cool, dry and dark places. Ideally, storage temperatures should be below 60^ F/ 16^ C (the lower the better).

Storage Containers

Place dried food in plastic freezer bags before storing it in metal or glass containers. Avoid those containers that "breathe" or have weak seals. Fill the container with as much as possible. Remember, air can destroy food. Squeeze air out if using plastic bags or boiling pouches.

Moisture Check

Check the moisture of your dehydrated food on a regular basis. If you notice moisture inside, dehydrate it for a longer time.

RECIPES

Cinnamon Apple Chips

3-4

apples

12 tbsp

lemon juice

---

cinnamon

Slice apples 1/8-1/4 inch thick and place in a bowl of water with the lemon juice to prevent browning.

Arrange evenly on each tray, sprinkle with cinnamon and dry at 149^ F/ 65^ C for 7–8 hours until apples are completely dry to the touch.

Mango Chili Fruit Leather

32 oz

mango chunks

---

chili powder

Line 4 trays with parchment paper. Add mango to a blender or food processor and blend until smooth.

Spread 1/4 of the puree onto each tray and spread into a thin layer roughly 1/4 inch thick. Sprinkle evenly with chili powder.

Dry at 140^ F/60°C for 6-8 hours until leather is no longer sticky to the touch. Cut into strips or pieces and enjoy.

Berry & Green Fruit Leather

1 cup

fresh strawberries

1 cup

fresh blueberries

^3/_4 cup

applesauce

14 cup

kale, finely minced

Wash strawberries and blueberries. Remove the stem from the strawberries.

Place strawberries and berries in a blender or food processor to make a puree.

Add applesauce to mixture and blend for 5 seconds. Add kale to the mixture and stir in with a spatula.

Pour mixture onto tray lined with parchment paper. Layer should be about a 14 -inch thick. Dry at 131^ F/55°C for 8 hours or until leathery. Let leather cool and remove with spatula.

Cut into strips or pieces and enjoy.

LIMITED WARRANTY

Aroma Housewares Company warrants its products against defects in material and workmanship for two years from provable date of purchase in the United States.

Within this warranty period, Aroma Housewares Company will repair or replace, at its discretion, defective parts at no charge, provided the product is returned, freight prepaid with proof of purchase and U.S. \$35.00 for shipping and handling charges payable to Aroma Housewares Company. Before returning an item, please call the toll free number below for a return authorization number. Allow 2-4 weeks for return shipping.

This warranty does not apply if the warranty period expired; the products has been modified by any unauthorized service center or personnel; the defect was subject to abuse, improper use not conforming to product manual instructions, or environment conditions more severe than those specified in the manual and specification, neglect of the owner or improper installation; the defect was subject to Force Majeure such as flood, lightning, earthquake, other natural calamities, war, vandalism, theft, brownouts or sags (damage due to low voltage disturbances).

This warranty gives you specific legal rights, which may vary from state to state, and does not cover areas outside the United States.

SERVICE & SUPPORT

In the event of a warranty claim, or if service is required for this product, please contact Aroma® customer service toll-free at:

1-800-276-6286

M-F, 8:30am-4:30pm, Pacific Time

Or we can be reached online at:

[e-mail]

For your records, we recommend stapling your sales receipt to this page along with a written record of the following:

- Date of Purchase:

- Place of Purchase:

Note:

• Proof of purchase is required for all warranty claims.

Exterior view of a stainless steel kitchen oven with open doors and a handle (no visible text or symbols)

To Enhance and Enrich Lives.
