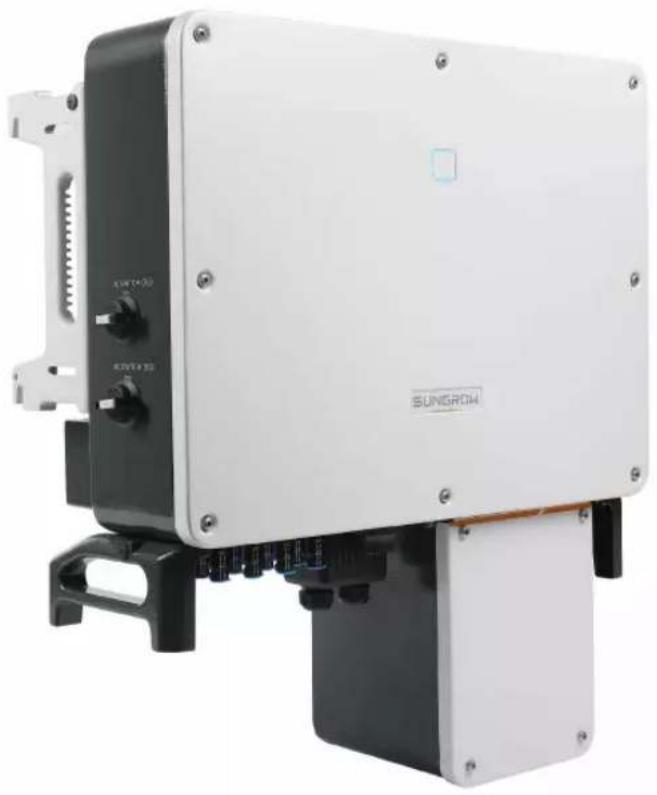

SG60CX-US - Installation solaire Sungrow - Free user manual and instructions
Find the device manual for free SG60CX-US Sungrow in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Solar Inverter |
| Model | SG60CX-US |
| Brand | Sungrow |
| Rated Output Power | 60 kW |
| Maximum Input Power | 78 kW |

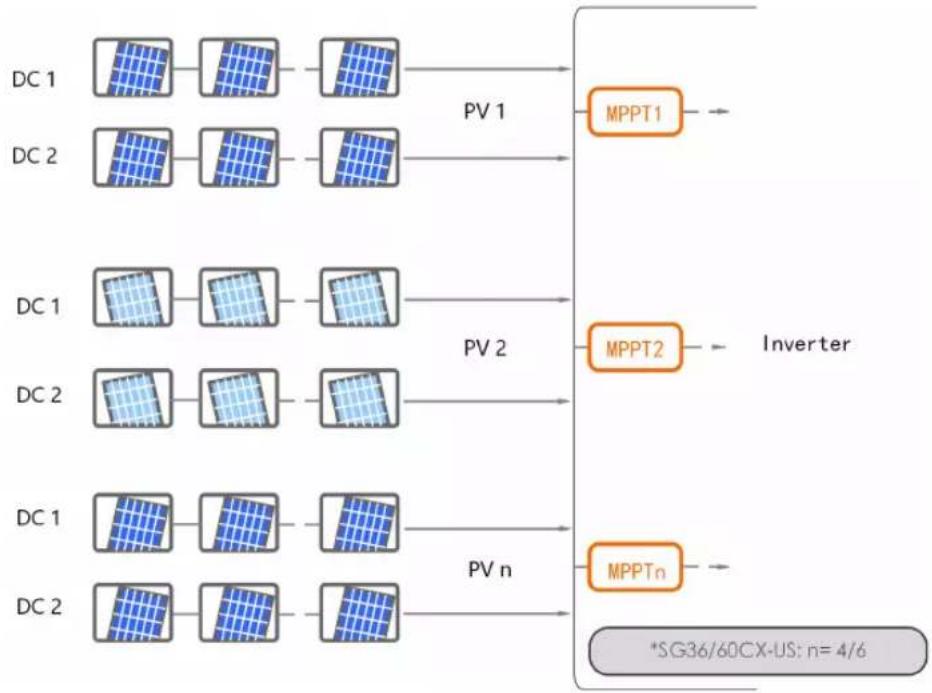

| Number of MPP Trackers | 4 |
| Maximum Input Voltage | 1000 V |
| Maximum Input Current | 128 A |
| Output Voltage | 480 V AC (3-phase) |
| Maximum Efficiency | 98.5% |

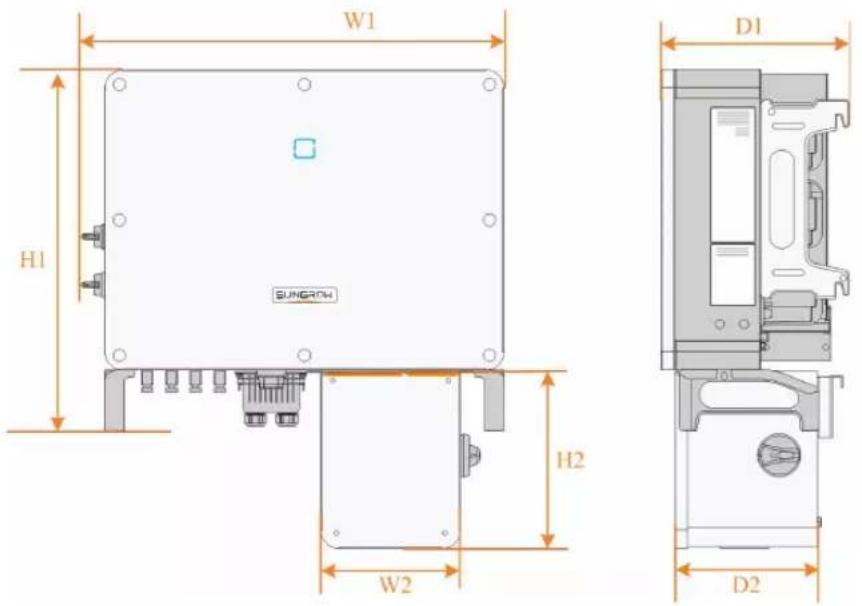

| Dimensions (HxWxD) | 800 x 600 x 300 mm |
| Weight | 70 kg |
| Cooling Method | Forced Air (Variable Speed Fans) |
| Operating Temperature Range | -25°C to +60°C |
| Ingress Protection Rating | IP65 (Outdoor Rated) |
| Communication Ports | RS485, Ethernet, Wi-Fi (Optional) |
| Display | LCD Touchscreen |
| Safety Certifications | UL 1741, IEEE 1547, CSA |
| Warranty | 5 Years (Standard), 10/20 Years (Optional) |
| Maintenance Requirements | Clean vents and fans every 6 months; check connections annually |
| Spare Parts Available | Fans, capacitors, control boards, connectors |
| Repairability | Modular design; field-replaceable components |
Frequently Asked Questions - SG60CX-US Sungrow
What is the SG60CX-US inverter used for?

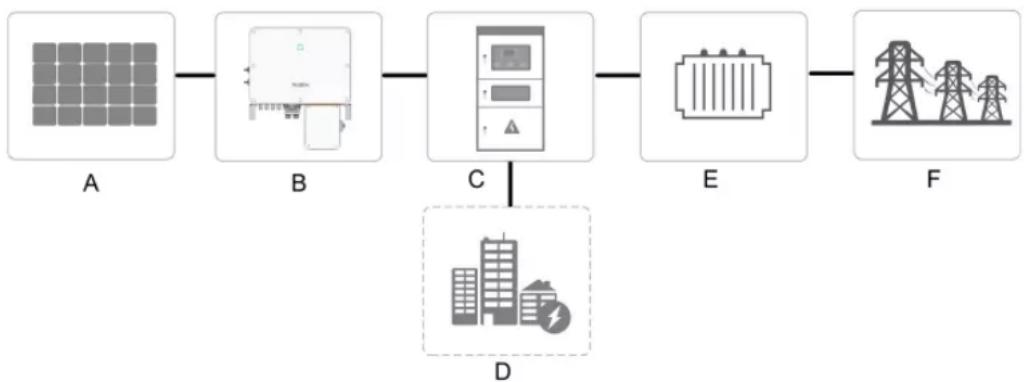

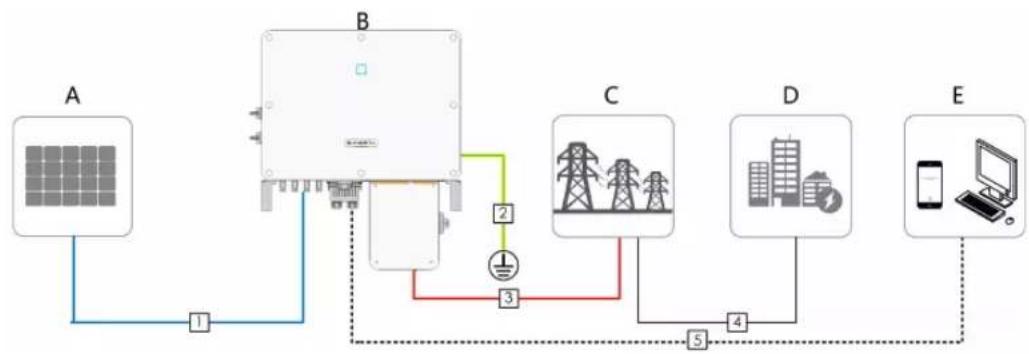

The SG60CX-US is a commercial solar inverter designed for large-scale photovoltaic installations, converting DC power from solar panels into AC power for grid connection.

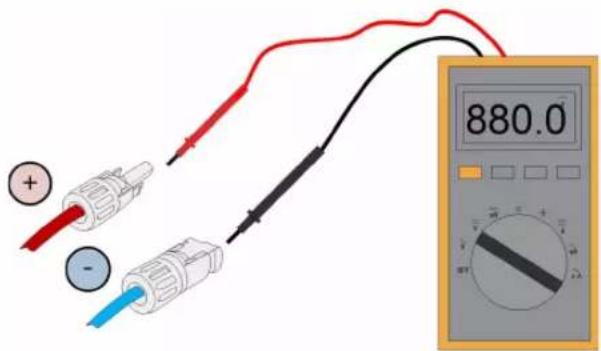

What is the maximum input voltage?
The maximum input voltage is 1000 V DC. Ensure that the total open-circuit voltage of the PV array does not exceed this limit.

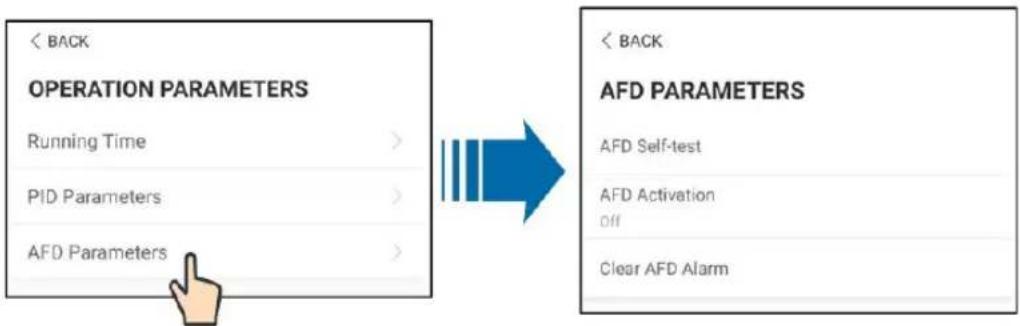

Does the inverter have built-in arc fault protection?
Yes, the SG60CX-US includes integrated AFCI (Arc Fault Circuit Interrupter) protection to detect and mitigate arc faults in the PV string.

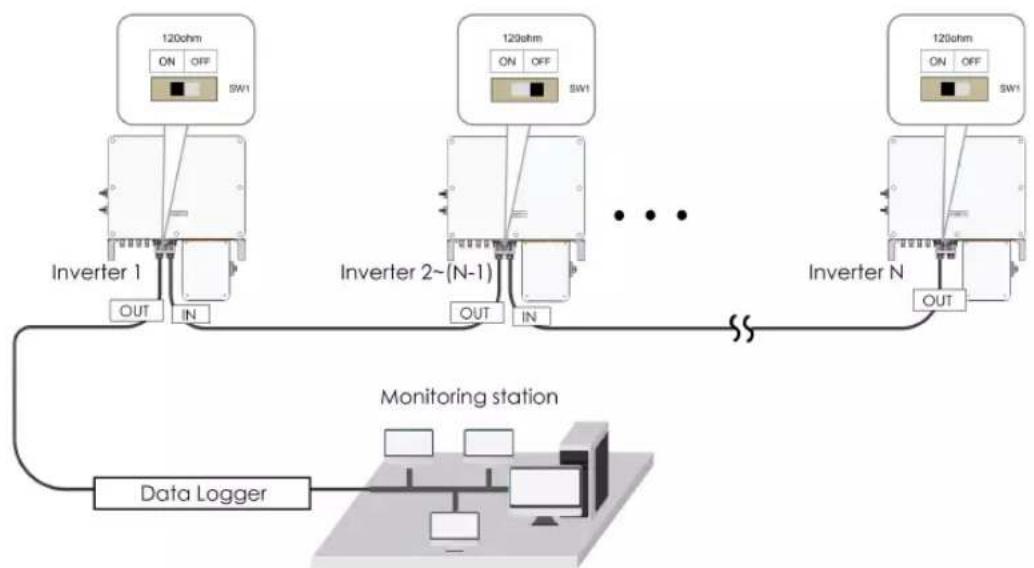

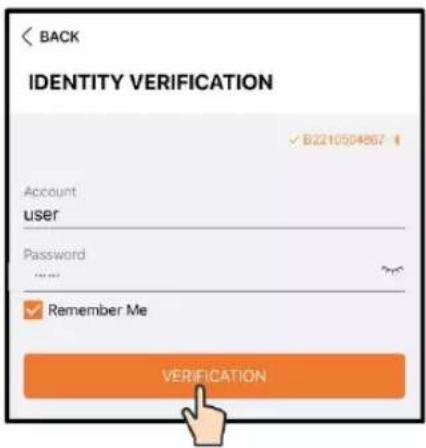

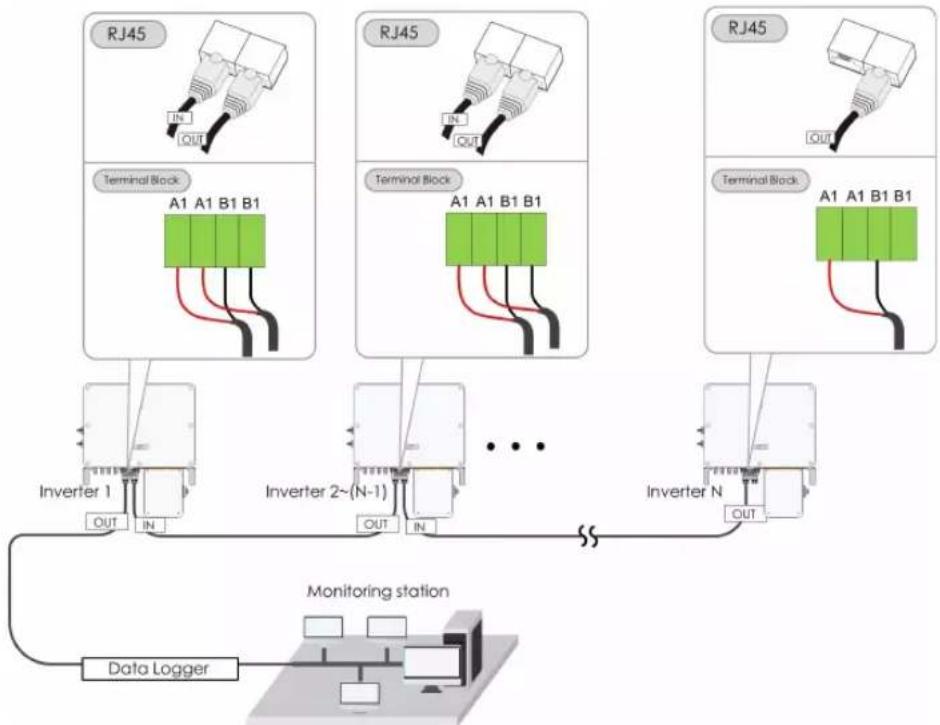

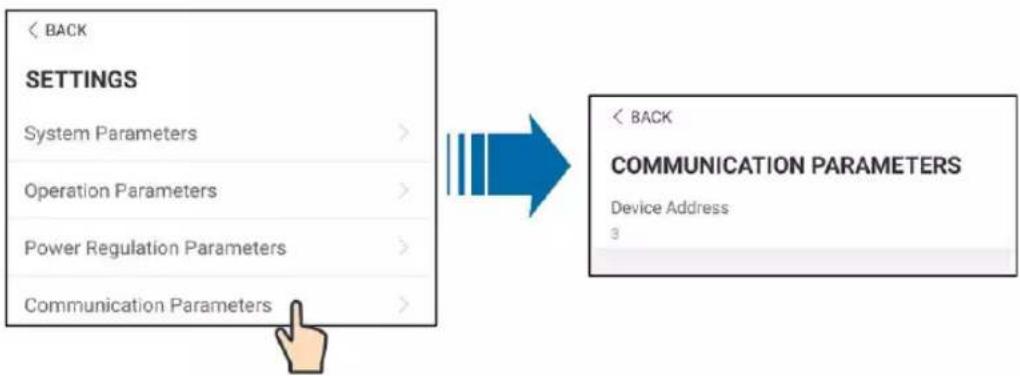

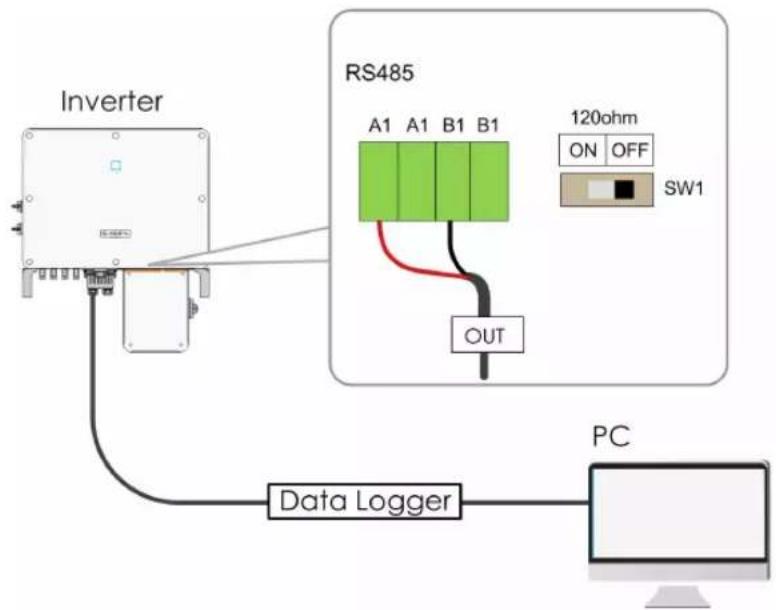

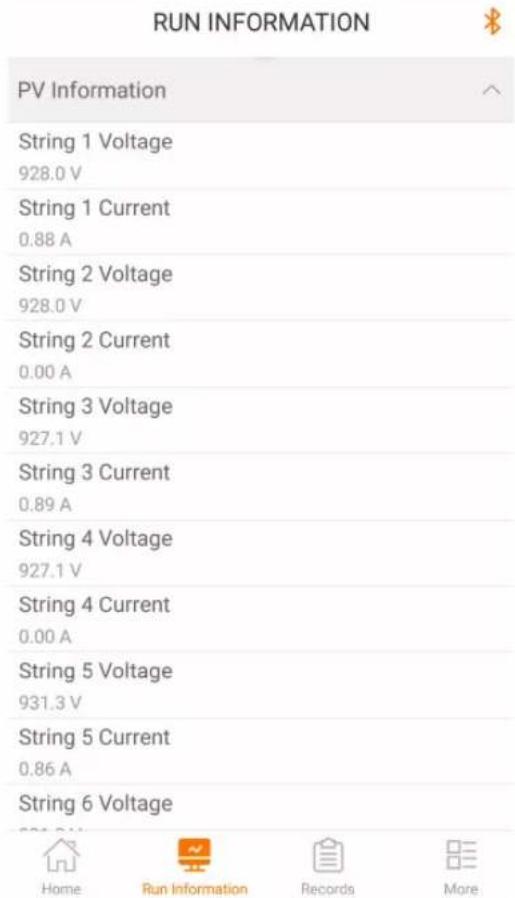

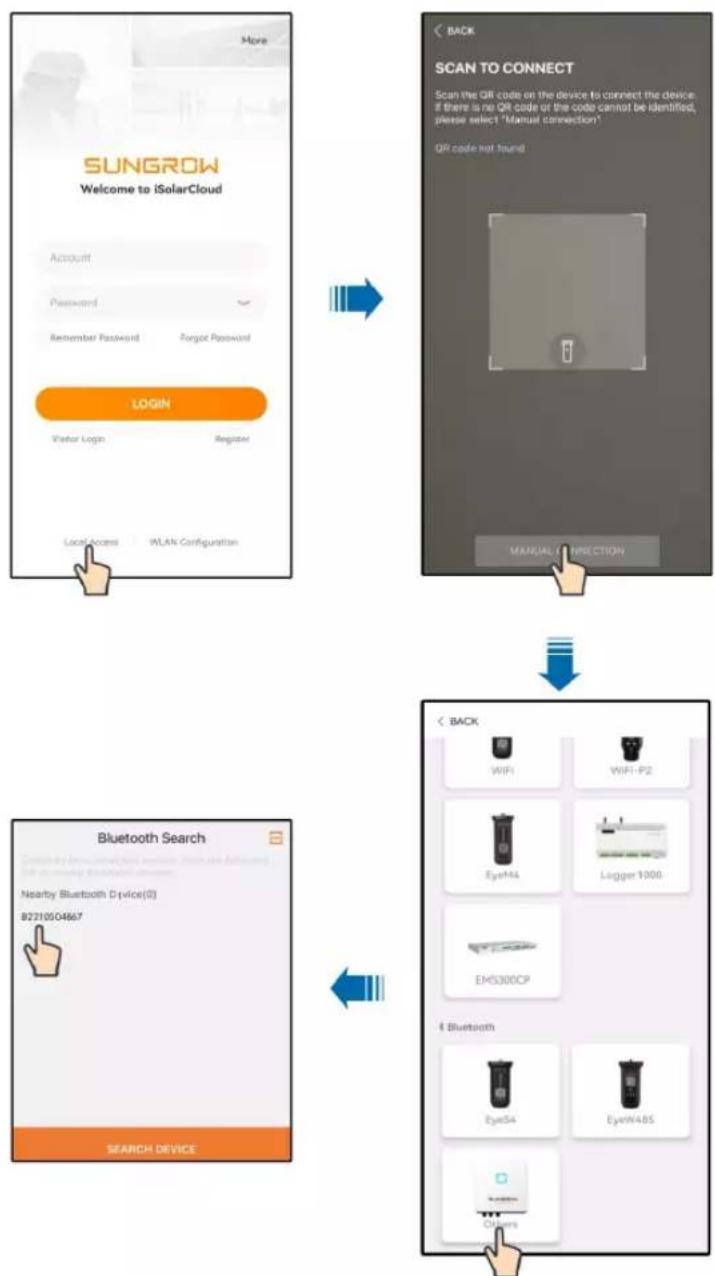

How do I connect the inverter to monitoring?

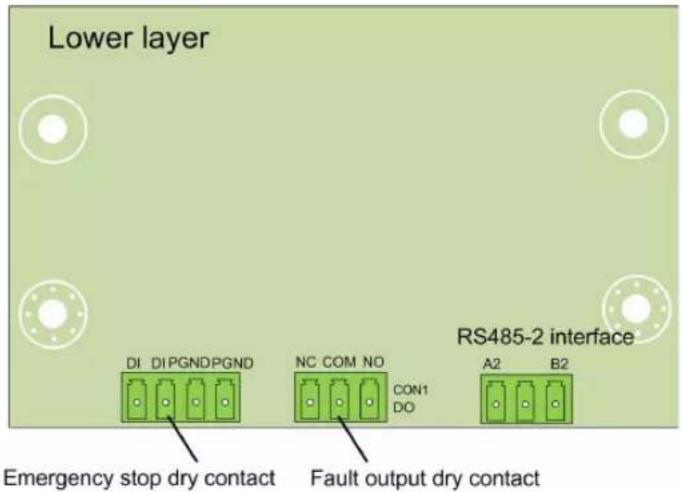

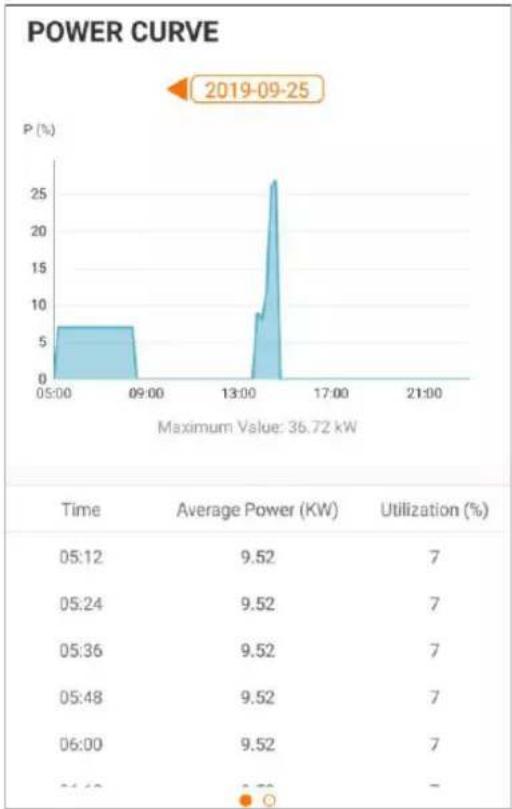

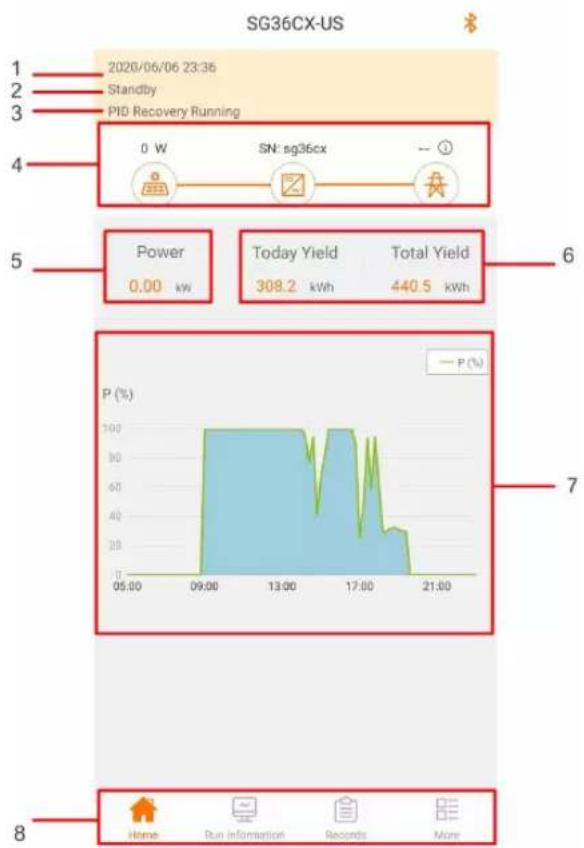

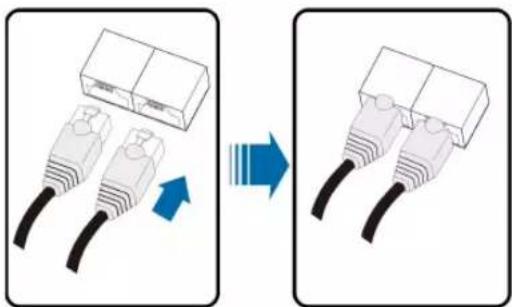

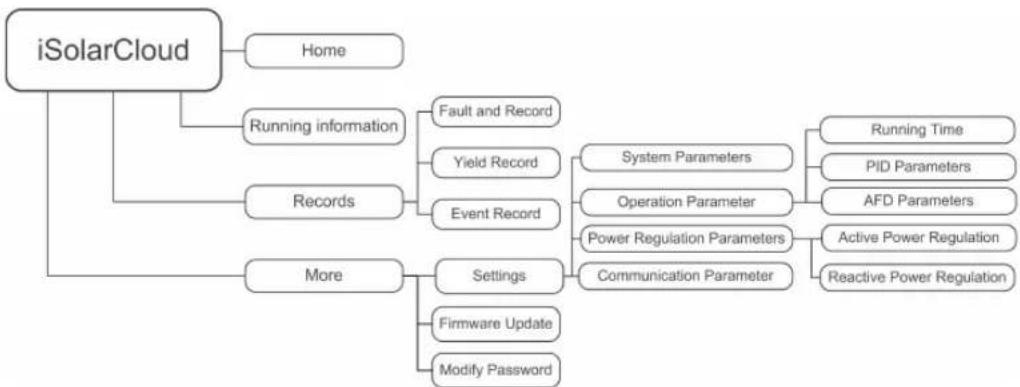

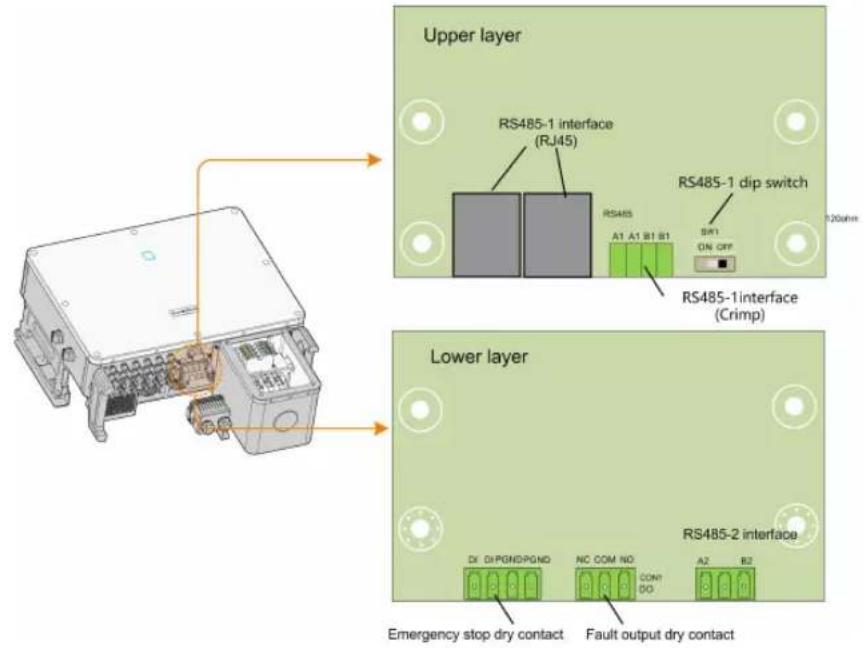

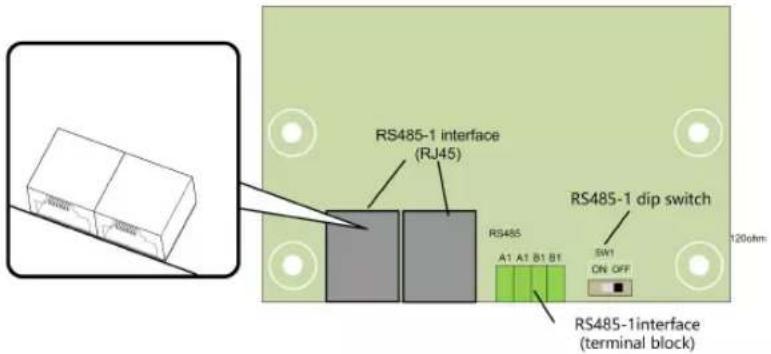

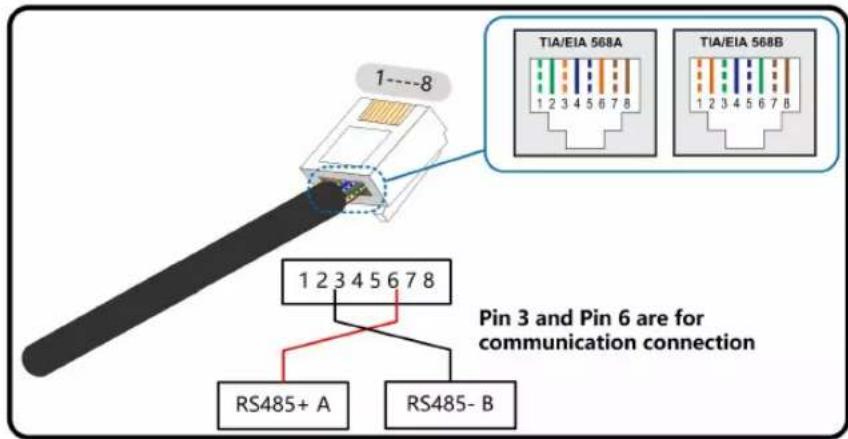

The inverter supports RS485, Ethernet, and optional Wi-Fi. Use the Sungrow iSolarCloud platform for remote monitoring and data logging.
What is the typical efficiency?
The maximum efficiency is 98.5%, with a weighted CEC efficiency of 98.0%. Actual performance depends on operating conditions.

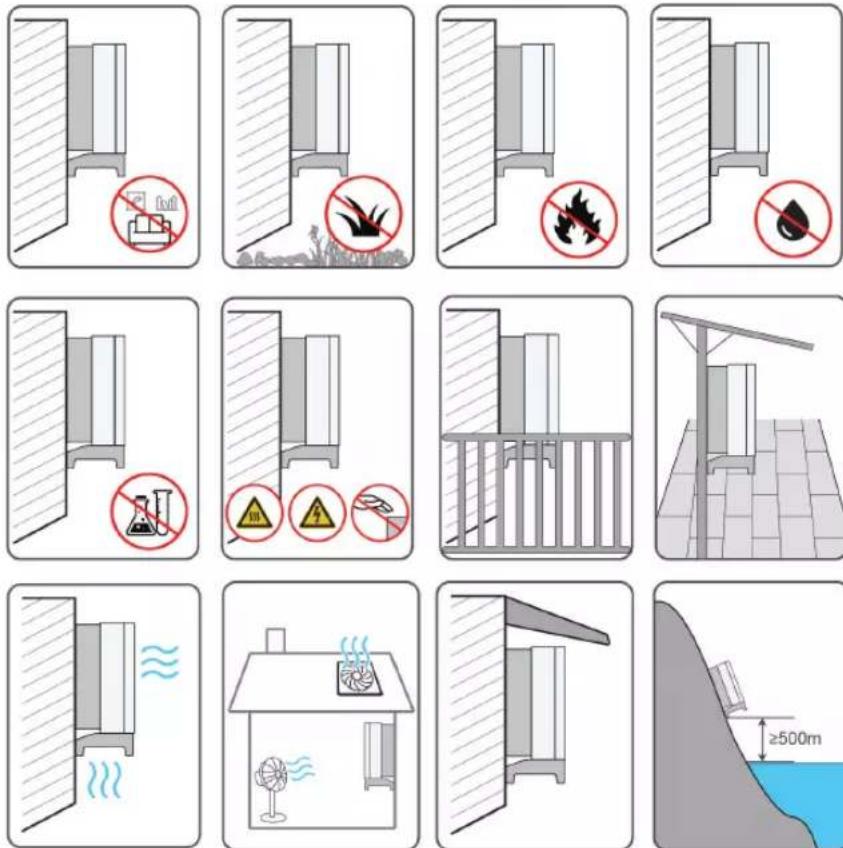

Is the inverter suitable for outdoor installation?

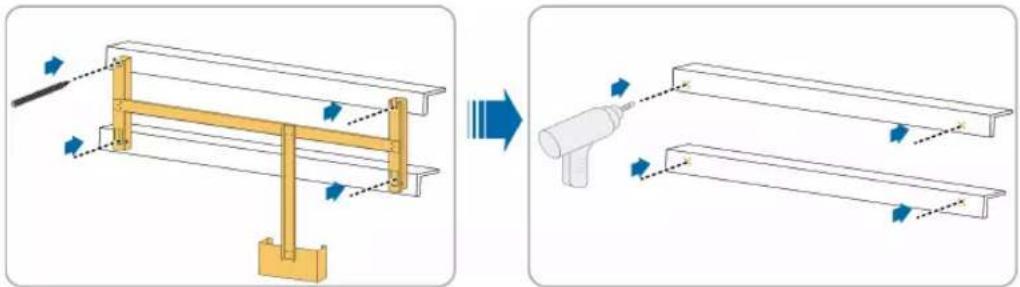

Yes, it has an IP65 rating, meaning it is dust-tight and protected against low-pressure water jets from any direction. Ensure proper mounting.
What maintenance is required?

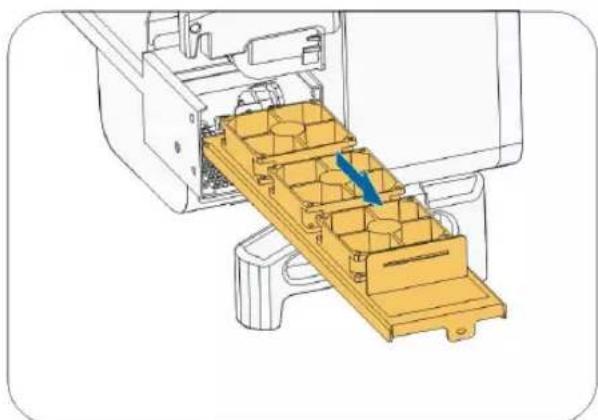

Regularly clean the cooling fans and vents every 6 months. Annually check all electrical connections and inspect for physical damage.
Can the inverter operate in high temperatures?
Yes, the operating range is -25°C to +60°C. At temperatures above 45°C, the inverter may derate output power to protect internal components.
What certifications does it have?
The SG60CX-US is certified to UL 1741, IEEE 1547, and CSA, ensuring compliance with North American grid interconnection standards.
Where can I find the user manual?
The user manual is available for free download on the Sungrow website and on notice-facile.com. It contains detailed installation, operation, and troubleshooting instructions.
