Kiss - Baby Scale Chipolino - Free user manual and instructions

Product Type	Baby Scale
Brand	Chipolino
Model	Kiss
Dimensions (approx.)	12 x 10 x 1.6 inches (30 x 25 x 4 cm)
Weight (approx.)	1.5 kg (3.3 lbs)
Power Supply	2 AAA batteries (not included)
Maximum Capacity	44 lbs / 20 kg
Graduation / Precision	0.1 oz / 5 g
Units	kg / lb switchable
Display	LCD screen
Auto-Off	Yes, after approx. 60 seconds of inactivity
Tare Function	Yes (allows weighing with a towel or blanket)
Low Battery Indicator	Yes
Overload Indicator	Yes
Material	Plastic with detachable plastic tray
Safety	BPA-free, rounded edges, stable base
Cleaning & Maintenance	Wipe with a soft dry cloth; do not immerse in water
Spare Parts & Repairability	Not user-serviceable; contact support for issues
Certifications	CE, RoHS
Package Contents	Scale, user manual (PDF)

Frequently Asked Questions - Kiss Chipolino

How do I change the unit from kg to lb?

Press and hold the UNIT button on the scale until the display switches between kg and lb.

What batteries does the Chipolino Kiss baby scale require?

It requires 2 AAA batteries (1.5V each, not included). Insert them in the battery compartment at the bottom.

How do I reset the scale to zero before weighing?

Place the scale on a flat, hard surface. Turn it on by pressing the ON button; it will auto-calibrate. If using a blanket, place it first and press the TARE button to zero out.

What is the maximum weight capacity?

The maximum capacity is 20 kg (44 lbs). Exceeding this may damage the scale.

How do I clean the scale?

Use a soft, dry cloth to wipe the surface. Avoid water or cleaning liquids; do not immerse the scale.

Why does the scale show 'Err' or 'Lo'?

'Lo' indicates low battery; replace them. 'Err' means overload or unstable placement. Remove weight and restart on a level surface.

Can I use the scale on carpet?

For accurate results, place the scale on a hard, flat floor. Carpet may cause errors.

How does the auto-off function work?

The scale automatically turns off after approximately 60 seconds of inactivity to save battery.

Is the scale safe for newborns?

Yes, it is made of BPA-free materials with smooth edges and a stable design for safe weighing.

Where can I find the user manual for download?

The manual in PDF format is available for free on notice-facile.com. Search for 'Chipolino Kiss'.

USER MANUAL Kiss Chipolino

Black and white photo of a baby stroller with adjustable canopy and wheels (no text or symbols visible)

This stroller

Chipolino

the requirements of the Product Safety Directive 2001/95/EU of the European Parliament and The Council and with European standard EN 1888-1:2018+A1:2022 Child use and care articles. Wheeled child conveyances. Part 1: Pushchairs and prams and EN 1888-2:2018+A1:2022 "Child care articles. Wheeled child conveyances. Part 2: Baby strollers from 15 up to 22 kg, as well as the National Consumer Protection Law and national legislation.

FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECCOMENDATIONS IN THIS MANUAL IN ORDER TO GUARANTEE THE SAFE USE OF THIS PRODUCT:

IMPORTANT! WARNINGS!

WARNING! NEVER LEAVE YOUR CHILD UNATTENDED!
WARNING! ALWAYS USE THE RESTRAINT SYSTEM (SAFETY BELTS)!
✿ WARNING! MAKE SURE YOUR CHILD IS AT SAFE DISTANCE AWAY FROM THE STROLLER DURING ADJUSTMENTS, FOLDING OR UNFOLDING OF THE STROLLER.
✿ WARNING! MAKE SURE THAT ALL LOCKING MECHANISMS ARE ENGAGED BEFORE USE.
✿ WARNING! BEFORE EACH USE, CHECK THE STABILITY OF FIXING OF SEPARATE PARTS!
✿ WARNING! DO NOT ALLOW YOUR CHILDREN TO PLAY WITH THE STROLLER!
✿ WARNING! THIS PRODUCT IS NOT SUITABLE FOR RUNNING OR SKATING!
✿ FOR NEWBORN BABY USE THE MOST LYING POSITION OF THE BACKREST OF THE SEAT!
✿ USE THE SITTING POSITION OF THE SEAT UNIT ONLY AFTER CHILD IS LEAST 6 MONTHS OLD! SITING POSITION OF SEAT IS NOT SUITABLE FOR BABIES, WHO ARE AGED LESS THAN 6 MONTHS!
KEEP AWAY FROM FIRE!
DO NOT LIFT THE STROLLER BY THE FRONT BAR, BECAUSE THIS CAN LEAD TO SERIOUS INJURIES!
Use the stroller for a child weighing not more than 22 kg.
- Initial assembly, folding and unfolding to be done only by adult!
❖ Always engage the parking device when the stroller has stopped and is not moving, especially when you place or take out your child from it!
Make sure the safety belts are fastened and fit well to the child before usage.
Do not place an additional mattress in stroller.
- The maximum load for the storage basket is 2 kg.
The maximum load for the accessories bag (in case there is one) is 2 kg.
Do not overload the stroller! Always balance your stroller in a way to keep it stable and prevent the risk of tip-over!
◆ Stroller is intended for use for one child at a time!
Do not use any spare parts or other components, which are not approved by the producer! The producer does not take any responsibility for the safety of the child when you have not used the proper and original spare parts, approved and provided by the producer!

Do not apply any changes or modifications to the stroller's construction! Contact the dealer or an authorized repair service for advice and/or repair instead!
Discontinue the usage, if you find worn out or loose joints, damaged or missing parts! There is a risk of injury of the child!
Do not allow children younger than 3 years near the stroller during the assembly or disassembly, in order to prevent the risk of injury or swallowing of small parts!
- Strings can cause strangulation! Do not place additional strings to the product to avoid injuries!
✿ Never use the stroller on stairs or escalators! Use extra care when going up or down a pavement or step!
The packaging of the product must be kept out of the reach of children to avoid the risk of strangulation!

Simple line drawing of a baby sitting in a chair with a seatbelt, enclosed in a circle (no text or symbols)

Illustration of a woman and a child stroller inside a circle (no text or symbols)

Simple line drawing of a child in a stroller inside a circle (no text or symbols)

Illustration of a woman carrying a stroller with a baby, enclosed in a circle (no text or symbols)

Simple line drawing of a woman pushing a baby stroller inside a circular frame (no text or symbols)

PRODUCT FEATURES

❖ Stroller is suitable for newborn babies and children aged up to 4 years or weighing up to 22 kg. (whichever comes first);
◆ 5-point safety harness;
Adjustable backrest;
Adjustable canopy;
◆ Adjustable leg rest;
◆ Auto folding of stroller.

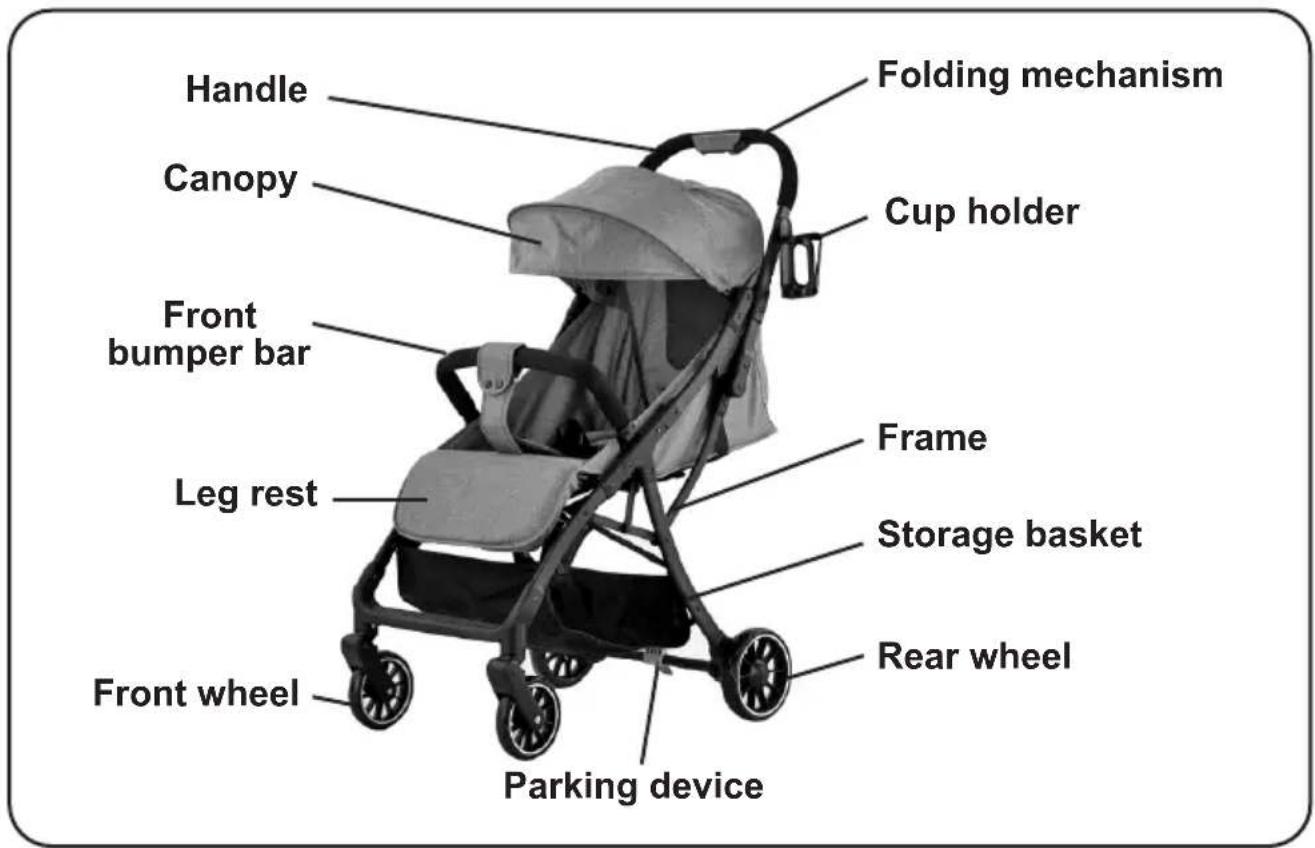

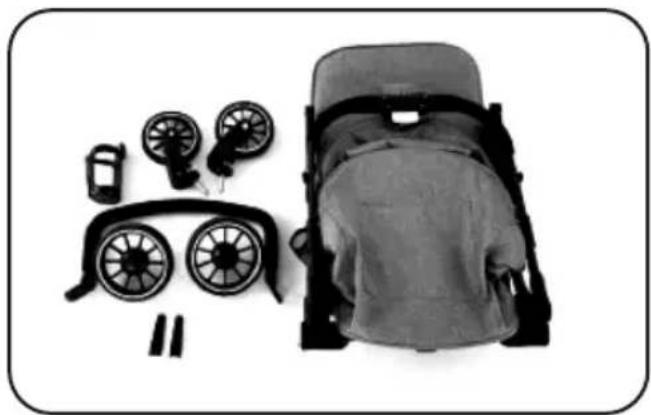

MAIN PARTS

Black-and-white photo of a portable device with circular wheels and a backpack (no text or symbols visible)

Frame - 1 pc

Front wheels - 2 pcs

Rear wheels - 2 pcs

Front bumper bar - 1 pc

Cup holder - 1 pc

Support - 2 pcs

ASSEMBLY INSTRUCTIONS AND FUNCTIONS

This stroller is supplied partially assembled. In order to complete the assembly, you don't need any tools.

IMPORTANT! Follow exactly the instructions given and check the pictures. Keep your hands from entrapment!

IMPORTANT! After each operation, make sure that you have followed the instructions correctly and the fixing is stable!

IMPORTANT! In most cases after the completion of an operation you will hear a clicking sound.

The assembly, disassembly and functions are numbered from 1 to 13. Use the operations descriptions given in this manual and their matching picture.

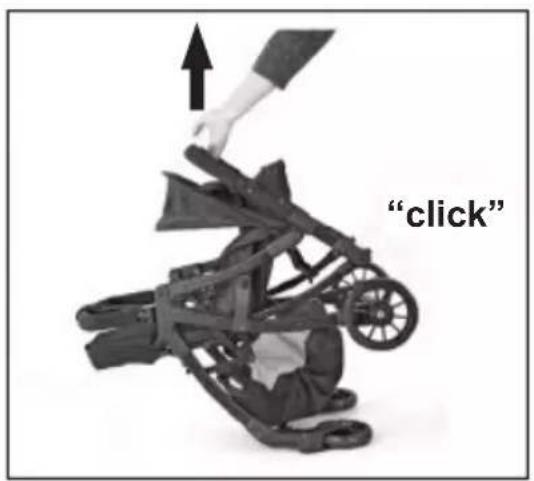

1 – UNFOLDING THE STROLLER

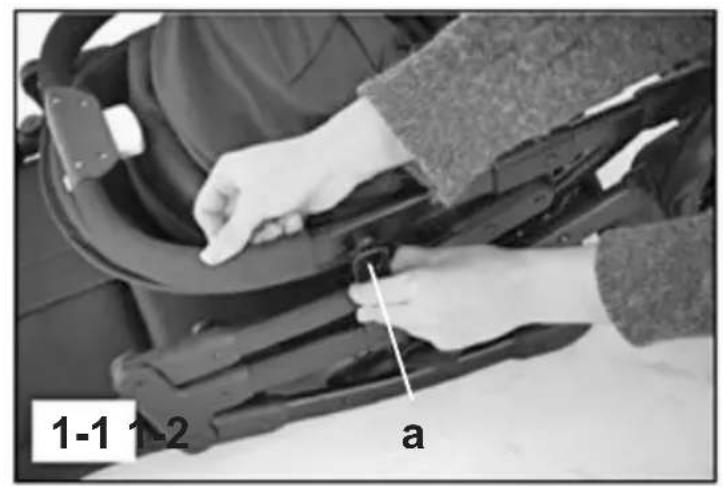

1-1 – Release the hook (a).

1-2 – Pull up the handle upwards until the stroller is fully unfolded and you hear a click.

2 - ASSEMBLY AND REMOVAL OF THE FRONT WHEELS

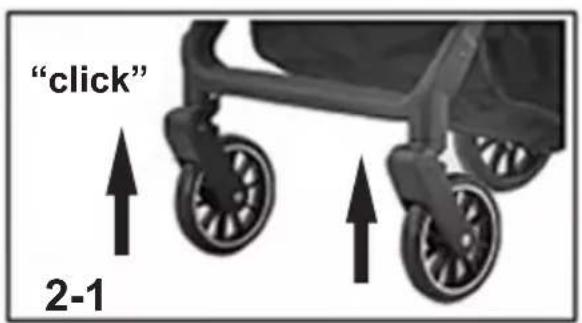

2-1 – Insert the front wheels into the openings in front part of the frame and when the wheels are fixed you will hear a click.

2-2 – To remove the wheels press the buttons (b) and remove the wheels.

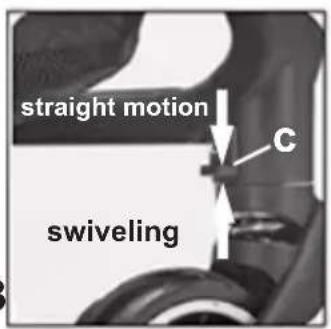

3 - STRAIGHT AND SWIVEL MOVEMENT OF FRONT WHEELS

Press downwards the lever (c) – front wheels will move only straight.

Press upwards the lever (c) - front wheels will swivel.

Note: When pushing the stroller on uneven surfaces, the front wheels must be moving straight.

4 - ASSEMBLY AND REMOVAL OF THE REAR WHEELS

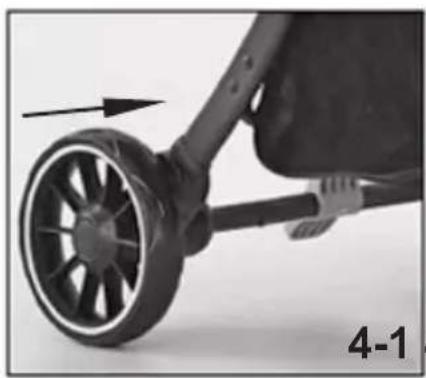

4-1 – Insert the rear wheels into the openings in rear part of the frame until you hear a click sound.

ATTENTION! After assembly make sure the wheel can roll and is securely fixed by trying to pull it out of the frame!

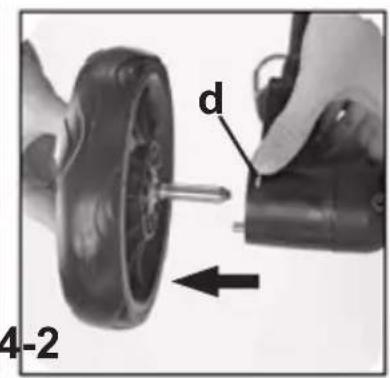

4-2-To remove the wheels press the buttons (d) at both sides and take out the wheels.

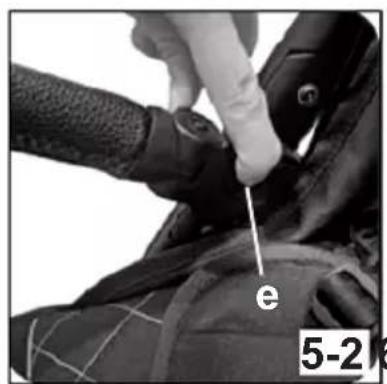

5 - ASSEMBLY OF FRONT BUMPER

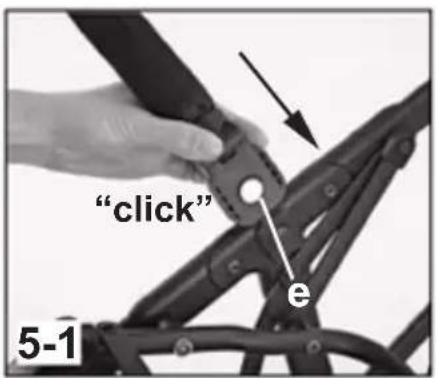

Assembly: Place the two ends of the front bumper to the openings in the frame and press until you hear a click and buttons (e) show out through the slot.

Removal: Press the buttons (e) on both sides and pull out the bumper.

6 – ASSEMBLY OF SUPPORTS

Place the supports to the frame, so that they match and press.

Supports assure stability after folding of stroller in upright position.

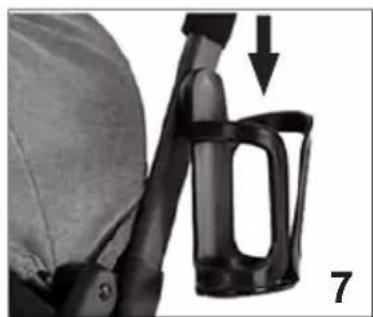

7 - INSTALLATION OF CUP HOLDER

Place the cupholder to the element at one side of the frame and slide downwards to fix it.

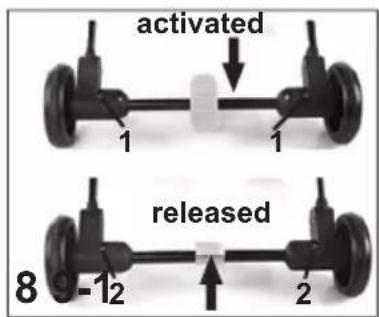

8 – PARKING DEVICE

Press the pedal down, in order to activate the parking device. Stroller does not move. Indicators (1) will show red signal.

Set the pedal up, in order to release the parking device. The stroller can move again. Indicators (1) will show green signal.

IMPORTANT! Always activate the parking device while stroller is not in motion in order to avoid sudden sliding and injuries!

9 - BACKREST RECLINE ADJUSTMENT

WARNING! BABIES UNDER 6 MONTHS MUST BE PLACED ON THE SEAT ONLY WITH THE BACKREST, ADJUSTED IN THE MOST RECLINED (FLAT) POSITION!

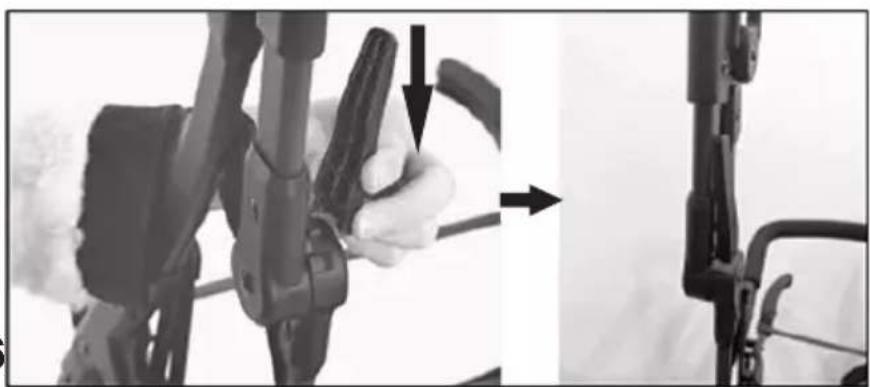

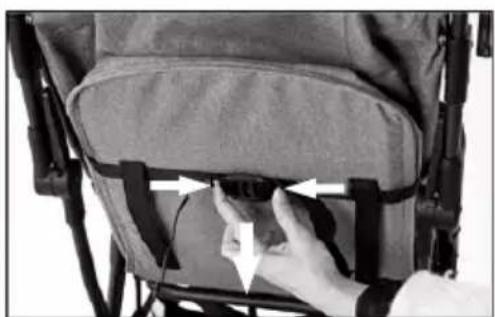

9 - 1 – Press at both sides the buckle for backrest recline and pull down to set the backrest in lying position.

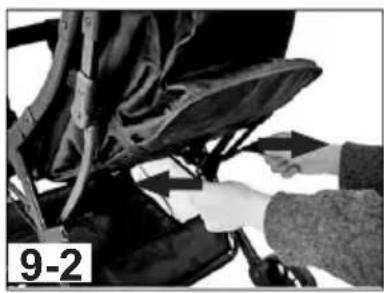

9 - 2 – Pull both belts outwards to move the buckle up and set the backrest in upright position.

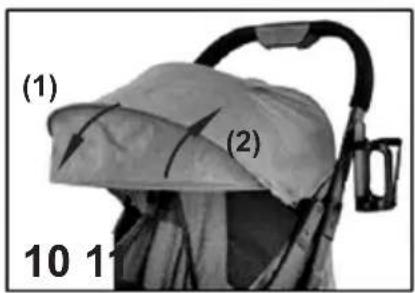

10 - CANOPY ADJUSTMENT

Unfolding: (1): Pull the canopy with your hand to open it.

Folding (2): Push the canopy with your hand in order to fold it.

11 - LEG REST

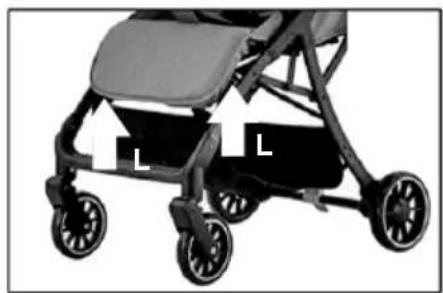

Press simultaneously both levers (L) at down part of the leg rest (under the fabric cover) and set the leg rest down until you reach the required position.

To set the leg rest it upper position, pull it with your hand. By fixing you will hear a click sound.

12 - RESTRAINT SYSTEM (SAFETY BELTS)

ATTENTION! USE THE RESTRAINED SYSTEM (SAFETY BELTS) FROM BIRTH AND DURING THE ENTIRE PERIOD OF USING THE STROLLER! ADJUST THE HEIGHT OF THE BELTS ACCORDING TO CHILD'S AGE AND HEIGHT, BUT FO NOT REMOVE THE BESTS FROM STROLLER'S SEAT!

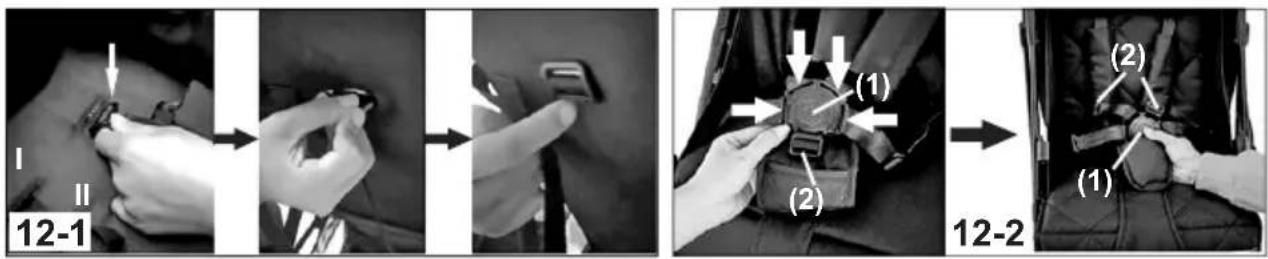

12-1 - Safety belt can be set in 2 levels of height (I and II).

Thread the shoulder belt buckle through the desired height slot (I or II), rotate and pull the belt to fix it.

Note: Always install both shoulder belts at the same height.

To remove the belts, in order to change their height position, rotate the buckles and thread it through the slot.

12-2 - Press button (1) at central buckle to unfasten the safety belt.

Adjust the belts' length by moving the buckles (2) up or down.

Adjust the length of the belts accordingly.

Note: Belts must be snug to child's body and must not be twisted.

WARNING! Periodically check to ensure that the seat belt is securely attached to the stroller frame as well as securely fastened. The belts should not be worn or torn, and plastic buckles and fasteners must be sturdy, free of damage and secure.

IMPORTANT! Before folding the stroller, the paring device must be engaged and the storage basket should be empty.

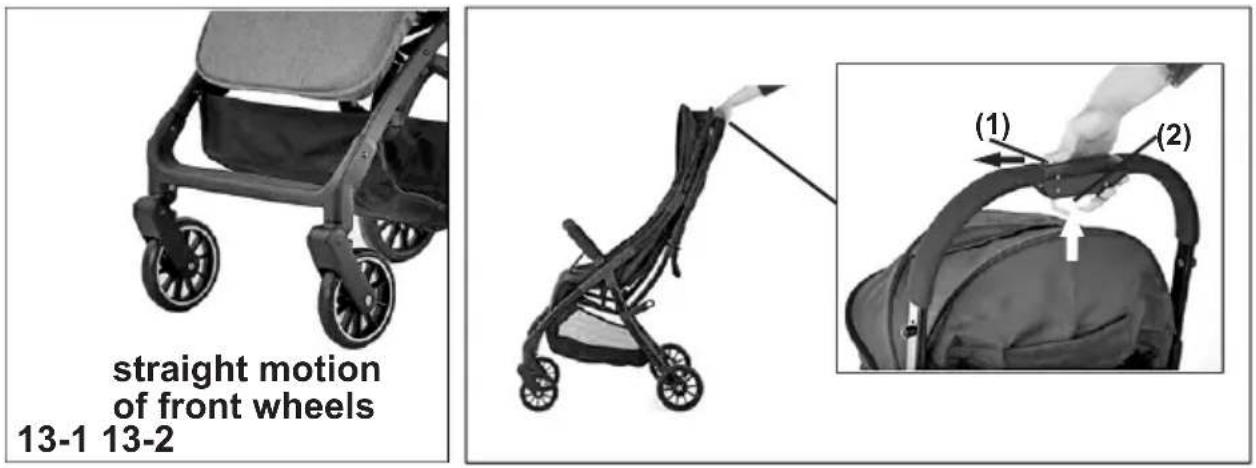

13-1 - Set the front wheels in straight motion position.

13-2 – Pull with your thumb the lever (1) in the shown direction and simultaneously press with your other fingers the button (2).

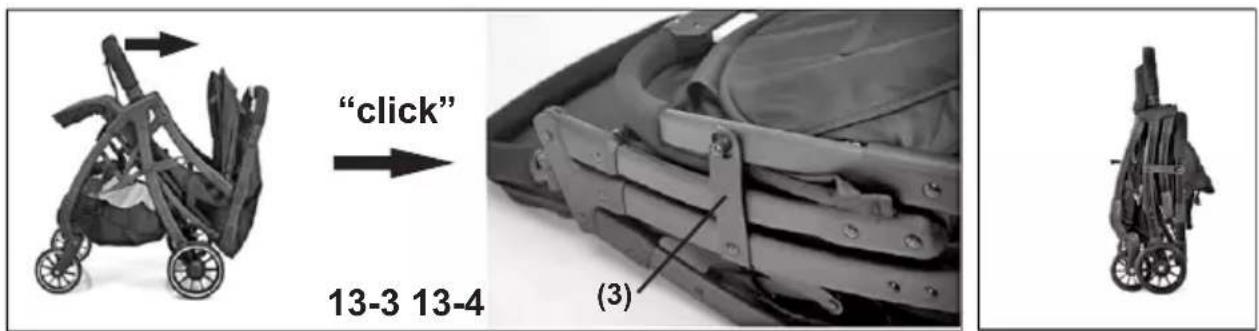

13-3 – Press the handle forward and the stroller will fold automatically. Fixing (3) will lock the stroller in folding position.

13-4 - Folded stroller.

Close-up of hands assembling a mechanical component, labeled 'a' and page number 1-1 1-2 (no readable text or symbols beyond labels)

Close-up of a child's stroller with wheels and a hand operating it, labeled '4-1' (no text or symbols on the diagram itself)

Close-up of a hand holding a rifle with arrows indicating movement or adjustment (no text or symbols visible)

Close-up of a black mechanical device with a downward arrow indicating motion or assembly (no text or symbols visible)

Close-up of a person using a device to adjust or install a cushioned seat (no visible text or symbols)

Close-up of hands operating a bicycle seatbelt mechanism, no visible text or symbols

Side view of a baby stroller with wheels and seat (no text or symbols visible)

CARE AND MAINTENANCE GUIDELINES

The brakes and wheels wear out faster than other parts. Replace them when necessary.
- Regularly oil the moving parts. Use silicone oil or silicone spray for oiling.
- Clean and oil all dirty metal and plastic parts regularly.
- Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap.
Do not use aggressive detergents, solvents, bleach or spirits to clean your stroller.
Always leave the stroller to fully dry after cleaning before you use it or store it. Mold could form if you keep your stroller moist.
Always store your stroller indoors in clean and dry place. Do not expose to direct environment influence - sun, rain, moisture and high temperature intervals.
Please, contact your authorized dealer for problems connected with the use or repair of this stroller.

Fabric Composition:

Outer: 100% Polyester

Filling: 100% Polyester

LKKS024xxxx
