Product Type Blender
Brand Orava
Model RM-208
Power Supply 220-240 V~, 50/60 Hz
Power Consumption 500 W
Protection Class II
Motor Speed 19,000 - 23,500 rpm
Speed Settings 2 speeds (1, 2) + Pulse (P)
Pulse Function Yes (momentary operation)
Container Capacity 1.5 L (liquid max)
Max Food Capacity 5 cups (approx. 1.2 L)
Continuous Operation Time 2 minutes
Dimensions (W x H x D) 13 x 38 x 15.5 cm
Weight 2.67 kg
Noise Level 85 dB(A)
Jar Material Glass
Blades Stainless steel, sharp
Safety Features Locking lid, non-slip feet, automatic shut-off on overload? (not specified, but safety instructions)
Intended Use Household, mixing liquids, soft foods, frozen foods, ice, nuts, spices
Cleaning Hand wash only; base wiped with damp cloth; not dishwasher safe
Accessories Included Glass jar, lid with cap, measuring cup (built-in)

Frequently Asked Questions - RM-208 Orava

How do I assemble the blender?
Place the base on a dry, level surface. Press the glass jar onto the base until it fits firmly. Add ingredients, then place the lid and cap on the jar. Ensure the lid is locked before plugging in.
What is the maximum capacity for blending?
Do not fill the jar beyond the 1.5 L mark for liquids, and for solid foods do not exceed 5 cups (approx. 1.2 L). Overfilling may cause spillage or motor strain.
Can I blend hot liquids?
Allow hot foods to cool below 60°C before blending. Blending hot liquids can create pressure and cause the lid to pop off, risking burns.

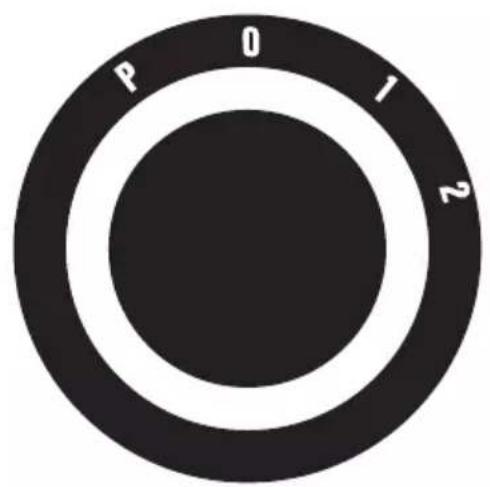

How do I use the pulse function?
Turn the switch to the P (PULSE) position for short bursts. Release to stop. This is ideal for chopping or achieving a coarse texture.
What safety precautions should I take?
Always unplug before assembling or cleaning. Keep hands and utensils away from moving blades. Do not operate without the lid secured. Wait for blades to stop completely before opening.
How do I clean the blender?
After use, unplug and disassemble. Rinse the jar, lid, and blades with warm soapy water. Do not immerse the motor base; wipe it with a damp cloth. Do not put parts in dishwasher or boiling water.
Can I crush ice with this blender?
Yes, but always add liquid (e.g., 2 cups of water) first. Use pulse mode and add ice cubes one by one. Do not operate without liquid.
How long can I run the blender continuously?
Do not run for more than 2 minutes continuously. After that, let it rest for at least 2 minutes to prevent overheating.
What should I do if the blender stops during operation?
Switch off and unplug. Remove the lid and use a rubber spatula to dislodge stuck food. Do not use metal utensils. Reassemble and continue.
Is the blender dishwasher safe?
No, all parts except the motor base should be hand washed. The blades have grease that can be damaged by boiling water or dishwasher heat.

User questions about RM-208 Orava

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Blender in PDF format for free! Find your manual RM-208 - Orava and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RM-208 by Orava.

USER MANUAL RM-208 Orava

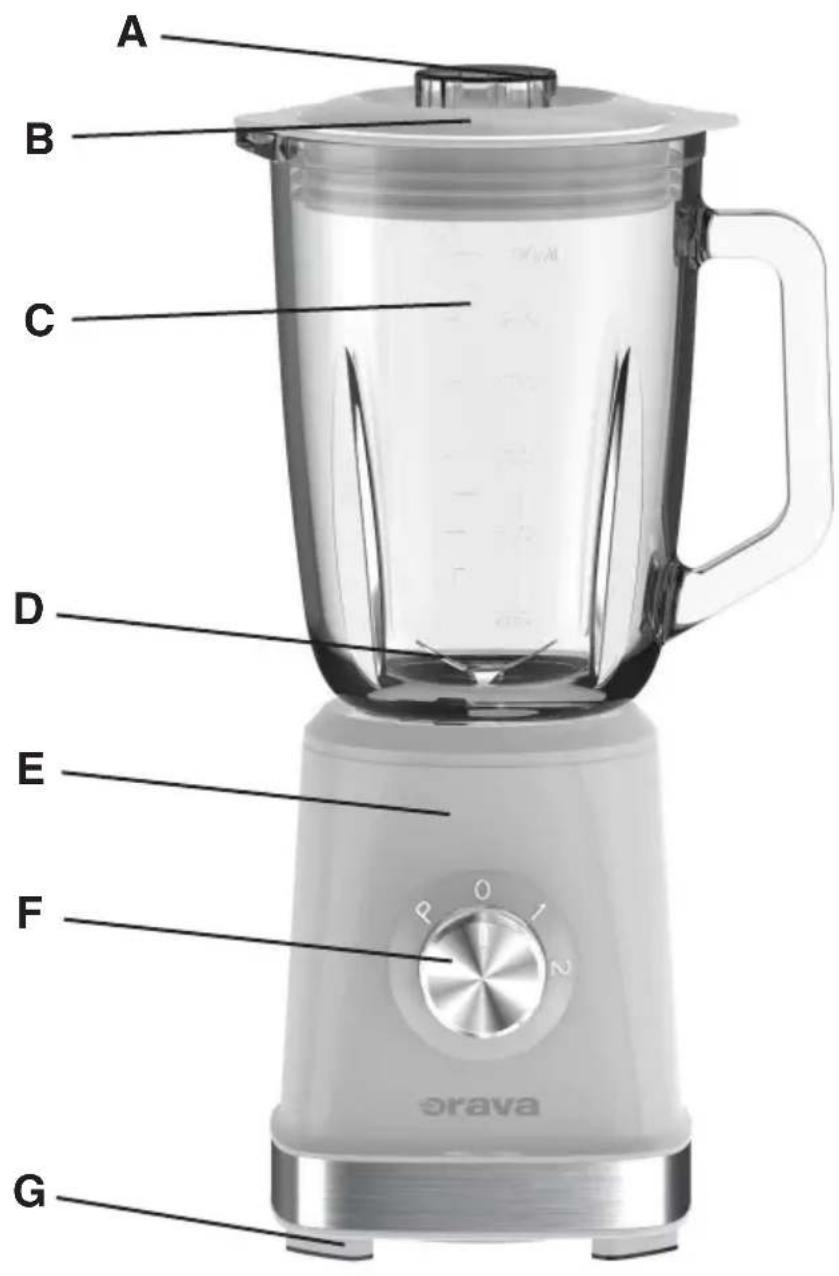

natural_image Exterior view of a modern kitchen blender with control knob (no text or symbols on body)

EN

CE

Intended use of the device

The appliance is intended for mixing liquid, soft and semi-hard foods (pulpy fruits and vegetables) and / or for mixing frozen foods and crushing ice and / or chopping nuts, spices, etc., in containers intended for preparation, to the range that is determined by the technical and operational parameters and functions of the equipment, safety and user instructions and the external influences of the operating environment.

ORAVA electrical appliances are manufactured according to the knowledge of the current state of technology and recognized safety and technical rules. Nevertheless, incorrect and unprofessional use or use contrary to the intended purpose may create a risk of injury or endanger the life of the user or a third party, or damage to equipment and other property.

1. GENERAL SAFETY INSTRUCTIONS AND WARNINGS

  • This document contains important safety instructions and warnings for safe, correct and economical operation of the electrical equipment. Its compliance helps the user avoid risks, increase reliability and product life.
  • In this document, the general term product is used in text parts such as: electrical equipment - any device used for the production, conversion, transmission, distribution or use of electricity.
  • From the point of view of the purpose of using electricity, the concept of electrical equipment in the strict sense of the word will include the following categories:

  • household electric appliances,

  • information and communication equipment,
  • consumer electronics,
  • lighting equipment,
  • electrical and electronic tools,
  • toys and equipment for sporting and recreational purposes,
  • medical devices (aids),
  • monitoring and control devices,
  • vending machines.

1.1 General safety instructions

  • Before commissioning the unit, we recommend that you carefully read the operating instructions and operate the equipment in accordance with the instructions!
  • The safety instructions and warnings in this manual do not cover all the possible conditions and situations that may arise when using the device. The user must understand that a factor that can not be incorporated into any of the products is responsibility and caution. These factors must therefore be ensured by users / users who use and operate this device.
  • Failure to follow the safety instructions and warnings is forbidden by the manufacturer for any damage to health or property!

  • Make sure that the appliance is complete and shows no signs of damage before using the appliance for the first time. If the product is defective or if it has any visible damage, do not use the product.

  • Keep the operating instructions as close to the device as possible throughout its service life. Always keep the operating instructions together with the appliance for future use and use by new users.
  • Use the appliance only for the purpose for which it is intended and in the manner specified by the manufacturer.
  • The appliance is intended for home and similar indoor use, with no special focus.
  • It is not a professional device for commercial use.
  • Do not change the technical parameters and features of the device by unauthorized modification or modification of any part of the device.
  • The manufacturer is not responsible for damages caused during transportation, misuse, damage or destruction of the equipment due to adverse weather conditions.

1.2 Safety of the operating environment

  • Do not use the device in an industrial environment or outside environment.
    • Always keep the operating environment clean and well lit.
  • Do not place the device on an unstable surface. Overriding or dropping the device may result in personal injury or damage to the device.
  • Do not expose the unit to direct sunlight or excessive heat sources.
  • Do not use an electric appliance in areas with fl ammable liquids, gases or dust. The appliance may be the source of scaling, which can result in the ignition of dust or vapors.

Features of the operating environment

  1. Ambient temperature: +5 ÷ +40 °C

  2. Humidity: 5 ÷ 85%

  3. Altitude: ≤ 2 000 m

  4. Occurrence of water: intermittent condensation of water or occurrence of water vapor

  5. Occurrence of foreign bodies: amount and type of dust are not significant Protection class: IP20

  6. Other characteristics of the operating environment (mechanical stress

  7. shocks and vibrations, occurrence of plant, animals, weather effects) are negligible in terms of effect on the correct and safe use of electrical equipment.

1.3 Electrical safety

  • Before connecting the appliance to the power supply for the first time, make sure that the voltage on the appliance label corresponds to that of the household electrical outlet.
  • The electrical appliance is designed for mains supply 230 V \~.

The electrical safety of the appliance is guaranteed only if it is properly connected to the electricity grid.

  • Only use a power cord with a plug (mains lead) that came with the device and compatible with a wall outlet. Using another cable may result in fire or electric shock.
  • Always connect an electrical appliance to an easily accessible power outlet. In the event of an operating fault, the appliance must be switched off as soon as possible and disconnected from mains supply.
  • Do not pull the power cord / power cord by pulling on the cord/cord. Disconnect the power cord by pulling the plug behind the power cord / power cord plug.
  • If you use an extension cord, check that the total rated (ampere) power of all devices connected to the extension cord does not exceed the maximum current rating of the extension cable.
  • If you need to use an extension cord or power supply block, make sure that the extension cord or power pack is plugged into a power outlet, and not to another extension cord or power supply. Extension power cord or power supply block must be designed for grounded plugs and plugged into a grounded outlet.
  • The power plug of the appliance must be compatible with the mains socket. Never use any adapters or modify the socket in any other way. Do not use inappropriate or damaged sockets.
  • To avoid electrical shock, plug the power cables into properly grounded electrical outlets. If the device is equipped with a 3-pin power supply cord, do not use adapters that do not have a grounding element or remove the grounding element from the plug or adapter.
  • Do not bend, crush or otherwise expose the power cord / power cord of the appliance to mechanical stress or external heat sources. Damage to the power cord may result in electric shock.
  • If the power cord is damaged, disconnect the appliance from the mains and do not use it again. If the power cord / power cord is damaged, it must be replaced by the manufacturer, its service department, or a qualified person to avoid the risk of electric shock.
  • Regularly check and maintain the electrical appliance as well as the power cable. Disconnect the power plug regularly and clean it if necessary. Pollution by dust or other substances may cause disruption of the insulating state and consequently fire.
  • Do not expose the appliance to water or moisture. The ingress of water into the appliance increases the risk of electric shock. If the power cord is wet or the appliance gets water, disconnect it immediately from the mains. If the appliance is plugged into a mains socket and if possible, turn off the power supply before attempting to disconnect the power supply. If you are pulling wet wires from a live power source, be very careful.
  • If the electrical equipment is installed (connecting) the protective covers are dismantled, the electrical parts must not be accessible to the user when the installation is finished.

1.4 Safety of persons

- This appliance is intended for use by persons without an electrotechnical qualification (layperson) according to the instructions specified by the manufacturer.

- Device operation includes activities such as switching on and off, user manipulation and setting of operating parameters, visual or auditory inspection of the equipment, and user cleaning and maintenance.

- This appliance can be used by children 8 years of age and older and persons with reduced physical, sensory or mental abilities or lack of experience and knowledge only when under the supervision or guidance of the responsible person have been instructed to use the appliance in a safe way and understand the potential hazards.

- Cleaning and user maintenance can be carried out by children 8 years of age and older only under the supervision of the responsible person.

• Children may not play with the appliance.

- Always keep the appliance out of reach of children during use and operation. Be sure to download the appliance even for a freely accessible power cord.

- Always be careful when operating the electric appliance. Do not use an electric appliance if you are overly tired, under the influence of medication or narcotic drugs that reduce attention and focus. Inattention during operation may result in serious injury.

1.5 Cleaning, maintenance and repairs

  • Observe the normal user cleaning and maintenance of the appliance in the recommended way. Do not use solvents or harsh cleaners for cleaning. Pollution and visible stains from fi nger contact, respectively. The hands can be cleaned using detergent detergents specially designed to clean household appliances.
  • If you do not use the appliance, clean it or disconnect the appliance from the power supply when the appliance is faulty.
  • Electrical appliances that are cleaned after use and are not intended to be completely or partly immersed in water or other liquid, protect against the effects of dripping and / or splashing water and before immersion.
  • Electric household appliances, like all other technical devices, are subject to the surrounding environment and natural wear. Since the legal framework of regular maintenance is not laid down for lay-in electrical household appliances, the manufacturer recommends that the user have the appliance checked and cleaned at least once a year by a specialist workshop.
  • By doing so, it is possible to achieve safety, operational reliability and increased service life.
  • Do not disassemble the electric appliance! The appliance works with a dangerous voltage. For this reason, always switch off the appliance and disconnect it from the mains supply during user maintenance. In the event of a fault, please have the repair serviced by an authorized service center.
    • Before calling a service:

  • Turn the appliance off and on to make sure the fault reappears.

  • If the malfunction of the appliance still persists after these operations, call the nearest specialist service center.

  • Never repair the electric appliance yourself!

  • Unauthorized, unqualified and improper use of an electric appliance may result in electric shock or other serious injury.
  • Only carry out the warranty or post-warranty repair of an electrical appliance to an authorized qualified person ^* .

2. 2. Special Safety Instructions.

Read carefully!

  • Electrical equipment is designed and manufactured in such a way that ensure safe operation and use by persons without professional qualifications.
    Despite all the measures taken by the manufacturer to ensure safe use, handling and use, it carries with it some residual risks and associated potential hazards.
  • The following symbols and their meanings have been used on the device and in the accompanying documentation to warn of possible hazards:

Orava RM-208 - Read carefully! - 1

This symbol alerts users that the device is operating a dangerous electrical voltage. Do not remove protective covers on the device.

Failure to observe the safety instructions during use and operation of the device may result in:

Danger of electric shock! Danger of serious injury or life threatening!

Orava RM-208 - Read carefully! - 2

This symbol alerts users that the following precautions can be avoided if the following precautions are observed when operating and operating the device:

Danger of serious injury or life threatening!

Danger of damage to equipment or other damage to property!

Orava RM-208 - Read carefully! - 3

This symbol alerts users that the following precautions can be avoided if the following precautions are observed when operating and operating the device:

Danger of tearing or puncture of your fingers!

Transportation/Transfer

  • When transporting and using, for example, of the transport cart, be careful when moving, to avoid overturning the device.
    Only transport/transmit the device after thorough inspection of the space and routes, which must be unobstructed.
    Never transfer the device while in operation. Do not carry the device while it is plugged into a wall outlet.

Warning!

  • Some surfaces may become warm when operating the machine. Do not touch hot surfaces! Never transfer the appliance until it has cooled down to ambient temperature.
  • Transfer the device firmly by both hands to the bottom edge of the base or fixed parts of the body.
  • Make sure that your hands and equipment are not damp or slippery when carrying.
  • Only persons who are competent and sufficiently physically fit to carry the device (in view of the size and weight of the device) can only be transported. There is a risk of serious injury or life threatening!
    There is a risk of damage to the device!

Expand/Packaging

- Unpack the equipment and accessories before putting it into service and remove all parts of packaging material and labels. Store the packaging in a safe place, especially out of the reach of children and unaccompanied persons, or dispose of them safely.

There is a risk of serious injury!

Risk of suffocation!

Check/Startup

  • The appliance is designed for food preparation. Therefore, thoroughly clean all parts of the appliance before commissioning it, following the instructions in the „Commissioning“ section. „Cleaning and maintenance“.
  • Never clean the appliance (its drive unit with electrical parts and controls) and the power cord with the plug in a way (under running water) that could cause the liquid to flow into the device.
  • Clean these parts with a damp cloth only and wipe dry or let it dry.
  • Only clean the appliance if it is switched off and disconnected from the mains.
  • We recommend performing both initial and subsequent regular machine inspections.
  • Never use the appliance if it is incomplete, damaged or damaged in any way during transportation or use. Do not use non-original and incomplete parts of the device and its accessories.
    There is a risk of serious injury!
    There is a risk of electric shock!

Location/Installation

  • Only place the appliance on straight, fi rm and stable pads - kitchen work desks and furniture parts, suitable for the location of kitchen utensils.
  • Always make sure that the place you want to place the device has enough space, mechanical strength and appropriate lighting.

Warning!

  • Do not expose the device to:
  • direct sunlight, sources and equipment producing heat,
  • vibration and mechanical stress,
  • excessive dust,
  • water and excess moisture,
  • insect,
  • an aggressive external environment.

- Do not use or dispose of the appliance:

- to unstable tables or parts of furniture,

- on an uneven and dirty surface,

- on the sealing edge of tables or parts of furniture,

- in the vicinity of containers with water or other liquids.

- Do not cover the appliance in part. Do not place any objects on the device. Do not insert or allow the foreign bodies to enter the holes of the device covers.

- Do not cover the openings of the airflow covers. Air ventilation ensures reliable and safe operation of the device.

There is a risk of electric shock!

There is a danger of fire!

Warning!

  • Place the device in a place where children can not reach freely.
  • Prevent children from handling the device. The device may overwhelm children and cause serious injury.
  • Mechanical damage (breakage or breakage of parts and covers) of the device can cause serious injury.

There is a risk of serious injury!

There is a risk of damage to equipment or other property damage!

- Do not place or use the appliance near water-containing containers. If the appliance falls into the water, do not remove it! First, pull the power cord plug out of the mains socket and then select the appliance from the water. In such cases, take the device for inspection to a specialist service to check that it is safe and working properly.

There is a risk of electric shock!

There is a risk of electrical short circuit!

Operation/Supervision

Warning!

  • This device must only be used with original parts and accessories.
  • Always make sure that the device is properly assembled and that none of its parts is damaged before using the appliance. Do not use incorrectly assembled and damaged devices.
  • Always use the appliance with a properly fitted lid / container cover.
  • Only fi ll the container (primary fi lling with the uncovered container) when the appliance is turned off. If you fi ll the foodstuff in the container during the operation of the appliance, do so only through the fi lling opening (the lid) at the age of the container.
  • Always switch off and unplug the power cord from the wall outlet before replacing the accessory or accessory parts of the device, before installing and dismantling, and before cleaning and servicing.
    There is a risk of serious injury!
    • Always keep your device under control during use and operation!
  • This device is not intended to be operated via a programmer, an external time switch or a remote control, as there is a risk of fire when the device is covered or incorrectly positioned.
  • Do not switch the device on or off by plugging in or pulling out the power cord from the AC outlet.
  • Always connect the appliance to mains power supply for normal use, then turn on the main power switch.

  • When you have fi nished using the appliance, turn off the main switch and then pull the mains cord out of the mains socket.

  • Do not use the device if the main power switch does not work.
  • The device is under dangerous voltage when the power supply is connected.

There is a risk of serious injury!

- The device contains rotating parts with sharp edges - rotating knives.

Warning!

  • Do not bend your fingers and do not place other objects in the work area - inside the container and the rotating parts when it is in operation.
  • If the workspace needs to be handled (cleaning the rotating parts of the trapped food) - always only when the appliance is switched off, disconnected from the power supply and the rotating parts are completely stopped, use only the specified accessories of the appliance or a suitable item, plastic knife, plastic spoon / squeegee. Do not use metal objects.

Warning!

- After switching off the drive, the drive of the rotating parts will recharge for a certain amount of time. Always wait until the rotating parts stop completely before handling the equipment or the container's workspace.

There is a risk of serious injury!

There is a risk of tearing / puncture of the fingers!

- Take care during use and operation of the appliance so that you do not come into contact with the rotating parts with loose hair, free ornaments or loose clothing.

There is a risk of serious injury!

- Do not connect the power cord to bundles. The power cord must remain accessible for safe disconnection of the appliance from the power supply.

- Do not let the cord hang loose and do not allow it to be freely accessible and reachable by children.

- Never leave your device freely accessible and do not leave it with a loose cord. Children could download the device for a network cord.

- Do not store the appliance with a wrapped cord around your body. Unfold the network cord „in the way it was put in the original packaging by the manufacturer.

There is a risk of serious injury!

  • Never overload the equipment beyond the limits specified by the technical specifications!
  • Do not switch on the appliance unless the container is filled with sufficient fluid / food.
  • Do not exceed the maximum content/volume of processed foods indicated on the containers or recommended in the food process information in this manual.
  • Allow the food to cool before processing the heat treated food. Do not process food with a temperature higher than 60C.
  • Before processing deep-frozen foods, allow food to thaw first to the temperature at which food can be divided into smaller (recommended) parts. Do not process excessive pieces of deep-frozen food.
  • Always divide the device to the recommended operating intervals and set the operating mode (continuous operation/breakthrough time) and follow these instructions.
  • If you notice any unusual occurrences (vibrations, sounds, smells, smoke, etc.) while using the device, switch off the device immediately and unplug it from the mains. Have the appliance checked by a specialist workshop.

There is a risk of serious injury!

There is a risk of damage to equipment or other property damage!

  • Only install and disassemble the device and its parts when the device is switched off and disconnected from the mains.
    There is a risk of serious injury!
  • Always clean the equipment and accessories immediately after use and dispose of all residues of processed food.
  • Store the device in an upright position - especially its drive unit.
  • If any safety component/component (mechanical, electrical/electronic) is part of the device, never disable this part / component! If the safety component/component is damaged or not working, do not use the appliance!
  • Do not use the safety parts / components for switching on or off. switch off the device.
  • The machine's operating time is 1 minutes. After 1 minute, stop operation for at least 2 minutes.
  • Never underestimate the potential hazards and take extreme caution !!!

Parts descriptions

A B C D E F G orava

P 0 1 2

A locking hole cap

B mixer cover

C glass jar of a blender with a measuring cup

D blender knives

E base with engine

F power switch

P (PULSE),, 0, 1, 2

G rubber feet

P pulse mode (unreturned position)

0 off position

1 low speed

2 high speed

Assembly accessories and fitting to the engine unit

Follow the steps below to set up a food processing appliance.

  1. Place the base on a dry, level and firm surface. Do not plug the power cord into an electrical outlet before fully assembling the device!
  2. Place the cover with the hole on the container. Insert the cap into the hole and turn it to the right to lock it.
  3. Press the blender jar onto the base so that it fi ts fi rmly and correctly on the base. The mixer is ready to use.

Warning: Follow the procedure below. Otherwise the blender will not work!

  1. Put the food to be mixed in the container and place the two-element cover on the container.

Always insert only 1 cup (measuring cup) of food at a time (meat, vegetables, nuts, etc.). Before processing, cut larger pieces of food into approx. 2.5 cm cubes.

Do not process more than 1 cup of food at a time!

  1. Plug the power cord into an electrical socket.

  2. For continuous mixing, set the switch to one of the power positions. For manual mixing, turn the switch to the P (PULSE) position for the required time.

  3. If you add liquids to the container during food processing, pour them through the neck in the cover.

Note: The maximum volume of liquid added must not exceed 3 cups. If you need to open the container during processing, switch off the machine and wait until the rotation of the blades has stopped. You can add more food through the neck of the cover without having to open the cover.

Warning!

Before removing the cover from the container, switch off the appliance and wait until the rotation of the blades has stopped!

  1. When you have fi nished working, unplug the power cord from the electrical socket.

When opening the container cover, hold the container firmly and pull the cover upwards to release it.

  1. Be careful of the knives when removing food from the container. Handle knives carefully! They are sharp!

Pull the handle upwards out of the base by grasping the handle. Wipe off food residue from the container and knives with a rubber spatula.

Tips for effective blending

Before placing in the container, you must pre-cut hard fruits and vegetables into pieces measuring approx. 1 cm. Even softer types of food are suitable for pre-cutting into smaller pieces before mixing. This will increase the mixing efficiency. If you are preparing a multi-ingredient dish that requires mixing of the individual ingredients at different performances, mix the individual ingredients of the dish separately.

  • To cut the fruit/vegetables, place the fruits/vegetables in a container in the amount of approx. 2 cups. Mix continuously in position 1 or 2, or by switching the switch to the P (PULSE) position until you reach the desired consistency.
  • To mix fruit/vegetables, add approx. 1 cup of liquid to 1 cup of fruit/vegetables to the hard fruit/vegetables in the container. For soft fruits / vegetables, add about 1/2 cup of liquid to 1 cup of fruit/vegetables to the container.

- Avoid premixing. Mix for a few seconds, not minutes.

Premixing produces a slurry.

- Do not overfi ll the mixing bowl! Fill the container with a maximum of 5 cups.

- Fill the container with liquids first, then solids (unless prescribed otherwise).

- To add food or ice to the container during mixing, open the middle cover of the two-element cover and add the food through the hole.

- When mixing drinks, you can put all the ingredients in the container at the same time.

- When mixing solid food, cut the food into small pieces (approx. 1 cm) and add it through the hole in the cover.

- While mixing add one by one ice cubes. After mixing, you can add another cube. When mixing, gently hold the container by hand.

- Mix ice only when there is liquid in the container. Use 2 cups of water.

- If mixing stops during operation, switch off the appliance, remove the container lid and use the spatula to remove the contents of the container.

- We recommend mixing potatoes with an adequate amount of water.

Warning!

  • Never mix with the container lid open!
  • Never mix for more than 2 minutes of taste! After mixing for 2 minutes, switch off the appliance, take a 2-minute break and continue.

Overview of quantities of processed foods

Processed Food Quantity per Dose

Chocolate max. 100 g

Cheese max.200 g

Meat max. 500 g

Tea or spice 50 - 100 g

Vegetables and fruits 100 - 300 g

Onions max. 500 g

Flour Dough/Soft Cheese max. 300 g

Eggs max. 5 pcs

Preparation times and speed settings

Ingredience SpeedMixing time
Baby food, sauces 1 45 s
Cocktails, smoothie2 40 s
Soups2 30 s
Spreads, dressing1 30 s
Ice cubesP (PULSE)

The time for ingredients to be processed depends on how thoroughly you want to mix the embedded food.

Cleaning and maintenance

When the mixing is complete, disconnect the appliance from the mains.

Remove all parts from the container. Fill the container with water with a detergent solution and close the container with the covers. Plug the appliance into the mains and mix it at the highest power. If necessary, repeat the procedure.

Do not put parts of the appliance in the dishwasher or boiling water. The blade on the mixing knives is plastered with a durable grease. However, this is gradually eliminated in the boiling water. Subsequently, bearing life may shorten.

Never immerse the base or engine in water or other fluid! Use a dry cloth on the base with the motor and the power cord. Do not use solvents or harsh cleaners to clean any components.

Technical specifications

Power supply: 220 - 240 V\~ 50/60 Hz

Power consumption: 500 W

Protection class: II

Speed: 19 000 - 23 500/min.

Time of continuous

operation (KB): 2 min

Container capacity: 1,5 l for liquids

Dimensions (W x H x D): 13 x 38 x 15,5 cm

Weight: 2,67 kg

Noise level: 85 dB (A)

The declared noise emission value of this appliance is 85 dB (A), which represents the sound power level A with respect to the reference sound power of 1 pW.

We reserve the right to make changes!

Producer:

ORAVA retail 1, a.s.

Seberíniho 2

821 03 Bratislava

Slovenská republika

Importer:

ORAVA retail 1, a.s.

Seberíniho 2

821 03 Bratislava

Slovenská republika

ORAVA distribution CZ, s.r.o.

Ostravská 494

739 25 Sviadnov

Česká republika

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING

Dispose of used packaging material at a municipal waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Orava RM-208 - DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT - 1

natural_image Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This symbol on the products or in the accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper disposal, recovery and recycling, please return these products to designated collection points. Alternatively, in some countries of the European Union or other European countries, you may return your products to your local retailer when purchasing an equivalent new product. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment natural resources and help prevent potential negative effects on environment and human health, which could be the consequences of improper disposal waste. Contact your local authority or nearest offi ce for more details collection point. Improper disposal of this type of waste may result in penalties in accordance with national regulations.

For business entities in the countries of the European Union

If you wish to discard electrical and electronic equipment, please request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

This symbol is valid in the European Union. If you wish to discard this product, please request obtain the necessary information on the correct method of disposal from the local authorities or from the your supplier.

Orava RM-208 - Disposal in other countries outside the European Union - 1

This product complies with all the essential requirements of the EU directives that apply to it.

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Orava

Model : RM-208

Category : Blender
