EK1302 - Kettle N'oveen - Free user manual and instructions

Product Type	Electric Kettle
Brand	N'oveen
Model	EK1302
Capacity	Approx. 1.7 L (between MIN and MAX marks)
Power	2200 W
Voltage	220-240 V
Frequency	50/60 Hz
Material	Plastic body, stainless steel heating element
Water Level Indicator	Transparent window with scale
Automatic Shut-Off	Yes
Boil-Dry Protection	Yes
360° Swivel Base	Yes
Cordless	Yes
Filter	Removable nozzle filter
Lid Type	Push-button opening, fixed
Handle	Ergonomic, cool-touch
Heating Element	Concealed
Safety Features	Auto shut-off, boil-dry protection
Cleaning Instructions	Wipe exterior with damp cloth; descale with vinegar solution (1:2) periodically
Accessories Included	Base unit, user manual

Frequently Asked Questions - EK1302 N'oveen

How do I descale the kettle?

Fill the kettle with a mixture of vinegar and water in a 1:2 ratio. Boil, then let the mixture sit overnight. Pour out, rinse thoroughly, and boil clean water to remove residues.

What is the capacity of the EK1302 kettle?

The capacity is approximately 1.7 liters, indicated by the water level marks between MIN and MAX on the transparent window.

Can I boil liquids other than water?

No, only cold water should be used. Other liquids may damage the kettle and pose safety risks.

Why does my kettle turn off before the water boils?

This is often due to limescale buildup on the heating element. Perform descaling as per the manual to restore performance.

How do I clean the exterior of the kettle?

Wipe with a soft, damp cloth or sponge. For stubborn dirt, use a mild detergent. Do not use abrasives or immerse in water.

Is it safe to leave the kettle unattended while boiling?

No, never leave the kettle unsupervised during operation. Always switch off and unplug when not in use.

What voltage does the EK1302 kettle require?

It requires 220-240 V~50/60 Hz. Always check the label on the base before use.

Can I use the kettle with a different voltage?

No, only connect to a properly installed 220-240 V socket. Using a different voltage may cause damage.

Where is the filter located and how do I clean it?

The removable filter is located in the nozzle. Clean it under running water with a soft brush.

How often should I descale the kettle?

At least twice a year, or more frequently in areas with hard water. Regular descaling maintains performance.

USER MANUAL EK1302 N'oveen

White and gray portable water heater with a digital display, labeled 'M'VEEN' (no other text or symbols visible)

White kettle with gray handle and control panel, no visible text or symbols

White and red water heater with gray label (no visible text or symbols on body)

White and green water heater with label on front (no visible text or symbols on body)

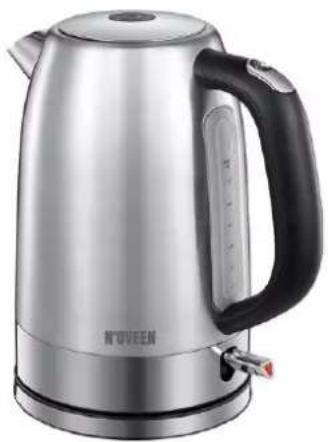

Modern stainless steel kettle with black handle and control panel (no visible text or symbols)

Exterior view of a modern stainless steel kettle with black handle and control panel (no visible text or symbols)

EK1201 / EK1202

EK1301 / EK1302 / EK1303

EK1401 / EK1405 / EK2101

EK1301/1302/1303

EK1401/1405

EK2101

POLSKI....STR. 3

ENGLISH....P. 6

ΕΛΛΗΝΙΚΑ......ΣΕΛ. 9

SLOVENSKÝ....S. 12

ESPAÑOL....PÁG. 15

PORTUGUÊS....PAG 18

DEUTSCH....S. 21

ČEŠTINA....STR. 24

РУССКИЙ....СТР. 27

УКРАЇНСЬКА......CTOP. 30

ROMÂNĂ....PAG. 33

LIETUVIŠKAS....PUSL. 37

SLOVENŠČINA....S. 39

ŚRODKI BEZPIECZEŃSTWA

• Before commissioning this device please read the instruction manual carefully.
• Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging!

- The device is intended exclusively for private and not for commercial use!

- Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Pull on the plug, not on the cable.

- In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device.

- Check the device and the cable regularly for damage. If there is damage, the device should not be used.

- Do not repair the device yourself, but rather consult an authorized service center.

- For safety reasons a damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similarly qualified person.

- Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.

- Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.

- Use only original accessories.

- Do not use the device outdoors.

- Under no circumstances must the device be placed in water or other liquid. Do not use the device with wet or moist hands.

- Should the device become moist or wet, remove the mains plug from the socket immediately.

- Use the device only for the intended purpose.

SPECIAL SAFETY INSTRUCTIONS FOR THIS APPLIANCE

• Use only cold water when filling.
• The water level must be between the MAX. and MIN. marks!
• Switch the appliance off before removing it from the base.
  • Always ensure that the lid is tightly closed.
• The base and exterior of the machine must not become wet

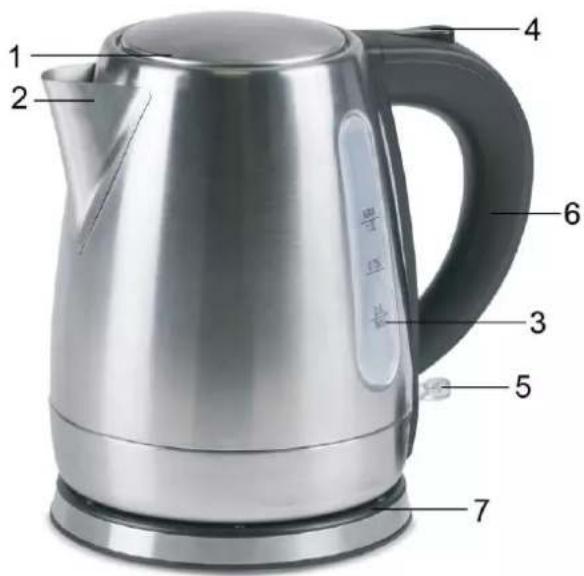

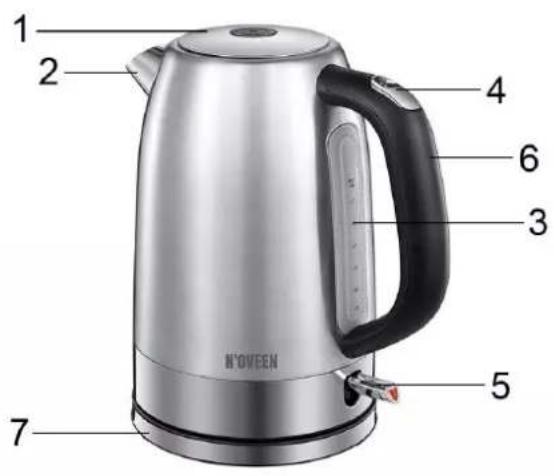

EK1201/1202/1301/1302/1303/1401/1405/2101 DESCRIPTION

1. Cover 5. Power button
2. Nozzle with filter 6. Handle
3. Transparent window with scale 7. Base
4. Cover opening button

FIRST USE

Before using the appliance for the first time, water should be boiled in it twice without any additives.

OPERATION

1. Place the kettle on a flat surface.
2. Fill the kettle with water. Do not overfill! Check the water level indicator.
3. Place the kettle on the base.

4. Electrical connection

5. Check whether the electrical voltage that you intend to use is the same as that of the appliance. Details are to be found on the label on the base.

6. Only connect the appliance to a properly installed 220-240V\~50/60Hz safety socket.

7. Switch the appliance to position 1. The control lamp on the water level indicator shows that the water is being boiled.

8. After boiling the appliance switches off automatically.

9. Disconnect the being from the mains electricity supply.

10. Do not press up the lid when pouring

HOW TO CARE FOR YOUR KETTLE

• Wipe the kettle body with a soft, damp cloth or sponge.
• Remove stubborn dirt with a cloth dampened with a mild detergent.
• Do not use abrasives or scouring powders.
• Never immerse the kettle in water or other liquids.

- Since this kettle has a hidden heating element, it is important to maintain cleanliness of the bottom, in addition to decalcification, you can use a washing brush or sponge.

- Depending on the type of water, limescale occurs naturally and is mainly deposited on the kettle's heating element. That can reduce the heating power of the kettle. Sediment quantity largely depends on the hardness of the water in your area and the frequency with which the kettle is used.

- Decalcification should be carried out periodically, as indicated below:

DESCALING

• Remove the sediment regularly during normal use at least twice a year.
• Fill the kettle to maximum capacity with a mixture of vinegar and water with the 1:2 ratio. Turn on the kettle and wait for the device to turn off automatically.
• Leave the mixture in the kettle overnight.
• Then pour the mixture out.
• Fill the kettle with clean water to maximum capacity and boil the water again.
• Pour boiling water to remove lime scale and vinegar residues.
  Rinse the inside of the kettle with clean water.
