Product Type	Oil Filled Radiator
Brand	N'oveen
Model	OH1301
Power Supply	230 V~, 50/60 Hz
Maximum Power	2500 W
Heating Settings	3 settings: 1000W (I), 1500W (II), 2500W (I+II)
Turbo Fan	Yes, for faster heating
Thermostat	Adjustable, automatic temperature control
Safety Features	Tip-over switch, overheat protection
Assembly	Wheels included, easy assembly
Protection Class	Class I
Oil Type	Special oil, sealed unit
Maintenance	Vacuum dust from fins; wipe exterior with damp cloth
Storage	Cool, dry place; do not place heavy items on top
Indoor Use Only	Yes
Not for Bathroom	Do not use near bath, shower, or pool

Frequently Asked Questions - OH1301 N'oveen

How do I operate the N'oveen OH1301 heater?

Connect to a safety socket. Set the switch to desired power level (I, II, or I+II). Turn the thermostat knob clockwise to maximum, then slowly anticlockwise until you hear a click to set the desired temperature. The heater will cycle on/off to maintain the temperature.

What do the different power settings mean?

I = 1000W, II = 1500W, I+II = 2500W (max). Use lower settings for smaller rooms or milder weather.

How does the turbo fan function work?

The turbo fan (models OH1301/1501 only) helps heat the room faster. Press the turbo fan switch to activate. It distributes warm air more quickly.

What safety features does this heater have?

It has a tip-over safety device that switches off if knocked over, and an overheat protection that turns it off if internal temperatures become too high.

How do I reset the tip-over safety device?

Unplug the heater for a few minutes, remove the cause of tipping, then plug back in. If it still doesn't reset, contact a qualified technician.

Can I use this heater in a bathroom?

No, do not use in the immediate surroundings of a bath, shower, or swimming pool. It is for indoor use only.

How should I clean and maintain the heater?

Always unplug and let cool. Use a vacuum cleaner to remove dust from the fins. Wipe the exterior with a damp cloth and dry thoroughly. Never immerse in water.

What should I do if the heater overheats?

Turn off and unplug. Let it cool completely. Check for blocked air inlets/outlets. Restart. If it overheats again, take it to a service center.

Is the oil in the heater hazardous?

The heater contains a precise quantity of special oil. If there is a leak, contact the manufacturer or service agent. Do not attempt to open the oil container. Dispose of the heater according to local regulations for oil-containing appliances.

How should I store the heater when not in use?

Unplug, let cool, and clean. Store in the original carton in a dry, ventilated place. Do not place heavy items on top.

USER MANUAL OH1301 N'oveen

OIL FILLED RADIATOR - USER MANUAL

White portable air conditioner unit with cooling fan and wheels (no visible text or symbols)

White industrial air conditioner unit with control panel and wheels (no visible text or symbols)

OH1301/1501 OH9/11/13

OH9/11/13

OH1301/1501

Illustration of hands holding a rack with an arrow indicating rotation (no text or symbols)

Diagram of a washing machine with rollers and a valve, no text or symbols present

1

POLSKI....s. 5

ENGLISH....p. 9

ΕΛΛΗΝΙΚΑ....Σ. 13

ROMÂNĂ....p. 17

DEUTSCH....s. 21

SLOVENSKÝ....S. 25

ČEŠTINA....s. 29

ESPAÑOL....p. 33

PORTUGUÊS....p. 37

УКРАЇНСЬКА....C. 41

1. Read all instructions carefully before use.
2. Make sure the voltage is the same as that indicated on the rating plate of the appliance.
3. Do not operate this appliance if the cable or plug becomes damaged.
4. Keep the appliance and cable away from sources of heat, sharp objects or anything that may cause damage.
5. If the cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Ensure the appliance is switched off before connecting to the mains power supply.
7. Switch off the power supply and disconnect from mains supply when not in use, before cleaning or other maintenance.
8. To disconnect the appliance, switch it "OFF", and then remove the plug from outlet. Do not pull the cord to disconnect the plug.
9. The heater must not be located immediately below a socket-outlet.
10. Do not operate in areas where gasoline, paint or other flammable liquids are used or stored.
11. Indoor use only.
12. In order to avoid overheating, do not cover the heater.
13. To prevent a possible fire, do not block air intakes or exhaust in any manner.
14. Don't touch the hot surfaces.
15. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.
16. Always ensure that hands are dry before operating or adjusting any switch on the product or touching the plug and socket-outlet.
17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
18. Children should be supervised to ensure that they do not play with the appliance.
19. Do not leave this appliance unattended when it's in use.
20. The most common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by disconnect the appliance and vacuum

cleaning air vents and grilles.

1. Do not place the heater on carpet, don't place the cable under carpets. Arrange cord away from traffic areas so that it will not be tripped over.
2. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
3. Do not store away until the heater cools down, store the heater in cool dry location when not in use.
4. This heater is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leak
5. When scrapping the heater, follow the regulations concerning the disposal of oil.

TECHNICAL SPECIFICATIONS

Model OH13 OH11 OH9 OH1301 OH1501
Rated Voltage	230 V~ 230 V~	230 V~ 230 V~	230 V~
Rated Frequency	50/60 Hz 50	/60 Hz 50/60 Hz	50/60 Hz 50	/60 Hz
Rated Power	3000 W 2500 W	2000 W 2500 W	2500 W	W
Protective Class	I	I	I	I	I

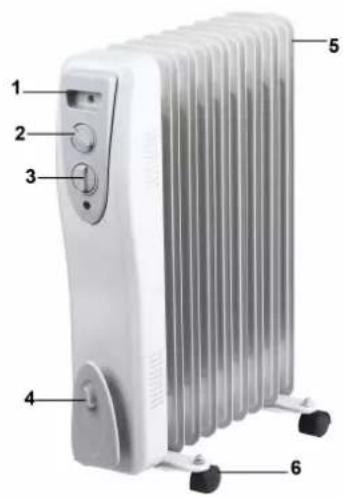

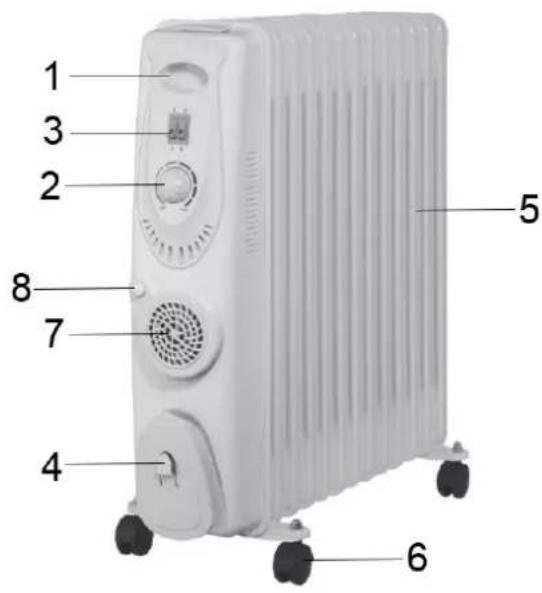

UNIT DESCRIPTION

1. Handle
2. Thermostat
3. Switch
4. Power cable holder
5. Radiator housing

6. Wheels

7. Turbo fan (OH1301/1501)

8. Turbo fan switch (OH1301/1501)

ASSEMBLY See picture 1

1. To prevent damage, place the radiator upside down on a soft surface (for example a carpet).
2. Fix wheels on two plates with cap nuts.
3. Insert the U-shaped hook into the wheels plate and fix it on the radiator by wing nuts.
4. Turn the heater upright. Wait one minute before to connect the heater to power outlet.

OPERATION

• Connect the appliance to a safety socket.
• Set the switch to heating position (I, II or III).

	OH13 OH11	OH9
0 Off	Off Off
I 1200	W 850 W 700 W
II 1800	W 1650 W 1300 W
III	3000 W 2500	W 2000 W
	OH1301	OH1501
I 1000	W 1000 W
II 1500	W 1500 W
I + II	2500 W 2500	W

• Turn the thermostat knob clockwise until reaching the maximum temperature.
• Once the room temperature is reached, slowly turn the thermostat knob anticlockwise until you hear a click and then the heater will stop working.
• The heater will turn on and off automatically to maintain the room temperature you have set.
• Turn the switch to "0" position to switch off the heater. Unplug the appliance then after.

TURBO FAN FUNCTION (OH1301/1501)

The radiator is equipped with a turbo fan, which heats the room faster. To activate this function, press the turbo fan switch (8).

TIP-OFF SAFETY DEVICE

This appliance is provided with a safety device which will switch off the heater in case of accidental tipping off. To reset, disconnect the plug from the power for a few minutes, remove the cause of tipping off, then plug the appliance in again. If it still cannot be reset,

ask a qualified technician to check and repair.

OVERHEAT SAFETY DEVICE

Your heater is equipped with a safety device that switches off the heater in the event of overheating. If the safety device operated, please turn the heater off, unplug the appliance and let it completely cool down, inspect for blockage of air inlet or outlet, attempt to restart the heater then after.

If the heater fails to operate or the safety device switches the heater off again, return heater to your nearest service center for examination or repair.

MAINTENANCE

1. Always disconnect the appliance and let it completely cool down before any maintenance.
2. Use a vacuum cleaner to remove dust on fins.
3. Clean the outside of the unit with a damp cloth and then dry it with a dry cloth. Never immerse the unit in water, nor let water drip into the unit.

STORING

1. Always disconnect the appliance, let it completely cool down and clean it before storing.
2. If you do not use the device for a long period, put back the unit and the instruction manual to the original carton and store in a dry and ventilated place.
3. Do not place any heavy items on top of carton during storing as this may damage the appliance.
