Product Type	Waterproof LTE Cat 1 Terminal with RS485/RS232 Interfaces and Backup Battery
Dimensions	70.5 x 67.0 x 25.6 mm (L x W x H); 85.0 x 67.0 x 25.6 mm with connector socket
Weight	Approx. 150 g
Supply Voltage	10 - 30 V DC with overvoltage protection
Backup Battery	170 mAh Li-Ion 3.7 V (0.63 Wh)
Power Consumption	< 4 mA (Ultra Deep Sleep), < 6 mA (Deep Sleep), < 12 mA (Online Deep Sleep), < 19 mA (GPS Sleep), < 36 mA (normal), < 1 A max peak at 12 V
GNSS	GPS, GLONASS, Galileo, BeiDou, QZSS, AGPS; tracking sensitivity -165 dBm; position accuracy < 2.5 m CEP
Cellular Technology	LTE Cat 1, GSM; 2G B2/B3/B5/B8; 4G bands vary by variant (see manual)
Data Transfer	LTE FDD DL 10 Mbps, UL 5 Mbps; LTE TDD DL 8 Mbps, UL 2 Mbps; GPRS 85.6 kbps
Interfaces	2 Digital Inputs, 1 Digital Output, 1 Analog Input, 1 CAN Adapter input, 1-Wire, RS232, RS485, Micro-USB, Bluetooth 4.0 + LE
SIM Slots	2 (Dual SIM)
Internal Memory	128 MB flash
Operating Temperature (without battery)	-40 °C to +85 °C
Operating Temperature (with battery)	-20 °C to +40 °C
Ingress Protection	IP67
LED Indicators	2 status LEDs (Navigation and Status)
Sensors	Accelerometer
Scenarios	Green Driving, Over Speeding, Jamming Detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling, Immobilizer, iButton Read Notification, Unplug Detection, Towing Detection, Crash Detection, Auto Geofence, Manual Geofence, Trip
Sleep Modes	GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration	FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application
Certifications	CE, UKCA, RoHS, REACH, E-Mark, CITC, RCM
Warranty	24 months (device), 6 months (battery)

Frequently Asked Questions - FMC225 Teltonika

How do I power up the FMC225?

Connect the device to a stable DC power supply of 10-30 V using the supplied power cable. The LED indicators will start blinking to show operation.

What is the default Bluetooth password for FMC225?

The default Bluetooth password is 5555. You can change it in the Teltonika Configurator.

How can I configure the device via SMS?

Send an SMS command with two leading spaces: setparam 2001:APN;2002:user;2003:pass;2004:domain;2005:port;2006:0. Replace with your actual APN, username, password, server domain, port, and protocol (0 for TCP, 1 for UDP).

What is the IP67 rating and how to maintain it?

IP67 means the device is dust-tight and can be immersed in water up to 1 meter for 30 minutes. Ensure the casing is properly closed and the cable is securely connected to maintain this protection.

How do I install the USB drivers on Windows?

Download the TeltonikaCOMDriver.exe from the provided link, run the installer, click Next, Install, and Finish. After installation, connect the device via Micro-USB.

What are the sleep modes and their power consumption?

The FMC225 has GPS Sleep (<19 mA), Online Deep Sleep (<12 mA), Deep Sleep (<6 mA), and Ultra Deep Sleep (<4 mA) at 12V. These modes reduce power usage while maintaining certain functions.

Can I connect external sensors?

Yes, the device supports 1-Wire sensors, analog LLS, RS232/RS485 LLS, CAN adapters (LV-CAN200, ALL-CAN300, CAN-CONTROL), and Bluetooth peripherals like OBDII dongles and temperature/humidity sensors.

How do I mount the device in a vehicle?

Mount the device with GNSS antenna and LEDs facing up, preferably on the battery or nearby using double-sided tape or fastening straps. Connect power to the battery positive terminal and ground to the negative terminal. Use an external 3A, 125V fuse on the power line.

What ignition detection methods are available?

Ignition can be detected via Digital Input 1, accelerometer, external power voltage (13.2-30 V), or engine RPM from CAN adapters/OBDII dongle. The default method is power voltage detection.

How to update firmware?

Firmware can be updated via FOTA Web (over-the-air), FOTA (manual via SMS/Configurator), Teltonika Configurator over USB or Bluetooth, or the FMBT mobile application. Ensure the device is connected to power and has good cellular reception.

USER MANUAL FMC225 Teltonika

TELTONIKA | Telematics

FMC225

WATERPROOF LTE CAT 1 TERMINAL WITH RS485/RS232 INTERFACES AND BACKUP BATTERY

Quick Manual v1.6

CONTENT

Know your device....3

Pinout....4

Wiring scheme....5

Set up your device....6

PC Connection (Windows)....7

How to install USB drivers (Windows)....7

Configuration......8

Quick SMS configuration....10

Mounting recommendations....12

Mounting recommendations with U-type cable 13

Basic characteristics 14

LED indications....14

Electrical characteristics....17

Safety information .... 19

Certification and Approvals 20

Warranty 21

Warranty disclaimer 21

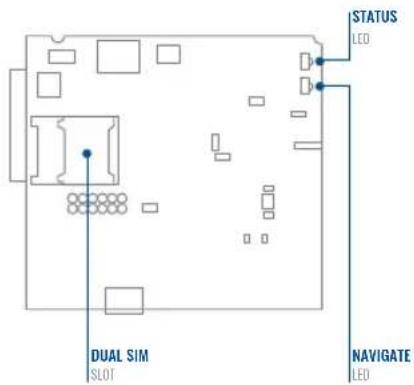

KNOW YOUR DEVICE

TOP VIEW TOP VIEW (WITHOUT COVER) BOTTOM VIEW (WITHOUT COVER)

PINOUT

PIN NUMBER PIN NAME DESCRIPTION

1	VCC (10-30) V DC (+)	Power supply (+10-30 V DC).
2 AIN 1		Analog input, channel 1.Input range: 0-30 V DC.
3 RS232 - RX		Input for data receive through RS232
4 RS232 - TX		Output for data transmit through RS232
5 DIN 1 Digital input, channel 1.
6 INPUT 6 TX EXT (LVCAN - TX).
7 GND (-) Ground pin. (10-30) V DC
8 DOUT 1		Digital output, channel 1. Open collector output.Max. 0,5 A DC
9 RS485 - A Signal A wire for RS485
10 RS485 - B Signal B wire for RS485
11 1WIRE DATA Data for 1-Wire devices.

12 INPUT 5 RX EXT (LVCAN - RX).

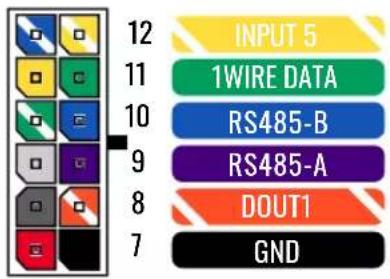

FMC225 2x6 socket pinout

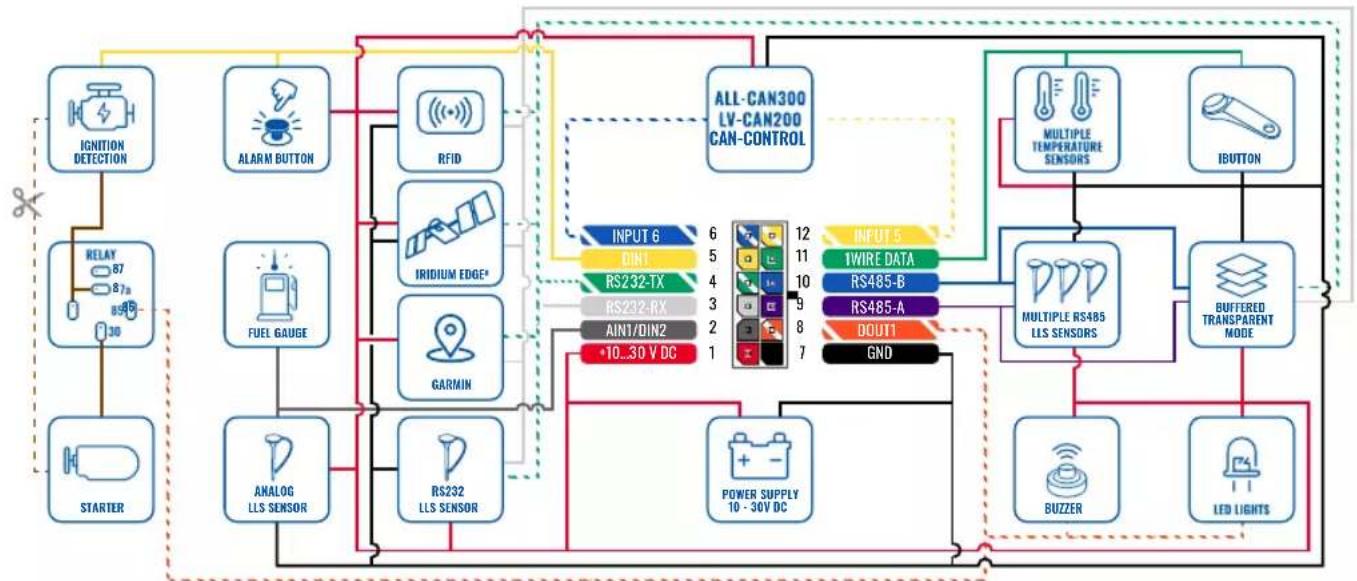

WIRING SCHEME

SET UP YOUR DEVICE HOW TO INSERT MICRO-SIM CARD AND CONNECT THE BATTERY

PARTLY CLOSED DEVICE

You will receive your device partly closed.

2 COVER REMOVAL

Gently remove top and bottom covers.

3 SIM CARD INSERT

Insert SIM card as shown with PIN request disabled or read our Wiki ^1 how to enter it later in Teltonika Configurator ^2 . Make sure that Micro-SIM card cut-off corner is pointing outward from slot. SIM slot 1 is closer to PCB, SIM slot 2 is the top one.

1 wiki.teltonika-gps.com/view/FMC225_Security_info 2 wiki.teltonika-gps.com/view/Teltonika_Configurator

4 BATTERY CONNECTION

Connect battery as shown to device. Position the battery in place where it does not obstruct other components.

5 ATTACHING COVER BACK

After configuration, see "PC Connection (Windows) 1", attach device top and bottom cover back and press them twice to the full closure.

6 COMPLETELY CLOSED DEVICE

Make sure that product casing is closed correctly.

IMPORTANT!

This device has an IP67 casing with a two-phase closing, that ensures reliable protection and ease of use. Please make sure that product casing corner clips are fixed tightly and cable is connected to the device in order to maintain the degree of IP67 protection.

PC CONNECTION (WINDOWS)

1. Power-up FMC225 with DC voltage (10 - 30 V) power supply using supplied power cable. LED's should start blinking, see "LED indications".
2. Connect device to computer using Micro-USB cable or Bluetooth connection:

• Using Micro-USB cable

- You will need to install USB drivers, see "How to install USB drivers (Windows) ^2 "

- Using Bluetooth

- FMC225 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or other device >Bluetooth. Choose your device named - "FMC225_last_7_imei_digits", without LE in the end. Enter default password 5555, press Connect and then select Done.

1. You are now ready to use the device on your computer.

^1 wiki.teltonika-gps.com/view/FMC225_LED_status

^2 Page 6, "How to install USB drivers"

HOW TO INSTALL USB DRIVERS (WINDOWS)

1. Please download COM port drivers from here ^1 .
2. Extract and run TeltonikaCOMDriver.exe.
3. Click Next in driver installation window.
4. In the following window click Install button.
5. Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup.

^1 teltonika.lt/downloads/en/FMC225/TeltonikaCOMDriver.zip

CONFIGURATION

At first FMC225 device will have default factory settings set. These settings should be changed according to the users needs. Main configuration can be performed via Teltonika Configurator ^1 software. Get the latest Configurator version from here ^2 . Configurator operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.

1 wikl.teltonika-gps.com/view/Teltonika_Configurator
2 wikl.teltonika-gps.com/view/Teltonika_Configurator_versions

MS .NET REQUIREMENTS

Operating system MS .NET Framework version Version Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework 4.6.2 32 and 64 bit

www.microsoft.com ^1

1 dotnet.microsoft.com/en-us/download/dotnet-framework/net462

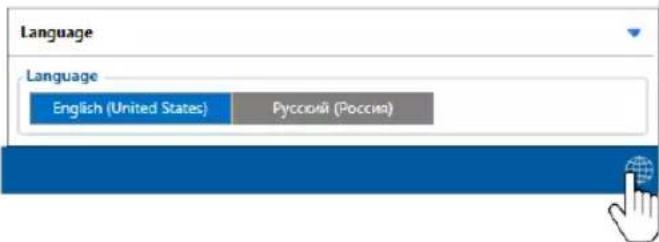

Downloaded Configurator will be in compressed archive. Extract it and launch Configurator.exe. After launch software language can be changed by clicking ⏻ in the right bottom corner.

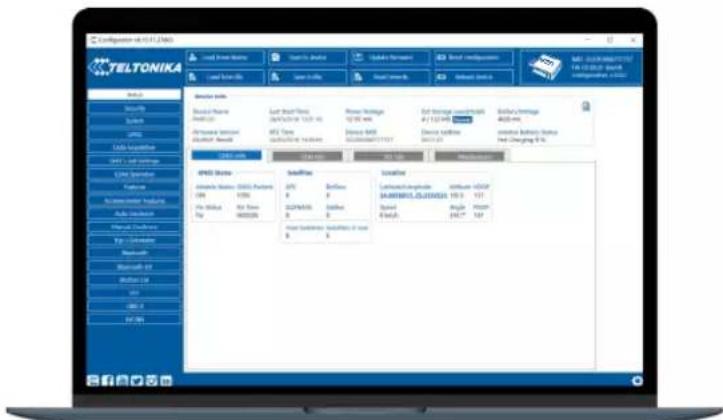

Configuration process begins by pressing on connected device.

After connection to Configurator Status window will be displayed.

Various Status window ^1 tabs display information about GNSS ^2 , GSM ^3 , I/O ^4 , Maintenance ^5 and etc. FMC225 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality:

Load from device – loads configuration from device.

Save to device – saves configuration to device.

Load from file – loads configuration from file.

Save to file – saves configuration to file.

Update firmware – updates firmware on device.

Read records – reads records from the device.

Reboot device – restarts device.

Reset configuration - sets device configuration to default.

Most important configurator section is GPRS - where all your server and GPRS settings ^6 can be configured and Data Acquisition ^7 - where data acquiring parameters can be configured. More details about FMC225 configuration using Configurator can be found in our Wiki ^8 .

1 wiki.teltonika-gps.com/view/FMC225_Status_info
2 wiki.teltonika-gps.com/view/FMC225_Status_info#GNSS_Info
^a wiki.teltonika-gps.com/view/FMC225_Status_Info#GSM_Info
^4 wiki.teltonika-gps.com/view/FMC225_Status_Info#1.2FO_Info
5 wiki.teltonika-gps.com/view/FMC225_Status_info#Maintenance
^6 wiki.teltonika-gps.com/index.php?title=FMC225_GPRS_settings
7 wiki.teltonika-gps.com/index.php?title=FMC225_Data_acquisition_settings
^8 wiki.teltonika-gps.com/index.php?title=FMC225_Configuration

Default configuration has optimal parameters present to ensure best performance of track quality and data usage.

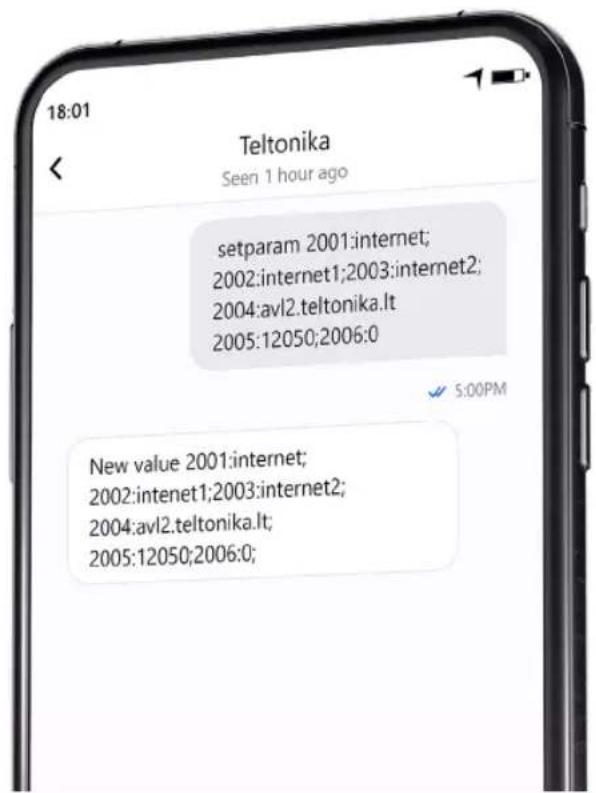

Quickly set up your device by sending this SMS command to it:

« setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0»

Pure horizontal lines with blue dots and numbers 12 at top (no text or symbols beyond basic markings)

Note: Before SMS text, two space symbols should be inserted.

GPRS SETTINGS:

1 2001 - APN
2 2002 - APN username (if there are no APN username, empty field should be left)
2003 - APN password (if there are no APN password, empty field should be left)

SERVER SETTINGS:

4 2004 - Domain
5 2005 - Port
6 2006 - Data sending protocol (0 - TCP, 1 - UDP)

TELTONIKA | Telematics

Quick Manual v1.6 // FMC225

DEFAULT CONFIGURATION SETTINGS

MOVEMENT AND IGNITION DETECTION: DEVICE MAKES A RECORD ON MOVING

IF ONE OF THESE EVENTS HAPPEN:

VEHICLE MOVEMENT

will be detected by accelerometer

IGNITION

will be detected by vehicle power voltage between 13,2 - 30 V

PASSES

300 seconds

VEHICLE DRIVES

100 meters

DEVICE MAKES A RECORD ON STOP IF:

1 HOUR PASSES

while vehicle is stationary and ignition is off

RECORDS SENDING TO SERVER:

EVERY 120 SECOND

it is sent to the server If device has made a record

VEHICLE TURNS

10 degrees

SPEED DIFFERENCE

between last coordinate and current position is greater than 10 km/h

After successful SMS configuration, FMC225 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator ^1 or SMS parameters ^2 .

1 wiki.teltonika-gps.com/view/Teltonika_Configurator
2 wiki.teltonika-gps.com/view/Template:FMB_Device_Family_Parameter_list

MOUNTING RECOMMENDATIONS

CONNECTING WIRES

• Wires should be fastened to the other wires or non-moving parts. Try to avoid heat emitting and moving objects near the wires.
• The connections should not be seen very clearly. If factory isolation was removed while connecting wires, it should be applied again.
• If the wires are placed in the exterior or in places where they can be damaged or exposed to heat, humidity, dirt, etc., additional isolation should be applied.
• Wires cannot be connected to the board computers or control units.

CONNECTING POWER SOURCE

• Be sure that after the car computer falls asleep, power is still available on chosen wire. Depending on car, this may happen in 5 to 30 minutes period.
• When module is connected, measure voltage again to make sure it did not decrease.
• It is recommended to connect to the main power cable in the fuse box.
• Use 3A, 125V external fuse.

CONNECTING IGNITION WIRE

• Be sure to check if it is a real ignition wire i. e. power does not disappear after starting the engine.
  • Check if this is not an ACC wire (when key is in the first position, most of the vehicle electronics are available).
• Check if power is still available when you turn off any of vehicles devices.
• Ignition is connected to the ignition relay output. As alternative, any other relay, which has power output when ignition is on, may be chosen.

CONNECTING GROUND WIRE

• Ground wire is connected to the vehicle frame or metal parts that are fixed to the frame.
• If the wire is fixed with the bolt, the loop must be connected to the end of the wire.
• For better contact scrub paint from the spot where loop is going to be connected.

MOUNTING RECOMMENDATIONS WITH U-TYPE CABLE

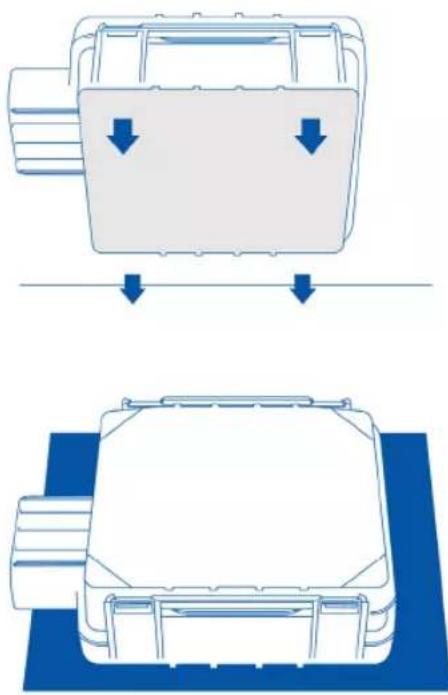

DEVICE FASTENING

• Locate the battery in your vehicle. If present remove the battery cover to access the battery.
• You can use a double-sided tape to attach the device on the battery as well as a fastening straps to mount it anywhere next to the battery. Please make sure, that the GNSS antenna and LEDs indicators are facing up Figure 13.

CONNECTING POWER WIRE

Device power wire is designed to be directly connected to the positive terminal fastener of the vehicle battery.

CONNECTING GROUND WIRE

Device ground wire is designed to be directly connected to the negative terminal fastener of the vehicle battery.

Diagram showing two views of a mechanical component with downward arrows indicating force or movement (no text or symbols present)

LED INDICATIONS

NAVIGATION LED INDICATIONS

BEHAVIOUR MEANING

Permanently switched on	GNSS signal is not received
Blinking every second	Normal mode, GNSS is working
Off	GNSS is turned off because:Device is not working or Device is in sleep mode
Blinking fast constantly	Device firmware is being flashed

STATUS LED INDICATIONS

BEHAVIOUR MEANING

Blinking every second	Normal mode
Blinking every two seconds	Sleep mode
Blinking fast for a short time	Modem activity
Off	Device is not working or Device is in boot mode

BASIC CHARACTERISTICS

MODULE

Name	FMC225-MBIB0: MeiG SLM320-E with Teltonika TM2500FMC225-MCIB0: MeiG SLM320-LA with Teltonika TM2500
Technology	LTE(CaT1)/2G(GSM/GPRS)/GNSS/ BLUETOOTH

GNSS

GNSS	GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver Tracking: 33
Tracking sensitivity -165 dBM
Position Accuracy < 2.5 CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s

CELLUAR

Technology LTE Cat 1, GSM
2G bands	FMC225-MBIB0: GSM: B2/B3/B5/B8
	FMC225-MCIB0: GSM: B2/B3/B5/B8
4G bands	FMC225-MBIB0: LTE FDD: B1/B3/B7/B8/B20/B28LTE-TDD:B38/B40/B41FMC225-MCIB0: LTE FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE TDD:B40
Data transfer	LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support SMS (text/data)
Transmit power	Class 4 for GSM850/900: 23±2dBmClass 1 for GSM1800/1900: 20±2dBmClass 3 for LTE-TDD: 23±2.7dBmClass 3 for LTE-FDD: 23±2.7dBm
POWER
Input voltage range	10 - 30 V DC with overvoltage protection
Back-up battery	170 mAh Li-Ion battery 3.7 V (0.63 Wh)

Internal Fuse 3 A, 125 V

	At 12V < 4 mA (Ultra Deep Sleep ^1 )
	At 12V < 6 mA (Deep Sleep ^1 )
	At 12V < 12 mA (Online Deep Sleep ^1 )
Power consumption	At 12V < 19 mA (GPS Sleep ^1 )
	At 12V < 36 mA
	At 12V < 1A Max. (with full Load / Peak)

BLUETOOTH

Specification 4.0 + LE
Supported peripherals	Temperature and Humidity sensor,Headset ^2 , OBDII dongle ^3 , InateckBarcode Scanner, Universal BLE sensors support

INTERFACE

Digital Inputs 2

Digital Outputs 1

Analog Inputs 1

CAN Adapter inputs 1

1-Wire 1

RS232 1

RS485 1

1wiki.teltonika-gps.com/view/FMC225_Sleep_modes

²wiki.teltonika-gps.com/view/How_to_connect_Bluetooth_Hands_Free_adapter_to_FMB_device

3wiki.teltonika-gps.com/view/How_to_connect_OBD_II_Bluetooth_Dongle_to_FMB_device

GNSS antenna Internal High Gain

Cellular antenna Internal High Gain

USB 2.0 Micro-USB

LED indication 2 status LED lights

SIM 2x SIM Card (Dual-SIM)

Memory 128MB internal flash memory

PHYSICAL SPECIFICATION

Dimensions	70,5 x 67,0 x 25,6 mm (L x W x H)
	85,0 x 67,0 x 25,6 mm (L x W x H)(length with connector socket)

OPERATING ENVIRONMENT

Operating temperature (without battery)	-40 °C to +85 °C
Storage temperature (without battery)	-40 °C to +85 °C
Operating temperature (with battery)	-20 °C to +40 °C
Storage temperature (with battery)	-20 °C to +45 °C

Operating humidity 5% to 95% non-condensing

Ingress Protection Rating

IP67

Battery charge temperature	0 °C to +45 °C
Battery discharge temperature	-20 °C to +60 °C
Battery storage temperature	-20 °C to +45 °C for 1 month-20 °C to +35 °C for 6 months

FEATURES

Sensors Accelerometer
Scenarios	Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip^4
Sleep modes	GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep^5
Configuration and firmware update	FOTA Web ^6 , FOTA, Teltonika Configurator ^7 (USB, Bluetooth), FMBT mobile application (Configuration)
SMS	Configuration, Events, DOUT control, Debug

4wiki.teltonika-gps.com/view/FMC225_Features_settings
5wiki.teltonika-gps.com/view/FMC225_Sleep_modes
^6 wiki.teltonika-gps.com/view/FOTA_WEB
7wiki.teltonika-gps.com/view/Teltonika_Configurator

GPRS commands Configuration, DOUT control, Debug

Time Synchronization	GPS, NITZ, NTP
Fuel monitoring	LLS (Analog), LV-CAN200, ALL-CAN300, OBDII dongle, CAN-CONTROL, OBDII dongle
Ignition detection	Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

ELECTRICAL CHARACTERISTICS

CHARACTERISTIC DESCRIPTION	VALUE
	MIN. TYP. MAX. UNIT
SUPPLY VOLTAGE
Supply Voltage(Recommended Operating Conditions)	+10 +30 V
DIGITAL OUTPUT (OPEN DRAIN GRADE)
Drain current (Digital Output OFF)	120 μA
Drain current(Digital Output ON, Recommended Operating Conditions)	0.1 0.5 A
Static Drain-Source resistance (Digital Output ON)	400 600 mΩ
DIGITAL INPUT
Input resistance (DIN1) 47 kΩ
Input resistance (DIN2) 39 kΩ
Input voltage(Recommended Operating Conditions)	0 30 V
Input Voltage threshold (DIN1)	7.5 V
Input Voltage threshold (DIN2)	2.5 V
ANALOG INPUT
Input voltage (Recommended Operating Conditions), Range 1	0 +10 V
Input resistance, Range 1	150 kΩ
Measurement error on 12V, Range 1	0.9 %
Additional error on 12 V, Range 1	108 mV
Measurement error on 30 V, Range 1	0.33 %
Additional error on 30 V, Range 1	88 mV
Input Voltage (Recommended Operating Conditions), Range 2	0 +30 V
Input resistance, Range 2	150 kΩ

CHARACTERISTIC DESCRIPTION	VALUE
	MIN. TYP. MAX. UNIT
Measurement error on 12 V, Range 2	0.9 %
Additional error on 12 V, Range 2	108 mV
Measurement error on 30 V, Range 2	0.33 %
Additional error on 30 V, Range 2	88 mV

OUTPUT SUPPLY VOLTAGE 1-WIRE

Supply voltage +4.5 +4.7 V
Output inner resistance 7 Ω
Output current (Uout >3.0 V)	30 mA
Short circuit current (Uout = 0)	75 mA

SAFETY INFORMATION

This message contains information on how to operate FMC225 safely. By following these requirements and recommendations, you will avoid dangerous situations. You must read these instructions carefully and follow them strictly before operating the device!

• The device uses SELV limited power source. The nominal voltage is +12 V DC. The allowed voltage range is +10...+30 V DC.
  • To avoid mechanical damage, it is advised to transport the device in an impact-proof package. Before usage, the device should be placed so that its LED indicators are visible. They show the status of device operation.
• When connecting the 2x6 connector wires to the vehicle, the appropriate jumpers of the vehicle power supply should be disconnected.
• Before unmounting the device from the vehicle, the 2x6 connector must be disconnected. The device is designed to be mounted in a zone of limited access, which is inaccessible to the operator. All related devices must meet the requirements of EN 62368-1 standard.
• The device FMC225 is not designed as a navigational device for boats.

Do not disassemble the device. If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT touch the device before unplugging the power supply.

All wireless data transferring devices produce interference that may affect other devices which are placed nearby.

The device must be connected only by qualified personnel.

The device must be firmly fastened in a predefined location.

The programming must be performed using a PC with autonomic power supply.

Installation and/or handling during a lightning storm is prohibited.

The device is susceptible to water and humidity.

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Battery should not be disposed of with general household waste. Bring damaged or worn-out batteries to your local recycling center or dispose them to battery recycle bin found in stores.

CERTIFICATION AND APPROVALS

This sign on the package means that it is necessary to read the User's Manual before your start using the device. Full User's Manual version can be found in our Wiki ^1 .

1 wiki.teltonika-gps.com/index.php?title=FMC225

Hereby, Teltonika declare under our sole responsibility that the above described product is in conformity with the relevant Community harmonization: European Directive 2014/53/EU (RED).

The RoHS1 is a directive regulating the manufacture, import and distribution of Electronics and Electrical Equipment (EEE) within the EU, which bans from use 10 different hazardous materials (to date).

UK Conformity Assessed (UKCA) marking is a conformity mark that indicates conformity with the applicable requirements for above described products sold within Great Britain.

The standard aims to provide users more detailed information than vague marketing terms such as waterproof.

CITC mandates that network-based devices must support 4G/LTE technology as a prerequisite for approval of such equipment in Saudi Arabia. Hence, 2G and 3G only devices can no longer be approved and certified in the Kingdom.

The Australian Standard AS/NZS 4417.1 and AS/NZS 4417.2 Marking of electrical products to indicate compliance with regulations – General rules for use of the mark provides general requirements for the use of the RCM including location of the marking on the equipment and its dimensional requirements.

This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste.

E-Mark and e-Mark are the European conformity marks issued by the transport sector, indicating that the products comply with relevant laws and regulations or directives. Vehicles and related products need to go through the E-Mark certification process to be legally sold in Europe.

REACH addresses the production and use of chemical substances, and their potential impacts on both human health and the environment. Its 849 pages took seven years to pass, and it has been described as the most complex legislation in the Union's history and the most important in 20 years. It is the strictest law to date regulating chemical substances and will affect industries throughout the world.

DECLARATION OF IMEI ASSIGNMENT

The IMEI number is used by a GSM network to identify valid devices and therefore can be used for stopping a stolen phone from accessing that network. For example, if a mobile phone is stolen, the owner can call their network provider and instruct them to blacklist the phone using its IMEI number. This renders the phone useless on that network and sometimes other networks too, whether or not the phone's subscriber identity module (SIM) is changed.

CHECK ALL CERTIFICATES

All newest certificates may be found in our Wiki ^2 .

^2 wiki.teltonika-gps.com/view/FMC225_Certification_%26_Approvals

WARRANTY

We guarantee our products 24-month warranty ^1 period.

All batteries carry a 6-month warranty period.

Post-warranty repair service for products is not provided.

If a product stops operating within this specific warranty time, the product can be:

• Repaired
• Replaced with a new product
• Replaced with an equivalent repaired product fulfilling the same functionality
  • Replaced with a different product fulfilling the same functionality in case of EOL for the original product

^1 Additional agreement for an extended warranty period can be agreed upon separately.

WARRANTY DISCLAIMER

• Customers are only allowed to return products as a result of the product being defective, due to order assembly or manufacturing fault.
• Products are intended to be used by personnel with training and experience.
• Warranty does not cover defects or malfunctions caused by accidents, misuse, abuse, catastrophes, improper maintenance or inadequate installation – not following operating instructions (including failure to heed warnings) or use with equipment with which it is not intended to be used.
• Warranty does not apply to any consequential damages.
• Warranty is not applicable for supplementary product equipment (i. e. PSU, power cables, antennas) unless the accessory is defective on arrival.
  • More information on what is RMA ^1

^1 wiki.teltonika-gps.com/view/RMA_guidelines
