OPERATINGINSTRUCTIONS
Dishwasher
EN
DBI253IB.W.AU
DBI253IB.S.AU
DBI253IB.BS.AU
Contents
| 3Yourdishwasher program has finished...... | 19 |
| Welcome to our growing ASKO family! ...... | 3 How to get the best drying results ...... | 19 |
| 4Safetyinstructions...... | 20Unloading |
| Activate child lock (Kid SafeTM) ...... | 5 | 21Program |
| 5Installation...... | 22Settings. |
| 5Wiredhouse/Thawasport's. Settings. menu...... | 22 |
| 5Overflow guard function...... | 24Careand |
| 5Packaging rinse.aid...... | 24 |
| 6Disposal...... | 24Cleaning |
| 7Before washing for the first time...... | 26 |
| 71. Water heater dishwasher. inside and out...... | 27 |
| 72. Basic settings...... | 27Remove k |
| 9Greenerdishwashing...... | 29Troubles |
| The dishwasher saves energy and water .... | 9 | 34Installati |
| 10Loadingthedishwasher...... | 34Safety ins |
| 10Fragmented shot protection. for the door...... | 35 |
| Loading affects the results ...... | 10 | 35Placing th |
| 10The Adishwasher's. | 36 |
| 11Top adjust the height and slide the dishwasher | |
| 11Up pre to packet...... | 36 |
| 12Lower basket...... | 37Drainage |
| 14Cut Goon backen to water. supply...... | 38 |
| 16Usingthedishwasher...... | 39Electrical |
| 16Add Screwwinger the. dishwasher. into. place...... | 39 |
| The main power switch ...... | 17 | 41Dishwash |
| 17Select program...... | 42ASKOSe |
| 18Select program about your product...... | 42 |
| 18Select option...... | 42Contact th |
| 18Starting the dishwasher...... | 43Technical |
| 19Time information on energy. labelling...... | 43 |
| Stopping or changing a program ...... | 19 | 43Technical |
| If you want to load more dishes ...... | 19 Information for test institute ...... | 43 |
| If the dishwasher is turned off due to a power failure ...... | 19 | |
Welcome to our growing ASKO family!
We are proud of our appliances. We want them to help make the world a better place – improving quality of life for you and your loved ones. We hope that this appliance will be an appreciated and dependable aid for many years to come.
Please read the operating instructions before use. They include general tips, information about the settings and adjustments you can make, and how best to care for your appliance.
Install the dishwasher, see the chapter Installation. Following this, open the door and press the main power switch to start using the machine.
"Welcome to your ASKO. First time set-up." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good dishwashing results. See page 7.
Safety instructions
- Read the operating instructions and keep them in a safe place!
• Number of place settings: 15
- Never use the dishwasher for any purpose other than that specified in these operating instructions.
- Do not load the dishwasher door or dishwasher baskets with anything other than dishes.
- Never leave the dishwasher door open as someone may trip on it.
- Use only dishwasher detergent!
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Damaged mains cables must only be replaced by a qualified electrician.
- This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments:
- bed and breakfast type environments.
- Never place dishes with solvent residues in the dishwasher due to the risk of explosion. Nor may dishes that contain ash, wax or lubricants be washed in the dishwasher.
- Children must be watched. Do not allow children to use or play with the dishwasher. Be especially vigilant when the door is open.
Some detergent may remain inside! After adding detergent, always start the dishwasher immediately.
WARNING!
Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets.
WARNING!
Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open. Seek medical attention if swallowed.
Check that the detergent compartment is empty after completion of the wash cycle.
→ Activate child lock (Kid Safe™)
You can activate the child lock (button lock) to prevent children from starting the dishwasher. See the chapter Settings.

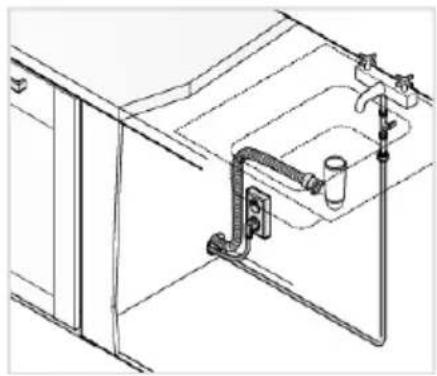

Installation
See the chapter Installation.
Winter storage/Transport
Store the dishwasher above freezing temperature and avoid long transport distances in very cold weather. Transport the dishwasher upright or laying on its back.
Overflow guard function
The overflow protection starts pumping out the machine and turns off the water supply if the water level in the dishwasher exceeds the normal level. If the overflow protection is triggered, F54 appears on the display. Turn off the water supply and contact your nearest service centre.

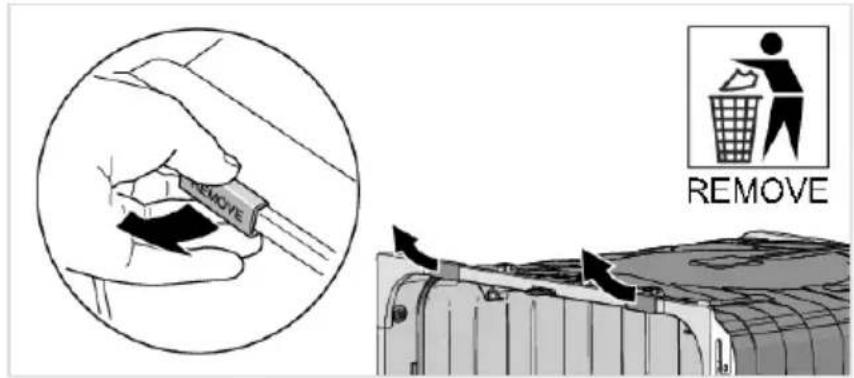

Packaging
The outer packaging protects the product during transport. The packaging material is recyclable. Separate the different packaging materials to help reduce raw material use and waste. Your dealer can take the packaging for recycling or direct you to the nearest recycling centre. The packaging is comprised of:
• Corrugated cardboard made from up to 100% recycled material.
- Expanded polystyrene (EPS) with no added chlorine or fluorine.
• Supports made from untreated wood.
Safety instructions
• Protective plastic made from polyethylene (PE).
Disposal
The dishwasher is manufactured and labelled for recycling.
When the dishwasher has reached the end of its service life and is to be disposed of, it should immediately be made unusable. Pull out the power cable and cut it as short as possible.
Contact your local authority for information about where and how your dishwasher should be correctly recycled.
Before washing for the first time
1. Water hardness
In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral content). Hard water leaves a white coating on dishes and the dishwasher.
Checkingwaterhardness
Contact the local water utility to check the water hardness in your area. This is important with regard to how much detergent and rinse aid to use.
2. Basic settings

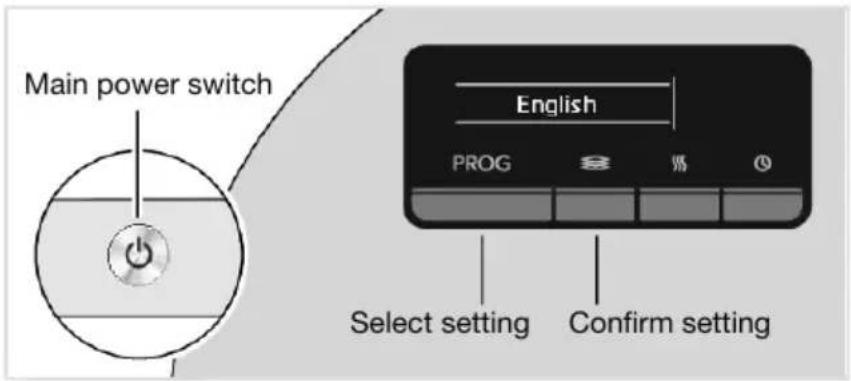

Open the door and press the main power switch.
"Welcome to your ASKO. First time set-up." is shown on the display. It is important that you choose the right settings to ensure good dishwashing results.
Settings
Language1.
Select the language to be shown on the display.
By using rinse aid you will improve your drying result. You will also achieve a better dishwashing result with glassware and dishes.
Select rinse aid dosage. The rinse aid dispenser can be adjusted between 0 (Off) and 5 (High dosage).
Pre-selectedatfactory:5

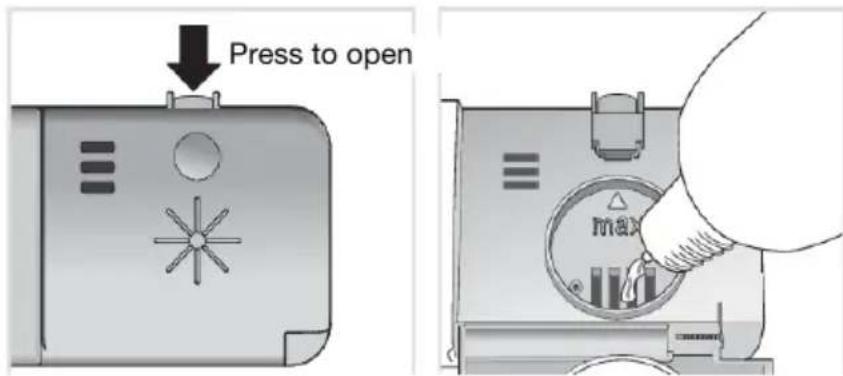

Topuprinseaid
Before washing for the first time
Tablecontinuedfromlastpage

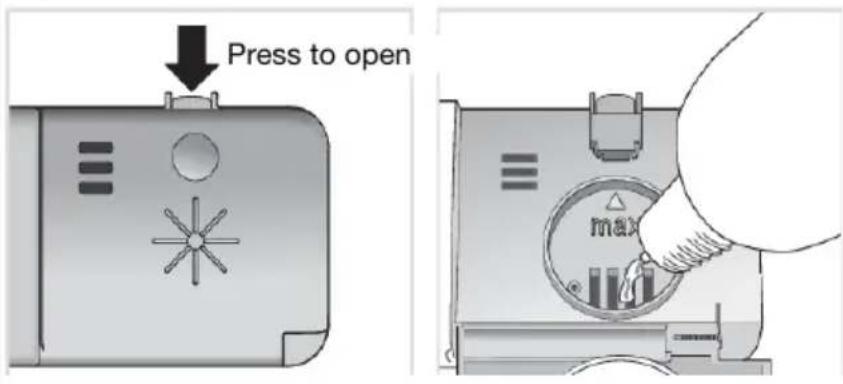

Topuprinseaid
- Open the rinse aid compartment lid.
- Carefully top up with rinse aid to the level marked max.
- Wipe up any splashes of rinse aid around the compartment.
- Close the lid firmly.
For water with a hardness greater than 10–12 °dH, you ought to use rinse aid with citric acid (known as acid rinse aid).
Tochangethechosensetting,seethechapterSettings.
The dishwasher saves energy and water
When using a dishwasher in a residential setting, less energy and water are generally used compared to washing the dishes by hand.
Donotrinseunderrunningwater
Do not rinse the dishes under running water as this will lead to increased energy and water consumption. Simply scrape off large food particles before loading the dishwasher.
Chooseagreendetergent
Read the environmental declaration on the packaging!
Too much detergent and rinse aid can result in less effective dishwashing and also entail greater environmental impact.
Runafullyloadeddishwasher
Save energy and water by waiting until the dishwasher is full before running a program. Use the Rinse & hold program to rinse the dishes if there are any unpleasant odours.
Runprogramsatalowertemperature
If the dishes are only slightly dirty, you can select a program with a low temperature.
Selectdishwashingprogram—Eco
Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes, cups, glasses and so on.
This dishwashing program is designed for an effective wash using as little energy and water as possible. The program washes at a low temperature for a long time.
Openthedooralittleoncetheprogramhasfinished
Better drying results are achieved if you open the door a little once the program has ended. (If the dishwasher is built-in, the surrounding cabinets must be resistant to any condensation from the dishwasher.)
Connecttocoldwater
Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas
Connectiontohotwatersupply
Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot water connection cuts dishwashing times and reduces the dishwasher's energy consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain materials used in some cookware cannot withstand high heat.
Loading the dishwasher
Fragile dishes
Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand strong heat, others can be damaged by dishwashing detergent.
Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic. Look for the "Dishwasher safe" marking.
Fragiledecoration
Porcelain with decoration on top of the glazing (the items feel rough) should not be washed in a dishwasher.
Crystal/Glass
By using rinse aid you will improve your drying result. You will also achieve a better dishwashing result with glassware and dishes.
Hand-paintedglassware, as well as antique and very fragile items, should not bewashed in dishwasher.
Silver
Silver and stainless steel items should not come into contact, as the silver can become discoloured.
Aluminium
Aluminium can lose its shine if washed in a dishwasher. However, good quality aluminium pans can be washed in a dishwasher, even if some of the shine will be lost.
Cutlerywithgluedhandles
Some types of glue are not dishwasher safe. In such cases, the handles may loosen.
Loading affects the results
Load the dishes carefully to ensure the best washing and drying results with the lowest possible energy and water consumption. Give your dishwasher the best chance to reach and clean all surfaces, as well as to dry the dishes as thoroughly as possible.
• All dirty surfaces should face inwards and downwards!
• Dishes should not be placed in or on each other.
- Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.
- Make sure small items cannot fall through the dishwasher basket; place them in the top cutlery tray.
NOTE!
Check that the spray arms can rotate freely.
The dishwasher's baskets
The dishwasher is equipped with a top cutlery tray, an upper basket and a lower basket with a cutlery basket.
Theappearanceofthebasketsmaydifferdependingonthedishwashersetup.

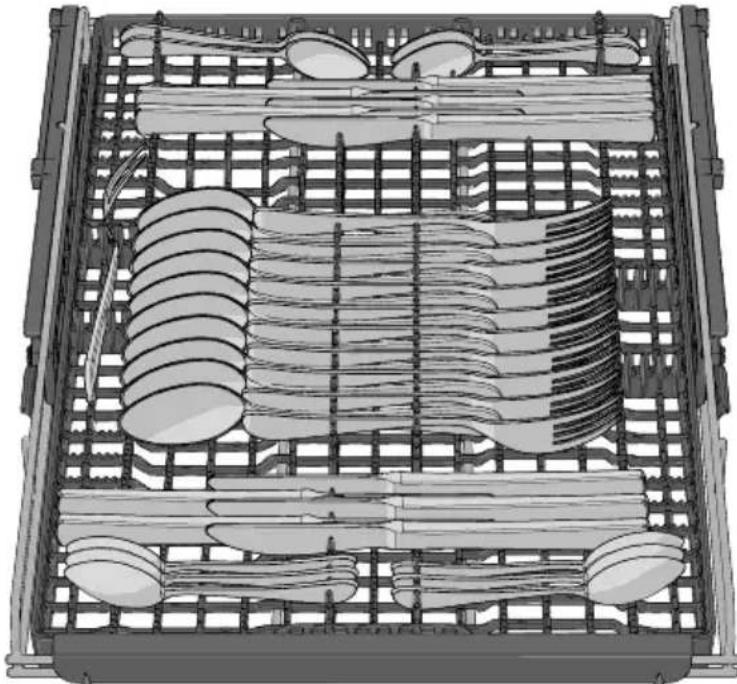

Top cutlery tray
The top cutlery tray has space for cutlery, ladles, whisks, serving cutlery and similar items.


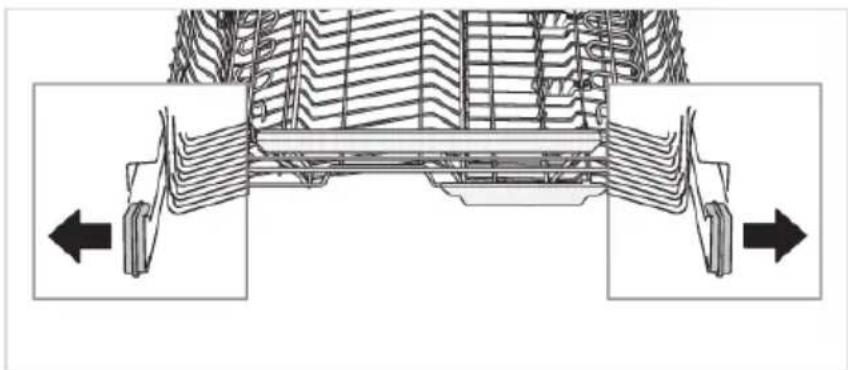

Raisingthetopcutlerytray
- Pull out the top cutlery tray.
- Pull the two locking handles on either side forward to raise the top cutlery tray.

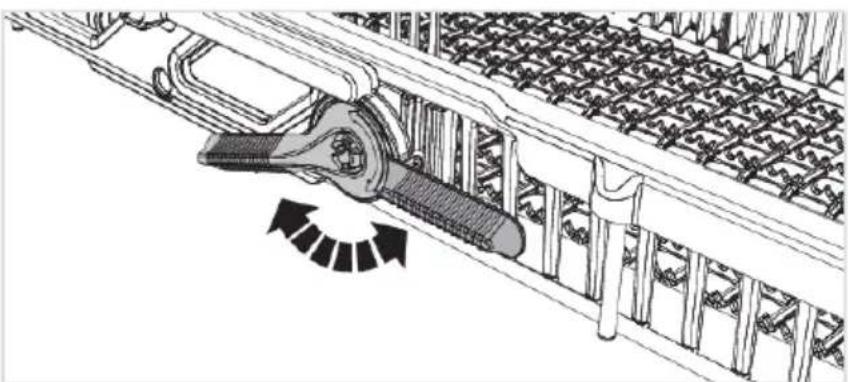

Loweringthetopcutlerytray
- Pull out the top cutlery tray.
- Slide the two locking handles on either side downwards and backwards to lower the top cutlery tray.


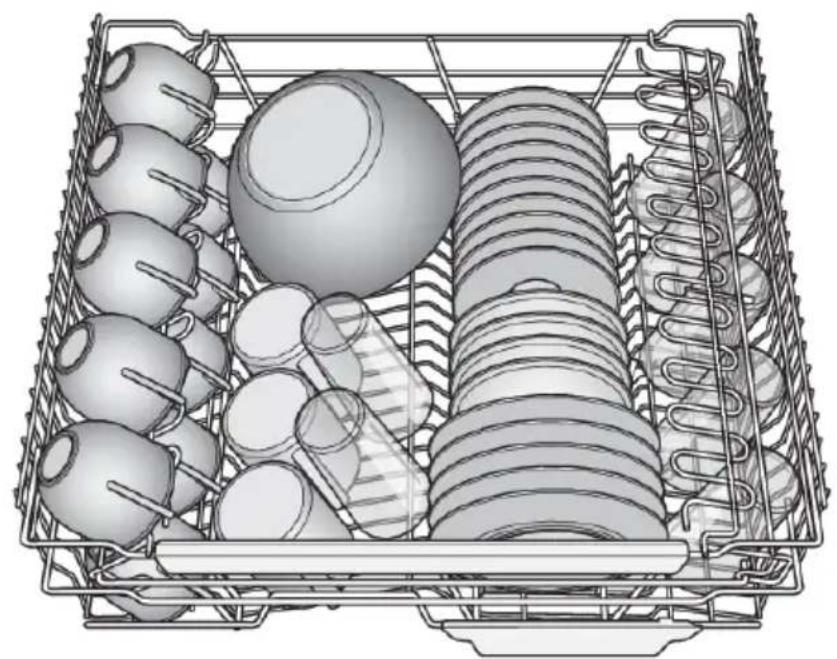

Upper basket
Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in the knife stand on the right.
Loading the dishwasher


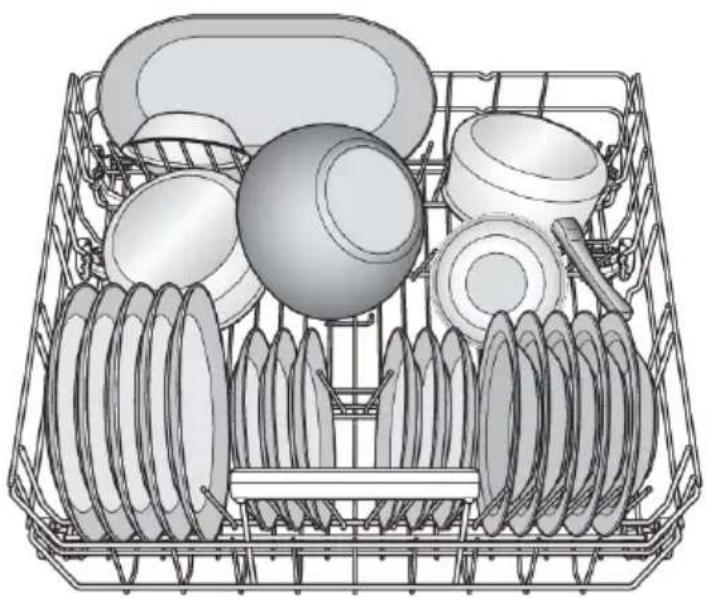

Lower basket
Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket.
Place pots and pans in the rear right part of the lower basket to achieve the best dishwashing results from the rear of the two spray nozzles (WideSpray™), which are intended for these types of dishes.


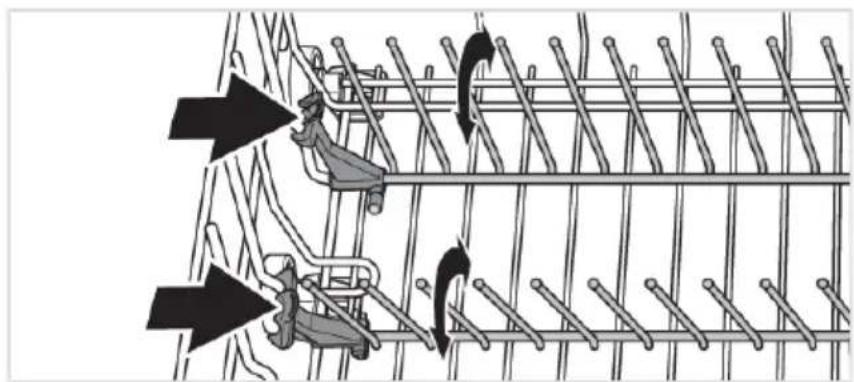

Foldabletines
Lower the foldable tines (plate supports) when washing pots and pans. Release the foldable tines by pressing the catch inwards before adjusting their position.
Washinglargeplates
Move the foldable tines and their mounts to widen the distance between the tine rows to adapt the lower basket to plates with a diameter greater than 25 cm.
Loading the dishwasher

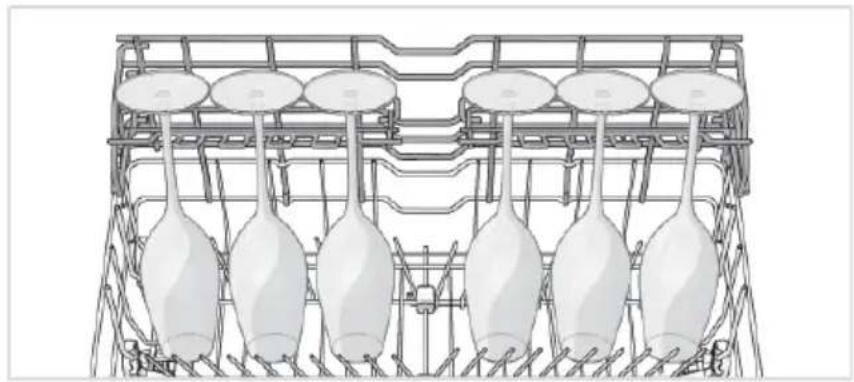

Accessory
Buy a wine glass shelf with space for six tall ^1) wine glasses. The wine glass shelf is designed to ensure optimal washing and drying results with tall wine glasses. The wine glass shelf is placed in the rear section of the lower basket. This accessory can be purchased by calling ASKO.
Cutlery basket
Place cutlery with the handles facing down, except for knives, and spread them out as much as possible. Ensure that spoons do not stack inside each other.
The cutlery basket is best placed in the middle at the front of the lower basket to achieve the best dishwashing performance from the unique spray nozzle (Power Zone Cutlery™), which is intended for the cutlery basket.
WARNING!
Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets.

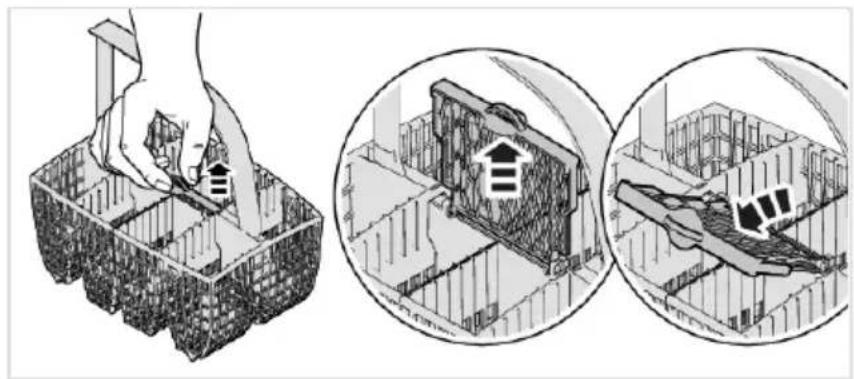

Fold-downsectionforsmallitems
The cutlery basket has a fold-down section in the middle for small items, or small shafts, such as electric whisk attachments.
1) Height:max.25cm, Diameter:max.7.5cm
Loading the dishwasher

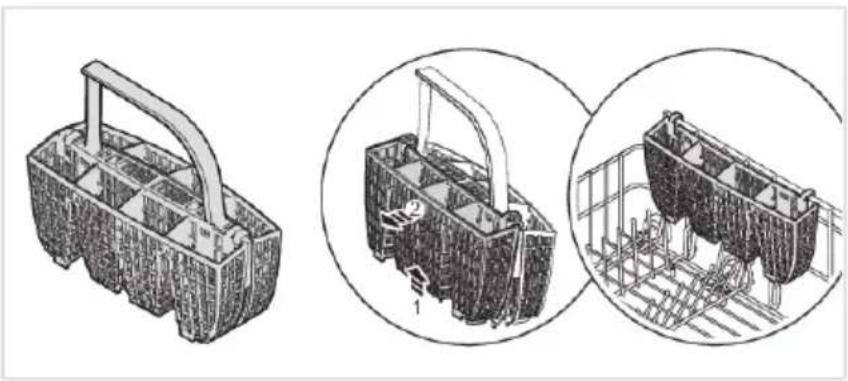

Accessory
Buy an extra cutlery basket. The extra cutlery basket is flexible and can be dismantled and attached to the lower basket or the large cutlery basket to make an extra large cutlery basket. This accessory is available where you purchased your dishwasher.
Using the dishwasher

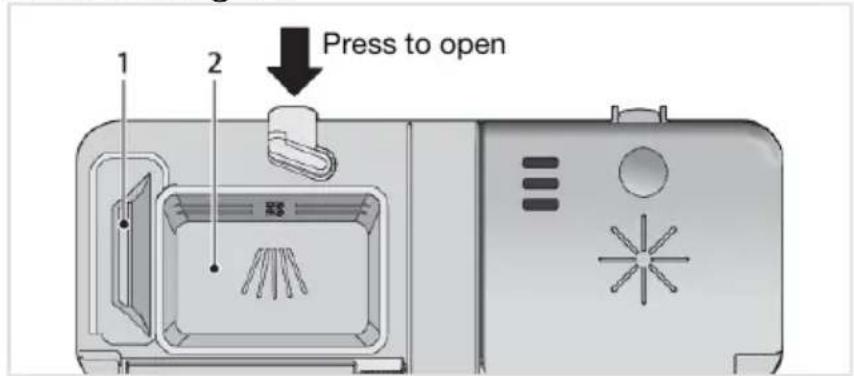

Add detergent
- Prewash detergent compartment
- Main wash detergent compartment
Detergent is added according to water hardness.
Follow the instructions on the detergent packaging.
Too much detergent can result in less effective dishwashing and also entails greater environmental impact.
The detergent compartment must be dry when adding detergent. There is one compartment for the prewash and one for the main wash. If powder or liquid dishwasher detergent is used, add a small amount of the detergent to the prewash compartment. Contact the detergent manufacturer if you have questions about the detergent.
NOTE!
Use only dishwasher detergent! Washing up liquid must not be used as the foam that forms prevents the dishwasher from operating effectively.
Dishwashertablets
Halve the tablet if it is difficult to close the dispenser lid. There is a risk that the detergent will not be released properly if the lid is tight and will not open correctly.
NOTE!
Dishwasher tablets are not recommended for short programs (less than 75 minutes). Use powder or liquid dishwasher detergent instead.
All-in-onedetergent
There are many types of all-in-one detergents on the market. Read the directions for these products carefully.
NOTE!
Optimum washing and drying results are achieved by using normal dishwasher detergent together with separately dispensed rinse aid.

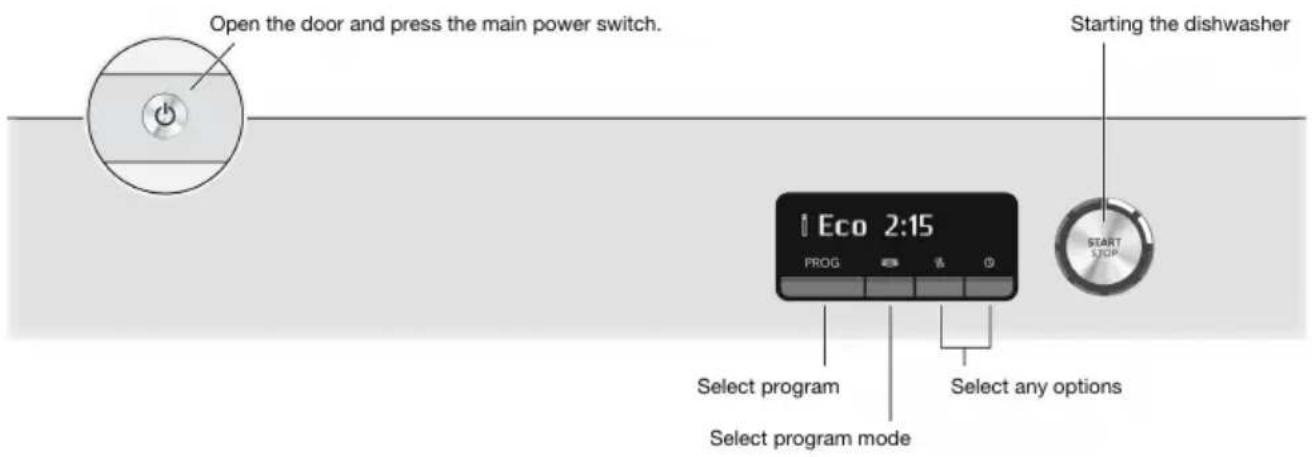

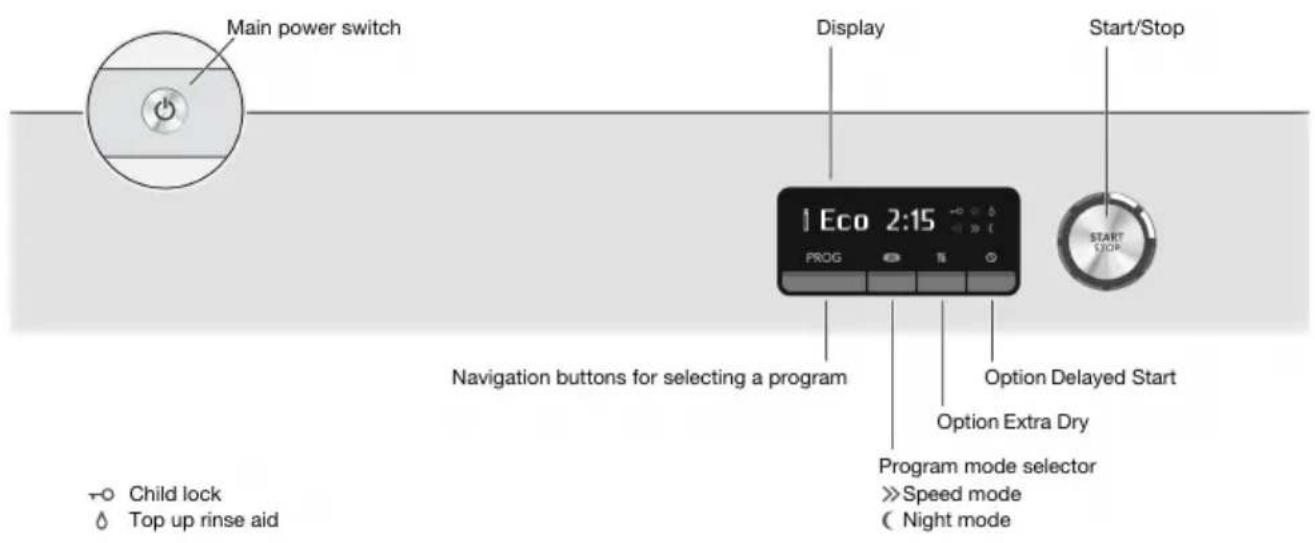

The main power switch
Open the door and press the main power switch. Close the door. Also turn on the water tap if it is turned off.
Select program
To select a program, press the navigation button PROG until the desired program is shown on the display.
Select a program to suit the type of dishes and how dirty they are.
Eco Eco
Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes, cups, glasses and so on.
You can read more about greener dishwashing in the chapter Greener dishwashing.
Heavy
Use to wash normally soiled load, such as plates, serving dishes, cups, glasses and so on.
Timeprogram
The program adapts to the specified running time or finish time. With this program it is important to choose a time suited to how dirty the dishes are.
Slightly dirty dishes0:15-0:45
Normally dirty dishes1:00-1:30
Very dirty dishes2:00-2:30
Press the Ⓤ option button to set the desired program time.
Rinse&hold
Used to rinse dishes while you wait for the dishwasher to become fully loaded.
Using the dishwasher
Hyg Hygiene
This program is designed to meet strict hygiene demands.
Quick
A short program for slightly soiled dishes. (This program is not intended for burnt food, such as on oven dishes.)
Intensive
A program with a high temperature to dissolve grease on very dirty dishes, such as pans, casserole dishes and oven dishes. If these dishes do not completely fill the dishwasher, you can add plates and the like.
Select program mode
To select a program mode, press the program mode selector until the desired mode is shown on the display. The available program modes vary between programs.
Speedmode
The program time is shortened, but the dishwasher uses more energy.
Nightmode
Lower noise level during the dishwashing program. The program time is extended.
Select option
To select an option, press the option button until the desired option is shown on the display. The available options vary between programs.
The Extra Dry option improves the drying results by using a longer drying cycle and a higher temperature in the final rinse. Energy consumption is slightly increased.
The Extra Dry option is pre-selected for some programs. You can deactivate this option to save time and energy.
DelayedStart
When you select Delayed Start, the dishwasher will start in 1-24 hours after you have pressed the button Start/Stop and closed the door.
- Press the button once to activate Delayed Start. Press the button several times – or hold it in – to set the desired number of hours.
- Press Start/Stop and close the door. The timer counts down and the dishwasher starts after the selected delay.
If you want to cancel the Delayed Start option, open the door then press and hold Start/Stop for three seconds.
START
STOP
Starting the dishwasher
Close the door properly, otherwise the dishwasher will not start. Press Start/Stop until the display shows "Program started".
If the dishwasher is not started within 2 minutes of the last button press, the machine switches off.
Time remaining
Once you have chosen a program, a program mode and options, the time the program took when last used is displayed.
Once you have started the dishwasher, the display shows the remaining program time. The remaining time is updated after the water for the final rinse has been heated.
This may differ somewhat from time to time depending on the temperature of the water supply, the amount of dishes, the ambient temperature and other factors.
During the first run of each program, the remaining time displayed can be slightly misleading, as the dishwasher is estimating the time. When you run the program a second time, the dishwasher will calculate the remaining time based on the previous duration of the program.
Stopping or changing a program
In order not to accidentally press a button and cancel the current program, you must press and hold Start/Stop for five seconds if you want to change programs after starting the dishwasher. Add more detergent if the lid of the detergent dispenser has opened. Then choose a new program and press Start/Stop.
If you want to load more dishes
Open the door. The dishwasher stops automatically. Add the dishes and close the door. After a while, the dishwasher continues the program.
If the dishwasher is turned off due to a power failure
If the dishwashing program was not finished, the interrupted program continues when power is restored.
NOTE!
During drying, the program is interrupted if the power is cut or the door is open for more than 2 minutes.
Once the program has finished
Once the program has finished, "END" appears on the display.
At the end of the program, you will hear a short beep. Chapter Settings describes how to change this function.
The dishwasher switches off automatically after the program ends. Turn off the water tap after each use.
How to get the best drying results
• Fully load the dishwasher.
- Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.
- Top up with rinse aid or increase the rinse aid dosage level.
• Activate the Extra Dry option.
Using the dishwasher
- Open the door a little once the program has finished.
- Allow the dishes to cool before unloading the dishwasher.
Unloading the dishwasher
Hot porcelain is more fragile. Leave the dishes to cool in the dishwasher before unloading them.
Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes in the lower basket.
Program chart
| Program | Detergent, compartment 2 (ml) | mode /Option | | MainwashPrewashesPrografinalrinseNumber ofrinses | Consumptionvalues 1) |
| Coldwater 2) | Hotwater 3) | Watercons. (liter) |
| Dishwashing time (approx. hrs:min) | Energy (approx. kWh) | Dishwashing time (approx. hrs:min) | Energy (approx. kWh) |
| Eco Eco^4) | | | | | | | | | | | 12.20.42:320.82:4948 °C348 °C225 |
| | | | | | | | | | | 13.50.62:051.22:2565 °C260 °C225He |
| Time program | 25 | | 0-2 | <65 °C | 2-3 | <65 °C | 0:15-2:30 | 0.5-1.4 | 0:15-2:30 | 0.4-1.0 | 9.0- 17.5 |
| Rinse & hold | | | | | 1 | --- °C | 0:07 | 0.01 | 0:07 | 0.01 | 3.5 |
| Hyg | | | | | | | | | 25Hygiene | 10.00.90:501.31:1068 °C270 °C |
| | | | | | | | | | | 15.00.91:101.31:3065 °C365 °C125Qu |
| | | | | | | | | | | 15.01.22:351.62:5570 °C270 °C225Int |
1) Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more.
2) Connection to cold water, approx. 20^ C.
3) Connection to hot water, approx. 60 °C. (The hot water connection figures do not include the energy used to heat the inlet hot water before entering the dishwasher.)
4) The energy label performance figures are based on this program which is recommended for normally soiled load at the rated capacity. No options.
Using the dishwasher
Settings
To open the dishwasher's Settings menu, press the navigation button until Settings menu is shown on the display and confirm your selection using the mode selector
To exit the dishwasher's Settings menu, select Exit and confirm your selection using the mode selector.
OptionsSettings
| Language1. | | You can choose the language used for the display.English |
| AU/Svenska/Dansk/Norsk/Suomi/Nederlands/Français/Deutsch/Italiano/Русский/Espanol/Português/Sloven./Eesti/Latviešu/Lietuvių/Hrvatski/Polish/简体中文 / 繁體中文 /日本語 |
| On/OffChildlock2. | You can activate the child lock (button lock) to prevent children from starting the dishwasher.To temporarily deactivate or activate the child lock, press and hold the mode selector and the option button Delayed Start for 3 seconds. |
| Display | Logotype On/OffContrast 1/2/3/4Prog. Info screen T/S | Setting to hide the logo shown on the display.For adjusting the contrast of the display.You can select which information is shown on the display.T-Text (Text)S-Symbol (Symbol) |
Tablecontinuedfromlastpage
| OptionsSettings | |
| 4. | Sound | Feedback 0/1/2/3 | This sound is used to confirm each button press. |
| Volume 0/1/2/3 | The buzzer indicates when a dishwashing program has ended. Errormessagesarealwaysindicatedbyaloud buzzer. |
| | 0/1/2/3/4/5Rinseaid5. | Setting for rinse aid dosage. The rinse aid dispenser can be adjusted between 0 (Off) and 5 (High dosage). Increase the rinse aid dosage: If the dishes have water marks. Decrease the rinse aid dosage: If the dishes have a sticky white/blue film. If the dishes are streaked. Build-up of foam. If you have very soft water, the rinse aid can be diluted 50:50 with water. |
| 6. | Super rinse | On/Off | Super rinse adds two extra rinses. Activatedinthefollowingprograms: Heavy Intensive Quick |
| Exit | | To exit the dishwasher's Settings menu, select Exit and confirm your selection using the mode selector. |
Care and cleaning
Top up rinse aid
When the rinse aid needs topping up, the above symbol lights on the display.
- Open the rinse aid compartment lid.
- Carefully top up with rinse aid to the level marked max.
- Wipe up any splashes of rinse aid around the compartment.
- Close the lid firmly.
After topping up, it may take a while before the symbol goes out.
NOTE!
For water with a hardness greater than 10–12 °dH, you ought to use rinse aid with citric acid (known as acid rinse aid).
Cleaning the filters

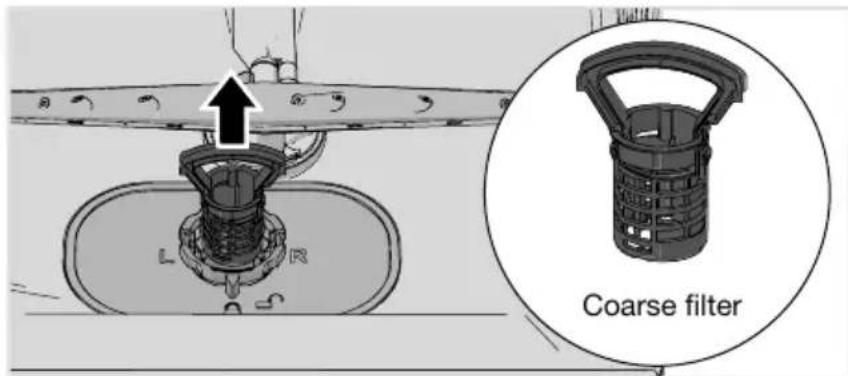

Coarsefilter
The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the coarse filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used.
- Lift the coarse filter by the handle.
- Empty the coarse filter.
- Refit the coarse filter. Press it down until it clicks into place.

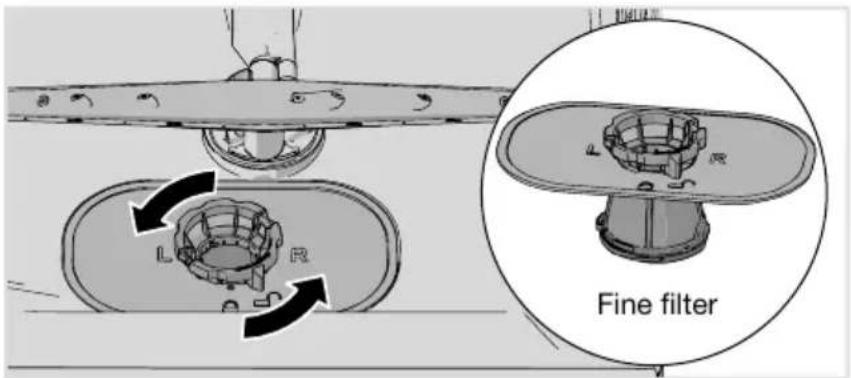

Finefilter
Debris that collects on the fine filter is automatically rinsed away during each wash. Clean the fine filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used.
- Turn the locking ring anticlockwise and lift the fine filter straight up.
- Clean the fine filter.
- Refit the fine filter and turn the locking ring clockwise to its stop position. Check that the edges seal properly.
Remember to refit the coarse filter!


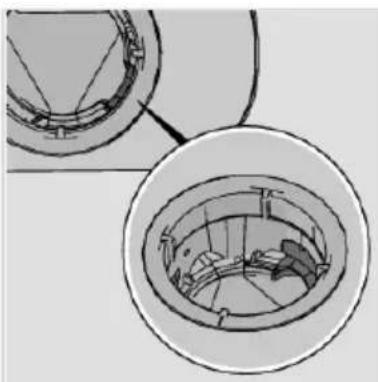

Check that the coloured stop on the right in the bottom drain is in place.
NOTE!
Dishwashing results may be affected if the coarse and fine filters are incorrectly fitted. The dishwasher must not be used without the filters in place!
Care and cleaning
Cleaning the spray arms
Holes and bearings can sometimes become blocked. Remove any debris using a pin or something similar. The spray arms also have holes on their undersides.
To facilitate cleaning, you can remove the spray arms. Remember to fit them firmly back into place after cleaning.
Topsprayarm
- The upper basket must be removed before the top spray arm can be released. See section Upper spray arm.
- Pull out the top cutlery tray. Press the top spray arm up and unscrew the spray arm bearings counter-clockwise to remove the spray arm.
Uppersprayarm
- The upper basket must be removed before the upper spray arm can be released. Pull out the upper basket and turn the basket catch on each runner outwards (see illustration). The basket can now be removed.
• Pull the upper spray arm straight up to release it.
Lowersprayarm
• Pull the lower spray arm straight up to release it.
Clean the dishwasher inside and out
Dooranddoorseal
Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth. Clean the door seal at the lower front edge of the dishwasher with a washing-up brush.
Keep the display and the buttons clean. If necessary, wipe them with a dry or slightly damp cloth. Never use cleaning products – they may scratch the surface.
Use the main power switch to switch off the dishwasher when cleaning the buttons to avoid activating them inadvertently.
Dishwashertub
The dishwasher tub is made of stainless steel and is kept clean through normal use (when used regularly).
If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run the Intensive program with two tablespoons of citric acid in the detergent compartment (with no dishes in the machine). Special dishwasher cleaners are also available on the market.
Remove blockages
Unblockingthedrainagepump
If the dishwasher still contains water after the program has finished, something may be blocking the drainage pump. Such blockages are easily removed.
-
Turn off the machine using the main power switch and unplug it from the wall socket.
-
Remove the coarse filter and the fine filter.
-
Scoop out the water from the dishwasher tub.
-

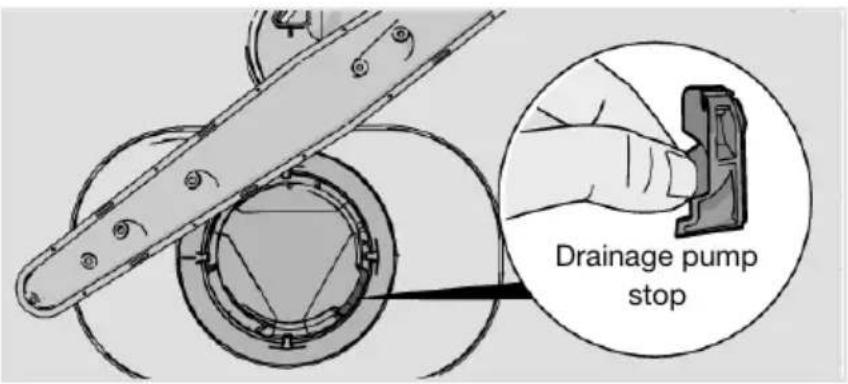

In order to inspect the drainage pump, remove the coloured stop on the right in the bottom drain.
-
Turn the pump wheel located behind the drainage pump stop by hand. Carefully remove any items.
-
Refit the drainage pump stop along with the fine and coarse filters.
-
Plug the machine in again.
If the dishwasher still does not start and a whirring sound is heard, the overflow protection has been activated.
- Shut off the water.
- Remove the plug from the wall socket.
- Call the service department.
Care and cleaning
NOTE!
Do not forget to refit the drainage pump stop.

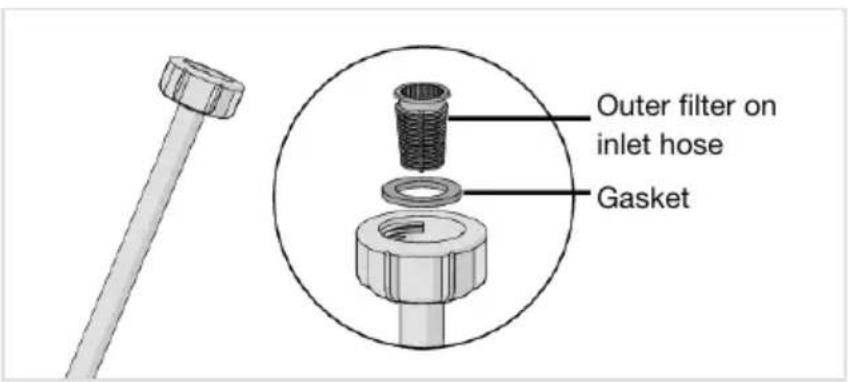

Unblockingtheinlethosefilter
If the water supply contains small particles, the outer filter on the inlet hose may become blocked, which results in Water inlet fault.
- Turn off the machine using the main power switch and unplug it from the wall socket.
- Turn off the water tap.
- Unscrew the inlet hose.
- Carefully remove the outer filter from the inlet hose and clean it.
- Refit the filter and check that the gasket is correctly positioned.
- Screw the inlet hose firmly into place.
- Plug the machine into the wall socket and turn on the water tap. Allow the pressure to settle for a while and check that the connection is watertight.
| ActionTypeoffaultonthedisplay |
| Overfilling water 1F10 | Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department. |
| Water outlet faultF11 | See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department. |
| Water inlet faultF12 | Check whether dishwasher inlet hose is connected to a pressure limiting valve (some pressure limiting valves may restrict the supply of water to the dishwasher).Check that the water tap is on. Check that the outer filter on the inlet hose is not blocked. See Unblocking the inlet hose filter in the chapter Care and cleaning. If the problem persists, call for service. |
| F40 | Inlet valve leakage | Turn off the water tap and call the service department. |
| Water level faultF52 | Clean the coarse and fine filters. Check that the outer filter on the inlet hose is not blocked. If the problem persists, call the service department. |
| F54 | Overfilling water 2 | Turn off the water tap and call the service department. |
| F56 | Circ. pump fault | Call the service department. |
| Water inlet faultF67 | Check whether dishwasher inlet hose is connected to a pressure limiting valve (some pressure limiting valves may restrict the supply of water to the dishwasher).Check that the water tap is on. Check that the outer filter on the inlet hose is not blocked. See Unblocking the inlet hose filter in the chapter Care and cleaning. If the problem persists, call for service. |
Press any button to clear the error message.
| | ActionPossiblecausesProblem |
| Pressing the main power switch has no effect. | The door is closed. | Open the door. The main power switch only works when the door is open. |
| The buttons do not react when pressed. | You have pressed the buttons too soon after opening the door. | Wait a moment then try again. |
| Child lock (button lock) activated. | See the chapter Settings. |
| The buttons are dirty. | Clean with a dry or slightly damp cloth. |
Troubleshooting
Tablecontinuedfromlastpage
| | ActionPossiblecausesProblem |
| Cannot close door. | The baskets are not correctly positioned. | Check that the baskets are correctly positioned horizontally. |
| Check that the dishes are not blocking the baskets from sliding properly into place. |
| The dishwasher does not start. | The Start/Stop start button has not been pressed for long enough. | Press and hold Start/Stop until the display shows "Program started". |
| Check.The door is not properly closed. |
| You have opened the dishwasher to add more dishes while a program is in progress. | Close the door and wait. After a while, the dishwasher continues the program. |
| A fuse/circuit breaker has been tripped. | Check. |
| wall socket. | Check.The plug is not plugged into the |
| The water tap is turned off. | Check. |
| Check.Overflow/Leaks |
| A whirring sound (the drainage pump) is heard from the dishwasher and does not stop when the main power switch is turned off. | Turn off the water tap. Pull out the plug and call the service department. |
| Check that the Delayed Start option has not been selected. | Press and hold Start/Stop for three seconds if you want to cancel the Delayed Start option. |
Tablecontinuedfromlastpage
| | ActionPossiblecausesProblem |
| The dishes are not clean. | The spray arms do not rotate. | Check that the dishes are not blocking the spray arms. |
| Spray arm holes or bearings blocked. | Clean the spray arms. See Chapter Care and cleaning. |
| Unsuitable dishwashing program. | Select a program with a high temperature to dissolve grease on very dirty dishes, such as Intensive. |
| Incorrect detergent dosage. | Dose according to water hardness. Far too much or far too little detergent results in poorer dishwashing results. |
| Old detergent. Detergent is a perishable product. | Avoid large packages. |
| Dishes loaded incorrectly. | Do not cover porcelain with large bowls or the like. Avoid placing very tall glasses in the corners of the baskets. |
| Glasses and cups have toppled over during the program. | Place dishes to sit steady. |
| The filters are not fitted correctly. | Check that the filter handle is locked in the stop position. |
| Drainage pump stop missing. | Check that the coloured stop on the right in the bottom drain is in place. See the chapter Care and cleaning. |
| Spots on stainless steel or silver. | Some foodstuffs, such as mustard, mayonnaise, lemon, vinegar, salt and dressings, can cause spots on stainless steel if left for too long. | Rinse off these types of foodstuffs if not starting the dishwasher immediately. Use the Rinse & hold program. |
| All stainless steel can cause spots on silver if they come into contact during dishwashing. Aluminium can also cause spots on dishes. | In order to avoid marks and tarnishing, separate dishes made from different metals, such as silver, stainless steel and aluminium. |
| Spots or films on the dishes. | Incorrect rinse aid dosage setting. | See the chapter Settings. |
| Too high temperature and/or too much detergent can cause etching on crystal. Unfortunately, this cannot be repaired, only prevented. | Wash crystal at a low temperature and with a conservative amount of detergent. Contact the detergent manufacturer. |
Troubleshooting
Tablecontinuedfromlastpage
| | ActionPossiblecausesProblem |
| The dishes have a sticky white/blue film. | Rinse aid dosage setting too high. | Reduce the dosage. See the chapter Settings. If you have very soft water, you may want to dilute the rinse aid 50:50 with water. |
| Spots left after washing. | Lipstick and tea can be difficult to wash off. | Use a detergent with a bleaching agent. |
| Detergent residue in the detergent compartment after dishwashing. | The detergent compartment was damp when adding detergent. | The detergent compartment must be dry when adding detergent. |
| The detergent compartment is blocked. | Check that the dishes are not preventing the detergent compartment from opening. |
| Rattling sound when dishwashing. | The dishes are not correctly placed or the spray arms are not rotating. | Check that the dishes are placed securely. Spin the spray arms to make sure they can rotate. |
| 1 minute appears in the display. | The program is taking longer than estimated. | No action. The program time is stored and next time the program is run the corrected time will be displayed. |
| Water remains in the dishwasher. | The filters are blocked. | Clean the coarse and fine filters. |
| The filters are not fitted correctly. | Check that the filter handle is locked in the stop position. |
| Debris in the drainage pump. | Clean the drainage pump. See the chapter Care and cleaning. |
| Drainage pump stop missing. | Check that the coloured stop on the right in the bottom drain is in place. See the chapter Care and cleaning. |
| Kink in drainage hose. | Check that the hose is free from kinks and sharp bends. |
| Blocked drainage hose. | Disconnect the drainage hose where it connects to the sink unit's water trap. Check that no debris has fastened and that the connection has an inner diameter of at least 14 mm. |
Tablecontinuedfromlastpage
| | ActionPossiblecausesProblem |
| Bad odour in dishwasher. | Dirt around the seals and in corners. | Clean with washing-up brush and low foaming cleaner. |
| Low temperature programs have been selected for a prolonged period. | Run a program with a high temperature once or twice a month. |
| Grease deposits in the dishwasher. | Low temperature programs have been selected for a prolonged period. | Select a program with a high temperature to dissolve grease on very dirty dishes, such as Intensive. |
| The dishes are not dry enough. | Depending on the load, the program's drying cycle may be insufficient. | Activate the Extra Dry option. |
| The dishwasher is not fully loaded. | Fully load the dishwasher. |
| Rinse aid needs topping up or dosage is set too low. | Top up with rinse aid or increase the rinse aid dosage level. See the chapter Settings. |
| Open the door a little once the program has finished. |

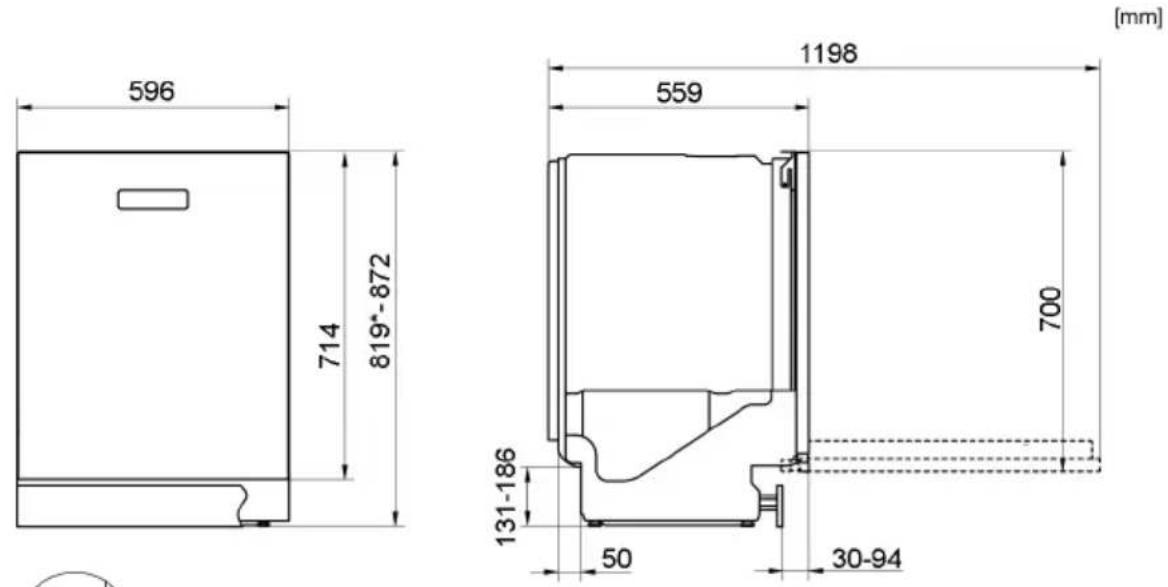

![596 714 819*-872 1198 559 700 131-186 50 30-94 [mm]](/content/2026/05/888289/images/36a1aa36e8042605a8fc01492f6b3056c57b533b928036609b800b0c60a0ad12.jpg)
*Remove the locking nuts when installing in a recess measuring 820-821 mm.
Nominal dimensions. Actual measurements may vary.
Safety instructions
- Connections to electricity, water and drainage must be performed by a qualified professional.
• Always follow applicable regulations for water, drainage and electricity.
• Take care during installation! Wear protective gloves! There must always be two people!
- Before screwing the dishwasher into place, test the dishwasher by running the Rinse & hold program. Check that the dishwasher fills with water and drains. Check also that none of the connections leak.
WARNING!
Turn off the water supply when installing the dishwasher!
The plug must be disconnected or power to the socket turned off while the work is carried out!
Transport protection for the door
Do not forget to remove the transport protection for the door when unpacking the dishwasher.
Placing the dishwasher
The dishwasher can be installed built-in, completely freestanding or partially built-in. Make sure the area on which the dishwasher is to be installed is firm.

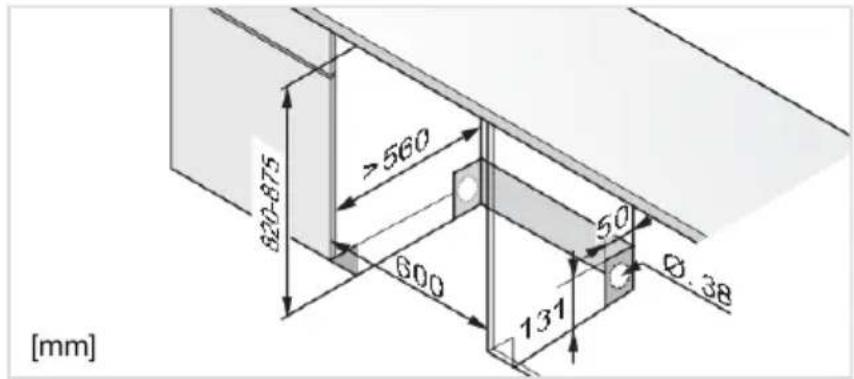

A.Built-in
The dishwasher is intended for installation under a worktop. The recess dimensions are illustrated. Holes for wires/cables need not be larger than 38 mm in diameter. Make sure the edges of such holes are even to prevent damage to the drainage and inlet hoses and the power cable.
![620-875 >560 600 131 Ø.38 [mm]](/content/2026/05/888289/images/1e5cd399fe4862132a5dfef2efed94ed9a095654b65c207dbaf112454eee2248.jpg)
If the dishwasher is built-in the surrounding cabinetry must be resistant to any condensation from the dishwasher.

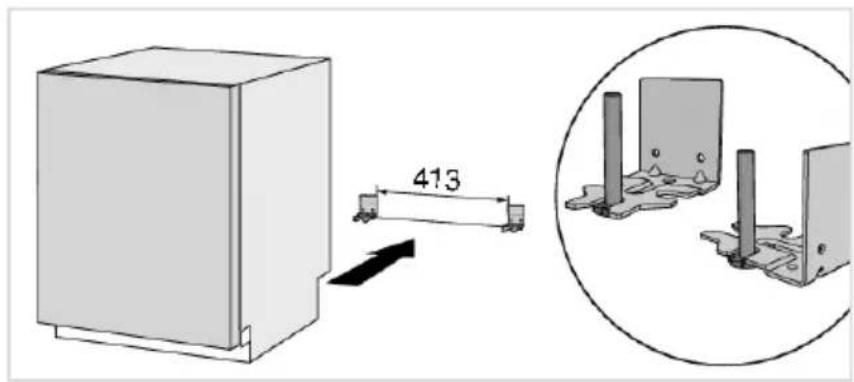

B.Freestanding
A freestanding dishwasher must be fitted with anti-tip brackets. This comprises two brackets, which are screwed into place as illustrated.
The dishwasher is then pushed in so that the brackets engage the rear feet. Now the dishwasher will not topple if pressure is put on the open door. If the dishwasher is installed completely on its own, side panels and a worktop must both be fitted. Accessories can be purchased where you bought the dishwasher.
Installation
WARNING!
A completely freestanding dishwasher must be fitted with anti-tip brackets.
C. Partiallybuilt-in
If the dishwasher is located so that one of its sides is visible, a side panel must be fitted. Accessories can be purchased where you bought the dishwasher.

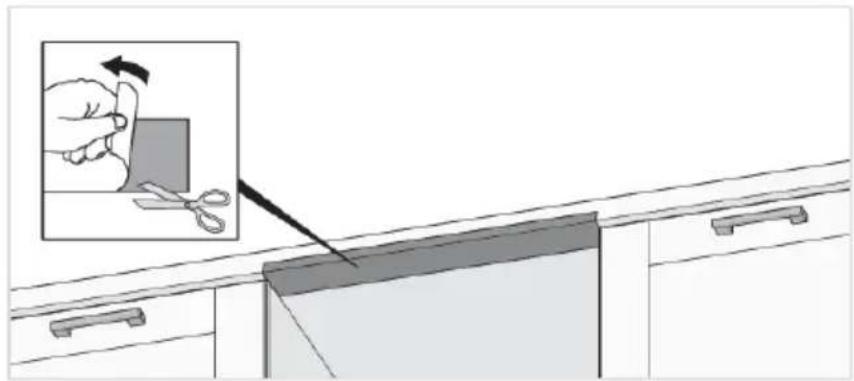

Affix the protective film
Affix the protective film (packed in the document bag). The protective film is to protect the worktop from moisture.
NOTE!
The surface to which the protective film is affixed must be clean and dry.

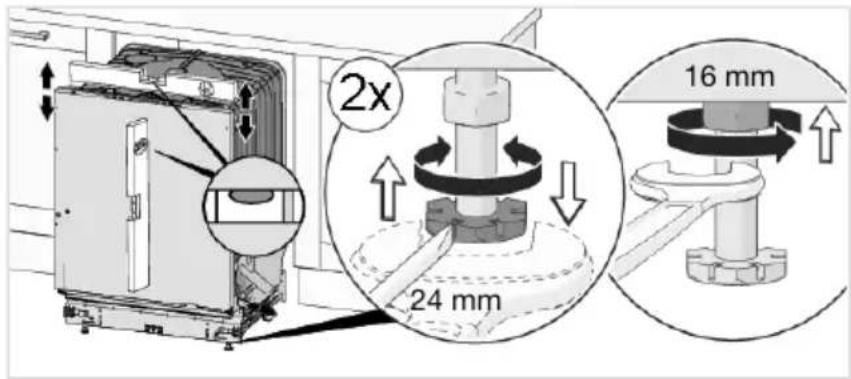

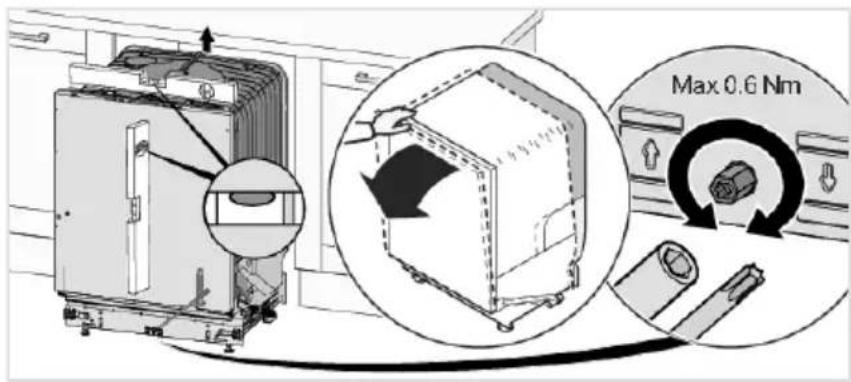

Adjust the height and slide the dishwasher into place
- Start by measuring the height from the floor to the bottom edge of the worktop.
- Measure the height from the floor to the top edge of the dishwasher.
- Lean the dishwasher forwards a little and adjust the rear foot with the screw at the front of the dishwasher. Turn clockwise to lower or anticlockwise to raise.
- Adjust the front feet by turning them clockwise to raise and anticlockwise to lower the dishwasher.
-
Check that there is an air gap of at least 3 mm between the underside of the worktop and the top edge of the dishwasher.
-

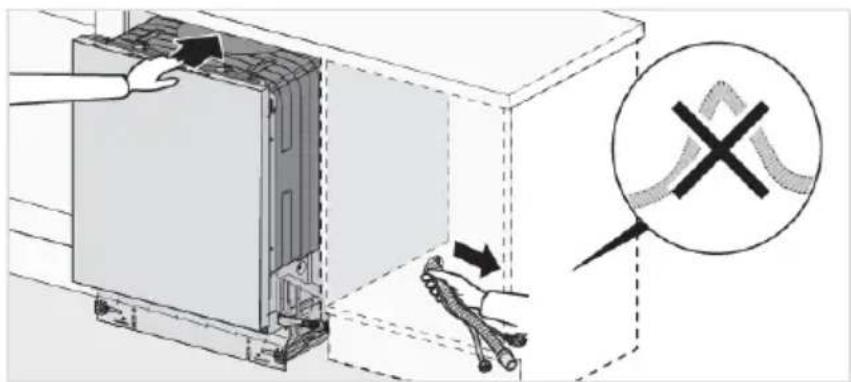

Slide the dishwasher into place.
• Pull the supply and drainage hoses when sliding the dishwasher into place.
- Check that the hoses have no kinks or sharp bends, and check that there is nothing that can damage the hoses.
- Make any final adjustments to the feet (the dishwasher may lean no more than 5 mm) and tighten the lock nuts on the front feet.
Drainage connection
This dishwasher is suitable for installing in a raised recess (to attain an ergonomic working height). This means that the dishwasher can be placed so that the drainage hose runs to a lower level than the bottom of the dishwasher, such as by routing it directly to a floor drain. The dishwasher is fitted
Installation
with an integrated anti-siphon device to prevent the machine from being emptied of water during the wash cycle.


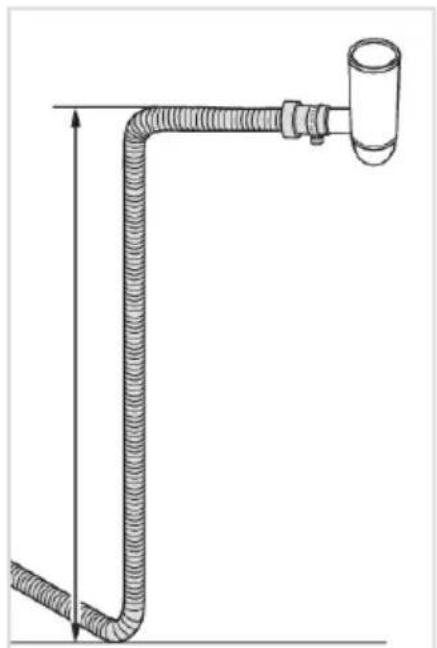

Max. 950 mm

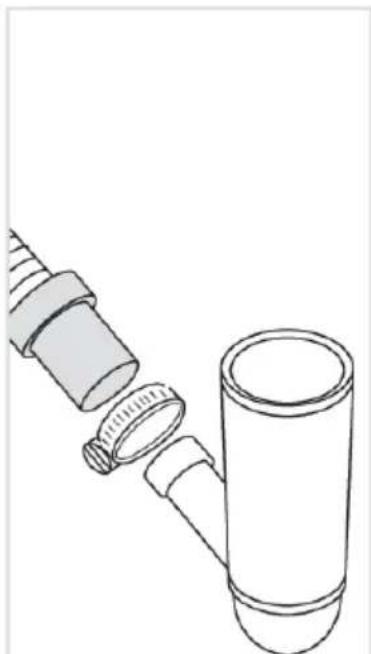

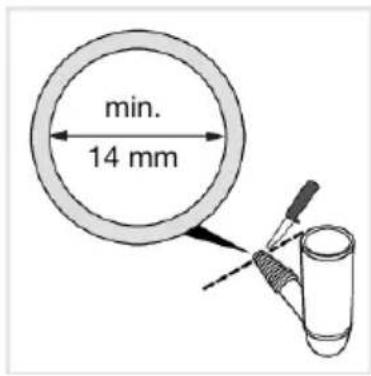

The drainage hose can also be connected to a connection nipple on the sink unit's water trap. The connection nipple must have an internal diameter of at least 14 mm.
The drainage hose may be extended by a maximum of 2.5 m (the total length of the drainage hose must not exceed 4.5 m). Any joins and connecting pipes must have an internal diameter of at least 14 mm. However, the drainage hose should ideally be replaced with a new hose without joins.
No part of the drainage hose may be more than 950 mm above the bottom of the dishwasher.
Attach the drainage hose with a hose clamp. Ensure that the drainage hose has no kinks.
Connection to water supply
Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses.
The supply pipe must be fitted with a water tap (stopcock). The water tap must be easily accessible, so that the water can be shut off if the dishwasher has to be moved.
Once the installation is complete, turn on the water tap and allow the pressure to settle for a while. Check that all connections are watertight.
Connection to cold waters supply
Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas.
Connectiontohotwatersupply
Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot water connection cuts dishwashing times and reduces the dishwasher's energy consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain materials used in some cookware cannot withstand high heat. See Fragile dishes in the chapter Loading the dishwasher.
NOTE!
The water pressure must be between 0.03 and 1.0 MPa.
Connecting a dishwasher to the water supply via certain types of pressure limiting valves may restrict the water supply! This may cause the error message "Water inlet fault" to be displayed.
If the water pressure is higher than 1.0 MPa a pressure limiting valve must be fitted.
Electrical connection
Information about the electrical connection can be found on the compliance plate. This specification must match the electricity supply.
The dishwasher must be connected to an earthed wall socket.
The electric wall socket must be placed outside of the installation area to be easily accessible after installing the dishwasher. Do not use an extension cord!
NOTE!
Repairs and maintenance must be carried out by a qualified professional.

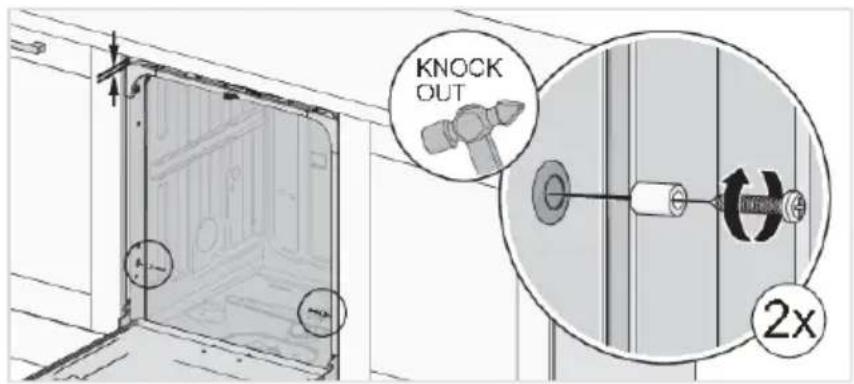

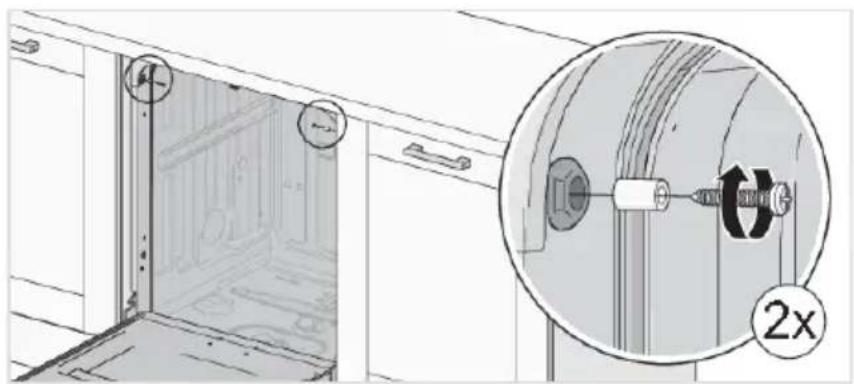

Screwing the dishwasher into place
(Applicable only to built-in dishwashers.)
Installation
After fastening the machine, check that the front feet still touch the floor.
If there is an air gap of more than 3 mm between the underside of the worktop and the top of the dishwasher, the dishwasher should be screwed into place with two extra screws.

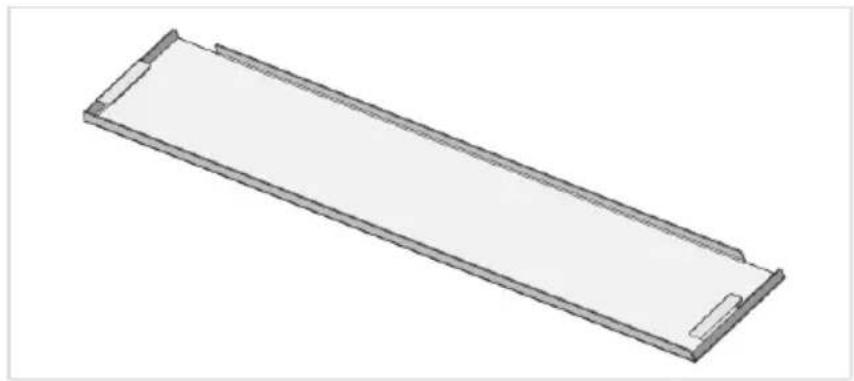

Dishwasher kick panel
The dishwasher is supplied with a kick panel.


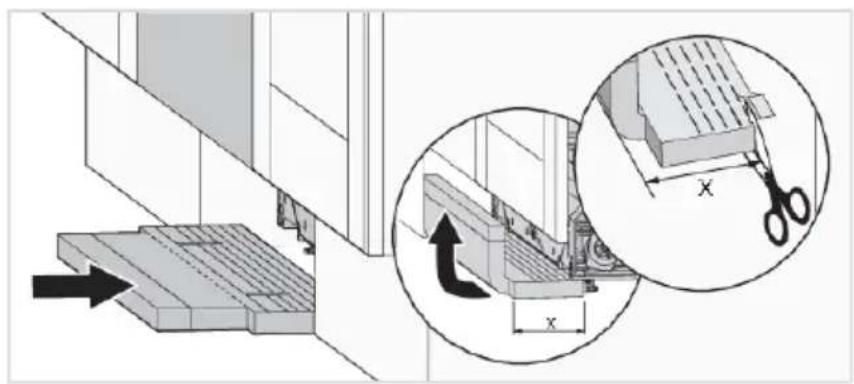

Installthesoundinsulation
(only certain models)


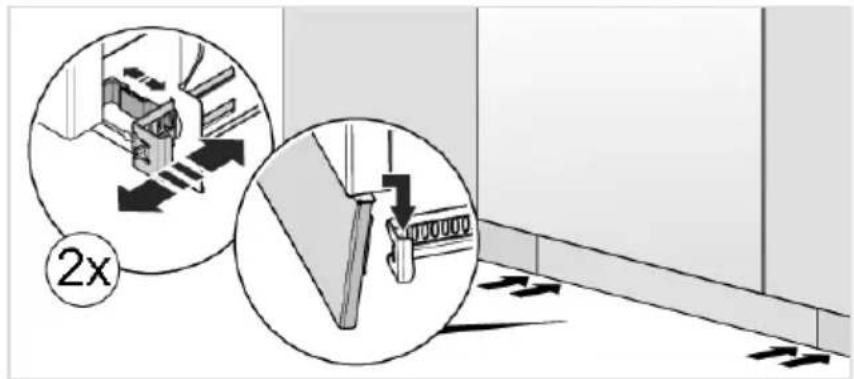

Installthekickpanel
ASKO Service

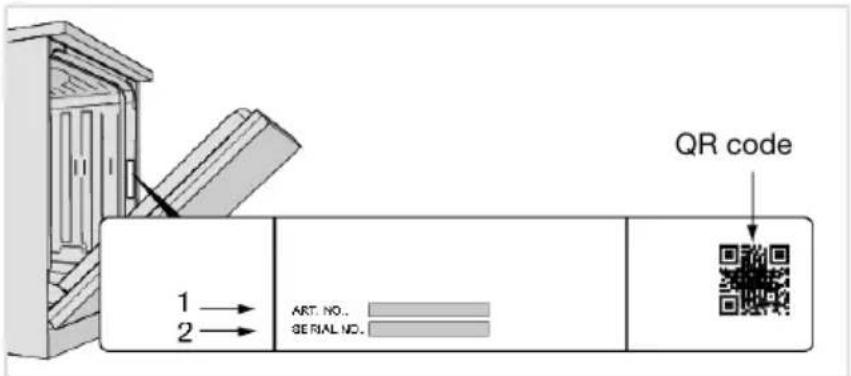

There is a QR code on the compliance plate. Scan the code to view information about your product.
Read the chapter Troubleshooting before contacting the service centre. If you have encountered a problem that you cannot resolve, please contact your nearest service centre for professional help.

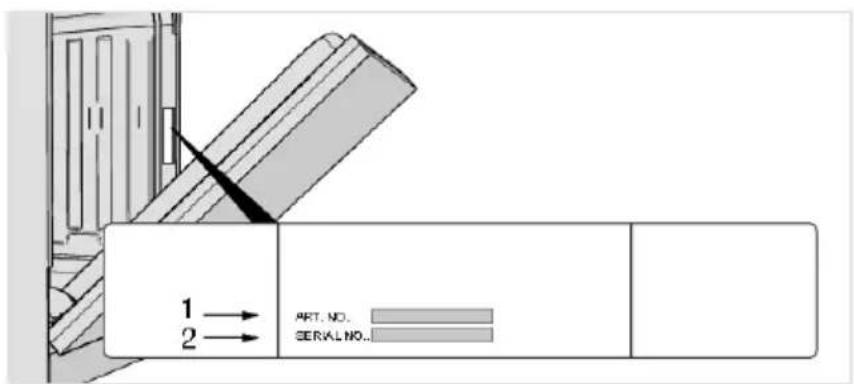

When making contact, provide the details on the serial number plate. Include the article number (1) and the serial number (2).
Please note that non-professional repairs may risk user safety and affect the warranty.
Energylabelling
AS/NZS 2007 Australian standard:
15Number of place settings:
Eco ^1) , no optionsDishwashing programs:
2:49 hours:minutesProgram time:
Cold water 20 °CConnection:
Test method for noise measurement: IEC 60704-2-3
1) Thisdishwashingprogramisthestandardcleaningcycleusedtocompiletheenergylabellinginformation. It isintendedforwashingnormallydirtydishesandisthemosteffectiveprogramintermsofcombinedenergy andwaterconsumption.
Technical data
819-872 mmHeight:
596 mmWidth:
559 mmDepth:
Weight: 45 kg ^1)
0.03–1.0 MPaWater pressure:
See compliance plateElectrical connection:
See compliance plateRated power:
1) Weightcanvaryduetodifferentspecifications.
Request test institute information via e-mail dishwashers@appliance-development.com.
The request should include the details on the product's serial number plate. Include the article number (1) and the serial number (2).
ASKO
Inspired by Scandinavia
ASKO APPLIANCES AB • SOCKERBRUKSGATAN 3, SE-531 40 LIDKÖPING, SWEDEN • WWW.ASKO.COM
FSC
www.fsc.org
MIX
Paper from
responsible sources
FSC® C114278
846222-a2
CE
