Type	Combined refrigerator (fridge and freezer)
Brand	Exquisit
Model	KGC232-60-E-040EW
Color	White
Dimensions (H x W x D)	1422 x 560 x 500 mm
Climate class	SN, N, ST, T
Voltage / Frequency	220-240 V / 50 Hz
Refrigerant	R-600a (isobutane)
Temperature control	Thermostat with 8 settings (0 to 7, max continuous)
Defrosting	Refrigerator: automatic; Freezer: manual
Reversible door	Yes
Interior lighting	LED (replaceable by qualified technician)
Refrigerator shelves	Adjustable glass shelves (number not specified)
Door balconies	Adjustable (number not specified)
Vegetable drawer	Yes, with removable cover
Freezer compartments	1 top tray, 1 middle drawer, 1 bottom drawer
Egg tray	Yes
Ice cube tray	Yes
Temperature indicator	OK sticker to verify coldest zone
Error codes	LED flashes for sensor/failures
Warranty	2 years (domestic use in Benelux)

Frequently Asked Questions - KGC232-60-E-040EW Exquisit

How to reverse the door on the Exquisit KGC232-60-E-040EW?

To reverse the door, tilt the unit backwards, remove hinges and covers as instructed. It is recommended to have two people. Follow the step-by-step procedure in the manual, ensuring the door gaskets are properly rotated and cleaned. Use a Philips and flat screwdriver.

What does the thermostat setting 0 mean?

Setting 0 turns off the appliance. Settings 1 to 7 control cooling, with 1 being the warmest and 7 the coldest. Setting 'max' keeps the compressor running continuously.

How to clean the refrigerator?

Unplug the appliance. Remove food. Use lukewarm water and mild detergent. Avoid abrasive cleaners. Clean the drain hole periodically with a pipe cleaner. Dry thoroughly before restarting.

How to defrost the freezer?

Unplug the appliance, remove food and wrap it in paper. Keep the door open and place a basin underneath to collect water. Do not use sharp objects. When ice melts, dry the interior and restart.

What do the LED flashes indicate?

1 flash: fridge temperature sensor failure. 3 flashes: fridge door open for >60 seconds. 4 flashes: temperature control knob failure. Contact service if issue persists.

How to adjust the temperature in the coldest zone?

Use the temperature indicator sticker: if it shows 'OK', temperature is below +4°C. If white, turn thermostat colder and wait 12 hours before rechecking.

What food storage tips are recommended?

Store raw meat on the lowest shelf above the vegetable drawer. Keep fruit and vegetables in the crisper. Do not store bananas, potatoes, onions or garlic unpacked. Allow hot food to cool before placing in the fridge.

How to save energy with this appliance?

Avoid opening doors frequently. Do not set thermostat colder than necessary. Keep food well packed and not touching the back. Ensure good air circulation around the appliance.

What is the climate class and where can I install it?

The appliance is rated for climate classes SN, N, ST, T (ambient temperatures from 10°C to 43°C). Install away from heat sources, with at least 50 mm clearance above and around.

What should I do if the appliance does not cool?

Check that the thermostat is not set to 0. Ensure the plug is inserted and fuse is intact. If the socket is defective, call an electrician. If problem persists, contact service.

USER MANUAL KGC232-60-E-040EW Exquisit

Plain white refrigerator with a single horizontal line at the bottom (no visible text or symbols)

Inhoud

Simple line drawing of a mechanical lever with a handle and load, no text or symbols present

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Pure geometric diagram showing a curved line and two marked points on a rectangular base (no text or symbols)

Technical line drawing of a mechanical lever assembly with inset close-ups showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two circular insets showing close-ups of components (no text or symbols)

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-up views (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a rectangular container with a curved lid and two small dots, no text or symbols present.

Pure architectural line drawing of a window with vertical supports and horizontal beams (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

Simple line drawing of a rectangular object with two downward arrows indicating force or movement (no text or symbols)

Simple diagram of a square frame with curved arrows indicating rotation or direction (no text or symbols)

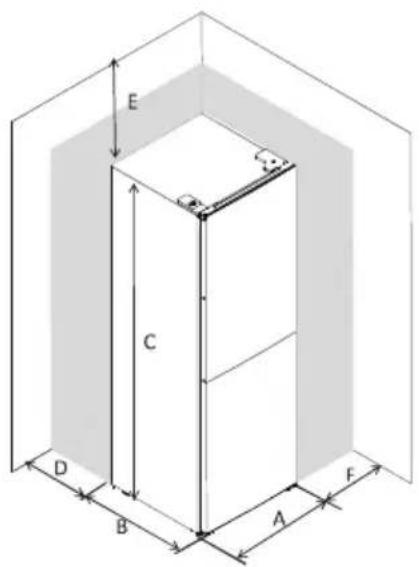

A	500
B	560
C	1422
D	min=50
E	min=50
F	min=50
G	1000

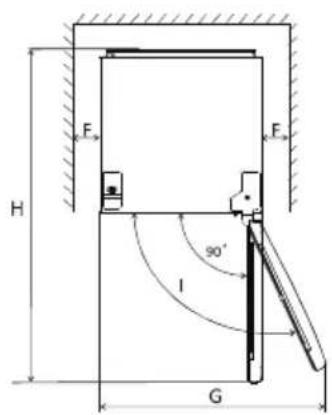

H	1060
I	135"

Illustration showing a person installing or adjusting a door panel while another person works nearby, with a close-up of the door being turned (no text or symbols present)

Positie

Warning symbol with exclamation mark and circular dot (no text or numbers)

DE TEMPERATUUR IN DE KOUDSTE ZONE INREGELEN EN CONTROLEREN

Line drawing of a hand holding a shelf with a handle, no text or symbols present

Simple diagram of a container with two upward arrows inside, no text or symbols present.

Foutmeldingen

Diagram of a mechanical setup with three horizontal plates and a downward arrow, no text or symbols present

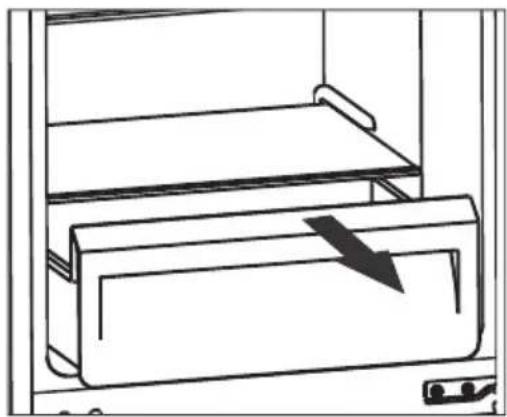

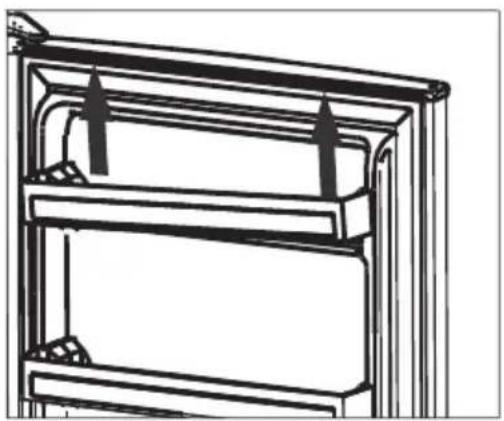

Groentenlade

Line drawing of a refrigerator drawer with an arrow indicating compression or lifting (no text or symbols)

Simple line drawing of a refrigerator interior with a horizontal shelf and a black arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical or architectural component with no visible text or symbols

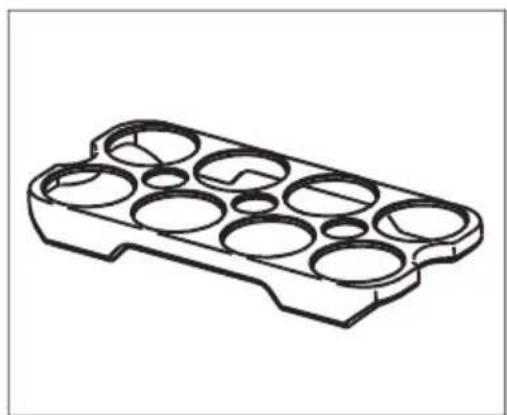

Eierrekje

Technical line drawing of a mechanical component with multiple circular cavities (no text or symbols)

Diagram showing aircraft wing rotation and movement, no text or symbols present

Dagelijks gebruik

Pure electrical circuit lines without any symbols

Problemen en oplossingen

Exquisit Servicebepalingen

Refrigerator Freezer KGC232-60-E-040EW

Plain white refrigerator with two side panels, no visible text or symbols

Content

1. Safety Information Page 1\~9
2. Overview Page 10
3. Reverse Door Page 11\~14
4. Installation Page 15\~16
5. Daily Use Page 17\~24
6. Warranty & Service Page 25

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children aged from 3 to 8 years are allowed to load and unload this appliance.

• Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

⚠️ Safety information

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children from suffering electric shock or closing themselves in it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming dangerous for a child.

General safety

⚠ WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

⚠ WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

• avoid open flames and sources of ignition

• thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

- This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

⚠ WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.

• Make sure that mains plug of the appliance is accessible.

- Do not pull the mains cable.

- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

- You must not operate the appliance without the lamp.

- This appliance is heavy. Care should be taken when moving it.

- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

- Do not put hot objects on the plastic parts in the appliance.

- Do not place food products directly against the rear wall.

- Frozen food must not be re-frozen once it has been thawed out. ^1)

- Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.

- Appliance's manufacturer's storage recommendations should be strictly adhered to. Refer to relevant instructions.

- Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^1)

- Ice lollies can cause frost burns if consumed straight from the appliance. ^1)

• To avoid contamination of food, please respect the following instructions

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
  If the drain is blocked, water will be collected in the bottom of the appliance. ^2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;

• Make sure food don't touch the back of the compartment(s);

• If electricity goes off, don't open the door(s);

• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• It's recommended not to remove all accessories, such as drawers, shelves balconies, for lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol ⚙ are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

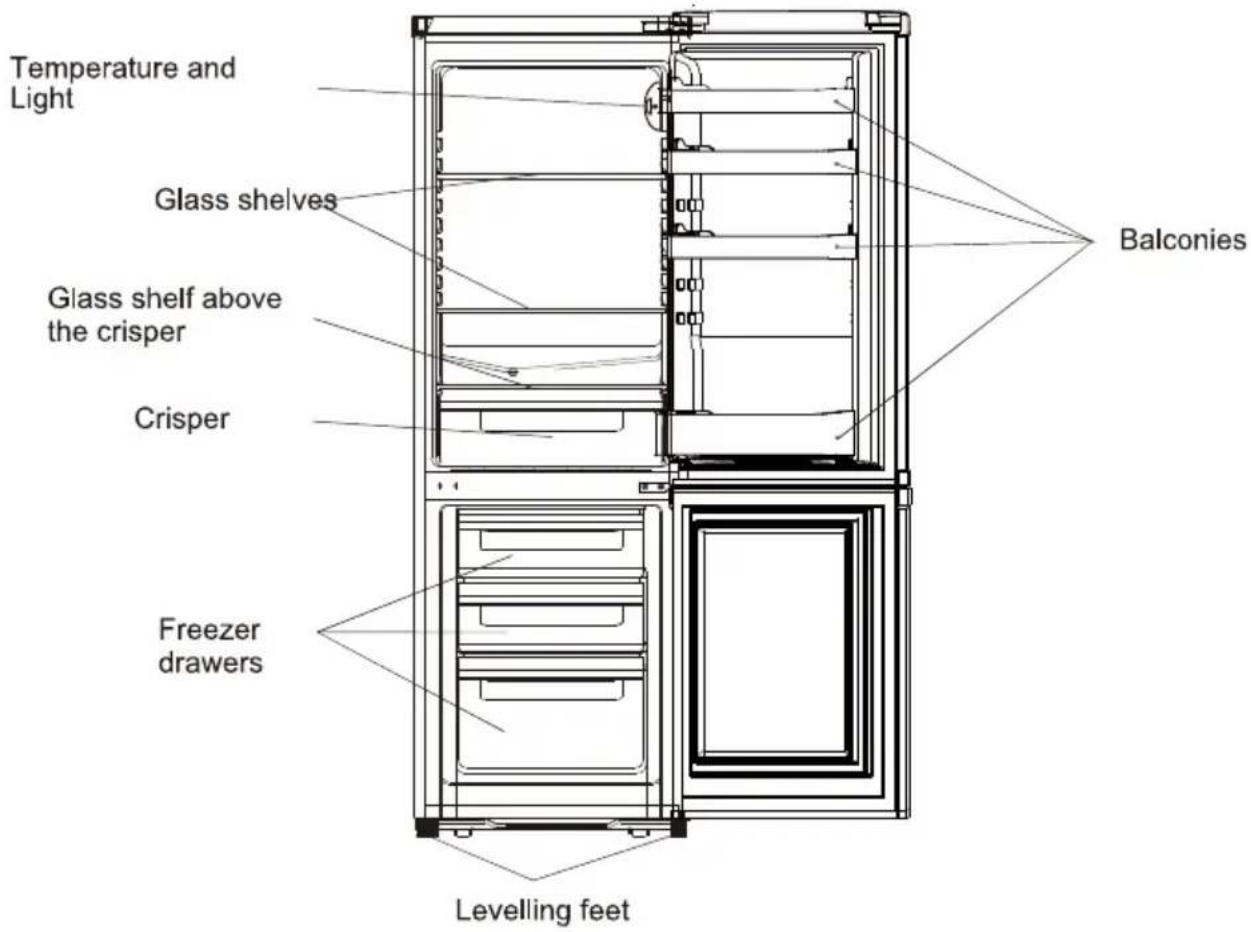

This illustration is only for hinting, the detail please check your appliance.

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• It's better that 2 people handle the unit during assembly.

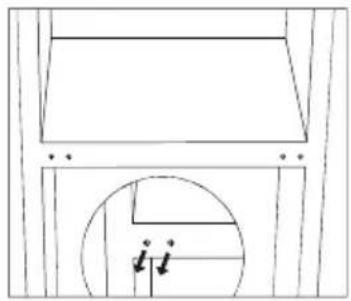

• Carefully remove the top hinge cover with a flat screw driver

Simple line drawing of a mechanical lever with a fulcrum and a rod, no text or symbols present

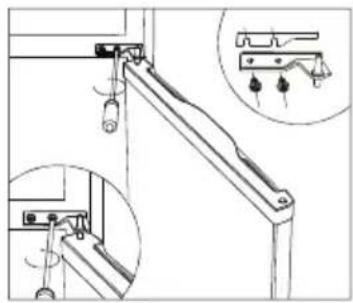

1. Unscrew the top hinge with a philiphs screw driver.

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

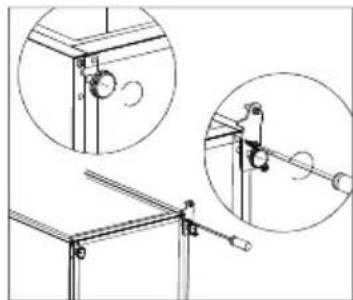

1. Remove the hole cover with a flat screw driver.

Pure mechanical diagram showing a lever mechanism with no text or symbols

1. Move the core cover from left side to right side. And then lift the upper door and place it on a padded surface to prevent it from scratching.

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

Reverse Door

1. Unscrew the middle hinge and then lift the bottom door and put it on a soft pad to avoid scratch.

Technical line drawing of a mechanical lever assembly with inset detail (no text or symbols)

1. Move two middle hole covers from left to right.

Pure technical line drawing of a mechanical component with no text or symbols

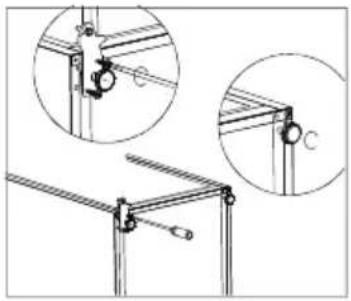

1. Lie down the rear of cabinet on a soft pad. And unscrew the bottom hinge and leveling foot.

Technical line drawing of a mechanical assembly with two views showing components (no text or symbols)

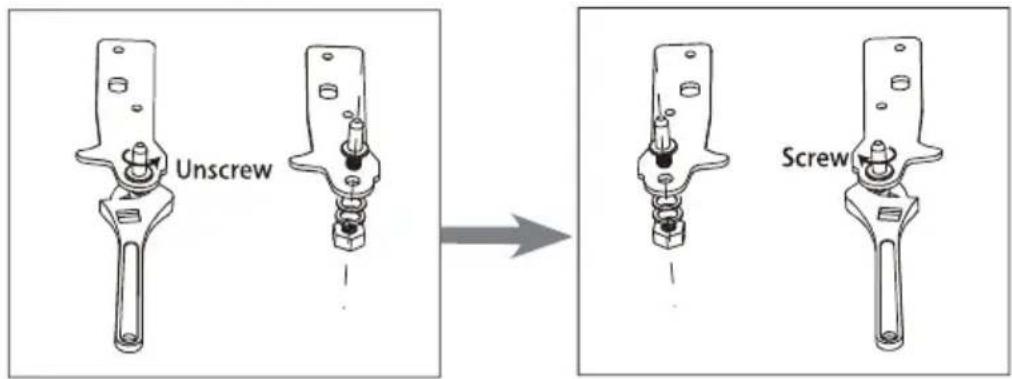

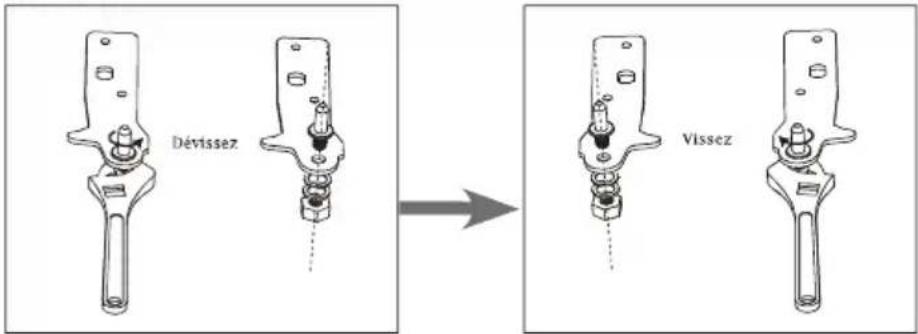

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

Reverse Door

1. Install the hinge at left side and foot base at right side. Then screw two leveling feet with their original parts.

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-up views (no text or symbols)

1. Move two middle hole covers from left to right.

Simple line drawing of a basketball court with an oval opening and diagonal lines (no text or symbols)

1. Stand up the unit and put the door on the bottom hinge. Make sure the bottom hinge core is inserted in the door hole. Then move the hinge hole cover of bottom door from left side to right side.

Simple line drawing of a cabinet or storage unit with no text, numbers, or symbols

1. Install the middle hinge.

Pure architectural line drawing of a window frame with no text, numbers, or symbols

1. Install the upper door with the upper hinge.

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

1. Clap in the hinge cover and hole cover on the top of unit.

Simple line drawing of a folded paper or metal sheet with two downward arrows indicating orientation (no text or symbols)

1. Check whether the door gasket is deformed. If so, detach the fridge and the freezer door gaskets and then attach them after rotating.

Diagram of a document with arrows indicating rotational movement (no text or symbols)

1. Checking and cleaning door seals.

• To test them.
- Method 1: clamp a thin piece of paper in various places. The paper should be difficult to pull through at all points.
- Method 2: place a torch on shelf and point light towards gasket, close the door to see if there is any light leaking out.
• If the seal is not uniform everywhere:
Warm the seal in the appropriate places in front of you with a hair dryer and pull it out with your fingers.
• Take care to keep door seals clean.
Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.
Caution! Only after the door seals are completely dry should the appliance be powered on.

Space Requirement

- Keep enough space of door open.

A	500
B	560
C	1422
D	min=50
E	min=50
F	min=50
G	1000
H	1060
I	135"

Levelling the unit

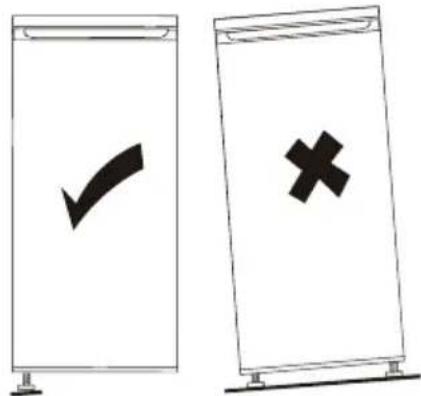

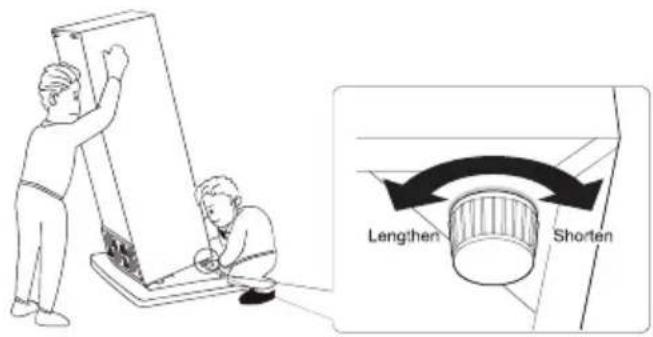

To do this adjust the two levelling feet at front of the unit.

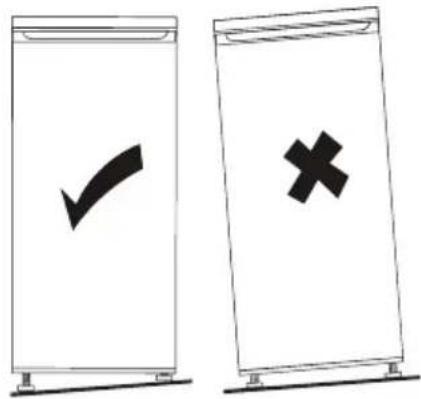

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance.

for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; (SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C; (N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C; (ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C; (T)

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi-net and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance,

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Temperature Setting

• Plug on your appliance. The internal temperature is controlled by a thermostat. There are 8 settings . 1 is warmest setting and 7 is coldest when set is 0, the appliance is switched off. When set is max, compressor will not stop
• The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

Food Storage Advice

Fridge Compartment

• Place spreadable butter and cheese on the upper door shelf in the fridge compartment. This is where the temperature is warmest.
• Store preserves, jars and eggs on the middle door shelf. Eggs are best stored on the supplie egg tray.
• Place drinks cartons and bottles in the large lower door shelves. Position full containers closer the hinge in order to reduce the strain on the door.
• Place cooked and baked foods on the glass shelves
• Place fresh meat, game, poultry, bacon, sausage and raw fish on the glass cover above the vegetable drawer. This is where the temperature is lowest.
• Place fresh fruit and vegetables in the vegetable drawers
• Only store strong alcohol standing upright and tightly closed
• Allow hot food to cool before placing it in the fridge.

Freezer Compartment

• Place ice cream, frozen fruit, frozen baked food, pizza in top tray.
• Place frozen vegetables, chips in middle drawer.
• Place raw meat, poultry, fish in bottom drawer

CAUTION

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. The temperature may increase in the fridge and freezer compartments which may cause the foods stored within to spoil more quickly.

Always ensure the prescribed ambient temperature is maintained. This refrigerator is designed for use at ambient temperatures of +16 °C to +38 °C.

Temperature setting recommendation

Temperature Setting Recommendation
Environment Temperature	Freezer compartment	Fridge compartment
Warm 29°C - 38°C	/
		Set on 2~4
Normal 21°C - 28°C	/
		Set on 3
Cold 16°C - 20°C	/
		Set on 4~6

• Information above give users recommendation of temperature setting.

Impact on Food Storage

• Under Recommended setting, the best storage time of fridge is no more than 3 days.
- Under Recommended setting, the best storage time of freezer is no more than 1-3 months.
- The best storage time may reduce under other settings.

Note: You can adjust the temperature controller refer to the following "OK" sticker.

THE COLDEST PART OF THE REFRIGERATOR

Warning symbol with exclamation mark and circular dot (no text)

The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable drawer at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf.

INSTALLING THE TEMPERATURE INDICATOR

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area.

TEMPERATURE INDICATOR: THE COLDEST PART OF YOUR REFRIGERATOR

CHECKING THE TEMPERATURE IN THE COLDEST AREA

• Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance.

Correct setting

Temperature too high - adjust the thermostat

When the indicator shows "OK", it means your thermostat is set properly and the temperature in coldest part is below +4°C.

If the indicator is white it means the temperature is high, so you should increase the thermostat and wait for 12 hours before checking the indicator again.

After loading the refrigerator or opening the door, the indicator may turn white for a few seconds.

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the freezer compartment.
  • The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
  • The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Error codes

If there is an error, the LED will flash a several times as indicated in the table below.

Cause	Interior lighting LED flashes
Failure of fridge temperature sensor	1x
Fridge door isn't closed for more than 60s	3x
Failure of temperature control knob	4x

Ice-cube

This appliance may be equipped with one or more ice-cube to produce ice.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Line drawing of a hand adjusting a shelf with a tool, no text or symbols present

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Simple illustration of a container with two upward arrows (no text or symbols)

Assembly and disassembly

Glass shelf

The glass shelf can be removed and inserted in different heights.

Remove

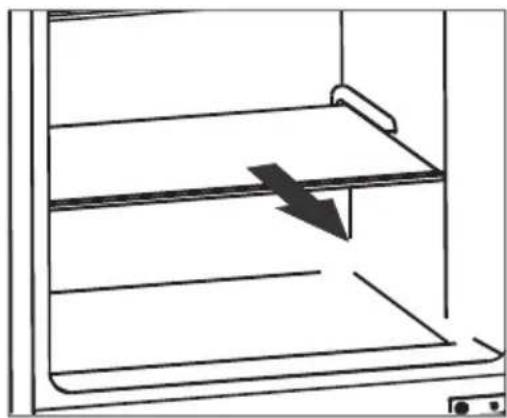

lift the glass shelf at the back and pull it out.

Insert

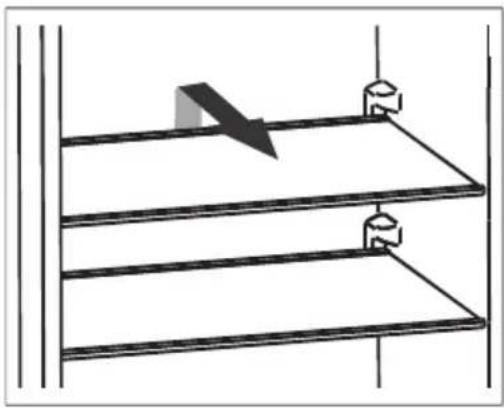

Push the glass shelf back on the guide rail until it clicks down.

Diagram of a mechanical setup with two parallel plates and a downward arrow indicating motion (no text or symbols)

Crisper drawer

The vegetable drawer is particularly suitable for storing fruit and vegetables.

The vegetable drawer can be loaded and unloaded and removed for cleaning.

Line drawing of a cabinet with an arrow indicating downward motion (no text or symbols)

The cover of the vegetable drawer can be removed for cleaning.

Door shelves

The door shelves can be removed.

Remove

Press the door racks inwards on one side until this side can be pulled out upwards.

Insert

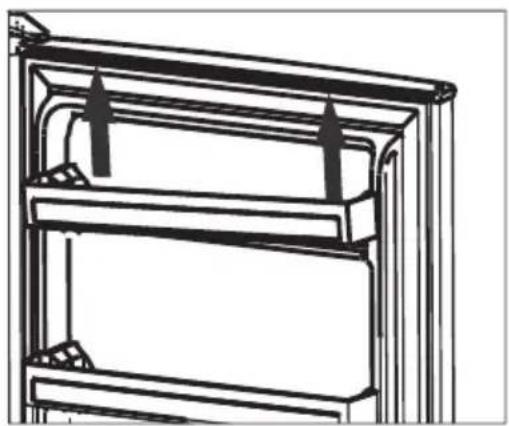

Insert the door shelves into the guide on one side. push the other side down until it clicks into place.

Technical line drawing of a multi-level mechanical or architectural structure with no visible text or symbols

Simple line drawing of a refrigerator with a downward arrow indicating a drop or motion (no text or symbols)

Egg tray

The eggshell is used to store eggs

Technical line drawing of a mechanical component with multiple circular cavities (no text or symbols)

Helpful hints and tips

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate,
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight,

- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

- lean foods store better and longer than fatty ones; salt reduces the storage life of food;

- water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- when you remove a package from the freezer compartment, you can possibly have the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time

Hints for storage of frozen food

To obtain the best performance from this appliance, you should

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer,
- be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary
- once defrosted, food deteriorates rapidly and cannot be re-frozen;
- do not exceed the storage period indicated by the food manufacture

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has a strong flavour
  • Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer
• For safety, store in this way only one or two days at the most.
  • Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid

Clean drain hole

To avoid defrost water overflowing into the fridge, periodically clean the drain hole at back of fridge compartment. Use a cleaner to clean the hole as shown in picture on the right.

Simple line drawing of a globe with an airplane and directional arrows, no text or symbols present.

Daily Use

• Do not allow such substances to come into contact the appliance parts
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dry place appliance back into service

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

• pull out the plug from the socket;
- remove all stored food, wrap it in several layers of newspaper and put it in a cool place;
- keep the door open, and placing a basin underneath of the appliance to collect the defrost water;
- when defrosting is completed, dry the interior thoroughly
- replace the plug in the power socket to run the appliance again

Replace the lamp

- The internal light is a LED type. To replace the lamp, please contact qualified technician

Simple line drawing of a rectangular object with a circular hole, no text or symbols present.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Temperature regulation knob is set at number "0".	Set the knob at other number to switch on the appliance.
	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	Temperature is set too cold.	Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning section.
Side panel is hot	Condenser is inside the panel.	It's normal.

If the malfunction shows again, contact the Service Center.

Warranty terms & Conditions

1. These warranty conditions apply exclusively to the original buyer and for domestic use of the appliance in the Benelux. If the appliance is resold from user to user, the warranty becomes null and void.
2. The warranty only applies if, in the event of a warranty claim, this warranty certificate with the original purchase invoice is shown by the original buyer.
3. No guarantee shall apply to defects caused by: damage, rough or injudicious handling, negligence on the part of the user, use of the appliance at an incorrect voltage or use for a purpose other than that for which it was supplied. Nor can the warranty be invoked when the rating plate with serial number has been changed or removed and/or when the device has been worked on by unqualified persons.
4. Not covered under the terms of this warranty: glass(ceramic), lighting, plastic/metal parts and/or accessories (i.e. filters, grills, pan supports), wire baskets and/or separation partitions, lacquer and/or enamel damage.
5. The warranty period commences on the day of purchase registered on the original invoice and covers: A two-year guarantee on the entire device and its electrical parts such as thermostat, thermal protection, relay, ventilation fan, transformer, switch, etc. with the exception of all parts mentioned under 4.
6. The warranty only covers the replacement of defective- or damaged parts and related labour costs in accordance with the stated responsibility in these warranty conditions.
7. Transport and/or packaging costs as well as the transportation risk (for equipment that can only be repaired in our service department) are not covered by the guarantee and will be charged to the user. More details, please see 'Service Terms Exquisit' below in which, among other things, calculation of call-out charges and labour costs, when applicable, are specified.
8. Note that repair- and material costs not covered by this warranty must be paid directly in cash. If invoicing of the mechanic's costs is required, please take into account that additional administration costs will be charged.
9. We are not responsible for any work- and/or repair costs carried out by third parties, not commissioned by by us. Nor are we, at any time, responsible for any (extra) costs and/or any consequences hereof, in any case, directly or indirectly resulting from a malfunction, defect or injudicious use of the device caused by a 3 ^rd party not deployed by Exquisit, its importer and/or suppliers.
10. Replacement of parts does not extend the original warranty period.

Service terms Exquisit

1. Do not use damaged appliances upon receipt, but report this immediately to your supplier. It is not possible to return damaged, used appliances!
2. During the first 24 months after the date of purchase on the original invoice of the 1st buyer no costs will be charged for services which are covered by these applicable warranty terms and conditions.
3. Only if 4 or more appliances intended for use in 1 and the same kitchen are listed on the original purchase invoice, then following costs will be charged in the 36 month period starting 2 years after the date of purchase on the original invoice:
   a. Call-out costs b. Labour costs
4. In case of a mechanic's visit all costs and materials used, which are not covered by this warrant, must be paid directly in cash in accordance with the stipulations stated in point 7-8 in the Warranty Terms & Conditions and in points 2-4 in the Service Terms Exquisit, regardless of the nature of the work.
5. Dispatch of any parts will always take place on payment in advance.
6. Note: If 4 or more appliances, intended for use in 1 and the same kitchen are listed on the original purchase invoice of the first buyer, the entire guarantee expires 5 years after the purchase date on this original purchase invoice and all costs will be charged in accordance with the specified regulations under point 8. If less than 4 appliances are listed on the original purchase invoice of the first buyer, the entire guarantee expires 2 years after the purchase date on this original purchase invoice and all costs will be charged in accordance with the specified regulations under point 8.

For service →

EXQUISIT www.domest.nl - see service

domestic and professional appliances

Buyer →

Name

Address

City

Purchase

Importer →

DOMEST MULTIBRAND SALES & SERVICES B.V.

J.F.Kennedylaan 101b 7001CZ Doetinchem NL

Phone [phone]

Fax [phone]

E-mail: [e-mail]

DOMEST

domestic and professional appliances

MULTIBRAND

SALES & SERVICES

Plain white refrigerator with two side panels, no visible text or symbols

Table des matières

Simple line drawing of a mechanical lever or fulcrum with a downward arrow indicating force or direction (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure geometric diagram showing a curved line intersecting two lines with marked points (no text or symbols)

Technical line drawing of a mechanical lever system with two inset views showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two circular insets showing close-up views (no text or symbols)

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-ups of components (no text or symbols)

Simple line drawing of a basketball court with an oval opening and two small figures inside (no text or symbols)

Simple line drawing of a rectangular container with a curved lid and two dots, no text or symbols present.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with a circular component and a base plate (no text or symbols)

Simple line drawing of a folded paper or panel with two arrows indicating direction (no text or symbols)

Simple diagram of a square frame with curved arrows indicating rotation or movement (no text or symbols)

A	500
B	560
C	1422
D	min=50
E	min=50
F	min=50
G	1000
H	1060
I	135*

Warning symbol with exclamation mark and circular dot (no text or numbers)

RÉGLAGE ET VÉRIFICATION DE LA TEMPÉRATURE DANS LA ZONE LA PLUS FROIDE

Simple line drawing of a hand holding a small object on a shelf (no text or symbols)

Simple diagram of a container with two upward arrows inside, no text or symbols present.

Diagram of a mechanical setup with two parallel plates and a downward arrow, no text or symbols present

Technical line drawing of a mechanical frame or enclosure with no visible text or symbols

Simple line drawing of a refrigerator drawer with an arrow indicating direction (no text or symbols)

Simple line drawing of a door with a horizontal panel and a black arrow indicating direction (no text or symbols)

Bac à œufs

Technical line drawing of a mechanical component with multiple circular cavities (no text or symbols)

Simple line drawing of a boat hull with a curved arrow indicating speed (no text or symbols)

Simple diagram of a rectangular shape with a circular element inside, no text or symbols present.

domestic and professional appliances

Vendeur →

Nom :

Adresse :

Ville :

Appareil :

Fournisseur →

DOMEST MULTIBRAND SALES & SERVICES B.V.

domestic and professional appliances

MULTIBRAND SALES & SERVICES
