Product Type	PTZ Camera
Model	VS-PTC-200
Dimensions (L x W x H)	186 x 232.6 x 187.7 mm
Weight	3.0 kg
Power Supply	DC 12V or PoE++ (IEEE 802.3bt)
Lens	30x HD zoom lens
Video Outputs	HDMI 2.0, 12G-SDI, USB 3.0, RJ45 (network)
Max Resolution	3840 x 2160 at 59.94 fps
Control Interfaces	RS-232, RS-422, infrared remote, network (web interface)
PTZ Range	Pan: ±170°, Tilt: -30° to +90°
Preset Positions	Up to 10 (0-9) via remote
Audio Input	Line In / Mic In (selectable)
Network Protocols	RTSP, RTMP, MPEG-TS, SRT, DHCP, HTTP
Streaming	Triple stream (H.265/H.264) up to 4K
White Balance Modes	Auto, Indoor, Outdoor, One Push, Manual, Sodium Lamp
Exposure Modes	Full Auto, Shutter Priority, Iris Priority, Manual
Cleaning Instructions	Unplug all cables, use damp cloth; do not use liquid cleaners
Safety Certifications	UL/CE for mounting, FCC Class A, ICES-003
Mounting Options	Desktop or ceiling mount (optional tripod mount with 1/4"-20 UNC)
Included Accessories	Power adapter, power cord, remote control, RS-422 connector, metal plates, screws

Frequently Asked Questions - VS-PTC-200 Marshall Electronics

How do I connect the camera to the network?

Connect an Ethernet cable to the camera's network port. Either use a switch/router (DHCP or static IP) or connect directly to a computer after setting a static IP on the same subnet as the camera's default IP 192.168.100.100.

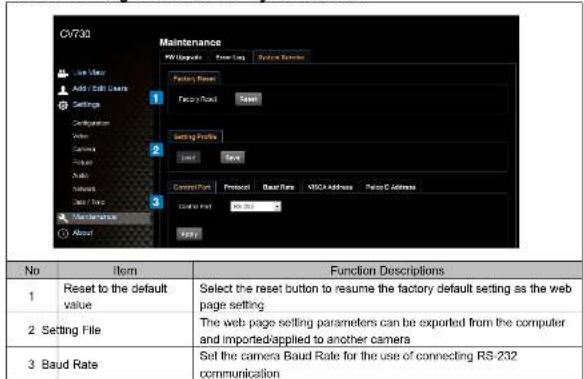

How can I reset the camera to factory defaults?

You can reset via the OSD menu under System > Factory Reset, or through the web interface under Maintenance > System Service > Factory Reset. Confirm to reset.

What is the maximum number of cameras I can daisy-chain via RS-422?

Up to 7 Marshall PTZ cameras can be connected in a daisy-chain using RS-422. Do not use RS-232 simultaneously.

How do I set a preset position?

Using the remote control, move the camera to the desired position, press a preset number (0-9), then press Preset to save. To recall, press the preset number and then Home-Enter.

Can I access the camera remotely over the internet?

Yes, via the web interface. Ensure the camera has a valid IP address and port forwarding is configured on your router. RTMP streaming to platforms like YouTube is also supported.

What should I do if the camera does not power on?

Check the power cord connection. If using PoE, ensure the switch provides PoE++ (IEEE 802.3bt). Verify the power LED indicator on the front.

How do I clean the camera lens?

First unplug all cables. Use a soft, damp cloth to gently wipe the lens. Do not use liquid or aerosol cleaners.

What video resolutions are supported?

Supported resolutions include 3840x2160 at 59.94/50/29.97/25 fps, 1920x1080 at 59.94/50/29.97/25 fps, and 1280x720 at 59.94/50/29.97/25 fps. Select via DIP switch or OSD.

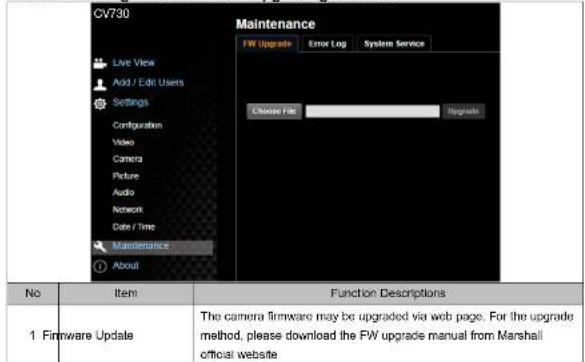

How do I update the camera firmware?

Download the latest firmware from the Marshall support website. Access the web interface, go to Maintenance > FW Upgrade, choose the file and click Upgrade. Do not power off during the update.

The remote control does not work. What can I do?

Ensure the camera's IR Receive is set to On in the system menu (System > IR Receive). Also check that the remote has fresh batteries and the camera select switch matches the camera ID.

USER MANUAL VS-PTC-200 Marshall Electronics

White Marshall radar or camera device with a lens and control buttons (no visible text or symbols on the device body)

Black industrial radar or camera module with visible lens and control buttons (no text or symbols on main body)

User Manual

Table of Contents

Copyright Information 2

Chapter 1 Safety Instructions....4

Chapter 2 Package Contents....6

Chapter 3 Function Introduction....7

3.1 I/O functions Introduction....7

3.2 Description of LED Indicator....9

3.3 Tally Lamp Function Description....9

Chapter 4 Instruction for installation.... 10

4.1 Preparation before installation 10

4.2 Instruction for installation.... 10

4.3 Connecting devices 18

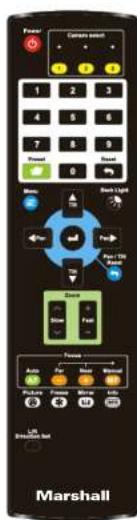

Chapter 5 Remote Control and Setting Menu.... 21

5.1 Functions of remote control 21

5.2 Setting Menu 21

Chapter 6 Network Function Settings Description .... 31

6.1 Connecting Camera to Network.... 31

6.2 Web Page Function Description 35

Chapter 7 DIP Switch Setting 48

Chapter 8 Troubleshooting.... 49

Marshall

1

Copyright Information

Copyrights © Marshall Electronics Incorporated. All rights reserved.

Marshall Electronics is a trademark of Marshall Electronics Incorporated

Copying, reproducing or transmitting this file is not allowed if a license is not provided by Marshall Electronics Inc. unless copying this file is for the purpose of backup after purchasing this product.

In order to keep improving the product, Marshall Electronics Inc. hereby reserves the right to make changes to product specifications without prior notice. The information in this file is subject to change without prior notice.

To fully explain or describe how this product should be used, this manual may refer to names of other products or companies without any intention of infringement.

Disclaimer of warranties: Marshall Electronics Inc. is neither responsible for any possible technological, editorial errors or omissions, nor responsible for any incidental or related damages arising from providing this file, using, or operating this product.

www.marshall-usa.com12

2

Chapter 1 Safety Instructions

Always follow these safety instructions when setting up and using this product:

1 Operation

1.1 Please use the product in the recommended operating environment.

1.2 Do not place this product in tilted position.

1.3 Do not place the product on an unstable trolley, stand or table.

1.4 Do not use this product near water or source of heat.

1.5 Use attachments only as recommended.

1.6 Use the type of power source indicated on this product. If you are not sure of the type of power available, consult your distributor or local electricity company for advice.

1.7 Always take the following precautions when handling the plug. Failure to do so may result in sparks or fire:

■ Ensure the plug is free of dust before inserting it into a socket.

■ Ensure that the plug is inserted into the socket securely.

1.8 Do not overload wall sockets, extension cords or multi-way plug boards as this may cause fire or electric shock.

1.9 Do not block the slots and openings in the case of this product. They provide ventilation and prevent this product from overheating.

1.10 Except as specifically instructed in this User Manual, do not open or remove covers, otherwise it may expose you to dangerous voltages and other hazards. Refer all servicing to licensed service personnel.

1.11 Unplug this product from the wall outlet and refer servicing to licensed service personnel when the following situations happen:

■ If the power cords are damaged or frayed.

■ If liquid is spilled into the product or the product has been exposed to rain or water.

2 Installation

2.1 For security considerations, please make sure the standard hanging rack you bought is in line with UL or CE safety approbations and installed by technician personnel approved by agents.

3 Storage

3.1 Do not place the product where the cord can be stepped on as this may result in fraying or damage to the lead or the plug.

3.2 Never push objects of any kind through cabinet slots. Never allow liquid of any kind to spill into the product.

3.3 Unplug this product during thunderstorms or if it is not going to be used for an extended period.

3.4 Do not place this product or accessories on top of vibrating equipment or heated objects.

4 Cleaning

4.1 Unplug all the cables before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners.

5 Remote control (if the accessories are equipped with remote control)

5.1 Using an incorrect battery type in the remote control may result in breakdown. Follow local instructions on how to dispose of used batteries.

Marshall

■ Precautions

Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

If the HD camera will not be used for an extended time, unplug it from the power socket.

■ FCC Warning

This HD Camera has been tested and found to comply with the limits for a Class A computer device, pursuant to Article 15-J of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of Industry Canada.

Operation of this equipment in a residential environment could cause radio interference.

www.marshall-usa.com3 4

Chapter 2 Package Contents

CV730
M3 Screws
Remote Control

Silver x8 / Black x2

RS-422 Connector

Power Cord
Power Adapter

Appearance may vary depending on country/region

Metal Plate A
Metal Plate B

Marshall

Chapter 3 Function Introduction

3.1 I/O functions Introduction

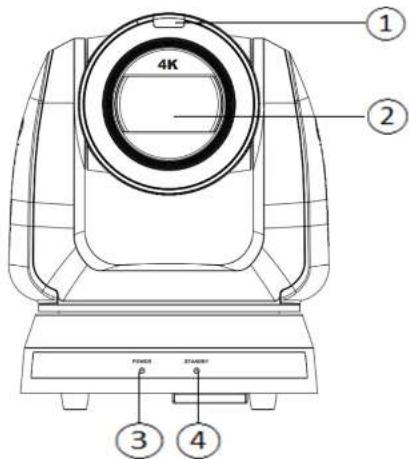

3.1.1 Front View

NO.	Item	Function Descriptions
1.	Tally Lamp	Display the Tally Lamp status of the camera
2.	Camera lens	30x HD camera lens
3.	Power LED indicator	Display the status of the camera, please refer to 3.2 Description of LED indicator
4.	Standby LED indicator	Display the status of the camera, please refer to 3.2 Description of LED indicator

www.marshall-usa.com5 6

Marshall

CV730 Manual

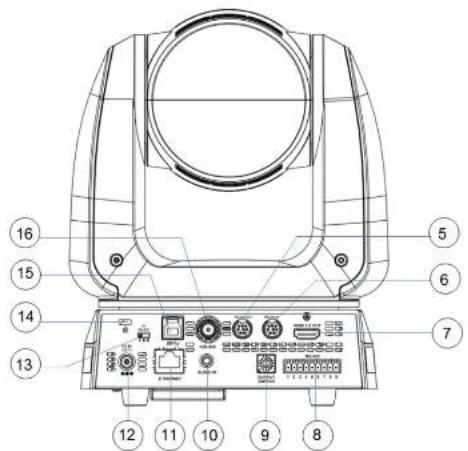

3.1.2 Back View

NO.	Item	Function Descriptions

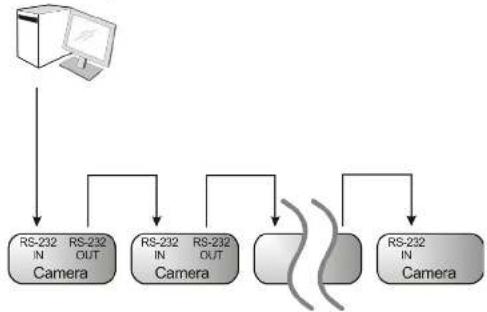

5.	RS-232 output	RS-232 output port, at most 7 cameras can be connected in a serial connection
6.	RS-232 input	RS-232 input port, at most 7 cameras can be connected in a serial connection
7.	HDMI 2.0 output	HDMI 2.0 output (Audio output supported)

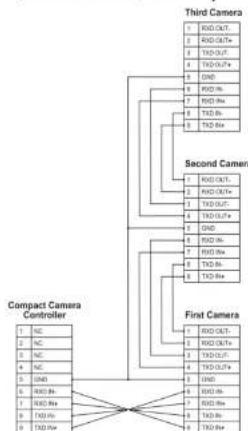

8.	RS-422 port	RS-422 connecting port, at most 7 cameras can be connected in a serial connection
9.	OUTPUT SWITCH	Adjust the resolution setting. The default is 3840 × 2160/59.94p
10.	Audio input	Support Line In/Mic In
11.	Network port	Network port supports routers or hubs of PoE++ (IEEE802.3BT) with power supply
12.	DC 12 V power connector	AC power supply connecting port
13.	IR SELECT	The remote control ID setting is only controlled after corresponding to the Camera Select on the remote control
14.	Kensington lock hole	Safety lock slot
15.	USB 3.0 port	The USB port is for connecting to the USB port of the computer and providing USB signal images
16.	12G-SDI output	12G-SDI output (Audio output supported)

Marshall

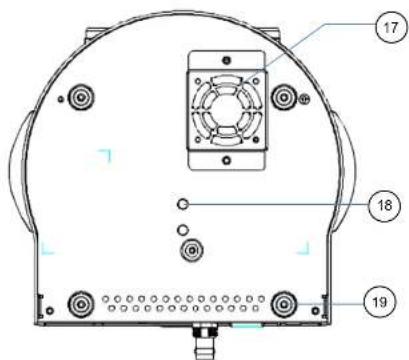

3.1.3 Bottom

NO.	Item	Function Descriptions
17.	Mute cooling fan	The cooling fan automatically controls its rotation speed and performs cooling in cope with the operation temperature of the machine
18.	Tripod deck lock hole	The camera is mounted on a (specification) 1/4" - 20 UNC tripod deck
19.	Rotatable foot pad	When using the metal plates of accessories, remove 4 pieces of rotatable food pads on the bottom by rotating counterclockwise, and then install the mental plates

3.2 Description of LED indicator

Status	Power	Standby
Startup in progress(initialization)	Green light Orange light
In use	Green light	No indicator
In standby mode	No indicator	Orange light

3.3 Tally Lamp Function Description

3.3.1 Tally Lamp function may be enabled through the control of RS-232 command. The setting method is as follows:

Tally Mode: 8x 01 7E 01 0A 01 0p FF
p = 0; OFF
p = 4; Red light (half-brightness)
p = 5: Red light (full-brightness)
p = 6: Green light (full-brightness)
p = 7: Orange light (full-brightness)

www.marshall-usa.com7 8

Chapter 4 Instruction for installation

4.1 Preparation before installation

Installation and connection of CV730 camera requires special skills. To install by yourself, please follow necessary steps, ensure steady and tight installation of the device, and pay attention to your safety to avoid any accident.

4.1.1 Ensure the safety of the installation environment. Please do not install the device on unstable ceiling or in a place where the device is in danger of falling to avoid any accident.

4.1.2 Please check whether accessories in the box are complete or not. Please contact the supplier for any shortage, and make sure to keep the accessories in the box intact.

4.1.3 Please choose a proper place for installation of camera in advance. Please determine an installation place according to the following requirements

4.1.1.1 Confirm the position for the object to be captured.

4.1.1.2 Confirm whether the camera is set at a proper distance from other light sources.

4.2 Instruction for installation

4.2.1 I would like to install camera on the desk

4.2.1.1 Precautions for installation

◆ Please install the machine on a flat desk
◆ Do not grab the camera head by hand when handling the device
◆ Do not rotate the camera head by hand. Improper rotation may result in breakdown of the camera

Four line drawings of a vintage camera with no visible text, numbers, or symbols

4.2.1.2 Installation steps

1. Please adjust DIP switch at first prior to installation
   Please refer to Chapter 7 DIP Switch Setting for the relevant descriptions on DIP switch.
2. Place the camera on a flat desk directly to ensure the normal vertical and horizontal operation of the machine

Illustration of a laptop and a mechanical device on a desk (no text or symbols)

Marshall

4.2.2 I would like to install the camera on the ceiling

4.2.2.1 Prepare for the parts and equipment required during the installation

1. Accessories in the box (metal plates A, B, M3 screw silver x 8, black x 2)
2. Screw for locking on ceiling mounted hanger x 4
3. Drilling machine, screw driver, ladder

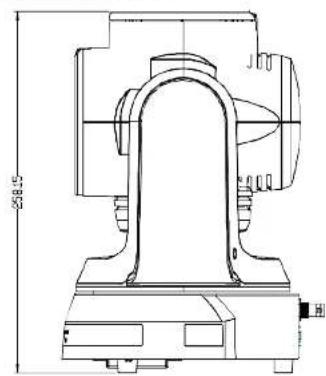

4.2.2.2 Camera Size

Length x Width x Height : 186 x 232.6 x 187.7 mm

Weight : 3.0 Kg

Technical line drawing of a mechanical component with dimension标注 (no text or symbols)

www.marshall-usa.com9 10

4.2.2.3 Max. rotation dimension of camera

Technical line drawing of a mechanical component with dimension annotations (no readable text or symbols)

4.2.2.4 Size Diagram

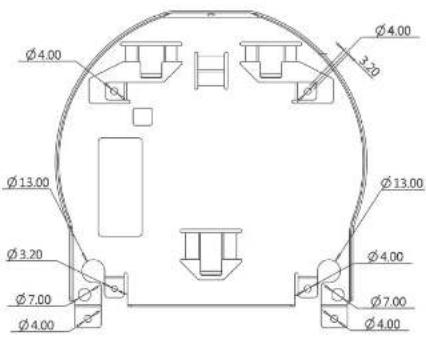

1. Bottom of machine
The camera can be mounted on a 1/4", -20 UNC PTZ tripod deck by using the holes on the bottom for the tripod

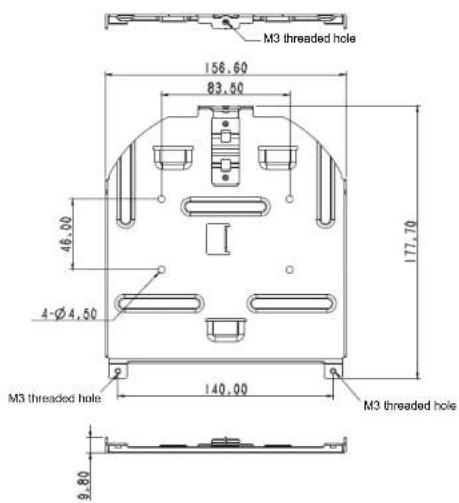

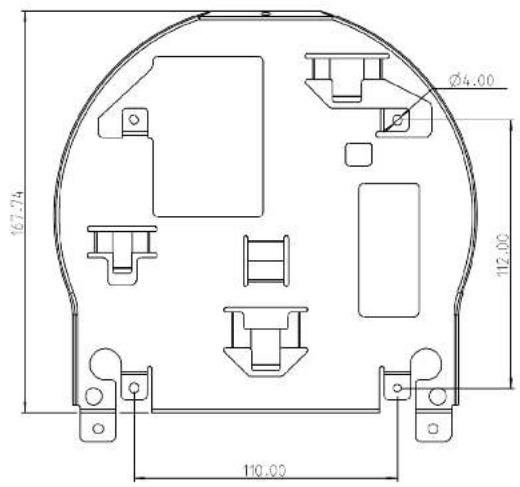

1. Metal Plate size diagram

■ Metal plate B - ceiling side

Metal plate B locking screw

Metal plate B locking bolt

Marshall

14

■ Metal plate A - machine side

Metal plate A locking screw

www.marshall-usa.com13 14

15

Marshall

CV730 Manual

4.2.2.5 Precautions for installation

1. Before installation, please confirm the orientation of the machine relative to the object to be captured
2. It is recommended that the machine should be set at a distance of more than 2 meter away from the object to be captured. Please adjust for a best distance according to the magnification of the lens

1. The machine (including metal plates) is weighed at about 3 kg. If it is to be installed on the ceiling, please use the hanger that has obtained UL security approval to prevent the machine from falling down.
2. Please check whether the camera is installed securely on a regular basis.
3. Please clean the cooling fan located at the bottom to ensure the good heat dissipation effect of the machine on a regular basis.

4.2.2.6 Installation steps

1. Please adjust resolution on DIP switch at first
   Please refer to Chapter 7 DIP Switch Setting for the relevant
   descriptions on DIP switch
2. Fix the metal plate A on the machine base with 4 M3 silver screws

Technical line drawing of a mechanical device with no visible text or symbols

16
Marshall

1. Lock the metal plate B on ceiling mounted hanger

※ Caution:
(1) Please use the hanger that has obtained UL security approval
(2) Please reserve the hole for the connecting wires of the camera

1. Combine the metal plate A and the metal plate B

(1) Push the metal plate A up to the ceiling and then to the right to latch the metal plate B
(2) And then secure with 2 M3 silver screws and 1 M3 black screw

4.2.2.7 How to remove

1. Remove the connecting wires from the camera
2. Uninstall the camera together with the ceiling, loosen the three screws that fix the metal plates A and B and push to the left to remove the machine

Simple line drawing of a vehicle or vehicle with wheels and a roof, no text or symbols present.

1. Then remove the screws on the hanger and the machine

www.marshall-usa.com15 16

17

4.3 Connecting devices

4.3.1 Connecting RS-232

With RS-232 in/out, at most 7 Marshall PTZ cameras can be connected.

■ RS-232 pis definition instructions

▼ RS-232 IN Pins Instructions

▼ RS-232 Connection Instructions

▼ RS-232 OUT Pins Instructions

▼ RS-232 Connection Instructions

Marshall

4.3.2 Connecting RS-422

With RS-422, at most 7 Marshall PTZ cameras can be connected.

When RS-422 connection is being used, do not use RS-232 connection.

▼ RS-422 Pins Instructions

▼ RS-422 Connection Instructions

Applicable to

Marshall VS-PTC-200 Camera Cor

▼ RS-422 Connection Instructions

▼ RS-422 Serial Connection

Up to seven cameras can be daisy-chained

www.marshall-usa.com17 18

Marshall

CV730 Manual

■ RS-422 connection instructions

1. Hold the two sides of RS-422 connector and pull it out in the direction shown by the arrow in the figure below

1. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into the connector hole; then use flat screwdriver to fix it

1. Insert the wired RS-422 connector back to the Camera. Now the connection is completed

Marshall

Chapter 5 Remote Control and Setting Menu

5.1 Functions of remote control

The below functions are listed alphabetically.

Item	Description
<,>1,▼	Move the lens
Back Light	Turn on/off back light compensation
Camera select	Choose Camera ID 1 - 3
Focus-Manual / Far/Near	Turn on manual focus to adjust the focal length
Focus-Auto	Auto Focus
Freeze	Freeze the screen
Home-Enter	Go back to the main page / Execute
Info	Status information
L/R Direction Set	L/R Direction / Normal
Menu	Display OSD menu
Mirror	Rotate the image (OFF / Mirror / Flip / Rotate)
Pan/Tilt Reset	Clear the Pan / Tilt setting
Picture	Switch image effect (OFF / Neg / B&W)
Power	Power Switch
Preset	Appoint an ID (0 ~ 9) to save the current position data
Reset	Appoint an ID (0 ~ 9) to delete the current position data
Zoom-Fast	Adjust image size
Zoom-Slow	Fine-tune image size

www.marshall-usa.com19 20

Marshall

CV730 Manual

5.2 Setting Menu
Press [Menu] on the remote control to enter the setting menu; the bold underlined values in the following table are defaults.

1st LevelMajor Items	2nd LevelMinor Items	3rd LevelAdjustment Values		Function Descriptions
Exposure	Mode	1.Full Auto2.Shutter Pri3.Iris Pri4.Manual		Exposure mode setting
	Exposure Comp.	On /Off		AE Level
	Exposure Comp.Level	-5 ~ C ~ 5		The value can be adjusted after Exposure Comp.is activated
	Spot Light	On /Off
	Spot Light Position	X (0 ~ 6) Y (0 ~ 4)		The value can be adjusted after Spot Light is activated
	Shutter Pri	60/30 mode	50/25 mode	Adjustable when the Exposure mode is set to Shutter Pri
		1/10000	1/10000
		1/5000	1/5000
		1/3000	1/3000
		1/2500	1/2500
		1/2000	1/1750
		1/1500	1/1250
		1/1000	1/1000
		1/725	1/600
		1/500	1/425
		1/350	1/300
		1/250	1/215
		1/180	1/150
		1/120	1/120
		1/100	1/100
		1/90	1/75
		1/60	1/50
		1/30	1/25
		1/15	1/12

Marshall

		1/8	1/6
		1/4	1/3
		1/2	1/2
		1/1	1/1
	Iris Pri	1. F1.62. F23. F2.24. F2.75. F3.26. F3.87. F4.58. F5.49. F6.310. F7.811. F912. F1113. F1314. F1615. F1816. Off		Adjustable when the Exposure mode is set to Iris Pri
	Manual Gain	1. 0 dB2. 3 dB3. 6 dB4. 9 dB5. 12 dB6. 15 dB7. 18 dB8. 21 dB9. 24 dB10. 27 dB11. 30 dB12. 33 dB13. 36 dB14. 39 dB15. 42 dB16. 45 dB		Adjustable when the Exposure mode is set to Manual
	Manual Speed	60/30 mode	50/25 mode	Manually set the shutter
		1/10000	1/10000
		1/5000	1/5000

www.marshall-usa.com21 22

Marshall

CV730 Manual

		1/3000	1/3000
		1/2500	1/2500
		1/2000	1/1750
		1/1500	1/1250
		1/1000	1/1000
		1/725	1/600
		1/500	1/425
		1/350	1/300
		1/250	1/215
		1/180	1/150
		1/120	1/120
		1/100	1/100
		1/90	1/75
		1/60	1/50
		1/30	1/25
		1/15	1/12
		1/8	1/6
		1/4	1/3
		1/2	1/2
		1/1	1/1
	Manual Iris	1. F1.62. F23. F2.24. F2.75. F3.26. F3.87. F4.58. F5.49. F6.310. F7.811. F912. F1113. F1314. F1615. F1816. Off		Manually set the iris

Marshall

	Gain Limit	1. 9 dB2. 12 dB3. 15 dB4. 18 dB5. 21 dB6. 24 dB7. 27 dB8. 30 dB9. 33 dB10. 36 dB11. 39 dB12. 42 dB13. 45 dB	Max. limit value of electron gain
	Iris Limit	1. F3.22. F3.83. F4.54. F5.45. F6.36. F7.87. F98. F11	Max. limit value of iris
	WDR	1. Off2. 13. 24. 3
White Balance	Mode	1. Auto2. Indoor3. Outdoor4. One Push WB5. ATW6. Manual7. Sodium Lamp	Select the color temperature mode1. 4000k ~ 7000k2. 3200k3. 5800k4. 1700k ~ 10000k5. 1700k ~ 10000k6. Custom7. 2800k
	One Push Trigger	ENTER One push trigger
	Manual Red	0 ~ C ~ 128	Adjustable when the white balance mode is set to Manual

www.marshall-usa.com23 24

Marshall
CV730 Manual

	Manual Blue	0 ~ C ~ 128	Adjustable when the white balance mode is set to Manual
Picture	Picture effect	1. Off2. Neg3. B & W
	Sharpness	0 ~ A ~ 14
	2D NR	1. Off2. 13. 24. 3
	3D NR	1. Off2. LOW3. Typ4. Max
	Image Mode	1. Default2. Custom	The user may customize his/her desired image mode.
	Image Mode Load	ENTER	Adjustable when the Image mode is set to Custom. After selected, the corresponding Image mode parameters will be read and applied to Custom
	Brightness	0 ~ A ~ 15	Adjustable when the Image mode is set to Custom
	Hue	0 ~ A ~ 15	Adjustable when the Image mode is set to Custom
	Saturation	0 ~ A ~ 15	Adjustable when the Image mode is set to Custom
	Gamma	0 ~ A ~ 3	Adjustable when the Image mode is set to Custom
Pan Tilt Zoom	Pan/Tilt Limit	On / Off	Turn on/off the angle limit setting

	Pan Right Limit	0 ~ 170	Limit the right angle
	Pan Left Limit	-170 ~ 0	Limit the left angle
	Tilt UP Limit	0 ~ 90	Limit the upward angle
	Tilt Down Limit	-30 ~ 0	Limit the downward angle
	Pan Flip	On / Off	Activate the reverse Pan direction
	Tilt Flip	On / Off	Activate the reverse Tilt direction
	Preset Speed	1. 5 deg/sec2. 25 deg/sec3. 50 deg/sec4. 80 deg/sec5. 120 deg/sec6. 160 deg/sec7. 200 deg/sec8. 300 deg/sec	Set the rotation speed of the cradle head when Preset is executed
	PTZ Speed Comp	On / Off	Set the Pan/Tilt moving speed to vary from the zoom position
D-Effect	Mirror	1. Off2. MIRROR3. Flip4. Mirror + Flip	Set the mode at which the image is mirror or flipped
Auto Focus	AF Sensitivity	1. LOW2. Middle3. High	For AF triggering speed, the higher the speed is, the faster AF is triggered
	AF Frame	1. Center Area2. Full Area3. Auto	AF frame setting, when central area was set as AF frame, focusing will be on the center of the screen. When Full Frame was set as AF frame, focusing will be calculated based on the full screen

Marshall

CV730 Manual

	PTZ Assist	On / Off	This function can only be enabled in the Manual Focus (MF) mode When PTZ Assist is enabled and PTZ control is in operation, the focus performs only once upon immediate execution. The focus will not be triggered afterward when the scene changes
Ethernet	DHCP	On / Off	Enable/Disable DHCP setting using left and right arrow keys and press [ENTER] to apply setting.
	IP Address 192.168.100.100		Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys, and modify the value using the left and right keys or the numeric keys.
	Subnet Mask 25.255.255.0		Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys, and modify the value using the left and right keys or the numeric keys.
	Gateway 192.168.100.254		Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys, and modify the value using the left and right keys or the numeric keys.

Marshall

Audio	Audio In	Line In/Mic In	Set Audio In
	Audio Enable	On / Off	Turn on/off audio output
	Audio Volume	0 ~ A ~ 10	Volume Setting
	EncodeSample Rate	1.48 KHz (AAC)2.44.1 KHz (AAC)3.16 KHz (G.711)4.8 KHz (G.711)	Set the encode type and sample rateSDI supports the audio output of 48 KHz only
System	Prompt	On / Off	Turn on/off the prompt information on the display
	IR Receive	On / Off	When it is Off, the remote control will not be able to control the camera. At this moment, turn off and then turn on the power to restore control of the remote control.
	Tally Lamp	On / Off	Select to enable or disable Tally Lamp function.
	Language	English / Chinese
	Initial Position	Last operation/First default position	Select the camera lens to return to the last operated position or the first preset position after POWER ON.
	Control Device	Encoder / Controller	Control Device setting, Controller: for joystick Encoder: for tracking system
	Motionless Preset	On / Off	When the function is enabled, the screen will Freeze when Preset is executed. Freeze will be released after Preset is completed.

www.marshall-usa.com

Marshall

CV730 Manual

	Control Port	RS-232/RS-422	Choose whether the control interface used is RS-232 or RS-422
	Protocol	VISCA / Pelco D
	Baud Rate	9600/38400	Choose the transmission speed of the control signal
	VISCA Address	0~7	The Protocol set to VISCA allows the camera ID address to be assigned. Select 0 for automation.
	PELCO D Address	1~255	The Protocol set to Pelco D allows the camera ID address to be assigned.
	Output Mode	1. 3840 x 2160/59.94p2. 3840 x 2160/50p3. 3840 x 2160/29.97p4. 3840 x 2160/25p5. 1080p/59.946. 1080p/507. 1080p/29.978. 1080p/259. 720p/59.9410. 720p/5011. 720p/29.9712. 720p/25	Choose the output resolution
	Factory Reset	On / Off	Resume the factory default setting
Status			Display the current setting status

Marshall

Chapter 6 Network Function Settings Description

6.1 Connecting Camera to Network

6.1.1 Connecting to Internet

Two common connection methods are shown below

1. Connecting via switch or router

1. To connect directly through network cable, the IP address of the computer should be changed so that it is on the same network segment as the camera e.g.: The factory-preset default IP address of CV730 is 192.168.100.100. The computer IP address must be set with the same network segment, such as 192.168.100.101, so that the computer can be connected correctly with the camera

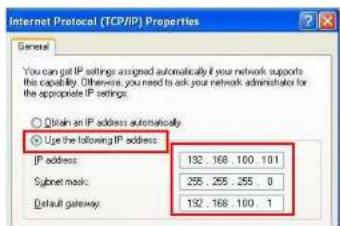

- Change network settings

www.marshall-usa.com

6.1.2 Using the Browser to View the Images

■ Open the browser, and enter the URL of the CV730 in the IP address bar e.g.: http://192.168.100.100 (default IP address)
■ Enter administrator's account and password

Marshall Network Camera

• Account admin
• Password: 9999

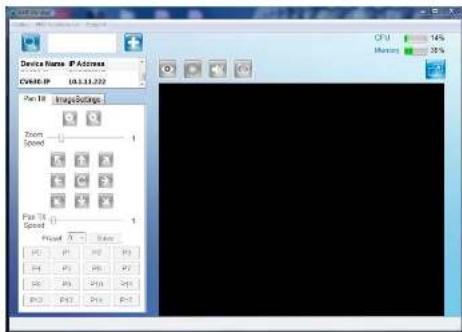

6.1.3 Using Marshall VMS Software to View the Images

■ Open Marshall VMS software (Please download from the Marshall official website)
■ Search for the camera: Press [automatically search for the device] button to locate the CV730 camera
■ Click CV730 in the list and start operation after connecting to network
When using automatic search, the camera and computer must be in the same network segment, e.g.: 192.168.4.X

6.1.4 Using RTSP Player to View the Images

In addition to the browser and VMS, other soft codecs can be used for RTSP connection, such as VLC,

Quick Time and PotPlayer

RTSP connection address formats are as follows:

• RTSP Main Streaming (1080P@H.265) => rtsp://camera IP 6554/hevc
• RTSP Sub1 Streaming (1080P@H.264) => rtsp://camera IP:8557/h26
• RTSP Sub2 Streaming (720P@H.264) => rtsp://camera IP:8556/h264

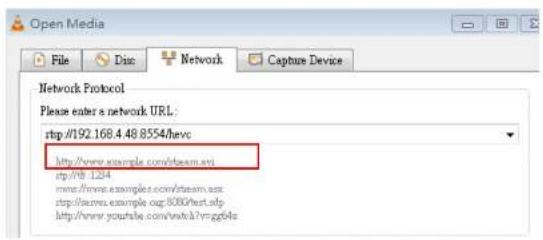

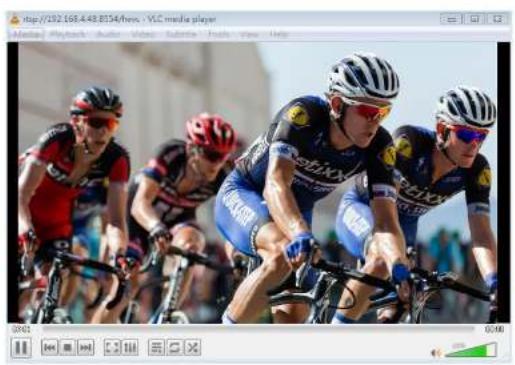

Example: Open VLC software and enter URL: rtsp://192.168.4.48:8554/hevc

Marshall

CV730 Manual

Group of cyclists racing outdoors, wearing helmets and uniforms (no visible text or symbols)

Marshall

6.2 Web Page Function Description

6.2.1 Login Screen

No	Item	Function Descriptions
1	Username	Enter user account (default: admin)
2	Password Enter user password (default: 9999)
3	Language selection	Currently, the system supports English, Traditional Chinese and Simplified Chinese
4	Remember password	Save user account name and password to the browser. When you log in next time, there is no need to re-enter them
5	Login	Log into the administrator screen on the website

www.marshall-usa.com33 34

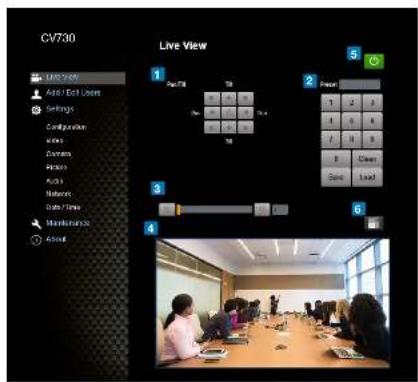

6.2.2 Viewing In Real Time

No	Item	Function Descriptions
1	Pan / Tilt setting	Adjust the Pan/Tilt position of the camera screen
2	Preset setting	Select the number first and then select SAVE or LOAD
3	Zoom ratio	Adjust the zoom-in or zoom-out ratio via scroll bar
4	Preview window	Display the screen currently captured by the camera
5	Power button	Turn on or turn off the camera power
6	Switch to Full Screen	Switch the preview window to full screen

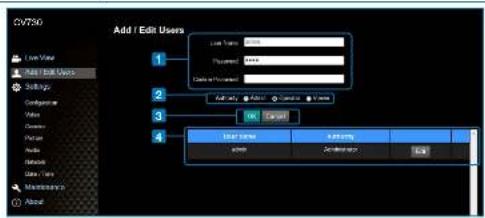

6.2.3 Account Management

No	Item	Function Descriptions
1	Add user account	Enter a user name and password to add a new user
2	Permission setting	Set the new account management permissions
		User Type	Admin	Operator	Viewer
		View images	V	V	V
		Settings	V	V	X
		Account management	V X X
3	Applying setting	Add the newly created user to the list of account
4	List of accounts	Edit: Modify the user password and permissionsDelete: Delete the user account

Marshall

CV730 Manual

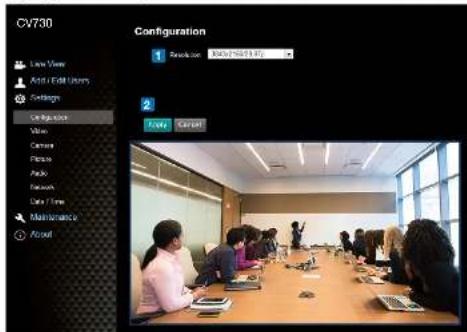

6.2.4 Setting - System Setting

No	Item	Function Descriptions
1 Resolution		Set the resolution of the camera, resolutions supported by the camera are as follows:3840 x 2160 59.94 / 50 / 29.97 / 25 fps1080P 59.94 / 50 / 29.97 / 25 fps720P 59.94 / 50 / 29.97 / 25 fpsAfter switching to the resolution, the camera will restart. Please refresh the browser
2	Apply	After the setting has been modified, select this button to apply the setting

Marshall

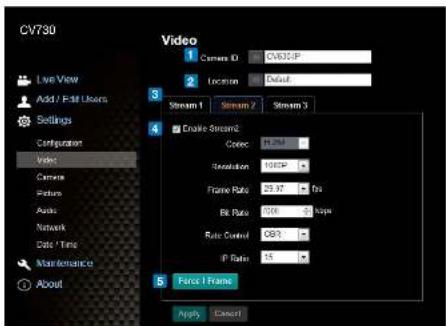

6.2.5 Setting - Video

No	Item	Function Descriptions
1	Camera name	Modify the camera name■ Camera names are limited to 1 - 12 characters■ Please use a camera name by mixing uppercase and lowercase letters or numbers. Do not use "i" and "space" or special symbols
2	Camera Location	Modify the location of the camera, such as Meeting Room 1■ Camera location is limited to 1 - 12 characters■ Please use a camera name by mixing uppercase and lowercase letters or numbers. Do not use "i" and "space" or special symbols
3	Streaming 1/Streaming 2/Streaming 3	CV730 supports 3 streaming outputs. Please refer to6.2.5.1Streaming Parameter Settingfor relevant settings
4	Open Streaming	Confirm whether or not the streaming function is opened
5	Force I Frame	Check this item to insert IDR frame into specified series flow and apply its setting. User's setting will be reserved and displayed in GUI interface

6.2.5.1 Streaming parameter setting

Function		Streaming 1	Streaming 2	Streaming 3
Encode Format		H.265	H.264
Resolution		4K/1080P/720P	1080P/720P	640 x 360
Frame Rate		Setting according to the supported resolution
Bit Rate (kops)	Range	2,000 - 20,000	2,000 - 20,000	512 - 5,000
	Factory Default	7,000	7,000	1,000
Rate Control		CBR / VBR
IP Ratio		Setting according to the supported resolution

www.marshall-usa.com

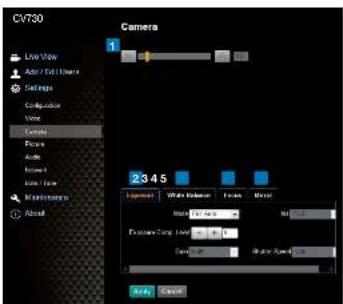

6.2.6 Setting - Camera

No	Item	Function Descriptions
1	Zoom ratio	Adjust the zoom-in or zoom-out ratio via scroll bar
2 Exposure	Mode: Select exposure mode (Automatic/Shutter Priority/Aperture Priority/Manual)Exposure Comp. Level: Select exposure compensation levelGain: The gain limit is adjustable when the exposure mode is set to "Manual"Iris: The size of aperture is adjustable when the exposure mode is set to "Manual" or "Aperture Priority"WDR: Set the level of wide dynamic range (WDR) in order to obtain better imagesShutter Speed: The shutter speed is adjustable when the exposure mode is set to "Manual" or "Shutter Priority"

Marshall

3 White Balance	■ Mode: Select the color temperature mode➤ Auto➤ Indoor➤ Outdoor➤ One Push WB➤ ATW➤ Manual➤ Sodium Lamp■ Open Push WB: One push color temperature is adjustable when the white balance mode is set to "One Push WB"■ Manual Red/Blue: Manually adjust blue/red color temperature
4 Focus	■ Mode: Select manual/automatic focus■ Focus Range: The focusing range is adjustable when the focus mode is set to "Manual"■ AF Sensitivity: Set automatic focus sensitivity■ AF Frame: Set automatic focus range
5 MIRROR	■ Mirror: Sel automatic flip mode

www.marshall-usa.com39 40

Marshall

CV730 Manual

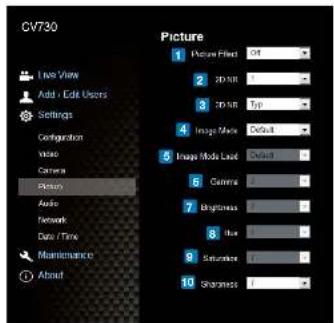

6.2.7 Setting - Picture

No	Item	Function Descriptions
1	Picture Effect	Set picture effect, OffNeg/Black and White
2	2D noise reduction settings	2D noise reduction settings
3	3D noise reduction settings	3D noise reduction settings
4	Image mode	The user may customize his/her desired image mode.
5	Image Mode Load	When no custom setting is needed, reset the picture parameters back to the factory default by selecting this item
6	Gamma	Gamma Level adjustment; Adjustable when the image mode is set to Custom
7	Brightness	Brightness adjustment; Adjustable when the image mode is set to Custom
8	Contrast	Contrast adjustment; Adjustable when the image mode is set to Custom
9	Saturation	Saturation adjustment of the image; Adjustable when the image mode is set to Custom
10	Sharpness	Adjust the sharpness of the image

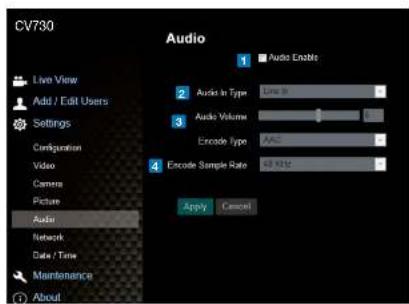

6.2.8 Setting - Audio

No	Item	Function Descriptions
1	Open audio Turn on/off sound
2	Soundtrack effect setting	Set MIC In/Line In
3	Audio Volume Adjust Volume
4	Encode sample rate	Set Encode sample rate ≥slant 48 KHz (AAC) ≥slant 44.1 KHz (AAC) ≥slant 16 KHz (G.711) ≥slant 8 KHz (G.711)

Marshall

CV730 Manual

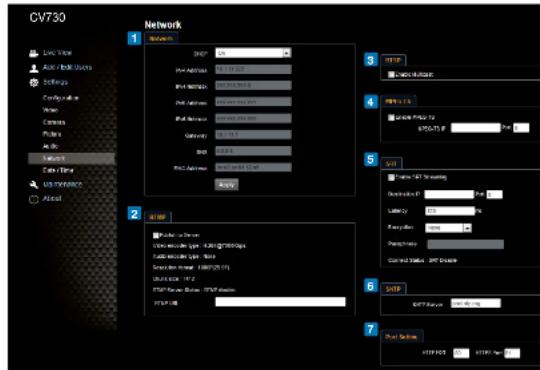

6.2.9 Setting - Network

No	Item	Function Descriptions
1 Network		Network setting of camera. Change of setting is available when DHCP function is closed.
2 RTMP Setting		Copy the RTMP web address provided by the RTMP service platform and paste it to the RTMP connection address to publish the camera Images on the RTMP service platformTo upload to YouTube for live streaming, the audio function must be turned on first
3 RTSP Setting		Enable/Disable Multicast. It is suggested to enable Multicast when the number of users online watching the live image simultaneously is more than 4
4 MPEG-TS Setting		Set MPEG-TS formatThe following port has been used by the camera. Setting of the port may not connect correctly6554, 6556, 8557, 8080, 80, 81, 9090, 23
5 SRT Setting		1. Set the field of SRT and then check the item to open SRT streamingAfter the SRT streaming is opened, it will be connected automatically upon startup2. The port number must be set in the range above 1024 with a maximum value of 9999The following port has been used by the camera. Setting of the port may not connect correctly

Marshall

		8554, 8556, 8557, 8080, 0000, 19353. Delay time is for 20 to 8000 microseconds. The default value is 120 microseconds
6	SNTP Setting	Set SNTP Server IP
7 Port Setting		Set HTTP port. The default Port value is 60Change of setting is available only when DHCP function of camera is closed

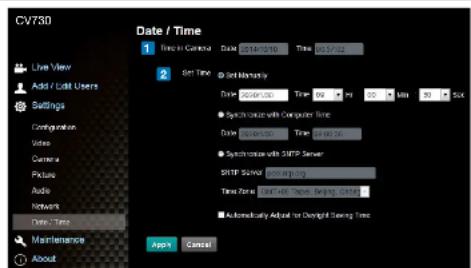

6.2.10 Setting - Time

No	Item	Function Descriptions
1	Camera Time	Display the date and time of the camera■ Manual Configuration Set time manually■ Synchronize with computer time: Set the camera time according to the computer time■ Synchronize with SNTP server: Set the camera time synchronously with the SNTP server
2	Set the Time	SNTP server address: Please change in network setting

www.marshall-usa.com

Marshall

CV730 Manual

6.2.11 Setting - Maintenance - Upgrading Firmware

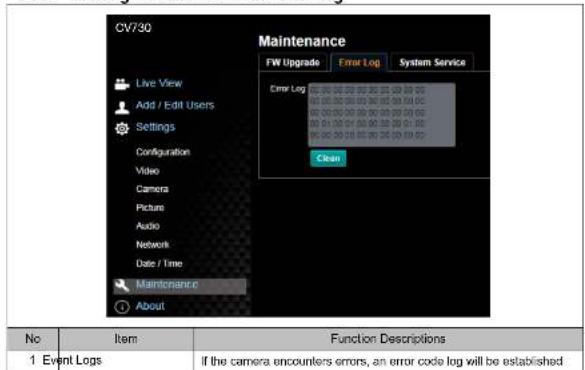

6.2.12 Setting - Maintenance - Incident Log

Marshall

6.2.13 Setting - Maintenance - System Service

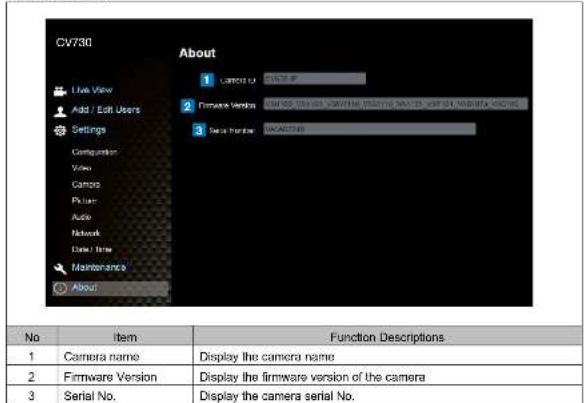

6.2.14 About

www.marshall-usa.com45 46

Chapter 7 DIP Switch Setting

7.1 DIP SWITCH

7.1.1 OUTPUT Switch (Switch to different output resolutions)

To switch via the OSD/ RS-232 Command is also available based on the last executed action

ID	Resolution	Frame Rate
0	3840 x 2160	59.94
1		50
2		29.97
3		25
4	1920 x 1080	59.94
5		50
6		29.97
7		25
CT 8	1280 x 720	59.94
9		50
A	Reserved Reserved
B
ttings of IR
D
note control are
F

(Selected by Remote control) When using the remote control, please make sure

SELECT and the Camera Select of consistent

ID	Setting
1
2
3

Marshall

48

Chapter 8 Troubleshooting

This chapter describes problems you may encounter while using CV730. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center.

No.	Problems	Solutions
1.	Boot without power signal	1.Make sure you have plugged in the power cord.2.When using a PoE connection, ensure that the power supply supports POE++ (IEEE 802.3bt) hubs
2.	There is no image output from CV730	1.Check the power supply or PoE supply functions.2.Confirm the output signals are in streaming output.3.Confirm whether the camera resolution can be used together with the monitor equipment■If 4k output, confirm the monitor equipment supports 4K output4.Replace the cables and make sure they are not faulty.
3.	RS-232 cannot be controlled	1.Confirm the connection is correct (RS-232 In/ Out)2.Please make sure the Baud rate setting is the same as the control equipment
4.	Whether the Internet can be used for operation	Please refer toChapter 6 Network Function Descriptionfor the Internet usage

www.marshall-usa.com47 48

49

For Warranty information please refer to Marshall website page:

https://marshall-usa.com/company/warranty.php

Marshall

20608 Madrona Avenue, Torrance, CA 90503

Tel: [phone] • Fax: [phone]

www.marshall-usa.com

[e-mail]
