Product Type	Desktop Computer (Mini PC)
Brand	Intel
Model	NUC 9 Extreme (NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX)
Supported Processors	Intel Core i5, i7, i9 or Intel Xeon (depending on SKU)
Memory Type	DDR4 SO-DIMM, 260-pin, 1.2V (1.35V XMP support on i9/i7/i5 SKUs)
Memory Speed	2666 MHz
Maximum Memory Capacity	64 GB (2 x 32 GB)
ECC Support	Non-ECC; ECC supported on NUC9VXQNX only
Storage Options	Dual M.2 42/80 and single 110mm SSD; one 2.5" SATA SSD/HDD
Power Supply	External AC adapter with C13 connector; region-specific power cords available
Operating System Support	Windows (validated), Linux (community supported)
Networking	Intel Gigabit Ethernet, Intel Wireless, Intel Bluetooth
Audio	Realtek High Definition Audio
Security & Safety	ESD precautions; disconnect power before servicing; handle sharp edges and hot components carefully
Repairability	User-upgradeable memory, storage, and optional GPU; detailed step-by-step guide provided
Included Accessories	User guide; power cord (varies by region)

Frequently Asked Questions - NUC 9 Extreme INTEL

How do I install memory in the Intel NUC 9 Extreme?

Install memory by aligning the module at a 45-degree angle into the socket and pushing down until the retaining clips snap. Ensure the module is fully seated. Use 1.2V DDR4 SO-DIMMs up to 64 GB total. For one module, use the lower socket.

What type of SSD is supported?

The NUC 9 Extreme supports dual M.2 SSDs in 42mm, 80mm, or 110mm lengths, and one 2.5-inch SATA SSD or HDD. Use compatible drives from the Intel Product Compatibility Tool.

Can I use an Intel Xeon processor in the NUC 9 Extreme?

Yes, the NUC9VXQNX SKU supports Intel Xeon processors. Other SKUs support Intel Core i5, i7, or i9. Check the specific model for compatibility.

What operating systems are supported?

Windows operating systems are validated by Intel. Linux distributions have been reported as compatible by users; check the distribution's forums for assistance.

How do I update drivers on the NUC 9 Extreme?

Use the Intel Driver & Support Assistant (Intel DSA) to automatically detect out-of-date drivers, or manually download drivers from the Intel Download Center for your specific SKU.

Does the NUC 9 Extreme support ECC memory?

ECC memory is supported only on the NUC9VXQNX model. Other models support non-ECC memory only.

What power supply do I need?

The NUC 9 Extreme uses an external AC power adapter with a C13 connector. The specific power cord included depends on the product code (US, EU, UK, etc.). If no cord is included, purchase one with a C13 connector.

How do I open the chassis to install components?

Remove the top screws on the rear, slide off the cover, remove the left side panel, cross bar bracket, and fold back the air guide. Then unscrew the bottom screws and open the NUC door. Always disconnect power first.

Can I install a dedicated graphics card?

The NUC 9 Extreme chassis includes a PCIe slot for a dedicated GPU. However, the user manual does not detail GPU installation; refer to additional documentation or the Intel product site.

What should I do before servicing the device?

Disconnect the power cord and any network cables. Use an ESD wrist strap and work on a conductive foam pad. Be careful of sharp pins, hot components, and sharp edges. Follow the step-by-step instructions in the user guide.

USER MANUAL NUC 9 Extreme INTEL

Intel® NUC kit NUC9VXQNX

Intel® NUC kit NUC9V7QNX

Intel® NUC kit NUC9i9QNX

Intel® NUC kit NUC9i7QNX

Intel® NUC kit NUC9i5QNX

User Guide

You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein.

No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.

All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest Intel product specifications and roadmaps.

The products described may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Copies of documents which have an order number and are referenced in this document may be obtained by calling 1-800-548-4725 or by visiting: http://www.intel.com/design/literature.htm.

Intel technologies' features and benefits depend on system configuration and may require enabled hardware, software or service activation. Performance varies depending on system configuration. No computer system can be absolutely secure.

Intel and the Intel logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

*Other names and brands may be claimed as the property of others.

Copyright © 2019, Intel Corporation. All rights reserved.

Contents

1.0 Introduction 5

1.1 Before You Begin 5
1.2 Installation Precautions....6
1.3 Observe Safety and Regulatory Requirements....6

2.0 Open the Chassis....7

3.0 System Memory....10

4.0 Change the M.2 SSD....13

5.0 Install a 2.5" SSD or Hard Drive....15

6.0 Close the Chassis....16

7.0 Connect Power....20

8.0 Install an Operating System....22

9.0 Install the Latest Device Drivers and Software 23

Revision History

Date	Revision	Description
	1.0	Initial release.

1.0 Introduction

This User Guide provides step-by-step installation instructions for these products:

• Intel® NUC kit NUC9VXQNX
• Intel® NUC kit NUC9V7QNX
• Intel® NUC kit NUC9i9QNX
• Intel® NUC kit NUC9i7QNX
• Intel® NUC kit NUC9i5QNX

1.1 Before You Begin

CAUTIONS

The steps in this guide assume you're familiar with computer terminology and with the safety practices and regulatory compliance required for using and modifying computer equipment.

Disconnect the computer from its power source and from any network before performing any of the steps described in this guide.

Failure to disconnect power, telecommunications links, or networks before you open the computer or perform any procedures can result in personal injury or equipment damage. Some circuitry on the board can continue to operate even though the front panel power button is off.

Follow these guidelines before you begin:

• Always follow the steps in each procedure in the correct order.
- Create a log to record information about your computer, such as model, serial numbers, installed options, and configuration information.
- Electrostatic discharge (ESD) can damage components. Perform the procedures described in this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam pad. If such a station isn't available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

1.2 Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions.

To avoid injury, be careful of:

• Sharp pins on connectors
• Sharp pins on circuit boards
• Rough edges and sharp corners on the chassis
  • Hot components (such as SSDs, processors, voltage regulators, and heat sinks)
  • Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel.

1.3 Observe Safety and Regulatory Requirements

If you don't follow these instructions, you increase your safety risk and the possibility of noncompliance with regional laws and regulations.

2.0 Open the Chassis

1. Unscrew the two top screws on the rear side of the chassis and shift the cover:

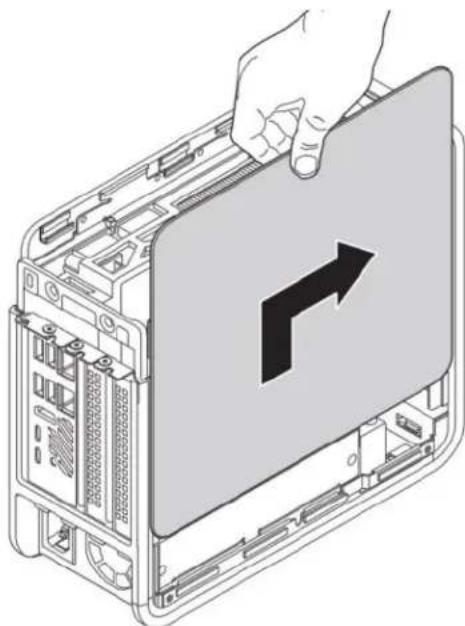

1. Remove the left side panel:

Illustration of a computer tower case with a hand inserting a folder into the cover (no text or symbols)

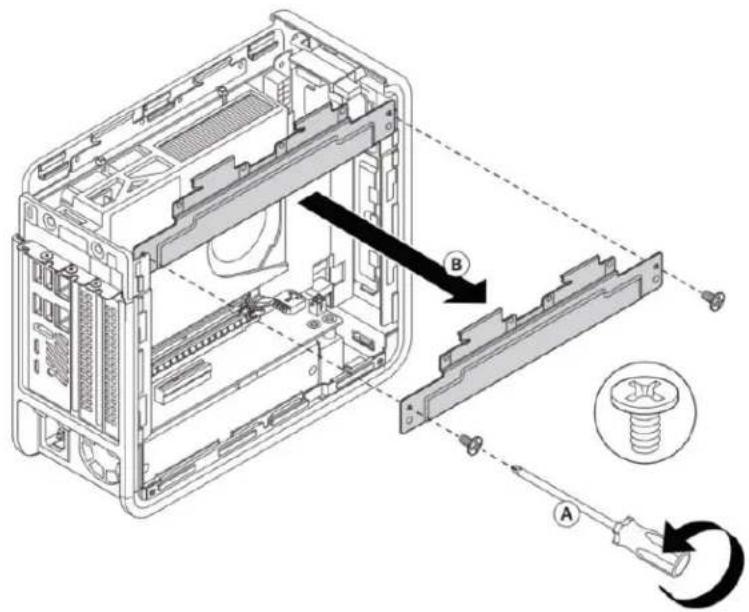

1. Remove the cross bar bracket:

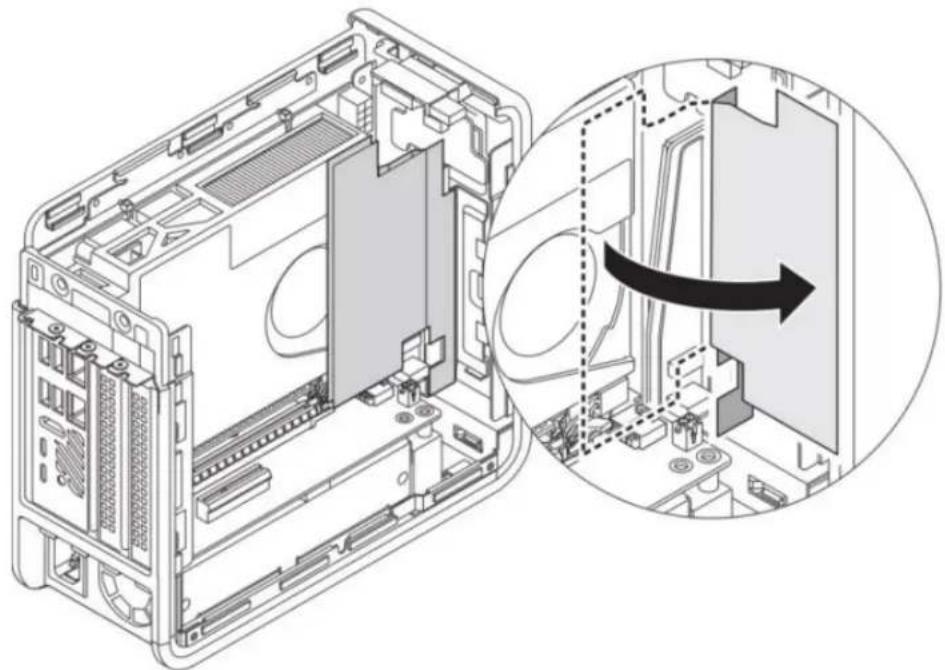

1. Fold the air guide back:

Technical illustration of an internal server chassis showing internal components and a magnified view of the internal structure (no text or symbols present)

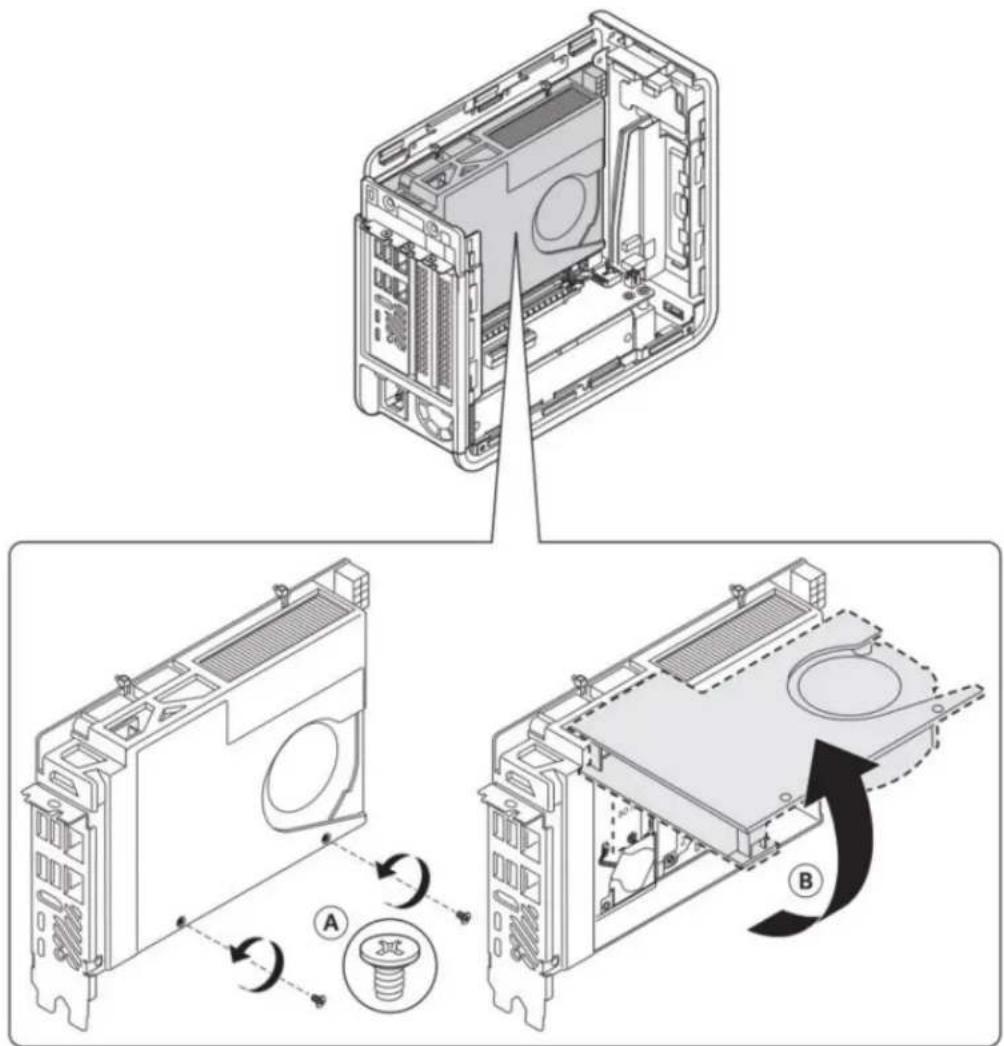

1. Unscrew the two bottom screws and open the NUC door:

3.0 System Memory

Intel® NUC kit NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX and NUC9i5QNX have two 260-pin DDR4 SO-DIMM sockets. Be sure to select memory modules that meet these requirements:

• 1.2V low voltage memory
1.35V via XMP support – NUC9i9QNX, NUC9i7QNX and NUC9i5QNX SKUs Only
• 2666 MHz SO-DIMMs
• Max capacity - 64GB
- Non-ECC
- ECC supported by the NUC9VXQNX only

Find compatible memory modules in the Intel Product Compatibility Tool

• NUC9VXQNX
• NUC9V7QNX
• NUC9i9QNX
• NUC9i7QNX
• NUC9i5QNX

NOTE	If you plan to install only one memory module, install it in the lower memory socket.

To install memory, follow these steps:

1. Observe the precautions in "Before You Begin" on page 5.
2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the power cord.
3. Remove the computer's bottom chassis cover.

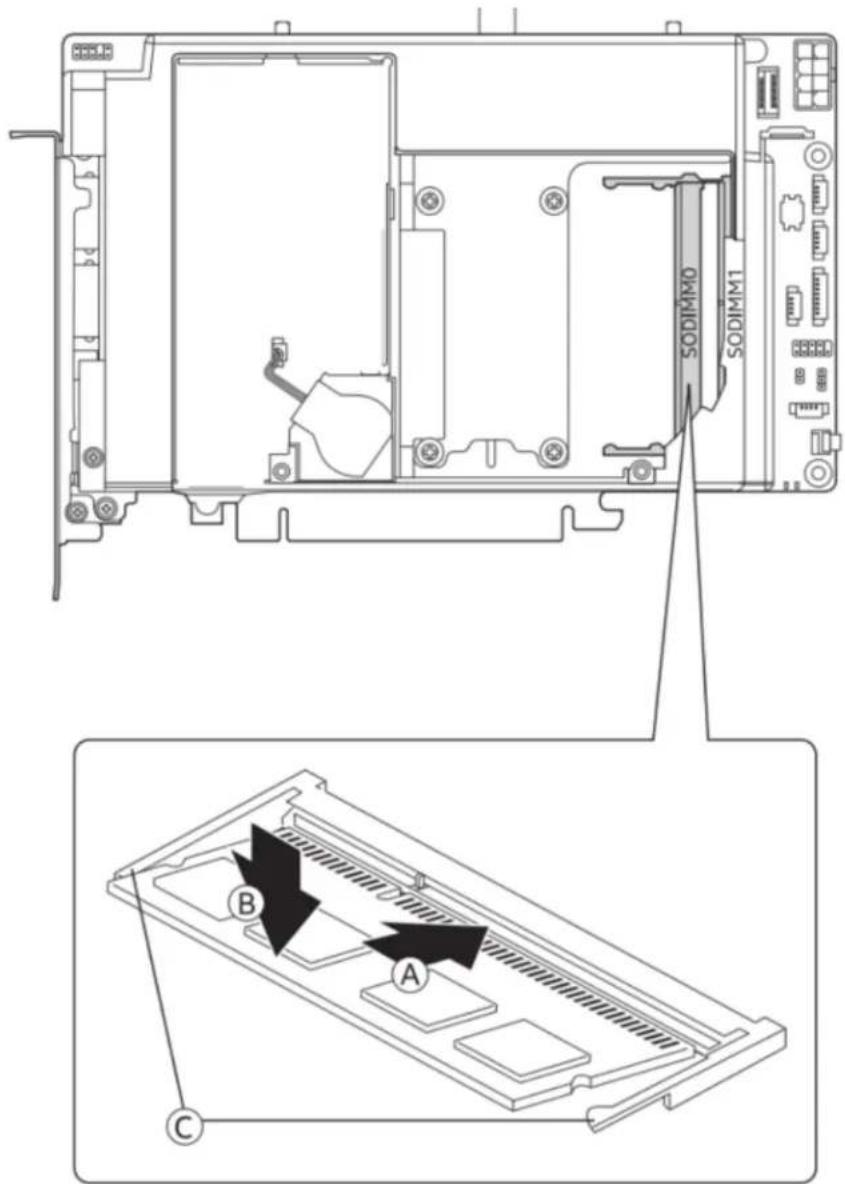

1. Align the small space at the bottom edge of the memory module with the key in the socket.
2. Insert the bottom edge of the module at a 45-degree angle into the socket (A).
3. When the module is inserted, push down on the outer edge of module until the retaining clips snap into place (B). Make sure the clips are firmly in place (C).

To remove a SO-DIMM, follow these steps:

1. Observe the precautions in "Before You Begin" on page 5.
2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the power cord.
3. Remove the computer's bottom chassis cover.
4. Gently spread the retaining clips at each end of the memory socket, which causes the module to pop out of the socket (C).
5. Holding the module by the edges, lift it away from the socket, and store it in an anti-static package.
6. Reinstall and reconnect any parts you removed or disconnected to reach the memory sockets.
7. Replace the computer's cover and reconnect the power cord.

4.0 Change the M.2 SSD

Intel® NUC kit NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX and NUC9i5QNX support dual 42, 80 and single 110mm SSDs.

There are no pre-installed SSD available out of the box for the above SKUs.

Find compatible M.2 SSDs in the Intel Product Compatibility Tool:

• NUC9VXQNX
• NUC9V7QNX
• NUC9i9QNX
• NUC9i7QNX
• NUC9i5QNX

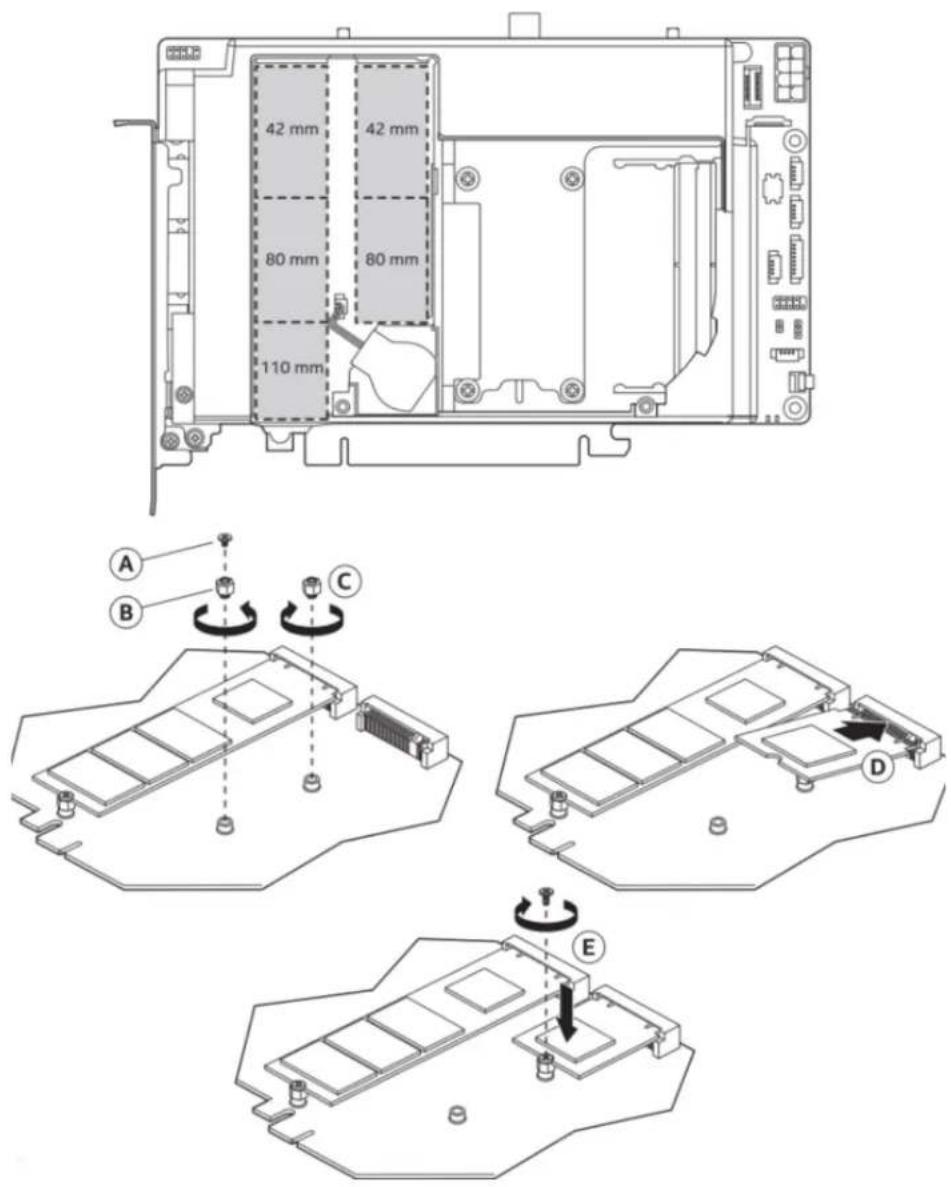

To install a different M.2 SSD:

1. Remove the small silver screw from the 110mm, 80mm or 42mm metal standoff on the board (A).
2. Remove the pre-installed SSD from the connector if there are any.
3. Make sure there is the metal standoff in the right position, depending on the length of the SSD you are going to install (B or C)
4. Align the space at the bottom of the new M.2 SSD to the key on the connector (D).
5. Secure the card to the standoff with the small silver screw (E).

5.0 Install a 2.5" SSD or Hard Drive

Intel® NUC kit NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX and NUC9i5QNX support an additional 2.5" Solid State Drive (SSD) or Hard Disk Drive (HDD).

Find compatible 2.5" drives in the Intel Product Compatibility Tool:

• NUC9VXQNX
• NUC9V7QNX
• NUC9i9QNX
• NUC9i7QNX
• NUC9i5QNX

6.0 Close the Chassis

After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws.

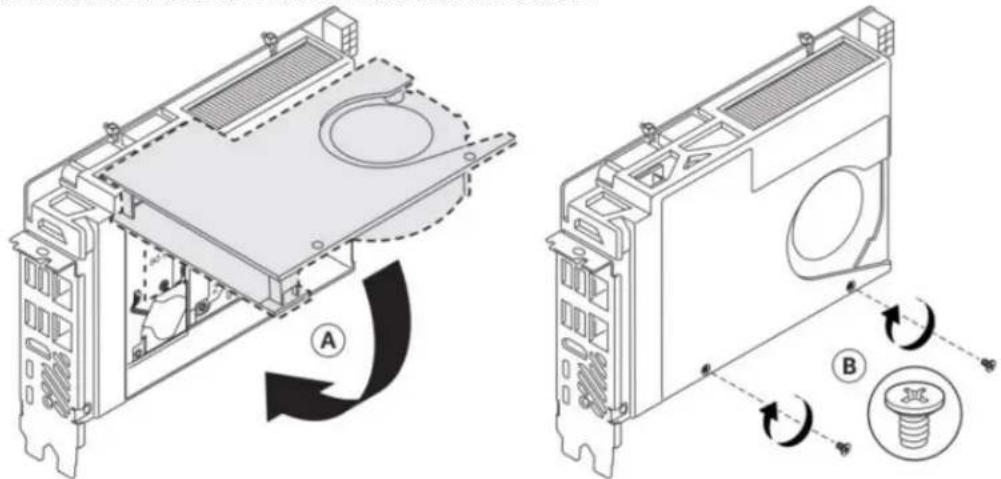

1. Close the NUC door and connect two bottom screws:

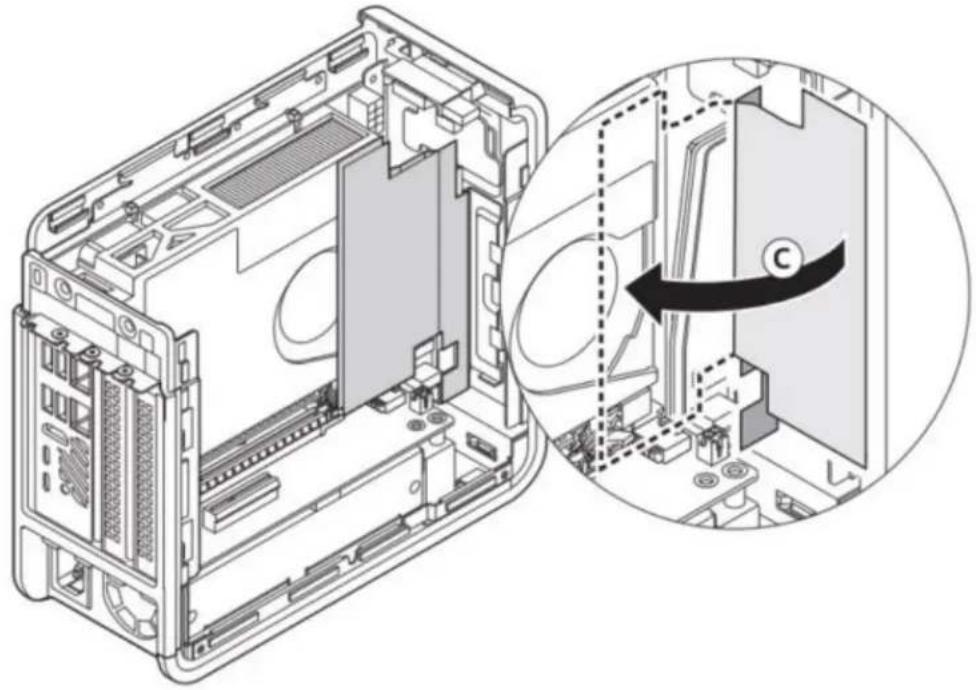

1. Fold the air guide into place:

Technical diagram of an internal server or computer chassis showing internal components and a magnified view of the interior space (no text or symbols present)

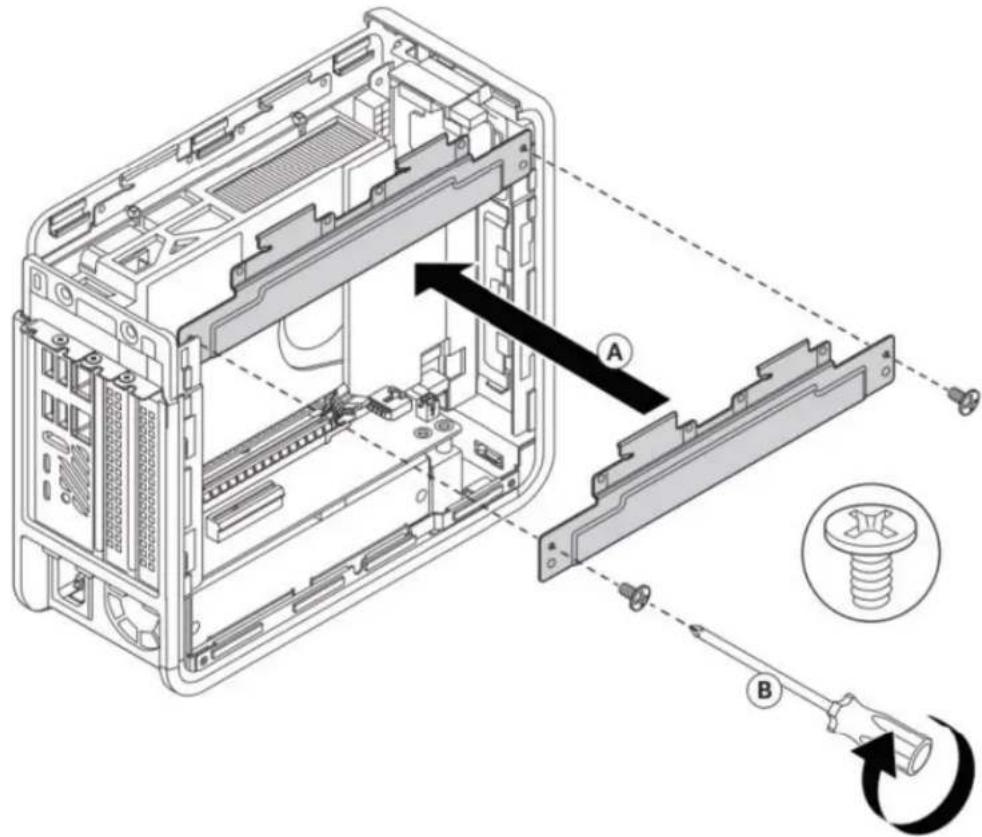

1. Install cross bar bracket:

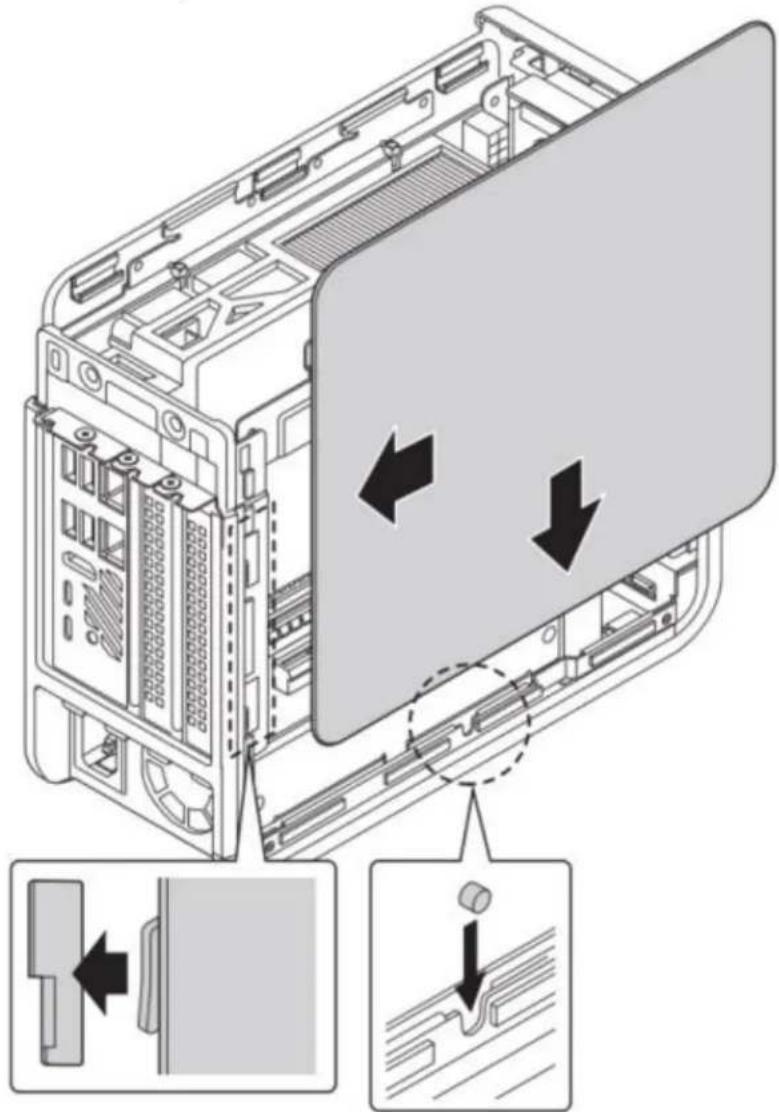

1. Install the left side panel:

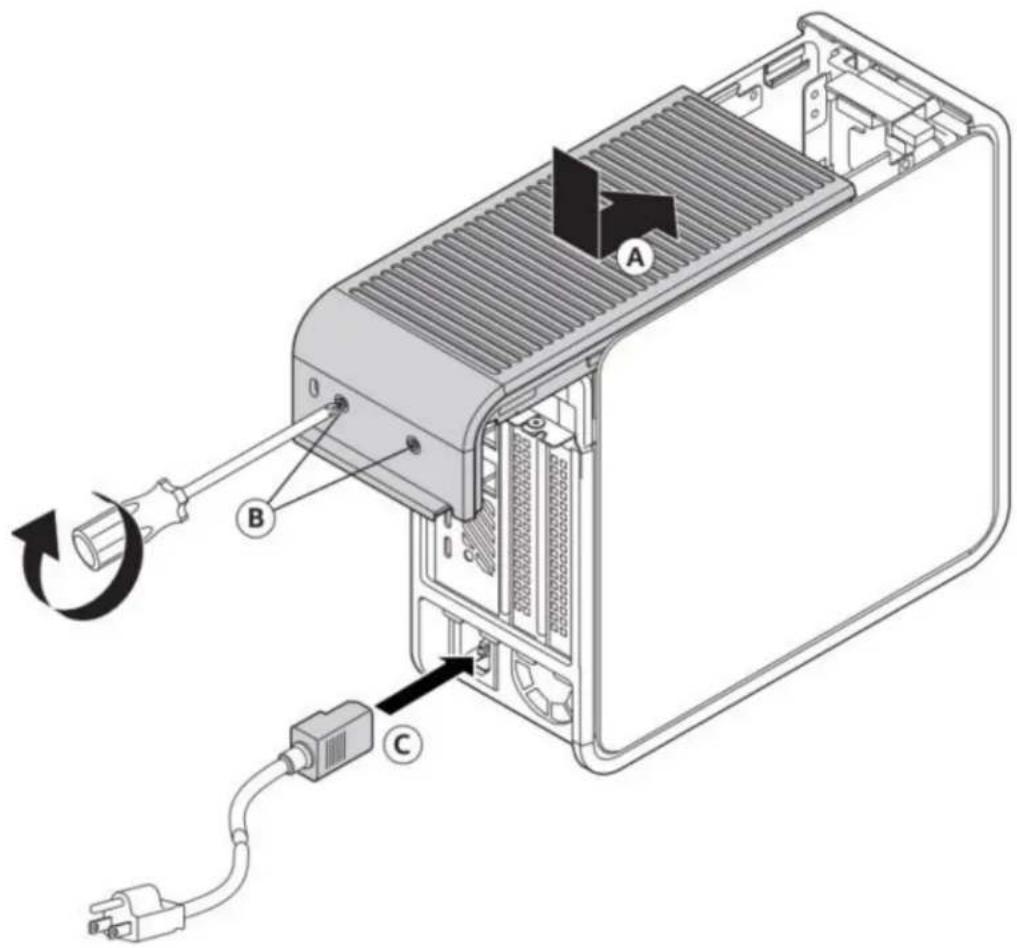

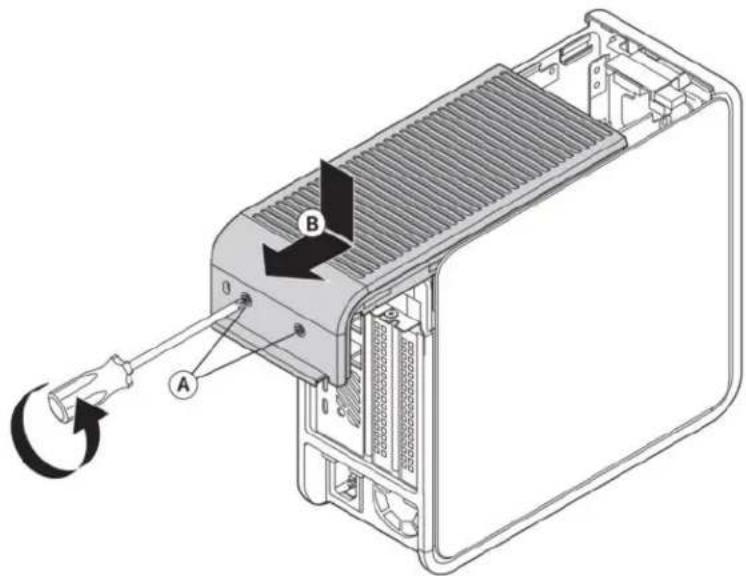

1. Install the top cover and apply the power cable:

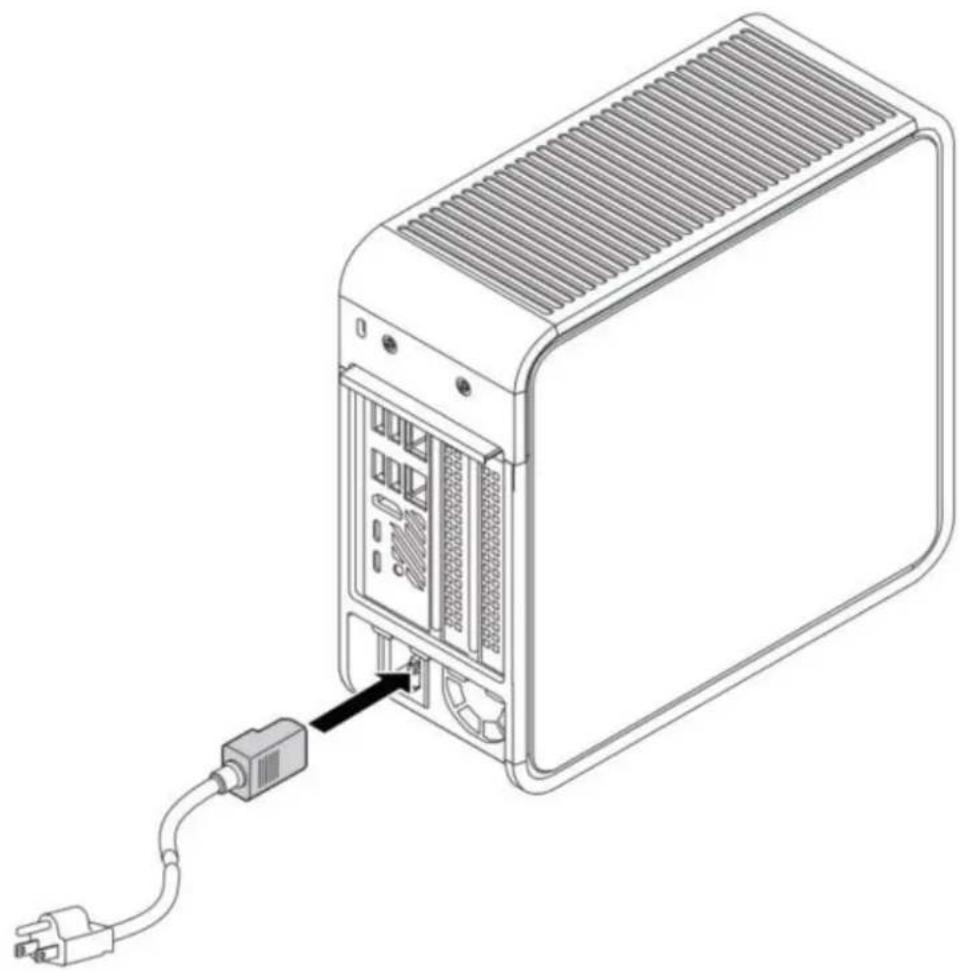

7.0 Connect Power

Each Intel NUC model includes either a region-specific AC power cord or no AC power cord.

Product codes	Power cord type
BKNUC9VXQNXBKNUC9V7QNXBXNUC9i9QNXBXNUC9i7QNXBXNUC9i5QNX	No power cord included. An AC power cord needs to be purchased separately. The connector on the power adapter is a C13 type connector. C13
BKNUC9VXQNX1BKNUC9V7QNX1BXNUC9i9QNX1BXNUC9i7QNX1BXNUC9i5QNX1	US power cord included.
BKNUC9VXQNX2BKNUC9V7QNX2BXNUC9i9QNX2BXNUC9i7QNX2BXNUC9i5QNX2	EU power cord included.
BKNUC9VXQNX3BKNUC9V7QNX3BXNUC9i9QNX3BXNUC9i7QNX3BXNUC9i5QNX3	UK power cord included.
BKNUC9VXQNX4BKNUC9V7QNX4BXNUC9i9QNX4BXNUC9i7QNX4BXNUC9i5QNX4	Australia/New Zealand power cord included.
BKNUC9VXQNX6BKNUC9V7QNX6BXNUC9i9QNX6BXNUC9i7QNX6BXNUC9i5QNX6	China power cord included.

Line drawing of a server rack with an attached cable and power outlet (no text or symbols)

8.0 Install an Operating System

See Supported Operating Systems for a list of Intel-validated Windows* operating systems.

The Intel Product Compatibility Tool lists versions of Linux* that have been reported as compatible by Intel NUC owners. If you need assistance with Linux on your Intel NUC, check the distribution's website and forums for peer assistance.

Refer to Operating System Installation for system requirements and installation steps.

9.0 Install the Latest Device Drivers and Software

Here are the options for keeping device drivers current:

• Allow the Intel® Driver & Support Assistant (Intel® DSA) to detect out-of-date drivers
  • Manually download drivers, BIOS, and software from Download Center:

• NUC9VXQNX

• NUC9V7QNX
• NUC9i9QNX
• NUC9i7QNX
• NUC9i5QNX

The following device drivers and software are available.

• Intel® Chipset Device Software
• Intel® Graphics
• Intel® Management Engine
• Intel® Gigabit Ethernet
• Intel® Wireless
• Intel® Bluetooth
  • Realtek* High Definition Audio
• Intel® Rapid Storage Technology
• Thunderbolt® Networking Driver
