| Product Type | 3G/HD/SD-SDI to HDMI Converter |
| Brand | AJA |
| Model | Hi5-Plus |
| Dimensions (W x D x H) | 4.6 x 2.4 x 1 inches (117 x 61 x 25 mm) |
| Weight | Approximately 0.5 lbs (0.23 kg) |
| Power Supply | +5V DC regulated, 3 watt capacity; AJA DWP-U-R1 (included, 100-240V AC input) |
| Video Input | 1x BNC (3G/HD/SD-SDI, SMPTE-259/292/424) |
| Video Output | 1x HDMI Type A (supports up to 10-bit video) |
| Supported Input Formats | 525i, 625i, 720p (50/59.94/60), 1080i (50/59.94/60), 1080p (23.98-60), 1080psf (23.98-30), 2Kx1080p (23.98-60), 2Kx1080psf (23.98-30) |
| SDI Audio Input | Up to 8 channels (4 pairs) embedded, 24-bit/48 kHz; selectable Ch 1-8 or Ch 9-16 |
| HDMI Audio Output | Up to 8 channels embedded, selectable 2 or 8 channels |
| Analog Audio Output | 2x RCA (unbalanced, -10 dBV nominal); selectable channel pairs via MiniConfig |
| Control | Automatic or via AJA MiniConfig software (USB connection) |
| Color Space Support | Auto, 4:2:2 YCbCr, 4:4:4 RGB, 4:4:4 YCbCr (input and output) |
| Bit Depth | 8, 10, or 12-bit (selectable) |
| HDMI/DVI Mode | Selectable (Auto, HDMI, DVI); DVI disables audio |
| HDCP | Not supported (HDMI output is not HDCP-encrypted) |
| Audio Offset | 0 to +7 video frames (in 1/16 frame increments) for lip-sync correction |
| Firmware Update | Via MiniConfig software over USB |
| LED Indicators | Signal presence, Lock, Power |
| Operating Temperature | Not specified; typical 0-40°C (32-104°F) |
| Compliance | FCC Class B, CE, ICES-003, VCCI Class B, BSMI |
| Warranty | 5 years limited (defects in materials and workmanship) |
Frequently Asked Questions - Hi5-Plus AJA
User questions about Hi5-Plus AJA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Uncategorized in PDF format for free! Find your manual Hi5-Plus - AJA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Hi5-Plus by AJA.
USER MANUAL Hi5-Plus AJA
Installation and Operation Guide
Version 1.0
Published: March 31, 2014
Table of Contents
Notices....4
Trademarks 4
Copyright 4
Contacting Support 4
Chapter 1: Introduction ....5
Overview.... 5
Features 5
Block Diagram 5
I/O Connections.... 6
User Controls.... 6
MiniConfig Control 6
Installation 6
Chapter 2: Operation....7
USB Control and Setup—Using AJA MiniConfig 7
Installing MiniConfig on a Mac.... 7
Installing MiniConfig on a PC 7
Running MiniConfig.... 7
PC Startup....8
Mac Startup 8
Saving Setups 8
Operating MiniConfig 8
Tabbed Screens.... 10
Input Tab Screen.... 10
Input Video Selections 10
Output Tab Screen 11
Output Video Selections 11
Audio Tab Screen 12
Audio Selections.... 12
Update Tab Screen.... 13
Software Update Procedure.... 13
Info Tab Screen 14
Appendix A: Specifications ....15
Video 15
Audio 15
Physical 15
Appendix B: Safety and Compliance....16
Federal Communications Commission (FCC) Compliance Notices 16
Class B Interference Statement 16
FCC Caution 16
Canadian ICES Statement.... 16
European Union and European Free Trade Association (EFTA)
Regulatory Compliance.... 17
Declaration of Conformity.... 17
Korea KCC Compliance Statement 18
Taiwan Compliance Statement 18
Japanese Compliance Statement 18
Translated Warning and Caution Messages.... 18
Before Operation Please Read These Instructions 19
Warranty Information....26
Limited Warranty.... 26
Index....27
Notices
Trademarks
AJA^® , KONA®, Ki Pro®, KUMO® and XENA® are registered trademarks of AJA Video, Inc., TruZoom™, TruScale™, KiPro Mini™, Io Express™, Io HD™, Io™ and "Work. Flow." are trademarks of AJA Video, Inc. AirPort, Apple, the Apple logo, AppleShare, AppleTalk, FireWire, iPod, iPod Touch, Mac, and Macintosh are registered trademarks of Apple Computer, Inc. Final Cut Pro, QuickTime and the QuickTime Logo are trademarks of Apple Computer, Inc. Avid, Avid Media Composer and Avid DNxHD are trademarks of Avid Technology, Inc. All other trademarks are the property of their respective holders.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. DVI is a registered trademark of DDWG. All other trademarks are the property of their respective holders.
Copyright
Copyright © 2014 AJA Video, Inc. All rights reserved. All information in this manual is subject to change without notice. No part of the document may be reproduced or transmitted in any form, or by any means, electronic or mechanical, including photocopying or recording, without the express written permission of AJA Inc.
Contacting Support
When calling for support, have all information at hand prior to calling.
To contact AJA Video for sales or support, use any of the following methods:
Telephone: +1.530.271.3190
FAX:+1.530.271.3140
Web: http://www.aja.com
Support Email: support@aja.com
Sales Email: sales@aja.com
Chapter 1: Introduction
Overview

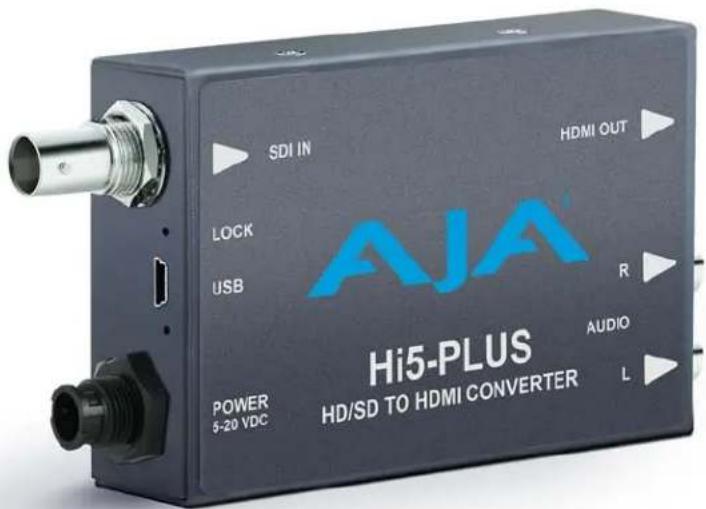

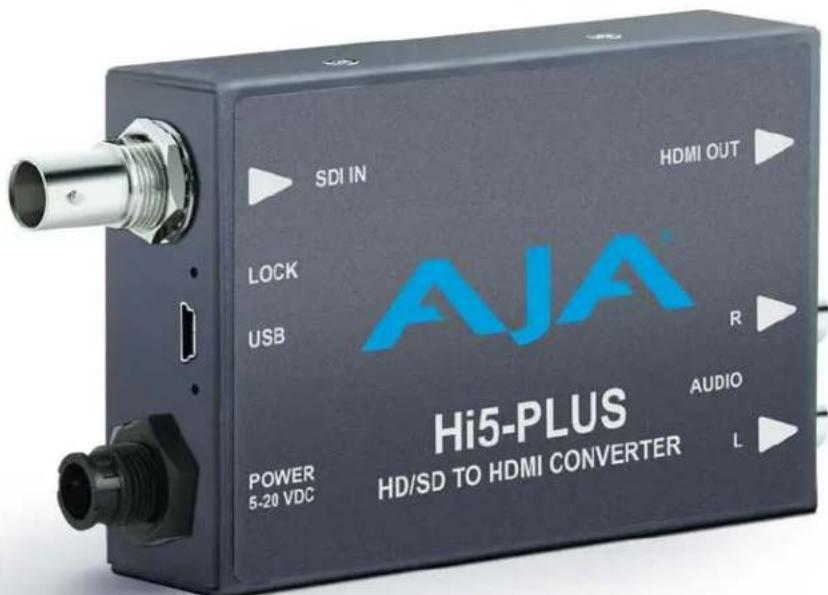

The Hi5-Plus converts 3G/HD/SD-SDI to HDMI for driving HDMI monitors. Embedded SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5-Plus provides 2 RCA style audio outputs for separate audio monitoring if needed.
Features
- 3G/HD/SD-SDI to HDMI (see "Appendix A: Specifications on page 15" for a complete list of supported inputs).
• Full HDMI support including 10-bit video and 8 channels of embedded audio
• Additional 2 Channel RCA jack audio output (selectable channel pairs)
• HDMI cable supplied - Uses universal input +5V power supply AJA model DWP-U-R1 (included)
• No configuration necessary
Block Diagram

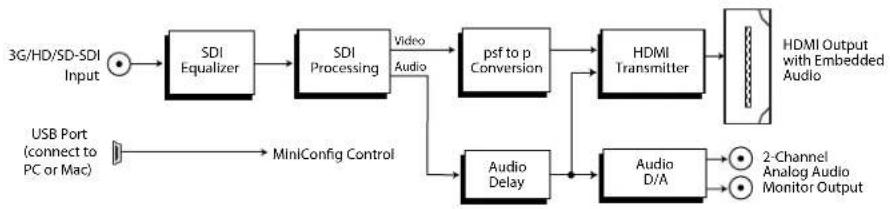

Figure 1. Hi5-Plus Converter, Simplified Block Diagram


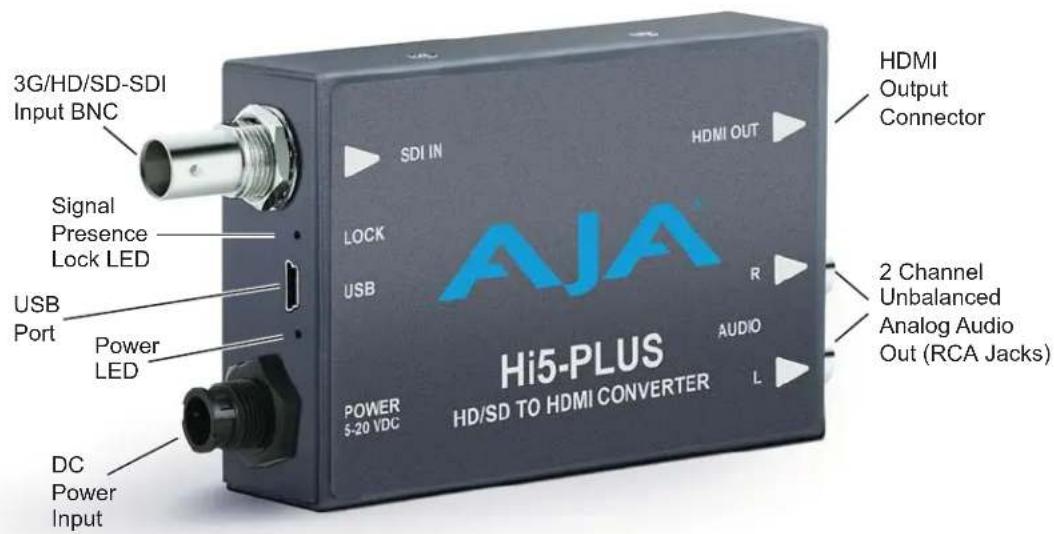

I/O Connections Figure 2. Hi5-Plus Converter Connections
User Controls
MiniConfig Control
Auto controls configures the unit automatically to match the input and output video parameters. Advanced MiniConfig control supports color space and bit depth adjustments, and audio channel selection.
Configuration set via MiniConfig is stored in the Hi5-Plus unit through subsequent power cycles.
Installation
Typically, Hi5-Plus installation consists of the following steps:
- Ensure the Hi5-Plus is disconnected from power.
- Connect video equipment to the converter BNC and HDMI connector.
- Connect audio equipment to RCA connectors (optional)
- Apply power to the converter (AJA power supply included).
- The converter will now run using the default factory settings. If you wish to alter the factory settings, you'll need to:
• Install the AJA MiniConfig software (supplied on CD) on your computer - Attach the converter via USB
- Make your changes using MiniConfig setup screens.
- This process is detailed in "USB Control and Setup—Using AJA MiniConfig".
Chapter 2: Operation
USB Control and Setup—Using AJA MiniConfig
The Hi5-Plus can usually be used right out of the box for most applications since it is designed to recognize inputs and perform standard actions automatically by default. However you can also manually configure the Hi5-Plus using a supplied software application for PCs and Macs called "MiniConfig." This same application can be used to update Mini-Converter firmware released by AJA.
Installing MiniConfig on a Mac
To install the application on a Mac, insert the CD supplied with the Mini-Converter into the computer, drag the "AJA MiniConfig" application for your platform (Mac or PC) to your desktop or an applications folder.
AJA MiniConfig
NOTE: Macintosh computers must be Intel-based (G5, G4 and earlier models will not work with MiniConfig).
Installing MiniConfig on a PC
To install the application on a Windows PC, insert the CD supplied with the MiniConverter into the computer, locate the "Minilnstaller" application, and then double-click it.

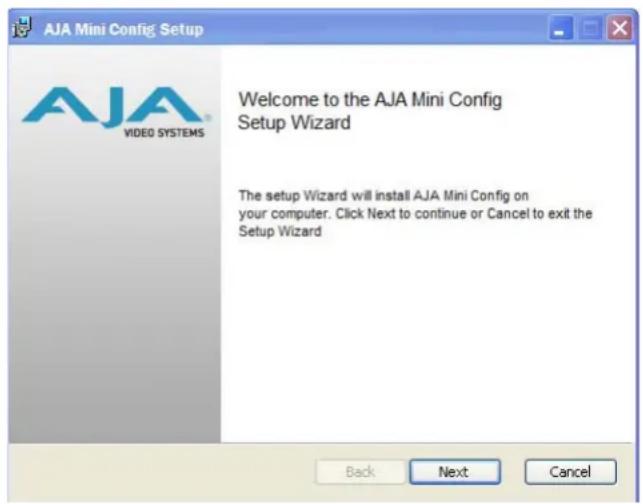

Figure 3. MiniConfig Setup Wizard on PC
A Setup Wizard will guide you through the installation. Just click Next to begin.
Answer all questions in the subsequent dialogues; when done, you will be able to locate the MiniConfig application in the AJA folder in the Programs listing.
Running MiniConfig
Connect the Mini-Converter to the PC or Mac via the supplied USB cable. Connect the external power supply (supplied) to the Mini-Converter.
PC Startup
To run MiniConfig on a PC, find the AJA MiniConfig in the program list and locate the AJA MiniConfig application.
Figure 4. PC MiniConfig Startup
Mac Startup

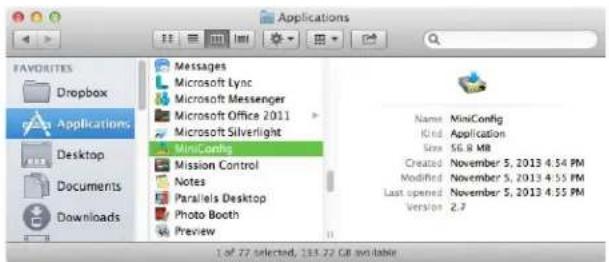

To run MiniConfig on a Mac, double-click the Applications folder and locate the AJA MiniConfig application. Double-click the application to launch it.
Figure 5. Mac MiniConfig Startup
NOTE: On a Mac, when the Mini-Converter is connected to the USB port, you may see an alert like that shown below. If you do, press Cancel—this alert can be ignored.

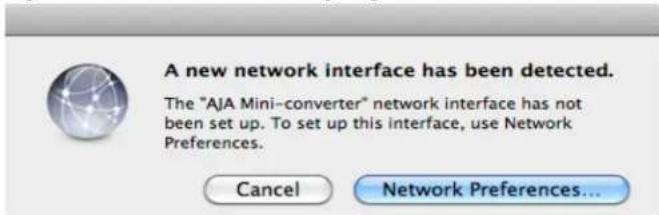

Figure 6. Mac Network Message (ignore)
Saving Setups
A File menu at the top of the MiniConfig application menu bar allows you to Save the state of the Mini-Converter, with your current settings, to a file for later recall. This allows you to set up the converter for different applications, storing each (with Save) to a unique name for easy recall—using the Open menu item. A Revert to Factory Settings menu item similarly allows you to change the settings back to AJA's factory defaults. An Edit menu allows you to cut and paste values to/from fields, just as in other applications.
Operating MiniConfig
The MiniConfig application provides a graphic interface for viewing settings and updating software. It consists of an information area at the top that shows the available Mini-Converters attached to the computer via USB, with a graphical rendering of the selected Mini-Converter showing all the connectors and their current state.
Colored text next to the connectors indicates the signal type and what the MiniConverter is doing:
- Blue text indicates the values automatically selected
- Black text indicates values that you have manually selected
- Red text indicates the Mini-Converter is not detecting a signal or cannot negotiate with the attached device
NOTE: Even if no output device is detected, it still shows the signal it is outputting.
NOTE: Configuration settings in red will change based on the attached output device as well as input signals. For improved accuracy and reliability, you should configure the Mini-Converter only when the target output device is attached and input signals are supplied at the inputs.
Screens are virtually the same on both PC and Mac, with subtle differences that reflect the general look of the platform environment.
Running Multiple Mini-Converters:
MiniConfig can manage multiple AJA Mini-Converters connected via USB—even when they are of differing types. However it only connects to one at a time. You can choose which Mini-Converter you wish to control using the pulldown menu in the upper right hand corner. If you want to configure and update multiple Mini-Converters in parallel, you can do it by running multiple instances of the MiniConfig application and have each control a different Mini-Converter.

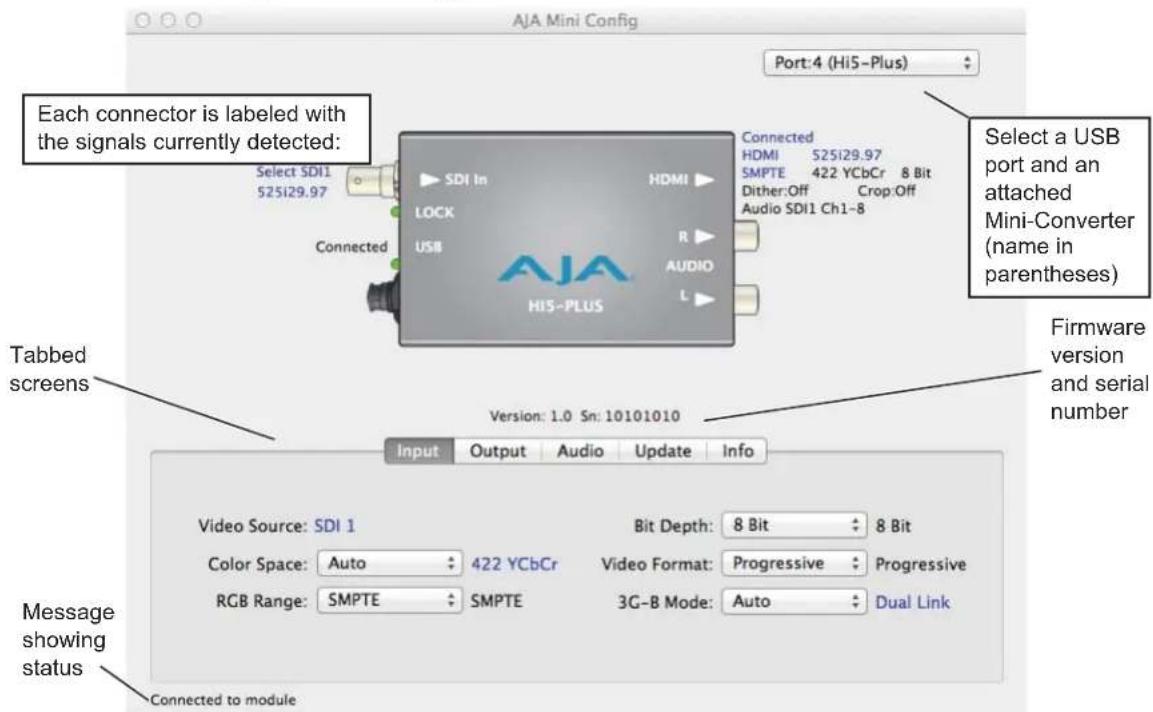

Figure 7. MiniConfig, Video Screen
Selecting a Mini-Converter with the dropdown menu causes this application to connect to the selected converter. The graphic of Mini-Converter and text below it provides:
- Type of converter
- Firmware version
- Serial number of the unit
A status field at the bottom of the screen shows if your application is connected and communicating with the Mini-Converter.
When configuring the Mini-Converter, select it from the top pulldown, view the current settings and change any values. Making a change communicates that new value to the Mini-Converter's non-volatile memory.
Tabbed Screens
The Tabs delineate control screens with groups of controls for each type of task to be performed. The controls for the actual configuration parameters are specific to each Mini-Converter type. Click on any of the tab buttons and the screen below will change to match. Each of these screens are described on the following pages.
Input Tab Screen
With your Mini-Converter connected and selected, you'll click on the Input tab to view and make changes to the converter's input settings.
Any changes you make are immediately implemented and are saved, overwriting previous settings.

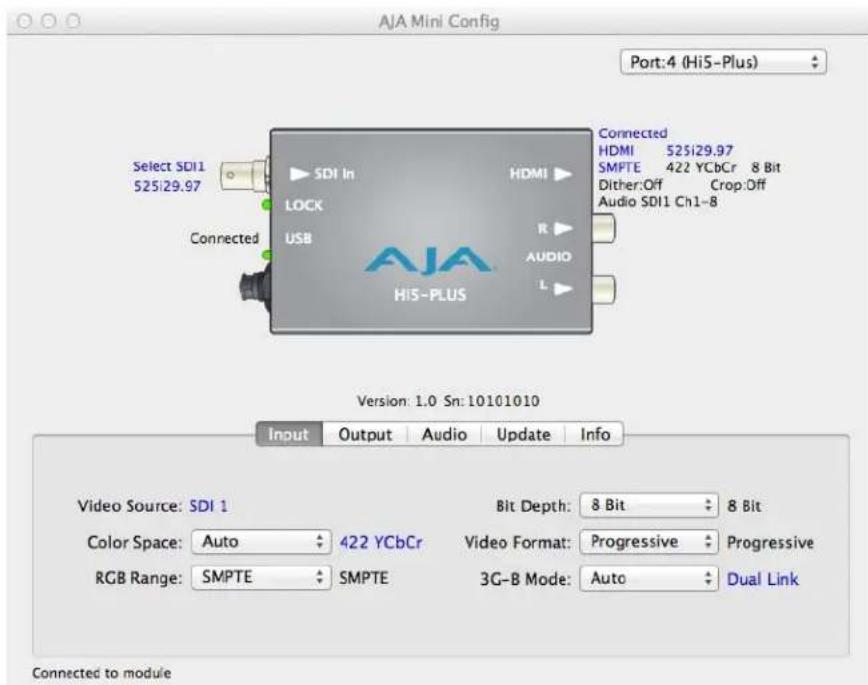

Figure 8. MiniConfig, Input Tab Screen
Input Video Selections
Color Space: Selects the Input Video Color Space. Choose Auto, 422 YCbCr, or 444 RGB, or 444 YCbCr. Choosing "Auto" will automatically select color mode based on the input video parameters and the payload ID.
RGB Range: Selects the Input Video Color Range. Choose SMPTE or Full color range.
Bit Depth: Selects the input video bit depth. Choose Auto, 8-bit, 10-bit, or 12-bit. Choosing "Auto" automatically selects the bit depth based on the input video parameters and payload ID.
Video Format: Selects the Input Video Format. Choose from Auto, Progressive (P), Interlaced, or PsF (progressive segmented frame). Choosing "Auto" automatically selects the format based on the input video parameters and the payload ID.
3G-B Mode: Selects the 3G level B Video Mode. Choose from the following:
- Auto - automatically selects the format based on the input video parameters.
- Dual Link - select this when your 3G signal is carrying 444 information or 12 bit data.
NOTE: The following two settings only apply to 3G-B video in Dual Stream mode.
- 1 x HD DS1 - use only Data Stream 1 as a single video.
- 1 x HD DS2 - use only Data Stream 2 as a single video.
Output Tab Screen
Click on the Output tab to view and make changes to the Hi5-Plus Output settings.

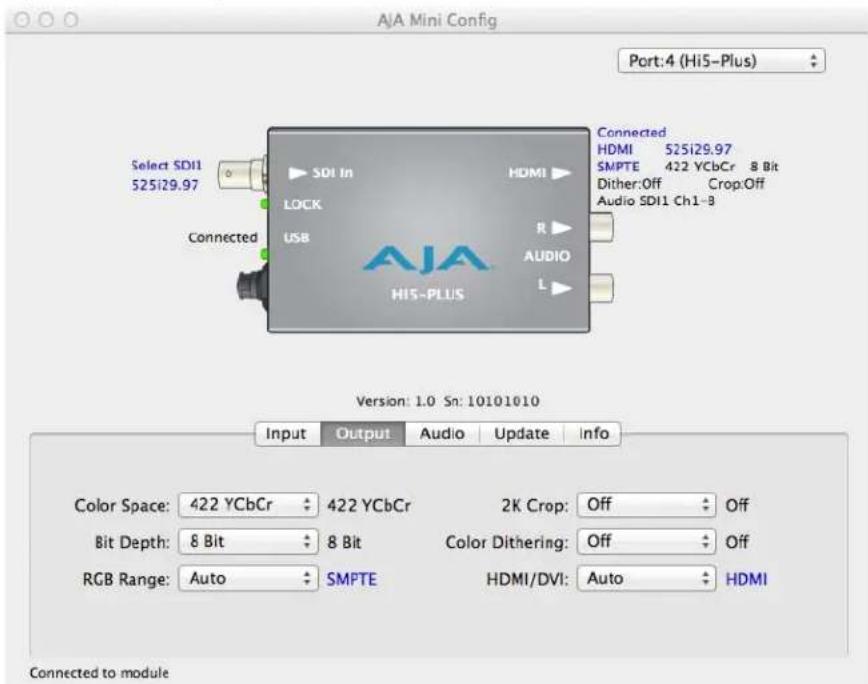

Figure 9. MiniConfig, Output Tab Screen
Output Video Selections
Color Space: Selects the desired output video format. Choose from the following:
- Auto - selects the video format based on the input video and the attached device's capabilities.
• 4:2:2 YCbCr
• 4:4:4 RGB
• 4:4:4 YCbCr
Bit Depth: Choose from Auto, 8-bit, 10-bit, or 12-bit. Choosing "Auto" automatically selects the bit depth based on the input video and the attached device's capabilities.
RGB Range: Choose Auto, SMPTE or Full. Choosing "Auto" automatically selects the input color range setting.
2K Crop: Choose Auto, Off, or On. Provides the option of center cutting 2Kx1080 video signals to make 1920x1080. This function is only enabled in the hardware when the input bit depth is less than the output bit depth.
Color Dithering: Choose Off or On.
HDMI/DVI: Choose Auto, HDMI, or DVI. When DVI is selected, any audio signals present are not passed. Choosing "Auto" automatically selects the output mode based on the attached device's capabilities.
Audio Tab Screen
Click on the Audio tab to view and make changes to the Hi5-Plus audio settings.

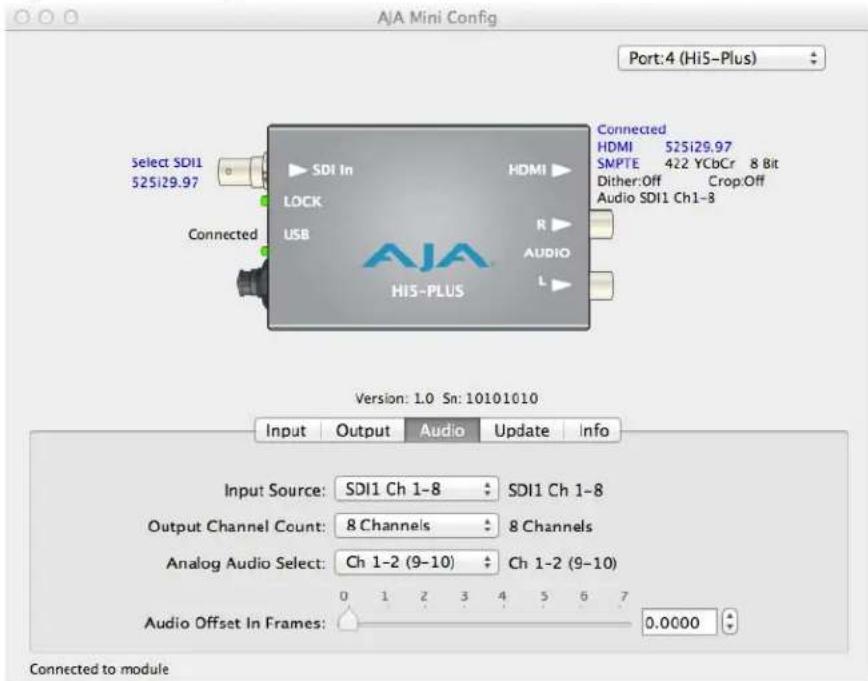

Figure 10. MiniConfig, Audio Tab Screen
Audio Selections
NOTE: When using the DVI video protocol no audio is output, since that protocol is video only.
Input Source: Choose which embedded audio channels are routed to the HDMI output. Eight channels are routed at a time. You can choose Ch 1-8 or Ch 9-16 from the SDI input.
Output Channel Count: Choose Auto, 2 of 8 channels or 8-channel embedded audio. Choosing "Auto" automatically selects the audio channels based on the attached device's capabilities.
Analog Audio Select: Permits selecting the pair of audio channels to be sent to the analog audio RCA connectors. The audio pairs routed depend on the Input Source (1-8 or 9-16) setting above. Choose Ch 1-2 (or 9-10), through Ch 7-8 (or 15-16).
Audio Offset In Frames: Permits time shifting the embedded audio in relationship to the video (for example, to correct for lip sync problems), in 1/16 of a frame increments. Range is from 0 video frame to +7.0 video frames. The actual time duration of delay will vary depending on the frame rate of the format being converted.
Update Tab Screen
Use this Update screen to view the software version currently installed on the converter or install new software.

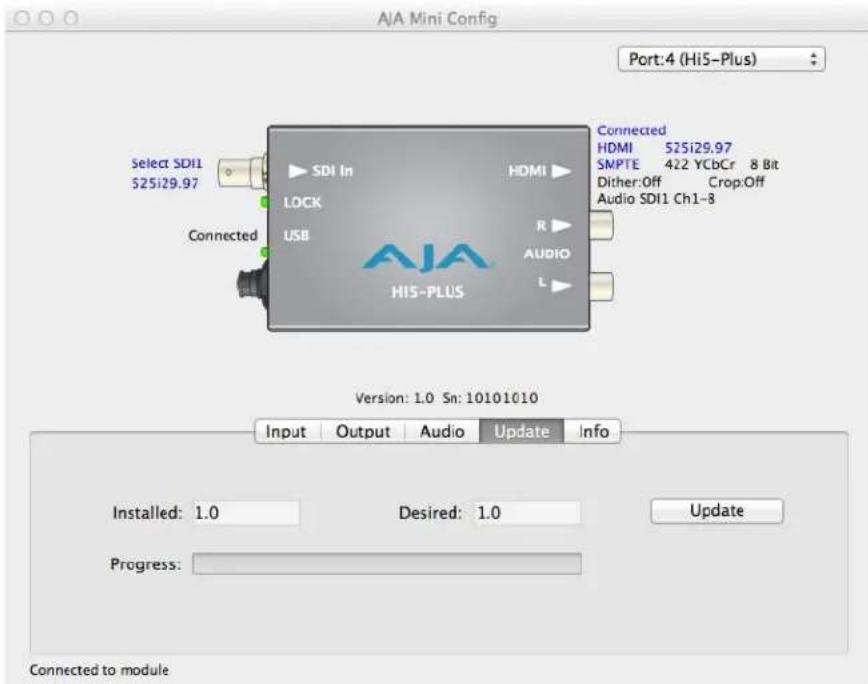

Figure 11. MiniConfig, Update Screen
NOTE: When discussing Mini-Converters, "Firmware" is software that will be stored in the MiniConverter's non-volatile memory and used when it is powered up. This is something different than the MiniConfig application software. The version numbers shown in the Update screen refer only to the firmware.
The following fields and control are present in this screen:
Installed: This field shows the version of the firmware currently installed inside the Mini-Converter.
Desired: This field shows the version of firmware embedded in the MiniConfig application which you can install into the Mini-Converter by clicking the Update button.
Update: This button initiates a software update operation loading the "Desired" version of firmware into the Mini-Converter's non-volatile memory.
Progress: This indicator bar shows the progress of software being installed.
Software Update Procedure
- Check the AJA website for new MiniConfig software for your Mini-Converter. If new software is found, download it and uncompress the file archive (zip). Here is the URL to use when checking:
http://www.aja.com/en/products/mini-converters/mini-config-software
-
Connect the Mini-Converter to a Mac or PC via a USB port on the computer and run the new MiniConfig software just downloaded.
-
Click on the Update tab screen.
-
Check the Installed version level against the Desired version level. If the Desired is newer, then click the Update button to download the new firmware to the MiniConverter.
Progress will be shown via the Progress thermometer bar, and when completed an "Update Succeeded" message appears.
Info Tab Screen
This screen provides basic information about the Mini-Converter. This information is mostly useful when calling AJA Support for service or technical support.

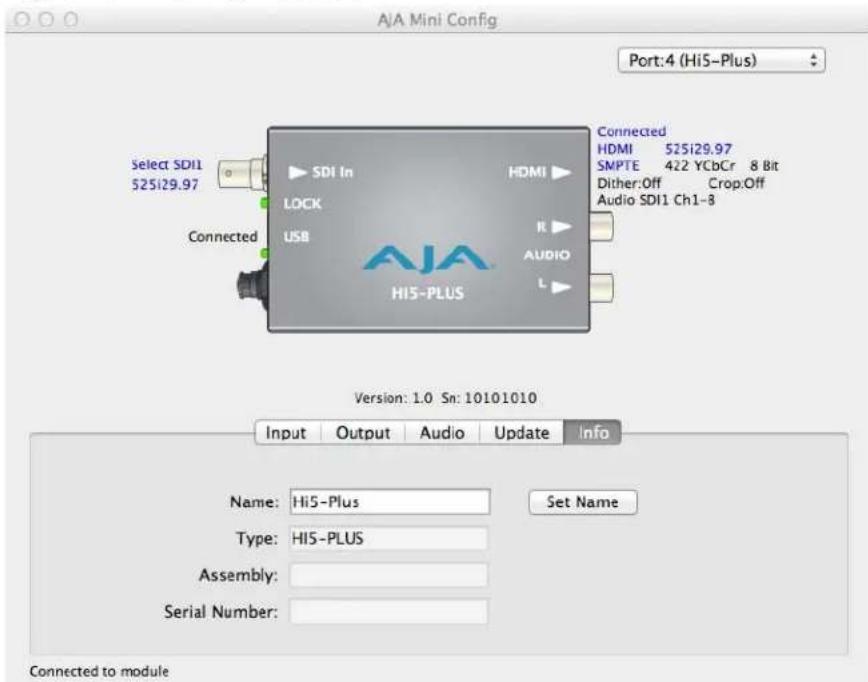

Figure 12. MiniConfig, Info Screen
Name: This field allows you to give your Mini-Converter a name. This may be useful if you have several Mini-Converters attached to a Mac/PC via USB so you can distinguish one of them easily (especially if they're the same model).
Type: This is the factory set model name of the Mini-Converter (Hi5-Plus).
Assembly: This is the factory assembly number.
Serial Number: This is the factory set unique serial number of your Hi5-Plus. If you ever call AJA Support for service, you may be asked for this number.
Appendix A: Specifications
Video
Video Input 3G/HD/SD-SDI, SMPTE-259/292/424 (with embedded audio) 1 x BNC
Input Formats: • 5 2 5 i, 6 2 5 i,
• 720p 50/59.94/60,
• 1080i 50/59.94/60,
• 1080p23.98/24/25/29.97/30/50/59.94/60
• 1080psf23.98/24/25/29.97/30
• 2Kx1080p23.98/24/25/29.97/30/50/59.94/60
• 2Kx1080psf23.98/24/25/29.97/30
Video Output HDMI (with embedded audio)
HDMI Standard Type A connector
• Video (selectable by MiniConfig):
- 8-bit RGB 4:4:4 or
• 10-bit YCbCr 4:2:2
• 1 2 - b i t
HDCP The Hi5-Plus does not encode the HDMI output with HDCP encryption.
Audio
SDI Audio Input Eight channels (4 pairs) of embedded audio supported
- Select Ch 1-8 or Ch 9-16
• 24-bit/48KHz
HDMI Audio Output Up to eight channels (4 pairs) of embedded audio supported, selectable by MiniConfig:
- Two embedded channels, or 8 embedded channels
• 24-bit/48KHz
Analog Audio Output Unbalanced, -10dBV (nominal), 2 x RCA
Routing of incoming embedded audio channel pairs to the analog outputs selectable by MiniConfig:
• Ch 1-2 (or 9-10), through Ch 7-8 (or 15-16)
Physical
Size 4.6" x 2.4" x 1" (117mm x 61mm x 25mm.)
Power • Uses AJA Power Supply model DWP-U-R1 (included)
• 100-240V, 50/60Hz Universal Input
• +5V DC regulated, 3 watt capacity
Appendix B: Safety and Compliance
Federal Communications Commission (FCC) Compliance Notices
Class B Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Canadian ICES Statement
Canadian Department of Communications Radio Interference Regulations
This digital apparatus does not exceed the Class B limits for radio-noise emissions from a digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003.
European Union and European Free Trade Association (EFTA) Regulatory Compliance
This equipment may be operated in the countries that comprise the member countries of the European Union and the European Free Trade Association. These countries, listed in the following paragraph, are referred to as The European Community throughout this document:
AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY, SWITZERLAND
Declaration of Conformity
Marking by this symbol indicates compliance with the Essential Requirements of the EMC Directive of the European Union 2004/108/EC.
This equipment meets the following conformance standards:
Safety: CB- IEC 60065:2001 + A1:2005
NRTL - UL 60065:2003 R11.06, CSA C22.2 NO. 60065:2003 + A1:06
GS - EN 60065:2002 + A1
Additional licenses issued for specific countries available on request.
Emissions: EN 55103-1: 1996
EN61000-3-2:2006, EN61000-3-3:1995 +A1:2001 +A2:2005
Immunity: EN 55103-2: 1996
EN61000-4-2:1995 + A1:1999 + A2:2001, EN61000-4-3:2006, EN61000-4-4:2004,
EN 61000-4-5: 2005, EN 610004-6:2007, EN61000-4-11:2004
The product is also licensed for additional country specific standards as required for the International Marketplace.
Warning!
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case, the user may be required to take appropriate measures.
Korea KCC Compliance Statement
Taiwan Compliance Statement
This is a Class B product based on the standard of the Bureau of Standards, Metrology and Inspection (BSMI) CNS 13438, Class B.
Japanese Compliance Statement
2. Class B ITE
This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.
Translated Warning and Caution Messages
The following caution statements, warning conventions, and warning messages apply to this product and manual.
Warning Symbol
Caution Symbol
Before Operation Please Read These Instructions
Warning!
Read and follow all warning notices and instructions marked on the product or included in the documentation.
Do not use this device near water and clean only with a dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Since the Mains plug is used as the disconnection for the device, it must remain readily accessible and operable.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the device.
Unplug this device during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
This device is a Class B product. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to take whatever measures may be necessary to correct the interference at their own expense.
Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility.
Warranty Information
Limited Warranty
AJA Video warrants that this product will be free from defects in materials and workmanship for a period of five years from the date of purchase. If a product proves to be defective during this warranty period, AJA Video, at its option, will either repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
In order to obtain service under this warranty, you the Customer, must notify AJA Video of the defect before the expiration of the warranty period and make suitable arrangements for the performance of service. The Customer shall be responsible for packaging and shipping the defective product to a designated service center nominated by AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located. Customer shall be responsible for paying all shipping charges, insurance, duties, taxes, and any other charges for products returned to any other locations.
This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and care. AJA Video shall not be obligated to furnish service under this warranty a) to repair damage resulting from attempts by personnel other than AJA Video representatives to install, repair or service the product, b) to repair damage resulting from improper use or connection to incompatible equipment, c) to repair any damage or malfunction caused by the use of non-AJA Video parts or supplies, or d) to service a product that has been modified or integrated with other products when the effect of such a modification or integration increases the time or difficulty of servicing the product.
THIS WARRANTY IS GIVEN BY AJA VIDEO IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED. AJA VIDEO AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AJA VIDEO'S RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE WHOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER AJA VIDEO OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.
Numerics
2K Crop setting 12
A
Analog Audio Select setting 12
Audio Offset In Frames setting 12
Audio Selections 12
B
Bit Depth (input) setting 10
Bit Depth (output) setting 11
C
Color Dithering setting 12
Color Space setting 10, 11
Compliance Statements 16
F
Firmware version 9
H
HDMI/DVI setting 12
1
Info Tab Screen 14
Input Source setting 12
Input Tab Screen 10
Input Video Selections 10
M
MiniConfig
Operation 8
Screen Description 9
Starting 7
MiniConfig installation
Mac 7
PC 7
Mini-Converters
Multiple 9
Multiple Mini-Converters 9
0
Output Channel Count setting 12
Output Tab Screen 11
Output Video Selections 11
R
RGB Range (input) setting 10
RGB Range (output) setting 11
S
Safety Statements 16
Serial number 9
Software Update Procedure 13
T
Type of converter 9
U
Update Tab Screen 13
V
Video Format setting 10
W
Warnings
Safety 16
- Installation and Operation Guide
- Table of Contents
- Notices....4
- Chapter 1: Introduction ....5
- Chapter 2: Operation....7
- Appendix A: Specifications ....15
- Appendix B: Safety and Compliance....16
- Notices
- Trademarks
- Copyright
- Contacting Support
- Chapter 1: Introduction
- Overview
- Features
- Block Diagram
- User Controls
- MiniConfig Control
- Installation
- Chapter 2: Operation
- USB Control and Setup—Using AJA MiniConfig
- Installing MiniConfig on a Mac
- Installing MiniConfig on a PC
- Running MiniConfig
- PC Startup
- Mac Startup
- Saving Setups
- Operating MiniConfig
- Tabbed Screens
- Input Tab Screen
- Input Video Selections
- Output Tab Screen
- Output Video Selections
- Audio Tab Screen
- Audio Selections
- Update Tab Screen
- Software Update Procedure
- Info Tab Screen
- Appendix A: Specifications
- Video
- Audio
- Physical
- Appendix B: Safety and Compliance
- Federal Communications Commission (FCC) Compliance Notices
- Class B Interference Statement
- FCC Caution
- Canadian ICES Statement
- European Union and European Free Trade Association (EFTA) Regulatory Compliance
- Declaration of Conformity
- Warning!
- Korea KCC Compliance Statement
- Taiwan Compliance Statement
- Japanese Compliance Statement
- Class B ITE
- Translated Warning and Caution Messages
- Before Operation Please Read These Instructions
- Warranty Information
- Limited Warranty
- Numerics
- A
- B
- C
- F
- H
- 1
- M
- 0
- R
- S
- T
- U
- V
- W
Brand : AJA
Model : Hi5-Plus
Category : Uncategorized
