USB-BT500 - Network Card/Adapter ASUS - Free user manual and instructions

Product Type	Bluetooth USB Adapter
Bluetooth Version	5.0
Wireless Range	Up to 10 m (33 ft)
Frequency Band	2.4 GHz (2402-2480 MHz)
Max Data Rate	Up to 3 Mbps (EDR)
Interface	USB 2.0 Type A
Dimensions	Approx. 2.5 x 1.5 x 0.8 cm
Weight	Approx. 2 g
Power Supply	USB bus-powered
Operating Temperature	0°C to 40°C (32°F to 104°F)
Compliance	FCC, CE, IC
Supported OS	Windows 7/8/10 (32/64-bit)
Driver Required	Yes (download from ASUS website)
Installation	Plug into USB port, install driver
Built-in Bluetooth Disable Required	Yes (if present)
Antenna Type	Internal chip antenna
Usage	Add Bluetooth to desktop/laptop
Warranty	1 year (check local terms)

Frequently Asked Questions - USB-BT500 ASUS

How do I install the ASUS USB-BT500 adapter?

Insert the adapter into a USB Type A port. If your device has built-in Bluetooth, disable it in Device Manager first. Then install the latest driver from ASUS official website.

Where can I download the driver for USB-BT500?

Download the driver from https://www.asus.com/Networking/USB-BT500/HelpDesk_Download/. Select your Windows version and download the appropriate utility.

Does USB-BT500 support Windows 11?

The manual mentions Windows 7/8/10. Windows 11 may work with the Windows 10 driver, but check ASUS website for updated drivers.

What is the Bluetooth version of USB-BT500?

It is Bluetooth 5.0, offering faster speed and longer range compared to older versions.

What is the maximum range of USB-BT500?

Under ideal conditions, up to 10 meters (33 feet). Range may vary due to obstacles and interference.

Can I connect multiple devices to one USB-BT500?

Yes, the adapter supports multiple simultaneous connections, but performance depends on the Bluetooth profile and device capabilities.

Does USB-BT500 support Bluetooth Low Energy (BLE)?

Yes, it supports BLE (Bluetooth Low Energy) for low-power devices like fitness trackers and IoT sensors.

Why is my USB-BT500 not recognized by Windows?

Ensure the driver is installed. If using another Bluetooth adapter, disable it first. Try a different USB port or restart your computer.

Is USB-BT500 compatible with Linux or macOS?

The official driver is for Windows only. Linux may have generic Bluetooth support, but performance is not guaranteed by ASUS.

How to update the firmware of USB-BT500?

Check ASUS support page for firmware updates. Usually, drivers include firmware. Use the official utility to update if available.

USER MANUAL USB-BT500 ASUS

Line drawing of a USB flash drive with 'ASUS' branding on the body (no additional text or symbols)

Quick Start Guide

U15921a / First Edition V1 / January 2021

Contents

Hardware Installation....3

Driver Installation....4

Ensure that you have turned on Bluetooth in Windows ^® ....5

Notices....32

This QSG contains these languages:

English	Dansk	Lietuvių
Български	Nederlands	Polski
Hrvatski	Français	Română
Svenska	Suomi	Srpski
Čeština	Deutsch	Slovenščina
Eesti	Ελληνικά	Slovensky
Norsk	Italiano	Español
Português	Magyar	Русский
Türkçe	Latviski	Українська

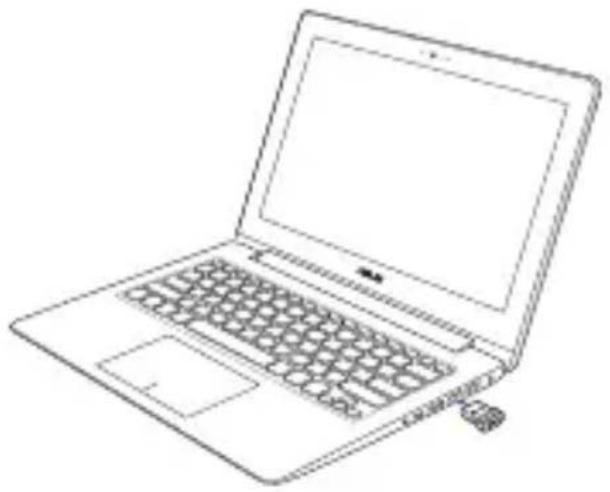

1. Hardware Installation

Insert USB-BT500 into the USB Type A port of your device.

Line drawing of a laptop computer with visible keyboard, mouse, and screen (no text or symbols)

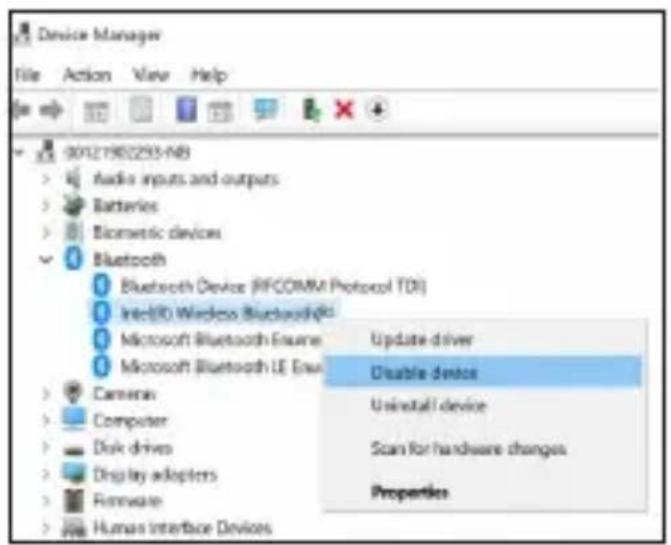

NOTE: In order to successfully install USB-BT500 on a laptop or desktop which has a built-in Bluetooth module, ensure to go to Windows Device Manager and disable the built-in Bluetooth before installing USB-BT500.

2. Driver Installation

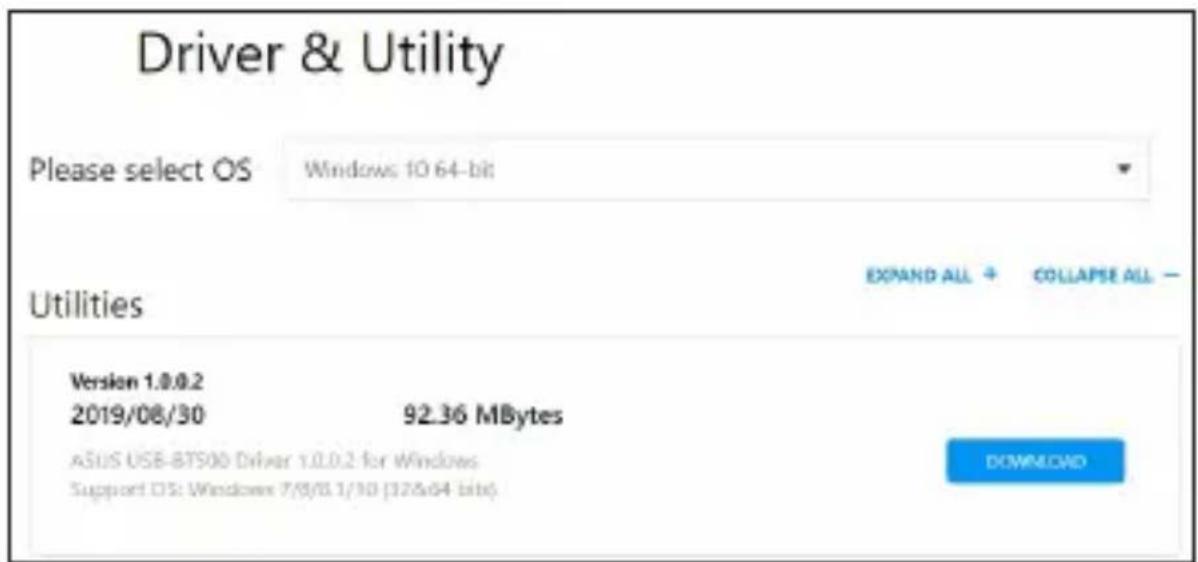

Download and install the latest driver from ASUS official website at https://www.asus.com/Networking/USB-BT500/HelpDesk_Download/

NOTE: If you are using Windows® 10 and connected to the internet, the system will detect the driver automatically. Follow the instructions to download and install the latest driver.

3. Ensure that you have turned on Bluetooth in Windows®

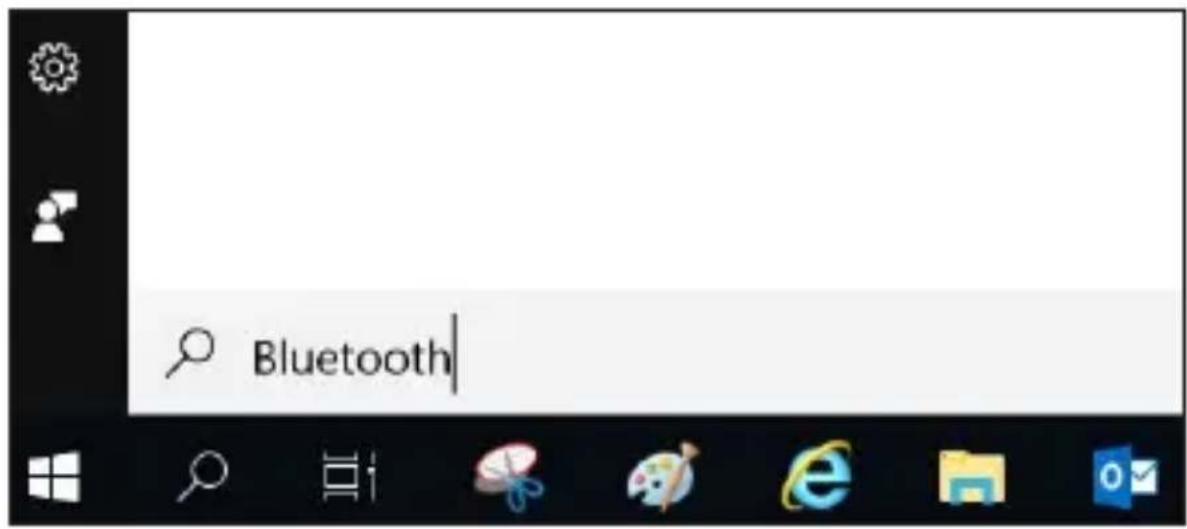

Search for "Bluetooth" in Windows® Search box to open the Bluetooth settings panel. Ensure that you have turned on Bluetooth and applied adequate settings.

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components, as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Prohibition of Co-location

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC exposure compliance requirement, please follow operation instruction as documented in this manual.

WARNING! This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

Precautions for the use of the device

a. Pay particular attention to the personal safety when use this device in airports, hospitals, gas stations and professional garages.
b. Medical device interference: Maintain a minimum distance of at least 15 cm (6 inches) between implanted medical devices and ASUS products in order to reduce the risk of interference.
c. Kindly use ASUS products in good reception conditions in order to minimize the radiation's level.
d. Keep the device away from pregnant women and the lower abdomen of the teenager.

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-3(B)/NMB-3(B)

Radiation Exposure Statement:

The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.

Radio Frequency (RF) Exposure Information

The radiated output power of the ASUS Wireless Device is below the Innovation, Science and Economic Development Canada radio frequency exposure limits. The ASUS Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized.

This equipment should be installed and operated with a minimum distance of 20 cm between the radiator any part of your body.

This device has been certified for use in Canada. Status of the listing in the Innovation, Science and Economic Development Canada's REL (Radio Equipment List) can be found at the following web address: http://www.ic.gc.ca/eic/site/ceb-bhst.nsf/eng/h_tt00020.html

Additional Canadian information on RF exposure also can be found at the following web: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

[English] CE statement

Simplified EU Declaration of Conformity

ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Full text of EU declaration of conformity is available at https://www.asus.com/Networking/USB-BT500/HelpDesk_Declaration/.

The frequency, mode and the maximum transmitted power in EU are listed below:

2402-2480MHz(BT EDR): 9.90dBm

2402-2480MHz(BT LE): 9.70dBm

Safety Notices

• Use this product in environments with ambient temperatures between 0^(32^) and 40^(104^) .
• DO NOT expose to or use near liquids, rain, or moisture.

[Norwegian] CE-erklæring

Forenklet EU-samsvarserklæring

[Slovanian] Izjava CE

Poenostavljena izjava o skladnosti EU

ASUSTek Computer Inc. izjavlja, da je ta naprava skladna s temeljnimi zahtevami in drugimi relevantnimi določili Direktive 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na spletnem mestu https://www.asus.com/Networking/USB-BT500/HelpDesk_Declaration/.
