Product Type	Wireless Speaker System (2.1)
Model	SoundSticks 4
Brand	Harman Kardon
System Frequency Range	44 Hz – 20 kHz
Power Consumption	4 W idle, 65 W maximum
Power Supply	External adapter: 16 V DC, 1.5 A minimum
Subwoofer Transducer	6" (152 mm) woofer
Subwoofer Amplifier Output Power	20 W RMS
Subwoofer Dimensions (W x H)	232 mm × 258 mm (9-3/16" × 10-3/16")
Subwoofer Weight	2.2 kg (4 lb)
Satellite Transducers	4 × 1" (25 mm) full-range per channel
Satellite Amplifier Output Power per Channel	10 W RMS
Satellite Dimensions (W x H)	51 mm × 254 mm (2" × 10")
Satellite Weight (per speaker)	0.7 kg (1.5 lb)
Wireless Connectivity	Bluetooth
Audio Input	3.5 mm auxiliary (via subwoofer)
Controls	Touch volume (+/−) on satellite; subwoofer knob (power/volume)
Mute Function	Touch both + and − simultaneously
Cleaning	Wipe with a dry cloth only
Safety	Do not expose to water or moisture; unplug during storms
Mounting	Place satellites beside monitor; subwoofer under desk

Frequently Asked Questions - SoundSticks 4 HARMAN KARDON

How do I pair my SoundSticks 4 with a Bluetooth device?

Turn on the SoundSticks Wireless. It will automatically enter pairing mode. On your device, enable Bluetooth and select 'Soundsticks Wireless' from the list. If prompted for a passcode, enter 0000. Successful pairing is indicated by the Bluetooth LED illuminating.

Why is there no sound from my SoundSticks 4?

First, ensure the subwoofer is powered (LED should be lit). Check that the power adapter is properly connected. Also, verify the volume is not muted: touch the volume Up (+) pad. Additionally, confirm the audio cable is firmly connected to your device.

How do I mute and unmute the speakers?

Touch both the + and - volume pads simultaneously to mute. To unmute, touch either the + or - pad. The mute function works regardless of the current volume level.

Can I connect both Bluetooth and a wired source at the same time?

Yes. Audio from a paired Bluetooth device mixes with the audio from the connected auxiliary input. To listen to only one source, stop playback on the other device.

Why do the satellites sound dull or lack high frequencies?

The satellites are directional due to the four-element linear array design. Position and tilt them toward your listening area for optimal high-frequency response. Avoid obstructing the front of the speakers.

What should I do if only the subwoofer produces sound?

Check the satellite cable connections to the subwoofer. Ensure the satellite cables are securely plugged into the dual subwoofer cable. If the connection is loose, reinsert firmly.

What is the power requirement for the SoundSticks 4?

The system requires a listed Class 2 power supply delivering 16 V DC at a minimum of 1.5 A. Use only the supplied adapter or an equivalent certified unit.

How do I adjust the subwoofer volume?

Turn the subwoofer volume knob (also the power button) clockwise to increase the subwoofer level relative to the satellites. Rotate counterclockwise to decrease. This knob balances the bass output.

Can I place the subwoofer on a desk or shelf?

Yes, but for best bass performance, place the subwoofer on the floor under your desk. Avoid blocking the ventilation openings and keep it away from heat sources and moisture.

What do I do if the Bluetooth connection drops or fails?

Ensure your Bluetooth device is within range (typically 10 meters). Try unpairing and re-pairing by holding the device close to the speakers. If the issue persists, power cycle the speakers and the source device.

USER MANUAL SoundSticks 4 HARMAN KARDON

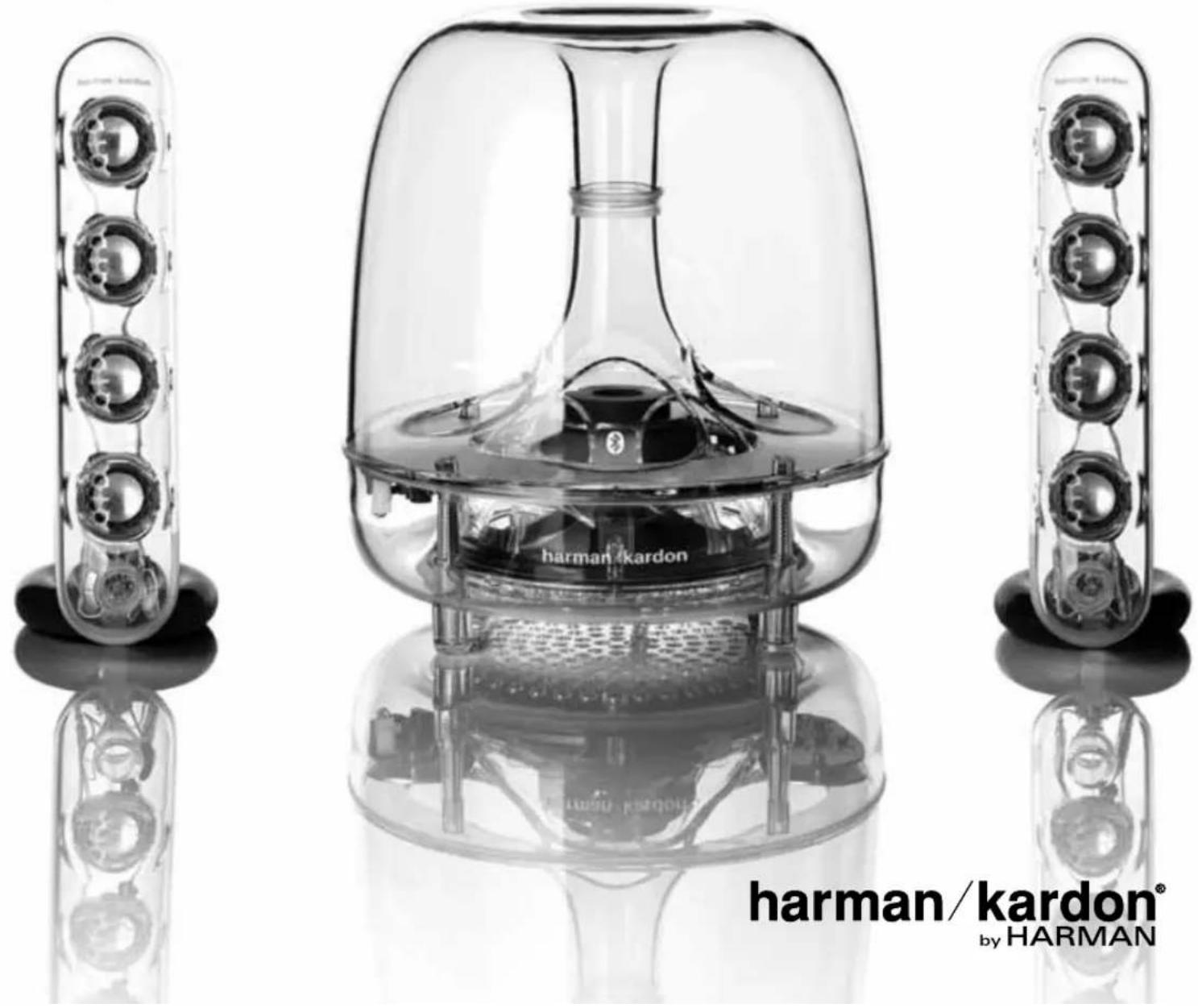

SOUNDSTICKS® WIRELESS

Setup Guide

harman/kardon®

by HARMAN

SOUNDSTICKS® WIRELESS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.

16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
18. Do not expose batteries to excessive heat such as sunshine, fire or the like.
19. Do not place naked flame sources, such as lighted candles, on the apparatus.

CAUTION
THE LIGHTNING FLASH WITH AN ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNIN- SULATED "DANGEROUS VOLTAGE" WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE OF SUF- FICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.	RISK OF ELECTRIC SHOCK DO NOT OPEN	THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPOR- TANT OPERATING AND MAINTENANCE (SER- VICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE PRODUCT.
	WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

SOUNDSTICKS® WIRELESS

Specifications*

System

Frequency range: 44Hz – 20kHz

Power consumption: 4W idle,

65W maximum

Subwoofer

Transducer (1): 6" woofer

Amplifier output power: 20W RMS

Dimensions (W x H): 9–3/16" x 10–3/16" (232mm x 258mm)

Weight: 4 lb (2.2kg)

Satellite

Transducers (4): 1" full-range per channel

Amplifier output power: 10W RMS

per channel

Dimensions (W x H): 2" x 10"

(51mm × 254mm)

Weight: 1.5 lb (0.7kg)

Step 1. Place individual SoundSticks (satellites) beside monitor/computer. Place subwoofer as desired, but placement under desk provides best performance.	Step 2. Connect satellite cables to the dual subwoofer cable. Also connect the input cable to the subwoofer input cable jack.	Step 3. Insert SoundSticks input cable into the computer or other audio device.	Step 4. Plug power cord into power adapter.

Troubleshooting
Symptom Possible problem Solution
No sound from SoundSticks speaker system.	No power to subwoofer.Power adapter plug not inserted correctly.No volume or low volume.	Ensure power supply is connected to live power source and is properly connected to subwoofer. Please note: When subwoofer is powered, a power LED should light.Place plug with arrow symbol facing UP into the subwoofer.Touch the volume “Up” (+) pad on the volume control satellite to unmute and/or increase the system volume level.Note: Touching the volume “Down” (−) pad lowers the system volume.Touching both (+) and (−) volume control pads at the same time will mute the system.

*These specifications are subject to change without notice.

Easy Setup Guide

Step 5. Plug power adapter into subwoofer.	Step 6. Plug power cord into wall receptacle.	Step 7. Push the subwoofer volume knob/power ON/OFF button. Unit is on when the LED is lit. Use the subwoofer volume knob to balance the subwoofer's volume with that of the satellites.	Step 8. Turn on Soundsticks Wireless.(Unit will automatically enter pairing mode.) PutBluetooth-enabled device in pairing mode. Select “Soundsticks Wireless” on device's pairing list.Passcode (if required) is0000.When pairing is successful, Soundsticks Wireless’Bluetooth LED will illuminate.	Step 9. Adjust volume level by touching + or – button. Touching both the + and – buttons mutes the audio. When muted, touching either button unmutes the audio.

www.harmankardon.com
Symptom Possible problem Solution
No sound from subwoofer, only satellites.	Subwoofer volume control set at minimum.	Rotate subwoofer volume control clockwise until relative volume level is appropriate.
No sound from satellites, only subwoofer.	Satellites not connected to subwoofer.	Check connection of satellites to subwoofer.
High frequencies sound dull.	Satellites not positioned properly.	Position and tilt (angle) loudspeakers toward listener. The sound from the satellites is very directional due to the four-element linear array design.
No sound from Bluetooth device.	Device not paired.	Pair device with Soundsticks Wireless. Bluetooth LED illuminates when pairing is successful.

This product is intended to be supplied by a listed direct plug-in power unit marked "Class 2" and output rated 16V DC minimum 1.5 A.

*Audio from a paired Bluetooth device will mix with the audio from a connected audio device. To listen to only one device, stop play on the other device.

harman/kardon®

HARMAN

HARMAN International Industries, Inc. 8500 Balboa Boulevard, Northridge, CA 91329 USA

www.harmankardon.com

Made in P.R.C.

© 2012 HARMAN International Industries, Incorporated. All rights reserved.

Features, specifications and appearance are subject to change without notice.

Harman Kardon and SoundSticks are trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.

The Bluetooth word mark and logo are registered trademarks and are owned by the Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated, is under license.

Part No. 950-0454-001 Rev. A
