Product Type	Audio/Video Converter (Streaming Server)
Brand	DataVideo
Model	NVS-33

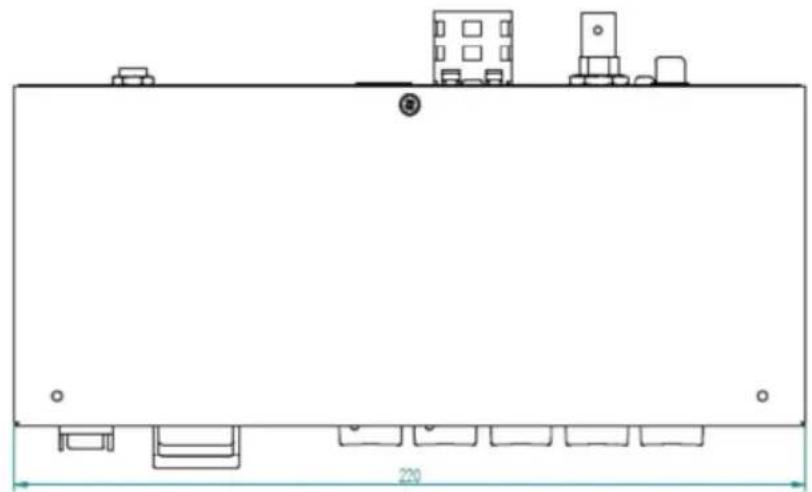

Dimensions (W x D x H)	220 mm x 115 mm x 45.5 mm
Weight	Approx. 1 kg
Power Supply	DC 12V (supplied PSU with screw-lock connector)
Power Consumption	~15 W (estimated)
Video Inputs	1x HDMI, 1x SDI
Audio Inputs	SDI/HDMI embedded, 1x RCA unbalanced pair, mixed mode
Video Encoding	H.264/AVC, Main/High Profile, bitrate up to 15 Mbps (record only)
Supported Resolutions	1080p up to 60 fps, 1080i, 720p, 480i, 576i
Streaming Protocols	RTSP, RTMP, RTMPS, TS, HLS, SRT
Recording Format	MP4 (TS under development), FAT32/NTFS SD card
Storage Media	SD card (Class 10 or higher recommended)
Network Interface	1x Gigabit Ethernet (LAN)
Web UI Languages	English, Traditional Chinese, Simplified Chinese, Japanese
Operating Temperature	0°C to 40°C (32°F to 122°F)
Storage Temperature	-10°C to 60°C
Operating Humidity	10% to 80% (non-condensing)
Cleaning Instructions	Unplug before cleaning; use a damp cloth, no liquids or aerosols
Safety Warnings	Do not use near water, avoid blocking ventilation, use only provided power supply
Warranty	1 year standard, 3 years if registered within 30 days (conditions apply)
Repair Parts Availability	Contact local DataVideo office or dealer for service
Firmware Update	Via web UI (browse and update)

Frequently Asked Questions - NVS-33 DataVideo

What video input sources does the NVS-33 support?

The NVS-33 supports both HDMI and SDI video inputs, selectable via the front panel INPUT button or web UI.

How do I start recording or streaming?

Press and hold the corresponding front panel button (RECORD, STREAM, or RECORD+STREAM) for approximately 2 seconds until the LED turns solid red. Use the web UI for more detailed settings.

What streaming protocols are available?

The NVS-33 supports RTSP, RTMP, RTMPS, TS, HLS, and SRT. Select the desired protocol in the Operation Mode page of the web UI.

How do I find the IP address of the NVS-33?

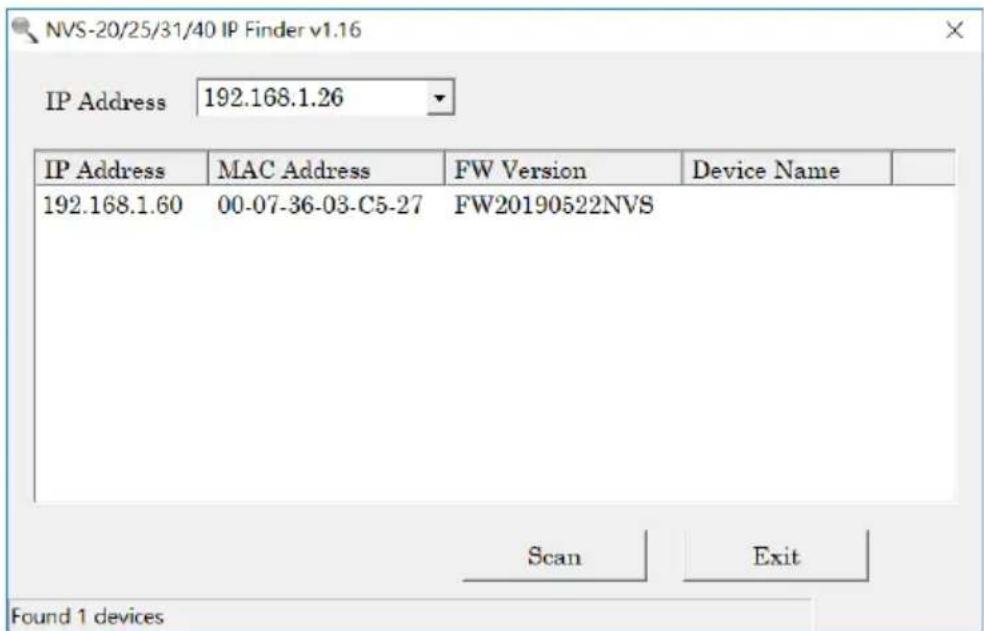

Use the IP Finder utility (download from DataVideo website) to scan your network. Alternatively, the default static IP is 192.168.1.60.

What SD card is recommended for recording?

Datavideo recommends Class 10 SD cards or higher. Compatible brands include Kingston, SanDisk, Sony, and Toshiba (see manual for full list). The card must be formatted to FAT32 or NTFS.

Can I stream and record simultaneously?

Yes, the NVS-33 supports simultaneous streaming and recording. Press the RECORD+STREAM button or enable it in the web UI. Note that total bitrate should not exceed 12 Mbps when doing both.

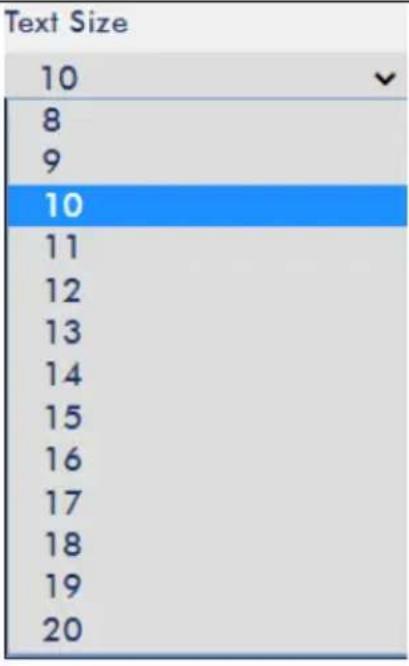

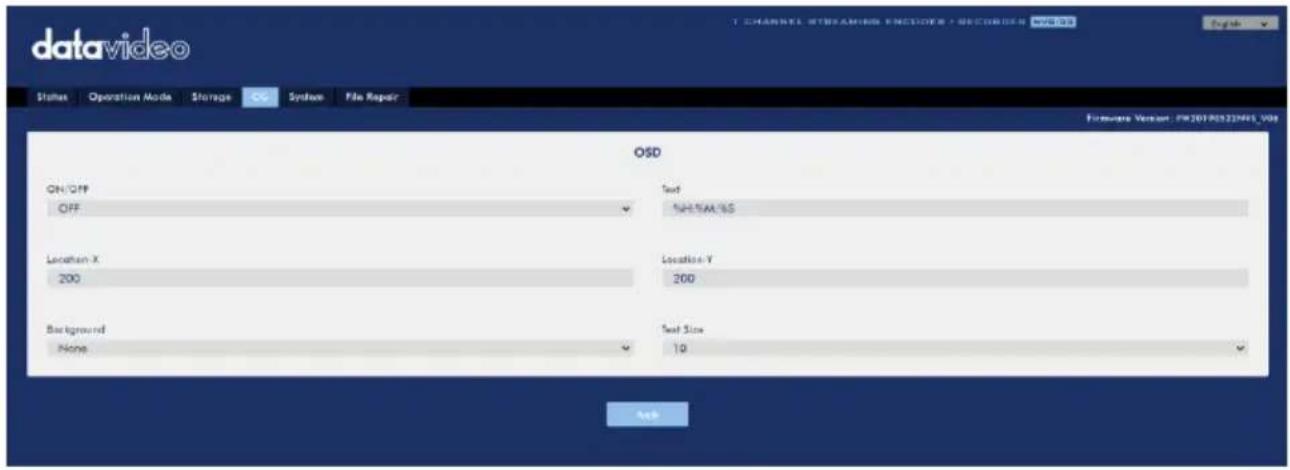

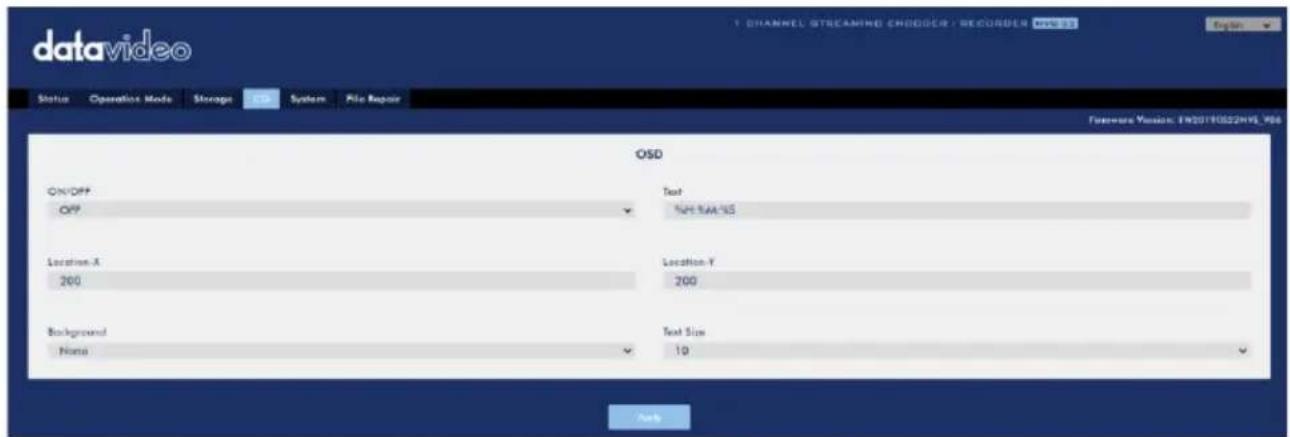

How do I overlay text on the video?

Go to the CG tab in the web UI, enable OSD, enter your text, set position coordinates (X, Y), and click Apply. The text will appear on the video output.

What should I do if the device cannot connect to the network?

First, ensure the Ethernet cable is connected. Use the IP Finder to scan. If not found, reset the device by holding RECORD and STREAM while powering on for 5 seconds (defaults IP to 192.168.1.60). Check firewall/antivirus settings.

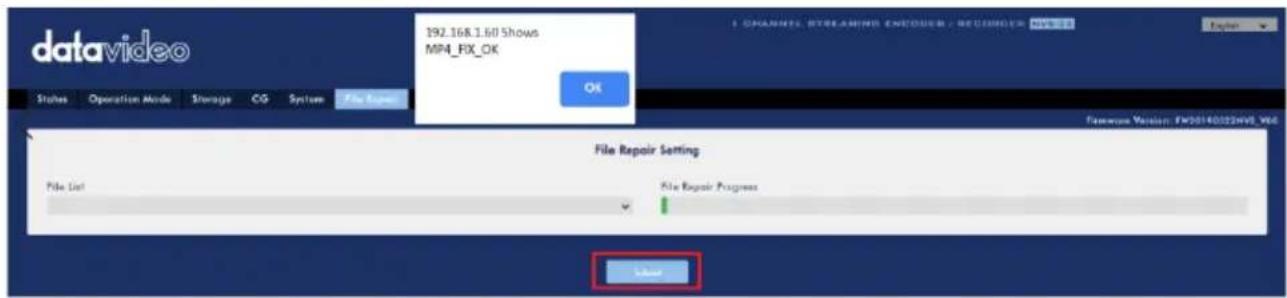

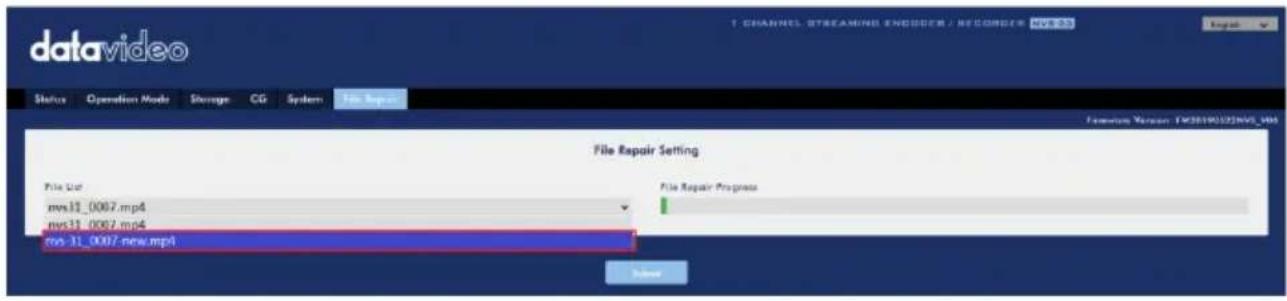

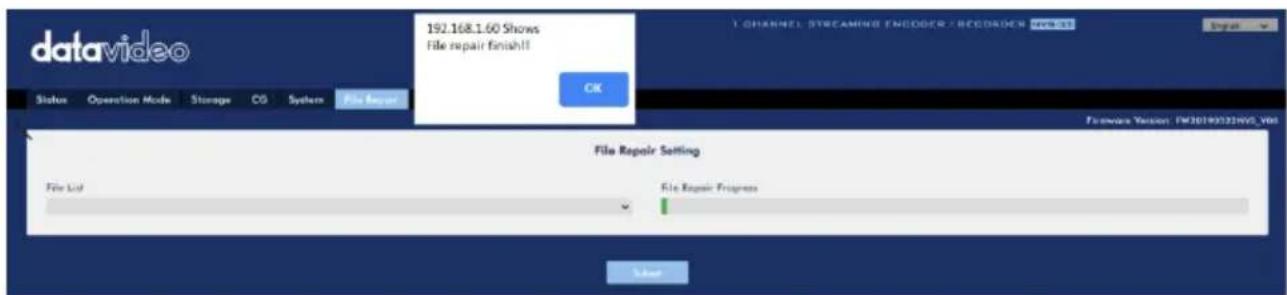

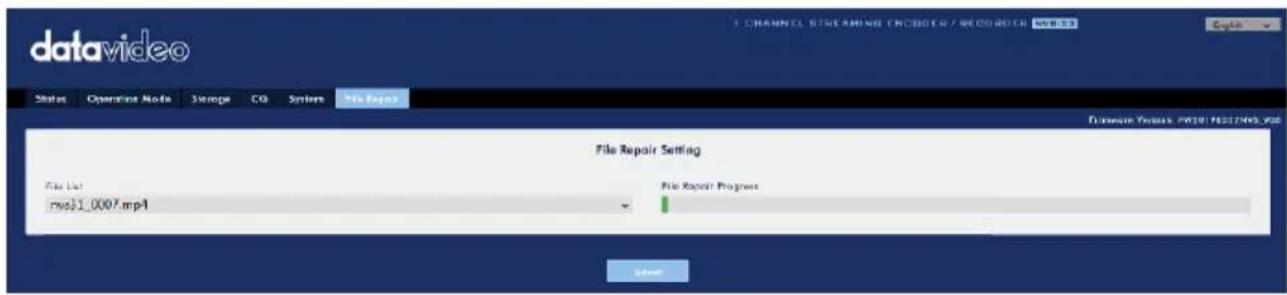

How to repair a damaged MP4 recording?

Go to the File Repair page in the web UI, select the damaged file from the list, and click Submit. If repair succeeds, a new file with '-new' suffix is created. Requires firmware FW20190522 or later.

What is the warranty for the NVS-33?

The standard warranty is 1 year from purchase. If you register the product on the Datavideo website within 30 days, the warranty is extended to 3 years (certain parts have limited coverage).

USER MANUAL NVS-33 DataVideo

WARNINGS AND PRECAUTIONS 4

WARRANTY 5

STANDARD WARRANTY 5

THREE YEAR WARRANTY 6

DISPOSAL 6

1 INTRODUCTION....7

1.1 FEATURES 7

1.2 SYSTEM DIAGRAM....8

2 CONNECTIONS AND CONTROL 9

2.1 FRONT PANEL 9

2.2 REAR PANEL 12

3 VIDEO STREAMING 14

3.1 STREAMING NETWORK CONNECTION AND DEVICE SEARCH 14

Connecting to a DHCP Network (DHCP Mode) 14

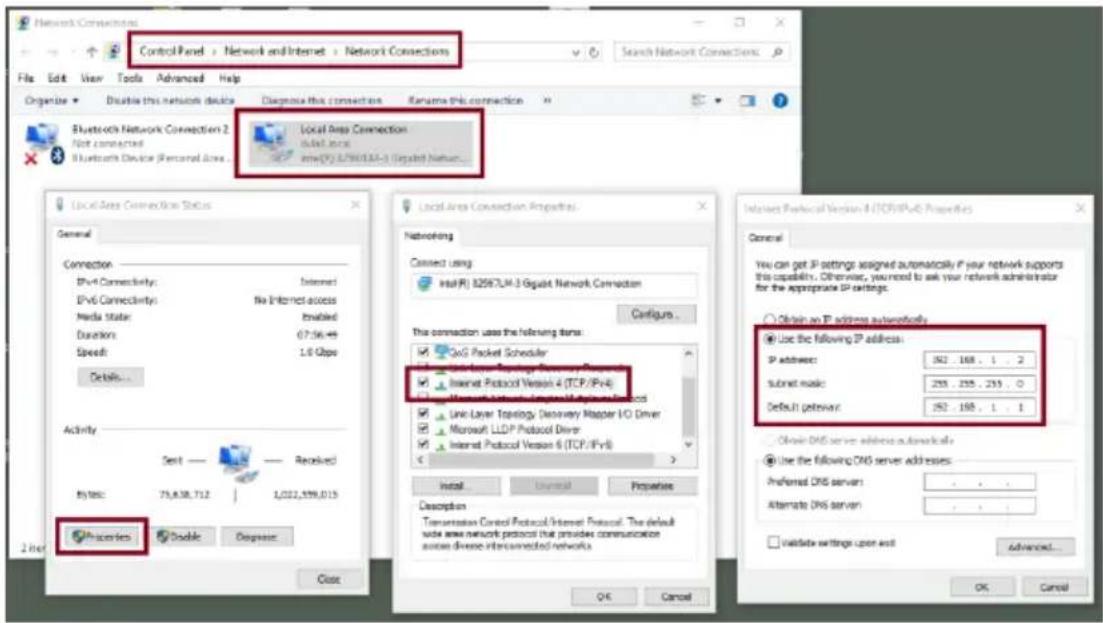

Connecting to a NON-DHCP Network (Static IP).... 15

Troubleshooting the Network Connection.... 16

3.2 WEB USER INTERFACE....19

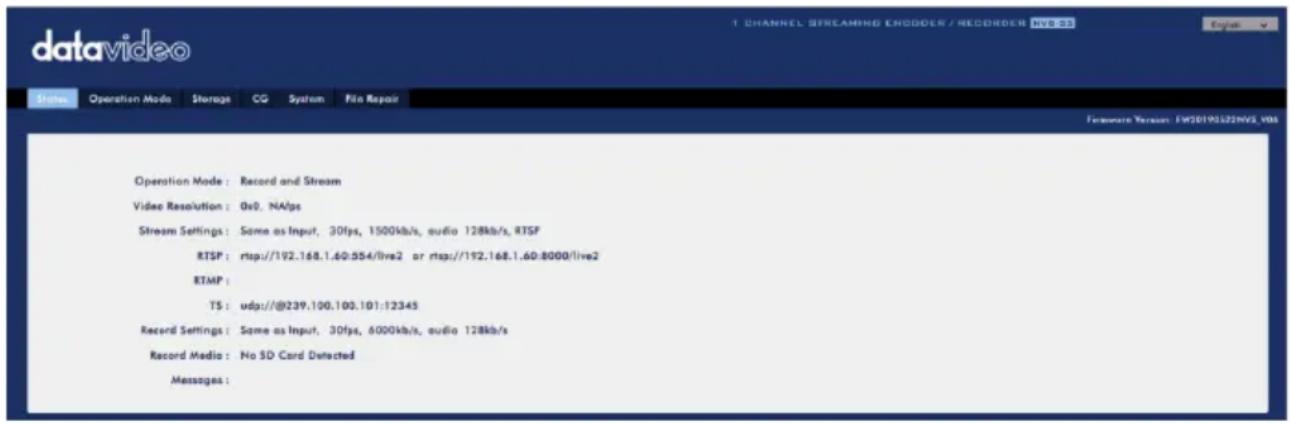

Status.... 20

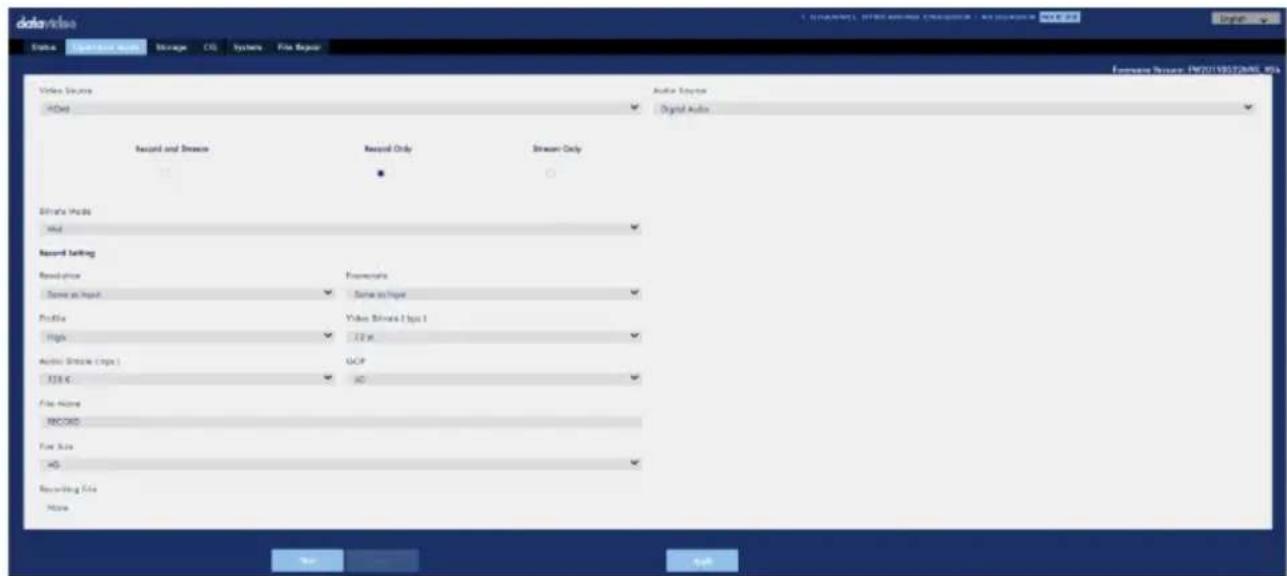

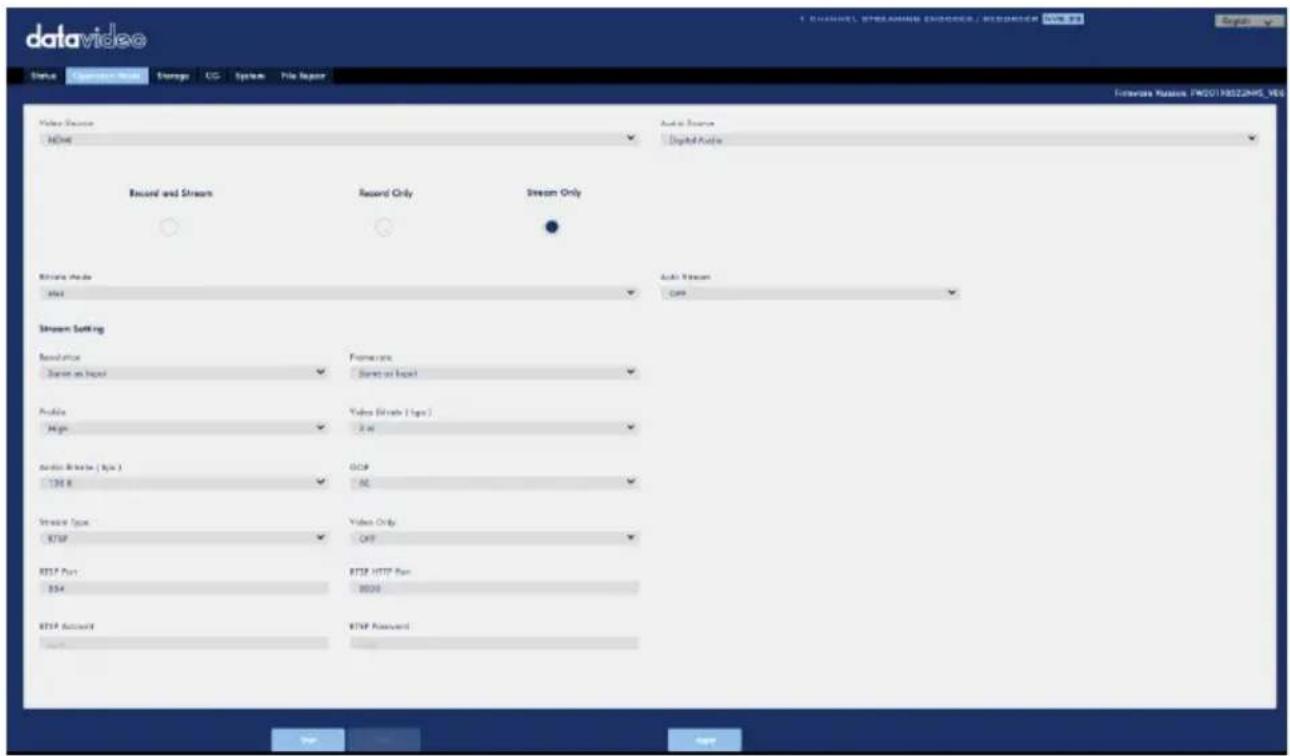

Operation Mode 21

Storage.... 34

CG 37

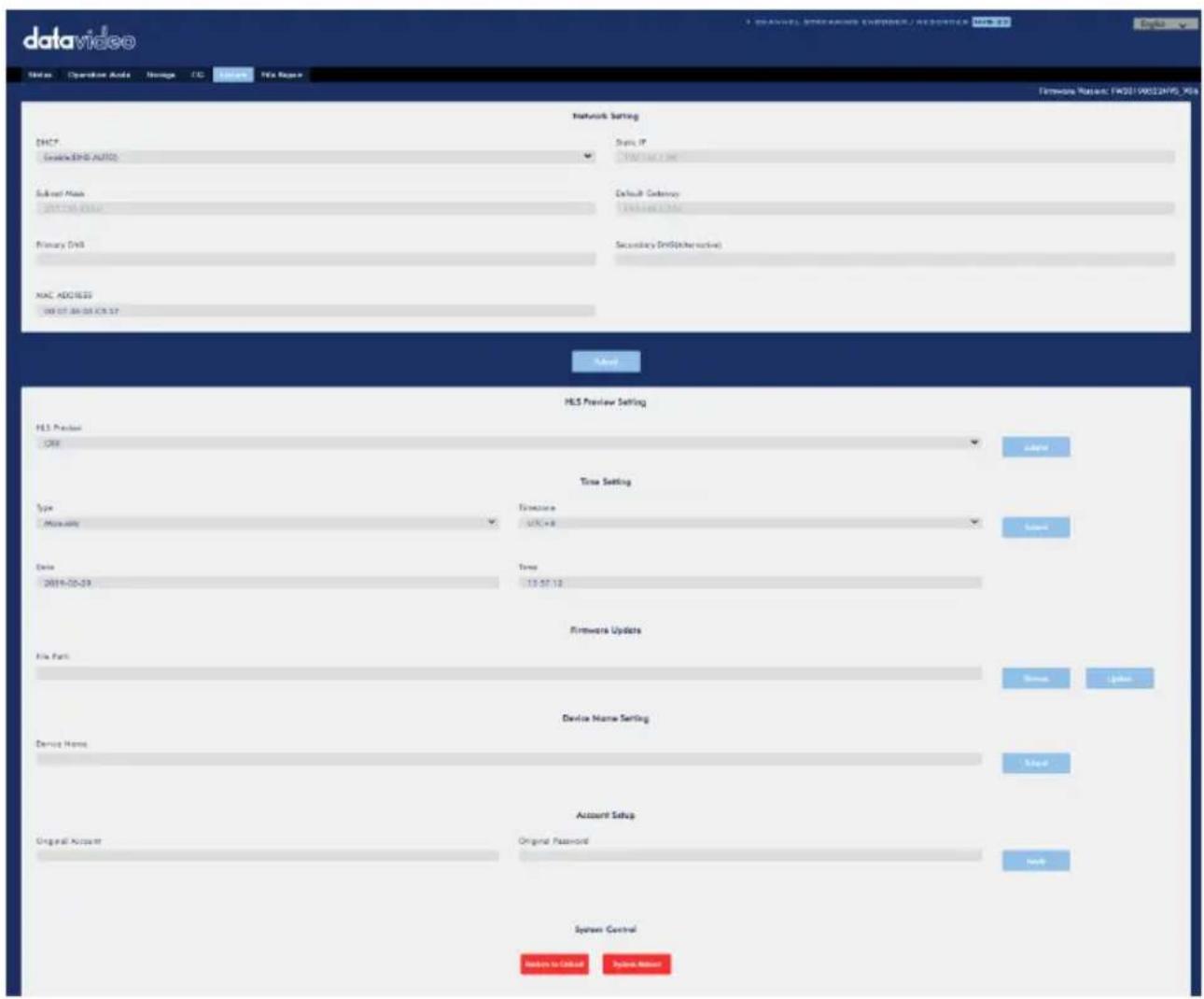

System.... 38

File Repair 43

3.3 OPERATIONS....44

Video Streaming 44

Text Overlay Video.... 53

4 FIRMWARE UPGRADE 55

5 DIMENSIONS.... 57
6 SPECIFICATIONS 58

SERVICE AND SUPPORT 60

Disclaimer of Product & Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.

7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord rating.

10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could

result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.

1. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.

2. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:

a. When the power cord is damaged or frayed;

b. When liquid has spilled into the unit;

c. When the product has been exposed to rain or water;

d. When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been damaged;

f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Standard Warranty

- Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.

- The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.

- The product warranty period beings on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office.

- All non-Datavideo manufactured products (product without Datavideo logo) have only one year warranty from the date of purchase.

- Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.

- Viruses and malware infections on the computer systems are not covered under warranty.

• Any errors that are caused by unauthorized third-party software installations, which are not required by our computer systems, are not covered under warranty.
• All mail or transportation costs including insurance are at the expense of the owner.
• All other claims of any nature are not covered.
• All accessories including headphones, cables, and batteries are not covered under warranty.
• Warranty only valid in the country or region of purchase.
• Your statutory rights are not affected.

Three Year Warranty

- All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase.

- Certain parts with limited lifetime expectancy such as LCD panels, DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.

- The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

Disposal

Symbol of a trash bin crossed with diagonal lines, no text or labels present

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The

separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1 Introduction

The Datavideo NVS-33 is a video streaming server designed for various network environments, offering you multiple bitrate settings as well as the flexibility of streaming and recording either individually or simultaneously.

From any SDI/HDMI input sources, the Datavideo's video streaming server generates an H.264 encoded stream that is compliant with RTSP or RTMP(S) protocols.

Additionally, you can also connect an external RCA Unbalanced Audio source to the NVS-33.

While encoding the video at bitrates appropriate for live streaming, the Datavideo NVS-33 concurrently records a high-quality MP4 file to an SD card formatted to NTFS or FAT32 file system.

1.1 Features

Major Five Features

• Simultaneous H.264 video streaming and recording at multiple bitrates
  • Supports FAT32 and NTFS file format for continuous footage recording
• Selectable audio sources such as SDI/HDMI embedded audio, external RCA unbalanced audio and both
• Supports multilingual web based control interface (English, Traditional Chinese and Simplified Chinese)
• Bicolor LEDs for status indication

Supported Input Formats

• 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
• 1080i at 50/59.94/60 fps
• 720p at 50/59.94/60 fps
- 480i at 59.94 fps
- 576i at 50 fps

Operating System and Web Browser for the Web UI

- Operating Systems

• Microsoft Windows 8.1 (64-bit)
• Microsoft Windows 10 (64-bit)

- Web Browsers

• Microsoft Internet Explorer
• Microsoft Edge

- Google Chrome

Streaming

- Video streaming protocols are RTSP, RTMP, RTMPS, TS, HLS and SRT supported by the following:

• Adobe Media Server and Wowza Media Server.
• Video Players such as QuickTime and VLC.
• Content Delivery Networks such as Youtube Live and Ustream.

Recording

- Records MP4 or TS file to an SD card formatted to NTFS or FAT32 file system (TS file is currently not supported)

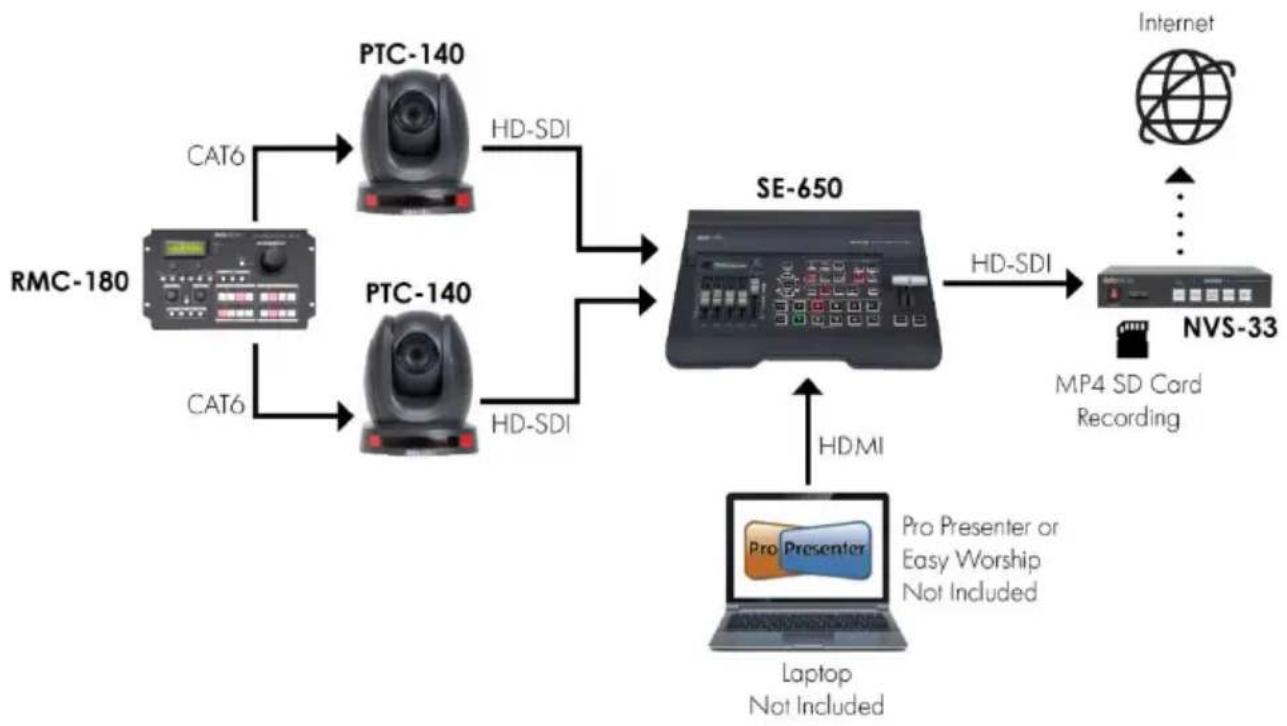

1.2 System Diagram

2 Connections and Control

In this section, we will show you how you can operate the device as well as the device setup.

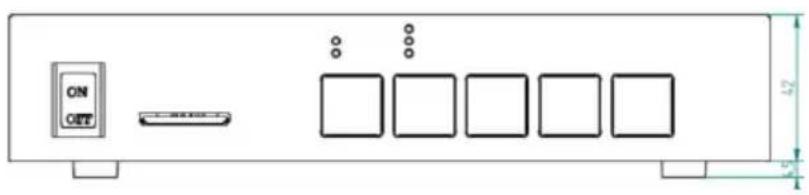

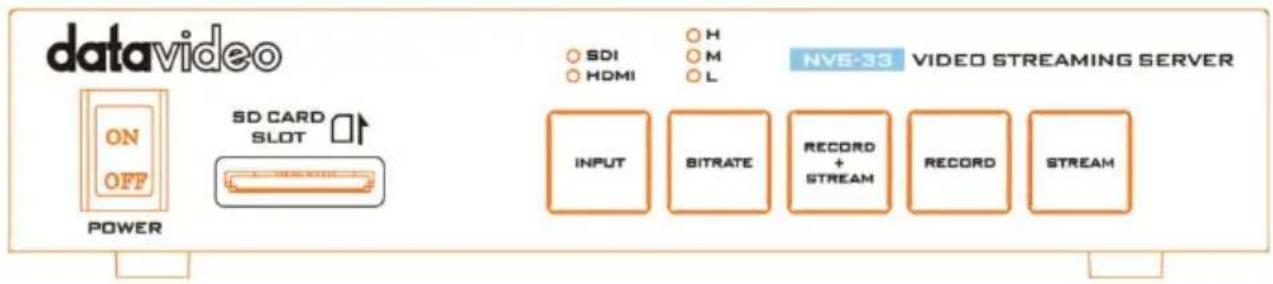

2.1 Front Panel

Power Switch

Turn on/off the device.

SD Card Slot

The SD Card Slot allows insertion of an SD Card for video recording.

INPUT Button

Press the INPUT button to select between SDI and HDMI input sources. The button is always in solid white.

The activated input source will be indicated by the corresponding LED.

• Green: Input source activated
- Off: Input source deactivated

Note: The Input button is disabled while streaming or recording is in progress.

BITRATE Button

Switch the stream/record bitrate mode using the BITRATE button; follow the steps outlined below:

• Press and hold one of the RECORD+STREAM button, the RECORD button and the STREAM button until the pressed button starts blinking red.
• Continue holding down one of the RECORD+STREAM button, the RECORD button, and the STREAM button while pressing the BITRATE button to switch bitrate mode (H, M or L).

Note: The system will return to the previous setting if the BITRATE button push is not sensed. The default bitrate is M.

H/M/L LED Indicators

ON (Green): Bitrate mode enabled

OFF: Bitrate mode disabled

The RECORD+STREAM button activates and deactivates simultaneous recording and streaming; follow the steps outlined below:

Start recording/streaming simultaneously

• When idle, the RECORD+STREAM button is solid white.
• Press and hold the RECORD+STREAM button for approximately 2 seconds (Note: the previously activated mode will be disabled).
• When the record and stream functions are activating simultaneously, the RECORD+STREAM button turns from solid white, then blinking red and finally to solid red.
• When the RECORD+STREAM button turns solid red, this indicates that the record and stream functions have been successfully activated.

Stop recording/streaming simultaneously

• While recording and streaming simultaneously, the RECORD+STREAM button is solid red.
• Press and hold the RECORD+STREAM button for approximately 2 seconds.
• When the record and stream functions are terminating, the RECORD+STREAM button turns from solid red, then blinking red and finally to solid white.
• When the RECORD+STREAM button turns solid white, this indicates that the record and stream functions have been successfully terminated.

RECORD Button

The RECORD button activates and deactivates the RECORD Only mode; follow the steps outlined below:

Start recording

• When idle, the RECORD button is solid white.
• Press and hold the RECORD button for approximately 2 seconds.
• When the record function is activating, the RECORD button turns from solid white, then blinking red and finally to solid red.
• When the RECORD button turns solid red, this indicates that the record function has been successfully activated.

Stop recording

• While recording, the RECORD button is solid red.
• Press and hold the RECORD button for approximately 2 seconds.
• When the record function is terminating, the RECORD button turns from solid red, then blinking red and finally to solid white.
• When the RECORD button turns solid white, this indicates that the record function has been successfully terminated.

Note: The RECORD button is disabled in Stream Only mode.

STREAM Button

The STREAM button activates and deactivates the STREAM Only mode; follow the steps outlined below:

Start streaming

• When idle, the STREAM button is solid white.
• Press and hold the STREAM button for approximately 2 seconds.
• When the stream function is activating, the STREAM button turns from solid white, then blinking red and finally to solid red.
• When the STREAM button turns solid red, this indicates that the record function has been successfully activated.

Stop streaming

- While streaming, the STREAM button is solid red.

• Press and hold the STREAM button for approximately 2 seconds.
• When the stream function is terminating, the STREAM button turns from solid red, then blinking red and finally to solid white.
• When the STREAM button turns solid white, this indicates that the stream function has been successfully terminated.

Note: The STREAM button is disabled in Record Only mode.

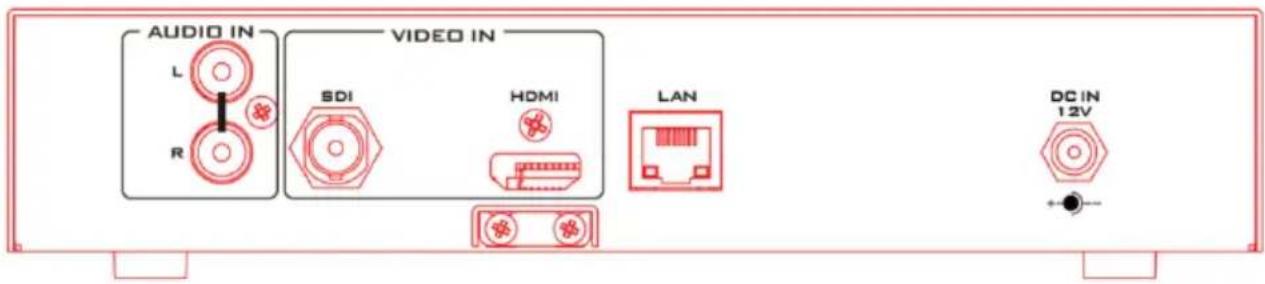

2.2 Rear Panel

Audio Input

RCA Unbalanced Audio Input

Connect an unbalanced stereo audio source for streaming and recording.

Video Input

HDMI

HDMI Input

Connect an HDMI video source.

SDI

SDI Input

Connect an SDI video source.

Network

LAN

LAN

The LAN port connects the device to the Internet via an Ethernet cable.

Power

DC IN 12V

DC in socket connects the supplied 12V PSU. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket.

3 Video Streaming

In this section, we will show you ways to set up and start your video streams.

3.1 Streaming Network Connection and Device Search

Let's first detail how to connect the NVS-33 to a network with or without a DHCP server, and describes how to acquire the NVS-33's IP address.

Connecting to a DHCP Network (DHCP Mode)

Follow the procedure below to scan your DHCP network for connected NVS-33 devices.

Note: The NVS-33 will be automatically assigned an IP address upon connection to the DHCP network.

1. Connect the NVS-33's LAN port to the network via an Ethernet cable.

2. Turn on the NVS-33's power, and the NVS-33 will also be turned ON in the DHCP mode by default.

1. Connect the laptop to the same network that the NVS-33 is connected to and download the free IP Finder utility program from the product page https://www.datavideo.com/tw/product/NVS-33.

2. Double click the IP Finder utility program icon to open the IP Finder interface.

3. Click the SCAN button to start searching for connected devices.

Connecting to a NON-DHCP Network (Static IP)

Upon connection to a non-DHCP network, the NVS-33 will not be assigned of any IP addresses. As such it is recommended that you manually assign a fixed IP address to the device or use the default IP address (192.168.1.60).

Default Fixed IP

Default Fixed IP is primarily used in point-to-point connection, such as connecting the PC to the NVS-33 directly. In a non-DHCP environment, the NVS-33 works in fixed IP mode only. To configure the NVS-33 to the default IP, please follow the steps outlined below:

1. Connect the NVS-33's LAN port to the network via an Ethernet cable.

2. Turn on the NVS-33's power and the NVS-33 will also be turned ON in the DHCP mode by default.

3. Search for the NVS-33 device according to the method as detailed in the previous DHCP section. Once found, log into the user interface on the web browser.

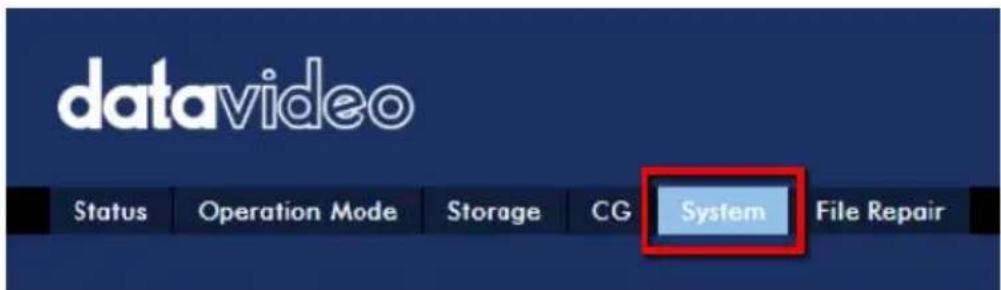

4. Enter the system page by clicking the "System" tab on the home of the user interface.

5. In the "Network Setting", disable the DHCP mode.

6. You will then be allowed to manually enter the static IP address once the DHCP mode is disabled. The static IP is 192.168.1.60 by default. The subnet mask and default gateway are 255.255.255.0 and 192.168.1.254 respectively.

Tip: If you forget or lose the IP address, do the following to reset the network settings.

- Please restart the power of the NVS-33 and all buttons will be shown in solid white at this time.

- Please wait for about 30 seconds. After that, all buttons will be shown in red and then go back to solid white.

- Please press the RECORD and STREAM buttons at the same time.

- When buttons are shown in blinking red for about 5 seconds, please release the pressed buttons. At this time, all buttons will go back to solid white.

- Please reboot your PC.

• The IP address should be the default IP which is 192.168.1.60.

Troubleshooting the Network Connection

Connect the NVS-33 to the network and open the IP Finder utility program. Scan for the device. If not found, it is possible that your network is not assigning IP addresses. Reasons of this are outlined as follows:

• Router or DHCP server is not connected to the network.
• New devices are blocked by the network administrator.
• Anti-virus software or the firewall blocks the communication.

Solve the problem by attempting the following:

• Turn off the router, wait for 10 seconds then turn on the router again.

• Reset the NVS-33 to the factory default:

• Please restart the power of the NVS-33 and all buttons will be shown in solid white at this time

• Please wait for about 30 seconds. After that, all buttons will be shown in red and then go back to solid white.
• Please press the RECORD and STREAM buttons at the same time.
• When buttons are shown in blinking red for about 5 seconds, please release the pressed buttons. At this time, all buttons will go back to solid white.
• Please reboot your PC.

If the problem still persists, try the following ways:

• Temporarily shut down the anti-virus software or firewall.
• Make sure no other devices are connected to the LAN (wired or wireless) because this may result in IP conflicts.

After trying all methods and if the problem is still not solved, the NVS-33 video streaming server offers the fixed IP feature that allows you to establish direct connection to the NVS-33. The default IP address is 192.168.1.60.

This method allows you to configure the NVS device to the IP range of your network so that you do not need a DHCP server to gain access to the NVS device.

- Connect your PC to the NVS device directly using an Ethernet cable (not necessarily a crossover cable).

Next, change the network settings of your Windows7 or Windows 10 PC or laptop.

• Click START located at the bottom left corner of your screen.
• On the text bar, enter Network Connections then click the icon that appears.
• Double click the network adapter that connects your PC or laptop to the network.

- Click the "Properties" button.

- Select "Internet Protocol Version 4 (TCP/IPv4)" option and click the "Properties" button.

- Check the "Obtain an IP address automatically" option.

- Enter IPv4 settings:

- IP Address: 192.168.1.2

- Subnet Mask: 255.255.255.0 (System default is 255.255.255.0)

- Default Gateway: Not required for one-to-one connection.

- Subnet Mask: 255.255.255.0 (System default is 255.255.255.0) - Default Gateway: Not required for one-to-one connection.

Note: Please write down the IPv4 address previously entered as it may be needed after you are done with streaming or recording.

- The NVS-33 should now be connected with an IP address of 192.168.1.60. If the NVS-33 still cannot connect, simply restore the NVS-33 to the factory defaults.

• Please restart the power of the NVS-33 and all buttons will be shown in solid white at this time.
• Please wait for about 30 seconds. After that, all buttons will be shown in red and then go back to solid white.

• Please press the RECORD and STREAM buttons at the same time.

• When buttons are shown in blinking red for about 5 seconds, please release the pressed buttons. At this time, all buttons will go back to solid white.

• Please reboot your PC.
• Make sure no other devices are connected to the LAN (wired or wireless) because this may result in IP conflicts.

- Login the NVS-33 via a web browser.

• Default user name is admin
• Default password is 000000

- Click the "System" tab then on the system page, enter network settings such as static IP and default gateway. Make sure that the default gateway matches your connected network and no device shares the same IP as the NVS-33.

For example, if your router's default gateway IP is 10.10.1.1, then in the default gateway field, you should also enter 10.10.1.1. Then set the IP address of the NVS-33 to 10.10.1.X, which can range from 10.10.1.2 to 10.10.1.255. Pick an unused IP address.

Network Setting
DHCP	Static IP
Enable(DNS AUTO)	192.168.1.60
Subnet Mask	Default Gateway
255.255.255.0	192.168.1.254
Primary DNS	Secondary DNS(Alternative)
MAC ADDRESS
00:07:36:03:C0:20

• DHCP: Disable
• Static IP: X.X.X.Y; the first three decimal numbers must be the same as your router or switch. The number Y must be a number not used by any devices connected to the network.
• Subnet Mask: 255.255.255.0
• Default Gateway: Z.Z.Z.Z; same as the gateway IP of your router or switch.

Note: Some router may require special gateway IP setting; instead of the standard 192.168.1.1. Therefore, you should check the network properties on the PC before switching to the fixed IP mode.

For example, some routers have a gateway IP of 192.168.1.254 and as a result, the default gateway and primary DNS fields on the NVS-33 must also be configured to 192.168.1.254.

• Primary DNS: Same as the default gateway IP, which, if causing issues, can be changed to 8.8.8.8 or 8.8.4.4 (Public DNS provided by Google).
• Click the "Submit" button to save the network settings.
• Reconnect the PC and the NVS-33 to the network.
• Restore the PC's original network settings.
• Shut down the NVS-33; wait for approximately five seconds before turning the NVS-33 back ON.
• You should be able to access the NVS-33 through the fixed IP address.

Advanced Troubleshooting

If you still are unable to connect, please try the following:

• Use the ARP table to search for the encoder's MAC address; the device's MAC address is on the print label at the bottom of your NVS-33.
  • MAC address starts with 00:07:36:03:xx:xx.
• On the command prompt (terminal on MAC OS), enter "arp -a" then press enter key to display an ARP list. See if the NVS-33 is successfully connected to the network.
• Execute services.msc, and on the right column of the "Services" window, locate "DHCP Client" then click "Restart".
• On the command prompt, enter ipconfig/flushdns followed by ipconfig/release and ipconfig/renew.

3.2 Web User Interface

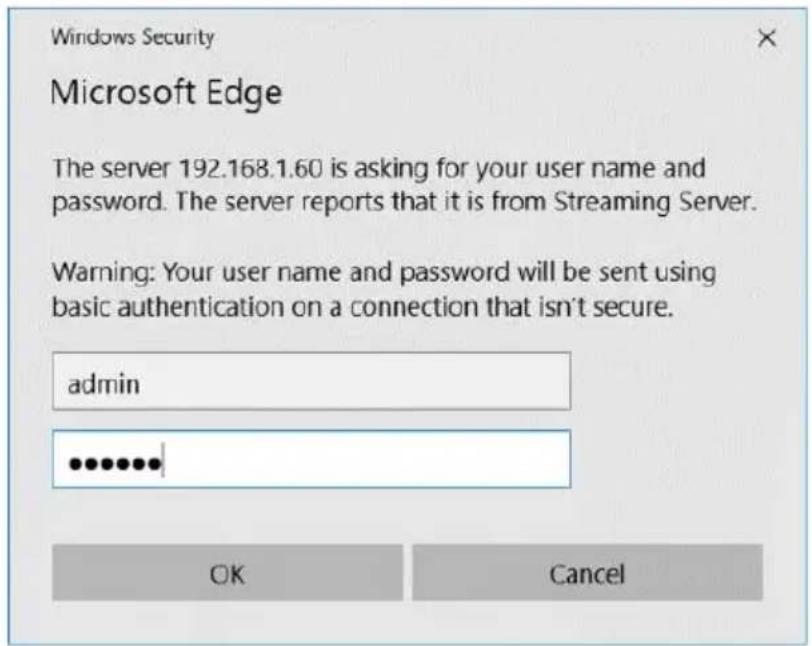

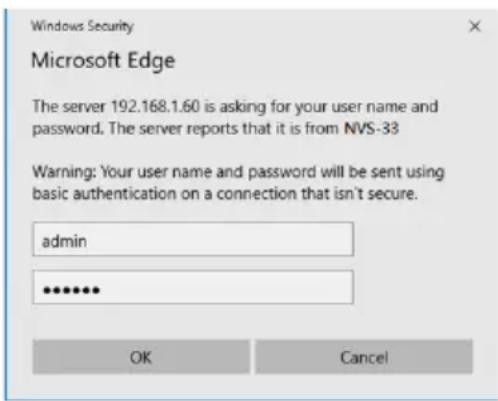

By now, we have obtained the IP addresses of the PC and the NVS-33. Enter the NVS-33's IP address into the address bar of a browser then hit the ENTER button. Login by entering the user name as well as the password into a pop-up dialogue box as shown below.

Username: admin

Password: 000000

Click OK to login. Once logged in, the first page that appears will be the Status page.

Status

You will see the Status page immediately after logging into the NVS-33 web UI. On the Status page, you will be able to view the Operation Mode, Video Resolution, Stream Settings, Record Settings, Record Media and Messages.

Note: The NVS-33 web UI does not update automatically so to learn the latest device status, please refresh the page manually.

While monitoring streaming and recording, please update the page periodically regardless of how you operate the device (using the device's physical buttons only or using the device's physical buttons along with the web UI). This ensures the page is always displaying the most up-to-date information.

"Messages" should display the error code if an error occurs. The device's error codes are listed in the table below.

Error Messages	Descriptions	Error Code
STR_UP_ETH_LINK_DOWN	Ethernet Link Down	133
STR_UP_ETH_LINK_RESTORE	Ethernet Link Up from Down	134
STR_UP_ETH_CONN_ERR	RTMP Cannot Publish (Retrying)	140
STR_UP_ENC_START_ERR	Encoder Start Failed	129
STR_UP_ENC_BUFF_ERR	Encoder Buffer Error	130
STR_RUN_ETH_LINK_DOWN	Ethernet Link Down (Dropped)	133
STR_RUN_ETH_CONN_ERR	RTMP Drop Connection (Retrying)	140
STR_RUN_ENC_BUFF_ERR	Encoder Buffer Error	130
STR_RUN_PROG_BUFF_ERR	Streamer Buffer Error	137
STR_RUN_PROG_SOCKET_ERR	Streamer Socket Error	140
STR_STOP_PROG_EXIT_ERR	Streamer Stop Failed	141
REC_UP_DISK_ERR	Disk Bad Sectors/Read Only/File System Error	148
REC_UP_DISK_EMPTY	No Disk	144
REC_UP_ENC_START_ERR	Encoder Start Failed	129
REC_UP_ENC_BUFF_ERR	Encoder Buffer Error	130
REC_UP_PROG_START_ERR	Recorder Start Failed	148
REC_UP_PROG_BUFF_ERR	Recorder Buffer Error	154
REC_RUN_DISK_FULL	Disk Full	151
REC_RUN_ENC_BUFF_ERR	Encoder Buffer Error	130
REC_RUN_PROG_WRITE_ERR	Recorder Write Failed	153
REC_RUN_PROG_BUFF_ERR	Recorder Buffer Error	137
REC_STOP_DISK_EXIT_ERR	Unmount Disk Failed	156
REC_STOP_PROG_EXIT_ERR	Recorder Stop Failed	157

Operation Mode

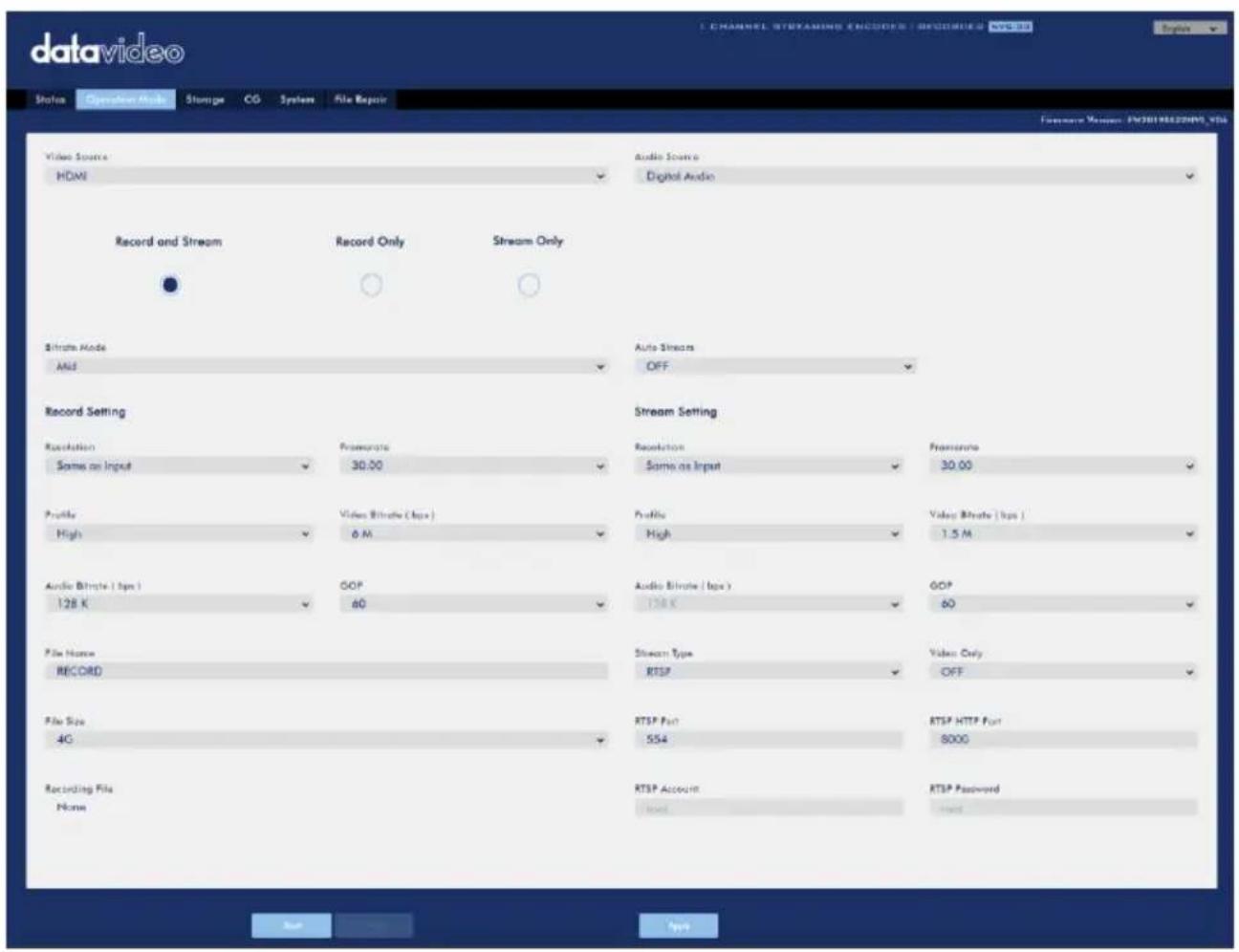

Click the Operation Mode tab on the tool bar to open the operation mode configuration page.

The NVS-33 offers the following operation modes:

• Record and Stream: Streaming and recording functions are enabled at the same time.
  • Stream Only: Only streaming mode is enabled.
  • Record Only: Only recording mode is enabled.

In each mode, the user will be allowed to customize various stream and record settings.

In the Stream Only mode, user can set various parameters including Video Source, Audio Source, Bitrate Mode, Auto Stream, Resolution, Framerate, Profile, Video Bitrate (bps), Audio Bitrates (bps), GOP and Stream Type.

Five stream types are available on the NVS-33 and they are RTSP, RTMP, TS, HLS and SRT. See Section 3.3 for details.

Click the "Apply" button to apply the new stream settings. Click the "Start" button to open the stream and the "Stop" button to end the stream.

As for recording, the settings are Video Source, Audio Source, Bitrate Mode, Resolution, Framerate, Profile, Video Bitrate(bps), Audio Bitrate(bps), GOP, File Name and File Size.

Click the "Apply" button to apply the new record settings. Click the "Start" button to start recording and the "Stop" button to stop recording.

Stream and Record Settings

In the section, you will be introduced various setting options of stream and record functions.

Common Setting Items for Streaming and Recording
	Video SourceSelect SDI or HDMI as the video input source from this drop-down menu.
Audio Source	Audio SourceThis drop-down menu allows users to select the audio source of your video stream. The options are embedded audio (Digital Audio), external audio (RCA Analog Audio) and mixed audio (Audio Mixer).
Bitrate ModeMidHighMidLow	Bitrate ModeThe bitrate mode sets the video bitrate mode for your video stream. The available modes are high, mid and low.Note: You can also switch between different bitrate modes by pressing the Bitrate button on the front panel. SeeSection 2.1for details.
Stream Encoder Settings
ResolutionSame as InputSame as Input1920 × 10801280 × 720960 × 540720 × 576720 × 480640 × 480320 × 240160 × 128	ResolutionThe first step of encoder setup is to adjust the image size. It is best to either match your original video source or scale it down. For example, capture at HD 720 and stream at HD 720. Or capture at HD 720 and stream at 540 (high).You should never be scaling up and streaming at a higher resolution than your original video source. For example, it does not make sense to capture at 720 and stream at 1080. Note that you will also have no gain in quality and you are using more bandwidth than is necessary for your viewers.You should also be aware that higher resolutions require greater processing power to encode the stream. Attempting too high of a resolution on too little processing power can result in degraded image quality and corrupted or interrupted streams or recordings.Frame RateSelect a frame rate from the drop-down menu for video streaming. Note that frame rates should always match the frame rate of the video source.
	Auto StreamIf the Auto Stream is enabled, in the event of power outage, the stream will be automatically restored after the switcher is powered ON again.
	ProfileProfile sets the H.264 encoding profile for your stream. The available options are Baseline, Main, and High. Typically, High profile provides the best image quality and is suitable in most instances. However, depending on the decoder used when viewing the stream, such as with mobiles devices, a Main or Baseline profile may be required.
Video Bitrate (bps)1.5 M8 M7 M6 M5 M4 M3 M2.5 M2 M1.5 M1 M512 K256 K	Video Bitrate (bps)The bitrate of the video specifies the amount of information stored in the video. The higher the bitrate is, the clearer the video is. However, when choosing your encoding settings for streaming, you should first check your available upload bandwidth. A good rule of thumb is for the bitrate of your stream to use no more than 50% of your available upload bandwidth capacity on aDEDICATEDline. For example, if the result you get from a speed test shows that you have 2Mbps of upload speed available, your combined audio and video bitrate should not exceed 1Mbps.Usually high bitrate means good image quality; however, there are also exceptions. For example, SD video may appear acceptable at 1000 Kbps (1M) but HD video is unacceptable at 1000 Kbps. Therefore we recommend the following settings for your video bitrate:When NVS-33 is in record-only mode, the recommended video bitrate is 15 Mbps.When NVS-33 is in stream-only mode, the recommended video bitrate is 10 Mbps.When NVS-33 streams and records simultaneously, sum of the stream and record video bitrates should not exceed 12Mbps.
	Audio Bitrate (bps)The NVS-33 offers the user the following audio bitrates at which you may want to stream the audio. It is recommended to select 128Kbps or higher.

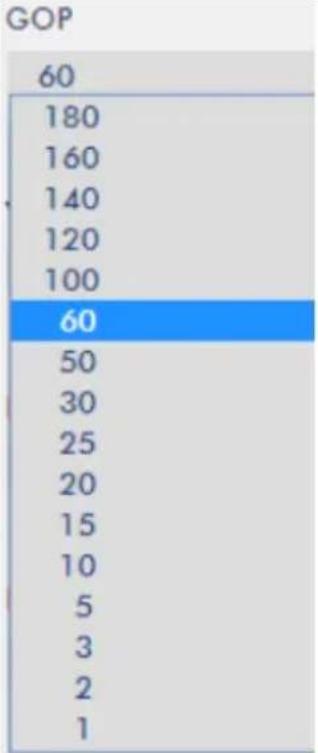

GOP60180160140120100605030252015105321	GOPGOP pattern with longer GOP length encodes video very efficiently. Shorter GOP lengths usually work better with video that has quick movements, but they do not compress the data rate as much. Depending on your applications, the NVS-33 offers the user 16 GOP sizes ranging from 1 to 180.
Stream Settings
Stream TypeRTSPRTSPRTMPTSHLSSRT	Stream TypeThe NVS-33 offers the user five stream types. There are RTSP, RTMP, TS, HLS and SRT.Please note that when streaming, the NVS-33 converts video into data, which are sent across an IP network. High bitrates consume more bandwidth across the IP network. In a gigabit office LAN, high bitrate may not be a concern and Speed/Bandwidth is therefore not the limitation in a NVS-33 application environment.If your available bandwidth is limited, you should reduce both your resolution and your bitrate accordingly. A good rule of thumb is for the bitrate of your stream to use no more than 50% of your available upload bandwidth capacity on a dedicated line. For example, if the result you get from a speed test shows that you have 2Mbps of upload speed
	available, your combined audio and video bitrate should not exceed 1Mbps.
Stream Type - RTSP
	RTSP PortRTSP Port is 554 by default.
	RTSP HTTP PortRTSP HTTP port is 8000 by default.
	Video OnlyEnable this option if you just want to stream the video without the audio.
RTSP Username/PasswordThe account and password are root by default.

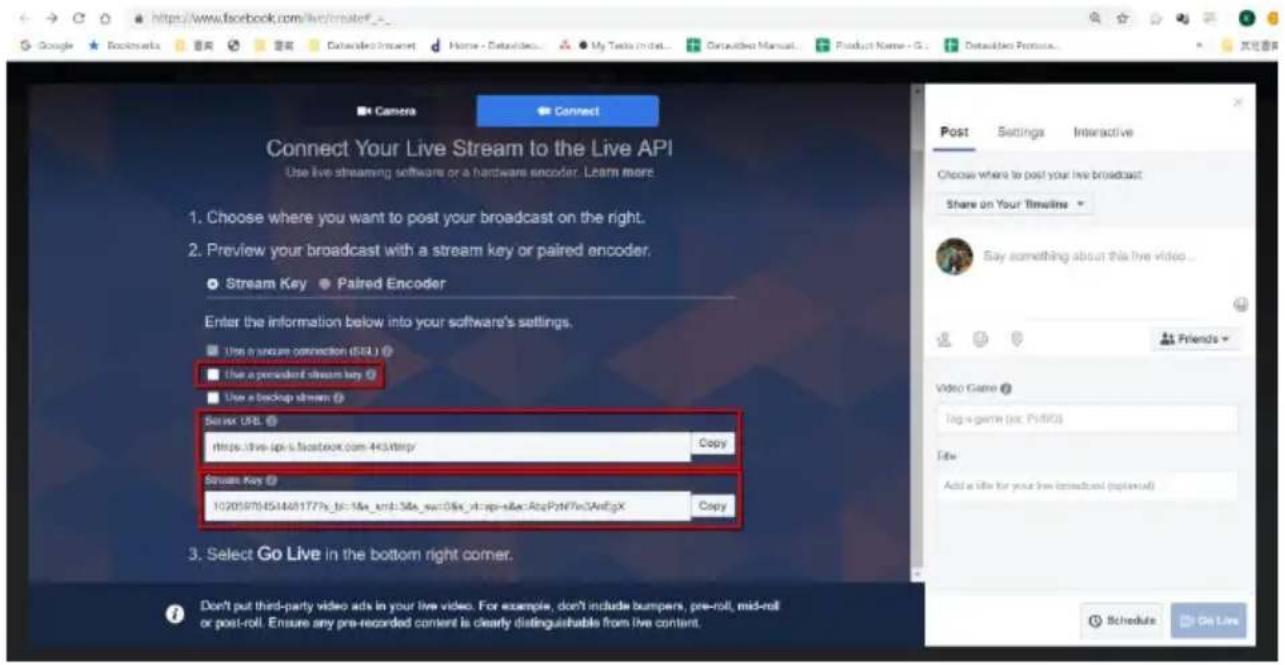

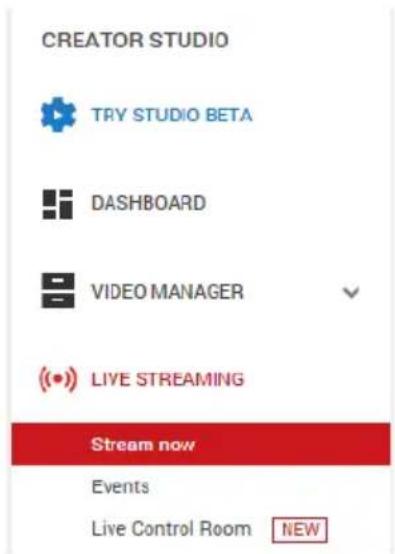

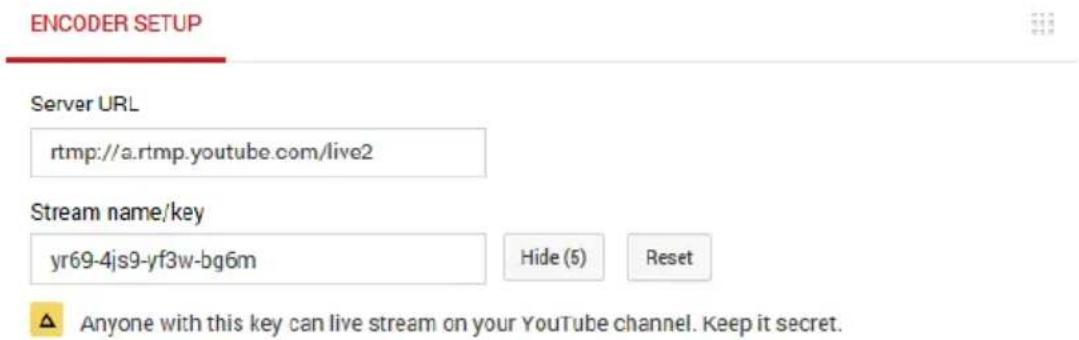

		RTMP URLEnter the RTMP/RTMPS URL obtained from any live streaming platform such as Ustream.
StreamName		Stream NameEnter the stream name or key from any live streaming platform.
Account		AccountEnter your RTMP/RTMPS account name.
Password		PasswordEnter the password of your RTMP/RTMPS account.
		Audio OnlyIn this option, the user is allowed to choose to stream Audio Only or Video Only. If disabled, video and audio streams will be delivered simultaneously.

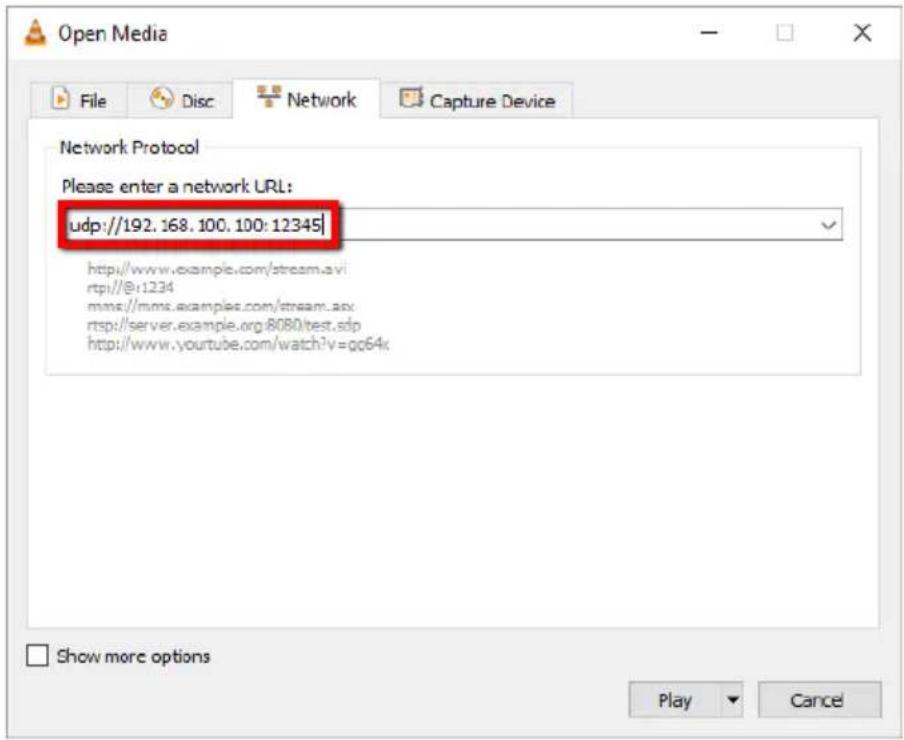

Stream Type - TS
TS Port12345		TS PortThe TS port number is 12345 by default.
TS IP239.100.100.100		TS IPThe TS IP address is 239.100.100.100 by default.
Video OnlyOFFOFFON		Video OnlyEnable this option if you just want to stream the video without the audio.

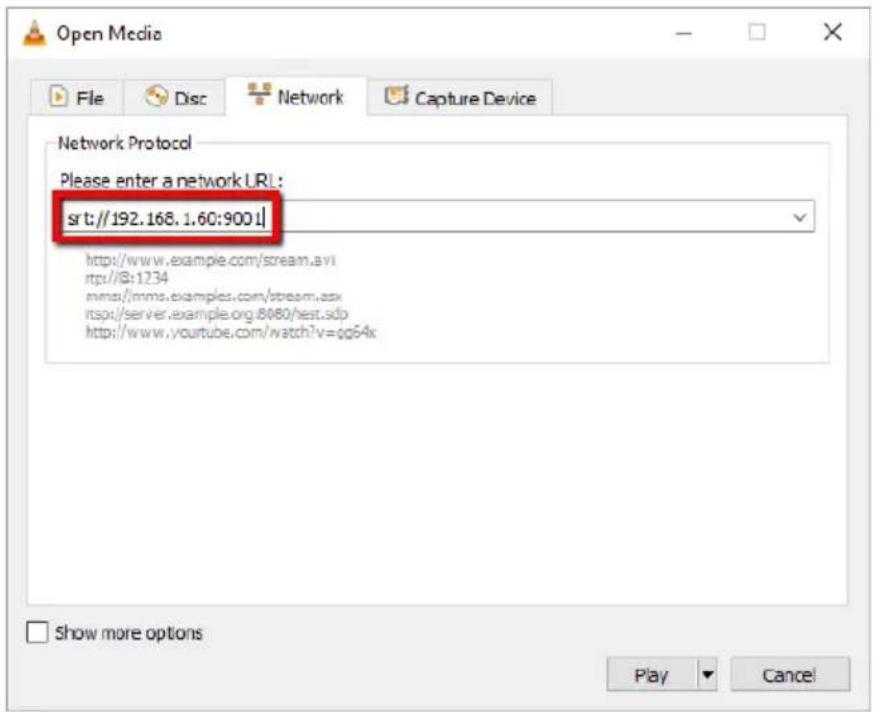

Stream Type - SRT
SRT Port9001		SRT PortThe SRT port is 9001 by default.
Play URLsrt://192.168.2.5:9001		Play URLA stream URL will be generated after the Start Stream button is clicked.
Record Encoder Settings
ResolutionSame as InputSame as Input1920 × 10801280 × 720960 × 540720 × 576720 × 480640 × 480320 × 240160 × 128		ResolutionRecording resolution is the number of pixels (dots) used to create an image. Higher resolutions use more pixels to create an image. This means that greater amounts of detail can be expressed in the image, but larger files sizes and a greater amount of storage (i.e. hard drive space) are required to save the images or video.

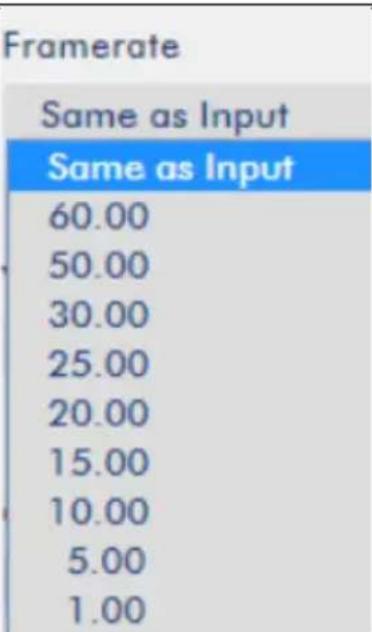

FramerateSame as InputSame as Input60.0050.0030.0025.0020.0015.0010.005.001.00		Frame RateFrame rate greatly impacts the style and viewing experience of a video. Different frame rates yield different viewing experiences, and choosing a frame rate often means choosing between things such as how realistic you want your video to look, or whether or not you plan to use techniques such as slow motion or motion blur effects.Below is a list of common options for different applications:24fps – This is the standard for movies and TV shows, and it was determined to be the minimum speed needed to capture video while still maintaining realistic motion.30fps – Videos with a lot of motion, such as sports, will often benefit from the extra frames per second.60+fps – Anything higher than 30fps is mainly used to create slow motion video or to record video game footage.
ProfileHighHighMainBaseline		ProfileProfile sets the H.264 encoding profile for your recorder. The available options are Baseline, Main, and High. Typically, High profile provides the best image quality and is suitable in most instances.
Video Bitrate (bps)12 M15 M12 M10 M8 M7 M6 M5 M4 M3 M2.5 M2 M1.5 M1 M512 K256 K		Video Bitrate (bps)The bitrate of the video specifies the amount of information stored in the video. The higher the bitrate is, the clearer the video is.Recommended video bitrate720P or lower - 8 - 10 mbps1080P or higher - 15 mbps or higher

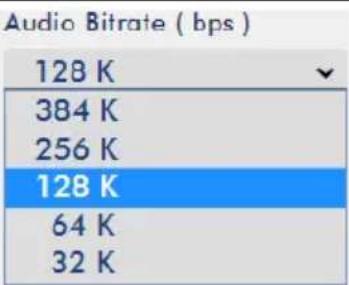

Audio Bitrate (bps)128 K384 K256 K128 K64 K32 K		Audio Bitrate (bps)The NVS-33 offers the user the following audio bitrates at which you may want to record the audio. It is recommended to record at 128Kbps or higher.GOPGOP pattern with longer GOP length encodes video very efficiently. Shorter GOP lengths usually work better with video that has quick movements, but they do not compress the data rate as much.Depending on your applications, the NVS-33 offers the user 16 GOP sizes ranging from 1 to 180.
Record Settings
File NameRECORD		File NameEnter the name of the recording file.
File Size4G200M500M1G2G4G		File SizeSelect the file size of a single recording file.
Recording FileNone		Recording FileDisplay the file that is currently being recorded.

Record Settings
File NameRECORD	File NameEnter the name of the recording file.
File Size4G200M500M1G2G4G	File SizeSelect the file size of a single recording file.
Recording FileNone	Recording FileDisplay the file that is currently being recorded.

Note: The record function is activated after the Start Record button is clicked. The REC indicator will appear as shown on the left. Flashing indicates that the record function is starting. A solid color indicator means the record function has been activated successfully (The indicator flashing three times

then turned off indicates an error). The activation time is approximately 2 to 3 seconds.

Storage

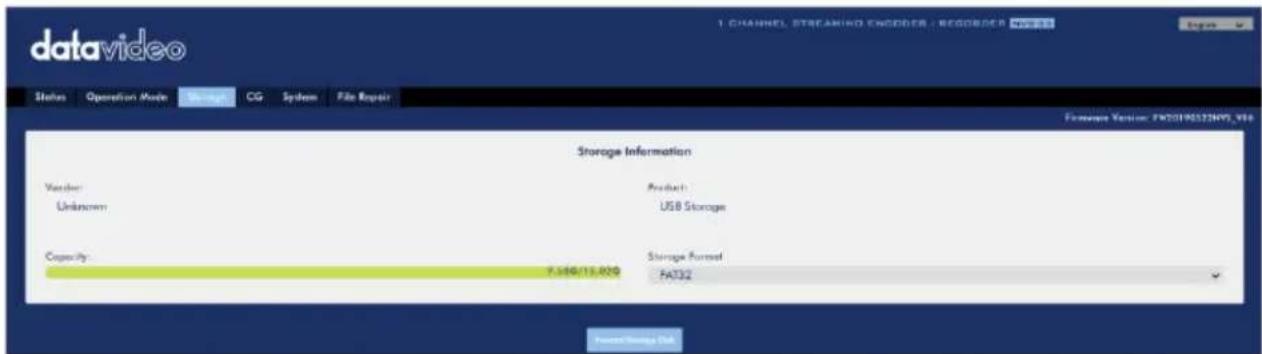

The SD card status can be found on the Storage page which is shown in the diagram below.

You should only use Class 10 SD card or above. Below is a list of SD cards recommended by Datavideo.

Recommended SD Cards
No.	Brand	Model	Pictures
1	Kingston	SDHC I C1016G
2	SANDISK Extreme	SDXC I C10 U3 V3064GB

3	SONY	SDXC | C10 U164GB
4	SANDISKExtreme PRO	SDXC | C10 U3128GB
5	SONY	SDXC | C10 U364GB
6	TOSHIBA	SDHC C1016GB
7	SANDISKExtreme	SDHC C1016GB

8	ADATAPremier Pro	microSDXC I UHS-I U3 Class 10 with SD adapter64GB
9	SANDISKULTRA®	SDHC ^TM /SDXC ^TM UHS-I128 GB

Compatible SD Card for Mobile Cast and NVS-33

1. Kingston SDHC C10 16GB

1. TOSHIBA SDHC C10 16GB

1. SANDISK Extreme SDXC C10 U3 V30 64GB

1. SANDISK Extreme SDHC C10 16GB

Storage Device Information
Vendor:Unknown	VendorDisplay of the manufacturer's information.

	Product:USB Storage	ProductDisplay of the name of the SD card.
	Capacity:9.58G/15.02G	CapacityDisplay of the SD card's total capacity and the remaining capacity.
		Storage FormatSelect a storage format before clickingFormat Storage Disk to format your SD card.FAT32EXFAT (not available yet)NTFS

CG

The CG function on the HS-3200's built-in video streaming server allows the user to place a textual layer on top of the video. The CG settings on the CG page are shown in the diagram below.

CG Settings
ON/OFFOFFOFFON	CG ON/OFFSelect ON/OFF from this drop-down menu to enable/disable the CG overlay function.
Text%H:%M:%S	TextEnter the text of the CG overlay.
Location-X200	Location-XEnter the x-coordinate of the CG overlay text.
Location-Y200	Location-YEnter the Y-coordinate of the CG overlay text.
BackgroundNoneNoneBlack	BackgroundUsers can either select a black background or none.
	Text SizeSelect the font size of your CG overlay text.

System

The system page of the NVS-33 video streaming server allows the user to configure several network and system related settings such as DHCP enable/disable, static IP address, subnet mask, default gateway, primary and secondary DNS, and etc.

The system settings are HLS preview enable/disable, time settings, firmware update, device name, and account login information.

The system page is shown in the diagram below.

Network Settings
DHCPEnable(DNS AUTO)Enable(DNS AUTO)EnableDisable	DHCP IP AssignmentSelect an option from this drop-down menu:Enable (DNS AUTO)EnableDisable
Static IP192.168.1.60	Static IP AddressThe static IP field will be activated for the user to manually enter an IP address once the DHCP is disabled. The static IP is 192.168.1.60 by default.Tip: If you do not know the device's IPaddress, you can always use the following method to reset the network settings. • Shut down the machine • Turn on the machine while holding down RECORD and STREAM buttons simultaneously. • Approximately after 5 seconds, release the RECORD and STREAM buttons as soon as the button LEDs are turned ON. • Fixed IP address is 192.168.1.60 by default.
Subnet Mask 255.255.255.0	Subnet Mask Static IP address mode requires subnet mask, which is 255.255.255.0 by default.
Default Gateway 192.168.1.254	Default Gateway Static IP address mode requires default gateway, which is 192.168.1.254 by default.
Primary DNS	Primary DNS (Optional) Primary DNS is required in static IP mode only but optional.
Secondary DNS(Alternative)	Secondary DNS (Optional) Secondary DNS is required in static IP mode only but optional.
MAC ADDRESS 00:07:36:03:C5:27	MAC Address Display of NVS-33's MAC address.Submit ButtonAfter the network settings are configured, click the Submit button to save the new settings.
	HLS PreviewHere you will be able to enable/disable HLS preview. Click the Submit button to save the new settings.
Time Setting
	TypeIn this drop-down menu, you can either select to allow the device to retrieve the time automatically from the Network Time Protocol (NTP) server or manually select a time zone from the Time Zone drop-down menu.

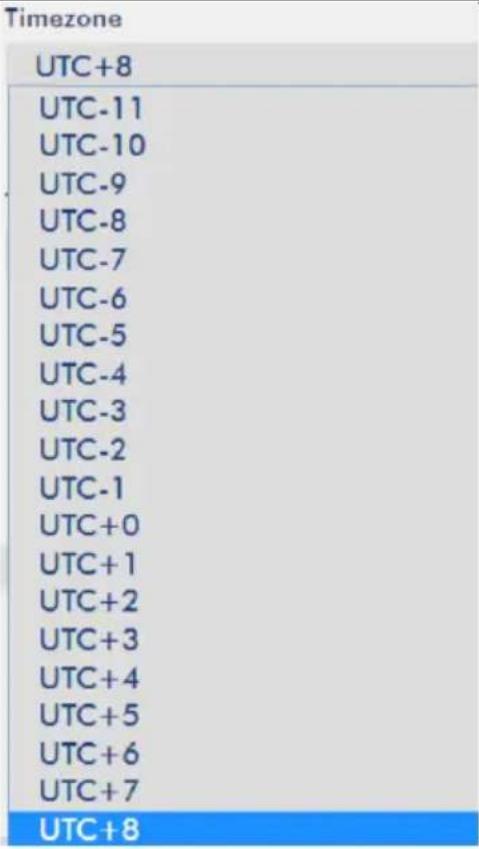

	Time ZoneClick the drop-down menu to select a time zone for your device.

Time Setting

Date2018-12-19Time15:16:38	Date/TimeDate and Time fields show the device's system date and time values.
	Click theSubmitbutton to save the new settings.
Firmware Update
	NVS-33 Firmware UpdateClick theBrowsebutton to search for the latest firmware file saved on the PC's hard disk. Click theUpdatebutton after the latest firmware file is uploaded.
Device Name Setting
	Device Name SettingEnter a name for this device and click theSubmitbutton to write this name into the device.
Account Setup
	Account SetupEnter the NVS-33's account name and password. Click theApplybutton to save the new settings.
System Control
	Restore to DefaultClick this button to restore default settings.System RebootClick this button to reboot the NVS-33.

File Repair

The system may crash while the recording is in progress. If this happens, your record file may be damaged. To repair a damaged file, go the File Repair page to run the file repair process.

Note: To use the file repair function, please upgrade your device to firmware version FW20190522 or later.

1. Open the "File Repair" page and click the "File List" drop-down menu to select the damaged MP4 file.

1. If the MP4 file can be repaired, you will see a pop-up dialogue box prompting "MP4_FIX_OK", click OK then the "Submit" button.

Note: If the selected MP4 file cannot be repaired, a dialogue box prompting "MP4_FIX_ERROR_MDATA" will pop up.

1. The file is repaired when you see a dialogue box prompting "File repair finish!!". Click OK and reboot the NVS-33.

1. After the NVS-33 successfully reboots, you will see the repaired file with the file name of the damaged file appended of the word "new".

3.3 Operations

In this section, we will discuss how to customize your operation mode, how you can play the video via different streaming protocols and how to place texts on your video.

Video Streaming

The NVS-33 provides the user with different options for video streaming such as RTSP, TS, RTMP, RTMPS, HLS and SRT.

This section discusses settings of these options and how to stream your video using these methods.

RTSP/TS/HLS/SRT

In the RTSP/TS/HLS/SRT modes, the NVS-33 is a stream server which allows any client device to connect and playback your video stream. However, if you would like to stream to multiple client devices, we recommend using a separate media server to set up your streaming environment.

The following operation procedure uses VLC media player to playback video stream. If your PC or laptop does not have VLC media player installed, please visit VideoLAN's official homepage (https://www.videolan.org/) and download the installation file then

install the program.

Please follow the steps below to obtain the RTSP URL:

1. Open the stream settings page
2. Select RTSP

1. Click the Start button to generate the RTSP URL.
2. Based on your settings, the device will automatically generate the RTSP URL.

Play URL

rtsp://192.168.2.5:554/live

1. Before streaming the video via RTSP, enter the RTSP URL into the client device.

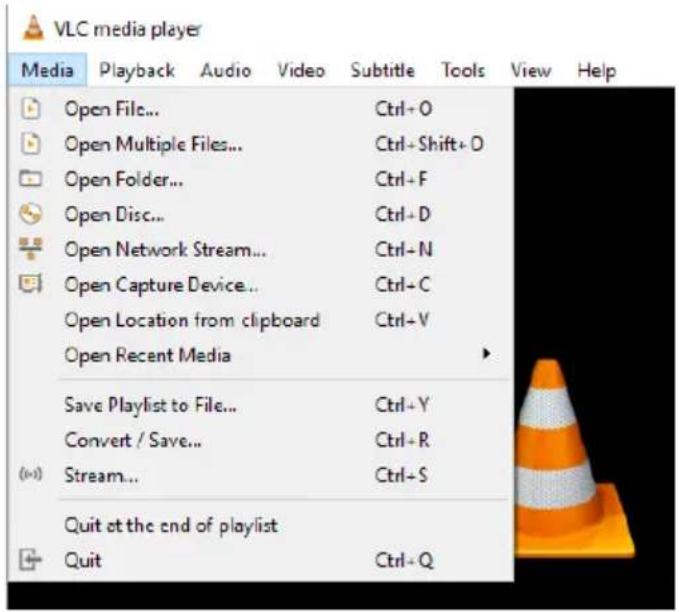

2. Open VLC then click Open Network Stream (shown in the diagram below).

1. As shown in the diagram below, enter the stream URL then click Play to start streaming.

Please follow the steps below to obtain the TS URL:

1. Open the stream settings page
2. Select TS.

Stream Type

TS

1. Enter the TS port number which is 12345 by default.

TS Port

12345

1. In the TS IP field, enter your PC's IP address such as 192.168.100.100.

TS IP

1. Click the Start button to generate the TS URL which, in this example, will be udp://192.168.100.100:12345.
2. Before streaming the video via TS, enter the TS URL into the client device.

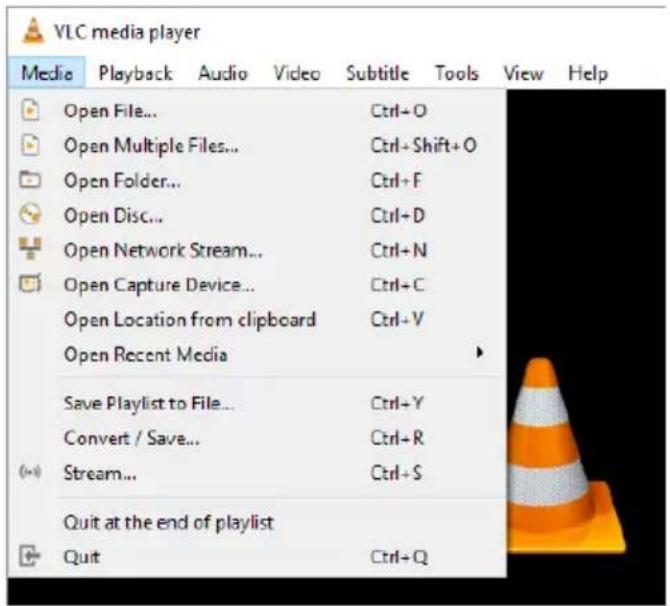

3. Open VLC then click Open Network Stream (shown in the diagram below).

1. As shown in the diagram below, enter the stream URL then click Play to start streaming.

Please follow the steps below to obtain the HLS URL:

1. Open the stream settings page
2. Select HLS

1. Click the Start button to generate the HLS URL.
2. Based on your settings, the device will automatically generate a .m3u8 stream URL as shown below.

1. Before streaming the video via HLS, enter the HLS URL into the client device.
2. Open VLC then click Open Network Stream (shown in the diagram below).

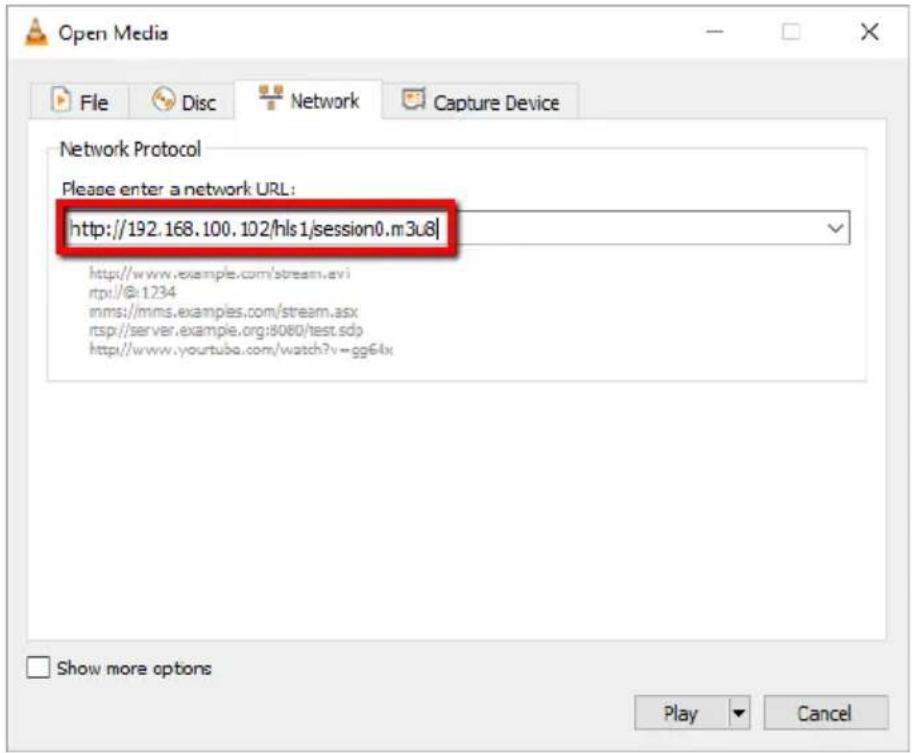

1. As shown in the diagram below, enter the stream URL then click Play to start streaming.

1. You can also play .m3u8 stream URL using the devices listed as follows:

2. iPhone, iPad and MacBook: Use Safari to open the .m3u8 stream URL.

3. Windows 10: Use Microsoft Edge to open the .m3u8 stream URL.

Please follow the steps below to obtain the SRT URL:

1. Open the stream settings page

2. Select SRT and the SRT port number is 9001 by default.

Stream Type	SRT Port
SRT	9001

1. Click the Start button to generate the SRT URL.

1. Before streaming the video via SRT, enter the SRT URL into the client device.
2. Open VLC then click Open Network Stream (shown in the diagram below).

1. As shown in the diagram below, enter the stream URL then click Play to start streaming.

RTMP

In RTMP mode, the NVS-33 can only send one data stream to one CDN or media server that supports the Real-Time Messaging Protocol (RTMP). Examples of the RTMP media server are USTREAM and Youtube.

In this section, we will show you how to set up an RTMP stream to Youtube. The step-by-step account setup is outlined as follows:

1. First of all, you have to obtain Server URL and Stream name/key from Youtube.
2. Open the Youtube Live Dashboard https://www.youtube.com/live_dashboard
3. On the left column, locate and click "Stream now."

1. On the right, scroll down to the bottom where you will be able to find Server URL and Stream name/key.

1. On the NVS-33, open the Stream Only operation mode page.
2. Select RTMP from the Stream Type drop-down menu.

Stream Type

RTMP

1. Enter the Server URL obtained from the Youtube Live Streaming page into the RTMP URL field.

RTMP URL

1. Enter the Stream name/key obtained from the Youtube Live Streaming page into the StreamName field.

StreamName

1. As required by the live streaming channel, enter your Youtube account name and password into the Account and Password fields.

Account

Password

1. Click the Start Stream button to start streaming the live video on the Youtube Live Streaming page. You should also see an RTMP URL generated.

2. The RTMP URL is another alternative that allows you to view the live stream on a web browser. Enter the RTMP URL into the web browser's address bar then hit the Enter button to open the live video stream.

3. Click the Stop button to stop live streaming.

Tip: You are allowed to stream audio or video only.

Next we will show you how to set up an RTMP stream to Facebook.

1. Visit the website https://www.facebook.com/live/create and click the "Create Live Stream" button.

Note: The maximum length of a single video stream on the Facebook is 8 hours.

1. On the page that opens, first check the checkbox next to the option "Use a persistent stream key" and then copy the "Server URL" as well as the "Stream Key."

1. Open "Operation Mode" page on your NVS-33's web UI and select RTMP from the Stream Type drop-down menu.
2. Paste the "Server URL" and "Stream Key" copied at Step 2 into the "RTMP URL" and "StreamName" textboxes respectively.

Stream Type

RTMP

Audio Only

OFF

RTMP URL

rtmps://live-api-s.facebook.com:443/rtmp/

StreamName

10205976454448177?s_bl=1&s_sml=3&s_sw=0&s_vt=api-s&A=AbzPchf7in3AnEgX

Account

Password

1. Click the "Start" button.

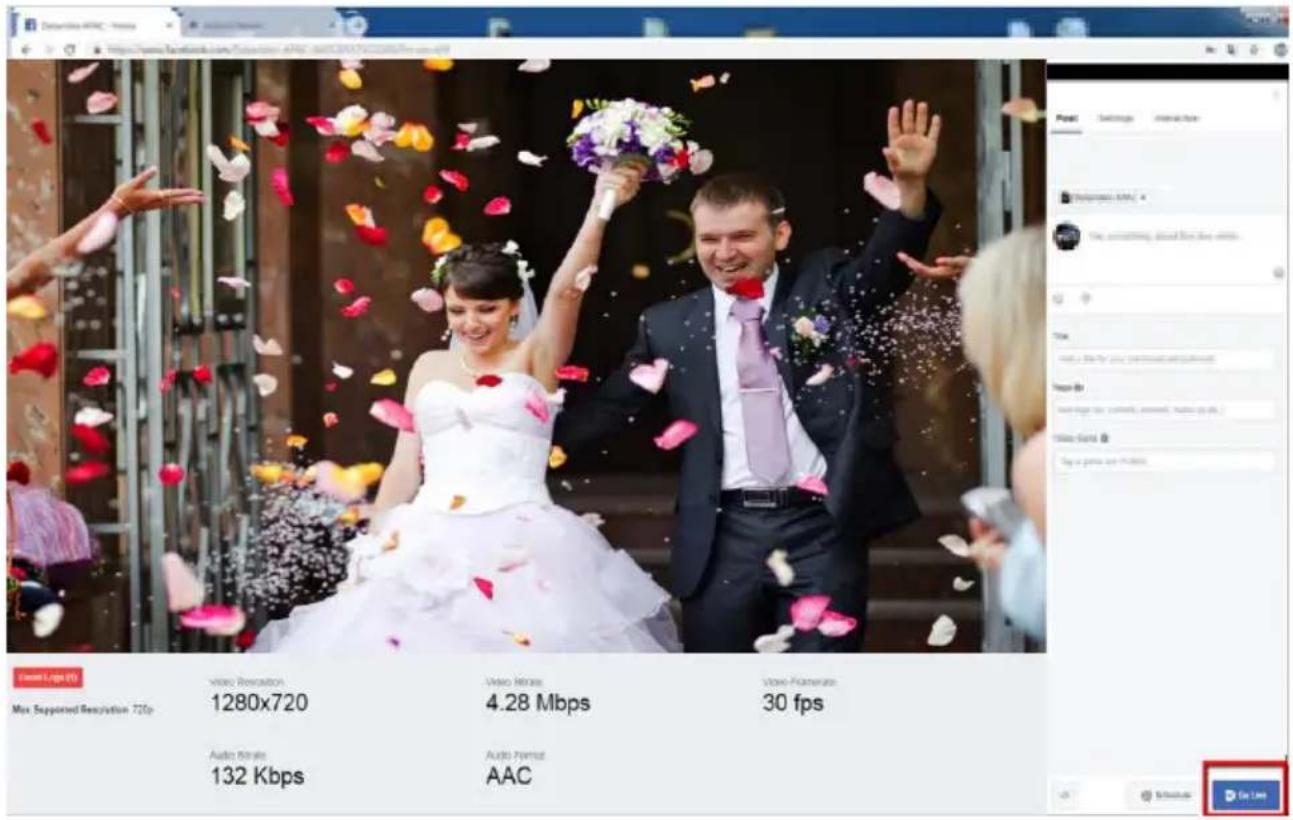

1. You will be able to preview your video stream on the Facebook's live stream page. First select the destination of the live broadcast and your audience.

Once everything is all set, simply click the "Go Live" button to start streaming your video on Facebook.

Text Overlay Video

The NVS-33 video streaming server not only allows you to stream and record your program, it also features a CG tool that is capable of overlaying text on the video currently being broadcast.

The CG settings page is shown below:

Follow the steps below to overlay text on the video:

1. Open the CG settings page.

2. Enable the CG function.

3. In the Text field, enter the overlay text.
4. Enter the X and Y coordinates to set the text position.
5. Click the Apply button to save the new settings.

Note: Increasing the X coordinate moves the overlay text to the right and decreasing the X coordinate moves the overlay text to the left; increasing the Y coordinate moves the overlay text up and decreasing the Y coordinate moves the overlay text down.

4 Firmware Upgrade

Datavideo usually releases new firmware containing new features or reported bug fixes from time to time. Customers can either download the NVS-33 firmware as they wish or contact their local dealer or reseller for assistance.

This section outlines the firmware upgrade process which should take 10 minutes to complete.

The existing NVS-33 settings should persist through the firmware upgrade process, which should not be interrupted once started as this could result in a non-responsive unit.

1. Login the NVS-33 web interface with the following credentials:

Username: admin

Password: 000000

1. Click the System tab to open the system configuration page.

1. Scroll down to Firmware Update then click the Browse button to search for the latest firmware file on the PC's hard disk.

1. After double clicking the firmware file, you will see the loading prompt as shown below, indicating that the file is being uploaded to the NVS-33.

1. After the file has been successfully uploaded, you will see a file upload success message. Click the Update button to start the firmware update process.

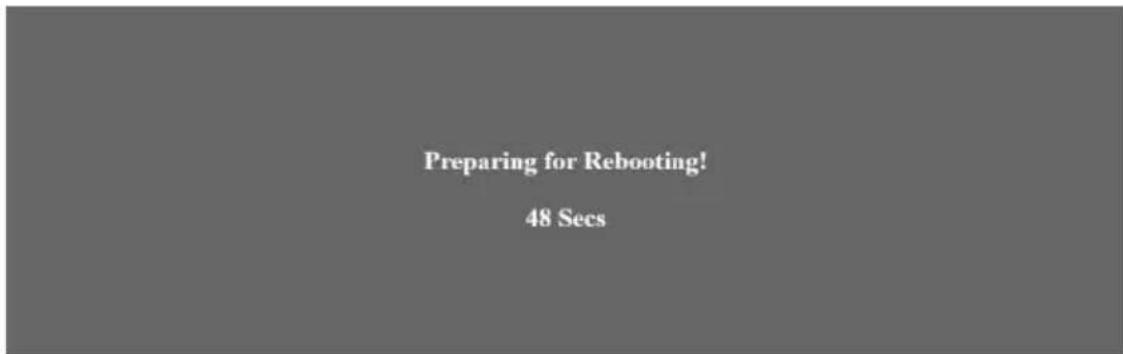

1. The device will reboot itself after it is updated successfully.

Note: If the device is recording or streaming, you must turn them off before initiating the firmware update.

5 Dimensions

Simple line drawing of a rectangular room with furniture and a small building, no text or symbols present

Technical line drawing of a rectangular mechanical component with mounting holes and a curved base (no text or symbols)

All measurements in millimeters (mm)

6 Specifications

Interface
Video Input	HDMI x 1SDI x 1
Audio Input	SDI Embedded Audio x 1HDMI Embedded Audio x 11 RCA Unbalanced audio pair (Audio Level: +10/+12dB ~ -6dB)Mixed Audio (Embedded + RCA)
Video Encoding	H.264/ AVC, Main / High Profile Configurable bit rate up to 10Mbps
Supported Input Video Resolution	1080p60/59.94/50 1080p30/29.97/25/24/23.981080i60/59.94/50720p60/59.94/50480i59.94, 576i50
Video Output	Video downscalable to 128 x 128
Video Encoding Mode and Bitrate	Record&Stream: Up to 10Mbps(1080p25/30)Record Only: Up to 15Mbps(1080p50/60)Stream Only: Up to10Mbps(1080p50/60)
Audio Encoding and Bitrate	AAC-LC, 32Kbps to 384Kbps
Audio Sampling Rate	48KHz, 16bit
Storage Media	SD Card
Storage File System	FAT & NTFS
Supported Stream Platforms	TS over TCP/UDP (unicast & multicast)RTSP over HTTP/TCP/UDP (RTSP Elementary Stream)RTMP (Publish) / RTMPS
Recording File Format	MP4 and TS(TS format is currently under development)
Firmware Update	Via Web UI
Others
Power	DC 12V
Operating Temperature	0°C to 40°C (32°F to 122°F)
Storage Temperature	-10°C to 60°C
Operating Humidity	10% to 80% (non-condensing)
Web UI Languages	English / Traditional Chinese / Simplified Chinese / Japanese
Dimensions	220(W) x 115(D) x 45.5(H) mm

Note

Service & Support

It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to common questions, support requests or contact your local office below.

Please visit our website for latest manual update. https://www.datavideo.com/product/NVS-33

datavideo

www.datavideo.com

@DatavideoUSA @DatavideoIndia2016

@DatavideoEMEA @Datavideojapan

@DatavideoTaiwan @DatavideoLatam

@DatavideoAsia @DatavideoBrasil

@Datavideo

@Datavideo_EMEA

@Datavideo Taiwan

@DatavideoUSA

@DVTWDVCN

@DatavideoUSA

@DatavideoEurope

All the trademarks are the properties of their respective owners.

Datavideo Technologies Co., Ltd. All rights reserved 2020
