Product Type	Wireless Lavalier Microphone System
Brand	Saramonic
Model	Blink 500 B5
Number of Channels	Dual (2 transmitters + 1 receiver)
Frequency Band	2.4 GHz
Polar Pattern	Omnidirectional
Operating Range	Up to 50 meters (164 feet) line-of-sight
Frequency Response	50 Hz - 18 kHz
Signal-to-Noise Ratio	> 70 dB
Battery Type	Built-in rechargeable lithium-ion
Battery Life	Approximately 6 hours
Charging Method	USB-C (charging cable included)
Charging Time	Approximately 2 hours
Receiver Dimensions	60 × 45 × 15 mm (2.36 × 1.77 × 0.59 in)
Transmitter Dimensions	60 × 45 × 15 mm (2.36 × 1.77 × 0.59 in) each
Weight (Receiver)	Approximately 30 g (1.06 oz)
Weight (Transmitter)	Approximately 30 g (1.06 oz) each
Included Accessories	2 lavalier microphones, 2 windscreens, USB-C charging cable, carrying case
Main Functions	Wireless audio capture for cameras, smartphones, computers; mute function; gain control
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquids or abrasives.
Safety Precautions	Avoid exposure to moisture, extreme heat, or cold. Do not disassemble.
Spare Parts Availability	Replacement lavalier mics and windscreens available from Saramonic
Repairability	Battery replacement service offered by authorized repair centers
General Information	Designed for content creators, vloggers, and journalists; works with smartphone via TRRS adapter (not included)

Frequently Asked Questions - Blink 500 B5 Saramonic

How do I pair the Blink 500 B5 transmitter with the receiver?

The system automatically pairs when powered on. If not, press and hold the power button on both units for 3 seconds until the LED indicators flash and then become solid.

Can I use the Blink 500 B5 with a smartphone?

Yes, using the included TRS to TRRS adapter cable (or a separate adapter) to connect the receiver to your phone's headphone jack or USB-C port.

What is the battery life and how do I charge it?

Battery life is approximately 6 hours. Charge all units via USB-C cable connected to a 5V/1A power source. Charging time is about 2 hours.

Can I use only one transmitter at a time?

Yes, the receiver can operate with one or two transmitters. The receiver automatically detects the number of paired transmitters.

How do I mute the microphone?

Press the mute button on the transmitter. The LED will turn red when muted. Press again to unmute.

What is the wireless range?

The operating range is up to 50 meters (164 feet) in open line-of-sight conditions. Walls and obstacles may reduce range.

Does the Blink 500 B5 work with DSLR cameras?

Yes, connect the receiver to your camera's microphone input using the included TRS cable. Ensure the camera audio input is set to line level if applicable.

How do I clean and maintain the system?

Wipe the units with a soft, dry cloth. For the lavalier mic, gently brush the grille. Avoid moisture and store in the carrying case.

Can I replace the lavalier microphone?

Yes, the lavalier mics are detachable and can be replaced with compatible Saramonic lavalier mics (model LV1 or similar).

How do I reset the Blink 500 B5 system?

Power off both units. Then press and hold the power button on the receiver for 10 seconds until the LED flashes rapidly. Do the same for transmitters. Repower to re-pair.

USER MANUAL Blink 500 B5 Saramonic

Ultracompact 2.4GHz Dual-Channel Wireless Microphone System Blink500

User Manual

General Introduction

The Saramonic Blink500 is an incredibly lightweight, ultracompact and easy-to-use 2-person wireless microphone system for DSLR, Mirrorless and Video cameras, or mobile devices that delivers detailed, broadcast-quality sound.

The system series is comprised of three different receivers. The RX receiver has a 3.5mm output and includes TRS and TRRS output cables, allowing it to work with any device with a 3.5mm audio input. The RXDi receiver has a MFi Certified Lightning output and is designed for Apple iOS devices. And the RXUC receiver has a USB-C output and is designed for devices with a USB-C port, including Android smartphones and tablets.

The clip-on transmitter has a great sounding built-in mic and it is small and light enough to clip to shirts and clothing, or you can use it as a traditional beltpack transmitter with the included SR-M1 professional lavalier microphone.

No technical knowledge of audio is required to operate. The Blink500 system operates on the interference-free 2.4GHz spectrum and automatically hops to free channels to avoid static noise and audio dropouts.

There are six kits available in the Blink500 series:

Model	In the box
Blink500 B1(TX+RX)	1 × Blink500 RX 1 × Blink500 TX
Blink500 B2(TX+TX+RX)	1 × Blink500 RX 2 × Blink500 TX
Blink500 B3(TX+RXDi)	1 × Blink500 RXDi 1 × Blink500 TX
Blink500 B4(TX+TX+RXDi)	1 × Blink500 RXDi 2 × Blink500 TX
Blink500 B5(TX+RXUC)	1 × Blink500 RXUC 1 × Blink500 TX
Blink500 B6(TX+TX+RXUC)	1 × Blink500 RXUC 2 × Blink500 TX

Product Structure

1. Blink500 RX: Clip-On and Shoe-Mountable Receiver

① Power Key

Long press to turn on or off the receiver.

② Power and Pairing Indicator

Power Functions:

Solid Red Light = Low Battery

Pairing Functions:

Flashing Blue Light (every one second) = Unpaired

Quick Flashing Blue Light (every 0.5 second) = Waiting for Pairing

Solid Blue Light = Paired Successfully

Once the receiver and transmitter are paired, they will be connected with each other automatically, even when powered off and on.

③ USB Type-C Charging Port

④ Charge Indicator

Solid Green Light = Charging Battery

Light turns off when fully charged.

⑤ Line Out

Connect the receiver to a DSLR or Mirrorless camera, camcorder, smartphone, tablet, mixer or amplifier with the supplied output cables.

⑥ Pairing Pin-Hole

⑦ Belt Clip and Standard Cold Shoe Mount

2. Blink500 RXDi: Lightning Receiver

① Lightning Connector

② Pairing Indicator

Flashing Blue Light (every one second) = Unpaired

Quick Flashing Blue Light (every 0.5 second) = Waiting for Pairing

Solid Blue Light = Paired Successfully

Once the receiver and transmitter are paired, they will be connected with each other automatically, even when powered off and on.

③ Pairing Pin-Hole
④ Antenna

3. Blink500 RXUC: USB-C Receiver

① USB Type-C Connector

② Pairing Indicator

Flashing Blue Light (every one second) = Unpaired

Quick Flashing Blue Light (every 0.5 second) = Waiting for Pairing

Solid Blue Light = Paired Successfully

Once the receiver and transmitter are paired, they will be connected with each other automatically, even when powered off and on.

③ Pairing Pin-Hole
④ Antenna

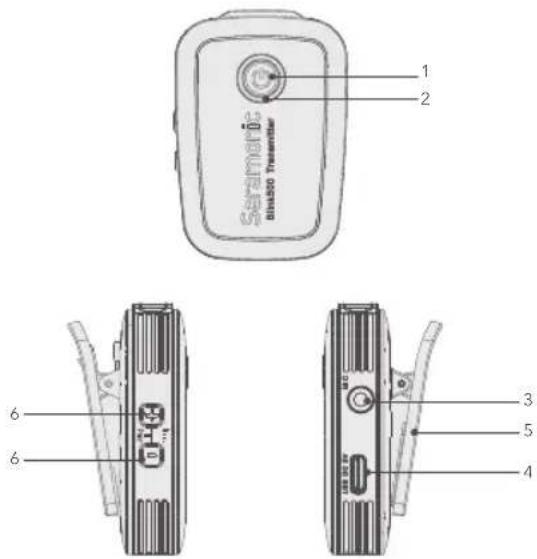

4. Blink500 TX: Body-pack Transmitter with Microphone

① Power Key
Long press to turn on or off the transmitter.
② Power Indicator, Volume Indicator and Pairing Indicator

Power Functions:

Solid Red Light = Low Battery

When charging:

Solid Green Light = Charging Battery

Light turns off when fully charged.

Volume Functions:

Indicates the volume setting in three stages.

Adjust the audio level by the "+" and "-" buttons.

Default is in the third stage.

The transmitter mic will be muted if you turn down the volume till all the lights are turned off.

Pairing Functions:

Flashing Blue Light (every one second) = Unpaired

Slow Flashing Blue Light (every three seconds) = Paired

Successfully

③ 3.5mm Audio Input
Connect to the supplied lavalier microphone.
④ USB Typc-C Charging Port
⑤ Belt Clip and Standard Cold Shoe Mount
⑥ Volume Control Buttons & Pair Buttons

Operation Guide

For the Blink500 B1/B2 kit

1. Turn on the transmitter TX by long pressing the power key.
2. Turn on the receiver RX by long pressing the power key.
3. Insert the pairing pin into the pairing pin-hole of RX, press hard and the pair indicator should be quick flashing at every 0.5s. Press both the "+" and "-" button of transmitter TX simultaneously within 10 seconds.
4. The kit will be paired when the RX pair indicator is solid blue and the TX pair indicator is flashing slowly.

Note: To pair the second transmitter TX, just repeat the step 3 and 4.

1. Connect the receiver RX to the mic jack of a camera, camcorder, recorder or mixer with the supplied 3.5mm TRS audio cable. Or connect the RX to a smartphone or tablet with the supplied 3.5mm TRS to TRRS audio cable.
2. You are ready to record.

Note: The output of receiver RX is line out. You can connect it to speaker system. To avoid noise during connection, before connecting the receiver to a speaker system, please mute the speaker system and do not use the headphones.

For the Blink500 B3/B4/B5/B6 kit

1. Turn on the transmitter by long pressing the power key.

2. Plug the RXDi into an iOS device or the RXUC into an USB Type-C device. Please make sure the antenna (yellow side) is oriented on the top of the device, when in landscape mode, to get the best signal.

3. Insert the pairing pin into the pairing pin-hole of RXDi or RXUC, press hard and the pair indicator should be quick flashing at every 0.5s. Press both the "+" and "-" button of transmitter TX simultaneously within 10 seconds.

4. The kit will be paired when the RX pair indicator is solid blue and the TX pair indicator is flash slowly.

Note: To pair the second transmitter TX, just repeat the step 3 and 4.

1. You are ready to record.

Specification

Blink500 RXUC
Transmission Type	2.4GHz Digital Frequency
Modulation	GFSK
Operating Range	Up to 164' (50m)
Audio Output Connector	USB-C Connector
Power Requirements	Supplied by USB-C Devices
Built-in Battery Life	Approx. 6 hours
Antenna	PIFA Antenna
Weight	Approx. 10.5g (0.37oz)
Dimensions	76×16.5×11mm
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to +55°C

Blink500 RXDi
Transmission Type	2.4GHz Digital Frequency
Modulation	GFSK
Operating Range	Up to 164' (50m)
Audio Output Connector	MFi Certified Lightning Connector
Power Requirement	Supplied by iOS Device
Built-in Battery Life	Approx. 6 hours
Antenna	PIFA Antenna
Weight	Approx. 11g (0.38oz)
Dimensions	76×16.5×11mm
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to +55°C
Blink500 RX
Transmission Type	2.4GHz Digital Frequency
Modulation	GFSK
Operating Range	Up to 164' (50m)
Audio Output Connector	3.5 mm Jack
Audio Output level	-60 dBV
Power Requirements	Built-in Li-ion Battery or USB-C DC 5V
Built-In Battery Life	Approx. 6 hours
Antenna	PIFA Antenna
Weight	Approx. 26.5g (0.93oz)
Dimensions	62×33×15.5mm
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to +55°C

Blink500 TX
Transmission Type	2.4GHz Digital Frequency
Modulation	GFSK
Operating Range	Up to 164' (50m)
RF Output Power	10mW
Polar Pattern	Omnidirectional
Frequency Response	50Hz-18KHz
Maximum SPL	Built-in Microphone:120dB SPLLavalier Microphone: 110dB SPL
Sensitivity	Built-in Microphone: -42dBLavalier Microphone: -30dB
SNR	>78dB
Power Requirements	Built-in Li-ion Battery or USB-C DC 5V
Built-in Battery Life	Approx. 6 hours
Antenna	PIFA Antenna
Audio Inputs	3.5mm TRS Lavalier Microphone Inputor Built-in Microphone
Weight	Approx. 34g (1.2oz)
Dimensions	63×43×16.5mm
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to +55°C

Packing List

Blink500 RX

1× Blink500 RX Receiver with Built-In Clip and Camera Shoe-Mount
1× 1' (30.5 cm) Gold-Plated 3.5mm TRS to TRS Output Cable for Cameras
1× 1' (30.5 cm) Gold-Plated 3.5mm TRS to TRRS Output Cable for Smartphones and Tablets
1× 1' (30.5 cm) Gold-Plated USB-C to USB-A Charging Cables
1× Pairing Pin
1× Warranty Card
1× User Manual

Blink500 TX

1× Blink500 TX Transmitter with Built-In Microphone and Clip
1× SR-M1 Omnidirectional Lavalier Microphone
1× Alligator-Style Lavalier Microphone Clip
1× Foam Lavalier Windscreen
1× 1' (30.5 cm) Gold-Plated USB-C to USB-A Charging Cable
1× Pairing Pin
1× Warranty Card
1× User Manual

Blink500 RXDi

1× Blink 500 RXDi Receiver with MFi Certified Apple Lightning Connector

1× Pairing Pin

1× Warranty Card

1× User Manual

Blink500 RXUC

1× Blink 500 RXUC Receiver with USB-C Connector
1× Pairing Pin
1× Warranty Card
1× User Manual

Blink500 B1(TX+RX)

1× Blink500 RX Receiver with Built-In Clip and Camera Shoe-Mount
1× Blink500 TX Transmitter with Built-In Microphone and Clip
1× 1' (30.5 cm) Gold-Plated 3.5mm TRS to TRS Output Cable for Cameras
1× 1' (30.5 cm) Gold-Plated 3.5mm TRS to TRRS Output Cable for Smartphones and Tablets
2× 1' (30.5 cm) Gold-Plated USB-C to USB-A Charging Cables
1× SR-M1 Omnidirectional Lavalier Microphone
1× Alligator-Style Lavalier Microphone Clip
1× Foam Lavalier Windscreen
1× Pairing Pin
1× Warranty Card
1× User Manual

Blink500 B2(TX+TX+RX)

1× Blink500 RX Receiver with Built-In Clip and Camera Shoe-Mount
2 × Blink500 TX Transmitters with Built-In Microphone and Clip
1× 1' (30.5 cm) Gold-Plated 3.5mm TRS to TRS Output Cable for Cameras
1× 1' (30.5 cm) Gold-Plated 3.5mm TRS to TRRS Output Cable for Smartphones and Tablets
3× 1' (30.5 cm) Gold-Plated USB-C to USB-A Charging Cables

2× SR-M1 Omnidirectional Lavalier Microphones
2× Alligator-Style Lavalier Microphone Clips
2× Foam Lavalier Windscreens
1× Pairing Pin
1× Warranty Card
1× User Manual

Blink500 B3(TX+RXDi)

1× Blink500 RXDi Receiver with MFi Certified Apple Lightning Connector
1× Blink500 TX Transmitter with Built-In Microphone and Clip
1× SR-M1 Omnidirectional Lavalier Microphone
1× Alligator-Style Lavalier Microphone Clip
1× Foam Lavalier Windscreen
1× 1' (30.5 cm) Gold-Plated USB-C to USB-A Charging Cable
1× Pairing Pin
1× Warranty Card
1× User Manual

Blink500 B4(TX+TX+RXDi)

1× Blink500 RXDi Receiver with MFi Certified Apple Lightning Connector
2× Blink500 TX Transmitters with Built-In Microphone and Clip
2× SR-M1 Omnidirectional Lavalier Microphones
2× Alligator-Style Lavalier Microphone Clips
2× Foam Lavalier Windscreens
2× 1' (30.5 cm) Gold-Plated USB-C to USB-A Charging Cables
1× Pairing Pin
1× Warranty Card
1× User Manual

Blink500 B5(TX+RXUC)

1× Blink500 RXUC Receiver with USB-C Connector
1× Blink500 TX Transmitter with Built-In Microphone and Clip
1× SR-M1 Omnidirectional Lavalier Microphones
1× Alligator-Style Lavalier Microphone Clip
1× Foam Lavalier Windscreen
1 × 1' (30.5 cm) Gold-Plated USB-C to USB-A Charging Cable
1× Pairing Pin
1× Warranty Card
1× User Manual

Blink500 B6(TX+TX+RXUC)

1× Blink500 RXUC Receiver with USB-C Connector
2× Blink500 TX Transmitters with Built-In Microphone and Clip
2× SR-M1 Omnidirectional Lavalier Microphones
2× Alligator-Style Lavalier Microphone Clips
2× Foam Lavalier Windscreens
2× 1' (30.5 cm) Gold-Plated USB-C to USB-A Charging Cables
1× Pairing Pin
1× Warranty Card
1× User Manual

Common Technical Issues and Solutions

If you encounter problems when using the Blink500 system, please refer to the follow checklist before contacting technical support. If the problem cannot be solved, please contact the dealer's after-sales service department.

Problems Causes Solutions
The RX/TX cannot be turned on	The battery is very low.	Charge the RX/TX with the supplied charging cable.
The battery become drained quickly	The device is being used under cold or hot conditions.	Recharge or move to less cold or hot environment.
There is no sound	The transmitter TX is muted.	Adjust the sound by the "+" and "-" buttons.
	The transmitter and receiver is not paired.	Pair the system. Refer to the "Operation Guide."
	The audio cable is not fully plugged in.	Re-plug the audio cable.
The sound is weak	The transmitter volume setting is too low.	Adjust the volume, the goal is to transmit the highest level in the entire signal path without distortion to get the highest signal to noise ratio.
The sound is distorted	Transmitter/receiver volume setting is not suitable.	Adjust the volume, the goal is to transmit the highest level in the entire signal path without distortion to get the highest signal to noise ratio.
	Using a mono plug headphone.	Please use the headphone with stereo plug

Problems Causes Solutions
There is too much ambient noise is picked up	The Blink500 TX built-in microphone is omnidirectional.The microphone may pick up more ambient sounds.	Please make sure the microphone is as close as possible to the subject being shot.
	Signal is interfered.	1. Adjust the angel of transmitter/receiver.2. There is more radio frequency interference outdoors. Try to move the recording indoors.3. Be away from conductive objects such as metal and water.4. Overhead telephone lines, fluorescent lights, and metal fences may interfere with wireless microphones.5. Turn off all nearby computers and phones.
There is sound interruption or noise	The RF signal is weak.	1. Make sure that the line of sight between the transmitter and receiver antennas is unobstructed.2. Your body, clothes, and stage set may be a hindrance.3. If there are obstacles, you need to shorten the distance between the transmitter and the receiver.
	The input level of the camera, recorder or mixer is too high.	Turn down the audio input level of the camera or recording device. Turn down the gain of mixer.
	The volume of the transmitter is too high.	Lower the volume to the second stage.

www.saramonic.com

Saramonic is a trademark registered and owned by Shenzhen DSQN Investment CO., LTD.

COPYRIGHT 2011-2021 SARAMONIC INTERNATIONAL (A brand of DSQN)

Room 2009, Shenzhou Bairuida Bldg, Banxuegang Road, Bantian Street, Longgang District,

Shenzhen, China 518129 Email: [e-mail]

Made in China
