Product Type	USB Audio Interface / Podcasting Studio
Channels	2 Inputs / 2 Outputs
Analog Inputs	2 x Combo XLR/TRS (mic/line)
Analog Outputs	2 x RCA (L/R), 1 x Headphone (1/4" TRS)
Phantom Power	+48V, switchable per channel
Sample Rate	Up to 48 kHz
Bit Depth	16-bit
Microphone Preamp Gain	50 dB range
USB Connection	USB 2.0 Type-B, Bus Powered
Power Supply	USB bus power (5V, 500 mA)
Dimensions (W x D x H)	205 x 150 x 50 mm
Weight	0.5 kg
Compatible Software	Any DAW supporting ASIO, WDM, Core Audio
Direct Monitoring	Yes (via Mix control)
Headphone Output Power	100 mW into 32 Ohm
Frequency Response	20 Hz - 20 kHz ±0.5 dB
Signal-to-Noise Ratio	104 dB (A-weighted)
Cleaning Instructions	Wipe with a dry, lint-free cloth. Do not use solvents.
Safety Warnings	Do not expose to moisture. Use only included USB cable.
Spare Parts / Repairability	Contact Behringer support for service. No user-serviceable parts inside.

Frequently Asked Questions - Podcastudio 2 USB BEHRINGER

How do I connect the Podcastudio 2 USB to my computer?

Connect the interface to your computer using the provided USB cable. It is bus-powered, so no external power supply is needed. The device will be recognized as an audio device.

Can I use condenser microphones with this interface?

Yes, the interface provides +48V phantom power, which can be activated via the switch on the front panel. Ensure your microphone is connected via an XLR cable before turning on phantom power.

What software is compatible with the Podcastudio 2 USB?

It works with any DAW that supports ASIO (on Windows) or Core Audio (on Mac). Popular options include Audacity, GarageBand, Ableton Live, and Reaper.

Why is there no sound coming from my headphones?

Check the headphone volume control knob on the front panel. Also, ensure the Mix knob is set to blend the input signal and computer playback. If using a DAW, make sure the track is armed and monitoring is enabled.

Can I record two microphones at the same time?

Yes, the interface has two input channels that can record simultaneously. Each channel has its own gain control, and they appear as separate inputs in your recording software.

How do I set up direct monitoring?

Turn the Mix knob fully to the left (Input) to hear the direct signal without latency. Turn it to the right (Playback) to hear what's recorded. The center position blends both.

What is the maximum sample rate?

The Podcastudio 2 USB supports sample rates up to 48 kHz with 16-bit resolution. Higher rates are not supported.

Does it work with iOS or Android devices?

The interface is not officially compatible with mobile devices. It requires a USB 2.0 Type-A port and standard driver support found only on Windows/Mac computers.

How do I clean and maintain the interface?

Disconnect the USB cable, then wipe the surface with a dry, lint-free cloth. Do not use liquids or cleaners. Keep away from dust and moisture.

What should I do if the device is not recognized?

Try a different USB port and cable. On Windows, install the latest driver from Behringer's website if needed. Restart your computer. If still not recognized, contact Behringer support.

USER MANUAL Podcastudio 2 USB BEHRINGER

Thank you for choosing one of our podcast-capable recording products.

This top-notch hardware bundle lets you creatively produce professional-sounding podcasts, voice-over sessions, narration, and music projects for online distribution. If you're a vlogger, you'll have a superb pack of equipment to dramatically enhance the audio quality of your videos compared to the built-in camera microphone, giving your broadcasts a more professional appeal. Move up to the next step in the evolution of broadcasting and free yourself from the limitations of conventional communication.

Podcasting Basics

Before you get started, it is important to understand some of the terminology and uses surrounding the emerging fi eld of podcasting.

Podcasting is a term derived from the combination of the words "iPod" and "broadcasting," and is defined as the distribution of audio or video files, such as radio programs or music clips, over the Internet. This is accomplished by using one of two syndication techniques that allow users to access media on such portable media devices as smart phones, tablets, MP3 players, and laptop computers.

RSS (Really Simple Syndication) and Atom are Web content syndication formats written in XML that provide either podcast content or summaries that link to content and additional fi le information.

Podcast is a feed of audio or video files placed on the Internet for public access. Anyone can subscribe to the feed and download the media files. This allows you to collect programs from a wide range of sources for listening or viewing media content, either online or offline with your computer or an appropriate portable device.

Podcatcher refers to a software application that enables the download of podcasts. It typically runs in the background, managing feeds that you add manually and downloads each at a specified interval.

EN

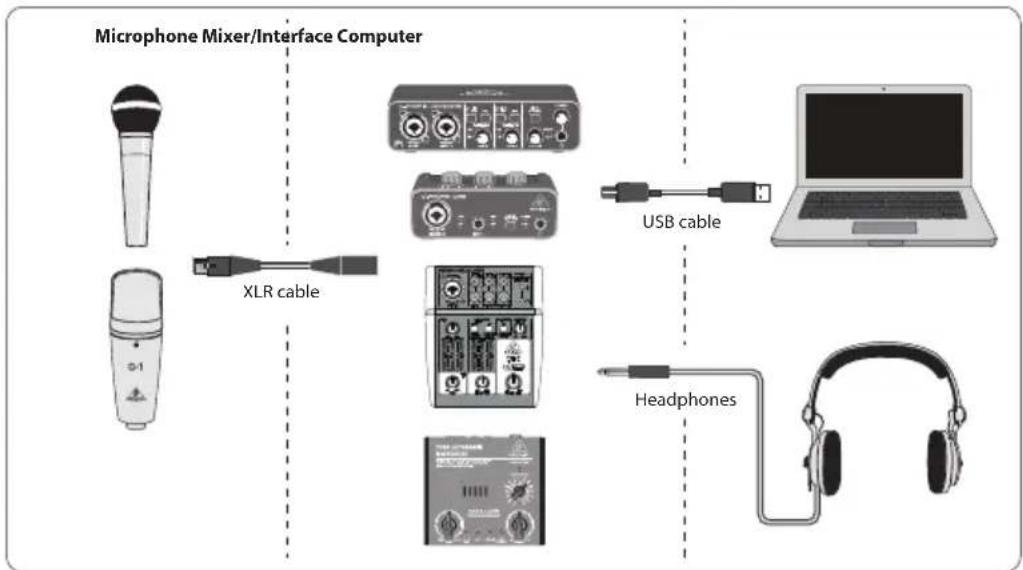

Installation Guide – USB mixer/interface

Note: The Voice Studio package does not include a pair of headphones

Basic Equipment:

Microphone, USB mixer/interface, headphones, computer

Now that you have a basic understanding of what podcasting is and have the necessary gear, it's time to set up the equipment, install the software and get started.

1. Install any necessary drivers before connecting your USB interface. They can be downloaded from the download area of the product page, or from the support section at www.musictribe.com/brand/behringer/home.

2. Once the drivers are installed, you may connect the interface to your computer with the included USB cable.

3. Connect your microphone to the input of your mixer or audio interface using the included XLR cable.

4. Connect a monitoring device. You may connect the outputs of the mixer/interface to a pair of powered speakers, or connect a set of headphones.

5. Be sure to read the manuals for the individual components of your podcast/ recording system to ensure proper hookup and operation.

6. If using a Windows operating system, it is important to install the necessary ASIO driver. This is not a factor on Mac systems. Visit the download area of the USB interface's product page, or go to the Support > Download Center at www.musictribe.com/brand/c/behringer/downloads?active=downloads to download the required driver.

Software

Before you can start, you will need some software to produce, release, and consume your podcast. In the following steps you will find some free or low-cost examples which are mostly cross-platform programs. Choose the option that matches your needs and operating system. Some research online should help you identify which program has your ideal functionality and workflow.

Step 1 – Producing

First, you will need a music program that allows you to record audio and export MP3 files. There are many DAWs (Digital Audio Workstation) which offer such functionality on Mac and PC, such as Reaper, Tracktion, Logic, Garage Band, Cubase. One of the most popular cross-platform freeware is Audacity, which is available for Mac OS X, Windows, and even Linux.

Step 2 - Exporting

In case of using Audacity, make sure to get the free "LAME MP3 Encoder". This is a freeware plug-in which needs to be installed additionally to Audacity to enable your audio file to be exported into MP3 format.

Step 3 – Uploading

To upload your newly created MP3 podcast, you will need an upload/distribution software, often called Podcast Studio or Podcast Producer. This software allows you to fine-tune your podcast, create RSS content, and finally upload your podcast on a server. An old Windows classical is Podifi er, but newer tools can be found at Ultraschall.fm (based on a specifi c version of the DAW Reaper), Spreaker.com or Buzzsprout.com, to name just some few examples.

PODCAST & RECORDING QUICK-START GUIDE

EN

Step 4 – Consuming

If you want to listen to your own podcast or consume releases from other bloggers, you will need a “podcast receiver” such as the cross-platform Juice (http://juicereceiver.sourceforge.net/). Mac users might prefer iTunes, but there are other so called “Podcatchers” (or Podcast Clients): WinAmp (WinAmp.com), gPodder (gPodder.net), Miro (getmiro.com), or Amarok (amarok.kde.org), for example.

EN

PODCAST & RECORDING QUICK-START GUIDE

Creating a Podcast

Now you have compiled and installed all the software needed to start your first podcast release. It may take some time to get used to the process, but you will get better with practice. Here are the basic steps to take you from nothing but hardware and software to a syndicated podcast that other online users can download and listen to.

1. Record your podcast using the DAW recording program of your choice. Make sure to select your USB audio device as the incoming and outgoing audio unit in your DAW's setup menu. You may incorporate everything from speech to music and sampling (beware of copyright issues when borrowing audio from other sources).
2. Once you are done recording and editing your podcast, you may export the audio as a single stereo master track in MP3 format (if your DAW supports this) and save it to your hard drive.
3. If your DAW does not support direct MP3 output, you can export the stereo mixdown in WAV or AIF format and save the fi le to your hard drive. Open the stereo master track in an audio editor such as Audacity and export it as an MP3 fi le (in case of using Audacity, this requires the lame_enc.dll codec).
4. Using one of the previously mentioned podcast producing software options, upload your new podcast track to a server, which will make it available online.
5. Post the podcast to various feeds and Internet portals where other people can download and listen to your new podcast!

Need additional help?

Beginners can learn a lot from other podcasters or recording specialists online. There is a wealth of information available on forums, online articles and tutorials, YouTube videos, etc. (just search “audio recording basics”, “podcasting guide”, etc. into a search engine). The process is very streamlined and user-friendly, but varies a bit depending on your specific software and publishing destination, so specific tutorials online may give more detail than what can be provided in this quick start guide.

All trademarks are the property of their respective owners. Mac, Mac OS are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION

Behringer

PODCASTUDIO 2 USB

Responsible party name: Music Tribe Commercial NV Inc.

Address: 5270 Procyon Street

Las Vegas, NV 89118

USA

Phone Number: [phone]

PODCASTUDIO 2 USB

complies with the FCC rules as mentioned in the following paragraph:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Important information:

Changes or modifications to the equipment not expressly approved by Music Tribe can void the user's authority to use the equipment.
