RF-1121058 - Gps Renkforce - Free user manual and instructions

Product Type	GPS Navigation Device
Brand	Renkforce
Model	RF-1121058
Display Size	5.0 inches (diagonal)
Display Type	Color TFT with touch screen
Dimensions	120 x 70 x 15 mm
Weight	150 g (including battery)
Power Source	Built-in rechargeable Li-ion battery, 5V USB charging
Battery Life	Up to 4 hours continuous use
Navigation Functions	Route guidance, points of interest, voice prompts, lane assist
Maps	Preloaded regional maps, lifetime updates
Connectivity	USB 2.0 for data transfer and charging
Mounting	Suction cup windshield mount included
Memory	4 GB internal storage, microSD slot up to 32 GB
Maintenance and Cleaning	Wipe with a soft, dry cloth. Do not use harsh chemicals.
Safety Precautions	Do not expose to extreme temperatures; use only supplied charger.
Spare Parts and Repairability	Battery replaceable by qualified service; other components not user-serviceable.
General Information	CE, RoHS compliant; operating temperature: 0°C to 45°C

Frequently Asked Questions - RF-1121058 Renkforce

How do I update the maps on my Renkforce RF-1121058?

Connect the device to your computer via USB and use the Renkforce MapUpdater software (available for download on the official website). Follow the on-screen instructions to download and install the latest maps.

Can I mount the GPS on a motorcycle or bicycle?

The included mount is designed for car windshields. For other vehicles, you may purchase a compatible universal mount with a 1-inch ball adapter.

How long does the battery last?

The internal Li-ion battery typically lasts up to 4 hours of continuous navigation. Actual life varies with screen brightness and usage.

Is the device waterproof?

No, the Renkforce RF-1121058 is not waterproof. It should be protected from rain and splashes. Use a waterproof case if needed.

What should I do if the touchscreen is not responding?

First, clean the screen with a soft cloth. If the issue persists, perform a soft reset by pressing and holding the power button for 10 seconds. If still unresponsive, try a factory reset from the settings menu.

How can I transfer routes from my computer to the GPS?

Create routes in compatible software (e.g., Google Maps) and export as GPX files. Connect the GPS via USB and copy the GPX files to the "GPS Routes" folder in the device's internal storage.

Can I use the GPS while charging?

Yes, you can use the device while connected to the car charger. This is common for long trips to prevent battery drain.

How do I fix incorrect time or date?

The device automatically syncs time via GPS satellites. Ensure you have a clear sky view for a few minutes after starting the device. If still incorrect, manually set time in Settings > Date & Time.

Does the device support different languages?

Yes, the Renkforce RF-1121058 supports multiple languages for voice guidance and menu. Go to Settings > Language to choose your preference.

Where can I find the user manual?

The manual is available for free download in PDF format from notice-facile.com. You can also request a translated version by providing your email on the product page.

USER MANUAL RF-1121058 Renkforce

CanWay User'S Manual

2012 December

Contents

Install CanWay ....3

Read GPS Log From Device ....5

Clear Data Logger Memory 10

Data Logger Conguraon 10

Track List Window 12

TAB List Window 12

Add Photos....14

Browse photos 16

Photo List Window....16

Upload Photos to faceBook 17

Google Earth Viewing....18

Save As KMLFile and KMZ 18

Export Track(s)... 19

Altitude / Speed Graph 19

Track Eding....20

Time Zone Seng 23

Opons....23

Sport Analysis : 28

Acvity view 28

Report View 34

Install CanWay

Step 1 – Implement CanWay Installer.exe

Step 2 – select language

Step 3 – select NEXT

Step 4 – select your folder and click Next

Step 5 – Select Additional Tasks (USB driver) and click Next

Step 6 - click Finish .

Open CanWay and Read GPS Log From Device

Step 1 – open CanWay and import your reference data.

User management can modify or switch user for "File" -> "user Management" and -> "Switch User"

Step 2 – Connect Data Logger system to PC USB port. Please make sure the Data Logger power is turn on.

Step 3 – Menu command “Logger” -> “Download Trip” or click

CanWay will automacally detect the com port and baud rate, then read in the GPS tracks.

A track list window will be popped up. Select the tracks to import.

Tracks will be shown on the Map window.

Clear Data Logger Memory

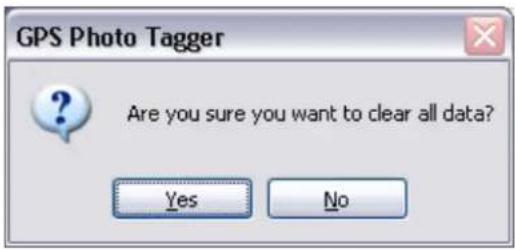

Menu command "Logger" -> "Clear Trip" will clear the data stored in device, so the device memory are enough for next usage.

Data Logger Configuration

Connect Data Logger to PC and turn on Data Logger. Menu command "Logger" -> "Conguraon" If Data Logger is not connected, the GPS Log Seng area will be disabled. Please make sure the Data Logger power switch is turn on when connect.

Connecon Seng:

Auto Scan GPS Module (Recommended)

The program will automacally detect the com port and the baud rate. It is recommended to set to auto scan.

GPS Log Conguraon

There are 4 log modes: General mode, vehicle mode, cycling mode, and hiking mode. Users can also change the default seng of these 4 modes.

Log mode seng: By Time or Distance

Log By Time (seconds):

Specify the log period. For example, if specify 3 seconds, the GPS device will log every 3 seconds.

Log By Distance (meters):

Specify the log distance. For example, if specify 10 meters, the GPS device will log every 10 meters.

Minumum Logging Speed: over () km/h:

Specify the log speed. For example, if specify 20 km/h, the GPS device will log when the speed is over 20 km/h.

Note: GPS device will log only when the log period or log distance, and meet the log speed with the criteria.

Data Log Memory

A bar show how many percentage of memory is used in the Data Logger device. Users can use “Clear Trip” to clear all the memory.

When data logger memory is full, the device will stop logging. please clear the memory.

Track List Window

Select Track line, Map window will animate the whole trip by moving the current posion. And also display the summary data, graph window and photo informaon.

Track Name	Start Time	End Time	Distance (km)	Duration
2012-11-25 08:56	2012-11-25 09:56	2012-11-25 09:59	0.78	03:20
2012-11-25 09:14	2012-11-25 09:14	2012-11-25 09:20	12.14	14:50
2012-11-25 09:41	2012-11-25 09:41	2012-11-25 10:08	14.71	27:06
2012-11-25 15:41	2012-11-25 15:41	2012-11-25 15:56	7.55	14:20
2012-11-25 17:03	2012-11-25 17:03	2012-11-25 17:18	6.58	14:58
2012-11-25 17:55	2012-11-25 17:55	2012-11-25 18:10	2.45	14:55
2012-11-26 09:43	2012-11-26 09:43	2012-11-26 10:22	0.02	38:30
2012-11-27 11:43	2012-11-27 11:43	2012-11-27 11:51	0.05	08:30
2012-11-27 12:36	2012-11-27 12:36	2012-11-27 17:52	0.12	5:16:30
2012-11-28 09:49	2012-11-28 09:49	2012-11-28 17:45	0.20	7:55:41
2012-11-28 19:43	2012-11-28 19:43	2012-11-28 20:08	16.97	26:24
2012-11-30 14:36	2012-11-30 14:36	2012-11-30 17:30	0.10	2:53:31
2012-12-01 08:03	2012-12-01 08:03	2012-12-01 09:09	74.47	1:35:54
2012-12-02 16:01	2012-12-02 16:01	2012-12-02 17:04	52.47	1:03:52
2012-12-03 09:52	2012-12-03 09:52	2012-12-03 09:58	0.08	04:24

User can clear track from "Track" -> "Delete Track" or click

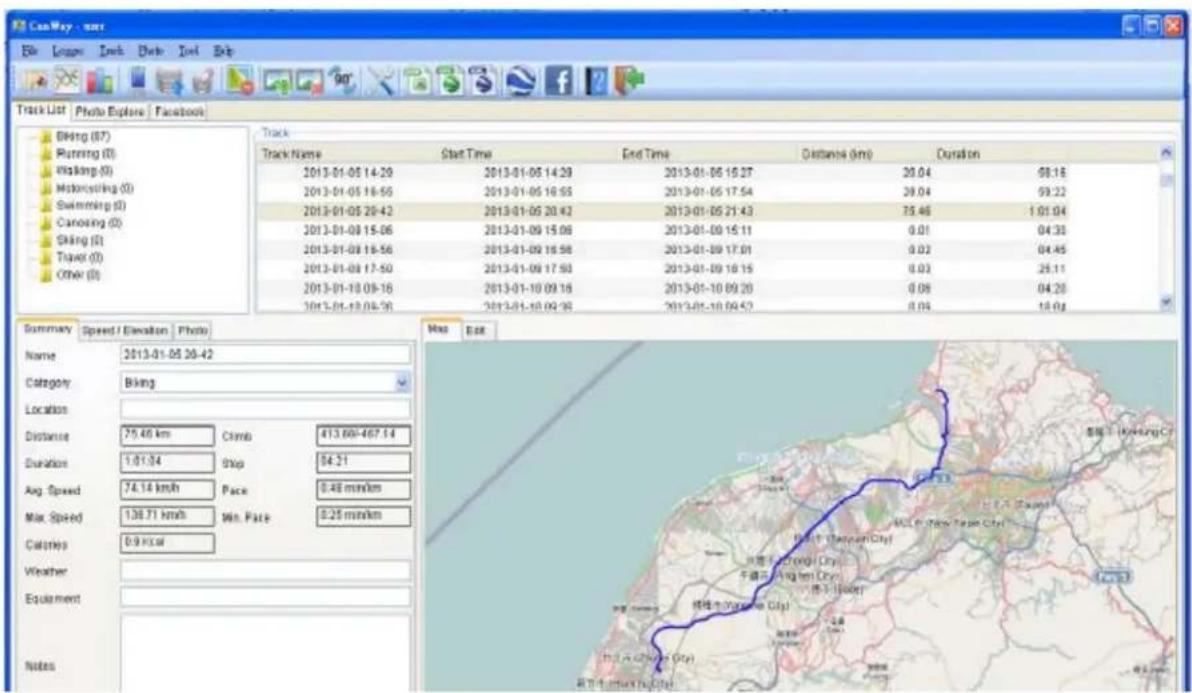

TAB List Window

1. Select Track List, and select your Track. you can change Category for other sport.

1. Select Photo Explore .User can nd photo list.

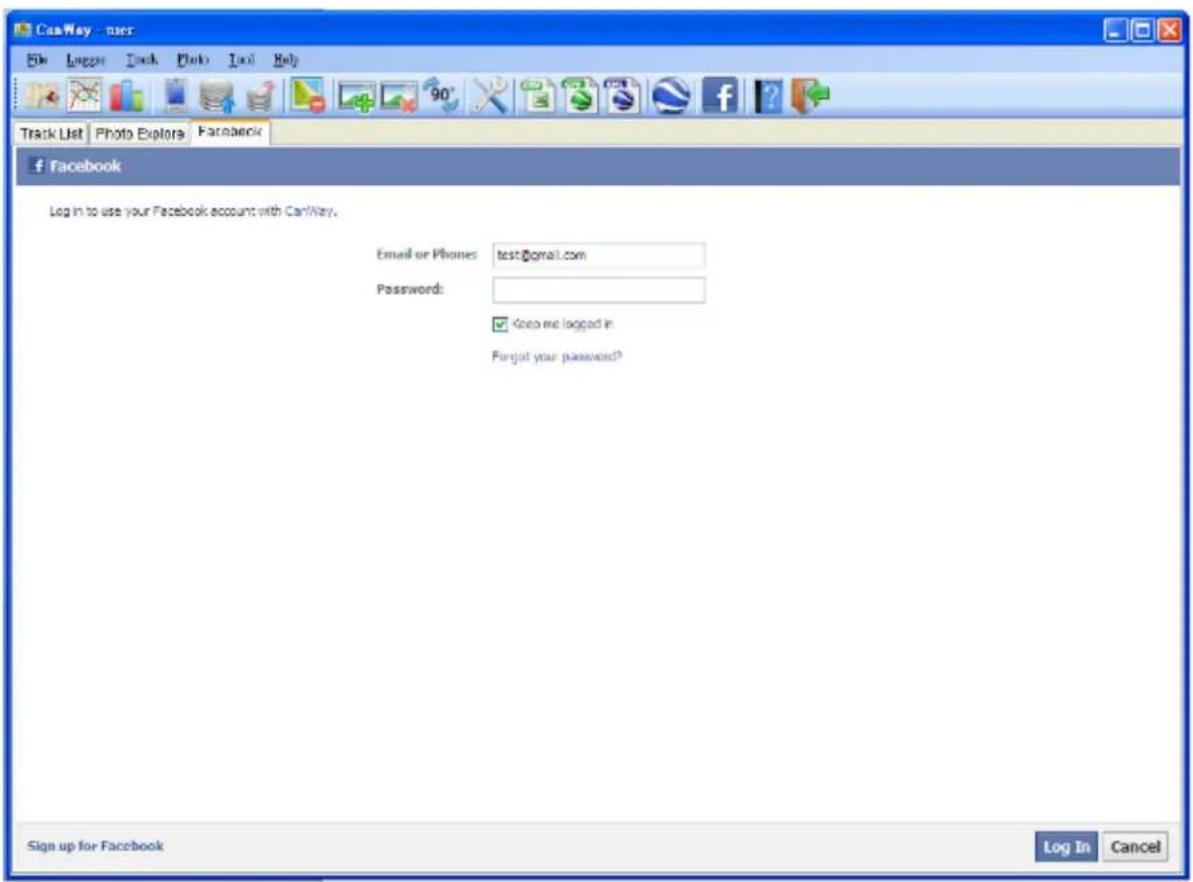

3. Select Facebook .User can login Facebook.

Add Photos

Users can add photo from a le folder.

Add photo from a folder: Menu command "Photo" -> "Add Photo..." -> "From Folder". Select a folder to add photo.

The photo will show on the Photo View window. Users can add comments to each photo. Users can also rotate, delete photo.

When photos are added, CanWay will automacally match photo and GPS logged waypoints by me. Place marks will be created as a placeholder for photos.

Browse photos

Click on the "next photo" and "prev photo" buons to browse the photos.

Current photo and current place mark will be synchronized.

Photo List Window

Photo list window will show the aributes of photos. The informaon includes "le name", "date", "place mark", "latitude", and "longitude".

Field	Value
Name	20121230_1536...
Date Time	2012-12-30 23:36
Latitude	25° 10.9548' N
Longitude	121° 24.9870' E

Upload Photos to face book.

ICON > "Upload Photos facebook", Select picture and Click next.

Google Earth Viewing

Command "File" -> "View in Google Earth" will invoke Google Earth to view the tracks and photos. Users have to install the Google earth.

hp://earth.google.com/

Save As KMLFile and KMZ

Menu command "File" -> "Export as Kml..." to save the tracks and photos in kml le. You can import kml le to Google Earth. You can also send kml le to friends to share their trips with friends as long as they have installed Google Earth on their computers.

Export Track(s)...

Menu command "File" -> "Export Track(s)..."

Step 1. Select the tracks to export.

Step 2. Select the export le format. "CSV", "GPX", "NMEA Text", "Google Earth KML", and "Google Earth KMZ" le formats are supported.

Altitude / Speed Graph

Switch to "Speed/Elevaon View" window will show the Elevaon and speed graph. You can change the Y Axis or X Axis data unit with the graph.

Track Editing

Select Track line, Switch "Editor" on the map window. Move the cursor on the track will show the preselected waypoint me. Click on track to select the whole track.

Use for edit your Track.

Time Zone Setting

There are two me zone sengs in “CanWay”. One is “Photo me zone”, the other is “Display me zone”. “Photo me zone” is set to the same me zone of your digital camera. The “Display me zone” is set for displaying purpose. For example, If you are an Englishman and you travel to United State. The “Photo me zone” should be set to “England” because your digital camera me zone is in England, and the display me zone should be set to “United State”.

The “Photo me zone” by default is set to the PC default value. In most of the case the default value is correct.

User can set up Track Time Zone. Click on track to select track List > Summary> Time Zone.

User can set up Photo Time Zone. Click on track to select Photo Explore>pic Photoshop>Adjust Time Zone

Options

Menu command "Tools" > "Opons..."

Prole :

Data : Sex , Birthday , Height , Weight ,Locaon, Week Start on

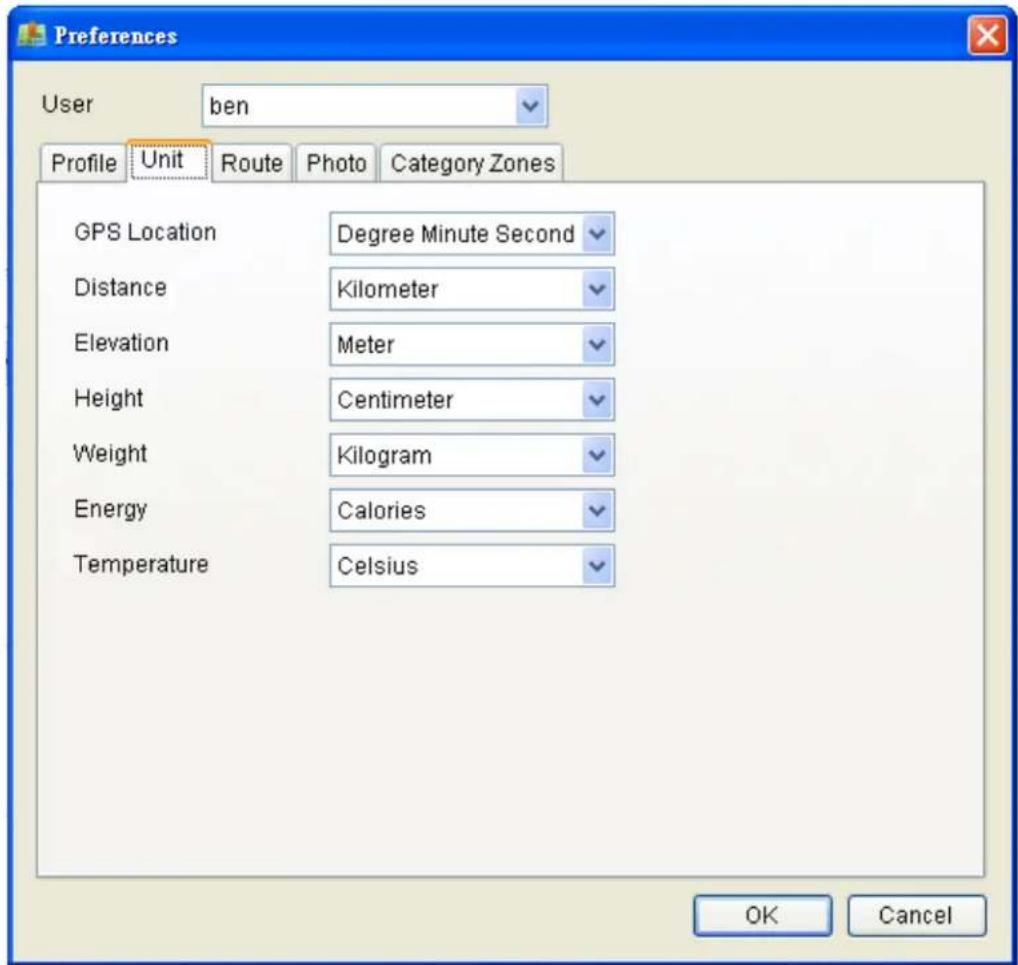

Distance unit:

Data : .GPS Locaon , Distance , Elevaon , Height , Weight , Energy , Temperature

Route:

Data : Separate Routes Criteria, Route Thickness, Route Color.

photo:

Data : Group Photo Criteria, Time Match Criteria.

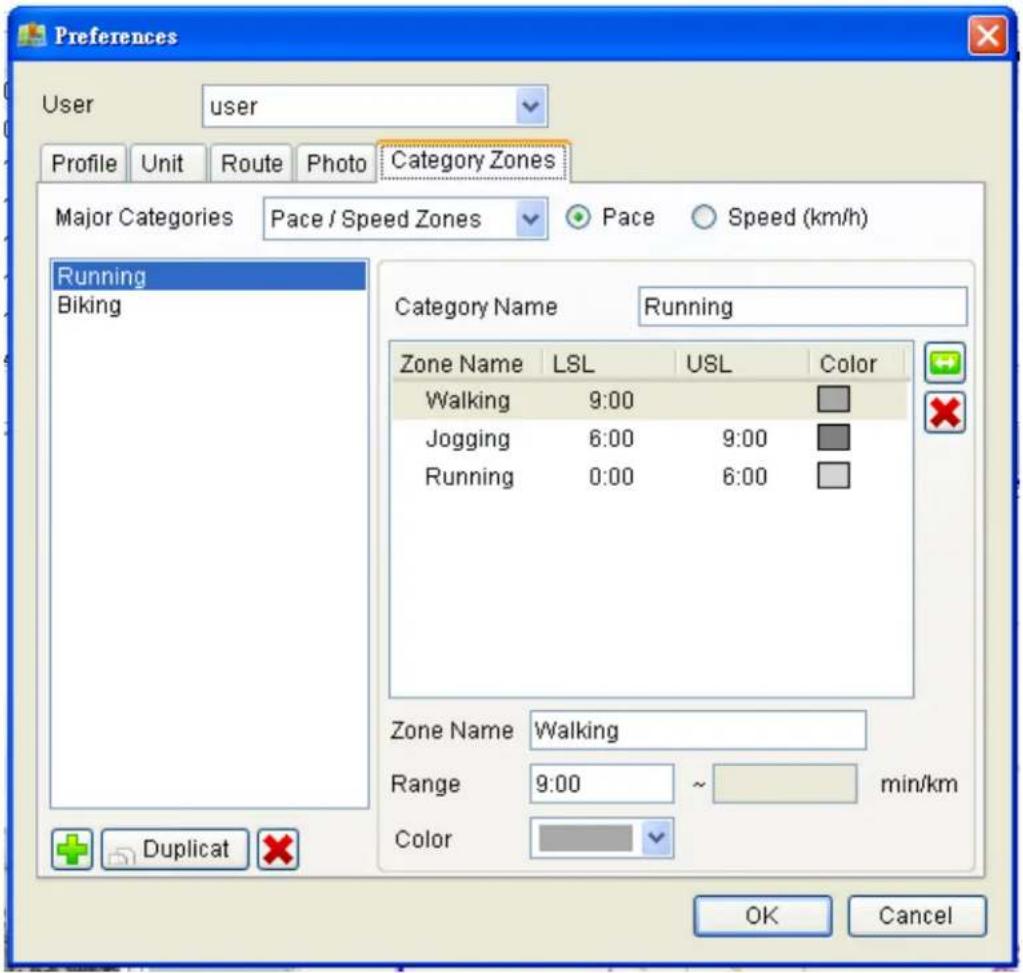

Category Zones :

Sport Analysis :

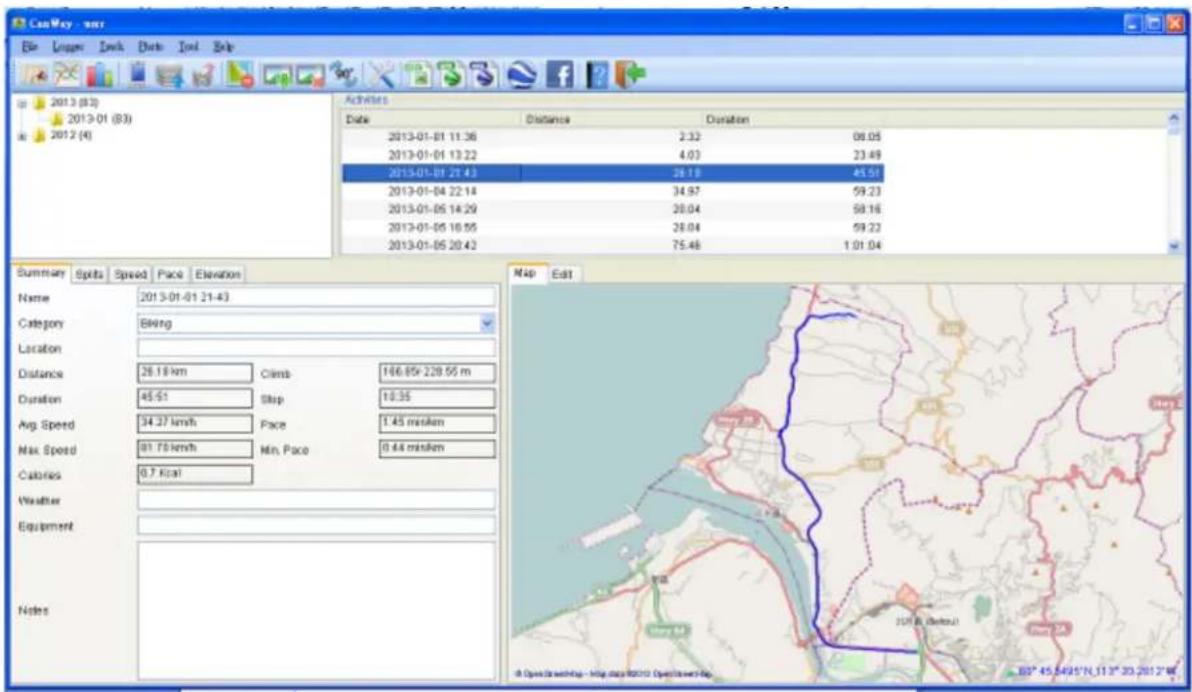

1 Activity view: with the graph window

Analysis data : Summary, Splits, Speed, Pace, Elevaon.

1. Summary : include Name, Category, Locaon, Distance, Duraon, Avg.Speed, Max.Speed, Calories, Wealther.

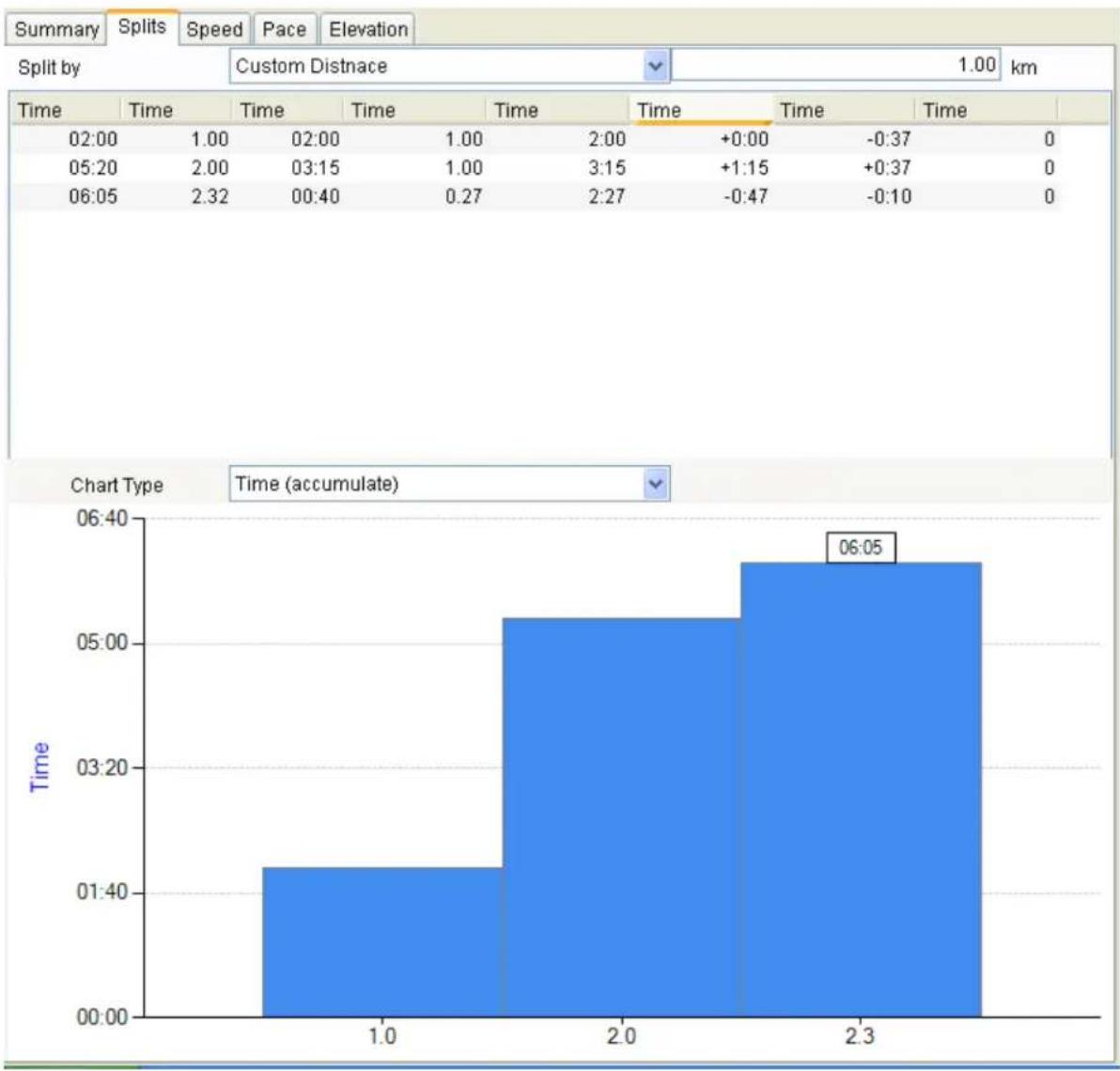

1. Splits :User can change Distance and Chart Type .

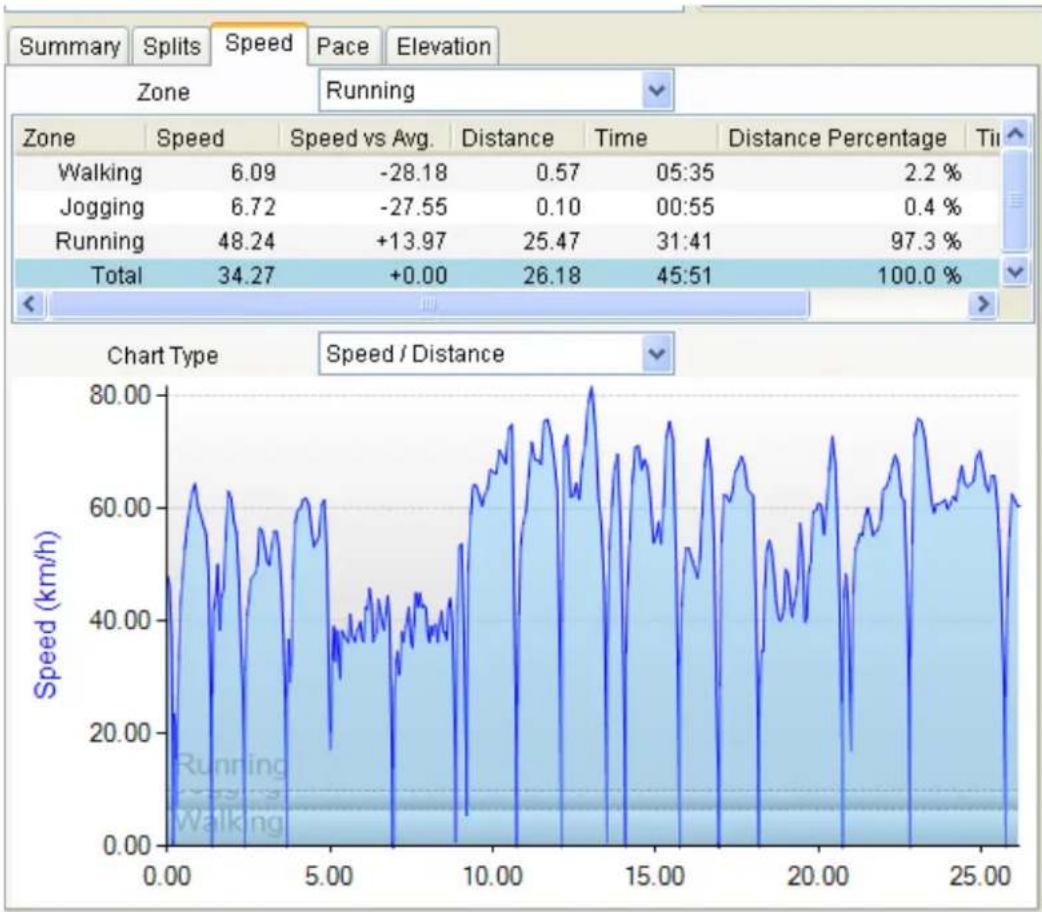

3. Speed :User can change Zone and Chart Type

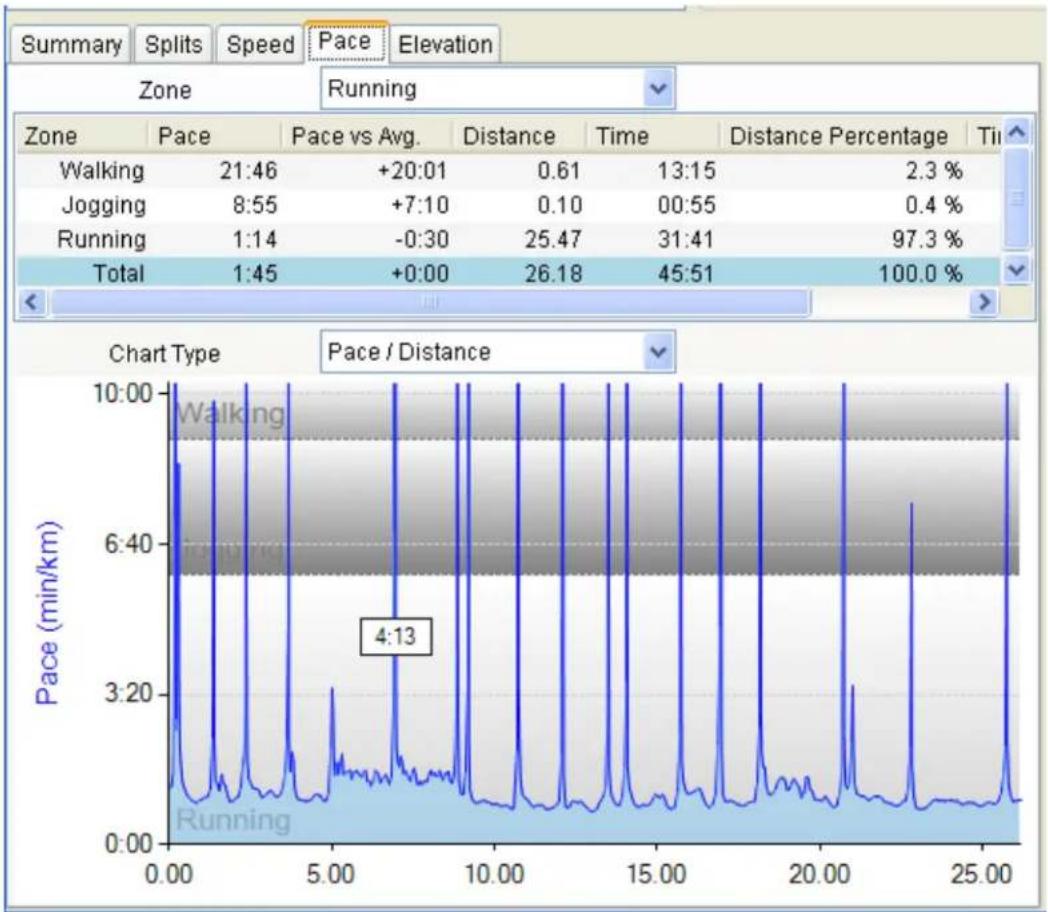

1. Pace :User can change Zone and Chart Type

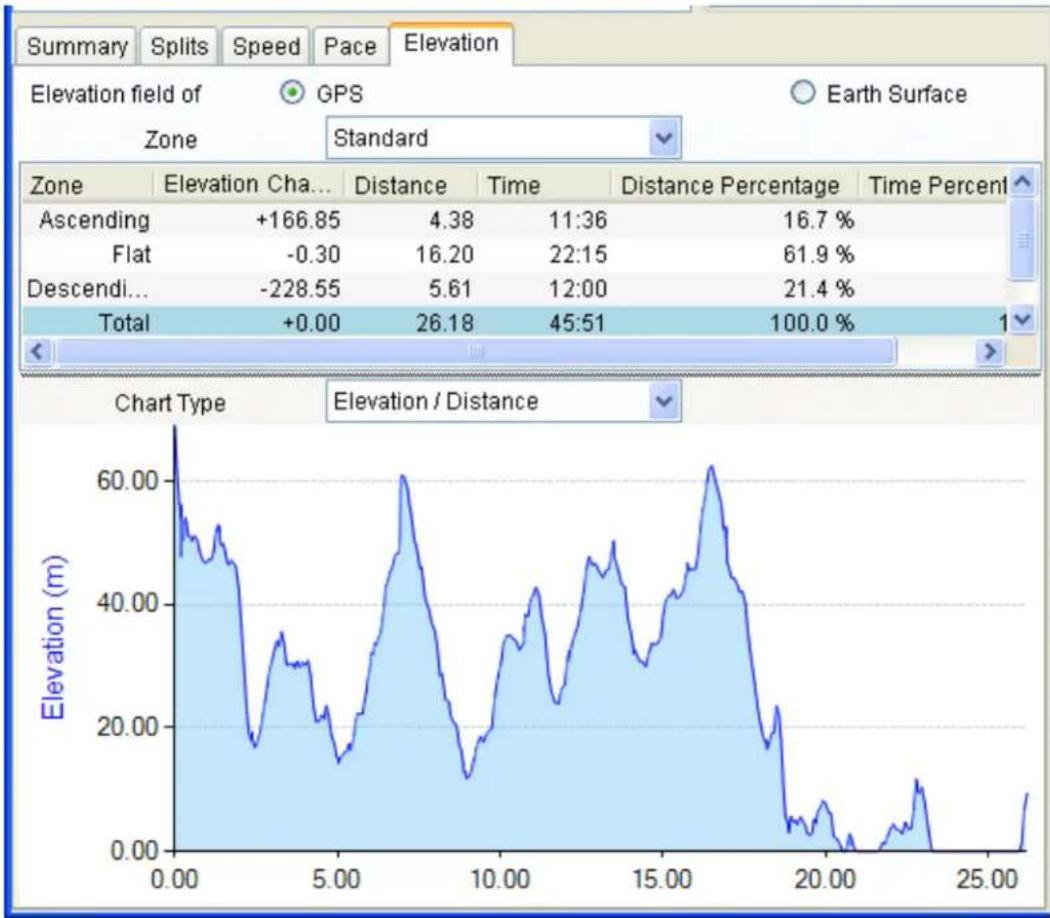

5. Elevaon :User can change Zone and Chart Type

1. Report View : User can select Search Criteria, Data Field, Time out, Caterrory.

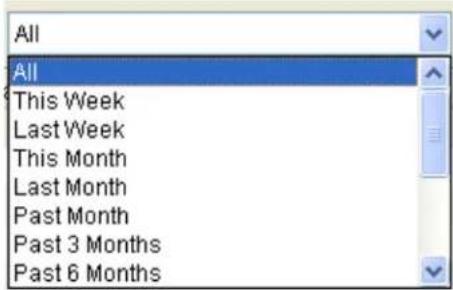

1. Search Criteria : User can select me range .

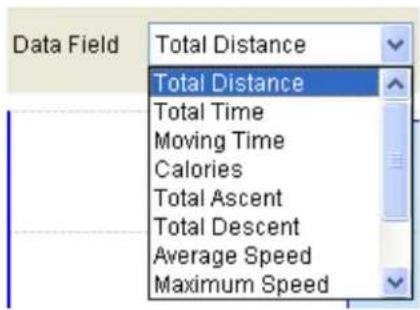

1. Data Field : User can select measure conditions .

1. Time out : User can select Time Unit .

1. Caterrory : User can select Sport mode .
