Product Type	LED floodlight
Model	Philips ClearFlood BVP650

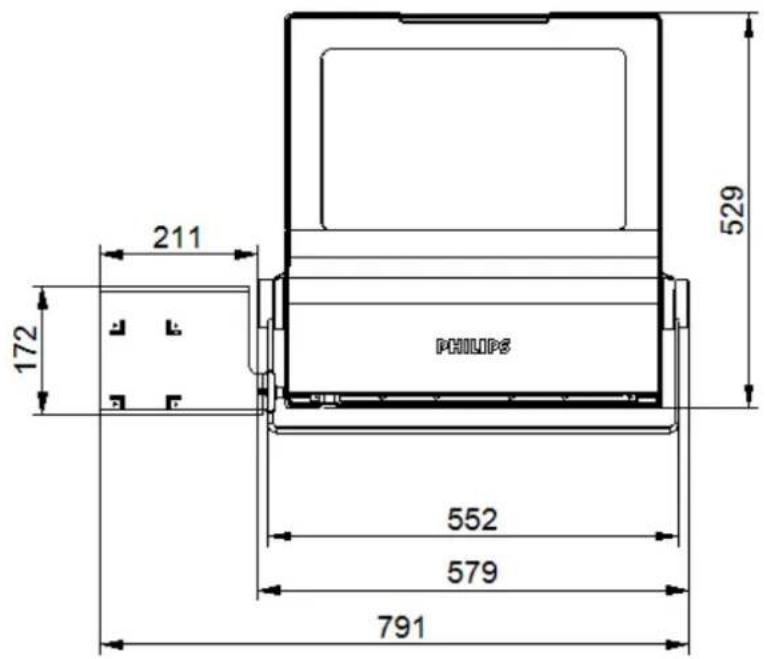

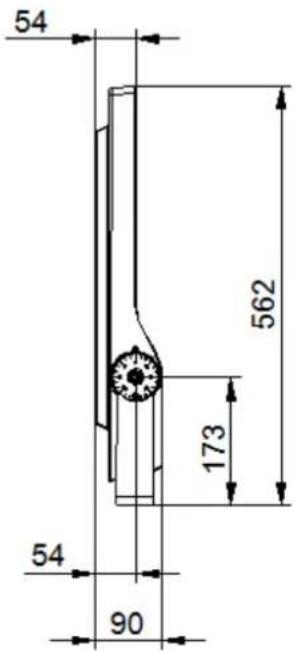

Dimensions (Standard)	529 x 552 x 579 mm
Weight (Standard)	15 kg (16 kg for some variants)
Ingress Protection	IP66
Impact Resistance	IK09
Supply Voltage	220-240 V, 50/60 Hz
Wattage Options	48 W to 400 W (e.g., LED70-4S to LED400-4S)
Luminous Flux	7000 lm to 40000 lm (depending on variant)
Color Temperature	740/757, 830, 45/35, 25/15 (multiple options)
Inrush Current	106 A peak / 300 μs (at 230 VAC)
Surge Protection	6 kV (optional 10 kV with SPD)
Ambient Temperature	-40°C to +45°C (indoor/outdoor variants)
Max. PCBA Temperature	95°C
Electrical Class	Class I or Class II (depending on wiring)
Dimming Options	PSA (AmpDim), PSD (DALI), PSR (Lineswitch), Citytouch
Connection Types	Main, Main+DALI, Main+LineSwitch, Citytouch
Installation	Must be installed by qualified personnel; disconnect before servicing
Mounting	Bracket fixation, with optional second fixing for heights >3 m
Cleaning and Maintenance	Refer to manual; use appropriate cleaning methods
Spare Parts	Consult Philips for replacement parts
Certifications	CE, IEC EN60598

Frequently Asked Questions - ClearFlood BVP650 PHILIPS

What is the maximum ambient temperature for outdoor use?

The maximum ambient temperature for outdoor use is 45°C. For indoor use, it is 25°C or 35°C depending on the optics.

Can the luminaire be dimmed?

Yes, dimming options include PSA (AmpDim), PSD (DALI), PSR (Lineswitch), and Citytouch. The specific wiring depends on the version.

How do I connect the luminaire for Class I and Class II?

For Class I, connect L (brown), N (blue), and ground (yellow/green). For Class II, connect L and N only; ground is not used.

What is the inrush current and surge protection?

The inrush current is 106 A peak with a duration of 300 μs at 230 VAC. The surge protection is 6 kV, optionally 10 kV with an external SPD.

What is the weight of the luminaire?

The weight varies between 15 kg and 17 kg depending on the version (standard or Citytouch, and wattage).

Can I install the luminaire at heights above 3 meters?

Yes, but if only the central hole fixation is used and the luminaire is higher than 3 m, a second fixing security system is required.

How do I open the luminaire for wiring?

Refer to the manual: typically, push and pull the connector as shown in the drawings. The connectors are not for current interrupting; never connect or disconnect under load.

What is the IP and IK rating?

The ingress protection is IP66 (dust-tight and protected against powerful water jets). The impact resistance is IK09 (impact energy 10 joules).

Which wiring options are available for the main connector?

Options include Main, Main + DALI IN, Main + DALI IN/OUT, Main + LineSwitch, Main + LineSwitch IN/OUT, and Citytouch.

How should I clean and maintain the luminaire?

Cleaning should be done according to the manual. Use a soft cloth and mild detergent. Avoid abrasive materials. Always disconnect power before servicing.

USER MANUAL ClearFlood BVP650 PHILIPS

Two electronic devices with adjustable stands, one displaying a screen and the other a flat panel, both shown without any visible text or symbols.

Inrush Current (230VAC) (Apk/μs)	106/300
Luminaire Surge Protection	6KV

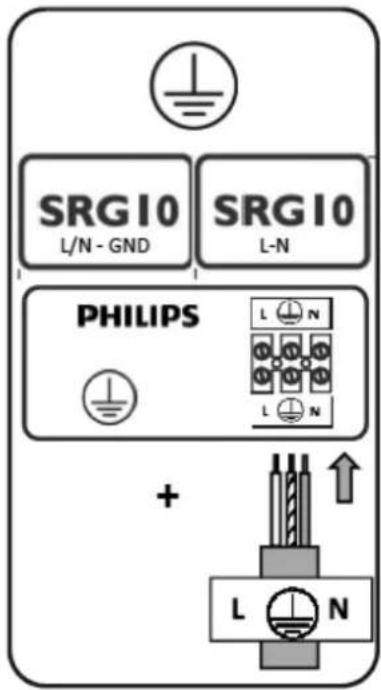

Luminaire Surge Protection with SPD Optional	10KV

Type of electrical protection installation		Maximun number of luminaires to install
		1 driver 150W 2 driver	150W
MCB16A	B TYPE 8 4
	C TYPE 13 6
MCB10A	B TYPE 4 2
	C TYPE 8 4

Tc max. of PCBA = 95°C Measurement in LED nr 63.

Indoor

	LED70-4S 48	7200 44					15 Kg 16Kg
	LED80-4S 8000 49
	LED100-4S 64	10000 60
	LED120-4S 12000 73
	LED140-4S	14000 87
	LED160-4S 16000 100
	LED180-4S 18000 212
	LED200-4S 20000 128			45 35
740/757	LED220-4S 22000 142					-40
	LED240-4S	24000 148	√	√
	LED260-4S 26000 160						16Kg 17kg
	LED280-4S 28000 176
	LED300-4S 30000 190
	LED320-4S 32000 205
	LED340-4S 34000 220
	LED360-4S 36000 235
	LED380-4S 38000 255				45* 35*
	LED400-4S 40000 270 35 25

*Only for OFA52 and S optics (Check with Philips). All optics are available for Ta 35°C outdoor / Ta 25°C indoor.

Outdoor Indoor

	LED70-4S	48	7000 56					15 Kg 16Kg
	LED90-4S 9000 76
	LED110-4S 64 11000 90
	LED130-4S		13000 106
	LED140-4S 14000 116
	LED160-4S 16000 136
	LED180-4S 18000 158
830	LED200-4S		20000 164	√	√		-40	16Kg 17kg
	LED220-4S 22000 184
	LED240-4S 24000 205
	LED260-4S 26000 225
	LED280-4S 28000 245
	LED300-4S 30000 270
	LED320-4S 32000 295
	LED340-4S 34000 320 25 15

This luminaire must be installed only by qualified personnel

Disconnect before servicing

STANDARD VERSION

CITYTOUCH VERSION

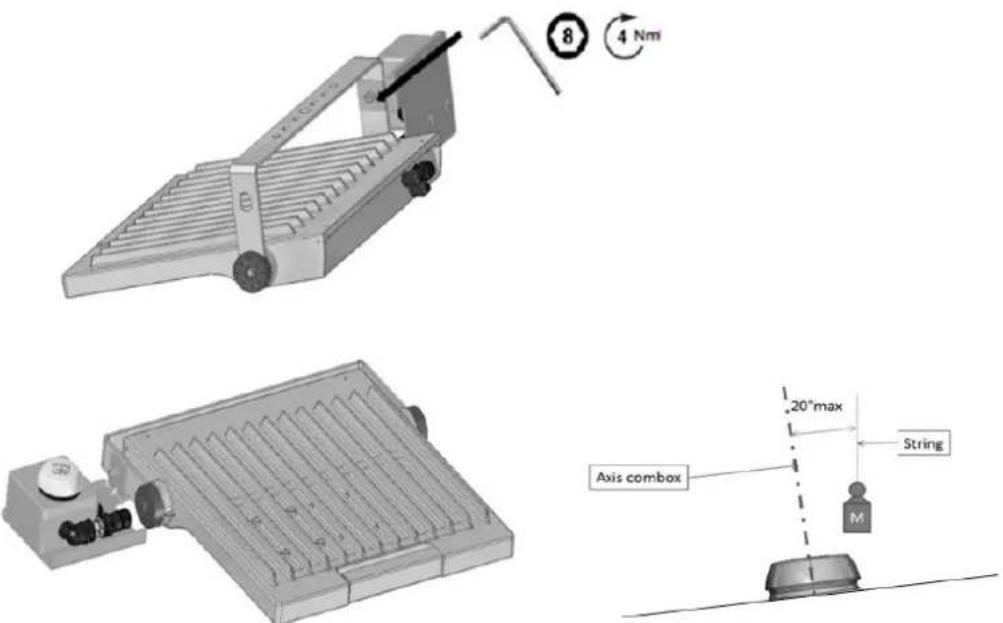

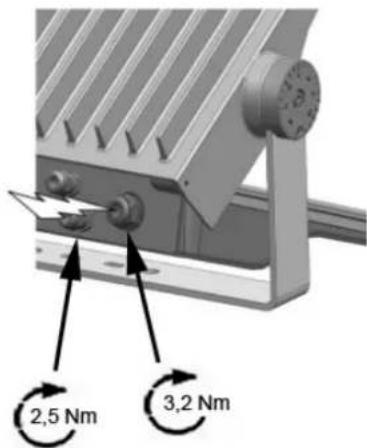

BRACKET FIXATION

In case of using only the central hole fixation and if the luminaire is higher >3m, the use 2^nd fixing security system is needed.

1
CITYTOUCH BOX INSTALLATION / FIXATION

2

LUMINAIRE OPENING

1

Close-up of a hand adjusting a metal grate with slats (no text or symbols visible)

2

3D mechanical assembly diagram showing internal components and a rotating arrow (no text or symbols)

TYPES OF MAIN CONNECTOR

Close-up of a mechanical component with a black knob and mounting bracket (no visible text or symbols)

STANDARD MAIN IN or MAIN + LINESWITCH

Close-up of a mechanical device with two black buttons (no visible text or symbols)

MAIN IN + DALI IN

Close-up of a mechanical device with three black buttons (no visible text or symbols)

MAIN IN+ DALI IN / OUT

Close-up of a mechanical device with two black buttons on a white panel (no visible text or symbols)

MAIN IN+ LINESWITCH IN / OUT

TYPES OF MAIN CONNECTOR

PSU, PSA (D13), PSDD (D18) CONNECTION

Main connection Class-I Main connection Class-II
	L	LINE(Brown)		L	LINE(Brown)
		GROUND(Yellow & Green)		-	-
	N	NEUTRAL(Blue)		N	NEUTRAL(Blue)

Pure electrical circuit lines without any symbols

Pure electrical connector diagram without any text, numbers, or symbols

Main
PSU: No dimming
PSA (D13): AmpDim, Dimming in Factory.
PSDD (D18): Dimming in factory.

PSD DALI (D9) CONNECTION
Main connection Class-I Control connection I
∅6-12 mm (wire section 2 - 4 mm2) ∅4-9 mm (wire section 1,5 - 2,5 mm 2)
	L	LINE(Brown)		1 DALI
	#	GROUND(Yellow & Green)		2 DALI
	N	NEUTRAL(Blue)
Main connection Class-II
∅6-12 mm (wire section 2 - 4 mm2)
		L		LINE(Brown)
		N		NEUTRAL(Blue)

PSD DALI (D9) IN/OUT CONNECTION
Main connection Class-I Control connection IN/OUT
∅6-12 mm (wire section 2 - 4 mm2) ∅4-9 mm (wire section 1,5 - 2,5 mm 2)
	L	LINE(Brown)		1 DALI
	[3x5k]	GROUND(Yellow & Green)		2 DALI
	N	NEUTRAL(Blue)
Main connection Class-II
∅6-12 mm (wire section 2 - 4 mm2)
		L		LINE(Brown)
		N		NEUTRAL(Blue)

Pure electrical circuit lines without any symbols

Main + DALI IN / OUT PSD (D9): Dimming via DALI IN / OUT

PSR Lineswitch (D11,D12) CONNECTION
Main connector Class-I Main connector Class-II
∅6-12 mm (wire section 2 - 4 mm2)
	L	LINE(Brown)		L	LINE(Brown)
		GROUND(Yellow & Green)		-	-
	N	NEUTRAL(Blue)		N	NEUTRAL(Blue)
	L2 Lc L2 Lc

Main + LineSwitch
PSR LineSwitch (D11, D12)

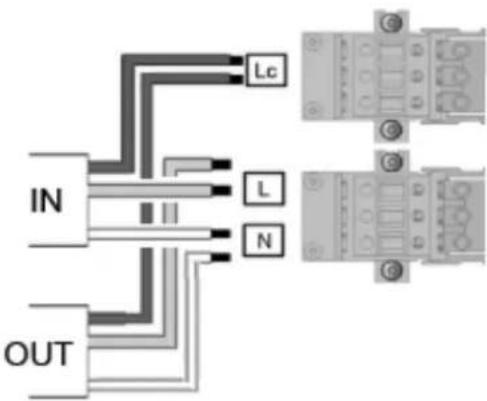

PSR Lineswitch (D11,D12) IN / OUT CONNECTION
Main connector Class-I IN/OUT Main connector			Class-II IN/OUT
∅6-12 mm (wire section 2 - 4 mm2)
	L	LINE(Brown)		L	LINE(Brown)
		GROUND(Yellow & Green)		-	-
	N	NEUTRAL(Blue)		N	NEUTRAL(Blue)
	L2 Lc	L2 Lc

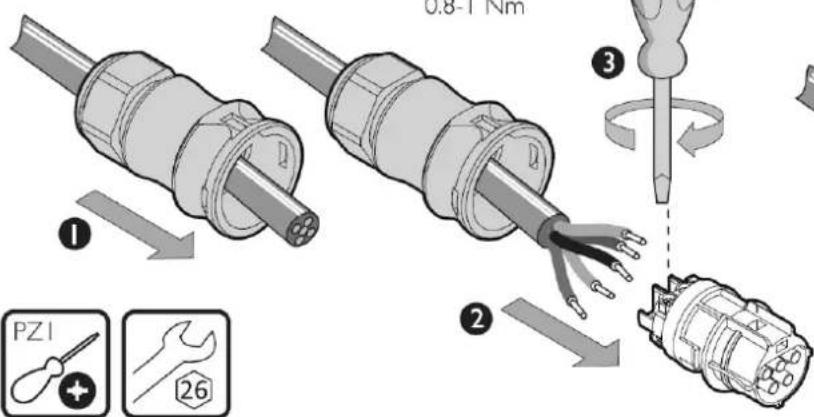

CITYTOUCH CONNECTION

∅10-14 mm 2-4 mm²

OPEN MAIN CONNECTOR

CLOSE MAIN CONNECTOR

WIRE CONNECTION TO WIELAND

The connectors are not for current interrupting. Never connect or disconnect under load.

CITYTOUCH CONNECTION

Main connector Class-I Main connector Class-II
	L	LINE(Brown)		1	LINE(Brown)
		GROUND(Yellow & Green)		2	-
	N	NEUTRAL(Blue)		3	NEUTRAL(Blue)
	1 DALI	4 DALI
	2 DALI	5 DALI
