Product Type	Portable Water Microfilter
Model	Pocket (2010000)
Brand	Katadyn
Dimensions (approx.)	25.4 cm x 6.1 cm (height x diameter)
Weight (with hoses)	585 g
Filtration Technology	Ceramic element (0.2 micron absolute)
Filtration Performance	Removes 99.9999% of bacteria (Klebsiella terrigena) and 99.9% of protozoan cysts (Giardia, Cryptosporidium)
Flow Rate	Approx. 1 L/min
Filter Capacity	Up to 50,000 liters (13,000 gallons) depending on water quality
Power Source	Manual pump (no batteries or electricity)
Materials	Ceramic element, plastic housing, rubber seals, stainless steel? (not specified)
Warranty	20 years limited warranty
Maintenance	Clean ceramic element with supplied pad; lubricate o-rings with silicone grease; flush system before first use and after long storage
Safety Features	Ceramic element indicates wear with measuring gauge; inspect for cracks after cleaning or freezing
Spare Parts	Replacement cartridge (Model 8013619); cleaning pad; silicone lubricant
Usage	Suitable for 1-4 persons for trekking, journeys, expeditions
Included Accessories	Prefilter (strainer + weight), input hose, output hose, bottle clip, float, carry bag, cleaning pad, silicone lubricant

Frequently Asked Questions - POCKET Katadyn

How do I set up the Katadyn Pocket for first use?

Attach the prefilter to the input hose, position the float 2 inches from the prefilter, connect hoses to the pump base, and flush the system by pumping 0.5 liters of water to remove ceramic dust.

How do I clean the ceramic filter element?

Unscrew the pump base, remove the plastic sleeve, and brush the ceramic gently with the supplied cleaning pad until the original light color reappears. Avoid touching the output side with unfiltered water.

What should I do if the pump handle becomes hard to push?

This indicates clogged filter pores. Clean the ceramic element as described. Never use force when pumping. If the problem persists, replace the ceramic element.

How do I lubricate the pump handle o-ring?

Unscrew the handle collar counter-clockwise, remove the pump handle, clean the black rubber o-ring, apply a small amount of silicone lubricant, and reassemble.

What does the Katadyn Pocket filter remove?

It removes 99.9999% of bacteria (e.g., Klebsiella terrigena) and 99.9% of protozoan cysts (e.g., Giardia and Cryptosporidium). It does not remove viruses.

How do I store the filter for long-term?

Clean and dry the ceramic element, rinse the plastic sleeve, lubricate o-rings and threads, reassemble, wrap the input hose around the body, and store in the carry bag. Flush with 1 liter of water before next use.

When should I replace the ceramic element?

Replace when the measuring gauge fits over the ceramic (indicating wear) or if you see cracks after cleaning, dropping, or freezing. The element has a maximum capacity of 50,000 liters.

How do I replace the ceramic element?

Unscrew the pump base and handle collar, remove the old ceramic, insert the new element (model 8013619), lubricate threads, reassemble, and flush 1 liter of water.

What should I do if no water flows while pumping easily?

Check that the prefilter is submerged and the input hose is not kinked or blocked. Hold the filter vertically until water flows. If still no flow, check the prefilter for debris.

How do I prevent cross-contamination during storage?

After use, remove the output hose with the bottle clip, seal it in the re-sealable bag inside the carry bag, and store separately from the filter body.

USER MANUAL POCKET Katadyn

MAKING WATER DRINKING WATER

Pocket Water Microfilter

(Model 2010000)

Pocket Replacement Cartridge

(Model 8013619)

English

Thank you for choosing a Katadyn portable water microfiltration system. The Katadyn Pocket Microfilter meets industry standards for reduction of bacteria (99.9999% Klebsiella terrigena) and protozoan cysts (99.9% Giardia and Cryptosporidium). The Pocket is Katadyn's most rugged filter and comes with a 20 year warranty. Professionals trust its longevity and the filter is ideal for 1-4 persons while trekking, on journeys and on expeditions.

(Figure 1-1)

Key Components

(Figure 2-1)

(Figure 2-2)

(Figure 2-3)

Product Set-up

The Pocket requires minimal set up. For best results, try out the Pocket before first field use to familiarize yourself with its operation.

1) Prefilter

The modular prefilter (Figure 2-1) is effective in still and running water. It consists of two components: a strainer and a weight. The prefilter is important because it prevents large particles (larger than 130 microns) from entering the water system. See Field Performance Tips for helpful hints.

2) Connect Hoses

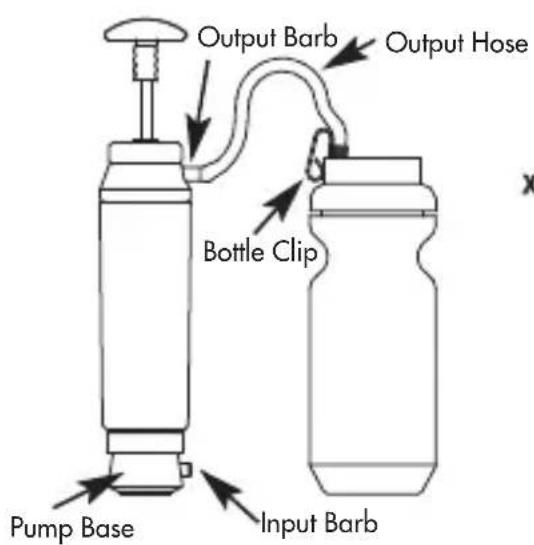

Push the hose float on to the input hose (hose with prefilter). Position the float approx. 2 inches from prefilter. Attach the input hose to the input barb on the pump base. Push the bottle clip on to the output hose. Attach the output hose to the output barb. (Figures 1-1, 2-1, 2-2)

3) Flush System

Important: Before first use, flush system by pumping approximately 0.5 litres of water through the unit to remove harmless ceramic dust. See following section on Normal Operation on how to filter water.

Normal Operation

1) Place input hose in untreated water source. Adjust the float to keep prefilter off the bottom and away from sediment.
2) Attach the bottle clip on the output hose on to a clean water container*. (Figure 2-3)

3) Hold the filter upright and begin pumping the handle in a slow, steady manner. Make sure the input hose is not kinked.
4) After filling water container with filtered water, remove bottle clip from container and input hose from water source. Continue pumping to remove remaining water from pump body.
5) Store the unit in the carry bag. To prevent the possibility of cross contamination remove the output hose with the clip and store separately in the re-sealable bag inside the carry bag.

*Note: Before each use, pump and discard a small amount (0.2 litres) of water to remove stale taste.

Field Performance Tips

The Katadyn Pocket is designed to remove bacteria and protozoan cysts such as Legionella, Giardia and Cryptosporidium. To extend ceramic life, always use the best water source available. Keep the input prefilter clean and off the bottom. In heavy sediment conditions, wrap a coffee filter or bandanna around the input prefilter. Where possible, place untreated water in container and wait for sediment to settle out until water appears clear - then filter from water above the sediment.

Maintain your Katadyn water system to keep it operating smoothly.

1) If handle is hard to push:

Clogged filter pores. If the filter pores of the ceramic are clogged, the ceramic needs to be cleaned. Never use force when pumping. Unscrew the pump base counter-clockwise from the lower end of the filter housing and remove the plastic sleeve by pulling it downwards. Clean the ceramic element by brushing it with the supplied cleaning pad until the light, originally color appears again. Be careful not to have unfiltered water touching the filter output. Push the plastic sleeve over the ceramic element. Apply a drop of silicone lubricant on the thread of the pump base. Tighten the pump base clockwise.

2) Lubricate pump handle o-ring. Silicone Silicone lubricant is provided with your new unit. Unscrew the handle collar on the upper part of the filter element counter clockwise and remove the pump handle. (Figure 1-1) Clean excess build-up from black rubber o-ring on bottom of handle. Place a small amount of silicone lubricant on the thread of the filter element. Re-assemble.
3) If unit pumps easily, but no water flow:

Make sure prefilter is submerged.

Make sure that input hose is not blocked or pinched.

Hold the filter vertically until water flows.

4) Prefilter: Rinse the prefilter in water to remove any particles that may be caught in the strainer.
5) Storage: Your Katadyn water system comes with a carry bag for storage. To prevent the possibility of cross contamination remove the output hose with the bottle clip and store separately in the re-sealable bag inside the carry bag.

Long-Term Storage (After Your Trip Is Over)

Store the Pocket filter as follows:

1) Unscrew the pump base and clean the ceramic element by brushing with the supplied cleaning pad. Allow to air-dry completely.
2) Rinse the black plastic sleeve and remove any dirt.
3) Lubricate the o-rings and the threads of the filter element and the pump base.
4) Re-assemble the filter.
5) Wrap input hose around body and store Pocket inside the carry bag.

Note: When removing unit from long-term storage, flush the system with one litre of water to remove any stale tasting water.

Ceramic Capacity

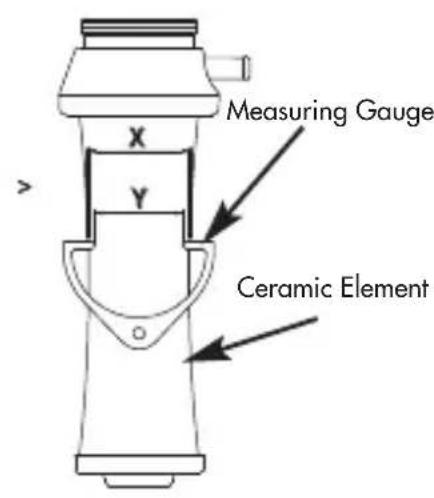

Ceramic capacity depends on water quality. The dirtier the water the more often you will have to clean the element. This reduces the capacity of approx. 13'000 gallons (50'000 litres). If the gap of the measuring gauge fits over the ceramic it is time to replace the filter (Figure 2-3). Inspect the ceramic for cracks after cleaning, if you dropped the filter or if you had freezing temperatures. If the filter shows cracks it will no longer protect you from microorganisms.

Ceramic Installation

Replacement filter elements are available from the dealer where you purchased your Katadyn Pocket.

1) Unscrew the pump base counter clockwise from the lower end of the filter housing and remove the plastic sleeve by pulling it downwards.
2) Unscrew the handle collar on the upper part of the ceramic element counterclockwise and remove the pump handle. Lubricate o-ring.
3) Remove new ceramic element from packaging
4) Insert pump handle into the new ceramic element and tighten the handle collar clockwise.
5) Push the plastic sleeve over the new ceramic element. Apply a drop of silicone lubricant to the thread of the pump base. Tighten the pump base to the housing clockwise.
6) Flush ceramic element by pumping and discarding the first litre.

When You Travel Abroad, Camp or Backpack...

...you run a risk of illness ranging from the inconvenience and discomfort of diarrhoea to more serious illnesses caused by protozoan cysts (i.e., Legionella, Giardia, Cryptosporidium), viruses and bacteria.

The microorganisms that cause these diseases are often found in the food and water you consume. Lakes, streams and the local water supply may be contaminated.

To minimize the risk of contracting these illnesses, we suggest that you consult with your physician, state health department or traveller's clinic 4-6 weeks before you depart.

And while you are travelling...

• Make sure that prepared food is thoroughly cooked.
• Select non-cooked foods (fruits, nuts, etc.) that have intact shells or skins, and clean your hands before peeling the food.
• Wash your hands with soap and water thoroughly and often, especially before you eat. Filter all drinking water with your Katadyn Pocket Water Microfilter.

The Katadyn Pocket Microfilter is an essential piece of outdoor equipment. For questions or suggestions, please contact us at [phone].

Product Registration

Please take a moment to register your new Katadyn product by completing the short product registration form online at www.katadyn.com/productregistration. The information you provide will enable us to better serve you with products developed to meet your needs and interests. Register your Katadyn product online and you will be automatically entered into a drawing to win a free Katadyn product.

Limited Warranty

Your Katadyn Pocket Microfilter is warranted for twenty (20) years from the date of purchase against defects in materials and workmanship. Should your Katadyn Pocket prove defective with this time from the date of purchase, return it to the Katadyn retailer from whom it was purchased. If you have any questions please contact Katadyn at [phone]. Katadyn, at its discretion, will replace or repair the damaged item. Please retain your purchase receipt as proof of date purchased. This warranty gives you specific legal rights and you may have other legal rights which vary from state to state.

Contact International: Katadyn Products Inc. Pfäffikerstrasse 37 8310 Kemptthal / Switzerland [e-mail] / www.katadyn.com
