Product Type	Portable Power Bank
Model	PLM03ZM
Battery Type	Li-polymer
Cell Capacity	10000mAh (38.5Wh)
Operating Temperature	0°C to 45°C
Dimensions	128.5 × 75 × 12.6 mm
Weight	Approx. 220 g
Input	5V/2A, 9V/2A, 12V/1.5A
Output	5V/2.4A, 9V/2A, 12V/1.5A
Total Output Power	Up to 18W
Charging Time (9V/2A or 12V/1.5A)	Approx. 3.5 hours
Charging Time (5V/2A)	Approx. 5.5 hours
Fast Charging Support	Yes (USB-C QC 3.0 compatible)
Small Current Mode	Yes (double press power check button)
Indicator LEDs	4 LEDs showing battery level
Protection Features	Over-charge, over-discharge, high temperature, short circuit
Power Management Chip	Texas Instruments (TI)
Compatibility	Most smartphones, tablets, and USB devices
Auto On/Off	Yes (detects charging and discharging automatically)
Low Power Mode	All LEDs off, recharge as soon as possible
Anti-Counterfeit Label	Scratch-off verification code on package
Manufacturer	Zimi Corporation (Xiaomi Ecosystem)
Certifications	FCC Part 15

Frequently Asked Questions - Mi Power Bank Pro Xiaomi

How do I check the remaining battery level on my Mi Power Bank Pro?

Press the Power check button on the side. The 4 LED indicators will light up or blink to show the battery level. 4 LEDs solid means 100%, 3 solid and 1 blinking means 75-96%, etc.

Can I charge my phone and the power bank at the same time?

The Mi Power Bank Pro does not support pass-through charging. You cannot charge the power bank and a device simultaneously. It will prioritize charging the connected device first.

What is Small Current Mode and how do I use it?

Small Current Mode is designed for charging low-power devices like Bluetooth earbuds or smart bands. To activate, double-press the Power check button when the power bank is not charging anything. The LEDs will turn on in sequence. To exit, single-press the button.

Does the Mi Power Bank Pro support fast charging for Samsung or iPhone?

Yes, it supports fast charging at 9V/2A and 12V/1.5A, which is compatible with many fast-charging phones, including Samsung Adaptive Fast Charging and iPhone (USB-PD via USB-C). However, it does not support Qualcomm Quick Charge 2.0/3.0 directly, but it can still fast charge compatible devices.

Why are all four LEDs blinking when charging?

All four LEDs blinking simultaneously indicates a charging error. This could be due to a faulty cable, incompatible charger, or the power bank entering protection mode. Try a different cable and charger. If the issue persists, it may be defective.

How long does it take to fully charge the power bank?

Using a 9V/2A or 12V/1.5A charger, it takes about 3.5 hours. With a standard 5V/2A charger, it takes about 5.5 hours.

Is it safe to leave the power bank plugged in overnight?

Yes, the Mi Power Bank Pro has over-charge protection. Once fully charged, it will stop drawing power. However, it is always good practice to unplug once fully charged.

What should I do if the power bank doesn't charge my device?

First, ensure your device is compatible and the charging cable is working. Press the Power check button to see if the power bank has charge. Try using the small current mode for low-power devices. If still not working, the power bank may be in protection mode. Connect it to a charger to reset.

Can I use a non-Xiaomi charger to charge the power bank?

Yes, you can use any USB charger that meets the input specifications (5V/2A, 9V/2A, or 12V/1.5A). For fastest charging, use a compatible quick charger.

How can I verify if my Mi Power Bank Pro is genuine?

Scratch off the coating on the anti-counterfeit label on the box to reveal a verification code. Go to http://www.mi.com/verify and enter the code to check authenticity.

USER MANUAL Mi Power Bank Pro Xiaomi

Please read the user manual before using the product

Specifications

Model: PLM03ZM

Battery type: Li-polymer

Cell capacity: 10000mAh 3.85V (38.5Wh)

Operating temperature: 0°C\~45°C

Dimensions: 128.5×75×12.6mm

Input: 5.0V = 2.0A 9.0V = 2.0A 12V = 1.5A

Output: 5.0V---2.4A 9.0V---2.0A 12V---1.5A

Charging time: approx. 3.5 hours (9V/2A or 12V/1.5A adapter, standard cable),

approx. 5.5 hours (5V/2A adapter, standard cable)

Product Introduction

Thank you for choosing Mi Power Bank Pro. The product is a high-capacity portable charger that uses Li-polymer batteries and TI chips for a safe, efficient, and compatible user experience.

Product Features

Safety: Mi Power Bank Pro has multiple safeguard technologies to provide over-charge, over-discharge, high temperature, and short circuit protection in all working conditions.

Efficiency: Supports fast charging and discharging at 5.0V---2.4A 9.0V---2.0A 12V---1.5A output.

Compatibility: The product has a built-in USB charging controller, compatible with most smartphones, tablets, and devices. It supports mainstream fast charging devices, and can boost to 9V/12V.

Quality: Li-polymer batteries and TI chips.

Note:

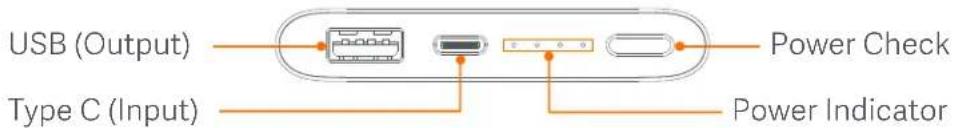

The Power check button is not a Power button. Mi Power Bank Pro detects charging and discharging automatically. The Power indicator turns off 2 minutes after discharging is completed.

Charging

Connect with Mi AC Adapter to charge Mi Power Bank Pro.

The indicator shows charging conditions as follows:

Power Level L	LED1 LED2	LED3 LED3
0-25%	Blinking	Off	Off	Off
25-50%	On	Blinking	Off	Off
50-75%	On	On	Blinking	Off
75-96%	On	On	On	Blinking
Fully Charged	On	On	On	On
Charging Error	Blinking	Blinking	Blinking	Blinking

Notes

• Please make sure to fully charge Mi Power Bank Pro on its first use.
• When charging a device with Mi Power Bank Pro, please check whether your device displays the battery charging icon to confirm that Mi Power Bank Pro is working properly.
• When charging Mi Power Bank Pro or charging a device with Mi Power Bank Pro, please be sure to use the right charging cable.
• When all indicator LEDs lights go out, Mi Power Bank Pro is in low power mode. Please recharge as soon as possible.
• When charging a device with Mi Power Bank Pro, the device will use Mi Power Bank Pro's battery first.
• Once your device is fully charged, please disconnect it from Mi Power Bank Pro to avoid further discharge.
• When the product enters protection mode (LEDs don't light up after pressing the Power check button) due to output short circuit or other reasons, please charge Mi Power Bank Pro with an external charger to resume.

Warnings

• Mi Power Bank Pro contains Li-ion batteries. Do not open the casing to avoid battery damage or other dangers.
• Please do not dismantle, press, puncture and short circuit Mi Power Bank Pro, or expose the product to liquids, fire, or environments where temperature is higher than 60°C (140°F).

Discharging

Connect with Mi Power Bank Pro to charge your device.

The indicator shows discharging conditions as follows:

Power Level	LED1 LED2	LED3 LED4
Undervoltage	Off	Off	Off	Off
0-25%	Blinking	Off	Off	Off
25-50%	Blinking	Blinking	Off	Off
50-75%	Blinking	Blinking	Blinking	Off
75-96%	Blinking	Blinking	Blinking	Blinking

* Small current discharge: when Mi Power Bank Pro is not charging, double press the Power check button to enter Small current discharge mode to charge small devices, such as Bluetooth headphones and smart bands.

The indicator LEDs will turn on one by one in succession, indicating that Mi Power Bank Pro has entered Small current discharge mode.

To exit Small current discharge mode, press the Power check button once.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

BC

About anti-counterfeit labels

Anti-counterfeit labels are placed on the outer packaging of every certified 10000mAh Mi Power Bank Pro. Please scratch the coating to see the verification code, and check if the product is genuine on this website: http://www.mi.com/verify

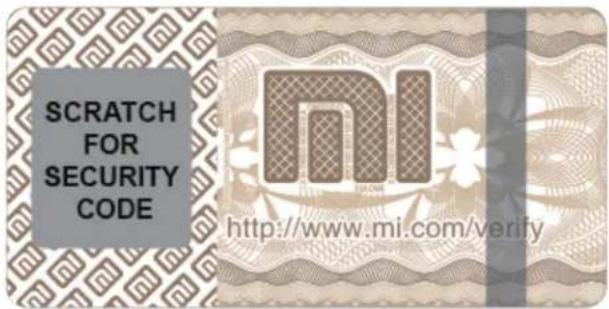

Anti-counterfeit label

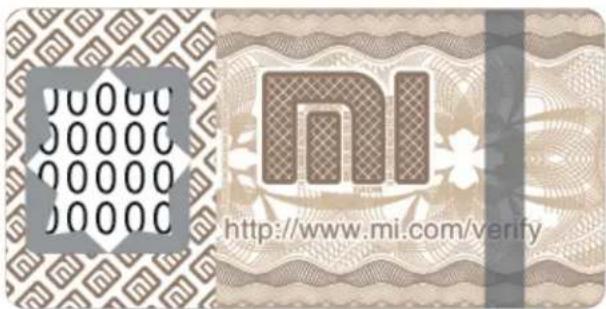

Scratched off label

Principal: Xiaomi Communications Co., Ltd.

Manufacturer: Zimi Corporation (a Mi Ecosystem company)

Address: 159 Chengjiang Road Unit A913, Jiangyin City, Jiangsu, China

To promote environmental protection, Xiaomi avoids excessive packaging.
