Product Type	Bone Conduction Headphones
Brand	Shokz (formerly AfterShokz)
Model	OpenMove
Color Options	Slate Grey, Blue, Orange, etc.
Dimensions	126 x 102 x 46 mm
Weight	29 grams
Driver Type	Bone conduction transducer
Frequency Response	20 Hz - 20 kHz
Impedance	16 Ω
Sensitivity	105 dB SPL
Battery Type	Rechargeable lithium-ion
Battery Capacity	145 mAh
Playtime	Up to 6 hours
Charging Time	2 hours
Charging Port	USB-C
Connectivity	Bluetooth 5.0
Wireless Range	10 meters (33 feet)
Water Resistance	IP55
Microphone	Dual noise-canceling microphones
Controls	Three-button control (volume, multifunction)
Supported Codecs	SBC, AAC
Main Functions	Wireless music, hands-free calls, voice assistant
Care	Clean with soft dry cloth; do not immerse in water
Safety	Keep away from pacemakers; avoid high volume
Spare Parts	Not user-serviceable; ear hooks may be replaceable from official site

Frequently Asked Questions - OpenMove AFTERSHOKZ

How do I pair my OpenMove earphones with my phone?

Turn on the earphones by holding the multifunction button until the LED flashes blue and red. Then enable Bluetooth on your phone and select 'OpenMove' from the list. If prompted, enter PIN 0000.

How do I charge the OpenMove?

Use the included USB-C cable to connect the earphones to a USB power source. Charging takes about 2 hours. The LED turns solid blue when fully charged.

What do the LED indicators mean?

Flashing blue and red: pairing mode. Solid blue: fully charged. Flashing blue every 5 seconds: connected and standby. Low battery: red flashing every 2 seconds.

How do I reset my OpenMove earphones?

To reset, press and hold the volume + and volume - buttons simultaneously for 5 seconds until the LED flashes red twice. This clears paired devices and restores factory settings.

Are the OpenMove earphones waterproof?

They have an IP55 rating, protecting against dust and low-pressure water jets. They can withstand sweat and rain but should not be submerged or washed under running water.

How do I adjust the volume?

Use the volume + and volume - buttons on the right earpiece. Press briefly to change volume, or hold to skip tracks.

How do I answer or end a call?

Press the multifunction button once to answer an incoming call. Press again to end the call. Double-press to redial the last number.

What is the battery life and how do I check it?

The OpenMove provides up to 6 hours of playtime on a full charge. To check battery level on iOS, look for the battery indicator in the Bluetooth menu. For Android, use the Shokz app (if available) or note the low battery LED flash.

Can I wear the OpenMove with glasses?

Yes, the open-ear design rests on your cheekbones, not in or over your ears, so they are compatible with most eyeglasses or sunglasses without discomfort.

What should I do if my earphones won't pair?

Ensure Bluetooth is enabled on your device and the earphones are in pairing mode (flashing blue/red). Try resetting the earphones as described above. Also, check that no other device is connected and clear the earphones from your phone's Bluetooth list before retrying.

USER MANUAL OpenMove AFTERSHOKZ

Headphone Controls 04

ON/OFF 05

Pairing 06

How to Wear 07

Volume 08

Multifunction Button 09

Check Battery Status 11

EXTRA FEATURES

EQ Modes 13

Switching EQ modes 14

Multipoint Pairing 15

Turn Multipoint Pairing Off 21

Restore Factory Settings 23

Changing languages 25

CARE AND MAINTENANCE

Charging Tips 28

Storage and Maintenance 29

Warranty 30

TROUBLESHOOTING 31

WHAT'S IN THE BOX 32

REGULATORY AND LEGAL INFORMATION 33

How It Works

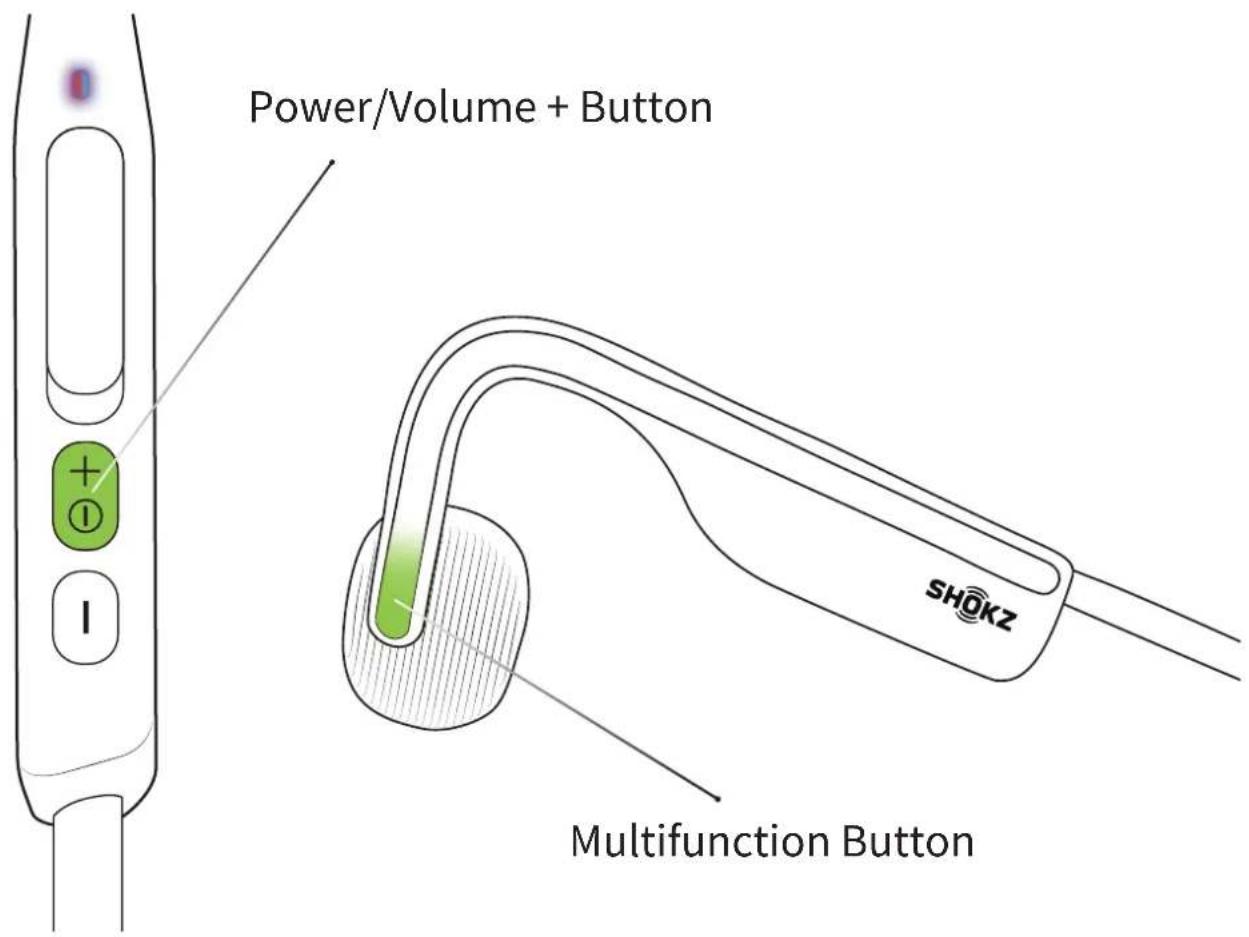

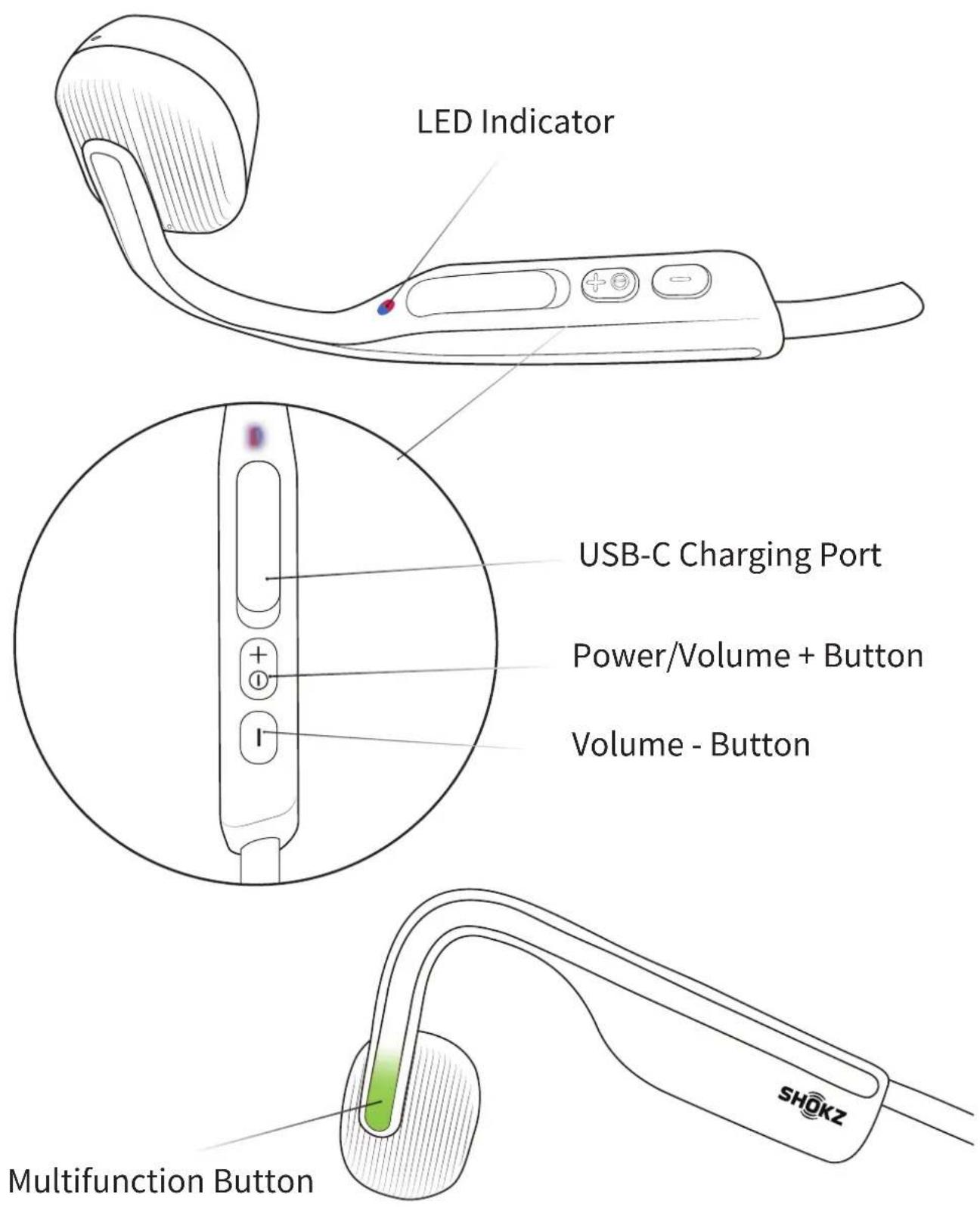

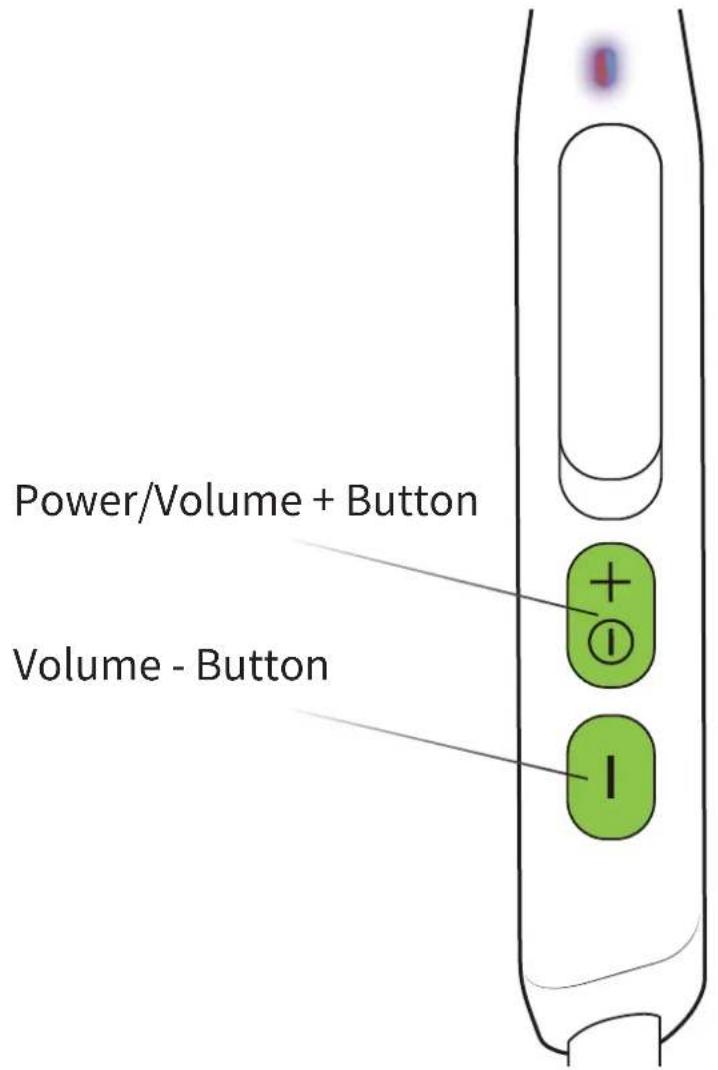

Headphone Controls

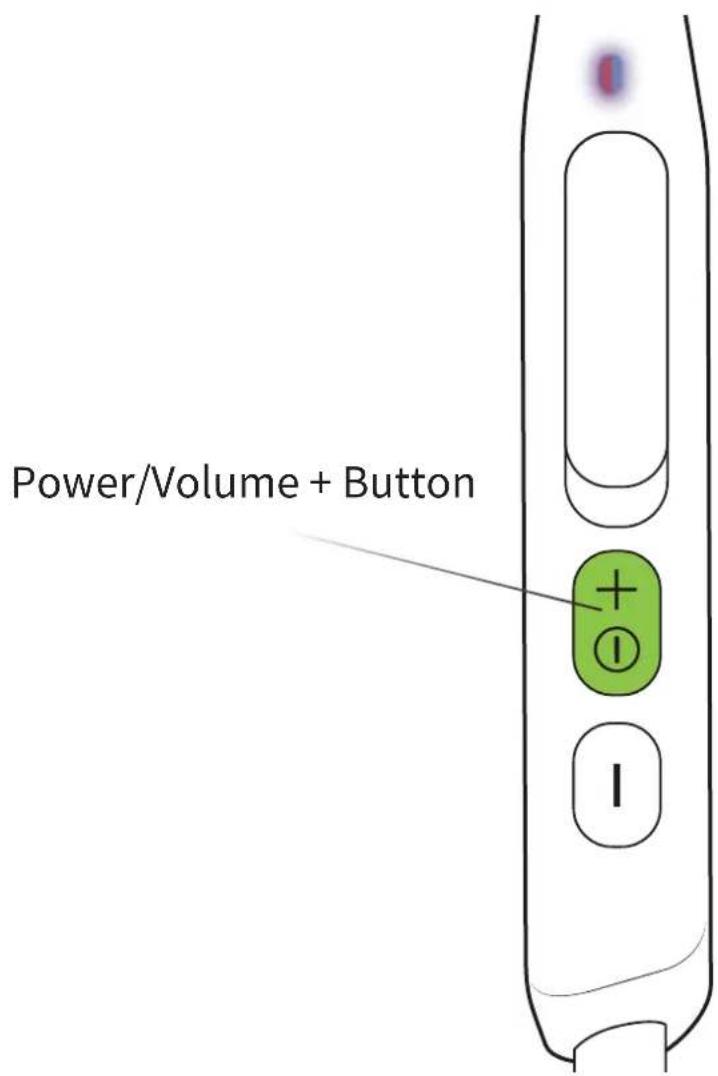

ON/OFF

Turn on the headphones:

Press and hold the Power/Volume + Button until the LED Indicator flashes blue.

*Audrey will say: “Welcome to Shokz”

Turn off the headphones:

Press and hold the Power/Volume + Button until the LED Indicator flashes red.

*Audrey will say: “Power off”

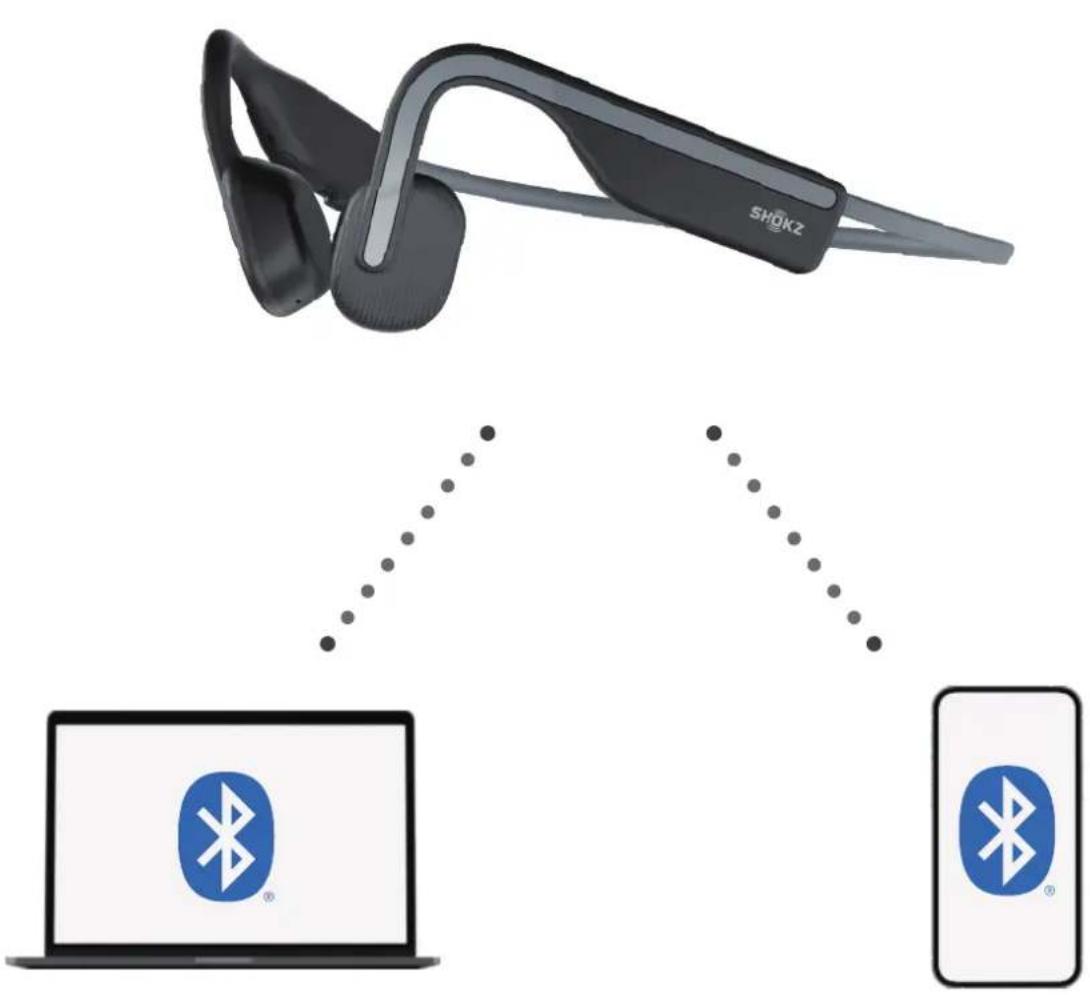

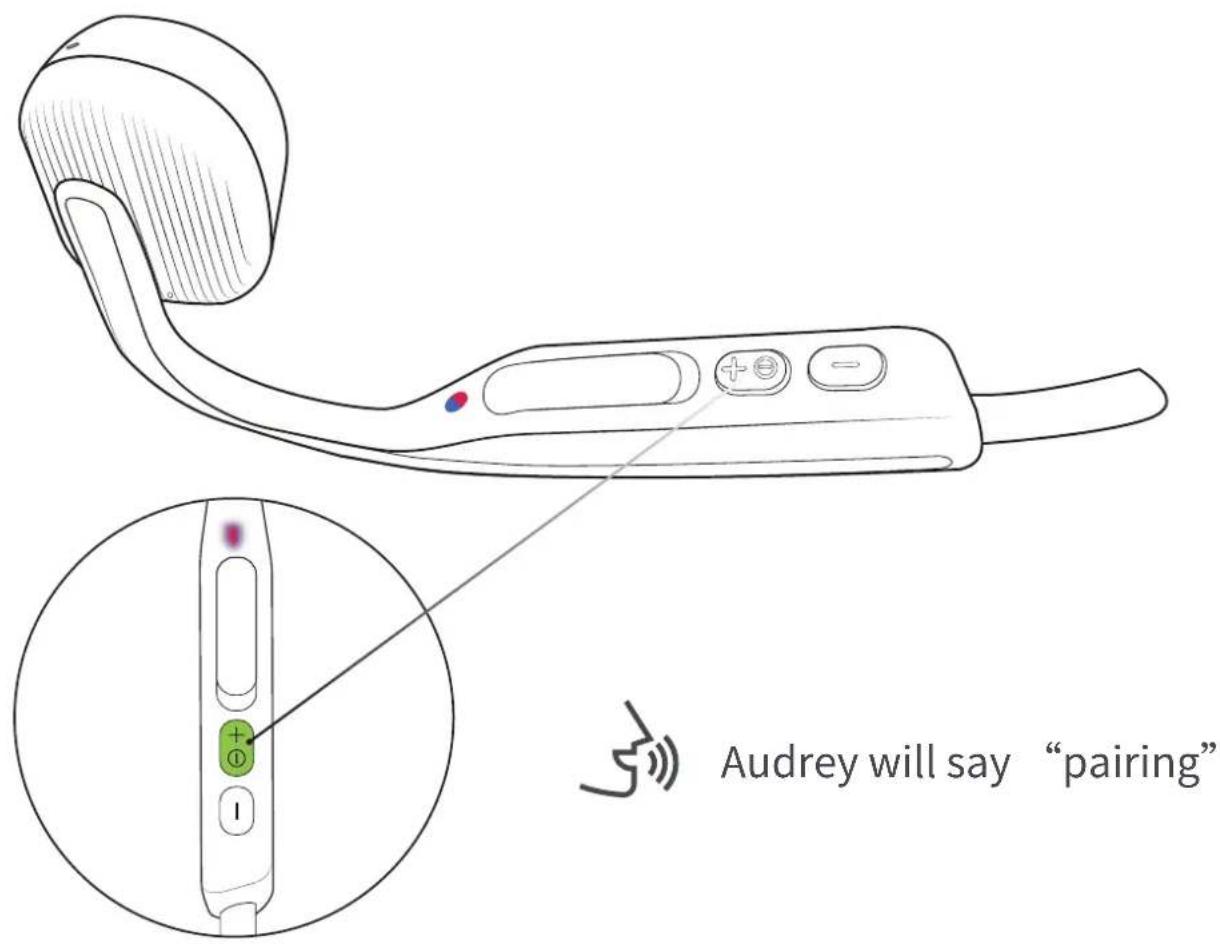

Pairing

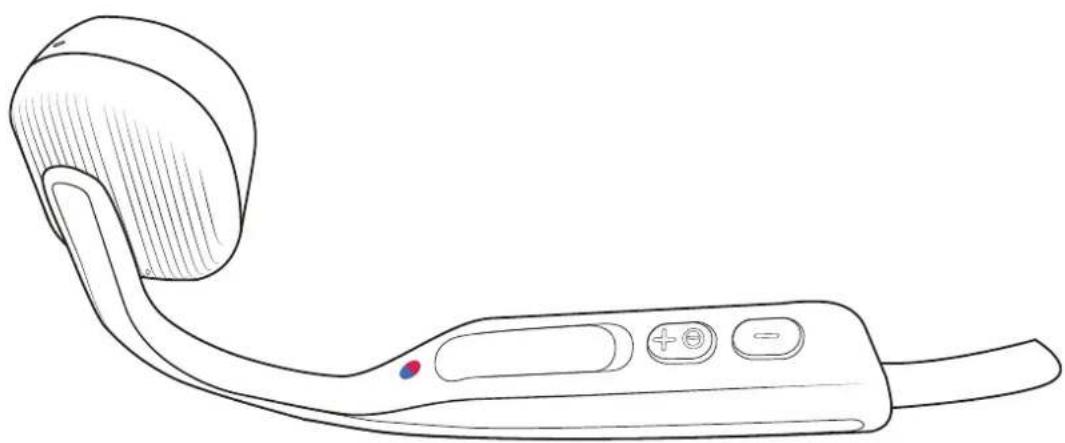

Line drawing of a handheld electronic device with a curved handle and control buttons (no text or symbols)

1. Start with OpenMove turned off.
2. Press and hold the Volume + Button until the LED Indicator flashes red and blue alternately.

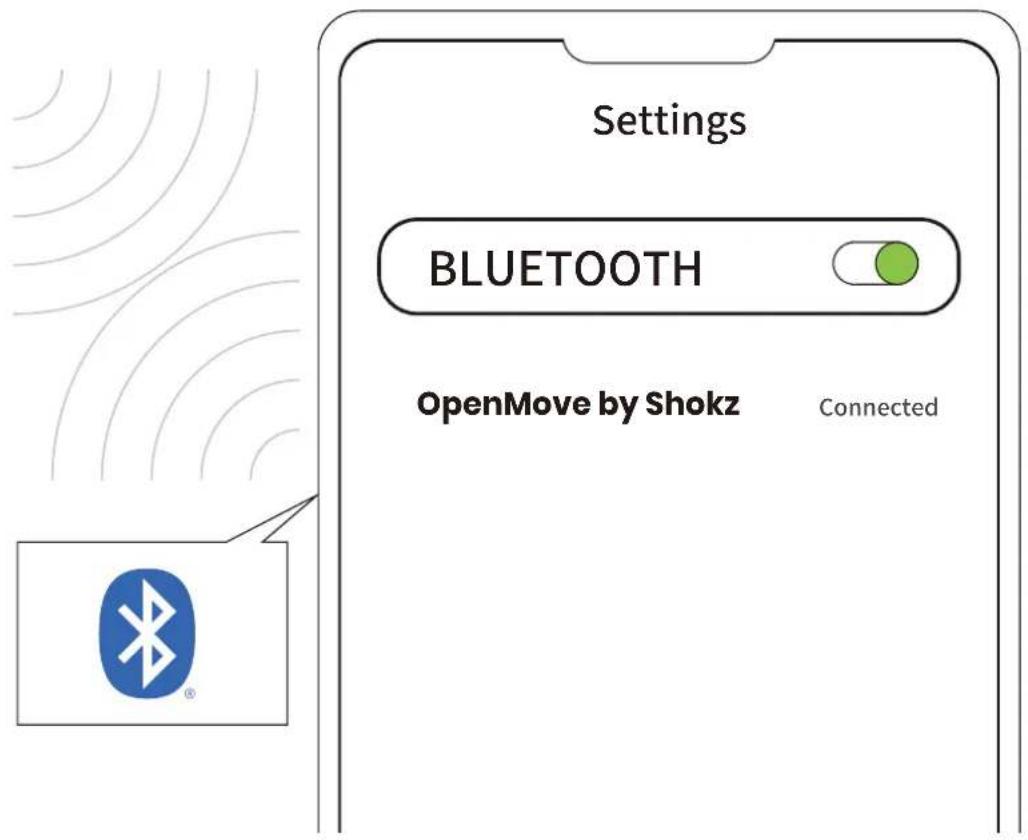

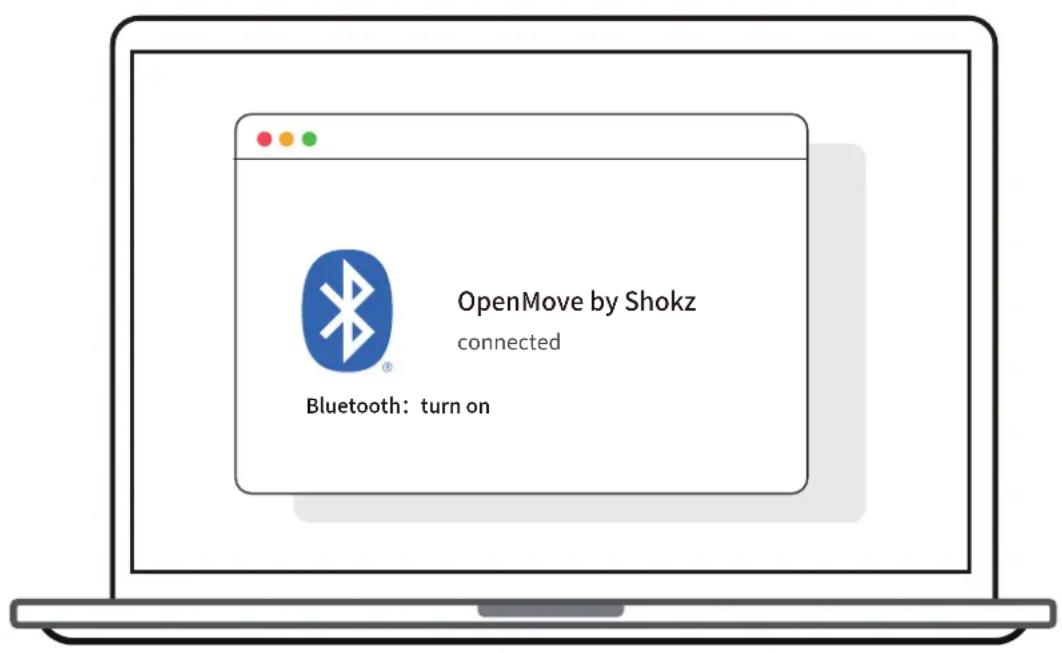

3.Open your device's Bluetooth settings and select "OpenMove by Shokz." Audrey will say "connected."

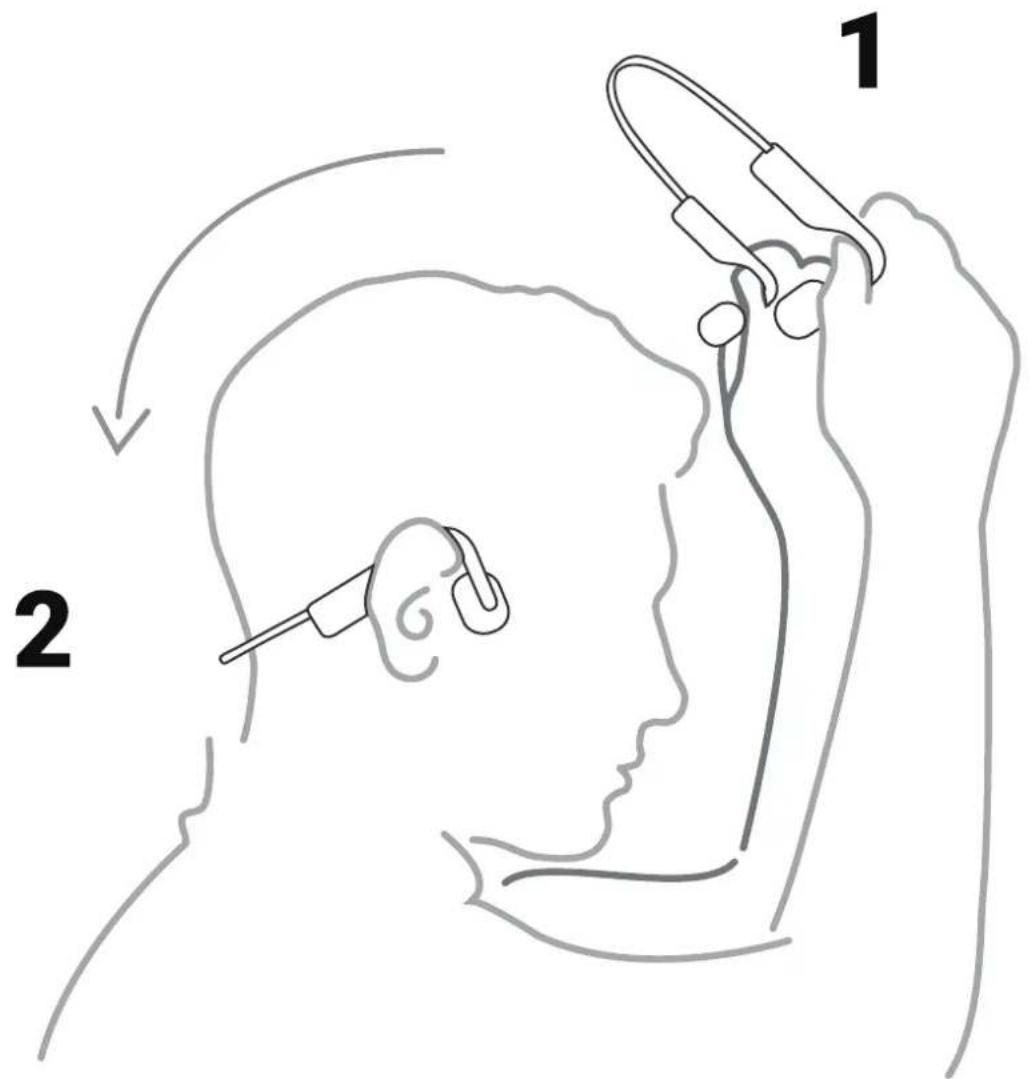

How to Wear

Pick up the headphones, bring them behind the back of the base of your neck, position the earhooks on your ears, then enjoy your music!

*Wearing your headphones the wrong way could cause discomfort. The transducers should rest in front of your ears.

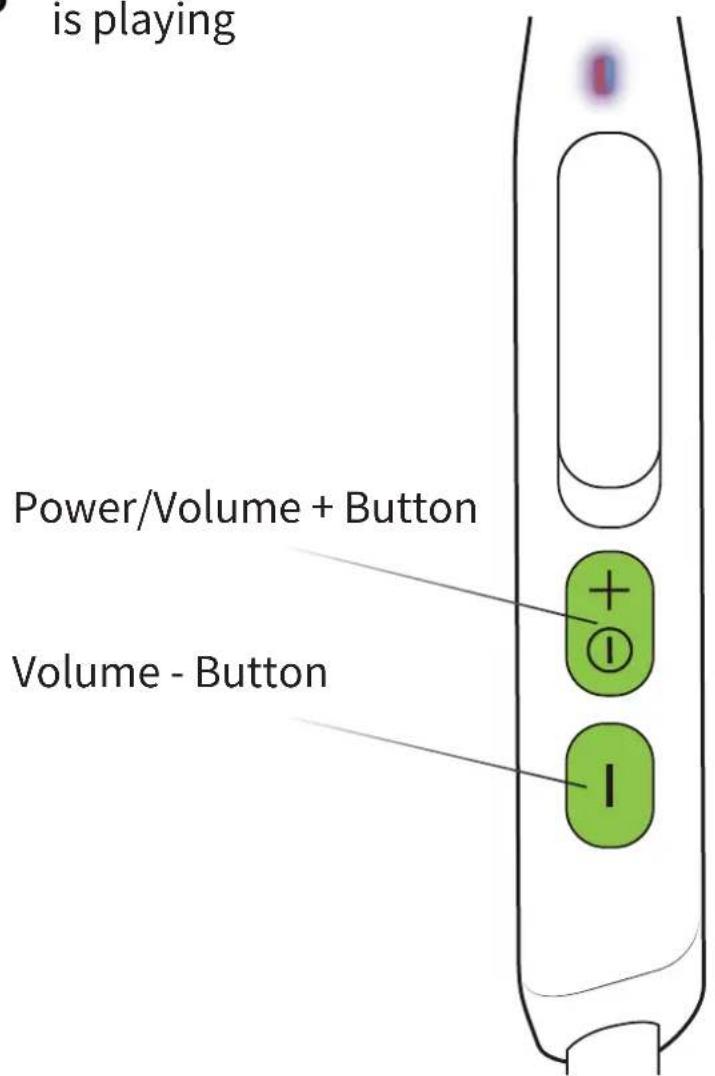

Volume

Operate volume controls while audio is playing.

How to change volume:

While your audio is playing, adjust headphone volume by pushing either the Volume + or Volume – buttons.

*A “beep” will sound when the volume is at its max.

*Listening with headphones at high volume may affect your hearing and the audio will be distorted.

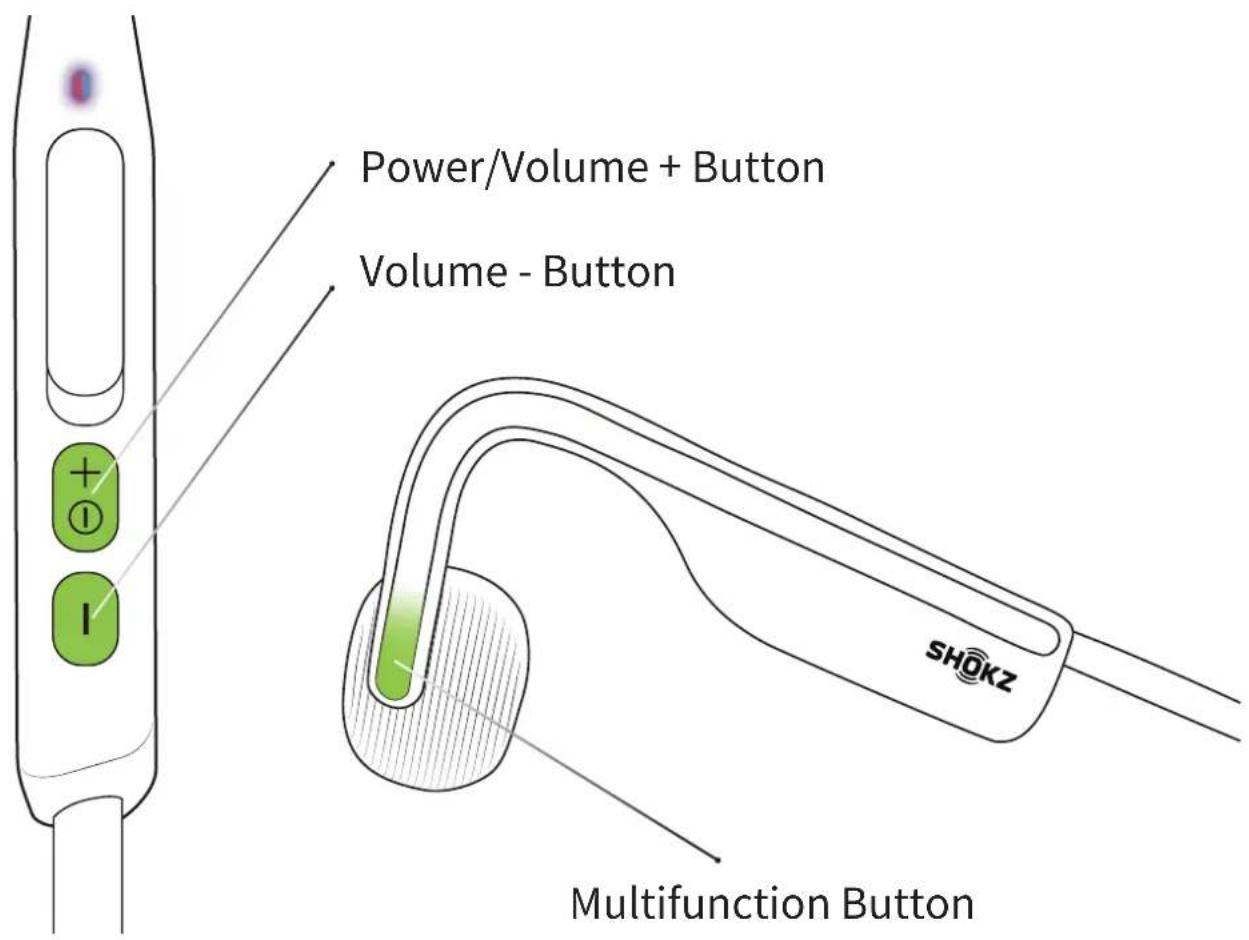

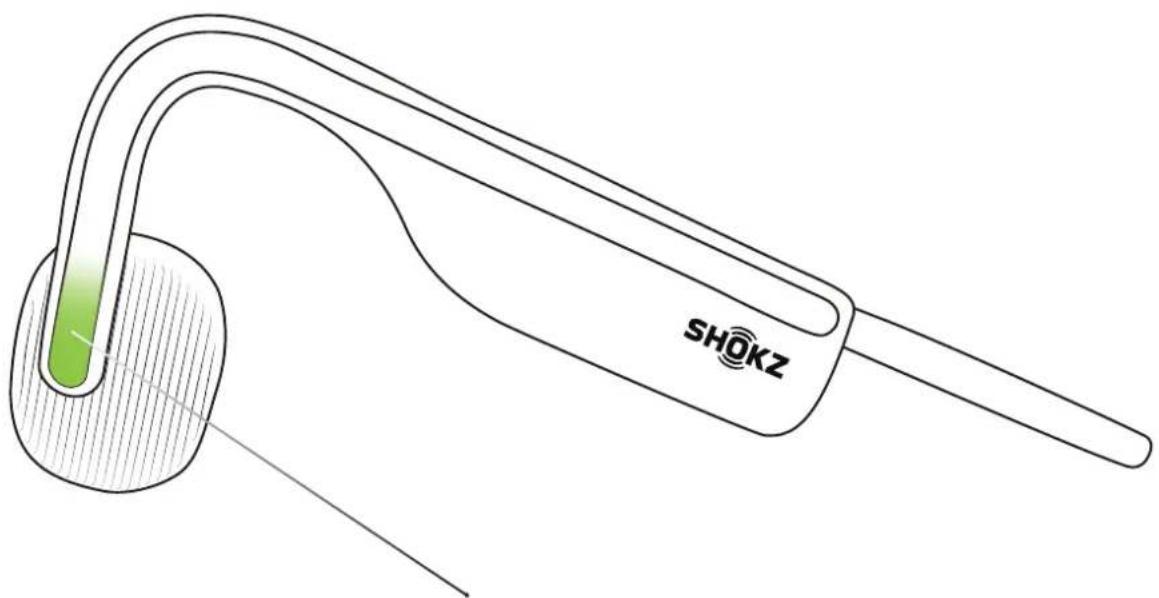

Multifunction Button

Diagram of a medical or diagnostic device with a green component and a labeled 'SHOKZ' (no other text or symbols)

Multifunction Button

▶II Play/pause music

Click once

Answer call

Click once

Next song

Double-click while music is playing

End call

Click once

Previous song

Triple-click while music is playing

Multifunction Button

Play music	Click once
Pause music	Click once
Next song	Double-click while music is playing
Previous song	Triple-click while music is playing
Switch language	Double-click while on pairing
Answer call	Click once
End call	Click once during a call
Answer call waiting and end current call	Press and hold for 2 seconds when receiving a second call
Ignore a call	Press and hold for 2 seconds during an incoming call
Activate voice assistant	Press and hold for 2 seconds when device is on standby
Redial last number	Double-click on standby

*Only applicable for phone calls, not online calls

Check Battery Status

Operate controls while audio is not playing

How to check battery status:

Click the Volume + or Volume - button while music is paused, Audrey will tell you the battery status:

* "Battery high/Battery medium/Battery low/Charge me"

Extra Features

EQ Modes

Simple line drawing of a human ear with sound waves (no text or symbols)

Standard Mode:

Balanced frequency for listening to music

Vocal Booster Mode:

Enhanced intermediate frequencies for audiobooks, podcasts, etc.

Switching EQ Modes

Operate controls while music is playing

How to switch EQ mode:

Press and hold both buttons (Power/Volume + Button and Volume - Button) while music is playing until you hear a beep.

*Audrey will say: “Standard Mode/Vocal Booster Mode.”

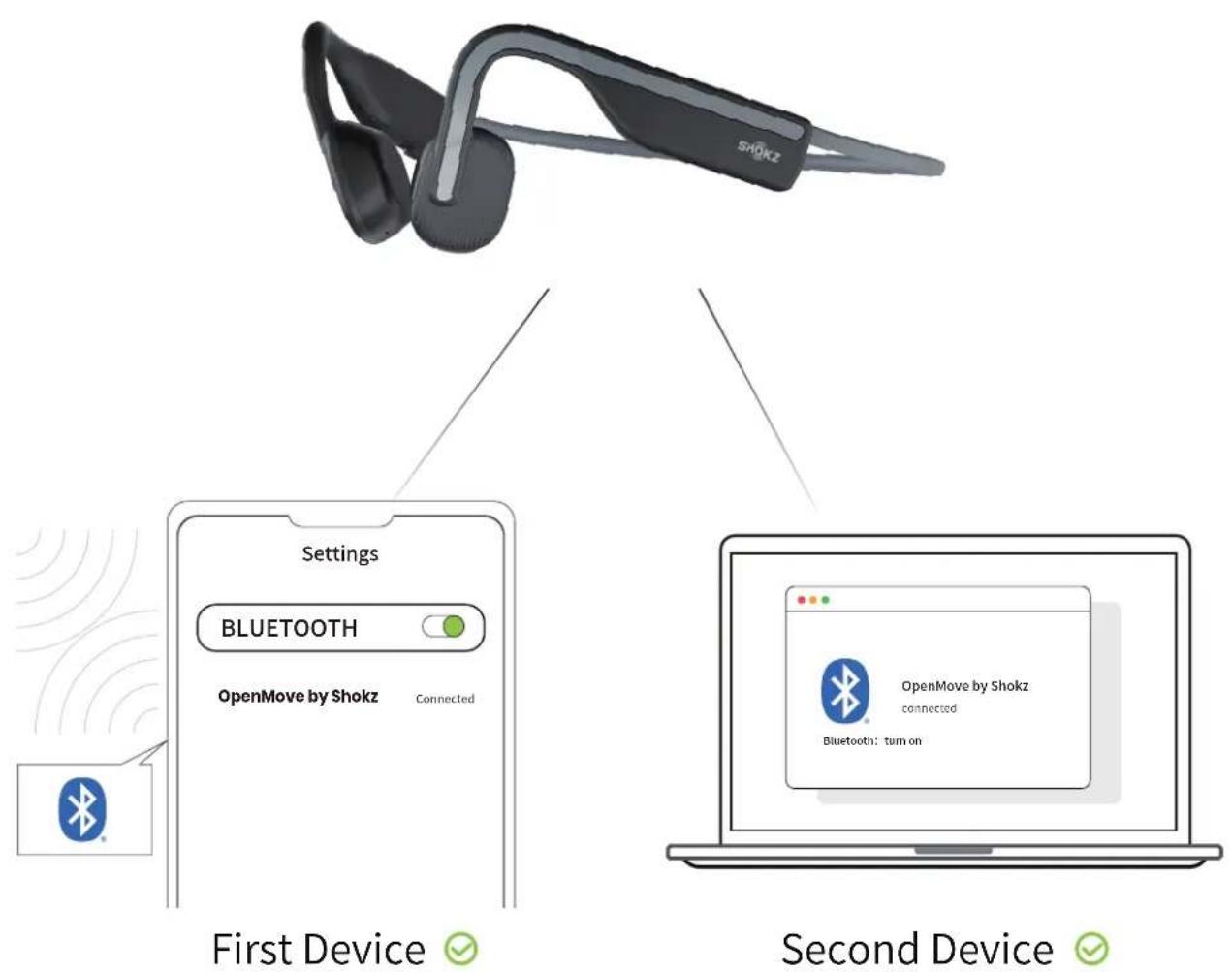

Multipoint Pairing

Pair Two Devices

Switch between two devices seamlessly with multipoint pairing

Multipoint Pairing

Operate controls with headphones powered off

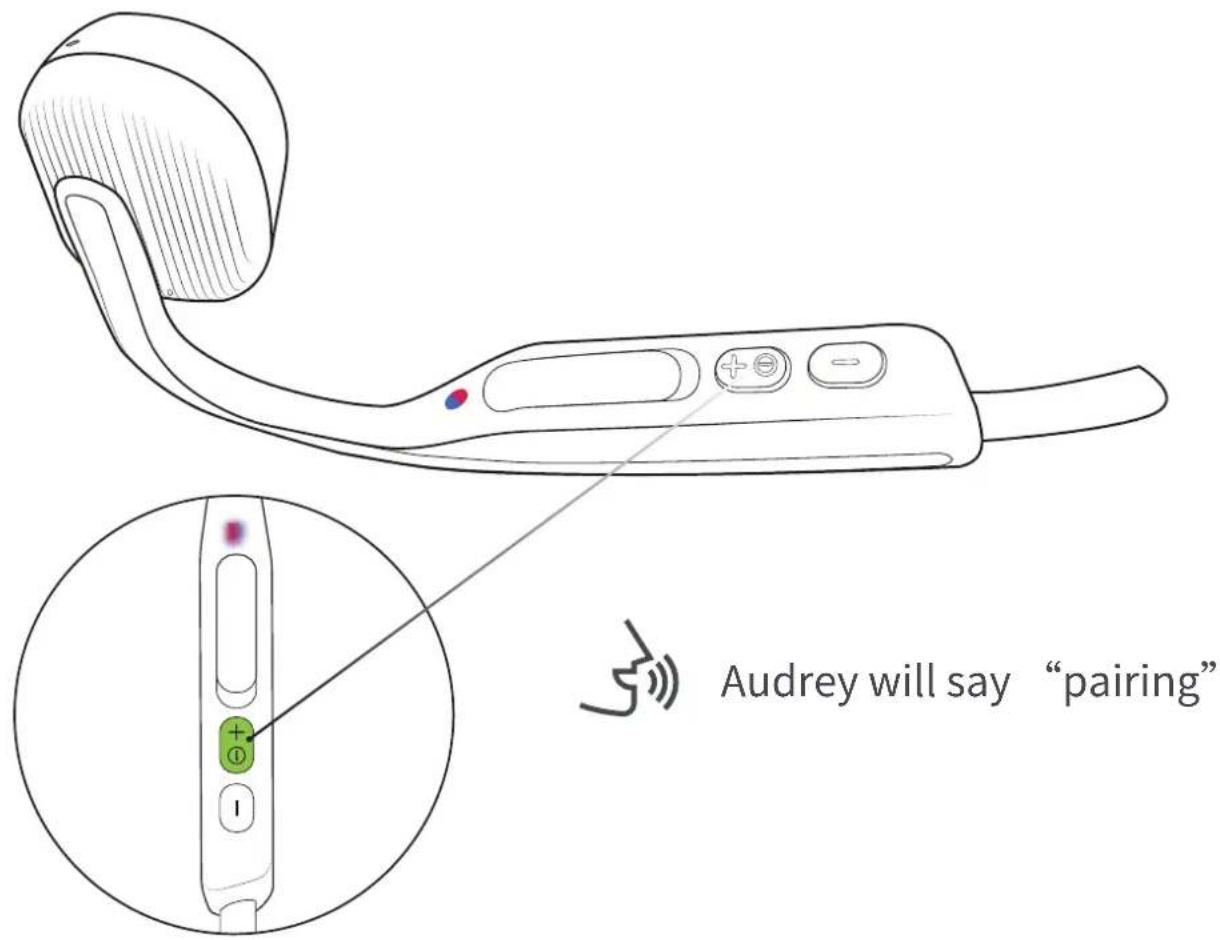

1. Start with your headphones powered off.

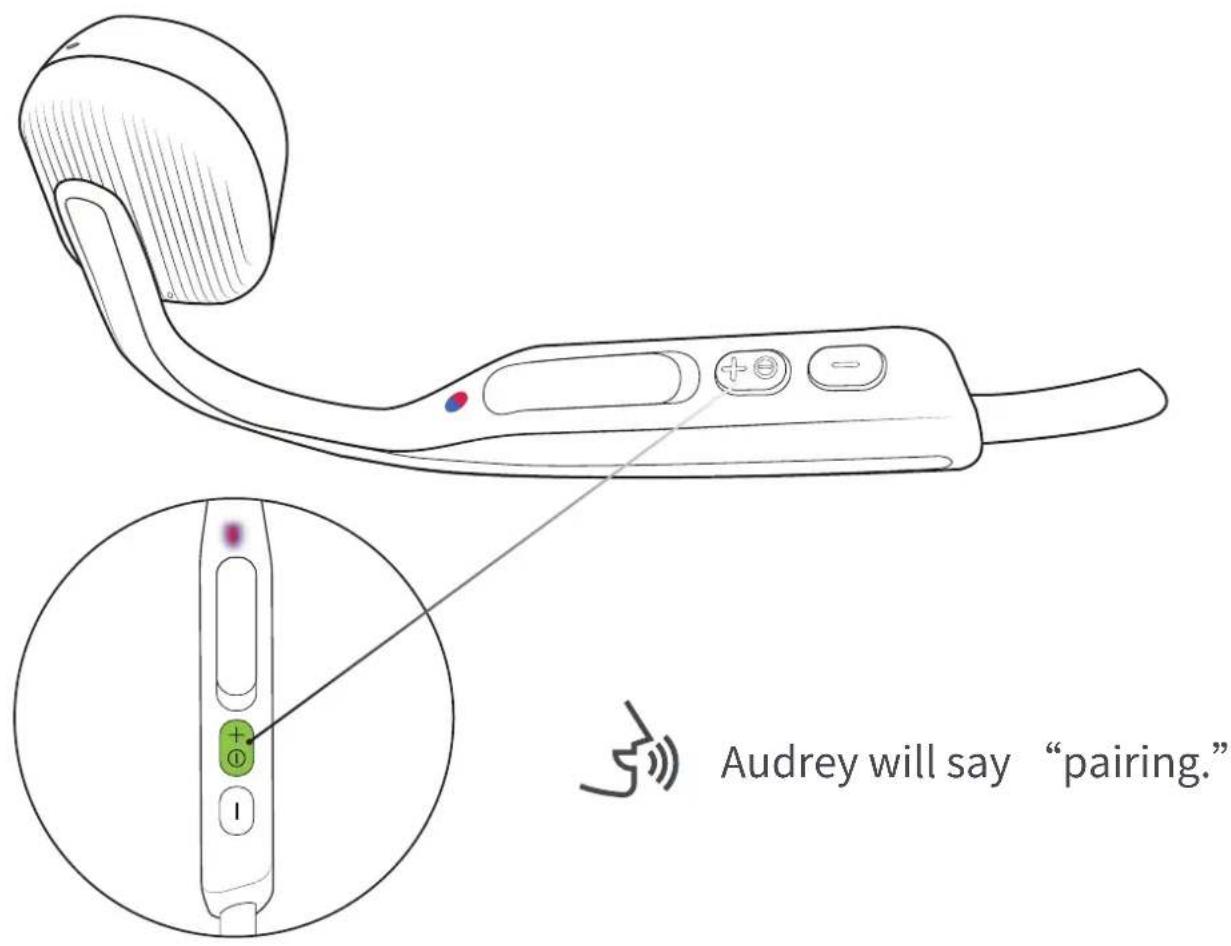

2. Press and hold Volume + until Audrey will say “pairing” and the LED indicator flashes red and blue alternately.

Audrey will say "multipoint enabled."

1. Press and hold the multifunction button and Volume + button until Audrey say "multipoint enabled."

First Device

Audrey will say "connected".

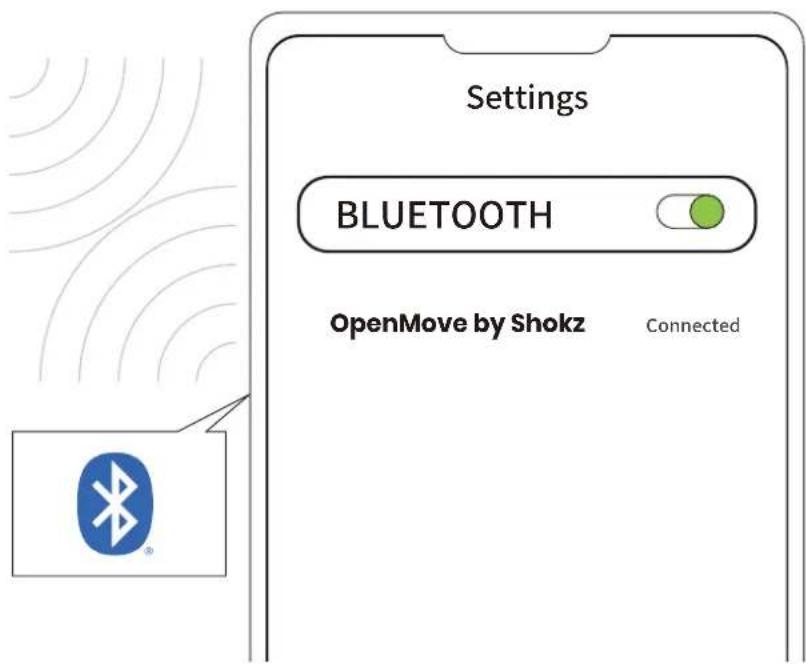

4.Open first device's Bluetooth® menu and select "OpenMove by Shokz."Audrey will say "connected".
5. Turn your headphones off.

Second Device

Audrey will say "connected".

1. Re-enter pairing mode by pressing and holding Volume + until Audrey says “pairing” and the LED indicator flashes red and blue alternately.
   7.Open second device's Bluetooth® menu and select "OpenMove by Shokz." Audrey will say "connected."
2. Turn your headphones off.

You will hear a beep, then Audrey will say "Welcome to Shokz, connected. Second device connected."

1. Turn your headphones on. Your headphones are now connected to both devices.

Turn Multipoint Pairing Off

Operate controls with headphones powered off.

1. Start with your headphones powered off.
2. Press and hold Volume + until Audrey will say “pairing” and the LED indicator flashes red and blue alternately.

Audrey will say "multipoint disabled."

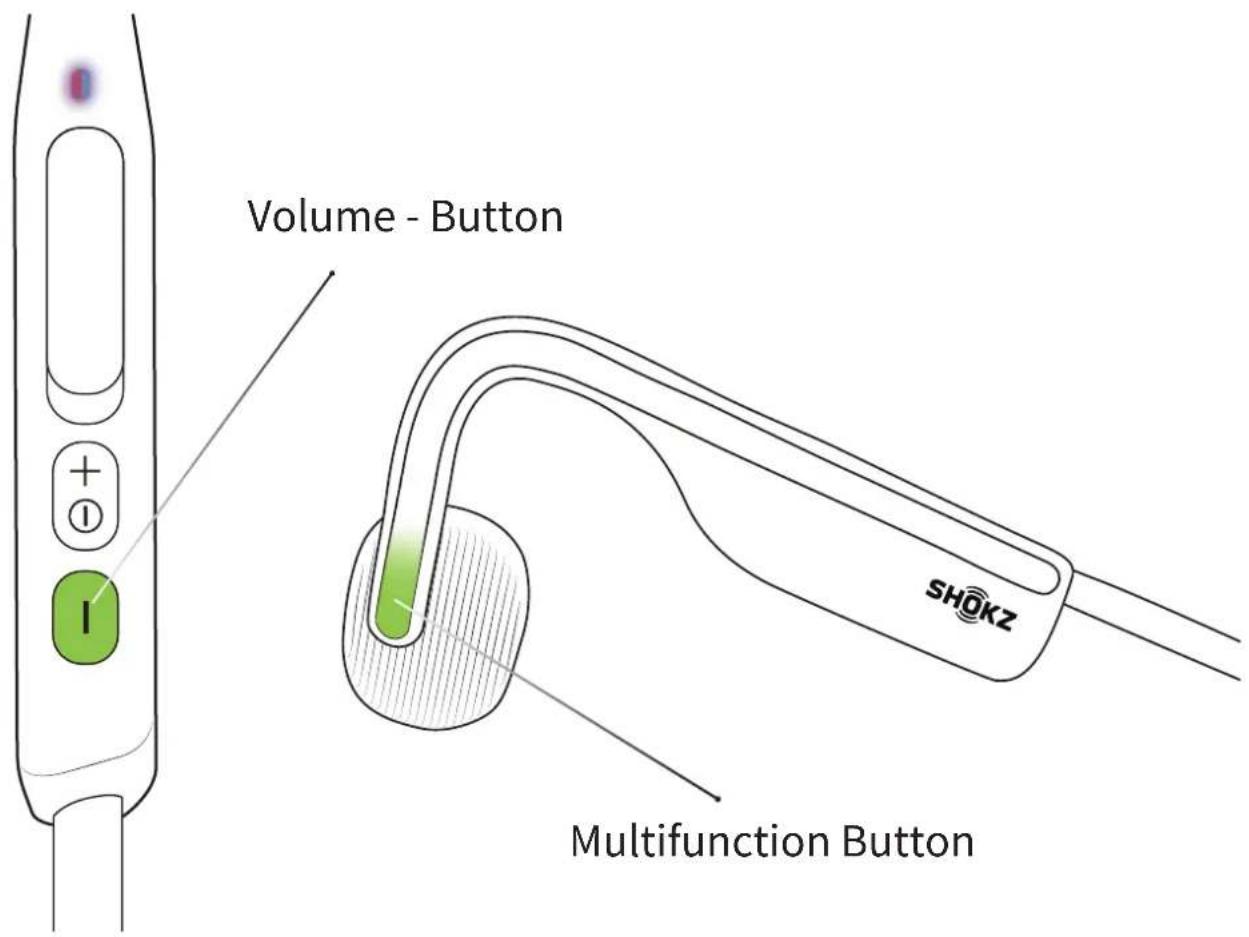

1. Press and hold the multifunction button and Volume - button until Audrey will say "multipoint disabled."

Operate controls with headphones powered off.

1. Start with your headphones powered off.
2. Press and hold Volume + until Audrey will say “pairing.” and the LED indicator flashes red and blue alternately.

1. Press and hold the multifunction button, Volume – button and Volume + button until hear two beeps and feel the vibration.
2. Turn your headphones off. OpenMove is now reset and can be re-paired to your device.

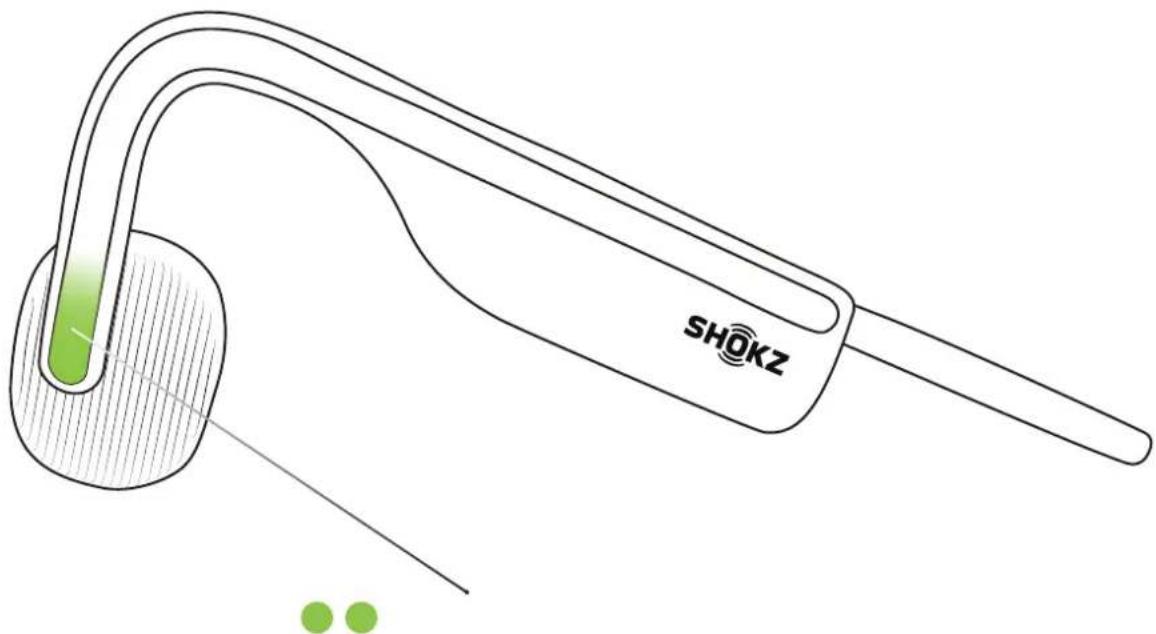

Changing Languages

Your headphones have four built-in languages: Chinese, English, Japanese and Korean.

Follow the instruction when headphones powered off

1. Start with your headphones powered off.
2. Press and hold Volume + until Audrey will say “pairing” and the LED indicator flashes red and blue alternately.

Diagram of a medical or diagnostic device with a green component labeled 'SHOKZ' and a curved body, showing no readable text or symbols beyond the brand name.

Multifunction Button

1. Double-press the multifunction button. Languages have been switched when you hear the corresponding language.

Care and Maintenance

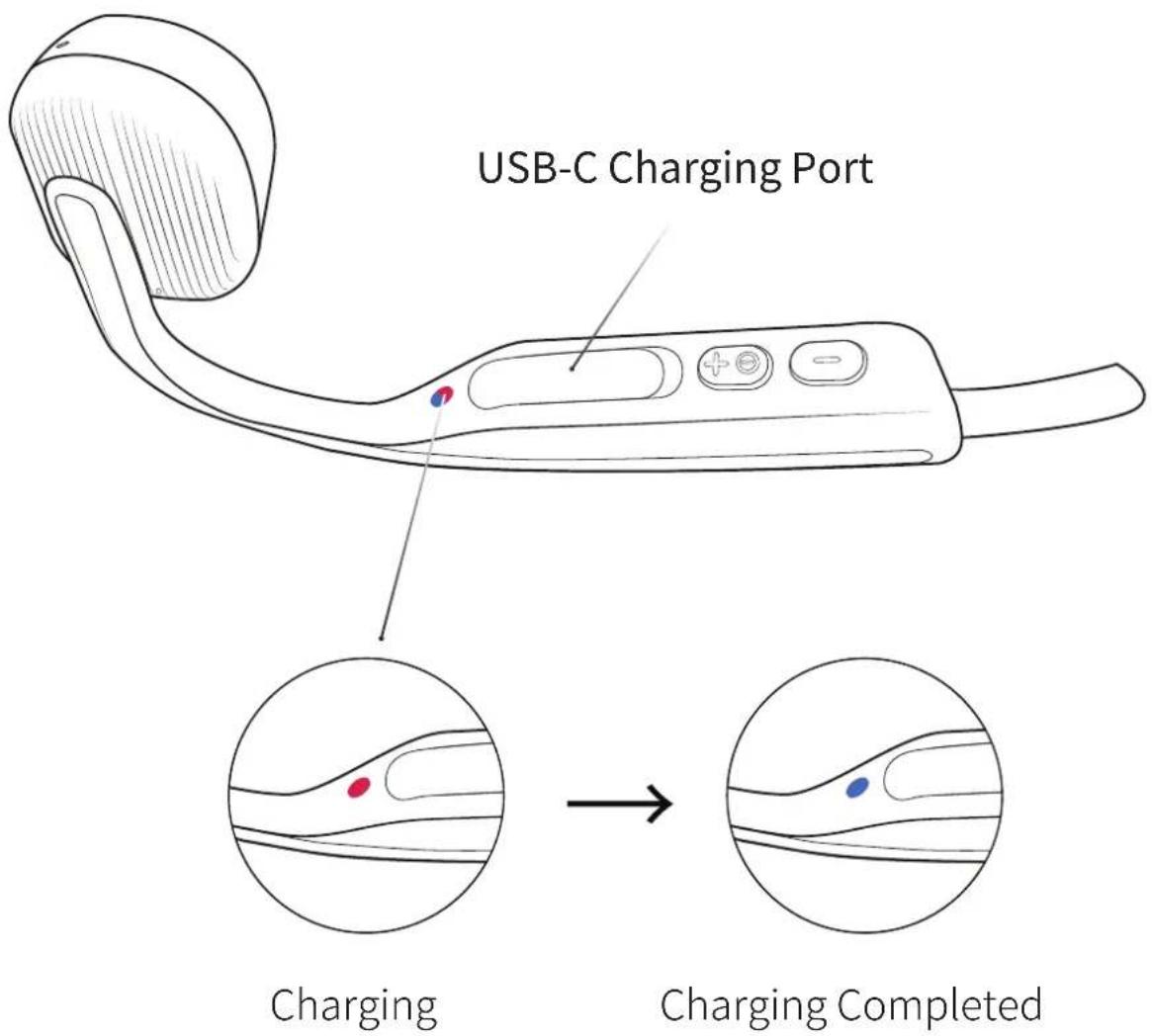

Charging Tips

The headset will automatically shut down when charging

When the headphones are at low battery, there will be a “charge me” prompt and the red light will flash intermittently. Use the corresponding USB-C cable for charging.

The LED indicator will turn red during the charging process and the headphones will automatically turn off. The LED indicator will turn from red to blue when charging is complete.

Storage and Maintenance

• Store the headphones in a cool, dry place. The working temperature should be 0\~45°C(32\~113°F). Working in a cold/hot temperature, highly humid area, or low air pressure environment may reduce the battery life.
• Keep the product away from heat sources, direct sunlight, combustible gas or other liquids.
• Keeping the charging port dry before connecting to the charger will reduce the risk of damage.
• These headphones are water-resistant, but are not waterproof. Please do not submerse the headphones in water.
• Clean the headphones with a soft dry cloth.
• Do not charge right after exercising, in case there's sweat inside the charging port, which could lead to circuit burning while charging.
• After storage for a long period, please charge the headphones before using again.

Note

Design and specification are subject to change without notice. For the most up-to-date product information, please visit https://shokz.com.

Warning

To avoid the risk of explosion, fire, or leakage from toxic chemicals, please do not disassemble the product or replace, deform, or mutilate the battery.

Warranty

Your headphones are covered by a warranty.

Visit our website at https://shokz.com/pages/warranty-landing

for details of the limited warranty.

*Failure to register will not affect your limited warranty rights.

Troubleshooting

If you have any trouble or problems, please visit https://shokz.com/pages/faq for more support!

What's in the Box

OpenMove Box*1

Line drawing of a laboratory instrument with a curved handle and labeled 'SHOKZ' (no other text or symbols)

OpenMove headphone*1

OpenMove Package*1

USB-C Cable*1 OpenMove

Empty white square with a thin black border (no text or symbols)

User Guide*1

OpenMove Legal Statement*1

If any part of your product is damaged or missing, do not use it. Contact authorized Shokz dealer or Shokz customer service.

*Please note that the packaging envelope may vary depending on the sales region.

Regulatory and Legal Information

FCC Caution

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate (SAR).

Responsible party (contact for FCC matters only):

AfterShokz LLC.

3200 Gracie Kiltz Lane, Suite 400 Austin, TX 78758 USA

https://shokz.com

Industry Canada

This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CE Declaration of Conformity

Shokz Holding Limited hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other applicable EU Directive requirements. The complete declaration of conformity can be found at:

https://shokz.com/pages/policies.Shokz's EU representative is AfterShokz Euro B.V., Schipholweg 103, 2316XC Leiden, Netherlands.

Frequency Range Max.	Transmit Power
2400-2483.5MHz 1dBm(EIRP)

C€

UK Declaration of Conformity

Shokz Holding Limited hereby declares that this product is in compliance with the essential requirements and all other applicable United Kingdom’s regulations. The complete declaration of conformity can be found at: https://shokz.com/pages/policies.

Shokz’s authorised representative in the UK is Pinpoint Consumer Electronics Ltd., Unit 35, Meridian House, Road One, Winsford

Industrial Estate, Winsford, Cheshire CW7 3QG.

WEEE Declaration of Conformity

UK CA

This WEEE logo means that this product must not be discarded

as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Australia/New Zealand

Singapore

Philippines

Complies with IMDA Standards DA106614

NTC Type Accepted NO. ESD-RCE-2126674
