SSG 3500WH - Electric grater SENCOR - Free user manual and instructions

Product Type	Electric Slicer & Grater
Brand	Sencor
Model Variations	SSG 3500WH, SSG 3501GR, SSG 3502BL, SSG 3503OR, SSG 3504RD, SSG 3505VT, SSG 3506YL, SSG 3507TQ, SSG 3508RS
Rated Voltage	220–240 V ~ 50/60 Hz
Rated Power Input	150 W
Safety Class	II (double insulation)
Maximum Continuous Operation	2 minutes
Cooling Time Before Restart	At least 3 minutes
Noise Level	85 dB(A)
Attachments Included	Thin slicing, thick wavy slicing, coarse grater, fine grater, fine grinding (grating) attachment
Motor Unit Material	Plastic
Attachment Material	Stainless steel cutting blades, plastic housing
Anti-slip Feet	Yes
Pusher Included	Yes
Power Cord Length	Approximately 1 m
Weight (approx.)	1.0 kg
Dimensions (H x W x D, approx.)	26 x 15 x 20 cm
Cleaning Method	Hand wash with warm water and neutral detergent; do not submerge motor unit
Storage	Dry place, out of reach of children
Suitable Food Types	Fruits, vegetables, hard cheese, chocolate, nuts, hard baked goods (for breadcrumbs)
Not Suitable For	Meat, frozen foods, hard fruit stones, nut shells, coffee beans, nutmeg

Frequently Asked Questions - SSG 3500WH SENCOR

How do I assemble the electric grater?

Place the motor unit on a stable surface. Attach the chamber with feed tube by tilting it slightly to the right and turning anticlockwise until vertical. Insert the chosen attachment into the chamber, aligning the shaft with the pentagonal hole, then secure with the fastening pin by turning anticlockwise. Ensure the appliance is turned off and unplugged during assembly.

Can I grate frozen vegetables or fruits?

No, the appliance is not designed for frozen foods. Only process fresh or thawed ingredients. For softer fruits like strawberries, you may chill them in the freezer for a few minutes to improve texture, but they should not be frozen solid.

What is the maximum operating time?

The appliance should not run continuously for more than 2 minutes. After that, let it cool down for at least 3 minutes before restarting to prevent overheating.

How should I clean the attachments?

After unplugging and ensuring the blades have stopped, remove the attachments and chamber. Wash them with warm water and a neutral kitchen detergent, rinse clean, and wipe dry. The blades are very sharp, so handle with care. Do not wash the motor unit in water; wipe it with a damp cloth.

Is the appliance suitable for mincing meat?

No, this appliance is intended for grating and slicing fruits, vegetables, hard cheese, chocolate, nuts, and making breadcrumbs. It must not be used for meat, frozen items, or extremely hard foods like coffee beans or nutmeg.

Why does the appliance stop during use?

It may stop if the chamber becomes clogged with food pieces. Turn off and unplug the appliance, wait for the rotating parts to stop, then remove and clean the attachment and chamber. Also check that the appliance is correctly assembled; reattach components if needed.

Are the attachments dishwasher safe?

The manual recommends hand washing only with warm water and detergent. Dishwasher use may damage the plastic parts or dull the blades. Always hand wash and dry thoroughly.

How should I store the electric grater?

Store the appliance in a dry place out of reach of children. Keep the power cord loosely coiled and avoid placing heavy items on it. Store attachments inside the chamber or separately to prevent damage.

What types of cheese can be grated with this appliance?

It is suitable for hard cheeses like Parmesan or semi-hard cheese (e.g., Gouda). For better results, chill semi-hard cheese in the refrigerator overnight or in the freezer for 30 minutes. Do not grate soft or already grated cheese as it may clog the chamber.

What should I do if the power cord is damaged?

Do not use the appliance with a damaged cord. Have it replaced by a professional service center. Do not attempt to repair it yourself, as this could cause electric shock and void the warranty.

USER MANUAL SSG 3500WH SENCOR

Electric Slicer & Grater

User's manual

Z

White and gray electric shaver device with clear glass lid and side panel (no text or symbols visible)

SENCOR®

SSG 3500WH / SSG 3501GR / SSG 3502BL

SSG 3503OR / SSG 3504RD / SSG 3505VT

SSG 3506YL / SSG 3507TQ / SSG 3508RS

Prior to using this appliance, please read the user's manual thoroughly, even if you already have experience in using similar appliances. Only use the appliance in the manner described in this user's manual. Keep this user's manual in a safe place where it can be easily retrieved for future use.

We recommend saving the original cardboard box, packaging material, purchase receipt and responsibility statement of the vendor and warranty card for at least the duration of the legal liability for unsatisfactory performance or quality. In the event of transportation, we recommend that you pack the appliance in the original box from the manufacturer.

EN-1

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS....3

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES....6

BEFORE FIRST USE 7

SELECTING ATTACHMENT TYPES....7

ASSEMBLING AND DISASSEMBLING THE APPLIANCE 8

OPERATING THE APPLIANCE 8

USEFUL TIPS 9

TROUBLESHOOTING....9

CLEANING AND MAINTENANCE 10

STORAGE....10

TECHNICAL SPECIFICATIONS 11

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS... 11

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT 11

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND STORE FOR FUTURE USE.

• Children must not use this appliance or play with it. Keep this appliance and its power cord out of the reach of children.
• This appliance may be used by persons with physical or mental impairments or by inexperienced persons, if they are properly supervised or have been informed about how to use the product in a safe manner and understand the potential dangers.
• Before connecting this appliance to a power socket, make sure the voltage stated on its rating label corresponds to the voltage supplied from your power socket.
• The appliance is intended for processing a standard amount of food in the household.
• Do not use the appliance in industrial surroundings or outdoors.
• Never use accessories, which have not been supplied with this appliance or which have not been explicitly recommended by the manufacturer for this appliance.
• Do not place the appliance on window sills or on unstable surfaces.
• Do not place the appliance on an electric or gas stove, in the vicinity of an open flame or appliances that are sources of heat.
• This appliance is used to process fruit, vegetables, hard cheese, chocolate, nuts and make breadcrumbs from hard baked goods. It generally applies that the appliance can only be used to process such foodstuffs that can be cut using a kitchen knife. Do not use it for mincing meat, for processing nut shells, hard fruit stones, frozen or excessively hard foodstuffs such as, for example, coffee beans, nutmeg, etc. or for purposes for which it is not intended.
• The cutting blades on the slicing and grating attachments are very sharp and so it is necessary to be especially careful when handling them to prevent injury.
• Before attaching any attachments to the appliance, removing or replacing them, ensure that the appliance is turned off and

disconnected from the power socket and that the rotating attachment has stopped.

• Make sure that the appliance is correctly assembled before putting it into operation. Do not touch the appliance with wet hands when it is in operation.
• Do not touch the rotating attachment and ensure that foreign items such as clothing, hair, kitchen utensils, etc. are kept away. An injury could occur or the appliance could be damaged.

- Always use the supplied pusher to push food through the feed tube. Never use your hands or other items.

- The appliance must not run without a load. The incorrect use of the appliance may negatively affect its service life.

- Do not leave the appliance in continuous operation for longer than 2 minutes. Before turning it on again, allow it to cool down for at least 3 minutes.

- Always turn off the appliance and disconnect it from the power socket if you will not be using it and if you will be leaving it without supervision, before assembly, disassembly, cleaning or moving it. Always wait for the rotating attachment to come to a complete stop before handing the appliance in any way.

- Do not spray the motor unit of the appliance with water or any other liquid, do not submerge it in water or other liquids, or wash it under running water.

- Ensure that the power plug contacts do not come into contact with water or moisture.

- Do not place heavy items on the power cord. Make sure the power cord does not hang over the edge of a table or that it does not touch a hot surface.

- Do not disconnect the appliance from the power socket by pulling on the power cord. This could damage the power cord or the power socket. Disconnect the cord from the power socket by gently pulling the plug of the power cord.

- If the power cord is damaged, have it replaced at a professional service centre. It is forbidden to use the appliance if it has a damaged power cord or plug.

Electric Slicer & Grater

SSG 3500WH / SSG 3501GR / SSG 3502BL / SSG 3503OR / SSG 3504RD

SSG 3505VT / SSG 3506YL / SSG 3507TQ / SSG 3508RS

Z

- To avoid the danger of injury by electrical shock, do not repair the appliance yourself or make any adjustments to it. Have all repairs or adjustments of the appliance performed at an authorised service centre. By tampering with the appliance you risk voiding your legal rights arising from unsatisfactory performance or quality warranty.

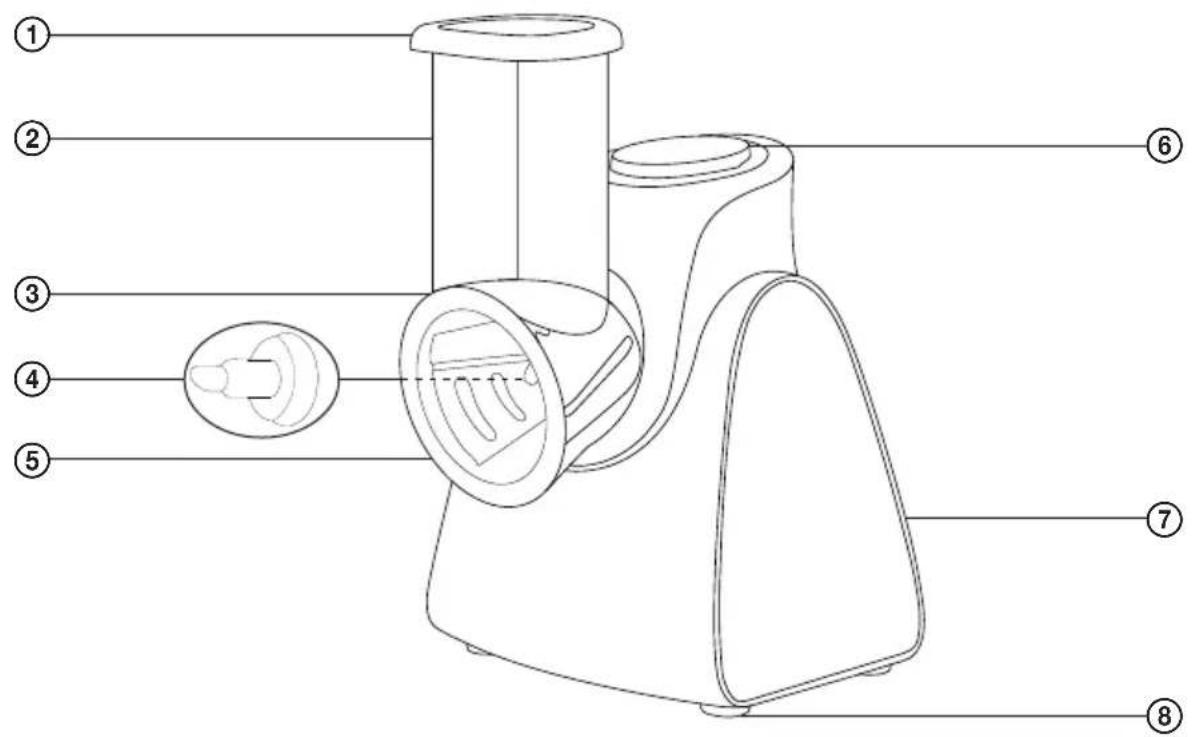

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES

A

① Pusher
② Feed tube
③ Chamber for inserting slicing, grating and grinding attachments
④ Fastening pin for securing the centre of the attachment to the shaft
⑤ Attachment for slicing, grating and grinding
⑥ Switch for turning the motor unit on and off

⑦ Motor unit

⑧ Anti-slip feet

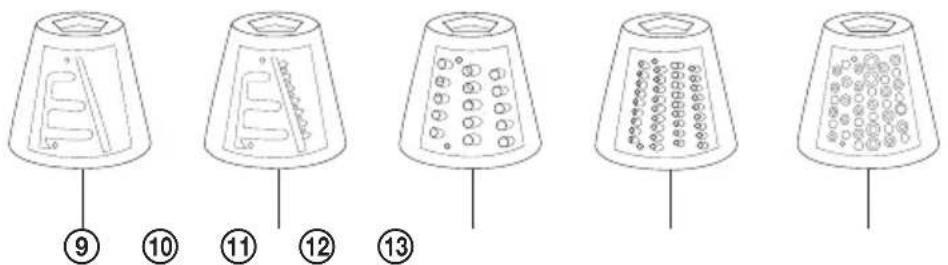

⑨ Attachment for cutting long thin slices

⑩ Attachment for cutting thicker wavy slices

⑪ Coarse grater

⑫ Fine grater

⑬ Attachment for fine grinding (very fine grating)

Electric Slicer & Grater

SSG 3500WH / SSG 3501GR / SSG 3502BL / SSG 3503OR / SSG 3504RD

SSG 3505VT / SSG 3506YL / SSG 3507TQ / SSG 3508RS

Z

BEFORE FIRST USE

1. Take the appliance and its accessories out of the packaging materials.
2. Thoroughly wash all parts that are intended to come into contact with food (pusher A①, feed tube A② with chamber A③, fastening pin A④ and attachments A⑨–⑬) using warm water and a neutral kitchen detergent. Then rinse with clean water and wipe dry.

Attention:

The cutting blades on the slicing and grating attachments A⑨–⑬ are very sharp and so it is necessary to be especially careful when handling them to prevent injury.

SELECTING ATTACHMENT TYPES

Food type Attachment	for cutting long thin slices A9	Attachment for cutting thicker wavy slices A10	Coarse grater A11	Fine grater A12	Grinding attachment A13
Fruit
Apples • • • •
Fresh coconut • •
Peaches (without stones) • •
Pears • •
Strawberries • •
Vegetables
Red and white cabbage • • • •
Carrot • • • •
Zucchini	• • •
Cucumbers	• • •
Celery	• • • •
Onion	• • •
Potatoes	• • • •
Radish	• • • •
Sweet potatoes	• • • •
Other foods
Hard baked goods					•
Hard cheese (e.g. Parmesan cheese)			• • •
Chocolate			• • •
Nuts without shells					•

Note:

The provided table only recommends the suitable attachment type for the given type of food. If necessary, it is possible to use your preferred attachment for the given type of food.

EN-7

The table includes the most common types of food that can be processed using this appliance. However, you can also use it for other types of food, for which it generally applies that it can be cut using a kitchen knife.

Attention:

Do not use the appliance for mincing meat, for processing nut shells or hard fruit stones contained, for example, in mangoes or avocados, frozen or other very hard foods such as coffee beans, nutmeg, etc.

ASSEMBLING AND DISASSEMBLING THE APPLIANCE

• Before you start assembling or disassembling the appliance, check that it is turned off and disconnected from the el. power socket.
• Place the motor unit A⑦ on an even dry and stable surface. Place the chamber A③ with the feed tube A② slightly tilted to the right against the hole in the motor unit A⑦ (see fig. B①) and turn it anticlockwise all the way so that the feed tube A② is in a vertical position perpendicular to the level at which the motor unit is located (see fig. B②)

B

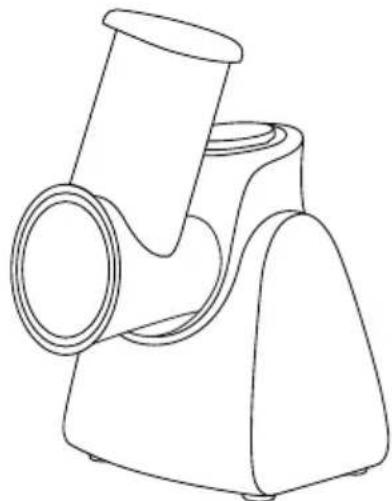

Line drawing of a mechanical component with two cylindrical parts and a triangular base (no text or symbols)

①

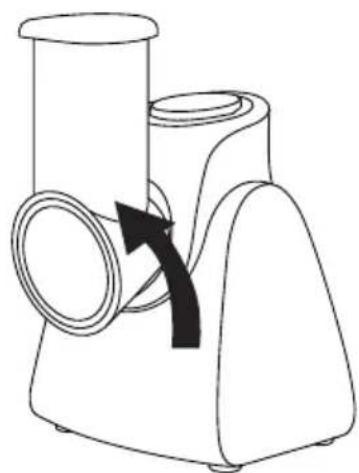

Line drawing of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols)

②

• Select one of the attachments A⑨–⑬ and insert it into the chamber A③, so that the shaft inside the chamber A③ slides into the pentagonal hole in the centre of the attachment. Place the fastening pin A④ against the shaft and turn it anticlockwise all the way to secure the attachment in position.
• Disassemble the appliance in the reverse sequence.

OPERATING THE APPLIANCE

1. Prepare the food and cut it into pieces that will pass through the feed tube A②. Kernels and stones may need to be removed from certain types of fruit and vegetables.
2. Make sure that the appliance is correctly assembled and located on an even, dry and stable surface. Insert the power plug into an electrical power socket. Place a suitable container under the chamber A③.

Electric Slicer & Grater

SSG 3500WH / SSG 3501GR / SSG 3502BL / SSG 3503OR / SSG 3504RD

SSG 3505VT / SSG 3506YL / SSG 3507TQ / SSG 3508RS

Z

1. Before you start inserting food into the feed tube A②, press the switch A⑥ once or twice to ensure that the attachment is properly seated on the shaft. Then hold down the switch A⑥ and start to gradually insert food into the feed tube A②. Use the pusher A① to push food through the feed tube A②.

Attention:

Do not use your fingers other items to push food in. Always use the pusher A ① designed for this purpose.

The maximum continuous operating time is 2 minutes. Before turning it on again, allow the appliance to cool down for at least 3 minutes.

1. To turn off the appliance, release the switch A⑥. When you have finished using it, disconnect the appliance from the power socket and clean it out according to the instructions contained in the 'Cleaning and maintenance' chapter.

USEFUL TIPS

• Check the suitability of the individual attachments for specific food types in the 'Attachment type selection' table.
• To achieve the best possible results, process fresh not overly ripened fruit. The same applies to vegetables.
• You can place softer fruit such as strawberries into a freezer for a few minutes.
• Semi-hard cheese will be processed better if you place it in a refrigerator overnight or in a freezer for 30 minutes.
  • We do not recommend processing soft or already grated cheese as this could clog up the chamber A③.
• If you are using the fine grater A⑫ or the thin slicer attachment A⑨ then push the food through the feed tube A② gently. When using the coarse grater A⑪ or the thick slicer A⑩, it is necessary to push food through with greater force.
• This appliance is not designed for processing meat or types of food that are too hard to be cut with a kitchen knife.

TROUBLESHOOTING

- This table shows situations that may arise when using the appliance. If the table does not help you in resolving your problem, please contact an authorised service centre.

Problem Possible solution to the problem

When the switch A6 is pressed and held down, the appliance runs only intermittently or it does not start up at all.The chamber A3 becomes clogged during operation.

Turn off the appliance and disconnect it from the power socket and wait for the rotating parts to come to a stop. Check that you have assembled the appliance correctly according to the instructions in the 'Assembling and disassembling the appliance' chapter.Pieces of food could have stuck to the attachment and clogged the chamber A3. If this happens, turn off the appliance and disconnect it from the power socket and wait for the rotating parts to come to a stop. Remove the attachment and the chamber A3. Then clean it out according to the instructions in the 'Cleaning and maintenance' chapter.

A greater force is needed to push food through the feed tube A2.

Harder types of food such as potatoes or hard cheese need to be pushed through the feed tube A2 with greater force. This is completely normal. Take a three minute break after every 2 minutes of operation.

CLEANING AND MAINTENANCE

• Clean out the appliance after every use.
• Before cleaning it, make sure that the appliance is turned off and disconnected from the power socket and that the rotating parts have stopped.
• Remove the used attachment and chamber A③ with the feed tube A② from the motor unit.
• Wash the accessories (attachment, chamber A③ with feed tube A②, pusher A① and the fastening pin A④) with warm water and neutral kitchen detergent. Then rinse under clean running water and wipe dry.

Attention:

The cutting blades on the slicing and grating attachments A⑨-⑬ are very sharp and so it is necessary to be especially careful when handling them to prevent injury.

Note:

Certain types of food, such as carrot, may cause discolouration of plastic parts of the appliance. If this occurs, dip a paper kitchen towel in a small amount of cooking oil and apply it on to the discoloured part of the appliance as soon as possible. Then clean this part in the usual manner.

• To clean the motor unit A⑦, use a cloth dipped in a weak neutral detergent solution. Then wipe everything with a clean dampened cloth and wipe dry.
• Never submerge the appliance or its power cord in water or any other liquids. For cleaning, do not use thinners or solvents or cleaning agents that cause abrasion. Otherwise the surface of the appliance may be damaged.

STORAGE

If you will not be using the appliance, store it in a dry place out of the reach of children.

Electric Slicer & Grater

SSG 3500WH / SSG 3501GR / SSG 3502BL / SSG 3503OR / SSG 3504RD

SSG 3505VT / SSG 3506YL / SSG 3507TQ / SSG 3508RS

Z

TECHNICAL SPECIFICATIONS

Rated voltage range 220–240 V

Rated frequency 50/60 Hz

Rated power input 150 W

Safety class (for electric shock protection)....II

Noise level.... 85 dB(A)

The declared noise emission level of the appliance is 85 dB(A), which represents a level A of acoustic power with respect to a reference acoustic power of 1 pW.

Explanation of technical terminology

Safety class for electric shock protection:

Class II – Electric shock protection is provided by double or heavy-duty insulation.

Amendments to the text and technical parameters are reserved.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of used packaging materials at a site designated for waste in your municipality.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations, penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.

This appliance meets all the basic requirements of EU directives related to it.
