| Product Type | Over-the-Range Microwave |
| Brand | Summit |
| Model | OTR24 |
| Width | 30 inches |
| Height | 17 inches |
| Depth | 16 inches |
| Capacity | 1.7 cubic feet |
| Power Output | 1000 watts |
| Voltage | 120 V, 60 Hz |
| Ventilation Type | Recirculating or ducted (top or rear) |
| Exhaust Fan Speeds | 2 speeds |
| Cooktop Light | Yes, with bulb |
| Turntable | Yes, removable glass |
| Control Type | Electronic touchpad |
| Display | LED digital |
| Defrost Function | Auto defrost by weight |
| Child Lock | Yes |
| Timer | Yes, up to 99 minutes |
| Grease Filter | Washable aluminum mesh |
| Charcoal Filter | Included for recirculating mode |
| Installation Hardware Included | Yes, screws and mounting plate |
| Weight | Approximately 60 lbs |
| Warranty | 1 year limited |
Frequently Asked Questions - OTR24 Summit
What is the recommended installation height for the OTR24?
For proper clearance, the bottom of the microwave should be at least 66 inches above the floor and the top of the microwave should be at least 30 inches above the cooking surface.
Can the OTR24 be used without the exhaust fan?
Yes, the fan can be turned off. However, for proper ventilation while cooking, it is recommended to use the fan.
How do I clean the grease filter?
The grease filter is washable. Remove it and soak in hot water with mild detergent, then rinse and dry thoroughly before reinstalling.
Is a charcoal filter required?
If the microwave is installed in recirculating mode (non-ducted), a charcoal filter is required to remove odors. If ducted externally, no charcoal filter is needed.
What type of cookware can I use in the OTR24?
Use microwave-safe containers. Avoid metal, aluminum foil, and dishes with metallic trim.
How do I set the clock?
Press the 'Clock' button, then use the number pad to enter the time. Press 'Clock' again to confirm. The clock can be set to 12-hour or 24-hour mode.
What is the maximum cooking time?
The maximum cooking time is 99 minutes and 99 seconds (99:99).
How do I activate the child lock?
Press and hold the 'Cancel' or 'Stop' button for 3 seconds until the lock icon appears. Repeat to unlock.
Why is my microwave not heating?
Ensure the door is fully closed, the power cord is plugged in, and the circuit breaker is not tripped. If the issue persists, the magnetron may be defective and require service.
Can I use the microwave without the turntable?
The turntable must be in place for even cooking. Do not operate the microwave without the glass tray and roller ring.
User questions about OTR24 Summit
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Microwave in PDF format for free! Find your manual OTR24 - Summit and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. OTR24 by Summit.
USER MANUAL OTR24 Summit
① Cabinet Dimensions
| LabelName | Quantity | |
| 1 Cabinet 1 | ||
| 2 Microwave Oven 1 | ||
| 3 Front Grill 1 | ||

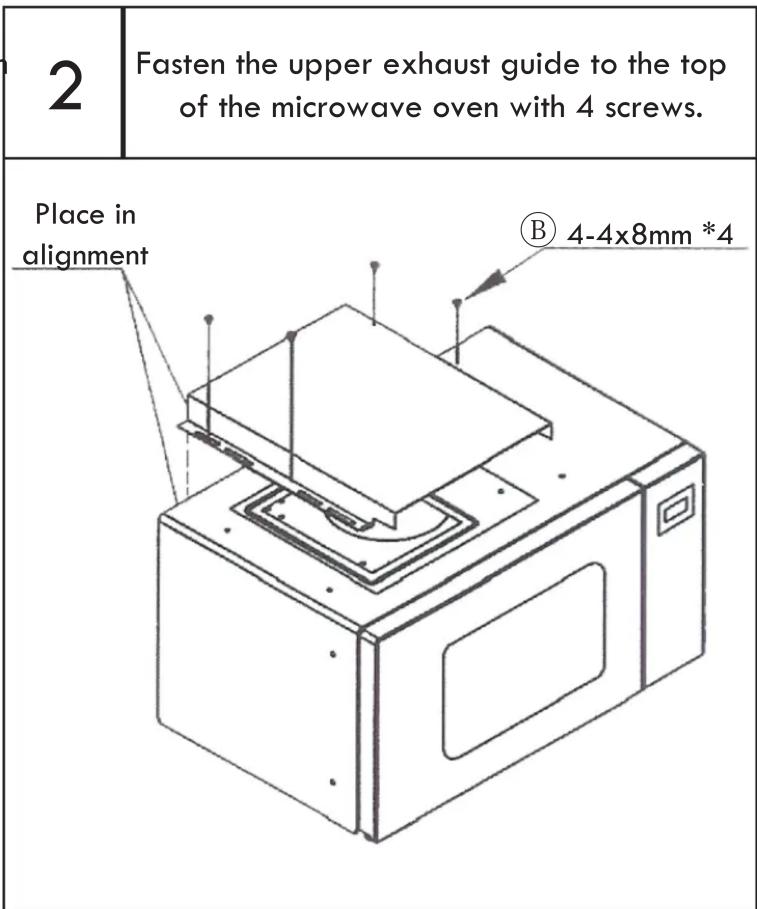

| 4 Upper Exhaust Guide 1 | ||
| 5 Lower Exhaust Guide 1 | ||
| 6 Rear Vent Shield 1 | ||
| 7 | Top Vent Shield | 1 |
| A | Screw 3x25mm | 4 |
| B | Screw 4x8mm | 12 |
| C | Screw 4x10mm | 4 |
| 3 | Fasten the rear vent shield to the microwave oven rear with 2 screws. |
| ⑧ 4-4x8mm *2 | |
| 4 | Fasten the top vent shield to the microwave oven with 2 screws. |
| 5 | Fasten the front grill to the microwave oven with 4 screws. | 6 | Feed cord through cabinet rear |
 |  | ||

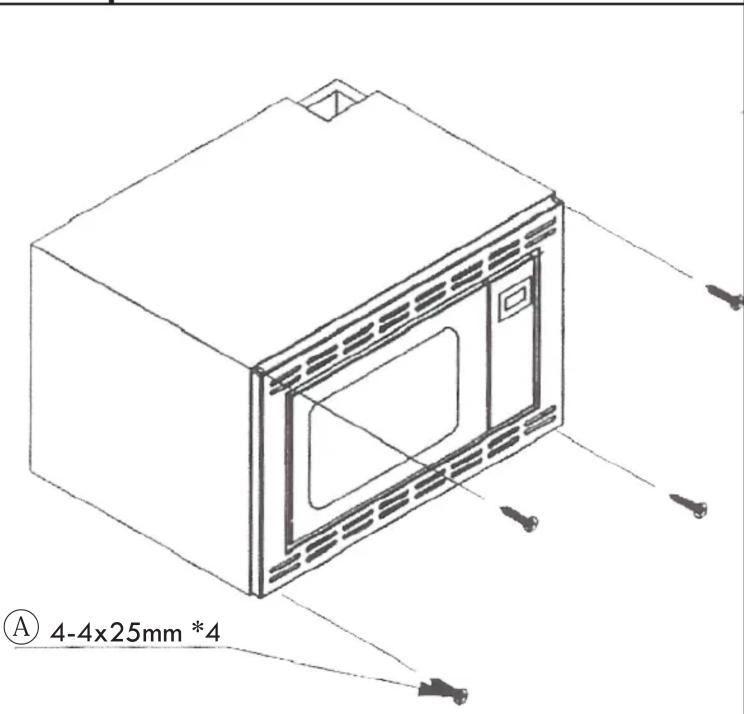

| 7 | Place oven in the middle of cabinet. | 8 | Fasten the oven into the cabinet with 4 screws. |
 |  | ||

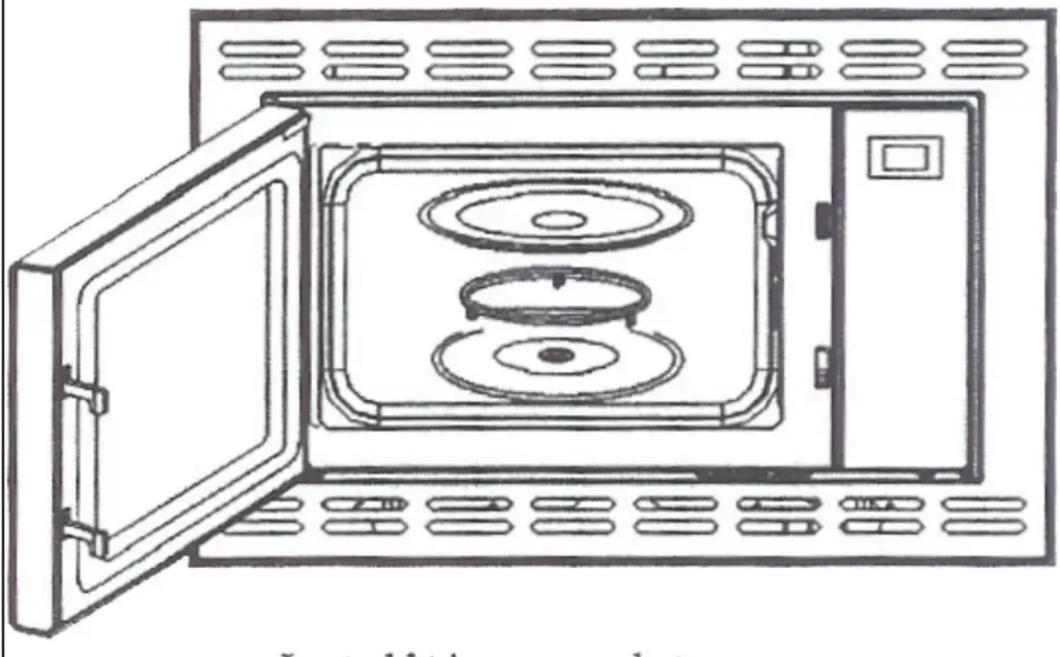

| 9 | Insert rotary carousal and warming plate |
 | |

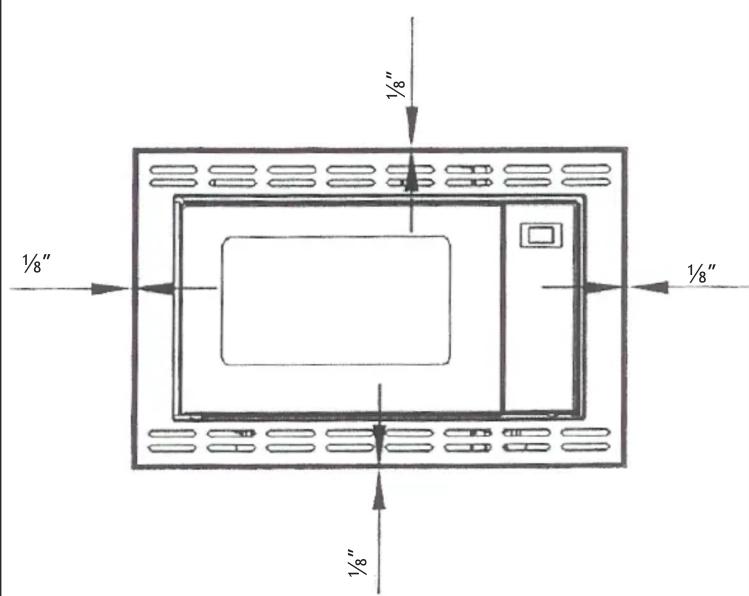

| 10 | Installation Complete |
 | |
