Product Type	AC/DC LED Driver
Model	HBG-240-60B (B-Type)
Brand	Mean Well
Rated Power	240W
Output Voltage	60V DC (constant voltage region 36~60V)
Rated Current	4.0A
Input Voltage Range	90~305VAC / 127~431VDC
Input Frequency	47~63Hz
Efficiency (Typ.)	93.5% at 230VAC
Power Factor	PF > 0.98 at 115VAC, > 0.95 at 230VAC, > 0.93 at 277VAC (full load)
Total Harmonic Distortion	THD < 20% (@load ≥ 60%)
Dimming Method (B-Type)	3-in-1: 1~10VDC, 10V PWM signal, or resistance
Protection Features	Over Current (95~108%), Short Circuit (hiccup mode), Over Voltage (62~85V), Over Temperature
Ingress Protection	IP67
Dimensions (Diameter x Height)	φ191.5mm x 69mm
Weight	2.1 Kg
Operating Temperature (Tcase)	-40°C ~ +75°C
Lifetime	> 50,000 hours at Tcase ≤ 70°C
Warranty	5 years
Safety Certifications	UL8750, CSA C22.2, ENEC, CB, CE, UKCA, EAC, BIS (for 48A/60A only)
EMC Standards	EN55015, EN61000-3-2 Class C, EN61000-3-3
Construction	Circular metal housing, fanless design
Output Mode	Constant Voltage + Constant Current (dual mode)
Standby Power Consumption	< 0.5W (for B/AB/DA-Type)

Frequently Asked Questions - HBG-240-60B Mean Well

What is the input voltage range for the HBG-240-60B?

The input voltage range is 90~305VAC or 127~431VDC (refer to static characteristic section for derating).

What dimming options are available for the B-Type?

The B-Type supports 3-in-1 dimming: 1~10VDC, 10V PWM signal (100Hz~3KHz), or resistance (10KΩ~100KΩ).

Is the HBG-240-60B suitable for outdoor use?

Yes, it has an IP67 rating, making it dust-tight and protected against temporary immersion in water, suitable for outdoor installations.

How do I adjust the output current on the B-Type?

The B-Type has a 3-in-1 dimming function that allows output current adjustment via 1~10VDC, PWM, or resistance connected between DIM+ and DIM-. Note: Do not connect DIM- to -V.

What protections are built into this LED driver?

It includes over current (constant current limiting), short circuit (hiccup mode, auto-recovery), over voltage (latch-off, re-power to recover), and over temperature (auto-recovery after cooling).

What is the maximum case temperature for operation?

The maximum case temperature (Tcase) is +75°C. The driver can operate from -40°C to +75°C with derating at high temperatures.

How long is the lifespan and warranty?

Typical lifetime is >50,000 hours at Tcase ≤ 70°C. Mean Well provides a 5-year warranty.

What are the dimensions and weight?

Dimensions: φ191.5mm x 69mm (diameter x height). Weight: 2.1 kg.

Can I use this driver with a DALI system?

This specific model (HBG-240-60B) is a B-Type with 3-in-1 dimming, not DALI. For DALI, choose the DA-Type (e.g., HBG-240-60DA).

Do I need to ground the driver?

Yes, the driver has an FG (earth) terminal. Proper grounding is essential for safety and EMC compliance. Refer to the installation instructions for correct wiring.

USER MANUAL HBG-240-60B Mean Well

IP65

IP67

(CCC optional)

IS 15885(Part 2(Sec13))

8

R-41027766

(for 48A.60A only)

cRU US

EAC CB CE UK CA

□□□□□□□

• Constant Voltage + Constant Current mode output
  • Circular metal housing with class design I
  • Built-in active PFC function
  • IP67 / IP65 rating for indoor or outdoor installations
• Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI
  • Typical lifetime>50000 hours
• 5 years warranty

□□□□□□□□□□□

• LED bay lighting
• LED stage lighting
• LED spot lighting

■

MW Search: https://www.meanwell.com/serviceGTIN.aspx

■

HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design. It operates from 90\~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40°C \~ +75°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

□□□□□□□□□□□□

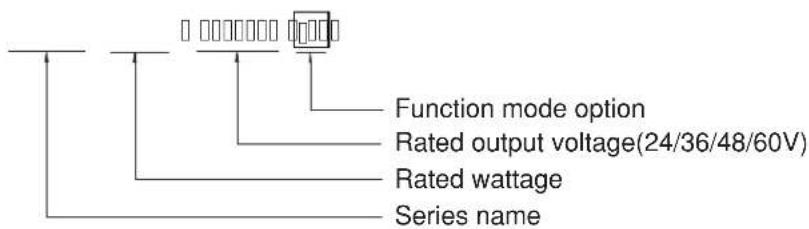

Type	IP Level	Function Note
Blank	IP67	Io fixed.	In Stock
A	IP65	Io adjustable through built-in potentiometer.	In Stock
B	IP67	3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance)	In Stock
AB	IP65	Io adjustable through built-in potentiometer with 3 in 1 dimming function	In Stock
DA IP67		DALI control technology.	In Stock

SPECIFICATION

MODEL		HBG-240-24☐	HBG-240-36☐	HBG-240-48☐	HBG-240-60☐
OUTPUT	DC VOLTAGE	24V	36V	48V	60V
	CONSTANT CURRENT REGIONNote.2	14.4~24V	21.6~36V	28.8~48V	36~60V
	CONSTANT CURRENT REGION(for DA Type only)	16.8~24V	25.2~36V	33.6~48V	42~60V
	RATED CURRENT	10A	6.7A	5A	4.0A
	RATED POWER Note.5	240W	240W	240W	240W
	RIPPLE & NOISE (max.) Note.3	150mVp-p	250mVp-p	250mVp-p	350mVp-p
	CURRENT ADJ. RANGE	Adjustable for A/AB-Type (via built-in potentiometer)
		6~10A	4.0~6.7A	3~5A	2.4~4.0A
	VOLTAGE TOLERANCE Note.4	±2.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±0.5%
	SETUP, RISE TIME Note.6	500ms, 120ms /230VAC 2500ms, 120ms /115VAC
	HOLD UP TIME (Typ.)	15ms /115VAC, 230VAC
INPUT	VOLTAGE RANGE Note.5	90~305VAC 127~431VDC(Please refer to "STATIC CHARACTERISTIC" section)
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR	PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC@full load(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
	TOTAL HARMONIC DISTORTION	THD<20%(@load≥60%/115VC,230VAC; @load≥80%/277VAC)(Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
	EFFICIENCY (Typ.) Note.7	92.5%	92.5%	93%	93.5%
	AC CURRENT (Typ.)	2.5A/115VAC 1.3A/230VAC 1.2A/277VAC
	INRUSH CURRENT (Typ.)	COLD START 75A(width=680μs measured at 50% lpeak) at 230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.75mA/277VAC
	NO LOAD / STANDBY POWER CONSUMPTION	Standby power consumption <0.5W for B/AB/DA-TypeBlank/A-Type please refer to Note.9
PROTECTION	OVER CURRENT	95~108%
		Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	27~34V	43~52V	52~63V	62~85V
		Shut down and latch off o/p voltage, re-power on to recover
	OVER TEMPERATURE	Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.	Tcase=-40~+75°C (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
	MAX. CASE TEMP.	Tcase=+75°C
	WORKING HUMIDITY	20~95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+80°C, 10~95% RH
	TEMP. COEFFICIENT	±0.03%/10~50°C
	VIBRATION	10~500Hz, 5G 12min./cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	UL8750,CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN BS EN/EN GB19510.1,61347-2-13 independent, 62384;GB19510.14, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP65 or IP67 approved
	DALI STANDARDS	Compliance to IEC62386-101, 102, 207 for DA-Type only
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/70% RH
	EMC EMISSION Note.9	Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≥75%); BS EN/EN61000-3-3, GB17743 and GB17625.1,EAC TP TC 020
	EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV,Line-Line:2KV), EAC TP TC 020
OTHERS	MTBF	1792.9K hrs min. Telcordia SR-332 (Bellcore):172.4K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION	φ191.5mm*69mm(D * H)
	PACKING	2.1Kg; 8pcs/18.3Kg/2.09CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25°C of ambient temperature.2. Please refer to "DRIVING METHODS OF LED MODULE".3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.4. Tolerance : includes set up tolerance, line regulation and load regulation.5. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details.6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.7. The DA type power supply is less efficient than the A type power supply by 1%.8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.10. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly (point (or TMP, per DLC), is about 70°C or less.11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com12. The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitude higher than 2000m(6500ft).13. For any application note and IP water proof function installation caution, please refer our user manual before using.https://www.meanwell.com/Upload/PDF/LED_EN.pdf※ Product Liability Disclaimer : For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

BLOCK DIAGRAM

fosc : 100KHz

■ DRIVING METHODS OF LED MODULE

※ This series is able to work in either Constant Current mode (a direct drive way) or Constant Voltage mode (usually through additional DC/DC driver) to drive the LEDs.

In the constant current region, the highest voltage at the output of the driver depends on the configuration of the end systems. Should there be any compatibility issues, please contact MEAN WELL.

Typical output current normalized by rated current (%)

DIMMING OPERATION

※ 3 in 1 dimming function (for B/AB-Type)
- Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-
1 \~ 10VDC, or 10V PWM signal or resistance.
- Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
- Dimming source current from power supply: 100 A (typ.)μ

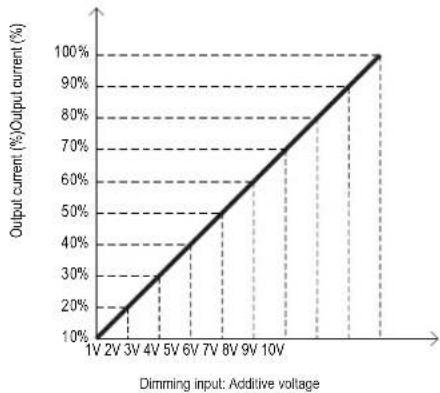

◎ Applying additive 1 \~ 10VDC

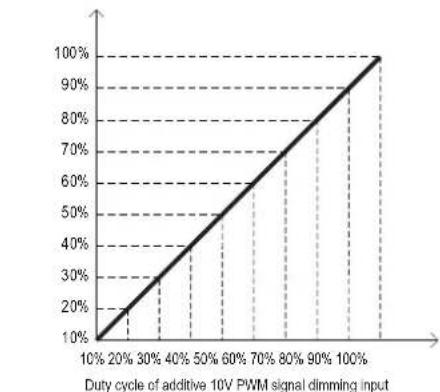

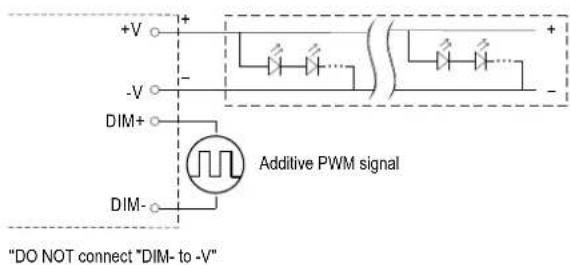

◎ Applying additive 10V PWM signal (frequency range 100Hz \~ 3KHz):

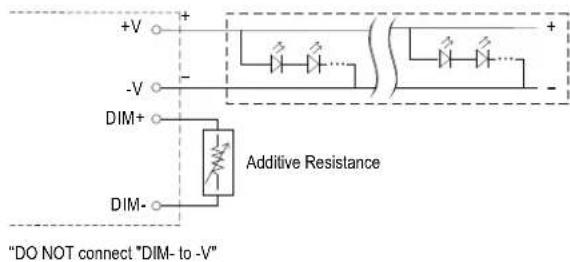

◎ Applying additive resistance:

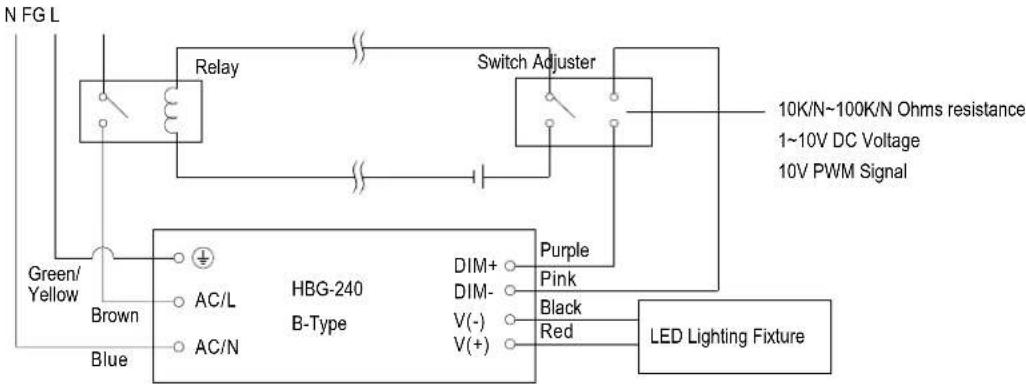

Note: In the case of turning the lighting fixture down to 0% brightness, please refer to the configuration as follow, or please contact MEAN WELL for other options.

Using a switch and relay can turn ON/OFF the lighting fixture.

※ DALI Interface (primary side; for DA-Type)

• Apply DALI signal between DA+ and DA-.
  • DALI protocol comprises 16 groups and 64 addresses.
• First step is fixed at 8% of output.

■ OUTPUT LOAD vs TEMPERATURE(Note.11)

■ STATIC CHARACTERISTIC

※De-rating is needed under low input voltage.

■ POWER FACTOR (PF) CHARACTERISTIC

■ TOTAL HARMONIC DISTORTION (THD)
※ 48V Model, Tcase at 65°C

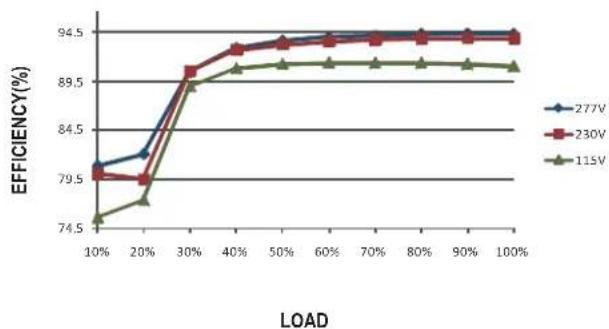

■ EFFICIENCY vs LOAD
HBG-240 series possess superior working efficiency that up to 93% can be reached in field applications. ※ 48V Model, Tcase at 65°C

LIFE TIME

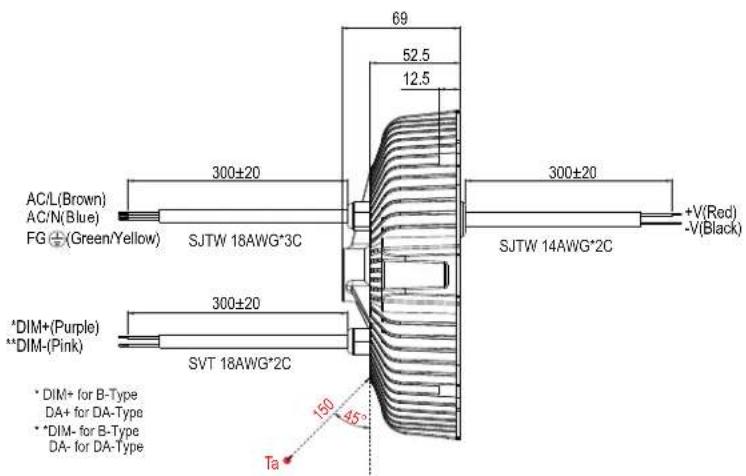

MECHANICAL SPECIFICATION

• tc : Max. Case Temperature.(case temperature measured point)
• Ta: Ambient Temperature measured point

• tc : Max. Case Temperature.(case temperature measured point)
• Ta: Ambient Temperature measured point

• tc : Max. Case Temperature.(case temperature measured point)
• Ta: Ambient Temperature measured point

※ AB-Type

• tc: Max. Case Temperature.(case temperature measured point)
  • Ta: Ambient Temperature measured point

INSTALLATIONS

Caution

• Please inspect the appearance of the driver if the package is damaged. There should not be any cracks.
• Please do not drop or bump the driver.
• All screws including the suspension screw should be paired with a spring washer and locked tight.
• The entire luminaire, including the driver, should be limited to 15Kg or less.
• The luminaire should be cautiously protected from damage due to shock throughout packaging and transportation.
• Please thoroughly follow the preceding cautionary notes to prevent the luminaire from falling, leading to injuries.
