Product Type	Hand-held jigsaw (saw)
Brand	Black & Decker
Model	KS1880S
Voltage	18 V DC
Battery Model	A18
Charger Input Voltage	230 V AC
Charging Time (regular)	Approx. 3 hours
Charging Time (full)	Approx. 6 hours
No-Load Stroke Rate	0 – 3,000 strokes/min
Stroke Length	22 mm
Max Depth of Cut – Wood	76 mm
Max Depth of Cut – Steel	5 mm
Max Depth of Cut – Aluminium	5 mm
Max Pruning Diameter	76 mm
Weight	2.9 kg
Sound Pressure Level	83 dB(A)
Acoustic Power Level	94 dB(A)
Vibration Level	8.35 m/s²
Safety Features	Lock-off button, double insulated charger
Intended Use	Sawing wood, wood products, metal, gypsiferous materials
Maintenance	Clean ventilation slots with soft brush; wipe motor housing with damp cloth; no abrasive cleaners
Warranty	24 months (EU/EFTA)

Frequently Asked Questions - KS1880S BLACK & DECKER

How do I change the saw blade on the KS1880S?

To change the saw blade, pull the blade clamp lever (5) up to release the mechanism. Insert the shank of the new blade into the blade holder (3) as far as it will go, then move the clamp lever down to lock it in place. Ensure the teeth face forward or backward as needed.

How do I charge the battery?

Remove the battery from the tool. Slide the charger receptacle onto the battery, plug the charger into a mains outlet, and switch on. Charging takes about 3 hours for regular use and 6 hours for a full charge. Recommended ambient temperature is approx. 24°C.

What type of battery does the KS1880S use?

The tool uses a Black & Decker A18 battery (18V). It is a rechargeable battery that can be charged many times. At end of life, recycle it at an authorised repair agent or recycling station.

Can I cut metal with this saw?

Yes, the KS1880S can cut metal. Use a saw blade suitable for metal. For ferrous metals, use a fine-tooth blade; for non-ferrous, a coarser blade. Cutting metal takes longer than wood. Apply oil along the cut line for better results.

What is the warranty period?

Black & Decker offers a 24-month guarantee from the date of purchase against defects in materials and workmanship. The guarantee is valid within the EU and EFTA territories. Proof of purchase is required.

How should I clean and maintain the saw?

Regularly clean the ventilation slots with a soft brush or dry cloth. Wipe the motor housing with a damp cloth. Do not use abrasive or solvent-based cleaners. Check for sawdust clinging to the blade holder and clean with a soft brush or low-pressure air.

Is the charger double insulated?

Yes, the charger is double insulated in accordance with EN 60335, so no earth wire is required. Never attempt to replace the charger unit with a regular mains plug.

Can I use this saw to prune branches?

Yes, the KS1880S can prune branches up to 76 mm in diameter. When cutting branches, always cut downward and away from your body, and be aware of where the branch will fall. Do not use the tool while on a ladder or unstable surface.

How do I insert the battery?

Line up the battery (6) with the receptacle on the tool, slide it in, and push until it snaps into place. To remove, press the release button (7) while pulling the battery out.

What safety precautions should I take?

Always wear safety glasses. Keep work area clean and well-lit. Do not use in rain or damp conditions. Keep children away. Avoid loose clothing. Use both hands to hold the tool. Ensure the blade is not jammed before switching on. Dispose of dust safely.

USER MANUAL KS1880S BLACK & DECKER

UK

Ireland

Australia

New Zealand

A

B

C

Line drawing of a hand holding a saw tool, showing mechanical components and grip (no text or symbols)

Intended use

Your Black & Decker saw has been designed for sawing wood, wood products, metal and gypsiferous materials. This tool is intended for consumer use only.

Your Black & Decker charger has been designed for charging Black & Decker batteries of the type supplied with this tool.

Safety instructions

• Warning! When using battery-powered tools, basic safety precautions, including the following, should always be followed to reduce the risk of fire, leaking batteries, personal injury and material damage.
• Read all of this manual carefully before operating the tool.
• Retain this manual for future reference.

Keep work area clean

Cluttered areas and benches can cause accidents.

Consider work area environment

Do not expose the tool to rain. Do not use the tool in damp or wet conditions. Keep the work area well lit. Do not use the tool where there is a risk of causing fire or explosion, e.g. in the presence of flammable liquids and gases.

Keep children away

Do not allow children, visitors or animals to come near the work area or to touch the tool.

Dress properly

Do not wear loose clothing or jewellery, as these can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

Personal protection

Always use safety glasses. Use a face or dust mask whenever the operations may produce dust or flying particles. Hearing protection should be worn.

Do not overreach

Keep proper footing and balance at all times.

Stay alert

Watch what you are doing. Use common sense.

Do not operate the tool when you are tired.

Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

Connect dust extraction equipment

If devices are provided for the connection of dust extraction and collection facilities, ensure that these are connected and properly used.

Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

Use appropriate tool

The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended. Do not force the tool.

Warning! The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury.

Check for damaged parts

Before use, carefully check the tool for damage. Check for misalignment and seizure of moving parts, breakage of parts, damage to guards and switches and any other conditions that may affect its operation. Ensure that the tool will operate properly and perform its intended function. Do not use the tool if any part is damaged or defective. Do not use the tool if the switch does not turn it on and off. Have any damaged or defective parts repaired or replaced by an authorised repair agent. Never attempt any repairs yourself.

Remove the battery

Where the design permits, remove the battery when the tool is not in use, before changing any parts of the tool, accessories or attachments and before servicing.

Avoid unintentional starting

Do not carry the tool with a finger on the on/off switch. Be sure that the tool is switched off when inserting the battery into the tool.

Do not abuse cord

Never carry the charger by its cord or pull it to disconnect from the socket. Keep the cord away from heat, oil and sharp edges.

Store idle tools

When not in use, tools, batteries and chargers should be stored in a dry, locked up or high place, out of reach of children.

Maintain tools with care

Keep cutting tools sharp and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Keep handles and switches dry, clean and free from oil and grease.

Repairs

This tool complies with relevant safety requirements.

Repairs should only be carried out by qualified persons using original spare parts; otherwise this may result in considerable danger to the user.

Additional safety instructions for batteries and chargers

Batteries

• Never attempt to open for any reason.
• Do not expose the battery to water.
• Do not store in locations where the temperature may exceed 40 °C.
• Charge only at ambient temperatures between 4 °C and 40 °C.

• Charge only using the charger provided with the tool.

• When disposing of batteries, follow the instructions given in the section “Protecting the environment”.

• Under extreme conditions, battery leakage may occur. When you notice liquid on the battery, proceed as follows:
• Carefully wipe the liquid off using a cloth. Avoid skin contact.
• In case of skin or eye contact, follow the instructions below.

Warning! The battery fluid, a 25-30% solution of potassium hydroxide, can be harmful. In case of skin contact, immediately rinse with water. Neutralise with a mild acid such as lemon juice or vinegar. In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician.

Fire hazard! Avoid short-circuiting the contacts of a detached battery (e.g. when storing the battery in a toolbox).

Do not incinerate the battery.

Do not attempt to charge damaged batteries.

Chargers

• Use your Black & Decker charger only to charge batteries of the type supplied with your tool. Other batteries could burst, causing personal injury and damage.
• Never attempt to charge non-rechargeable batteries.
• Have defective cords replaced immediately.
• Do not expose to water.
• Do not open the charger.
• Do not probe the charger.

The charger is intended for indoor use only.

ELECTRICAL SAFETY

Your charger has been designed for a specific mains voltage. Always check that the mains voltage corresponds to the voltage on the rating plate.

Your charger is double insulated in accordance with EN 60335; therefore no earth wire is required.

Warning! Never attempt to replace the charger unit with a regular mains plug.

Additional safety instructions for Australia and New Zealand

• This tool is not intended for use by young children or infirm persons without supervision. Young children must be supervised to ensure they do not play with the tool.
• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

Additional safety instructions for hand-held saws

• Always use the appropriate type of saw blade for the workpiece material and type of cut.
• Only use saw blades in good condition.
• Always switch the tool off and wait for the saw blade to come to a complete standstill before putting the tool down.
• Keep your hands well clear of the saw blade while working.
• Do not touch the saw blade immediately after the operation as it might be hot.
• Do not attempt to saw extremely small workpieces.
• Before sawing in walls or floors, be aware of the location of hidden pipes and wiring.
• Never switch on the tool when the saw blade is jammed in the workpiece or when it is in contact with the material.
• Do not exert side pressure on the saw blade.
• Always hold the tool with both hands.
• Do not use the tool while in a tree, on a ladder or on any other unstable surface.
• When cutting branches be aware of where the branch will fall.
• Take special care when sawing woods and metal which may produce toxic dust:
• Wear a dust mask specifically designed for protection against toxic dust and fumes and ensure that persons within or entering the work area are also protected.
• Do not let children or pregnant women enter the work area.
• Do not eat, drink or smoke in the work area.
• Dispose of dust particles and any other debris safely.

Overview (fig. A)

1. On/off switch
2. Lock-off button
3. Blade holder
4. Shoe
5. Blade clamp lever
6. Battery
7. Battery release button
8. Charger
9. Charger receptacle

Assembly

Fitting and removing the battery (fig. A)

• To fit the battery (6), line it up with the receptacle on the tool. Slide the battery into the receptacle and push until the battery snaps into place.
• To remove the battery, push the release button (7) while at the same time pulling the battery out of the receptacle.

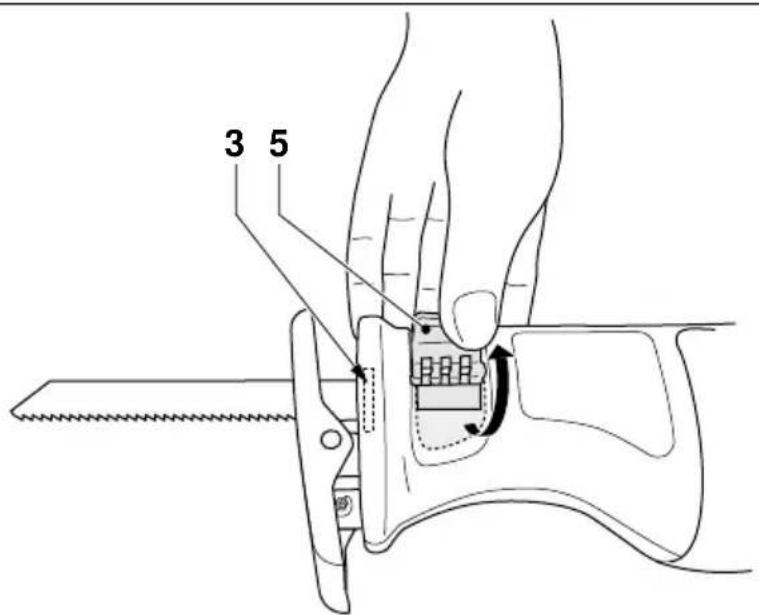

Fitting the saw blade (fig. B)

• Hold the saw blade securely. If the saw blade is fitted with a tooth protector, leave it attached while fitting the blade.
• Pull the blade clamp lever (5) up to release the blade clamping mechanism.
• Insert the shank of the saw blade into the blade holder (3) as far as it will go.
• Move the blade clamp lever (5) down to lock the blade clamping mechanism.
• Remove the tooth protector, if fitted.

Note: This tool has been designed to allow the saw blades to be fitted with the teeth facing forward or backward.

Use

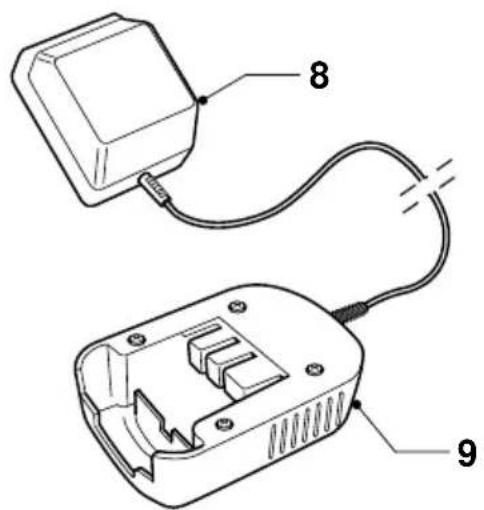

Charging the battery (fig. A)

The battery needs to be charged before first use and whenever it fails to produce sufficient power on jobs that were easily done before. When charging the battery for the first time, or after prolonged storage, it will only accept an 80% charge. After several charge and discharge cycles, the battery will attain full capacity. The battery may become warm while charging; this is normal and does not indicate a problem.

Warning! Do not charge the battery at ambient temperatures below 4 °C or above 40 °C. Recommended charging temperature: approx. 24 °C.

• To charge the battery (6), remove it from the tool.
• Slide the charger receptacle (9) onto the battery as shown.
  ♦ Plug in the charger (8). Switch on at the mains.
  The battery will become warm while charging. After approx. 3 hours of charging, the battery will be sufficiently charged for use in regular applications. After approx. 6 hours of charging, the battery will be fully charged.
• Remove the charger receptacle from the battery.

Switching on and off

• To switch the tool on, move the lock-off button (2) into the unlock position and squeeze the on/off switch (1).
• To switch the tool off, release the on/off switch.

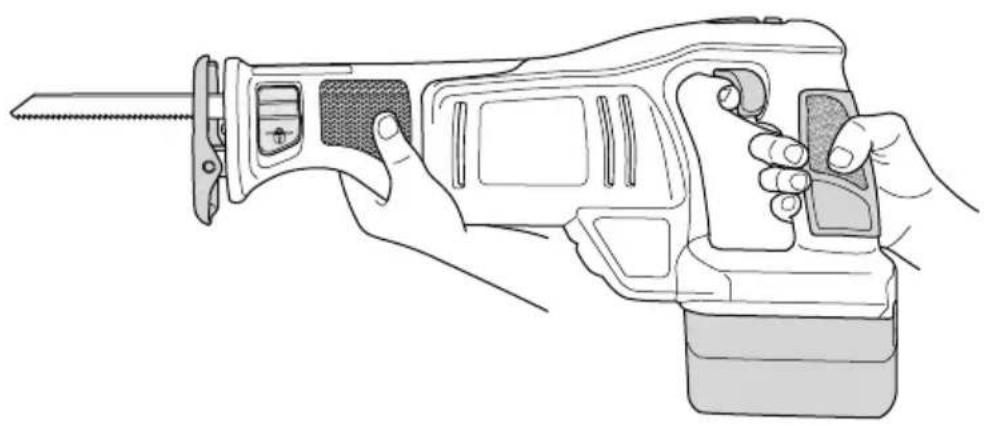

Sawing (fig. C)

• Always hold the tool with both hands.
• Let the blade run freely for a few seconds before starting the cut.
• Apply only a gentle pressure to the tool while performing the cut.
• If possible, work with the shoe pressed against the workpiece. This will improve tool control and reduce tool vibration, as well as prevent the blade from being damaged.

Hints for optimum use

Sawing wood

• Clamp the workpiece securely and remove all nails and metal objects.
• Holding the tool with both hands, work with the shoe pressed against the workpiece.

Pocket cutting in wood

• Measure and mark the required pocket cut.
• Fit a saw blade suitable for pocket cutting.
• Rest the shoe on the workpiece in such a position that the blade forms an appropriate angle for the pocket cut.
• Switch on the tool and slowly feed the blade into the workpiece. Make sure that the shoe remains in contact with the workpiece at all times.

Sawing metal

• Be aware that sawing metal takes much more time than sawing wood.
• Use a saw blade suitable for sawing metal. Use a fine-tooth saw blade for ferrous metals and a coarser saw blade for nonferrous metals.
• When cutting thin sheet metal, clamp a piece of scrap wood to the back surface of the workpiece and cut through this sandwich.
• Spread a film of oil along the intended line of cut.

Cutting branches

Branches up to 25 mm in diameter can be cut with this tool.

Warning! Do not use the tool while in a tree, on a ladder or on any other unstable surface. Be aware of where the branch will fall.

• Cut downward and away from your body.
• Make the cut close to the main branch or tree body.

Vertical cutting

The tool allows close cutting to corners and other difficult areas.

- Insert the shank of the saw blade into the blade holder with the teeth of the blade facing upward.

• Hold the tool with the shoe facing downward so that you are as close to the work surface as possible.
• Cut forward and away from your body.

Accessories

The performance of your tool depends on the accessory used. Black & Decker and Piranha accessories are engineered to high quality standards and designed to enhance the performance of your tool. By using these accessories you will get the very best from your tool.

MAINTENANCE

Your Black & Decker tool has been designed to operate over a long period of time with a minimum of maintenance.

Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Your charger does not require any maintenance apart from regular cleaning.

• Before performing any maintenance on the tool, remove the battery from the tool.
• Unplug the charger before cleaning it.
• Regularly clean the ventilation slots in your tool using a soft brush or dry cloth.
• Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
• Regularly check for saw dust clinging to the saw blade holder. Use a soft brush or some low pressure air to clean the saw blade holder.

PROTECTING THE ENVIRONMENT

Tools

Black & Decker provides a facility for recycling Black & Decker products and rechargeable batteries once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

Batteries

Black & Decker batteries can be recharged many times. At the end of their useful life, discard batteries with due care for our environment:

• Run the battery down completely, then remove it from the tool.
• NiCd and NiMH batteries are recyclable. Take them to any authorised repair agent or a local recycling station.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Technical data

		KS1880S
Voltage V	DC-1	18
Number of strokes min		0 - 3,000
Stroke length mm 22
Max depth of cut mm
Wood 76
Steel 5
Aluminium 5
Pruning ø 76
Battery cat. no. A18
Weight kg 2.9

Charger

Input voltage V	AC	230
Approx. charging time h 3

EC declaration of conformity

Black & Decker declares that these products conform to: 98/37/EC, 89/336/EEC, 73/23/EEC, EN 55014, EN 50260, EN 61000

L_pA (sound pressure): 83 dB(A), L_WA (acoustic power) 94 dB(A), hand/arm weighted vibration 8.35 m/s ^2

Colin Wills, Director of Engineering

BDCI, 4/F, 2 Dai Wang Street

Tai Po Industrial Estate

Tai Po NT, Hong Kong

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

• The product has been used for trade, professional or hire purposes;
• The product has been subjected to misuse or neglect;
• The product has sustained damage through foreign objects, substances or accidents;
  ◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Australia

DEWALT Industrial Power Tool Company

7 Clarice Road Tel. [phone]

Box Hill, Victoria 3128 Fax [phone]

New Zealand

Black & Decker Tel. [phone]

81 Hugo Johnston Drive Fax [phone]

Penrose, Auckland, New Zealand

United Kingdom

Black & Decker Tel. [phone]

210 Bath Road Fax [phone]

Slough, Berkshire SL1 3YD Helpline 01753 574277
