Product Type	Hand-held reciprocating saw
Brand	Black & Decker
Model	RSP1050
Input Voltage	230 V
Power Input	1050 W
No-Load Speed (SPM)	0 - 3500 min⁻¹
Max Blade Length	305 mm
Weight	3.5 kg
Sound Pressure Level	87.2 dB(A) (K=3 dB(A))
Sound Power Level	98.2 dB(A) (K=3 dB(A))
Vibration (Cutting Wood)	15.8 m/s² (K=1.5 m/s²)
Vibration (Cutting Sheet Metal)	13.4 m/s² (K=1.5 m/s²)
Blade Motion	Dual: straight reciprocating and orbital (pendulum)
Variable Speed	Yes, via variable speed on/off switch
Auxiliary Handle	Yes, with eight clamping locations
Adjustable Shoe	Yes, with shoe release button for depth adjustment
Blade Change	Tool-free: rotate blade clamp collar
Intended Use	Sawing wood, plastics, sheet metal; consumer use only
Safety Features	Double insulation; no earth wire required; RCD recommended for outdoor use
Maintenance	Clean ventilation slots with soft brush; motor housing with damp cloth; no abrasive cleaners
Guarantee	24 months from purchase date (conditions apply)

Frequently Asked Questions - RSP1050 BLACK & DECKER

How do I change the saw blade on the RSP1050?

To change the blade, rotate the blade clamp collar (2) to the release position, insert the new blade shank fully, then release the collar to lock it. Ensure the tool is switched off and unplugged before changing blades. Used blades may be hot.

What materials can I cut with this saw?

The RSP1050 is designed for sawing wood, plastics, and sheet metal. Use appropriate blades: fine-tooth for ferrous metals, coarse for non-ferrous metals. For thin sheet metal, clamp scrap wood to the back.

How do I adjust the cutting depth?

Press the shoe release button (6) and slide the shoe (1) to the desired position. Always use the tool with the shoe installed to prevent loss of control.

What is the pendulum action and when should I use it?

The pendulum action (orbital motion) provides faster cutting in wood by moving the blade in an elliptical path. Use straight reciprocating for metal or when a smoother finish is required. Adjust via the pendulum selector switch.

Can I use this tool for pocket cutting?

Yes. Measure and mark the cut, fit a suitable blade, rest the shoe on the workpiece at an angle, then switch on and slowly feed the blade into the material. Keep the shoe in contact with the workpiece.

What safety precautions should I take when using the reciprocating saw?

Always wear eye protection. Hold the tool by insulated gripping surfaces to avoid electric shock if cutting into hidden wiring. Use clamps to secure the workpiece. Keep hands away from the cutting area. Wait for the blade to stop completely before putting the tool down.

How do I maintain the RSP1050?

Regularly clean ventilation slots with a soft brush or dry cloth. Clean the motor housing with a damp cloth; do not use abrasive or solvent-based cleaners. Keep cutting tools sharp and clean. If the supply cord is damaged, have it replaced by an authorised service centre.

What is the warranty period and how do I claim?

Black & Decker offers a 24-month guarantee from the date of purchase against faulty materials or workmanship. To claim, provide proof of purchase to the seller or an authorised repair agent. The guarantee does not cover misuse, neglect, or repairs by unauthorised persons.

Can I use this saw for cutting metal?

Yes. Use a fine-tooth blade for ferrous metals and a coarser blade for non-ferrous metals. Apply oil along the cut line. Sawing metal is slower than wood; thin sheet metal should be clamped with a scrap wood backup.

How do I attach and remove the auxiliary handle?

Wrap the handle and strap around the gripping area, ensuring indexing features engage. Hook the clamp and press the lever to latch. To remove, lift the clamp lever and unhook the clamp from the strap. The handle offers eight clamping locations for optimal grip.

USER MANUAL RSP1050 BLACK & DECKER

Line drawing of a hand holding a mechanical tool, no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to lift a workpiece on a wooden table (no text or symbols)

Illustration of a hand using a power tool to lift a surface, with motion lines indicating movement (no text or symbols)

Intended use

Your Black & Decker hand-held saw has been designed for sawing wood, plastics and sheet metal. This tool is intended for consumer use only.

Safety instructions

General power tool safety warnings

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional power tool safety warnings

Warning! Warning! Additional safety warnings for hand-held saws.

• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
• Keep hands away from cutting area. Never reach underneath the work piece any reason. Do not insert fingers or thumb into the vicinity of the reciprocating blade and blade clamp. Do not stabilize the saw by gripping the shoe.
• Keep blades sharp. Dull or damaged blades may cause the saw to swerve or stall under pressure. Always use the appropriate type of saw blade for the workpiece material and type of cut.

• When cutting pipe or conduit, make sure that they are free from water, electrical wiring, etc.

• Do not touch the workpiece or the blade immediately after operating the tool. They can become very hot.

• Be aware of hidden hazards, before cutting into walls, floors or ceilings, check for the location of wiring and pipes.
• The blade will continue to move after releasing the switch. Always switch the tool off and wait for the saw blade to come to a complete standstill before putting the tool down.

Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.

- The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.

Safety of others

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ◆ Children should be supervised to ensure that they do not play with the appliance.

Residual risks.

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

◆ Injuries caused by touching any rotating/moving parts.
◆ Injuries caused when changing any parts, blades or accessories.
- Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
◆ Impairment of hearing.
- Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)

Vibration

The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.

Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.

When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

Labels on tool

The following pictograms are shown on the tool:

Warning! To reduce the risk of injury, the user must read the instruction manual.

Electrical safety

is tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

- If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

Using an extension cable

Always use an approved extension cable suitable for the power input of this appliance (see technical data). The extension cable must be suitable for outdoor use and marked accordingly. Up to 30 m of 1.5 mm2 HO5VV-F extension cable can be used without loss of product performance. Before use, inspect the extension cable for signs of damage, wear and ageing. Replace the extension cable if damaged or defective. When using a cable reel, always unwind the cable completely.

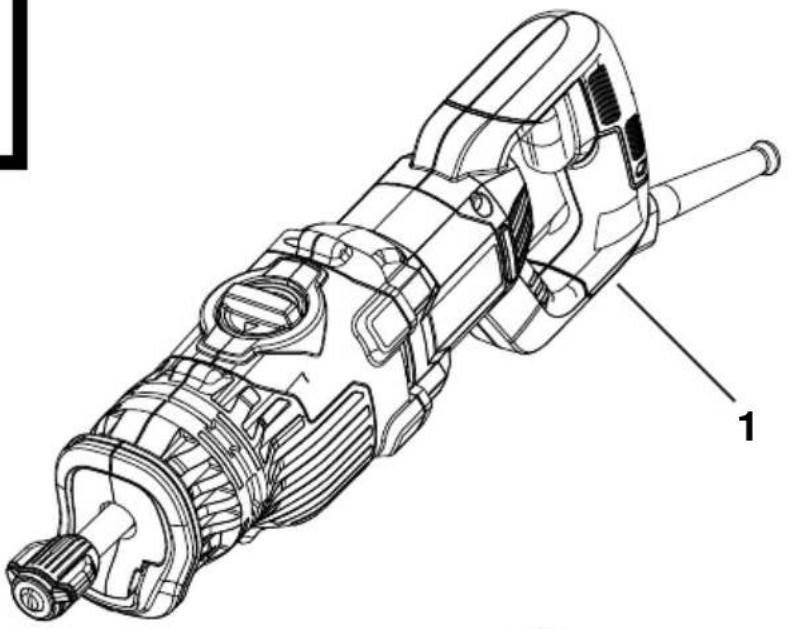

Features

This tool includes some or all of the following features.

1. Adjustable shoe
2. Blade clamp collar
3. Auxiliary handle
4. Pendulum selector switch
5. Variable speed on/off switch
6. Shoe release button

Assembly

Warning! Before attempting any of the following operations, make sure that the tool is switched off and unplugged and that the saw blade has stopped. Used saw blades may be hot.

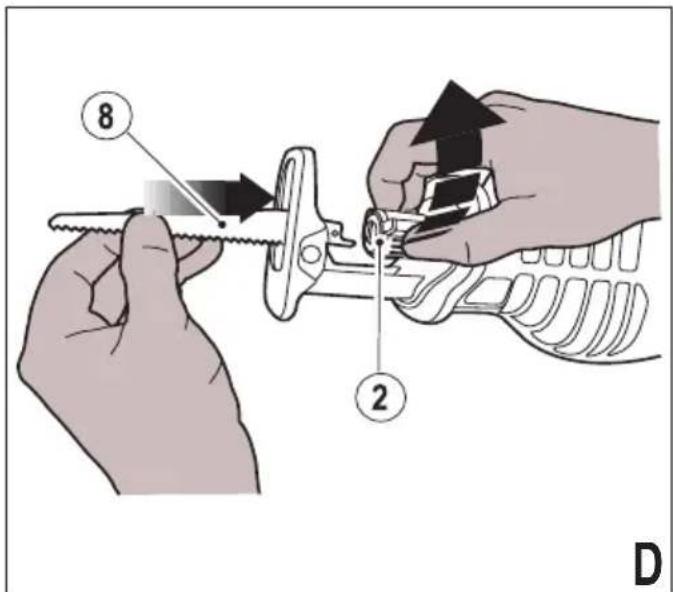

Fitting the saw blade (fig. D)

◆ Hold the tool away from the body
◆ Rotate the blade clamp collar (2) in the direction shown in figure D
◆ Insert the shank of the blade fully into the blade clamp collar (2).
◆ Release the blade clamp collar (2) to lock the blade into position

Note: The blade can be installed with the teeth up to assist in flush cutting

Removing the saw blade (fig. D)

Warning! Burn hazard: Do not touch the blade immediately after use. Contact with the blade may result in personal injury.

◆ Rotate the blade clamp collar (2) to the release position
◆ Remove blade (8)

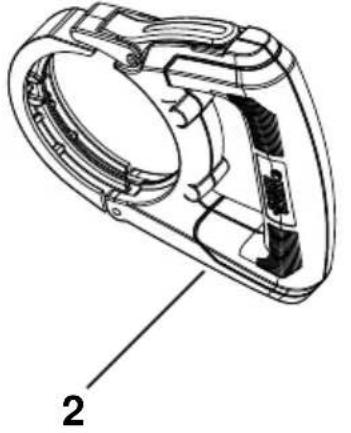

Auxiliary handle

The auxiliary handle offers a greater choice of gripping positions. Eight clamping locations are available for the placement of the auxiliary handle.

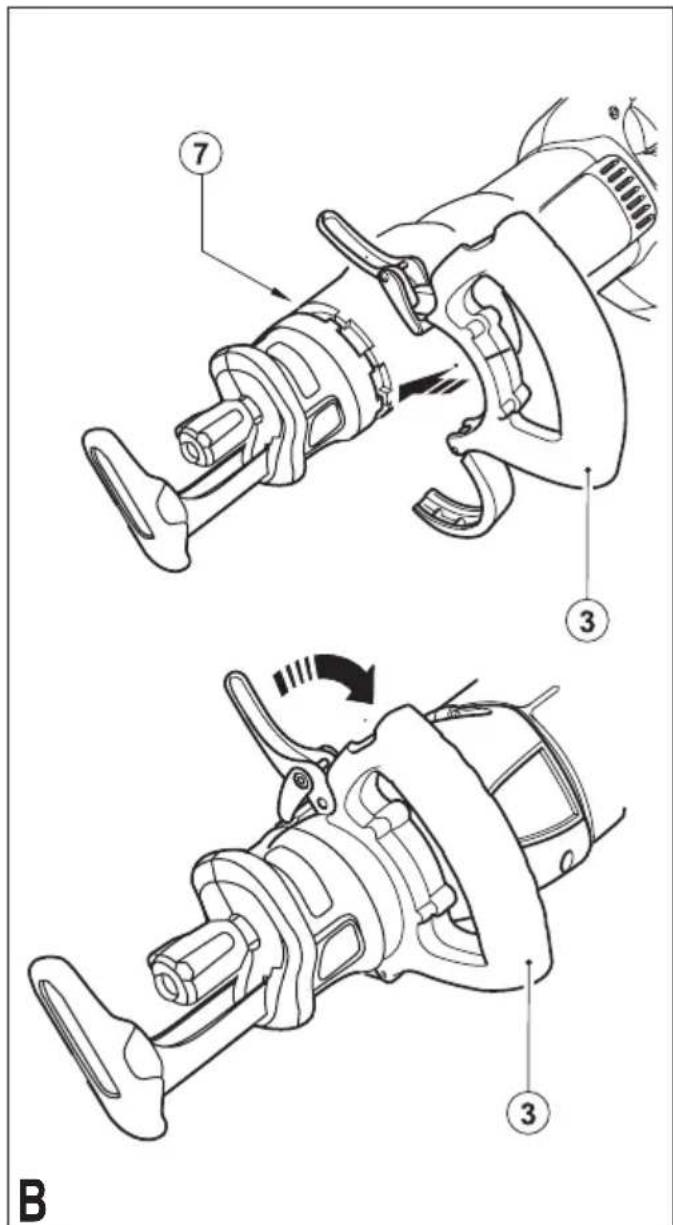

Attaching the auxiliary handle (fig. B)

◆ Wrap the handle (3) and strap around the forward gripping area of the saw.
◆ Make sure that the handle (3) and strap indexing features (7) are fully engaged in the matching saw positions.
◆ Hook the clamp and strap together and press the clamp lever to the handle (3) to securely latch the handle.
◆ Check to make sure that the handle (3) is secure before cutting.

Removing the auxiliary handle.

◆ Lift the clamp lever and unhook the clamp from the strap.
◆ Separate and remove the handle (3) and strap from the saw.

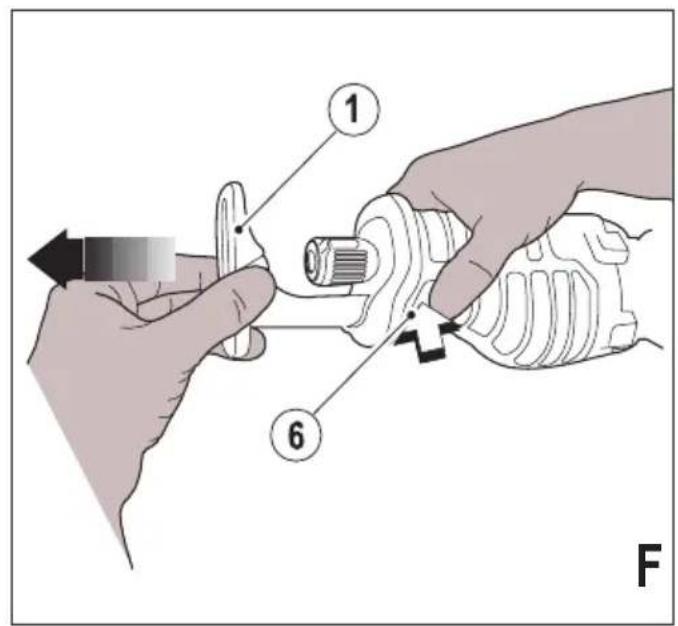

Adjustable shoe (fig. F)

The shoe (1) will adjust to limit the depth of cut.

◆ Press the shoe release button (6)
◆ Slide the shoe (1) to the desired position

Warning! To prevent loss of control, never use tool without shoe.

Use

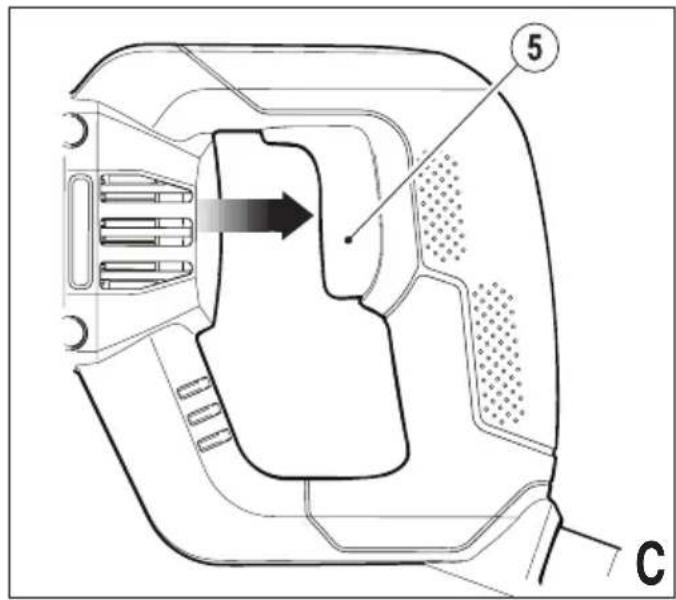

Switching on and off (fig. C)

The variable speed on/off switch offers a choice of speeds for greatly improved cutting rates in various materials.

◆ To switch the tool on, squeeze the variable speed on/off switch (5).
◆ To switch the tool off, release the variable speed on/off switch (5).

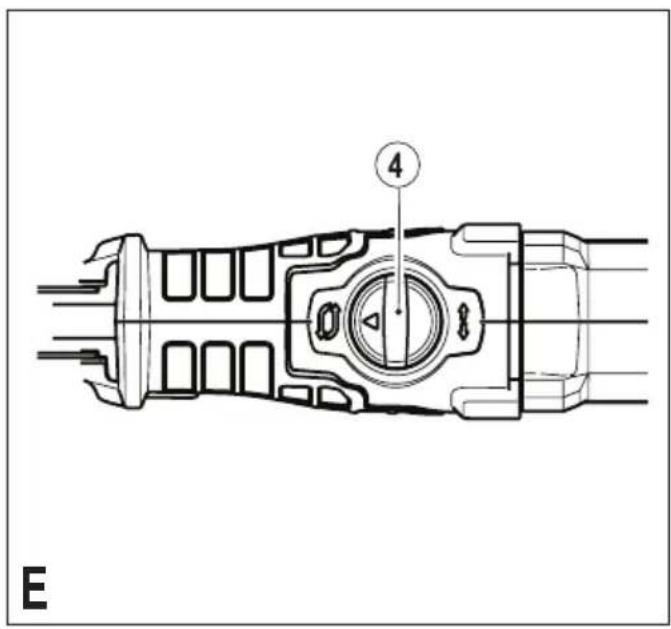

Pendulum action selector (fig. E)

The RSP1050 has dual blade motion: straight reciprocating motion or orbital motion.

Straight reciprocating motion is used for all metal cutting operations and for wood cutting applications where finish is more important than speed.

◆ To set the saw for straight reciprocating motion, turn the selector to the position marked

Orbital motion is used for fast cutting of wood.

◆ To set the saw for orbital action, turn the selector to the position marked

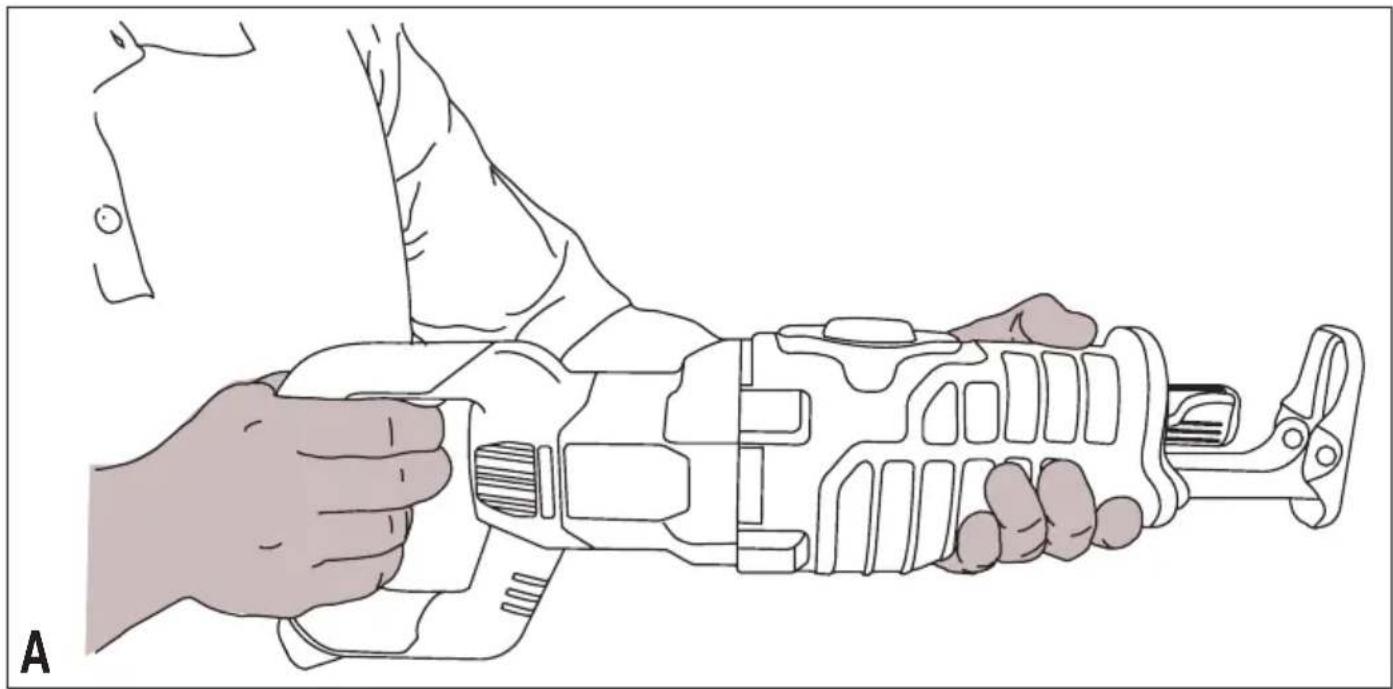

Sawing (fig. A)

◆ Always hold the tool with both hands.
- Let the blade run freely for a few seconds before starting the cut.
- Apply only a gentle pressure to the tool while performing the cut.
- If possible, work with the shoe (1) pressed against the workpiece. This will improve tool control and reduce tool vibration, as well as prevent the blade from being damaged.

Hints for optimum use

Sawing wood

• Clamp the workpiece securely and remove all nails and metal objects.
  ◆ Holding the tool with both hands, work with the shoe (1) pressed against the workpiece.

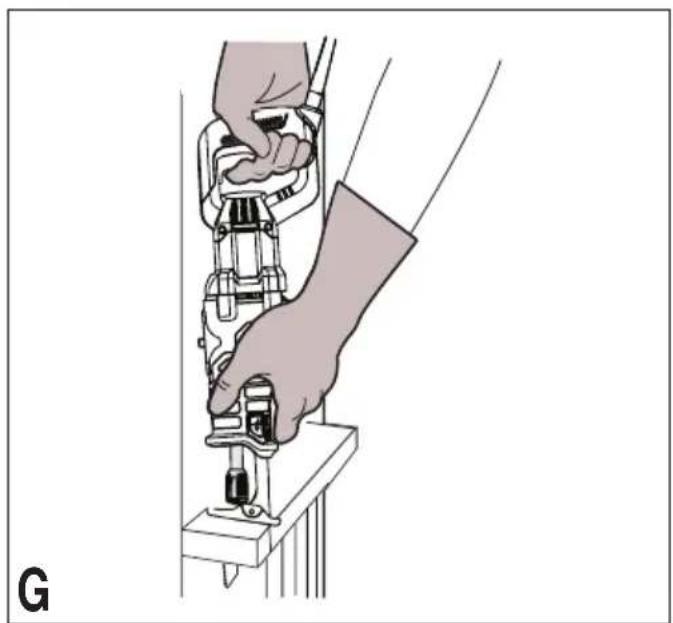

Flush cutting (fig. G)

The compact design of the reciprocating saw motor housing and pivoting shoe permit close cutting to floors, corners and other difficult areas.

To maximize flush cutting capabilities:

• Insert the blade shaft into the blade clamp with the teeth of the blade facing up.
• Turn the saw upside down so you are as close to the work surface as possible.

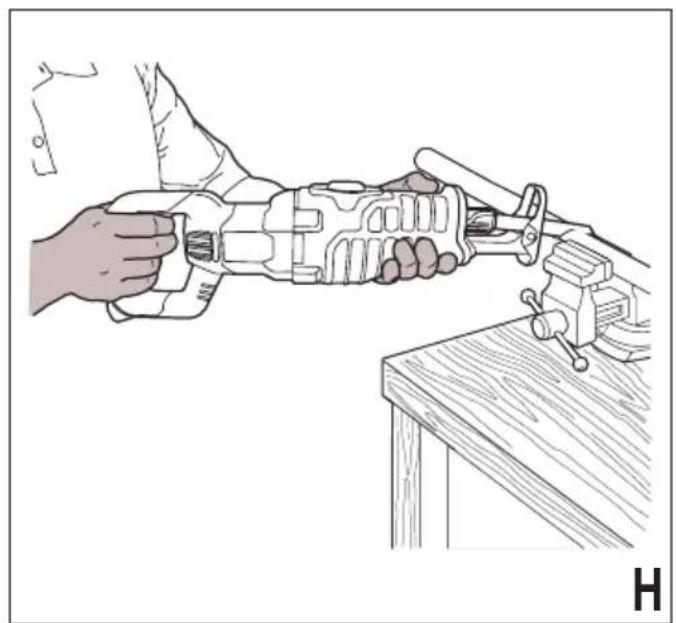

Sawing metal (fig. H)

Be aware that sawing metal takes much more time than sawing wood.

◆ Use a saw blade suitable for sawing metal. Use a fine-tooth saw blade for ferrous metals and a coarser saw blade for non-ferrous metals.
- When cutting thin sheet metal, clamp a piece of scrap wood to the back surface of the workpiece and cut through this sandwich.
◆ Spread a film of oil along the intended line of cut.

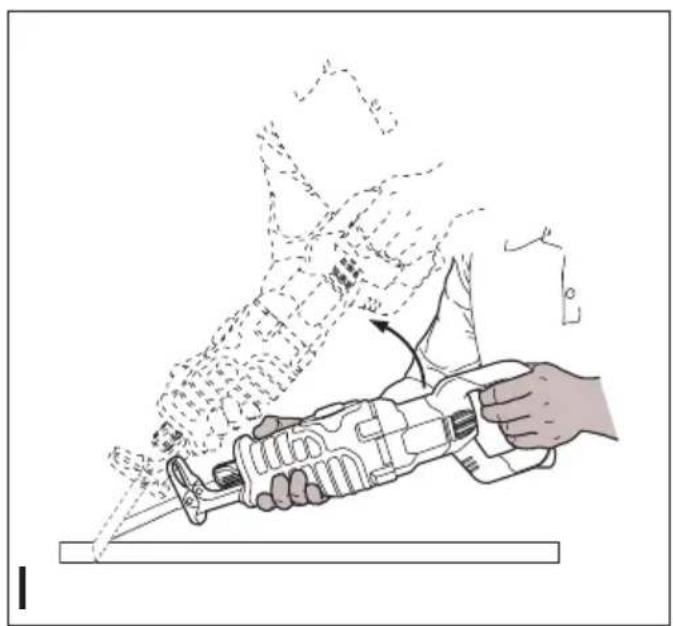

Pocket cutting in wood (fig. I)

◆ Measure and mark the required pocket cut.
◆ Fit a saw blade suitable for pocket cutting.
◆ Rest the shoe (1) on the workpiece in such a position that the blade forms an appropriate angle for the pocket cut.
- Switch on the tool and slowly feed the blade into the workpiece. Make sure that the shoe (1) remains in contact with the workpiece at all times.

Cutting branches

Branches up to 25 mm in diameter can be cut with this tool.

Warning! Do not use the tool while in a tree, on a ladder or on any other unstable surface. Be aware of where the branch will fall.

◆ Cut downward and away from your body.
◆ Make the cut close to the main branch or tree body.

Vertical cutting

The tool allows close cutting to corners and other difficult areas.

◆ Insert the shank of the saw blade into the blade holder with the teeth of the blade facing upward.
◆ Hold the tool with the shoe (1) facing downward so that you are as close to the work surface as possible.
◆ Cut forward and away from your body.

Accessories

The performance of your tool depends on the accessory used. Black & Decker and Piranha accessories are engineered to high quality standards and designed to enhance the performance of your tool. By using these accessories you will get the very best from your tool.

Blades

The saw will accept a blade up to 305 mm long. Always use the shortest blade suitable for your project but long enough to keep the blade cutting through the material. Longer blades are more likely to be bent or damaged during use. During operation some longer blades may vibrate or shake if the saw is not kept in contact with the workpiece.

Maintenance

Your Black & Decker corded/cordless appliance/tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Warning! Before performing any maintenance on corded/cordless power tools:

◆ Switch off and unplug the appliance/tool.
- Regularly clean the ventilation slots in your appliance/tool/charger using a soft brush or dry cloth.
◆ Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.

Mains plug replacement (U.K. & Ireland only)

If a new mains plug needs to be fitted:

◆ Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the new plug.
◆ Connect the blue lead to the neutral terminal.

Warning! No connection is to be made to the earth terminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 10 A.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

parate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Technical data

		RSP1050(Type 1)
Input voltage V		230
Power input	W	1050
No-load speed (SPM) min	·	0 - 3500
Max. blade length	mm	305
Weight kg		3.5

L_nA (sound pressure) 87.2 dB(A), Uncertainty (K) 3 dB(A)

L_nA (sound power) 98.2 dB(A), Uncertainty (K) 3 dB(A)

Vibration total values (triax vector sum) according to EN 60745:

Cutting wood ( a_v,cu ) 15.8 m/s ^2 , uncertainty (K) 1.5 m/s ^2

Cutting sheet metal ( a_h,cu ) 13.4 m/s ^2 , uncertainty (K) 1.5 m/s ^2

EC declaration of conformity

MACHINERY DIRECTIVE

RSP1050

Black & Decker declares that these products described under "technical data" are in compliance with:

2006/42/EC, EN 60745-1, EN 60745-2-11

For more information, please contact Black & Decker at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

Kevin Hewitt

Vice-President Global Engineering

Black & Decker Europe, 210 Bath Road, Slough, Berkshire, SL1 3YD, United Kingdom

21/10/2010

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆ The product has been used for trade, professional or hire purposes;
◆ The product has been subjected to misuse or neglect;
◆ The product has sustained damage through foreign objects, substances or accidents;
◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk

	RSP1050		TYP. 1
Partial support - Only parts shown availableNur die aufgefuerten teile sind lieferbarReparation partielle - Seules les pieces indiquees sont disponiblesSupporto parziale - Sono disponibili soltanto le parti evidenziateSolo estan disponibles las peizas listadasSo se encontram disponíveis as pecas listadasGedeeltelijke ondersteuning - alleen de getoonde onderdelen zijn beschikbaar
E16235	www.2helpU.com		09 - 11 - 10

Partial support - Only parts shown available Nur die aufgefuerten teile sind lieferbar
Reparation partielle - Seules les pieces indiquees sont disponibles Supporto parziale - Sono disponibili soltanto le parti evidenziate Solo estan disponibles las peizas listadas So se encontram disponíveis as pecas listadas Gedeeltelijke ondersteuning - alleen de getoonde onderdelen zijn beschikbaar

ENGLISH

Do not forget to register your product!

www.blackanddecker.co.uk/productregistration

Register your product online at www.blackanddecker.co.uk/productregistration or send your name, surname and product code to Black & Decker in your country.

Australia

Black & Decker (Australia) Pty. Ltd. Tel. [phone]

20 Fletcher Road, Mooroolbark, Fax [phone]

Victoria, 3138

New Zealand

Black & Decker Tel. [phone]

5 Te Apunga Place Fax [phone]

Mt Wellington

Auckland 1060

United Kingdom

Black & Decker Tel. [phone]

210 Bath Road Fax [phone]

Slough, Berkshire SL1 3YD Helpline 01753 574277
