Product Type	Handheld Vacuum Cleaner
Model	PXHVS-250
Brand	Ozito
Power Source	Battery (18V Lithium-ion)
Motor Power	250 W
Dust Capacity	0.5 L
Filtration	Washable cyclonic filter
Weight	1.2 kg
Dimensions (L x W x H)	43 x 10 x 15 cm
Noise Level	75 dB(A)
Charging Time	4-5 hours
Run Time	20 minutes (with 2.0 Ah battery)
Battery Compatibility	Ozito Power X Change 18V series
Included Accessories	Crevice tool, brush tool, charging adapter
Suction Type	Cyclonic dry suction
Container Type	Transparent dust cup
Cordless	Yes
Wall Mountable	Yes (mount included)
Washable Filter	Yes
Overheat Protection	Yes
Repairability	Spare parts available from Ozito service centers

Frequently Asked Questions - PXHVS-250 Ozito

How do I clean the filter on the Ozito PXHVS-250?

Remove the dust cup and take out the cyclone filter. Tap it gently or rinse under running water. Allow it to dry completely for 24 hours before reinstalling. Do not use the vacuum without a dry filter.

What type of battery does the PXHVS-250 use?

It uses an 18V lithium-ion battery from the Ozito Power X Change range. The battery is sold separately and is interchangeable with other Ozito 18V tools.

How do I empty the dust cup?

Press the release button on the dust cup and pull it off the main body. Open the bottom lid over a trash bin and empty the contents. Rinse the cup if needed and let it dry before reattaching.

Why is my vacuum losing suction?

Check if the dust cup is full or the filter is clogged. Empty the cup and clean the filter. Also inspect the nozzle and hose for blockages. Ensure the battery is fully charged.

Can I use the vacuum to pick up water?

No, the Ozito PXHVS-250 is designed for dry pickup only. Using it on liquids can damage the motor and void the warranty. For wet spills, use a wet/dry vacuum.

How long does the battery take to charge?

A fully drained 2.0Ah battery takes approximately 4-5 hours to charge with the included charger. Larger capacity batteries may take longer.

What accessories are included with the PXHVS-250?

The package includes a crevice tool for tight spaces, a brush tool for upholstery and delicate surfaces, and a charging adapter. Some models may also include a wall mount.

How do I maintain the vacuum for optimal performance?

Empty the dust cup after each use, clean the filter monthly, and inspect for blockages. Store the vacuum in a dry place. Keep the battery contacts clean and charge the battery regularly.

Is the Ozito PXHVS-250 suitable for pet hair?

Yes, it can pick up pet hair from hard floors and low-pile carpets. Use the brush tool for furniture. For heavy shedding, you may need to clean the filter more often.

Where can I purchase spare parts for the PXHVS-250?

Spare parts such as filters, dust cups, and chargers are available from Ozito service centers or authorized retailers. You can also order online through the Ozito website or other parts suppliers.

USER MANUAL PXHVS-250 Ozito

Dust Canister Capacity: 540ml

Weight: 0.85kg

ozito.com.au

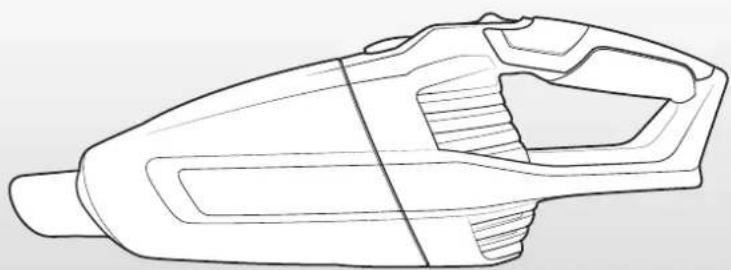

Line drawing of a handheld vacuum cleaner (no text or symbols)

WHAT'S IN THE BOX

Cordless Vacuum

Brush Tool

Crevice Tool

Mounting Bracket

5 YEAR REPLACEMENT WARRANTY

PXHVS-250

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting our customer service helpline above.

5 YEAR REPLACEMENT WARRANTY

Your Product is guaranteed for a period of 60 months from the original date of purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Lithium Ion

batteries and chargers are covered by a 36 month

warranty and are excluded from the warranty extension. Warranty excludes consumable parts, for example: crevice tool.

KNOW YOUR PRODUCT SETUP & PRE

1 Nozzle
5 Sure Grip Handle
2 Dust Canister
6 Battery Seating
3 Dust Canister Release Button
4 On/Off Switch

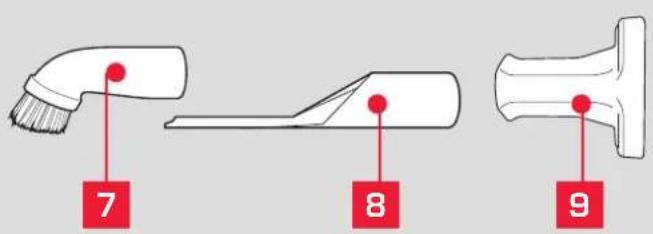

ACCESSORIES

7BrushTool

9 Mounting Bracket

8 Crevice Tool

BATTERY & CHARGER

This tool is compatible with all battery and chargers from the Ozito Power X Change Range.

ONLINE MANUAL

Scan this QR Code with your mobile device to take you to the online manual.

ARATION

1. FITTING THE BATTERY

CAUTION: THE CHARGER FOR THIS PRODUCT SHOULD BE PROTECTED BY A RESIDUAL CURRENT DEVICE (RATED AT 30mA OR LESS).

Inserting & Removing The Battery

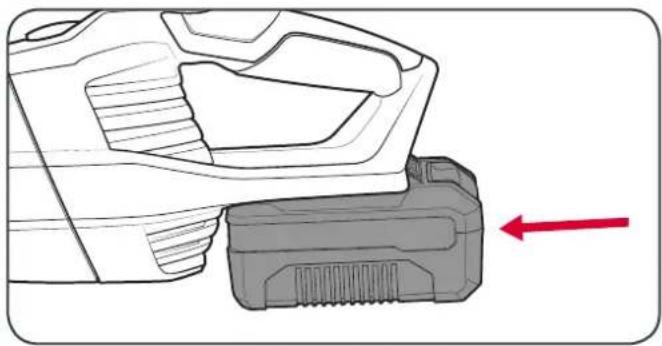

1 Align the ribs of the battery with the recess at the rear of the vacuum and push in until it clicks into place.

Technical line drawing of a mechanical component with a red arrow pointing to a detail (no text or symbols present)

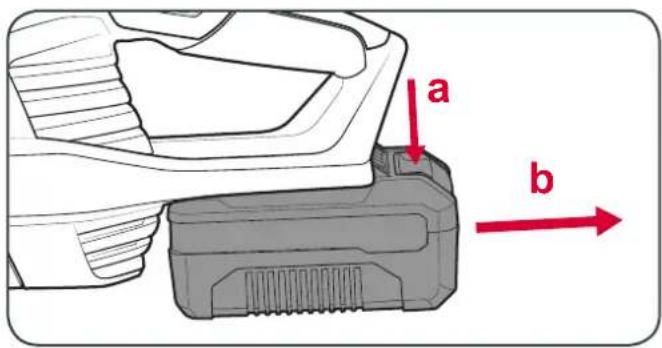

2 To remove, press and hold the battery release tab and pull the battery away from the vacuum.

2. ASSEMBLY

WARNING! ENSURE THE TOOL IS SWITCHED OFF AND DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING TASKS.

Attaching Accessories

1 Align the accessory with the vacuum nozzle and push into place.

2 To remove simply pull the accessory away from the vacuum nozzle.

Illustration of a hairbrush being inserted into a tool, showing color change (no text or symbols)

Illustration of a hairdryer with a brush and red arrow indicating direction (no text or symbols)

Using The Wall Mount

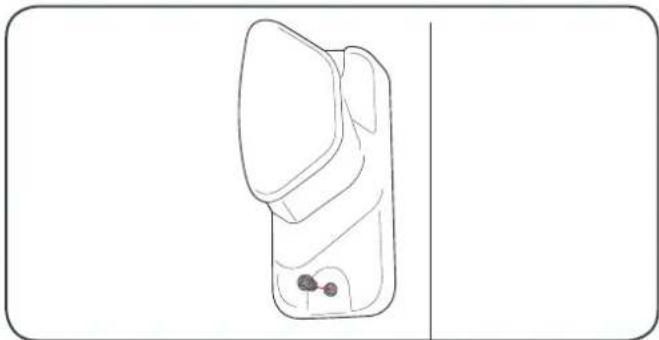

1 Place the mounting bracket against a wall and use screws to fasten it to the wall.

Note: Use the appropriate screw type for the surface you are attaching the bracket to. The recommended screw size is 4mm in diameter and at least 50mm long.

Line drawing of a hand holding an object with two small dots on the fingers (no text or symbols)

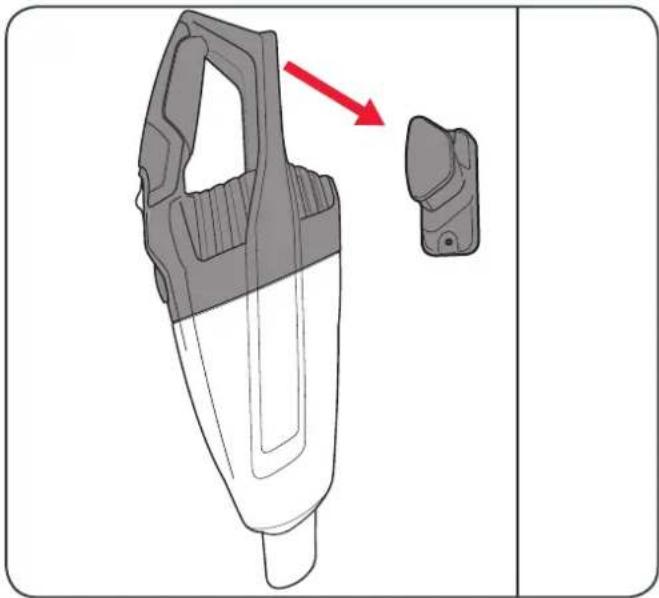

2 To store the vacuum, place the handle on the mounting bracket securely.

Diagram of a handbag device with a red arrow pointing to a separate component (no text or symbols present)

OPERATION

3. CONTROLS

WARNING! ENSURE THE TOOL IS SWITCHED OFF AND DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING TASKS.

Switching On and Off

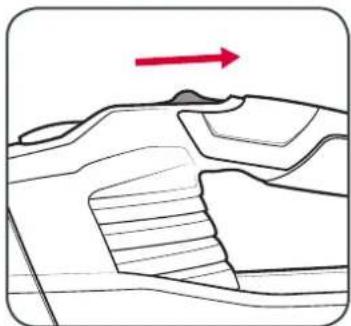

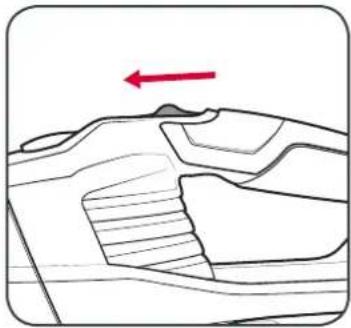

1 To start the vacuum push the on/off switch forward into the on position.

Diagram showing a geological cross-section with hatched patterns and a red arrow indicating direction (no text or labels)

2 To stop the vacuum push the on/off switch backward into the off position.

Diagram showing a geological cross-section with hatched patterns and an arrow indicating direction (no text or symbols)

WARNING! DO NOT PUT PART OF YOUR BODY SUCH AS HANDS AND FINGERS NEAR THE INLET OPENING.

4. OPERATION

Vacuuming

The vacuum is ideal for dirt, clippings and other debris.

1 Hold the vacuum firmly and switch the vacuum on.

Diagram showing a geological cross-section with a red arrow indicating direction (no text or labels)

2 Move the vacuum slowly to allow the dust or debris to be lifted.

Illustration of a hand holding a brush with a red arrow indicating direction (no text or symbols)

Note: Forcing the vacuum to move too fast over the dust and debris will clog the nozzle of the dust canister.

WARNING! ENSURE THE VACUUM INLET IS NOT BLOCKED DURING USE.

MAINTENANCE

WARNING! ALWAYS ENSURE THE TOOL HAS COMPLETELY STOPPED AND THE BATTERY IS REMOVED PRIOR TO ANY MAINTENANCE.

Cleaning the Filter Cartridge

For best performance, empty the dust canister and clean the filter after each use.

1 Press and hold the dust canister release button.

Cross-sectional diagram of a geological or structural cross-section with a red arrow pointing to a feature (no text or labels)

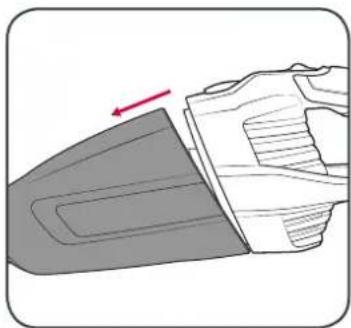

2 Remove the dust canister by pulling the top of the container away from the vacuum housing.

Diagram of a mechanical component with a red arrow indicating direction, showing internal structure (no text or symbols)

3 Pull the filter cartridge out from the dust canister. Empty the debris into a bin and rinse the filter with cold water and allow to air dry.

Diagram showing a blade-like structure transforming into a rectangular panel with grid pattern (no text or symbols)

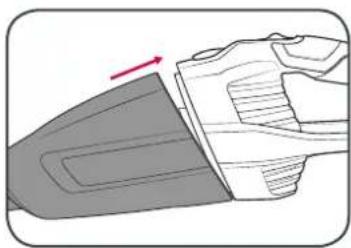

4 Place the filter back into the dust canister, then refit the dust canister by first placing the lower edge onto the locating recess and then push the top in until it clicks into place.

Diagram of a mechanical device with a red arrow indicating direction (no text or symbols present)

• Keep air intake clean and air vents free of debris to avoid overheating the motor.
• Do not use cleaning agents to clean the plastic parts of the tool. A mild detergent on a damp cloth is recommended. Water must never come into contact with the tool.
• If the vacuum vibrates abnormally, stop motor immediately. Abnormal vibration usually indicates a mechanical problem continued operation could lead to injury or damage.

Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the vacuum by an unauthorised person or by mishandling of the vacuum. This tool is designed for DIY use - use in commercial or industrial environments will void the warranty.

TROUBLESHOOTING

Problem Cause Remedy
Vacuum is not starting	Battery is low in charge Charge battery
	Battery not inserted properly	Insert battery pack correctly
	Possible clogging Clean the dust canister and filter cartridge.
Vacuum is not operating at full capacity	Possible clogging Clean the dust canister and filter cartridge.
Motor stops while vacuuming	Battery has no power Charge battery

DESCRIPTION OF SYMBOLS

V	Volts	Hz	Hertz
-	Alternating current	W	Watts
dc/---	Direct current	∅	Diameter
mA	Milliamperes	No	No load speed
/min	Revolutions orreciprocation per minute		Double insulated
	Read instruction manual		Warning
	Electrical EmissionsConformity (EMC)		Wear eye and ear protection.
	Do not use in the rain or leave the blower outdoors while raining.

SPARE PARTS

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [e-mail]

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.

ELECTRICAL SAFETY

WARNING! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage.

Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool. Save these instructions and other documents supplied with this tool for future reference.

The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate.

Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard.

Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.

When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.

The power supply for this products charger should be protected by a residual current device (rated at 30mA

or lessl. A residual current device reduces the risk of electric shock.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the

power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
c. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

VACUUM SAFETY WARNINGS

WARNING!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well.

We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety information.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Do not aim the hose at other persons or animals.
• Never pick up asbestos or asbestos dust.
• Wood dust and shavings in a confined area can give rise to fire or an explosion.
  • Guard against possible ignition sources.
• Do not pick up any material that is burning or smouldering such as metal grinding dust, cigarette ends, matches etc.
• Do not vacuum dry matter without the cartridge filter assembled.
• Always switch the unit off before changing attachments, filters and emptying the tank.
• Always check that the filter is clear and not blocked. Keep all openings clear of any blockages.
• The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
