Frameo PFF-1011 - Digital photo frame DENVER - Free user manual and instructions

Product Type	Digital Photo Frame
Brand	Denver
Model	Frameo PFF-1011
Display Size	10.1 inches
Display Resolution	1280 x 800 pixels
Internal Storage	8 GB
WiFi	Yes, 802.11 b/g/n
Supported Image Formats	JPEG, PNG, BMP
Power Supply	5V DC, 2A (USB-C)
Dimensions (with stand)	260 x 170 x 20 mm
Weight	Approx. 400 g
Functions	Frameo app sharing, slideshow, clock, calendar, motion sensor
Cleaning	Wipe with a soft dry cloth; avoid liquids
Safety	Keep away from water, heat sources; use only included adapter
Spare Parts	Power adapter and stand available from manufacturer
Repairability	Battery not user-replaceable; contact support for repair
General Information	Frameo app required for initial setup; supports multi-user

Frequently Asked Questions - Frameo PFF-1011 DENVER

How do I set up the Frameo PFF-1011 for the first time?

Connect the frame to power, turn it on, and follow the on-screen instructions. Download the Frameo app on your smartphone, create an account, and scan the QR code displayed on the frame to pair it.

Can I send photos to the frame from anywhere?

Yes, once the frame is connected to WiFi and paired with your Frameo account, you can send photos remotely via the app from any location with internet access. The frame automatically updates when new photos are received.

What should I do if the frame is not connecting to WiFi?

Make sure your router is working and the password is correct. Try moving the frame closer to the router. If the issue persists, restart the frame and router, or reset the network settings in the frame's menu under Settings > WiFi.

How many photos can the internal storage hold?

The frame has 8 GB of internal storage, which can hold thousands of photos depending on file size. For example, approximately 4000 photos at 2 MB each. You can also expand storage via a microSD card (up to 32 GB).

Can I adjust the slideshow speed and transition effects?

Yes, go to Settings > Slideshow to change the display duration per photo (e.g., 5, 10, 30 seconds) and choose from transition effects like fade or slide. You can also set the frame to display photos randomly.

Is the frame compatible with both Android and iOS?

Yes, the Frameo app is available for Android (Google Play) and iOS (App Store). The app supports all current versions of both operating systems.

How do I clean the frame without damaging it?

Use a soft, lint-free cloth slightly dampened with water (not wet) to gently wipe the screen and frame. Do not use any chemical cleaners, alcohol, or abrasive materials. Always unplug the frame before cleaning.

What is the motion sensor used for?

The motion sensor detects when someone is nearby and can automatically turn on the display or switch from clock mode to photo slideshow. You can adjust the sensor sensitivity and timeout in Settings > Motion Sensor.

Can I set the frame to turn off at night?

Yes, you can schedule automatic on/off times under Settings > Schedule. Set the frame to turn off during specific hours (e.g., 11 PM to 7 AM) to save power and avoid light disturbance.

What should I do if the frame freezes or stops responding?

Press and hold the power button for 10 seconds to force a restart. If that doesn't work, unplug the power adapter, wait 30 seconds, and plug it back in. If the problem persists, contact Denver support or check the manual for factory reset instructions.

USER MANUAL Frameo PFF-1011 DENVER

Before connecting, operating or adjusting this product, please read this user's manual carefully and completely.

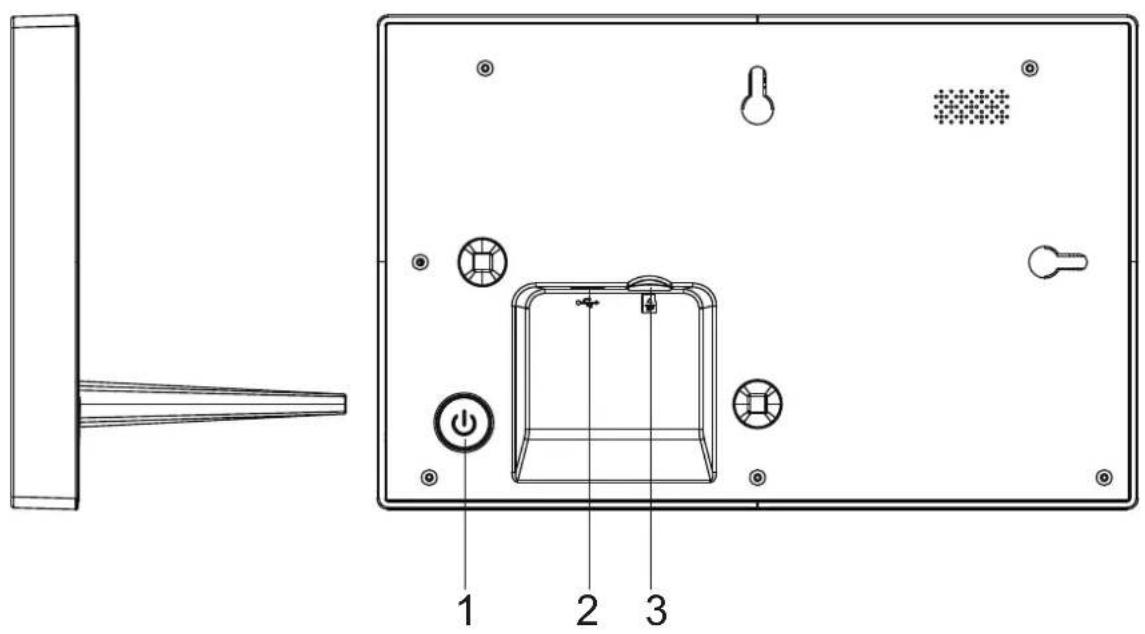

1. POWER

Press to turn the screen on or off, or long press about seconds to access the reset3menu.

2. USB

Connect DC adapter to power the device.

USB is for service use only.

3. Micro SD

Load external max 32GB microSD memory card here.

Abstract logo design with red and white circular background, featuring stylized hands forming a heart shape (no text or symbols)

frameo

User Manual

Version: 1.5.1

Contents

Getting started....4

Frameo app....4

Frameo quick setup....5

Start using frameo ....5

Connecting a new friend: 5

Navigating your frameo ....6

Settings 7

My frame 8

Manage photos....8

My Friends....9

Display and slideshow....9

Wi-Fi....11

Backup and Restore 11

About....11

Help....12

Privacy 12

Support....12

Warranty, Compliance, Support and Safety information ....12

Getting started

Thank you for purchasing your very own frameo.

First, to set up your frame follow the ‘Quick start guide’ included in the package. If you are new to using frameo then start by following the frameo quick setup on page or follow the on screen guide when powering it on for the first time.

Once you have set up your Frameo frame, start connecting it to your friends and family.

Frameo app

To send photos to your frame, use the frameo app for iOS or Android

Abstract logo design with red background and white stylized hands (no text or symbols)

Find the frameo app on:

Google play by searching for "frameo" or scan this QR code

App Store by searching for frameo or scan this QR code

Frameo quick setup

When starting your frame for the first time, you will need to setup the frame.

• First you start by selecting a language. This will be the language used throughout frameo.
• Connect your frame to the internet by connecting it to a Wi-Fi.

If a newer version of the frameo software is available, then you will be prompted with an update dialog. It is recommended to update your frame immediately if prompted.

- Enter your name, and the location where you have placed your frame e.g. "Living room", "Kitchen" or "Office" and finally set the timezone if not correct.

Start using frameo

Start by connecting with your friends and family by providing them with a unique code from your frame.

If you want to be able to send photos to the frame yourself, start by downloading the app for iOS or Android on App Store or Google Play. Then use the code to connect your frame and app as described below.

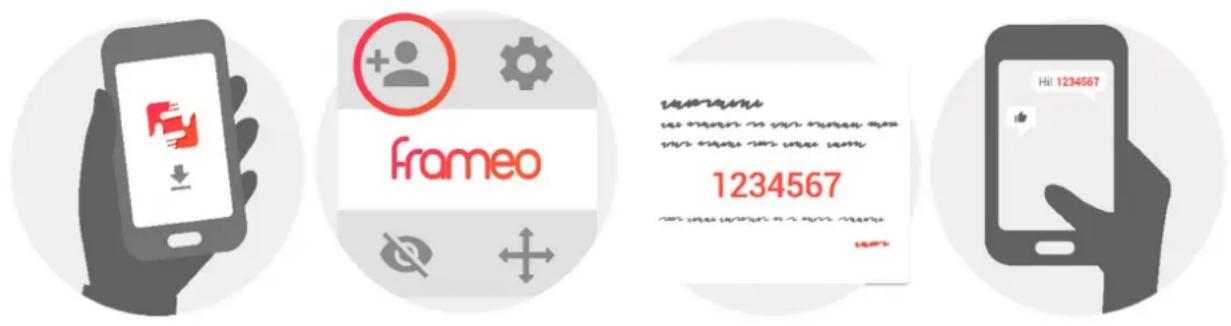

Connecting a new friend:

• Make sure that your friend has downloaded and installed the frameo app
- Click the add friend icon on your frame . A dialog will appear showing a unique code which is valid for 12 hours.
- Now share this code in whatever fashion you prefer e.g. SMS, E-Mail, IM, phone call, to your friend.
- Once your friends have added the code in their frameo app, they will automatically appear on your frame and be able to send you photos.
- Read chapter Change options for a friend to allow connected friends, to retrieve and share the connection code via the smartphone app.

ENG-5

Navigating your frameo

Swipe left or right to go through your photos.

To access the menu, simply tap once on the screen.

Add friend

Gallery

Settings

frameo

Hide photo

Fit to frame

Adjust photo

In the menu you will find the most used features.

Add friend

This will generate a code that you can share with your friends and family so they can connect and send photos to your frame.

Gallery

Opens a gallery which allows for easy and fast navigation through your photos.

Settings

Opens the Settings.

Hide photo

Hides the current photo. This means that the photo will no longer be shown in the slideshow. If needed the photo can be shown again through the settings menu.

Fit to frame/Fill frame

This toggles how the photo is shown.

The Fill frame option is the default. The photo is scaled so that it fills the whole screen. It will be centered around what is selected as the most important part. See the first picture below.

Fit to frame will make sure that the entire photo is shown on the screen. See the second picture below.

Close-up of sliced watermelon with visible red flesh and a spoon, alongside a close-up of the fruit's nose (no text or symbols)

Adjust photo

The adjust photo feature is only available when the photo is set to fill frame. It allows you to adjust the position of photo in the frame for an even better fit.

Interacting with videos

When a video is shown two additional controls are shown. One for play/pause of the video and one for mute/unmute of the video.

Power menu

Tap the power icon ⏻ in the top right corner of the screen to access the power menu. Here you can power off or restart your frame and make it go into sleep mode.

POWER OFF

RESTART

SLEEP

NB. Make sure to always use the power off button on the device or in the power menu to turn Frameo off. Never disconnect power when Frameo is running.

Settings

Through settings, you can personalize your frame to your needs.

My frame

Frame name:

Changes the name of your frame. This is also the name the connected friends and family will see in their list of connected frames.

Frame location:

Changes the location of your frame. This is the location displayed on your friends' and family's list of connected frames which can help to distinguish frames from each other.

Set language:

Sets the language throughout your frame.

Enable/Disable 24-hour format

Enables, and disables, 24-hour time format.

Set time zone

Sets the timezone that should be used on your frame.

Sleep mode:

frameo offers a sleep mode which turns off the screen to reduce power consumption while you

e.g. are sleeping. Its default setting is to turn off the screen at 23:00 and turn on the screen again at 07:00. To change this just set the sleep mode start/end time.

Your frame is not powered down or in standby, so you will still be able to receive photos during sleep mode.

Manage photos

Show/hide photos:

Select which photos to hide by tapping the particular photos you wish to hide. Hidden photos will NOT be deleted from your frame, you can always select them to be shown again.

Use ☐ to hide or show all photos.

Delete photos:

Select photos that you want to permanently delete from your frame by tapping the photo. Use

to select or deselect all and to delete the selected photos.

Import photos:

Allows you to import photos from an external max 32GB SD card.

Before you try to import photos from a SD card, make sure you have a SD card with photos on inserted into your frame.

Start by selecting the photos that you want to import onto your frame. Once selected tap the import button ↓ to start the import process.

It is currently not possible to add a caption or define the most important part of the photo when using the import function. Alternatively add yourself to your friend list and send them using the app.

Export photos

Allows you to export photos from the frame to external storage (e.g. microSD card).

The export function will export all photos on the frame as well as profile pictures.

My Friends

This list contains all the people that are allowed to send photos to your frame.

Change options for a friend

Click the options icon 🎨 to open the friend options menu. From here you can allow/disallow if a friend may share the code to the frame. If this is enabled the friend can retrieve and share the code to the frame from his/her app.

From the options menu you can also delete a friend, by pressing the DELETE FRIEND button. This will remove the friend from the list and thereby remove their permission to send photos to the frame. You will then be asked to confirm the removal and if you would like to remove all photos previously received from this friend.

Remove person

To remove a person from this list, thereby removing their permission to send you photos, tap the delete icon ✗. You will then be asked to confirm the removal and if you would like to remove all photos received from this person.

Add person

To allow a new person to send you photos, simply tap the add friend button + and share the presented code in whatever way you prefer.

Display and slideshow

Timer

Define the duration a photo should be displayed.

Show caption

Sets whether or not to display the captions that your friends have sent with the photo. Check to display captions. Uncheck to hide captions.

Fill frame

Sets the default frame photo setting. Check to set default to fill which makes the photos fit the device screen according the most important part of the photo. Uncheck to make the photo fit inside the screen of the device, adding blurred bars on the sides or top/bottom

Photo display order

Sets the order in which your photos are displayed on the frame.

• By date: Photos are shown newest to latest.
• Shuffle: Photos are shuffled and shown in a random order.

Brightness level

Adjust the brightness level of the screen.

Notification volume

Adjust the volume level for notification sounds on the frames, e.g. for received new photo notification.

Autoplay

Enables/disables autoplay of videos in the slideshow. Videos can always be manually started regardless of this setting.

Video playback

Determines how videos should be played when autoplay is enabled.

• Loop videos: The video will loop until the slideshow timer is up.
• Play once: The video will play once and show it's thumbnail until the timer is up.
• Play once and continue: The video will play once and continue to the next photo, or video, once it completes.

Playback audio

Sets the default audio playback behaviour of videos in the slideshow to ON or OFF. Audio can always be manually enabled/disabled regardless of this setting.

Video volume

Adjust the volume level for video sounds on the frames.

Wi-Fi

Set which Wi-Fi the frame should be connected to. If you are connecting to a network with a captive portal a web browser icon should appear in top right corner of the screen. Use this to open a browser where you can enter credentials to access the network.

Backup and Restore

Backup frame to max 32GB microSD card.

Tap to make a backup of your photos, friends and settings. The time of latest successful backup will be displayed.

Any existing backup on the SD card will be overridden!

Automatic backup

If checked, your frame will automatically take a backup within 30 hours of you receiving new photos or making changes on your frame.

Restore from backup

Before you attempt to restore your frame, start by confirming that your backup is up-to-date. This is done by confirming the date under "Backup frame to external storage (e.g. microSD card)". If e.g. the last backup is too old or if no backup is made, then press the "Backup frame to external storage (e.g. microSD card)" button to make a new backup.

It is important to note that you cannot restore a backup to a new Frameo frame and keep the old frame operational at the same time.

If you wish to restore a backup on a frame that has already been setup, then you must first reset the frame. This is done by pressing the "Reset frame" button. This will delete all data on the Frameo and reset the Frameo to its setup screen.

On the setup screen you can select the "Restore from backup" button which will restore your frame according to the backup.

If the "Restore from backup" button isn't visible, then confirm that the external storage (e.g. microSD card) is correctly mounted.

Reset frame

Removes all data from your frame. This will permanently remove all your photos, friends/connections and settings.

About

Check for update

Check if an update is available for your frame.

Beta program

If checked the device will join the Beta program were it will receive updates more frequently and before normal release devices.

Help

Open source libraries

Opens a list of open source libraries used in the app and their licenses.

Share anonymous analytics data

Sharing anonymous analytics data helps us tremendously with improving the frameo software. We understand if you do not wish to share this data with us. Set checked if you wish to help us improve frameo. Set unchecked to deny the sharing of anonymous analytics data.

Guide

Opens the quick start guide, that was shown when you first started the frame.

Privacy

For more information regarding privacy, please visit http://privacy.frameo.net

Support

Please visit http://frameo.net/helpcenter for FAQ, support and to provide feedback.

Warranty, Compliance, Support and Safety information

For more information regarding warranty, hardware compliances, support and safety please refer to the material included in the package.

Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

DENVER®

www.denver-electronics.com

Electric and electronic equipment contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment) is not handled correctly.

Electric and electronic equipment is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment should not be disposed of with other household waste, but should be disposed of separately.

All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Hereby, Inter Sales A/S declares that the radio equipment type PFF-1011WHITE MK2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.denver-electronics.com/denver-pff-1011white mk2/

1. Operating Frequency Range: wifi : 2412-2472MHz
2. Max Output Power: wifi: 19 . 6 3 dbm

DENVER ELECTRONICS A/S

Omega 5A, Soeften

DK-8382 Hinnerup

Denmark
