For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device’s software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Package Contents Warran Warran QSG booklet Warranty, legal & safety booklet CONFIDENTIAL A70 Xenon DRAWING ARCHOS 70 Xenon scale 1:1 Rev

04-10-2013 last modification: USB cable

Charger Getting Started Charging

1. Charge your device by plugging your power cable into the

micro-USB port. The ARCHOS device will start charging.

2. Press the Power button to turn on the device.

The charging indicator light is on when the battery is charging. -- You can use your ARCHOS whilst it charges. -- Let your device charge completely the first time you use it. -- Use only the supplied charger. When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed. TIP: To receive more complete service, please register your product. From a computer, go to www.archos.com/register.

Description of the device

Loudspeaker 5 Volume buttons

Microphone 3 ON/OFF button 7 Camera 4 Hardware reset 8 Headphone jack CONFIDENTIAL 9 Micro-USB port A70 Xenon CONFIDENTIAL A70 Xenon DRAWING scale 1:1 Rev

Notch 11 Loudspeaker

DRAWING scale 1:1 04-10-2013 last modification: Rev

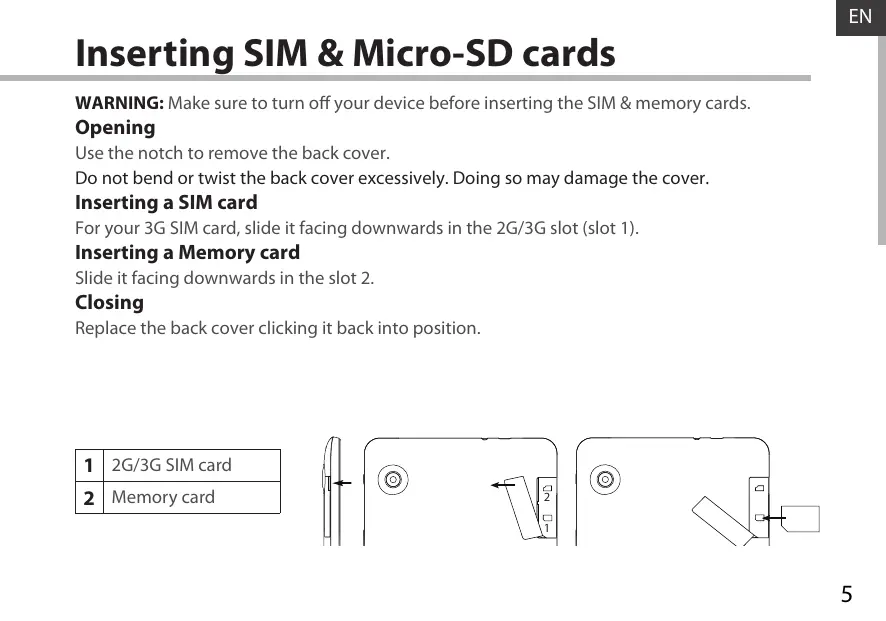

04-10-2013 last modification: Inserting SIM & Micro-SD cards

WARNING: Make sure to turn off your device before inserting the SIM & memory cards.

Opening Use the notch to remove the back cover. Do not bend or twist the back cover excessively. Doing so may damage the cover. Inserting a SIM card For your 3G SIM card, slide it facing downwards in the 2G/3G slot (slot 1). Inserting a Memory card Slide it facing downwards in the slot 2. Closing Replace the back cover clicking it back into position. 1 2G/3G SIM card 2 Memory card

3G & WiFi connection 3G connection To be able to access Internet, the mobile data icon must be activated. Activating the mobile data

1. Touch and hold the time & battery icons to reveal the status bar.

2. Pull the blue line down to display the status dashboard.

3. Touch the mobile data icon to activate it.

When the mobile data is activated, it turns blue. If your device does not connect to your 3G provider’s network Contact your 3G provider to obtain the connection parameters. On your device, tap Settings. Select Wireless & networks > More... > Mobile networks. In Network operators, select your operator. In Access Point Names, select the correct access point name and enter the exact connection parameters. Tip: When you encounter connection problem’s, see the FAQs on www. archos.com or contact your 3G network connection provider.

WARNING: Make sure that you are in a WiFi zone.

1. Touch and hold the time & battery icons to reveal the status bar.

2. Pull the blue line down to display the status dashboard.

3. Touch the “Settings” icon to open the settings menu.

4. In the “Wireless&networks”section, if the WiFi is off, slide the

WiFi switch to the “ON” position. Once the WiFi is on, the ARCHOS will scan for WiFi networks in range.

5. Touch “WiFi” to display available networks.

6. Touch the name of network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password. TIPS: -- When entering a WiFi password, we recommend that you select “Show password” so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. -- To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the “WiFi” page. Then, select Advanced > Keep WiFi on during sleep > Always.

>Touch "Google" for text search or touch the microphone icon for voice search. > Touch to start an application. > Touch to start an application > Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here. 8 The status bar > Displays notifications and quick settings

Percentage of battery remaining

To access all your settings.

To turn on/off your WiFi connection.

To turn on/off your Bluetooth connection.

To activate/deactivate your GPS location system.

To activate/deactivate the data connection.

To see how much data have been used

To activate/deactivate all wireless connections, especially when flying. 10 To adjust the screen brightness. New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

11 To set the screen timeout. 12 To activate/deactivate automatic screen orientation as you turn your ARCHOS. 13 To set an audio profile.

The Recent Apps Opens a list of thumbnail images of apps you’ve worked with recently: Touch: to open an app. Hold down: to display options Swipe up or down: to close an app.

Getting familiar with AndroidTM The extended home screen: Navigate between different home screen panels by swiping left and right. Moving a home screen item: Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger. Removing a home screen item: Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon. Uninstalling an item: From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders: Drop one app icon over another on a home screen and the two icons will be combined. Widgets: Touch the All Apps icon on your home screen. Touch Widgets at the top of the screen. From the main Widgets screen, you can move around widgets just as you do for app icons. Changing your wallpaper: Hold your finger on a home screen at an empty location, then choose from the list. Locking the touchscreen: In Settings, scroll down and touch security. Touch Screen lock. Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

Troubleshooting If your device is frozen: Press the ON/OFF button for 10 seconds. If your device doesn’t turn on:

1. Charge your device for at least 10 minutes.

2. Press the ON/OFF button for 10 seconds.

My tablet cannot connect to a network or “No service” is displayed Try connecting in another location. Verify the network coverage with your operator. Unable to make outgoing calls Make sure your phone is connected to a network, and the network is not overloaded or unavailable. Unable to receive incoming calls Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network). SIM card PIN locked Contact your network operator to obtain the PUK code (Personal Unblocking Key). If your WiFi reception is too low: Make sure you are not far from the WiFi hotspot. Update the firmware of the device: http://www.archos.com/support. Reset and redefine your connection parameters. Contact your WiFi connection provider.
