Product Type	Software License (Double-speed Capturing for Slow Motion)
Compatible Camera Model	Sony HDC-3500
License Type	Perpetual (full version)
Function	Enables double-speed acquisition for exquisite slow-motion picture quality
Supported Frame Rates	1080/119.88i, 1080/100i, 720/119.88p, 720/100p
Required Hardware	HDC-3500 camera head
Activation Method	Software license key activation
Delivery Method	Electronic license delivery
Warranty	Standard Sony software license warranty applies
Maintenance	No physical maintenance required; software updates may be available
Safety Precautions	Standard software handling; no specific hardware safety considerations
Spare Parts	Not applicable (software only)
Weight	Not applicable (digital product)
Dimensions	Not applicable (digital product)
Power Consumption	None (software does not consume power directly)
Environmental Conditions	Operates within camera's environmental specifications
Upgrade Path	Can be combined with other HZC licenses (e.g., HZC-PRV50)
Part Number	HZC-DFR50
Brand	Sony
Series	HDC Series Optional Software

Frequently Asked Questions - HZC-DFR50 SONY

What is the HZC-DFR50?

The HZC-DFR50 is an optional software license for the Sony HDC-3500 camera that enables double-speed capturing for slow-motion playback. It allows acquisition at 1080/119.88i, 1080/100i, 720/119.88p, and 720/100p formats.

Which cameras are compatible with HZC-DFR50?

The HZC-DFR50 is specifically designed for the Sony HDC-3500 camera. It is not compatible with HDC-3100 or HDC-3170 models.

How do I install the HZC-DFR50 license?

The license is activated via a software key. You need to enter the license key into the camera's menu system after purchasing. Detailed instructions are provided with the license.

Does HZC-DFR50 require any other software?

No, HZC-DFR50 operates independently. However, for combined features like progressive capture or 4K output, you may need additional licenses such as HZC-PRV50 or HZC-PSF50.

What frame rates does HZC-DFR50 support?

HZC-DFR50 supports double-speed acquisition at 1080/119.88i, 1080/100i, 720/119.88p, and 720/100p. These are used for high-quality slow-motion effects.

Is there a trial version of HZC-DFR50?

Yes, there are limited-time trial versions: HZC-DFR50M (30-day) and HZC-DFR50W (7-day). These allow evaluation before purchasing the full perpetual license.

Can I use HZC-DFR50 with HDC-3100 or HDC-3170?

No, HZC-DFR50 is only compatible with the HDC-3500. The HDC-3100 and HDC-3170 do not support double-speed capturing via this license.

What is the difference between HZC-DFR50 and HZC-PRV50?

HZC-DFR50 enables double-speed slow-motion capture, while HZC-PRV50 enables progressive scan modes (1080/59.94p, 1080/50p, etc.). They serve different purposes and can be used together on the HDC-3500.

Does the HZC-DFR50 license expire?

The standard HZC-DFR50 license is perpetual and does not expire. However, trial versions (M and W) have limited durations of 30 days or 7 days respectively.

Where can I purchase the HZC-DFR50 license?

The HZC-DFR50 license can be purchased through Sony's professional products division or authorized dealers. Contact your local Sony representative for ordering information.

USER MANUAL HZC-DFR50 SONY

Professional video camera with Sony 1 branding and '4K' logo, displayed against a blue gradient background (no text on device body beyond branding)

Sony HD Cameras – Open up a World of Creativity with this New Performance Benchmark

Over the years, Sony has established a powerful solution lineup for HD studio operations with its HDC Series cameras along with a wide range of accessories to enhance your creative options.

Sony's flagship HDC Series cameras have been accepted as a worldwide standard, using cutting-edge technologies to realize excellent picture quality.

Now Sony proudly introduces new models designed to boost creativity with higher levels of performance along with the flexibility of continued interchangeability with existing models. The new HDC-3500, HDC-3100, HDC-3170, and point-of-view (POV)-style camera HDC-P50 are powerful tools that truly inspire innovation and enable your creative vision.

In addition, for even higher levels of creativity, Sony offers the HDC-4300 super-motion camera with a 4K capability. Along with various camera head choices, all HDC Series cameras also boast various options such as a stunning 7-inch OLED viewfinder and a large lens adaptor that enables rapid attachment without fine adjustment.

With their field-proven high reliability, all HDC Series cameras are stunning acquisition tools, ideal for a broad range of HD production applications.

Person operating a camera on a river with a kayaker in the foreground (no visible text or symbols)

HDC Series Multi-Format HD Camera System

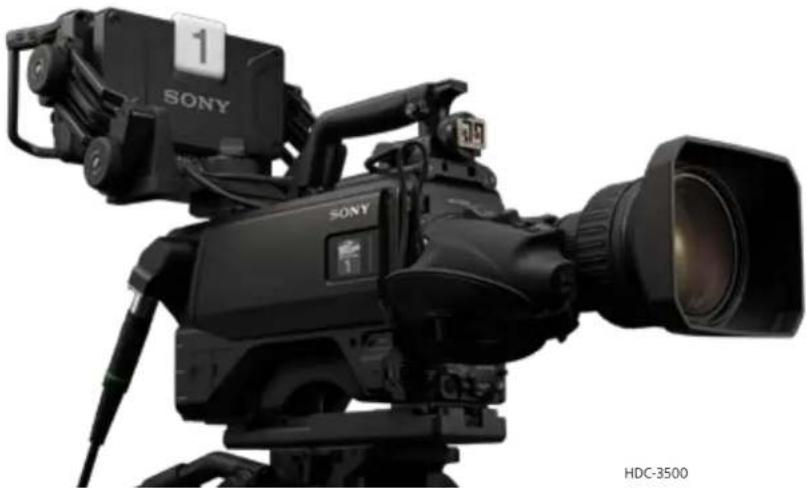

Black Sony 3500 video camera with extended lens and external frame (no visible text or symbols on device body)

Portable Cameras

HDC-3500

Sony has newly developed a powerful imaging device specifically for the HDC-3500. This offers high sensitivity of F10 (at 1080/59.94p) or F11 (at 1080/50p) and a superior signal-to-noise ratio.

The HDC-3500*1 offers enhanced, excellent picture quality through new cutting-edge technologies. The first of these is a newly developed 4K CMOS imaging device equipped with global shutter technology. And the second is a newly developed dedicated signal processor. In addition, the HDC-3500 can be upgraded with optional software licenses to add required functions such as capturing progressive signals, progressive segmented frame (PsF) signals, and double-speed acquisition for exquisite picture-quality slow motion.

The HDC-3500 is operated through fiber transmission as standard. It also has an exchangeable side panel interface and the HKC-CN50 enhances easy exchangeable operation. To satisfy your varying requirements with the HDC-3500, Sony provides exchangeable outside panels – the HKC-FB30 (for fiber transmission) and the HKC-TR37 (for triax transmission), as well as the HDC-3500H which does not have a transmission function. You can also choose the HDCU-3100 Camera Control Unit for fiber operation and the HDCU-3170 for triax operation.

HDC-3500

Optical-fiber interface

1080/50i, 1080/59.94i

1080/23.98p*, 1080/24p*, 1080/25p*

1080/29.97p*, 1080/50p*, 1080/59.94p* 720/50p, 720/59.94p, 1080/100i*

1080/119.88i**, 720/100p*, 720/119.88p* UHD/50p*, UHD/59.94p**

HDC-3100

Optical-fiber interface

1080/50i, 1080/59.94i

720/50p, 720/59.94p

1080/23.98p*, 1080/24p*, 1080/25p*

1080/29.97p*, 1080/50p*, 1080/59.94p*

UHD/50p ^4 , UHD/59.94p ^4,25

HDC-3170

Digital triax interface

1080/50i, 1080/59.94i

720/50p, 720/59.94p

1080/50p, 1080/59.94p

HDC-3100, HDC-3170

The HDC-3100 ^™ offers an optical fiber transmission capability as standard. Meanwhile, the HDC-3170 offers a digital triax transmission capability. Both deliver high sensitivity of F12 (at 1080/59.94i) or F13 (at 1080/50i) so you can select your model according to the signal wiring setup – optical fiber or triax – in the expected stadium.

HDC Series Cutting-Edge Technologies

Highly Acclaimed 4K CMOS Sensor with Global Shutter Technology (for the HDC-3500)

Based on Sony's cutting-edge imaging device technology and the latest on-chip lens structure, this 2/3-inch-type 4K CMOS sensor offers high sensitivity of F10 (at 1080/59.94p) and F11 (at 1080/50p) at 2,000 lx and a superior signal-to-noise ratio even without digital noise suppression. In addition, there is a wide variety of available output formats including 1080/59.94i, 1080/50i, 1080/23.98p*1, 1080/24p*1, 1080/25p*1, 1080/29.97p*1, and 1080/59.94p*2 or 1080/50p*2. These formats are beyond HD picture quality made from 4K capturing images.

Double-speed acquisition for excellent slow-motion picture quality is also available in 1080/119.88i ^2 , 1080/100i ^3 , 720/119.88p ^2 , and 720/100p ^3 modes.

Close-up of a small electronic component with a blue-green center and dark top surface (no visible text or symbols)

What's more, installing the optional HKCU-UHD30 4K HDR Processor Board to the HDCU-3100 enables the CCU to transmit ultra-high-bit-rate (UHB) signals automatically and output 4K signals (UHD/59.94p or UHD/50p) ^e .

*1 Optional HZC-PSI50 software is required for the HDC-3500 *2 Optional HZC-PRV50 software is required for the HDC-3500 *3 Optional HZC-DH50 software is required for the HDC-3500

State-Of-The-Art Evolving Digital Signal Processor

The DSP LSI developed for the HDC-3500 supports 1080/59.94p and 1080/50p progressive formats, making full use of the high-clarity images captured by the

CMOS sensor. You can also capture UHD/59.94p or UHD/50p 4K resolution images and achieve high-speed signal processing – the capabilities that are needed most for compact operation.

Two metallic square electronic components labeled 'SONY' with no visible text or symbols on the surfaces.

Optical Fiber Transmission

HDC-3500 and HDC-3100 cameras offer an optical fiber transmission capability as standard, enabling you to shoot in various capturing formats.

These cameras are equipped with an SMPTE-standard optical fiber interface for connecting the associated camera control unit (the HDCU-3100 or HDCU-2000). While achieving exceptional quality, these cameras can also transmit all digital bi-directional video and audio signals, a control line, and a prompter line over extremely long distances.

Next-Generation Digital Triax Transmission

With these newly developed third-generation digital triax-based systems, you can transmit detailed high-quality images over a long distance – up to 1,800 meters (5,904 feet) ^4 with a 14.5 mm triax cable.

*4 Maximum cable length varies with camera system configuration.

Network TRUNK\*5

The network TRUNK function (LAN port) allows for data transmission between the camera and the CCU at up to 1 Gbps. This supports new system configurations that are being used with various IP-based products.

*5. This function can only be used with the IBox system

Servo-Controlled ND and CC Filters ^4

The HDC-3500 is equipped with dual optical filter wheels for ND (neutral density) and CC (color correction) which can be remotely controlled by any remote control panel (RCP) or master setup unit (MSU), as well as directly controlled by the camera head.

*6 The HDC-3100 and HDC-3170 are equipped with a single optical filter wheel for ND.

Compact and Lightweight Camera Body

HDC-3500, HDC-3100, and HDC-3170 cameras incorporate magnesium alloy in their bodies and the HDC-3500 also features carbon fiber reinforced plastic (CFRP) in its outside panel. With this strong yet lightweight design, these cameras are highly mobile and can be operated even in the toughest shooting conditions.

The HDC Series provides stable handling, owing to a low center of gravity. You can easily adjust the shoulder pad into a well-balanced position without needing to use a screwdriver. Also, a wide viewable area beneath the handle provides you with a broad field of view, ideal for handheld camera operation. In every carefully considered aspect, HDC Series studio cameras offer great ergonomic design to increase ease of use.

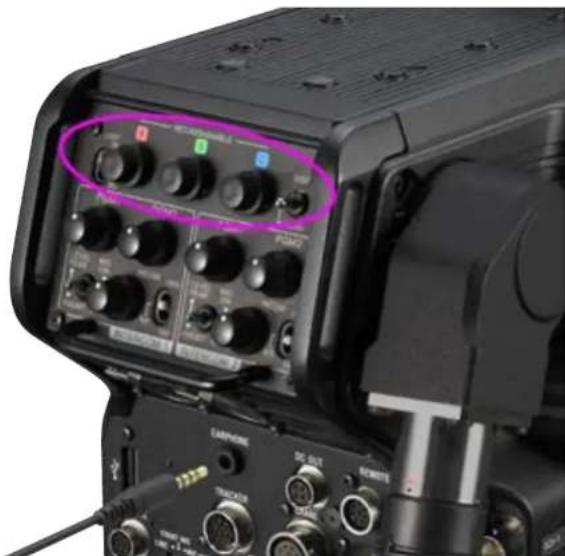

Rich Focus Assist Functions

The viewfinder detail function adds dedicated image-enhancing edge signals directly to the viewfinder, helping you to recognize a focusing point. The focus assist indicator displays an indicator for adjustment at the bottom (or another selected position) of the viewfinder frame.

In addition, the HDC-3500 and HDC-3100 are equipped with an advanced focus position meter function; the return switch can also be utilized as the focus position meter with illumination. Three focus positions can be assigned at the RGB switches of the HDLA-1500 Series Large Lens Adaptor, and the same position data can be assigned at the return switches on the camera's intercom panel. These switches can be lit in red, green, blue or others according to the functions.

This is helpful especially when shooting with a wide-viewing angle.

Person kayaking in a river with water splashing, wearing a white helmet and red paddle (no visible text or symbols)

Close-up of a black audio recording device with multiple ports and control knobs (no visible text or symbols)

Flexibility with the HDC Series

Easy Transmission Change

The transmission system can be easily changed between fiber (HKC-FB30), triax (HKC-TR37), and wireless (HKC-WL50) transmission by replacing parts assembled in the outside panels ^4 .

In addition, since all replacement connectors are located in the outside panels, camera balance is maintained.

^1 The optional HKC-CA3O is required to attach an outside panel.

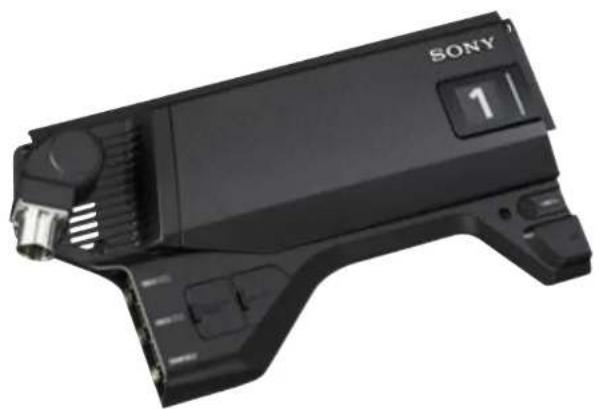

HKC-FB30: Optical Fiber Transmission Adaptor (for HDC-3500 and HDC-3500H)

Black Sony 124 handheld electronic device with ports and connectors (no visible text or symbols beyond branding)

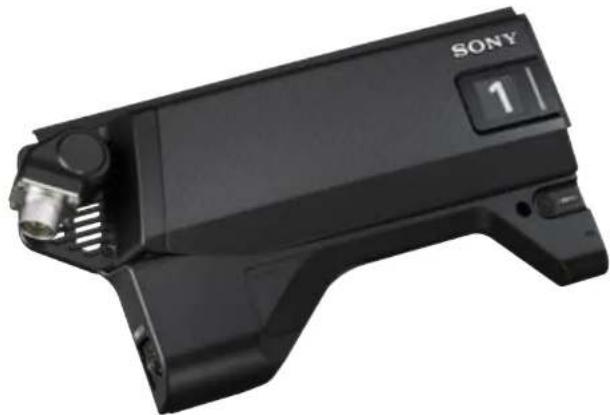

HKC-TR37: Digital Triax Transmission Adaptor (for HDC-3500 and HDC-3500H)

Black Sony handheld electronic device with a digital display showing '1' and no visible text or symbols on the device body.

Upgrade Software to Expand Creativity

An upgrade path is provided for your further creative operation. You can select your configuration with the following optional software, including special versions that operate for a limited time period, according to your needs.

HZC-PSF50: PsF-format Software

HZC-PSF50M: PsF-format Software (30-day limited period)

HZC-PSF50W: PsF-format Software (7-day limited period)

HZC-PRV50: 59.94p/50p Software

HZC-PRV50M: 59.94p/50p Software (30-day limited period)

HZC-PRV50W: 59.94p/50p Software (7-day limited period)

HZC-DFR50: Double-speed Capturing Software for Slow Motion (for HDC-3500)

HZC-DFR50M: Double-speed Capturing Software for Slow Motion (30-day limited period) (for HDC-3500)

HZC-DFR50W: Double-speed Capturing Software for Slow Motion (7-day limited period) (for HDC-3500)

HZC-UG50: User Gamma-compatible Software

HZC-UG50M: User Gamma-compatible Software (30-day limited period)

HZC-UG50W: User Gamma-compatible Software (7-day limited period)

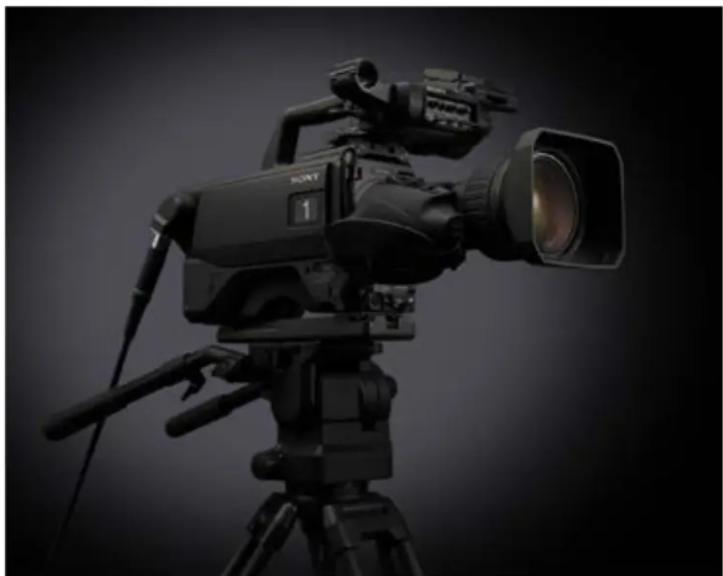

Professional video camera on tripod against dark background (no visible text or symbols)

HDC-3100

Flexibility with the HDC Series

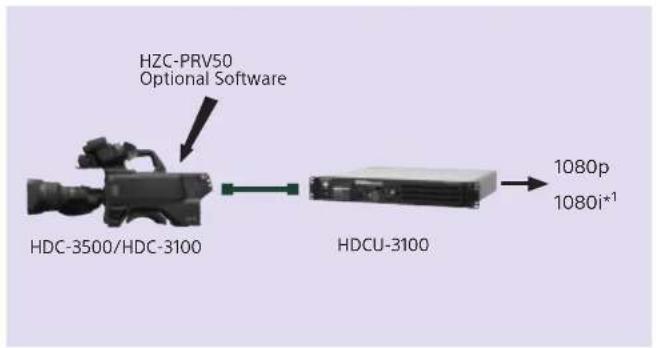

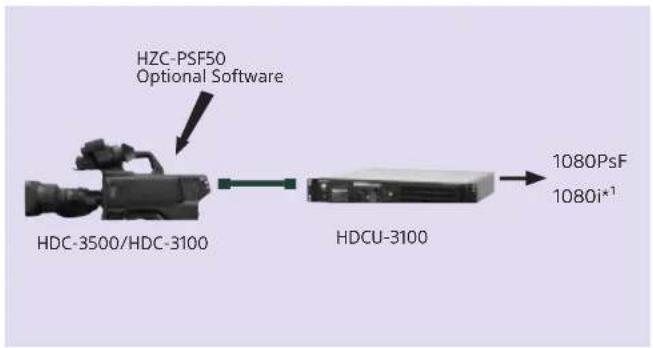

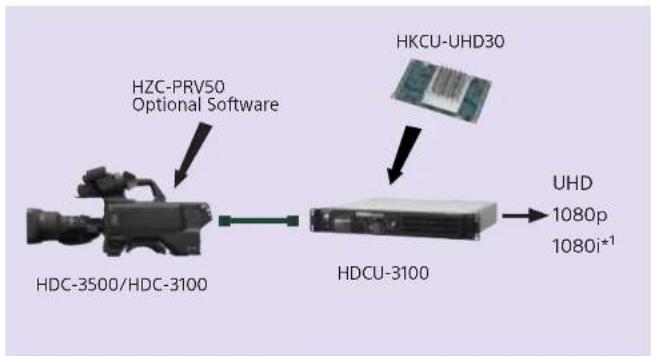

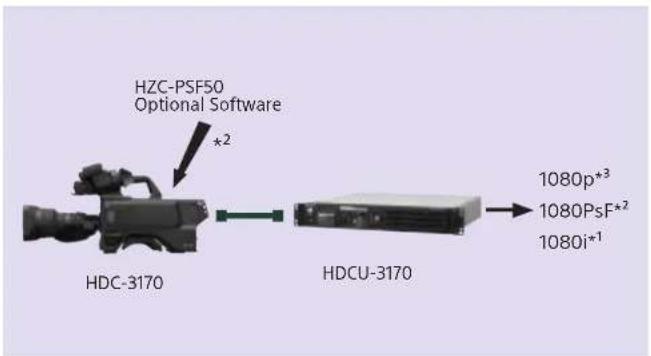


*1 1080i signals are supported as standard.
*2 This will be supported in 2019.
*3 Progressive software is pre-installed.

Superior Operability

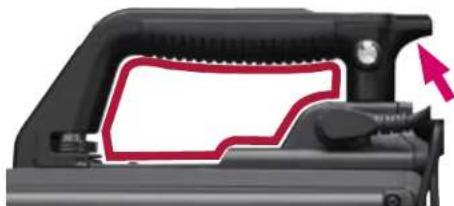

Wider area for an easier handle grip

It's easy to grip the handle even with gloves on. And visibility through this area has improved. In addition, the ergonomically designed handle enables stable handling of the camera – use your index finger to tightly hold this part of the camera.

Close-up of a mechanical device with a red highlighted section and arrow indicating direction (no text or symbols)

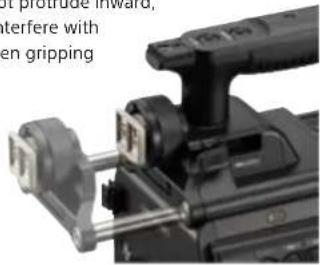

Viewfinder position: easy and stylish to use

The position of the viewfinder can be adjusted with ease. You can slide the viewfinder backward or forward and lock it to set its position with just the positioning lever. Its mounting rods are perfectly retracted into the body in a minimized position. As the rods do not protrude inward, they cannot interfere with your hand when gripping the handle.

Excellent Visibility

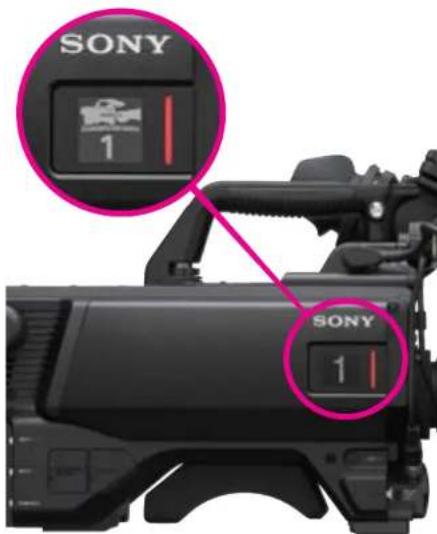

Camera numbering using electronic paper (for the HDC-3500)

An industry first, the HDC-3500 camera uses electronic paper (e-ink)-type camera numbers. This numbering changes automatically when the system changes the camera number. In addition, graphics can also be displayed with a number.

Side tally using an LED lamp (for the HDC-3500)

A tally lamp is mounted next to the camera number, improving visibility of tally status from the outside.

User-Friendly Interface

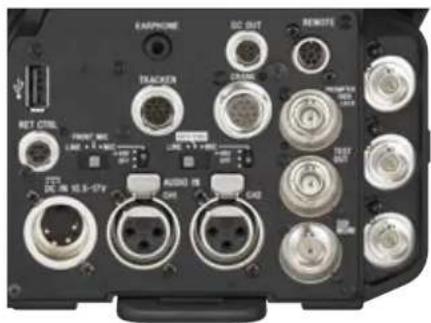

Improved layout of connectors

It's easy to pull BNC connectors out of the rear panel because of the ergonomic layout design.

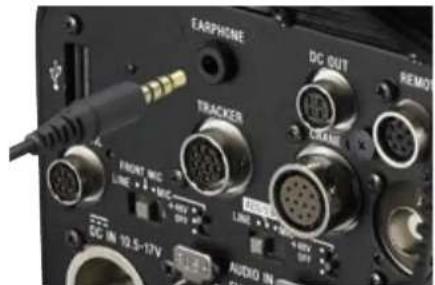

Simple intercom with earphone terminal

Besides the conventional intercom system, a commercially available earphone (4-pole earphones) can be utilized to input and output the intercom audio signal.

Versatile System Components: HDCU-3100 and HDCU-3170

Sony HDCU-3100 and HDCU-3170 Camera Control Units are next-generation CCUs that perform signal processing, provide an interface to external equipment, and supply power to the camera. In a compact 1.5 RU-size, these devices provide a path for IP and 12G-SDI capabilities, including IP on HDC Series optical fiber studio cameras. These highly compact 1.5 RU-size CCUs fit a standardized 19-inch rack system, ideal for space-limited production areas.

HDCU-3100 Camera Control Unit

-Up to eight 3G-SDI/HD-SDI outputs
-Four sets of 3G-SDI/HD-SDI/SD-SDI return video inputs
-Two-channel teleprompter inputs
-Built-in LAN interface (10BASE-T/100BASE-TX)
-Two-channel data trunk lines (RS-422A or RS-232C) for easy data transmission
-Two-channel microphone outputs (two XLR connectors)

Front view of a black Sony rack-mounted server unit with ventilation and control knobs (no visible text or labels)

Front view of a computer rack with ports, connectors, and a central display unit (no visible text or labels)

HDCU-3170 Camera Control Unit

-Up to eight 3G-SDI/HD-SDI outputs
-One-channel teleprompter input
-Built-in LAN interface (10BASE-T/100BASE-TX)
-A channel data trunk line (RS-422A/RS-232C) for easy data transmission
-Two-channel microphone outputs (two XLR connectors)
-A triax transmission connector is incorporated as standard and an optical fiber connector can also be added by installing an optional HKCU-FB30 Optical Fiber Connector kit. When you are operating in an OB van, it's easy to switch signals between optical fiber and triax cables.

Front view of a black Sony rack-mounted server unit with ventilation grilles and control knobs (no visible text or labels)

Front view of a computer rack with ports, connectors, and a grid panel (no visible text or labels)

HDCU-3170 standard

Front view of a computer interface with ports, connectors, and a grid panel (no visible text or labels)

HDCU-3170 Triax/Fiber transmission with optional HKCU-FB30

Upgrade Program for 4K

With the optional HKCU-UHD30 4K HDR Processor Board and HZC-PRV50 Signal Format Software, the HDC-3500 and HDC-3100 can be upgraded to create 4K images as well as 4K Live HDR (high dynamic range) images.

HKCU-UHD30: 4K/HDR Processor Board

The HKCU-UHD30 4K HDR Processor Board provides 4K HDR signals for SDI and IP output.

Electronic components including a heatsink, cooling fan, and two parallel leads (no text or symbols visible)

HKCU-SDI30: 12G-SDI Extension Kit

The HKCU-SDI30 is an 12G-SDI expansion kit that adds two connectors for 4K 12G-SDI signals.*1

Electronic circuit components including a microcontroller, connectors, and flexible cables (no visible text or symbols)

*1 The HKCU-UHD30 is required for 4K signal output.

Interface Expansion Options

HKCU-FB30: Optical Fiber Connector Kit

The HDCU-3170 Digital Triax CCU can achieve fiber transmission when you install the optional HKCU-FB30. With this new feature, the HDCU-3170 provides selectable triax and fiber transmission in one CCU body.

Exploded view of electronic components including sensors, coils, and a circuit board (no text or symbols visible)

HKCU-SM30: Single Mode Fiber Connector Kit

The HKCU-SM30 is a single mode fiber connection kit between a camera and CCU.

With the HKCU-SM30, the maximum distance extends up to 10 km.

Exploded view of electronic components including connectors, capacitors, and transistors (no text or symbols visible)

Optional Accessories

Electronic circuit board with multiple components and a central display (no visible text or symbols)

MSU-1000
Master Setup Unit

Electronic device with display and control panel (no visible text or symbols)

MSU-1500
Master Setup Unit

Exterior view of a mechanical device with no visible text or symbols

HDLA-1500
Large Lens Adaptor
( Or stachment of HDVF-EL70/700A)

3D rendered mechanical component with no visible text or symbols

HDLA-1505
Large Lens Adaptor
(for attachment of the HDVF-EL75/C730W/550/C550W)

3D rendered mechanical component with no visible text or symbols

HDLA-1507
Large Viewfinder Adaptor
(HOR attachment of HDVF-EL70/70CA)

Exterior view of a black electronic device with visible internal components (no text or symbols)

RCP-1000
Remote Control Panel

Close-up of a black remote control device with visible buttons and ports (no text or symbols)

RCP-1001
Remote Control Panel

RCP-1500
Remote Control Panel

RCP-3100
Remote Control Panel
*Available in 2019 January

HDVF-EL30
Full HD OLED Viewfinder with
3.5 inch*1 LCD

Black mechanical device with attached wires, no visible text or symbols

HDVF-EL20
Full HD OLED Viewfinder

Two electronic devices, one black and one black with a curved panel, shown against a plain background (no text or symbols visible)

HDVF-EL70
7.4-inch ^a Color HD Viewfinder

Exterior view of a modern office building (no signage)

HDVF-EL75
7.4-inch Color HD Viewfinder

3D rendered black mechanical component with a curved cutout (no text or symbols visible)

VFH-790
Outdoor Hood for
HDVF-EL70/EL75

Two electronic devices, one with a black frame and the other a black monitor mounted on a stand (no visible text or symbols)

HDVF-L750
7-inch ^+ LCD Color Viewfinder

Two electronic devices with black bases and a central display unit (no visible text or symbols)

HDVF-L770
7-inch* LCD Color Viewfinder

Exterior view of a black industrial electronic device with ventilation grille and ports (no visible text or symbols)

HDCE-100
Camera Extension Adaptor

Close-up of a black Sony electronic component with metallic pins (no visible text or symbols)

HKCU-SM100
CCU Extension Adaptor

Close-up of a black mechanical component with two metallic pins (no text or symbols visible)

BKW-401
Viewfinder Rotation Bracket

White electronic device with black cables and connectors (no visible text or symbols)

BKP-7911
Script Holder

*1 Viewable area measured diagonally

Black handheld medical or electrical device with coiled cable and connectors (no visible text or symbols)

CAC-6
Return Video Selector

3D rendered mechanical component with cylindrical body and mounting bracket (no text or symbols)

CAC-12
Mic Holder

Close-up of a black plastic electronic component with two metallic pins (no visible text or symbols)

VCT-14
Tripod Adaptor

Black plastic electronic component with mounting bracket (no visible text or symbols)

HKC-FB30
Optical Fiber Transmission Adaptor

Black handheld electronic device with a small display and control panel (no visible text or symbols)

HKC-TR37
Digital Triax Transmission Adaptor

Blank white image with no visible content, text, or symbols

HKC-WL50
Wireless Module Adaptor *Available in 2019 January

Exploded view of electronic components including connectors, capacitors, and a resistor (no text or symbols visible)

HKC-CN50
Side Panel Attachment Kit

Front view of a black server rack unit (no visible text or labels)

HDCU-3100
Fiber Camera Control Unit

Front view of a black rack-mounted server unit (no visible text or labels)

HDCU-3170
Triax Camera Control Unit

Collection of electronic components including a package, pins, and a U-shaped wire (no visible text or symbols)

HKCU-SFP30
ST2110 Interface Kit

Electronic circuit components including a microcontroller, LED, and two parallel wires (no visible text or symbols)

HKCU-UHD30
4K/HDR Processor Board

Electronic component with two curved wires and a small electronic device (no visible text or symbols)

HKCU-SDI30
12G-SDI Extension Kit

Collection of electronic components and connectors (no visible text or symbols)

HKCU-SM30
Single Mode Fiber Connector Kit

Exploded view of electronic components including a battery, circuit board, and wiring (no visible text or labels)

HKCU-FB30
Optical Fiber Connector Kit

Three overlapping digital screens displaying abstract graphics and UI elements (no readable text or symbols)

J-712-156-0A
Camera Test Charts

Specifications

HDC-3500/HDC-3100/HDC-3170 Specifications

	HDC-3500 HDC-3100 HDC-3170
General
Power requirements	AC 240 V, 1.4 A [max.], DC 240 V, 1.05 A [max.]	AC 240 V, 1.05 A [max.], DC 240 V, 1.05 A [max.]	DC 240 V, 1.05 A [max.]
Operating temperature -25°C to +45°C	-4°F to +15°F
Storage temperature -20°C to -60°C	-4°F to +40°F
Mass Approx. 4.9 kg [10 lb 13 oz] (Unit only)	Approx. 5.1 kg [11 lb 4 oz] (when HKC TRST is attached)Approx. 4.9 kg [10 lb 13 oz] (when HKC FB30 is attached)	Approx. 4.8 kg [10 to 5 oz] /Approx. 5.2 kg (11 lb 0.4 oz)
Imager
Imager	2/3 inch type 4K CMOS sensor with global shutter	2/3 inch type CMOS sensor with global shutter
Method 3-CMOS, RGB
Electrical characteristics
Sensitivity FIC with 1080/59.94p	F1 with 1080/50p(at 2,000 kx with 89.9% reflectance)	F12 with 1080/59.94iF13 with 1080/50i(at 2,000 kx with 89.9% reflectance)
Signal to noise ratio -62 dB or higher
Geometric distortion Negligible (not including lens distortion)
Optical system specifications
Spectrum system	F1.4 prism
Built-in filters	ND filters 1: CLEAR, 2: 1/4ND, 3: 1/6ND, 4: 1/76ND, 5: 1/64NDCC filters A: cross filter; B: 3200K (clear); C: 4300K; D: 6300K	1: CLEAR, 2: 1/4ND, 3: 1/76ND, 4: 1/64ND
Input/output connectors
CCU	Electro-optical connector (LEMO 3L93C connector) (x1)		Tilax connector (x1)
LTM5	12-pin (x1)
VF	20-pin (x1)
MIC 1 IR	XLR 3-pin, female (x1)
AUDIO IN CH, CH2	XLR 3-pin, female (x1 each)AUDIO switch for MIC -60 dBu (can be selected up to -20 dBu in the menu), balancedAUDIO switch for LIME -0 dBu, balanced
INTERCOM 1	XLR 5-pin, female (x1)
INTERCOM 2	XLR 5-pin, female (x1)	No
EARTHONE	4-pore mini (4x1 x1), (2-pole mono, 3-pole stereo, 4-pore CTIA standard, 4-pore OMTP standard)
DC IN	XLR 4-pin (x1), DC 10.5 to 17 V
DC OUT	4-pin (x1), DC 10.5 to 17 V, max. 0.5 A22-pin (x1), DC 10.5 to 17 V, Max. 2.5 A2
SDI1	BNC (x1)
SDI 2	BVC (x1)	No
SDI MCVI	BNC (x1)
TEST OUT	BNC (x1)
PROMPTER/GENLOCK	BVC (x1)FROMPTER 1 Vp-p, 75 OGENLOCK HD: SIMPLE ST2/4, tri-level sync. 0.6 Vp-p, 75 O, SD: Black burst (V*SC: 0.28B Vp-p, 75 G/PAL: 0.3 Vp-p, 75 D)
PROMPTER2	BNC (x1), 1 Vp-p, 75 O	No
RET CTRL	8-pin (x1)
REMOTE	8-pin (x1)
TRACKER	12-pin (x1)
CRANE	12 pin (x1)	No
USB USB 2.0 Type A-4 pin (x1) (for connecting USB drive)
NETWORK TRUNK	R1-45 type 8-pin (x1)	No
Supplied accessories
	Before Using This Unit (1), Operating Instructions (CD-ROM), (1), Cable clamp belt (1 set), Screws, 163×81(2), Attached label (1).	Before Using This Unit (1). Operating Instructions (CD-ROM), (1). Cable clamp belt (1 set), Screws, 163×81(2).Attached label (1). Camera number label (1).

*1 This may be limited by the imposed load or inputs.

HDCU-3100/HDCU-3170 Specifications

	HDCU-3100 HDCU-3170
General
Power requirements	100 V to 240 V AC, 50/60 Hz
Current consumption	4.5 A (max.)
Operating temperature	5 °C to 40 °C (11°F to 104°F)
Storage temperature	-20 °C to -60 °C (-4°F to +140°F)
Mass	Approx. 7.3 kg (16 lb 1.5 oz) Approx. 8.1 kg (17 lb 14 oz)
Input/output connectors
CAMERA RIBER	Optical fiber connector [x1] No
CAMERA TRIAX	No Triax connector [x1]
INTERCOM/TALLY/IO PORT	D-sub 50-pin connector [x1]INTERCOM(PROD/ENG) 4 W, 0 dBu, RTS, 0 dBu, CC, -14 dBuPGM, 3 systems, 0dBu/-20dBu (for HDC-3102/HDC-3110)TALLY (R, G, Y)FLAG
RCP/CNU	B-pin multi-connector [x1]
TRUNK	12 pin [x1]
LAN-COM	B-pin [x1]
NETWORK TRUNK	B-pin [x1]
SDI V/D 1 to 4	3G/HD/SD: SDI V/OBNC [x4];3G: SDI: SMPTE ST424/425 Level A/B, 0.6 Vp-p, 75 Ω, 2.570 Gbps/2.967 GbpsHD: SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4833 GbpsSD: SDI: SMPTE ST259, 0.8 Vp-p, 75 Ω, 270Mbps3G: SDI-V-D: SDI/SD-SDI, character signal selectable
REFERENCE IN/OUT	BNC [x2], loop-through outputHD: SMPTE ST714, tr-level sync, 0.6 Vp-p, 75 ΩSD: Black burst (NTSC: 0.266 Vp-p, 75 Ω/FAL: 0.3 Vp-p, 75 Ω) or NTSC 10F-BB
Input connectors
AC IV	100 V to 240 V AC [x4]
SDI RET 1 to 4	BNC [x4];3G: SDI: SMPTE ST424/425, 2.970 Gbps/2.967 GbpsHD: SDI: SMPTE ST292, 1.485 Gbps/1.4835 GbpsSD: SDI: SMPTE ST259, 270 Mbps
PROMPTER 1PROMPTER 2/VBS RET	BNC [x2], loop-through output during 1CH mode, terminate internally at 75 Ω during 2CH mode, analog signal, 1.0 Vp-p, 75 Ω
Output connectors
AUDIO OUT CH1, CH2	XLR 3 pin, male [x2], 0dBu/-20 dBu/+4 dBu
CHARACTER/ABS/EBU	BNC [x1], VBS, 1 Vp-p, 75 ΩHD: SYNC: BTA-SDI, tr-level sync, 0.6 Vp-p, 75 ΩSD: SYNC: composite sync, 0.3 Vp-p, 75 ΩVBS/HD: SYNC/SD, SYNC selectable
SDI OUT 1 to 4	3G/HD/SD: SDI OUTPUTBNC [x4];3G: SDI: SMPTE ST424/425 Level A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 GbpsHD: SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4833 GbpsSD: SDI: SMPTE ST259, 0.8 Vp-p, 75 Ω, 270 Mbps3G: SDI-V-D: SDI/SD-SDI, character signal selectable
Supplied accessories
Number plates (1 set). Before Using this Unit [1], Operating Instructions (CD-ROM)[1]
Optional accessories
United States and Canada: Power cord act [1-551 812 XX]. Other areas: Power cord set [1-782 929-XX]
United States and Canada: Plug holder B[2, 990, 242 01] Other areas: Plug holder C[3-618-640-01]CCA 5-3 Connection Cable (3 meters), CCA 5-10 Connection Cable [10 meters]

Design and specifications are subject to change without notice

SONY

Distributed by

©2018 Sony Imaging Products & Solutions Inc.

Reproduction in whole or in part without written permission is prohibited.

Features and specifications are subject to change without notice.

The values for mass and dimension are approximate.

SONY* is a registered trademark of Sony Corporation.

All other trademarks are the property of their respective owners.

Please visit Sony's professional website or contact your Sony representative

for specific models available in your region.
