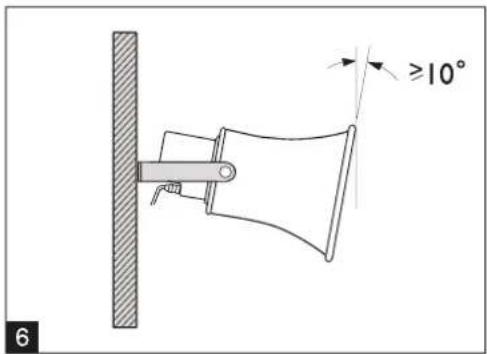

The unit can be mounted using the adjustable bracket. Ensure a minimum tilt of 10° to prevent moisture ingress. Wiring should follow the 100 V line with proper tapping selection. Installation must be done by a qualified professional.
User questions about LBC3484/00 BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Megaphone in PDF format for free! Find your manual LBC3484/00 - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LBC3484/00 by BOSCH.
USER MANUAL LBC3484/00 BOSCH
LBC 3482/00, LBC 3483/00, LBC 3484/00
BOSCH
en Installation note
1

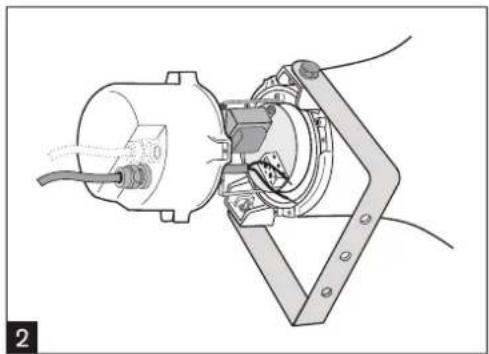

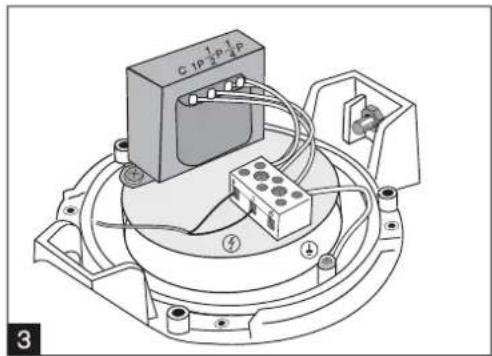

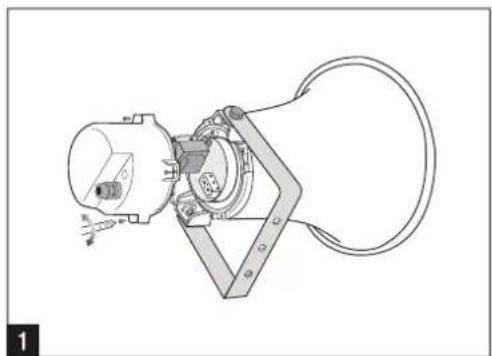

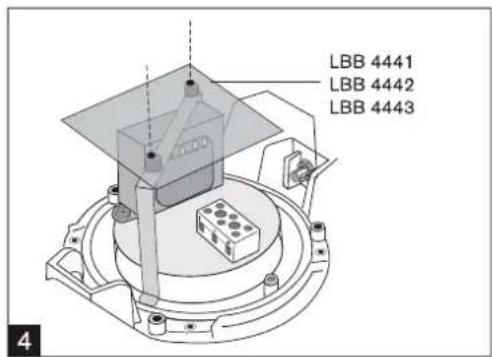

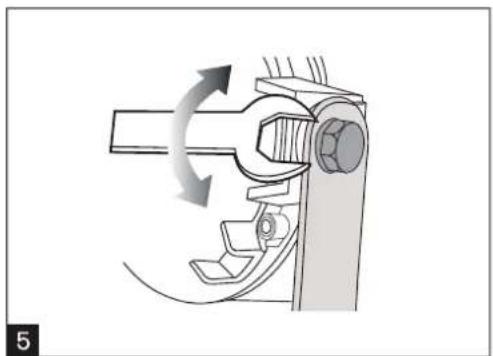

Installation
2 Technical data
LBC 3482/00
Electrical*
| Maximum power 37.5 W | |

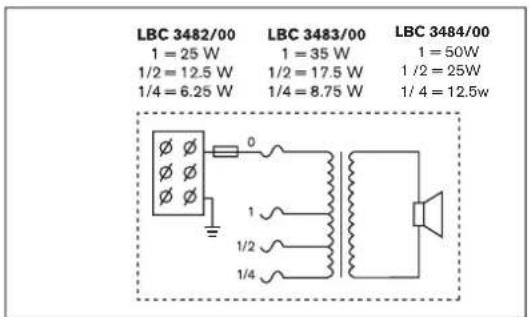

| Rated power 25 / 12.5 / 6.25 W | |
| Sound pressure level at 25 W / 1 W (1 kHz, 1 m) | 121 dB / 107 dB (SPL) |
| Effective frequency range (-10 dB) 550 Hz to 5 kHz | |
| Opening angle at 1 kHz/4 kHz (-6 dB) | 70° / 25° |
| Rated voltage 100 V | |
| Rated impedance 400 ohm | |
| Connector Screw terminal block | |
* Technical performance data acc. to IEC 60268-5
Mechanical
| Dimensions (L x Dmax) | 425 x 355 mm (16.7 x 14 in) |
| Weight 3.6 kg (8 lb) | |
| Color Light gray (RAL 7035) | |
| Cable diameter 6 mm to 12 mm | (0.24 in to 0.47 in) |
Environmental
| Operating temperature | -25 °C to +55 °C (-13 °F to +131 °F) |
| Storage and transport temperature -40 °C to | +70 °C (-40 °F to +158 °F) |
| Relative humidity <95% |
LBC 3483/00
Electrical*
| Maximum power 52.5 W | |
| Rated power 35 / 17.5 / 8.75 W | |
| Sound pressure level at 35 W / 1 W (1 kHz, 1 m) | 127 dB / 112 dB (SPL) |
| Effective frequency range (-10 dB) 380 Hz to 5 kHz | |
| Opening angle at 1 kHz/4 kHz (-6 dB) | 50° / 25° |
| Rated voltage 100 V | |
| Rated impedance 286 ohm | |
| Connector Screw terminal block | |
* Technical performance data acc. to IEC 60268-5
Mechanical
| Dimensions (L x Dmax) | 499 x 490 mm (20 x 19.6 in) |
| Weight 4.5 kg (9.9 lb) | |
| Color Light gray (RAL 7035) | |
| Cable diameter 6 mm to 12 mm | (0.24 in to 0.47 in) |
Environmental
| Operating temperature | -25 °C to +55 °C (-13 °F to +131 °F) |
| Storage and transport temperature -40 °C | to +70 °C (-40 °F to +158 °F) |
| Relative humidity <95% |
LBC 3484/00
Electrical*
| Maximum power 75 W | |
| Rated power 50 / 25 / 12.5 W | |
| Sound pressure level at 50 W / 1 W (1 kHz, 1 m) | 127 dB / 110 dB (SPL) |
| Effective frequency range (-10 dB) 350 Hz to 4 kHz | |
| Opening angle at 1 kHz/4 kHz (-6 dB) | 60° / 28° |
| Rated voltage 100 V | |
| Rated impedance 200 ohm | |
| Connector Screw terminal block | |
* Technical performance data acc. to IEC 60268-5
Mechanical
| Dimensions (L x Dmax) | 499 x 490 mm (20 x 19.6 in) |
| Weight 6 kg (13.22 lb) | |
| Color Light gray (RAL 7035) | |
| Cable diameter 6 mm to 12 mm | (0.24 in to 0.47 in) |
Environmental
| Operating temperature | -25 °C to +55 °C (-13 °F to +131 °F) |
| Storage and transport temperature -40 °C to | +70 °C (-40 °F to +158 °F) |
| Relative humidity <95% |
2.1
Additional technical data

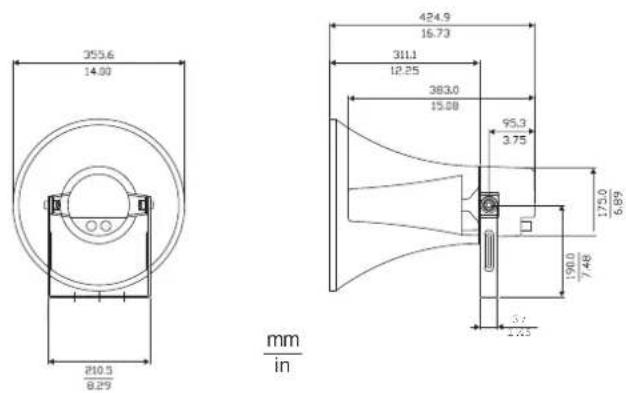

Dimensions LBC 3482/00

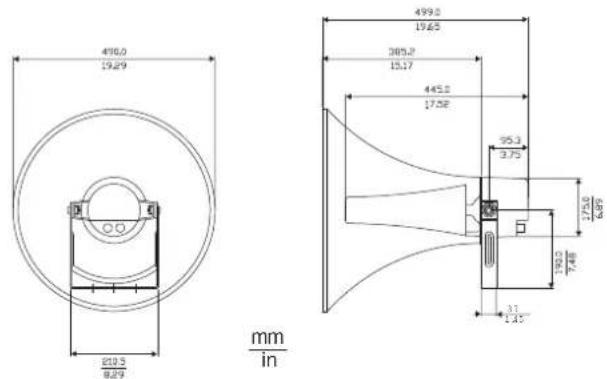

Dimensions LBC 3483/00 and LBC 3484/00
line

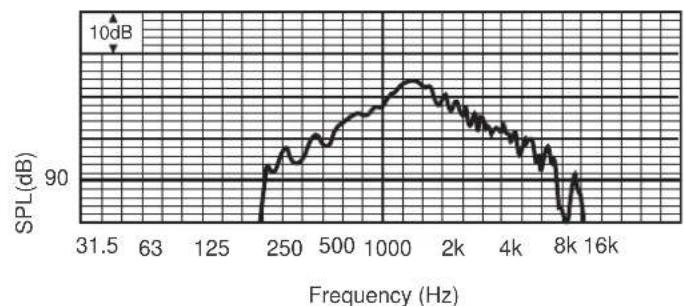

| Frequency (Hz) | SPL(dB) | | -------------- | ------- | | 31.5 | 90 | | 63 | 90 | | 125 | 90 | | 250 | 90 | | 500 | 90 | | 1000 | 90 | | 2k | 90 | | 4k | 90 | | 8k | 90 | | 16k | 90 |Frequency response LBC 3482/00
line

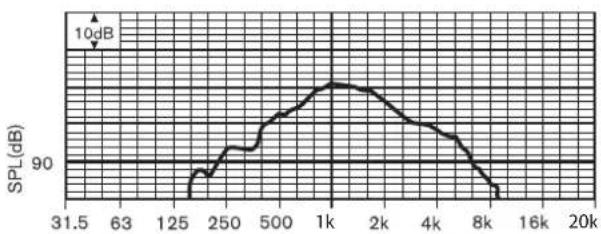

| Frequency (Hz) | SPL (dB) | | -------------- | -------- | | 31.5 | 90 | | 63 | 90 | | 125 | 90 | | 250 | 90 | | 500 | 90 | | 1000 | 90 | | 2k | 90 | | 4k | 90 | | 8k | 90 | | 16k | 90 |Frequency response LBC 3483/00
line

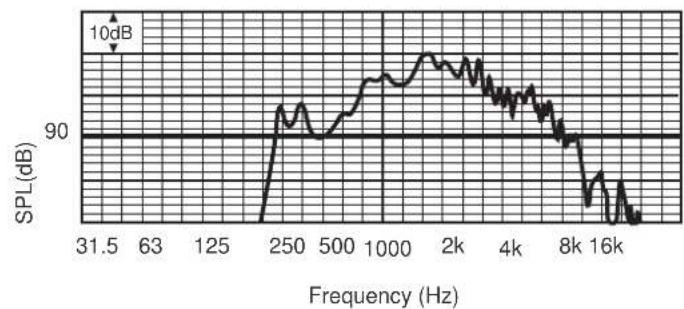

| x | SPL(dB) | | ---- | ------- | | 31.5 | 90 | | 63 | 90 | | 125 | 90 | | 250 | 90 | | 500 | 90 | | 1k | 90 | | 2k | 90 | | 4k | 90 | | 8k | 90 | | 16k | 90 | | 20k | 90 |Frequency response LBC 3484/00
radar
| Angle | Value | |-------|-------| | 0° | 0 | | 30° | 0 | | 60° | 0 | | 90° | 0 | | 120° | 0 | | 150° | 0 | | 180° | 0 |
Polar diagram (measured with pink noise) LBC 3482/00
radar
| Angle | Value | |-------|-------| | 0° | 0 | | 90° | -10 | | 180° | -20 | | 150° | -15 | | 120° | -25 | | 60° | -10 | | 30° | 0 |

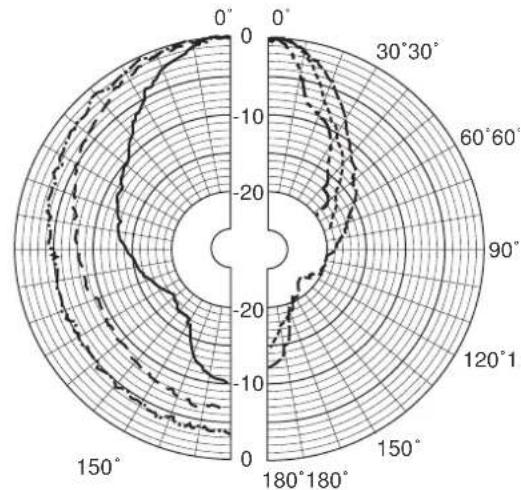

Polar diagram (measured with pink noise) LBC 3483/00
radar

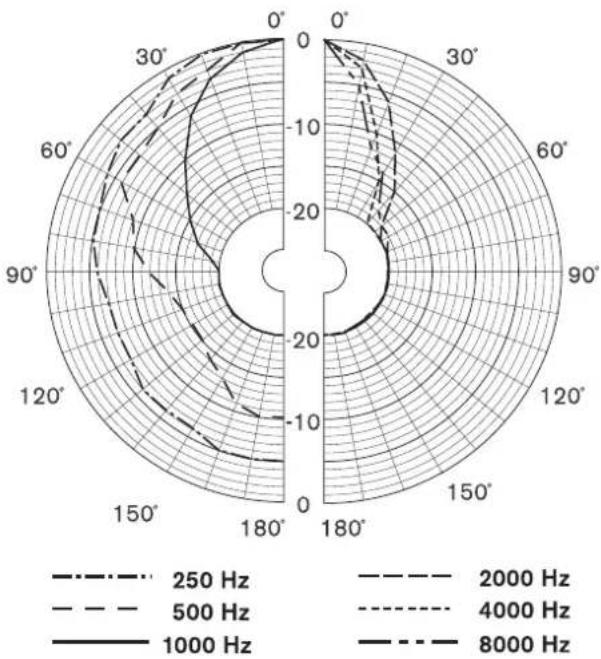

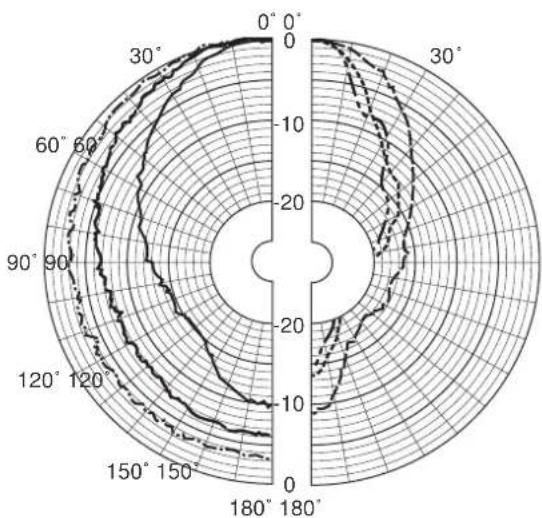

| Angle | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | 8000 Hz | |-------|--------|--------|---------|---------|---------|---------| | 0° | - | - | - | - | - | - | | 30° | - | - | - | - | - | - | | 60° | - | - | - | - | - | - | | 90° | - | - | - | - | - | - | | 120° | - | - | - | - | - | - | | 150° | - | - | - | - | - | - | | 180° | - | - | - | - | - | - |Polar diagram (measured with pink noise) LBC 3484/00
| CE1438 |
| Bosch Security Systems BVTorenallee 49, 5617 BA Eindhoven, the Netherlands101438-CPD-0192 |
| EN 54-24:2008Loudspeaker for voice alarm systemsfor fire detection and fire alarm systems for buildingsHorn Loudspeaker 25 WLBC3482/00Type B |
CE-label LBC3482/00
| CE1438 |
| Bosch Security Systems BVTorenallee 49, 5617 BA Eindhoven, the Netherlands101438-CPD-0191 |
| EN 54-24:2008Loudspeaker for voice alarm systemsfor fire detection and fire alarm systems for buildingsHorn Loudspeaker 35 WLBC3483/00Type B |
CE-label LBC3483/00
Bosch Security Systems B.V.
Torenallee 49
5617 BA Eindhoven
Netherlands
www.boschsecurity.com
© Bosch Security Systems B.V., 2016
