Product Type	Steam Generator Iron (Centrale Vapeur)
Brand	Bosch
Model	TDS6080GB
Series	Serie 16 VarioComfort
Programmes	Lingerie (synthetics), Wool (silk-wool), Shirt (cotton), Linen (max), i-Temp (all ironable fabrics), Hygiene (sanitizing), AntiShine (dark/delicate)
Energy Saving Mode	Yes (Eco button)
Auto Switch Off	Yes (after 8 minutes of inactivity)
Descaling System	Calc'nClean with indicator light; separate boiler and iron descaling
PulseSteam Function	Yes (double-click steam release for stubborn creases)
Vertical Steam	Yes (for hanging clothes/curtains)
Steam Release Button	Yes (continuous or pulsed)
Iron Lock System	SecureLock (locks iron to station for storage)
Water Tank	Removable, with max fill level mark
Water Type	Normal tap water (max 1:1 or 1:2 mix with distilled for hard water)
Safety Features	Earthed socket required, pressure boiler cap must not be opened during use, hot surface warning, child supervision
Storage	Cable and hose storage holder, iron pad, iron lock
Accessories Included	Calc'nClean container (for iron descaling), scale collector (for boiler)

Frequently Asked Questions - TDS6080GB BOSCH

How do I descale the iron?

Fill the water tank, plug in, press the Calc'nClean button (3) for 2 seconds, wait for indicator light, then hold the iron horizontally over a sink or Calc'nClean container and press the steam release button (15) for 2 seconds. The process takes about 3 minutes and finishes automatically.

What type of water should I use?

Use normal tap water. Do not use additives like perfume, vinegar, starch, or chemicals. If your water is very hard, mix tap water with distilled water at a 1:1 or 1:2 ratio.

How does the i-Temp programme work?

Select the i-Temp programme on the dial. It automatically sets the optimal temperature and steam for all ironable fabrics (symbols ). It prevents damage from incorrect temperature selection. Do not use on fabrics marked with the ☒ symbol.

How do I activate the auto switch off?

The appliance automatically switches off after 8 minutes of inactivity. You will hear three beeps and all indicator lights will flash. To turn it back on, press the steam release button (15).

How should I clean the soleplate?

Clean the soleplate (17) after descaling by immediately rubbing off any residue with a hot iron over a wet cotton cloth. For regular cleaning, wipe with a damp cotton cloth only. Avoid scouring pads or chemicals.

What should I do if the iron smokes when first used?

This is normal. Some components are lightly greased at the factory and may produce smoke briefly during first use. It will stop after a short while. If it continues, clean the soleplate as instructed.

How do I use the vertical steam function?

Select the max setting. Hold the iron vertically about 15 cm away from the garment. Press the steam release button (15) repeatedly with pauses of at least 5 seconds. Never point the steam at people or animals.

How do I fill the water tank correctly?

Open the filling lid (12) and fill the water tank (10) with tap water. Do not exceed the max level mark (11). Close the lid. Refill when the water tank empty indicator light (4) comes on and you hear three beeps; then press button (4).

What is the PulseSteam function and how do I use it?

PulseSteam delivers powerful shots of steam to tackle difficult creases. Double-click the steam release button (15) quickly for burst of steam.

What does the Calc'nClean indicator light mean?

When the Calc'nClean indicator light (3) flashes and three beeps sound, it means the iron needs descaling. You can continue ironing for a while, but perform the descaling process before next use when the appliance is cold.

USER MANUAL TDS6080GB BOSCH

Close-up of a white collared shirt with visible collar and tie (no text or symbols)

Register your new Bosch now: http://www.bosch-home.co.uk

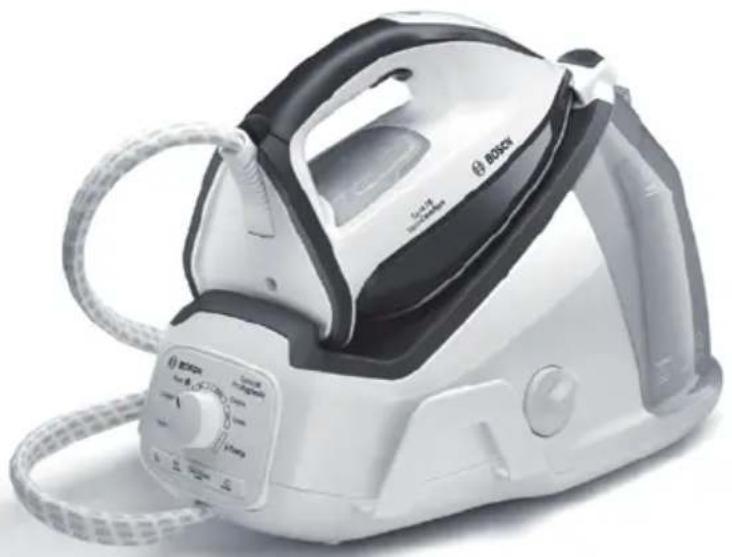

White Bosch air iron with black handle and control panel, no visible text or symbols on body

Stack of gray fabric or garment pieces with button-like cutouts, no visible text or symbols

TDS60....

Serie 16 VarioComfort

BOSCH

en Operating instructions

ar إرشادات التشفيل

Illustration of an open book with blank pages and a bookmark (no text or symbols visible)

Index / فهرس

ENGLISH 6
General safety instructions 6
Description 7
Introduction 7
Using your appliance 8
1. Filling the water tank 8
2. Heating 8
3. Ironing programmes 9
4. Ironing 10
5. Energy saving 11
6. Auto switch off 11
Cleaning & Maintenance 11
1. Descaling process	11
2. Cleaning the appliance	13
Trouble shooting	14
Storing the appliance	14

General safety instructions

☐ During the use, the decalcifying or rinsing aperture of the boiler is under pressure and must not be opened.
☐ The appliance must not be left unattended while it is connected to the supply mains.
☐ Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.
☐ The appliance must be used and placed on a stable surface.
☐ When placing the iron on its stand or on its heel, make sure that the surface on which the stand or heel is placed is stable.
☐ The appliance should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water. It must be checked by an authorised Technical Service Centre before it can be used again.
☐ With the aim of avoiding dangerous situations, any work or repair that the appliance may need, e.g. replacing a faulty mains cable, must only be carried out by qualified personnel from an Authorised Technical Service Centre.
☐ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Keep the appliance and its cord out of reach of children under 8 years of age when it is turned on or cooling down.
☐ This appliance is designed only for household use up to 2000m above sea level.
□ CAUTION. Hot surface.
Surface is liable to get hot during use.

Important notices

• Carefully read through the operating instructions for the appliance and safeguard them for future reference.
• This appliance has been designed exclusively for normal household use in home environment.
• This appliance must be used only for the purposes for which it was designed, i.e. as an iron. Any other use will be considered improper and consequently dangerous. The manufacturer will not be held responsible for any damage arising from misuse or improper use.

• This appliance is to be connected and used in accordance with the information stated on its characteristics plate.

• This appliance must be connected to an earthed socket. If it is absolutely necessary to use an extension cable, make sure that it is suitable for 16A and has a socket with an earth connection.

• The appliance must never be placed directly under the tap to fill the water tank.
• The electrical plug must not be removed from the socket by pulling the cable.
• Never immerse the iron in water or any other fluid.
• Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.)
• This appliance reaches high temperatures and produces steam during use, this could cause scalds or burns if not used properly.
• Do not allow the power cable to come into contact with the soleplate when it is hot.

Advice on disposal

Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials. Your local town council can give you information about how to dispose of obsolete appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

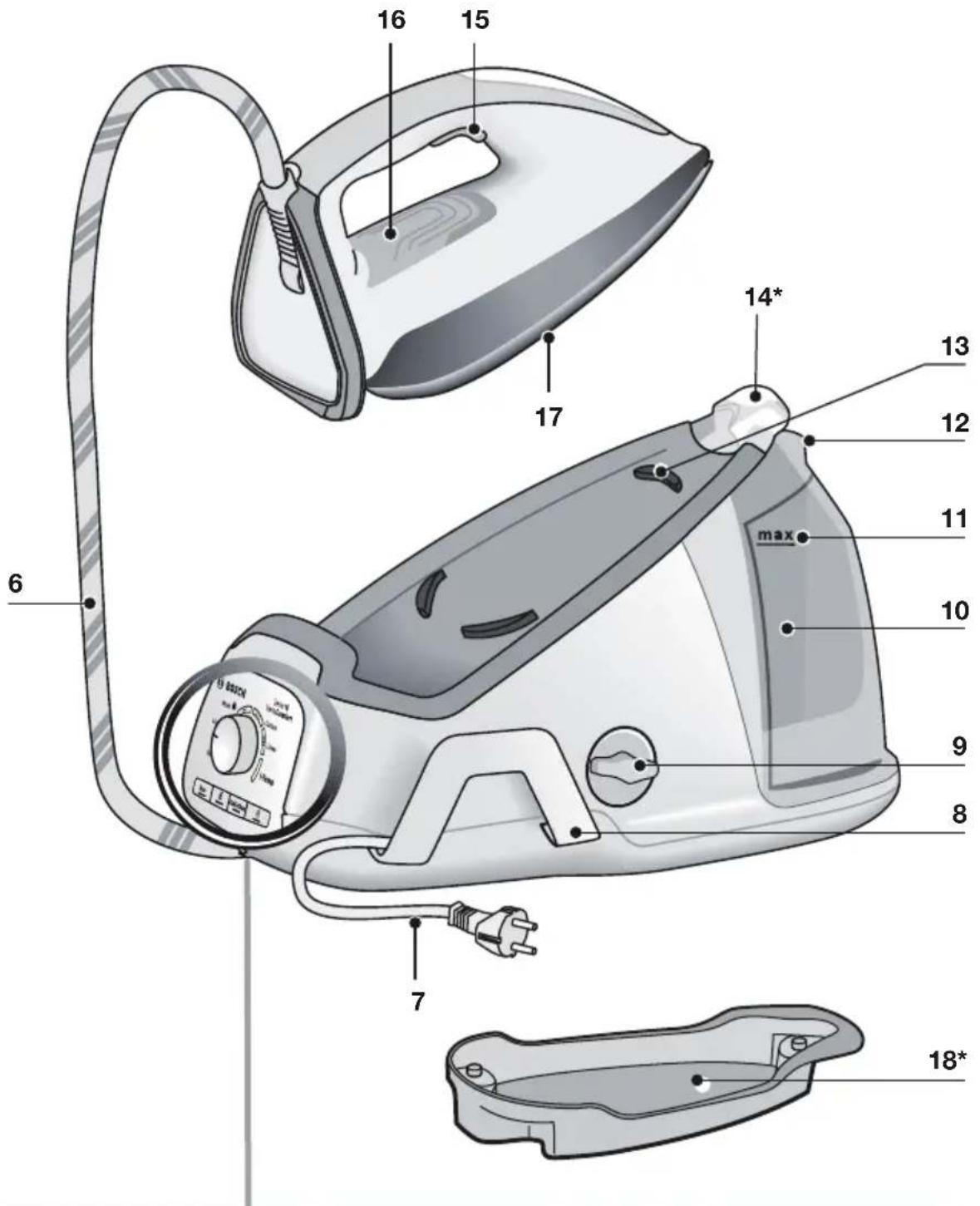

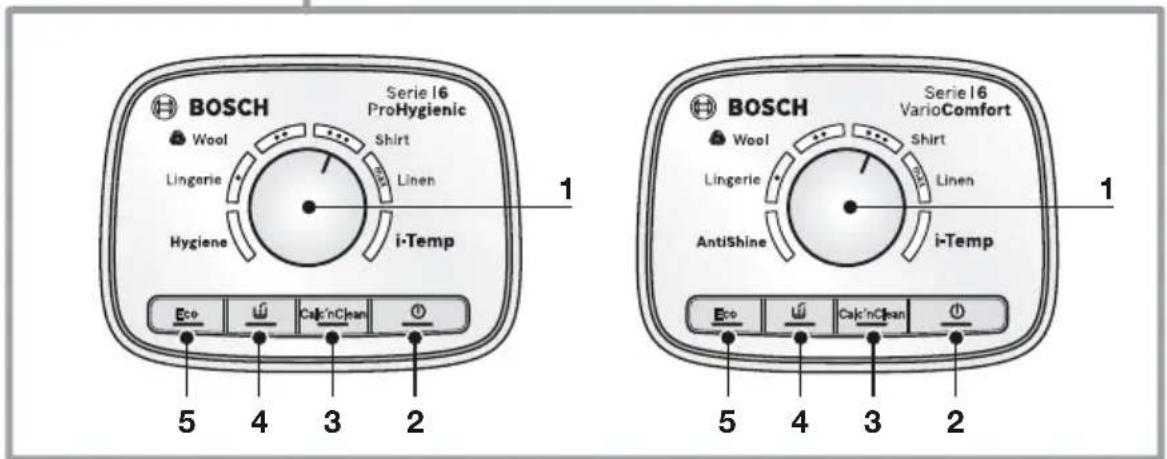

Description

1. Programme selector
2. "on / off" button with indicator light
3. "Calc'nClean" descaling button with indicator light
4. "Water tank empty" button with indicator light
5. Energy saving "Eco" button with indicator light
6. Steam hose
7. Mains cable

8. Mains cable and steam hose storage holder

9. Boiler cap / "Calc'nClean" scale collector *

10. Water tank
11. Level mark for maximum filling
12. Filling lid
13. Iron pad
14. Iron lock system "SecureLock" *
15. Steam release button
16. Iron indicator light
17. Soleplate
18. "Calc'nClean" container *

Introduction

Perfectly ironed fabrics in a flash with VarioComfort.

Enjoy a system that's easy to use and delivers fast results. Whether you're ironing wool, cotton, linen or delicate fabrics, each ironing programme is perfectly coordinated. So your favourite item of clothing is beautifully smooth in no time at all! The ironing programmes are also simple to adjust and intuitive to use.

Using your appliance

Line drawing of a car's front panel being adjusted with a tool, showing the arrow and partial view (no text or symbols)

Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

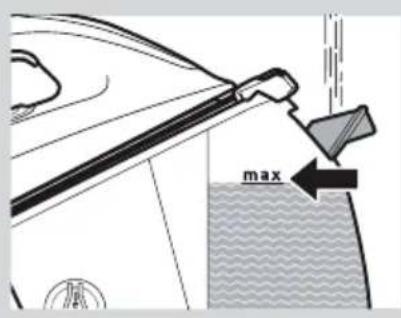

1. Filling the water tank

This appliance has been designed to use normal tap water.

Important: Do not use additives! The addition of other liquids, such as perfume, vinegar, starch, condensation water from tumble dryers or air conditioning systems, or chemicals will damage the appliance. Any damage caused by the use of the aforementioned products will make the guarantee void!

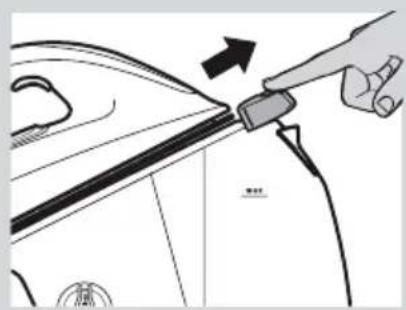

1 Open the filling lid (12).
2 Fill the water tank (10). Never fill beyond the level "max" (11) for maximum filling!
3 Close the filling lid.

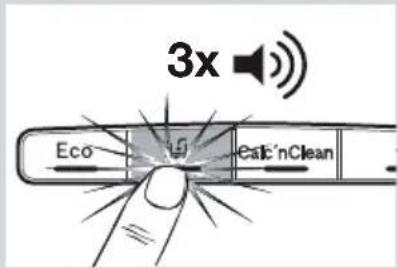

Refill the water tank when the indicator light (4) comes on. Three beeps will be heard.

Important: Once refilled, press button (4).

Tip: To prolong the optimum steam function, you may mix tap water with distilled water 1:1. If the tap water in your area is very hard, mix tap water with distilled water 1:2.

2. Heating

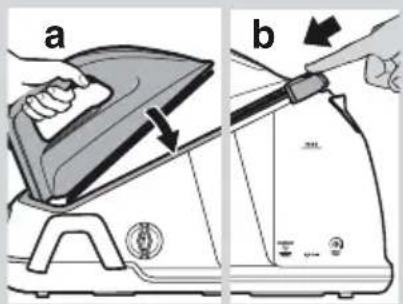

1 If your steam station is equipped with an iron lock system (14*), release the iron by pressing the 🔒 button.
2 Unwind the steam hose (6) and the mains cable (7). Plug mains cable into an earthed socket.
3 Turn programme selector (1) to choose the kind of fabric to be ironed.

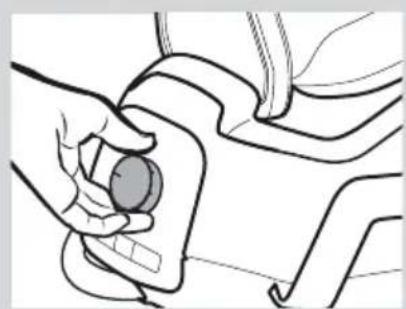

4 Press the button (2) to switch the appliance on. Indicator lights (2, 16) will flash indicating that the appliance is heating up.

5 When the iron is ready to use, the indicator lights (2, 16) will remain permanently lit. Two beeps will be heard.

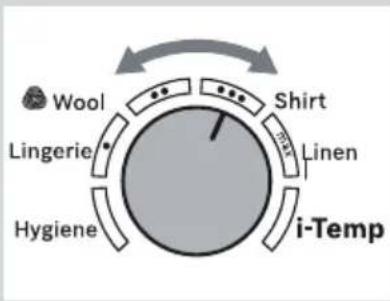

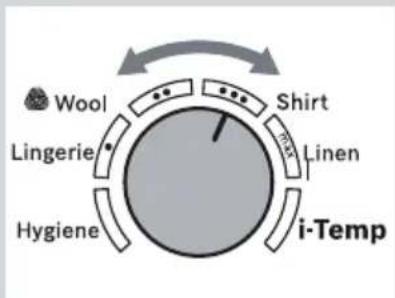

3. Ironing programmes

1 Turn the programme selector (1) to choose the kind of fabric to be ironed.

Programme	Suitable for
Lingerie ● synthetics-lingerie
Wool ●● silk-wool
Shirt ●●● cotton
Linen max linen
i-Temp	all fabrics that can be ironed
Hygiene*
AntiShine* dark	and delicate fabrics.Reduces the risk of shiny marks

The wool cycle of this iron has been approved by The Woolmark Company for the ironing of pure wool products provided that the products are ironed according to the instructions on the garment label and those issued by the manufacturer of this iron. R1503.

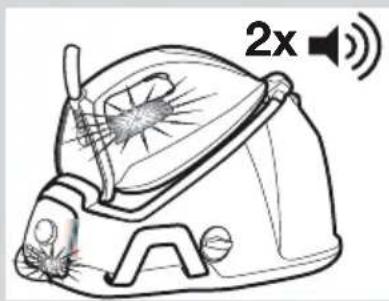

2 Wait until the indicator lights (2, 16) remain lit permanently. Two beeps will be heard.

“i-Temp” programme

If this program is selected, an appropriate combination of temperature and steam is set, which is suitable for all fabrics that can be ironed (symbols 🐘 🐘 🐘).

The “i-Temp” program prevents clothes from being damaged due to an unsuitable temperature being selected. The “i-Temp” program does not apply to fabrics that cannot be ironed (symbol ☒). Please check the garment care label for details or try ironing on a part of the cloth not visible normally.

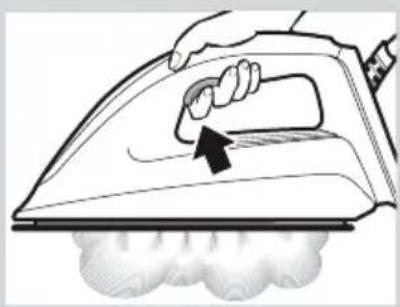

"Hygiene" programme

Suitable for all kinds of fabrics and extremely efficient for both thick and delicate garments. The unique combination of temperature and interval steam provides a sanitizing effect requiring no chemical additives.

Illustration of a hand using a steam iron to press down a surface, with a black arrow indicating the motion direction (no text or symbols present)

1 Place the iron on the garment or fabric you want to disinfect.
2 Continuously press the steam release button (15) to release powerful shots of hygienic steam. Slowly iron the whole garment to enhance the final result.

Note: The energy saving setting "Eco" cannot be activated while the "Hygiene" programme is selected.

4. Ironing

1 Press the steam release button (15) for ironing with steam.

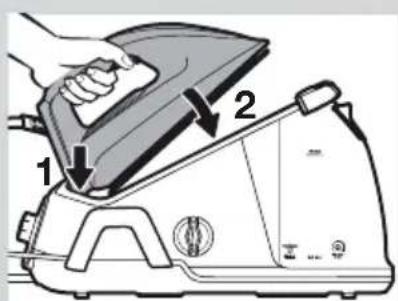

Important: When placing the iron on the pad, be sure to first insert the heel in the upper side of the control panel, as shown in the figure.

Tip: For better ironing results, iron the last strokes without pressing the steam release button (15) to dry the garment.

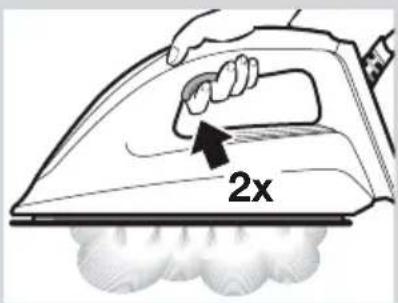

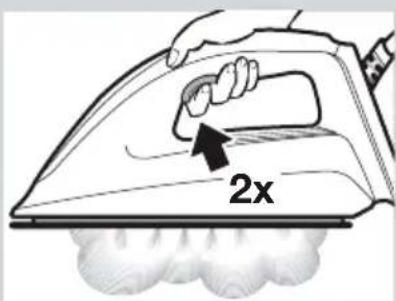

"PulseSteam" function

This appliance has a special function for tackling difficult creases.

1 Press the steam release button (15) two times in quick succession (double-click). Powerful shots of steam will be released.

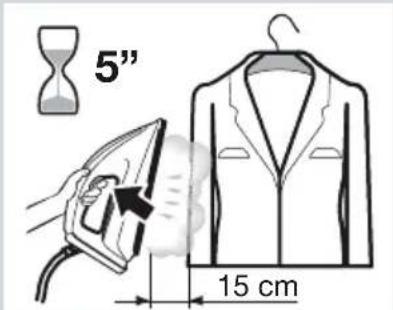

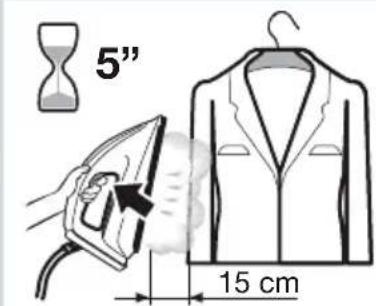

Vertical steam

Can be used to remove creases from hanging clothes, curtains, etc.

1 Choose the "max" setting by turning the selector (1).
2 Hold the iron in an upright position 15 cm away from the garment to be steamed.
3 Press the steam release button (15) repeatedly with pauses of at least 5 seconds.

Warning! : never point the steam jet at garments being worn, or at people or animals.

5. Energy saving

If the energy saving setting is selected, you can save energy and water and still achieve good results when ironing most of your garments.

1 Press the energy saving button "Eco" (5). The indicator light will come on.
2 To switch back to the normal energy setting, press the "Eco" button again. It is advisable to use the normal energy setting to get optimum results on thick and very wrinkled fabrics.

Tips to help you save energy:

• If you tumble dry your fabrics before ironing them, set the tumble drier on the iron dry programme.
• Try to iron the fabrics while they are still damp and reduce the steam setting. Steam will be generated from the fabrics rather than the iron.

6. Auto switch off

For your safety and to save energy, the appliance switches off automatically when it has not been used for 8 minutes. Three beeps will be heard, and all indicator lights (2,3,4,5) will flash.

1 To switch the steam station back on, press the steam release button (15) again.

Cleaning & Maintenance

1. Descaling process

Important: to keep your appliance in good condition for a long time, you should carry out the descaling process after a period of use. The “Calc'nClean” indicator light (3) will flash and three beeps will be heard, indicating that the process should be performed. You may continue ironing, but before the next use, while the appliance is cold, a descaling process should be performed.

Line drawing of a steam iron with cooling mechanism and thermometer icon (no text or symbols)

Line drawing of a mechanical device with rotational arrows indicating motion (no text or symbols)

Line drawing of a hand holding a screwdriver against a faucet (no text or symbols)

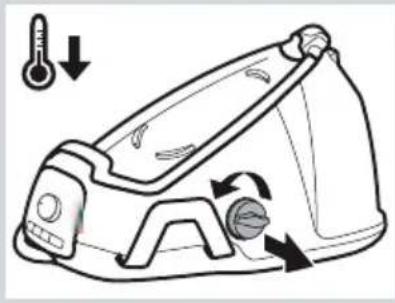

Descaling the boiler

1 Take special care to ensure that the appliance is cold and unplugged.

2 Empty the water tank.

3 Remove the iron from the pad (13).

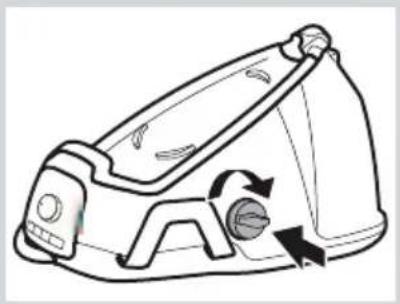

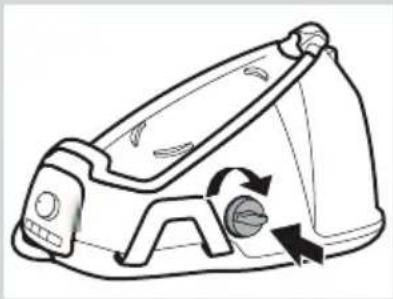

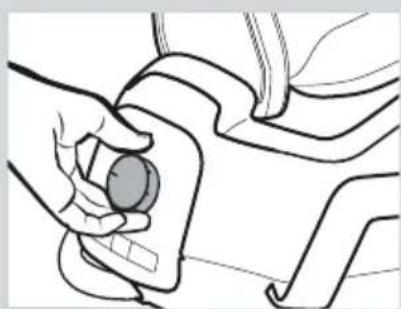

4 Unscrew and remove the boiler cap (9) and take it out. Empty the boiler completely.

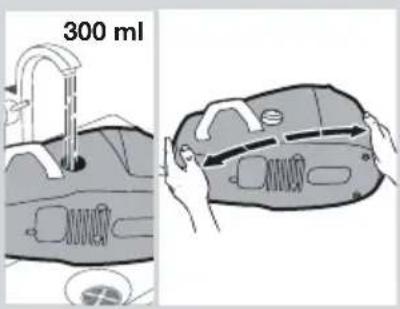

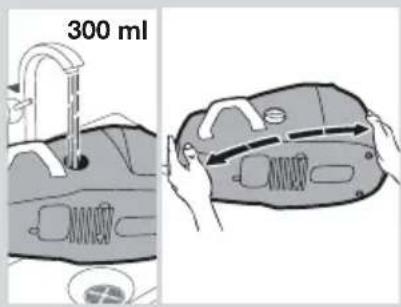

5 Fill the boiler with approximately 300 ml of tap water. Close the boiler cap and shake the base unit for a few moments. Then, empty it completely.

Important: To obtain the best result, we recommend that this operation be performed twice. Before re-closing, make sure no water remains in the boiler.

6 If your appliance is equipped with scale collector (9*), it must be washed (see the "Descaling the scale collector" section).

7 Replace and tighten up the cap.

Descaling the limescale collector \*

1 Place the limescale collector under the water tap.

2 Wash it up until limescale residues are removed.

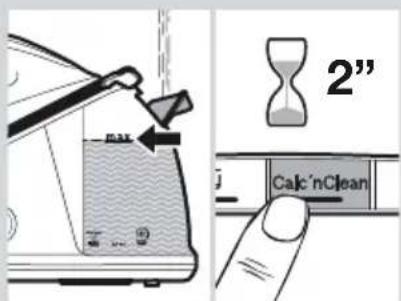

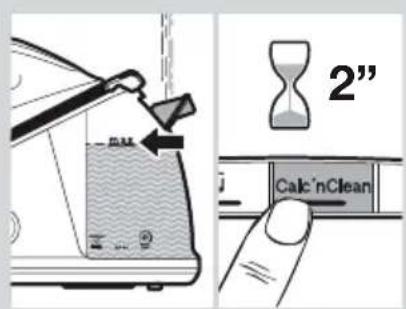

Descaling the iron

1 Fill the tank (10) with tap water.

2 Plug in the mains cable (7) and press the button (2) to switch the appliance on.

3 Press the descaling button (3) for 2 seconds. Its indicator light will remain permanently lit.

4 Wait until the indicator light (2) stops flashing and remains lit permanently. Two beeps will be heard.

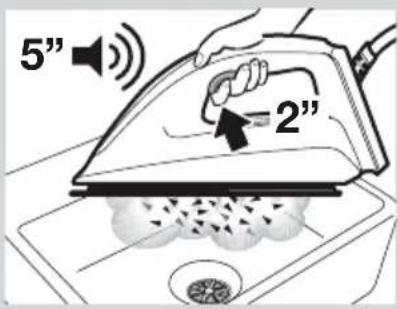

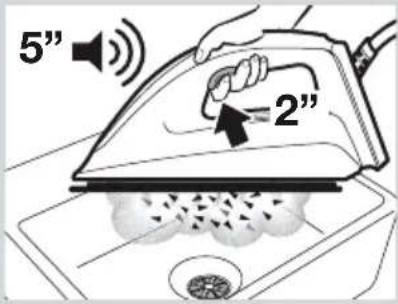

5 Hold the iron in a horizontal position over an empty sink to collect the water. If your appliance is equipped with a "Calc'nClean" container (18*), place the iron on it. Warning: the container must only be used to perform the descaling process. It must not be used as a stand for the iron while ironing.
6 Press the steam release button (15) for 2 seconds. The descaling process will start automatically. Warning: boiling water and steam will be released through the soleplate, carrying limescale and/or deposits that may be inside. During the process, a beep will be heard every 5 seconds.
7 After approximately 3 minutes, the iron will stop releasing steam. A long beep will be heard, indicating that descaling process has finished. The appliance will switch off automatically.

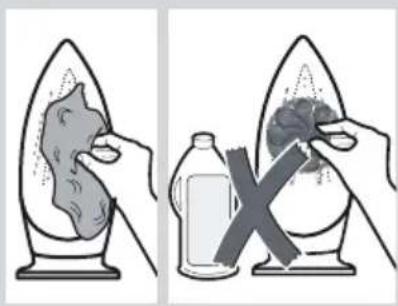

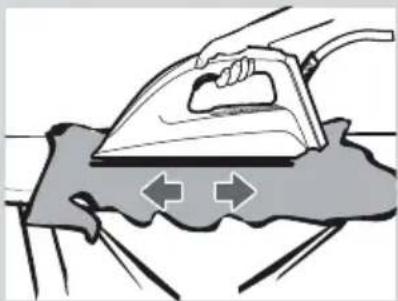

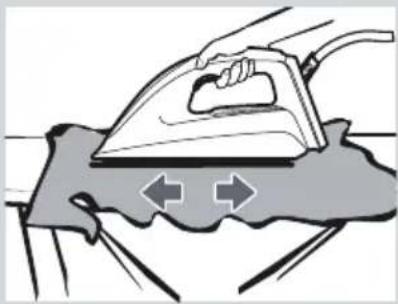

8 To clean the soleplate (17), immediately rub off any residue by running the hot iron over a wet cotton cloth.

2. Cleaning the appliance

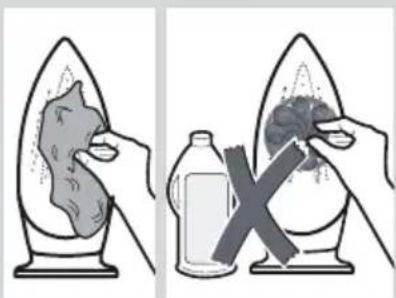

Regularly clean your appliance for properly maintenance. Attention! Burn risk!

1 If the appliance is only slightly soiled, wipe it with a damp cotton cloth only, and then dry it.
2 If the cloth is synthetic, it may melt due to the high temperature on the soleplate. Switch the steam off and rub off any residue immediately with a thickly folded, damp cotton cloth.
3 To keep the soleplate smooth, you should avoid contact with hard metal objects. Never use a scouring pad, or chemicals to clean the soleplate.

Line drawing of a pair of steam iron on a table (no text or symbols)

Illustration of a hand using an iron on a surface with directional arrows indicating motion (no text or symbols)

Illustration of a medical or surgical device with tubing and a checkmark (no text or symbols)

1 Unplug the appliance and let it cool down. Empty the water tank (10).

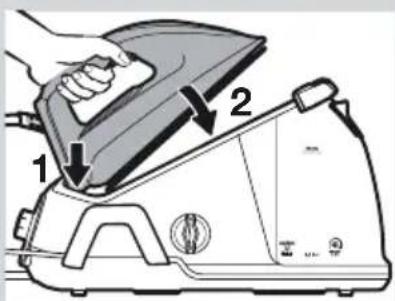

2 Place the iron on the steam station, standing on the pad (13). If your steam station is equipped with iron lock system (14^*) , fix the iron to it. First insert the heel and then block the tip moving the lock system against the iron.
3 Store the steam hose (6) and the mains cable (7) on the storage holder (8).

Trouble shooting

Problem Possible causes Solution
The iron begins to smoke when switched on.	1. During first use: certain components on the appliance have been lightly greased at the factory and may produce a small amount of smoke when initially heated.2. During subsequent use: the soleplate may be soiled.	1. This is completely normal and will stop after a short while.2. Clean the soleplate according to the cleaning instructions in this manual.
Water flows through the holes on the soleplate.	1. The water is condensing inside the tubes because steam is being used for the first time or has not been used for a long time.	1. Point the iron away from the ironing area and press the steam release button until steam is produced.
Dirt comes out through the soleplate.	1. There is a build up of limescale or minerals in the boiler and iron.2. Chemical products or additives have been used.	1. Carry out a cleaning cycle (see the “Descaling process” section).2. Never add products to the water (see the “Filling the water tank” section).Clean the soleplate with a damp cloth.
The “Calc'nClean” indicator light (3) does not turn off.	1. The iron descaling process has been stopped before being completed.	1. Restart and complete the iron descaling process.
The ironed garment turns a dark colour and/or sticks to the soleplate.	1. The selected temperature is too high and has damaged the garment.	1. Select a suitable temperature for the material being ironed and clean the soleplate with a damp cloth.
The appliance makes a pumping sound.	1. Water is being pumped into the steam tank.2. The sound does not stop.	1. This is normal.2. If the sound does not stop, do not use the steam station and contact an authorised technical service centre.
Loss of pressure during ironing.	1. The steam release button has been activated for too long a period of time, meaning it has been pressed too frequently.	1. Use the steam release button at intervals.
Water spots appear on the garment during ironing.	1. May be caused by steam condensed on the ironing board.	1. Wipe the textile cover of the ironing board, and iron any water drops to dry them.
The hose gets hot during use.	1. This is normal. It is caused by the steam passing through the hose during steam ironing.	1. Place the hose on the opposite side so that you do not touch the hose during ironing.
Water leakage from the boiler.	1. Boiler cap (9) is loose. 1. Tighten the cap.

If the above tips do not solve the problem, get in touch with our customer service.

Guarantee conditions

The terms of the guarantee for this appliance are in accordance with that stated by our representative for the country in which it is sold.

The details of these conditions can be obtained from the retailer from whom the appliance was purchased. The purchase receipt must be presented when making any claims against the terms of this guarantee.

You can download this manual from the Bosch local homepages.

Line drawing of a medical or industrial device with hoses and a central button (no text or symbols)

الóngب على الأعصال

المحتملة الحل

Line drawing of a pair of steam covers on a table, no text or symbols present

Illustration of a hand using an iron on a surface with directional arrows indicating motion (no text or symbols)

Illustration showing two methods: a hand holding a textured object and a hand holding a bottle with a cross mark (no text or symbols present)

Line drawing of a steam iron shaver with rotational arrows indicating motion (no text or symbols)

Illustration of a hand using a wrench to clean or store floor (no text or symbols)

.5. توفير الطاقة

Illustration of a hand using an iron on a steamp, with a black arrow indicating the iron being placed on it (no text or symbols present)

Line drawing of a steam iron with sound waves and a 2x speed indicator (no text or symbols on the diagram itself)

Diagram showing a hand inserting a plug into a car's side panel, with an arrow indicating the process (no text or symbols present)

Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Bosch Customer Service

Grand Union House

Old Wolverton Road Milton Keynes

MK12 5PT

UK [phone]

IRL [phone]

www.bosch-home.co.uk
