Product Type	Dishwasher
Brand	Logik
Model	LF674WN
Dimensions (H x W x D)	820 x 600 x 600 mm
Rated Voltage	230 V ~ 50 Hz
Rated Power	1930 W
Energy Efficiency Class	A
Wash Performance Class	A
Drying Performance Class	A
Place Settings	12
Number of Wash Programmes	7
Control Type	Electronic with LED display
Number of Spray Arms	2
Water Pressure (min/max)	0.04 MPa / 1 MPa (0.4-10 bar)
Salt Reservoir Capacity	1.2 kg
Rinse Aid Reservoir Capacity	110 ml
Delayed Start	Up to 24 hours
Half Load Option	Yes (upper basket only)
3-in-1 Program	Yes

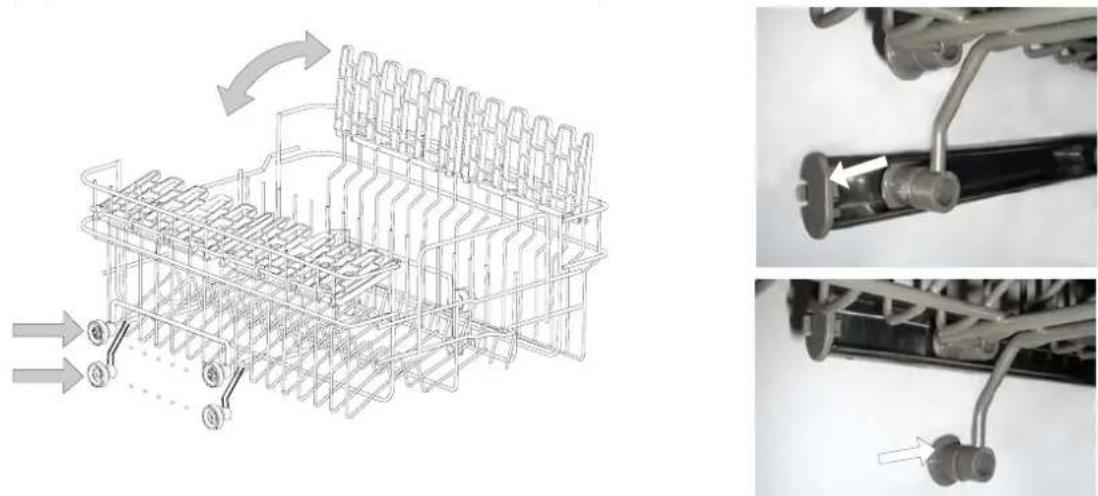

Upper Basket Height Adjustment	Yes

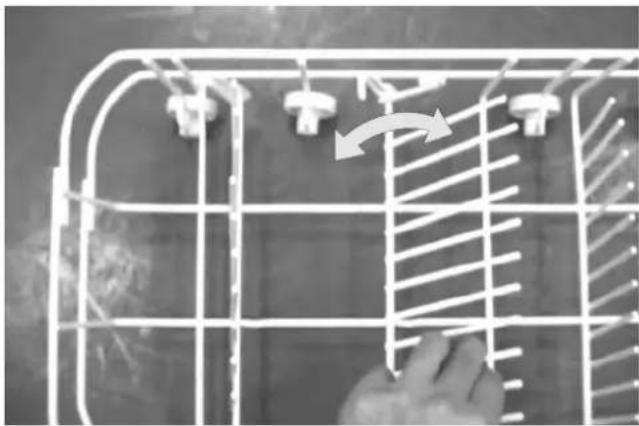

Folding Spikes in Lower Basket	Yes
Filter System	Three-stage (coarse, main, fine)
Condensation Strip	Included for built-in installation

Frequently Asked Questions - LF674WN Logik

How do I add salt to the dishwasher?

Remove the lower basket, unscrew the salt reservoir cap. For first use, fill with 500 ml of water, then add about 1.2 kg of dishwasher salt using the funnel. Wipe up any spills, screw cap back on, and run a rapid wash cycle immediately without dishes.

Why are my dishes not clean after a cycle?

Possible causes: incorrect program selection, improper loading blocking spray arms, old or damp detergent, low water pressure, or empty rinse aid. Check the wash cycle table and ensure dishes are arranged correctly. Use fresh detergent and adjust rinse aid setting if needed.

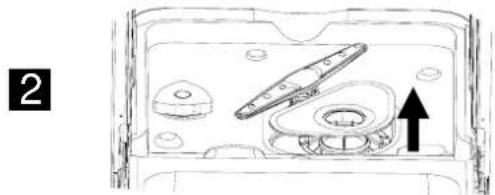

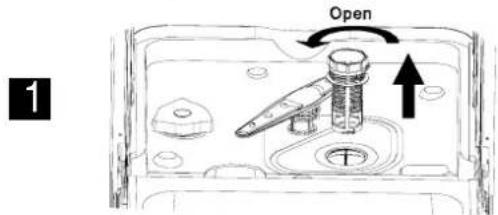

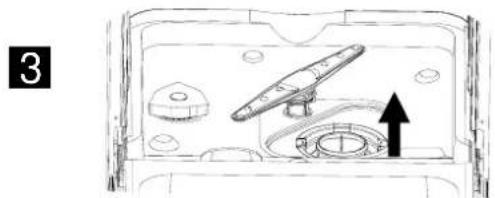

How do I clean the filters?

Inspect filters after each use. Unscrew the coarse filter and lift it out, then lift out the main and fine filters. Rinse all filters under running water and remove debris. Reassemble in reverse order: fine, main, then coarse filter. Never run dishwasher without filters.

What does the E1 error code mean?

E1 indicates water tap is off or low water pressure (<0.04 MPa). Check that the water tap is fully open. If problem persists, the flow meter may be faulty or connections loose. Disconnect power and call for service if needed.

Can I use regular dish soap instead of dishwasher detergent?

No, never use soap, laundry detergent, or hand washing liquid. Only use detergents specifically designed for automatic dishwashers. Using improper detergent can cause excess suds and damage the appliance.

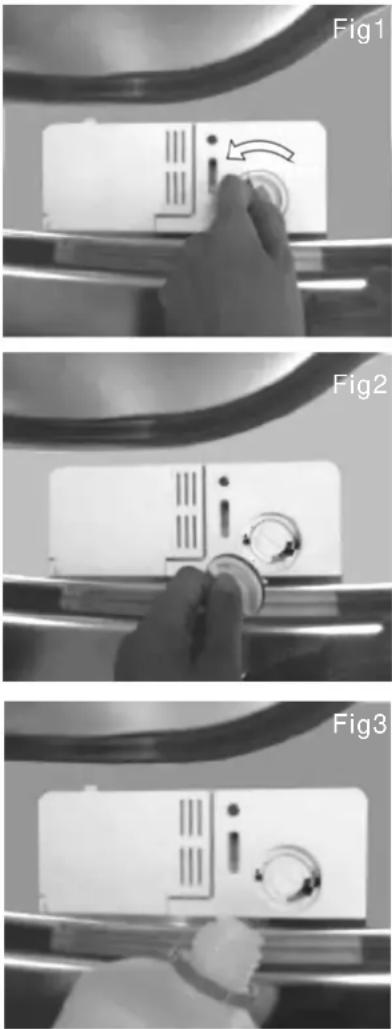

How do I adjust the rinse aid dispenser?

The rinse aid reservoir has 6 settings. The factory setting is 4. If dishes are spotted or not drying properly, turn the dial to a higher number (up to 6). Refill when the black indicator dot becomes small or the warning light illuminates.

What is the maximum height for drain hose connection?

The drain hose must be placed between 40 cm and 100 cm from the floor. Ensure it is not kinked and is securely connected to the waste pipe. Do not extend the hose, as it may impair drainage.

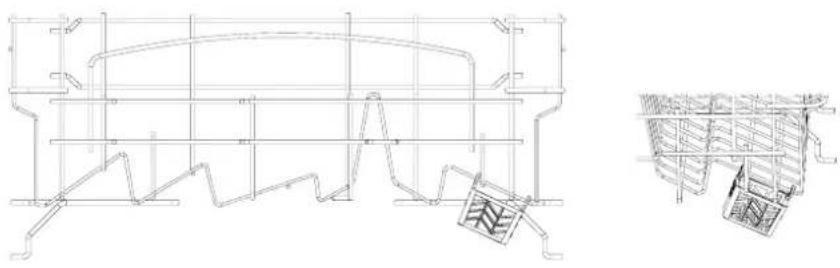

How do I use the 3-in-1 program?

Place a 3-in-1 tablet in the special basket hanging on the upper basket. Ensure the upper spray arm can rotate freely. Then select the 3-in-1 wash cycle. This program does not require separate salt or rinse aid.

Why is there water in the bottom of the dishwasher after a cycle?

A small amount of clean water around the pump outlet at the back of the tub is normal to keep the water seal lubricated. If water is excessive or smelly, check the filters and drain hose for clogs.

How do I level the dishwasher?

Adjust the four feet at the front and rear. Rear feet are adjusted by turning screws on the left and right side of the cabinet. Front feet are turned with a wrench. The door should close without catching. Use a spirit level to ensure it is level.

USER MANUAL LF674WN Logik

Technical line drawing of a multi-level kitchen appliance with visible dish compartments and wheels (no text or labels)

Read this Manual

This manual contains sections of Safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips etc. Carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly.

Before Calling for Service

To review the section on Troubleshooting Tips will help you to solve some common problems by yourself and reduce the need to ask for the help of professional technicians.

NOTE:

This product has been wet tested to ensure correct operation. As a result, some water can remain inside the unit. This si normal and safe. Please remove any water droplets from the exterior if necessary.

Thank You!

NOTE:

The manufacturer, following a policy of constant development and up-dating of the product, may make modifications without giving prior notice.

Safety Information....1

Installation of dishwasher .....2-4

Operating Instructions

Control Panel 5

Dishwasher Features 5

Wash Cycle Table 6

Turning On the Appliance .....6

Salt 7

Detergent 8

Rinse Aid 9

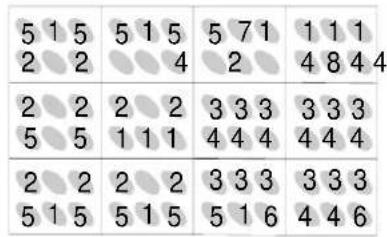

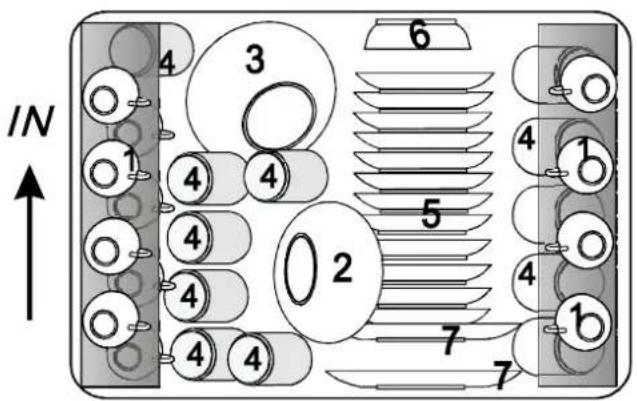

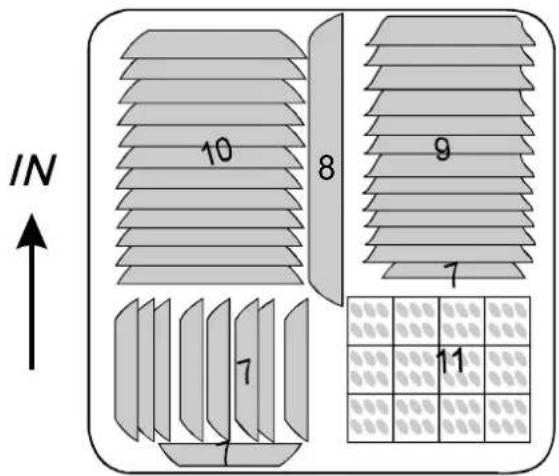

Loading the Dishwasher Rack ..... 10-13

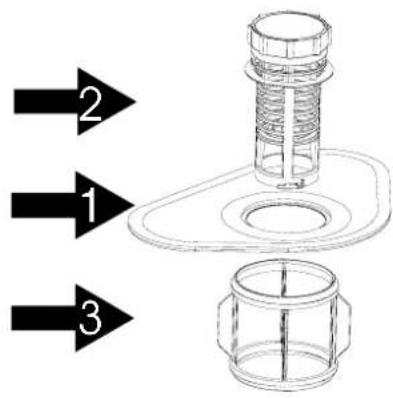

Filtering System....14

Caring for the Dishwasher ..... 15-16

Installation instruction

About Electricity connection ..... 16

Troubleshooting Tips

Before calling for service.... 17,18

Fault codes 19

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING

WARNING!

When using your dishwasher, follow the precautions listed below:

EARTHING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standard and requirements.

▲ WARNING!

Improper connection of the equipment-earthing conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed. Do not modify the plug provided with the appliance. If the plug does not fit properly to the outlet, please have a qualified electrician to install a proper outlet.

WARNING! PROPER USE

Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
- Do not touch the heating element during or immediately after use.
Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
- Do not place any heavy objects on the door when it is open. The appliance could tip forward.
■ When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

2(Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

When using your dishwasher, you should prevent plastic items from coming into contact with heating element.
- Check that the detergent receptacle is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items at so marked, check the manufacturer's recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.
- Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3mm contact separation in all poles.

• Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.
  ■ Young children should be supervised to ensure that they do not play with the appliance.
  The appliance is not intended for use by young children or infirm persons without supervision.
  ■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
  The door should not be left in the open position since this could present a tripping hazard.
  If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

• Please dispose of packing materials properly.
  ■ Use the dishwasher only for its intended function.
  During installation, the power supply cord must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.

The appliance is to be connected to the water mains using new hose sets. Old hose-sets should not be reused.
The maximum number of place settings to be washed is 12.
The maximum permissible inlet water pressure is 1Mpa.
The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY

SAVE THESE INSTRUCTIONS

CONDENSATION STRIP

£For all the built-in models and some free standing models (when you take off the top board and put the unit into the cabinet), this condensation strip must be fitted to the underside of the worktop above your dishwasher to protect it against any moisture. Its purpose is to deflect steam rising from your appliance to protect your worktop's underside.

• The strip is located inside your dishwasher.
- Ensure the surface is clean prior to sticking to underside of the worktop.
- Separate the backing paper from the strip.

Stick to the underside of the worktop.

Note: Failure to attach strip could result in damage to the underside of your work surface!

Installation of dishwasher

Remove all packaging before positioning the machine.

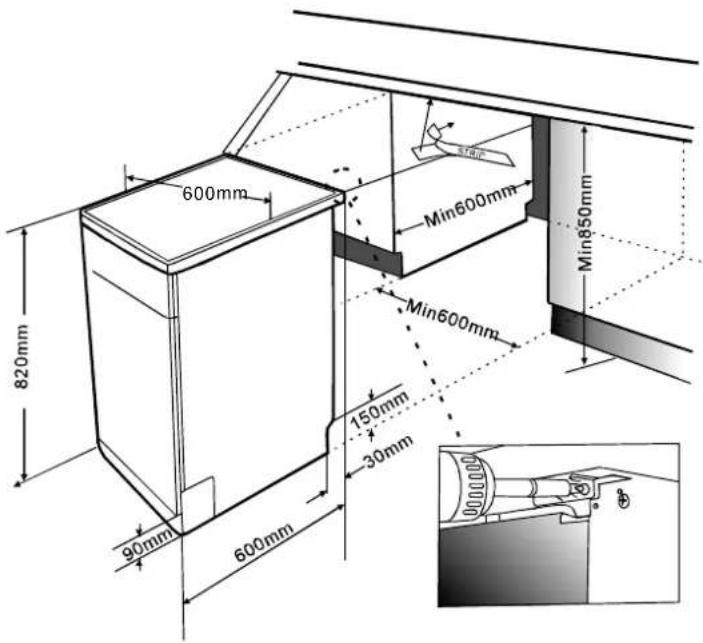

See the following diagram. Ensure there is a clearance each side of the machine to allow slight side ways movement for servicing

You can install the machine under a close fitting sink unit.

Position the machine next to a water tap and a drain.

When inserting the machine, ensure that the water inlet and drain hoses are not kinked or squashed.

Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

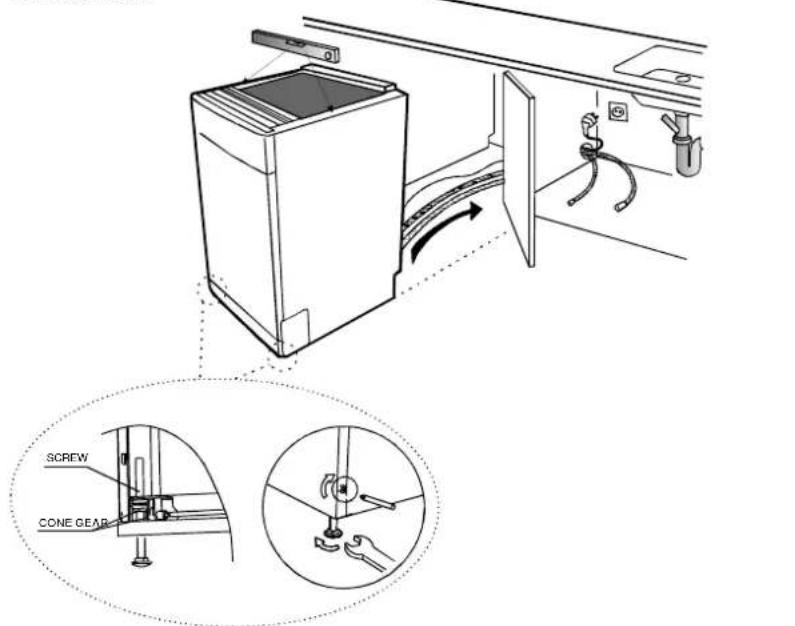

Good levelling is essential for correct closure and sealing of the door.

When the appliance is correctly levelled, the door will not catch on the inner liner on either side of the cabinet.

If the door does not close correctly, loosen or tighten the adjustable feet, until the machine is perfectly level.

The rear feet can be adjusted from the front of the dishwasher by turning the screws on the left and right hand side of the cabinet. To adjust the front feet, use a wrench and turn the front feet until the dishwasher is level.

Installation

Water inlet hose connection

Make sure your plumbing is suitable to install with the new dishwasher. If in doubt contact a qualified plumber.

The appliance must be connected to the cold water mains using the new dishwasher. Old hose sets must not be re-used.

The water pressure coming from the water mains supply need to be at a minimum of 0.4 and to maximum of 10 bars.

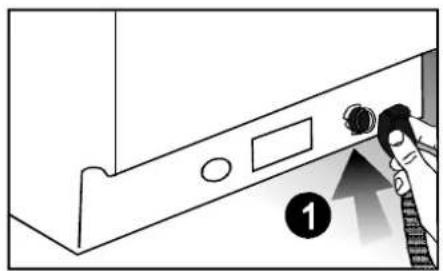

First connect water inlet hose to your dishwasher as①. Ensure black rubber seal is in place.

Then connect the straight end to your water mains supply as②. Ensure black rubber seal is in place.

Turn on the tap and check for leakages after connecting the hose.

Please ensure the tap is turned off when the machine is not used.

Illustration of a hand holding a wrench with a tool and a curved arrow, no text or symbols present

Diagram of a mechanical device with a lever and two legs, showing an upward arrow (no text or symbols)

:If you only have cold water mains The Y adaptor can be used to provide you with the additional cold water feed you need for the Y adaptor is available. dishwasher from most DIY stores.

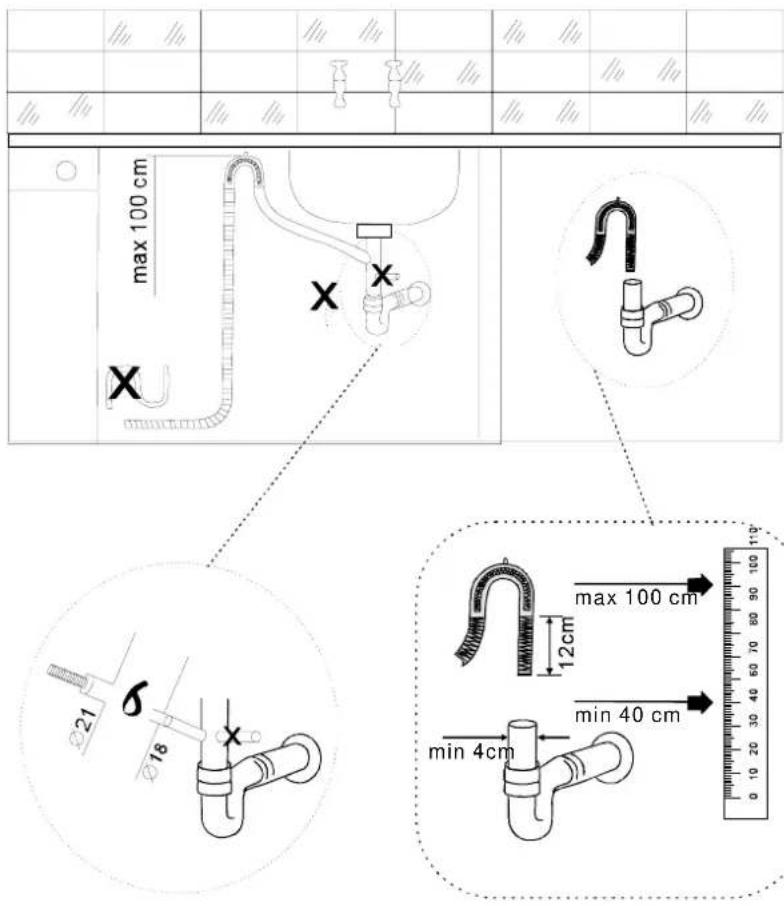

Drain hose connection

• Fit the drainage hose of your machine to the drainage pipe without bending.
• Secure your hose firmly to the waste pipe to avoid it coming off during the washing process.
• The waste pipe must only be connected into the foul drains and not surface water drainage system.
• The hose should be placed between 40 cm and 100 cm from the floor level and must not be extended otherwise the machine may not be able too expel the waste water properly.

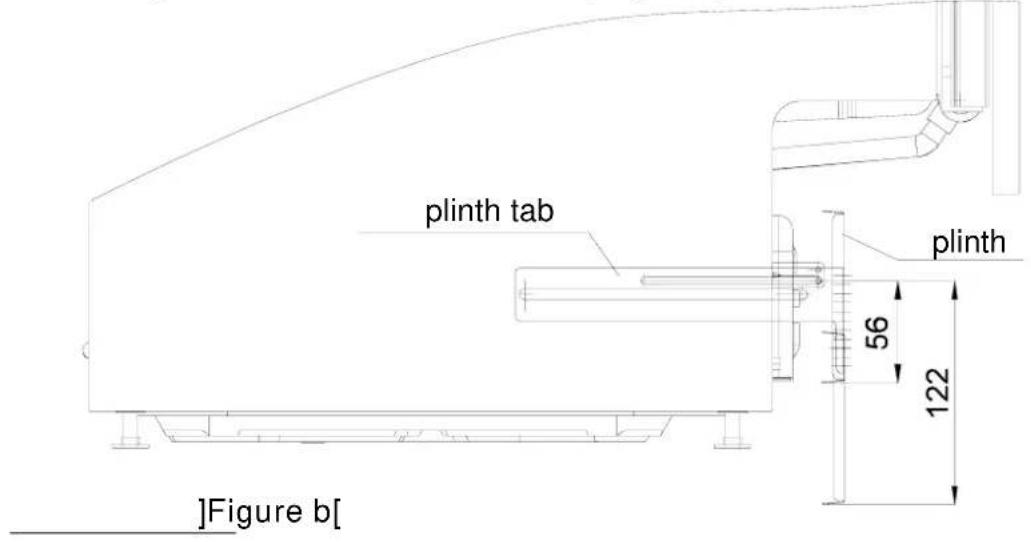

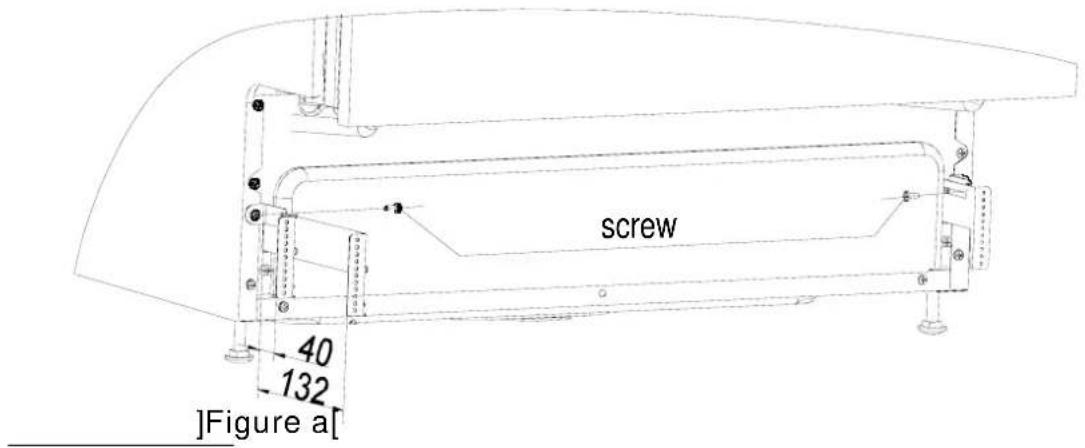

1 Unscrew the adjusted distance of left and right plinth tab to your need. The adjustable range is from 39mm to 134mm. [Figure]a

2 Fix the plinth on the plinth tab. According to your need to adjust the plinth height, the adjustable range is from 56mm to 122mm. [Figure ]b

IMPORTANT!

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

Control Panel

8

1 ON/OFF Button: Turn on/off the dishwasher.
2 Power Light: Toill whenette ON/OFF Button is pressed down.
3 Half washing Light : To illuminate when the dishwasher is power on.
4 Half Wash Button : Press to select the halfwash option. (During half wash programme, you should only load the lighted soiled dishes to the upper basket as the lower spray arm will not be running nor rotating.)

5 Delayed Start Button: To preset the wash timer and delay the starting time up to 24 hours. Each press of this button increases the delay start time by 1 hour interval.
6 Display Window: To display the delay time and programme numbers (P1-7)
7 Program Button: To select your required washing programme.
8 Display Window on the door: To display the programme remaining time, delay time, fault codes, etc.

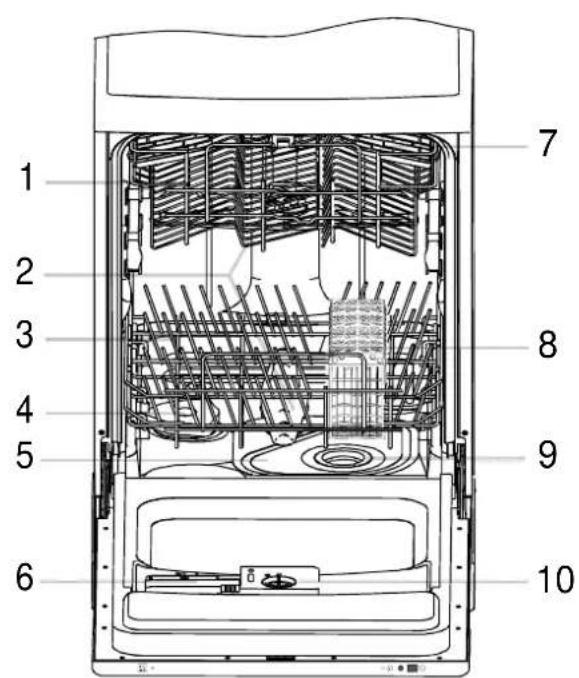

Dishwasher Features

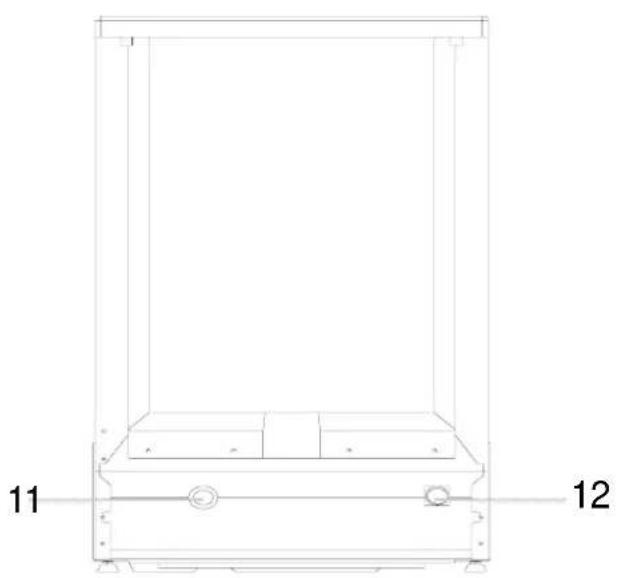

Technical line drawing of a mechanical device with labeled parts 11 and 12 (no text or symbols on the diagram itself)

1 Upper Basket 4 Salt Reservoir 7 Cup Shelf
2 Spray Arms 5 Main Filter 8 Cutlery Basket
3 Lower Basket 6 Detergent Dispenser 9 Coarse Filter
10 Rinse Aid Reservoir
11 Drain Hose Connector
12 Inlet Hose Connector

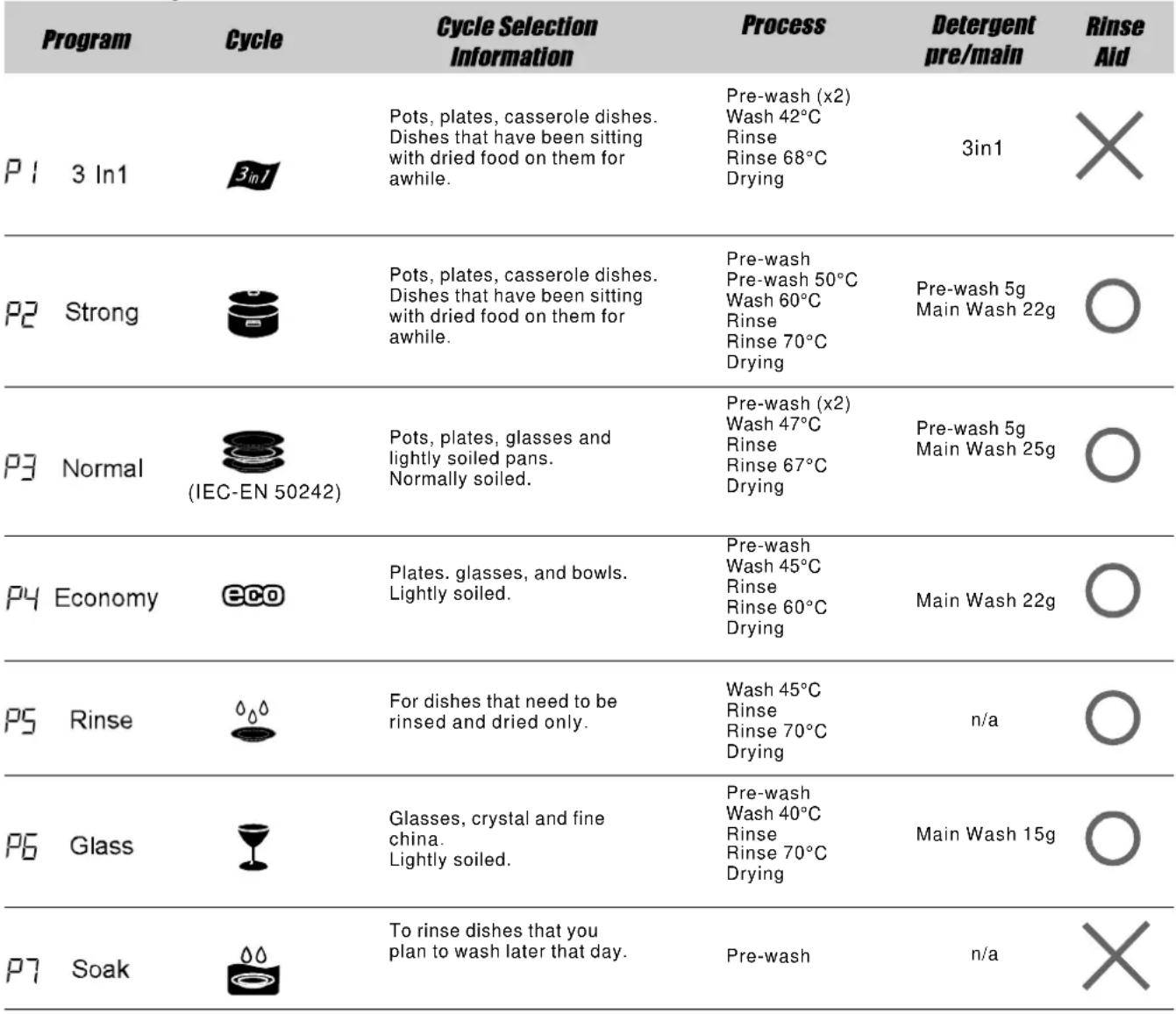

Wash Cycle Table

Turning on the Appliance

Starting a wash cycle...

1. Ensure the unit is connected to the mains power and the watersupply is on (water pressure between 0.04MPa and 1.00MPa).
2. Open the door. Pull out the lower and upper baskets, load the dishes and push the baskets back. It is recommended that the lower basket is loaded first, and then the upper basket.
3. Pour in the detergent or place the detergent tablet in the detergent compartment. Ensure the lid is firmly closed afterward.
4. Press the ON/OFF button.
5. Select the wash cycle programme based on the loading and soil requirements. Please refer to the "Wash Cycle Table".
6. The display window will show the selected programme and the programme light will illuminate in the display window on the door.
7. Close the dishwasher door. A click sound should be heard when the door is closed correctly. Do not slam the door.
8. The washing cycle will begin shortly.

Change the Programme

To change the programme if the washing cycle has already started, follow the steps below.

1. Open the door slightly to check if the unit has dispensed the detergent or detergent tablet. This will depend on how long the washingcycle was running for.
2. If the detergent dispenser lid is opened, we suggest you to allow the wash cycle to complete.
3. If the detergent dispenser lid is still closed, press and hold down the programme button for 3 seconds to cancel the programme. You can then press the required new programme button and close the dishwasher door. The unit will start the new washing cycle shortly.

NOTE: If you open the dishwasher's door during the washing cycle and then close it, the dishwasher will continue the current washing programme after 10 seconds. However, if the door is not closed correctly after 1 minute, the dishwasher will make an audible sound at 1 minute intervals.

At the end of the wash cycle

At the end of the wash cycle, the time display will flash for 8 seconds while the unit will sound. Under delay start mode, the time display will flash for 8 seconds but the unit sound will not

SALT

If the water in your area is hard, deposit will form on your dishes and utensils. As such, this appliance contains a salt reservoir for you to reduce the hardness of water.

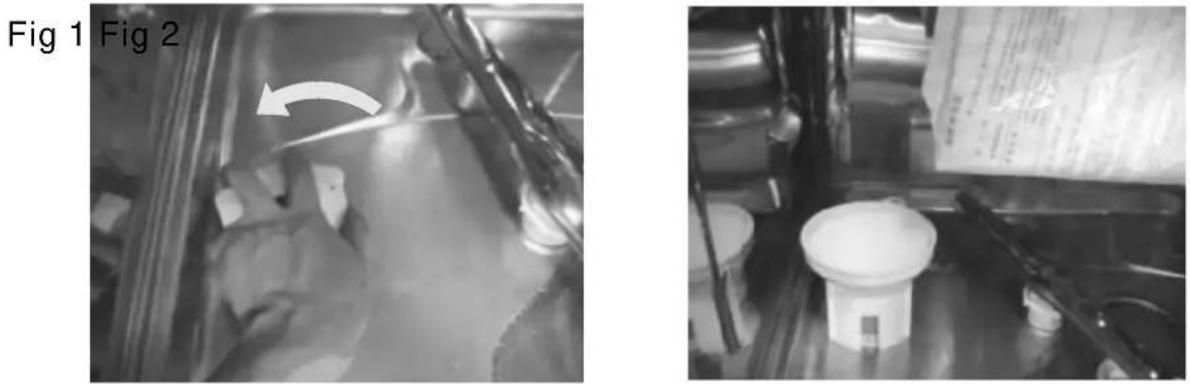

Loading the Salt into the Salt Reservoir

Please follow the steps below to pour the salt into the salt reservoir and it must be set to correspond to the water hardness level in your area.

1. Remove the lower basket and unscrew the reservoir cap. (Fig 1)
2. Fill the reservoir with approximately 500ml of water (first use only).
3. Place the funnel provided over the salt reservoir. (Fig 2)
4. Place approximately 1.2kg of salt depending on the brand used.
5. Clean any excess salt from around the reservoir opening and then screw the cap on again firmly.
6. Run the rapid wash programme immediately (without any crockery in the dishwasher) to remove any traces of salt from the compartment.

NOTE: 1. The salt warning light will illuminate when the reservoir is running out of salt and required re-filling.
2. The salt warning light will cease to illuminate within a few days depending on how quickly the salt dissolves.
3. Be careful not to overfill the reservoir. Wipe up any spills.

Adjusting Salt Consumption

To optimise and customise the level of salt consumption, please follow the steps below to adjust the salt consumption.

Technical line drawing of a mechanical component with concentric rings and central hub (no text or symbols)

1. Remove the lower basket and unscrew the reservoir cap.
2. There is an arrow shaped indicator in the reservoir, which allows you to turn.

You may turn it to the "-" or "+" settings based on the water hardness in your area.

It is recommended that adjustments should be made in accordance with the following chart.

WATER HARDNESS				Selector Position	Salt consumption (gram/cycle)	Auto nomy (cycles/1.2kgs)
dH	fH	Clark	mmol/l
	0~140~8 0~14~398~22	1.4 0~10		/	0	/
	14~398~22	1.4~3.910~28		-	20 60
	39~8022~45	3.9~828~56		Mid	40 30
	>80>45 >8	>56		+	60 20

1idh(German degree) = 1.25mmol/l
1;fh(French degree) = 0.1788mmol/l
1; clark(British degree) = 1.78mmol/l

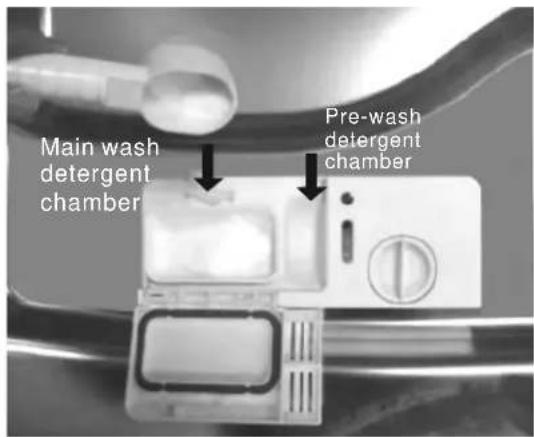

DETERGENT DISPENSER

Only use detergents specifically designed for use in dishwashers. No countertop detergent and bleach can be used. To be more environmentally friendly, please use no more than the correct amount of detergent.

Adding the detergent or detergent tablet

Please follow the steps below to fill the detergent dispenser.

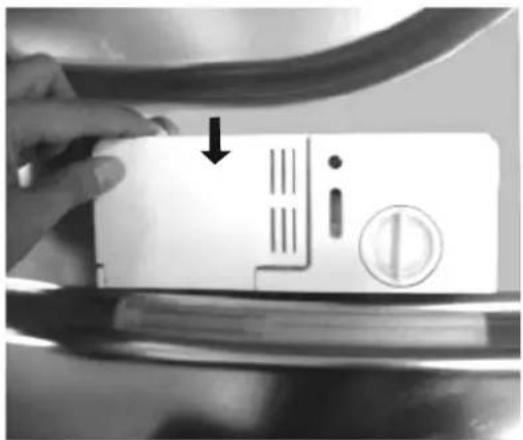

1. Push the button on the lid of the detergent dispenser in the direction of the arrow until the flap springs open.
2. Fill the detergent dispenser with detergent powder or insert the detergent tablet. The marking indicates the dosing level.

TIP: You can choose to add a detergent tablet alone or to add detergent power to both main wash detergent chamber and the pre-wash detergent chamber for your selected wash cycle.

1. All programmes with prewash need an additional detergent dosage (please refer to the wash cycle table) that must be placed in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
2. Close the lid firmly sot hat it clicks into place.

▲WARNING!

Dishwasher detergent and detergent tablet are irritant. Please keep out of the reach of children.

• Irritating to eyes.
• Avoid contact with eyes. In case of contact with eyes, rinse immediately with plenty of water and seek medical advice.
• If swallowed, seek medical advice immediately.

Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and help crockery to dry faster after it has been washed. Only pour rinse aid that is for domestic dishwasher into the reservoir. This model is designed to use liquid rinse aids only.

Please follow the steps below to pour the rinse aid into the storage reservoir, and the amount will dispense automatically.

1. Turn the cap and open as indicated in Fig 1.
2. When the cap open marking is aligned, you may lift the cap up.
3. Pour the rinse aid until the level indicator turns completely black in colour and close the cap.
   Be careful not to overfill the reservoir. Wipe up any spills. The approximate volume of the rinse aid reservoir is 110ml.

NOTE: If the water hardness in your area is soft, you may not need to rinse aid as it may cause white film to develop on your dishes.

Rinse aid warning light will illuminate when the reservoir is running out of rinse aid and required re-filling.

Alternatively, you can judge the amount of rinse aid by checking the rinse aid indicator right next to the reservoir's cap. When the indicator is black, it means it is full. When it is clear, it means it is almost empty.

Adjusting Rinse Aid Dispenser

The rinse aid reservoir has 6 settings. Both the recommended setting and the factory setting is "4." If the dishes are or drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free.

When to Refill the Rinse Aid Dispenser

If there is no rinse aid warning light in the control panel, you can judge the amount of rinse aid by the following means. The black dot on the rinse aid dispenser indicates the amount of rinse aid in the dispenser. As the rinse aid diminishes, the size of the black dot decreases. You should never let the rinse aid get below 1 / 4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3 / 4 full
1 / 2 full
- 1 / 4 full - Should refill to eliminate spotting
○ Empty

HOW TO USE THE 3 IN 1 PROGRAM

You dishwasher has a 3 in 1 wash cycle option. It does not require salt nor rinse aid, but a 3 in 1 tablet. This dishwasher comes with a 3 in 1 tablet basket as an accessory.

NOTE: Please use 3 in 1 tablet for 3 in 1 program.

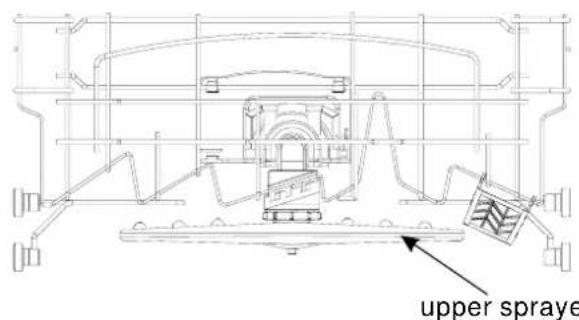

1. The 3 in 1 basket is hanging on the upper basket as shown below.

Technical line drawing of a structural frame with internal supports and a separate 3D view of a grid-like structure (no text or symbols)

1. The upper spray arms must not be blocked in any cases.

Test for free movement by manually rotating the spray arms, so you can adjust the location of the 3 in 1 tablet basket accordingly.

1. After the 3 in 1 tablet is inserted, you may then select the 3 in 1 wash option to start the washing cycle.

Loading the Dishwasher Basket

For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery basket may vary from your model.

Attention before or after Loading the Dishwasher Racks

Scrape off any large amounts of left-over food. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way

1. Items such as cups, glasses, pots/pans, etc. are stood upside down.
   2.Curve items, or those with recesses, should be at a slant so that water can run off.
2. They are stacked securely and cannot tip over.
3. They do not prevent the spray arms from rotating while washing takes place.
   Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Removing the dishes

To prevent water dripping from the upper basket of baskets in the lower, we suggest that you empty the lower basket first and then the upper basket

Loading the Upper Basket

The upper base designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).

Position the dishes and cookware so that they will not get moved by the spray of water.

The height of the upper basket can be adjusted by placing the wheels on different height of the rails. For the placement method of the upper basket, please refer to the illustrations in "Adjusting the Upper Basket" section.

1 Cups
2 Small serving bowl
3 Large serving bowl
4 Glasses
5 Saucers
6 Dish
7 Dessert dishes

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper or lower basket.

The upper basket can be adjusted for height by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back or remove when not required for use.

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below.

It is preferable to place serving dishes and lids on the side of the basket in order to avoid blocking the rotation of the top spray arm.

Please be reminded that:

Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom basket features folding spikes, so that larger or more pots and pans can be loaded.

7 Dessert dishes
8 Oval platter
9 Soup plates
10 Dinner plates
11 Silverware basket

Place object in the dishwasher in such a way that

■ Items such as cups, glasses, pots, pans, and etc should stand upside down.
■ Curved items or those with recesses should be at a slant so that water can run off.
■ Please stack your soil dishes securely and ensure they will not tip over.
■ Ensure your soiled dishes will not prevent the spray arms from rotating while washing takes place. Very small items should not be washed in dishwasher as they should easily fall out of the basket.

Folding spikes

For better stacking of pots and pans, the spikes can be folded down as picture below.

Close-up of a white wire cage with diagonal lines and a hand adjusting the top panel (no text or symbols visible)

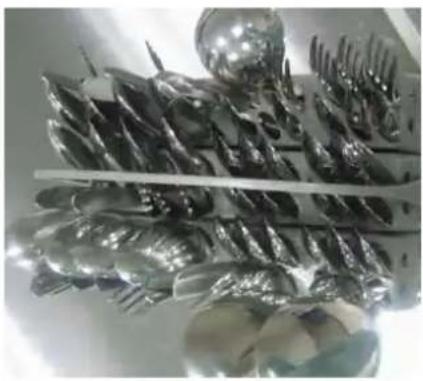

CUTLERY BASKET

Cutlery should be placed in the cutlery basket with handles at the bottom. If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the basket as shown.

Close-up of metallic mechanical components with textured surfaces and a central rod (no visible text or symbols)

2
1. Forks 5. Knives
2. Soup spoons 6. Serving Spoons
3. Dessert spoons 7. Gravy Ladle
4. Teaspoons 8 Serving Fork

▲ WARNING!

Do not let any item extend through bottom.

Not suitable for the dishwasher

The following should not be loaded in the dishwasher:

■ Wooden cutlery and utensils-these will leach out and become unsightly.
Sensitive ornamental glasses, craft utensil and vases, special antique or irretrievable utensils. These ornaments are not designed to be cleaned in dishwasher.
Plastic parts that are not suitable to be washed in hot water.
Copper and tin utensils.
■ Utensils which are soiled with ash, wax, lubricating grease or ink.
■ Absorbent materials such as sponges and cloths.

Aluminum and silver parts have a tendency to discolour and fade during the wash cycle. Some types of glass may turn cloudy after repeated wash cycles.

Recommendation:

Consider buying utensils which are identified as dishwasher-proof.

Damage to glassware and other dishers

Possible causes:

■ Type of glass or manufacturing process.
Chemical composition of detergent.
Water temperature and duration of dishwasher programme.

Suggestions:

Use glassware or porcelain dishes that have been marked 'dishwasher-proof' by the manufacturer.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from detergent manufacturers.
For particular items, select a low temperature programme.
To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended.

Filtering System

The filter prevent larger remnants of food or other objects from getting inside the pump. This residue can occasionally clog up the filters.

The filter system consists of a coarse filter, a main filter and a fine filter.

Main filter 1

Food and soil particles trapped by this filter are pulverised by a special jet on the lower spray arm and washed down the drain.

Coarse filter 2

Larger items, such as pieces of bone or glass, that could clog the drain are trapped in the coarse filter. To remove an item caught in this filter, gently squeeze the taps on the top of this filter and lift it out.

Fine filter 3

This filter holds soil and food residue in the sump area and prevents it from being redeposit on the dishes during a cycle.

• Inspect the filters for obstructions every time the dishwasher has been used.
• By unscrewing the coarse filter remove the filter system. Remove any food remnants and clean the filters under running water.

Step 1: Unscrew the Coarse filter, and then gently lift it up.

Technical line drawing of a mechanical assembly with no visible text or symbols

Step 2: Gently lift the Main filter up.

Technical diagram of a mechanical component with a central lever and mounting holes, showing no text or symbols.

Step 3: Gently lift the Fine filter up.

NOTE:

To install the filter system back, please do the following:

1. Gently insert the Fine filter back to the Filtering System.
2. Gently insert the Main Filter back to the Filtering System.
3. Gently insert the Coarse Filter back to the Filtering System, and screw back the Filter Cylinder securely.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth and dry thoroughly. The exterior can be cleaned by the applying of good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Protect Against Freezing

If your dishwasher is left in an unheated place over the winter, ask a service technician to:

1. Cut off electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water supply hose from the water valve.

3. Drain water from the water supply hose and water valve. (Use a pan to catch the water.)

4. Reconnect the water supply hose to the water valve.

5. Remove the filter in the tub at the bottom and use a sponge to soak up water in sump.

Cleaning the Spray Arms

Line drawing of a mechanical lever or handle component (no text or symbols)

It is necessary to clean the spray arms regularly for removing the accumulation of scale for the hard water and thus prevent blocking of spray arm jets and bearings. To remove the spray arm, screw off the nut to take out the washer on top of the spray arm and remove the arm. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Cleaning the Filters

1

2

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

3

Technical diagram of a mechanical component with a handle and circular base, showing internal structure without any text or symbols.

Filter assembly

For best performance and results, the filter assembly must be clean regularly. The filter efficiently removes food particles from the wash water, allowing it to be recirculated during the cycle. For this reason, it is a good idea to remove the larger food particles trapping in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter assembly, pull on the cuphandle in the upward direction. The entire filter assembly should be cleaned once a week. To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures left and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward. The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

▲ WARNING!

Never run the dishwasher without the filters in place.

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finishing. Some paper towels may also scratch or leave marks on the surface.

WARNING!

Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components. Abrasive agent or some paper towel should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

How to Keep Your Dishwasher in Shape

After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

When the dishwasher not being used for an extended period

It is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

About Power Connection

CAUTION, for personal safety:

DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING CONNECTION FROM THE POWER CORD.

Electrical Requirements

Please see the rating lable to know the rating voltage and connect the dishwasher to the appropriate power supply. Use required fuse 13 amp. Fused electrical supply is required-copper wire only. Time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. Outlet should be placed in adjacent cabinet.

Electrical Connection

⚠️ Insure proper ground exists before use

Ensure the voltage and frequency of the power being used correspond to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Before Calling for service . . .

Troubleshooting Tips

Review the charts on the following pages may make you be free of calling for service.

Problem	Possible Causes	What To Do
Dishwasher doesn't run	Fuse blown, or the circuit breaker acted	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
	Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low	Check that the water supply is connected properly and the water is turned on.
Drain pump doesn't stop	Overflow	The system is designed to detect an overflow. When it does, it shuts off the circulation pump and turns on the drain pump. Please contact a qualified technician for assistant.
Noise	Some audible sounds are normal	● Those audible sounds are from sprayers and Detergent dispenser.
	Utensils are not secure in the baskets or something small has dropped into the basket	To ensure everything is secured in the dishwasher.
	Motor hums Dishwasher has not been used regularly. If you do not use it often, remember to set it to fill and pump out every week, which will help keep the seal moist.
Suds in the tub	Improper detergent	● Use only the special dishwasher detergent to avoid suds● Open the dishwasher and let suds evaporate if this occurs.
	Spilled rinse agent	Always wipe up rinse agent spills immediately.
Stained tub interior	Detergent with colorant was used	Make sure that the detergent is the one without colorant.
Dishes are not dried	Rinse agent dispenser is empty	Make sure that the rinse agent dispense is filled.
Dishes and flatware not clean	Improper program	Select program with heavy cleaning option.
	Improper rack loading Make sure that the action of the detergent dispenser and spray arms are not blocked by large dishware.
Spots and filming on glasses and flatware	1 Extremely hard water2 Low inlet temperature3 Overloading the dishwasher4 Improper loading5 Old or damp powder detergent6 Empty rinse agent dispenser7 Incorrect dosage of detergent	To remove spots from glassware:1 Take out all metal utensils out of the dishwasher.2 Do not add detergent.3 Choose the longest cycle.4 Start the dishwasher and allow it to run for about 18 to 22 minutes, then it will be in the main wash.5 Open the door to pour 2 cups of white vinegar into the bottom of the dishwasher.6 Close the door and let the dishwasher complete the cycle. If the vinegar does not work: Repeat as above, except use 1/4 cup (60 ml)of citric acid crystals instead of vinegar.

Before calling for service...

Problem Possible Causes What To Do

Cloudiness on glassware	Combination of soft water and too much detergent	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
Yellow or brown film on inside surfaces	Tea or coffee stains Using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand.⚠ WARNINGYou have to wait for 20 minutes after a cycle to let the heating elements cool down before cleaning interior; otherwise, burns will happen.
	Iron deposits in water can cause an overall film	You have to call a water softener company for a special filter.
White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any cleaner other than dishwasher detergent for the risk of foaming or suds.
Detergent cup lid won't latch	Dial is not in the OFF position	Turn the Dial to OFF position and slide the door latch to the left.
Detergent left in dispenser cups	Dishes block detergent cups	Re-loading the dishes properly.
Steam	Normal phenomenon	There is some steam coming through the vent by the door latch during drying and water draining.
Black or gray marks on dishes	Aluminum utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Water standing in the bottom of the tub	This is normal A small amount of clean water around the outlet on the tub bottom at the back of the tub keeps the water seal lubricated.
Dishwasher leaks	Overfill dispenser or rinse aid spills	Be careful not to overfill the rinse aid dispenser. Spilled rinse aid could cause oversuding and lead to overflowing. Wipe away any spills with a damp cloth.
	Dishwasher isn't level	Make sure the dishwasher is level.

Fault codes

Codes Possible Causes Remedy

E1	W ater tap is not turn on. Turn on the water tap.
	Low water pressure (<0.04MPa)	Turn on the water tap and ensure full opening position.
	Flow meter is broken.	Disconnect from the mains.Disconnect the water inlet.Call the service.
	The wire terminal which connects to the flow meter loosen.
E3	The temperature sensor is broken.Heater element is broken.The wire terminal connected to the heater is loosen.The wire terminal connected to the temperature sensor is broken.	Disconnect from the mains.Disconnect the water inlet.Call the service.
E4	The tank is leaking.The hose is leaking.Drain Hose kinked.Filter clogged.Flow meter is broken.The wire terminal which connects to the flow meter is loosen.	Disconnect from the mains.Disconnect the water inlet.Call the service.
E6,E7	The temperature sensor is broken.Heater element is broken.The wire terminal which connects to the heater is loosen.	Disconnect from the mains.Disconnect the water inlet.Call the service.

Specifications:

RATED VOLTAGE: 230V / 50Hz

RATED POWER: 1930W

DIMENSION: 600X600X820(mm)

A RATED ENERGY EFFICIENCY

A RATED WASH PERFORMANCE

A RATED DRYING PERFORMANCE

Features:

12 PLACE SETTINGS

7 WASH PROGRAMMES

ELECTRONIC CONTROL

2 SPRAY ARMS

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.

Visit www.partmaster.co.uk

or call

0870 6001 338

(UK customers only)

Calls charged at National Rate.

DSG Retail Limited is responsible for after sales services. If you have a query about the product please contact our product support line 08701 565550 (Currys).

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
