Product Type	S-Video to Composite Video Encoder
Model Number	YCV 100
Brand	Extron
Dimensions (H x W x D)	1.7" x 2.2" x 3.0" (4.3 cm x 5.6 cm x 7.6 cm)
Weight	0.4 lbs (0.2 kg)
Power Supply	External 12 VDC, 0.1 A; Input 100-240 VAC, 50/60 Hz
Power Connector	2-pole captive screw connector (included)
Video Input	1 S-video (Y/C) via 2 female BNC or 1 female 4-pin mini DIN
Video Output	1 composite video via female BNC
Signal Compatibility	NTSC 3.58, NTSC 4.43, PAL, SECAM
Bandwidth	8 MHz (-3 dB)
Input Impedance	75 ohms
Output Impedance	75 ohms
Mounting Options	Tabletop, rack mount (optional), furniture mount, projector mount
Enclosure Material	Metal
Operating Temperature	+32 to +122 °F (0 to +50 °C)
Storage Temperature	-40 to +158 °F (-40 to +70 °C)
Humidity (Operating)	10% to 90% noncondensing
MTBF	30,000 hours
Warranty	3 years parts and labor
Compliance	CE, FCC Class A, VCCI, AS/NZS, ICES
Included Accessories	12V DC power supply, IEC power cord, 2-pole captive screw connector, Tweeker screwdriver, User's Manual
Optional Accessories	MBU 123 under-desk mount, PMK 100 projector mount, VersaTools rack shelf, RSU/RSB rack shelves
Maintenance	No user-serviceable parts. Keep dry and clean with a soft, dry cloth.
Safety Notes	Use only with provided power supply; observe polarity; disconnect power before servicing.

Frequently Asked Questions - YCV 100 Extron

What is the Extron YCV 100 used for?

The YCV 100 is an S-video to composite video encoder that combines luminance (Y) and chrominance (C) signals from an S-video source into a single composite video signal.

What video formats does the YCV 100 support?

It supports NTSC 3.58, NTSC 4.43, PAL, and SECAM standards.

How do I connect a source to the YCV 100?

Connect an S-video source using either the two female BNC connectors (labeled Y and C) or the 4-pin mini DIN connector. Do not use both simultaneously.

What kind of power supply does the YCV 100 require?

It uses an external 12 VDC, 0.1 A power supply that comes with the unit. The power supply accepts 100-240 VAC, 50/60 Hz input.

Can the YCV 100 be mounted in a rack?

Yes, it can be mounted on an optional VersaTools rack shelf (e.g., RSF 123, RSB 123) or a 1U universal rack shelf (e.g., RSU 129, RSB 129).

What should I do if the power LED does not light up?

Check the DC power plug termination and polarity. Ensure the power supply is connected correctly and the wall outlet is active.

Is the YCV 100 compatible with both BNC and mini DIN S-video?

Yes, it provides both BNC (two female) and 4-pin mini DIN input connectors. Use only one set at a time.

What is the bandwidth of the YCV 100?

The video bandwidth is 8 MHz (-3 dB), ensuring good signal quality for composite video output.

Are there any user-serviceable parts inside the YCV 100?

No. There are no user-serviceable parts inside. Refer all servicing to qualified personnel.

What is the warranty period for the YCV 100?

Extron provides a 3-year parts and labor warranty from the date of purchase.

USER MANUAL YCV 100 Extron

Extron. Electronics INTERFACING, SWITCHING AND DISTRIBUTION

User's Manual

YCV 100 S-Video Encoder

VYC 100N and VYC 100P Composite Video Decoder

Extron USA - West Headquarters	Extron USA - East	Extron EMEA	Extron Asia	Extron Japan	Extron China	Extron Middle East
+400,853,9178	+600,833,8174	+100,3937,6673	+991,7309,6766	+113,3811,7655	+100,883,1066	+971,4299,100
Bosha, 24, Canada	Bosha, 24, Canada	Bosha, 24, Canada	Bosha, 24, Canada	Bosha, 24, Canada	Bosha, 24, Canada	+671,4290,000,743
+174,491,2568	+174,491,2568	+31,332,4540	+51,631,4450		+81,21,274,1388
+174,491,2567,734	+174,491,2567,734	+31,332,4541,734	+51,631,4541,734		+81,21,274,1388,734

© 2008 Extron Electronics. All rights reserved.

68-779-01 Rev. C 08 08

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating instructions before value for improvement.

intermittents believe using the equipment.

Retain Instructions • The safety instructions should be kept for future reference.

Follion Warm

Thank warnings: Please call attention and please link to the assignment in the post-information.

recommendably by the equipment manufacturer because they may be

Hearlou.

Power sources * This equipment should be opened only from the power source indicated on the procedure. This equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, does not appear to become or death out.

Power disconnection * To remove power from, for equipment safely, remove all power ends from the run of the equipment, or the desktop power module (if detectable), or from the process source broadcast (wall unit).

Power coil protection * Power cords should be roasted, so that they are not likely to be stopped on or replaced by items placed upon or against them.

Servicing • later all servicing to qualified service personnel. There are no non-serviceable parts inside. In favor the risk of shock, do not attempt to service this equipment yours of increase opening or removing access may expose you to dangerous violations or other hazards.

Slots and openings * If the equipment has slots or holes in the enclosure, frame are provided to prevent overloading of sensitive components inside. These opening must never be blocked by other objects.

Lithium battery • Trone > a danger of explosion in battery is increasingly replaced. Replace it only with the source or equivalent from recommended by the manufacturer. Disprove of used batteries according to the manufacturer's instructions.

Avertissement

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, Europe, Africa, and the Middle East: and Central America: Extron Electronics, Europe
Extron Electronics Beeldschermweg 6C
1001 East Ball Road 3821 AII Amersfoort
Anaheim, CA 92805, USA The Netherlands

Asia: Japan:

Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Kyodo Building
PM Industrial Bldg. 16 Ichibancho
Singapore 368363 Chiyoda-ku, Tokyo 102-0082
Japan

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions or non-Extron authorized modification to the product.

If it has been determined that the product is defective, please call Extron and ask for an Applicable Engineer at [phone] (USA), 31.33.453.4040 (Europe), 65.6383.4400 (Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

安全须知 · 中文

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

NOTE This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to ensure compliance.

Table of Contents

Chapter 1 • Introduction....1-1

About the YCV 100, VYC 100N, and VYC 100P ..... 1-2

Features 1-2

Chapter 2 • Installation and Operation.... 2-1

Mounting the YCV 100, VYC 100N and VYC 100P . 2-2

Tabletop use 2-2

UL rack mounting guidelines 2-2

Rack mounting 2-3

Back of the rack installation.... 2-4

Furniture mounting 2-5

Projector mounting 2-6

Front Panel Features 2-6

Rear Panel Features and Cabling 2-7

YCV 100 2-7

VYC 100N and VYC 100P 2-8

Troubleshooting 2-10

Appendix A • Specifications, Part Numbers,

and Accessories ...... A-1

Specifications A-2

Included Parts A-4

Optional Accessories...... A-4

All trademarks mentioned in this manual are the properties of their respective owners.

68-779-01 Rev. C

08 08

Table of Contents, cont'd

YCV 100, VYC 100N, and VYC 100P

1 Chapter One

Introduction

About the YCV 100, VYC 100N and VYC 100P

Features

Introduction

About the YCV 100, VYC 100N, and VYC 100P

The Extron YCV 100 is a high-performance S-video to composite video encoder. It combines S-video Y and C (luminance and chrominance) signals into a composite video signal. The encoder is compatible with NTSC 3.58, NTSC 4.43, PAL, and SECAM signals. The unit accepts S-video input on two female BNC connectors or one 4-pin mini DIN connector and outputs composite video on one female BNC connector.

The Extron VYC 100N and VYC 100P are composite video to S-video decoders. It separates a composite video signal into S-video Y and C signals. The VYC 100N decodes NTSC 3.58 signals only and the VYC 100P decodes PAL signals only. Both decoders accept composite video input on one female BNC connector and outputs S-video signals on two female BNC connectors and/or one 4-pin mini DIN connector.

All units include an external 12 V power supply that accepts 100-240 VAC 50/60 Hz input.

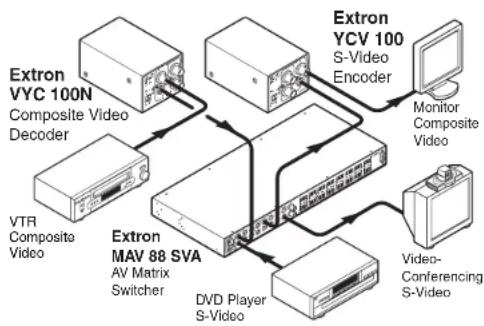

Features

Furniture, projector, and rack mountability — The YCV 100, VYC 100N, and VYC 100P can be mounted under a desk, podium, or other furniture, or secured to a projector mount with optional brackets. Alternatively, they can be mounted on an optional VersaTools ^® or universal rack shelf.

Versatile S-video input/output configuration — The encoder and decoder can pass S-video signals via two female BNC connectors or one 4-pin mini DIN connector.

YCV 100, VYC 100N, and VYC 100P

Installation and Operation

Mounting the YCV 100, VYC 100N, and VYC 100P

Front Panel Features

Rear Panel Features and Cabling

Troubleshooting

Installation and Operation

Mounting the YCV 100, VYC 100N, & VYC 100P

The YCV 100, VYCN, and VYC 100P can be set on a table or mounted on a rack shelf, under a desk or tabletop, or on a projector mount.

Tabletop use

Four self-adhesive rubber feet are included with the YCV 100, VYC 100N, and VYC 100P. For tabletop use, attach one foot at each corner of the bottom side of the unit and place the unit in the desired location.

UL rack mounting guidelines

The following Underwriters Laboratories (UL) guidelines pertain to the safe installation of the YCV 100, VYC 100N, and VYC 100P in a rack.

1. Elevated operating ambient temperature — If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature. Therefore, install the unit in an environment compatible with the maximum ambient temperature (Tma = +122 °F, +50 °C) specified by Extron.
2. Reduced air flow — Install the equipment in a rack so that the amount of air flow required for safe operation of the equipment is not compromised.
3. Mechanical loading — Mount the equipment in the rack so that a hazardous condition is not achieved due to uneven mechanical loading.
4. Circuit overloading — Connect the equipment to the supply circuit and consider the effect that circuit overloading might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
5. Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted equipment. Pay particular attention to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

Rack mounting

For optional rack mounting, do not install the rubber feet. Mount the YCV 100, VYC 100N, or YCV 100P, on a VersaTools' rack shelf (RSF 123, Extron part #60-190-20; RSB 123, part #60-604-21), or on a 6" deep rack shelf (RSU 126, part #60-190-10; RSB 126, part #60-604-11), or on a 1U universal rack shelf (RSU 129, part #60-190-01; RSB 129, #60-604-02).

On the standard rack shelf, the YCV 100, VYC 100N, and VYC 100P mount in one of eight locations to the rear of the shelf or in one of eight locations to the front of the shelf.

1. Remove rubber feet if they were previously installed on the bottom of the unit.
2. Mount the unit on the rack shelf, using two 4-40 x 3/16" screws in opposite (diagonal) corners to secure the unit to the shelf.
3. Install blank panel(s) or other unit(s) on the rack shelf.

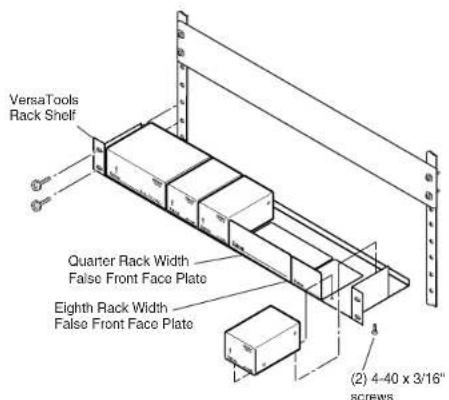

Mounting the YCV 100, VYC 100N, and VYC 100P on a VersaTools rack shelf

Installation and Operation

Isometric line drawing of a multi-level storage unit with numbered compartments (no text or symbols)

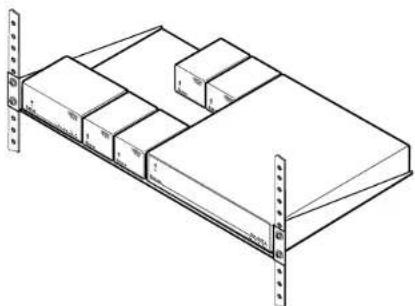

Mounting the YCV 100, VYC 100N, and VYC 100P on a 1U standard rack shelf

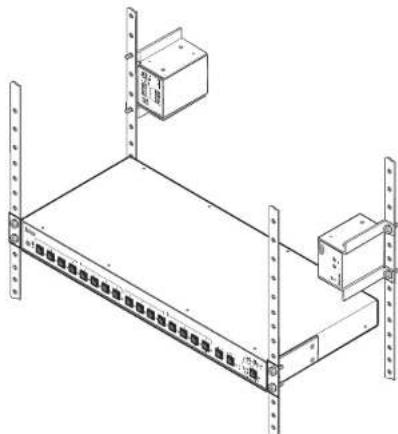

Back of the rack installation

The YCV 100, VYC 100N, and VYC 100P can be conveniently mounted on the rear of a rack by using the Extron back of the rack mounting kit (MBB 100, Extron part #70-367-01). The back-of-the-rack mounting kit allows the device to be vertically positioned.

1. Attach the two back of the rack mounting brackets to the sides of the unit using the four included mounting screws.

1. Mount the unit on the rack using the two included rack screws. It can be vertically mounted facing in either direction, as shown here.

Isometric line drawing of a server rack with two labeled boxes and vertical supports (no text or symbols)

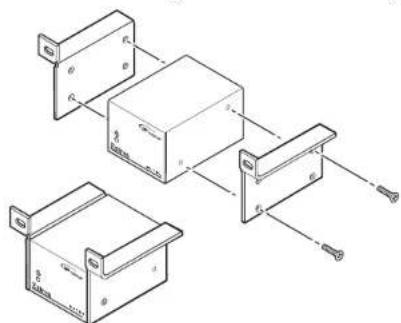

Furniture mounting

Furniture mount the YCV 100, VYC 100N, or VYC 100P using the optional MBU 123 mounting kit (part #70-212-01) as follows:

1. Remove rubber feet if they were previously installed on the bottom of the unit.
2. Attach the furniture mounting brackets to the unit with the machine screws provided.
3. Hold the unit with the attached brackets against the underside of the table or other furniture. Mark the location of the screw holes of the bracket on the mounting surface.
4. Drill 3/32" (2 mm) diameter pilot holes, 1/4" (6.3 mm) deep in the mounting surface at the marked screw locations.
5. Insert #8 wood screws into the four pilot holes. Tighten each screw into the mounting surface until just less than 1/4" of the screw protrudes.
6. Align the mounting screws with the slots in the brackets and place the unit against the surface, with the screws through the bracket slots. See the illustration below.
7. Slide the unit slightly forward or back, then tighten all four screws to secure the unit in place.

Installation and Operation, cont'd

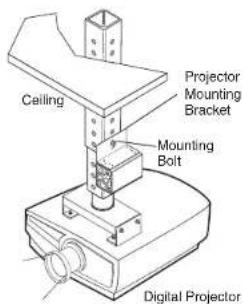

Projector mounting

Projector mount the YCV 100, VYC 100N, or VYC 100P using the optional PMK 100 mounting kit (part #70-217-01) as follows:

1. Remove rubber feet if they were previously installed on the bottom of the unit.
2. Attach the projector mounting brackets to the unit with the machine screws provided.
3. Secure the unit below the ceiling to a projector mount or other surface by inserting the mounting bolt through the bracket's slotted hole, as shown below.

Mounting the YCV 100, VYC 100N, and VYC 100N on a projector mount

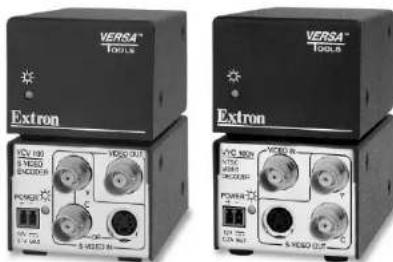

Front Panel Features

① Power LED — Lights to indicate that the YCV 100/VYC 100N/VYC 100P is on.

Rear Panel Features and Cabling

YCV 100

① Input connectors — Connect an S-video source to either:

• the two female BNC connectors or
• the 4-pin mini DIN connector.

NOTE Do not connect S-video sources to both types of connectors at the same time.

② Output connector — Connect a composite video output device to this female BNC connector.
③ Power connector — An external 12 V power supply is included with the unit. Plug it into this 2-pole captive screw connector. Wire the connector as shown below.

CAUTION

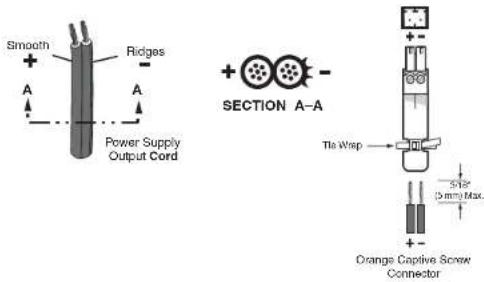

When connecting the power supply, voltage polarity is extremely important. Applying power with incorrect voltage polarity could damage the power supply and the YCV 100. Identify the power cord negative lead by the ridges on the side of the cord or a black heat shrink wrapping around it.

Installation and Operation, cont'd

NOTE

Strip the insulation from the wires to expose 5 mm (3/16") of the conductors. Do not tin the stripped power supply leads before installing the captive screw connector. Tinned wires are not as secure in the captive screw connectors and could be pulled out.

WARNING

The two power cord wires must be kept separate while the power supply is plugged in. Remove power before wiring.

To verify the polarity before connection, check the no load power supply output with a voltmeter.

Power LED — Lights to indicate that the YCV 100 is on.

VYC 100N and VYC 100P

NOTE

The VYC 100N and VYC 100P have identical rear panel connectors.

① Input connector — Connect a composite video source to this female BNC connector.
② Output connectors — Connect an S-video output device to:

• the two female BNC connectors and/or

③ Power connector — An external 12 V power supply is included with the unit. Plug it into this 2-pole captive screw connector. Wire the connector as shown in the following illustration.

CAUTION

When connecting the power supply, voltage polarity is extremely important. Applying power with incorrect voltage polarity could damage the power supply and the VYC 100N/VYC 100P. Identify the power cord negative lead by the ridges on the side of the cord or a black heat shrink wrapping around it.

NOTE

Strip the insulation from the wires to expose 5 mm (3/16") of the conductors. Do not tin the stripped power supply leads before installing the captive screw connector. Tinned wires are not as secure in the captive screw connectors and could be pulled out.

WARNING

The two power cord wires must be kept separate while the power supply is plugged in. Remove power before wiring.

To verify the polarity before connection, check the no load power supply output with a voltmeter.

④ Power LED — Lights to indicate that the VYC 100N/VYC 100P is on.

Installation and Operation, cont'd

Troubleshooting

Possible problems and their solutions include the following:

- Problem: No power at unit

Solution: Verify that the unit is receiving power by checking the front or rear LED. If no LED is lit, check the DC power plug termination and polarity.

- Problem: No video input

Solution: Verify that the source and output devices are powered on and connected properly.

- Problem: Some chroma crawl on the vertical edges or a rainbow effect on some images

Solution: This is a normal characteristic of the unit.

YCV 100, VYC 100N, and VYC 100P

Specifications, Part Numbers, and Accessories

Specifications

Included Parts

Optional Accessories

Specifications, Part Numbers, and Accessories

Video

Gain Unity

Bandwidth

YCV 100 8 MHz (-3 dB)

VYC 100N, VYC 100P ..... 5.5 MHz (-5.5 dB)

Video input

Number/signal type

YCV 100 1 S-video

VYC 100N, VYC 100P ..... 1 composite video

Connectors

YCV 100 ...... 2 female BNC or 1 female 4-pin mini DIN

VYC 100N, VYC 100P ..... 1 female BNC

Nominal level 1 Vp-p for Y of S-video, and for composite

video

0.3 Vp-p for C of S-video

Minimum/maximum levels

S-video ...... Analog: 0.3 V to 1.5 Vp-p for Y

Composite video ...... Analog: 0.3 V to 1.5 Vp-p with no offset

Impedance 75 ohms

Return loss ...... -35 dB @ 5 MHz

DC offset (max. allowable) ..... 5 V

Video output

Number/signal type

YCV 100 1 composite video

VYC 100N, VYC 100P ..... 2 S-video

Connectors

YCV 100 ...... 1 female BNC

VYC 100N, VYC 100P ..... 2 female BNCs or (1) 4-pin mini DIN

Nominal level 1 Vp-p for Y of S-video and for composite

video

0.3 Vp-p for C of S-video

Minimum/maximum levels ..... 0.3 V to 1.5 Vp-p for Y of S-video or

composite video (follows input)

Impedance 75 ohms

Return loss ...... -40 dB @ 5 MHz

DC offset .... ±5 mV maximum with input at 0 offset

Sync

Standards

VYC 100N ..... NTSC 3.58

VYC 100P PAL

YCV 100....NTSC 3.58, NTSC 4.43, PAL, SECAM

General

External power supply .... 100 VAC to 240 VAC, 50/60 Hz, external, autoswitchable; to 12 VDC, 1 A (max.), regulated

Power input requirements

VYC 100N, VYC 100P ..... 12 VDC, 0.2 A

YCV 100 12 VDC, 0.1 A

Temperature/humidity ...... Storage: -40 to +158 °F (-40 to +70 °C) /

10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) /

10% to 90%, noncondensing

Rack mount .... Yes, with optional 1U, 9.5" deep rack

shelf, part #60-190-01 (RSU 129) or

60-604-01 (RSB 129); or VersaTools ^3 3.5"

deep rack shelf, part #60-190-20 (RSF 123)

or 60-604-21 (RSB 123)

Furniture mountable with optional mini

under-desk mounting kit, part #70-212-01

(MBU 123)

Attachable to a projector mount with

optional mounting kit, part #70-217-01

(PMK 100)

Enclosure type ...... Metal

Enclosure dimensions 1.7" H x 2.2" W x 3.0" D

(1U high, one eighth rack wide)

(4.3 cm H x 5.6 cm W x 7.6 cm D)

(Depth excludes connectors.)

Product weight 0.4 lbs (0.2 kg)

Shipping weight 1 lbs (1 kg)

Vibration ISTA 1A in carton (International Safe

Transit Association)

Listings UL, CUL

Compliances ...... CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF 30,000 hours

Warranty 3 years parts and labor

NOTE All nominal levels are at ±10%.

NOTE Specifications are subject to change without notice.

Specifications, Part Numbers, Accessories, cont'd

Included Parts

These items are included in each order for a YCV 100, VYC 100N, or VYC 100P:

Included parts part number	Replacement
YCV 100 60-559-01
or VYC 100N 60-558-02
or VYC 100P 60-558-03
12 VDC, 1 A external power supply 70-055-01
IEC power cord
3.5 mm, 2-pole captive screw connector
Tweeker (small screwdriver)
User's Manual

Optional Accessories

These items can be ordered separately:

Accessories Part number
Mini under-desk mounting bracket 70-212-01
Mini projector mounting bracket 70-217-01
1U universal rack shelf kit 60-190-01
1U basic rack shelf 60-604-02
1U 6" deep universal rack shelf kit 60-190-10
1U 6" deep basic rack shelf 60-604-11
VersaTools rack shelf kit 60-190-20
VersaTools basic rack shelf	60-604-21
VersaTools back-of-the-rack mounting kit	70-367-01
