| Product Type | Graphics Card |
| Brand | Matrox |
| Model | C680 PCIe x16 |
| Form Factor | Full Height |
| Interface | PCI Express x16 |
| GPU | AMD |
| Memory | 2 GB GDDR5 |
| Monitor Support | Up to 6 monitors |
| Connectors | 6x Mini DisplayPort |
| Maximum Resolution | 4096x2160 @ 30 Hz (DisplayPort); 2560x1600 @ 60 Hz (DisplayPort, up to 3 monitors); 1920x1200 @ 60 Hz (HDMI via active adapter) |
| Framelock Support | Yes (requires ribbon cable, sold separately) |
| Dimensions (L x W x H) | 6.60 x 0.75 x 4.045 in (16.76 x 1.91 x 10.274 cm) |
| Operating Systems Supported | Windows 10, 8.1, 7 (32/64-bit), Windows Server 2012 R2, 2008 R2, Embedded Standard 7 |
| Certifications | Class A: FCC, CE, ACMA, VCCI, ICES, CSA, Korea |
| Operating Temperature | 5 to 55 °C (41 to 131 °F) |
| Humidity (Operating) | 20 to 80% (non-condensing) |
| Safety Features | ESD precautions; turn off and unplug system before installation; avoid moisture |
| Maintenance | Keep card clean; avoid blocking ventilation; do not attempt to repair |
| Spare Parts / Repairability | No user-serviceable parts; warranty and support via Matrox |
Frequently Asked Questions - C680 PCIe x16 MATROX
User questions about C680 PCIe x16 MATROX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Graphic card in PDF format for free! Find your manual C680 PCIe x16 - MATROX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. C680 PCIe x16 by MATROX.
USER MANUAL C680 PCIe x16 MATROX
Installation and operation 4
If a power supply (internal or external) was included with your product ....4
If your product includes laser-based technology ....5
Repair 5
About this user guide 6
Using this guide ....6
More information ....6
Overview 7
System requirements ....7
Installation overview 7
Installing your graphics hardware 8
Before you begin 8
Step-by-step installation 9
Replacing brackets on your graphics card 10
Installing multiple graphics cards .... 11
Connecting your monitors 13
Before you begin 13
Step-by-step connection setup ....14
Installing your Matrox software 16
Before you begin 16
Hardware detection 16
Matrox PowerDesk software 17
Accessing PowerDesk 17
Accessing Matrox PowerDesk help 17
Troubleshooting 18
What to do if you have a problem ....18
Common problems and solutions ....18
Product information 21
Specifications 21
Environmental 22
Notes and limitations 22
Customer support 23
Matrox Web 23
Technical support 23
Driver and software download 24
View your warranty information 24
Register your Matrox product 24
Matrox safety information
To ensure safe and reliable operation of your Matrox product, to avoid personal injury, and to prevent damage to your computer or Matrox hardware, read the following guidelines.
Installation and operation
- Read and retain all instructions. Only use your Matrox product according to the instructions, operating ranges, and guidelines provided in the Matrox user guide and other related Matrox documentation. Failure to follow these instructions could result in damage to your product or injury to the user or installer.
- Don’t expose your Matrox product to rain, water, condensation, or moisture.
■ Always turn off your computer, unplug it, then wait for it to cool before touching any of the internal parts of your computer or installing your Matrox product.
■ Static electricity can severely damage electronic parts. Before touching any electronic parts, drain static electricity from your body (for example, by touching the metal frame of your computer).
■ When handling a card, carefully hold it by its edges and avoid touching its circuitry. - Don’t stack devices or place devices so close together that they’re subject to recirculated or preheated air.
- Don't operate your system or Matrox product near a heat source or restrict airflow to your system, and make sure the ambient temperature doesn't exceed the maximum recommended temperatures. Don't block ventilation holes on your unit or system.
If a power supply (internal or external) was included with your product
- Don't place the external power supply directly on top of the device.
- Only use power supplies originally supplied with the product or use a replacement that's approved by Matrox. Don't use the power supply if it appears to be defective or has a damaged chassis.
-
Don't defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug doesn't fit into your outlet, consult an electrician to replace the obsolete outlet.
-
Make sure that nothing rests on the power cables and that the cables aren't located where they can be stepped on, pinched, or tripped over.
- Don't use damaged power cables.
■ Unplug your system or device during lightning storms or if unused for long periods of time.
If your product includes laser-based technology
■ The device contains a Class 1 laser product for use only under the recommended operating conditions and guidelines. For more information, see your Matrox user guide.
- Invisible laser radiation may be emitted from disconnected fibers or connectors. Don't stare into beams or view directly with optical instruments.
- Only use optical transceivers originally supplied with the product or use a replacement that's approved by Matrox.
■ For more information on laser support and compliance, see your Matrox user guide.
Repair
- Don't attempt to open or repair a power supply unit (if one was supplied).
- Don't attempt to open or repair your Matrox product.
If there's a fault with your Matrox product, review your Matrox warranty for more information.
About this user guide
Your Matrox user guide provides information on installing and using your Matrox hardware. For information on Matrox PowerDesk software features and options, see the help file included with your PowerDesk software.
Using this guide
This guide assumes you're familiar with basic functions like click, right-click and double-click, and that you're familiar with the basics of the operating system you're using. Also, we use the following conventions:
■ Bold for headings and for references to text that appears on-screen.
■ Italics for emphasis, file names, paths, publication titles, and new terms.
■ Bold Italics for emphasis.
■ Keyboard keys in square brackets, with a plus sign separating keys that you press simultaneously. For example: press [Ctrl]+[Alt]+[Del] to start Windows Task Manager.
- Arrows (“→”) to separate ordered directions. For example, “click OK → Close → OK” is the same as “click OK, then click Close, then click OK”.
- Green for cross-references. If you're viewing online, click green text to jump to what's being referenced.
More information
We provide additional information in help and Readme files. Be sure to check for any last-minute release notes included with your product. Also, check the Matrox Web site (www.matrox.com/graphics) for the latest Matrox software, technical support, and product information.
Overview
Thank you for purchasing a Matrox C-Series graphics card. This is a high-performance graphics card that supports PCIe® (PCI Express®) ×16 compliant systems and multi-monitor setups.
System requirements
| Hardware | Minimum 4 GB RAM (for 1 card), 12 GB RAM (for 2 cards)Motherboard with available PCI Express ^ × 16 slotInternet access for software installation |
| Windows ^ 10 (32-bit, 64-bit)Windows ^ 8.1 (32-bit, 64-bit) | |
| Software | Windows ^ Server ^ 2012 R2 (64-bit)Windows ^ Server ^ 2008 R2 (64-bit)Windows ^ 7 (32-bit, 64-bit)Windows ^ Embedded Standard 7 (32-bit, 64-bit) |
| Monitor | DisplayPort ^TM DVIHDM ^® |
* C680 and C420 only – Supported using identical third-party active adapters (sold separately).
Installation overview
Note: If your Matrox product is already partially or fully installed on your computer, some or all the installation information in this guide may not apply to you. However, this information may be useful if you need to reinstall your Matrox product.
To install your Matrox product:
1 Install your Matrox graphics hardware – see page 8.
2 Connect your monitors – see page 13.
3 Install your Matrox software – see page 16.
Installing your graphics hardware
This section describes how to install your Matrox card. For information specific to your computer, like how to remove its cover, see your system manual.
i
Note: Most Matrox low-profile graphics cards ship with ATX brackets compatible with most systems. If you have a low-profile system, you may need to change the ATX bracket on your graphics card to a low-profile bracket. For more information, “Replacing brackets on your graphics card”, page 10.
Before you begin
To avoid personal injury and to prevent damage to your computer or Matrox hardware, read the following guidelines before installing your Matrox graphics hardware.
Preventing damage to your graphics hardware
■ Always turn off your computer, unplug it, then wait for it to cool before touching any of the internal parts of your computer or installing your Matrox product.
■ While your computer is turned off but still plugged in, some electrical current is supplied to the motherboard. This current may prevent newly installed hardware from working properly.
■ Static electricity can severely damage electronic parts. Before touching any electronic parts, drain static electricity from your body (for example, by touching the metal frame of your computer).
■ When handling a card, carefully hold it by its edges and avoid touching its circuitry.
■ Always try to insert or remove your card as straight as possible.
- Don't operate your system near a heat source or restrict airflow to your system, and make sure the ambient temperature doesn't exceed the maximum recommended temperatures.
■ C420 only – To maintain adequate airflow for your Matrox C420 product, we strongly recommend running the internal system fan at medium speed, instead of the default low or automatic. Because the internal system temperature is normally read from the CPU (and the system airflow is optimized for the CPU), the temperature near the add-in cards may not be properly controlled.
Step-by-step installation
1 Open your computer and remove your existing graphics card
If a graphics card isn't already installed in your computer, skip to step 2.
If a graphics card is already installed in your computer:
a Using Programs and Features in Windows, remove any currently installed display drivers. Restart your computer for the changes to take effect.
b Turn off your computer and all peripherals such as your monitor or printer.
c Open the computer and remove your existing graphics card (if any). (If graphics hardware is built into the motherboard of your computer, you may need to disable it manually. For more information, see your system manual.)

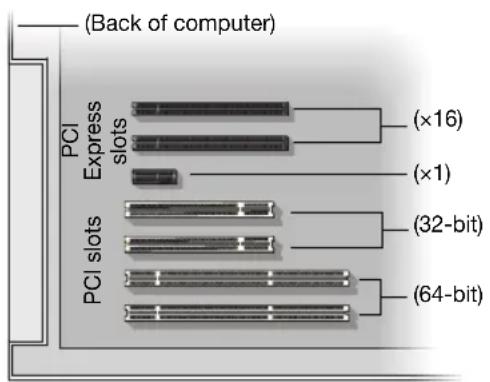

2 Choose an expansion slot
Most computers have different types of expansion slots. Choose a PCI Express (PCIe) ×16 slot depending on the type of card you have. Your system manual should identify the location of each type of expansion slot in your computer.
Note: We recommend using a PCIe ×16 slot with 16 lane support. If your system has multiple PCIe ×16 slots, your choice of PCIe slot may affect your card or system performance. For more information, see your computer manual.
WARNING: Inserting your Matrox card into the wrong type of slot could damage your card, your computer, or both.
PCI Express card

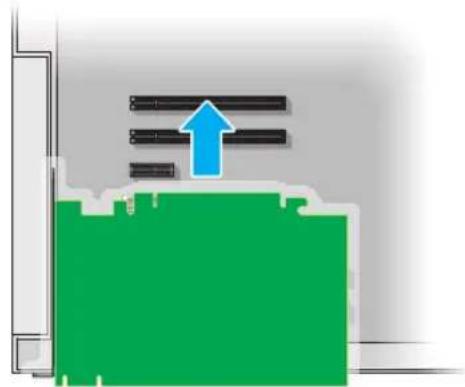

3 Insert your Matrox card
a Position your Matrox card over the expansion slot you've chosen.
b Push the card in firmly and evenly until it's fully seated in the slot.
c Secure the bracket of your Matrox card to the computer frame.
Replacing brackets on your graphics card
Most Matrox low-profile graphics cards ship with ATX brackets compatible with most systems.
Low-profile graphics cards
The following explains how to change brackets on your low-profile product.

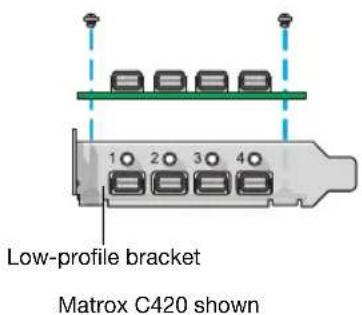

1 Remove the current bracket from your Matrox graphics card by removing the two screws on top of the graphics card.
Matrox C420 shown
2 Attach and fasten the new bracket with the two screws you just removed.
Installing multiple graphics cards
You can install up to two (2) Matrox C-Series graphics cards in your system. The following card combinations are supported:
■ Two (2) C420
■ Two (2) C680
■ Two (2) C900
■ One (1) C900 + one (1) C680
WARNING: To avoid damaging your cards, always insert your card as straight as possible into the slot. Don't rock the card from side to side. If you meet resistance, don't force the card into the slot.


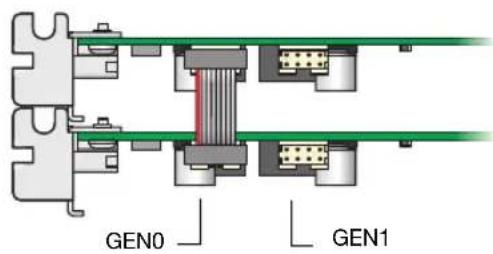

Matrox C900 and C680 only – If you have multiple Matrox C-Series graphics cards installed in your system, you can frame lock your outputs by interconnecting your graphics cards with a ribbon cable (sold separately). You can interconnect either two Matrox C900 graphics cards or two Matrox C680 graphics cards.
Attach the ribbon cable to the connector labeled GEN0 on one card and to the connector labeled GEN0 on the next graphics card.
WARNING: To make sure the cable is inserted properly, the cable edge marked with a red line should be closest to the bracket.
Connecting your monitors
This section describes how to connect your monitors to your Matrox graphics hardware. Depending on your Matrox product, your connection setup changes (see “Step-by-step connection setup”, page 14).
Before you begin
To avoid possible problems that could damage your monitors or prevent you from using your Matrox product, read the following guidelines before connecting your Matrox graphics hardware.
■ Your Matrox product supports the following adapters:
Matrox C900 ^1 –
- Mini HDMI to HDMI
- Mini HDMI to DVI
Matrox C680 and C420 -
- Mini DisplayPort to DisplayPort
- Mini DisplayPort to DVI (active)
- Mini DisplayPort to HDMI (active)
■ To get the most out of your Matrox product, we recommend you use identical monitors.
- Whenever you change your connection setup, make sure you're using the correct connectors and that all connectors are properly fastened.
- Don't change monitor connections while your computer is turned on. While your computer is turned on, it may be using monitor settings that are specific to the current monitor connections. Some devices may be permanently damaged if incorrect settings are used.
■ Whenever you restart your computer, make sure your monitors are already turned on. Otherwise, the software may not be able to properly detect your monitors.
Step-by-step connection setup
This section guides you through the step-by-step connection setup of your graphics hardware.
Matrox C900
1 Connect the first monitor

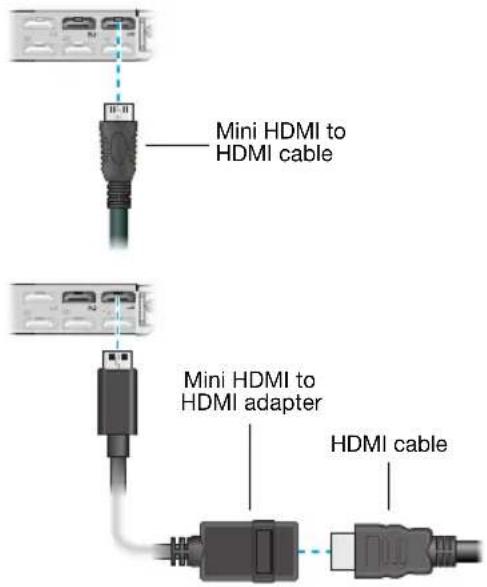

If your monitor has an HDMI connector, use a mini HDMI to HDMI cable to connect your monitor to the mini HDMI connector labeled 1 on the bracket of your Matrox card.
If you don't have a mini HDMI to HDMI cable, use a mini HDMI to HDMI adapter to connect your monitor cable to the mini HDMI connector labeled 1 on the bracket of your Matrox card.
If your monitor has a DVI connector, use a mini HDMI to DVI adapter to connect your monitor cable to the mini HDMI connector labeled 1 on the bracket of your Matrox card.
2 Connect the other monitors
Repeat step 1 for each monitor you want to connect.
1 Connect the first monitor

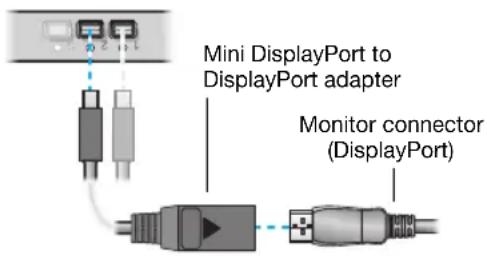

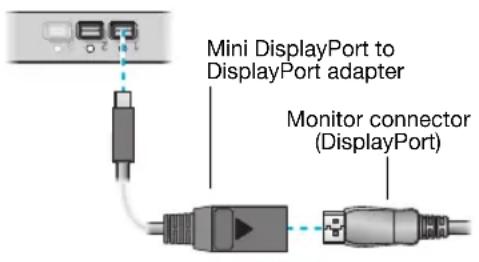

If your monitor has a DisplayPort connector, use a mini DisplayPort to DisplayPort adapter to connect your monitor cable to the mini DisplayPort connector labeled 1 on the bracket of your Matrox card.
If your monitor has an HDMI connector, use a mini DisplayPort to HDMI adapter (active) to connect your monitor cable to the mini DisplayPort connector labeled1 on the bracket of your Matrox card.
If your monitor has a DVI connector, use a mini DisplayPort to DVI adapter (active) to connect your monitor cable to the mini DisplayPort connector labeled1 on the bracket of your Matrox card.
2 Connect the other monitors
Repeat step 1 for each monitor you want to connect.
Your Matrox card is now installed. Restart your computer and install your Matrox software (see "Installing your Matrox software", page 16).
Installing your Matrox software
This section describes how to install Matrox software for Windows 10, Windows 8.1, Windows Server 2012 R2, Windows Server 2008 R2, Windows 7, and Windows Embedded Standard 7. The installation of the display driver is the same for the 32-bit and 64-bit versions.
Before you begin
■ If your Matrox product was provided by the manufacturer of your computer, check the Web site of that manufacturer for the latest display driver. A display driver provided by the manufacturer of your computer is more likely to be tested with your computer model.
■ You may need administrator rights to install or uninstall certain software. For more information, see Windows documentation or contact your system administrator.
Obtaining a display driver
■ Matrox makes the latest display drivers available on the Matrox Technical Support Web site (www.matrox.com/graphics/en/support/drivers).
Hardware detection
- Windows 10/8.1 – Windows detects new hardware when you restart and installs a Microsoft Basic Display Adaptor driver.
- Windows 7 – Windows detects new hardware when you restart and installs a standard VGA driver.
Matrox PowerDesk software
Your Matrox display driver includes Matrox PowerDesk software. This software helps you get the most out of your Matrox product. Use Matrox PowerDesk software to change certain display settings or access Matrox features.
Note: To avoid possible problems, unless otherwise specified, we recommend you use only PowerDesk software to change your display settings.
Accessing PowerDesk
Windows 10/8.1/7 – To access Matrox PowerDesk, right-click your Windows desktop and select Launch Matrox PowerDesk.
Accessing Matrox PowerDesk help
For information on Matrox PowerDesk software features and options, see the help file included with your PowerDesk software.
While using Matrox PowerDesk software, you can access the help file in several ways:
■ From the main PowerDesk interface, clickHelp and Troubleshooting → PowerDesk help
■ For information on a specific feature or control on a page, click the Help button ( ) on that page.
■ To find all topics that contain specific words, use the Search tab in the navigation window of the help file.
Troubleshooting
What to do if you have a problem
If you experience problems with your Matrox product:
■ Make sure your Matrox card is properly installed, you're using the correct connectors, and that all connectors are properly fastened. For more information, see “Installing your graphics hardware”, page 8 and “Connecting your monitors”, page 13.
■ Review the documentation provided with your Matrox product, including the information in this section, to see if your problem is already addressed.
If graphics hardware is built into your computer motherboard, make sure you disable your computer's built-in graphics hardware. Also, remove any currently installed display drivers for that graphics hardware.
If your problem persists, contact Matrox. For more information, see “Customer support”, page 23.
Common problems and solutions
This section addresses common problems that could prevent you from using your computer or graphics hardware.
Problem Computer doesn't display information or boot after Matrox card is installed
Cause If you have more than one PCIe ×16 slot, your graphics card may be using a slot that doesn't have 16 lane support.
Solution Try moving the PCIe card to another PCIe slot in your computer. For more information on the PCIe support of your system, see your system manual.
Cause There may be unsupported graphics hardware in your computer.
Solution If graphics hardware is built into your computer motherboard, your system may not have automatically disabled it when you inserted your Matrox card. Check your system manual for instructions on how to disable your computer's built-in graphics hardware.
Problem PowerDesk detects a problem with the driver installation (Setup program keeps prompting you to restart your system)
Cause Your Matrox graphics hardware may be disabled.
Solution In Windows Device Manager, enable the Matrox graphics hardware currently installed in your system.
Problem PowerDesk software isn't installed
Cause Windows 10/8.1 – If the Matrox display driver was installed or updated through Windows Update automatic driver installations, Matrox PowerDesk software may not be installed.
Solution Run the setup program included with the Matrox display driver. The setup program automatically installs PowerDesk software for your Matrox product. For more information, see “Installing your Matrox software”, page 16.
Problem Wrong color balance, screen image off-center, or no picture at all
Cause Your monitor video controls may be improperly set.
Solution Adjust your monitor controls (brightness, contrast, and so on). For more information, see your monitor manual.
Cause Your monitor may not be properly connected (the connectors aren't properly fastened or the monitor power cable isn't firmly in place) or may have been disconnected.
Solution Make sure you're using the correct connectors, that all connectors are properly fastened, and that all power cables are firmly in place. For more information, see “Connecting your monitors”, page 13.
Cause If your monitor supports multiple input sources (analog/digital), it may be configured to use the wrong source.
Solution Make sure your monitor is using the correct input source. For more information on selecting the input source for your monitor, see your monitor documentation.
Solution Change your connection setup to use a different input source. For more information, see “Connecting your monitors”, page 13.
Cause Digital monitors only – Your monitor cable may have an integrated analog/digital connector (DVI-I).
Solution Make sure the DVI connector on your monitor cable is digital only (DVI-D). For more information, see your monitor documentation.
Problem Not all graphics cards in the computer are fully supported
(Software doesn't work with a certain graphics card, or another graphics card doesn't work at all)
Cause
Windows 10/8.1/7 – If the Windows method for display driver installation was used (instead of running the setup program included with your Matrox display driver), the driver may not be installed for all the graphics cards it supports.
Solution
Run the setup program included with the Matrox display driver. The setup program automatically installs the display driver for each Matrox graphics card it supports.
Product information
Specifications
| Matrox C900 Matrox C680 Matrox C420 | |||
| Operating systems supported | Windows 10, Windows 8.1, Windows Server 2012 R2, Windows Server 2008 R2, Windows 7, and Windows Embedded Standard 7 | ||
| GPU AMD | TM | ||
| Audio output formats | Multi-stream audio through HDMI | Multi-stream audio through DisplayPort | Multi-stream audio through DisplayPort |
| Digital monitor support* | DVI, HDMI DVI, DisplayPort, HDMI DVI, DisplayPort, HDMI | ||
| Memory 4 GB GDDR 5 2 GB GDDR 5 2 GB GDDR 5 | |||
| Card type PCIe ×16 PCIe ×16 PCIe ×16 | |||
| Form factor Full height Full height Low profile | |||
| Monitors supported 9 | 6 | 4 | |
| Connectors | 9× Mini HDMI | 6× Mini DisplayPort | 4× Mini DisplayPort |
| Maximum resolution | 1920 × 1200 @ 60 Hz (HDMI, DVI) | 4096 × 2160 @ 30 Hz (DisplayPort)4096 × 2160 @ 60 Hz(DisplayPort, Max. 3 monitors)3840 × 2160 @ 30 Hz(DisplayPort, HDMI) | 2560 × 1600 @ 60 Hz(DisplayPort)1920 × 1200 @ 60 Hz (HDMI) |
| HDCP compliant† | √ | √ | √ |
| Framelock | √ | √ | — |
| Maximum card dimensions | L: 9.02" / W: 0.75" / H: 4.376"L: 16.76 cm / W: 1.91 cm / H: 11.115 cm | L: 6.60" / W: 0.75" / H: 4.045"L: 16.76 cm / W: 1.91 cm / H: 10.274 cm | L: 6.60" / W: 0.75" / H: 2.70"L: 16.76 cm / W: 1.91 cm / H: 6.9 cm |
| Certifications | Class A: FCC, CE, ACMA, VCCI, ICES, CSA, Korea | Class B: FCC, CE, ACMA, VCCI, ICES, CSA, Korea | Class B: FCC, CE, ACMA, VCCI, ICES, CSA, Korea |
* C680 and C420 only – DVI and HDMI monitors are supported using identical third-party active adapters (sold separately).
† Certain limitations may apply. Matrox strongly recommends that you review the HDCP Web site (www.digital-cp.com) and make sure you understand your legal obligations and responsibility.
Environmental
| Temperature, operational | 5 to 55 °C (41 to 131 °F)(near board ambient) |
| Temperature, non-operational storage and transportation | -40 to 70°C (-40 to 158 °F) |
| Humidity, operational (indoor) 20 to 80% (non-condensing) | |
| Humidity, non-operational storage and transportation | 10 to 95% (non-condensing) |
| Atmospheric pressure, operational | 650hPa (3,580 meters / 11,745 feet)to 1013hPa (0 meters / 0 feet) |
| Atmospheric pressure, non-operational and transportation | 192hPa (12,000 meters / 39,370 feet)to 1020hPa (-50 meters / -164 feet) |
Notes and limitations
- Your Matrox graphics card is 100% VGA compatible. It's also compatible with the following VESA® standards: VBE 3.0 (Super VGA modes), DPMS (energy saving), and DDC-2B (Plug-and-Play monitor), and DDC-CI.
■ EDID (Extended Display Identification Data) 1.2 and 1.3 support.
■ Compatible with VESA DisplayPort 1.2 (C680) and DisplayPort 1.1 (C420).
■ The display resolutions and refresh rates available depend on your Matrox graphics card, display driver, software monitor settings, and monitor. For information on the capabilities of your monitor, see your monitor documentation.
■ C680 only – Matrox C680 products support 4K UHD (Ultra High Definition) monitors, including those that require internal MST. Monitors that use internal MST are seen by PowerDesk as two (2) daisy-chained monitors, each using a display resolution of 1920 × 2160 .
Customer support
Matrox Web
Our Web site has product literature, press releases, technical material, a sales office list, trade show information, and other relevant material. Visit the Matrox Graphics Web site at www.matrox.com/graphics.
Technical support
Matrox values your business and offers professional support for your Matrox product.
If your product was purchased through a Matrox dealer contact your dealer for product support. This is the quickest and most effective method of technical assistance. Your dealer is familiar with your complete system.
If your product was purchased through Matrox, contact your Matrox representative or visit our technical support Web site at www.matrox.com/graphics/support.
Information we need
Please give a complete description of the problem, and include:
■ Matrox card serial number, model number, revision number, BIOS number, driver type and version, and memory address at which the Matrox card is installed.
■ Computer brand and model name.
■ Monitor brand and model name.
■ Operating system, version, and service pack.
■ Brand and model of any other cards and devices installed on your system.
Program specific problems
If a problem appears with a specific program, please give us the following information:
■ Display settings (color palette, display resolution, and so on) applied when the problem occurs.
■ If possible, take note of the file and segment address that caused the problem.
■ Detailed steps known to cause the bug, so we can reproduce it.
Driver and software download
A more recent display driver may support more features and may offer increased capabilities (such as higher display resolutions). Matrox makes the latest display drivers, software, and system utilities available on the Matrox Technical Support Web site (www.matrox.com/graphics/en/support/drivers).
View your warranty information
Matrox makes warranty information available on the Matrox site (www.matrox.com/warranty).
Register your Matrox product
Please register online (www.matrox.com/graphics/en/registration) to be eligible for customer support, new product announcements, and information on special offers and upcoming events.
USA
FCC Compliance Statement
Remark for the Matrox hardware products supported by this guide This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
WARNING Changes or modifications to this unit not expressly approved by the party responsible for the compliance could void the user's authority to operate this equipment. The use of shielded cables for connection of the monitor to the card is required to meet FCC requirements.
CANADA
(English) Industry Canada Compliance Statement
Remark for the Matrox hardware products supported by this guide These digital apparatus does not exceed the Class A limits for radio noise emission from digital devices set out in the Radio Interference Regulation of Industry Canada.
(English) FDA (Food and Drug Administration) requirements for Laser Products
Remark for the Matrox hardware products supported by this guide This product includes a 850 nm Laser Product compliant to 21CFR Subpart J Class 1.
JAPAN
VCCI Compliance Statement
Remark for the Matrox hardware products supported by this guide This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may occur, in which case, the user may be required to take corrective actions.
(English) European user's information – Declaration of Conformity
CE
Remark for the Matrox hardware products supported by this guide These devices comply with EC Directive 2014/30/EU for a Class A digital device. They have been tested and found to comply with
EN55022/CISPR22 and EN55024/CISPR24. In a domestic environment these products may cause radio interference in which case the user may be required to take adequate measures. To meet EC requirements, shielded cables must be used to connect the monitor and other peripherals to the card. These products have been tested in a typical class A compliant host system. It is assumed that these products will also achieve compliance in any class A compliant system.
(English) This item incorporates copy protection technology that is protected by U.S. patent(s) and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
(English) European user's information – Directive on Waste Electrical and Electronic Equipment (WEEE)
Please refer to the Matrox Web site (www.matrox.com/environment/en/weee) for recycling information.
FCC Compliance Statement
Remark for the Matrox hardware products supported by this guide This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help.
WARNING Changes or modifications to this unit not expressly approved by the party responsible for the compliance could void the user's authority to operate this equipment.
Declaration of conformity of a Class B digital device according to the FCC rules
We, the Responsible Party Matrox, 2002 Ridge Road, Champlain, NY 12919 • Telephone: (514) 822-6000 (extension 2026) • Attention: Conformity Group Matrox
Declaration The Matrox hardware products supported by this guide comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) these devices may not cause harmful interference, and (2) these devices must accept any interference received, including interference that may cause undesired operation. Any question regarding this declaration should be forwarded to the above coordinates.
CANADA
(English) Industry Canada Compliance Statement
Remark for the Matrox hardware products supported by this guide These digital devices do not exceed the Class B limits for radio noise emission from digital devices set out in the Radio Interference Regulation of Industry Canada.
VCCI Compliance Statement
Remark for the Matrox hardware products supported by this guide This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.
(English) European user's information – Information on Conformity
Remark for the Matrox hardware products supported by this guide These devices comply with EC Directive 2014/30/EU for a Class B digital device. They have been tested and found to comply with
EN55022/CISPR22 and EN55024/CISPR24. In a domestic environment these products may cause radio interference in which case the user may be required to take adequate measures. These products have been tested in a typical class B compliant host system. It is assumed that these products will also achieve compliance in any class B compliant system.
(English) This item incorporates copy protection technology that is protected by U.S. patent(s) and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
(English) European user's information - Directive on Waste Electrical and Electronic Equipment (WEEE)
Please refer to the Matrox Web site (www.matrox.com/environment/en/weee) for recycling information.
Advanced Micro Devices, Inc. ......AMD®
Apple Computer, Inc. ....App Store ^® , Apple ^® , iPad ^® , Mac ^® , Mac OS ^®
Belden Inc. ......Belden ®
Cisco Systems Inc. ......iOS ®
Dolby Laboratories, Inc. ....Dolby ^® , Dolby Digital ^®
Intel Corporation .....Intel ^ , Pentium ^ , Thunderbolt ^TM
Linus Torvalds ......Linux ®
Microsoft Corporation ....Aero®, Direct3D®, DirectShow®, DirectX®, Microsoft®, MS-DOS®, PowerPoint®, Windows®, Windows NT®, Windows Server®, Windows Vista®
PCI-SIG ....PCI™, PCI-X®, PCIe®, PCI Express®
Radio Corporation of America....RCA®
RealVNC Ltd....VNC®
Rovi Corporation ......Macrovision®
SD-3C, LLC ....SD™, SDHC™, SDXC™
Silicon Graphics, Inc. ......OpenGL®
Silicon Image, Inc. ......PanelLink®, TMDS®
U.S. Environmental Protection Agency .....ENERGY STAR®
Video Electronics Standards Association .DisplayPort™
VideoLAN ......VideoLAN®, VLC®, VLC® media player
Wibu-Systems......WIBU®
Copyright © 1996-2016 VideoLAN. This logo or a modified version may be used or modified by anyone to refer to the VideoLAN project or any product developed by the VideoLAN team, but does not indicate endorsement by the project.
HTML5 Logo by World Wide Web Consortium (W3C). This HTML5 logo is licensed under this Public License (http://www.creativecommons.org/licenses/by/3.0/legalcode). The logo has been modified to meet the resolution and size required by this application.
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
SD, SDHC and SDXC Logos are trademarks of SD-3C, LLC.
- (English) Registered trademarks are registered in the United States, Canada, and/or other countries. All other nationally and internationally recognized trademarks and tradenames are hereby acknowledged. • (Français) Les marques déposées sont déposées aux États-Unis, au Canada et/ou dans d'autres pays. Toutes les autres marques et tous les autres noms déposés reconnus nationalement ou internationalement sont également reconnus par les présentes. • (Deutsch) Die eingetragenen Warenzeichen sind in den USA, Kanada und/oder anderen Ländern registriert. Alle sonstigen national und international bekannten Warenzeichen und Produktnamen werden hiermit anerkannt. • (Italiano) I marchi registrati sono registrati negli Stati Uniti, in Canada e/o in altri paesi. Tutti gli altri marchi registrati e nomi commerciali riconosciuti a livello nazionale e internazionale sono ugualmente riconosciuti qui. • (Español) Las marcas registradas están registradas en los EE.UU., Canadá u otros países. Por medio del presente se reconocen todas las demás marcas y nombres comerciales reconocidos a nivel nacional e internacional.
(English) Disclaimer
THE INFORMATION IN THIS GUIDE IS SUBJECT TO CHANGE AT ANY TIME AND WITHOUT NOTICE.
Matrox Graphics Inc. reserves the right to make changes in specifications at any time and without notice. The information provided by this document is believed to be accurate and reliable at the time it is written. However, no responsibility is assumed by Matrox Graphics Inc. for its use, for its reproduction and/or distribution, in whole or in part; nor for any infringements of patents or other rights of third parties resulting from its use.
Dorval, Quebec, Canada H9P 2T4
(514) 822-6000
graphics@matrox.com
www.matrox.com/graphics
matrox®
Graphics for Professionals
- About this user guide 6
- Overview 7
- Installing your graphics hardware 8
- Connecting your monitors 13
- Installing your Matrox software 16
- Matrox PowerDesk software 17
- Troubleshooting 18
- Product information 21
- Customer support 23
- Matrox safety information
- Installation and operation
- If a power supply (internal or external) was included with your product
- If your product includes laser-based technology
- Repair
- About this user guide
- Using this guide
- More information
- Overview
- System requirements
- Installation overview
- Installing your graphics hardware
- Before you begin
- Preventing damage to your graphics hardware
- Step-by-step installation
- Open your computer and remove your existing graphics card
- Choose an expansion slot
- Insert your Matrox card
- Replacing brackets on your graphics card
- Low-profile graphics cards
- Installing multiple graphics cards
- Interconnecting multiple graphics cards (Framelock)
- Connecting your monitors
- Step-by-step connection setup
- Matrox C900
- Connect the first monitor
- Connect the other monitors
- Installing your Matrox software
- Obtaining a display driver
- Hardware detection
- Matrox PowerDesk software
- Accessing PowerDesk
- Accessing Matrox PowerDesk help
- Troubleshooting
- What to do if you have a problem
- Common problems and solutions
- Problem Computer doesn't display information or boot after Matrox card is installed
- Problem PowerDesk detects a problem with the driver installation (Setup program keeps prompting you to restart your system)
- Problem PowerDesk software isn't installed
- Problem Wrong color balance, screen image off-center, or no picture at all
- Problem Not all graphics cards in the computer are fully supported
- Cause
- Solution
- Product information
- Notes and limitations
- Customer support
- Matrox Web
- Technical support
- Information we need
- Program specific problems
- Driver and software download
- View your warranty information
- Register your Matrox product
- USA
- FCC Compliance Statement
- CANADA
- (English) Industry Canada Compliance Statement
- (English) FDA (Food and Drug Administration) requirements for Laser Products
- JAPAN
- VCCI Compliance Statement
- (English) European user's information – Declaration of Conformity
- (English) European user's information – Directive on Waste Electrical and Electronic Equipment (WEEE)
- Declaration of conformity of a Class B digital device according to the FCC rules
- (English) European user's information – Information on Conformity
- (English) European user's information - Directive on Waste Electrical and Electronic Equipment (WEEE)
- (English) Disclaimer
Brand : MATROX
Model : C680 PCIe x16
Category : Graphic card
