Product Type	Home Network Attached Storage (NAS)
Brand	Xoro
Model	HNS 2200
Hard Drive Interface	SATA (internal 3.5" HDD)
File System Supported	exFAT (first partition)
Network Interface	Gigabit Ethernet (RJ-45)
Power Supply	External AC adapter (12V DC typical)
DDNS Support	Yes (wwwnav.com)
Maximum Concurrent Torrents	4 simultaneous, 40 queued
WebDAV Accounts	Up to 16
Media Server	UPnP-AV (DLNA compatible)
Supported Protocols	SMB, WebDAV, FTP, BT, Media Server
Default Admin Credentials	Username: admin, Password: admin
Firmware Version	JCS358E-1.04a LOADER 1.04U W1.00
Dimensions (Approx.)	200 x 150 x 50 mm
Weight (Approx.)	1.0 kg (without HDD)

Frequently Asked Questions - HNS 2200 XORO

How do I install a hard drive in the HNS 2200?

To install a HDD, open the case and connect a SATA hard drive. Then connect the device to power and a router. Press the format button on the back to format the drive with exFAT. The device is then ready for use.

How do I access the HNS 2200 configuration page?

You can access it via web browser using the device's IP address (e.g., http://192.168.1.152) or via the SDisk.jar tool. The default username and password are both admin.

How can I access my files over the internet?

Enable the WebDAV service and register a DDNS domain (e.g., via wwwnav.com). Then use a WebDAV client (like WebDAV Nav on Android/iOS or any WebDAV app on PC) to connect using your domain or external IP and port 8080.

What file system does the HNS 2200 require for the internal drive?

The first partition must be formatted with exFAT. The device only recognizes the first partition. Other partitions or file systems may not be accessible.

Can I use the HNS 2200 as a media server?

Yes, the device has a built-in UPnP-AV media server. You can share photos, music, and video folders. Compatible with DLNA devices like Xbox, PlayStation, and iTunes.

How do I set up BitTorrent downloads on the HNS 2200?

Go to the BT Download section in the configuration page. Set the download path, upload your .torrent file, and manage the queue. You can download up to 4 torrents simultaneously and queue up to 40.

What is the default username and password?

The default username is admin and the password is admin. It is recommended to change the password after first login.

How do I update the firmware on the HNS 2200?

Firmware updates can be found on the Xoro website. Usually, you download the firmware file and upload it via the Maintenance section of the configuration page. Check the online manual for detailed steps.

How many WebDAV accounts can I create?

You can create up to 16 WebDAV accounts, each with customizable access permissions. A default folder is created with the same name as the account.

What should I do if I forget the password?

If you forget the admin password, you may need to reset the device to factory defaults. This typically involves holding a reset button on the device. Refer to the user manual for exact procedure.

USER MANUAL HNS 2200 XORO

HNS2200 Quick Start Guide

I. Preparation

1. Install HDD
2. Connect the HNS2200 to Power and to a router, power on and press "format" button at back of the device to format the HDD with the exFAT format.
3. HNS2200 is ready to be used.

II. Registration

First, search and open the setting page of HNS2200

Method 1

1. Install JAVA running environment on the computer (Newest Java software is available from http://www.java.com/).

1. After JAVA running environment installed, search HNS2200 with SDisk.jar and connect to HNS2200. (HNS2200 and computer must be in the same network. SDisk.jar is available from http://www.xoro.de/downloads/home-nas/downloads-fur-xoro-hns-2200/)

Method 2

1. Open the configuration page of the router on local computer. (The default IP of the router is 192.168.1.1 and generally visible at its back.)

1. Then you can see all the connected devices and IP addresses on the configuration page.

This table shows the assigned IP address, MAC address and time expired for each DHCP leased client.

IP Address	MAC Address	Time Expired(s)
192.168.1.151	00:0b:6a:5e:df:9b	862115
192.168.1.152	00:ce:39:b4:e6:f6	863999
192.168.1.153	00:19:c5:7e:92:f7	863841

Refresh

Close

1. Input the IP address of HNS2200 (192.168.1.152) in the address bar of web browser and input User Name: admin and password: admin. The HNS2200 setting page will be opened as below. Only disable DHCP Server.

Second, User Registration

Go to the setting page—network—DDNS, Create a free account with the wwwnav.com (service provider) and register your preferred name.

Remark: change the URL on network-Service Port. (The default URL may have conflict with the router)

III. How to use HNS200 functions—Available on both local network and WAN.

HNS2200 local network (SMB Server)

Input HNS2200 IP address (\192.1.168.1.152) in local address bar

Connect the Computer to HNS2200 and then you can copy and delete files

How to visit HNS2200 through Internet (WEBDAV Server) On your PC

1. Open the setting page, go to Network-DDNS user registration page and find out the registered name.
2. Input www.wwnav.com in the address bar of the explorer, go to webdav page, visit the device carrying your username. (xoronas).

1. You can visit the server through internet or local network by making the selection button on the screen. In both cases, you can unload and download files with WEBDAV application.

1. Upload and download files with WEBDAV application. (Internet)

How to visit HNS2200 through Internet (WEBDAV Server) On your Anroid Phone,iPod,iPad,iPhone

1. Install a webdav clinet, for example, Webdav Nav or Webdav nav+ on your iPad.
2. Run the Webdav Nav, then press '+' to add a new server connection. Make sure the Server URL, username and password are correct.
   For Smart phone with Anroid system please install is "WebDAV Nav Lite" or "WevDAV File Manager".

IV. More functions

7NS6600 has many functions like SAMBA Server, FTP Server, BT Download and Media Server, which bring your more convenience and enjoyment.

1. FTP Server

Install "Filezilla" on your computer, run this tool, input 7NS6600 IP address and quick connect the 7NS6600.

If it is connected successfully, following information will be displayed..

You can now upload and download files by FTP application freely.

2. Media Server

The UPnP-AV media server can be used to share your photos, music and videos that are stored on the network drive with an Xbox 860, PlayStation 8 video game console, WMP92 or other DLNA compatible devices that are connected to the same local network as well as stream music to iTunes media players.

9) Add permissions and users to the media share in the configuration page.

- From the drop-down list of the corresponding list, select the folder where your media files (e.g. photos, music, videos) are stored.

- Repeat the previous step for each media type (photo, music, video).

- The file sharing can be disabled at any time by clicking DISABLE for the corresponding directory.

2) for example Install and run "I Tunes" on your computer, run this tool and search for 7NS2200 in your home network. And Media files can be shared.

8) The function "iTunes Playlist Cache" is used for all the devices with "I Tunes". (Windows system or Mac system)

3. BitTorrent download

BT download is a Peer-to-Peer application. Here you can manage your torrents. Before you add the first torrent, set the download path to your preferred folder. Also, you might want to click Settings and set the server port plus a limit for the upload and download speed according to your network's bandwidth. After changing the settings, click Apply to save the new configuration.

HNS2200 supports maximum 4 torrents download at the same time and 40 torrents queuing.

The download speed may not be as fast as a BitTorrent™ client on the computer but once the torrent has been added to the queue, it can download the files by itself and you can turn off the computer.

V. Introduction of some functions and visit methods

Access the HNS2200 configuration page and webdav application by IP address in local network.

Input IP address in Web Browser address bar to access the HNS2200 configuration page.

Access the HNS2200 configuration page and webdav application by URL address in Internet.

When you are not at home, you can access the HNS2200 by WAN. Even without knowing the WAN IP adresse of the router, you can find the WAN IP of the router, log in and operate the HNS2200 located in your home.

How to find the WAN IP of the router

1. Input http://www.wwnav.com in explorer address bar and click on "Visit NAS(Internet)" with mouse and log in with your username.

1. After logging in successfully, you will find WANIP-Adresse of the router.

Control and operate the HNS2200 on configuration page in WAN network.

Input http://62.206.46.68:8000 in web browser address bar.

Configuration WebDAV server (exemplary)

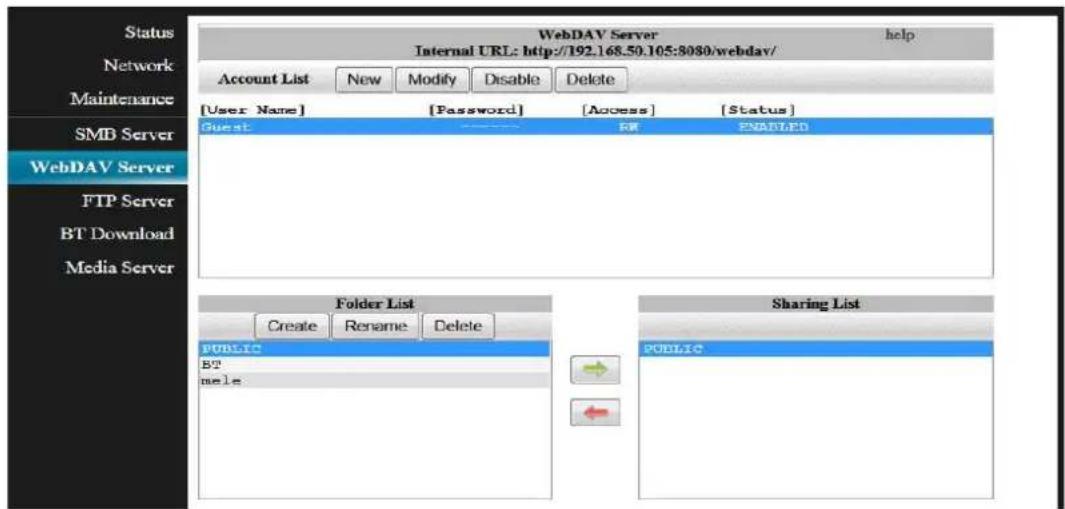

WebDAV server allows you to upload/download files from local network or internet. You can enable WebDAV server by clicking on „WebDAV Service" under Menu Status. The Menu of WebDAV Server is illustrated as blow

This tab allows you to creat, modify, enable, disable and delete a WebDAV account. You can also give different permissions to every account. Totally 16 accounts are supported. After a new WebDAV account is created, a default folder will be created, name of the folder is the same as the account name.

VI. HDD format

For the network drive can HNSS2200 only access the first partition and it has to be formatted using the exFAT (Extended File Allocation Table) file system.

Login as administrator, go to "System setting" and select "Maintain". Select "Disk" and click Format. This will format your hard drive and prepare it for the network drive and it will create a single partition using the exFAT file system. If you create other partitions or choose a different file system when connected through USB, keep in mind that the network drive is only able to recognize the first partition and it has to be exFAT!

VII. Online manual

Xoro HNS2200 is delivered with a quick installation guide. For more information please refer on

http://www.xoro.de/downloads/home-media-player/downloads-fur-xoro-hns-2200/. A manual of paper would quickly be outdated and the information might no longer match the current product. However, the Online manual will always be kept up to date and you can access it any time you need to. If you like to read some of the information offline, please select the "export: odf" or "export: pdf" tab on top of the Online manual to create a PDF file with multiple pages.
