Osmo - Base - Uncategorized DJI - Free user manual and instructions

Product Type	Stabilizing Base for DJI Osmo
Dimensions	126 mm × 90 mm × 44 mm
Weight	162 g
Mounting Interface	1/4" thread for tripod
Attachment Mechanism	Slot with release button
Compatible Devices	DJI Osmo handheld gimbal
Primary Function	Provides stable upright platform for Osmo
Construction Material	High-strength plastic
Usage Precautions	Avoid overtightening thread; hold release button when removing
Additional Features	Lanyard hole for secure attachment
Maintenance	Wipe clean with dry cloth; keep thread free of debris
Safety Warning	Do not mount multiple accessories to prevent toppling
Package Contents	1x Osmo Base, 1x User Manual
Warranty	Standard DJI warranty applies
Repairability	No user-serviceable parts; contact DJI support
Manufacturer	DJI
Model	Osmo Base

Frequently Asked Questions - Osmo - Base DJI

What is the DJI Osmo Base used for?

The Osmo Base is a stabilizing platform that allows your DJI Osmo to stand upright on a flat surface or be mounted on a tripod via the 1/4" thread underneath.

How do I attach the Osmo to the base?

Insert the Osmo into the slot with the lanyard hole facing the release button. Press firmly until it clicks into place. Ensure it is secure before use.

How do I remove the Osmo from the base?

Hold down the release button and gently pull the Osmo upward. Never remove without pressing the button, as this may damage the device.

Can I use the Osmo Base on a tripod?

Yes. The base features a 1/4" thread on the bottom, compatible with standard tripod mounts. Avoid overtightening to prevent damage.

Is it safe to mount heavy accessories on the Osmo while using the base?

Be cautious. Adding multiple accessories may cause the base to topple over. Use only lightweight add-ons and ensure the surface is stable.

What are the dimensions and weight of the Osmo Base?

Dimensions: 126 mm × 90 mm × 44 mm. Weight: 162 g.

Can I clean the Osmo Base with water or chemicals?

No. Clean only with a dry, soft cloth. Avoid water, solvents, or abrasive cleaners to prevent damage.

Does the Osmo Base come with a warranty?

Yes. Standard DJI warranty terms apply. Contact DJI support for warranty claims or repairs.

Is the Osmo Base compatible with all DJI Osmo models?

It is designed specifically for the original DJI Osmo. Compatibility with later models (e.g., Osmo+ or Osmo Pro) may vary. Check the slot size and release button alignment.

What should I do if the release button is stuck?

Do not force it. Gently wiggle the Osmo while pressing the button. If it remains stuck, contact DJI support for assistance.

USER MANUAL Osmo - Base DJI

Line drawing of a mechanical component with a circular top and triangular cutout (no text or symbols)

Disclaimer and Warning

Congratulations on purchasing your new DJI product. The information in this document affects your safety and your legal rights and responsibilities. Read this entire document carefully to ensure proper configuration before use. Failure to read and follow instructions and warnings in this document may result in serious injury to yourself or others, damage to your DJI product, or damage to other objects in the vicinity. This document and all other collateral documents are subject to change at the sole discretion of DJI. For up-to-date product information, visit http://www.dji.com and click on the product page for this product.

By using this product, you hereby signify that you have read this disclaimer and warning carefully and that you understand and agree to abide by the terms and conditions herein. You agree that you are solely responsible for your own conduct while using this product, and for any consequences thereof. You agree to use this product only for purposes that are proper and in accordance with all applicable laws, rules, and regulations, and all terms, precautions, practices, policies and guidelines DJI has made and may make available.

DJI accepts no liability for damage, injury or any legal responsibility incurred directly or indirectly from the use of this product. The user shall observe safe and lawful practices including, but not limited to, those set forth in this document.

Introduction

The Osmo Base provides a stable platform for your Osmo to stand upright.

Specifications

Dimensions: 126 mm × 90 mm × 44 mm

Weight: 162 g

Usage

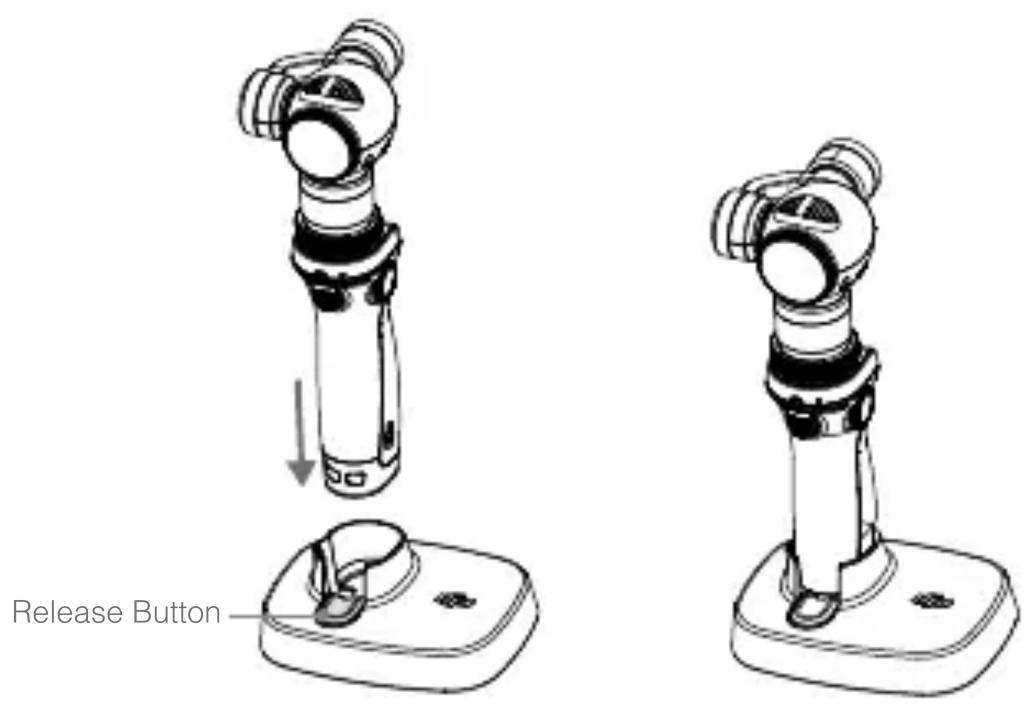

To mount, place the Osmo inside the slot with the lanyard hole facing the release button. Ensure it is secure.

To remove the Osmo, hold down the release button.

• Be careful when mounting multiple accessories on the Osmo as this could cause the Osmo Base to topple over.
• Removing without holding down the release button may damage the Osmo.

The Osmo Base provides a 1/4" thread underneath for mounting on a tripod.

- Do not over tighten the 1/4" thread to avoid damaging the Osmo Base.

The content in this document is subject to change.

Download the latest version from www.dji.com/product/osmo

If you have any questions about this document, please contact DJI by sending a message to [e-mail].
